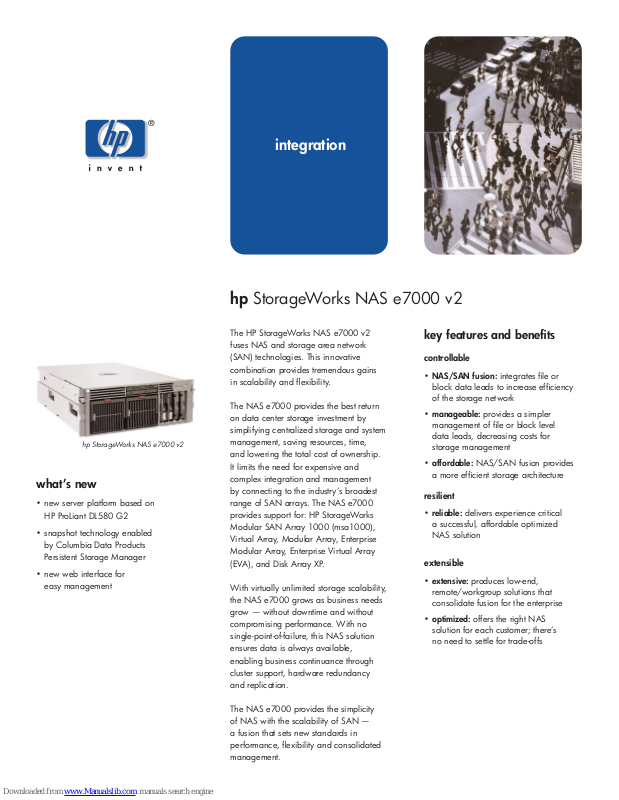

HP StorageWorks NAS e7000 v2 Specifications

integration

hp StorageWorks NAS e7000 v2

what’s new

• new server platform based on
HP ProLiant DL580 G2

• snapshot technology enabled
by Columbia Data Products
Persistent Storage Manager

• new web interface for
easy management

key features and benefits

controllable

• NAS/SAN fusion: integrates file or

block data leads to increase efficiency
of the storage network

• manageable: provides a simpler

management of file or block level
data leads, decreasing costs for
storage management

• affordable: NAS/SAN fusion provides

a more efficient storage architecture

resilient

• reliable: delivers experience critical

a successful, affordable optimized
NAS solution

extensible

• extensive: produces low-end,

remote/workgroup solutions that
consolidate fusion for the enterprise

• optimized: offers the right NAS

solution for each customer; there’s
no need to settle for trade-offs

The HP StorageWorks NAS e7000 v2
fuses NAS and storage area network
(SAN) technologies. This innovative
combination provides tremendous gains
in scalability and flexibility.

The NAS e7000 provides the best return
on data center storage investment by
simplifying centralized storage and system
management, saving resources, time,
and lowering the total cost of ownership.
It limits the need for expensive and
complex integration and management
by connecting to the industry’s broadest
range of SAN arrays. The NAS e7000
provides support for: HP StorageWorks
Modular SAN Array 1000 (msa1000),
Virtual Array, Modular Array, Enterprise
Modular Array, Enterprise Virtual Array
(EVA), and Disk Array XP.

With virtually unlimited storage scalability,
the NAS e7000 grows as business needs
grow — without downtime and without
compromising performance. With no
single-point-of-failure, this NAS solution
ensures data is always available,
enabling business continuance through
cluster support, hardware redundancy
and replication.

The NAS e7000 provides the simplicity
of NAS with the scalability of SAN —
a fusion that sets new standards in
performance, flexibility and consolidated
management.

hp StorageWorks NAS e7000 v2

hp StorageWorks

NAS e7000 v2

management

technical specifications

file protocol support CIFS, NFS, NCP, AppleTalk, HTTP, FTP
OS support Microsoft®Windows®2000 Advanced Server
dimensions (HxWxD) 6.94 x 19 x 26.5 in/17.6 x 48.3 x 67.3 cm
weight 66 lbs/29.9 kg
cache 2 MB battery backed cache
data transfer method Fibre Channel
drives supported 10K RPM universal hot-pluggable 18 GB, 36 GB, 72 GB, 146 GB drives
input requirements • nominal line voltage; 100 to 120 VAC/200 to 240 VAC

• range line voltage; 1135W @ 110 VAC/1125W @ 220 VAC

• line frequency; 50 to 60 Hz

• typical input current; 12A (100 VAC), 9.8A (120 VAC), 4.9A (220 VAC)

maximum number of drives dependent upon SAN array
power 800W/800W (lowline/highline)
reliability features redundant OS, redundant power supplies, hot-plug PCI
relative humidity (non-condensing) • operating; 10% to 70%

• shipping; 5% to 95%

temperature range • operating; 50 to 95° F/10 to 35° C

• shipping; -22 to 122° F/-30 to 50° C

maximum BTUs 4000 BTU
maximum wet bulb temperature 101.7° F/38.7° C

ordering information

product number product name description

322310-001, 421 NAS e7000 v2 NAS head for installation with the SAN array

what’s included

• 2 x 36GB SCSI HD; 2 x Intel®Xeon Processors MP; HP Integrated Lights-Out Standard Management (iLO) on system board; 2048 MB RAM;
HP Advanced Memory Protection; six, full length 64-bit/100 MHz PCI-X slots, 4 hot-pluggable; Integrated NC7770 PCI- X Gigabit Server
Adapter in a slot; Integrated Smart Array 5i Plus Controller (Dual Channel, Ultra3); battery-backed write cache enabler module

• HP supplied software: Windows Powered OS; HP StorageWorks NAS Data Copy; CDP Persistent Storage Manager; Rapid Launch; Web
Based Configuration Utility; Array Configuration Utility; HP Insight Manager (CIM) WBEM Win32; HP Insight Manager base console;
Smart Start 6.x software drivers; SmartStart 6.x CD (utilities only) and Management 6.x CD; Windows Powered OS drivers, including Array
Controller driver and HBA drivers; Tivoli TME, HP OpenView, IBM Netview, CA Unicenter, BMC agents installed for Enterprise (SNMP)
Management; NIC Teaming Drivers; HP UPS; APC UPS; Quick Restore CD

The information in this document is
subject to change without notice.
Microsoft and Windows are U.S.
registered trademarks of Microsoft
Corporation. Intel is a registered
trademark of Intel Corporation. All
other product names mentioned
herein may be trademarks or
registered trademarks of their
respective companies.

© 2003 Hewlett-Packard
Development Company, L.P.

2/2003

5981-5714EN

for more information

For more information on the HP StorageWorks NAS e7000, contact any of our worldwide sales offices or
visit our web site at: http://h18006.www1.hp.com/storage/networkattached.html

warranty and support

warranty features — warranty uplifts and HP CarePaq services are offered on all HP StorageWorks NAS products
hp service and support
