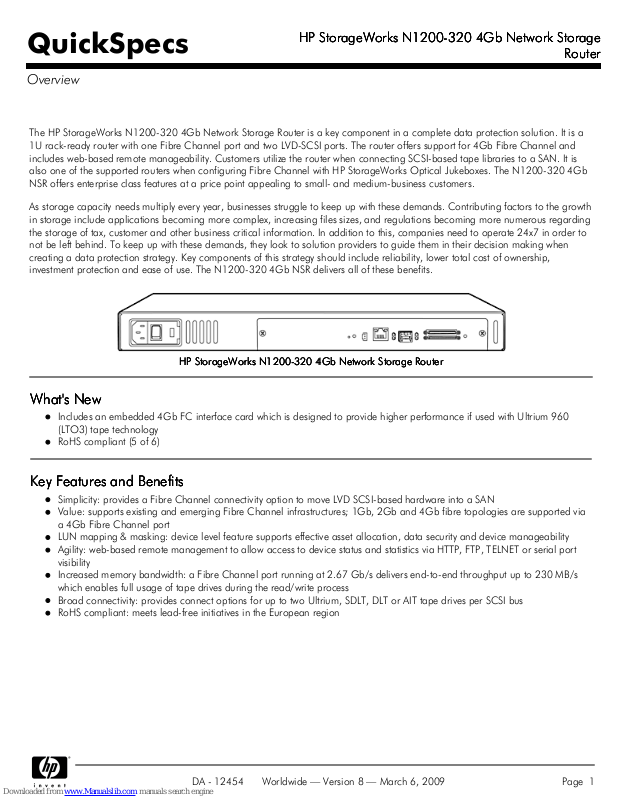

Page 1
The HP StorageWorks N1200-320 4Gb Network Storage Router is a key component in a complete data protection solution. It is a
1U rack-ready router with one Fibre Channel port and two LVD-SCSI ports. The router offers support for 4Gb Fibre Channel and
includes web-based remote manageability. Customers utilize the router when connecting SCSI-based tape libraries to a SAN. It is
also one of the supported routers when configuring Fibre Channel with HP StorageWorks Optical Jukeboxes. The N1200-320 4Gb
NSR offers enterprise class features at a price point appealing to small- and medium-business customers.
As storage capacity needs multiply every year, businesses struggle to keep up with these demands. Contributing factors to the growth
in storage include applications becoming more complex, increasing files sizes, and regulations becoming more numerous regarding
the storage of tax, customer and other business critical information. In addition to this, companies need to operate 24x7 in order to
not be left behind. To keep up with these demands, they look to solution providers to guide them in their decision making when
creating a data protection strategy. Key components of this strategy should include reliability, lower total cost of ownership,
investment protection and ease of use. The N1200-320 4Gb NSR delivers all of these benefits.
HP StorageWorks N1200-320 4Gb Network Storage Router
HP StorageWorks N1200-320 4Gb Network Storage RouterHP StorageWorks N1200-320 4Gb Network Storage Router
HP StorageWorks N1200-320 4Gb Network Storage Router
What's New
What's NewWhat's New
What's New
Includes an embedded 4Gb FC interface card which is designed to provide higher performance if used with Ultrium 960
(LTO3) tape technology
RoHS compliant (5 of 6)
Key Features and Benefits
Key Features and BenefitsKey Features and Benefits
Key Features and Benefits
Simplicity: provides a Fibre Channel connectivity option to move LVD SCSI-based hardware into a SAN
Value: supports existing and emerging Fibre Channel infrastructures; 1Gb, 2Gb and 4Gb fibre topologies are supported via
a 4Gb Fibre Channel port
LUN mapping & masking: device level feature supports effective asset allocation, data security and device manageability
Agility: web-based remote management to allow access to device status and statistics via HTTP, FTP, TELNET or serial port
visibility
Increased memory bandwidth: a Fibre Channel port running at 2.67 Gb/s delivers end-to-end throughput up to 230 MB/s
which enables full usage of tape drives during the read/write process
Broad connectivity: provides connect options for up to two Ultrium, SDLT, DLT or AIT tape drives per SCSI bus
RoHS compliant: meets lead-free initiatives in the European region
QuickSpecs
HP StorageWorks N1200-320 4Gb Network Storage
HP StorageWorks N1200-320 4Gb Network StorageHP StorageWorks N1200-320 4Gb Network Storage
HP StorageWorks N1200-320 4Gb Network Storage
Router
RouterRouter
Router
Overview
DA - 12454 Worldwide — Version 8 — March 6, 2009
Page 1
Page 2
Connectivity
ConnectivityConnectivity
Connectivity
Up to 2 Ultrium, SDLT or DLT tape drives or multiple Optical drives per SCSI port with a single HP
N1200-320 4Gb NSR. A library robotic arm counts as a SCSI device, but does not need its own SCSI
Port connection because of the low bandwidth requirement of the robotic arm.
Easy Installation
Easy InstallationEasy Installation
Easy Installation
The HP N1200-320 4Gb NSR is shipped as a rack-ready unit. The rack mount hardware included with
the router allows installation in a variety of HP racks which include the 10000 series, 9000 series, 5000
series and System/E racks.
Manageability
ManageabilityManageability
Manageability
The HP N1200-320 4Gb NSR allows web-based remote manageability; the unit can be monitored and
managed from across the room or across the globe. The graphical user interface allows end users to
configure the router by "pointing and clicking" on a graphical representation of the router. The manager
can be accessed from any computer with a web browser (as long as this computer has security access
privileges to access the router).
The HP N1200-320 4Gb NSR also includes Selective Storage Presentation (SSP). This manageability
feature allows multiple servers to share a single data router. By providing a unique map for each host,
the user can limit what each host has access to.
The HP N1200-320 4Gb NSR includes the SCSI Controller Command (SCC) manageability feature.
This feature provides a means for the host server operating system to determine the number FC LUNs
supported by the NSR.
Performance
PerformancePerformance
Performance
The N1200-320 4Gb is designed to provide higher performance when used with Ultrium 960 tape
drives. A FC port running at 2.67 GB/s delivers end-to-end throughput up to 230 MB/s which enables
full usage of tape drives during the read/write process. Data is backed up and restored in significantly
less time, or increasing larger data sets are backed up within the current backup window.
QuickSpecs
HP StorageWorks N1200-320 4Gb Network Storage
HP StorageWorks N1200-320 4Gb Network StorageHP StorageWorks N1200-320 4Gb Network Storage
HP StorageWorks N1200-320 4Gb Network Storage
Router
RouterRouter
Router
Product Highlights
DA - 12454 Worldwide — Version 8 — March 6, 2009
Page 2
Page 3
HP's extensive compatibility testing program assures that your HP StorageWorks N1200-320 4Gb Network Storage Router works
with leading servers, operating systems, and backup applications - and not just those sold by HP. The N1200-320 4Gb works
seamlessly in many environments, making them especially suitable if you have a mixed system environment. For the latest list of
servers, workstations, operating systems, and backup software that support the N1200-320 4Gb, check the HP StorageWorks
Enterprise Backup Solution compatibility matrix at
http://www.hp.com/go/ebs
.
Server Compatibility
Server CompatibilityServer Compatibility
Server Compatibility
The N1200-320 4Gb is supported on a wide range of HP systems. For details of which router works
with which systems, including third-party systems, reference the EBS compatibility matrix at
http://www.hp.com/go/ebs
for the latest hardware compatibility information.
OS Support
OS SupportOS Support
OS Support
Reference the EBS compatibility matrix for the most up-to-date OS compatibility information at
http://www.hp.com/go/ebs
.
Software Support
Software SupportSoftware Support
Software Support
Reference the EBS compatibility matrix for the most up-to-date software compatibility information at
http://www.hp.com/go/ebs
.
Tape Library Connectivity
Tape Library ConnectivityTape Library Connectivity
Tape Library Connectivity
The N1200-320 4Gb supports both current and discontinued HP StorageWorks Tape Libraries such as
the MSL2024, MSL4048, MSL5000, ESL9000, SSL2020 and TL891/895. Reference the EBS
compatibility matrix for the most up-to-date tape library connectivity information at
http://www.hp.com/go/ebs
Optical Jukebox
Optical JukeboxOptical Jukebox
Optical Jukebox
Connectivity
ConnectivityConnectivity
Connectivity
Information on which ISVs support the use of the N1200-320 4Gb when configurating HP
StorageWorks Optical Jukeboxes can be found at
http://www.hp.com/go/udo
QuickSpecs
HP StorageWorks N1200-320 4Gb Network Storage
HP StorageWorks N1200-320 4Gb Network StorageHP StorageWorks N1200-320 4Gb Network Storage
HP StorageWorks N1200-320 4Gb Network Storage
Router
RouterRouter
Router
Compatibility
DA - 12454 Worldwide — Version 8 — March 6, 2009
Page 3
Page 4
Warranty
WarrantyWarranty
Warranty
The warranty for this product consists of a 1-year, parts exchange, on-site next business day.
Warranty Upgrade
Warranty UpgradeWarranty Upgrade
Warranty Upgrade
Options
OptionsOptions
Options
Response – Upgrade on-site response from next business day to same day 4-hours
Coverage – Extend hours of coverage from 5 days x 9 hours to 7 days x 24 hours
Duration – Select duration of coverage for a minimum period of 1 year or multiple years
Post warranty coverage
HP Care Pack Information
HP Care Pack InformationHP Care Pack Information
HP Care Pack Information
HP Care Pack is defined as an upgrade to the product warranty attribute, available for a specific
duration and hours of coverage.
HP Care Pack is not available for less than the products warranty duration.
HP Care Pack is available for sale anytime during the warranty period for most products, but the
commencement date will be the same as the warranty start date (delivery date to end user
customer). Proof of purchase may be required.
HP Care Pack services are prepaid.
For additional HP Care Pack (hardware & software) information, as well as orderable part numbers,
please refer to the URL
http://www.hp.com/hps/carepack/
.
Hardware Product
Hardware ProductHardware Product
Hardware Product
Services
ServicesServices
Services
Installation services
On-site Maintenance (includes warranty support)
Response time upgrades during the warranty period
Post-warranty coverage
RAID setup and performance consulting via statement of work
For additional hardware installation and maintenance information please refer to the URLs listed below:
http://www.hp.com/hps/hardware/
eSupport
eSupporteSupport
eSupport
HP eSupport is a portfolio of technology-based services that assist you with managing your business
environment - from the desktop to the data center.
Support Portal
The HP support portal provides one-stop access to the information, tools and services you need to
manage the daily operations of your IT environment.
Features include:
Access to self-solve tools (including search technical knowledge base)
Efficient logging and tracking of support cases
Collaboration with other business and IT professionals
Download of patches and drivers
Access to diagnostic tools
Proactive notification of relevant information
Access to certain features of the support portal requires an HP service agreement. To access the support
portal, visit
http://www.hp.com/support
QuickSpecs
HP StorageWorks N1200-320 4Gb Network Storage
HP StorageWorks N1200-320 4Gb Network StorageHP StorageWorks N1200-320 4Gb Network Storage
HP StorageWorks N1200-320 4Gb Network Storage
Router
RouterRouter
Router
Service and Support, HP Care Pack and Warranty Information
DA - 12454 Worldwide — Version 8 — March 6, 2009
Page 4
Page 5
Support Services
Support ServicesSupport Services
Support Services
HP Services provides up to a three-year, limited warranty, fully supported by a worldwide network of
resellers and service providers and 9x5 hardware technical phone support during the warranty period. In
addition, available service offerings include a full range of optional packaged hardware and software
services:
Installation and start up
Extended coverage hours and enhanced response times
System management and performance services
Availability and recovery services
Components
ComponentsComponents
Components
The following brick level options/components do not have individual HP Care Pack Services. These items
will be included in product HP Care Pack Services into which they are installed.
Disk Drives
Tape Drives
CD/DVD ROM
SCSI Hubs in SBBs
Adapters
Bus Converters
Backplane RAID
Controllers
Power Supplies
Cabling
Fans
QuickSpecs
HP StorageWorks N1200-320 4Gb Network Storage
HP StorageWorks N1200-320 4Gb Network StorageHP StorageWorks N1200-320 4Gb Network Storage
HP StorageWorks N1200-320 4Gb Network Storage
Router
RouterRouter
Router
Service and Support, HP Care Pack and Warranty Information
DA - 12454 Worldwide — Version 8 — March 6, 2009
Page 5
Page 6
Model Name
Model NameModel Name
Model Name
Model Description
Model DescriptionModel Description
Model Description
Part Number
Part NumberPart Number
Part Number
HP StorageWorks N1200320 4Gb Network Storage
Router
1x2 FC-to-SCSI router, 1U form factor, rack-ready
NOTE:
NOTE:NOTE:
NOTE:
1U router including one 4Gb FC port, two SCSI ports and remote
management; rack-ready unit
AG314A
Kit Contents (for each router):
6' US Power Cord (120 VAC)
10' Serial Cable
Rack mount hardware (for use with HP 10000 series, 9000 series, 5000 series
or System/E racks)
Documentation kit including User Guide and Installation Guide
QuickSpecs
HP StorageWorks N1200-320 4Gb Network Storage
HP StorageWorks N1200-320 4Gb Network StorageHP StorageWorks N1200-320 4Gb Network Storage
HP StorageWorks N1200-320 4Gb Network Storage
Router
RouterRouter
Router
Model and Kit Contents
DA - 12454 Worldwide — Version 8 — March 6, 2009
Page 6
Page 7
FC Cables
FC CablesFC Cables
FC Cables
2m SW LC/SC FC Cable Kit
221691-B21
5m SW LC/SC FC Cable Kit
221691-B22
15m SW LC/SC FC Cable Kit
221691-B23
2m SW LC/LC FC Cable Kit
221692-B21
5m SW LC/LC FC Cable Kit
221692-B22
15m SW LC/LC FC Cable Kit
221692-B23
Reference the Data Cable data sheets for the most up-to-date cable information at:
http://iss.tsgonline.hp.com/Document_Storage/collateral/ds_scsimultimode.pdf
Power Cords
Power CordsPower Cords
Power Cords
Power Cord, US
NOTE:
NOTE: NOTE:
NOTE:
can be used to connect the rack mounted device to PDUs with NEMA 5-15R
receptacles
E7743A
PDU Power Cord
NOTE:
NOTE:NOTE:
NOTE:
can be used to connect the device to PDUs with IEC-320 receptacles
E7742A
Power Cord, European
AD526A
Power Cord, Australian
AD527A
Power Cord, United Kingdom
AD528A
Power Cord, Switzerland
AD529A
Power Cord, Denmark
AD530A
Power Cord, Japan
AD531A
Power Cord, South Africa AD532A
Power Cord, China
AD533A
Power Cord, Latin America (2 cords)
AD534A
Power Cord, Taiwan
AF913A
NOTE:
NOTE:NOTE:
NOTE:
One power cord is required; there is one US power cord included in the box
with the N1200-320 4Gb NSR. Please select the correct power cord for your
geographical location.
WARNING:
WARNING: WARNING:
WARNING:
This product can ONLY be used with an HP approved power cord for
your specific geographic region. Use of a non-HP approved power cord may result in:
1) not meeting individual country specific safety requirements; 2) insufficient conductor
ampacity that could result in overheating with potential personal injury and/or property
damage; and 3) an unapproved power cord could fracture resulting in the internal
contacts being exposed, which potentially could subject the user to a shock hazard. HP
disclaims all liability in the event a non-HP approved power cord is used.
QuickSpecs
HP StorageWorks N1200-320 4Gb Network Storage
HP StorageWorks N1200-320 4Gb Network StorageHP StorageWorks N1200-320 4Gb Network Storage
HP StorageWorks N1200-320 4Gb Network Storage
Router
RouterRouter
Router
Related Options
DA - 12454 Worldwide — Version 8 — March 6, 2009
Page 7
Page 8
HP Care Pack Options
HP Care Pack OptionsHP Care Pack Options
HP Care Pack Options
Support Services via HP authorized commercial resellers
Description
DescriptionDescription
Description
Care Pack
Care PackCare Pack
Care Pack
3 Years, 9X5, Next Business Day Exchange, Hardware Support
UE278E
3 Years, 9X5, Next Business Day, Hardware Support Onsite
UE279E
3 Years, 13X5, 4hr response, Hardware Support Onsite
UE280E
3 Years, 24X7, 4hr response, Hardware Support Onsite
UE281E
4 Years, 13X5, 4hr response, Hardware Support
UE282E
4 Years, 24x7, 4hr response, Hardware Support
UE283E
5 Years, 13X5, 4hr response, Hardware Support
UE284E
5 Years, 24X7, 4hr response, Hardware Support
UE285E
1 Year, Post Warranty, 13X5, 4hr response, Hardware Support
UA774PE
1 Year, Post Warranty, 24X7, 4hr response, Hardware Support
UA775PE
Support Services via HP Direct and HP authorized enterprise resellers
Support Services via HP Direct and HP authorized enterprise resellersSupport Services via HP Direct and HP authorized enterprise resellers
Support Services via HP Direct and HP authorized enterprise resellers
Description
DescriptionDescription
Description
Care Pack
Care PackCare Pack
Care Pack
HW, 3-year, next-day, 13x5, on-site
HA101A3#80M
HW, 3-year, 4-hour, 13x5, on-site
HA103A3#80M
HW, 3-year, 4-hour, 24x7, on-site
HA104A3#80M
HW, 3-year, 6hr CTR, 24x7, on-site
*
HA105A3#80M
HW Only, Support Plus, 3-year, 13x5
**
HA109A3#80M
HW Only Support Plus 24, 3-year, 24x7
**
HA110A3#80M
HW Only, Proactive 24, 3-year, 24x7
***
HA111A3#80M
HW Only, Critical Service, 3-year, 24x7
***
HA112A3#80M
* 6hr CTR 'standalone' service is not offered in Latin or North America.
** Support Plus covers 4hr Hardware response (Software support is not applicable).
*** Both Proactive 24 & Critical Service only relate to 'reactive elements', work is ongoing to offer the
'proactive elements' in the near future (Software support is not applicable).
NOTE:
NOTE: NOTE:
NOTE:
The HP Care Pack information quoted above relates to 3 year offerings only; 1yr, 4yr and 5yr
packs are available for each offering (replace A3 with A1, A4, A5 respectively).
NOTE:
NOTE:NOTE:
NOTE:
'A' signifies a physical Care Pack; 'E' signifies an electronic Care Pack.
NOTE:
NOTE:NOTE:
NOTE:
In order to maximize ROI and product uptime, and minimize the cost of ownership, HewlettPackard recommends the 3-year, 24 x 7 service options. These offerings will ensure that any product
issue can be tackled when they occur (most back up issues will occur outside standard business hours)
and that the service coverage regarding period, covers the minimum expected life of the host system.
QuickSpecs
HP StorageWorks N1200-320 4Gb Network Storage
HP StorageWorks N1200-320 4Gb Network StorageHP StorageWorks N1200-320 4Gb Network Storage
HP StorageWorks N1200-320 4Gb Network Storage
Router
RouterRouter
Router
Related Options
DA - 12454 Worldwide — Version 8 — March 6, 2009
Page 8
Page 9
Form Factor
Form FactorForm Factor
Form Factor
1U
Dimensions
DimensionsDimensions
Dimensions
(HxWxD)
Out-of-Box
Out-of-BoxOut-of-Box
Out-of-Box
1.70 x 17.00 x 20.50 in (4.31 x 43.18 x 51.76 cm)
Shipping
ShippingShipping
Shipping
9.0 x 25.0 x 24.50 in (22.86 x 63.50 x 62.23 cm)
Weight
WeightWeight
Weight
Out-of-Box
Out-of-BoxOut-of-Box
Out-of-Box
15.0 lb (6.8 kg)
Shipping
ShippingShipping
Shipping
19.0 lb (8.2 kg)
Connectors
ConnectorsConnectors
Connectors
(located on back of unit)
(1) 4Gb FC port
(2) 68-pin VHDCI SCSI ports, 320 MB/sec
(1) RJ-45 Ethernet port, 10/100 Mbps
(1) 3-pin Serial port
LED Indicators
LED IndicatorsLED Indicators
LED Indicators
Reference the N1200-320 4Gb NSR Installation Guide
Topology
TopologyTopology
Topology
Switched Fabric and Direct Fibre Connect
Protocols
ProtocolsProtocols
Protocols
FCP-2, PLDA
Temperature Range
Temperature RangeTemperature Range
Temperature Range
(wet bulb)
Operating
OperatingOperating
Operating
50-95° F (10-35° C)
Shipping
ShippingShipping
Shipping
-40-140° F (-40-60° C)
Relative Humidity
Relative HumidityRelative Humidity
Relative Humidity
(non-condensing)
Operating
OperatingOperating
Operating
20-80%
Shipping
ShippingShipping
Shipping
10-90%
Input Requirements
Input RequirementsInput Requirements
Input Requirements
Voltage
VoltageVoltage
Voltage
90 to 264 VAC
Line Frequency
Line FrequencyLine Frequency
Line Frequency
47 to 63 Hz
Power
PowerPower
Power
(Watts)
50W maximum (2 FC x 12 HVD)
© Copyright 2009 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
QuickSpecs
HP StorageWorks N1200-320 4Gb Network Storage
HP StorageWorks N1200-320 4Gb Network StorageHP StorageWorks N1200-320 4Gb Network Storage
HP StorageWorks N1200-320 4Gb Network Storage
Router
RouterRouter
Router
Technical Specifications
DA - 12454 Worldwide — Version 8 — March 6, 2009
Page 9
Loading...
