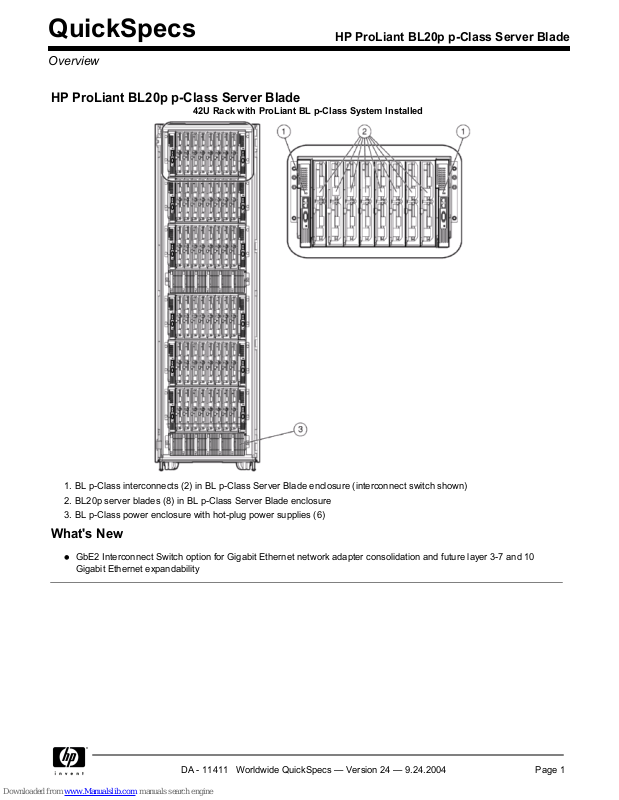

HP QUICKSPECS BL20P, ProLiant BL20p Specification

HP ProLiant BL20p p-Class Server Blade

42U Rack with ProLiant BL p-Class System Installed

1.

BL p-Class interconnects (2) in BL p-Class Server Blade enclosure (interconnect switch shown)

2.

BL20p server blades (8) in BL p-Class Server Blade enclosure

3.

BL p-Class power enclosure with hot-plug power supplies (6)

What's New

GbE2 Interconnect Switch option for Gigabit Ethernet network adapter consolidation and future layer 3-7 and 10
Gigabit Ethernet expandability

QuickSpecs

HP ProLiant BL20p p-Class Server Blade

Overview

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 1

At A Glance

Performance dual processor server blade designed with enterprise availability

ProLiant BL20p Server Blade includes:

Intel® Pentium® III FC-PGA2 1.40 GHz processor (dual capability)
ServerWorks HE- SuperLite Chipset
512-MB or 1024-MB PC133-MHz Registered ECC SDRAM memory, (2 x 1 Interleaved Memory), expandable to
4 GB
Three NC3163 Fast Ethernet 10/100T NICs (embedded) with WOL (Wake On LAN) and PXE (Preboot
eXecution Environment)
Two NICs are upgradeable to 10/100/1000T using the Dual Gigabit Ethernet NC7780 NIC option kit
One additional 10/100 port dedicated to Integrated Lights-Out (iLO) Management
Smart Array 5i Controller with optional battery-backed write cache
Wide Ultra3 SCSI Drive Cage standard supports up to two 1" Wide Ultra3 or Ultra 320 hot plug hard drives
Integrated Lights-Out (iLO) Advanced Management (ASIC on motherboard)
Plugs vertically into 6U enclosure
Up to 48 BL20p blades fit in 42U rack

ProLiant BL p-Class Server Blade Enclosure:

Server blades and interconnects blind mate into server blade enclosures for network connection and power
Server blade enclosure is 6U and holds up to 8 ProLiant BL20p server blades and 2 interconnects
2 types of interconnects available: interconnect switches or patch panels

ProLiant BL p-Class Power Enclosure:

Use BL p-Class sizing tool to determine power based on your configuration

http://h30099.www3.hp.com/configurator/calc/Power%20Calculator%20Catalog.xls

BL p-Class power enclosure provides shared, external, redundant power
Power enclosure is 3U and holds up to 6 hot-plug power supplies
Choose single-phase or three-phase power
BL p-Class power enclosure with power supplies not needed if using facility

-48VDC ± 10% in this case purchase DC option kit

ProLiant BL p-Class Power Distribution:

Distributes power from the power enclosure to the server blade enclosures
Three power distribution choices:

BL p-Class scalable bus bar
BL p-Class mini bus bar

BL p-Class power bus box
BL p-Class server blade, server blade enclosure, interconnects and power enclosure protected by a limited three year
warranty with optional service uplifts available

NOTE:

Power requirements for a ProLiant BL p-Class system: 200V - 240V AC, 30 amp or facility DC -48V ± 10%.

QuickSpecs

HP ProLiant BL20p p-Class Server Blade

Overview

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 2

ProLiant BL20p Server Blade

+

BL p-Class Server Blade Enclosure

+

QuickSpecs

HP ProLiant BL20p p-Class Server Blade

Overview

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 3

OR

Patch panel

Interconnect Switch

(fiber or copper based)

BL p-Class Interconnects

+

OR

Facility DC

BL p-Class power enclosure and power supplies

+

QuickSpecs

HP ProLiant BL20p p-Class Server Blade

Overview

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 4

OR OR

Scalable bus bar

Mini bus bar

Bus boxes

BL p-Class power distribution

Configuration Steps

For a complete configuration of the ProLiant BL20p, do the following:

Select BL p-Class server blades:
Single Intel Pentium III 1.40 GHz processor, 512-MB ECC SDRAM
(2 X 256MB) (230040-B21)
or
Two Intel Pentium III 1.40 GHz processors, 1-GB ECC SDRAM (2 X 512MB) (257959-B21) (Not offered in NA)

(NOTE: Additional options include processors, memory, and gigabit NICs.)

PLUS

1.

Decide how many BL p-Class Server Blade Enclosures to purchase (each enclosure can hold up to 8 ProLiant BL20p
server blades):
BL p-Class server blade enclosure with 8 Rapid Deployment Pack licenses
(281404-B21)
or
BL p-Class server blade enclosure with Rapid Deployment Pack trial (243564-B21)

PLUS

2.

Select an interconnect. Interconnects are sold in pairs. One pair of interconnects is required with each BL p-Class
server blade enclosure:
BL p-Class RJ-45 Patch Panel (with 32 RJ-45 connectors) (230766-B21)
or
BL p-Class RJ-45 Patch Panel 2 (with Fibre Channel pass through and 32 RJ-45 connectors) (306465-B21)

NOTE:

Fibre Channel connectivity is not available on the BL20p.

or
BL p-Class C-GbE2 Interconnect Kit (with 12 RJ-45 10/100/1000 T/TX/T external ports) (283192-B21)
or
BL p-Class F-GbE2 Interconnect (with 8 LC 1000 SX and 4 RJ-45 10/100/1000 T/TX/T external ports) (283193-B21)
or
BL p-Class C-GbE Interconnect Kit (with 4 RJ-45 10/100/1000 T/TX/T and 8 RJ-45 10/100 T/TX external ports
(249655-B21)

3.

4.

QuickSpecs

HP ProLiant BL20p p-Class Server Blade

Overview

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 5

or
BL p-Class F-GbE Interconnect Kit (with 4 LC 1000 SX and 8 RJ-45 10/100 T/TX external ports) (279720-B21)

PLUS

4. Select BL p-Class power enclosure and power supplies based on configuration. Use p-Class sizing tool to help
determine power configuration:

http://h30099.www3.hp.com/configurator/calc/Power%20Calculator%20Catalog.xls

NOTE:

Power enclosures and supplies are not needed if using facility DC (-48V ± 10%).

Single phase power enclosure with four hot-plug power supplies (NA/JPN- 239162-001) (Single-phase power
enclosure holds a max of four power supplies; no need to order additional power supplies with this option kit) (INTL ­239162-421)
or
Three-phase power enclosure with six hot-plug power supplies (NA/JPN- 230769-001) (INTL - 230769-421) (Three­phase power enclosure holds a max of six power supplies no need to order additional power supplies with this option
kit)
(Power enclosures and power supplies can also be purchased separately see options list for part numbers)

PLUS

4.

5. Select power distribution: Scalable bus bar - Supports up to 5 server blade enclosures (240560-B21)
or
Mini bus bar - Supports up to 3 server blade enclosures (240559-B21)
or
Power Bus Box - connects 1 power enclosure to 1 server blade enclosure (240562-B21

5.

QuickSpecs

HP ProLiant BL20p p-Class Server Blade

Overview

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 6

Processor

Intel Pentium III FC-PGA2 Processor 1.40 GHz

Upgradeability

Upgradeable to dual processing

Cache Memory

512-KB Level 2 Cache

Chipset

ServerWorks HE- SuperLite Chipset

NOTE:

For more information regarding ServerWorks, please see the following URL:

http://www.serverworks.com/products/overview.html

.

Memory

Standard

512MB PC133-MHz Registered ECC SDRAM DIMM Memory (2 X 256 MB)
(1 processor model)

Maximum

4096 MB

Standard

1024MB PC133-MHz Registered ECC SDRAM DIMM Memory (2 x 512 MB)
(2 processor model - not available in NA)

Maximum

4096 MB

NOTE:

Memory must be installed in pairs.

Network Controller

Four NICs total:
Three NC3163 Fast Ethernet 10/100T NICs (embedded) with WOL and PXE
One 10/100 NIC dedicated to iLO management
Two NC3163 NICs are upgradeable to 10/100/1000T using the Dual Gigabit Ethernet NC7780
NIC option kit

Manageability

Integrated Lights-Out (iLO) Management Advanced (ASIC on the System Board)

Internal Storage

Hard Drives

None shipped standard

Maximum Internal
Storage

145.6 GB (internal drive cage) (2 x 72.8 GB Ultra320, 1" drives)

Expansion Slots

No PCI slots all features are integrated

Product Demo

To view the Product Demo, please see the following URL, then click on "PRODUCT DEMO":

http://h18000.www1.hp.com/products/servers/proliant-bl/p-class/index.html

.

QuickSpecs

HP ProLiant BL20p p-Class Server Blade

Standard Features (Server Blade)

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 7

ProLiant BL p-Class Server Blade Enclosure and Interconnects

ProLiant BL p-Class
Server Blade Enclosure

6U (10.5-inch), 19-inch wide
Holds up to 8 ProLiant BL20p servers blades
10 bays per server blade enclosure
8 bays for server blades
2 outside bays for interconnect modules (RJ-45 Patch Panel, RJ-45 Patch Panel 2, GbE
Interconnect Switch, or GbE2 Interconnect Switch)
Server blades blind mate into the server blade enclosure backplane for power and data
connections
Up to 6 BL p-Class 6U server blade enclosures fit in a 42U rack
Server blade management module attached to the back of each BL p-Class 6U server blade
enclosure to report events all servers and provide asset and inventory information

ProLiant BL p-Class
Power Requirements

Redundant 200V - 240V AC, 30 amp single-phase for NA and International
Redundant 208V 30amp 3-phase 4 wire, NA
Redundant 380 - 415V 20A 3-phase 5 wire, Intl
Redundant -48VDC ± 10%

QuickSpecs

HP ProLiant BL20p p-Class Server Blade

Standard Features (Server Blade)

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 8

ProLiant BL p-Class
Interconnect Switch
Option

(Two switches per kit)
(Every BL p-Class server
blade enclosure requires
two interconnect
switches OR two RJ-45
patch panels)

Provides up to a 32 to 1 server networking cable reduction per server enclosure depending on the
mix of BL20p, BL20p G2, and BL40p servers. Each interconnect switch (two per enclosure)
reduces up to sixteen internal server network (NIC) ports to six external ports (four on a modular
rear mounting interconnect module and two on the switch front panel). This provides a total of
twelve external ports per server blade enclosure. Only one to all twelve external ports may be
used per server blade enclosure.

The GbE2 Interconnect Kits (C-GbE2 and F-GbE2) are for applications that require network
adapter consolidation to 1000 Mbps (Gigabit Ethernet), advanced network feature support
including up to layer 7 switching, BL20p G2 Fibre Channel pass-through, and 10 Gigabit Ethernet
bandwidth connectivity to the network. Expandability of both layer 3-7 switching and 10 Gigabit
Ethernet is supported with future GbE2 Interconnect Switch upgrade options. The optional GbE2
Storage Connectivity Kit is required for BL20p G2 Fibre Channel pass-through when using the
GbE2 Interconnect Switch.

The ProLiant BL p-Class F-GbE2 Interconnect Kit includes two GbE2 Interconnect Switches
and two QuadSX Interconnect Modules that provide eight (8) LC 1000 SX and four (4) RJ­45 10/100/1000 T/TX/T external ports per server blade enclosure.
The ProLiant BL p-Class C-GbE2 Interconnect Kit includes two GbE2 Interconnect Switches
and two QuadT2 Interconnect Modules that provide twelve (12) RJ-45 10/100/1000 T/TX/T
external ports per server blade enclosure.

The GbE Interconnect Kits (C-GbE and F-GbE) are for applications that require network adapter
consolidation to 100 Mbps (Fast Ethernet).

The ProLiant BL p-Class F-GbE Interconnect Kit includes two GbE Interconnect Switches
and two DualTSX Interconnect Modules that provide four (4) LC 1000 SX and eight (8) RJ­45 10/100 T/TX external ports per server blade enclosure.
The ProLiant BL p-Class C-GbE Interconnect Kit includes two GbE Interconnect Switches
and two QuadT Interconnect Modules that provide four (4) RJ-45 10/100/1000 T/TX/T and
eight (8) RJ-45 10/100 T/TX external ports per server blade enclosure.

Also included (per Interconnect Switch):

One (1) RS-232 DB-9 front panel out-of-band management port
Redundant cross links ports connecting the two interconnect switches
Redundant power inputs and on-board redundant fans
Hot-plug and hot- remove with configuration retention and no need to cable/re-cable
Power ON, management, and per port status and speed LED indicators
Reset/power momentary push-button switch
HP ProLiant BL Interconnect Switch Management Utilities and User Documentation CD
Fully pre-configured for rapid deployment and immediate operation

The GbE Interconnect Kits (C-GbE and F-GbE) are for applications that require network adapter
consolidation to 100 Mbps (Fast Ethernet).

The ProLiant BL p-Class F-GbE Interconnect Kit includes two GbE Interconnect Switches
and two DualTSX Interconnect Modules that provide four (4) LC 1000 SX and eight (8) RJ­45 10/100 T/TX external ports per server blade enclosure.
The ProLiant BL p-Class C-GbE Interconnect Kit includes two GbE Interconnect Switches
and two QuadT Interconnect Modules that provide four (4) RJ-45 10/100/1000 T/TX/T and
eight (8) RJ-45 10/100 T/TX external ports per server blade enclosure.

ProLiant BL Interconnect Switch Management System and Utilities:

Full featured web-based and scriptable command line (CLI) interfaces, password protected multi­level user accounts, Telnet, SNMP, BootP client, port mirroring, port-based VLANs and VLAN
tagging, EtherChannel compatible multi-port trunking, network time protocol, spanning tree
protocol, broadcast/multicast storm control, flow control, human readable/writeable configuration
file, TFTP client, IP address security restrictions, auto-MDI/MDIX, auto-negotiation and auto­sensing with full-duplex support, and more.

QuickSpecs

HP ProLiant BL20p p-Class Server Blade

Standard Features (Server Blade Enclosure and Interconnects)

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 9

ProLiant BL p-Class
RJ-45 patch panel and
Patch Panel 2

(Two
patch panels per kit)
(Every BL p-Class server
blade enclosure requires
two Interconnect
switches OR two RJ-45
patch panels)

6U (10.5-inch), Plugs into BL p-Class 6U server blade enclosures

Used to pass NIC signals from all server blades in server blade enclosure out as RJ-45
connections

Supports Gigabit Ethernet network controllers

16 RJ-45 connectors on the back of each BL p-Class 6U RJ-45 patch panel (32 RJ-45
connections per server blade enclosure)

NOTE:

The BL20p does not have Fibre Channel functionality. Although the RJ-45 Patch Panel 2

can be used for Ethernet pass through.

Required Network
Cabling

10Base-T

Categories 3, 4 or 5 UTP (100 meters)
EIA/TIA-568 100-ohm STP (100 meters)

100Base-TX

Category 5 UTP (100 meters)
EIA/TIA-568 100-ohm STP (100 meters)

1000Base-T

Category 5 UTP (100 meters)
EIA/TIA-568 100-ohm STP (100 meters)

!000Base-SX

50/125 µm Multimode Fiber, 400 MHz/Km (500 meters)
50/125 µm Multimode Fiber, 500 MHz/Km (550 meters)

62.5/125 µm Multimode Fiber, 160 MHz/Km (220 meters)

62.5/125 µm Multimode Fiber, 200 MHz/Km (275 meters)

NOTE:

For cabling information, refer to the Web site at:

http://www.hp.com/country/us/eng/prodserv/servers.html

.

QuickSpecs

HP ProLiant BL20p p-Class Server Blade

Standard Features (Server Blade Enclosure and Interconnects)

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 10

ProLiant BL p-Class
Power System and
Rack Information

NOTE:

To determine power configuration please refer to the ProLiant BL p-Class Overview and
Planning Whitepaper and sizing tool, please see the following URL:

http://h18000.www1.hp.com/products/servers/proliant-bl/p-class/20p/documentation.html

.

ProLiant BL p-Class
Power Enclosure

3U (5.25-inch), 19-inch wide, 29-inch deep (0.48-meter wide, 0.74-meter deep), Dual input single
phase and three phase models available.

BL p-Class power enclosure provides external, shared hot-plug power. Each three-phase power
enclosure houses up to six hot-plug power supplies each single-phase power enclosures hold up
to four hot-plug power supplies to power the BL p-Class server blades and interconnects
Please use the sizing utility to determine the power needed for each configuration

http://h30099.www3.hp.com/configurator/powercalcs.asp

.

Power enclosures and power supplies are not needed if using facility DC (-48V DC ± 10%). If
using facility DC, only Facility DC Power Connection kit part number (240563-B21) is needed.

BL p-Class Power
Distribution

In the ProLiant BL p-Class infrastructure, redundant -48 VDC power (from the power enclosures or
facility DC power) is distributed from the power enclosures to the server blade enclosures through
the bus bar system. Hinges attach the ProLiant BL bus bars to the rails in a rack. The bus bars
swing open from the center to enable easy rear access to the server blades and network cables.
Power is distributed redundantly through independent A- and B-sided bus bars.

Three different power distribution solutions are available depending on the maximum number of
server blade enclosures planned for the rack:

ProLiant BL p-Class scalable bus bar
ProLiant BL p-Class mini bus bar

NOTE:

To support a full 42U rack of BL20p server blades (6 server blade enclosures), two mini

bus bars are needed.

ProLiant BL p-Class power bus box

Power Enclosures Supported

Server Blade Enclosures

Supported

Max. Rack Space Occupied

Scalable Bus Bar

1 or 2

up to 5

36U

Mini Bus Bar

1

up to 3

21U

Power Bus Box

1 1

9U

Required Power
Source

Two 30amp redundant power feeds per power enclosure

Connectors

–NEMA receptacles
(NA/Japan)

NA 1-phase

L6-30, 250v, 30A 3-wire

NA 3-phase

L15-30, 250V, 30A, 4-wire

–IEC 309 Pin & Sleeve
connectors (International)

Intl 1-phase

250V, 32A, 3- pin (2 pole + ground)

Intl 3-phase

380-415V, 32A, 5--pin (4 pole + ground)

Optimized for power cabling from bottom and network cabling from top
For cabling information, refer to the Web site at

http://www.hp.com/country/us/eng/prodserv/servers.html

.

QuickSpecs

HP ProLiant BL20p p-Class Server Blade

Standard Features (Power System and Rack Information)

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 11

ProLiant Essentials
Foundation Pack
Software for the
ProLiant BL Server

ProLiant Essentials
Rapid Deployment Pack

Rapid Deployment Pack (RDP) is an automated deployment and
provisioning solution for all ProLiant servers. RDP includes the Altiris
Deployment Solution and ProLiant Integration Module featuring ProLiant
server pre-configured events for OS installation, and optimized software
drivers, firmware and management agents. Every RDP CD includes 10­node trial licenses for evaluation purposes. RDP requires a license for
each server deployed and are available for purchase with blade servers.
For more information, visit

http://www.hp.com/servers/rdp

.

HP Systems Insight
Manager

HP Systems Insight Manager (HP SIM) help maximize system uptime
and performance and reduce system maintenance costs by providing
proactive notification of problems before those problems result in
unplanned downtime or reduced productivity. HP SIM is easy to set up
to work with the Insight Management Agents, integrated Light-Out and
Remote Insight Light-Out Edition, and Version Control Agents to deliver
robust fault, configuration, and asset management as well as remote
administration. With HP Systems Insight Manager customers will also
be able to take advantage of role-based security; the ability to manage
ProLiant, Integrity, and HP9000 systems; and plug-ins for storage,
client, printer, and power management as well as server rapid
deployment, performance management, and workload management.
For more details on HP Systems Insight Manager visit

http://www.hp.com/go/hpsim

.

Management Agents

The Management Agents form the foundation for HP's Intelligent
Manageability strategy. They provide direct, browser-based access to
in-depth instrumentation built into HP servers, workstations, desktops,
and portables, and send alerts to HP Systems Insight Manager and
other enterprise management applications in case of subsystem or
environmental failures. For additional information about the
Management Agents and other management products from HP, please
visit the management Web site at

http://www.hp.com/servers/manage

.

Subscriber's Choice

Subscriber's Choice Driver and Support Alerts/Notifications is a web­based email subscription service that provides software and driver
change notifications for ProLiant products. Sign up at

http://www.hp.com/go/subscriberschoice

and customize your profile to receive various new alerts as they become
available, on a weekly or monthly basis.

ROMPaq

, support
software, and
configuration utilities

The latest software, drivers, and firmware fully optimized and tested for
your ProLiant server and options, available in the RDP CD, SmartStart
or downloadable from Software and Drivers download pages, linked
from the SmartStart website at

http://www.hp.com/servers/smartstart

.

Survey Utility and
diagnostics utilities

The most advanced configuration analysis, reporting and
troubleshooting utilities used by HP and at your fingertips, available in
SmartStart.

NOTE:

For more information regarding ProLiant Essentials Software, please see the following

URL:

http://www.hp.com/servers/proliantessentials

.

QuickSpecs

HP ProLiant BL20p p-Class Server Blade

Standard Features

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 12

Optional ProLiant
Essentials Value Packs

Optional software offerings that selectively extend the functionality of an Adaptive Infrastructure to
address specific business problems and needs:

Workload Management Pack - provides easier management of complex environments,
improving overall server utilization and enabling Windows® 2000 customers for the first time
to confidently deploy multiple applications on a single multiprocessor ProLiant Server.
Performance Management Pack - a performance management solution that identifies and
explains hardware performance bottlenecks on ProLiant servers and attached options
enabling users to better utilize their valuable resources.

NOTE:

Flexible and volume quantity license kits are available for ProLiant Essentials Value

Packs. Refer to

http://www.hp.com/servers/proliantessentials

or the various ProLiant Essentials

Value Pack product QuickSpecs for more information.

SmartStart

SmartStart is a tool that simplifies single server setup, providing a rapid way to deploy reliable and
consistent server configurations. SmartStart 7.00 and later can now deploy the ProLiant BL20P
G3 and ProLiant BL40P servers, using the I/O port with an attached USB CD-ROM device. To
obtain a copy of SmartStart for your blade server, redeem the coupon that is included with your
Blade server or order your copy from the SmartStart web site. For more information, please visit
the SmartStart Web site at

http://www.hp.com/servers/smartstart

.

SmartStart version supported (minimum): SmartStart 6.20

OS Support

Microsoft® Windows
LINUX

NOTE:

For a more complete and up-to-date listing of supported OSs and versions, please visit our

OS Support Matrix at:

http://www.hp.com/go/supportos

.

NOTE:

For an up-to-date listing of the latest drivers available for the ProLiant BL p-Class, please

see:

http://h18023.www1.hp.com/support/files/server/us/index.htm

.

NOTE:

For a more complete and up-to-date information on Linux support, please visit HP Linux

Web site at

http://h18000.www1.hp.com/products/servers/linux/hpLinuxcert.html

.

Intelligent
Manageability

Integrated Lights-Out Advanced (iLO)
Virtual Text and Graphical Remote Console *
Virtual CD-ROM *
Virtual Floppy *
Virtual Power Button Control
Dedicated LAN Connectivity
Automatic IP Configuration via DHCP/DNS/WINS
Industry Standard 128-bit Secure Sockets Layer (SSL) Security
IML and iLO Event Logging
Support for 12 user accounts with customizable access privileges
Automatic Server Recovery-2 (ASR-2)
Insight Manager 7
Redundant ROM
Remote Flash ROM
ROM Based Setup Utility (RBSU)
Advanced Configuration and Power Interface Specification Ready (ACPI)
Server and Interconnect Switch Health Logs
Redundant Power Supply Utility
Pre-Failure Warranty (covers processors, as well as hard drives and memory)
Interconnect Switch Management System and Utilities (interconnect switch option)
Integrated Management Log (IML)
Hot Spare Boot

(NOTE:

Upon the event of a failed processor or VRM in a multi-processing

environment, the system will automatically reboot and use the remaining good processor(s).)

QuickSpecs

HP ProLiant BL20p p-Class Server Blade

Standard Features

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 13

Dynamic sector repairing and drive parameter tracking (with Smart Array controllers)
ProLiant network adapter teaming set-up utility

*

NOTE:

Advanced features such as Graphical Remote Console and Virtual Floppy are included

with the BL p-Class server.

Availability

Power redundancy: Redundant AC feeds into power enclosures, redundant DC feeds from power
enclosure to server blade enclosures, N + N redundant power supplies
Two hot-plug SCSI hard drive bays and integrated RAID (Smart Array 5i) on every server blade
(Battery-backed write cache is optional.)
Redundant ROM on each server blade
ECC Memory
Network adapter teaming (network fault tolerance, transmit load balancing, switch-assisted load
balancing)
Interconnects switch availability

Hot-plug and hot- remove with configuration retention and no need to cable/re-cable
Two network connections per server blade bay (four NICs total) routed to two redundant
interconnect switches
Redundant inter-switch communication and two sets of redundant Ethernet uplink ports per
each interconnect switch
Redundant front panel Ethernet ports per each interconnect switch for diagnostics,
management, and additional uplinks
Redundant serial ports
Compatibility with PVST+ (GbE2 switch) and 802.1D Spanning tree protocol support for
loop-free path redundancy
Static IEEE 802.3ad (EtherChannel compatible) trunking with automatic port load balancing
and failover
Redundant switch configuration files and operating system firmware images in memory
(GbE2 switch)
Redundant fans per each interconnect switch
Redundant 1+1 power to each interconnect switch
Support for ProLiant network adapter teaming
Redundant configurable community strings and SNMP trap manager hosts
Redundant configurable syslog servers, DNS servers, and default gateways (GbE2 switch)

Security

Power-on password
Administrator's password
Integrated Lights-Out has 12 customizable user accounts and SSL encryption
Integrated Lights-Out can be disabled via a Global Setting
Interconnect switch multilevel user names and passwords, management interface time out period
setting, SSH*, SCP secure copy protocol*, port-based IEEE 802.1Q tagged VLANs, RADIUS user
authentication and authorization*, and IP address restriction

* GbE2 Interconnect Switch only.

QuickSpecs

HP ProLiant BL20p p-Class Server Blade

Standard Features

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 14

Minimum Rack
Requirements

Mounts in Compaq/HP, Telco racks and Third Party racks that meet the following criteria:

Compatible with 19-inch Standard EIA rail sets
EIA rail-to-rail depth is 29 - 30"
Cabinet depth must be at least 36-inch deep overall (Additional min. 3.5-inch clearance from
rear RETMA rail to rear door, inclusive in the 36-inch overall depth)
Ample room for top and bottom cable egress (approximately 8 square inches for full rack
configuration with patch panel)
Must be capable of supporting 1600 lb (for full rack configuration)
Perforated front and rear doors to accommodate front-to-back cooling
Must have 65% open perforation on server blade enclosure doors to support airflow
requirements
Optimized for use with the HP 10000 Series racks

NOTE:

If using HP 7000 Series rack, Rack Extension Kit and High Air Flow Rack Door options are

required.

Rack Airflow
Requirements

Rack 9000 and 10000 series Cabinets
The increasing power of new high-performance processor technology requires increased
cooling efficiency for rack-mounted servers. The 9000 Series and the 10000 Series Racks
provide enhanced airflow for maximum cooling, allowing these racks to be fully loaded with
servers using the latest processors.

Rack 7000 series Cabinets
When installing a server with processors running at speeds of 550 MHz or greater in Rack
7000 series racks with glass doors (165753-001 (42U), and 163747-001 (22U)), the new
processor technology requires the installation of the High Airflow Rack Door Inserts
(327281-B21 (42U), 327281-B22 (42U 6 pack), or 157847-B21 (22U)) to promote enhanced
airflow for maximum cooling.

CAUTION:

If a third-party rack is used, observe the following additional requirements to ensure

adequate airflow and to prevent damage to the equipment:

Front and rear doors:

If your 42U server rack includes closing front and rear doors,
you must allow 830 square inches (5,350 sq cm) of hole evenly distributed from top to
bottom to permit adequate airflow (equivalent to the required 64 percent open area for
ventilation).
Side:

The clearance between the installed rack component and the side panels of the

rack must be a minimum of 2.75 inches (7 cm).

CAUTION:

Always use blanking panels to fill all remaining empty front panel U-spaces in the rack.
This arrangement ensures proper airflow. Using a rack without blanking panels results in improper
cooling that can lead to thermal damage.

NOTE:

For additional information, refer to the Setup and Installation Guide or the Documentation
CD provided with the server, or to the server documentation located in the Support section at the
following URL:

http://wwss1pro.compaq.com/support/home/index.asp

QuickSpecs

HP ProLiant BL20p p-Class Server Blade

Standard Features

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 15

Service and Support

Three-year limited warranty, including hardware diagnostic support, pre-failure warranty (coverage
of hard drives, memory and processors). The warranty is fully supported by HP Services and a
worldwide network of resellers and service providers. In addition 90-day's getting started software
telephone support may be covered under the warranty or available for an additional fee.
Enhancements to warranty services are available through HP Care Pack services.

NOTE:

Sever Blade Limited Warranty includes 3 year Parts, 3 year Labor, 3-year on-site support.

NOTE:

Server Blade Enclosure and Interconnects Limited Warranty includes 3 year Parts, 3 year

Labor, 3-year on-site support.

Care Pack services provide a range of life cycle support options that let you choose the service
levels that meet your business requirements, from basic to mission-critical.

A full range of HP Care Pack hardware and software services are available including:

Installation and start up
Education courses
Extended onsite hardware coverage hours from same business day 13 hours, 5 day to 24
hours, 7 days call window with options including 4-hour response or 6-hour Call To Repair
Comprehensive range of software technical support for Microsoft, Linux, ProLiant Essentials
and VMWare-based IT solutions helping to deliver high level of application availability.
Response times range from 30 mins for critical problems to 2 hours.
System Management, Performance Services and Mission Critical Support Solution

HP Care Pack services for ProLiant BL p-Class server blades, cover the server blade and the p­Class blade enclosure that the server blade is installed in as well as interconnects, power
enclosure with power supplies and power distribution.

NOTE:

For more information on HP Care Pack services, contact any of our worldwide sales
offices or resellers or visit our worldwide Web site on the internet at:

http://www.hp.com/hps/carepack

.

NOTE:

For more complete information on HP Services offerings, customers and resellers, please

visit us at:

http://www.hp.com/hps

.

NOTE:

Additional information regarding worldwide limited warranty and technical support is
available at:

http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

.

QuickSpecs

HP ProLiant BL20p p-Class Server Blade

Standard Features

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 16

ProLiant BL20p P1400­512KB, 512MB (1P)

230040-B21

Processor(s)

(1) Intel Pentium III 1.40 GHz standard (up to 2 supported)

Cache Memory

512-KB Level 2 writeback per processor

Memory

512 MB (Standard) (2 X 256MB) to 4096 MB PC133-MHz Registered
ECC SDRAM DIMM Memory

Network Controller

Three NC3163 Fast Ethernet NIC PCI 10/100 with full WOL and PXE
One additional 10/100 port dedicated to iLO Management

Storage Controller

Smart Array 5i Controller (integrated on system board)

Hard Drives

None ship standard

Internal Storage

Up to 145.6-GB maximum (with optional hard drives)

Optical Drive

None

Form Factor

Plugs vertically into ProLiant BL p-Class Server Blade Enclosure

ProLiant BL20p P1400­512KB, 1GB (2P)

257959-B21

*Not available in North
America.

Processor(s)

(2) Intel Pentium III 1.40 GHz standard (up to 2 supported)

Cache Memory

512-KB Level 2 writeback per processor

Memory

1024 MB (Standard) (2 X 512MB) to 4096 MB PC133-MHz Registered
ECC SDRAM DIMM Memory

Network Controller

Three NC3163 Fast Ethernet NIC PCI 10/100 with full WOL and PXE
One additional 10/100 port dedicated to iLO Management

Storage Controller

Smart Array 5i Controller (integrated on system board)

Hard Drives

None ship standard

Internal Storage

Up to 145.6-GB maximum (with optional hard drives)

Optical Drive

None

Form Factor

Plugs vertically into ProLiant BL p-Class Server Blade Enclosure

QuickSpecs

HP ProLiant BL20p p-Class Server Blade

Models

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 17

ProLiant BL20p Unique
Options

Dual NC7780 Gigabit Upgrade Module for ProLiant BL20p

230255-B21

NOTE:

The Dual NC7780 Gigabit Upgrade Module replaces two of the standard
NC3163 Fast Ethernet Embedded WOL and PXE NICs to two 10/10/1000T
NC7780 NICs.

NOTE:

The GbE Interconnect Switch options support server NIC speeds to 100
Mbps. It is recommended that the patch panel or GbE2 Interconnect Switch
options be used with the Dual NC7780 Gigabit Upgrade Module if server NIC
speeds to 1000 Mbps are required.

ProLiant Essentials
Value Pack Software

Rapid Deployment Pack, 10 User, V1.x

NOTE: This license allows 10 servers to be managed and deployed via the

Deployment Server.

NOTE:

Not necessary if you purchase the server blade enclosure with 8 Rapid

Deployment Pack licenses 281404-B21.

306696-B21

Rapid Deployment Pack, 10 User, V1.x (Japan)

NOTE:

This license allows 10 servers to be managed and deployed via the

Deployment Server.

NOTE:

Not necessary if you purchase the server blade enclosure with 8 Rapid

Deployment Pack licenses 281404-B21.

269817-291

Rapid Deployment Pack, 1 User, V1.x

NOTE:

This license allows 1 server to be managed and deployed via the

Deployment Server.

NOTE:

Not necessary if you purchase the server blade enclosure with 8 Rapid

Deployment Pack licenses 281404-B21.

267196-B21

Rapid Deployment Pack, 1 User, V1.x (Japan)

NOTE:

This license allows 1 server to be managed and deployed via the

Deployment Server.

NOTE:

Not necessary if you purchase the server blade enclosure with 8 Rapid

Deployment Pack licenses 281404-B21.

267196-291

ProLiant Essentials Workload Management Pack (Featuring Resource Partitioning
Manager version 2.0)

303284-B21

ProLiant Essentials Performance Management Pack, 10-Server License

NOTE:

For use with up to 10 servers. Contains 10 licenses with one unique

license activation key and documentation.

374055-B21

ProLiant Essentials Intelligent Networking Pack, Single Server License

NOTE:

For use with a single server. Contains one license with a unique license

activation key and documentation.

372906-B21

ProLiant Essentials Intelligent Networking Pack, Flexible License

NOTE:

For use with multiple servers. This part number can be used to purchase
multiple licenses with a single activation key. The quantity ordered for this part
number will be the quantity of licenses included in the kit in the form of a
corresponding activation key. Use the same key to activate all licenses in the
actual quantity ordered. For a given order, one kit will be delivered with the
activation key, and documentation.

372950-B21

ProLiant Essentials Intelligent Networking Pack, Tracking License

NOTE:

For use with signed and implemented Activation Key Agreements only.
Purchase of this part number entitles the customer to deploy additional licenses of
the product under the terms of the existing Activation Key Agreement.

NOTE:

Nothing is delivered in conjunction with the purchase of this part number.
Visit

http://h18004.www1.hp.com/products/servers/proliantessentials/license/akalic.htm

l

for more information on Activation Key Agreements.

372951-B21

QuickSpecs

HP ProLiant BL20p p-Class Server Blade

Options

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 18

NOTE:

For more information regarding ProLiant Essentials Software, please see
the following URL:

http://www.hp.com/servers/proliantessentials

NOTE:

Flexible and volume quantity license kits are available for ProLiant
Essentials Value Packs. Refer to URL

http://www.hp.com/servers/proliantessentials

or the various ProLiant Essentials

Value Pack product QuickSpecs for more information.

Processor

Pentium III P1400-512KB Processor Option Kit

234277-B21

Memory

(SDRAM DIMMs)

2048 MB PC133MHz Registered ECC SDRAM Memory Kit (2x1024 MB)

201695-B21

1024 MB PC133MHz Registered ECC SDRAM Memory Kit (2x512 MB)

201694-B21

512 MB PC133MHz Registered ECC SDRAM Memory Kit (2x256 MB)

201693-B21

256 MB PC133MHz Registered ECC SDRAM Memory Kit (2x128 MB)

201692-B21

Hard Drives

Ultra 320 SCSI – Universal Hot Plug

72.8GB 10,000 rpm, U320 Universal Hard Drive, 1"

286714-B22

300-GB 10,000 rpm, U320 Universal Hard Drive 1"

350964-B22

36.4GB 15,000 rpm, U320 Universal Hard Drive, 1"

286776-B22

72.8GB 15,000 rpm, U320 Universal Hard Drive, 1"

286778-B22

NOTE:

All U320 Universal Hard Drives are backward compatible to U2 or U3

speeds.

NOTE:

Please see the Hard Drive QuickSpecs for Technical Specifications such
as capacity, height, width, interface, transfer rate, seek time, physical
configuration, and operating temperature:
U320 Hard Drive QS:

http://h18000.www1.hp.com/products/quickspecs/11531_div/11531_div.HTML

(Worldwide)

http://h18000.www1.hp.com/products/quickspecs/11531_na/11531_na.HTML

(North America)

Storage Controllers

Battery Backed Write Cache Enabler Option Kit

255514-B21

Battery Backed Write Cache Enabler Option Kit (Japan)

255514-291

NOTE:

Please see the following Controller QuickSpecs for Technical
Specifications such as PCI Bus, PCI Peak Data Transfer Rate, SCSI Protocols
supported, SCSI Peak Data Transfer Rate, Channels, SCSI Ports, Drives
supported, Cache, RAID support, and additional information:

http://h18000.www1.hp.com/products/quickspecs/11063_div/11063_div.HTML

(Smart Array 5I)

Communications

Dual NC7780 Gigabit Upgrade Module for ProLiant BL20p

230255-B21

NOTE:

The Dual NC7780 Gigabit Upgrade Module replaces two of the standard
NC3163 Fast Ethernet Embedded WOL (Wake On LAN) NICs to two
10/10/1000T NC7780 NICs.

NOTE:

The GbE Interconnect Switch options support server NIC speeds to 100
Mbps. It is recommended that the patch panel or GbE2 Interconnect Switch
options be used with the Dual NC7780 Gigabit Upgrade Module if server NIC
speeds to 1000 Mbps are required.

QuickSpecs

HP ProLiant BL20p p-Class Server Blade

Options

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 19

BL p-Class Server
Blade Enclosures

ProLiant BL p-Class Server Blade Enclosure (ProLiant Essentials Rapid
Deployment Pack Trial)

243564-B21

ProLiant BL p-Class Server Blade Enclosure (8 ProLiant Essentials Rapid
Deployment Pack Licenses)

281404-B21

BL p-Class
Interconnects

ProLiant BL p-Class RJ-45 Patch Panel (pair)

230766-B21

NOTE:

Only one interconnect kit required per server blade enclosure.

ProLiant BL p-Class RJ-45 Patch Panel 2 (pair)

306465-B21

NOTE:

Only one interconnect kit required per server blade enclosure.

ProLiant BL p-Class C-GbE2 Interconnect Kit (with pair of GbE2 Interconnect
Switches and two QuadT2 Interconnect Modules)

283192-B21

NOTE:

Only one interconnect kit required per server blade enclosure.

ProLiant BL p-Class F-GbE2 Interconnect Kit (with pair of GbE2 Interconnect
Switches and two QuadSX Interconnect Modules)

283193-B21

NOTE:

Only one interconnect kit required per server blade enclosure.

ProLiant BL p-Class C-GbE Interconnect Kit (with pair of GbE Interconnect
Switches and two QuadT Interconnect Modules)

249655-B21

NOTE:

Only one interconnect kit required per server blade enclosure.

NOTE:

The GbE Interconnect Switch supports server NIC speeds to 100 Mbps.
It is recommended that the GbE2 Interconnect Kit or patch panel be used if
server NIC speeds to 1000 Mbps are required.

NOTE:

To meet applicable radio frequency (RF) emission limits, the sidewall
panels on the ends of any individual rack or a series of coupled racks and the
front and rear doors must be installed in any racks containing more than one
ProLiant BL p-Class GbE Interconnect Kit.

ProLiant BL p-Class F-GbE Interconnect Kit (with pair of GbE Interconnect
Switches and two DualTSX Interconnect Modules)

279720-B21

NOTE: Only one interconnect kit required per server blade enclosure.

NOTE:

The GbE Interconnect Switch supports server NIC speeds to 100 Mbps.
It is recommended that the GbE2 Interconnect Kit or patch panel be used if
server NIC speeds to 1000 Mbps are required.

NOTE:

To meet applicable radio frequency (RF) emission limits, the sidewall
panels on the ends of any individual rack or a series of coupled racks and the
front and rear doors must be installed in any racks containing more than one
ProLiant BL p-Class GbE Interconnect Kit.

QuickSpecs

HP ProLiant BL20p p-Class Server Blade

Options

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 20

BL p-Class Power
options

NOTE:

Use p-Class sizing tool to help determine power configuration:

http://h30099.www3.hp.com/configurator/calc/Power%20Calculator%20Catalog.xls

Single Phase Redundant Power Enclosure with 4 power supplies (NA/JPN)

239162-001

(Single Phase Power Enclosure holds a maximum of 4 power supplies; no need to
order additional power supplies with this option kit)

Single Phase Redundant Power Enclosure with 4 power supplies (Int'l)

239162-421

(Single Phase Power Enclosure holds a maximum of 4 power supplies; no need to
order additional power supplies with this option kit)

3 Phase Redundant Power Enclosure with 6 power supplies (NA/JPN)

230769-001

(3 Phase Power Enclosure holds a maximum of 4 power supplies; no need to
order additional power supplies with this option kit)

3 Phase Redundant Power Enclosure with 6 power supplies (Int'l)

230769-421

(3 Phase Power Enclosure holds a maximum of 4 power supplies; no need to
order additional power supplies with this option kit)

Single Phase Power Enclosure (empty) (NA/JPN)
(Holds up to 4 power supplies; power supplies are not included in this kit)

231710-001

Single Phase Power Enclosure (empty) (Int'l)
(Holds up to 4 power supplies; power supplies are not included in this kit)

231710-421

3 Phase Power Enclosure (empty) (NA/JPN)
(Holds up to 6 power supplies; power supplies are not included in this kit)

231709-001

3 Phase Power Enclosure (empty) (Int'l)
(Holds up to 6 power supplies; power supplies are not included in this kit)

231709-421

Single Power Supply

239161-B21

Facility DC Power Connection

240563-B21

Power Distribution

ProLiant p-Class Scalable Bus Bar

240560-B21

ProLiant p-Class Mini Bus Bar

240559-B21

ProLiant p-Class Mini Bus Bar

240562-B21

Diagnostic Options

ProLiant p-Class Diagnostic Station

230743-B21

NOTE:

The Diagnostic Station allows access to the ProLiant BL20p server blade
and the BL p-Class interconnect switch outside of the server enclosure. The
option provides power and a data interface so that "offline" upgrade and
diagnostic functions may be performed.

USB Options

USB Easy Access Keyboard (Carbonite/Silver)

DC168B#

USB Optical Scroll Mouse (Carbonite)

DD441B

USB 1.44-MB External Diskette Drive (Carbonite)

DC141B

QuickSpecs

HP ProLiant BL20p p-Class Server Blade

Options

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 21

USB Easy Access Keyboard (Carbonite) Country Key Code

Dash #

Description

Dash #

Description

A2M

ICELAND

ABT

HE

AB0

TAWA

ABU

UK

AB1

KOR

ABV

ARA

AB2

PRC

ABX

FIN

AB6

FRA

ABY

DEN

AB7

GRK

ABZ

ITL

AB8

TURK

AC0

BEL

AB9

PORT

AC4

BRZ

ABA

US

ACB

RUSS

ABB

EURO

AKB

CZE

ABC

FCAN

AKC

HUNG

ABD

GR

AKD

POL

ABE SP

AKL

THAI

ABF

FR

AKN

BHCSY

ABH

NL

AKR

SLOV

ABJ

Japan

ARK

ICELAND

ABM

LA

B15

KAZ

ABN

NOR

UUZ

SWISS

ABS

SW

Custom Builder

Please see the Enterprise Configurator for configuration assistance at:

http://www.hp.com/products/configurator

.

HP Rack 10000 Series

(Graphite Metallic)

S10614 (14U) Rack Cabinet - Shock Pallet

292302-B22

HP Rack 10647 (47U) – Pallet

245160-B21

HP Rack 10647 (47U) – Crated

245160-B23

HP Rack 10642 (42U) – Pallet

245161-B21

HP Rack 10642 (42U) – Shock Pallet

245161-B22

HP Rack 10642 (42U) – Crated

245161-B23

HP Rack 10636 (36U) – Pallet

245162-B21

HP Rack 10636 (36U) – Shock Pallet

245162-B22

HP Rack 10636 (36U) – Crated

245162-B23

HP Rack 10622 (22U) – Pallet

245163-B21

HP Rack 10622 (22U) – Shock Pallet

245163-B22

HP Rack 10622 (22U) – Crated

245163-B23

NOTE:

-B21 (pallet) used to ship empty racks shipped on a truck

-B22 (shock pallet) used to ship racks with equipment installed (by custom
systems, VARs and Channels)

-B23 (crated) used for air shipments of empty racks
Not all Compaq equipment is qualified to be shipped in the Rack 10000 series.

NOTE:

Please see the Rack 10000 QuickSpecs for Technical Specifications
such as height, width, depth, weight, and color:

http://h18000.www1.hp.com/products/quickspecs/10995_div/10995_div.HTML

(Worldwide)

http://h18000.www1.hp.com/products/quickspecs/10995_na/10995_na.HTML

(North America)

QuickSpecs

HP ProLiant BL20p p-Class Server Blade

Options

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 22

NOTE:

For additional information regarding Rack Cabinets, please see the
following URL:

http://h18000.www1.hp.com/products/servers/proliantstorage/racks/index.html

.

Rack Options for HP
Rack 10000 Series

HP Rack Plinth Kit (Carbon)

251960-B21

HP Rack Light Kit (Neon)

361589-B21

800mm Wide Stabilizer Kit (Graphite)

255488-B21

NOTE:

Supported by the Rack 10842 cabinet only.

600mm Stabilizer Kit – Graphite

246107-B21

Baying Kit for Rack 10000 series (Carbon)

248929-B21

42U Side Panel – Graphite Metallic

246099-B21

110V Fan Kit (Graphite)

257413-B21

NOTE:

Roof Mount Includes power cord with IEC320-C13 to Nema 5-15P.

220V Fan Kit (Graphite)

257414-B21

NOTE:

Roof Mount Includes power cord with IEC320-C13 to Nema 6-15P.

36U Side Panel – Graphite Metallic

246102-B21

47U Side Panel – Graphite Metallic

255486-B21

9000/10000 Series Offset Baying Kit (42U)

248931-B21

NOTE:

This kit can be used to connect 9000 and 10000 series racks of the same
U height together. Kit contents include hardware for connecting racks and a panel
to cover the 100mm gap at the rear of the two racks.

NOTE: For additional information regarding Rack Options, please see the

following URL:

http://h18000.www1.hp.com/products/servers/proliantstorage/rack-

options/index.html

.

Ballast Option Kit

120672-B21

9000/10000 Series Offset Baying Kit (42U)

248931-B21

NOTE:

This kit can be used to connect 9000 and 10000 series racks of the same
U height together. Kit contents include hardware for connecting racks and a panel
to cover the 100mm gap at the rear of the two racks.

NOTE:

For additional information regarding Rack Cabinets, please see the
following URL:

http://h18000.www1.hp.com/products/servers/proliantstorage/rack-

options/index.html

Rack Rail Adapter Kit (25" depth)

120675-B21

100 kg Sliding Shelf

234672-B21

Monitor/Utility Shelf - Graphite

253449-B21

Depth Adjustable Fixed Rail

332558-B21

Cable Management D-Rings Kit

168233-B21

Server Console Switch 1 x 4 port (100-230 VAC)

400336-001

Server Console Switch 1 x 4 port (100-230 VAC) (Int’l)

400336-B31

Server Console Switch 1 x 4 port (100-230 VAC) (Japan)

400336-291

IP Console Switch Box, 1 x 1 x 16

262585-B21

IP Console Switch Box, 3 x 1 x 16

262586-B21

CPU to Server Console Cable, 12’

110936-B21

CPU to Server Console Cable, 3’

110936-B24

CPU to Server Console Cable, 7’

110936-B25

IP CAT5 Cable 3’, 4 pack

263474-B21

IP CAT5 Cable 6’, 8 pack

263474-B22

IP CAT5 Cable 12’, 8 pack

263474-B23

QuickSpecs

HP ProLiant BL20p p-Class Server Blade

Options

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 23

IP CAT5 Cable 20’, 4 pack

263474-B24

IP CAT5 Cable 40’, 1 pack

263474-B25

Switch Box Connector Kit (high voltage) (Int'l)

144007-B33

TFT5600 Rack Keyboard Monitor

221546-xx1

TFT7210R Rack Mounted 17" Monitor

348373-B21

NOTE:

For a complete list of Monitors please view the following URL:

http://h18004.www1.hp.com/products/monitors/

1U Rack Keyboard & Drawer (Carbon)

257054-xx1

Country Code Key

(for 1U Rack Keyboard & Drawer (PN 257054-xx1))

XX = 001

US

XX = 091

Norway

XX = 031

UK

XX = 101

Sweden/Finland

XX = 041

Germany

XX = 111

Switzerland

XX = 051

France

XX = 131

Portugal

XX = 061

Italy

XX = 181

Belgium

XX = 071

Spain

XX = 291

Japan

XX = 081

Denmark

XX = B31

International

NOTE:

For additional information regarding Rack Options, please see the
following URL:

http://h18000.www1.hp.com/products/servers/proliantstorage/rack-

options/index.html

.

Rack Options for HP,
Compaq-branded,
Third Party and Telco
racks

Telco rack-mounting hardware kit for ProLiant BL e-Class Server Blade
Enclosure

266076-B21

Enclosure Shipping Bracket Kit

NOTE:

When shipping an enclosure in a rack shipping brackets must be

installed to the rack.

293119-B21

Service and Support
Offerings

(HP Care

Pack Services)

NOTE:

The HP Care Pack services for ProLiant BL p-Class server blades, cover
the server blade and the p-Class blade enclosure that the server blade is
installed in as well as interconnects, power enclosure with power supplies and
power distribution.

Hardware Services On-site Service

Next Business Day On-site Service, 5-Day x 9-Hour Coverage,
3 Years

UA203A

Next Business Day On-site Service, 5-Day x 9-Hour Coverage,
3 Years, Electronic

UA203E

4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years

UA204A

4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic

UA204E

4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years

UA205A

4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic

UA205E

6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years

UA206A

6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years,
Electronic

UA206E

QuickSpecs

HP ProLiant BL20p p-Class Server Blade

Options

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 24

Installation & Start-up Services

ProLiant BL p-Class Blade Server Hardware Installation

UA219A

ProLiant BL p-Class Blade Server Hardware Installation, Electronic

UA219E

ProLiant BL p-Class Enclosure and Server Blade Hardware Installation

U4971A

ProLiant BL p-Class Enclosure and Server Blade Hardware Installation,
Electronic

U4971E

Provides for the Installation and Start-up of Compaq's Rapid Deployment Pack
on a Customer supplied server designated as a Deployment Server. Includes the
deployment of a single server. This new server will be deployed using either one
of the pre-configured scripts or an image. In addition, the service will provide for
the capture and storage of the configuration of the newly deployed server and
orientation on product usage. To be delivered during standard office ours,
standard office days.

U5683A

Provides for the Installation and Start-up of Compaq's Rapid Deployment Pack
on a Customer supplied server designated as a Deployment Server. Includes the
deployment of a single server. This new server will be deployed using either one
of the pre-configured scripts or an image. In addition, the service will provide for
the capture and storage of the configuration of the newly deployed server and
orientation on product usage. To be delivered during standard office ours,
standard office days. Electronic.

U5683E

NOTE:

For more information, customer/resellers can contact

http://www.hp.com/hps/carepack/services/

QuickSpecs

HP ProLiant BL20p p-Class Server Blade

Options

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 25

ProLiant BL20p Server Blade (2P Model)

(not available in NA)

Standard Memory

1024-MB PC133 MHz Registered ECC SDRAM DIMM installed (2 x 512-MB SDRAM DIMM)

Standard Memory Plus Optional Memory

Up to 3072-MB of SDRAM DIMM memory is available with the installation of optional SDRAM DIMM memory expansion kits.

Standard Memory Replaced with Optional Memory

Up to 4096-MB of SDRAM DIMM memory is available with the removal of standard memory and the installation of optional
SDRAM DIMM memory expansion kits.

Memory

Slot

1 2 3 4

Standard

1024 MB

512 MB 512 MB

empty empty

Optional

3072 MB

512 MB 512 MB

1024 MB 1024 MB

Maximum

4096 MB

1024 MB 1024 MB 1024 MB 1024 MB

Following are memory options available from HP:

2048-MB PC133MHz Registered ECC SDRAM Memory Kit (2 x 1024 MB

201695-B21

1024-MB PC133MHz Registered ECC SDRAM Memory Kit (2 x 512 MB)

201694-B21

512-MB PC133MHz Registered ECC SDRAM Memory Kit (2 x 256 MB)

201693-B21

256-MB PC133MHz Registered ECC SDRAM Memory Kit (2 x 128 MB)

201692-B21

ProLiant BL20p Server Blade (1P Model)
Standard Memory

512-MB PC133 MHz Registered ECC SDRAM DIMM installed (2 x 256-MB SDRAM DIMM)

Standard Memory Plus Optional Memory

Up to 2560-MB of SDRAM DIMM memory is available with the installation of optional SDRAM DIMM memory expansion kits.

Standard Memory Replaced with Optional Memory

Up to 4096-MB of SDRAM DIMM memory is available with the removal of standard memory and the installation of optional
SDRAM DIMM memory expansion kits.

Memory

Slot

1 2 3 4

Standard

512 MB

256 MB 256 MB

empty empty

Optional

2560 MB

256 MB 256 MB

1024 MB 1024 MB

Maximum

4096 MB

1024 MB 1024 MB 1024 MB 1024 MB

Following are memory options available from HP:

2048-MB PC133MHz Registered ECC SDRAM Memory Kit (2 x 1024 MB)

201695-B21

1024-MB PC133MHz Registered ECC SDRAM Memory Kit (2 x 512 MB)

201694-B21

512-MB PC133MHz Registered ECC SDRAM Memory Kit (2 x 256 MB)

201693-B21

256-MB PC133MHz Registered ECC SDRAM Memory Kit (2 x 128 MB)

201692-B21

QuickSpecs

HP ProLiant BL20p p-Class Server Blade

Memory

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 26

Compaq ProLiant BL p­Class Server Blade
Enclosure

Dimensions

Height

10.5 in (26.67 cm)

Width

17.60 in (44.70 cm)

Depth

28.86 in (73.30 cm)

Input Specifications

Rated input voltage

-43 VDC to -53 VDC

Nominal -48 VDC

Rated input current

62.5 A at -48 VDC

Rated input power

3000 W

Individual server blade
bay ratings

Rated input voltage

-43 VDC to -53 VDC

Nominal -48 VDC

Rated input current

6.25 A at -48 VDC

Rated input power

300 W

Temperature Range

Operating

50° to 95° F (10° to 35° C)

Non-operating

-22° to 140° F (-30° to 60° C)

Relative Humidity

(non-condensing)

Operating

20% to 80%

Non-operating

5% to 95%

Wet Bulb Temperature

Operating

82.4° F (28° C)

Non-operating

101.7° F (38.7° C)

NOTE:

Operating temperature has an altitude derating of 34° F per 1,000 ft (1° C per 304.8 m).
No direct sunlight. Upper operating limit is 10,000 ft or 70Kpa (3,048 m or 10.1 psia). Upper non­operating limit is 30,000 ft or 30.3 KPa (9,144 m or 4.4 psia). Storage maximum humidity of 95%
is based on a maximum temperature of 113° F (45° C). Altitude maximum for storage is 70 KPa.

Operating Performance
Specifications for
ProLiant BL20p Server
Blade

Dimensions

Height

1.69 in (4.29 cm)

Width

10.29 in (26.14 cm)

Depth

28.00 in (71.12 cm)

Weight

(maximum)

18.0 lb (8.17 kg)

Temperature Range

Operating

50° to 95° F (10° to 35° C)

Shipping

-40° to 140° F (-40° to 60° C)

Storage

-4° to 140° F (-20° to 60° C)

Relative Humidity

(non-condensing)

Operating

10% to 90%

Shipping

10% to 90%

Storage

10% to 95%

Maximum Wet Bulb
Temperature

82° F (28° C)

NOTE:

Operating temperature has an altitude derating of 34° F per 1,000 ft (1° C per 304.8 m).
No direct sunlight. Upper operating limit is 10,000 ft or 70Kpa (3,048 m or 10.1 psia). Upper non­operating limit is 30,000 ft or 30.3 KPa (9,144 m or 4.4 psia). Storage maximum humidity of 95%
is based on a maximum temperature of 113° F (45° C). Altitude maximum for storage is 70 KPa.

QuickSpecs

HP ProLiant BL20p p-Class Server Blade

Technical Specifications

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 27

Operating and
Performance
Specifications for RJ­45 Patch Panel

Dimensions

Height

10.405 in (26.43 cm)

Width

1.535 in (3.899 cm)

Depth

27.697 in (70.35 cm)

Capability

IEEE 802.2, 802.3, 802.3u

Network Transfer Rate

10 Base-T (half-duplex)

10 Mbps

10 Base-T (full-duplex)

20 Mbps

100 Base-TX (half­duplex)

100 Mbps

100 Base-TX (full­duplex)

200 Mbps

1000 Base-TX (full­duplex)

1000 Mbps

Connector

RJ-45

Cable Support

10 Base-TX

Categories 3, 4, or 5 UTP (2 or 4 pair); up to
328 ft (100 m)

100 Base-TX

Category 5 UTP (2 pair); up to 328 ft (100 m)

1000 Base-TX

Category 5E (4 pair); up to 328 ft (100 m)

Power Requirements

200 mA at + 5V DC; 500 mA at -48V

Temperature Range

Operating

50° to 95° F (10° to 35° C)

Non-operating

-22° to 140° F (-30° to 60° C)

Relative Humidity

(non-condensing)

Operating

20% to 80%

Non-operating

5% to 95%

Wet Bulb Temperature

Operating

82.4° F (28° C)

Non-operating

101.7° F (38.7° C)

NOTE:

Operating temperature has an altitude derating of 34° F per 1,000 ft (1° C per 304.8 m).
No direct sunlight. Upper operating limit is 10,000 ft or 70Kpa (3,048 m or 10.1 psia). Upper non­operating limit is 30,000 ft or 30.3 KPa (9,144 m or 4.4 psia). Storage maximum humidity of 95%
is based on a maximum temperature of 113° F (45° C). Altitude maximum for storage is 70 KPa.

Operating and
Performance
Specifications for GbE2
Interconnect Switch

Dimensions

Height

10.405 in (26.43 cm)

Width

1.535 in (3.899 cm)

Depth

27.697 in (70.35 cm)

Weight

12.0 lb/5.4 kg per interconnect switch

Performance

24 Gbps External port bandwidth per server blade enclosure (full
duplex)

Forwarding rate 1.5 million pps per gigabit port (64-byte packets)

Auto-MDI/MDIX, auto-negotiation and auto-sensing with full-duplex
support

Forwarding Mode

Store and forward

MAC Addresses

2,048 per interconnect switch

Forwarding table age
time

Maximum age: 1 to 65535 seconds; default: 300 seconds

Memory

128MB Main, 32MB flash and 2MB packet buffer per interconnect
switch

Compliance

IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3z (F-GbE2 only), 802.1D,

802.3ac, 802.3ad (Static), and 802.1Q

QuickSpecs

HP ProLiant BL20p p-Class Server Blade

Technical Specifications

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 28

SNMP v1 (RFC 1157), MIB-II (RFC 1213), Bridge MIB (RFC 1493),
Interface Group MIB (RFC 2863), Ethernet MIB (RFC 1643), 802.1Q
Extended Bridge MIB, Entity MIB (RFC 2037), RADIUS Authentication
MIB, 802.3-2002 MIB, SNMP Trap Convention (RFC 1215), Bridge Trap
(RFC 1493), Remote Monitoring Traps (RFC 1757) and HP Enterprise
Switch MIBs and Environmental Traps

RADIUS (RFC 2138), Telnet (RFC 854), TFTP client (RFC 783), SSH
v1.5, SCP v1.5, NTP v2 (RFC 1119), BOOTP client (RFC 2132), and
XModem

Network Transfer Rate

10 Base-T (half-duplex)

10 Mbps

10 Base-T (full-duplex)

20 Mbps

100 Base-TX (half­duplex)

100 Mbps

100 Base-TX (full­duplex)

200 Mbps

1000 Base-TX
(half-duplex)

1000 Mbps

1000 Base-TX (full­duplex)

2000 Mbps

1000 Base-SX (full­duplex)

2000 Mbps

Connector

12 RJ-45, 2 DB-9 (C-GbE2 Interconnect Kit)
8 LC fiber, 4 RJ-45, 2 DB9 (F-GbE2 Interconnect Kit)
16 LC SFP transceiver slots (GbE2 Storage Connectivity Kit)

EMI

FCC Class A

ICES-003 Class A

AS/NZS 3548 Class A

VCCI Class A

Safety

UL/CUL Listed Accessory

CE

Power Requirements

-48V DC: 2040 mA, 98 W maximum (per interconnect switch without
GbE2 Storage Connectivity Kit)

-48V DC: 2355 mA, 113 W maximum (per interconnect switch with
GbE2 Storage Connectivity Kit)

Temperature Range

Operating

50° to 95° F (10° to 35° C)

Non-operating

-22° to 140° F (-30° to 60° C)

Relative humidity
(non-condensing)

Operating

20% to 80%

Non-operating

5% to 95%

Wet Bulb Temperature

Operating

82.4° F (28° C)

Non-operating

101.7° F (38.7° C)

NOTE:

Operating temperature has an altitude derating of 34° F per 1,000 ft (1° C per 304.8 m).
No direct sunlight. Upper operating limit is 10,000 ft or 70Kpa (3,048 m or 10.1 psia). Upper non­operating limit is 30,000 ft or 30.3 KPa (9,144 m or 4.4 psia). Storage maximum humidity of 95%
is based on a maximum temperature of 113° F (45° C). Altitude maximum for storage is 70 KPa.

Operating and
Performance
Specifications for
Interconnect GbE
Switch

Dimensions

Height

10.405 in (26.43 cm)

Width

1.535 in (3.899 cm)

Depth

27.697 in (70.35 cm)

Weight

11.5 lb/5.2 kg per interconnect switch

Performance

9.6 Gbps external port bandwidth per server blade enclosure (full

QuickSpecs

HP ProLiant BL20p p-Class Server Blade

Technical Specifications

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 29

duplex)

Forwarding rate 0.15 million pps per 10/100 port, 1.5 million pps per
gigabit port, (64-byte packets)

Non-blocking, full-wire speed for all connections

Auto-MDI/MDIX, auto-negotiation and auto-sensing with full-duplex
support

Forwarding Mode

Store and forward

MAC Addresses

8,191 per interconnect switch; MAC address based filtering and MAC
address packet priority configuring

Forwarding table age
time

Maximum age: 1 to 1,000,000 seconds; default: 300 seconds

Memory

32MB Main, 6MB flash and 16MB packet buffer per interconnect switch

Compliance

IIEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3z (F-GbE only), 802.1D,

802.1p, 802.3ac, 802.3ad (Static), and 802.1Q

SNMP v1 (RFC 1157) and RMON v1 (RFC 1757) groups 1, 2, 3, and 9
MIB-II (RFC 1213), Bridge MIB (RFC 1493), Interface Group MIB (RFC

2863), Ethernet MIB (RFC 1643), 802.1Q Extended Bridge MIB (RFC

2674), Entity MIB (RFC 2037), SNMP Trap Convention (RFC 1215),
Bridge Trap (RFC 1493), Remote Monitoring Traps (RFC 1757), and HP
Enterprise Switch MIBs and Environmental Traps

IGMP v1 (RFC 1112), IGMP v2 (RFC 2236), SNTP (RFC 1361), Telnet
(RFC 854), TFTP client (RFC 783), BOOTP client, (RFC 2132), DHCP
client, (RFC 2131) and ZModem

Network Transfer Rate

10 Base-T (half-duplex)

10 Mbps

10 Base-T (full-duplex)

20 Mbps

100 Base-TX (half­duplex)

100 Mbps

100 Base-TX (full­duplex)

200 Mbps

1000 Base-TX (half­duplex)

1000 Mbps

1000 Base-TX (full­duplex)

2000 Mbps

1000 Base-SX (full­duplex)

2000 Mbps

Connector

12 RJ-45, 2 DB-9 (C-GbE Interconnect Kit)
4 LC fiber, 8 RJ-45, 2 DB-9 (F-GbE Interconnect Kit)

EMI

FCC Class A

ICES-003 Class A

AS/NZS 3548 Class A

VCCI Class A

Safety

UL/CUL Listed Accessory

CE

Power Requirements

-48V DC: 1050 mA, 50 W maximum (per interconnect switch)

Temperature Range

Operating

50° to 95° F (10° to 35° C)

Non-operating

-22° to 140° F (-30° to 60° C)

Relative humidity
(non-condensing)

Operating

20% to 80%

Non-operating

5% to 95%

Wet Bulb Temperature

Operating

82.4° F (28° C)

Non-operating

101.7° F (38.7° C)

QuickSpecs

HP ProLiant BL20p p-Class Server Blade

Technical Specifications

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 30

NOTE:

Operating temperature has an altitude derating of 34° F per 1,000 ft (1° C per 304.8 m).
No direct sunlight. Upper operating limit is 10,000 ft or 70Kpa (3,048 m or 10.1 psia). Upper non­operating limit is 30,000 ft or 30.3 KPa (9,144 m or 4.4 psia). Storage maximum humidity of 95%
is based on a maximum temperature of 113° F (45° C). Altitude maximum for storage is 70 KPa.

Operating and
Performance
Specifications for
Power Enclosures

(North America/Japan)

Single-Phase Model

Three-Phase Model

Dimensions

Height

5.25 in (13.34 cm) 5.25 in (13.34 cm)

Width

17.60 in (44.7 cm) 17.60 in (44.7 cm)

Depth

27.15 in (68.96 cm) 27.15 in (68.96 cm)

Weights

No hot-plug power
supplies

47.5 lb (21.55 kg) 47.5 lb (21.55 kg)

All hot-plug power
supplies

99.5 lb (45.13 kg)

125.5 lb (56.93 kg)

Input requirements

Rated input voltage

200 VAC to 240 VAC 200 VAC to 240 VAC

line to line

Rated input frequency

50 Hz to 60 Hz 50 Hz to 60 Hz

Rated input current per
side

24A

24A per phase

Rated input power per
side

5760 W 9976 W

Power cord

1 IEC 309 3-pin, 32A
per side

1 IEC 309 5-pin, 32A
per side

Output voltage
specifications

Rated output voltage

-48.8 VDC to -54 VDC -48.8 VDC to -54 VDC

Rated output current

99A

170A

Rated output power

4298 W 8310 W

Nominal Power

4158 W at 208 VAC 7202 W at 208 VAC

Ambient Temperature
Range

(see

NOTE

)

Operating

50° to 95° F
(10° to 35° C)

50° to 95° F
(10° to 35° C)

Shipping

-22° to 140° F
(-30° to 60° C)

-22° to 140° F
(-30° to 60° C)

Relative Humidity non­condensing (see

NOTE

)

Operating

20% to 80% 20% to 80%

Non-operating

5% to 95% 5% to 95%

Wet Bulb Temperature

Operating

82.4° F (28° C) 82.4° F (28° C)

Non-operating

101.7° F (38.7° C) 101.7° F (38.7° C)

NOTE:

Operating temperature has an altitude derating of 34° F per 1,000 ft (1° C per 304.8 m).
No direct sunlight. Upper operating limit is 10,000 ft or 70Kpa (3,048 m or 10.1 psia). Upper non­operating limit is 30,000 ft or 30.3 KPa (9,144 m or 4.4 psia). Storage maximum humidity of 95%
is based on a maximum temperature of 113° F (45° C). Altitude maximum for storage is 70 KPa.

QuickSpecs

HP ProLiant BL20p p-Class Server Blade

Technical Specifications

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 31

Operating and
Performance
Specifications for
Power Enclosures

(International)

Dimensions

Height

5.25 in (13.34 cm) 5.25 in (13.34 cm)

Width

17.60 in (44.7 cm) 17.60 in (44.7 cm)

Depth

27.15 in (68.96 cm) 27.15 in (68.96 cm)

Weights

No hot-plug power
supplies

47.5 lb (21.55 kg) 47.5 lb (21.55 kg)

all hot-plug power
supplies

99.5 lb (45.13 kg)

125.5 lb (56.93 kg)

Input requirements

Rated input voltage

200 VAC to 240 VAC

6.25 A at -48 VDC
200 VAC to 240 VAC
line to neutral

Rated input Frequency

50 Hz to 60 Hz 50 Hz to 60 Hz

Rated input current

24A

20A per phase

Rated input power

5760 W

10,552 W

Powercord

1 IEC 309 3-pin, 32A
per side

1 IEC 309 5-pin, 32A
per side

Output Voltage
Specifications

Related output voltage

-48.8 VDC to -54 VDC -48.8 VDC to -54 VDC

Related output current

99A

180A

Related output power

4798 W 8790 W

Nominal power

4598 W at 208 VAC

8790 W at 230 VAC L­N

Ambient Temperature
Range

Operating

50° to 95° F
(10° to 35° C)

50° to 95° F
(10° to 35° C)

Non-operating

-22° to 140° F
(-30° to 60° C)

-22° to 140° F
(-30° to 60° C)

Relative Humidity

(non-condensing)

Operating

20% to 80% 20% to 80%

Non-operating

5% to 95% 5% to 95%

Maximum Wet Bulb
Temperature

Operating

82.4° F (28° C) 82.4° F (28° C)

Non-operating

101.7° F (38.7° C) 101.7° F (38.7° C)

NOTE:

Operating temperature has an altitude derating of 34° F per 1,000 ft (1° C per 304.8 m).
No direct sunlight. Upper operating limit is 10,000 ft or 70Kpa (3,048 m or 10.1 psia). Upper non­operating limit is 30,000 ft or 30.3 KPa (9,144 m or 4.4 psia). Storage maximum humidity of 95%
is based on a maximum temperature of 113° F (45° C). Altitude maximum for storage is 70 KPa.

Operating and
Performance
Specifications for
Power Distribution
Devices

Power Bus Box

Mini Bus Bar

Scalable Bus Bar

Power enclosure or
facility DC supported
(3U each)

1 1 2

Server blade
enclosures

1 3 6

Total rack height of
supported enclosures

9U

21U 36U

Dimensions

Height

5.1 in (12.95 cm)

19.45 in (49.40 cm)

48.57 in (123.37 cm)

Width

3.6 in (9.14 cm) each

19.74 in (50.14 cm) 19.74 in (50.14 cm)

Depth

3.25 in (8.26 cm)

2.2 in (5.59 cm) 2.2 in (5.59 cm)

Weight

3.62 lb (1.64 kg )

13.2 lb (5.9 kg)

26 lb (11.79 kg)

Rated operating
voltage

-43.2 VDC to -54 VDC

43.2 VDC to -54 VDC

-43.2 VDC to -54 VDC

QuickSpecs

HP ProLiant BL20p p-Class Server Blade

Technical Specifications

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 32

Max total power
supported

3000 W 9000 W

15,000 W

Total max input current
at minimum voltage

69.44 A at -43.2VDC

208.32 A at -43.2 VDC

347.2 A at -43.2 VDC
(equivalent of 175A
per feed)

Total max input current
at nominal voltage

62.5 A at -48VDC

187.5 A at -48 VDC 312.5 A at -48 VDC
(equivalent of 175A
per feed)

Max current per power
feed

70A

210A 210A

Max local ambient
temperature

149° F (65° C) 149° F (65° C)

NOTE:

All systems support redundant A & B feeds. Scalable bus bar supports dual A and dual B

feeds.

Operating and
Performance
Specifications for
Facility DC

Voltage

Nominalinput voltage

-48 VDC

Operating voltage range

-48VDC ± 10% or -43.2 VDC to -52.8 VDC

Max input voltage slew
rate

0.5V/uS

Redundant feed voltages*

*A and B feeds must differ by no more than
5VDC during steady state operation

Ripple/Noise

480 mV PARD**

Overshoot

Must remain within regulation limits on all
feeds during startup or shutdown

Voltage Transients

Must not exceed -60 VDC

Current

Max steady state input
current

62.5A per server blade enclosure installed at

-48VDC

Max steady state current
per feed/total

Power bus boxes

70 A/70A

Mini bus bars

210 A/210A

Scalable bus bars

210 A/350A or equivalent of 175A per feed*

In-rush current

Must support up to 2X the maximum operating current per server blade
enclosure (125 A) for up to 1.0 mS

Input over-current

Customer provided fusing for facility DC feeds that protects the system
from catastrophic over-current within 20 uS. Fuse should sustain all in­rush and operating currents.

Max Input Current
Slew Rate

1A/uS

Max Input Curent Slew
Rate

3000W per server blade enclosure

Connection and
Cables

HP provided facility DC cable connection kit:

The facility DC connection kit supports the connection of up to four

-48VDC, RETURN pairs and ground.

The power cable assemblies consist of 1/0AWG, color-coded, flexible
cable rated at 105° C, terminated with bus mating connectors at one end
and unterminated at the other end. The cable length provided enables
the customer to route to a fuse panel within or adjacent to the rack.

NOTE:

*All systems support redundant A and B feeds. Scalable bus bars support dual A and dual
B feeds.
** Periodic and random noise (PARD). Maximum allowable peak-to-peak ripple and noise (as

QuickSpecs

HP ProLiant BL20p p-Class Server Blade

Technical Specifications

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 33

measured at the load on any output channel). The ripple and noise is measured over a 20 Hz to
100 MHz frequency band. A resistive load (non-electronic) is used for this measurement. Each
output is by-passed to return by a 10uF tantalum capacitor with an ESR less than 100 milli-Ohms
in parallel with a 0.47 uF ceramic capacitor, at the point of load. The load cable is 12 feet of
twisted wire capable of carrying the current. The printed wiring board assembly is installed in its
enclosure for this measurement, or the measurement leads are properly shielded with Earth
grounds applied to the insert.

© Copyright 2004 Hewlett-Packard Development Company, L.P.

The information contained herein is subject to change without notice.

Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel
Corporation.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such
products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for
technical or editorial errors or omissions contained herein.

QuickSpecs

HP ProLiant BL20p p-Class Server Blade

Technical Specifications

DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004

Page 34
