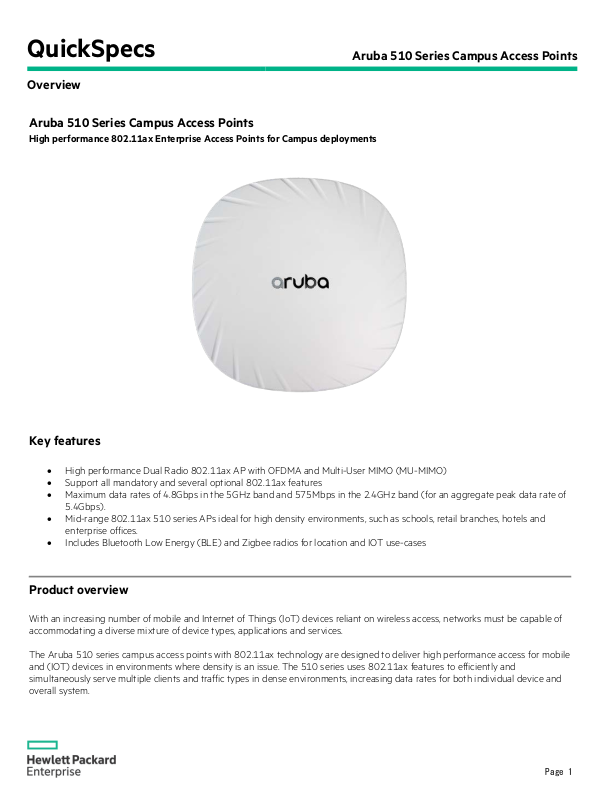

Page 1
QuickSpecs
Aruba 510 Series Campus Access Points
Overview
1
Aruba 510 Series Campus Access Points
High performance 802.11ax Enterprise Access Points for Campus deployments
Key features
• High performance Dual Radio 802.11ax AP with OFDMA and Multi-User MIMO (MU-MIMO)
Maximum data rates of 4.8Gbps in the 5GHz band and 575Mbps in the 2.4GHz band (for an aggregate peak data rate of
Product overview
With an increasing number of mobile and Internet of Things (IoT) devices reliant on wireless access, networks must be capable of
accommodating a diverse mixture of device types, applications and services.
The Aruba 510 series campus access points with 802.11ax technology are designed to deliver high performance access for mobile
and (IOT) devices in environments where density is an issue. The 510 series uses 802.11ax features to efficiently and
simultaneously serve multiple clients and traffic types in dense environments, increasing data rates
overall system.
• Support all mandatory and several optional 802.11ax features
•
5.4Gbps).
• Mid-range 802.11ax 510 series APs ideal for high density environments, such as schools, retail branches, hotels and
enterprise offices.
• Includes Bluetooth Low Energy (BLE) and Zigbee radios for location and IOT use-cases
for both individual device and
Page
Page 2
QuickSpecs
Aruba 510 Series Campus Access Points
Overview
2
The 510 series support all mandatory and several optional 802.11ax features, which includes up- and downlink OFDMA with up to
16 resource units, multi
eams in 5GHz and 2x2 with up to two special
streams in 2.4GHz, channel bandwidths up to 160MHz (5GHz; 40MHz in 2.4GHz), and 1024
The 510 series supports maximum data rates of 4.8Gbps in the 5GHz band and 575Mbps in the 2.4GHz band (for an
peak data rate of 5.4Gbps). Each AP supports up to 256 devices per radio, with the mid
ideal for high density environments, such as schools, retail branches, hotels and enterprise offices.
In addition to 802.11
and additional radios for location services and IOT applications. This delivers an unsurpassed user experience in today’s all-wireless
digital work environment and offers up to 4x higher capacity in a cost-effective manner.
Features and benefits
Efficiency Improvements
The Aruba 510 Series will efficiently and simultaneously serve multiple clients, increasing data rates for both individual devices and
as an overall system. Two key features of 802.11ax are multi
F
Multi
especially for large numbers of devices
providing multi
simultaneously. OFDMA is particularly effecti
frames, or low data
Multi user capability with downlink multi
802.11ac. This improves network capacity by allowing multiple devices to transmit simultaneously.
Energy efficiency
umber of devices and traffic, they will be
driving the need for more power consumption. To offset these demands, Aruba NetInsight includes a feature called GreenAP which
allows the 510 series access points to draw less power when it’s not being used, such
Unsurpassed Performance
In addition to the standard 802.11ax capabilities, Aruba’s ClientMatch technology will automatically detect and classify mobi
devices with common characteristics, group these devices, and
performance of the network. For example, ClientMatch will automatically attempt to group 802.11ax capable devices onto available
AP radios with equivalent capabilities, so that the performance benef
(OFDMA) are maximized. This means increased network performance and a boost in network capacity.
The AP
and seamless fail
the performance of a wireless network
IoT Ready
The 802.11ax technology also provides unique benefits for IoT devices ranging from dedicated channels in OFDMA to
simultaneous allow transmission of IoT connections with low latency, to
saves battery life.
In addition, the 510 series support an integrated Bluetooth Low
maximum flexibility, providing secure and reliable connectivity for IOT devices and for implementing location services.
-user MIMO (MU-MIMO), 4x4 MIMO with up to four spatial str
-QAM modulation.
aggregate
-range 802.11ax 510 series APs being
ax standard capabilities, the 510 Series supports unique features like Aruba ClientMatch radio management
-user connectivity and enhanced efficiency using Orthogonal
requency Division Multiple Access (OFDMA) and multi-user – multiple input multiple output (MU-MIMO).
-user transmission with downlink and uplink OFDMA — OFDMA increases user data rates and also reduces latency,
with short frames or low data-rate requirements, such as voice and IoT devices. By
-user capabilities, a channel can be divided in the frequency domain, and multiple transmissions can be carried
-rate streams.
ve in raising network efficiency and capacity where there are many devices, short
— As higher performance 802.11ax access points will handle a greater n
-user MIMO — MU MIMO is another multi-user capability, originally introduced in
as evenings when the buildings are empty.
match them with the best AP’s and radios to the optimize
its of Orthogonal Frequency Division Multiple Access
-510 series run on ArubaOS 8, which delivers always-on networking via features like LiveUpgrade, Controller Clustering
-over. ArubaOS 8 also includes AirMatch, which provides machine learning technology to automatically optimize
by tuning the radio frequencies (RF) of the access points.
power saving options with Target Wake Time (TWT) to
-Energy (BLE) and Zigbee radio, as well as a USB port for
le
Page
Page 3
QuickSpecs
Aruba 510 Series Campus Access Points
Overview
3
Additional Features
•
Supports priority handling and policy enforcement for unified communication apps, including Skype for Business
Deployment Options
Unified AP support: flexibility to deploy in either controller-based (ArubaOS) or controller-less (InstantOS) networks.
• Dual Radio 802.11ax access point with OFDMA and Multi-User MIMO (MU-MIMO)
- Supports up to 4.8Gbps in the 5GHz band (with 4SS/HE160 clients) and up to 575Mbps in the 2.4GHz band
(with 2SS/ HE40 clients).
- Up to 16 OFDMA resource units and up to 256 simultaneous clients per radio
- Antenna polarization diversity for optimized RF performance
• HPE SmartRate uplink Ethernet port (E0)
- Supports up to 2.5Gbps with NBase-T and IEEE 802.3bz Ethernet compatibility
- Backwards compatible with 100/1000Base-T
• Built-in Bluetooth Low-Energy (BLE) and Zigbee radio
- Enables a wide range of IOT use-cases – asset tracking, mobile engagement
• Advanced Cellular Coexistence (ACC)
- Minimizes interference from 3G/4G cellular networks, distributed antenna systems and commercial small
cell/femtocell equipment
• Quality of service for unified communications applications
-
with encrypted videoconferencing, voice, chat and desktop sharing
• Aruba AppRF technology leverages deep packet inspection to classify and block, prioritize, or limit bandwidth for
thousands of applications in a range of categories
• Best-in-class RF Management
- Integrated AirMatch technology manages the 2.4GHz and 5GHz radio bands and actively optimizes the RF
environment including channel width, channel selection and transmit power
- Adaptive Radio Management (ARM) technology provides airtime fairness and ensures that APs stay clear of all
sources of RF interference to deliver reliable, high- performance WLANs
• Spectrum analysis
- Capable of part-time or dedicated air monitoring, the spectrum analyzer remotely scans the 2.4GHz and 5GHz
radio bands to identify sources of RF interference from 20MHz through 160MHz operation
• Aruba Secure Core
- Device assurance: Use of Trusted Platform Module (TPM) for secure storage of credentials and keys as well as
secure boot
- Integrated wireless intrusion protection offers threat protection and mitigation, and eliminates the need for
separate RF sensors and security appliances
- IP reputation and security services identify, classify, and block malicious files, URLs and IPs, providing
comprehensive protection against advanced online threats
- SecureJack-capable for secure tunneling of wired Ethernet traffic
• Intelligent Power Monitoring (IPM)
- Enables the AP to continuously monitor and report its actual power consumption and optionally make
autonomous decisions to disable certain capabilities based on the amount of power available to the unit
- Software configurable to disable capabilities in specified order of priority.
- For the 510 Series Access Points, the IPM feature applies when the unit is powered by an 802.3af POE source
• Green AP system feature (using Aruba NetInsight)
- The 510 Series Access Points support a custom deep-sleep mode to deliver significant power and cost savings
when used in conjunction with the Green AP feature.
Page
Page 4
QuickSpecs
Aruba 510 Series Campus Access Points
Overview
4
The Aruba 510 Series APs offer a choice of deployment and operating modes to meet your unique management and deployment
requirements:
centralized configuration, data encryption, policy enforcement and network services, as well as distributed and centralized
For large installations across multiple sites, the Aruba Activate service significantly reduces deployment time by automating device
provisioning, firmware upgrades, and inventory management. With Aruba Activate, the APs can be factory
configure themselves when powered up.
• Controller-based mode – When deployed in conjunction with an Aruba Mobility Controller, Aruba 510 Series APs offer
traffic forwarding.
• Controller-less (Instant) mode – The controller function is virtualized in a cluster of APs in Instant mode. As the network
grows and/or requirements change, Instant deployments can easily migrate to controller-based mode.
• Remote AP (RAP) mode for branch deployments.
• Air monitor (AM) for wireless IDS, rogue detection and containment.
• Spectrum analyzer (SA), dedicated or hybrid, for identifying sources of RF interference
• Secure enterprise mesh portal or point.
-shipped to any site and
Page
Page 5
QuickSpecs
Aruba 510 Series Campus Access Points
Configuration
5
Ordering Guide
1. Select a model
Configuration
comments
Description
Part number
Internal antenna access points
Add mount kit
Aruba AP-515 (EG) Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified Campus
AP
Q9H59A
Add mount kit
Aruba AP-515 (IL) Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified Campus AP
Q9H60A
Add mount kit
Aruba AP-515 (JP) Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified Campus
AP
Q9H61A
Add mount kit
Aruba AP-515 (RW) Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified Campus
AP
Q9H62A
Add mount kit
Aruba AP-515 (US) Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified Campus
AP
Q9H63A
External antenna access points
Add mount kit,
antennas
Aruba AP-514 (EG) Dual Radio 4x4:4 + 2x2:2 802.11ax External Antennas Unified Campus
AP
Q9H54A
Add mount kit,
antennas
Aruba AP-514 (IL) Dual Radio 4x4:4 + 2x2:2 802.11ax External Antennas Unified Campus
AP
Q9H55A
Add mount kit,
antennas
Aruba AP-514 (JP) Dual Radio 4x4:4 + 2x2:2 802.11ax External Antennas Unified Campus
AP
Q9H56A
Add mount kit,
antennas
Aruba AP-514 (RW) Dual Radio 4x4:4 + 2x2:2 802.11ax External Antennas Unified Campus
AP
Q9H57A
Add mount kit,
antennas
Aruba AP-514 (US) Dual Radio 4x4:4 + 2x2:2 802.11ax External Antennas Unified Campus
AP
Q9H58A
Internal antenna access points – TAA models
Add mount kit
Aruba AP-515 (EG) TAA Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified
Campus AP
Q9H69A
Add mount kit
Aruba AP-515 (IL) TAA Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified
Campus AP
Q9H70A
Add mount kit
Aruba AP-515 (JP) TAA Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified
Campus AP
Q9H71A
Add mount kit
Aruba AP-515 (RW) TAA Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified
Campus AP
Q9H72A
Add mount kit
Aruba AP-515 (US) TAA Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified
Campus AP
Q9H73A
External antenna access points – TAA models
Add mount kit,
antennas
Aruba AP-514 (EG) TAA Dual Radio 4x4:4 + 2x2:2 802.11ax External Antennas Unified
Campus AP
Q9H64A
Add mount kit,
antennas
Aruba AP-514 (IL) TAA Dual Radio 4x4:4 + 2x2:2 802.11ax External Antennas Unified
Campus AP
Q9H65A
Add mount kit,
antennas
Aruba AP-514 (JP) TAA Dual Radio 4x4:4 + 2x2:2 802.11ax External Antennas Unified
Campus AP
Q9H66A
Add mount kit,
antennas
Aruba AP-514 (RW) TAA Dual Radio 4x4:4 + 2x2:2 802.11ax External Antennas Unified
Campus AP
Q9H67A
Page
Page 6
QuickSpecs
Aruba 510 Series Campus Access Points
Configuration
6
Add mount kit,
antennas
Aruba AP-514 (US) TAA Dual Radio 4x4:4 + 2x2:2 802.11ax External Antennas Unified
Campus AP
Q9H68A
2. Select mount kit
Configuration
comments
Description
Part number
Mounting kits
NOTE: kit contains
mounts for 10 access
points
AP-MNT-MP10-A Campus AP mount bracket kit (10-pack) type A: suspended ceiling rail
JZ370A
NOTE: kit contains
mounts for 10 access
points
AP-MNT-MP10-B Campus AP mount bracket kit (10-pack) type B: suspended ceiling rail
Q9G69A
NOTE: kit contains
mounts for 10 access
points
AP-MNT-MP10-C Campus AP mount bracket kit (10-pack) type C: suspended ceiling rail
Q9G70A
NOTE: kit contains
mounts for 10 access
points
AP-MNT-MP10-D Campus AP mount bracket kit (10-pack) type D: solid surface
Q9G71A
NOTE: kit contains
mounts for 10 access
points
AP-MNT-MP10-E Campus AP mount bracket kit (10-pack) type E: wall-box
R1C72A
3. Select antennas (AP-514 only)
Mounting comments
Qty
Description
Part number
Indoor antennas (AP-514 antenna interface: 4x RP-SMA female, concurrent dual-band)
Direct-mount
4
AP-ANT-1W 2.4-2.5GHz (4dBi)/4.9-5.875GHz (6dBi) Hi Gain Dual-band
Omni-Dir Indoor Antenna
JW009A
Direct, using pigtails
4
AP-ANT-13B 2.4-2.5GHz (2.3dBi)/4.9-5.9GHz (4.0dBi) Downtilt Smallest
Omni-Dir Single Ant
JW001A
Direct, using pigtails
4
AP-ANT-19 2.4/5G Dual Band Omni-Dir 3dBi/6dBi Indr/Otdr RPSMA
Cnctr Ant w/36in Intgrtd Cable
JW004A
Direct-mount
4
AP-ANT-20W 2.4-2.5GHz (2dBi)/4.9-5.875GHz (2dBi) Compact Omni-Dir
DMt Indr White Antenna
JW011A
Direct, using pigtails
1
AP-ANT-40 Dual Band Downtilt Omni 4dBi 4 Elmt MIMO Ceiling Mount
4xRPSMA Pigtail Antenna
JW017A
Direct, using pigtails
1
AP-ANT-45 Dual Band 90x90deg 5dBi 4 Element MIMO 4xRPSMA Pigtail
Antenna
JW018A
Direct, using pigtails
1
AP-ANT-48 Dual Band 60x60deg 8dBi 4 Element MIMO 4xRPSMA Pigtail
Antenna
JW019A
4. Add antenna mount kit (optional)
Configuration
comments
Description
Part number
Antenna mount kits
Compatible with
antenna AP-ANT-48
AP-ANT-MNT-4 AP-ANT-48 Azimuth and Elevation Adjustable Mount Kit
JW021A
Page
Page 7
QuickSpecs
Aruba 510 Series Campus Access Points
Configuration
7
Compatible with
antenna AP-ANT-45
AP-ANT-MNT-5 AP-ANT-45 Azimuth and Elevation Adjustable Mount Kit
JW022A
5. Add powering accessory (optional)
Configuration
comments
Description
Part number
Power accessories
Add AC power cord
AP-AC-12V30B 12V/30W AC/DC Desktop Style 2.1/5.5/9.5mm Circular 90 Deg Plug DoE
Level VI Adapter
JX990A
Add AC power cord
Aruba PD-9001GR-AC 30W 802.3at PoE+ 10/100/1000 Ethernet Indoor Rated Midspan
Injector
JW629A
AC power cord
PC-AC-ARG Argentina 220V AC 10A 2-meter AC Power Cord
JW113A
PC-AC-AUS Australian AC Power Cord
JW114A
PC-AC-BR Brazil AC Power Cord
JW115A
PC-AC-CHN China AC Power Cord
JW116A
PC-AC-DEN Denmark 220V AC 10A 2-meter AC Power Cord
JW117A
PC-AC-EC Continental European/Schuko AC Power Cord
JW118A
PC-AC-IN India AC Power Cord
JW119A
PC-AC-IL Israel 250V AC 10A 2-meter AC Power Cord
JW120A
PC-AC-IT Italian AC Power Cord
JW121A
PC-AC-JP Japanese AC Power Cord
JW122A
PC-AC-KOR Korea AC Power Cord
JW123A
PC-AC-NA North America AC Power Cord
JW124A
PC-AC-SWI Switzerland 220V AC 10A 2-meter AC Power Cord
JW125A
PC-AC-TW Taiwan AC Power Cord
JW126A
PC-AC-UK UK AC Power Cord
JW127A
PC-AC-ZA South Africa 250V AC 10A 2-meter AC Power Cord
JW128A
6. Add cosmetic snap-on cover (AP-515 only, optional)
Configuration
comments
Description
Part number
Cosmetic covers
NOTE: kit contains
covers for 10 access
points
AP
on Covers
Q9H74A
7. Add other accessories (optional)
Configuration
comments
Description
Part number
Other accessories
AP-CBL-SERU Micro-USB TTL3.3V to USB2.0 AP Console Adapter Cable
JY728A
-515-CVR-20 20-pack for AP-515 with Holes for LED Indicators White Non-glossy Snap-
Page
Page 8
QuickSpecs
Aruba 510 Series Campus Access Points
Technical Specifications
8
Specifications
Hardware variants
Wi
- 802.11n (5GHz): 6.5 to 600 (MCS0 to MVC31, HT20 to HT40)
• AP-514: External antenna models
• AP-515: Internal antenna models
-Fi radio specifications
• AP type: Indoor, dual radio, 5GHz 802.11ax 4x4 MIMO and 2.4GHz 802.11ax 2x2 MIMO
• 5GHz radio:
- Four spatial stream Single User (SU) MIMO for up to 4.8Gbps wireless data rate to individual 4SS HE160
802.11ax client devices (max)
- Two spatial stream Single User (SU) MIMO for up to 1.2Gbps wireless data rate to individual 2SS HE80
802.11ax client devices (typical)
- Four spatial stream Multi User (MU) MIMO for up to 4.8Gbps wireless data rate to up to four 1SS or two 2SS
HE160 802.11ax DL-MU-MIMO capable client devices simultaneously (max)
- Four spatial stream Multi User (MU) MIMO for up to 2.4Gbps wireless data rate to up to four 1SS or two 2SS
HE80 802.11ax DL-MU-MIMO capable client devices simultaneously (typical)
• 2.4GHz radio:
- Two spatial stream Single User (SU) MIMO for up to 575Mbps wireless data rate to individual 2SS HE40
802.11ax client devices or to two 1SS HE40 802.11ax DL-MU-MIMO capable client devices simultaneously
(max)
- Two spatial stream Single User (SU) MIMO for up to 287Mbps wireless data rate to individual 2SS HE20
802.11ax client devices or to two 1SS HE20 802.11ax DL-MU-MIMO capable client devices simultaneously
(typical)
• Support for up to 256 associated client devices per radio, and up to 16 BSSIDs per radio
• Supported frequency bands (country-specific restrictions apply):
- 2.400 to 2.4835GHz
- 5.150 to 5.250GHz
- 5.250 to 5.350GHz
- 5.470 to 5.725GHz
- 5.725 to 5.850GHz
• Available channels: Dependent on configured regulatory domain
• Dynamic frequency selection (DFS) optimizes the use of available RF spectrum
• Supported radio technologies:
- 802.11b: Direct-sequence spread-spectrum (DSSS)
- 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
- 802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 16 resource units (for an 80MHz
channel)
• Supported modulation types:
- 802.11b: BPSK, QPSK, CCK
- 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM (proprietary extension)
- 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (proprietary extension)
- 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
- 802.11n high-throughput (HT) support: HT20/40
- 802.11ac very high throughput (VHT) support: VHT20/40/80/160
- 802.11ax high efficiency (HE) support: HE20/40/80/160
• Supported data rates (Mbps) :
- 802.11b: 1, 2, 5.5, 11
- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
- 802.11n (2.4GHz): 6.5 to 300 (MCS0 to MCS15, HT20 to HT40)
Page
Page 9
QuickSpecs
Aruba 510 Series Campus Access Points
Technical Specifications
9
- 802.11ac: 6.5 to 3,467 (MCS0 to MCS9, NSS = 1 to 4, VHT20 to VHT160)
Wi
directional antennas for 4x4 MIMO with peak antenna gain of 4.2dBi in
Additional interfaces
Integrated vertically polarized omnidirectional antenna with roughly 30 degrees downtilt and peak gain of 3.5dBi
Power sources and power consumption
- 802.11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)
- 802.11ax (5GHz): 3.6 to 4,803 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE160)
- 802.11n/ac packet aggregation: A-MPDU, A-MSDU
• Transmit power: Configurable in increments of 0.5 dBm
• Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements):
- 2.4 GHz band: +21 dBm (18dBm per chain)
- 5 GHz band: +24 dBm (18 dBm per chain)
- NOTE: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna
gain.
• Advanced Cellular Coexistence (ACC) minimizes the impact of interference from cellular networks
• Maximum ratio combining (MRC) for improved receiver performance
• Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance
• Space-time block coding (STBC) for increased range and improved reception
• Low-density parity check (LDPC) for high-efficiency error correction and increased throughput
• Transmit beam-forming (TxBF) for increased signal reliability and range
• 802.11ax Target Wait Time (TWT) to support low-power client devices
-Fi antennas
• AP-514: Four RP-SMA connectors for external dual band antennas (A0 through A3, corresponding with radio chains 0
through 3). Worst-case internal loss between radio interface and external antenna connectors (due to diplexing circuitry):
1.3dB in 2.4GHz and 1.7dB in 5GHz.
• AP-515: Four integrated dual-band downtilt omni-
2.4GHz and 7.5dBi in 5GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The
downtilt angle for maximum gain is roughly 30 degrees.

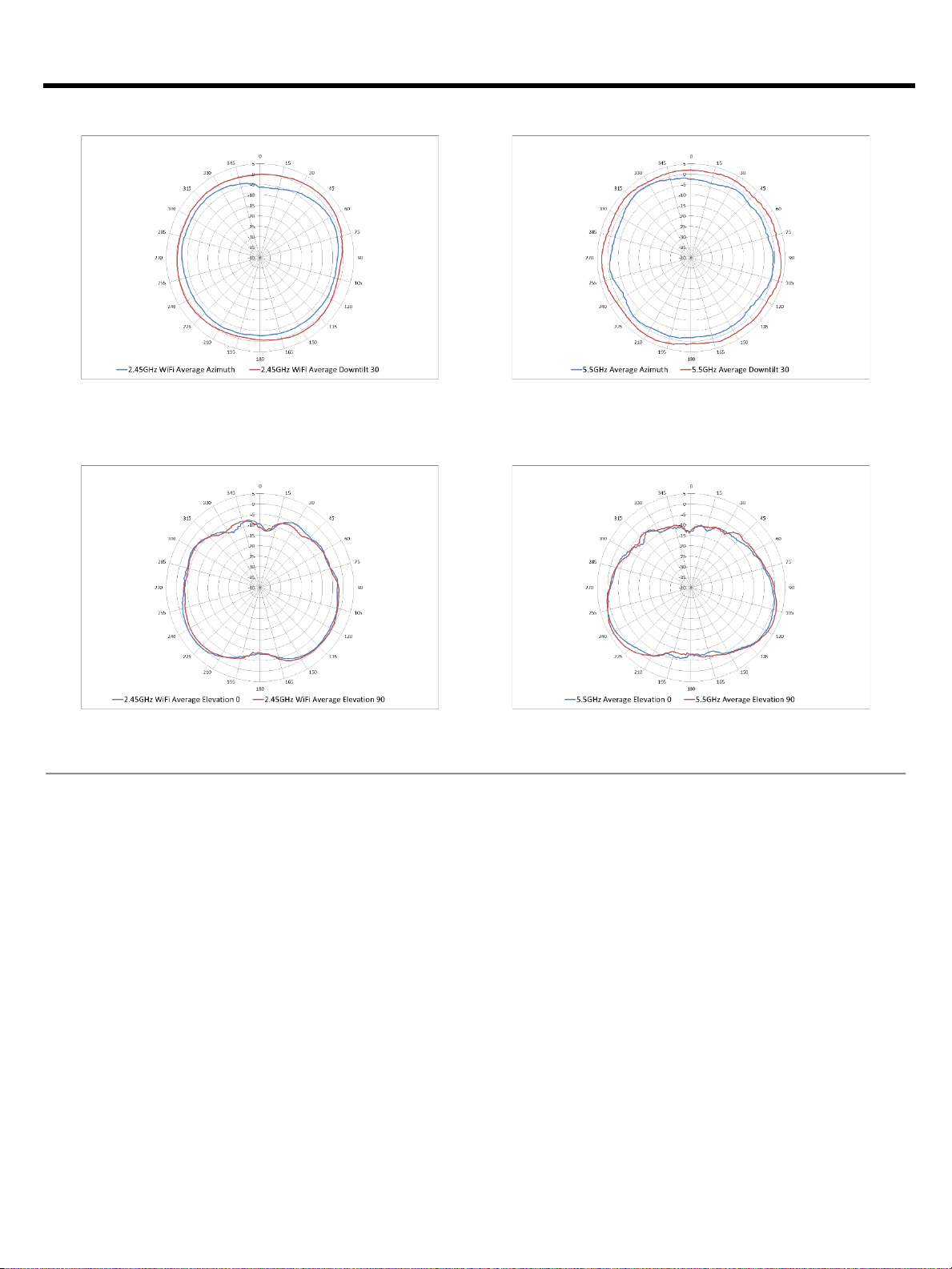

- Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the effective per-antenna
• E0: HPE SmartRate port (RJ-45, maximum negotiated speed 2.5Gbps)
- Auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX
- 2.5Gbps speed complies with NBase-T and 802.3bz specifications
- POE-PD: 48Vdc (nominal) 802.3af/802.3at POE
• E1: 10/100/1000BASE-T Ethernet network interface (RJ-45)
- Auto-sensing link speed and MDI/MDX
• Link aggregation (LACP) support between both network ports for redundancy and increased capacity
• DC power interface: 12Vdc (nominal, +/- 5%), accepts 2.1mm/5.5mm center-positive circular plug with 9.5mm length
• USB 2.0 host interface (Type A connector)
- Capable of sourcing up to 1A / 5W to an attached device
• Bluetooth Low Energy (BLE5.0) and Zigbee (802.15.4) radio
- BLE: up to 8dBm transmit power (class 1) and -95dBm receive sensitivity
- Zigbee: up to 8dBm transmit power and -97dBm receive sensitivity
-
• Visual indictors (two multi-color LEDs): for System and Radio status
• Reset button: factory reset, LED mode control (normal/off)
• Serial console interface (proprietary, micro-B USB physical jack)
• Kensington security slot
pattern is 3.8dBi in 2.4GHz and 4.6dBi in 5GHz.
(AP-515) or 4.9dBi (AP-514)
Page
Page 10
QuickSpecs
Aruba 510 Series Campus Access Points
Technical Specifications
10
•
Mounting details
A mounting br
separately) mount kits; see the ordering Information section below for details.
Mechanical specifications
Environmental specifications
Reliability
Mean Time Between Failure (MTBF): 560,000hrs (64yrs) at +25C operating temperature.
Regulatory compliance
• RED Directive 2014/53/EU
The AP supports direct DC power and Power over Ethernet (POE; on port E0)
• When both power sources are available, DC power takes priority over POE
• Power sources are sold separately; see the ordering Information section below for details
• When powered by DC or 802.3at POE, the AP will operate without restrictions
• When powered by 802.3af POE and with the IPM feature enabled, the AP will start up in unrestricted mode, but it may
apply restrictions depending on the POE budget and actual power. What IPM restrictions to apply, and in what order, is
programmable.
• When powered by 802.3af POE with the IPM feature disabled, the AP operates in power-save mode, and will apply some
fixed restrictions:
- The USB interface and E1 Ethernet port are disabled
- The 5GHz radio is restricted to 2x2 operation
• Maximum (worst-case) power consumption:
- DC powered: 17W
- POE powered (802.3at): 19W
- POE powered (802.3af): 13.5W
- All numbers above are without an external USB device connected. When sourcing the full 5W power budget to
such a device, the incremental (worst-case) power consumption for the AP is up to 6.5W.
• Maximum (worst-case) power consumption in idle mode: 11W (DC or POE)
• Maximum (worst-case) power consumption in deep-sleep mode: 1W (DC or POE)
acket has been pre-installed on the back of the AP. This bracket is used to secure the AP to any of the (sold
• Dimensions/weight (AP-515; unit, excluding mount bracket):
- 200mm (W) x 200mm (D) x 46mm (H) / 7.9” (W) x 7.9” (D) x 1.8” (H)
- 810g / 28.5oz
• Dimensions/weight (AP-515; shipping):
- 230mm (W) x 220mm (D) x 72mm (H) / 9.1” (W) x 8.7” (D) x 2.8” (H)
- 1010 / 35.5oz
• Operating conditions
- Temperature: 0C to +50C / +32F to +122F
- Humidity: 5% to 93% non-condensing
- AP is plenum rated for use in air-handling spaces
- ETS 300 019 class 3.2 environments
• Storage and transportation conditions
- Temperature: -40C to +70C / -40F to +158F
- Humidity: 5% to 93% non-condensing
- ETS 300 019 classes 1.2 and 2.3 environments
• FCC/ISED
• CE Marked
Page
Page 11
QuickSpecs
Aruba 510 Series Campus Access Points
Technical Specifications
11
•
For more country
Regulatory model numbers
Certifications
Warranty
Aruba’s hardware limited lifetime warranty
Minimum operating system software versions
ArubaOS and Aruba InstantOS 8.5.0.0
RF performance table
Band, rate
Maximum transmit power (dBm)
Receiver sensitivity (dBm)
2.4GHz, 802.11b
1Mbps
18
-96
11Mbps
18
-88
2.4GHz, 802.11g
6Mbps
18
-93
54Mbps
17
-75
2.4GHz, 802.11n HT20
MCS0
18
-93
MCS7
16
-75
2.4GHz, 802.11ax HE20
MCS0
18
-92
EMC Directive 2014/30/EU
• Low Voltage Directive 2014/35/EU
• UL/IEC/EN 60950
• EN 60601-1-1, EN60601-1-2
-specific regulatory information and approvals, please see your Aruba representative.
• AP-514: APIN0514
• AP-515: APIN0515
• UL2043 plenum rating
• Wi-Fi Alliance:
- Wi-Fi CERTIFIED a, b, g, n, ac
- Wi-Fi CERTIFIED ax
NOTE: May require software update. Certification effort will be kicked off as soon as the Wi-Fi Alliance starts
the program
- WPA, WPA2 and WPA3 – Enterprise, Personal
- WMM, WMM-PS, Wi-Fi Vantage, W-Fi Agile Multiband
- Wi-Fi Location
NOTE: Not available initially; will require a software upgrade
• Bluetooth SIG
• Ethernet Alliance (POE, PD device, class 4)
- Passpoint (release 2)
.
per transmit chain
per receive chain
Page
Page 12
QuickSpecs
Aruba 510 Series Campus Access Points
Technical Specifications
12
MCS11
14
-62
5GHz, 802.11a
6Mbps
18
-93
54Mbps
-75
5GHz, 802.11n HT20
MCS0
18
-93
MCS7
16
-73
5GHz, 802.11n HT40
MCS0
18
-90
MCS7
16
-70
5GHz, 802.11ac VHT20
MCS0
18
-93
MCS9
16
-68
5GHz, 802.11ac VHT40
MCS0
18
-90
MCS9
16
-65
5GHz, 802.11ac VHT80
MCS0
18
-87
MCS9
16
-62
5GHz, 802.11ac VHT160
MCS0
18
-84
MCS9
-59
5GHz, 802.11ax HE20
MCS0
18
-90
MCS11
14
-60
5GHz, 802.11ax HE40
MCS0
18
-87
MCS11
14
-57
5GHz, 802.11ax HE80
MCS0
18
-84
MCS11
14
-54
5GHz, 802.11ax HE160
MCS0
18
-81
MCS11
13
-51
Antenna patterns
Horizontal planes (top view)
Showing azimuth (0 degrees) and 30 degrees downtilt patterns (averaged patterns for all applicable antennas)
17
16
Page
Page 13
QuickSpecs
Aruba 510 Series Campus Access Points
Technical Specifications
13
2.45GHz Wi-Fi (antennas 1, 2)
5.5GHz Wi-Fi (antennas 1, 2, 3, 4)
Vertical (elevation) planes (side view, AP facing down)
Showing side view with AP rotated 0 and 90 degrees (averaged patterns for all applicable antennas)
2.45GHz Wi-Fi (antennas 1, 2)
5.5GHz Wi-Fi (antennas 1, 2, 3, 4)
Page
Page 14
QuickSpecs
Aruba 510 Series Campus Access Points
Accessories
14
Aruba 510 Series Campus Access Points accessories
Mounting kits
AP-MNT-MP10-A Campus AP mount bracket kit (10-pack) type A: suspended ceiling rail
JZ370A
AP-MNT-MP10-B Campus AP mount bracket kit (10-pack) type B: suspended ceiling rail
Q9G69A
AP-MNT-MP10-C Campus AP mount bracket kit (10-pack) type C: suspended ceiling rail
Q9G70A
AP-MNT-MP10-D Campus AP mount bracket kit (10-pack) type D: solid surface
Q9G71A
AP-MNT-MP10-E Campus AP mount bracket kit (10-pack) type E: wall-box
R1C72A
Cosmetic covers
AP-515-CVR-20 20-pack for AP-515 with Holes for LED Indicators White Non-glossy Snap-on Covers
Q9H74A
Power accessories
AP-AC-12V30B 12V/30W AC/DC Desktop Style 2.1/5.5/9.5mm Circular 90 Deg Plug DoE Level VI Adapter
JX990A
Aruba PD-9001GR-AC 30W 802.3at PoE+ 10/100/1000 Ethernet Indoor Rated Midspan Injector
JW629A
Other accessories
AP-CBL-SERU Micro-USB TTL3.3V to USB2.0 AP Console Adapter Cable
JY728A
Page
Page 15
QuickSpecs
Aruba 510 Series Campus Access Points
Summary of Changes
15
Date
Version History
Action
Description of Change
13-Nov-2018
Version 1
Created
Document creation
Sign up for updates
© Copyright 2018 Hewlett Packard Enterprise Development LP. The information contained herein is
Mware is a registered trademark or trademark of VMware,
subject to change without notice. The only warranties for Hewlett Packard Enterprise products and
services are set forth in the express warranty statements accompanying such products and services.
Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise
shall not be liable for technical or editorial errors or omissions contained herein.
sFlow is a registered trademark of InMon Corp. V
Inc. in the United States and/or other jurisdictions. All other third-party trademark(s) is/are property of
their respective owner(s).
To learn more, visit: http://www.hpe.com/networking
a00054054enw - 16304 - Worldwide - V1 - 13-November-2018
Page
Loading...
