HP Data Protector A.06.11
MPE/iX system user guide
B6960-90173
Part number: B6960-90173
First edition: September 2009
Legal and notice information
© Copyright 1999, 2009 Hewlett-Packard Development Company, L.P.
Confidential computer software. Valid license from HP required for possession, use or copying. Consistent
with FAR 12.211 and 12.212, Commercial Computer Software, Computer Software Documentation, and
Technical Data for Commercial Items are licensed to the U.S. Government under vendor's standard
commercial license.
The information contained herein is subject to change without notice. The only warranties for HP products
and services are set forth in the express warranty statements accompanying such products and services.
Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for
technical or editorial errors or omissions contained herein.
Intel®, Itanium®, Pentium®, Intel Inside®, and the Intel Inside logo are trademarks or registered trademarks
of Intel Corporation or its subsidiaries in the United States and other countries.
Microsoft®, Windows®, Windows XP®, and Windows NT® are U.S. registered trademarks of Microsoft
Corporation.
Adobe and Acrobat are trademarks of Adobe Systems Incorporated.
Java is a US trademark of Sun Microsystems, Inc.
Oracle® is a registered US trademark of Oracle Corporation, Redwood City, California.
UNIX® is a registered trademark of The Open Group.
Printed in the US
Contents
Publication history ................................................................ 7
About this guide ................................................................... 9
Intended audience ............................................................................................... 9
Documentation set ............................................................................................... 9
Guides ........................................................................................................ 9
Online Help ............................................................................................... 12
Documentation map .................................................................................... 13
Abbreviations ...................................................................................... 13
Map ................................................................................................... 14
Integrations ......................................................................................... 15
Document conventions and symbols ..................................................................... 17
Data Protector graphical user interface ................................................................. 18
General information .......................................................................................... 19
HP technical support .......................................................................................... 19
Subscription service ........................................................................................... 20
HP websites ...................................................................................................... 20
Documentation feedback .................................................................................... 20
1 MPE/iX system user guide ................................................ 21
Introduction ...................................................................................................... 21
Integration concepts .......................................................................................... 21
Configuring the integration ................................................................................. 21
Prerequisites ............................................................................................... 21
Before you begin ........................................................................................ 22
Configuring devices .................................................................................... 22
Configuring standalone devices .............................................................. 22
Configuring SCSI tape libraries .............................................................. 26
Backup ............................................................................................................ 29
User-definable backup variables ................................................................... 30
TurboSTORE/iX backup options .............................................................. 33
Full system backup ...................................................................................... 33
Restore ............................................................................................................. 34
MPE/iX system user guide 3
User-definable restore variables .................................................................... 35
TurboSTORE/iX restore options ............................................................... 36
Pre- and post-exec commands ............................................................................. 37
Disaster recovery ............................................................................................... 37
Supported CLI commands ................................................................................... 38
Backup and restore of MPE/iX database .............................................................. 39
TurboSTORE/iX log files ..................................................................................... 40
UDC files and environment variables .................................................................... 41
UDC files ................................................................................................... 41
OB2SET file ............................................................................................... 42
Index ................................................................................ 43
4
Figures
Data Protector graphical user interface ............................................... 191
I/O configuration: standalone device ................................................. 232
I/O configuration: SCSI tape library .................................................. 273
Specifying backup options ................................................................ 324
Entering the variable ........................................................................ 335
Entering the variable ........................................................................ 366
MPE/iX system user guide 5
Tables
Edition history ................................................................................... 71
Document conventions ...................................................................... 172
Backup types .................................................................................. 293
List of backup variables .................................................................... 304
List of restore variables ..................................................................... 355
6
Publication history
Guide updates may be issued between editions to correct errors or document product
changes. To ensure that you receive updated or new editions, subscribe to the
appropriate product support service. See your HP sales representative for details.
Table 1 Edition history
ProductGuide editionPart number
Data Protector Release A.05.50October 2004B6960-90115
Data Protector Release A.06.00July 2006B6960-90029
Data Protector Release A.06.10November 2008B6960-96056
Data Protector Release A.06.11September 2009B6960-90173
MPE/iX system user guide 7
Publication history8
About this guide
This guide describes how to configure and use Data Protector with MPE/iX systems.
Intended audience
This guide is intended for backup administrators responsible for planning, setting up,
and maintaining network backups. It assumes you are familiar with:
• Basic Data Protector functionality
• MPE/iX system administration
Conceptual information can be found in the HP Data Protector concepts guide, which
is recommended to fully understand the fundamentals and the model of Data Protector.
Documentation set
Other documents and online Help provide related information.
Guides
Data Protector guides are available in printed format and in PDF format. Install the
PDF files during the Data Protector setup procedure by selecting the English
Documentation & Help component on Windows or the OB2-DOCS component
on UNIX. Once installed, the guides reside in the Data_Protector_home\docs
directory on Windows and in the /opt/omni/doc/C directory on UNIX.
You can find these documents from the Manuals page of the HP Business Support
Center website:
http://www.hp.com/support/manuals
In the Storage section, click Storage Software and then select your product.
• HP Data Protector concepts guide
MPE/iX system user guide 9
This guide describes Data Protector concepts and provides background information
on how Data Protector works. It is intended to be used with the task-oriented
online Help.
• HP Data Protector installation and licensing guide
This guide describes how to install the Data Protector software, taking into account
the operating system and architecture of your environment. This guide also gives
details on how to upgrade Data Protector, as well as how to obtain the proper
licenses for your environment.
• HP Data Protector troubleshooting guide
This guide describes how to troubleshoot problems you may encounter when
using Data Protector.
• HP Data Protector disaster recovery guide
This guide describes how to plan, prepare for, test and perform a disaster
recovery.
• HP Data Protector integration guides
These guides describe how to configure and use Data Protector to back up and
restore various databases and applications. They are intended for backup
administrators or operators. There are four guides:
• HP Data Protector integration guide for Microsoft applications: SQL Server,
SharePoint Portal Server, Exchange Server, and Volume Shadow Copy Service
This guide describes the integrations of Data Protector with the following
Microsoft applications: Microsoft Exchange Server, Microsoft SQL Server, and
Volume Shadow Copy Service.
• HP Data Protector integration guide for Oracle and SAP
This guide describes the integrations of Data Protector with Oracle, SAP R/3,
and SAP DB/MaxDB.
• HP Data Protector integration guide for IBM applications: Informix, DB2, and
Lotus Notes/Domino
This guide describes the integrations of Data Protector with the following IBM
applications: Informix Server, IBM DB2, and Lotus Notes/Domino Server.
• HP Data Protector integration guide for VMware Virtual Infrastructure, Sybase,
Network Node Manager, and Network Data Management Protocol Server
This guide describes the integrations of Data Protector with VMware Virtual
Infrastructure, Sybase, Network Node Manager, Network Data Management
Protocol Server, and Citrix XenServer.
• HP Data Protector integration guide for HP Service Information Portal
About this guide10
This guide describes how to install, configure, and use the integration of Data
Protector with HP Service Information Portal. It is intended for backup
administrators. It discusses how to use the application for Data Protector service
management.
• HP Data Protector integration guide for HP Reporter
This manual describes how to install, configure, and use the integration of Data
Protector with HP Reporter. It is intended for backup administrators. It discusses
how to use the application for Data Protector service management.
• HP Data Protector integration guide for HP Operations Manager for UNIX
This guide describes how to monitor and manage the health and performance of
the Data Protector environment with HP Operations Manager and HP Service
Navigator on UNIX.
• HP Data Protector integration guide for HP Operations Manager for Windows
This guide describes how to monitor and manage the health and performance of
the Data Protector environment with HP Operations Manager and HP Service
Navigator on Windows.
• HP Data Protector integration guide for HP Performance Manager and HP
Performance Agent
This guide provides information about how to monitor and manage the health
and performance of the Data Protector environment with HP Performance Manager
(PM) and HP Performance Agent (PA) on Windows, HP-UX, Solaris, and Linux.
• HP Data Protector zero downtime backup concepts guide
This guide describes Data Protector zero downtime backup and instant recovery
concepts and provides background information on how Data Protector works in
a zero downtime backup environment. It is intended to be used with the
task-oriented HP Data Protector zero downtime backup administrator's guide and
the HP Data Protector zero downtime backup integration guide.
• HP Data Protector zero downtime backup administrator's guide
This guide describes how to configure and use the integration of Data Protector
with HP StorageWorks Virtual Array, HP StorageWorks Enterprise Virtual Array,
EMC Symmetrix Remote Data Facility and TimeFinder, and HP StorageWorks
Disk Array XP. It is intended for backup administrators or operators. It covers the
zero downtime backup, instant recovery, and the restore of filesystems and disk
images.
• HP Data Protector zero downtime backup integration guide
This guide describes how to configure and use Data Protector to perform zero
downtime backup, instant recovery, and standard restore of Oracle, SAP R/3,
Microsoft Exchange Server, and Microsoft SQL Server databases. The guide also
MPE/iX system user guide 11
describes how to configure and use Data Protector to perform backup and restore
using the Microsoft Volume Shadow Copy Service.
• HP Data Protector MPE/iX system user guide
This guide describes how to configure MPE/iX clients and how to back up and
restore MPE/iX data.
• HP Data Protector Media Operations user guide
This guide provides tracking and management of offline storage media. It describes
the tasks of installing and configuring the application, performing daily media
operations and producing reports.
• HP Data Protector product announcements, software notes, and references
This guide gives a description of new features of HP Data Protector A.06.11. It
also provides information on installation requirements, required patches, and
limitations, as well as known issues and workarounds.
• HP Data Protector product announcements, software notes, and references for
integrations to HP Operations Manager, HP Reporter, HP Performance Manager,
HP Performance Agent, and HP Service Information Portal
This guide fulfills a similar function for the listed integrations.
• HP Data Protector Media Operations product announcements, software notes,
and references
This guide fulfills a similar function for Media Operations.
• HP Data Protector command line interface reference
This guide describes the Data Protector command-line interface, command options
and their usage as well as provides some basic command-line examples.
Online Help
Data Protector provides context-sensitive (F1) Help and Help Topics for Windows
and UNIX platforms.
You can access the online Help from the top-level directory on the installation
DVD-ROM without installing Data Protector:
•
Windows:
•
UNIX:
system through DP_help.htm.
Unzip DP_help.zip and open DP_help.chm.
Unpack the zipped tar file DP_help.tar.gz, and access the online Help
About this guide12
Documentation map
Abbreviations
Abbreviations in the documentation map that follows are explained below. The guide
titles are all preceded by the words “HP Data Protector”.
GuideAbbreviation
Command line interface referenceCLI
Concepts guideConcepts
Disaster recovery guideDR
Getting started guideGS
Online HelpHelp
IG-IBM
IG-MS
IG-PM/PA
IG-Var
Integration guide for IBM applications: Informix, DB2, and Lotus
Notes/Domino
Integration guide for Microsoft applications: SQL Server, SharePoint
Portal Server, Exchange Server, and Volume Shadow Copy Service
Integration guide for Oracle and SAPIG-O/S
Integration guide for HP Operations Manager for UNIXIG-OMU
Integration guide for HP Operations Manager for WindowsIG-OMW
Integration guide for HP Performance Manager and HP Performance
Agent
Integration guide for HP ReporterIG-Report
Integration guide for HP Service Information PortalIG-SIP
Integration guide for VMware Virtual Infrastructure, Sybase, Network
Node Manager, Network Data Management Protocol Server, and
Citrix XenServer.
MPE/iX system user guide 13
GuideAbbreviation
Installation and licensing guideInstall
Media Operations getting started guideMO GS
Map
MO RN
Media Operations product announcements, software notes, and
references
Media Operations user guideMO UG
MPE/iX system user guideMPE/iX
Product announcements, software notes, and referencesPA
Troubleshooting guideTrouble
ZDB administrator's guideZDB Admin
ZDB concepts guideZDB Concept
ZDB integration guideZDB IG
The following table shows where to find information of different kinds. Shaded squares
are a good place to look first.
About this guide14
Integrations
Look in these guides for details of the following integrations:
GuideIntegration
IG-OMU, IG-OMWHP Operations Manager for UNIX/for Windows
IG-PM/PAHP Performance Manager
IG-PM/PAHP Performance Agent
MPE/iX system user guide 15
GuideIntegration
IG-RHP Reporter
IG-SIPHP Service Information Portal
all ZDBHP StorageWorks Disk Array XP
all ZDBHP StorageWorks Enterprise Virtual Array (EVA)
all ZDBHP StorageWorks Virtual Array (VA)
IG-IBMIBM DB2 UDB
IG-IBMInformix
IG-IBMLotus Notes/Domino
MO UserMedia Operations
MPE/iXMPE/iX system
IG-MS, ZDB IGMicrosoft Exchange Server
IG-MSMicrosoft Exchange Single Mailbox
IG-MS, ZDB IGMicrosoft SQL Server
IG-MS, ZDB IGMicrosoft Volume Shadow Copy Service (VSS)
IG-VarNDMP Server
IG-VarNetwork Node Manager (NNM)
IG-O/SOracle
ZDB IGOracle ZDB
IG-O/SSAP DB
IG-O/S, ZDB IGSAP R/3
About this guide16
Document conventions and symbols
Table 2 Document conventions
ElementConvention
Cross-reference links and e-mail addressesBlue text: Table 2 on page 17
Website addressesBlue, underlined text: http://www.hp.com
Text emphasisItalic text
• File and directory names
• System output
Monospace text
• Code
• Commands, their arguments, and
argument values
GuideIntegration
IG-VarSybase
all ZDBEMC Symmetrix
IG-VarVMware
Monospace, italic text
Monospace, bold text
• Code variables
• Command variables
Emphasized monospace text
CAUTION:
Indicates that failure to follow directions could result in damage to equipment or data.
IMPORTANT:
Provides clarifying information or specific instructions.
MPE/iX system user guide 17
NOTE:
Provides additional information.
TIP:
Provides helpful hints and shortcuts.
Data Protector graphical user interface
Data Protector provides a cross-platform (Windows and UNIX) graphical user
interface. You can use the original Data Protector GUI (Windows only) or the Data
Protector Java GUI. For information about the Data Protector graphical user interface,
see the online Help.
About this guide18
Figure 1 Data Protector graphical user interface
General information
General information about Data Protector can be found at http://www.hp.com/go/
dataprotector.
HP technical support
For worldwide technical support information, see the HP support website:
http://www.hp.com/support
Before contacting HP, collect the following information:
• Product model names and numbers
• Technical support registration number (if applicable)
• Product serial numbers
• Error messages
• Operating system type and revision level
• Detailed questions
MPE/iX system user guide 19
Subscription service
HP recommends that you register your product at the Subscriber's Choice for Business
website:
http://www.hp.com/go/e-updates
After registering, you will receive e-mail notification of product enhancements, new
driver versions, firmware updates, and other product resources.
HP websites
For additional information, see the following HP websites:
• http://www.hp.com
• http://www.hp.com/go/software
• http://www.hp.com/support/manuals
• http://h20230.www2.hp.com/selfsolve/manuals
• http://www.hp.com/support/downloads
Documentation feedback
HP welcomes your feedback.
To make comments and suggestions about product documentation, please send a
message to DP.DocFeedback@hp.com. All submissions become the property of HP.
About this guide20
1 MPE/iX system user guide
Introduction
This chapter explains how to configure and use the Data Protector MPE/iX integration.
It describes concepts and methods you need to understand to back up and restore
the following MPE/iX data:
• User files and directories
• System files
• Filesystem directories
This chapter provides information specific to the Data Protector MPE/iX integration.
For general Data Protector procedures and options, see the online Help.
Integration concepts
The Data Protector MPE/iX integration uses TurboSTORE/iX backup utility to initiate
backup and restore. TurboSTORE/iX APIs are bundled with filesystem and use
TurboSTORE/iX internally to back up and restore MPE/iX files. Among the other
MPE/iX files, these APIs provide access to specific MPE/iX database files
(ALLBASE/SQL and TurboIMAGE/XL) and POSIX filesystem files.
Configuring the integration
Prerequisites
• Ensure that you have correctly installed and configured Data Protector. You need
to have at least 15 MB of available disk space (5 MB for the installation package
and 10 MB for the installation itself). See the HP Data Protector installation and
licensing guide for instructions on how to install Data Protector in various
architectures.
MPE/iX system user guide 21
• For an up-to-date list of supported versions, platforms, devices, required patches
and other information, see the HP Data Protector product announcements, software
notes, and references or http://www.hp.com/support/manuals.
• Ensure that TurboSTORE/iX or TurboSTORE/iX 7x24 True-Online is installed on
your system.
• Ensure that TCP/IP protocol is installed and configured.
For a list of supported platforms and general Data Protector and MPE/iX-specific
limitations, see the HP Data Protector product announcements, software notes, and
references.
Before you begin
• Configure devices and media for use with Data Protector. See “Configuring
devices” on page 22 for instructions.
• To use backup devices connected to MPE/iX system, install the General Media
Agent.
• Install the MPE/iX Disk Agent and configure the JINETD.NET.SYS file on all
supported MPE/iX systems.
• Enable the name resolving mechanism (DNS of host files).
Configuring devices
This section describes how to configure standalone devices and SCSI tape libraries
on MPE/iX.
Configuring standalone devices
1. Connect a device to the system.
MPE/iX system user guide22
2. Write down tape I/O Configuration from the ISL utility MAPPER.
a. Press CTRL - B to put the system in control mode.
b. Enter TC and press RETURN to soft reset the system.
c. Press any key to override the autoboot.
d. Enter Y for Boot from the primary boot path (Y or N)? or if
prompt shows BO PRI. Press RETURN.
e. Enter Y for Interact with IPL (Y/N)?.
f. At the ISL prompt, enter: ISL>ODE ODE>MAPPER MAPPER>RUN
g. After MAPPER scans system I/O configuration, you get the output similar to
the following:
Figure 2 I/O configuration: standalone device
Find the tape device and write down the I/O path and component name.
3. Restart the system and log in.
NOTE:
Do not stream jobs or start network interface and network services.
MPE/iX system user guide 23
4. Run the SYSGEN utility, IO subsystem:
MPE/iX system user guide24
5. For a standalone (DDS) device, add:
• Path for device and identify it as PSEUDO:
• Tape drive device (always on path address ending with 0), set ID and mode
as AUTOREPLY:
IO>ADEV LDEV=30 PATH=52.3.0 ID=HPC1533A MODE=AUTOREPLY
• Autochanger (robotics) device and identify it as PICKER:
IO>ADEV LDEV=31 PATH=52.3.1 ID=PICKER
The MAPPER utility lists the path number (for example, PATH=52.3) and ID for
the device (use the first word from Component Name, for example
ID=HPC1533A).
The LDEV number is any free number from 1-255. You can check already used
numbers by listing all devices with SYSGEN, IO subsystem, or the showdev
command:
:SYSGEN
SYSGEN>IO
IO>LDEV
:SHOWDEV
The path address for autochanger is usually the path address for tape +1.
NOTE:
For SCSI devices, use PSEUDO as the device identifier.
MPE/iX system user guide 25

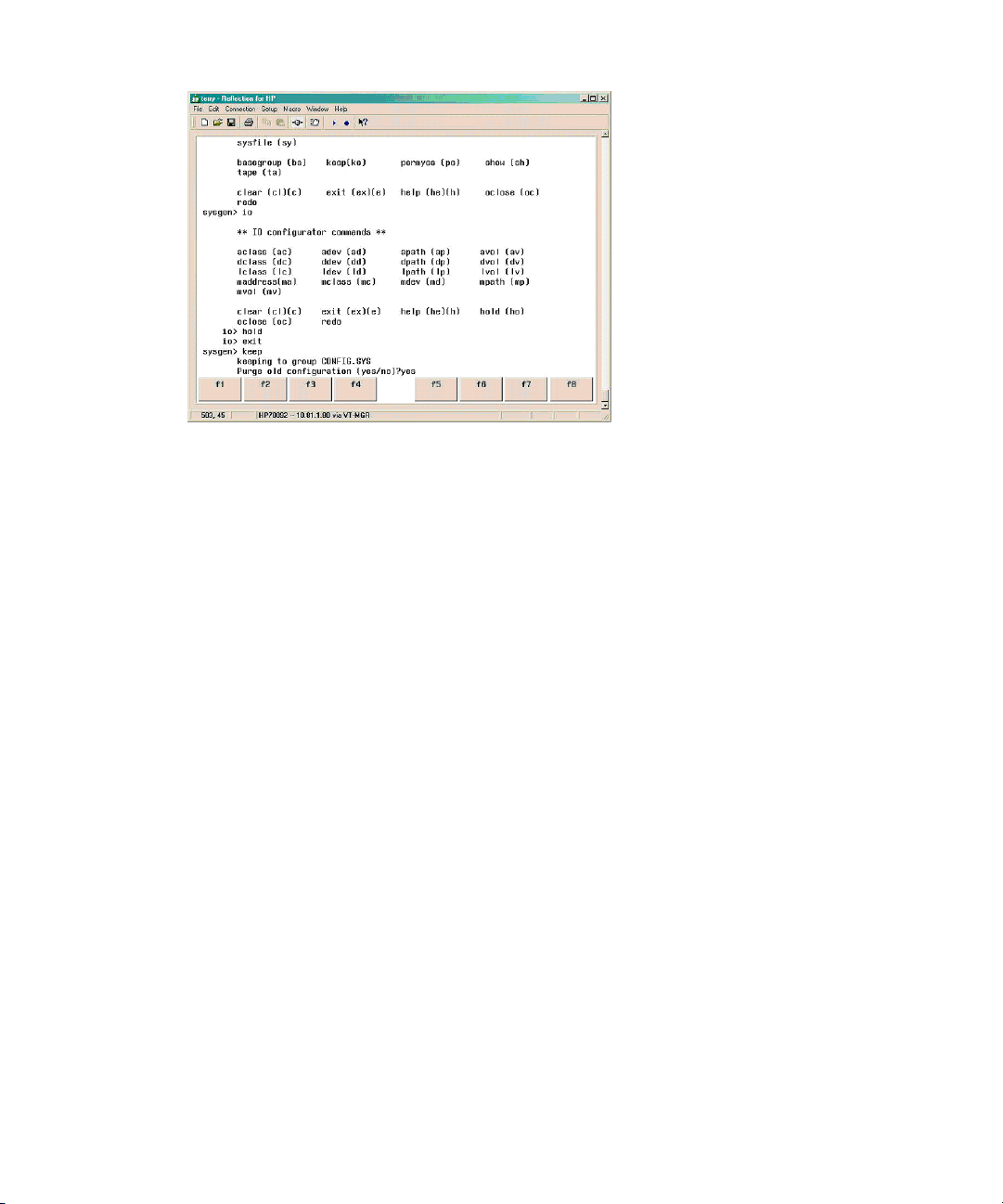

6. Keep the new configuration and exit SYSGEN:
Enter Y for Purge old configuration (yes/no)?.
7. Create a device link file using mknod:
:mknod “/dev/picker c 0 31”
:mknod “/dev/drive c 0 30”
8. To verify the changes, restart the system.
After you connected and configured standalone devices, configure them for use with
Data Protector. For detailed steps, see the online Help index: “configuring standalone
devices”.
Configuring SCSI tape libraries
1. Connect a device to the system.
MPE/iX system user guide26
2. Write down tape I/O Configuration from the ISL utility MAPPER.
a. Press CTRL - B to put the system in control mode.
b. Enter TC and press RETURN to soft reset the system.
c. Press any key to override the autoboot.
d. Enter Y for Boot from the primary boot path (Y or N)? or if
prompt shows BO PRI. Press RETURN.
e. Enter Y for Interact with IPL (Y/N)?.
f. At the ISL prompt, enter:
ISL>ODE
ODE>MAPPER
MAPPER>RUN
g. After MAPPER scans system I/O configuration, you get the output similar to
the following:
Figure 3 I/O configuration: SCSI tape library
Find the tape device and write down the I/O path and component name.
3. Restart the system and log in.
NOTE:
Do not stream jobs or start network interface and network services.
MPE/iX system user guide 27
4. Run the SYSGEN utility, IO subsystem:
:SYSGEN
SYSGEN>IO
For a SCSI tape library (DLT) device, add:
• The path and device for autochanger:
IO>PATH PATH=56/52.0 ID=PSEUDO
IO>ADEV LDEV=30 PATH=56/52.0.0 ID=PICKER
• Paths and devices for tapes:
IO>APATH PATH=56/52.2 ID=PSEUDO
IO>ADEV LDEV=31 PATH=56/52.2.0 ID=DLT8000
MODE=AUTOREPLY
IO>APATH PATH=56/52.3 ID=PSEUDO
IO>ADEV LDEV=32 PATH=56/52.3.0 ID=DLT8000
MODE=AUTOREPLY
The MAPPER utility lists the path number (for example, PATH=56/52.0) and the
device ID (use the first word from Component Name, for example ID=DLT8000).
The LDEV number is any free number from 1-255. You can check already used
numbers by listing all devices with SYSGEN, IO subsystem, or the showdev
command:
:SYSGEN
SYSGEN>IO
IO>LDEV
:SHOWDEV
The path address for autochanger is usually the path address for tape +1.
5. For path number (PATH=56/52.0-PATH=56/52.0.0) from MAPPER utility,
for ID use the first word from Component Name (ID=DLT8000), for autochanger
use PICKER (ID=PICKER) and for LDEV numbers use any free number from
1-255.
NOTE:
For SCSI devices, use PSEUDO as the device identifier.
MPE/iX system user guide28
6. Keep the new configuration and exit SYSGEN:
Enter Y for Purge old configuration (yes/no)?.
7. Create a device link file using mknod:
:mknod “/dev/dlt_picker c 0 30”
:mknod “/dev/dlt_tape01 c 0 31”
:mknod “/dev/dlt_tape02 c 0 32”
8. Restart the system to verify the changes.
Backup
TurboSTORE/iX supports two backup types:
Table 3 Backup types
After you connected and configured SCSI libraries, configure them for use with
Data Protector. For detailed steps, see the online Help index: “configuring SCSI
libraries”.
The files are closed for write access during backup.Online (option ONLINE)
True-online (option
ONLINE=START)
The files are not required to be closed for write access during
backup.
MPE/iX system user guide 29
You perform an MPE/iX backup in the same way as the filesystem backup. For the
procedure, see the online Help index: “creating backup specifications”.
Additionally, specify the supported MPE/iX backup options in the form of extended
variables. See “User-definable backup variables” on page 30.
User-definable backup variables
Set user-definable backup variables (a variable name and its value) to enable flexible
operation of the Data Protector MPE/iX integration.
Table 4 on page 30 lists backup variables and their values.
Table 4 List of backup variables
DescriptionValueVariable
none (default)ONLINE
STARTONLINE
none (default)DIRECTORY
If this variable is used, files must be closed for
write access during backup. This provides
compatibility to pre-MPE/iX 5.5 TurboSTORE
backup behavior. The TurboSTORE/iX log file logs
information about the files that could not be
backed up. This log is created during backup and
restore and is presented as
/tmp/storeprocessid.log.
If this variable is used, files are not required to be
closed for write access during backup. If
ONLINE=START is not set, “open file” errors will
occur during backup. For more information, see
the TurboSTORE/iX documentation
Used to back up the MPE system directory
information, which keeps track of the accounts,
groups, users, and files (but not of the private
volume sets). Storing directory information helps
you rebuild your system from backups if you
unexpectedly lose information. All hierarchical
filesystem directories on the system are also stored
when DIRECTORY is specified.
User-definable options depending on TurboSTORE/iX options are: DIRECTORY,
ONLINE, ONLINE=START. These options are mapped to the same TurboSTORE/iX
options.
MPE/iX system user guide30
Setting Backup Variables
1. In the HP Data Protector, switch to the Backup context.
2. In the Scoping Pane, expand Backup, and double-click Backup Specifications.
3. Right-click the backup specification and select Properties from the pop-up menu.
4. Click the Options tab, and then click Advanced under Filesystem Options.
MPE/iX system user guide 31
5. Select Other from the Filesystem Options window, and then click Edit under User
defined variables. See Figure 4 on page 32.
Figure 4 Specifying backup options
MPE/iX system user guide32
6. In the Advanced window, enter the supported MPE/iX variable, for example
ONLINE with the value START. See Figure 5 on page 33.
Figure 5 Entering the variable
7. Click Add to add the new variable to the list.
TurboSTORE/iX backup options
See “User-definable backup variables” on page 30 for the description of ONLINE,
ONLINE=START, and DIRECTORY variables.
The following TurboSTORE/iX backup options are always used and cannot be
disabled: ONVS, TREE, and DIRECTORY (if the whole volume set is checked for
backup).
The following TurboSTORE/iX backup options cannot be used as they are replaced
by the Data Protector functionality: DATE, PROGRESS, and STATISTICS.
The following TurboSTORE/iX options are not supported: COMPRESS, FCRANGE,
FILES, FULLDB, INTER, LOGVOLSET, MAXTAPEBUF, NOTIFY, ONERROR,
PARALLEL, PARTIALDB, PURGE, RENAME, SPLITVS, STOREDIRECTORY,
STORESET, and TRANSPORT.
Full system backup
For full system backup, create two sets of tapes:
• SLT (system load tape) containing system parameters and I/O configuration
• Store tape containing user files and directories and system directory information
MPE/iX system user guide 33
Creating SLT
To create a SLT, run:
sysgen>TAPE (or sysgen>TA)
When the tape is created, you receive the message that boot backup was generated
successfully. If an error occurs, a flashing TAPE ERROR message is issued to the
console.
Create the SLT tape each time you make configuration changes.
For more information on SYSGEN, see the System Startup, Configuration, and
Shutdown Reference Manual.
Creating Store Tapes
To create a store tape, perform an MPE/iX backup in the same way as an ordinary
backup. Additionally, specify the DIRECTORY option. This option stores the system
directory information in the volset_name_DAF file on the medium. This is not a
real permanent file as it does not physically exist on the system (it exists only on the
medium).
IMPORTANT:
All users and jobs must be logged off the system during backup. If you need to access
files during backup, perform the true-online backup (ONLINE=START option).
To specify the MPE/iX full backup options, make sure the user-definable variable
DIRECTORY is specified in the backup options window. For the procedure, see
“User-definable backup variables” on page 30.
Restore
To perform the restore, select the backed up objects and start the session. For details,
see the online Help index keyword: “restore”.
Besides standard restore options, Data Protector offers MPE/iX-specific options as
user-definable variables. For information, see “User-definable restore
variables” on page 35.
MPE/iX system user guide34
User-definable restore variables
Set user-definable variables (a variable name and its value) to enable flexible
operation of the Data Protector MPE/iX integration.
Table 5 on page 35 lists restore variables and their values.
Table 5 List of restore variables
DescriptionValueVariable
User-definable options that depend on TurboSTORE/iX options are DIRECTORY and
VOLSET. These options are mapped to the same TurboSTORE/iX options.
The option CREATE=NOHFS is not a TurboSTORE/iX option.
Setting Restore Variables
1. In the HP Data Protector Manager, switch to the Restore context.
2. In the Scoping Pane, under Restore Objects, expand the appropriate data type.
3. Expand the client system and then click the appropriate object.
4. In the Source Property page, select objects for restore.
5. Click the Options tab to open the Options Property page.
6. Click Advanced.
none (default)DIRECTORY
/volume_set_nameVOLSET
NOHFSCREATE
Restores the MPE system directory (volume
set configuration) information.
Performs the restore to target volume set, if
backed up volume set is different
(cross-volume set restore using options -as
or -into).
Forces restore of MPE account or MPE group
instead of HFS directory.
MPE/iX system user guide 35
7. In the Advanced dialog box, specify the appropriate variable and its value, and
then click Add.
Figure 6 Entering the variable
8. Click OK to apply the settings.
TurboSTORE/iX restore options
The variable VOLSET=/VOLUMESETNAME directs the restore behavior to write the
data to /VOLUMESETNAME. If the variable is not used, the files are restored to the
original volume set. This option is used for a cross-volume set restore.
To restore MPE accounts/groups as native MPE accounts/groups (and not HFS
directories), use the CREATE variable as well.
The restore variable CREATE=NOHFS creates an MPE account/group.
TurboSTORE/iX can only restore data into MPE accounts/groups that already exist.
If a restore is performed into or as a new MPE account/group, TurboSTORE/iX
creates a hierarchical filesystem directory instead of an MPE account/group. Set the
CREATE=NOHFS variable to avoid such behavior and create an MPE account/group.
TIP:
You can use restore options together, for example, VOLSET and CREATE=NOHFS, to
restore an account/group from one volume set to a new account/group on another
volume set.
The VOLSET TurboSTORE/iX restore option is always used and cannot be disabled.
MPE/iX system user guide36
The following TurboSTORE/iX restore options cannot be used as they are replaced
by the standard Data Protector functionality: COPYACD, KEEP,NEWDATE, NOACD,
OLDDATE, and SHOW.
Pre- and post-exec commands
Before backup or restore, you may want to check the number of files to back up,
stop some transaction processing, or shut down a database. Such actions are
performed using pre- and post-exec commands, which are not supplied by Data
Protector. Depending on your need, you may prepare your own executables that
perform the required actions.
To execute pre- and post-exec commands, enter /bin/sh and the full script pathname
in the pre-exec and post-exec fields.
Example
/bin/sh /usr/omni/bin/script_name
Shell script can contain commands for job streaming:
callci stream job_file_name
Example
callci stream MYJOB.SYS.PUB
NOTE:
Make sure the permissions for pre- and post-exec commands are set properly before
starting backup or restore.
For more information on pre- and post-exec commands, see the online Help index:
“pre- and post-exec commands”.
Disaster recovery
Disaster recovery on MPE/iX is performed manually and involves recovering the
system using the SLT tape. In addition, Data Protector is used to restore all files,
including the system directory information.
MPE/iX system user guide 37
See the STORE and TurboSTORE/iX Products Manual for more information about
disaster recovery on MPE/iX.
Prerequisites
• SLT containing system parameters and I/O configuration
• Store tape containing user files and directories and system directory information
Recovery Procedure
1. Boot your system from the latest SLT. Use the INSTALL utility to make your hard
disk is bootable.
2. Run VOLUTIL to initialize the system volume set members.
Example
volutil: SCRATCHVOL LDEV=2
volutil: NEWVOL MPEXL_SYSTEM_VOLUME_SET:MEMBER 2 LDEV=2
PERM=80 TRANS=100
volutil: EXIT
Verify that the master volume (LDEV1) for MPEXL_SYSTEM_VOLUME_SET is in
the MASTER state. Other volumes may be in the SCRATCH or UNKNOWN state.
These are the volumes that must be re-initializing.
VOLUTIL is not necessary if the members of the system set are defined in the
SYSGEN utility using AVOL. If this is not done, the members of the system volume
set initialize when INSTALL is performed.
3. Reinstall Data Protector.
4. Restore the latest backup of your system directory information. Select the
volset_name_DAF object and specify the DIRECTORY option. All system
information is restored.
5. Restore your latest filesystem backup.
6. Restart the system.
Supported CLI commands
Data Protector A.06.11 supports the omnib command.
MPE/iX system user guide38
Prerequisites
• For the omnib command to operate properly, add the MANAGER.SYS user to
the admin group.
NOTE:
Due to the limitations of the MPE/iX Posix shell (utility nroff is not implemented), it is
not possible to implement help for this command as a man page.
For a description of the omnib command, see the HP Data Protector command line
interface reference.
NOTE:
On MPE/iX, the omniintro man page is also available in /usr/omni/docs.
Backup and restore of MPE/iX database
MPE/iX supports ALLBASE/SQL database and the TurboIMAGE/XL Database
Management System.
When backing up the MPE/iX database, consider the following:
• To back up a complete database (all database files), perform true-online backup.
• To back up database files, select the account/group in which they reside.
Follow the standard backup procedure (see “Backup” on page 29). Additionally,
specify user-definable backup variables (see “User-definable backup
variables” on page 30).
To understand the options ONLINE and ONLINE=START, perform the online database
backup.
If the ONLINE option is used, the files closed for write access are not backed up. The
TurboSTORE/iX log contains the information about the files that are not backed up.
If the ONLINE=START option is used, all files are backed up, including those closed
for write access. This is called true-online backup.
See “TurboSTORE/iX log files” on page 40 for examples of TurboSTORE/iX log files
options ONLINE and ONLINE=START.
MPE/iX system user guide 39
TurboSTORE/iX log files
During backup or restore, TurboSTORE/iX creates a log file, saved in the /tmp
directory. Its name consists of store or restore process and the process identification
number (pid), for example store74711122.log.
IMPORTANT:
TurboSTORE/iX log file for backup can show more objects than actually backed up. That
is because of some Data Protector options (–skip, -only, -since) where the data is
read but not written to the medium. The line Total media written is related to
TurboSTORE/iX, not to Data Protector, media.
Below are the examples of TurboSTORE/iX log files.
Example 1. TurboSTORE/iX log files with ONLINE
>> TURBO-STORE/RESTORE VERSION C.60.17 B5152AA <<
(C) 1986 Hewlett-Packard CO.
STORE /SYS/SAMPLEDB/;
;TREE;ONVS=MPEXL_SYSTEM_VOLUME_SET;ONLINE=START;NW3K^M
THU, JAN 25, 2007, 3:59 PM
/SYS/SAMPLEDB/MUSIC NOT STORED: FILE OPEN FOR WRITE ST ATTACH
/SYS/SAMPLEDB/MUSICDBE NOT STORED: FILE OPEN FOR WRITE ST ATTACH
/SYS/SAMPLEDB/MUSICDCR NOT STORED: FILE OPEN FOR WRITE ST ATTACH
/SYS/SAMPLEDB/MUSICDFL NOT STORED: FILE OPEN FOR WRITE ST ATTACH
/SYS/SAMPLEDB/MUSICDLG NOT STORED: FILE OPEN FOR WRITE ST ATTACH
ONLINE BACKUP UTILIZED DISC SPACE FOR LOG ON THE FOLLOWING VOLSETS:
MPEXL_SYSTEM_VOLUME_SET :
0 KB
DATABASE INFORMATION:
ALL/SQL DATABASE: /SYS/SAMPLEDB/PARTSDBE
FILES STORED:
12
HFS DIRECTORIES STORED:
1
FILES STORED:
104
FILES NOT STORED:
5
TOTAL MEDIA WRITTEN:
0
MPE/iX system user guide40
Example 2. TurboSTORE/iX log files with ONLINE=START
>> TURBO-STORE/RESTORE VERSION C.60.17 B5152AA <<
(C) 1986 Hewlett-Packard CO.
STORE /SYS/SAMPLEDB/;
;TREE;ONVS=MPEXL_SYSTEM_VOLUME_SET;ONLINE=START;NW3K^M
THU, JAN 25, 2007, 3:59 PM
ONLINE BACKUP UTILIZED DISC SPACE FOR LOG ON THE FOLLOWING VOLSETS:
MPEXL_SYSTEM_VOLUME_SET:
832 KB
TURBOIMAGE DATABASE: /SYS/SAMPLEDB/MUSIC
FILES STORED:
7
ALLBASE/SQL DATABASE: /SYS/SAMPLEDB/MUSICDBE
FILES STORED:
3
ALLBASE/SQL DATABASE: /SYS/SAMPLEDB/PARTSDBE
FILES STORED:
12
HFS DIRECTORIES STORED:
1
FILES STORED:
109
TOTAL MEDIA WRITTEN:
0
UDC files and environment variables
The following section describes how to create UDC files and use MA environment
variables.
UDC files
To create a UDC file, enter the following in command prompt:
:editor
HP32201A.09.00 EDIT/3000 MON, JAN 15, 2007, 2:37 PM
(C) Hewlett-Packard CO. 1993
/add
1 OB2UDC <- UDC NAME
2 OPTION LOGON <- START ON LOGIN
3
4 OB2SET <- SET OB2VARIABLES SCRIPT
MPE/iX system user guide 41
5 * <- END OF UDC COMMAND
6 //
...
/keep OB2UDCF.PUB.SYS
/exit
END OF SUBSYSTEM
:
To activate the UDC file enter:
:SETCATALOG OB2UDC.PUB.SYS; APPEND
OB2SET file
OB2SET file can be created with any editor.
Below is an example of the Data Protector environment variables:
Example
SETVAR OB2DEVRETRY 5
SETVAR OB2DEVSLEEP 5
COMMENT SETVAR OB2BLKSIZE -1
COMMENT SETVAR OB2SEGSIZE -1
SETVAR OB2OMNIMAXCATALOG -1
SETVAR OB2OMNIMAXCATALOG -1
SETVAR OB2SHORTSEEKFM -1
SETVAR OB2EODMETHOD -1
SETVAR OB2DASDRIVESTATUS2 -1
SETVAR OB2SPTRETRY 5
SETVAR OB2SPTSLEEP 5
SETVAR OB2SPTRETRYCOMMAND 5
SETVAR OB2SPTSLEEPCOMMAND 5
SETVAR OB2SKIPWRITE -1
SETVAR OB2SCSITIMEOUT -1
SETVAR OB2DBD -1
SETVAR OB2SKIPEJECT -1
SETVAR OB2IMMEDFM -1
After adding new variables to OB2SET, restart inetd to update the configuration
with the new settings. See the Configuring and Managing MPE/iX Internet Services
manual for more information.
