HP mini 5101 Service Manual

HP Mini 5101

Maintenance and Service Guide

Bluetooth is a trademark owned by its proprietor and used by Hewlett-Packard Company under license. Intel and Atom are trademarks of Intel Corporation in the U.S. and other countries. Microsoft, Windows, and Windows Vista are U.S. registered trademarks of Microsoft Corporation. SD Logo is a trademark of its proprietor.

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

First Edition: August 2009

Document Part Number: 575121-001

Safety warning notice

WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not

place the computer directly on your lap or obstruct the computer air vents. Use the computer only on a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer and the AC adapter comply with the user-accessible surface temperature limits defined by the International Standard for Safety of Information Technology Equipment (IEC 60950).

iii

iv Safety warning notice

Table of contents

1 Product description

2 External component identification

Top components ................................................................................................................................... 4

TouchPad ............................................................................................................................ 4

Lights ................................................................................................................................... 5

Buttons ................................................................................................................................. 6

Keys ..................................................................................................................................... 7

Front components ................................................................................................................................ 8

Right-side components ......................................................................................................................... 9

Left-side components ......................................................................................................................... 10

Display components .......................................................................................................................... 11

Bottom components ........................................................................................................................... 12

Wireless antennas .............................................................................................................................. 13

3 Illustrated parts catalog

Service tag ......................................................................................................................................... 14

Device major components .................................................................................................................. 15

Display assembly components ........................................................................................................... 19

Miscellaneous parts ............................................................................................................................ 20

Sequential part number listing ............................................................................................................ 21

4 Removal and replacement procedures

Preliminary replacement requirements ............................................................................................... 25

Tools required .................................................................................................................... 25

Service considerations ....................................................................................................... 25

Plastic parts ....................................................................................................... 25

Cables and connectors ..................................................................................... 25

Drive handling ................................................................................................... 26

Grounding guidelines ......................................................................................................... 27

Electrostatic discharge damage ........................................................................ 27

Packaging and transporting guidelines ............................................. 28

Workstation guidelines ..................................................................... 28

Equipment guidelines ....................................................................... 29

Component replacement procedures ................................................................................................. 30

Service tag ......................................................................................................................... 30

Device feet ......................................................................................................................... 31

Battery ............................................................................................................................... 32

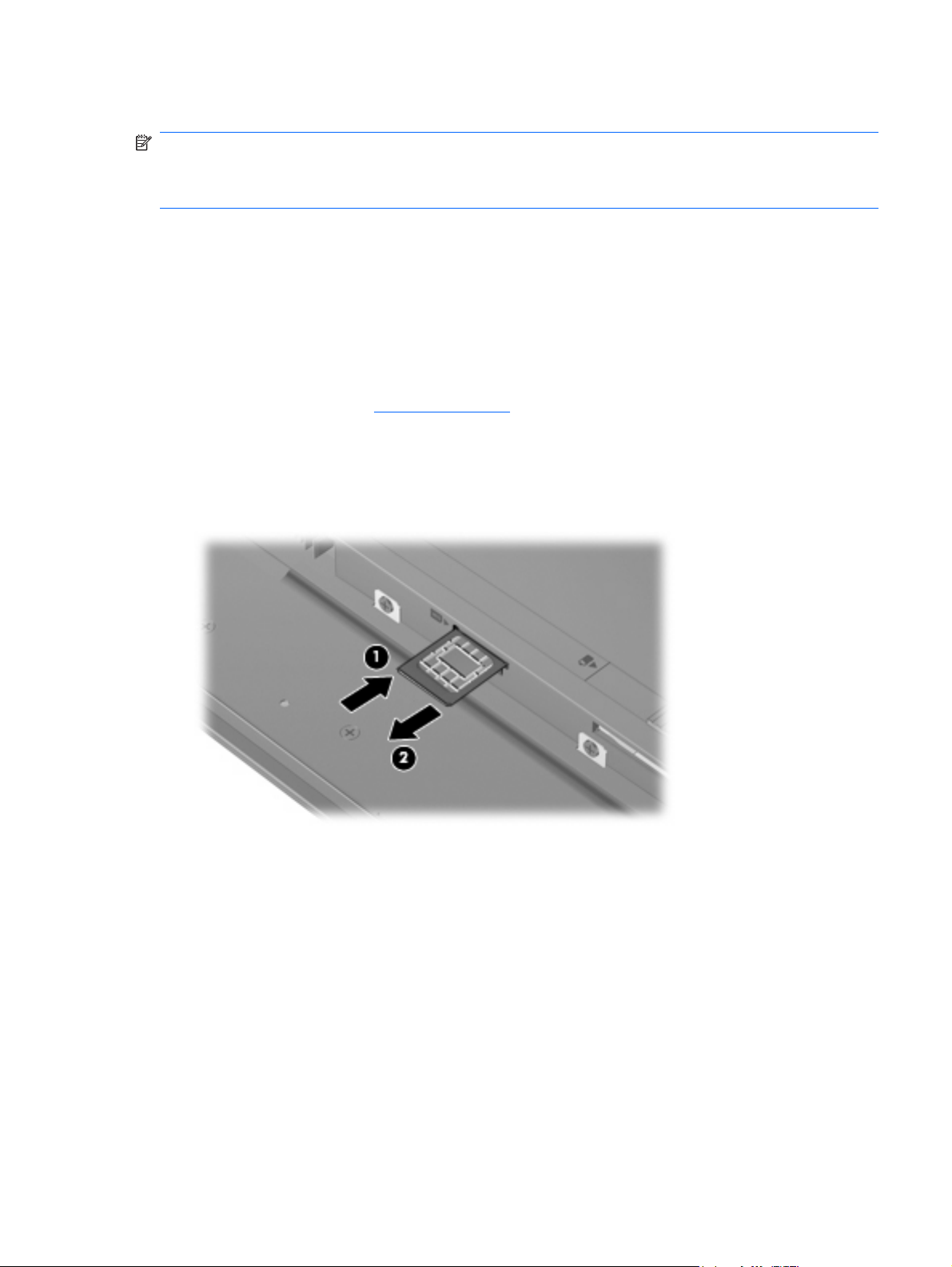

SIM .................................................................................................................................... 33

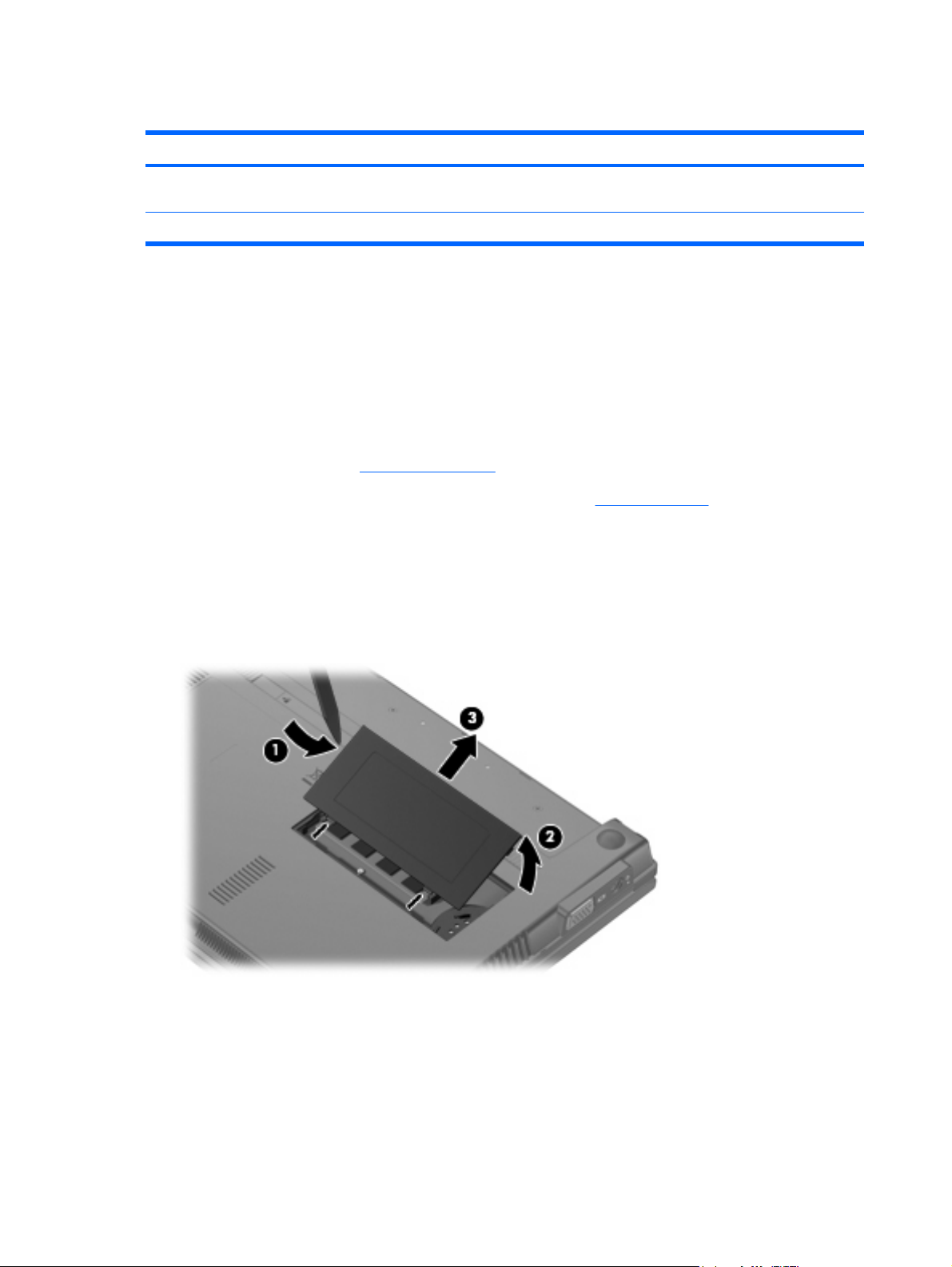

Memory module ................................................................................................................. 34

Keyboard ........................................................................................................................... 36

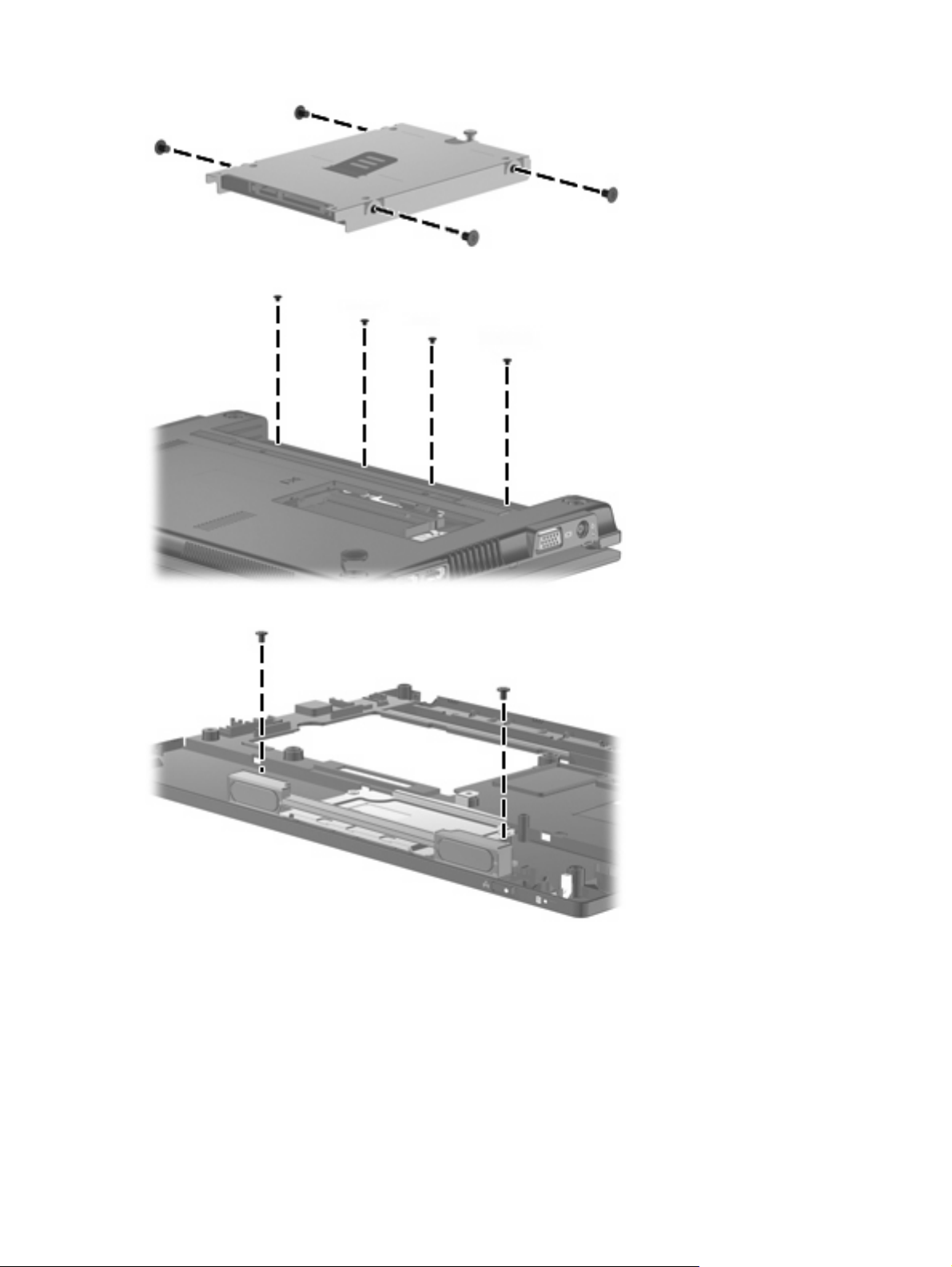

Hard drive .......................................................................................................................... 39

WLAN module .................................................................................................................... 41

SIM module ........................................................................................................................ 43

Top cover ........................................................................................................................... 44

Speaker ............................................................................................................................. 47

WWAN module .................................................................................................................. 48

Bluetooth module ............................................................................................................... 50

Power button board ........................................................................................................... 51

Display assembly ............................................................................................................... 52

System board ..................................................................................................................... 59

RTC battery ....................................................................................................................... 61

Fan and heat sink assembly .............................................................................................. 63

5 Computer Setup

Starting Computer Setup .................................................................................................................... 66

Using Computer Setup ....................................................................................................................... 67

Computer Setup menus ..................................................................................................................... 68

6 Specifications

Device specifications .......................................................................................................................... 72

10.1-inch, AntiGlare display specifications ......................................................................................... 73

Hard drive specifications .................................................................................................................... 74

System DMA specifications ................................................................................................................ 75

System interrupt specifications ........................................................................................................... 76

System I/O address specifications ..................................................................................................... 77

System memory map specifications ................................................................................................... 79

Navigating and selecting in Computer Setup ..................................................................... 67

Restoring factory settings in Computer Setup ................................................................... 67

File menu ........................................................................................................................... 68

Security menu .................................................................................................................... 69

Diagnostics menu .............................................................................................................. 69

System Configuration menu .............................................................................................. 70

7 Screw listing

Phillips PM2.0×2.0 screw ................................................................................................................... 80

Phillips PM2.0×2.0 broadhead screw ................................................................................................. 82

Phillips PM2.0×3.0 screw ................................................................................................................... 83

Phillips PM2.0×4.0 screw ................................................................................................................... 86

Phillips PM2.0×6.0 screw ................................................................................................................... 87

Phillips PM2.0×7.0 screw ................................................................................................................... 88

Phillips PM2.0×7.0 captive screw ....................................................................................................... 89

Phillips PM2.5×5.0 screw ................................................................................................................... 90

Torx T8M2.5×5.0 screw ..................................................................................................................... 91

Phillips PM2.5×6.0 screw ................................................................................................................... 92

Phillips PM2.5×11.0 captive screw ..................................................................................................... 93

8 Backup and recovery

SUSE Linux Recovery ........................................................................................................................ 95

Windows Vista backup and recovery ................................................................................................. 96

Backing up ......................................................................................................................... 96

Recovering ......................................................................................................................... 97

Windows XP backup and recovery ..................................................................................................... 99

Backing up ......................................................................................................................... 99

Recovering ......................................................................................................................... 99

9 Connector pin assignments

Audio-in (microphone) ...................................................................................................................... 101

Audio-out (headphone) ..................................................................................................................... 102

External monitor ............................................................................................................................... 103

RJ-45 (network) ................................................................................................................................ 104

Universal Serial Bus ......................................................................................................................... 105

10 Power cord set requirements

Requirements for all countries and regions ...................................................................................... 106

Requirements for specific countries and regions ............................................................................. 107

11 Recycling

Battery .............................................................................................................................................. 108

Display .............................................................................................................................................. 108

Index ................................................................................................................................................................. 114

vii

viii

1 Product description

Category Description

Product name HP Mini 5101

Processor Intel® Atom™ N280 1.66-GHz processor, 512-KB Level 2 cache, 533-MHz front-

side bus (FSB)

Intel Atom N270 1.6-GHz processor, 512-KB Level 2 cache, 533-MHz front-side

bus (FSB)

Chipset Northbridge: Intel 945GSE; 533-MHz bus speed

Southbridge: Intel ICH7M

Graphics Intel® Graphics Media Accelerator 950

Universal Memory Architecture (UMA) graphics subsystem

Panel Wide-aspect 16:9 ratio panels

All display assemblies include 1 webcam, 2 microphones, and 2 wireless local-area network (WLAN) antenna transceivers/cables. (WWAN is optional.)

10.1-inch high-definition AntiGlare LED

10.1-inch standard-definition AntiGlare LED

Memory One customer-accessible/upgradable memory module slot

Supports up to 2 GB of system memory

PC2-5300, 533-MHz, DDR2

Supports the following configurations:

Hard drive Supports all 9.5-mm, 6.35-cm (2.50-inch) parallel SATA hard drives

320-GB, 7200-RPM

250-GB, 7200-RPM

160-GB, 7200-RPM

2048-MB total system memory (2048 × 1)

●

NOTE: Not supported by computers with Windows® XP Home SP3, ultra low-

cost personal computer (ULCPC) edition installed.

1024-MB total system memory (1024 × 1)

●

Optical drive Supports external USB optical drives only

Diskette drive Supports external USB diskette drives only

Category Description

Audio/Visual High-definition (HD) audio

Integrated speakers (2)

Fixed integrated stereo microphones (2)

Fixed integrated 2-MP webcam

Modem Supports external USB modems only

Ethernet Integrated 10/100/1000 Wake On LAN network interface card (NIC)

Wireless 2 WLAN antennas built into display assembly

Integrated 802/11/a/b/g/n WLAN module

Integrated WWAN (optional)

NOTE: Not supported by computers with Linux installed.

Integrated WPAN Bluetooth® module

External media cards Media Card Reader with push-push technology supporting:

MultiMediaCard (MMC)

●

Secure Digital (SD) Memory Card

●

Ports Audio-in (stereo microphone)

Audio-in/out (microphone/stereo headphone)

Audio-in (microphone)

RJ-45 (Ethernet, includes link and activity lights)

USB (3)

VGA hot-plug external monitor

3-pin AC power

Keyboard/pointing device 92% keyboard

TouchPad, with 2 TouchPad buttons and 2-way scrolling (taps enabled as default)

Power requirements 65-W Smart AC adapter with localized cable plug support

AC adapter connector on cable

6-cell lithium-polymer (Li-Pol) battery (2.55-Ah, 55-Wh), 6-hour target life

4-cell prismatic battery (2.55-Ah, 29-Wh), 3-hour target life

Security Supports HP Kensington Security Lock

Operating system Preinstalled:

Windows® XP Home SP3, ultra low-cost personal computer (ULCPC) edition

Windows Vista® Business 32 SP1 (with XP Pro image)

SUSE Linux SLED 11

Serviceability Customer Self-Replacement (CSR):

AC adapter

2 Chapter 1 Product description

Category Description

Battery (system)

Memory module

Keyboard

WLAN

Hard drive

2 External component identification

Components included with the computer may vary by region and model. The illustrations in this chapter identify the standard features on most computer models.

Top components

TouchPad

Component Description

(1) TouchPad Moves the pointer and selects or activates items on the screen.

(2) Left TouchPad button Functions like the left button on an external mouse.

(3) Right TouchPad button Functions like the right button on an external mouse.

(4) TouchPad scroll zone Scrolls up or down.

4 Chapter 2 External component identification

Lights

Component Description

(1) Caps lock light On: Caps lock is on.

(2) Quick Launch Web light On: The default Internet browser is being launched.

(3) Quick Launch Mail light On: The default mail application is being launched.

(4) Power light

On: The computer is on.

●

Blinking: The computer is in the Sleep or Standby state.

●

Off: The computer is off or in Hibernation.

●

Top components 5

Buttons

Component Description

(1) Quick Launch Web button Opens the default Internet browser when the computer is

(2) Quick Launch Mail button Opens the default mail application when the computer is

(3) Power button

on.

When the computer is off, press the button to turn on

●

the computer.

When the computer is on, press the button to shut

●

down the computer.

When the computer is in the Sleep or Standby state,

●

press the button briefly to exit.

When the computer is in Hibernation, press the

●

button briefly to exit Hibernation.

If the computer has stopped responding and Windows shutdown procedures are ineffective, press and hold the power button for at least 5 seconds to turn off the computer.

6 Chapter 2 External component identification

Keys

Component Description

(1) esc key Displays system information when pressed in combination with

the fn key.

NOTE: Only available on computers with a Windows operating

system installed.

(2) fn key Displays system information when pressed in combination with

(3) Windows logo key Displays the Windows Start menu.

(4) Windows applications key Displays a shortcut menu for items beneath the pointer.

(5) Embedded numeric keypad keys Can be used like the keys on an external numeric keypad.

(6) Function keys Execute the action represented by the icon on the key.

the esc key.

NOTE: Only available on computers with a Windows operating

system installed.

NOTE: Only available on computers with a Windows operating

system installed.

NOTE: Only available on computers with a Windows operating

system installed.

Top components 7

Front components

Component Description

(1) Drive light Blinking: The hard drive is being accessed.

(2) Wireless light

(3) Wireless switch Turns the wireless feature on or off, but does not create a wireless

(4) Speakers (2) Produce sound.

Blue: An integrated wireless device, such as a wireless local

●

area network (WLAN) device and/or a Bluetooth® device, is on.

Amber: All wireless devices are off.

●

NOTE: The wireless light turns amber when the computer turns

on and all wireless devices are off.

connection.

NOTE: To establish a wireless connection, a wireless network

must already be set up.

8 Chapter 2 External component identification

Right-side components

Component Description

(1) SD Card Reader Supports the following optional digital card formats:

(2) Audio-out (headphone) jack Produces sound when connected to optional powered stereo

(3) Audio-in (microphone) jack Connects an optional computer headset microphone, stereo array

MultiMediaCard (MMC)

●

Secure Digital (SD) Memory Card

●

speakers, headphones, ear buds, a headset, or television audio.

NOTE: When a device is connected to the headphone jack, the

computer speakers are disabled.

microphone, or monaural microphone.

(4) Powered USB port Provides power to a USB device, such as an optional external

(5) RJ-45 (network) jack Connects a network cable.

(6) Security cable slot Attaches an optional security cable to the computer.

optical drive, if used with a powered USB cable.

NOTE: The security cable is designed to act as a deterrent, but

it may not prevent the computer from being mishandled or stolen.

Right-side components 9

Left-side components

Component Description

(1) Battery light

(2) Power connector Connects an AC adapter.

(3) External monitor port Connects an external VGA monitor or projector.

(4) Vent Enables airflow to cool internal components.

(5) USB ports (2) Connect optional USB devices.

Amber: A battery is charging.

●

Blue: A battery is close to full charge capacity.

●

Blinking amber: A battery that is the only available power

●

source has reached a low battery level. When the battery reaches a critical battery level, the battery light begins blinking rapidly.

Off: If the computer is plugged into an external power source,

●

the light turns off when all batteries in the computer are fully charged. If the computer is not plugged into an external power source, the light stays off until the battery reaches a low battery level.

NOTE: The computer fan starts up automatically to cool internal

components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.

10 Chapter 2 External component identification

Display components

Component Description

(1) Webcam light On: The webcam is in use.

(2) Webcam Records audio and video and captures still photographs.

(3) Internal microphones (2) Record sound.

NOTE: If there is a microphone icon next to each microphone

opening, your computer has internal microphones.

(4) Speakers (2) Produce sound.

Display components 11

Bottom components

Component Description

(1) Battery bay Holds the battery.

(2) Battery release latches (2) Release the battery from the battery bay.

(3) Service tag Provides the product brand and series name, serial number (s/n),

(4) Memory module compartment Contains the memory module slot.

(5) Vents (2) Enable airflow to cool internal components.

and product number (p/n) of your computer. Have this information available when you contact technical support.

NOTE: The computer fan starts up automatically to cool internal

components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.

12 Chapter 2 External component identification

Wireless antennas

On select computer models, at least 2 antennas send and receive signals from one or more wireless devices. These antennas are not visible from the outside of the computer.

NOTE: For optimal transmission, keep the areas immediately around the WLAN and WWAN antennas

free from obstructions.

To see wireless regulatory notices, refer to the section of the Regulatory, Safety and Environmental Notices that applies to your country or region. These notices are located in Help and Support.

Wireless antennas 13

3 Illustrated parts catalog

Service tag

When ordering parts or requesting information, provide the computer serial number and model description provided on the service tag:

(1) Product name: This is the product name affixed to the front of the device.

(2) Serial number (s/n): This is an alphanumeric identifier that is unique to each product.

(3) Part number/Product number (p/n): This number provides specific information about the product's

hardware components. The part number helps a service technician to determine what components and parts are needed.

(4) Model description: This is the alphanumeric identifier used to locate documents, drivers, and support for the device.

(5) Warranty period: This number describes the duration of the warranty period for the device.

14 Chapter 3 Illustrated parts catalog

Device major components

Device major components 15

Item Description Spare part number

(1) Display assembly (includes 1 webcam, 2 microphones, and 2 WLAN antenna transceivers/

cables; WWAN is optional)

See

Display assembly components on page 19 for a comprehensive list of display assembly

spare parts.

(2) Keyboard

10.1-inch, high-definition, AntiGlare display assembly with webcam (includes WWAN)

●

10.1-inch, high-definition, AntiGlare display assembly with webcam

●

10.1-inch, standard-definition, AntiGlare display assembly with webcam (includes

●

WWAN)

10.1-inch, standard-definition, AntiGlare display assembly with webcam

●

For use only in Belgium

●

For use only in Brazil

●

For use only in Bulgaria

●

For use only in the Czech Republic

●

For use only in Denmark

●

For use only in Europe

●

For use only in France

●

For use only in French Canada

●

580616-001

577969-001

580615-001

577968-001

578364-A41

578364-201

578364-261

578364-221

578364-081

578364-B31

578364-051

578364-121

For use only in Finland, and Sweden

●

For use only in Germany

●

For use only in Greece

●

For use only in Hungary

●

For use only in Iceland

●

For use only in Israel

●

For use only in Italy

●

For use only in Japan

●

For use only in Latin America

●

For use only in Norway

●

For use only in Portugal

●

For use only in Russia

●

For use only in Saudi Arabia

●

For use only in Slovakia

●

For use only in Slovenia

●

For use only in South Korea

●

578364-B71

578364-041

578364-DJ1

578364-211

578364-DD1

578364-BB1

578364-061

578364-291

578364-161

578364-091

578364-131

578364-251

578364-171

578364-231

578364-BA1

578364-AD1

For use only in Spain 578364-071

●

16 Chapter 3 Illustrated parts catalog

Item Description Spare part number

(3) Top cover (includes TouchPad) 577926-001

(4) Speaker assembly (includes cable) 577967-001

(5) Hard drive

(6) WLAN module

802.11/a/b/g/n WLAN module

For use only in Switzerland

●

For use only in Taiwan

●

For use only in Thailand

●

For use only in Turkey

●

For use only in the United Kingdom

●

For use only in the United States

●

NOTE: Each hard drive spare part kit includes a bracket and screws.

320-GB, 7200-RPM

●

250-GB, 7200-RPM

●

160-GB, 7200-RPM

●

For use in Canada, the Cayman Islands, Guam, Puerto Rico, the U.S. Virgin Islands,

●

and the United States

578364-BG1

578364-AB1

578364-281

578364-141

578364-031

578364-001

577974-001

577973-001

577972-001

504664-001

(7) Fan and heat sink assembly (includes replacement thermal material) 577924-001

For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda,

●

Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equatorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, the People's Republic of China, Peru, the Philippines, Poland, Portugal, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

For international use

●

504664-002

480985-001

(8) System board (includes processor and replacement thermal material)

Device major components 17

Item Description Spare part number

Plastics Kit with Bluetooth cable 577966-001

(9a) Bluetooth cable

(9b) Actuator cover

(9c) Memory module compartment cover

(9d) Blank for Media Card Reader

(10) Bluetooth module 537921-001

(11) RTC battery 507707-001

(12) WWAN module

(13) Power button board (includes cable) 577922-001

(14) SIM module (includes cable) 577923-001

Includes Intel Atom N280 1.66-GHz processor, 512-KB Level 2 cache, 533-MHz front-

●

side bus (FSB)

Includes Intel Atom N270 1.6-GHz processor, 512-KB Level 2 cache, 533-MHz front-side

●

bus (FSB)

NOTE: Not supported by computers with Linux installed.

HP un2400 Mobile Broadband Module (select models only)

●

WWAN module for use only in the People's Republic of China

●

577921-001

585464-001

483377-002

571888-001

(15) Battery

(16) Base enclosure (includes 4 rubber device feet) 577925-001

(17) Memory module (PC2-5300, 533-MHz, DDR2)

6-cell lithium-polymer (Li-Pol) battery (2.55-Ah, 55-Wh)

●

4-cell prismatic battery (2.55-Ah, 29-Wh)

●

2048-MB (Not supported by computers with Windows® XP Home SP3, ultra low-cost

●

personal computer (ULCPC) edition installed.)

1024-MB 577970-001

●

579027-001

579026-001

577971-001

18 Chapter 3 Illustrated parts catalog

Display assembly components

Item Description Spare part number

(1) Display bezel 577929-001

(2) Display Hinge Kit

(Includes left and right display panel hinges)

(3) Webcam module 577927-001

(4) Display panel/webcam cable

(5) Display enclosure (includes logo) 577928-001

Display Cable Kit (not illustrated, includes microphone assembly cable, WLAN antennas,

For use in high-definition display assembly

●

For use in standard-definition display assembly

●

and WWAN antennas)

577930-001

577932-001

577931-001

577933-001

Display assembly components 19

Miscellaneous parts

Description Spare part number

65-W, 3-pin Smart AC adapter 463958-001

65-W, 3-pin Smart AC adapter for use in India 577170-001

Power cord

For use in Argentina

●

For use in Australia

●

For use in Brazil

●

For use in Denmark

●

For use in Europe

●

For use in India

●

For use in Israel

●

For use in Italy

●

For use in Japan

●

For use in North America

●

For use in the People's Republic of China

●

For use in Singapore and the United Kingdom

●

For use in South Africa

●

For use in South Korea

●

For use in Switzerland

●

For use in Taiwan

●

490371-D01

490371-011

490371-201

490371-081

490371-021

490371-D61

490371-BB1

490371-061

490371-291

490371-001

490371-AA1

490371-031

490371-AR1

490371-AD1

490371-111

490371-AB1

Rubber Kit (contains 10 rubber device feet—5 front and 5 rear) 578361-001

Screw Kit 578362-001

20 Chapter 3 Illustrated parts catalog

Sequential part number listing

Spare part number

463958-001 65-W, 3-pin Smart AC adapter

480985-001 802.11/a/b/g/n WLAN module for international use

483377-002 HP un2400 Mobile Broadband Module (select models only)

490371-001 Power cord for use in North America

490371-011 Power cord for use in Australia

490371-021 Power cord for use in Europe

490371-031 Power cord for use in Singapore and the United Kingdom

490371-061 Power cord for use in Italy

490371-081 Power cord for use in Denmark

490371-111 Power cord for use in Switzerland

490371-201 Power cord for use in Brazil

490371-291 Power cord for use in Japan

490371-AA1 Power cord for use in the People's Republic of China

490371-AB1 Power cord for use in Taiwan

Description

NOTE: Not supported by computers with Linux installed.

490371-AD1 Power cord for use in South Korea

490371-AR1 Power cord for use in South Africa

490371-BB1 Power cord for use in Israel

490371-D01 Power cord for use in Argentina

490371-D61 Power cord for use in India

504664-001 802.11/a/b/g/n WLAN module for use in Canada, the Cayman Islands, Guam, Puerto Rico, the U.S. Virgin

Islands, and the United States

Sequential part number listing 21

Spare part number

Description

504664-002 802.11/a/b/g/n WLAN module for use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda,

507707-001 RTC battery

537921-001 Bluetooth module

571888-001 WWAN module for use only in the People's Republic of China (Not supported by computers with Linux

577170-001 65-W, 3-pin Smart AC adapter

installed.)

577921-001 System board, includes Intel Atom N280 1.66-GHz processor, 512-KB Level 2 cache, 533-MHz front-side bus

(FSB) (includes thermal replacement material)

577922-001 Power button board (includes cable)

577923-001 SIM module (includes cable)

577924-001 Fan and heat sink assembly (includes thermal replacement material)

577925-001 Base enclosure (includes 4 rubber device feet)

577926-001 Top cover (includes TouchPad)

577927-001 Webcam module

577928-001 Display enclosure (includes logo)

577929-001 Display bezel

577930-001 Display hinge kit (Includes left and right display panel hinges)

577931-001 Display panel/webcam cable for use with standard-definition display assembly

577932-001 Display panel/webcam cable for use with high-definition display assembly

577933-001 Display Cable Kit (includes microphone assembly cable, WLAN antennas, and WWAN antennas)

577966-001 Plastics Kit with Bluetooth cable

577967-001 Speaker assembly (includes cable)

577968-001 10.1-inch, standard-definition, AntiGlare display assembly with webcam (includes 2 microphones, and 2 WLAN

antenna transceivers/cables)

22 Chapter 3 Illustrated parts catalog

Spare part number

Description

577969-001 10.1-inch, high-definition, AntiGlare display assembly with webcam (includes 2 microphones, and 2 WLAN

577970-001 1024-MB memory module (PC2-5300, 533-MHz, DDR2)

577971-001 2048-MB memory module (PC2-5300, 533-MHz, DDR2)

577972-001 160-GB, 7200-RPM hard drive (includes bracket and screws)

577973-001 250-GB, 7200-RPM hard drive (includes bracket and screws)

577974-001 320-GB, 7200-RPM hard drive (includes bracket and screws)

578361-001 Rubber Kit (contains 10 rubber device feet—5 front and 5 rear)

578362-001 Screw Kit

578364-001 Keyboard for use only in the United States

578364-031 Keyboard for use only in the United Kingdom

578364-041 Keyboard for use only in Germany

578364-051 Keyboard for use only in France

578364-061 Keyboard for use only in Italy

578364-071 Keyboard for use only in Spain

antenna transceivers/cables)

(Not supported by computers with Windows® XP Home SP3, ultra low-cost personal computer (ULCPC) edition installed.)

578364-081 Keyboard for use only in Denmark

578364-091 Keyboard for use only in Norway

578364-121 Keyboard for use only in French Canada

578364-131 Keyboard for use only in Portugal

578364-141 Keyboard for use only in Turkey

578364-161 Keyboard for use only in Latin America

578364-171 Keyboard for use only in Saudi Arabia

578364-201 Keyboard for use only in Brazil

578364-211 Keyboard for use only in Hungary

578364-221 Keyboard for use only in the Czech Republic

578364-231 Keyboard for use only in Slovakia

578364-251 Keyboard for use only in Russia

578364-261 Keyboard for use only in Bulgaria

578364-281 Keyboard for use only in Thailand

578364-291 Keyboard for use only in Japan

578364-A41 Keyboard for use only in Belgium

578364-AB1 Keyboard for use only in Taiwan

Sequential part number listing 23

Spare part number

578364-AD1 Keyboard for use only in South Korea

578364-B31 Keyboard for use only in Europe

578364-B71 Keyboard for use only in Finland, and Sweden

578364-BA1 Keyboard for use only in Slovenia

578364-BB1 Keyboard for use only in Israel

578364-BG1 Keyboard for use only in Switzerland

578364-DD1 Keyboard for use only in Iceland

578364-DJ1 Keyboard for use only in Greece

579026-001 4-cell prismatic battery (2.55-Ah, 29-Wh)

579027-001 6-cell lithium-polymer (Li-Pol) battery (2.55-Ah, 55-Wh)

580615-001 10.1-inch, standard-definition, AntiGlare display assembly with webcam and WWAN (includes 2 microphones,

580616-001 10.1-inch, high-definition, AntiGlare display assembly with webcam and WWAN (includes 2 microphones, and

585464-001 System board, includes Intel Atom N270 1.6-GHz processor, 512-KB Level 2 cache, 533-MHz front-side bus

Description

and 2 WLAN antenna transceivers/cables)

2 WLAN antenna transceivers/cables)

(FSB) (includes replacement thermal material)

24 Chapter 3 Illustrated parts catalog

4 Removal and replacement procedures

Preliminary replacement requirements

Tools required

You will need the following tools to complete the removal and replacement procedures:

Flat-bladed screwdriver

●

Magnetic screwdriver

●

Phillips P0 and P1 screwdrivers

●

Service considerations

The following sections include some of the considerations that you must keep in mind during disassembly and assembly procedures.

NOTE: As you remove each subassembly from the device, place the subassembly (and all

accompanying screws) away from the work area to prevent damage.

Plastic parts

CAUTION: Using excessive force during disassembly and reassembly can damage plastic parts. Use

care when handling the plastic parts. Apply pressure only at the points designated in the maintenance instructions.

Cables and connectors

CAUTION: When servicing the device, be sure that cables are placed in their proper locations during

the reassembly process. Improper cable placement can damage the device.

Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat or seat the cables during removal and insertion. Handle cables by the connector whenever possible. In all cases, avoid bending, twisting, or tearing cables. Be sure that cables are routed in such a way that they cannot be caught or snagged by parts being removed or replaced. Handle flex cables with extreme care; these cables tear easily.

Preliminary replacement requirements 25

Drive handling

CAUTION: Drives are fragile components that must be handled with care. To prevent damage to the

device, damage to a drive, or loss of information, observe these precautions:

Before removing or inserting a hard drive, shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device on, and then shut it down through the operating system.

Before handling a drive, be sure that you are discharged of static electricity. While handling a drive, avoid touching the connector.

Handle drives on surfaces covered with at least one inch of shock-proof foam.

Avoid dropping drives from any height onto any surface.

After removing a hard drive, an optical drive, or a diskette drive, place it in a static-proof bag.

Avoid exposing a hard drive to products that have magnetic fields, such as monitors or speakers.

Avoid exposing a drive to temperature extremes or liquids.

If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective packaging and label the package “FRAGILE.”

26 Chapter 4 Removal and replacement procedures

Grounding guidelines

Electrostatic discharge damage

Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many cases, ESD contains enough power to alter device parameters or melt silicon junctions.

A discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or microcircuitry. Even if the spark is neither felt nor heard, damage may have occurred.

An electronic device exposed to ESD may not be affected at all and can work perfectly throughout a normal cycle. Or the device may function normally for a while, then degrade in the internal layers, reducing its life expectancy.

CAUTION: To prevent damage to the device when you are removing or installing internal components,

observe these precautions:

Keep components in their electrostatic-safe containers until you are ready to install them.

Use nonmagnetic tools.

Before touching an electronic component, discharge static electricity by using the guidelines described in this section.

Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.

If you remove a component, place it in an electrostatic-safe container.

The following table shows how humidity affects the electrostatic voltage levels generated by different activities.

CAUTION: A product can be degraded by as little as 700 V.

Typical electrostatic voltage levels

Relative humidity

Event 10% 40% 55%

Walking across carpet 35,000 V 15,000 V 7,500 V

Walking across vinyl floor 12,000 V 5,000 V 3,000 V

Motions of bench worker 6,000 V 800 V 400 V

Removing DIPS from plastic tube 2,000 V 700 V 400 V

Removing DIPS from vinyl tray 11,500 V 4,000 V 2,000 V

Removing DIPS from Styrofoam 14,500 V 5,000 V 3,500 V

Removing bubble pack from PCB 26,500 V 20,000 V 7,000 V

Packing PCBs in foam-lined box 21,000 V 11,000 V 5,000 V

Preliminary replacement requirements 27

Packaging and transporting guidelines

Follow these grounding guidelines when packaging and transporting equipment:

To avoid hand contact, transport products in static-safe tubes, bags, or boxes.

●

Protect ESD-sensitive parts and assemblies with conductive or approved containers or packaging.

●

Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.

●

Place items on a grounded surface before removing items from their containers.

●

Always be properly grounded when touching a component or assembly.

●

Store reusable ESD-sensitive parts from assemblies in protective packaging or nonconductive

●

foam.

Use transporters and conveyors made of antistatic belts and roller bushings. Be sure that

●

mechanized equipment used for moving materials is wired to ground and that proper materials are selected to avoid static charging. When grounding is not possible, use an ionizer to dissipate electric charges.

Workstation guidelines

Follow these grounding workstation guidelines:

Cover the workstation with approved static-shielding material.

●

Use a wrist strap connected to a properly grounded work surface and use properly grounded tools

●

and equipment.

Use conductive field service tools, such as cutters, screwdrivers, and vacuums.

●

When fixtures must directly contact dissipative surfaces, use fixtures made only of static-safe

●

materials.

Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids and

●

Styrofoam.

Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle

●

these items only at static-free workstations.

Avoid contact with pins, leads, or circuitry.

●

Turn off power and input signals before inserting or removing connectors or test equipment.

●

28 Chapter 4 Removal and replacement procedures

Equipment guidelines

Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.

When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible straps

●

with a minimum of one megohm ±10% resistance in the ground cords. To provide proper ground, wear a strap snugly against the skin at all times. On grounded mats with banana-plug connectors, use alligator clips to connect a wrist strap.

When standing, use foot straps and a grounded floor mat. Foot straps (heel, toe, or boot straps)

●

can be used at standing workstations and are compatible with most types of shoes or boots. On conductive floors or dissipative floor mats, use foot straps on both feet with a minimum of one megohm resistance between the operator and ground. To be effective, the conductive strips must be worn in contact with the skin.

The following grounding equipment is recommended to prevent electrostatic damage:

Antistatic tape

●

Antistatic smocks, aprons, and sleeve protectors

●

Conductive bins and other assembly or soldering aids

●

Nonconductive foam

●

Conductive tabletop workstations with ground cords of one megohm resistance

●

Static-dissipative tables or floor mats with hard ties to the ground

●

Field service kits

●

Static awareness labels

●

Material-handling packages

●

Nonconductive plastic bags, tubes, or boxes

●

Metal tote boxes

●

Electrostatic voltage levels and protective materials

●

The following table lists the shielding protection provided by antistatic bags and floor mats.

Material Use Voltage protection level

Antistatic plastic Bags 1,500 V

Carbon-loaded plastic Floor mats 7,500 V

Metallized laminate Floor mats 5,000 V

Preliminary replacement requirements 29

Component replacement procedures

This chapter provides removal and replacement procedures.

There are as many as 65 screws, in 9 different sizes, that must be removed, replaced, or loosened when servicing the device. Make special note of each screw size and location during removal and replacement.

Service tag

When ordering parts or requesting information, provide the computer serial number and model description provided on the service tag:

(1) Product name: This is the product name affixed to the front of the device.

(2) Serial number (s/n): This is an alphanumeric identifier that is unique to each product.

(3) Part number/Product number (p/n): This number provides specific information about the product's

hardware components. The part number helps a service technician to determine what components and parts are needed.

(4) Model description: This is the alphanumeric identifier used to locate documents, drivers, and support for the device.

(5) Warranty period: This number describes the duration of the warranty period for the device.

30 Chapter 4 Removal and replacement procedures

Device feet

The device feet are adhesive-backed rubber pads. The rear feet are attached and the front feet are tethered to the bottom of the base enclosure.

NOTE: The front and rear device feet are not interchangeable. Due to the adhesive nature of the

rubber pads, they should be replaced after removal.

Description Spare part number

Rubber Kit (contains 10 rubber device feet—5 front and 5 rear) 578361-001

Component replacement procedures 31

Battery

Description Spare part number

6-cell lithium-polymer (Li-Pol) battery (2.55-Ah, 55-Wh) 579027-001

4-cell prismatic battery (2.55-Ah, 29-Wh) 579026-001

Before removing the battery, follow these steps:

1. Shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device

on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the device.

3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the device.

Remove the battery:

1. Turn the device upside-down on a flat surface, with the battery bay toward you.

2. Slide the battery release latches (1) to release the battery.

3. Remove the battery (2).

Reverse this procedure to install a battery.

32 Chapter 4 Removal and replacement procedures

SIM

NOTE: This section applies only to device models with WWAN capability.

NOTE: If there is a SIM inserted in the SIM slot, it must be removed before disassembling the

computer. Be sure that the SIM is reinserted in the SIM slot after reassembling the computer.

Before removing the SIM, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

4. Remove the battery (see

Remove the SIM:

1. Press in on the SIM (1). (The module is partially ejected from the SIM slot.)

2. Remove the SIM (2) from the SIM slot.

Reverse this procedure to insert the SIM.

Battery on page 32).

Component replacement procedures 33

Memory module

Description Spare part number

2048-MB, PC2-5300, 533-MHz, DDR2 (Not supported by computers with Windows® XP Home SP3, ultra low-cost personal computer (ULCPC) edition installed.)

1024-MB, PC2-5300, 533-MHz, DDR2 577970-001

577971-001

Before removing the memory module, follow these steps:

1. Shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device

on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the device.

3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the device.

4. Remove the battery (see

5. If your device has WWAN capability, remove the SIM (see

Battery on page 32).

SIM on page 33).

Remove the memory module:

1. Use a fingernail or other flexible tool (1) to release the memory module compartment cover from

the computer.

2. Swing the cover up and away from the outside of the computer (2), and then remove the

cover (3).

3. Spread the retaining tabs (1) on each side of the memory module slot to release the memory

module. (The module tilts up.)

34 Chapter 4 Removal and replacement procedures

4. Remove the memory module (2) by pulling the module away from the slot at an angle.

NOTE: Memory modules are designed with a notch (3) to prevent incorrect insertion into the

memory module slot.

Reverse this procedure to install a memory module.

Component replacement procedures 35

Keyboard

Description Spare part number

For use only in Belgium 578364-A41

For use only in Brazil 578364-201

For use only in Bulgaria 578364-261

For use only in the Czech Republic 578364-221

For use only in Denmark 578364-081

For use only in Europe 578364-B31

For use only in France 578364-051

For use only in French Canada 578364-121

For use only in Finland, and Sweden 578364-B71

For use only in Germany 578364-041

For use only in Greece 578364-DJ1

For use only in Hungary 578364-211

For use only in Iceland 578364-DD1

For use only in Israel 578364-BB1

For use only in Italy 578364-061

For use only in Japan 578364-291

For use only in Latin America 578364-161

For use only in Norway 578364-091

For use only in Portugal 578364-131

For use only in Russia 578364-251

For use only in Saudi Arabia 578364-171

For use only in Slovakia 578364-231

For use only in Slovenia 578364-BA1

For use only in South Korea 578364-AD1

For use only in Spain 578364-071

For use only in Switzerland 578364-BG1

For use only in Taiwan 578364-AB1

For use only in Thailand 578364-281

For use only in Turkey 578364-141

For use only in the United Kingdom 578364-031

For use only in the United States 578364-001

Before removing the keyboard, follow these steps:

36 Chapter 4 Removal and replacement procedures

1. Shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device

on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the device.

3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the device.

4. Remove the battery (see

5. If your device has WWAN capability, remove the SIM (see

Battery on page 32).

SIM on page 33).

Remove the keyboard:

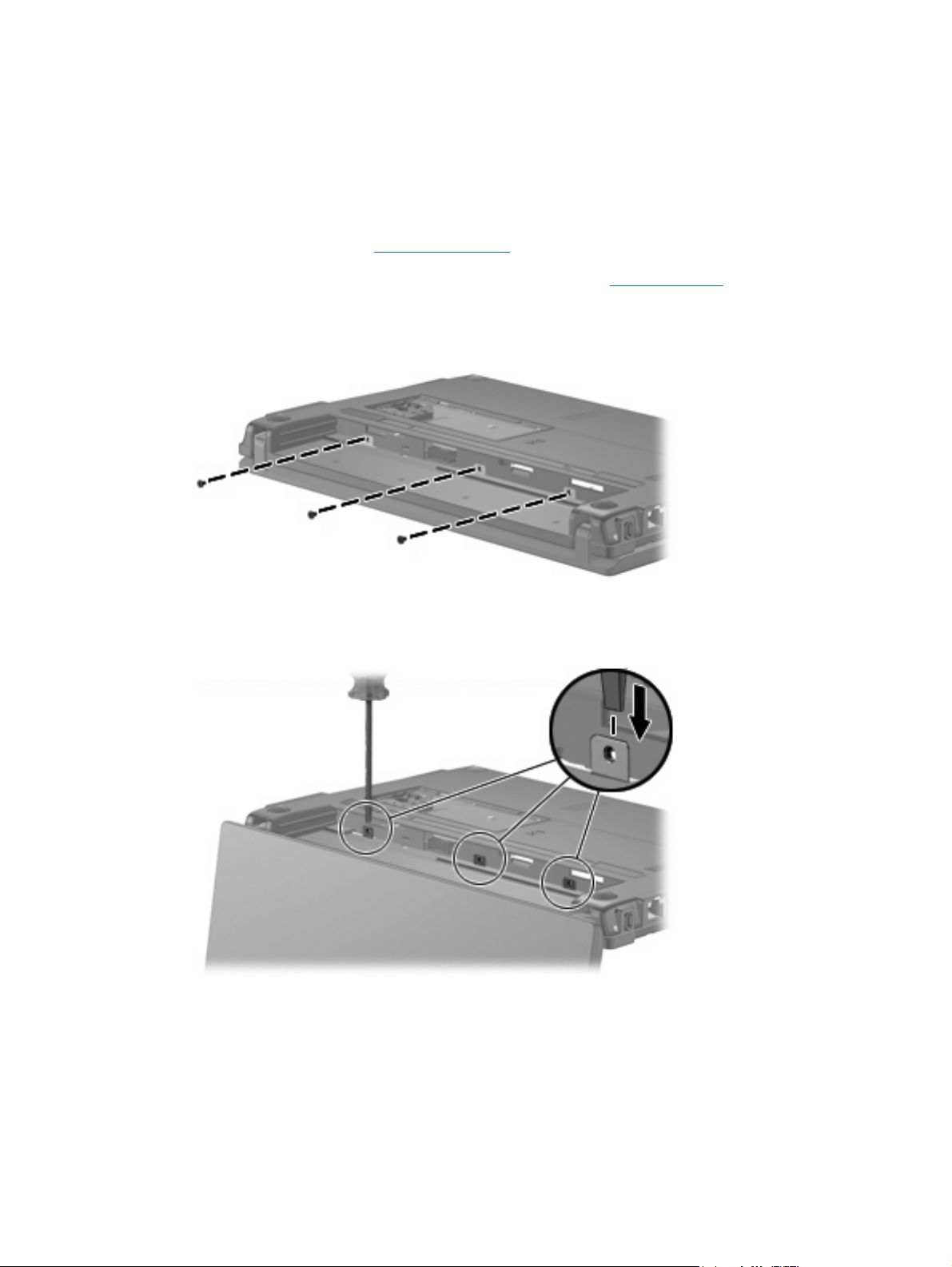

1. Remove the 3 Phillips PM2.0×3.0 screws that secure the keyboard to the device.

2. Open the display 90 degrees.

3. Use a tool to push the screw tabs directly down to release the keyboard.

4. Turn the device right-side up, and then lift up on the top and left edges (1) of the keyboard until the

keyboard releases completely.

Component replacement procedures 37

5. Swing the keyboard forward (2), and slide the keyboard back until its top edge rests on the display

assembly (3).

6. Release the zero insertion force (ZIF) connector (1) to which the keyboard cable is attached.

7. Disconnect the cable (2).

8. Remove the keyboard.

Reverse this procedure to install the keyboard.

38 Chapter 4 Removal and replacement procedures

Hard drive

NOTE: Each hard drive spare part kit includes a bracket and screws.

Description Spare part number

320-GB, 7200-RPM 577974-001

250-GB, 7200-RPM 577973-001

160-GB, 7200-RPM 577972-001

Before removing the hard drive, follow these steps:

1. Shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device

2. Disconnect all external devices connected to the device.

3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and

on, and then shut it down through the operating system.

then unplugging the AC adapter from the device.

4. Remove the battery (see

5. If your device has WWAN capability, remove the SIM (see

6. Remove the keyboard (see

Battery on page 32).

SIM on page 33).

Keyboard on page 36).

Remove the hard drive:

1. Loosen the Phillips PM2.5×11.0 captive screw (1), and remove the 2 Phillips PM2.0×3.0

screws (2) that secure the hard drive assembly to the base enclosure.

2. Use the Mylar tab to slide the assembly to the right (3) to disconnect it, and remove the

assembly (4).

3. Remove the 4 Phillips SP2.0×3.0 screws (1) that secure the hard drive bracket to the hard drive.

Component replacement procedures 39

4. Using the Mylar tab, lift the bracket (2) away from the hard drive.

Reverse this procedure to install a hard drive.

40 Chapter 4 Removal and replacement procedures

WLAN module

Description Spare part number

802.11/a/b/g/n WLAN module

For use in Canada, the Cayman Islands, Guam, Puerto Rico, the U.S. Virgin Islands,

●

and the United States

For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina,

●

Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equatorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, the People's Republic of China, Peru, the Philippines, Poland, Portugal, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

For international use 480985-001

●

504664-001

504664-002

CAUTION: The WWAN module and the WLAN module are not interchangeable.

To prevent an unresponsive system, replace the wireless module only with a wireless module authorized for use in the device by the governmental agency that regulates wireless devices in your country or region. If you replace the module and then receive a warning message, remove the module to restore device functionality, and then contact technical support through Help and Support.

Before removing the WLAN module, follow these steps:

1. Shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device

on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the device.

3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the device.

4. Remove the battery (see

Battery on page 32).

Component replacement procedures 41

5. If your device has WWAN capability, remove the SIM (see SIM on page 33).

6. Remove the following components:

a. Keyboard (see

b. Hard drive (see

Keyboard on page 36)

Hard drive on page 39)

Remove the WLAN module:

1. Disconnect the wireless antenna cables (1) from the terminals on the WLAN module.

2. Remove the 2 Phillips PM2.0×4.0 screws (2) that secure the WLAN module to the system board.

(The module tilts up.)

3. Remove the WLAN module (3) by pulling the module away from the slot at an angle.

NOTE: WLAN modules are designed with a notch (4) to prevent incorrect insertion into the WLAN

module slot.

Reverse this procedure to install the WLAN module.

42 Chapter 4 Removal and replacement procedures

SIM module

Description Spare part number

SIM module (includes cable) 577923-001

Before removing the SIM module, follow these steps:

1. Shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device

on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the device.

3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the device.

4. Remove the battery (see

5. Remove the SIM (see

6. Remove the Keyboard (see

7. Remove the Hard drive (see

Battery on page 32).

SIM on page 33).

Keyboard on page 36).

Hard drive on page 39).

Remove the SIM module:

Disconnect the LIF cable (1) from the computer, and remove the SIM module (2).



Reverse this procedure to install the SIM module.

Component replacement procedures 43

Top cover

Description Spare part number

Top cover (includes TouchPad) 577926-001

Before removing the top cover, follow these steps:

1. Shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device

2. Disconnect all external devices connected to the device.

3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and

on, and then shut it down through the operating system.

then unplugging the AC adapter from the device.

4. Remove the battery (see

5. If your device has WWAN capability, remove the SIM (see

6. Remove the memory module (see

7. Remove the keyboard (see

8. Remove the hard drive (see

Battery on page 32).

SIM on page 33).

Memory module on page 34).

Keyboard on page 36).

Hard drive on page 39).

Remove the top cover:

1. Turn the device upside down, with the front toward you.

2. Use a thin, flat tool to release the 4 rubber device feet.

3. Remove the 4 Torx T8 2.5×5.0 screws (1), and the 4 Phillips PM2.0×3.0 screws (2) that secure the

top cover to the base enclosure.

4. Turn the device right-side up, with the front toward you.

5. Open the device as far as possible.

6. Release the ZIF connector (1) that connects the button board cable to the system board.

44 Chapter 4 Removal and replacement procedures

7. Remove the following screws that secure the top cover to the base enclosure:

(2) - 4 Phillips BP2.0×6.0

●

(3) - 1 Phillips BP2.0×7.0

●

(4) - 1 Phillips SP2.0×2.0

●

(5) - 1 Phillips BP2.0×2.0

●

8. Lift the outside edge of the top cover, and swing it up.

9. Release the ZIF connector (1) to which the TouchPad button board cable is connected, and

disconnect the cable (2) from the system board.

Component replacement procedures 45

10. Disconnect the speaker cable (3) from the system board, and then remove the top cover.

Reverse this procedure to install the top cover.

46 Chapter 4 Removal and replacement procedures

Speaker

Before removing the speaker assembly, follow these steps:

1. Shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device

2. Disconnect all external devices connected to the device.

3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and

Description Spare part number

Speaker assembly (includes cable) 577967-001

on, and then shut it down through the operating system.

then unplugging the AC adapter from the device.

4. Remove the battery (see

5. If your device has WWAN capability, remove the SIM (see

6. Remove the memory module (see

7. Remove the keyboard (see

8. Remove the hard drive (see

9. Remove the top cover (see

Battery on page 32).

SIM on page 33).

Memory module on page 34).

Keyboard on page 36).

Hard drive on page 39).

Top cover on page 44).

Remove the speaker assembly:

1. Turn the top cover upside down, with the front toward you.

2. Remove the 2 Phillips PMP2.0×3.0 screws (1) that secure the assembly to the top cover, and

remove the speaker assembly (2).

Reverse this procedure to install the speaker assembly.

Component replacement procedures 47

WWAN module

NOTE: Not supported by computers with Linux installed.

Description Spare part number

HP un2400 Mobile Broadband Module (select models only) 483377-002

WWAN module for use only in the People's Republic of China 571888-001

CAUTION: The WWAN module and the WLAN module are not interchangeable.

Before removing the WWAN module, follow these steps:

1. Shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device

on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the device.

3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the device.

4. Remove the battery (see

5. Remove the SIM (see

Battery on page 32).

SIM on page 33).

6. Remove the following components:

a. Keyboard (see

b. Hard drive (see

c. Top cover (see

Keyboard on page 36)

Hard drive on page 39)

Top cover on page 44)

Remove the WWAN module:

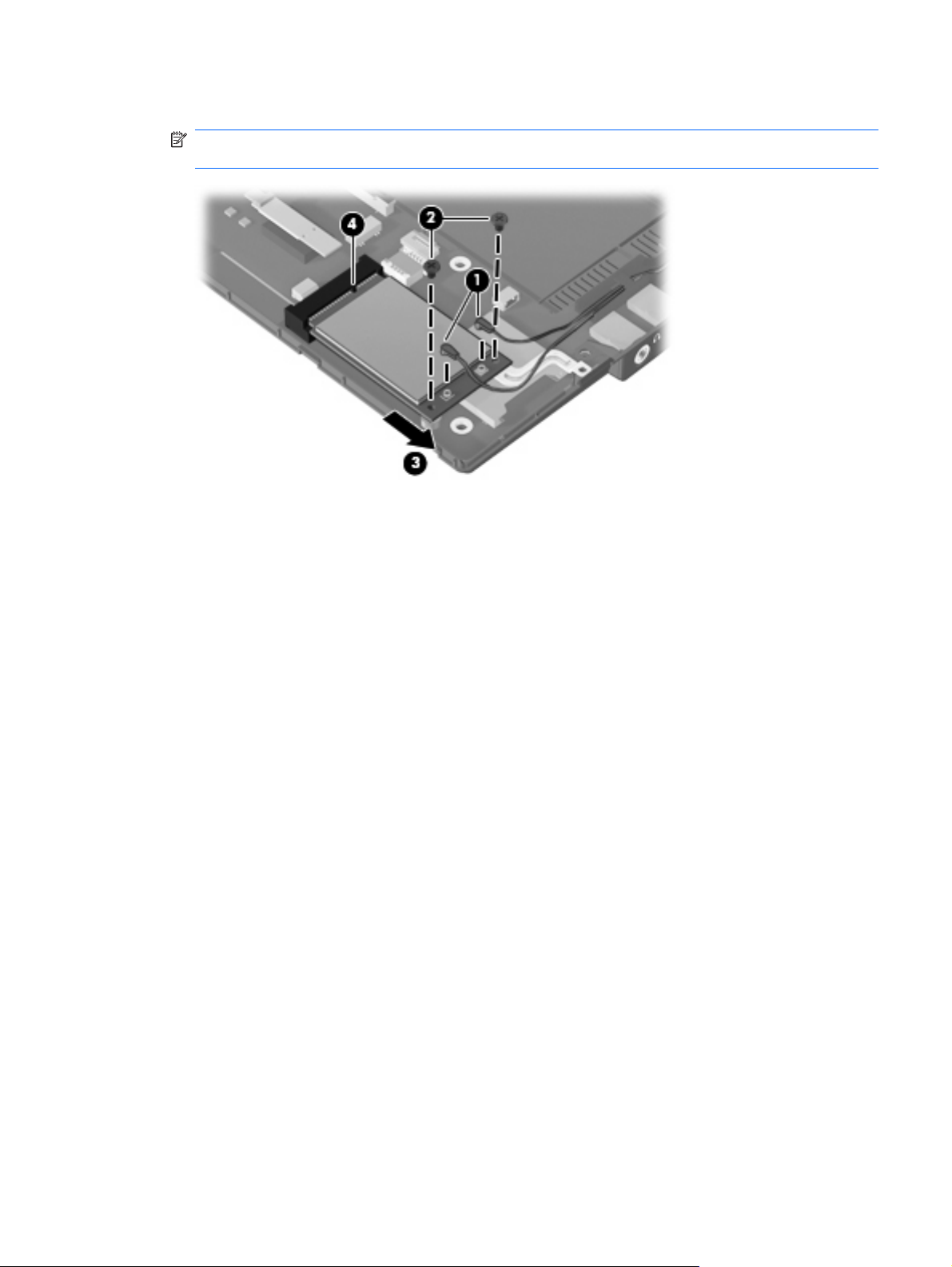

1. Disconnect the wireless antenna cables (1) from the terminals on the WWAN module.

NOTE: The red WWAN antenna cable is connected to the WWAN module “Main” terminal. The

blue WWAN antenna cable is connected to the WWAN module “Aux” terminal.

2. Remove the 2 Phillips PM2.0×4.0 screws (2) that secure the WWAN module (3) to the system

board. (The module tilts up.)

48 Chapter 4 Removal and replacement procedures

3. Remove the WWAN module (3) by pulling the module away from the slot at an angle.

NOTE: WWAN modules are designed with a notch (4) to prevent incorrect insertion into the

WWAN module slot.

Reverse this procedure to install the WWAN module.

Component replacement procedures 49

Bluetooth module

Description Spare part number

Bluetooth module 537921-001

Before removing the Bluetooth module, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC Adapter from the computer.

4. Remove the battery (see

5. If your device has WWAN capability, remove the SIM (see

Battery on page 32).

SIM on page 33).

6. Remove the following components:

a. Keyboard (see

b. Hard drive (see

c. Top cover (see

Keyboard on page 36)

Hard drive on page 39)

Top cover on page 44)

Remove the Bluetooth module:

1. Disconnect the Bluetooth module cable (1).

2. Release the Bluetooth module from the adhesive pad to which it is affixed (2), and remove the

Bluetooth module.

Reverse this procedure to install the Bluetooth module.

50 Chapter 4 Removal and replacement procedures

Power button board

Description Spare part number

Power button board (includes cable) 577922-001

Before removing the power button board, follow these steps:

1. Shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device

on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the device.

3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the device.

4. Remove the battery (see

5. If your device has WWAN capability, remove the SIM (see

Battery on page 32).

SIM on page 33).

6. Remove the following components:

a. Keyboard (see

b. Hard drive (see

c. Top cover (see

Keyboard on page 36)

Hard drive on page 39)

Top cover on page 44)

Remove the power button board:

1. Disconnect the power button board cable (1).

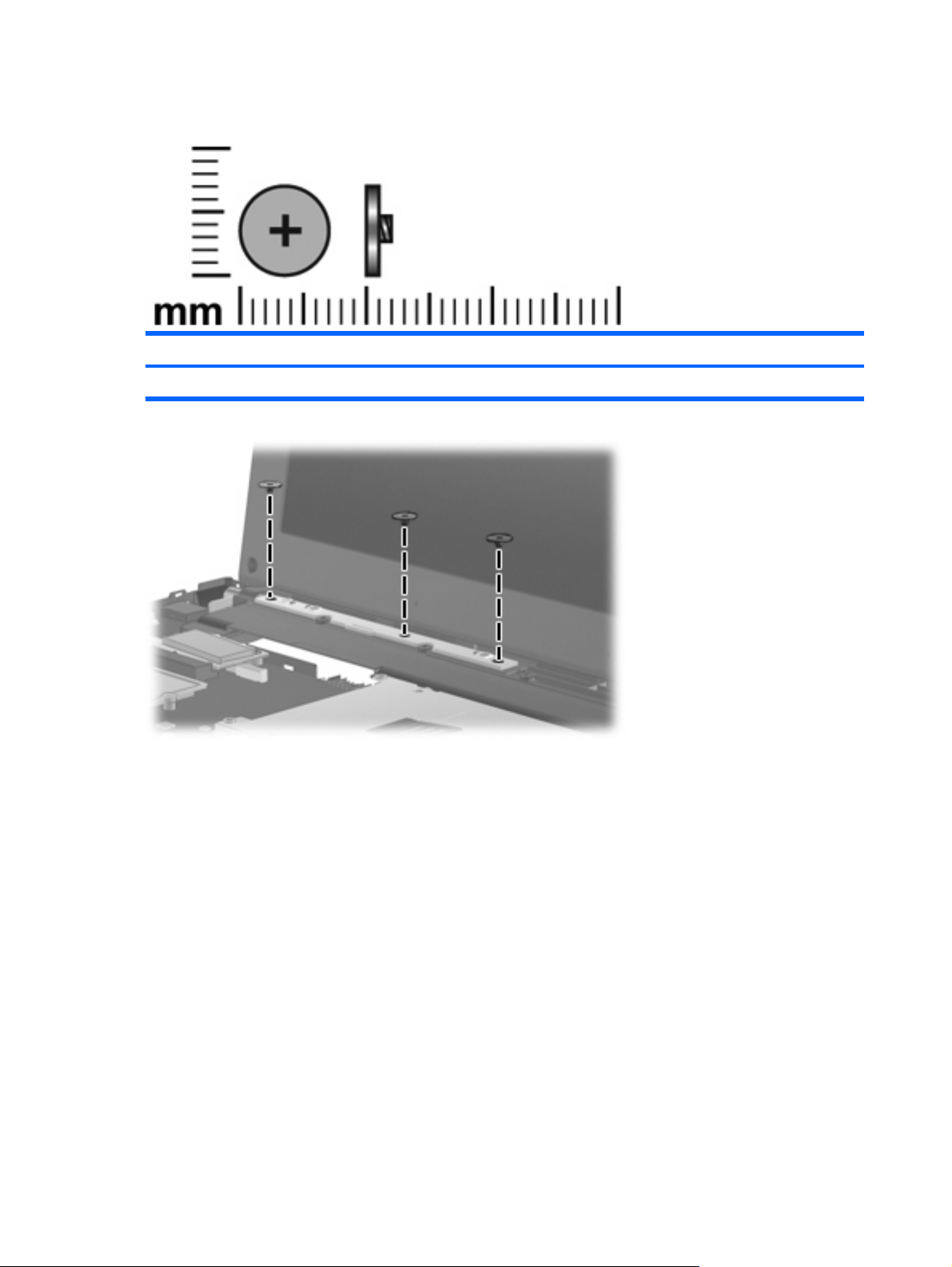

2. Remove the 3 Phillips PM2.0×2.0 broadhead screws (2) that secure the power button board to the

base enclosure.

3. Remove the power button board (3).

Reverse this procedure to install the power button board.

Component replacement procedures 51

Display assembly

Description Spare part number

Display assembly (includes 1 webcam, 2 microphones, and 2 WLAN antenna

transceivers/cables; WWAN is optional)

10.1-inch, high-definition, AntiGlare display assembly with webcam (includes

●

WWAN)

10.1-inch, high-definition, AntiGlare display assembly with webcam

●

10.1-inch, standard-definition, AntiGlare display assembly with webcam (includes

●

WWAN)

10.1-inch, standard-definition, AntiGlare display assembly with webcam

●

Display bezel 577929-001

Display Hinge Kit

(Includes left and right display panel hinges)

Webcam module 577927-001

Display panel/webcam cable

For use with high-definition display assembly

●

For use with standard-definition display assembly

●

Display Cable Kit (includes microphone assembly cable, WLAN antennas, and WWAN antennas)

Display enclosure (includes logo) 577928-001

580616-001

577969-001

580615-001

577968-001

577930-001

577932-001

577931-001

577933-001

Before removing the display assembly, follow these steps:

1. Shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device

on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the device.

3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the device.

4. Remove the battery (see

5. If your device has WWAN capability, remove the SIM (see

Battery on page 32).

SIM on page 33).

6. Remove the following components:

a. Keyboard (see

b. Hard drive (see

c. Top cover (see

Keyboard on page 36)

Hard drive on page 39)

Top cover on page 44)

52 Chapter 4 Removal and replacement procedures

Remove the display assembly:

1. Disconnect the following cables and grounding tape from the system board:

(1) Display panel cable

(2) Display panel cable grounding tape

(3) WLAN cables

(4) WWAN cables (select models only)

(5) Microphone cable

CAUTION: Support the display assembly when removing the following screws. Failure to support

the display assembly can result in damage to the display assembly and other device components.

2. Remove the 2 Phillips PM2.5×6.0 screws (1) that secure the display assembly to the device.

3. Remove the display assembly (2).

4. If it is necessary to replace the display bezel, perform the following steps:

a. Flex the inside edges of the left and right sides (1), and then the top and bottom (2) of the

display bezel until the bezel disengages from the display enclosure.

Component replacement procedures 53

b. Remove the display bezel (3).

5. If it is necessary to replace the webcam module, perform the following steps:

a. Lift the webcam (1).

b. Disconnect the webcam cable (2) from the webcam.

c. Remove the webcam.

54 Chapter 4 Removal and replacement procedures

6. If it is necessary to replace the display panel/webcam cable, perform the following steps:

a. Remove the 6 Phillips PM2.5×5.0 screws that secure the display panel to the display

enclosure.

b. Lift the display panel up from the display enclosure (1).

c. Disengage the display panel cable (2) from the left hinge clip.

d. Remove the display panel (3) from the display enclosure.

e. Turn the display panel over, and peel back the Mylar protection (1) on the back of the display

panel.

Component replacement procedures 55

f. Lift the adhesive strip (2) that secures the cable to the back of the display panel, and

disconnect the display panel/webcam cable (3).

g. Remove the display panel/webcam cable.

7. If it is necessary to replace the display hinges, perform the following steps:

a. Remove the 2 Phillips PM2.0×3.0 screws (1) that secure each hinge to the display panel.

56 Chapter 4 Removal and replacement procedures

b. Remove the hinges (2).

8. If it is necessary to replace the microphone receiver, perform the following steps:

a. Release the microphone receiver from the clip (1) that secures it to the display enclosure.

b. Pull the receiver through the tabs (2), and remove the microphone receiver (3).

Component replacement procedures 57

9. If it is necessary to replace the wireless antenna transceivers and cables, perform the following

steps:

a. Detach the cables from the adhesive (1), and then route them through the clips (2) that secure

them to the display enclosure.

b. Remove the wireless antenna transceivers and cables.

Reverse this procedure to reassemble and install the display assembly.

58 Chapter 4 Removal and replacement procedures

System board

Description Spare part number

System board (includes processor and replacement thermal material)

Includes Intel Atom N280 1.66-GHz processor, 512-KB Level 2 cache, 533-MHz front-side bus

●

(FSB)

Includes Intel Atom N270 1.6-GHz processor, 512-KB Level 2 cache, 533-MHz front-side bus

●

(FSB)

577921-001

585464-001

Before removing the system board, follow these steps:

1. Shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device

on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the device.

3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the device.

4. Remove the battery (see

5. If your device has WWAN capability, remove the SIM (see

Battery on page 32).

SIM on page 33).

6. Remove the following components:

a. Keyboard (see

b. Hard drive (see

Keyboard on page 36)

Hard drive on page 39)

c. Top cover (see

d. Display assembly (see

Top cover on page 44)

Display assembly on page 52)

When replacing the system board, be sure that the following components are removed from the defective system board and installed on the replacement system board:

WLAN module (see

●

WWAN module, if included (see

●

Bluetooth module (see

●

WLAN module on page 41)

WWAN module on page 48)

Bluetooth module on page 50)

Component replacement procedures 59

Remove the system board:

1. Remove the Phillips PM2.0×3.0 screw that secures the system board to the base enclosure.

2. Grasp the system board at the midpoint of the board (1), and tilt it up to the left (2).

3. Pull the system board (3) out to the right at an angle to remove it, and remove the actuator

cover (4).

Reverse the procedure to install the system board.

60 Chapter 4 Removal and replacement procedures

RTC battery

Description Spare part number

RTC battery 507707-001

Before removing the real-time clock (RTC) battery, follow these steps:

1. Shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device

on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the device.

3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the device.

4. Remove the battery (see

5. If your device has WWAN capability, remove the SIM (see

6. Remove the Keyboard (see

7. Remove the Hard drive (see

8. Remove the Top cover (see

9. Remove the Display assembly (see

10. Remove the System board (see

Battery on page 32).

SIM on page 33).

Keyboard on page 36).

Hard drive on page 39).

Top cover on page 44).

Display assembly on page 52).

System board on page 59).

Remove the RTC battery:

1. Turn the system board upside down.

2. Disconnect the RTC battery cable (1) from the system board.

3. Detach the RTC battery (2) from the system board.

NOTE: The RTC battery is attached to the system board with double-sided tape.

Component replacement procedures 61

Reverse this procedure to install the RTC battery.

62 Chapter 4 Removal and replacement procedures

Fan and heat sink assembly

Description Spare part number

Fan and heat sink assembly (includes replacement thermal material) 577924-001

NOTE: To properly ventilate the device, allow at least a 7.6-cm (3-inch) clearance on the left side of

the device. The device uses an electric fan for ventilation. The fan is controlled by a temperature sensor and is designed to turn on automatically when high temperature conditions exist. These conditions are affected by high external temperatures, system power consumption, power management/battery conservation configurations, battery fast charging, and software requirements. Exhaust air is displaced through the ventilation grill located on the left side of the device.

Before removing the fan and heat sink assembly, follow these steps:

1. Shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device

on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the device.

3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the device.

4. Remove the battery (see

Battery on page 32).

5. If your device has WWAN capability, remove the SIM (see

6. Remove the following components:

a. Keyboard (see

b. Hard drive (see

c. Top cover (see

d. Display assembly (see

e. System board (see

Keyboard on page 36)

Hard drive on page 39)

Top cover on page 44)

Display assembly on page 52)

System board on page 59)

SIM on page 33).

Component replacement procedures 63

Remove the fan and heat sink assembly:

1. Disconnect the fan cable from the system board.

2. Loosen the 4 Phillips PM2.0×7.0 captive screws (1) that secure the fan and heat sink assembly to

the system board.

NOTE: The screws are numbered 1 through 4. Follow this order when removing the screws.

3. Remove the 2 Phillips PM2.0×3.0 screws (2) that secure the fan and heat sink assembly to the

system board.

4. Remove the fan and heat sink assembly (3).

NOTE: The thermal material must be thoroughly cleaned from the surfaces of the fan and heat sink

assembly and the system board each time the fan and heat sink assembly is removed. Thermal paste is used on the processor (1) and (3), and thermal tape is used on the Northbridge chip (2) and (4). Replacement thermal material is included with all fan and heat sink assembly, and system board spare part kits.

64 Chapter 4 Removal and replacement procedures

Reverse this procedure to install the fan and heat sink assembly.

Component replacement procedures 65

5 Computer Setup

Starting Computer Setup

Computer Setup is a preinstalled, ROM-based utility that can be used even when the operating system is not working or will not load.

NOTE: Some of the Computer Setup menu items listed in this guide may not be supported by your

computer.

NOTE: Pointing devices are not supported in Computer Setup. You must use the keyboard to navigate

and make selections.

NOTE: An external keyboard connected by USB can be used with Computer Setup only if USB legacy

support is enabled.

To start Computer Setup, follow these steps:

1. Turn on or restart the computer.

2. Before your operating system opens and while the “F10=ROM Based Setup” message is displayed

in the lower-left corner of the screen, press f10.

66 Chapter 5 Computer Setup

Using Computer Setup

Navigating and selecting in Computer Setup

The information and settings in Computer Setup are accessed from the File, Security, Diagnostics, and System Configuration menus.

1. Open Computer Setup by turning on or restarting the computer, and then pressing f10 while the

"F10 = ROM Based Setup" message is displayed in the lower-left corner of the screen.

Because Computer Setup is not operating system based, it does not support the TouchPad. Navigation and selection are by keystroke:

To choose a menu or a menu item, use the arrow keys.

●

To select an item, press enter.

●

To close open dialog boxes and return to the main Computer Setup screen, press esc.

●

To view navigation information, press f1.

●

To change the language, press f2.

●

2. Select the File, Security, Diagnostics, or System Configuration menu.

3. To exit Computer Setup, choose one of the following methods:

To exit Computer Setup without saving your preferences, use the arrow keys to select File

●

> Ignore changes and exit. Then follow the instructions on the screen.

To save your preferences and exit Computer Setup, use the arrow keys to select File > Save

●

changes and exit. Then follow the instructions on the screen.

Your preferences go into effect when the computer restarts.

Restoring factory settings in Computer Setup

To return all settings in Computer Setup to the values that were set at the factory, follow these steps:

1. Open Computer Setup by turning on or restarting the computer, and then pressing f10 while the

"F10 = ROM Based Setup" message is displayed in the lower-left corner of the screen.

2. Use the arrow keys to select File > Restore defaults, and then press enter.

3. When the confirmation dialog box opens, press f10.

4. To save your preferences and exit Computer Setup, use the arrow keys to select File > Save

changes and exit. Then follow the instructions on the screen.

Your preferences go into effect when the computer restarts.

NOTE: Your password settings and security settings are not changed when you restore the factory

settings.

Using Computer Setup 67

Computer Setup menus

The menu tables in this section provide an overview of the Computer Setup options.

NOTE: Some of the Computer Setup menu items listed in this chapter may not be supported by your

computer.

File menu

Select To do this

System information

Restore defaults Replace the configuration settings in Computer Setup with the

Ignore changes and exit Cancel any changes entered during the current session. Then

Save changes and exit Save any changes entered during the current session. Then

View identification information for the computer.

●

View specification information for the processor, cache

●

and memory size, and system ROM.

original factory settings. (Password settings and security settings are not changed when you restore the factory settings.)

exit and restart the computer.

exit and restart the computer. Your changes go into effect when the computer restarts.

68 Chapter 5 Computer Setup

Security menu

NOTE: Some of the menu items listed in this section may not be supported by your computer.

Select To do this

Setup password Enter, change, or delete a setup password.

Power-on password Enter, change, or delete a power-on password.

Password options

DriveLock passwords

System IDs Enter a user-defined computer asset tracking number and

Disk Sanitizer Run Disk Sanitizer to destroy all existing data on the primary

Enable/disable stringent security.

●

Enable/disable the password requirement on computer

●

restart.

Enable or disable DriveLock on any computer hard drive.

●

Enter, change, or disable DriveLock on an optional

●

MultiBay hard drive.

NOTE: DriveLock settings are accessible only when you

enter Computer Setup by turning on (not restarting) the computer.

ownership tag.

hard drive. The following options are available:

Fast: Runs the Disk Sanitizer erase cycle once.

●

Optimum: Runs the Disk Sanitizer erase cycle 3 times.

●

Custom: Allows you to select the desired number of Disk

●

Sanitizer erase cycles from a list.

CAUTION: If you run Disk Sanitizer, the data on the primary

hard drive is destroyed permanently.

Diagnostics menu

Select To do this

HDD Self-Test Options Run a comprehensive self-test on any hard drive in the system

Memory Check Run a comprehensive check on system memory.

or on any optional MultiBay hard drive.

Computer Setup menus 69

System Configuration menu

NOTE: Some of the listed System Configuration options may not be supported by your computer.

Select To do this

Language Change the Computer Setup language.

Boot options

Device configurations

Set an f9, f10, and f12 delay when starting up.

●

Enable/disable CD-ROM boot.

●

Enable/disable floppy boot.

●

Enable/disable internal network adapter boot.

●

Enable/disable MultiBoot, which sets a boot order that

●

can include most boot devices in the system.

Set the Express Boot Popup delay in seconds.

●

Set the boot order.

●

1st boot device: USB CD-ROM

◦

2nd boot device: USB floppy

◦

3rd boot device: USB SuperDisk

◦

4th boot device: Notebook hard drive

◦

5th boot device: USB hard disk

◦

6th boot device: Network controller

◦

Swap the functions of the fn key and left ctrl key.

●

Enable/disable USB legacy support. When enabled, USB

●

legacy support allows the following:

Use of a USB keyboard in Computer Setup even

◦

when a your operating system is not running.

Startup from bootable USB devices, including a hard

◦

drive, diskette drive, or optical drive connected by a USB port to the computer.

Enable/disable BIOS DMA data transfers.

●

Enable/disable fan always on while connected to an AC

●

outlet.

Enable/disable data execution prevention.

●

Enable/disable LAN power saving mode.

●

Enable/disable SATA Native Mode.

●

Enable/disable Dual Core CPU.

●

Enable/disable HDD translation mode.

●

70 Chapter 5 Computer Setup

Select To do this

Built-in device options

Port options Enable/disable USB port.

Enable/disable embedded WLAN Device Radio.

●

Enable/disable embedded Bluetooth Device Radio.

●

Enable/disable Network Interface Controller (NIC)

●

Enable/disable LAN/WLAN Switching.

●

Enable/disable Wake on LAN.

●

Enable/disable the integrated camera (webcam)

●

Computer Setup menus 71

6 Specifications

Device specifications

Metric U.S.

Dimensions

Depth

Width 26.17 cm 10.30 in

Height 2.52 cm 0.99 in

Weight

10.1-in. LCD, equipped with a 3-cell battery, hard drive, 1-GB memory, WLAN module, and 2 wireless antennas

10.1-in. LCD, equipped with a 3-cell battery,solid-state drive, 1-GB memory, WLAN module, and 2 wireless antennas

Input power

Operating voltage

Operating current 1.58 A

Temperature

Operating

Nonoperating -20°C to 65°C -4°F to 149°F

Relative humidity (noncondensing)

Operating

Nonoperating 0% to 95%

16.67 cm 6.56 in

1.11 kg 2.45 lb

1.09 kg 2.40 lb

19 V dc @ 1.58 A – 30 W

5°C to 35°C 41°F to 95°F

10% to 90%

Maximum altitude (unpressurized)

Operating

Nonoperating -15 m to 12,192 m -50 ft to 40,000 ft

NOTE: Applicable product safety standards specify thermal limits for plastic surfaces. The device operates well within this

range of temperatures.

72 Chapter 6 Specifications

-15 m to 3,048 m -50 ft to 10,000 ft

10.1-inch, AntiGlare display specifications

Metric U.S.

Dimensions

Height

Width 14.30 cm 5.62 in

Diagonal 25.55 cm 10.05 in

Number of colors 262,144

Contrast ratio 400:1 (typical)

Brightness 200 nits (typical)

Pixel resolution

Pitch

Format 1024 × 576

Configuration RGB vertical stripe

Backlight Edge lit

Character display 80 × 25

Total power consumption 3.2 W

Viewing angle +/-45° horizontal, +15/-35° vertical (typical)

23.45 cm 9.23 in

0.2175 × 0.2175 mm

10.1-inch, AntiGlare display specifications 73

Hard drive specifications

Dimensions

Height

Width 70 mm

Weight 101 g

Interface type PATA

Transfer rate 100 MB/sec

Security ATA security

Seek times (typical read, including setting)

Single track

Average 13 ms

Maximum 24 ms

Logical blocks 117,210,240

Disc rotational speed 4200 rpm

Operating temperature

* 1 GB = 1 billion bytes when referring to hard drive storage capacity. Actual accessible capacity is less. Actual drive specifications may differ slightly.

NOTE: Certain restrictions and exclusions apply. Contact technical support for details.

9.5 mm

3 ms

74 Chapter 6 Specifications

System DMA specifications

Hardware DMA System function

DMA0 Not applicable

DMA1 Not applicable

DMA2 Not applicable

DMA3 Not applicable

DMA4 Direct memory access controller

System DMA specifications 75

System interrupt specifications

Hardware IRQ System function

IRQ0 System timer

IRQ1 Standard 101-/102-key or Microsoft® Natural PS/2 Keyboard

IRQ8 System CMOS/real-time clock

IRQ9 * Microsoft ACPI-compliant system

IRQ12 Synaptics PS/2 TouchPad

IRQ13 Numeric data processor

IRQ14 Primary IDE channel

IRQ15 Intel® 82801G (ICH7 Family) SMBus Controller—27DA

IRQ16 Broadcom 802.11b/g WLAN no. 2

Intel 82801G (ICH7 Family) PCI Express Root Port—27D0

Intel 82801G (ICH7 Family) USB Universal Host Controller—27CB

Microsoft UAA Bus Driver for High Definition Audio

Mobile Intel 945 Express Chipset Family

IRQ17 Intel 82801G (ICH7 Family) PCI Express Root Port—27D2

IRQ18 Intel 82801G (ICH7 Family) USB Universal Host Controller—27CA

IRQ19 Intel 82801G (ICH7 Family) USB Universal Host Controller—27C9

IRQ23 Intel 82801G (ICH7 Family) USB Universal Host Controller—27C8

Intel 82801G (ICH7 Family) USB2 Enhanced Host Controller—27CC

* Default configuration

76 Chapter 6 Specifications

System I/O address specifications

I/O address (hex) System function (shipping configuration)

000 - 00F DMA controller

000 - CF7 PCI bus

010 - 01F Motherboard resources

020 - 021 Programmable interrupt controller

022 - 03F Motherboard resources

040 - 043 System timer

044 - 05F Motherboard resources

060 - 060 Standard 101-/102-key or Microsoft® Natural PS/2 Keyboard

061 - 061 System speaker

062 - 062 Microsoft ACPI-Compliant Embedded Controller

063- 063 Motherboard resources

064 - 064 Standard 101-/102-key or Microsoft Natural PS/2 Keyboard

065 - 065 Motherboard resources

066 - 066 Microsoft ACPI-Compliant Embedded Controller

067 - 06F Motherboard resources

070 - 071 System CMOS/real-time clock

072 - 07F Motherboard resources

080 - 080 Motherboard resources

081 - 083 DMA controller

084 - 086 Motherboard resources

087 - 087 DMA controller

088 - 088 Motherboard resources

089 - 08B DMA controller

08C - 08E Motherboard resources

08F - 08F DMA controller

090 - 09F Motherboard resources

0A0 - 0A1 Programmable interrupt controller

0A2 - 0BF Motherboard resources

0C0 - 0DF DMA controller

0E0 - 0EF Motherboard resources

0F0 - 0FF Numeric data processor

1F0 - 1F7 Primary IDE channel

274 - 277 ISAPNP Read Data Port

System I/O address specifications 77

I/O address (hex) System function (shipping configuration)

279 - 279 ISAPNP Read Data Port

3B0 - 3BB Mobile Intel® 945 Express Chipset Family

3C0 - 3DF Mobile Intel 945 Express Chipset Family

3F6 - 3F6 Primary IDE channel

400 - 41F Intel 82801G (ICH7 Family) SMBus Controller—27DA

480 - 4BF Motherboard resources

4D0 - 4D1 Motherboard resources

500 - 501 Motherboard resources

800 - 87F Motherboard resources

A79 - A79 ISAPNP Read Data Port

0D00 - FFFF PCI bus

D480 - D49F Intel 82801G (ICH7 Family) USB Universal Host Controller—27C8

D800 - D81F Intel 82801G (ICH7 Family) USB Universal Host Controller—27CA

D880 - D89F Intel 82801G (ICH7 Family) USB Universal Host Controller—27C9

DC00 - DC1F Intel 82801G (ICH7 Family) USB Universal Host Controller—27C8

DC80 - DC87 Mobile Intel 945 Express Chipset Family

E000 - EFFF Intel 82801G (ICH7 Family) PCI Express Root Port—27D2

FFA0 - FFAF Intel 82801G (ICH7 Family) Ultra ATA Storage Controllers—27DF

78 Chapter 6 Specifications

System memory map specifications

Memory address System function

00000000 - 0009FFFF System board

000A0000 - 000BFFFF Mobile Intel® 945 Express Chipset Family

000A0000 - 000BFFFF PCI bus

000C0000 - 000CFFFF System board

000D0000 - 000DFFFF PCI bus

000E0000 - 000FFFFF System board

00100000 - 3F7FFFFF System board

3F800000 - DFFFFFFF PCI bus

D0000000 - DFFFFFFF Mobile Intel 945 Express Chipset Family

E0000000 - E3FFFFFF Motherboard resources

E4000000 - FED8FFFF PCI bus

FE880000 - FE8FFFFF Mobile Intel 945 Express Chipset Family

FE937C00 - FE937FFF Intel 82801G (ICH7 Family) USB2 Enhanced Host Controller—27CC

FE938000 - FE93BFFF Microsoft® UAA Bus Driver for High Definition Audio

FE940000 - FE97FFFF Mobile Intel 945 Express Chipset Family

FE980000 - FE9FFFFF Mobile Intel 945 Express Chipset Family

FEA00000 - FEAFFFFF Intel 82801G (ICH7 Family) PCI Express Root Port—27D0

FEAFC000 - FEAFFFFF Broadcom 802.11b/g WLAN

FEB00000 - FEBFFFFF Intel 82801G (ICH7 Family) PCI Express Root Port—27D2

FEC00000 - FEC00FFF Motherboard resources

FED13000 - FED19FFF System board

FED1C000 - FED1FFFF Motherboard resources

FED20000 - FED3FFFF Motherboard resources

FED40000 - FED8FFFF Motherboard resources

FED90000 - FFFFFFFF System board

FEE00000 - FEE00FFF Motherboard resources

System memory map specifications 79

7 Screw listing

This section provides specification and reference information for the screws and screw locks used in the device. All screws listed in this section are available in the Screw Kit, spare part number 578362-001.

Phillips PM2.0×2.0 screw

Color Quantity Length Thread Head diameter

Silver 1 2.0 mm 2.0 mm 1.0 mm

Black 1 2.0 mm 2.0 mm 1.0 mm

Where used: One screw that secures the top cover to the base enclosure

80 Chapter 7 Screw listing

Where used: One screw that secures the top cover to the base enclosure.

Phillips PM2.0×2.0 screw 81

Phillips PM2.0×2.0 broadhead screw

Color Quantity Length Thread Head diameter

Black 3 2.0 mm 2.0 mm 1.0 mm

Where used: 3 screws that secure the power button board to the base enclosure

82 Chapter 7 Screw listing

Phillips PM2.0×3.0 screw

Color Quantity Length Thread Head diameter

Silver 3 3.0 mm 2.0 mm 4.0 mm

Black 19 3.0 mm 2.0 mm 4.0 mm

Where used: 3 screws that secure the keyboard to the device

Where used: 2 screws that secure the hard drive to the system board

Phillips PM2.0×3.0 screw 83

Where used: 4 screws that secure the hard drive bracket to the hard drive

Where used: 4 screws that secure the top cover to the base enclosure

Where used: 2 screws that secure the speaker assembly to the top cover

84 Chapter 7 Screw listing

Where used: 4 screws that secure the hinges to the display panel

Where used: 2 screws that secure the fan and heat sink assembly to the system board

Where used: One screw that secures the system board to the base enclosure

Phillips PM2.0×3.0 screw 85

Phillips PM2.0×4.0 screw

Color Quantity Length Thread Head diameter

Silver 4 4.0 mm 2.0 mm 4.0 mm

Where used: 2 screws that secure the WLAN module to the system board

Where used: 2 screws that secure the WWAN module to the system board

86 Chapter 7 Screw listing

Phillips PM2.0×6.0 screw

Color Quantity Length Thread Head diameter

Silver 4 6.0 mm 2.0 mm 4.5 mm

Where used: 4 screws that secure the top cover to the base enclosure

Phillips PM2.0×6.0 screw 87

Phillips PM2.0×7.0 screw

Color Quantity Length Thread Head diameter

Silver 1 7.0 mm 2.0 mm 4.5 mm

Where used: One screw that secures the top cover to the base enclosure

88 Chapter 7 Screw listing

Phillips PM2.0×7.0 captive screw

Color Quantity Length Thread Head diameter

Black 4 7.0 mm 2.0 mm 4.0 mm

Where used: 4 captive screws, with C-clips, that secure the fan and heat sink assembly to the system board

Phillips PM2.0×7.0 captive screw 89

Phillips PM2.5×5.0 screw

Color Quantity Length Thread Head diameter

Silver 6 5.0 mm 2.5 mm 4.5 mm

Where used: 6 screws that secure the display panel to the display enclosure

90 Chapter 7 Screw listing

Torx T8M2.5×5.0 screw

Color Quantity Length Thread Head diameter

Black 4 5.0 mm 2.5 mm 4.5 mm

Where used: 4 screws that secure the top cover to the base enclosure

Torx T8M2.5×5.0 screw 91

Phillips PM2.5×6.0 screw

Color Quantity Length Thread Head diameter

Black 2 6.0 mm 2.5 mm 4.0 mm

Where used: 2 screws that secure the display assembly and top cover to the device

92 Chapter 7 Screw listing

HP mini 5101 Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1 Product description

2 External component identification

Top components

TouchPad

Lights

Buttons

Keys

Front components

Right-side components

Left-side components

Display components

Bottom components

Wireless antennas

3 Illustrated parts catalog

Service tag

Device major components

Display assembly components

Miscellaneous parts

Sequential part number listing

4 Removal and replacement procedures

Preliminary replacement requirements

Tools required

Service considerations

Plastic parts

Cables and connectors

Drive handling

Grounding guidelines

Electrostatic discharge damage

Packaging and transporting guidelines

Workstation guidelines

Equipment guidelines

Component replacement procedures

Service tag

Device feet

Battery

Memory module

Keyboard

Hard drive

WLAN module

SIM module

Top cover

Speaker

WWAN module

Bluetooth module

Power button board

Display assembly

System board

RTC battery

Fan and heat sink assembly

5 Computer Setup

Starting Computer Setup

Using Computer Setup

Navigating and selecting in Computer Setup

Restoring factory settings in Computer Setup

Computer Setup menus

File menu

Security menu

Diagnostics menu

System Configuration menu

6 Specifications

Device specifications

10.1-inch, AntiGlare display specifications

Hard drive specifications

System DMA specifications

System interrupt specifications

System I/O address specifications

System memory map specifications

7 Screw listing

Phillips PM2.0×2.0 screw

Phillips PM2.0×2.0 broadhead screw

Phillips PM2.0×3.0 screw

Phillips PM2.0×4.0 screw

Phillips PM2.0×6.0 screw

Phillips PM2.0×7.0 screw

Phillips PM2.0×7.0 captive screw

Phillips PM2.5×5.0 screw
