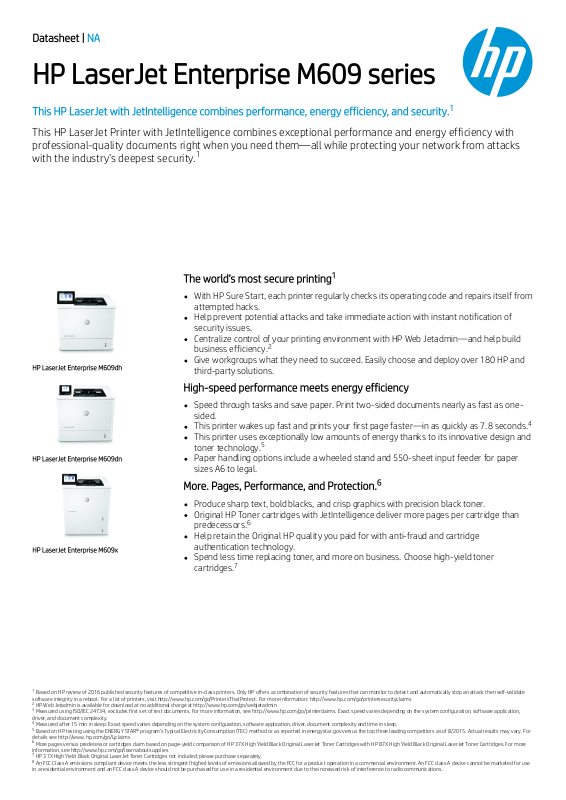

HP m609 Datasheet
Datasheet | NA
HP LaserJet Enterprise M609 series
This HP LaserJet with JetIntelligence combines performance, energy efficiency, and security.
This HP LaserJet Printer with JetIntelligence combines exceptional performance and energy efficiency with
professional-quality documents right when you need them—all while protecting your network from attacks
with the industry’s deepest security.
HP LaserJet Enterprise M609dh
HP LaserJet Enterprise M609dn
HP LaserJet Enterprise M609x
The world’s most secure printing
With HP Sure Start, each printer regularly checks its operating code and repairs itself from
attempted hacks.
Help prevent potential attacks and take immediate action with instant notification of
security issues.
Centralize control of your printing environment with HP Web Jetadmin—and help build
business efficiency.
Give workgroups what they need to succeed. Easily choose and deploy over 180 HP and
third-party solutions.
High-speed performance meets energy efficiency
Speed through tasks and save paper. Print two-sided documents nearly as fast as onesided.
This printer wakes up fast and prints your first page faster—in as quickly as 7.8 seconds.
This printer uses exceptionally low amounts of energy thanks to its innovative design and
toner technology.
Paper handling options include a wheeled stand and 550-sheet input feeder for paper
sizes A6 to legal.
More. Pages, Performance, and Protection.
Produce sharp text, bold blacks, and crisp graphics with precision black toner.
Original HP Toner cartridges with JetIntelligence deliver more pages per cartridge than
predecessors.
Help retain the Original HP quality you paid for with anti-fraud and cartridge
authentication technology.
Spend less time replacing toner, and more on business. Choose high-yield toner
cartridges.
Based on HP review of 2016 published security features of competitive in-class printers. Only HP offers a combination of security features that can monitor to detect and automatically stop an attack then self-validate
software integrity in a reboot. For a list of printers, visit http://www.hp.com/go/PrintersThatProtect. For more information: http://www.hp.com/go/printersecurityclaims
HP Web Jetadmin is available for download at no additional charge at http://www.hp.com/go/webjetadmin
Measured using ISO/IEC 24734, excludes first set of test documents. For more information, see http://www.hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application,
driver, and document complexity.
Measured after 15 min in sleep. Exact speed varies depending on the system configuration, software application, driver, document complexity and time in sleep.
Based on HP testing using the ENERGY STAR® program’s Typical Electricity Consumption (TEC) method or as reported in energystar.gov versus the top three leading competitors as of 8/2015. Actual results may vary. For
details see http://www.hp.com/go/Ljclaims
More pages versus predecessor cartridges claim based on page-yield comparison of HP 37X High Yield Black Original LaserJet Toner Cartridges with HP 87X High Yield Black Original LaserJet Toner Cartridges. For more
information, see http://www.hp.com/go/learnaboutsupplies
HP 37X High Yield Black Original LaserJet Toner Cartridges not included; please purchase separately.
An FCC Class A emissions compliant device meets the less stringent (higher) levels of emissions allowed by the FCC for a product operation in a commercial environment. An FCC class A device cannot be marketed for use
in a residential environment and an FCC class A device should not be purchased for use in a residential environment due to the increased risk of interference to radio communications.
1
1
1
2
4
5
6
6
7
1
2
3
4
5
6
7
8
Data sheet | HP LaserJet Enterprise M609 series
Product walkaround
1. Hardware Integration Pocket
2. 4.3-inch (10.9 cm) color touchscreen control panel
3. Easy-access USB port
4. 100-sheet multipurpose tray 1
5. Front door access to toner cartridges
6. 550-sheet input tray 2
7. 550-sheet input tray 3
8. 500-sheet output bin
9. Automatic two-sided printing
10. Wi-Fi Direct /Bluetooth Low Energy
11. Host USB port
12. Gigabit Ethernet network port
13. Hi-Speed USB 2.0 printing port
14. Slot for cable-type security lock
Series at a glance
Model HP LaserJet Enterprise M609dh HP LaserJet Enterprise M609dn HP LaserJet Enterprise M609x
3
1
5 8
Part number
Print speeds (letter/A4) Up to 75/71 ppm
Control panel
2
4.3-inch (10.9 cm) color touchscreen
K0Q20A
K0Q21A K0Q22A
2.7-inch (6.9 cm) LCD with keypad 4.3-inch (10.9 cm) color touchscreen
Automatic two-sided printing √
Hardware Integration Pocket √
3
100-sheet tray 1, 550-sheet tray 2 √
550-sheet paper feeder Optional (up to four) √ (plus up to three optional)
2,100-sheet paper feeder Optional
4
4
Envelope feeder Optional (up to two)
Printer stand Optional
5-bin stapler/stacker/mailbox with job offset Optional
Direct mobile printing Optional wireless direct /NFC
Wireless networking Optional
HP High-Performance Secure Hard Disk
1
An administrator must enable the easy-access USB port before use.
2
Measured using ISO/IEC 24734; excludes first set of test documents. For more information, see hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and
document complexity.
3
Solutions deployed through the Hardware Integration Pocket (HIP) may require additional purchase. HIP not available on the HP LaserJet Enterprise M607n and M608n.
4
4All models come standard with the 100-sheet multipurpose tray and 550-sheet tray 2. The HP LaserJet Enterprise M608x and M609x models come with one additional 550-sheet paper feeder standard, and can add
up to three additional optional 550-sheet paper feeders and the optional 2,100-sheet paper feeder. The M607n, M607dn, M608n, M608dn, and M609dn models can add up to four additional 550-sheet paper feeders and
the optional 2,100-sheet paper feeder.
5
Wi-Fi Direct printing is embedded in the HP LaserJet Enterprise M608x and M609x models. All other models can add wireless direct with the purchase of the optional HP Jetdirect 3000w NFC/Wireless Direct Accessory.
Mobile device needs to be connected directly to the signal of a Wi-Fi Direct® supported MFP or printer prior to printing. Depending on mobile device, an app or driver may also be required. For details, see
hp.com/go/mobileprinting. Wi-Fi Direct is a registered trademark of Wi-Fi Alliance®.
6
Touch-to-print capability is optional for all models (except M608x and M609x) with purchase of the optional HP Jetdirect 3000w NFC/Wireless Direct Accessory. Mobile device must support Near Field Communication
(NFC)-enabled printing. For more information, see hp.com/go/businessmobileprinting
7
All models can add wireless networking with the purchase of the optional HP Jetdirect 2900nw Print Server. Wireless performance is dependent on physical environment and distance from access point, and may be
limited during active VPN connections.
8
Bluetooth Low Energy is standard only on the HP LaserJet Enterprise M608x and M609x models, and it cannot be added to other models. Bluetooth is a trademark owned by its proprietor and used by HP Inc. under
license.
√
5 6
7
Embedded Wi-Fi Direct /Bluetooth Low
Optional
Energy
5
8
