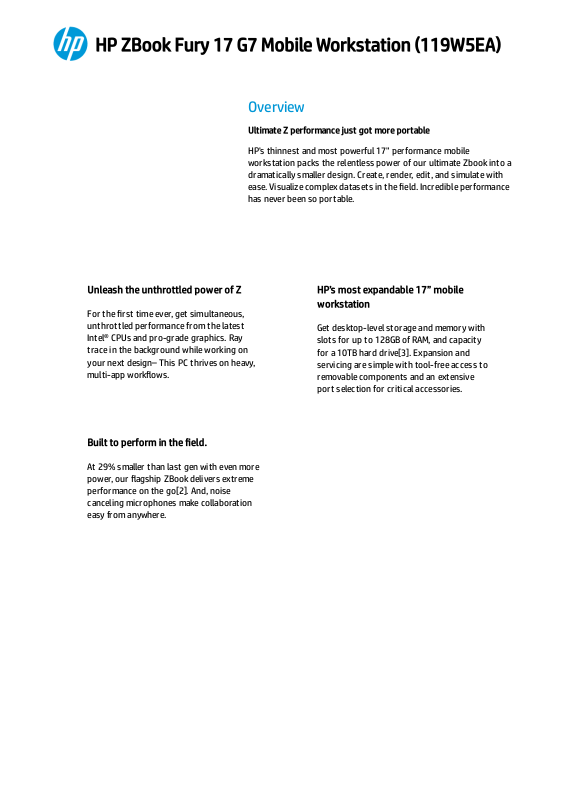

HP ZBook Fury 17 G7 Mobile Workstation (119W5EA)
Overview
Ultimate Z performance just got more portable
HP's thinnest and most powerful 17" performance mobile
workstation packs the relentless power of our ultimate Zbook into a
dramatically smaller design. Create, render, edit, and simulate with
ease. Visualize complex datasets in the eld. Incredible performance
has never been so portable.
Unleash the unthrottled power of Z
For the rst time ever, get simultaneous,
unthrottled performance from the latest
Intel® CPUs and pro-grade graphics. Ray
trace in the background while working on
your next design– This PC thrives on heavy,
multi-app workows.
HP’s most expandable 17” mobile
workstation
Get desktop-level storage and memory with
slots for up to 128GB of RAM, and capacity
for a 10TB hard drive[3]. Expansion and
servicing are simple with tool-free access to
removable components and an extensive
port selection for critical accessories.
Built to perform in the eld.
At 29% smaller than last gen with even more
power, our agship ZBook delivers extreme
performance on the go[2]. And, noise
canceling microphones make collaboration
easy from anywhere.
Features
Windows 10 Pro for Workstations 64
Work without compromising on performance or
security with Windows 10 Pro for Workstations,
powered by HP’s collaboration and connectivity
technology.
[1]
Intel® Core™ i9 processor
Get high-end performance for intensive tasks like
rendering and video editing with the Intel® Core™ i9
processor.
[4]
NVIDIA® Quadro® RTX 4000 graphics card
Designed for the most intensive design, AI and VR
workows, NVIDIA® Quadro® RTX 4000 graphics
delivers accelerated performance with ray tracing,
deep learning and advanced shading.
HP Z Turbo Drive High-speed Storage
Work without limits in any location with local PCIe
storage that’s up to 6x faster than SATA SSD, and up
to 21x faster than traditional HDD storage.
[5]
Spill-resistant Keyboard
Accidents happen - which is why we designed our
keyboard with a drain hole, so minor spills ow out
the bottom for easy cleanup.
Industry-leading security features
Advanced security features come standard. System
safeguards like HP Sure Start – the industry's rst
self-healing BIOS – mean your device is locked down
tight, so your data and identity are too.
[2] When compared to HP ZBook 17 G6
[3] For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 35GB
of disk is reserved for system recovery software.
[1] Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or
separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows
functionality. Windows 10 is automatically updated, which is always enabled. ISP fees may apply and
additional requirements may apply over time for updates. See http://www.windows.com.
[4] Multicore is designed to improve performance of certain software products. Not all customers or software
applications will necessarily benefit from use of this technology. Performance and clock frequency will vary
depending on application workload and your hardware and software configurations. Intel’s numbering, branding
and/or naming is not a measurement of higher performance.
[5] For hard drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 30GB
(for Windows 10) of system disk is reserved for system recovery software.
Specications
Operating system
Windows 10 Pro for Workstations 64 – HP recommends Windows 10 Pro
for business
Processor family 10th Generation Intel® Core™ i9 processor
Processor
Intel® Core™ i9-10885H (2.4 GHz base frequency, up to 5.3 GHz with Intel®
Turbo Boost Technology, 16 MB L3 cache, 8 cores)
Processor technology Intel® vPro™ Technology
Chipset Intel® WM490
Memory 32 GB DDR4-2666 SDRAM (1 x 32 GB)
Memory Slots 4 SODIMM; supports dual channel
Internal Storage 1 TB PCIe® NVMe™ TLC SSD
Graphics Integrated
Graphics (integrated) Intel® UHD Graphics
Display
43.9 cm(17.3")diagonal, 4K UHD (3840 x 2160), IPS, anti-glare, 550 nits,
100% DCI-P3, Next Gen HP DreamColor
Display
17.3" diagonal, 4K UHD (3840 x 2160), IPS, anti-glare, 550 nits, 100% DCIP3, Next Gen HP DreamColor
[21,23,32]
Display size (diagonal) 43.9 cm (17.3")
Audio features
Audio by Bang & Olufsen, dual stereo speakers, HP World Facing
Microphone dual array digital microphone, functions keys for volume up
and down, combo microphone/headphone jack, HD audio
Minimum dimensions (W x D x H) 39.84 x 26.71 x 2.69 cm
Weight
Starting at 2.97 kg
(Weight varies by configuration and components.)
Keyboard
HP Premium Quiet Keyboard – spill-resistant, full-size, backlit keyboard
with programmable key
Ports
1 RJ-45; 1 USB 3.1 Gen 1 (charging); 2 USB 3.1 Gen 1; 1
headphone/microphone combo
Expansion slots 1 smart card reader; 1 SD 4.0 media card reader
Ports
1 power connector; 1 Mini DisplayPort™ 1.4; 1 HDMI 2.0b; 2 Thunderbolt™
3 (40Gbps signaling rate) with SuperSpeed USB Type-C® 10Gbps signaling
rate (USB Power Delivery, DisplayPort™ 1.4, HP Sleep and Charge)
Network interface Integrated Intel® I219-V GbE, non-vPro®
Wireless Intel® Wi-Fi 6 AX201 (2x2) and Bluetooth® 5 combo, vPro®
Power
200 W Slim Smart external AC power adapter
[20]
Battery type HP Long Life 8-cell, 94 Wh Li-ion polymer
Energy efficiency ENERGY STAR® certied
Environmental Low halogen
Security management
Absolute persistence module; HP Power On Authentication; Security lock
slot; Trusted Platform Module TPM 2.0 Embedded Security Chip; Master
Boot Record security; Pre-boot authentication; HP Sure Click; Windows
Defender; HP Secure Erase; HP Manageability Integration Kit; HP Sure
Sense; HP BIOSphere Gen6; HP Sure Start Gen6; HP Sure Run Gen3; HP
Sure Admin; HP Image Assistant; HP Sure View Reect; HP Tamper Lock; HP
Client Security Manager Gen6
[22,24,27,30,31,33,34,38,46,47,49,50,51,52,54]
Software included
Bing search for IE11; Buy Office; HP Hotkey Support; HP Noise Cancellation
Software; HP Performance Advisor; HP Support Assistant; Native Miracast
support; HP Connection Optimizer; HP Cloud Recovery; HP ZCentral
Remote Boost Software; myHP
[26,28,29,35,36,39]
UPC number
(A2M) 195161339844; (A2N) 195161339851; (AB6) 195161339868; (AB7)
195161339875; (AB8) 195161339882; (AB9) 195161339899; (ABB)
195161339905; (ABD) 195161339912; (ABE) 195161339936; (ABF)
195161339929; (ABH) 195161339943; (ABN) 195161339950; (ABT)
195161339967; (ABU) 195161339981; (ABV) 195161386831; (ABY)
195161340000; (ABZ) 195161340024; (ACB) 195161340048; (ACQ)
195161340055; (AK8) 195161340079; (AKC) 195161340390; (AKD)
195161340406; (AKE) 195161340413; (AKQ) 195161340420; (AKS)
195161340437; (B10) 195161340444; (BCM) 195161340451; (BED)
195161340468; (UUG) 195161340499; (UUW) 195161340505; (UUZ)
195161340512
Warranty
3 year (3-3-0) limited warranty and service offering includes 3 years of
parts and labor.Terms and conditions vary by country. Certain
restrictions and exclusions apply.
Additional specications
Additional information on the
product category
For the latest information, please visit our Web site at
http://www.hp.com/workstations
Battery brand HP
Battery capacity 94
Battery capacity uom Wh
Battery cells number 8
Battery life Long Life
Battery type Li-ion
Datasheet photo 1 AHID/57742e29d5e4877d3ca2848cda1bd30817c6aa6c
Datasheet photo 2 Publication logos/HP_Care_Pack_RGB_blue_NT.jpg
Datasheet photo 3 AHID/0d8d136964174f984a09835ff12822b67646daa5
Datasheet photo 4 AHID/67044533aca72a2308638509f71778ff13ca153c
Datasheet photo 5 AHID/3d671d48ed0fdb137d123233503da4b0943ac50c
Display 17.3" diagonal 4K UHD display
Display 43.9 cm (17.3") diagonal 4K UHD display
External I/O ports footnote
number
[6,15,48]
Graphics Discrete
Graphics (discrete) NVIDIA® Quadro RTX™ 4000 (8 GB GDDR6 dedicated)
Graphics card brand NVIDIA®
Graphics card family Quadro®
Graphics card memory size 8
Graphics card memory size uom GB
Graphics card memory type GDDR6
I/O Port location Right side
I/O Port location Left side
Legal tagline HP recommends Windows 10 Pro for business
MDA key selling point Windows 10 Pro or other operating systems available
Memory and storage 32 GB memory; 1 TB SSD storage
Memory slots footnote [8,9,10]
Model Number RTX™ 4000
Processor speed 2.4 GHz
