Models
HP Dock Connector to Ethernet & VGA Adapter
New!
G7U78AA
HP EliteFolio Ethernet & VGA Adapter
F3W44AA
HP HDMI to VGA Adapter
H4F02AA
HP HDMI to DVI Adapter
F5A28AA
HP DisplayPort to HDMI 1.4 Adapter
F3W43AA
HP DisplayPort to DVI SL Adapter
New!
F7W96AA
HP DisplayPort to VGA Adapter
New!
F7W97AA
HP Dock Connector to Ethernet & VGA Adapter (G7U78AA)
Expand what you can do with your HP EliteBook Folio 1040 G1 and G2 by using its side dock connector to add Ethernet and VGA
connectivity with a single handy adapter.
Connect the adapter to the notebook's side docking port to quickly add RJ-45 and VGA ports.
Store the compact adapter in your carrying case alongside your notebook.
Get a one-year parts replacement limited warranty.
Environmental Data
Operating Temperature
-25° to +85° 85%RH, without loss of function. Storage temperature: -25° to +70° 85%RH, without loss of
function.
RJ45 Durability
The test is performed in accordance with EIA-364-09C.Total:2000 cycles.
The speed is 500 cycles per hour.
VGA Durability
The test is performed in accordance with EIA-364-09C.Total:1000 cycles.
The speed is 500 cycles per hour.
Test Condition
Temperature
: 15° to 35°
Relative Humidity
: 40% to 70%
Atmospheric pressure
: 650 to 800 millimeters (25.6 to 31.5 inches) of Mercury.
Dimensions
5.91 x 2.36 x 0.59 in
150 x 60 x 15 mm
Weight Unpackaged
0.081 lb (37 g)
Compatibility
HP EliteBook Folio 1040 G1
QuickSpecs
HP Cables and Connectors
Overview
DA - 14452 Worldwide — Version 5 — May 6, 2014
Page 1
HP EliteFolio Ethernet & VGA Adapter (F3W44AA)
Expand what you can do with your HP EliteBook Folio 1040 G1 by using its side dock connector to add Ethernet and VGA connectivity
with a single handy adapter.
Connect the adapter to the notebook's side docking port to quickly add RJ-45 and VGA ports.
Store the compact adapter in your carrying case alongside your notebook.
Get a one-year parts replacement limited warranty.
Environmental Data
Operating Temperature
-25° to +85° 85%RH, without loss of function. Storage temperature: -25° to +70° 85%RH, without loss of
function.
RJ45 Durability
The test is performed in accordance with EIA-364-09C.Total:2000 cycles.
The speed is 500 cycles per hour.
VGA Durability
The test is performed in accordance with EIA-364-09C.Total:1000 cycles.
The speed is 500 cycles per hour.
Test Condition
Temperature
: 15° to 35°
Relative Humidity
: 40% to 70%
Atmospheric pressure
: 650 to 800 millimeters (25.6 to 31.5 inches) of Mercury.
Dimensions
5.91 x 2.36 x 0.59 in
150 x 60 x 15 mm
Weight Unpackaged
0.081 lb (37 g)
Compatibility
HP EliteBook Folio 1040 G1
HP HDMI to VGA Adapter (H4F02AA)
QuickSpecs
HP Cables and Connectors
Overview
DA - 14452 Worldwide — Version 5 — May 6, 2014
Page 2
The HP HDMI to VGA Adapter allows you to convert the HDMI output port on your HP Business Notebook PC to an analog VGA input so
you can connect to an external VGA display.
Host Interface
HDMI
Video Interface
VGA
Connectors
Video output
VGA male connector
Host upstream link
HDMI male connector
Supported Resolutions
(external display)
600 x 800
768 x 1280
1024 x 1280
1050 x 1680
1080 x 1920
Operating Temperature
0-40°C (32-104° F)
Storage Temperature
-10~70°C (14~158 °F)
System Requirements
Software
Microsoft® Windows® 7 with Service Pack 1 (32-bit or 64-bit), Windows Vista®
with Service Pack 1 (32-bit or 64-bit), Microsoft® Windows® XP Home or
Professional with Service Pack 3
Mechanical
Dimensions
(H x W x L)
Unpackaged:
0.59 x 1.574 x 1.771 in (15 x 40 x 45 mm)
Weight
Unpackaged:
1.093 oz (31 g)
Environmental
EMC
FCC Part 15 Class B, IC ICES-003, CE (EN55022, EN61000, EN55024), BSMI, UL,
C-tick, VCCI, KC
RoHS
RoHS Compliant
Dimensions
6.22 x 1.57 x 0.59 in
150.8 x40 x15 mm
Weight Unpackaged
0.088 lb (40 g)
Components
HP HDMI to VGA Adapter, Warranty Card, and Quick Installation Guide
Compatibility
HP Folio13, ProBook x2 410
HP Envy 4
HP SpectreXT, Spectre 13 Pro, Spectre x2
HP ProBook 4230s, 43xxs, 44xxs, 45xxs, 47xxs, and 4740s Notebook PCs
HP ProBook 430 G1, 440 G0/G1, 445 G1, 450 G0/G1, 455 G1, and 470 G0/G1 Notebook PCs
HP 215, 240, 245, 250, 255, 340, 350, 430, 431, 435, 436, 450, 455, 630, 631, 635, 636, 650, and
QuickSpecs
HP Cables and Connectors
Overview
DA - 14452 Worldwide — Version 5 — May 6, 2014
Page 3
655 Notebook PCs
HP ProBook 5330m Notebook PC
HP HDMI to DVI Adapter (F5A28AA)
Maximize your HP Business Notebook's available ports with the HP HDMI to DVI Adapter. Convert your HDMI output to DVI for
quick and easy connection to an external display.
Features
Input : HDMI, support HDMI up to ver 1.4a
Output : DVI-D with 24+1 pins connector
Operating Systems
Supported
Support Windows: Windows 7 & 8;
Use system default driver
Power Source
Standard HDMI
Temperature & Humidity
Operating
The HDMI to DVI connector adapter shall perform to specification when exposed to ambient
temperatures of 410F to 950F (50C to 350C), 8%~ 80% RH (non-condensing).
Storage
The HDMI to DVI connector adapter shall be able to withstand prolonged exposure to temperatures from
410F to 1040F (50C to 400C), 8%~ 80% RH (non-condensing) encountered during transportation or
storage.
Environmental
Requirements
To meet WEEE/RoHS and HALOGEN FREE requirements, all materials must meet limits contained within the
HP standard 011-0 general specification for the environment (GSE), A-5951-1745-1. The test method
accepted only is IEC62321.
Dimensions
(LxWxH)
2.29 x 1.61 x .59 in
58.25 x 41 x 15 mm
QuickSpecs
HP Cables and Connectors
Overview
DA - 14452 Worldwide — Version 5 — May 6, 2014
Page 4
Weight Unpackaged
.05 lb (23 g)
Compatibility
HP ProBook 430 G1, 440 G0/G1, 445 G1, 450 G0/G1, 455 G1, and 470 G0/G1 Notebook PCs
HP ProBook 4230s, 43xxs, 44xxs, 45xxs, 47xxs, and 4740s Notebook PCs
HP Folio13, ProBook x2 410
HP Envy 4
HP SpectreXT, Spectre 13 Pro, Spectre x2
HP ChromeBook 14
HP 215, 240, 245, 250, 255, 340, 350, 430, 431, 435, 436, 450, 455, 630, 631, 635, 636, 650, and
655 Notebook PCs
HP ProBook 3125

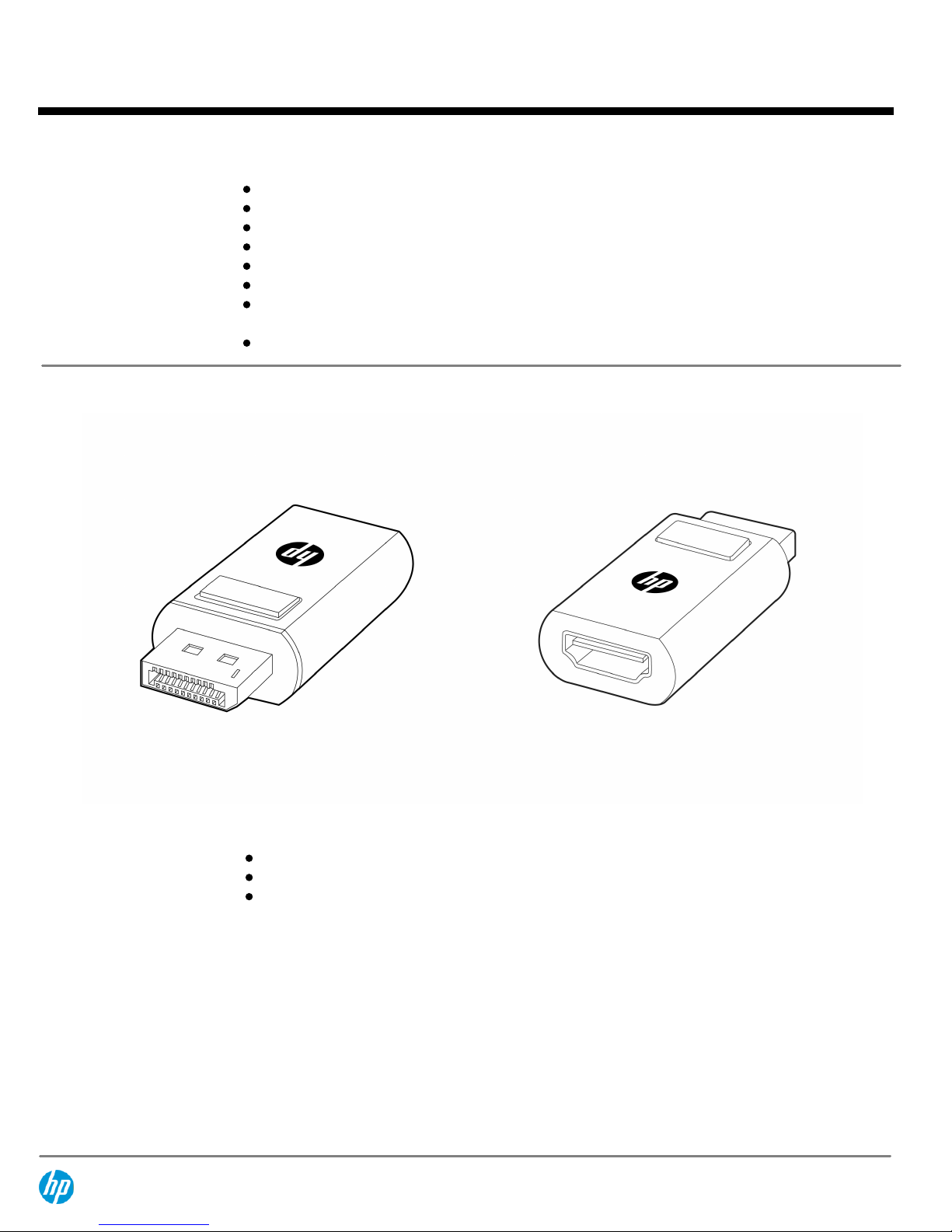

HP DisplayPort to HDMI 1.4 Adapter (F3W43AA)
Make the most of the available ports on your HP Business Notebook by converting its DisplayPort output to HDMI for quick and easy
connection to a range of multimedia devices.
Product Features
Compliant to HDMI 1.4a specification up to 3.0Gbps
Support 4K x 2K & 3D video formats over HDMI
Support DisplayPort all 4 levels of output and all 4 levels of pre-emphasis
Highest Video
Resolution
1920x1200 1600x1200
Resolution Supported
Refreshing Rate
60Hz
Reduced Blanking
RB
Pixel Frequency
154MHz 162MHz
NOTE:
All video timings within four lane DisplayPort bandwidth are supported
Normal operating
conditions
Parameter
Ambient Temperature
Min
0 C
Max
40 C
HDMI source
level shifter
Type
220
Max
300
Unit
mA
QuickSpecs
HP Cables and Connectors
Overview
DA - 14452 Worldwide — Version 5 — May 6, 2014
Page 5
Electronics Character SPEC
Input Voltage
3.3V ± 10%
3.3V 230mA
Output
5V ± 10%
Max 90mA
Power consumption
760mW
Max
Power down current
8mA
Max
EMI
Standard Limit line
FCC Part15 Class B
ESD
AIR
± 4KV
IEC61000-4-2
Contact
± 2KV
Compliance
DisplayPort 1.1a / DVI 1.0
Dimensions
(LxWxH)
1.98 x 0.94 x 0.50 in
50.28 x 24.00 x 12.80 mm
Weight Unpackaged
0.030 lb (13.5 g)
Compatibility
HP ProBook 640 G1, 645 G1, 650 G1, 655 G1
HP ProBook 6470b, 6475b, 6570b
HP EliteBook 820 G1, 840 G1, 850 G1
HP EliteBook 2170p, 2570p, 8470p, 8570p, 8470w, 8570w, 8770w
HP EliteBook Folio 9470m, 1040, Revolve 810 G1/G2
HP ZBook 14, 15, 17
HP mt40, mt41
HP DisplayPort to DVI SL Adapter (F7W96AA)
Highest Video Resolution
Resolution Supported
Refreshing Rate
1920x1200(RB)
1600x1200
Reduced Blanking
60Hz 60Hz
Pixel Frequency
154MHz 162MHz
Ambient Temperature
0-40°C
DVI output currents
max 80mA
Electronics Character
SPEC
Input Voltage
3.3V @100mA
Output
5V@ MAX 80mA
Power consumption
330mW
QuickSpecs
HP Cables and Connectors
Overview
DA - 14452 Worldwide — Version 5 — May 6, 2014
Page 6
Power down current
8mA
Standard Limit line
FCC Part15 Class B
Limit line
ESD
AIR +/-8KV,Contact+/-4KV
Dimensions
LxWxH
Cable Length: 7.99 inches, DP Connector: 1.04x0.79x0.504 inches, DVI Connector: 1.77x1.77x0.65 inches
Dimensions
LxWxH
Cable Length (From tip to tip): 203 mm, DP Connector: 26.5x20x12.8mm, DVI Connector: 45x45x16.5mm
Weight Unpackaged lb ( g)
0.106 Lb (48 g)
HP DisplayPort to VGA (F7W97AA)
Highest Video
Resolution
1920x1200 1600x1200
Resolution Supported
Refreshing Rate
60Hz 60Hz
Reduced Blanking
RB RB
Pixel Frequency
154MHz 162MHz
Parameters
Max Luminance Voltage
Min
0.665 Volts
Max 0.770 Volts
Min Luminance Voltage
Min
0
Video Channel Rise/
Fall Time (Max)
25% ns
Maximum Setting Time after
overshoot/undershoot
30%
Electronics Character SPEC
Input Voltage
3.3V ± 10%
3.3V 175mA
Output
5V ± 10%
Max 80mA
Power consumption
575mW
Max
Power down current
50mA
Max
EMI
Standard Limit line
FCC Part15 Class B
ESD
AIR
± 8KV
IEC61000-4-2
Contact
± 4KV
Dimensions (LxWxH)
Cable Length: 7.99 inches, DP Connector: 1.04x0.79x0.504 inches, DVI Connector: 1.99x1.42x0.53 inches
Cable Length: 203 mm, DP Connector: 26.5x20x12.8mm, DVI Connector: 50.5x36x13.5mm
QuickSpecs
HP Cables and Connectors
Overview
DA - 14452 Worldwide — Version 5 — May 6, 2014
Page 7
Weight Unpackaged
0.093 lb ( 42 g)
Service and support
Each accessory carries a one-year limited warranty. Technical support is available seven days a week, 24 hours a day, by phone, as well
as online support forums. Certain restrictions and exclusions apply.
Copyright © 2014 Hewlett-Packard Development Company, L.P. All rights reserved.
The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The
warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions
contained herein. All other trademarks are the property of their respective owners.
