1 Product description
Category Description
Product Name HP ENVY 13 Laptop PC (model numbers 13-ad001 through 13-ad199)
Processors For use only on computer models with model numbers 13-ad001 through 13-ad099:
●
Intel® Core™ i7-7500U 2.70-GHz (turbo up to 3.50-GHz) dual core processor (2133-MHz FSB, 4.0-MB L3
cache, 15-W)
●
Intel Core i5-7200U 2.50-GHz (turbo up to 3.10-GHz) dual core processor (2133-MHz FSB, 3.0-MB L3
cache, 15-W
●
Intel Core i3-7100U 2.40-GHz dual core processor (2133-MHz FSB, 3.0-MB L3 cache, 15-W
For use only on computer models with model numbers 13-ad100 through 13-ad199:
●
Intel® Core™ i7-8550U 1.8-GHz (turbo up to 4.0-GHz) dual core processor (2133-MHz FSB, 8.0-MB L3
cache, Quad 15-W)
●
Intel Core i5-8250U 1.6-GHz (turbo up to 3.4-GHz) dual core processor (2133-MHz FSB, 60-MB L3 cache,
Quad 15-W
Chipset Integrated soldered-on-circuit (SoC)
Graphics Hybrid graphics: NVIDIA™ N17S-LG (GeForce MX150) graphics subsystem with up to 2048-MB of discrete
video memory (256-MB×32 GDDR5×2 pieces, 1.5V/7-Gbps, downgrade to 1.36V/5-Gbps)
Internal graphics: Intel HD Graphics 620 graphics subsystem with UMA video memory (available only on
computer models equipped with an Intel Core i3 or Intel Pentium processor)
Support for HD decode, DX12, and high-denition multimedia interface (HDMI)
Support for Optimus
Support for GPU Performance Scaling (GPS)
Panel
Memory Support for LPDDR3-1866 dual channel
●
13.3-in, ultra high-denition (UHD), white light-emitting (WLED), BrightView (3840×2160), uslim-at
(2.0-mm), UWVA, eDP1.3+PSR, 340 nits, 16:9 ultra wide aspect ratio, narrow bezel (DBTS), 72% color
gamut, TouchScreen display assembly
●
13.3-in, UHD, WLED, BrightView (3840×2160), uslim-at (2.0-mm), UWVA, eDP1.3+PSR, 340 nits, 16:9
ultra wide aspect ratio, narrow bezel (DBCG), 72% color gamut, ush glass, non-TouchScreen display
assembly
●
13.3-in, UHD, WLED, BrightView (3840×2160), uslim-at (2.0-mm), UWVA, eDP1.3+PSR, 340 nits, 16:9
ultra wide aspect ratio, narrow bezel, 72% color gamut, non-TouchScreen display assembly
●
13.3-in, full high-denition (FHD), WLED, BrightView (1920×1080), slim-at (2.4-mm), UWVA,
eDP1.3+PSR, 300 nits, 16:9 ultra wide aspect ratio, narrow bezel (DBTS), 72% color gamut, TouchScreen
display assembly
●
13.3-in, FHD, WLED, BrightView (1920×1080), slim-at (2.4-mm), UWVA, eDP1.3+PSR, 300 nits, 16:9
ultra wide aspect ratio, narrow bezel (DBCG), 72% color gamut, ush glass, non-TouchScreen display
assembly
●
13.3-in, FHD, WLED, BrightView (1920×1080), slim-at (2.4-mm), UWVA, eDP1.3+PSR, 300 nits, 16:9
ultra wide aspect ratio, narrow bezel, 72% color gamut, non-TouchScreen display assembly
Supports up to 16-GB of system memory
Supports the following congurations:
1
Page 10
Category Description
●
16384-MB (256-MB×32×4, 4 pieces, only on computer models equipped with an Intel i7 processor)
●
8192-MB (256-MB×16×4, 4 pieces, only on computer models equipped with an Intel i7 or i5 processor)
●
4096-MB (128-MB×32×2, 4 pieces, only on computer models equipped with an Intel i5 or i3 processor)
Storage Support for next-generation form factor (NGFF), 2280 M.2 solid-state drives, with SATA/Peripheral
Component Interconnect Express (PCIe-3×4), Non-Volatile Memory Express (NVMe) co-layout port:
M.2 SATA-3 TLC solid-state drive
●
128-GB
●
256-GB
●
512-GB
M.2 PCIe NVMe TLC solid-state drive
●
256-GB
●
360-GB
●
512-GB
●
1-TB
PCIe NVMe Value M.2 solid-state drive
●
256-GB
●
512-GB
Optical drive HP external DVD±RW DL SuperMulti Drive
Audio and video Support for an HP Wide Vision HD camera with indicator light, USB 2.0, HD hybrid BSI sensor, f2.2, WDR, 88°
wide eld of vision, 720p by 30 frames per second
Bang & Olufsen
Support for quad speakers
Support for HP Audio Boost 2.0 with discrete amplier
Support for dual-array digital microphones with appropriate beam-forming, echo-cancellation, noisesuppression software.
Ethernet Integrated 10/100/1000 network interface card (NIC)
Sensors Accelerometer
Wireless Integrated wireless local area network (WLAN) options by way of wireless module
Dual M.2/PCIe WLAN antennas built into computer
Integrated wireless personal area network (PAN) supported by Bluetooth® 4.2 combo card
Support for the Intel Dual Band Wireless-AC 7265 802.11 AC 2×2 WiFi + Bluetooth 4.2 Combo Adapter (nonvPro) WLAN format
Compatible with Miracast-certied devices
External media cards Micro-Secure Digital (SD®) media reader slot
Ports
●
AC Smart Pin adapter plug
●
Audio-out (headphone)/audio-in (microphone) combo jack
●
Display Port (DP1.2+ HDCP 2.2 supporting up to 4096x2160 @ 60Hz)
●
RJ-45 network
2 Chapter 1 Product description
Page 11
Category Description
●
USB 3.x ports (2)
●
USB Type-C port
Keyboard/pointing
devices
Keyboard/pointing
devices (continued)
Power requirements Support for 6-cell, 53-WHr, 2.55-AHr, Li-ion and 3-cell, 51-WHr, 4.45-AHr, Li-ion batteries
Security Support for Trusted Platform Module (TPM) 2.0
Operating system Preinstalled: Windows 10 and Windows 10 Professional
Full-sized, backlit, island-style keyboard
TouchPad requirements:
●
ClickPad with image sensor
●
SecurePad with image sensor and ngerprint reader
●
MultiTouch gestures enabled
●
Support for Modern TrackPad gestures
●
Taps enabled as default
Support for the following AC adapters:
●
65-W HP Smart AC adapter (non-PFC, EM, RC, 4.5-mm)
●
65-W HP Smart AC adapter (non-PFC, 4.5-mm, with mount)
●
45-W HP Smart AC adapter (non-PFC, 4.5-mm, with mount)
Support for a 1.00-m power cord with a C5 connector in 15 countries/regions.
Fingerprint reader (only on computer models equipped with a SecurePad)
For developed market (ML): Windows 10 Home ML and Windows 10 Home Plus ML
For emerging market (EM/SL): Windows 10 Home EM/SL and Windows 10 Home Plus EM/SL
For China market: CPPP Windows 10 Home High-End China Language Edition and CPPP Windows 10 Home
China Language Edition
For Asia-Pacic/Japan SEAP market (EM/SL): SEAP Windows 10 Home EM/SL and SEAP Windows 10 Home
Plus
Serviceability End user replaceable part: AC adapter
3
Page 12
2 Getting to know your computer
Locating hardware
To nd out what hardware is installed on your computer:
▲
Type device manager in the taskbar search box, and then select the Device Manager app.
A list displays all the devices installed on your computer.
For information about system hardware components and the system BIOS version number, press fn+esc
(select products only).
Locating software
To nd out what software is installed on your computer:
▲
Select the Start button.
‒ or –
Right-click the Start button, and then select Programs and Features.
4 Chapter 2 Getting to know your computer
Page 13
Right side
Component Description
(1) USB Type-C port with HP Sleep and Charge Connects a USB device that has a Type-C connector, provides data
(2) USB 3.x port with HP Sleep and Charge Connects a USB device, provides high-speed data transfer, and
transfer, and even when the computer is o, charges most
products such as a cell phone, camera, activity tracker, or
smartwatch.
– and –
Connects a display device that has a USB Type-C connector,
providing DisplayPort output.
NOTE: Cables and/or adapters (purchased separately) may be
required.
even when the computer is o, charges products such as a cell
phone, camera, activity tracker, or smartwatch.
(3) AC adapter and battery light
(4) Power connector Connects an AC adapter.
●
White: The AC adapter is connected and the battery is fully
charged.
●
Blinking white: The AC adapter is disconnected and the
battery has reached a low battery level.
●
Amber: The AC adapter is connected and the battery is
charging.
●
O: The battery is not charging.
Right side 5
Page 14
Left side
Component Description
(1) USB 3.x SuperSpeed port Connects a USB device, such as a cell phone, camera, activity
tracker, or smartwatch, and provides high-speed data transfer.
(2) Audio-out (headphone)/Audio-in
(microphone) combo jack
(3) USB Type-C port with HP Sleep and Charge Connects a USB device that has a Type-C connector, provides data
(4) MicroSD memory card reader Reads optional memory cards that enable you to store, manage,
Connects optional powered stereo speakers, headphones,
earbuds, a headset, or a television audio cable. Also connects an
optional headset microphone. This jack does not support optional
standalone microphones.
WARNING! To reduce the risk of personal injury, adjust the
volume before putting on headphones, earbuds, or a headset. For
additional safety information, refer to the Regulatory, Safety, and
Environmental Notices.
To access this guide:
▲ Select the Start button, select HP Help and Support, and
then select HP Documentation.
NOTE: When a device is connected to the jack, the computer
speakers are disabled.
transfer, and even when the computer is o, charges most
products such as a cell phone, camera, activity tracker, or
smartwatch.
– and –
Connects a display device that has a USB Type-C connector,
providing DisplayPort output.
NOTE: Cables and/or adapters (purchased separately) may be
required.
share, or access information.
To insert a card:
1. Hold the card label-side up, with connectors facing the
computer.
2. Insert the card into the memory card reader, and then press
in on the card until it is rmly seated.
To remove a card:
▲ Press in on the card, and then remove it from the memory
card reader.
6 Chapter 2 Getting to know your computer
Page 15
Display
Component Description
(1) WLAN antennas* (2) Send and receive wireless signals to communicate with WLANs.
(2) Internal microphones (2) Record sound.
(3) Infrared camera lights (2, select products only) On: The infrared camera is in use.
(4) Camera light On: The camera is in use.
(5) Camera Allows you to video chat, record video, and record still images.
(6) Infrared camera (select products only) Allows a facial recognition logon to Windows, instead of a
password logon.
*The antennas are not visible from the outside of the computer, and antenna location varies. For optimal transmission, keep the areas
immediately around the antennas free from obstructions.
For wireless regulatory notices, see the section of the Regulatory, Safety, and Environmental Notices that applies to your country or
region.
To access this guide:
▲ Select the Start button, select HP Help and Support, and then select HP Documentation.
Display 7
Page 16
Keyboard area
TouchPad
Component Description
(1) Fingerprint reader (select products only) Allows a ngerprint logon to Windows, instead of a password
logon.
▲ To use the ngerprint reader, tap or swipe the upper-left
corner of the TouchPad.
NOTE: Select products also support online payments through
the ngerprint reader.
(2) TouchPad zone Reads your nger gestures to move the pointer or activate items
on the screen.
(3) Left TouchPad button Functions like the left button on an external mouse.
(4) Right TouchPad button Functions like the right button on an external mouse.
8 Chapter 2 Getting to know your computer
Page 17
Lights
Component Description
(1) Power light
(2) Caps lock light On: Caps lock is on, which switches the key input to all capital
(3) Mute light
●
On: The computer is on.
●
Blinking: The computer is in the Sleep state, a power-saving
state. The computer shuts o power to the display and other
unneeded components.
●
O: The computer is o or in Hibernation. Hibernation is a
power-saving state that uses the least amount of power.
letters.
●
On: Computer sound is o.
●
O: Computer sound is on.
Keyboard area 9
Page 18
Button and speakers
Component Description
(1) Power button
(2) Speakers (2) Produce sound.
●
When the computer is o, press the button to turn on the
computer.
●
When the computer is on, press the button briey to initiate
Sleep.
●
When the computer is in the Sleep state, press the button
briey to exit Sleep.
●
When the computer is in Hibernation, press the button
briey to exit Hibernation.
CAUTION: Pressing and holding down the power button results
in the loss of unsaved information.
If the computer has stopped responding and shutdown
procedures are ineective, press and hold the power button down
for at least 5 seconds to turn o the computer.
To learn more about your power settings, see your power options.
▲ Type power in the taskbar search box, and then select
Power & sleep settings.
‒ or –
Right-click the Start button, and then select Power Options.
10 Chapter 2 Getting to know your computer
Page 19
Special keys
Component Description
(1) esc key Displays system information when pressed in combination with
the fn key.
(2) fn key Executes specic functions when pressed in combination with
another key.
(3) Windows key Opens the Start menu.
NOTE: Pressing the Windows key again will close the Start
menu.
(4) Action keys Execute frequently used system functions.
NOTE: On select products, the f5 action key turns the keyboard
backlight feature o or on.
Keyboard area 11
Page 20
Bottom
Component Description
(1) Vent Enables airow to cool internal components.
NOTE: The computer fan starts up automatically to cool internal
components and prevent overheating. It is normal for the internal
fan to cycle on and o during routine operation.
(2) Speakers (2) Produce sound.
12 Chapter 2 Getting to know your computer
Page 21
3 Illustrated parts catalog
NOTE: HP continually improves and changes product parts. For complete and current information on
supported parts for your computer, go to http://partsurfer.hp.com, select your country or region, and then
follow the on-screen instructions.
Locating the model number, serial number, product number, and warranty information
The model number (1), serial number (2), product number (3), and warranty information (4) are located on
the bottom of the computer. This information may be needed when travelling internationally or when
contacting support.
Locating the model number, serial number, product number, and warranty information 13
Page 22
Computer components
14 Chapter 3 Illustrated parts catalog
Page 23
Item Component Spare part number
(1) 13.3-in display assembly:
In natural silver nish:
UHD, WLED, BrightView (3840×2160), uslim-at (2.0-mm), UWVA, eDP1.3+PSR, narrow bezel
(DBTS), TouchScreen display assembly (340 nits, 72% color gamut)
FHD, WLED, BrightView (1920×1080), uslim-at (2.4-mm), UWVA, eDP1.3+PSR, narrow bezel
(DBTS), TouchScreen display assembly (300 nits, 72% color gamut)
UHD, WLED, BrightView (3840×2160), uslim-at (2.0-mm), UWVA, eDP1.3+PSR, narrow bezel,
non-TouchScreen display assembly (340 nits, 72% color gamut)
UHD, WLED, BrightView (3840×2160), uslim-at (2.0-mm), UWVA, eDP1.3+PSR, narrow bezel
(DBCG), non-TouchScreen, ush glass display assembly (340 nits, 72% color gamut)
FHD, WLED, BrightView (1920×1080), uslim-at (2.4-mm), UWVA, eDP1.3+PSR, narrow bezel,
non-TouchScreen display assembly (300 nits, 72% color gamut)
FHD, WLED, BrightView (1920×1080), uslim-at (2.4-mm), UWVA, eDP1.3+PSR, narrow bezel
(DBCG), non-TouchScreen display assembly (300 nits, 72% color gamut)
In silk gold nish:
FHD, WLED, BrightView (1920×1080), uslim-at (2.4-mm), UWVA, eDP1.3+PSR, narrow bezel
(DBTS), TouchScreen display assembly (300 nits, 72% color gamut)
UHD, WLED, BrightView (3840×2160), uslim-at (2.0-mm), UWVA, eDP1.3+PSR, narrow bezel
(DBTS), TouchScreen display assembly (340 nits, 72% color gamut)
UHD, WLED, BrightView (3840×2160), uslim-at (2.0-mm), UWVA, eDP1.3+PSR, narrow bezel,
non-TouchScreen display assembly (340 nits, 72% color gamut)
UHD, WLED, BrightView (3840×2160), uslim-at (2.0-mm), UWVA, eDP1.3+PSR, narrow bezel
(DBCG), non-TouchScreen, ush glass display assembly (340 nits, 72% color gamut)
928479-001
928478-001
928483-001
928475-001
928482-001
928474-001
928476-001
928477-001
928481-001
928473-001
FHD, WLED, BrightView (3840×2160), uslim-at (2.0-mm), UWVA, eDP1.3+PSR, narrow bezel,
non-TouchScreen display assembly (340 nits, 72% color gamut)
FHD, WLED, BrightView (3840×2160), uslim-at (2.0-mm), UWVA, eDP1.3+PSR, narrow bezel
(DBCG), non-TouchScreen, ush glass display assembly (340 nits, 72% color gamut)
(2) Keyboard/top cover in natural silver nish with backlight (includes backlight cable and keyboard cable):
For use only on computer models equipped with a graphics subsystem with discrete memory:
For use in Belgium 928504-A41
For use in Canada 928504-DB1
For use in the Czech Republic and Slovakia 928504-FL1
For use in Denmark, Finland, and Norway 928504-DH1
For use in France 928504-051
For use in Germany 928504-041
For use in Greece 928504-151
For use in Israel 928504-BB1
For use in Italy 928504-061
For use in Latin America 928504-161
928480-001
928472-001
Computer components 15
Page 24
Item Component Spare part number
For use in the Netherlands 928504-B31
For use in Portugal 928504-131
For use in Russia 928504-251
For use in Saudi Arabia 928504-171
For use in Slovenia 928504-BA1
For use in South Korea 928504-AD1
For use in Spain 928504-071
For use in Switzerland 928504-BG1
For use in Taiwan 928504-AB1
For use in Thailand 928504-281
For use in Turkey 928504-141
For use in the United Kingdom 928504-031
For use in the United States 928504-001
Keyboard/top cover in natural silver nish with backlight (includes backlight cable and keyboard cable):
For use only on computer models equipped with a graphics subsystem with UMA memory:
For use in Belgium 928505-A41
For use in Canada 928505-DB1
For use in the Czech Republic and Slovakia 928505-FL1
For use in Denmark, Finland, and Norway 928505-DH1
For use in France 928505-051
For use in Germany 928505-041
For use in Greece 928505-151
For use in Israel 928505-BB1
For use in Italy 928505-061
For use in Japan 928505-291
For use in Latin America 928505-161
For use in the Netherlands 928505-B31
For use in Portugal 928505-131
For use in Russia 928505-251
For use in Saudi Arabia 928505-171
For use in Slovenia 928505-BA1
For use in South Korea 928505-AD1
For use in Spain 928505-071
For use in Switzerland 928505-BG1
16 Chapter 3 Illustrated parts catalog
Page 25
Item Component Spare part number
For use in Taiwan 928505-AB1
For use in Thailand 928505-281
For use in Turkey 928505-141
For use in the United Kingdom 928505-031
For use in the United States 928505-001
Keyboard/top cover in silk gold nish with backlight (includes backlight cable and keyboard cable):
For use only on computer models equipped with a graphics subsystem with discrete memory:
For use in Belgium 928502-A41
For use in Canada 928502-DB1
For use in the Czech Republic and Slovakia 928502-FL1
For use in Denmark, Finland, and Norway 928502-DH1
For use in France 928502-051
For use in Germany 928502-041
For use in Greece 928502-151
For use in Israel 928502-BB1
For use in Italy 928502-061
For use in Latin America 928502-161
For use in the Netherlands 928502-B31
For use in Portugal 928502-131
For use in Russia 928502-251
For use in Saudi Arabia 928502-171
For use in Slovenia 928502-BA1
For use in South Korea 928502-AD1
For use in Spain 928502-071
For use in Switzerland 928502-BG1
For use in Taiwan 928502-AB1
For use in Thailand 928502-281
For use in Turkey 928502-141
For use in the United Kingdom 928502-031
For use in the United States 928502-001
Keyboard/top cover in silk gold nish with backlight (includes backlight cable and keyboard cable):
For use only on computer models equipped with a graphics subsystem with UMA memory:
For use in Belgium 928503-A41
For use in Canada 928503-DB1
Computer components 17
Page 26
Item Component Spare part number
For use in the Czech Republic and Slovakia 928503-FL1
For use in Denmark, Finland, and Norway 928503-DH1
For use in France 928503-051
For use in Germany 928503-041
For use in Greece 928503-151
For use in Israel 928503-BB1
For use in Italy 928503-061
For use in Japan 928503-291
For use in Latin America 928503-161
For use in the Netherlands 928503-B31
For use in Portugal 928503-131
For use in Russia 928503-251
For use in Saudi Arabia 928503-171
For use in Slovenia 928503-BA1
For use in South Korea 928503-AD1
For use in Spain 928503-071
For use in Switzerland 928503-BG1
For use in Taiwan 928503-AB1
For use in Thailand 928503-281
For use in Turkey 928503-141
For use in the United Kingdom 928503-031
For use in the United States 928503-001
(3) Battery:
6-cell, 53-WHr, 2.55-AHr, Li-ion 921438-855
3-cell, 51-WHr, 4.45-AHr, Li-ion 921439-855
(4) Solid-state drive:
1-TB, 2280 M.2, PCIe3×4, NVMe solid-state drive with TLC 865697-007
512-GB, 2280 M.2, PCIe3×4, NVMe solid-state drive with TLC 847110-017
512-GB, 2280 M.2, PCIe3×4, NVMe solid-state drive 933706-002
360-GB, 2280 M.2, PCIe3×4, NVMe solid-state drive with TLC 917818-003
256-GB, 2280 M.2, PCIe3×4, NVMe solid-state drive with TLC 847109-021
256-GB, 2280 M.2, PCIe3×4, NVMe solid-state drive 933705-002
128-GB, 2280 M.2, SATA-3 solid-state drive with TLC 759848-016
128-GB, 2280 M.2, SATA-3 solid-state drive 827560-044
18 Chapter 3 Illustrated parts catalog
Page 27
Item Component Spare part number
(5) Intel Dual Band Wireless-AC 7265 802.11 AC 2×2 WiFi + Bluetooth 4.2 Combo Adapter (non-
vPro) WLAN module
(6) Front speakers (include cables):
For use only on computer models equipped with a graphics subsystem with discrete memory 928527-001
For use only on computer models equipped with a graphics subsystem with UMA memory 928528-001
(7) TouchPad (does not include TouchPad bracket or TouchPad cable):
ClickPad in natural silver nish 928488-001
ClickPad in silk gold nish 928487-001
SecurePad in natural silver nish 928490-001
SecurePad in silk gold nish 928489-001
TouchPad bracket (not illustrated) 928466-001
TouchPad cable (not illustrated; includes double-sided adhesive):
For use only on computer models equipped with a graphics subsystem with discrete memory 928451-001
For use only on computer models equipped with a graphics subsystem with UMA memory 928452-001
(8) Power connector cable 808155-020
(9) Fans (2, include cables):
Left fan for use only on computer models equipped with a graphics subsystem with discrete
memory
901229-855
928459-001
Right fan for use only on computer models equipped with a graphics subsystem with discrete
memory
Left fan for use only on computer models equipped with a graphics subsystem with UMA
memory
Right fan for use only on computer models equipped with a graphics subsystem with UMA
memory
(10) System board (includes processor and replacement thermal material):
Equipped with an Intel Core i7-7500U 2.70-GHz (turbo up to 3.50-GHz) dual core processor
(2133-MHz FSB, 4.0-MB L3 cache, 15-W), an NVIDIA N17S-LG (GeForce MX150) graphics
subsystem with up to 2048-MB of discrete video memory (256-MB×32 GDDR5×2 pieces, 1.5V/7-Gbps), 8-GB of system memory, and the Windows 10 operating system
Equipped with an Intel Core i7-7500U 2.70-GHz (turbo up to 3.50-GHz) dual core processor
(2133-MHz FSB, 4.0-MB L3 cache, 15-W), an NVIDIA N17S-LG (GeForce MX150) graphics
subsystem with up to 2048-MB of discrete video memory (256-MB×32 GDDR5×2 pieces, 1.5V/7-Gbps), 8-GB of system memory, and a non-Windows operating system
Equipped with an Intel Core i7-7500U 2.70-GHz (turbo up to 3.50-GHz) dual core processor
(2133-MHz FSB, 4.0-MB L3 cache, 15-W), an Intel HD Graphics 620 graphics subsystem with
UMA memory, 16-GB of system memory, and the Windows 10 operating system
Equipped with an Intel Core i7-7500U 2.70-GHz (turbo up to 3.50-GHz) dual core processor
(2133-MHz FSB, 4.0-MB L3 cache, 15-W), an Intel HD Graphics 620 graphics subsystem with
UMA memory, 16-GB of system memory, and a non-Windows operating system
Equipped with an Intel Core i7-7500U 2.70-GHz (turbo up to 3.50-GHz) dual core processor
(2133-MHz FSB, 4.0-MB L3 cache, 15-W), an Intel HD Graphics 620 graphics subsystem with
UMA memory, 8-GB of system memory, and the Windows 10 operating system
928460-001
928461-001
928462-001
926318-601
926318-001
926315-601
926315-001
926314-601
Computer components 19
Page 28
Item Component Spare part number
Equipped with an Intel Core i7-7500U 2.70-GHz (turbo up to 3.50-GHz) dual core processor
(2133-MHz FSB, 4.0-MB L3 cache, 15-W), an Intel HD Graphics 620 graphics subsystem with
UMA memory, 8-GB of system memory, and a non-Windows operating system
Equipped with an Intel Core i7-8550U processor, graphics subsystem with UMA memory, 8-GB
of system memory, and a Windows operating system
Equipped with an Intel Core i7-8550U processor, graphics subsystem with UMA memory, 8-GB
of system memory, and a non-Windows operating system
Equipped with an Intel Core i7-8550U processor, graphics subsystem with 2-GB discrete
memory, 8-GB of system memory, and a Windows operating system
Equipped with an Intel Core i7-8550U processor, MX150 graphics subsystem with 2-GB
discrete memory, 8-GB of system memory, and a non-Windows operating system
Equipped with an Intel Core i7-8550U processor, graphics subsystem with 2-GB discrete
memory, 16-GB of system memory, and a Windows operating system
Equipped with an Intel Core i7-8550U processor, MX150 graphics subsystem with 2-GB
discrete memory, 16-GB of system memory, and a non-Windows operating system
Equipped with an Intel Core i5-7200U 2.50-GHz (turbo up to 3.10-GHz) dual core processor
(2133-MHz FSB, 3.0-MB L3 cache, 15-W), an NVIDIA N17S-LG (GeForce MX150) graphics
subsystem with up to 2048-MB of discrete video memory (256-MB×32 GDDR5×2 pieces, 1.5V/7-Gbps), 8-GB of system memory, and the Windows 10 operating system
Equipped with an Intel Core i5-7200U 2.50-GHz (turbo up to 3.10-GHz) dual core processor
(2133-MHz FSB, 3.0-MB L3 cache, 15-W), an NVIDIA N17S-LG (GeForce MX150) graphics
subsystem with up to 2048-MB of discrete video memory (256-MB×32 GDDR5×2 pieces, 1.5V/7-Gbps), 8-GB of system memory, and a non-Windows operating system
926314-001
939648-601
939648-001
939651-601
939651-001
939652-601
939652-001
926317-601
926317-001
Equipped with an Intel Core i5-7200U 2.50-GHz (turbo up to 3.10-GHz) dual core processor
(2133-MHz FSB, 3.0-MB L3 cache, 15-W), an NVIDIA N17S-LG (GeForce MX150) graphics
subsystem with up to 2048-MB of discrete video memory (256-MB×32 GDDR5×2 pieces, 1.5V/7-Gbps), 4-GB of system memory, and the Windows 10 operating system
Equipped with an Intel Core i5-7200U 2.50-GHz (turbo up to 3.10-GHz) dual core processor
(2133-MHz FSB, 3.0-MB L3 cache, 15-W), an NVIDIA N17S-LG (GeForce MX150) graphics
subsystem with up to 2048-MB of discrete video memory (256-MB×32 GDDR5×2 pieces, 1.5V/7-Gbps), 4-GB of system memory, and a non-Windows operating system
Equipped with an Intel Core i5-7200U 2.50-GHz (turbo up to 3.10-GHz) dual core processor
(2133-MHz FSB, 3.0-MB L3 cache, 15-W), an Intel HD Graphics 620 graphics subsystem with
UMA memory, 8-GB of system memory, and the Windows 10 operating system
Equipped with an Intel Core i5-7200U 2.50-GHz (turbo up to 3.10-GHz) dual core processor
(2133-MHz FSB, 4.0-MB L3 cache, 15-W), an Intel HD Graphics 620 graphics subsystem with
UMA memory, 8-GB of system memory, and a non-Windows operating system
Equipped with an Intel Core i5-7200U 2.50-GHz (turbo up to 3.10-GHz) dual core processor
(2133-MHz FSB, 3.0-MB L3 cache, 15-W), an Intel HD Graphics 620 graphics subsystem with
UMA memory, 4-GB of system memory, and the Windows 10 operating system
Equipped with an Intel Core i5-7200U 2.50-GHz (turbo up to 3.10-GHz) dual core processor
(2133-MHz FSB, 4.0-MB L3 cache, 15-W), an Intel HD Graphics 620 graphics subsystem with
UMA memory, 4-GB of system memory, and a non-Windows operating system
Equipped with an Intel Core i5-8250U processor, graphics subsystem with UMA memory, 4-GB
of system memory, and a Windows operating system
Equipped with an Intel Core i5-8250U processor, graphics subsystem with UMA memory, 4-GB
of system memory, and a non-Windows operating system
926316-601
926316-001
926313-601
926313-001
926312-601
926312-001
939646-601
939646-001
20 Chapter 3 Illustrated parts catalog
Page 29
Item Component Spare part number
Equipped with an Intel Core i5-8250U processor, graphics subsystem with UMA memory, 8-GB
of system memory, and a Windows operating system
Equipped with an Intel Core i5-8250U processor, graphics subsystem with UMA memory, 8-GB
of system memory, and a non-Windows operating system
Equipped with an Intel Core i5-8250U processor, graphics subsystem with 2-GB discrete
memory, 4-GB of system memory, and a Windows operating system
Equipped with an Intel Core i5-8250U processor, MX150 graphics subsystem with 2-GB
discrete memory, 4-GB of system memory, and a non-Windows operating system
Equipped with an Intel Core i5-8250U processor, graphics subsystem with 2-GB discrete
memory, 8-GB of system memory, and a Windows operating system
Equipped with an Intel Core i5-8250U processor, MX150 graphics subsystem with 2-GB
discrete memory, 8-GB of system memory, and a non-Windows operating system
Equipped with an Intel Core i3-7100U 2.40-GHz dual core processor (2133-MHz FSB, 3.0-MB L3
cache, 15-W), an Intel HD Graphics 620 graphics subsystem with UMA video memory, 4-GB of
system memory, and the Windows 10 operating system
Equipped with an Intel Core i3-7100U 2.40-GHz dual core processor (2133-MHz FSB, 3.0-MB L3
cache, 15-W), an Intel HD Graphics 620 graphics subsystem with UMA video memory, 4-GB of
system memory, and a non-Windows operating system
System board retention hooks (2, not illustrated) 928493-001
Heat sink (includes replacement thermal material):
(11) For use only on computer models equipped with a graphics subsystem with discrete memory 939283-001
939647-601
939647-001
939649-601
939649-001
939650-601
939650-001
926311-601
926311-001
(12) For use only on computer models equipped with a graphics subsystem with UMA memory 939284-001
(13) I/O bracket, left side 928467-001
(15) I/O bracket, right side 928468-001
(14) Wireless Antenna Kit (includes left and right wireless antenna cables and transceivers):
For use only on computer models equipped with a graphics subsystem with discrete memory 937093-001
For use only on computer models equipped with a graphics subsystem with UMA memory 936025-001
(16) Rear speakers (include cables):
For use only on computer models equipped with a graphics subsystem with discrete memory 928527-001
For use only on computer models equipped with a graphics subsystem with UMA memory 928528-001
(17) Bottom cover:
In natural silver nish for use only on computer models equipped with a graphics subsystem
with discrete memory
In natural silver nish for use only on computer models equipped with a graphics subsystem
with UMA memory
In silk gold nish for use only on computer models equipped with a graphics subsystem with
discrete memory
In silk gold nish for use only on computer models equipped with a graphics subsystem with
UMA memory
928446-001
928448-001
928445-001
928447-001
Bottom cover retention hooks (2, not illustrated):
For use only on computer models equipped with a graphics subsystem with discrete memory 928491-001
Computer components 21
Page 30
Item Component Spare part number
For use only on computer models equipped with a graphics subsystem with UMA memory 928492-001
Rubber Foot Kit (not illustrated, includes bottom cover rubber foot strip):
In natural silver nish 928496-001
In silk gold nish 928495-001
22 Chapter 3 Illustrated parts catalog
Page 31
Miscellaneous parts
Component Spare part number
AC adapter:
65-W HP Smart AC adapter (non-PFC, EM, RC, 4.5-mm) 913691-850
65-W HP Smart AC adapter (non-PFC, 4.5-mm, with mount) 854117-850
45-W HP Smart AC adapter (non-PFC, 4.5-mm, with mount) 854116-850
Duck head adapter for use in Europe and South Korea 854703-001
Gasket Kit 937332-001
HP external DVD±RW DL SuperMulti Drive 747080-001
HP USB–to–Gigabit RJ45 adapter 829941-001
HP USB Type-C–to–HDMI adapter 831752-001
HP USB Type-C–to–RJ45 adapter 855560-001
HP USB Type-C–to–USB-A dongle 833960-001
HP USB Type-C–to–VGA adapter 831751-001
Power cord (C5 connector, 1.00-m):
For use in Argentina 920689-003
For use in Australia 213356-013
For use in Denmark 213353-013
For use in Europe 213350-014
For use in India 920689-016
For use in Israel 398063-008
For use in Italy 213352-013
For use in Japan 349756-006
For use in North America 213349-015
For use in the People’s Republic of China 920689-014
For use in South Africa 361240-007
For use in Switzerland 213354-013
For use in Taiwan 393313-007
For use in Thailand 285096-012
For use in the United Kingdom and Singapore 213351-013
Rubber Foot Kit (includes bottom cover rubber foot strip):
In natural silver nish 928496-001
In silk gold nish 928495-001
Screw Kit:
Miscellaneous parts 23
Page 32
Component Spare part number
For use only on computer models equipped with a graphics subsystem with discrete memory 928499-001
For use only on computer models equipped with a graphics subsystem with UMA memory 928500-001
24 Chapter 3 Illustrated parts catalog
Page 33
4 Removal and replacement preliminary
requirements
Tools required
You will need the following tools to complete the removal and replacement procedures:
●
Flat-bladed screw driver
●
Magnetic screw driver
●
Phillips P0 screw driver
●
Torx5 screw driver
Service considerations
The following sections include some of the considerations that you must keep in mind during disassembly
and assembly procedures.
NOTE: As you remove each subassembly from the computer, place the subassembly (and all accompanying
screws) away from the work area to prevent damage.
Plastic parts
CAUTION: Using excessive force during disassembly and reassembly can damage plastic parts. Use care
when handling the plastic parts. Apply pressure only at the points designated in the maintenance
instructions.
Tools required 25
Page 34
Cables and connectors
CAUTION: When servicing the computer, be sure that cables are placed in their proper locations during the
reassembly process. Improper cable placement can damage the computer.
Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat or seat
the cables during removal and insertion. Handle cables by the connector whenever possible. In all cases, avoid
bending, twisting, or tearing cables. Be sure that cables are routed in such a way that they cannot be caught
or snagged by parts being removed or replaced. Handle ex cables with extreme care; these cables tear
easily.
Drive handling
CAUTION: Drives are fragile components that must be handled with care. To prevent damage to the
computer, damage to a drive, or loss of information, observe these precautions:
Before removing or inserting a drive, shut down the computer. If you are unsure whether the computer is o
or in Hibernation, turn the computer on, and then shut it down through the operating system.
Before handling a drive, be sure that you are discharged of static electricity. While handling a drive, avoid
touching the connector.
Before removing a diskette drive or optical drive, be sure that a diskette or disc is not in the drive and be sure
that the optical drive tray is closed.
Handle drives on surfaces covered with at least one inch of shock-proof foam.
Avoid dropping drives from any height onto any surface.
After removing drive, place it in a static-proof bag.
Avoid exposing a drive to products that have magnetic elds, such as monitors or speakers.
Avoid exposing a drive to temperature extremes or liquids.
If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective
packaging and label the package “FRAGILE.”
26 Chapter 4 Removal and replacement preliminary requirements
Page 35
Grounding guidelines
Electrostatic discharge damage
Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine
the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many
cases, ESD contains enough power to alter device parameters or melt silicon junctions.
A discharge of static electricity from a nger or other conductor can destroy static-sensitive devices or
microcircuitry. Even if the spark is neither felt nor heard, damage may have occurred.
An electronic device exposed to ESD may not be aected at all and can work perfectly throughout a normal
cycle. Or the device may function normally for a while, then degrade in the internal layers, reducing its life
expectancy.
CAUTION: To prevent damage to the computer when you are removing or installing internal components,
observe these precautions:
Keep components in their electrostatic-safe containers until you are ready to install them.
Before touching an electronic component, discharge static electricity by using the guidelines described in this
section.
Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.
If you remove a component, place it in an electrostatic-safe container.
The following table shows how humidity aects the electrostatic voltage levels generated by dierent
activities.
CAUTION: A product can be degraded by as little as 700 V.
Typical electrostatic voltage levels
Relative humidity
Event 10% 40% 55%
Walking across carpet 35,000 V 15,000 V 7,500 V
Walking across vinyl oor 12,000 V 5,000 V 3,000 V
Motions of bench worker 6,000 V 800 V 400 V
Removing DIPS from plastic tube 2,000 V 700 V 400 V
Removing DIPS from vinyl tray 11,500 V 4,000 V 2,000 V
Removing DIPS from Styrofoam 14,500 V 5,000 V 3,500 V
Removing bubble pack from PCB 26,500 V 20,000 V 7,000 V
Packing PCBs in foam-lined box 21,000 V 11,000 V 5,000 V
Grounding guidelines 27
Page 36
Packaging and transporting guidelines
Follow these grounding guidelines when packaging and transporting equipment:
●
To avoid hand contact, transport products in static-safe tubes, bags, or boxes.
●
Protect ESD-sensitive parts and assemblies with conductive or approved containers or packaging.
●
Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.
●
Place items on a grounded surface before removing items from their containers.
●
Always be properly grounded when touching a component or assembly.
●
Store reusable ESD-sensitive parts from assemblies in protective packaging or nonconductive foam.
●
Use transporters and conveyors made of antistatic belts and roller bushings. Be sure that mechanized
equipment used for moving materials is wired to ground and that proper materials are selected to avoid
static charging. When grounding is not possible, use an ionizer to dissipate electric charges.
Workstation guidelines
Follow these grounding workstation guidelines:
●
Cover the workstation with approved static-shielding material.
●
Use a wrist strap connected to a properly grounded work surface and use properly grounded tools and
equipment.
●
Use conductive eld service tools, such as cutters, screw drivers, and vacuums.
●
When xtures must directly contact dissipative surfaces, use xtures made only of static-safe materials.
●
Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids and
Styrofoam.
●
Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle these
items only at static-free workstations.
●
Avoid contact with pins, leads, or circuitry.
●
Turn o power and input signals before inserting or removing connectors or test equipment.
28 Chapter 4 Removal and replacement preliminary requirements
Page 37
Equipment guidelines
Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.
●
When seated, wear a wrist strap connected to a grounded system. Wrist straps are exible straps with a
minimum of one megohm ±10% resistance in the ground cords. To provide proper ground, wear a strap
snugly against the skin at all times. On grounded mats with banana-plug connectors, use alligator clips
to connect a wrist strap.
●
When standing, use foot straps and a grounded oor mat. Foot straps (heel, toe, or boot straps) can be
used at standing workstations and are compatible with most types of shoes or boots. On conductive
oors or dissipative oor mats, use foot straps on both feet with a minimum of one megohm resistance
between the operator and ground. To be
The following grounding equipment is recommended to prevent electrostatic damage:
●
Antistatic tape
●
Antistatic smocks, aprons, and sleeve protectors
●
Conductive bins and other assembly or soldering aids
●
Nonconductive foam
●
Conductive computerop workstations with ground cords of one megohm resistance
●
Static-dissipative tables or oor mats with hard ties to the ground
●
Field service kits
eective, the conductive must be worn in contact with the skin.
●
Static awareness labels
●
Material-handling packages
●
Nonconductive plastic bags, tubes, or boxes
●
Metal tote boxes
●
Electrostatic voltage levels and protective materials
The following table lists the shielding protection provided by antistatic bags and oor mats.
Material Use Voltage protection level
Antistatic plastics Bags 1,500 V
Carbon-loaded plastic Floor mats 7,500 V
Metallized laminate Floor mats 5,000 V
Grounding guidelines 29
Page 38
5 Removal and replacement procedures
This chapter provides removal and replacement procedures for Authorized Service Provider only parts.
CAUTION: Components described in this chapter should only be accessed by an authorized service provider.
Accessing these parts can damage the computer or void the warranty.
CAUTION: This computer does not have user-replaceable parts. Only HP authorized service providers should
perform the removal and replacement procedures described here. Accessing the internal part could damage
the computer or void the warranty.
Component replacement procedures
NOTE: Details about your computer, including model, serial number, product key, and length of warranty,
are on the service tag at the bottom of your computer. See Locating the model number, serial number,
product number, and warranty information on page 13 for details.
NOTE: HP continually improves and changes product parts. For complete and current information on
supported parts for your computer, go to http://partsurfer.hp.com, select your country or region, and then
follow the on-screen instructions.
There are as many as 56 screws that must be removed, replaced, and/or loosened when servicing Authorized
Service Provider only parts. Make special note of each screw size and location during removal and
replacement.
Bottom cover
Description Spare part number
In natural silver nish for use only on computer models equipped with a graphics subsystem with
discrete memory
In natural silver nish for use only on computer models equipped with a graphics subsystem with UMA
memory
In silk gold nish for use only on computer models equipped with a graphics subsystem with discrete
memory
In silk gold nish for use only on computer models equipped with a graphics subsystem with UMA
memory
Before disassembling the computer, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.

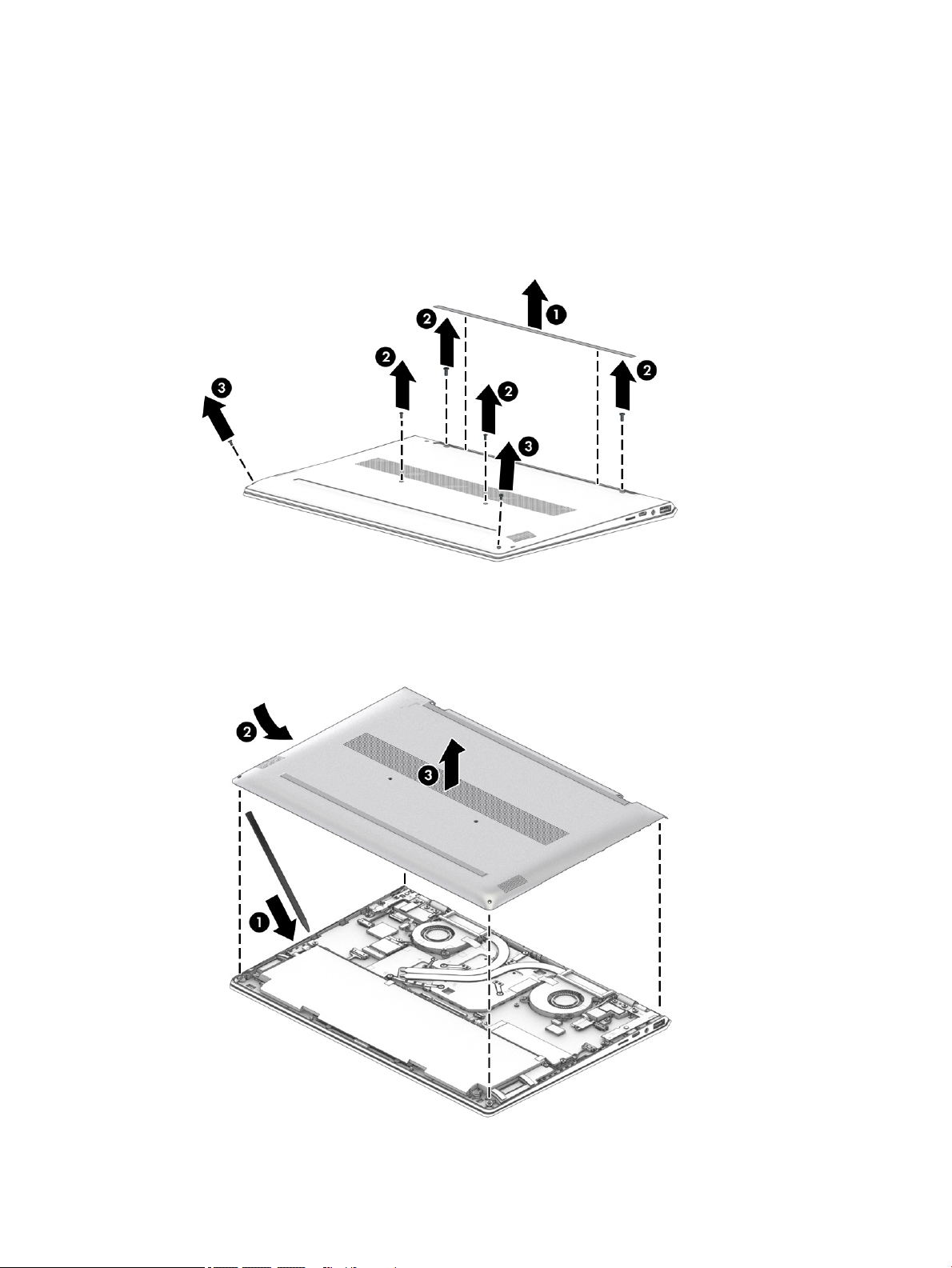

Remove the bottom cover:
928446-001
928448-001
928445-001
928447-001
30 Chapter 5 Removal and replacement procedures
Page 39
1. Remove the computer rubber foot strip (1).
The rubber foot strip is available using spare part numbers 928496-001 (in natural silver nish) and
928495-001 (in silk gold nish).
2. Remove the following screws that secure the bottom cover to the computer:
(2) Four Phillips PM2.0×6.1 screws
(3) Two Torx5 M2.0×3.2 screws
3. Insert a case utility tool (1) or similar thin, plastic tool into the front corners of the bottom cover.
4. Separate the bottom cover (2) from the keyboard/top cover.
5. Remove the bottom cover (3).
Component replacement procedures 31
Page 40
Reverse this procedure to install the bottom cover.
Bottom cover retention hooks
Description Spare part number
For use only on computer models equipped with a graphics subsystem with discrete memory 928491-001
For use only on computer models equipped with a graphics subsystem with UMA memory 928492-001
Before removing the bottom cover retention hooks, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 30).

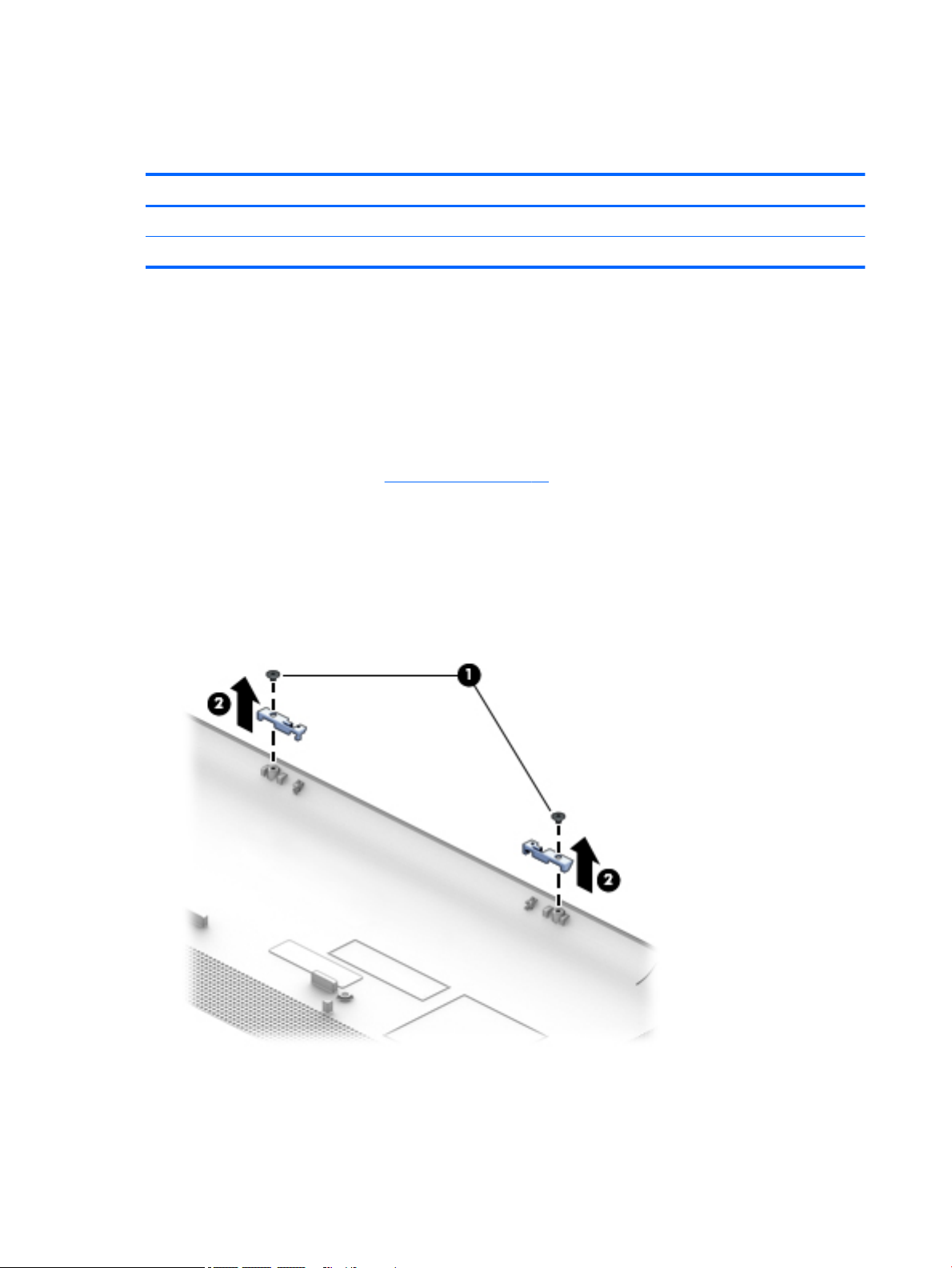

Remove the bottom cover retention hooks:
1. Turn the bottom cover right side up.
2. Remove the two Phillips PM2.0×2.0 screws (1) that secure the bottom cover retention hooks to the
bottom cover.
3. Remove the bottom cover retention hooks (2).
Reverse this procedure to install the bottom cover retention hooks.
32 Chapter 5 Removal and replacement procedures
Page 41
Battery
Description Spare part number
6-cell, 53-WHr, 2.55-AHr, Li-ion 921438-855
3-cell, 51-WHr, 4.45-AHr, Li-ion 921439-855
Before removing the battery, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 30).

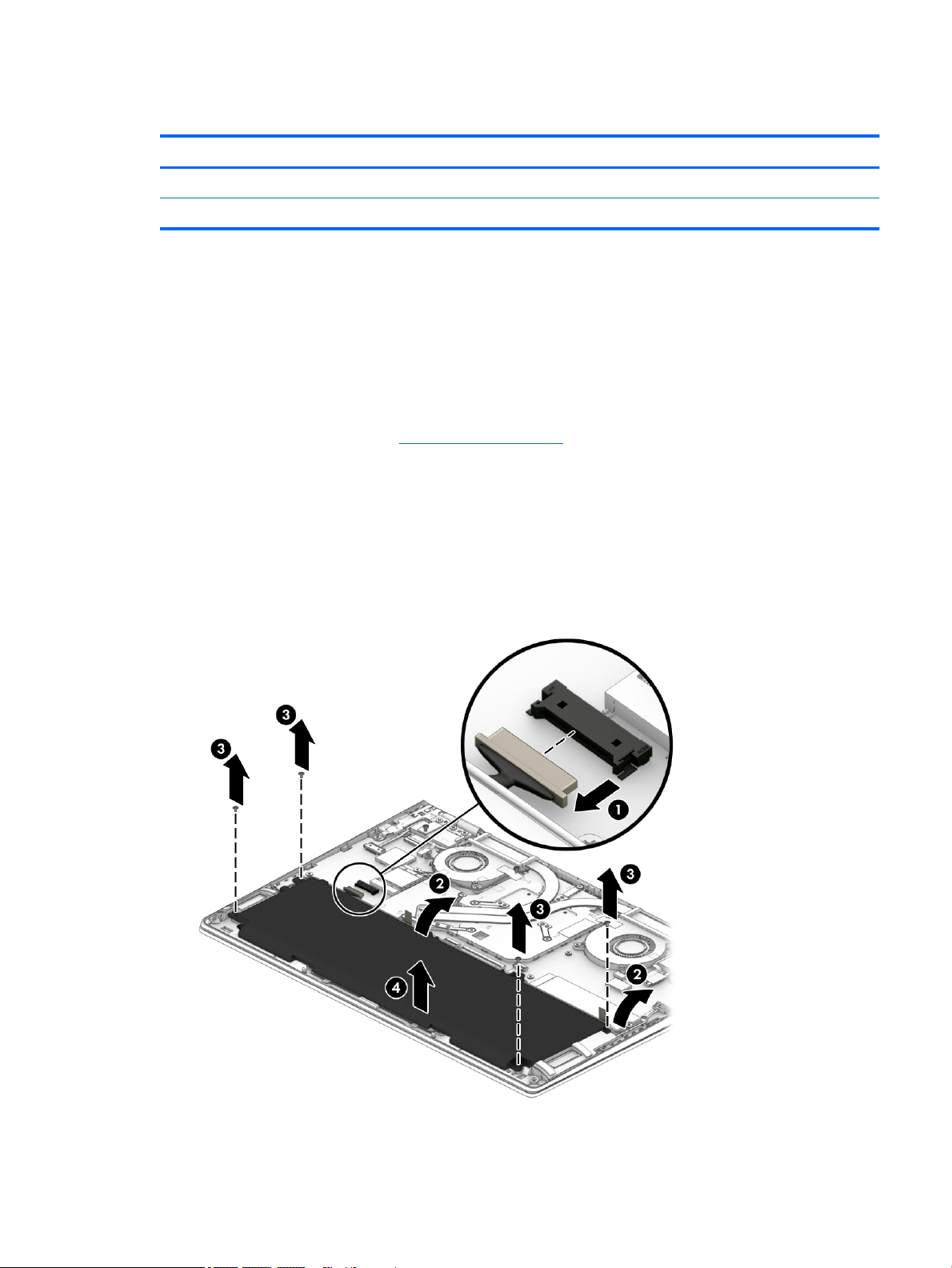

Remove the battery:
1. Disconnect the battery cable (1) from the system board.
2. Detach the grounding tape (2) that secures the battery to the computer.
3. Remove the four Phillips PM2.0×3.4 screws (3) that secure the battery cover retention hooks to the
keyboard/top cover.
4. Remove the battery (4).
Reverse this procedure to install the battery.
Component replacement procedures 33
Page 42
Solid-state drive
Description Spare part number
1-TB, 2280 M.2, PCIe3×4, NVMe solid-state drive with TLC 865697-007
512-GB, 2280 M.2, PCIe3×4, NVMe solid-state drive with TLC 847110-017
512-GB, 2280 M.2, PCIe3×4, NVMe solid-state drive 933706-002
360-GB, 2280 M.2, PCIe3×4, NVMe solid-state drive with TLC 917818-003
256-GB, 2280 M.2, PCIe3×4, NVMe solid-state drive with TLC 847109-021
256-GB, 2280 M.2, PCIe3×4, NVMe solid-state drive 933705-002
128-GB, 2280 M.2, SATA-3 solid-state drive with TLC 759848-016
128-GB, 2280 M.2, SATA-3 solid-state drive 827560-044
Before removing the solid-state drive, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 30).
5. Disconnect the battery cable from the system board (see Battery on page 33).

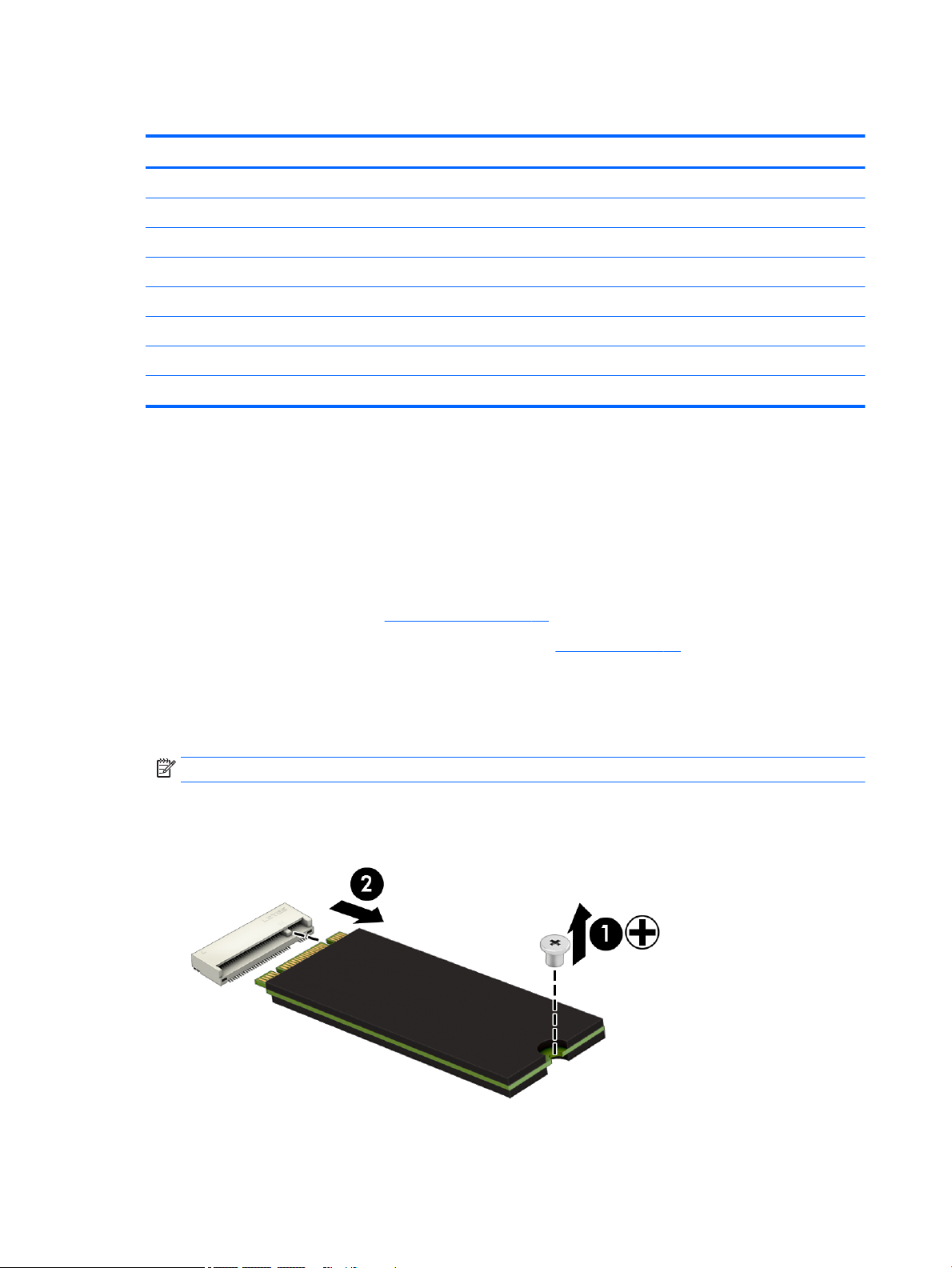

Remove the solid-state drive:
1. Remove the Phillips PM2.0×3.4 screw (1) that secures the drive to the keyboard/top cover.
2. Remove the drive (2) by pulling it away from the connector.
NOTE: Solid-state drives are designed with notches to prevent incorrect insertion.
34 Chapter 5 Removal and replacement procedures
Page 43
Reverse this procedure to reassemble and install the solid-state drive.
WLAN module
Description Spare part number
Intel Dual Band Wireless-AC 7265 802.11 AC 2×2 WiFi + Bluetooth 4.2 Combo Adapter (non-vPro) WLAN
module
901229-855
CAUTION: To prevent an unresponsive system, replace the wireless module only with a wireless module
authorized for use in the computer by the governmental agency that regulates wireless devices in your
country or region. If you replace the module and then receive a warning message, remove the module to
restore device functionality, and then contact technical support.
Before removing the WLAN module, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
3. Disconnect all external devices from the computer.
4. Remove the bottom cover (see Bottom cover on page 30).
5. Disconnect the battery cable from the system board (see Battery on page 33).
Remove the WLAN module:

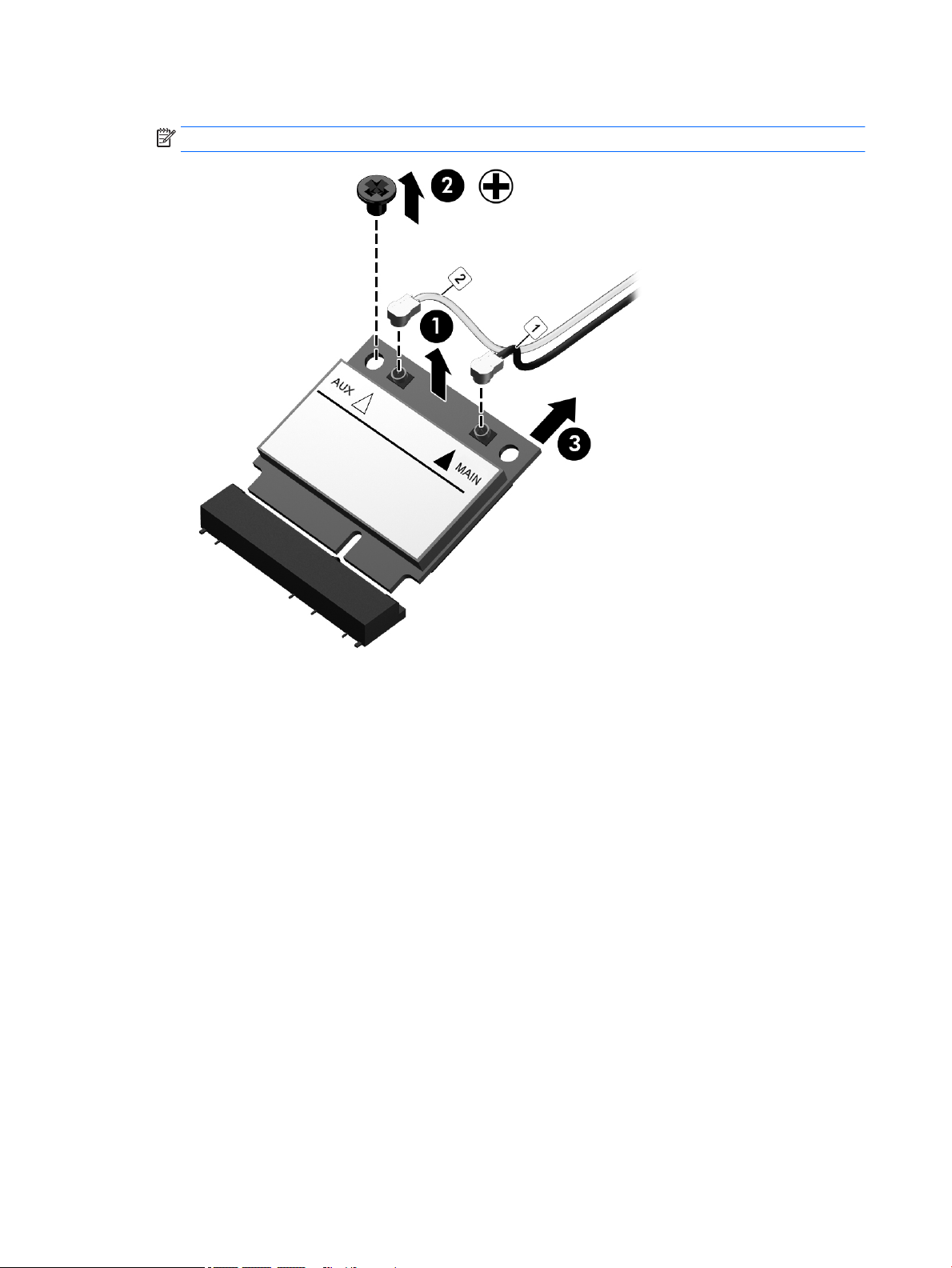

1. Disconnect the WLAN antenna cables (1) from the terminals on the WLAN module.
NOTE: The WLAN antenna cable labeled "1/MAIN" connects to the WLAN module "Main" terminal. The
WLAN antenna cable labeled "2/AUX" connects to the WLAN module "Aux" terminal.
2. Remove the Phillips PM2.0×2.3 broad head screw (2) that secures the WLAN module to the keyboard/top
cover. (The WLAN module tilts up.)
Component replacement procedures 35
Page 44
3. Remove the WLAN module (3) by pulling the module away from the slot at an angle.
NOTE: WLAN modules are designed with a notch to prevent incorrect insertion.
Reverse this procedure to install the WLAN module.
36 Chapter 5 Removal and replacement procedures
Page 45
Front speakers
Description Spare part number
For use only on computer models equipped with a graphics subsystem with discrete memory 928527-001
For use only on computer models equipped with a graphics subsystem with UMA memory 928528-001
Before removing the front speakers, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
3. Disconnect all external devices from the computer.
4. Disconnect the battery cable from the system board (see Battery on page 33).

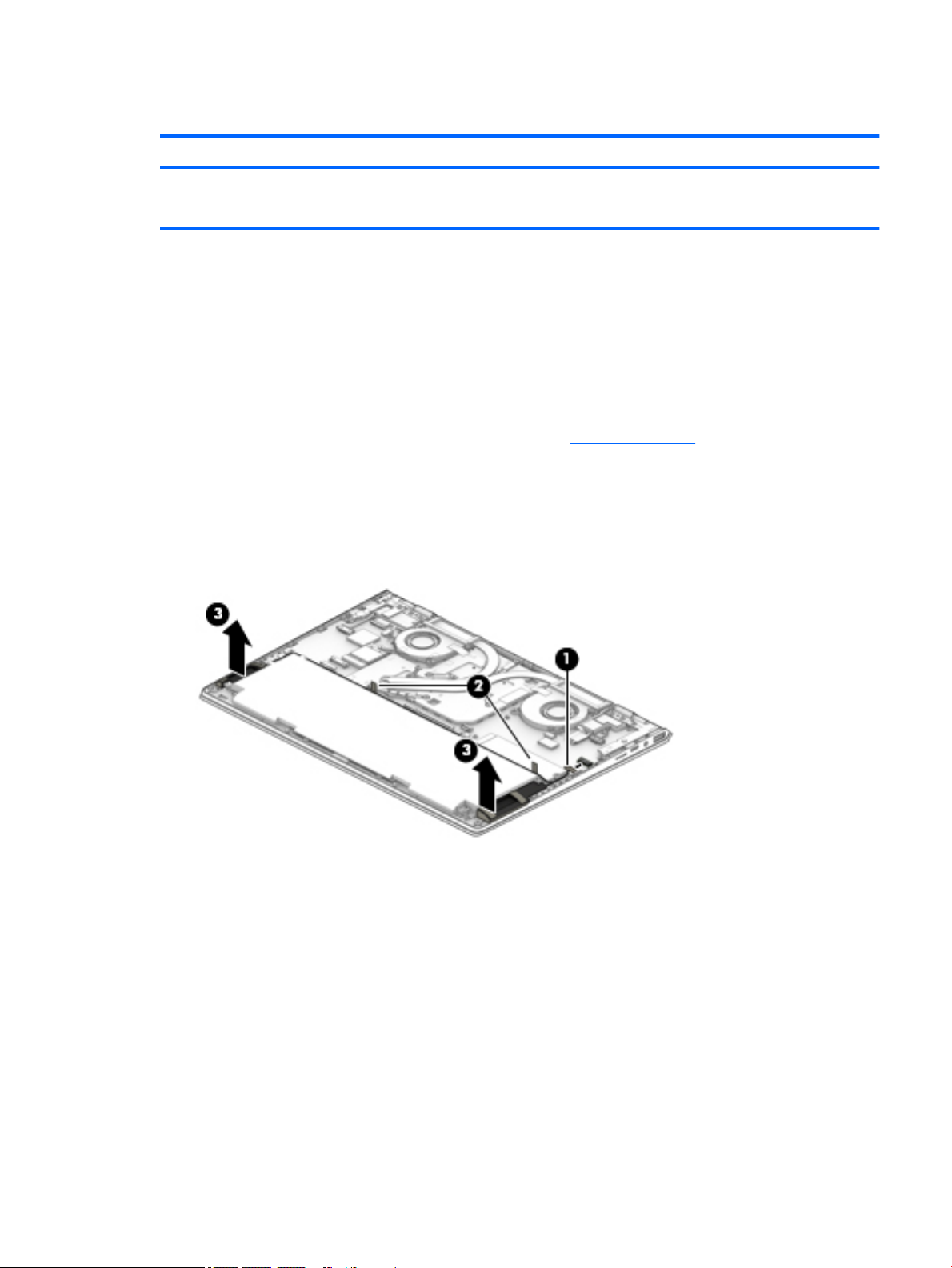

Remove the front speakers:
1. Disconnect the front speaker cable (1) from the system board.
2. Release the tape (2) that secures the front speaker cable to the battery.
3. Remove the front speakers (3).
Reverse this procedure to install the front speakers.
Component replacement procedures 37
Page 46
Fans
NOTE: The fan spare part kit includes the fan cable.
Description Spare part number
Left fan for use only on computer models equipped with a graphics subsystem with discrete memory 928459-001
Right fan for use only on computer models equipped with a graphics subsystem with discrete memory 928460-001
Left fan for use only on computer models equipped with a graphics subsystem with UMA memory 928461-001
Right fan for use only on computer models equipped with a graphics subsystem with UMA memory 928462-001
Before removing the fans, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 30).
5. Disconnect the battery cable from the system board (see Battery on page 33).

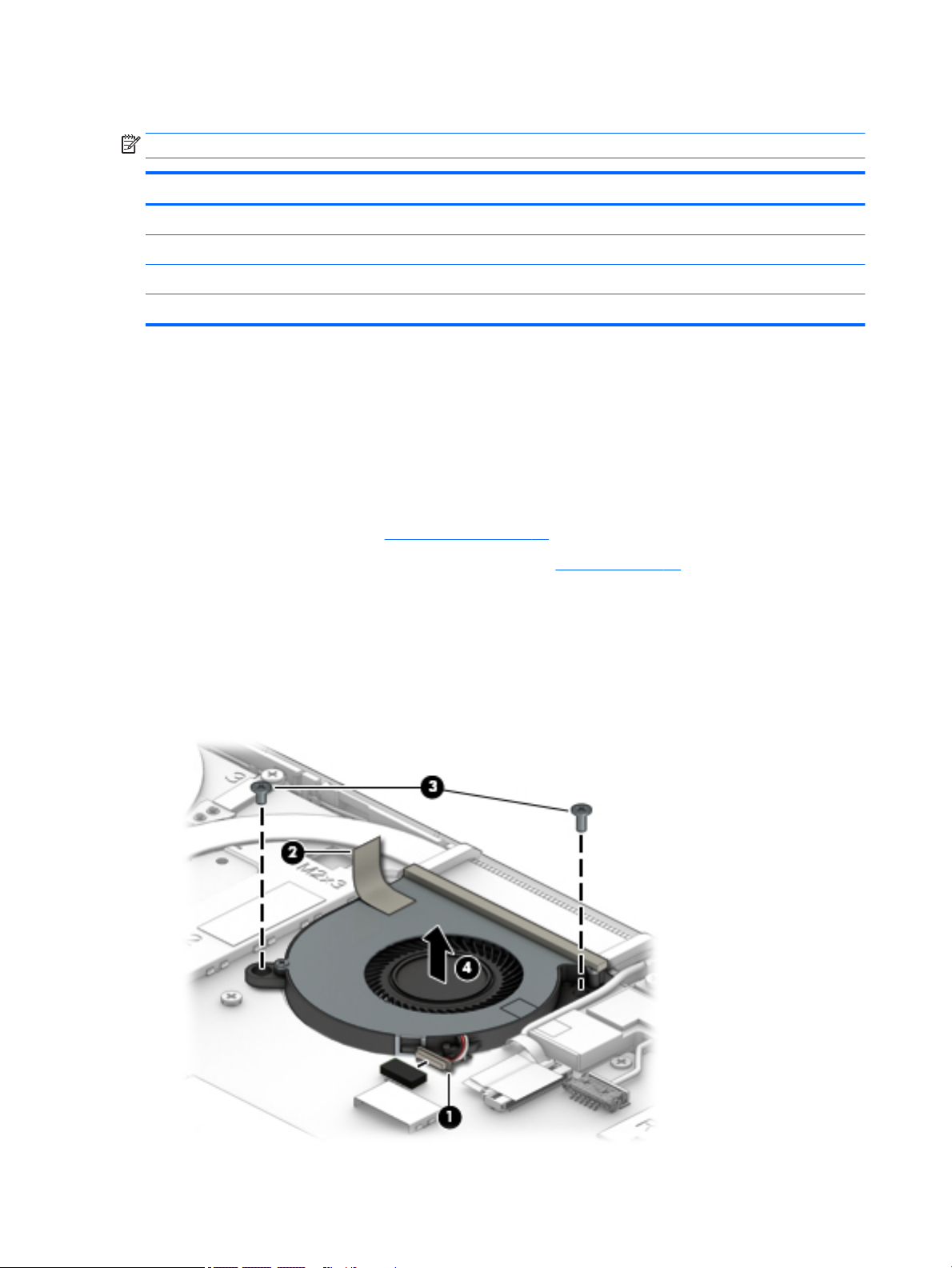

Remove the left fan:
1. Disconnect the left fan cable (1) from the system board.
2. Release the tape (2) that secures the left fan to the system board.
3. Remove the two Phillips PM2.0×3.4 screws (3) that secure the left fan to the keyboard/top cover.
4. Remove the left fan (4).
38 Chapter 5 Removal and replacement procedures
Page 47

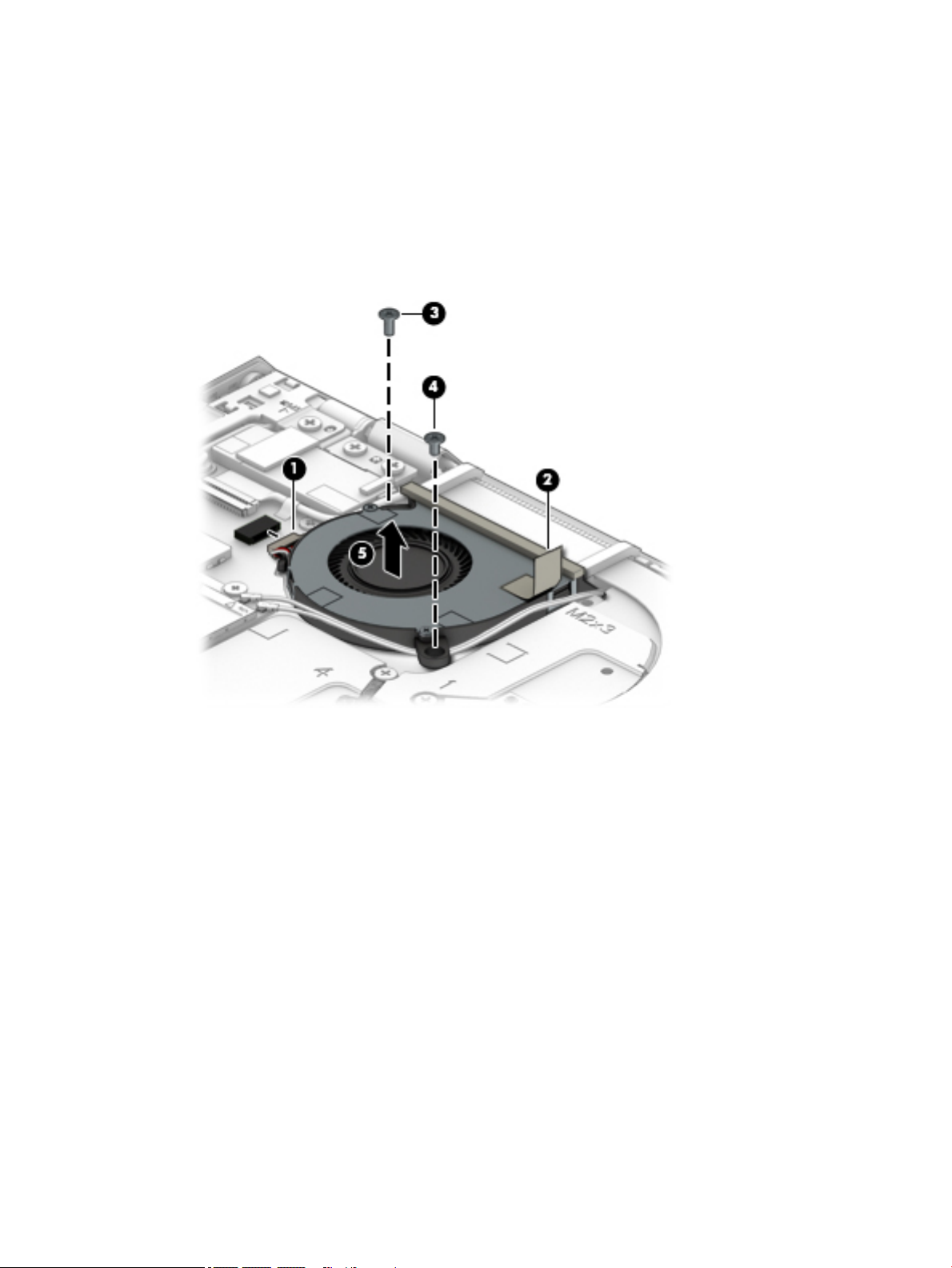

Remove the right fan:
1. Disconnect the right fan cable (1) from the system board.
2. Release the tape (2) that secures the right fan to the system board.
3. Remove the Phillips PM2.5×5.7 screw (3) that secures the right fan to the keyboard/top cover.
4. Remove the Phillips PM2.0×2.3 broad head screw (4) that secures the right fan to the keyboard/top
cover.
5. Remove the right fan (5).
Reverse this procedure to install the fans.
Component replacement procedures 39
Page 48

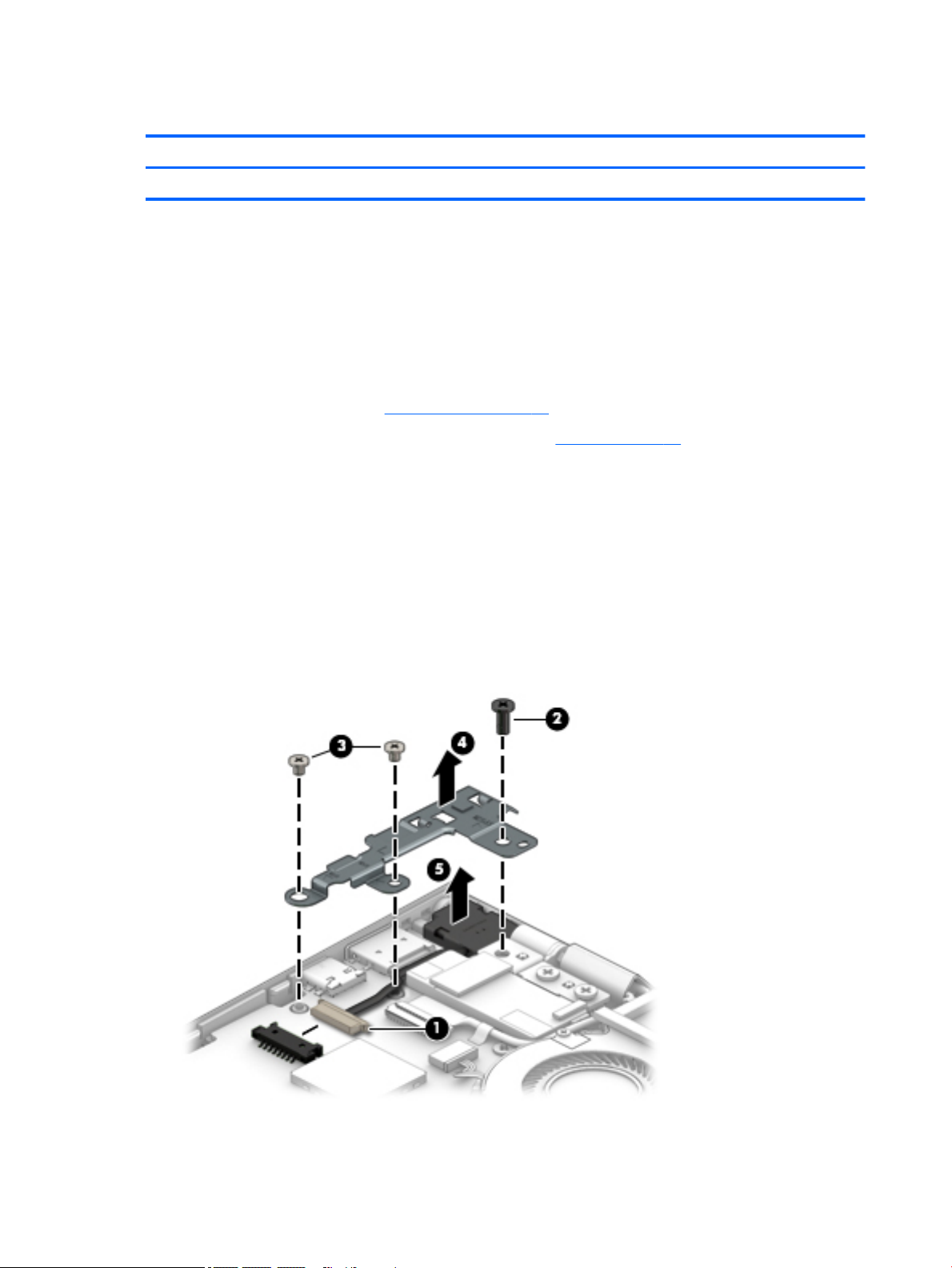

Power connector cable
Description Spare part number
Power connector cable 808155-020
Before removing the power connector cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 30).
5. Disconnect the battery cable from the system board (see Battery on page 33).
Remove the power connector cable:
1. Disconnect the power connector cable (1) from the system board.
2. Remove the Phillips PM2.5×5.7 screw (2) that secures the right I/O bracket to the keyboard/top cover.
3. Remove the two Phillips PM2.0×2.0 broad head screws (3) that secure the right I/O bracket to the
keyboard/top cover.
4. Remove the right I/O bracket (4).
The right I/O bracket is available using spare part number 928468-001.
5. Remove the power connector cable (5).
Reverse this procedure to install the power connector cable.
40 Chapter 5 Removal and replacement procedures
Page 49
Display assembly
Description Spare part number
In natural silver nish:
UHD, WLED, BrightView (3840×2160), uslim-at (2.0-mm), UWVA, eDP1.3+PSR, narrow bezel (DBTS),
TouchScreen display assembly (340 nits, 72% color gamut)
FHD, WLED, BrightView (1920×1080), uslim-at (2.4-mm), UWVA, eDP1.3+PSR, narrow bezel (DBTS),
TouchScreen display assembly (300 nits, 72% color gamut)
UHD, WLED, BrightView (3840×2160), uslim-at (2.0-mm), UWVA, eDP1.3+PSR, narrow bezel, nonTouchScreen display assembly (340 nits, 72% color gamut)
UHD, WLED, BrightView (3840×2160), uslim-at (2.0-mm), UWVA, eDP1.3+PSR, narrow bezel (DBCG),
non-TouchScreen, ush glass display assembly (340 nits, 72% color gamut)
FHD, WLED, BrightView (1920×1080), uslim-at (2.4-mm), UWVA, eDP1.3+PSR, narrow bezel, nonTouchScreen display assembly (300 nits, 72% color gamut)
FHD, WLED, BrightView (1920×1080), uslim-at (2.4-mm), UWVA, eDP1.3+PSR, narrow bezel (DBCG),
non-TouchScreen display assembly (300 nits, 72% color gamut)
In silk gold nish:
FHD, WLED, BrightView (1920×1080), uslim-at (2.4-mm), UWVA, eDP1.3+PSR, narrow bezel (DBTS),
TouchScreen display assembly (300 nits, 72% color gamut)
UHD, WLED, BrightView (3840×2160), uslim-at (2.0-mm), UWVA, eDP1.3+PSR, narrow bezel (DBTS),
TouchScreen display assembly (340 nits, 72% color gamut)
UHD, WLED, BrightView (3840×2160), uslim-at (2.0-mm), UWVA, eDP1.3+PSR, narrow bezel, nonTouchScreen display assembly (340 nits, 72% color gamut)
UHD, WLED, BrightView (3840×2160), uslim-at (2.0-mm), UWVA, eDP1.3+PSR, narrow bezel (DBCG),
non-TouchScreen, ush glass display assembly (340 nits, 72% color gamut)
928479-001
928478-001
928483-001
928475-001
928482-001
928474-001
928476-001
928477-001
928481-001
928473-001
FHD, WLED, BrightView (3840×2160), uslim-at (2.0-mm), UWVA, eDP1.3+PSR, narrow bezel, nonTouchScreen display assembly (340 nits, 72% color gamut)
FHD, WLED, BrightView (3840×2160), uslim-at (2.0-mm), UWVA, eDP1.3+PSR, narrow bezel (DBCG),
non-TouchScreen, ush glass display assembly (340 nits, 72% color gamut)
928480-001
928472-001
Before removing the display assembly, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 30).
5. Disconnect the battery cable from the system board (see Battery on page 33).
Remove the display assembly:
1. Release the ZIF connector (1) to which webcam/microphone module cable is connected, and then
disconnect the webcam/microphone module from the system board.
2. Release the piece of tape (2) that secures the webcam/microphone module cable to the system board.
Component replacement procedures 41
Page 50

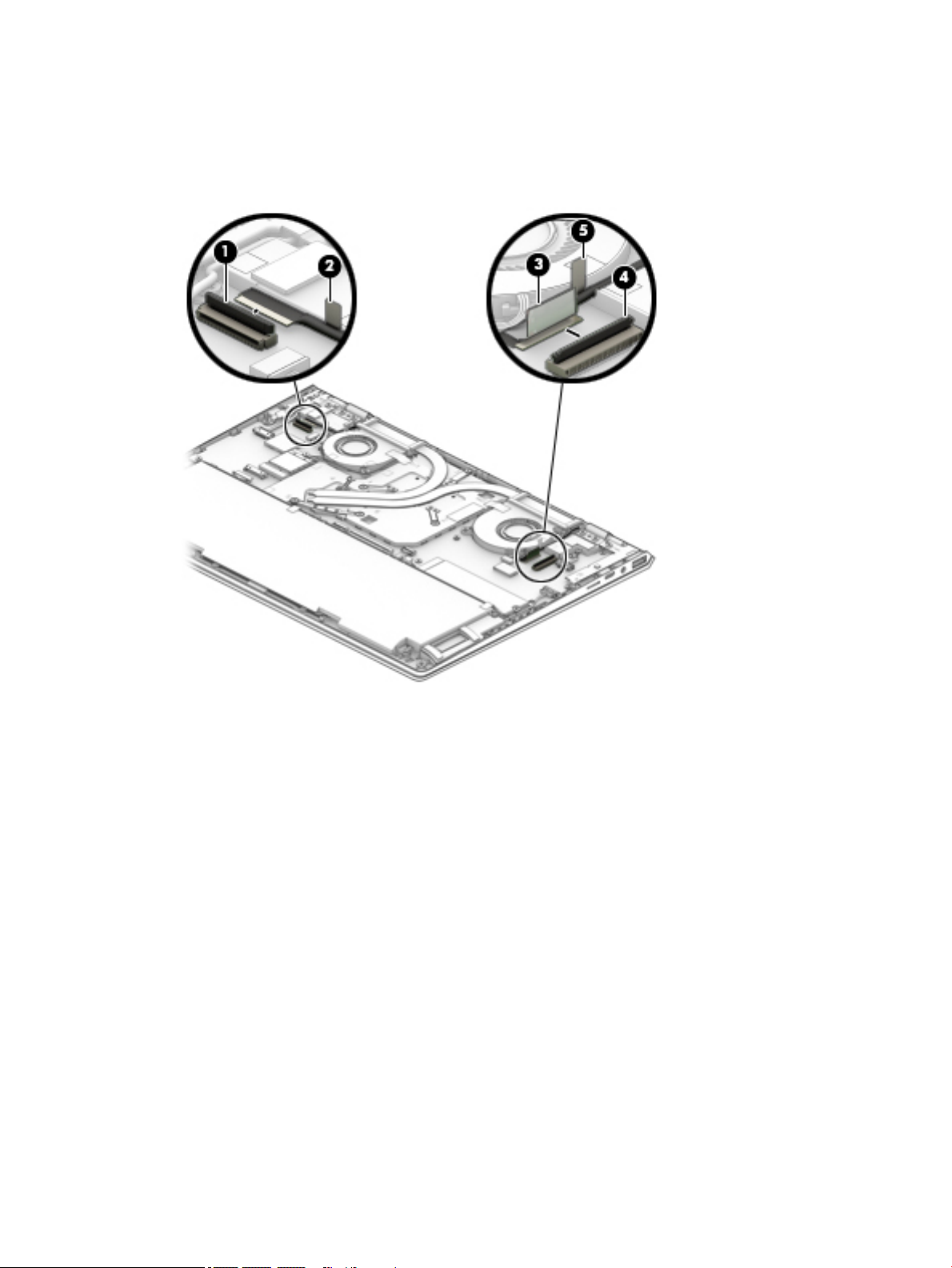

3. Release the adhesive support strip (3) that secures the display panel cable to the system board.
4. Release the ZIF connector (4) to which display panel cable is connected, and then disconnect the display
panel cable from the system board.
5. Release the piece of tape (5) that secures the display panel cable to the system board.

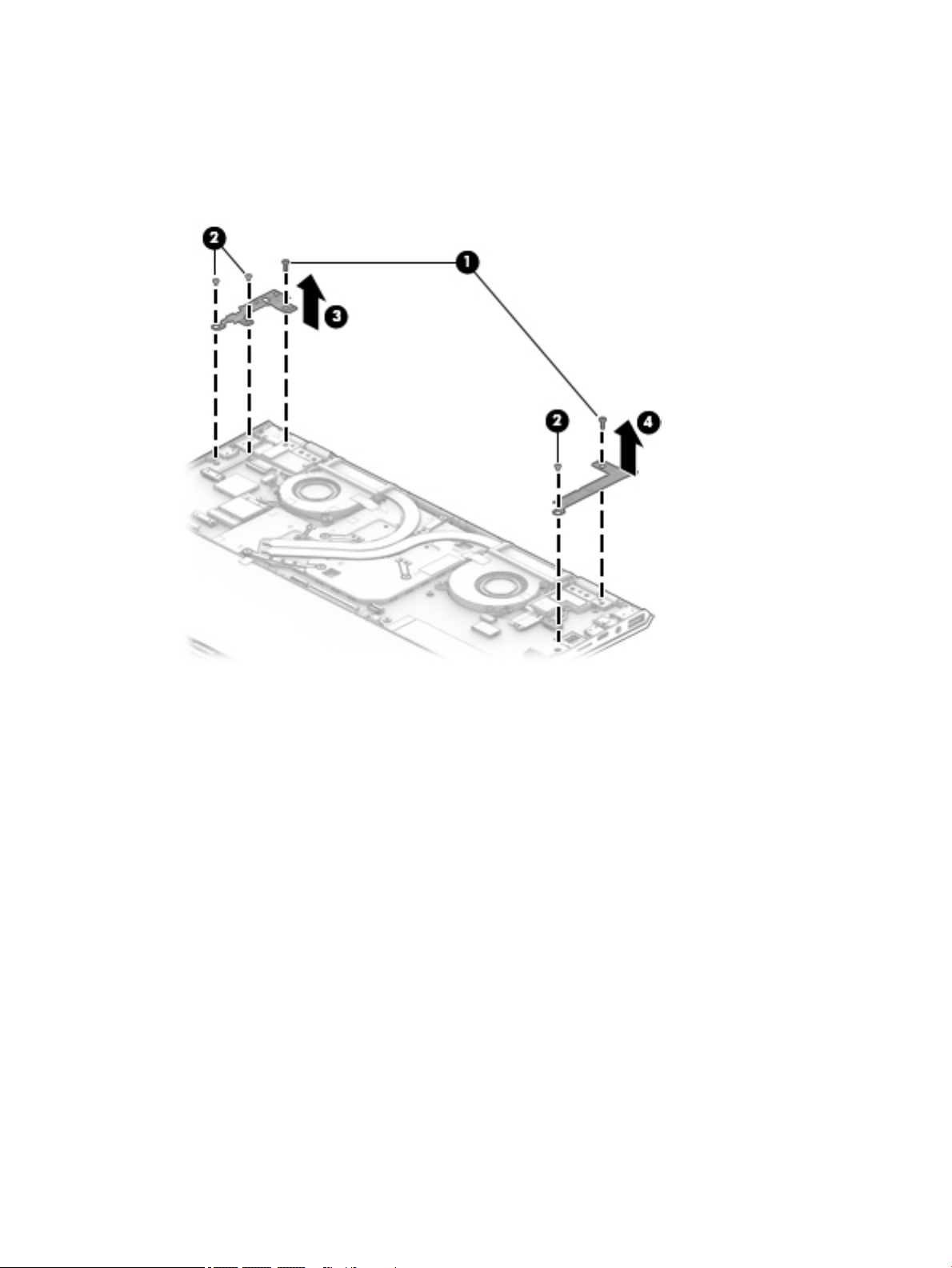

6. Remove the two Phillips PM2.5×5.7 screws (1) that secure the left and right I/O brackets to the
keyboard/top cover.
7. Remove the three Phillips PM2.0×2.0 broad head screws (2) that secure the left and right I/O brackets to
the keyboard/top cover.
8. Remove the right I/O bracket (3).
The right I/O bracket is available using spare part number 928468-001.
42 Chapter 5 Removal and replacement procedures
Page 51
9. Remove the left I/O bracket (4).
The left I/O bracket is available using spare part number 928467-001.
10. Remove the four Phillips PM2.5×5.7 screws (1) that secure the display assembly to the keyboard/top
cover.
11. Lift the front edge of the keyboard/top cover (2) until it rests at an angle.
12. Slide the keyboard/top cover (3) up and away at an angle and separate it from the display assembly.
Reverse this procedure to install the display assembly.
Component replacement procedures 43
Page 52
TouchPad cable
NOTE: The TouchPad spare part kit does not include the TouchPad cable. The TouchPad cable is available
using spare part numbers 928451-001 (for use only on computer models equipped with a graphics
subsystem with discrete memory) and 928452-001 (for use only on computer models equipped with a
graphics subsystem with UMA memory).
Before removing the TouchPad cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 30).
5. Remove the battery (see Battery on page 33).

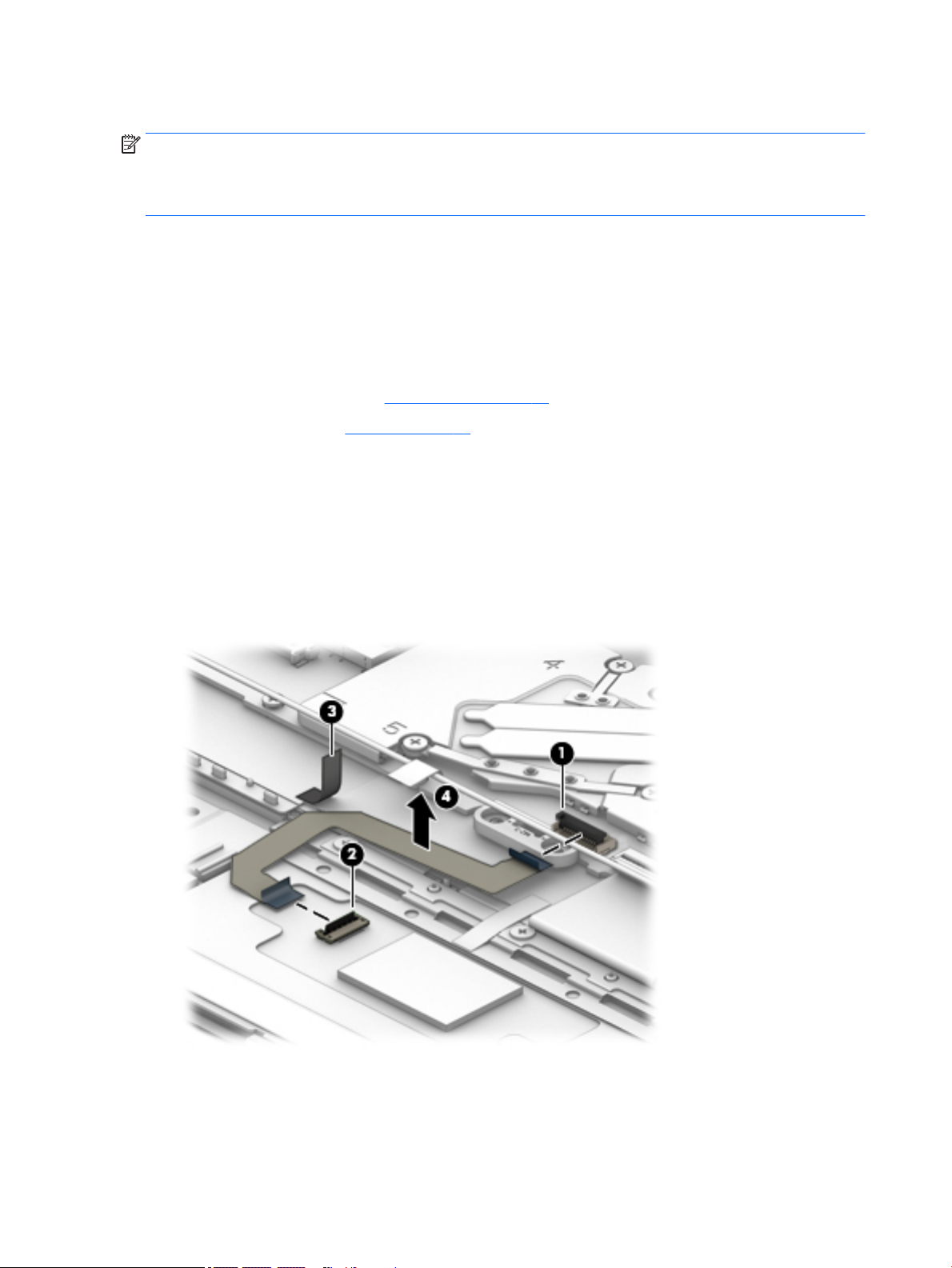

Remove the TouchPad cable:
1. Release the ZIF connector (1) to which TouchPad cable is connected, and then disconnect the TouchPad
cable from the system board.
2. Release the ZIF connector (2) to which TouchPad cable is connected, and then disconnect the TouchPad
cable from the TouchPad.
3. Release the piece of tape (3) that secures the TouchPad cable to the keyboard/top cover.
4. Remove the TouchPad cable (4).
Reverse this procedure to install the TouchPad cable.
44 Chapter 5 Removal and replacement procedures
Page 53
TouchPad
NOTE: The TouchPad spare part kit does not include the TouchPad bracket or TouchPad cable. The TouchPad
bracket is available using spare part number 928466-001. The TouchPad cable is available using spare part
numbers 928451-001 (for use only on computer models equipped with a graphics subsystem with discrete
memory) and 928452-001 (for use only on computer models equipped with a graphics subsystem with UMA
memory).
Before removing the TouchPad, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
Description Spare part number
ClickPad in natural silver nish 928488-001
ClickPad in silk gold nish 928487-001
SecurePad in natural silver nish 928490-001
SecurePad in silk gold nish 928489-001
computer on, and then shut it down through the operating system.
then unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 30).
5. Remove the battery (see Battery on page 33).
Remove the TouchPad:
1. Release the ZIF connector (1) to which TouchPad cable is connected, and then disconnect the TouchPad
cable from the system board.
2. Release the piece of tape (2) that secures the TouchPad cable to the keyboard/top cover.
3. Release the piece of tape (3) that secures the TouchPad to the keyboard/top cover.
4. Remove the ve Phillips PM2.0×2.3 broad head screws (4) that secure the TouchPad to the keyboard/top
cover.
5. Remove the TouchPad bracket (5) .
Component replacement procedures 45
Page 54
6. Remove the TouchPad (6).
Reverse this procedure to install the TouchPad.
46 Chapter 5 Removal and replacement procedures
Page 55
System board
NOTE: The system board spare part kit includes a processor and replacement thermal material.
Description Spare part number
Equipped with an Intel Core i7-7500U 2.70-GHz (turbo up to 3.50-GHz) dual core processor (2133-MHz
FSB, 4.0-MB L3 cache, 15-W), an NVIDIA N17S-LG (GeForce MX150) graphics subsystem with up to 2048MB of discrete video memory (256-MB×32 GDDR5×2 pieces, 1.5-V/7-Gbps), 8-GB of system memory,
and the Windows 10 operating system
Equipped with an Intel Core i7-7500U 2.70-GHz (turbo up to 3.50-GHz) dual core processor (2133-MHz
FSB, 4.0-MB L3 cache, 15-W), an NVIDIA N17S-LG (GeForce MX150) graphics subsystem with up to 2048MB of discrete video memory (256-MB×32 GDDR5×2 pieces, 1.5-V/7-Gbps), 8-GB of system memory,
and a non-Windows operating system
Equipped with an Intel Core i7-7500U 2.70-GHz (turbo up to 3.50-GHz) dual core processor (2133-MHz
FSB, 4.0-MB L3 cache, 15-W), an Intel HD Graphics 620 graphics subsystem with UMA memory, 16-GB of
system memory, and the Windows 10 operating system
Equipped with an Intel Core i7-7500U 2.70-GHz (turbo up to 3.50-GHz) dual core processor (2133-MHz
FSB, 4.0-MB L3 cache, 15-W), an Intel HD Graphics 620 graphics subsystem with UMA memory, 16-GB of
system memory, and a non-Windows operating system
Equipped with an Intel Core i7-7500U 2.70-GHz (turbo up to 3.50-GHz) dual core processor (2133-MHz
FSB, 4.0-MB L3 cache, 15-W), an Intel HD Graphics 620 graphics subsystem with UMA memory, 8-GB of
system memory, and the Windows 10 operating system
Equipped with an Intel Core i7-7500U 2.70-GHz (turbo up to 3.50-GHz) dual core processor (2133-MHz
FSB, 4.0-MB L3 cache, 15-W), an Intel HD Graphics 620 graphics subsystem with UMA memory, 8-GB of
system memory, and a non-Windows operating system
Equipped with an Intel Core i7-8550U processor, graphics subsystem with UMA memory, 8-GB of system
memory, and a Windows operating system
Equipped with an Intel Core i7-8550U processor, graphics subsystem with UMA memory, 8-GB of system
memory, and a non-Windows operating system
926318-601
926318-001
926315-601
926315-001
926314-601
926314-001
939648-601
939648-001
Equipped with an Intel Core i7-8550U processor, graphics subsystem with 2-GB discrete memory, 8-GB
of system memory, and a Windows operating system
Equipped with an Intel Core i7-8550U processor, MX150 graphics subsystem with 2-GB discrete
memory, 8-GB of system memory, and a non-Windows operating system
Equipped with an Intel Core i7-8550U processor, graphics subsystem with 2-GB discrete memory, 16-GB
of system memory, and a Windows operating system
Equipped with an Intel Core i7-8550U processor, MX150 graphics subsystem with 2-GB discrete
memory, 16-GB of system memory, and a non-Windows operating system
Equipped with an Intel Core i5-7200U 2.50-GHz (turbo up to 3.10-GHz) dual core processor (2133-MHz
FSB, 3.0-MB L3 cache, 15-W), an NVIDIA N17S-LG (GeForce MX150) graphics subsystem with up to 2048MB of discrete video memory (256-MB×32 GDDR5×2 pieces, 1.5-V/7-Gbps), 8-GB of system memory,
and the Windows 10 operating system
Equipped with an Intel Core i5-7200U 2.50-GHz (turbo up to 3.10-GHz) dual core processor (2133-MHz
FSB, 3.0-MB L3 cache, 15-W), an NVIDIA N17S-LG (GeForce MX150) graphics subsystem with up to 2048MB of discrete video memory (256-MB×32 GDDR5×2 pieces, 1.5-V/7-Gbps), 8-GB of system memory,
and a non-Windows operating system
Equipped with an Intel Core i5-7200U 2.50-GHz (turbo up to 3.10-GHz) dual core processor (2133-MHz
FSB, 3.0-MB L3 cache, 15-W), an NVIDIA N17S-LG (GeForce MX150) graphics subsystem with up to 2048MB of discrete video memory (256-MB×32 GDDR5×2 pieces, 1.5-V/7-Gbps), 4-GB of system memory,
and the Windows 10 operating system
939651-601
939651-001
939652-601
939652-001
926317-601
926317-001
926316-601
Component replacement procedures 47
Page 56
Description Spare part number
Equipped with an Intel Core i5-7200U 2.50-GHz (turbo up to 3.10-GHz) dual core processor (2133-MHz
FSB, 3.0-MB L3 cache, 15-W), an NVIDIA N17S-LG (GeForce MX150) graphics subsystem with up to 2048MB of discrete video memory (256-MB×32 GDDR5×2 pieces, 1.5-V/7-Gbps), 4-GB of system memory,
and a non-Windows operating system
Equipped with an Intel Core i5-7200U 2.50-GHz (turbo up to 3.10-GHz) dual core processor (2133-MHz
FSB, 3.0-MB L3 cache, 15-W), an Intel HD Graphics 620 graphics subsystem with UMA memory, 8-GB of
system memory, and the Windows 10 operating system
Equipped with an Intel Core i5-7200U 2.50-GHz (turbo up to 3.10-GHz) dual core processor (2133-MHz
FSB, 4.0-MB L3 cache, 15-W), an Intel HD Graphics 620 graphics subsystem with UMA memory, 8-GB of
system memory, and a non-Windows operating system
Equipped with an Intel Core i5-7200U 2.50-GHz (turbo up to 3.10-GHz) dual core processor (2133-MHz
FSB, 3.0-MB L3 cache, 15-W), an Intel HD Graphics 620 graphics subsystem with UMA memory, 4-GB of
system memory, and the Windows 10 operating system
Equipped with an Intel Core i5-7200U 2.50-GHz (turbo up to 3.10-GHz) dual core processor (2133-MHz
FSB, 4.0-MB L3 cache, 15-W), an Intel HD Graphics 620 graphics subsystem with UMA memory, 4-GB of
system memory, and a non-Windows operating system
Equipped with an Intel Core i5-8250U processor, graphics subsystem with UMA memory, 4-GB of system
memory, and a Windows operating system
Equipped with an Intel Core i5-8250U processor, graphics subsystem with UMA memory, 4-GB of system
memory, and a non-Windows operating system
Equipped with an Intel Core i5-8250U processor, graphics subsystem with UMA memory, 8-GB of system
memory, and a Windows operating system
Equipped with an Intel Core i5-8250U processor, graphics subsystem with UMA memory, 8-GB of system
memory, and a non-Windows operating system
926316-001
926313-601
926313-001
926312-601
926312-001
939646-601
939646-001
939647-601
939647-001
Equipped with an Intel Core i5-8250U processor, graphics subsystem with 2-GB discrete memory, 4-GB
of system memory, and a Windows operating system
Equipped with an Intel Core i5-8250U processor, MX150 graphics subsystem with 2-GB discrete
memory, 4-GB of system memory, and a non-Windows operating system
Equipped with an Intel Core i5-8250U processor, graphics subsystem with 2-GB discrete memory, 8-GB
of system memory, and a Windows operating system
Equipped with an Intel Core i5-8250U processor, MX150 graphics subsystem with 2-GB discrete
memory, 8-GB of system memory, and a non-Windows operating system
Equipped with an Intel Core i3-7100U 2.40-GHz dual core processor (2133-MHz FSB, 3.0-MB L3 cache,
15-W), an Intel HD Graphics 620 graphics subsystem with UMA video memory, 4-GB of system memory,
and the Windows 10 operating system
Equipped with an Intel Core i3-7100U 2.40-GHz dual core processor (2133-MHz FSB, 3.0-MB L3 cache,
15-W), an Intel HD Graphics 620 graphics subsystem with UMA video memory, 4-GB of system memory,
and a non-Windows operating system
939649-601
939649-001
939650-601
939650-001
926311-601
926311-001
Before removing the system board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
48 Chapter 5 Removal and replacement procedures
Page 57
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 30), and then remove the following components:
a. Battery (see Battery on page 33)
b. Solid-state drive (see Solid-state drive on page 34)
c. WLAN module (see WLAN module on page 35)
d. Fans (see Fans on page 38)
When replacing the system board, be sure to remove the heat sink (see Heat sink on page 52) from the
defective system board and install it on the replacement system board.
Remove the system board:
1. Disconnect the following cables from the system board:
(1) Power connector cable
(2) Webcam/microphone module ZIF connector cable
(3) Display panel ZIF connector cable
(4) Rear speaker cable
(5) Front speaker cable
(6) Backlight ZIF connector cable
(7) Keyboard ZIF connector cable
(8) TouchPad ZIF connector cable
2. Remove the two Phillips PM2.5×5.7 screws (1) that secure the left and right I/O brackets to the
keyboard/top cover.
3. Remove the three Phillips PM2.0×2.0 broad head screws (2) that secure the left and right I/O brackets to
the keyboard/top cover.
Component replacement procedures 49
Page 58
4. Remove the right I/O bracket (3).
The right I/O bracket is available using spare part number 928468-001.
5. Remove the left I/O bracket (4).
The left I/O bracket is available using spare part number 928467-001.
6. Remove the six Phillips PM2.0×3.4 screws (1) that secure the system board to the keyboard/top cover.
7. Remove the four Phillips PM2.0×2.0 broad head screws (2) that secure the system board and the system
board retention hooks to the keyboard/top cover.
50 Chapter 5 Removal and replacement procedures
Page 59

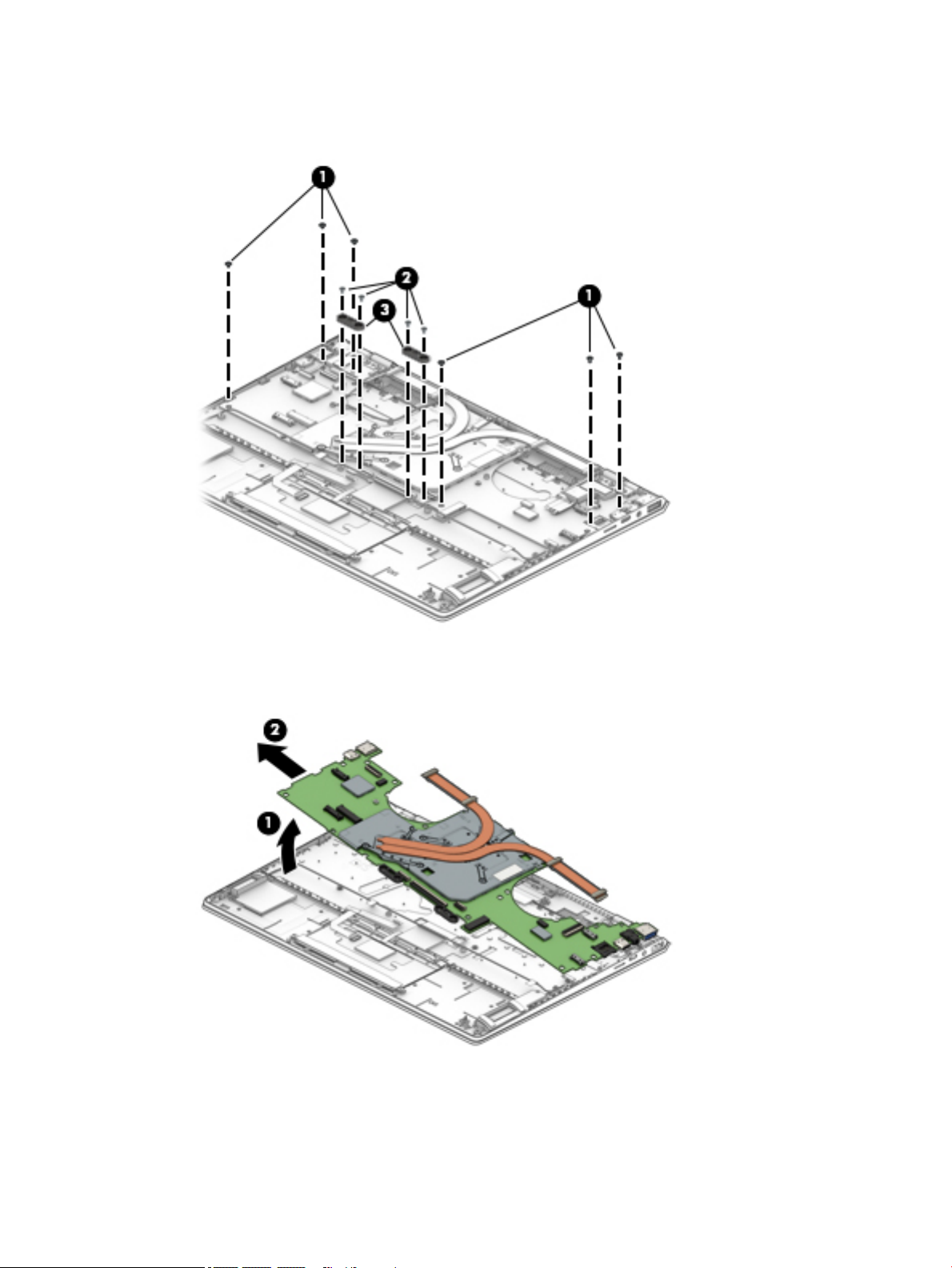

8. Remove the system board retention hooks (3).
The system board retention hooks are available using spare part number 928493-001.
9. Lift the left side of the system board (1) until it rests at an angle.
10. Remove the system board (2) by sliding it up and to the left at an angle.
Reverse this procedure to install the system board.
Component replacement procedures 51
Page 60
Heat sink
NOTE: The heat sink spare part kit includes replacement thermal material.
Before removing the heat sink, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
2. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
3. Disconnect all external devices from the computer.
4. Remove the bottom cover (see Bottom cover on page 30), and then remove the following components:
Description Spare part number
For use only on computer models equipped with a graphics subsystem with discrete memory 927920-001
For use only on computer models equipped with a graphics subsystem with UMA memory 927919-001
computer on, and then shut it down through the operating system.
then unplugging the AC adapter from the computer.
a. Battery (see Battery on page 33)
b. Solid-state drive (see Solid-state drive on page 34)
c. WLAN module (see WLAN module on page 35)
d. Fans (see Fans on page 38)
e. System board (see System board on page 47)
Remove the heat sink:
NOTE: Steps 1 and 2 apply to computer models equipped with a graphics subsystem with discrete memory.
See Steps 3 through 6 for heat sink removal information for computer models equipped with a graphics
subsystem with UMA memory.
1. Loosen the six Phillips PM2.0×6.2 captive screws (1) that secure the heat sink to the system board.
52 Chapter 5 Removal and replacement procedures
Page 61

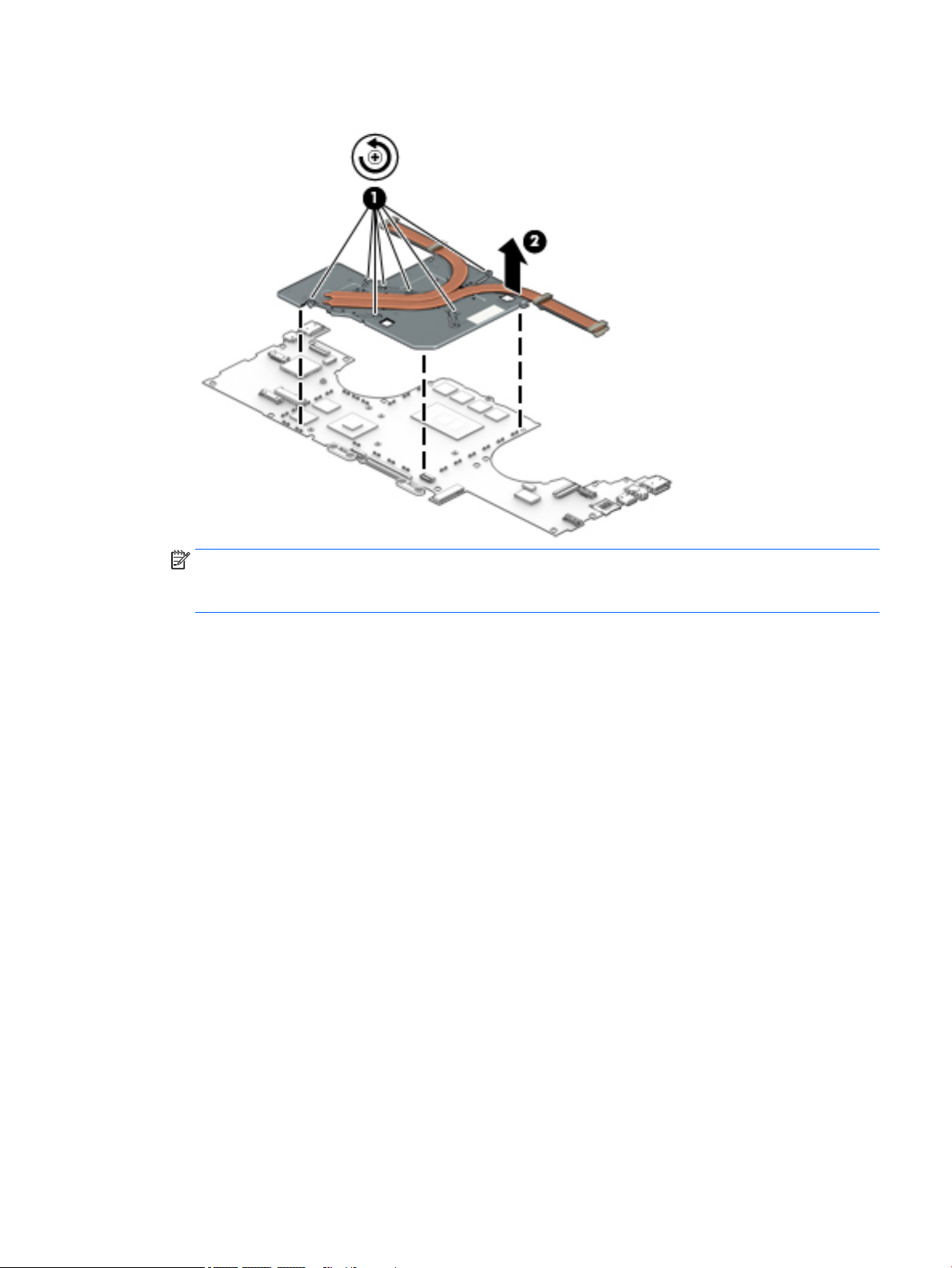

2. Remove the heat sink (2).
NOTE: Steps 3 through 6 apply to computer models equipped with a graphics subsystem with UMA
memory. See Steps 1 and 2 for heat sink removal information for computer models equipped with a
graphics subsystem with discrete memory.

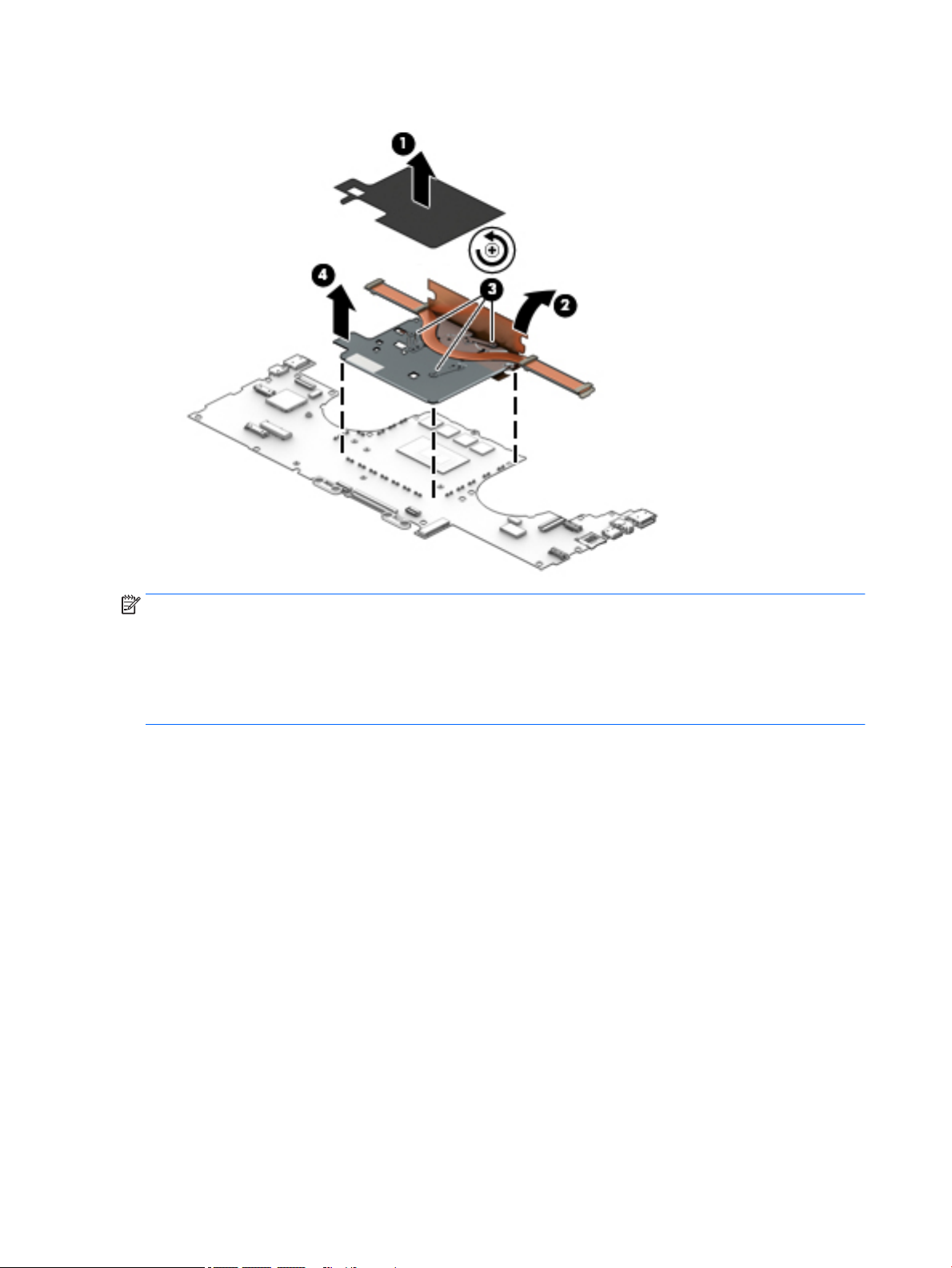

3. Remove the Mylar shielding (1) that covers the heat sink screws.
4. Release the grounding foil (2) that covers the heat sink screws.
5. Loosen the three Phillips PM2.0×6.2 captive screws (3) that secure the heat sink to the system board.
Component replacement procedures 53
Page 62
6. Remove the heat sink (4).
NOTE: The thermal material must be thoroughly cleaned from the surfaces of the heat sink and the system
board components each time the heat sink is removed. Replacement thermal material is included with the
heat sink and system board spare part kits.

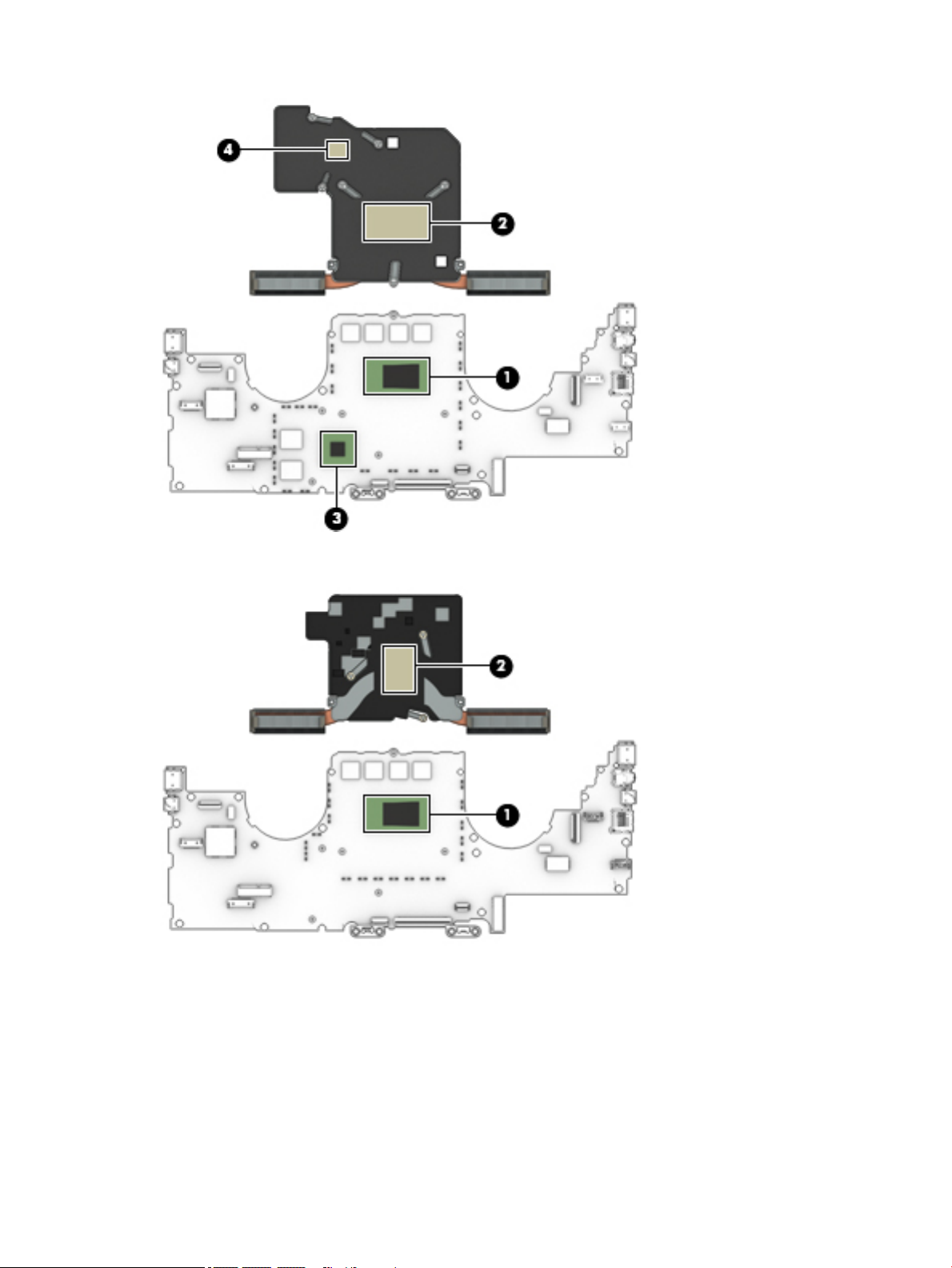

On computer models equipped with a graphics subsystem with discrete memory: Thermal paste is used on
the processor (1) and the heat sink section (2) that services it. Thermal paste is also used on the VGA
component (3) and the heat sink section (4) that services it.
54 Chapter 5 Removal and replacement procedures
Page 63
On computer models equipped with a graphics subsystem with UMA memory: Thermal paste is used on the
processor (1) and the heat sink section (2) that services it.
Reverse this procedure to install the heat sink.
Component replacement procedures 55
Page 64
Rear speakers
NOTE: The rear speaker spare part kit includes the cables.
Description Spare part number
For use only on computer models equipped with a graphics subsystem with discrete memory 928527-001
For use only on computer models equipped with a graphics subsystem with UMA memory 928528-001
Before removing the rear speakers, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
3. Remove the bottom cover (see Bottom cover on page 30), and then remove the following components:
a. Battery (see Battery on page 33)
b. Solid-state drive (see Solid-state drive on page 34)
c. WLAN module (see WLAN module on page 35)
d. Fans (see Fans on page 38)
e. System board (see System board on page 47)

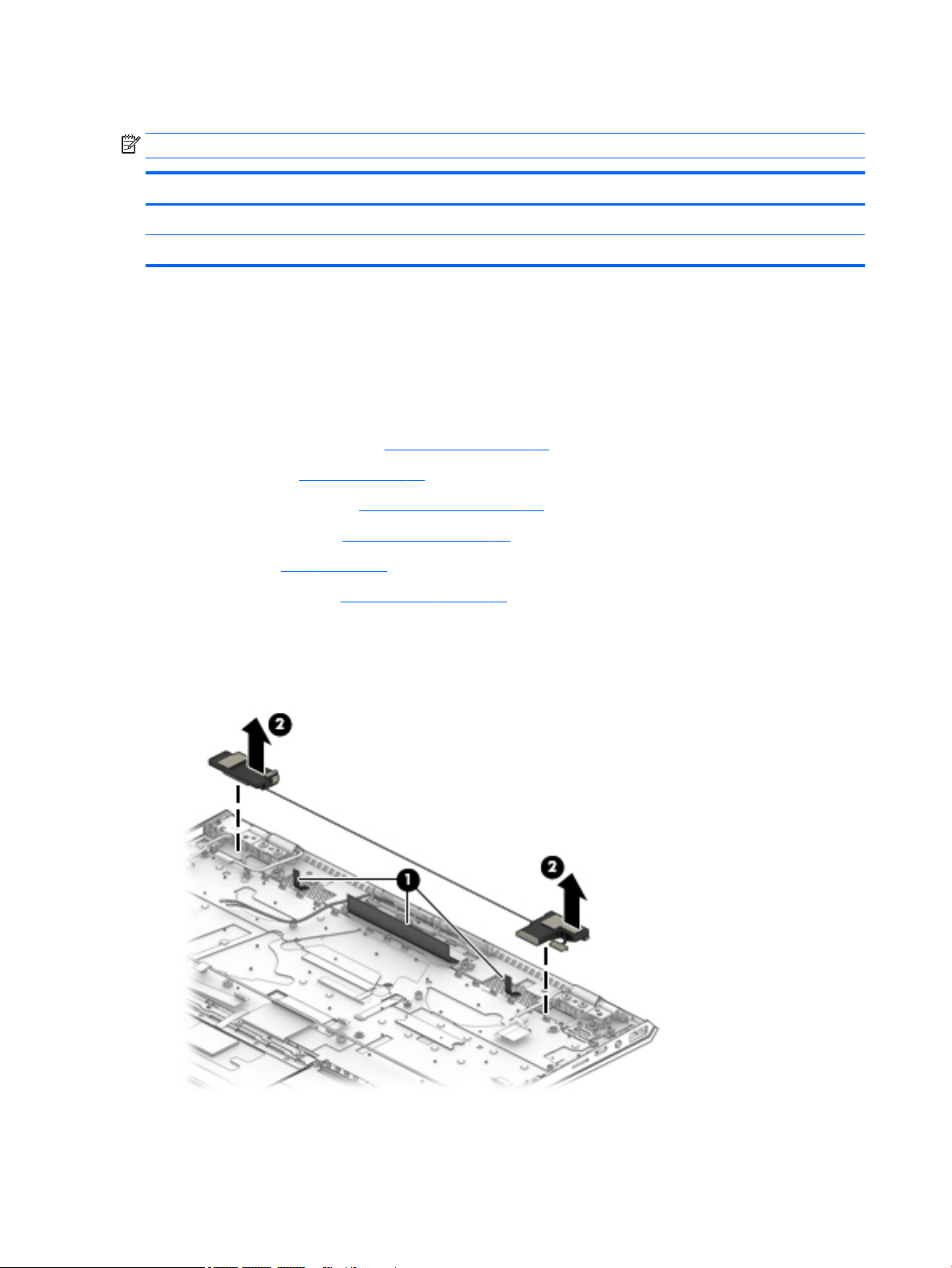

Remove the rear speakers:
1. Release the Mylar shielding (1) and tape that secures the rear speaker cable to the keyboard/top cover.
2. Remove the rear speakers (2).
Reverse this procedure to install the rear speakers.
56 Chapter 5 Removal and replacement procedures
Page 65
Wireless antenna
NOTE: The Wireless Antenna Kit includes the left and right wireless antenna cables and transceivers.
Description Spare part number
For use only on computer models equipped with a graphics subsystem with discrete memory 937093-001
For use only on computer models equipped with a graphics subsystem with UMA memory 936025-001
Before removing the wireless antenna, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
3. Remove the bottom cover (see Bottom cover on page 30), and then remove the following components:
a. Battery (see Battery on page 33)
b. Solid-state drive (see Solid-state drive on page 34)
c. WLAN module (see WLAN module on page 35)
d. Fans (see Fans on page 38)
e. System board (see System board on page 47)
Remove the wireless antenna:
1. Release the tape (1) that secures the wireless antenna cables to the keyboard/top cover.
2. Detach the wireless antenna transceivers (2) from the keyboard/top cover. (The wireless antenna
transceivers are attached to the keyboard/top cover with double-sided adhesive.)
Component replacement procedures 57
Page 66

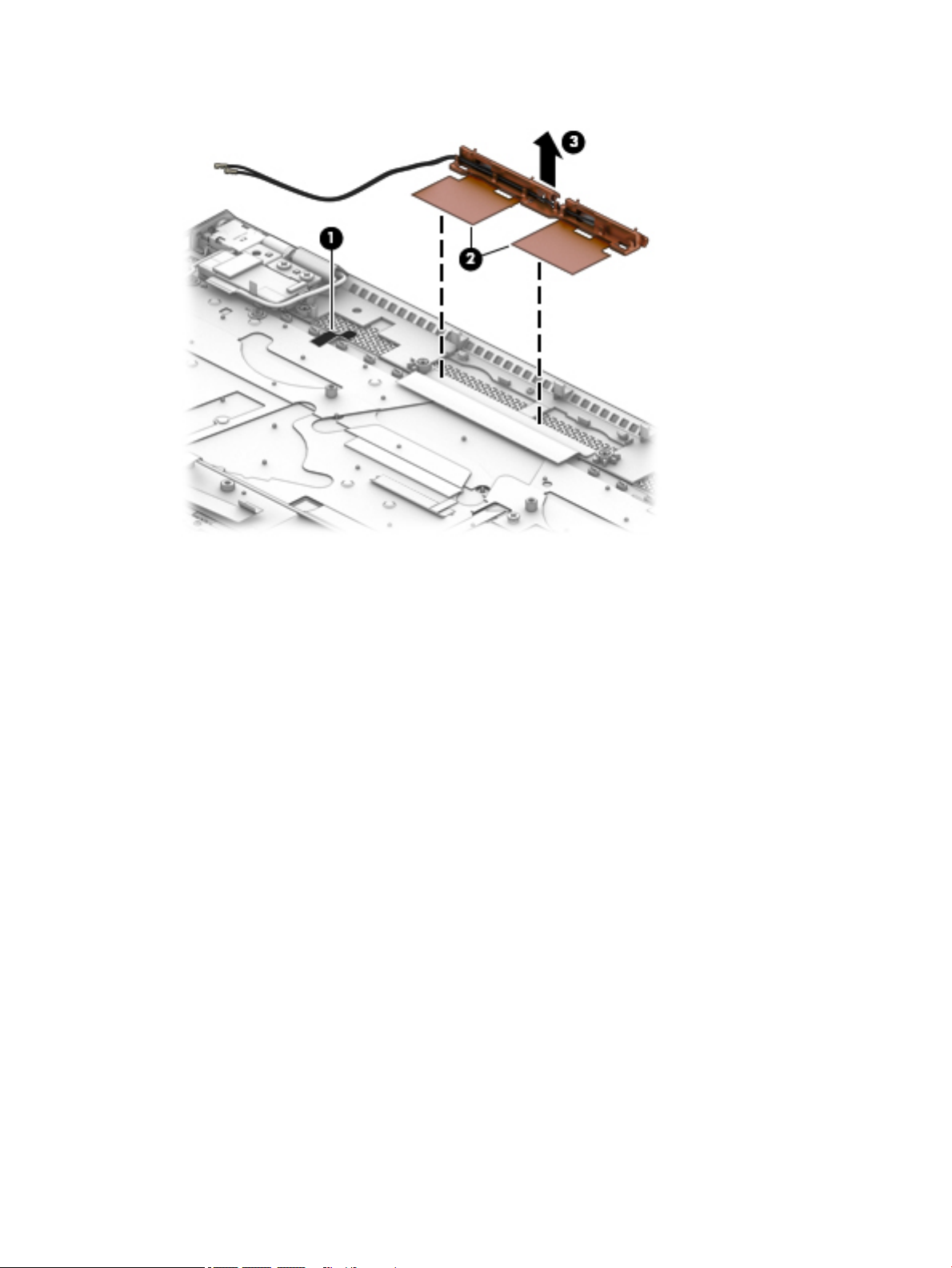

3. Remove the wireless antenna (3).
Reverse this procedure to install the wireless antenna.
58 Chapter 5 Removal and replacement procedures
Page 67
6 Using Setup Utility (BIOS)
Setup Utility, or Basic Input/Output System (BIOS), controls communication between all the input and output
devices on the system (such as disk drives, display, keyboard, mouse, and printer). Setup Utility (BIOS)
includes settings for the types of devices installed, the startup sequence of the computer, and the amount of
system and extended memory.
NOTE: To start Setup Utility on convertible computers, your computer must be in notebook mode and you
must use the keyboard attached to your notebook.
Starting Setup Utility (BIOS)
CAUTION: Use extreme care when making changes in Setup Utility (BIOS). Errors can prevent the computer
from operating properly.
▲ Turn on or restart the computer, quickly press esc, and then press f10.
Updating Setup Utility (BIOS)
Updated versions of Setup Utility (BIOS) may be available on the HP website.
Most BIOS updates on the HP website are packaged in compressed les called SoftPaqs.
Some download packages contain a le named Readme.txt, which contains information regarding installing
and troubleshooting the le.
Determining the BIOS version
To decide whether you need to update Setup Utility (BIOS), rst determine the BIOS version on your computer.
To reveal the BIOS version information (also known as ROM date and System BIOS), use one of these options.
●
HP Support Assistant
1. Type support in the taskbar search box, and then select the HP Support Assistant app.
– or –
Click the question mark icon in the taskbar.
2. Select My PC, and then select Specications.
●
Setup Utility (BIOS)
1. Start Setup Utility (BIOS) (see Starting Setup Utility (BIOS) on page 59).
2. Select Main, select System Information, and then make note of the BIOS version.
3. Select Exit, select No, and then follow the on-screen instructions.
To check for later BIOS versions, see Downloading a BIOS update on page 60.
Starting Setup Utility (BIOS) 59
Page 68
Downloading a BIOS update
CAUTION: To reduce the risk of damage to the computer or an unsuccessful installation, download and
install a BIOS update only when the computer is connected to reliable external power using the AC adapter. Do
not download or install a BIOS update while the computer is running on battery power, docked in an optional
docking device, or connected to an optional power source. During the download and installation, follow these
instructions:
●
Do not disconnect power from the computer by unplugging the power cord from the AC outlet.
●
Do not shut down the computer or initiate Sleep.
●
Do not insert, remove, connect, or disconnect any device, cable, or cord.
NOTE: If your computer is connected to a network, consult the network administrator before installing any
software updates, especially system BIOS updates.
1. Type support in the taskbar search box, and then select the HP Support Assistant app.
– or –
Click the question mark icon in the taskbar.
2. Click Updates, and then click Check for updates and messages.
3. Follow the on-screen instructions.
4. At the download area, follow these steps:
a. Identify the most recent BIOS update and compare it to the BIOS version currently installed on your
computer. If the update is more recent than your BIOS version, make a note of the date, name, or
other identier. You may need this information to locate the update later, after it has been
downloaded to your hard drive.
b. Follow the on-screen instructions to download your selection to the hard drive.
Make a note of the path to the location on your hard drive where the BIOS update is downloaded.
You will need to access this path when you are ready to install the update.
BIOS installation procedures vary. Follow any instructions that appear on the screen after the download is
complete. If no instructions appear, follow these steps:
1. Type file in the taskbar search box, and then select File Explorer.
2. Click your hard drive designation. The hard drive designation is typically Local Disk (C:).
3. Using the hard drive path you recorded earlier, open the folder that contains the update.
4. Double-click the le that has an .exe extension (for example, lename.exe).
The BIOS installation begins.
5. Complete the installation by following the on-screen instructions.
NOTE: After a message on the screen reports a successful installation, you can delete the downloaded le
from your hard drive.
60 Chapter 6 Using Setup Utility (BIOS)
Page 69
7 Using HP PC Hardware Diagnostics (UEFI)
HP PC Hardware Diagnostics is a Unied Extensible Firmware Interface (UEFI) that allows you to run diagnostic
tests to determine whether the computer hardware is functioning properly. The tool runs outside the
operating system so that it can isolate hardware failures from issues that are caused by the operating system
or other software components.
When HP PC Hardware Diagnostics (UEFI) detects a failure that requires hardware replacement, a 24-digit
Failure ID code is generated. This ID code can then be provided to support to help determine how to correct
the problem.
NOTE: To start diagnostics on a convertible computer, your computer must be in notebook mode and you
must use the keyboard attached.
To start HP PC Hardware Diagnostics (UEFI), follow these steps:
1. Turn on or restart the computer, and quickly press esc.
2. Press f2.
The BIOS searches three places for the diagnostic tools, in the following order:
a. Connected USB drive
NOTE: To download the HP PC Hardware Diagnostics (UEFI) tool to a USB drive, see Downloading
HP PC Hardware Diagnostics (UEFI) to a USB device on page 62.
b. Hard drive
c. BIOS
3. When the diagnostic tool opens, select the type of diagnostic test you want to run, and then follow the
on-screen instructions.
NOTE: If you need to stop a diagnostic test, press esc.
61
Page 70
Downloading HP PC Hardware Diagnostics (UEFI) to a USB device
NOTE: The HP PC Hardware Diagnostics (UEFI) download instructions are provided in English only, and you
must use a Windows computer to download and create the HP UEFI support environment because only .exe
les are oered.
There are two options to download HP PC Hardware Diagnostics to a USB device.
Download the latest UEFI version
1. Go to http://www.hp.com/go/techcenter/pcdiags. The HP PC Diagnostics home page is displayed.
2. In the HP PC Hardware Diagnostics section, select the Download link, and then select Run.
Download any version of UEFI for a specic product
1. Go to http://www.hp.com/support.
2. Select Get software and drivers.
3. Enter the product name or number.
4. Select your computer, and then select your operating system.
5. In the Diagnostic section, follow the on-screen instructions to select and download the UEFI version
you want.
62 Chapter 7 Using HP PC Hardware Diagnostics (UEFI)
Page 71
8 Specications
Metric U.S.
Computer dimensions
Width 30.5 cm 12.0 in
Depth 21.6 cm 8.5 in
Height 1.4 cm 0.6 in
Weight
Computer models equipped with a graphics subsystem with discrete
memory
Computer models equipped with a graphics subsystem with UMA
memory
Temperature
Operating 5°C to 35°C 41°F to 95°F
Nonoperating ‑20°C to 60°C ‑4°F to 140°F
Relative humidity (noncondensing)
Operating 10% to 90%
Nonoperating 5% to 95%
Maximum altitude (unpressurized)
Operating ‑15 m to 3,048 m ‑50 ft to 10,000 ft
Nonoperating ‑15 m to 12,192 m ‑50 ft to 40,000 ft
NOTE: Applicable product safety standards specify thermal limits for plastic surfaces. The device operates well within this range of
temperatures.
1.32 kg 2.91 lbs
1.26 kg 2.77 lbs
63
Page 72
9 Backing up, restoring, and recovering
This chapter provides information about the following processes. The information in the chapter is standard
procedure for most products.
●
Creating recovery media and backups
●
Restoring and recovering your system
For additional information, refer to the HP Support Assistant app.
▲
Type support in the taskbar search box, and then select the HP Support Assistant app.
‒ or –
Select the question mark icon in the taskbar.
IMPORTANT: If you will be performing recovery procedures on a tablet, the tablet battery must be at least
70% charged before you start the recovery process.
IMPORTANT: For a tablet with a detachable keyboard, connect the tablet to the keyboard base before
beginning any recovery process.
Creating recovery media and backups
The following methods of creating recovery media and backups are available on select products only. Choose
the available method according to your computer model.
●
Use HP Recovery Manager to create HP Recovery media after you successfully set up the computer. This
step creates a backup of the HP Recovery partition on the computer. The backup can be used to reinstall
the original operating system in cases where the hard drive is corrupted or has been replaced. For
information on creating recovery media, see Using HP Recovery media (select products only)
on page 64. For information on the recovery options that are available using the recovery media, see
Using Windows tools on page 65.
●
Use Windows tools to create system restore points and create backups of personal information. See
Using Windows tools on page 65.
NOTE: If storage is 32 GB or less, Microsoft System Restore is disabled by default.
●
On select products, use the HP Cloud Recovery Download Tool to create a bootable USB ash drive for
your HP recovery media. For more information, see Using the HP Cloud Recovery Download Tool (select
products only) on page 66.
Using HP Recovery media (select products only)
If possible, check for the presence of the Recovery partition and the Windows partition. Right-click the Start
button, select File Explorer, and then select This PC.
●
If your computer does not list the Windows partition and the Recovery partition, you can obtain recovery
media for your system from support. You can nd contact information on the HP website. Go to
http://www.hp.com/support, select your country or region, and follow the on-screen instructions.
●
If your computer does list the Recovery partition and the Windows partition, you can use HP Recovery
Manager to create recovery media after you successfully set up the computer. HP Recovery media can be
64 Chapter 9 Backing up, restoring, and recovering
Page 73
used to perform system recovery if the hard drive becomes corrupted. System recovery reinstalls the
original operating system and software programs that were installed at the factory and then congures
the settings for the programs. HP Recovery media can also be used to customize the system or restore
the factory image if you replace the hard drive.
–
Only one set of recovery media can be created. Handle these recovery tools carefully, and keep
them in a safe place.
–
HP Recovery Manager examines the computer and determines the required storage capacity for
the media that will be required.
–
To create recovery discs, your computer must have an optical drive with DVD writer capability, and
you must use only high-quality blank DVD-R, DVD+R, DVD-R DL, or DVD+R DL discs. Do not use
rewritable discs such as CD±RW, DVD±RW, double-layer DVD±RW, or BD-RE (rewritable Blu-ray)
discs; they are not compatible with HP Recovery Manager software. Or, instead, you can use a highquality blank USB
–
If your computer does not include an integrated optical drive with DVD writer capability, but you
would like to create DVD recovery media, you can use an external optical drive (purchased
separately) to create recovery discs. If you use an external optical drive, it must be connected
directly to a USB port on the computer; the drive cannot be connected to a USB port on an external
device, such as a USB hub. If you cannot create DVD media yourself, you can obtain recovery discs
for your computer from HP. You can nd contact information on the HP website. Go to
http://www.hp.com/support, select your country or region, and follow the on-screen instructions.
–
Be sure that the computer is connected to AC power before you begin creating the recovery media.
ash drive.
–
The creation process can take an hour or more. Do not interrupt the creation process.
–
If necessary, you can exit the program before you have nished creating all of the recovery DVDs.
HP Recovery Manager will nish burning the current DVD. The next time you start HP Recovery
Manager, you will be prompted to continue.
To create HP Recovery media using HP recovery manager:
IMPORTANT: For a tablet with a detachable keyboard, connect the tablet to the keyboard base before
beginning these steps.
1. Type recovery in the taskbar search box, and then select HP Recovery Manager.
2. Select Create recovery media, and then follow the on-screen instructions.
If you ever need to recover the system, see Recovering using HP Recovery Manager on page 66.
Using Windows tools
You can create recovery media, system restore points, and backups of personal information using Windows
tools.
NOTE: If storage is 32 GB or less, Microsoft System Restore is disabled by default.
For more information and steps, see the Get Help app.
▲ Select the Start button, and then select the Get Help app.
NOTE: You must be connected to the Internet to access the Get Help app.
Creating recovery media and backups 65
Page 74
Using the HP Cloud Recovery Download Tool (select products only)
To create HP Recovery media using the HP Cloud Recovery Download Tool:
1. Go to http://www.hp.com/support.
2. Select Software and Drivers, and then follow the on-screen instructions.
Restore and recovery
There are several options for recovering your system. Choose the method that best matches your situation
and level of expertise:
IMPORTANT: Not all methods are available on all products.
●
Windows oers several options for restoring from backup, refreshing the computer, and resetting the
computer to its original state. For more information see the Get Help app.
▲ Select the Start button, and then select the Get Help app.
NOTE: You must be connected to the Internet to access the Get Help app.
●
If you need to correct a problem with a preinstalled application or driver, use the Reinstall drivers and/or
applications option (select products only) of HP Recovery Manager to reinstall the individual application
or driver.
▲ Type recovery in the taskbar search box, select HP Recovery Manager, select Reinstall drivers
and/or applications
, and then follow the on-screen instructions.
●
If you want to recover the Windows partition to original factory content, you can choose the System
Recovery option from the HP Recovery partition (select products only) or use the HP Recovery media.
For more information, see Recovering using HP Recovery Manager on page 66. If you have not already
created recovery media, see Using HP Recovery media (select products only) on page 64.
●
On select products, if you want to recover the computer's original factory partition and content, or if you
have replaced the hard drive, you can use the Factory Reset option of HP Recovery media. For more
information, see Recovering using HP Recovery Manager on page 66.
●
On select products, if you want to remove the Recovery partition to reclaim hard drive space, HP
Recovery Manager oers the Remove Recovery Partition option.
For more information, see Removing the HP Recovery partition (select products only) on page 68.
Recovering using HP Recovery Manager
HP Recovery Manager software allows you to recover the computer to its original factory state by using the
HP Recovery media that you either created or that you obtained from HP, or by using the HP Recovery
partition (select products only). If you have not already created recovery media, see Using HP Recovery media
(select products only) on page 64.
What you need to know before you get started
●
HP Recovery Manager recovers only software that was installed at the factory. For software not provided
with this computer, you must either download the software from the manufacturer's website or reinstall
the software from the media provided by the manufacturer.
66 Chapter 9 Backing up, restoring, and recovering
Page 75
IMPORTANT: Recovery through HP Recovery Manager should be used as a nal attempt to correct
computer issues.
●
HP Recovery media must be used if the computer hard drive fails. If you have not already created
recovery media, see Using HP Recovery media (select products only) on page 64.
●
To use the Factory Reset option (select products only), you must use HP Recovery media. If you have not
already created recovery media, see Using HP Recovery media (select products only) on page 64.
●
If your computer does not allow the creation of HP Recovery media or if the HP Recovery media does not
work, you can obtain recovery media for your system from support. You can nd contact information
from the HP website. Go to
on-screen instructions.
IMPORTANT: HP Recovery Manager does not automatically provide backups of your personal data. Before
beginning recovery, back up any personal data you want to retain.
Using HP Recovery media, you can choose from one of the following recovery options:
NOTE: Only the options available for your computer display when you start the recovery process.
●
System Recovery—Reinstalls the original operating system, and then congures the settings for the
programs that were installed at the factory.
●
Factory Reset—Restores the computer to its original factory state by deleting all information from the
hard drive and re-creating the partitions. Then it reinstalls the operating system and the software that
was installed at the factory.
http://www.hp.com/support, select your country or region, and follow the
The HP Recovery partition (select products only) allows System Recovery only.
Using the HP Recovery partition (select products only)
The HP Recovery partition allows you to perform a system recovery without the need for recovery discs or a
recovery USB ash drive. This type of recovery can be used only if the hard drive is still working.
To start HP Recovery Manager from the HP Recovery partition:
IMPORTANT: For a tablet with a detachable keyboard, connect the tablet to the keyboard base before
beginning these steps (select products only).
1. Type recovery in the taskbar search box, select HP Recovery Manager, and then select Windows
Recovery Environment
‒ or –
For computers or tablets with keyboards attached, press f11 while the computer boots, or press and
hold f11 as you press the power button.
For tablets without keyboards:
●
Turn on or restart the tablet, and then quickly hold down the volume up button; then select f11.
‒ or –
●
Turn on or restart the tablet, and then quickly hold down the volume down button; then select f11.
2. Select Troubleshoot from the boot options menu.
.
3. Select Recovery Manager, and then follow the on-screen instructions.
Restore and recovery 67
Page 76
Using HP Recovery media to recover
You can use HP Recovery media to recover the original system. This method can be used if your system does
not have an HP Recovery partition or if the hard drive is not working properly.
1. If possible, back up all personal les.
2. Insert the HP Recovery media, and then restart the computer.
NOTE: If the computer does not automatically restart in HP Recovery Manager, change the computer
boot order. See Changing the computer boot order on page 68.
3. Follow the on-screen instructions.
Changing the computer boot order
If your computer does not restart in HP Recovery Manager, you can change the computer boot order, which is
the order of devices listed in BIOS where the computer looks for startup information. You can change the
selection to an optical drive or a USB ash drive.
To change the boot order:
IMPORTANT: For a tablet with a detachable keyboard, connect the tablet to the keyboard base before
beginning these steps.
1. Insert the HP Recovery media.
2. Access the system Startup menu.
For computers or tablets with keyboards attached:
▲
Turn on or restart the computer or tablet, quickly press esc, and then press f9 for boot options.
For tablets without keyboards:
▲
Turn on or restart the tablet, and then quickly hold down the volume up button; then select f9.
‒ or –
Turn on or restart the tablet, and then quickly hold down the volume down button; then select f9.
3. Select the optical drive or USB ash drive from which you want to boot.
4. Follow the on-screen instructions.
Removing the HP Recovery partition (select products only)
HP Recovery Manager software allows you to remove the HP Recovery partition to free up hard drive space.
IMPORTANT: After you remove the HP Recovery partition, you will not be able to perform System Recovery
or create HP Recovery media from the HP Recovery partition. So before you remove the Recovery partition,
create HP Recovery media; see Using HP Recovery media (select products only) on page 64.
NOTE: The Remove Recovery Partition option is only available on products that support this function.
Follow these steps to remove the HP Recovery partition:
1. Type recovery in the taskbar search box, and then select HP Recovery Manager.
2. Select Remove Recovery Partition, and then follow the on-screen instructions.
68 Chapter 9 Backing up, restoring, and recovering
Page 77
10 Power cord set requirements
The wide-range input feature of the computer permits it to operate from any line voltage from 100 to 120
volts AC, or from 220 to 240 volts AC.
The 3-conductor power cord set included with the computer meets the requirements for use in the country or
region where the equipment is purchased.
Power cord sets for use in other countries and regions must meet the requirements of the country or region
where the computer is used.
Requirements for all countries
The following requirements are applicable to all countries and regions:
●
The length of the power cord set must be at least 1.0 m (3.3 ft) and no more than 2.0 m (6.5 ft).
●
All power cord sets must be approved by an acceptable accredited agency responsible for evaluation in
the country or region where the power cord set will be used.
●
The power cord sets must have a minimum current capacity of 10 amps and a nominal voltage rating of
125 or 250 V AC, as required by the power system of each country or region.
●
The appliance coupler must meet the mechanical conguration of an EN 60 320/IEC 320 Standard Sheet
C13 connector for mating with the appliance inlet on the back of the computer. Requirements for all
countries 113
Requirements for specic countries and regions
Country/region Accredited agency Applicable note number
Australia EANSW 1
Austria OVE 1
Belgium CEBC 1
Canada CSA 2
Denmark DEMKO 1
Finland FIMKO 1
France UTE 1
Germany VDE 1
Italy IMQ 1
Japan METI 3
The Netherlands KEMA 1
Norway NEMKO 1
The People's Republic of China COC 5
Requirements for all countries 69
Page 78
Country/region Accredited agency Applicable note number
South Korea EK 4
Sweden CEMKO 1
Switzerland SEV 1
Taiwan BSMI 4
The United Kingdom BSI 1
The United States UL 2
1. The exible cord must be Type HO5VV-F, 3-conductor, 1.0-mm² conductor size. Power cord set ttings (appliance coupler and
wall plug) must bear the certication mark of the agency responsible for evaluation in the country or region where it will be used.
2. The exible cord must be Type SPT-3 or equivalent, No. 18 AWG, 3-conductor. The wall plug must be a two-pole grounding type
with a NEMA 5-15P (15 A, 125 V) or NEMA 6-15P (15 A, 250 V) conguration.
3. The appliance coupler, exible cord, and wall plug must bear a “T” mark and registration number in accordance with the Japanese
Dentori Law. The exible cord must be Type VCT or VCTF, 3-conductor, 1.00-mm² conductor size. The wall plug must be a twopole grounding type with a Japanese Industrial Standard C8303 (7 A, 125 V) conguration.
4. The exible cord must be Type RVV, 3-conductor, 0.75-mm² conductor size. Power cord set ttings (appliance coupler and wall
plug) must bear the certication mark of the agency responsible for evaluation in the country or region where it will be used.
5. The exible cord must be Type VCTF, 3-conductor, 0.75-mm² conductor size. Power cord set ttings (appliance coupler and wall
plug) must bear the certication mark of the agency responsible for evaluation in the country or region where it will be used.
70 Chapter 10 Power cord set requirements
Page 79
11 Recycling
When a non-rechargeable or rechargeable battery has reached the end of its useful life, do not dispose of the
battery in general household waste. Follow the local laws and regulations in your area for battery disposal.
HP encourages customers to recycle used electronic hardware, HP original print cartridges, and rechargeable
batteries. For more information about recycling programs, see the HP Web site at http://www.hp.com/recycle.
71
Page 80
Index
A
AC adapter and battery light 5
AC adapter, spare part numbers 23
action keys
identifying 11
antenna
location 7
removal 57
spare part numbers 21, 57
audio, product description 2
audio-in jack 6
audio-out (headphone)/audio-in
(microphone) combo jack 6
audio-out jack 6
B
backups 64
battery
removal 33
spare part numbers 18, 33
BIOS
determining version 59
downloading an update 60
starting the Setup Utility 59
updating 59
boot order
changing 68
bottom cover
removal 30
spare part numbers 21, 30
bottom cover retention hook
removal 32
spare part numbers 21, 32
buttons
left TouchPad 8
power 10
right TouchPad 8
C
cables, service considerations 26
camera 7
camera light 7
caps lock light, identifying 9
chipset, product description 1
components
bottom 12
display 7
keyboard area 8
left side 6
right side 5
computer components 14
connectors
power 5
connectors, service considerations
26
D
display assembly
removal 41
spare part numbers 15, 41
display panel, product description 1
drives
precautions 26
preventing damage 26
duck head adapter, spare part
number 23
E
electrostatic discharge 27
equipment guidelines 29
esc key, identifying 11
Ethernet, product description 2
F
fan
removal 38
spare part numbers 19, 38
ngerprint reader, identifying 8
fn key, identifying 11
foot strip
removal 31
spare part numbers 31
front speakers
removal 37
spare part numbers 19, 37
G
Gasket Kit, spare part number 23
graphics, product description 1
grounding guidelines 27
guidelines
equipment 29
grounding 27
packaging 28
transporting 28
workstation 28
H
headphone jack 6
heat sink
removal 52
spare part numbers 21, 52
HP PC Hardware Diagnostics (UEFI)
using 61
HP Recovery Manager
correcting boot problems 68
starting 67
HP Recovery media
recovery 68
using 64
HP Recovery partition
recovery 67
removing 68
I
I/O bracket
removal 40, 42, 49
spare part numbers 21, 40, 42,
43, 50
infrared camera 7
infrared camera light 7
J
jacks
audio-in 6
audio-out 6
audio-out (headphone)/audio-in
(microphone) combo 6
headphone 6
microphone 6
K
keyboard, product description 3
72 Index
Page 81
keyboard/top cover
spare part numbers 15, 16, 17
keys
action 11
esc 11
fn 11
Windows 11
L
lights
AC adapter and battery 5
camera 7
caps lock 9
infrared camera light 7
mute 9
power 9
locating information
hardware 4
software 4
M
memory module, product
description 1
microphone
location 7
product description 2
microphone jack 6
microSD memory card reader 6
minimized image recovery 67
minimized image, creating 66
model name 1
mute light, identifying 9
O
operating system, product
description 3
optical drive, product description 2
optical drive, spare part number 23
original system recovery 66
P
packaging guidelines 28
plastic parts, service
considerations 25
pointing device, product
description 3
ports
product description 2
USB 3.x port with HP Sleep and
Charge 5
USB 3.x SuperSpeed 6
USB Type-C with HP Sleep and
Charge 5, 6
power button, identifying 10
power connector 5
power connector cable
removal 40
spare part number 19, 40
power cord
set requirements 69
spare part numbers 23
power lights, identifying 9
power requirements, product
description 3
processor, product description 1
product description
audio 2
chipset 1
display panel 1
Ethernet 2
external media cards 2
graphics 1
keyboard 3
memory module 1
microphone 2
operating system 3
optical drive 2
pointing device 3
ports 2
power requirements 3
processors 1
product name 1
security 3
sensors 2
serviceability 3
solid-state drive 2
storage 2
video 2
wireless 2
product name 1
R
rear speakers
removal 56
spare part numbers 21, 56
recover
options 66
recovery
discs 65, 68
HP Recovery Manager 66
media 68
starting 67
supported discs 65
system 66
USB ash drive 68
using HP Recovery media 65
recovery media
creating using HP Recovery
Manager 65
using 64
recovery partition
removing 68
removal/replacement
procedures 30
Rubber Foot Kit, spare part
numbers 22, 23
S
Screw Kit, spare part numbers 23
security, product description 3
sensors, product description 2
service considerations
cables 26
connectors 26
plastic parts 25
serviceability, product description 3
slots
microSD memory card reader 6
solid-state drive
product description 2
removal 34
spare part numbers 18, 34
speakers
identifying 10, 12
removal 37, 56
spare part numbers 19, 21, 37,
56
supported discs, recovery 65
system board
removal 47
spare part numbers 19, 47
system board retention hook
removal 50
spare part number 21, 51
system recovery 66
system restore point
creating 65
system restore point, creating 64
Index 73
Page 82
T
tools required 25
TouchPad
buttons 8
removal 45
spare part numbers 19, 45
TouchPad bracket
removal 45
spare part number 19, 45
TouchPad cable
removal 44
spare part numbers 19, 44, 45
TouchPad zone, identifying 8
transporting guidelines 28
U
USB 3.x port with HP Sleep and
Charge 5
USB 3.x SuperSpeed port 6
USB Type-C port with HP Sleep and
Charge 5, 6
USB Type-C–to–HDMI adapter, spare
part number 23
USB Type-C–to–RJ45 adapter, spare
part number 23
USB Type-C–to–VGA adatper, spare
part number 23
USB–C-to-USB–A dongle, spare part
number 23
USB–to–Gigabit RJ45 adapter, spare
part number 23
removal 57
spare part numbers 21, 57
WLAN module
removal 35
spare part number 19, 35
workstation guidelines 28
V
vents, identifying 12
video, product description 2
W
Windows
system restore point 64, 65
Windows key, identifying 11
Windows tools
using 65
wireless antenna
location 7
removal 57
spare part numbers 21, 57
Wireless Antenna Kit, spare part
numbers 21, 57
wireless, product description 2
WLAN antenna
location 7
74 Index
Loading...
