About this guide
This guide provides technical specications and information about monitor features, setting up the monitor,
and using the software. Depending on the model, your monitor may not have all the features included in this
guide.
WARNING! Indicates a hazardous situation that, if not avoided, could result in serious injury or death.
CAUTION: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.
IMPORTANT: Indicates information considered important but not hazard-related (for example, messages
related to property damage). Warns the user that failure to follow a procedure exactly as described could
result in loss of data or in damage to hardware or software. Also contains essential information to explain a
concept or to complete a task.
NOTE: Contains additional information to emphasize or supplement important points of the main text.
TIP: Provides helpful hints for completing a task.
This product incorporates HDMI technology.
iii
iv About this guide
Table of contents
1 Getting started ............................................................................................................................................. 1
Important safety information ............................................................................................................................... 1
Product features and components ........................................................................................................................ 2
Features ............................................................................................................................................... 2
Rear and side components .................................................................................................................. 3
Front components ............................................................................................................................... 4
Setting up the monitor .......................................................................................................................................... 6
Attaching the monitor stand ............................................................................................................... 6
Mounting the monitor head ................................................................................................................ 7
Removing the monitor stand ............................................................................................ 7
Attaching the monitor head to a mounting device ........................................................... 8
Connecting the cables ......................................................................................................................... 9
Connecting USB devices .................................................................................................................... 12
Adjusting the monitor ....................................................................................................................... 13
Installing a security cable ................................................................................................................. 15
Turning on the monitor ..................................................................................................................... 15
HP watermark and image retention policy ....................................................................................... 16
Docking an HP notebook or desktop computer .................................................................................................. 16
Connecting a second computer to the monitor using the KVM Mode ................................................................. 17
2 Using the monitor ........................................................................................................................................ 19
Software and utilities .......................................................................................................................................... 19
The Information le ........................................................................................................................... 19
The Image Color Matching le ........................................................................................................... 19
Using the on-screen display (OSD) menu ............................................................................................................ 20
Using the function buttons .................................................................................................................................. 21
Reassigning the function buttons ....................................................................................................................... 21
Changing the power mode setting ...................................................................................................................... 22
Power states ........................................................................................................................................................ 22
Using the camera ................................................................................................................................................. 23
Using Windows Hello ........................................................................................................................................... 24
Using Auto-Sleep Mode ....................................................................................................................................... 25
Adjusting blue light output .................................................................................................................................. 25
DisplayPort multistreaming ................................................................................................................................ 26
Conguring an external monitor ......................................................................................................................... 27
Dock mode and Monitor mode ............................................................................................................................ 27
v
Dock mode ......................................................................................................................................... 27
Monitor mode .................................................................................................................................... 27
Updating the docking monitor ............................................................................................................................ 28
Downloading the HP rmware installer ............................................................................................ 28
3 Support and troubleshooting ........................................................................................................................ 29
Solving common issues ....................................................................................................................................... 29
Contacting support .............................................................................................................................................. 30
Preparing to call technical support ..................................................................................................................... 31
Locating the serial number and product number ............................................................................................... 31
4 Maintaining the monitor .............................................................................................................................. 32
Maintenance guidelines ....................................................................................................................................... 32
Cleaning the monitor ........................................................................................................................................... 32
Shipping the monitor ........................................................................................................................................... 32
Appendix A Technical specications ................................................................................................................. 33
60.5 cm (23.8 in) model specications ............................................................................................................... 33
68.6 cm (27.0 in) model specications ............................................................................................................... 34
Preset display resolutions ................................................................................................................................... 35
Entering user modes ............................................................................................................................................ 36
Energy saver feature ........................................................................................................................................... 37
Appendix B Accessibility ................................................................................................................................. 38
HP and accessibility ............................................................................................................................................. 38
Finding the technology tools you need ............................................................................................ 38
The HP commitment ......................................................................................................................... 38
International Association of Accessibility Professionals (IAAP) ....................................................... 38
Finding the best assistive technology .............................................................................................. 39
Assessing your needs ..................................................................................................... 39
Accessibility for HP products .......................................................................................... 39
Standards and legislation .................................................................................................................................... 40
Standards .......................................................................................................................................... 40
Mandate 376 – EN 301 549 ............................................................................................ 40
Web Content Accessibility Guidelines (WCAG) ................................................................ 40
Legislation and regulations .............................................................................................................. 40
Useful accessibility resources and links .............................................................................................................. 41
Organizations .................................................................................................................................... 41
Educational institutions .................................................................................................................... 41
Other disability resources ................................................................................................................. 41
vi
HP links .............................................................................................................................................. 42
Contacting support .............................................................................................................................................. 42
vii
viii
1 Getting started
Important safety information
A power cord is included with the monitor. If another cord is used, use only a power source and connection
appropriate for this monitor. For information about the correct power cord set to use with the monitor, see
Product Notices provided in your documentation kit.
the
WARNING! To reduce the risk of electric shock or damage to the equipment:
• Plug the power cord into an AC outlet that is easily accessible at all times.
• If the power cord has a 3-pin attachment plug, plug the cord into a grounded (earthed) 3-pin outlet.
• Disconnect power from the computer by unplugging the power cord from the AC outlet. When unplugging
the power cord from the AC outlet, grasp the cord by the plug.
For your safety, do not place anything on power cords or cables. Care should be taken to route all cords and
cables connected to the monitor so that they cannot be stepped on, pulled, grabbed, or tripped over.
To reduce the risk of serious injury, read the Safety & Comfort Guide. It describes proper workstation setup
and proper posture, health, and work habits for computer users. The
important electrical and mechanical safety information. The Safety & Comfort Guide is available on the Web
at http://www.hp.com/ergo.
Safety & Comfort Guide also provides
IMPORTANT: For the protection of the monitor, as well as the computer, connect all power cords for the
computer and its peripheral devices (such as a monitor, printer, scanner) to some form of surge protection
device such as a power strip or uninterruptible power supply (UPS). Not all power strips provide surge
protection; the power strips must be specically labeled as having this capability. Use a power strip whose
manufacturer oers a damage replacement policy so you can replace the equipment if surge protection fails.
Use the appropriate and correctly sized furniture designed to properly support your monitor.
WARNING! Monitors that are inappropriately situated on dressers, bookcases, shelves, desks, speakers,
chests, or carts may fall over and cause personal injury.
NOTE: This product is suitable for entertainment purposes. Consider placing the monitor in a controlled
luminous environment to avoid interference from surrounding light and bright surfaces that may cause
disturbing reections from the screen.
Important safety information 1
Product features and components
Features
The monitor features include the following:
● 60.5 cm (23.8 in) diagonal viewable screen area with 1920 × 1080 resolution, plus full-screen support
for lower resolutions
● 68.6 cm (27 in) diagonal viewable screen area with 2560 × 1440 resolution, plus full-screen support for
lower resolutions
● USB Type-C port for docking an HP notebook or HP desktop mini
● Single power button on the monitor to turn the monitor and docked notebook on and o
● DisplayPort™ video output for daisy-chaining a second monitor
● Pull-up IR webcam and microphone for online collaboration
● RJ-45 (network) jack
● Nonglare panel with an LED backlight
● Wide viewing angle to allow viewing from a sitting or standing position, or when moving from side to
side
● On-screen display (OSD) adjustments in several languages for easy setup and screen optimization
● Plug and Play capability, if supported by your operating system
● Tilt, swivel, and height adjustment capabilities
● Pivot capability to rotate the monitor head from landscape to portrait orientation
● Removable stand (optional) for exible monitor head mounting solutions
● DisplayPort video input
● High-Denition Multimedia Interface (HDMI) video input
● Single USB-C input to host an HP notebook or HP desktop mini
● USB hub with one USB Type-C port and four USB Type-A ports that connect to USB devices
● Audio-out (headphone)/Audio-in (microphone) combo jack
● HP speaker bar support
● Up to 100 W power delivery through USB Type-C (5 A) cable
● Security cable slot on rear of monitor for optional security cable
● Windows Hello webcam
● HDCP (High-bandwidth Digital Content Protection) used on all digital inputs
● Power Saver mode to meet requirements for reduced power consumption
NOTE: For safety and regulatory information, see the Product Notices provided in your documentation kit.
To access the latest user guides or manuals for your product, go to http://www.hp.com/support and follow
the instructions to nd your product. Then select User Guides.
2 Chapter 1 Getting started
Rear and side components
Table 1-1 Rear and side components and their descriptions
Component Function
(1) USB SuperSpeed ports (2) Connect USB cables to peripheral devices, such as a keyboard, mouse, or USB hard
drive.
(2) Audio-out (headphone)/Audio-in
(microphone) combo jack
(3) Security cable slot Connects an optional security cable.
(4) Master power switch Turns on or o all power to the monitor.
(5) Power connector Connects a power cord.
(6) HDMI port Connects the HDMI cable to a source device such as a computer or game console.
(7) DisplayPort connector Connects the DisplayPort cable to a source device such as a computer or game
(8) USB Type-C port Connects a USB Type-C cable to an HP notebook or desktop computer. Serves as a
(9) DisplayPort OUT connector Connects a DisplayPort cable to a secondary monitor for daisy-chaining.
(10) USB Type-C downstream port Connects a USB Type-C cable to a peripheral device, such as a keyboard, mouse, or
(11) RJ-45 (network) jack Connects a network cable.
Connects optional headphones, earbuds, a headset, or a television audio cable.
WARNING! To reduce the risk of personal injury, reduce the volume before using
headphones, earbuds, or a headset. For additional safety information, see the
Product Notices provided in your documentation kit.
NOTE: To place the monitor in the lowest power state when it is not being used, turn
the Master power switch to the O position.
console.
single connection for video, data, and power delivery (up to 100 W).
NOTE: Your computer USB Type-C port must be able to support USB Type-C DP Alt
Mode and data and power delivery.
USB hard drive.
Product features and components 3
Table 1-1 Rear and side components and their descriptions (continued)
Component Function
(12) USB SuperSpeed ports (2) Connect USB cables to peripheral devices, such as a keyboard, mouse, or USB hard
NOTE: When HDMI or DP input is active, the monitor is in monitor mode. When USB Type-C Alt Mode is active, the monitor is in dock
mode.
Front components
drive.
Table 1-2 Front components and descriptions
Component Function
(1) Microphones Allow you to participate in a video conference.
(2) Camera light On: Camera is in use.
(3) RGB lens Transmits your image in a video conference.
(4) IR lights Not visible through IR transmissive ink.
(5) IR lens Transmits your image in a video conference.
(6) Menu button Press to open the OSD menu, select a menu item from the OSD, or close the OSD
menu. An indicator is activated above the Menu button when the OSD menu is open.
(7–9) OSD buttons
(assignable)
(10) Power button (with power light) Monitor mode: Turns the monitor on or o.
When the OSD menu is open, press the buttons to navigate through the menu. The
function light icons indicate the default button functions. For a description of these
functions, see Using the function buttons on page 21.
Dock mode:
1. When the computer is o, press the button to turn on the computer.
2. When the computer is on, press the button briey to initiate sleep mode.
4 Chapter 1 Getting started
Table 1-2 Front components and descriptions (continued)
Component Function
3. When the computer is in sleep mode, press the button briey to exit sleep
(select products only).
When the computer is in hibernation mode, press the button briey to exit
hibernation.
IMPORTANT: Pressing and holding down the power button results in the loss of
unsaved information.
If the computer has stopped responding and shutdown procedures are ineective,
press and hold the power button for at least 5 seconds to turn o the computer.
NOTE: The power light varies depending on the mode. In Monitor mode, the light is white when the computer is on, and amber when
the computer is in sleep mode. In Dock mode, the light is white when the computer is on, and blinking white when the monitor is in
sleep mode.
NOTE: To view an OSD menu simulator, visit the HP Customer Self Repair Services Media Library at
http://www.hp.com/go/sml.
Product features and components 5
Setting up the monitor
Attaching the monitor stand
WARNING! To reduce the risk of serious injury, read the Safety & Comfort Guide. It describes proper
workstation setup and proper posture, health, and work habits for computer users. The Safety & Comfort
Guide also provides important electrical and mechanical safety information. The Safety & Comfort Guide is
available on the Web at http://www.hp.com/ergo.
IMPORTANT: To prevent damage to the monitor, do not touch the surface of the LCD panel. Pressure on the
panel may cause nonuniformity of color or disorientation of the liquid crystals. If this occurs, the screen will
not recover to its normal condition.
IMPORTANT: To prevent the screen from getting scratched, defaced, or broken and to prevent damage to
the control buttons, position the monitor facedown on a at surface covered with protective sheet foam or a
nonabrasive cloth.
1. Position the monitor facedown on a at surface covered by a soft clean cloth.
2. Slide the top of the mounting plate on the stand under the upper lip of the recess in the back of the
monitor head (1).
3. Lower the bottom of the stand's mounting plate into the recess (2) until it snaps into place. The latch on
the bottom of the mounting plate pops up when the stand is locked in place.
6 Chapter 1 Getting started
Mounting the monitor head

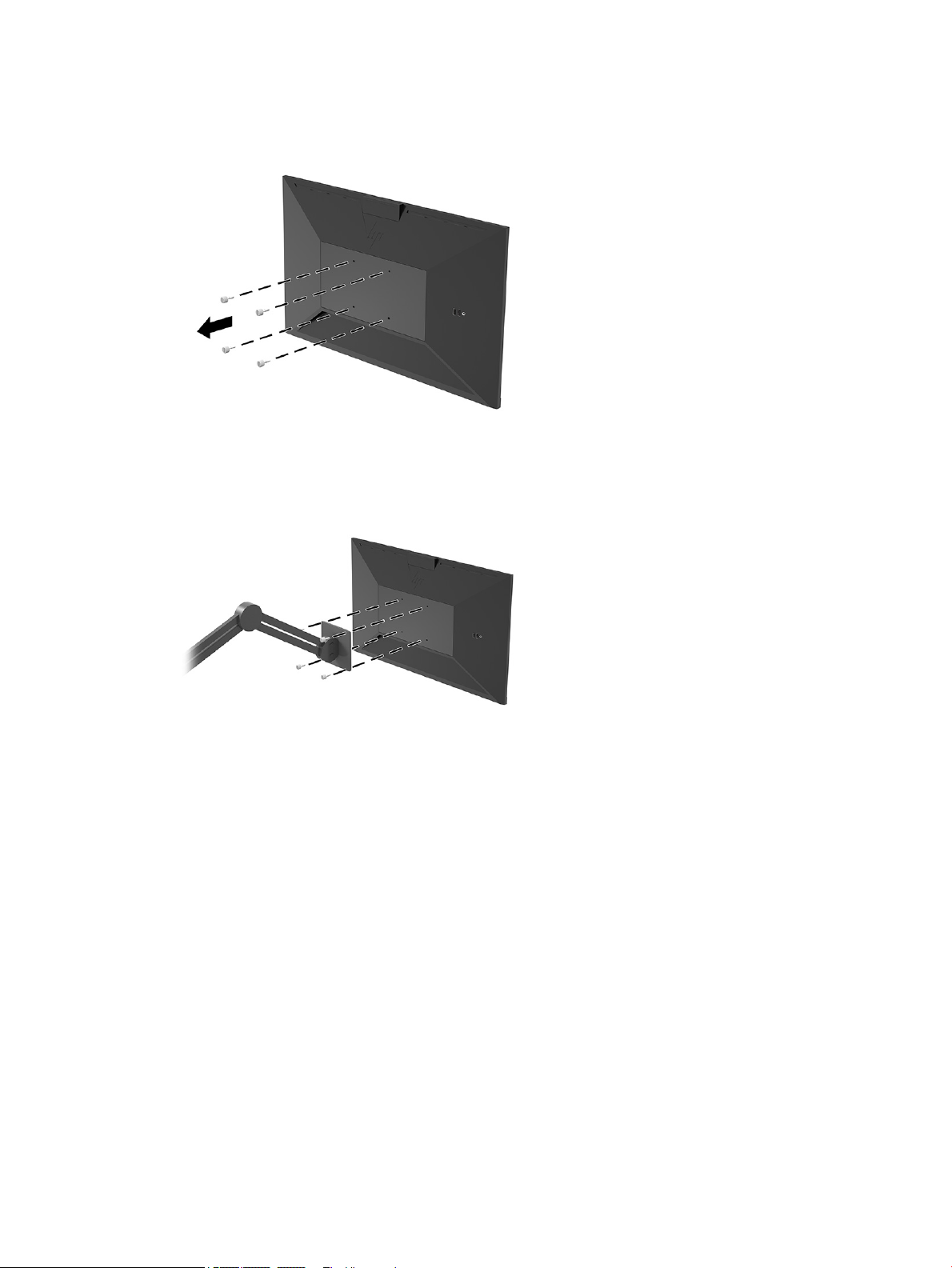

The monitor head can be attached to a wall, swing arm, or other mounting xture.
IMPORTANT: This monitor supports the VESA® industry-standard 100 mm mounting holes. To attach a
third-party mounting solution to the monitor, use four 4 mm, 0.7 pitch, 10 mm–long screws. Longer screws
might damage the monitor. Verify that the manufacturer’s mounting solution is compliant with the VESA
standard and is rated to support the weight of the monitor head. For best performance, use the power and
video cables provided with the monitor.
NOTE: This apparatus is intended to be supported by a UL-listed or CSA-listed wall-mount bracket.
Removing the monitor stand
IMPORTANT: Before disassembling the monitor, be sure that the monitor is turned o and all cables are
disconnected.
1. Disconnect and remove all cables from the monitor.
2. Position the monitor facedown on a at surface covered by protective sheet made of foam or a clean,
dry cloth.
3. Push up on the latch near the bottom center of the stand’s mounting plate (1).
4. Swing the bottom of the stand up until the mounting plate clears the recess in the monitor head (2).
5. Slide the stand out of the recess (3).
Setting up the monitor 7
Loading...
