HP E221c User Manual

HP EliteDisplay Webcam Backlit LCD Monitor

User Guide

Microsoft® and Windows® are U.S. registered trademarks of Microsoft Corporation.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

This document contains proprietary information that is protected by copyright. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of Hewlett-Packard Company.

First Edition (May 2013)

Document Part Number: 731683-001

About This Guide

This guide provides information on monitor features, setting up the monitor, and technical specifications.

WARNING! Text set off in this manner indicates that failure to follow directions could result in bodily

harm or loss of life.

CAUTION: Text set off in this manner indicates that failure to follow directions could result in

damage to equipment or loss of information.

NOTE: Text set off in this manner provides important supplemental information.

iii

iv About This Guide

Table of contents

1 Product Features ............................................................................................................................................ 1

HP LCD Monitor ................................................................................................................................... 1

2 Setting Up the Monitor ................................................................................................................................... 3

Unfolding the Monitor ........................................................................................................................... 3

Rear Components ................................................................................................................................ 4

Connecting the Cables ......................................................................................................................... 5

Front Panel Controls ............................................................................................................................ 9

Adjusting the Monitor .......................................................................................................................... 10

Turning on the Monitor ....................................................................................................................... 13

Connecting USB Devices ................................................................................................................... 14

Removing the Monitor Stand .............................................................................................................. 15

Mounting the Monitor ......................................................................................................... 16

Locating the Rating Labels ................................................................................................................. 17

Installing a Cable Lock ....................................................................................................................... 17

3 Using the Webcam ........................................................................................................................................ 18

Installing YouCam from the Disc ........................................................................................................ 18

Capturing Webcam Video and Snapshots ......................................................................................... 18

Having a Video Chat or Making Conference Calls ............................................................................. 18

4 Using HP MyRoom ........................................................................................................................................ 20

Installing HP MyRoom from the Disc .................................................................................................. 20

Downloading HP MyRoom from the Internet ...................................................................................... 20

Creating a HP MyRoom Account ....................................................................................................... 20

5 Finding More Information ............................................................................................................................. 21

Reference Guides .............................................................................................................................. 21

Product Support ................................................................................................................................. 21

Appendix A Technical Specifications ............................................................................................................ 22

E221c Model ...................................................................................................................................... 22

Recognizing Preset Display Resolutions ............................................................................................ 23

E221c Model ...................................................................................................................... 23

Entering User Modes .......................................................................................................................... 24

Energy Saver Feature ........................................................................................................................ 24

1 Product Features

HP LCD Monitor

The LCD (liquid crystal display) monitor has an active matrix, thin-film transistor (TFT) panel. The monitor features include:

● E221c model, 54.6 cm (21.5-inch) diagonal viewable area display with 1920 x 1080 resolution,

plus full-screen support for lower resolutions; includes custom scaling for maximum image size while preserving original aspect ratio

Non-glare panel with an LED backlight

●

Ultra-wide viewing angles and advanced image quality

●

Integrated webcam with dual microphones and webcam cover for privacy

●

Tilt capability

●

Pivot capability to rotate display to portrait

●

Swivel and height adjustment capabilities

●

Removable stand for flexible monitor panel mounting solutions

●

● Video signal input to support VGA analog (cables are provided with select models)

Video signal input to support DVI digital (cables are provided with select models)

●

Video signal input to support DisplayPort digital (cables are provided with select models)

●

● USB 2.0 hub with one upstream port (connects to the computer) and two downstream ports

(connects to USB devices)

USB cable provided to connect the monitor's USB hub to the USB connector on the computer

●

Supports an optional HP speaker bar

●

● Plug and play capability if supported by the operating system

Privacy filter slots to insert filters (purchased separately) to block side screen viewing

●

Security slot provision on rear of monitor for optional cable lock

●

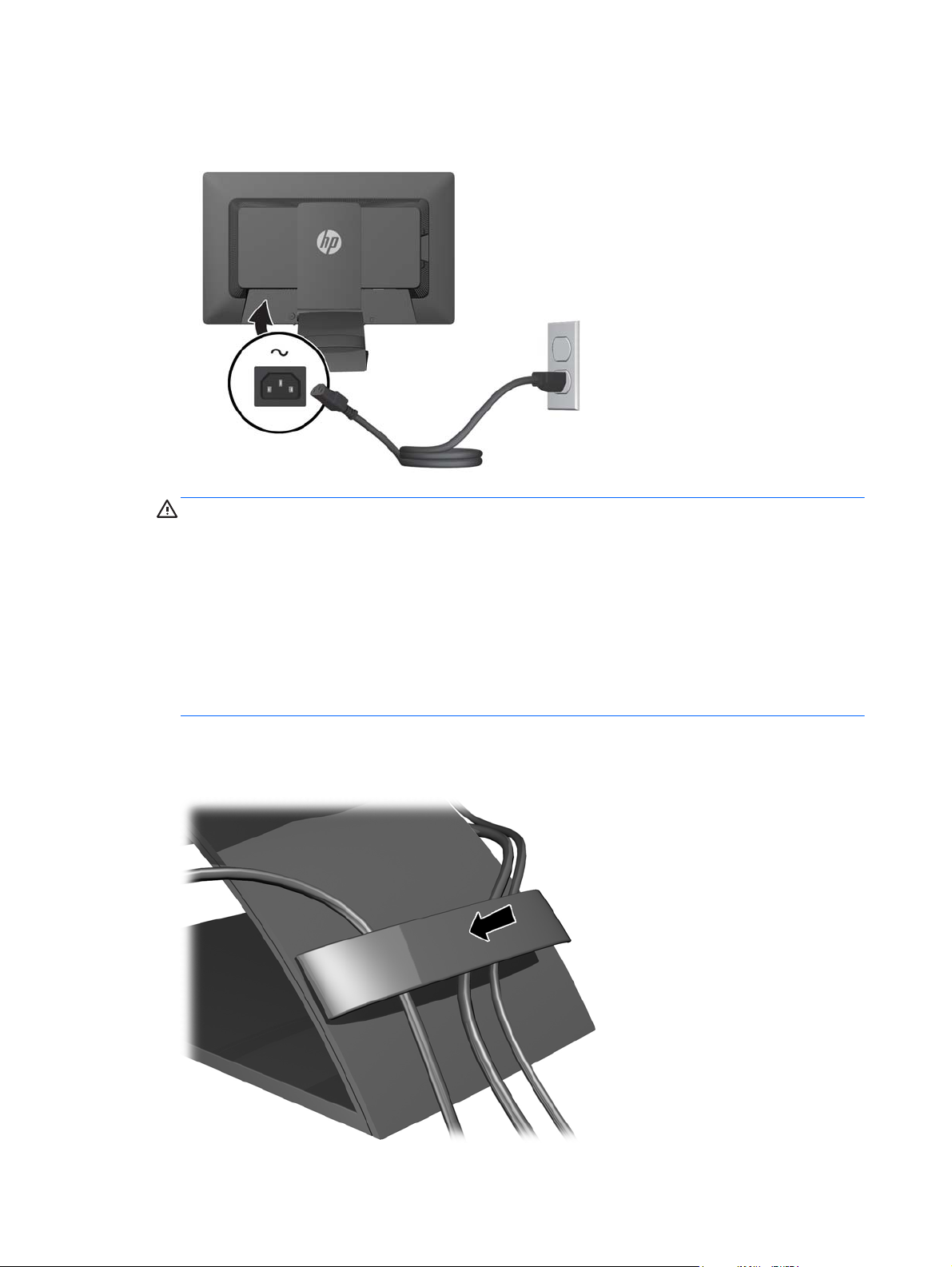

● Cable management feature for placement of cables and cords

● On-Screen Display (OSD) adjustments in several languages for easy setup and screen

optimization

HP Display Assistant for adjusting monitor settings and enabling theft deterrence features

●

● HDCP copy protection on DVI and DisplayPort inputs

CyberLink YouCam software to enhance the use and security of the webcam

●

HP MyRoom software for online face-to-face meeting with colleagues

●

● Software and documentation disc that includes monitor drivers and product documentation

● Energy saver feature to meet requirements for reduced power consumption

HP LCD Monitor 1

Intelligent Management AssetControl

●

● Compliant with the following regulated specifications (for additional certifications and agency

notices, refer to the HP LCD Monitors Reference Guide on the disc included with this monitor):

European Union CE Directives

◦

Swedish TCO Requirements

◦

2 Chapter 1 Product Features

2 Setting Up the Monitor

To set up the monitor, ensure that the power is turned off to the monitor, computer system, and other attached devices, then follow the instructions below.

Unfolding the Monitor

1. Lift the monitor from its box and place it face down on a flat surface.

2. Hold down the monitor stand with one hand (1) then grasp the top of the display with the other

hand and unfold the display head 90 degrees (2).

CAUTION: Do not touch the surface of the LCD panel. Pressure on the panel may cause non-

uniformity of color or disorientation of the liquid crystals. If this occurs the screen will not recover to its normal condition.

NOTE: When the monitor is unfolded for the first time, the display head is locked from adjusting to a

full-height position. To adjust the display head to full height, press down on the display head to unlock it then pull up on the display head to raise it to the full-height position. Refer to step 3 in

Monitor on page 10.

Unfolding the Monitor 3

Adjusting the
