ECM-5510
5.25" AMD Geode GX466 333 MHz Mini Module with 128 MB
DDR SDRAM Onboard, VGA, LVDS, Audio, LAN, CF,
PC/104, PCI, 4 COM, 4 USB 1.1 & GPIO
User’s Manual
2nd Ed – 19 January 2007
Part No. E2047551001R
ECM-5510
FCC Statement
THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS
SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING
INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS
FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.
THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST
HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A
COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN
RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTATLLED AND USED IN
ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL
INTERFERENCE TO RADIO COMMUNICATIONS.
OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE
HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO
CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.
Notice
This guide is designed for experienced users to setup the system within the shortest time.
For detailed information, please always refer to the electronic user's manual.
Copyright Notice
Copyright © 2007 Avalue Technology Inc., ALL RIGHTS RESERVED.
No part of this document may be reproduced, copied, translated, or transmitted in any form
or by any means, electronic or mechanical, for any purpose, without the prior written
permission of the original manufacturer.
Trademark Acknowledgement
Brand and product names are trademarks or registered trademarks of their respective
owners.
2 ECM-5510 User’s Manual
User’s Manual
Disclaimer
Avalue Technology Inc. reserves the right to make changes, without notice, to any product,
including circuits and/or software described or contained in this manual in order to improve
design and/or performance. Avalue Technology assumes no responsibility or liability for the
use of the described product(s), conveys no license or title under any patent, copyright, or
masks work rights to these products, and makes no representations or warranties that
these products are free from patent, copyright, or mask work right infringement, unless
otherwise specified. Applications that are described in this manual are for illustration
purposes only. Avalue Technology Inc. makes no representation or warranty that such
application will be suitable for the specified use without further testing or modification.
Life Support Policy
Avalue Technology’s PRODUCTS ARE NOT FOR USE AS CRITICAL COMPONENTS IN
LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE PRIOR WRITTEN APPROVAL
OF Avalue Technology Inc.
As used herein:
1. Life support devices or systems are devices or systems which, (a) are intended for
surgical implant into body, or (b) support or sustain life and whose failure to perform,
when properly used in accordance with instructions for use provided in the labeling, can
be reasonably expected to result in significant injury to the user.
2. A critical component is any component of a life support device or system whose failure to
perform can be reasonably expected to cause the failure of the life support device or
system, or to affect its safety or effectiveness.
A Message to the Customer
Avalue Customer Services
Each and every Avalue’s product is built to the most exacting specifications to ensure
reliable performance in the harsh and demanding conditions typical of industrial
environments. Whether your new Avalue device is destined for the laboratory or the factory
floor, you can be assured that your product will provide the reliability and ease of operation
for which the name Avalue has come to be known.
Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To
ensure you get the full benefit of our services, please follow the instructions below carefully.
ECM-5510 User’s Manual
3
ECM-5510
Technical Support
We want you to get the maximum performance from your products. So if you run into
technical difficulties, we are here to help. For the most frequently asked questions, you can
easily find answers in your product documentation. These answers are normally a lot more
detailed than the ones we can give over the phone. So please consult the user’s manual
first.
To receive the latest version of the user’s manual; please visit our Web site at:
http://www.avalue.com.tw/
If you still cannot find the answer, gather all the information or questions that apply to your
problem, and with the product close at hand, call your dealer. Our dealers are well trained
and ready to give you the support you need to get the most from your Avalue’s products. In
fact, most problems reported are minor and are able to be easily solved over the phone.
In addition, free technical support is available from Avalue’s engineers every business day.
We are always ready to give advice on application requirements or specific information on
the installation and operation of any of our products. Please do not hesitate to call or e-mail
us.
Headquarters
Avalue Technology Inc.
7F, 228, Lian-cheng Road,
Chung Ho City, Taipei,
Taiwan
Tel : +886-2-8226-2345
Fax : +886-2-8226-2777
http://www.avalue.com.tw
E-mail: service@avalue.com.tw
China Branch Office
Avalue Technology Shanghai Inc.
Room 909, 9F, Section B, No.900,
Yisan Road, Caohejing Hi-tech Park,
Shanghai 200233, China
Tel : +86-21-5423-4170
Fax : +86-21-5423-4171
http://www.avalue.com.tw
E-mail: service.china@avalue.com.tw
Europe Branch Office
Avalue Europe A/S
Nordre Strandvej 13,
3480 Fredensborg,
Denmark
Tel : +45-7025-0310
Fax : +45-4975-5026
http://www.avalue.com.tw
E-mail: service.europe@avalue.com.tw
US Branch Office
Avalue Technology Inc.
Suite 210, 200 Tornillo Way,
Tinton Falls, NJ 07712
USA
Tel: +1-732-578-0200
Fax: +1-732-578-0250
http://www.avalue.com.tw
E-mail: service.usa@avalue.com.tw
4 ECM-5510 User’s Manual
User’s Manual
Product Warranty
Avalue warrants to you, the original purchaser, that each of its products will be free from
defects in materials and workmanship for two years from the date of purchase.
This warranty does not apply to any products which have been repaired or altered by
persons other than repair personnel authorized by Avalue, or which have been subject to
misuse, abuse, accident or improper installation. Avalue assumes no liability under the
terms of this warranty as a consequence of such events. Because of Avalue’s high
quality-control standards and rigorous testing, most of our customers never need to use our
repair service. If any of Avalue’s products is defective, it will be repaired or replaced at no
charge during the warranty period. For out-of-warranty repairs, you will be billed according
to the cost of replacement materials, service time, and freight. Please consult your dealer
for more details. If you think you have a defective product, follow these steps:
1. Collect all the information about the problem encountered. (For example, CPU type and
speed, Avalue’s products model name, hardware & BIOS revision number, other
hardware and software used, etc.) Note anything abnormal and list any on-screen
messages you get when the problem occurs.
2. Call your dealer and describe the problem. Please have your manual, product, and any
helpful information available.
3. If your product is diagnosed as defective, obtain an RMA (return material authorization)
number from your dealer. This allows us to process your good return more quickly.
4. Carefully pack the defective product, a complete Repair and Replacement Order Card
and a photocopy proof of purchase date (such as your sales receipt) in a shippable
container. A product returned without proof of the purchase date is not eligible for
warranty service.
5. Write the RMA number visibly on the outside of the package and ship it prepaid to your
dealer.
ECM-5510 User’s Manual
5
ECM-5510
Contents
1. Getting Started..........................................................................................................10
1.1 Safety Precautions ..................................................................................................10
1.2 Packing List.............................................................................................................10
1.3 Document Amendment History ...............................................................................11
1.4 Manual Objectives...................................................................................................12
1.5 System Specifications .............................................................................................13
1.6 Architecture Overview .............................................................................................15
1.6.1 Block Diagram ................................................................................................................................ 15
1.6.2 AMD Geode GX2 & CS5535..........................................................................................................16
1.6.3 VIA VT1612A Audio Codec............................................................................................................ 18
1.6.4 Ethernet.......................................................................................................................................... 18
1.6.5 Winbond W83627HF-AW LPC Super I/O ...................................................................................... 19
1.6.6 Winbond W83977EF ISA Super I/O............................................................................................... 19
1.6.7 NS DS90C385 LVDS Transmitter .................................................................................................. 20
1.6.8 ITE IT8888F PCI-ISA Bridge.......................................................................................................... 20
2. Hardware Configuration...........................................................................................21
2.1 Product Overview....................................................................................................22
2.2 Installation Procedure .............................................................................................23
2.2.1 Main Memory.................................................................................................................................. 24
2.3 Jumper and Connector List .....................................................................................26
2.4 Setting Jumpers & Connectors ...............................................................................28
2.4.1 BIOS Write Protect Select (JP1) .................................................................................................... 28
2.4.2 TFT/CRT Select (JP2).................................................................................................................... 28
2.4.3 Clear CMOS (JP3) ......................................................................................................................... 29
2.4.4 COM2 RS-232/422/485 Select (JP5, JP6)..................................................................................... 29
2.4.5 COM2/4/3/1 Pin 9 Select (JP7, JP8, JP9, JP10) ........................................................................... 30
2.4.6 LCD Inverter Power Select (JP11)................................................................................................. 30
2.4.7 Compact Flash Mode Select (JP13) .............................................................................................. 31
2.4.8 DOC Memory Address Select (JP14) ............................................................................................ 31
2.4.9 ATX Power Connector (ATX1) ....................................................................................................... 32
2.4.10 System Fan Connector (CN1).................................................................................................... 33
2.4.11 CPU Fan Connector (CN2) ........................................................................................................ 33
2.4.12 TFT Panel Connector (CN3)...................................................................................................... 34
2.4.13 LVDS Connector (CN4) ............................................................................................................. 36
2.4.14 CD-ROM Audio Input Connector (CN5)..................................................................................... 37
2.4.15 Serial Port 1, 3, 4 Connector (CN6)........................................................................................... 38
6 ECM-5510 User’s Manual
User’s Manual
2.4.16 Serial Port 2 Connector in RS-232 Mode (CN6, Pin 11-20) ...................................................... 40
2.4.17 Serial Port 2 Connector in RS-422 Mode (CN6, Pin 11-20) ...................................................... 41
2.4.18 Serial Port 2 Connector in RS-485 Mode (CN6, Pin 11-20) ...................................................... 42
2.4.19 PC/104 Connector (CN7 + CN8) ............................................................................................... 43
2.4.20 IrDA Connector (CN10).............................................................................................................. 49
2.4.21 Keyboard & Mouse Connector (CN11) ...................................................................................... 50
2.4.22 USB Connector 0, 1, 2 & 3 (CN12, CN15)................................................................................. 51
2.4.23 LCD Inverter Connector (CN13) ................................................................................................ 52
2.4.24 Primary IDE Connector (CN14) ................................................................................................. 53
2.4.25 Floppy Connector (FLP1)........................................................................................................... 55
2.4.26 Digital I/O Connector (JDIO1).................................................................................................... 57
2.4.27 Front Panel Connector (JFP1)................................................................................................... 58
2.4.28 Audio Connector (JP4)............................................................................................................... 59
2.4.29 LCD Backlight Brightness Adjustment Connector (JP12).......................................................... 60
2.4.30 -5V/-12V PC/104 Voltage Connector (JP15) ............................................................................. 60
2.4.31 Parallel Port Connector (LPT1)..................................................................................................61
2.4.32 Power Connector (PWR1) ......................................................................................................... 62
2.4.33 VGA Connector (VGA1)............................................................................................................. 63
3 BIOS Setup................................................................................................................64
3.1 Starting Setup .........................................................................................................65
3.2 Using Setup ............................................................................................................66
3.3 Getting Help ............................................................................................................67
3.4 In Case of Problems................................................................................................67
3.5 Main Menu ..............................................................................................................68
3.5.1 Standard CMOS Features.............................................................................................................. 69
3.5.2 Advanced BIOS Features .............................................................................................................. 71
3.5.3 Advanced Chipset Features........................................................................................................... 75
3.5.4 Integrated Peripherals.................................................................................................................... 77
3.5.5 Power Management Setup............................................................................................................. 79
3.5.6 PnP / PCI Configuration ................................................................................................................. 81
3.5.7 PC Health Status............................................................................................................................ 82
3.5.8 Load Fail-Safe Defaults.................................................................................................................. 83
3.5.9 Load Optimized Defaults................................................................................................................ 83
3.5.10 Set Supervisor / User Password................................................................................................ 84
3.5.11 Save & Exit Setup ...................................................................................................................... 85
3.5.12 Exit Without Save....................................................................................................................... 86
ECM-5510 User’s Manual
7
ECM-5510
4 Drivers Installation ...................................................................................................87
4.1 Install Audio Driver (For AMD GX2) ........................................................................88
4.2 Install Display Driver (For AMD GX2)......................................................................90
4.3 Install Ethernet Driver (For Realtek RTL810x, RTL813x Family) ............................92
5 Measurement Drawing .............................................................................................93
Appendix A: BIOS Revisions..........................................................................................95
Appendix B: AWARD BIOS POST Messages ................................................................96
Overview............................................................................................................................97
Post Beep ..........................................................................................................................97
Error Messages .................................................................................................................97
1. CMOS BATTERY HAS FAILED .........................................................................................................97
2. CMOS CHECKSUM ERROR .............................................................................................................97
3. DISK BOOT FAILURE, INSERT SYSTEM DISK AND PRESS ENTER ............................................ 97
4. DISKETTE DRIVES OR TYPES MISMATCH ERROR - RUN SETUP.............................................. 97
5. DISPLAY SWITCH IS SET INCORRECTLY...................................................................................... 98
6. DISPLAY TYPE HAS CHANGED SINCE LAST BOOT ..................................................................... 98
7. EISA Configuration Checksum Error PLEASE RUN EISA CONFIGURATION UTILITY................... 98
8. EISA Configuration Is Not Complete PLEASE RUN EISA CONFIGURATION UTILITY................... 98
9. ERROR ENCOUNTERED INITIALIZING HARD DRIVE.................................................................... 98
10. ERROR INITIALIZING HARD DISK CONTROLLER ..................................................................... 98
11. FLOPPY DISK CNTRLR ERROR OR NO CNTRLR PRESENT ................................................... 98
12. Invalid EISA Configuration PLEASE RUN EISA CONFIGURATION UTILITY .............................. 99
13. KEYBOARD ERROR OR NO KEYBOARD PRESENT ................................................................. 99
14. Memory Address Error at ... ........................................................................................................... 99
15. Memory parity Error at ................................................................................................................... 99
16. MEMORY SIZE HAS CHANGED SINCE LAST BOOT ................................................................. 99
17. Memory Verify Error at ... ............................................................................................................... 99
18. OFFENDING ADDRESS NOT FOUND ......................................................................................... 99
19. OFFENDING SEGMENT: ..............................................................................................................99
20. PRESS A KEY TO REBOOT ....................................................................................................... 100
21. PRESS F1 TO DISABLE NMI, F2 TO REBOOT ......................................................................... 100
22. RAM PARITY ERROR - CHECKING FOR SEGMENT ... ........................................................... 100
23. Should Be Empty But EISA Board Found PLEASE RUN EISA CONFIGURATION UTILITY..... 100
24. Should Have EISA Board But Not Found PLEASE RUN EISA CONFIGURATION UTILITY ..... 100
25. Slot Not Empty ............................................................................................................................. 100
26. SYSTEM HALTED, (CTRL-ALT-DEL) TO REBOOT ... ............................................................... 100
27. Wrong Board In Slot PLEASE RUN EISA CONFIGURATION UTILITY...................................... 101
28. FLOPPY DISK(S) fail (80) → Unable to reset floppy subsystem................................................. 101
29. FLOPPY DISK(S) fail (40) → Floppy Type dismatch................................................................... 101
8 ECM-5510 User’s Manual
User’s Manual
30. Hard Disk(s) fail (80) → HDD reset failed.................................................................................. 101
31. Hard Disk(s) fail (40) → HDD controller diagnostics failed........................................................ 101
32. Hard Disk(s) fail (20) → HDD initialization error........................................................................ 101
33. Hard Disk(s) fail (10) → Unable to recalibrate fixed disk........................................................... 101
34. Hard Disk(s) fail (08) → Sector Verify failed.............................................................................. 101
35. Keyboard is locked out - Unlock the key. ..................................................................................... 101
36. Keyboard error or no keyboard present. ...................................................................................... 101
37. Manufacturing POST loop............................................................................................................ 101
38. BIOS ROM checksum error - System halted. .............................................................................. 101
39. Memory test fail. ........................................................................................................................... 101
40. POST Codes ................................................................................................................................ 102
ECM-5510 User’s Manual
9
ECM-5510
1. Getting Started
1.1 Safety Precautions
Warning!
Always completely disconnect the power cord from your
chassis whenever you work with the hardware. Do not
make connections while the power is on. Sensitive
electronic components can be damaged by sudden power
surges. Only experienced electronics personnel should
open the PC chassis.
Caution!
Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution,
use a grounding wrist strap at all times. Place all electronic
components in a static-dissipative surface or static-shielded
bag when they are not in the chassis.
1.2 Packing List
Before you begin installing your single board, please make sure that the
following materials have been shipped:
z 1 x ECM-5510 onboard AMD Geode GX466 333 MHz mini module
z 1 x Quick Installation Guide for ECM-5510
z 1 x CD-ROM or DVD-ROM contains the followings:
— User’s Manual (this manual in PDF file)
— Ethernet driver and utilities
— VGA drivers and utilities
— Audio drivers and utilities
10 ECM-5510 User’s Manual
1.3 Document Amendment History
Revision Date By Comment
1st May, 2006 Vicky Lin Initial Release
User’s Manual
ECM-5510 User’s Manual
11
ECM-5510
1.4 Manual Objectives
This manual describes in detail the Avalue Technology ECM-5510 Single Board.
We have tried to include as much information as possible but we have not duplicated
information that is provided in the standard IBM Technical References, unless it proved to
be necessary to aid in the understanding of this board.
We strongly recommend that you study this manual carefully before attempting to interface
with ECM-5510 series or change the standard configurations. Whilst all the necessary
information is available in this manual we would recommend that unless you are confident,
you contact your supplier for guidance.
Please be aware that it is possible to create configurations within the CMOS RAM that
make booting impossible. If this should happen, clear the CMOS settings, (see the
description of the Jumper Settings for details).
If you have any suggestions or find any errors concerning this manual and want to inform
us of these, please contact our Customer Service department with the relevant details.
12 ECM-5510 User’s Manual
1.5 System Specifications
System
User’s Manual
CPU
BIOS
System Chipset
I/O Chip
System Memory
SSD
Watchdog Timer
Expansion
I/O
MIO
IrDA
USB
DIO
Onboard AMD Geode GX466 333 MHz
Note: Available in different CPU speeds by request
Award 512 KB Flash BIOS
AMD Geode GX466/CS5535
Winbond W83627HF-AW
64/128/256 MB DDR SDRAM onboard
One 184-pin DIMM socket supports up to 512 MB DDR 200/266 SDRAM
One M-Systems DiskOnChip, one CompactFlash Type I/II socket
Reset: 1 sec.~255 min. and 1 sec. or 1 min./step
One PC/104 connector, one PCI slot (PCI Rev. 2.2 compliant)
2 x EIDE (Ultra DMA 66), 1 x FDD, 1 x LPT, 3 x RS-232,
1 x RS-232/422/482, 1 x K/B, 1 x Mouse
115k bps, IrDA 1.0 compliant
4 x USB 1.1 ports
16-bit General Purpose I/O for DI and DO
Display
Chipset
Display Memory
Resolution
VGA/LCD Interface
LVDS
Audio
Chipset
AC97 Codec
Audio Interface
Ethernet
LAN 1
Ethernet Interface
AMD Geode GX466 with integrated 2D graphics engine
8/16 MB frame buffer using system memory
CRT mode: 1280 x 1024 @ 24 bpp (60 Hz)
LCD mode: 1280 x 1024 @ 24 bpp (85 Hz)
PCI bus VGA/LCD interface
Supports 18/24-bit TFT panels
Single channel 24-bit LVDS
AMD Geode CS5535
VIA VT1612A
Mic in, Line in, CD Audio in, Line out
Realtek RTL8100C
Optional Intel® 82551QM/82551ER
100Base-Tx Fast Ethernet compatible
ECM-5510 User’s Manual
13
ECM-5510
Mechanical & Environmental
Power Requirement
Power Type
Operation Temperature
Operating Humidity
Size ( L x W )
Weight
+5V @ 1.71 A, 5 Vsb @ 0.17 A (with AMD Geode GX466 333 MHz & 256
MB DDR SDRAM)
AT/ATX
0~60oC (32~140o F)
0%~90% relative humidity, non-condensing
8" x 5.75" (203 mm x 146 mm)
0.88 lbs (0.4 Kg)
14 ECM-5510 User’s Manual
User’s Manual
1.6 Architecture Overview
1.6.1 Block Diagram
The following block diagram shows the architecture and main components of ECM-5510.
The following sections provide detail information about the functions provided onboard.
ECM-5510 User’s Manual
15
ECM-5510
1.6.2 AMD Geode GX2 & CS5535
The AMD Geode GX2 processor is designed from the ground-up for information
appliances, the GX2 processor delivers optimal performance for full-featured multimedia
applications across broadband connections.
The GX2 processor includes a powerful 32-bit-x86 core integrated FPU, a display controller
with up to 1600 x 1200 resolution, a graphic processor, a SDRAM controller (SDR or DDR
supported), a TFT interface and integrated DACs for CRT support (pinout options).
Together with its AMD Geode CS5535 I/O companion device, the AMD Geode GX2
processor delivers the optimum balance between power consumption and performance.
The GX2 processor is powered by a new x86 core with support for MMX and 3DNow!
extensions. Built around AMD’s GeodeLink architecture with an on-chip bandwidth of up
to 6 Gbps, the GX2 processor supports high quality multimedia applications.
The AMD Geode GX2 processor is a very low powered x86 microprocessor with typical
power consumption of less than 1.5 W. It’s a highly integrated solution that enables small
form factor devices.
Outstanding features:
• 32-bit low-power x86 processor with support for Intel MMX and 3DNow! extensions
• 32 KB of level 1 cache,16 KB instruction, and 16 KB data
• High-performance patented GeodeLink architecture
• Integrated display controller
• Integrated video DACs and integrated TFT interface for flexible output options: CRT
or TFT (Bond-out option)
• PCI 66 MHz Bus
Industry standard PCI 2.2 specification compliant
Write gathering and write posting of inbound write requests
Supports fast back to back transactions
• 64-bit SDR or DDR memory controller with integrated graphics
• Integrated thermal diode
• Optimized Unified Memory Architecture (UMA) with patented compression
technology
• EBGA-368 terminal package
Memory controller
• Integrated memory controller for low latency to CPU and on-chip peripherals
• 64-bit wide SDRAM bus
Graphics processor
• High performance 2D graphics controller
• Alpha BLT
• Integrated dot clock PLL
16 ECM-5510 User’s Manual
User’s Manual
Display controller
• Supports up to 1600 x 1200 x 16 BPP and 1280 x 1024 x 24 BPP @ 85 Hz (CRT)
• Hardware-based VGA
• Hardware video up/down scaler
• Graphics/video alpha blending
• TFT or CRT interface
• Integrated CRT DACs
IDE controller
• UDMA-66 compliant
• One channel with two devices
Flash interface
• Multiplexed with IDE interface
• Connects to an array of industry standard NAND Flash and/or NOR Flash
USB controllers
• 2 USB 1.1 controllers, supporting total of four ports
Audio codec 97 controller
• AC97 specification version 2.1 compliant interface to multiple audio codecs: serial in,
serial-out, bit clock-in
• Multiple codec support
• Surround sound support
IR (infrared) communication port
• Shared with serial port 1
• 16550A and 16450 software compatible
• Consumer-IR (TV-remote) mode
• HP-SIR
• Selectable internal or external modulation/demodulation (SHARP-IR)
• Consumer remote control supports RC-5, RC-6, NEC, RCA,
• RECS 80 AMD Geode Solutions CS5535 companion device –
• GX2 Processor
System Management Bus (SMB) controller
• Compatible with Intel System Management Bus, Phillips I2C, and ACCESS.bus
LPC (low pin count) port
• Based on Intel LPC interface specifications, revision 1.0 General Purpose I/Os
(GPIOs)
• Up to 28 programmable GPIOs: in, out, I/O, open-drain, pull-up/down, and invert
ECM-5510 User’s Manual
17
ECM-5510
1.6.3 VIA VT1612A Audio Codec
VIA Technologies’ VT1612ATM 18-bit audio codec conforms to the AC’97 2.2. The
VT1612A integrates Sample Rate Converters and can be adjusted in 1Hz increments. The
analog mixer circuitry integrates a stereo enhancement to provide a pleasing 3D surround
sound effect for stereo media.
Furthermore, an integrated headphone amplifier with thermal shutdown adds signal value
by reducing the BOM. This codec is designed with aggressive power management to
achieve low power consumption. When used with 3.3V analog supply, power consumption
is further reduced. The primary applications for this part are desktop and portable personal
computers multimedia subsystems.
1.6.4 Ethernet
1.6.4.1 Realtek RTL8100C Ethernet Controller
The Realtek RTL8100C(L) is enhanced with an ACPI (Advanced Configuration Power
Interface) management function for PCI in order to provide efficient power management for
advanced operating systems with OSPM (Operating System Directed Power Management).
It also supports remote wake-up (including AMD Magic Packet™ and Microsoft® Wake-up
frame) to increase cost-efficiency in network maintenance and management.
• 128-pin PQFP/LQFP (PQFP package pin-to-pin compatible with Realtek
RTL8110S-32 Single-Chip Gigabit Ethernet Controller)
• Supports PCI/mini-PCI interfaces
• Integrates Fast Ethernet MAC, physical chip, and transceiver onto a single chip
• 10Mbps and 100Mbps operation supporting N-way auto-negotiation
• Supports 25MHz Crystal or 25MHz OSC as the internal clock source
• Complies with PC99/PC2001 standards
• Supports ACPI power management
• Provides PCI bus master data transfer
• Provides PCI memory space or I/O space mapped data transfer
• Supports PCI clock speed of 16.75MHz-40MHz
• Advanced power saving mode
• Supports Wake-on-LAN and remote wake-up (AMD Magic Packet™, Link Change,
and Microsoft® Wake-up frame)
• Half/Full duplex capability
• Supports Full Duplex Flow Control (IEEE 802.3x)
• Provides interface to 93C46 EEPROM to store resource configuration and ID
parameters
• Provides PCI clock run pin
• Provides LED pins for network operation status indication
• 2.5/3.3V power supply with 5V tolerant I/Os
• 0.25µm CMOS process
18 ECM-5510 User’s Manual
User’s Manual
1.6.5 Winbond W83627HF-AW LPC Super I/O
The Winbond W83627F/HF is made to fully comply with Microsoft PC98 and PC99
Hardware Design Guide. Moreover, W83627F/HF is made to meet the specification of
PC98/PC99’s requirement in the power management: ACPI and DPM (Device Power
Management). Super I/O chip provides features as the following:
• Meet LPC Spec. 1.0
• Support LDRQ# (LPC DMA), SERIRQ (serial IRQ)
• Include all features of Winbond I/O W83977TF and W83977EF
• Integrate Hardware Monitor functions
• Compliant with Microsoft PC98/PC99 Hardware Design Guide.
• Support DPM (Device Power Management), ACPI
• Programmable configuration settings
• Single 24 or 48 MHz clock input
1.6.6 Winbond W83977EF ISA Super I/O
The Winbond W83627F/HF is made to fully comply with Microsoft PC98 Hardware Design
Guide. Moreover, W83627F/HF is made to meet the specification of PC98’s requirement in
the power management: ACPI and DPM (Device Power Management). Super I/O chip
provides features as the following:
• Plug & Play 1.0A compatible
• Supports 12 IRQs, 4 DMA channels, full 16-bit address decoding
• Capable of ISA Bus IRQ Sharing
• Compliant with Microsoft PC98 Hardware Design Guide
• Supports DPM (Device Power Management), ACPI
• Reports ACPI status interrupt by SCI# signal issued from any of the 12 IRQs pins or
GPIO xx
• Programmable configuration settings
• Single 24/48 Mhz clock input
ECM-5510 User’s Manual
19
ECM-5510
1.6.7 NS DS90C385 LVDS Transmitter
The DS90C385 transmitter converts 28 bits of LVCMOS/LVTTL data into four LVDS (Low
Voltage Differential Signaling) data streams. A phase-locked transmit clock is transmitted in
parallel with the data streams over a fifth LVDS link. Every cycle of the transmit clock 28
bits of input data are sampled and transmitted. At a transmit clock frequency of 85 MHz, 24
bits of RGB data and 3 bits of LCD timing and control data (FPLINE, FPFRAME, DRDY)
are transmitted at a rate of 595 Mbps per LVDS data channel. Using a 85 MHz clock, the
data throughput is 297.5 Mbytes/sec. Also available is the DS90C365 that converts 21 bits
of LVCMOS/LVTTL data into three LVDS (Low Voltage Differential Signaling) data streams.
Both transmitters can be programmed for Rising edge strobe or Falling edge strobe through
a dedicated pin. A Rising edge or Falling edge strobe transmitter will interoperate with a
Falling edge strobe Receiver (DS90CF386/DS90CF366) without any translation logic.
1.6.8 ITE IT8888F PCI-ISA Bridge
The IT8888F is a PCI to ISA bridge single function device. The IT8888F serves as a bridge
between the PCI bus and ISA bus. The IT8888F’s 32-bit PCI bus interface is compliant with
PCI Specification V2.1 and supports both PCI Bus Master & Slave.
20 ECM-5510 User’s Manual
User’s Manual
2. Hardware
Configuration
ECM-5510 User’s Manual
21
ECM-5510
2.1 Product Overview
22 ECM-5510 User’s Manual
User’s Manual
2.2 Installation Procedure
This chapter explains you the instructions of how to setup your system.
1. Turn off the power supply.
2. Insert the DIMM module (be careful with the orientation).
3. Insert all external cables for hard disk, floppy, keyboard, mouse, USB etc. except for flat
panel. A CRT monitor must be connected in order to change CMOS settings to support
flat panel.
4. Connect power supply to the board via the ATXPWR.
5. Turn on the power.
6. Enter the BIOS setup by pressing the delete key during boot up. Use the “LOAD BIOS
DEFAULTS” feature. The Integrated Peripheral Setup and the Standard CMOS Setup
Window must be entered and configured correctly to match the particular system
configuration.
7. If TFT panel display is to be utilized, make sure the panel voltage is correctly set before
connecting the display cable and turning on the power.
ECM-5510 User’s Manual
23
ECM-5510
2.2.1 Main Memory
ECM-5510 provides one 184-pin SODIMM sockets to support DDR SDRAM. The total
maximum memory size is 512 MB.
DIMM1
Make sure to unplug the power supply before adding or removing DIMMs or
other system components. Failure to do so may cause severe damage to
both the board and the components.
24 ECM-5510 User’s Manual
User’s Manual
• Locate the DIMM slot on the board.
• Hold two edges of the DIMM module carefully. Keep away of touching its connectors.
• Align the notch key on the module with the rib on the slot.
• Firmly press the modules into the slot automatically snaps into the mounting notch. Do
not force the DIMM module in with extra force as the DIMM module only fit in one
direction.
• To remove the DIMM modules, push the two ejector tabs on the slot outward
simultaneously, and then pull out the DIMM module.
Note: (1) Please do not change any DDR SDRAM parameter in BIOS setup to
increase your system’s performance without acquiring technical
information in advance.
(2) Static electricity can damage the electronic components of the computer
or optional boards. Before starting these procedures, ensure that you
are discharged of static electricity by touching a grounded metal object
briefly.
ECM-5510 User’s Manual
25
ECM-5510
2.3 Jumper and Connector List
You can configure your board to match the needs of your application by setting jumpers. A
jumper is the simplest kind of electric switch.
It consists of two metal pins and a small metal clip (often protected by a plastic cover) that
slides over the pins to connect them. To “close” a jumper you connect the pins with the clip.
To “open” a jumper you remove the clip. Sometimes a jumper will have three pins, labeled 1,
2, and 3. In this case, you would connect either two pins.
The jumper settings are schematically depicted in this manual as follows:
A pair of needle-nose pliers may be helpful when working with jumpers.
Connectors on the board are linked to external devices such as hard disk drives, a
keyboard, or floppy drives. In addition, the board has a number of jumpers that allow you to
configure your system to suit your application.
If you have any doubts about the best hardware configuration for your application, contact
your local distributor or sales representative before you make any changes.
The following tables list the function of each of the board's jumpers and connectors.
Jumpers
Label Function Note
JP1
JP2
JP3
JP5
JP6
JP7, JP8,
BIOS write protect select 3 x 1 header, pitch 2.54mm
TFT/CRT select 2 x 1 header, pitch 2.0mm
Clear CMOS 3 x 1 header, pitch 2.54mm
COM2 RS-232/422/485 select 3 x 2 header, pitch 2.0mm
4 x 3 header, pitch 2.0mm
COM 2/4/3/1 pin 9 select 3 x 2 header, pitch 2.0mm
JP9, JP10
JP11
JP13
JP14
26 ECM-5510 User’s Manual
LCD inverter power select 3 x 1 header, pitch 2.0mm
Compact Flash mode select 2 x 1 header, pitch 2.54mm
DOC memory address select 2 x 1 header, pitch 2.0mm
Connectors
Label Function Note
User’s Manual
ATX1
CN1
CN2
CN3
CN4
CN5
CN6
CN7 + CN8
CN9
CN10
CN11
CN12
CN13
CN14
CN15
ATX power connector
System fan connector 3 x 1 wafer, pitch 2.54mm
CPU fan connector 3 x 1 wafer, pitch 2.54mm
TFT panel connector HIROSE DF13-40DP-1.25V
LVDS connector HIROSE DF13-40DP-1.25V
CD-ROM audio input connector 5 x 1 wafer, pitch 2.0mm
Serial port 1, 2, 3, 4 connector 20 x 2 header, pitch 2.54mm
PC/104 connector
Reserved
IrDA connector 5 x 1 header, pitch 2.54mm
Keyboard & mouse connector 4 x 2 header, pitch 2.54mm
USB connector 0 & 1 5 x 2 header, pitch 2.54mm
LCD inverter connector 5 x 1 wafer, pitch 2.0mm
Primary IDE connector 20 x 2 header, pitch 2.54mm
USB connector 2 & 3 5 x 2 header, pitch 2.54mm
DIMM1
FLP1
JDIO1
JFP1
JP4
JP12
JP15
LAN1
LPT1
PCI1
PWR1
SN1
U19
VGA1
184-pin DIMM socket
Floppy connector 17 x 2 header, pitch 2.54mm
Digital I/O connector 10 x 2 header, pitch 2.54mm
Front panel connector 8 x 2 header, pitch 2.54mm
Audio connector 8 x 2 header, pitch 2.54mm
LCD backlight brightness adjustment
connector
-5V/-12V PC/104 voltage connector 2 x 1 wafer, pitch 2.0mm
RJ-45 Ethernet
Parallel port connector 13 x 2 header, pitch 2.54mm
PCI slot
Power connector
Compact Flash card connector
DiskOnChip socket
VGA connector 8 x 2 header, pitch 2.54mm
3 x 1 header, pitch 2.0mm
ECM-5510 User’s Manual
27
ECM-5510
2.4 Setting Jumpers & Connectors
2.4.1 BIOS Write Protect Select (JP1)
* Default
Protect*
Write
2.4.2 TFT/CRT Select (JP2)
* Default
TFT
CRT*
28 ECM-5510 User’s Manual
2.4.3 Clear CMOS (JP3)
* Default
User’s Manual
Protect*
Clear CMOS
2.4.4 COM2 RS-232/422/485 Select (JP5, JP6)
JP5
* Default
(JP5)
RS-232*
RS-422
(JP6)
RS-232*
RS-422
RS-485
RS-485
ECM-5510 User’s Manual
29
ECM-5510
2.4.5 COM2/4/3/1 Pin 9 Select (JP7, JP8, JP9, JP10)
JP8
JP9
JP7
JP10
+12V
* Default
+5V
Ring*
2.4.6 LCD Inverter Power Select (JP11)
* Default
+12V*
+5V
30 ECM-5510 User’s Manual
2.4.7 Compact Flash Mode Select (JP13)
* Default
User’s Manual
Master
Slave*
2.4.8 DOC Memory Address Select (JP14)
* Default
D0000
D8000
D4000*
Disabled
ECM-5510 User’s Manual
31
ECM-5510
2.4.9 ATX Power Connector (ATX1)
Signal PIN PIN Signal
NC
NC
GND
PS_ON
GND
GND
GND
NC
+5V
+5V
11 1
12 2
13 3
14 4
15 5
16 6
17 7
18 8
19 9
20 10
+3.3V
+3.3V
GND
+5V
GND
+5V
GND
PWROK
5VSB
+12V
32 ECM-5510 User’s Manual
2.4.10 System Fan Connector (CN1)
User’s Manual
Signal PIN
GND 1
+12V 2
TAC 3
2.4.10.1 Signal Description – System Fan Connector (CN1)
Signal Signal Description
TAC Fan speed monitor
2.4.11 CPU Fan Connector (CN2)
Signal PIN
GND 1
+12V 2
TAC 3
2.4.11.1 Signal Description – CPU Fan Connector (CN2)
Signal Signal Description
TAC Fan speed monitor
ECM-5510 User’s Manual
33
ECM-5510
2.4.12 TFT Panel Connector (CN3)
Signal PIN PIN Signal
ENBLK
M
SHFCLK
GND
P22
P20
P18
P16
P14
P12
P10
P8
P6
P4
P2
39 40
37 38
35 36
33 34
31 32
29 30
27 28
25 26
23 24
21 22
19 20
17 18
15 16
13 14
11 12
NC
LP
FLM
GND
P23
P21
P19
P17
P15
P13
P11
P9
P7
P5
P3
P0
VCON
+3.3V
GND
+5V
9 10
7 8
5 6
3 4
1 2
P1
GND
+3.3V
GND
+5V
2.4.12.1 Signal Description – TFT Panel Connecter (CN3)
Signal Description
P [0:23] Flat panel data output for 18/24 bit TFT flat panels. Refer to table below for
configurations for various panel types. The flat panel data and control outputs are
all on-board controlled for secure power-on/off sequencing
SHFCLK Shift Clock. Pixel clock for flat panel data
LP Flat panel equivalent of HSYNC (horizontal synchronization)
FLM Flat panel equivalent of VSYNC (vertical synchronization)
M Multipurpose signal, function depends on panel type. May be used as AC drive
control signal or as BLANK# or Display Enable signal
ENBKL Enable backlight signal. This signal is controlled as a part of the panel power
sequencing
ENVEE Enable VEE. Signal to control the panel power-on/off sequencing. A high level may
turn on the VEE (LCD bias voltage) supply to the panel
34 ECM-5510 User’s Manual
2.4.12.2 Signal Configuration – TFT Panel Display (CN3)
Signal 18-bit TFT 24-bit TFT
P0 - B0
P1 - B1
P2 B0 B2
P3 B1 B3
P4 B2 B4
P5 B3 B5
P6 B4 B6
P7 B5 B7
P8 - G0
P9 - G1
P10 G0 G2
P11 G1 G3
P12 G2 G4
P13 G3 G5
P14 G4 G6
P15 G5 G7
P16 - R0
P17 - R1
P18 R0 R2
P19 R1 R3
P20 R2 R4
P21 R3 R5
P22 R4 R6
P23 R5 R7
User’s Manual
ECM-5510 User’s Manual
35
ECM-5510
2.4.13 LVDS Connector (CN4)
Signal PIN PIN Signal
NC 39 40 NC
GND 37 38 GND
NC 35 36 Txclk#
NC 33 34 Txclk
GND 31 32 GND
NC 29 30 NC
NC 27 28 NC
GND 25 26 GND
NC 23 24 NC
NC 21 22 NC
GND 19 20 GND
Txout3# 17 18 Txout2#
Txout3 15 16 Txout2
GND 13 14 GND
Txout1# 11 12 Txout0#
Txout1 9 10 Txout0
GND 7 8 GND
I2C_CLK 5 6 I2C_DAT
+3.3V 3 4 +5V
+3.3V 1 2 +5V
2.4.13.1 Signal Description – LVDS Connecter (CN4)
Signal Description
I2C interface for panel parameter EEPROM. This EERPOM is mounted on the
I2C_DAT, I2C_CLK
LVDS receiver. The data in the EEPROM allows the EXT module to automatically
set the proper timing parameters for a specific LCD panel.
36 ECM-5510 User’s Manual
2.4.14 CD-ROM Audio Input Connector (CN5)
User’s Manual
Signal PIN
CD_R 4
GND 3
CD_L 2
GND 1
2.4.14.1 Signal Description – CD-ROM Audio Input Connecter (CN5)
Signal Signal Description
CD_R Right CD-IN signal
CD_L Left CD-IN signal
ECM-5510 User’s Manual
37
ECM-5510
2.4.15 Serial Port 1, 3, 4 Connector (CN6)
Serial Port 1 (Pin 1-10)
Signal PIN PIN Signal
DCD1 1 2 DSR1
RxD1 3 4 RTS1
TxD1 5 6 CTS1
DTR1 7 8 RI1/+5V/+12V
GND 9 10 NC
Serial Port 3 (Pin 21-30)
Signal PIN PIN Signal
DCD3 21 22 DSR3
RxD3 23 24 RTS3
TxD3 25 26 CTS3
DTR3 27 28 RI3/+5V/+12V
GND 29 30 NC
Serial Port 4 (Pin 31-40)
Signal PIN PIN Signal
DCD4 31 32 DSR4
RxD4 33 34 RTS4
TxD4 35 36 CTS4
DTR4 37 38 RI4/+5V/+12V
GND 39 40 NC
38 ECM-5510 User’s Manual
2.4.15.1 Signal Description – Serial Port 1, 3, 4 Connector (CN6)
Signal Signal Description
Serial output. This signal sends serial data to the communication link. The signal is
User’s Manual
TxD
RxD Serial input. This signal receives serial data from the communication link.
DTR
DSR
RTS
CTS
DCD
RI
set to a marking state on hardware reset when the transmitter is empty or when
loop mode operation is initiated.
Data Terminal Ready. This signal indicates to the modem or data set that the
on-board UART is ready to establish a communication link.
Data Set Ready. This signal indicates that the modem or data set is ready to
establish a communication link.
Request To Send. This signal indicates to the modem or data set that the on-board
UART is ready to exchange data.
Clear To Send. This signal indicates that the modem or data set is ready to
exchange data.
Data Carrier Detect. This signal indicates that the modem or data set has detected
the data carrier.
Ring Indicator. This signal indicates that the modem has received a telephone
ringing signal.
ECM-5510 User’s Manual
39
ECM-5510
2.4.16 Serial Port 2 Connector in RS-232 Mode (CN6, Pin 11-20)
Signal PIN PIN Signal
DCD2 11 12 DSR2
RxD2 13 14 RTS2
TxD2 15 16 CTS2
DTR2 17 18 RI2/+5V/+12V
GND 19 20 NC
2.4.16.1 Signal Description – Serial Port 2 Connector in RS-232 Mode (CN6, Pin
11-20)
Signal Signal Description
Serial output. This signal sends serial data to the communication link. The signal is
TxD
RxD Serial input. This signal receives serial data from the communication link.
DTR
DSR
set to a marking state on hardware reset when the transmitter is empty or when
loop mode operation is initiated.
Data Terminal Ready. This signal indicates to the modem or data set that the
on-board UART is ready to establish a communication link.
Data Set Ready. This signal indicates that the modem or data set is ready to
establish a communication link.
RTS
CTS
DCD
RI
Request To Send. This signal indicates to the modem or data set that the on-board
UART is ready to exchange data.
Clear To Send. This signal indicates that the modem or data set is ready to
exchange data.
Data Carrier Detect. This signal indicates that the modem or data set has detected
the data carrier.
Ring Indicator. This signal indicates that the modem has received a telephone
ringing signal.
40 ECM-5510 User’s Manual
2.4.17 Serial Port 2 Connector in RS-422 Mode (CN6, Pin 11-20)
Signal PIN PIN Signal
TxD- 11 12 RxD+
TxD+ 13 14 RxD-
GND 15 16 NC
NC 17 18 NC
User’s Manual
NC 19 20 NC
2.4.17.1 Signal Description – Serial Port 2 Connector in RS-422 Mode (CN6, Pin
11-20)
Signal Signal Description
Serial output. This differential signal pair sends serial data to the communication
TxD+/-
RxD+/-
link. Data is transferred from Serial Port 2 Transmit Buffer Register to the
communication link, if the RTS register of the Serial Port 2 is set to LOW.
Serial input. This differential signal pair receives serial data from the
communication link. Received data is available in Serial Port 2 Receiver Buffer
Register.
ECM-5510 User’s Manual
41
ECM-5510
2.4.18 Serial Port 2 Connector in RS-485 Mode (CN6, Pin 11-20)
Signal PIN PIN Signal
DATA+ 11 12 NC
DATA- 13 14 NC
GND 15 16 NC
NC 17 18 NC
NC 19 20 NC
2.4.18.1 Signal Description – Serial Port 2 Connector in RS-485 Mode (CN6, Pin
11-20)
Signal Signal Description
This differential signal pair sends and receives serial data to the communication
DATA+/-
link. The mode of this differential signal pair is controlled through the RTS
register of Serial Port 2. Set the RTS register of the Serial Port 2 to LOW for
transmitting, HIGH for receiving.
Do not select a mode different from the one used by the connected peripheral,
as this may damage CPU board and/or peripheral.
The transmitter drivers in the port are short circuit protected by a thermal
protection circuit. The circuit disables the drivers when the die temperature
reaches 150 °C.
RS-422 mode is typically used in point to point communication. Data and
control signal pairs should be terminated in the receiver end with a resistor
matching the cable impedance (typical 100-120 Ω). The resistors could be
placed in the connector housing.
RS-485 mode is typically used in multi drop applications, where more than 2
units are communicating. The data and control signal pairs should be
terminated in each end of the communication line with a resistor matching the
cable impedance (typical 100-120 Ω). Stubs to substations should be
avoided.
42 ECM-5510 User’s Manual
2.4.19 PC/104 Connector (CN7 + CN8)
User’s Manual
CN7
Signal PIN PIN Signal
GND B32 A32 GND
CN7
GND B31 A31 SA0
OSC B30 A30 SA1
+5V B29 A29 SA2
BALE B28 A28 SA3
TC B27 A27 SA4
DACK2# B26 A26 SA5
IRQ3 B25 A25 SA6
IRQ4 B24 A24 SA7
IRQ5 B23 A23 SA8
IRQ6 B22 A22 SA9
IRQ7 B21 A21 SA10
SYS_CLK B20 A20 SA11
REFRESH# B19 A19 SA12
DRQ1 B18 A18 SA13
DACK1# B17 A17 SA14
DRQ3 B16 A16 SA15
DACK3# B15 A15 SA16
IOR# B14 A14 SA17
IOW# B13 A13 SA18
SMEMR# B12 A12 SA19
SMEMW# B11 A11 AEN
GND B10 A10 IOCHRDY
+12V B9 A9 SD0
OWS# B8 A8 SD1
-12V B7 A7 SD2
DRQ2 B6 A6 SD3
-5V B5 A5 SD4
IRQ9 B4 A4 SD5
+5V B3 A3 SD6
RESETDRV B2 A2 SD7
GND B1 A1 IOCHK#
ECM-5510 User’s Manual
43
ECM-5510
CN8
Signal PIN PIN Signal
NC C20 D20 GND
SD15 C19 D19 GND
SD14 C18 D18 MASTER#
SD13 C17 D17 +5V
SD12 C16 D16 DRQ7
CN8
SD11 C15 D15 DACK7#
SD10 C14 D14 DRQ6
SD9 C13 D13 DACK6#
SD8 C12 D12 DRQ5
MEMW# C11 D11 DACK5#
MEMR# C10 D10 DRQ0
SA17 C9 D9 DACK0#
SA18 C8 D8 IRQ14
SA19 C7 D7 IRQ15
LA20 C6 D6 IRQ12
LA21 C5 D5 IRQ11
LA22 C4 D4 IRQ10
LA23 C3 D3 IOCS16#
SBHE# C2 D2 MEMCS16#
GND C1 D1 GND
44 ECM-5510 User’s Manual
2.4.19.1 Signal Description – PC/104 Connector (CN7 + CN8)
2.4.19.1.1 Address
Signal Signal Description
The address signals LA [23:17] define the selection of a 128KB section of memory
space within the 16MB address range of the 16-bit data bus. These signals are
active high. The validity of the MEMCS16# depends on these signals only. These
User’s Manual
LA [17:23]
SA [0:19]
SBHE#
2.4.19.1.2 Data
Signal Signal Description
address lines are presented to the system with tri-state drivers. The permanent
master drives these lines except when an alternate master cycle occurs; in this
case, the temporary master drives these lines. The LA signals are not defined for
I/O accesses.
System address. Address lines for the first one Megabyte of memory. SA [9:0]
used for I/O addresses. SA0 is the least significant bit
This signal is an active low signal, that indicates that a byte is being transferred on
the upper byte (SD [15:8]) of the 16 bit bus. All bus masters will drive this line with
a tri-state driver.
These signals are defined for the low order byte of the 16-bit data bus being the
only bus for 8 bit PC-AT/PC104 adapter boards. Memory or I/O transfers on this
part of the data bus are defined for 8-bit operations with even or odd addresses
and for 16-bit operations for odd addresses only. The signals SA0 and SBHE# are
SD [0:7]
SD [8:15]
used to define the data present on this bus:
SBHE# SA0 SD8-SD15 SD0-SD7 Action
0 0 ODD EVEN Word transfer
0 1 ODD ODD
1 0 X EVEN
1 1 X ODD
These signals are defined for the high order byte of the 16-bit data bus. Memory or
I/O transfers on this part of the bus are defined when SBHE# is active.
Byte transfer on
SD8-SD15
Byte transfer on
SD0-SD7
Byte transfer on
SD7-
ECM-5510 User’s Manual
45
ECM-5510
2.4.19.1.3 Commands
Signal Signal Description
This is an active high signal used to latch valid addresses from the current bus
BALE
IOR#
IOW#
SMEMR#
master on the falling edge of BALE. During DMA, refresh and alternate master
cycles, BALE is forced high for the duration of the transfer. BALE is driven by the
permanent master with a totem-pole driver.
This is an active low signal driven by the current master to indicate an I/O read
operation. I/O mapped devices using this strobe for selection should decode
addresses SA [15:0] and AEN. Additionally, DMA devices will use IOR# in
conjunction with DACKn# to decode a DMA transfer from the I/O device. The
current bus master will drive this line with a tri-state driver.
This is an active low signal driven by the current master to indicate an I/O write
operation. I/O mapped devices using this strobe for selection should decode
addresses SA [15:0] and AEN. Additionally, DMA devices will use IOR# in
conjunction with DACKn# to decode a DMA transfer from the I/O device. The
current bus master will drive this line with a tri-state driver.
This is an active low signal driven by the permanent master to indicate a memory
read operation in the first 1MB of system memory. Memory mapped devices using
this strobe should decode addresses SA [19:0] only. If an alternate master drives
MEMR#, the permanent master will drive SMEMR# delayed by internal logic. The
SMEMW#
MEMR#
MEMW#
permanent master ties this line to VCC through a pull-up resistor to ensure that it is
inactive during the exchange of bus masters.
This is an active low signal driven by the permanent master to indicate a memory
write operation in the first 1MB of system memory. Memory mapped devices using
this strobe should decode addresses SA [19:0] only. If an alternate master drives
MEMR#, the permanent master will drive SMEMR# delayed by internal logic. The
permanent master ties this line to VCC through a pull-up resistor to ensure that it is
inactive during the exchange of bus masters.
This is an active low signal driven by the current master to indicate a memory read
operation. Memory mapped devices using this strobe should decode addresses
LA [23:17] and SA [19:0]. All bus masters will drive this line with a tri-state driver.
The permanent master ties this line to VCC through a pull-up resistor to ensure
that it is inactive during the exchange of bus masters.
This is an active low signal driven by the current master to indicate a memory write
operation. Memory mapped devices using this strobe should decode addresses
LA [23:17] and SA [19:0]. All bus masters will drive this line with a tri-state driver.
The permanent master ties this line to VCC through a pull-up resistor to ensure
that it is inactive during the exchange of bus masters.
46 ECM-5510 User’s Manual
2.4.19.1.4 Transfer Response
Signal Signal Description
This is an active low signal driven by an I/O-mapped PC-AT/PC104 adapter
User’s Manual
IOCS16#
MEMCS16#
OWS#
IOCHRDY
IOCHCK#
indicating that the I/O device located at the address is a 16-bit device. This open
collector signal is driven, based on SA [15:0] only (not IOR# and IOW#) when AEN
is not asserted.
This is an active low signal driven by a memory mapped PC-AT/PC104 adapter
indicating that the memory device located at the address is a 16-bit device. This
open collector signal is driven, based on LA [23:17] only.
This signal is an active low open-collector signal asserted by a 16-bit memory
mapped device that may cause an early termination of the current transfer. It
should be gated with MEMR# or MEMW# and is not valid during DMA transfers.
IOCHRDY precedes 0WS#.
This is an active high signal driven inactive by the target of either a memory or an
I/O operation to extend the current cycle. This open collector signal is driven based
on the system address and the appropriate control strobe. IOCHRDY precedes
0WS#.
This is an active low signal driven active by a PC-AT/PC104 adapter detecting a
fatal error during bus operation. When this open collector signal is driven low it will
2.4.19.1.5 Control
Signal Signal Description
SYSCLK
OSC
RESETDRV
typically cause a non-maskable interrupt.
This clock signal may vary in frequency from 2.5 MHz to 25.0 MHz depending on
the setup made in the BIOS. Frequencies above 16 MHz are not recommended.
The standard states 6 MHz to 8.33 MHz, but most new adapters are able to handle
higher frequencies. The PC-AT/PC104 bus timing is based on this clock signal.
This is a clock signal with a 14.31818 MHz ± 50 ppm frequency and a 50 ± 5%
duty cycle. The signal is driven by the permanent master.
This active high signal indicates that the adapter should be brought to an initial
reset condition. This signal will be asserted by the permanent master on the bus
for at least 100 ms at power-up or watchdog time-out to ensure that adapters in the
system are properly reset. When active, all adapters should turn off or tri-state all
drivers connected to the bus.
ECM-5510 User’s Manual
47
ECM-5510
2.4.19.1.6 Interrupts
Signal Signal Description
IRQ[3:7], IRQ[9:12]
IRQ[14:15]
These signals are active high signals, which indicate the presence of an
interrupting PC-AT/PC104 bus adapter. Due to the use of pull-ups, unused
interrupt inputs must be masked.
2.4.19.1.7 Bus Arbitration
Signal Signal Description
These signals are active high signals driven by a DMA bus adapter to indicate a
request for a DMA bus operation. DRQ [0:3] request 8 bit DMA operations, while
DRQ[0:3], DRQ[5:7]
DACK[0:3]#,
DACK[5:7]#
DRQ [5:7] request 16 bit operations. All bus DMA adapters will drive these lines
with a tri-state driver. The permanent master monitors these signals to determine
which of the DMA devices, if any, are requesting the bus.
These signals are active low signals driven by the permanent master to indicate
that a DMA operation can begin. They are continuously driven by a totem pole
driver for DMA channels attached.
This signal is an active high totem pole signal driven by the permanent master to
indicate that the address lines are driven by the DMA controller. The assertion of
AEN
REFRESH#
TC
MASTER# This signal is not supported by the chipset.
AEN disables response to I/O port addresses when I/O command strobes are
asserted. AEN being asserted, only the device with active DACKn# should
respond.
This is an active low signal driven by the current master to indicate a memory
refresh operation. The current master will drive this line with a tri-state driver.
This active high signal is asserted during a read or write command indicating that
the DMA controller has reached a terminal count for the current transfer. DACKn#
must be presented by the bus adapter to validate the TC signal.
48 ECM-5510 User’s Manual
2.4.20 IrDA Connector (CN10)
User’s Manual
Signal PIN
+5V 1
NC 2
IRRX 3
GND 4
IRTX 5
2.4.20.1 Signal Description – IrDA Connecter (CN10)
Signal Signal Description
IRRX Infrared Receiver input
IRTX Infrared Transmitter output
ECM-5510 User’s Manual
49
ECM-5510
2.4.21 Keyboard & Mouse Connector (CN11)
Signal PIN PIN Signal
KDAT 1 2 KCLK
GND 3 4 +5V
MDAT 5 6 MCLK
NC 7 8 NC
2.4.21.1 Signal Description – Keyboard & Mouse Connector (CN11)
Signal Signal Description
KCLK
KDAT
MCLK Bi-directional clock signal used to strobe data/commands from/to the PS/2 mouse.
MDAT
Bi-directional clock signal used to strobe data/commands from/to the PC-AT
keyboard.
Bi-directional serial data line used to transfer data from or commands to the PC-AT
keyboard.
Bi-directional serial data line used to transfer data from or commands to the PS/2
mouse.
50 ECM-5510 User’s Manual
2.4.22 USB Connector 0, 1, 2 & 3 (CN12, CN15)
CN12
CN15
Signal PIN PIN Signal
D0-/D2- 8 7 GND
D0+/D2+ 6 5 D1+/D3+
GND 4 3 D1-/D3-
User’s Manual
+5V 10 9 NC
GND 2 1 +5V
2.4.22.1 Signal Description – USB Connector 0, 1, 2, 3 (CN12, CN15)
Signal Signal Description
D0+ / D0-
D1+ / D1-
D2+ / D2-
D3+ /D3-
Differential bi-directional data signal for USB channel 0. Clock is transmitted along
with the data using NRZI encoding. The signalling bit rate is up to 12 Mbs.
Differential bi-directional data signal for USB channel 1. Clock is transmitted along
with the data using NRZI encoding. The signalling bit rate is up to 12 Mbs.
Differential bi-directional data signal for USB channel 2. Clock is transmitted along
with the data using NRZI encoding. The signalling bit rate is up to 12 Mbs.
Differential bi-directional data signal for USB channel 3. Clock is transmitted along
with the data using NRZI encoding. The signalling bit rate is up to 12 Mbs.
ECM-5510 User’s Manual
51
ECM-5510
2.4.23 LCD Inverter Connector (CN13)
Signal PIN
+5V 5
VR 4
ENBKL 3
GND 2
+5V / +12V 1
Note:
For inverters with adjustable Backlight function, it is possible to control the
LCD brightness through the VR signal controlled by JP12. Please see the
JP12 section for detailed circuitry information.
2.4.23.1 Signal Description – LCD Inverter Connector (CN13)
Signal Signal Description
VR Vadj = 0.75V ~ 4.25V (Recommended: 4.7KΩ, >1/16W)
ENBKL LCD backlight ON/OFF control signal
52 ECM-5510 User’s Manual
2.4.24 Primary IDE Connector (CN14)
User’s Manual
Signal PIN PIN Signal
RESET# 1 2 GND
PDD7 3 4 PDD8
PDD6 5 6 PDD9
PDD5 7 8 PDD10
PDD4 9 10 PDD11
PDD3 11 12 PDD12
PDD2 13 14 PDD13
PDD1 15 16 PDD14
PDD0 17 18 PDD15
GND 19 20 NC
PDREQ 21 22 GND
PDIOW# 23 24 GND
PDIOR# 25 26 GND
PIORDY 27 28 GND
PDDACK# 29 30 GND
IRQ14 31 32 NC
PDA1 33 34 NC
PDA0 35 36 PDA2
PDCS1# 37 38 PDCS3#
IDEACTP# 39 40 GND
ECM-5510 User’s Manual
53
ECM-5510
2.4.24.1 Signal Description – Primary IDE Connector (CN14)
Signal Signal Description
PDA [2:0]
PDCS1#, PDCS3#
PDD [15:0] IDE Data Lines. D [15:0] transfers data to/from the IDE devices.
PDIOR#
PDIOW#
PIORDY
RESET# IDE Reset. This signal resets all the devices that are attached to the IDE interface.
IRQ14 Interrupt line from hard disk. Connected directly to PC-AT bus.
PDREQ
PDDACK#
IDE Address Bits. These address bits are used to access a register or data port in
a device on the IDE bus.
IDE Chip Selects. The chip select signals are used to select the command block
registers in an IDE device. DCS1# selects the primary hard disk.
IDE I/O Read. Signal is asserted on read accesses to the corresponding IDE port
addresses.
IDE I/O Write. Each signal is asserted on write accesses to corresponding the IDE
port addresses.
When deasserted, these signals extend the transfer cycle of any host register
access when the device is not ready to respond to the data transfer request.
The DREQ is used to request a DMA transfer from the South Bridge. The direction
of the transfers is determined by the IOR#/IOW# signals.
DMA Acknowledge. The DACK# acknowledges the DREQ request to initiate DMA
transfers.
IDEACTP#
Signal from hard disk indicating hard disk activity. The signal level depends on the
hard disk type, normally active low. The signal is routed directly to the LED.
54 ECM-5510 User’s Manual
2.4.25 Floppy Connector (FLP1)
User’s Manual
Signal PIN PIN Signal
GND 1 2 REDWC
GND 3 4 NC
GND 5 6 NC
GND 7 8 INDEX
GND 9 10 MOTSA
GND 11 12 DRVSB
GND 13 14 DRVSA
GND 15 16 MOTEB
GND 17 18 DIR
GND 19 20 STEP
GND 21 22 WDATA
GND 23 24 WGATE
GND 25 26 TK00
GND 27 28 WPT
GND 29 30 RDATA
GND 31 32 SIDE1
GND 33 34 DSKCHG
ECM-5510 User’s Manual
55
ECM-5510
2.4.25.1 Signal Description – Floppy Connector (FLP1)
Signal Signal Description
RDATA The read data input signal from the FDD.
WDATA
WGATE Write enable. An open drain output.
MOATSA
MOTEB
DRVSA
DRVSB
SIDE1 This output signal selects side of the disk in the selected drive.
DIR
STEP
Write data. This logic low open drain writes pre-compensation serial data to the
selected FDD. An open drain output.
Motor A On. When set to 0, this pin enables disk drive 0. This is an open drain
output.
Motor B On. When set to 0, this pin enables disk drive 1. This is an open drain
output.
Drive Select A. When set to 0, this pin enables disk drive A. This is an open drain
output.
Drive Select B. When set to 0, this pin enables disk drive B. This is an open drain
output.
Direction of the head step motor. An open drain output
Logic 1 = outward motion
Logic 0 = inward motion
Step output pulses. This active low open drain output produces a pulse to move
the head to another track.
REDWC
TK00
INDEX
WPT
DSKCHG
This output indicates whether a low drive density (250/300kbps at low level) or a
high drive density (500/1000kbps at high level) has been selected.
Track 0. This Schmitt-triggered input from the disk drive is active low when the
head is positioned over the outermost track.
This Schmitt-triggered input from the disk drive is active low when the head is
positioned over the beginning of a track marked by an index hole.
Write protected. This active low Schmitt input from the disk drive indicates that the
diskette is write-protected.
Diskette change. This signal is active low at power on and whenever the diskette is
removed.
56 ECM-5510 User’s Manual
2.4.26 Digital I/O Connector (JDIO1)
User’s Manual
Signal PIN PIN Signal
DIO0 1 2 DIO10
DIO1 3 4 DIO11
DIO2 5 6 DIO12
DIO3 7 8 DIO13
DIO4 9 10 DIO14
DIO5 11 12 DIO15
DIO6 13 14 DIO16
DIO7 15 16 DIO17
SMB_CLK_S 17 18 SMB_DATA_S
GND 19 20 +5V
2.4.26.1 Signal Description – Digital I/O Connector (JDIO1)
Signal Signal Description
DIO [0:17] Digital input and output Data Bit 0 to Bit 17
SMB_CLK Data input for I2C input, 5V tolerant
SMB_DATA Data input for I2C serial input, 5V tolerant
ECM-5510 User’s Manual
57
ECM-5510
2.4.27 Front Panel Connector (JFP1)
Signal PIN PIN Signal
ALED 1 2 +5V
LLED 3 4 +5V
SLED 5 6 +5V
GND 7 8 +5V
GND 9 10 +5V
RESET 11 12 HD_LED
GND 13 14 SPK
PWR_BTN 15 16 +5V
2.4.27.1 Signal Description – Front Panel Connecter (JFP1)
PIN No. Description
1, 2 Active LAN LED
3, 4 10 Mbps LAN LED
5, 6 100 Mbps LAN LED
9, 11 Reset
10, 12 HDD LED
13, 15 Power SW
14, 16 Speaker
58 ECM-5510 User’s Manual
2.4.28 Audio Connector (JP4)
User’s Manual
Signal PIN PIN Signal
Mic-In 1 2 Mic Bais
GND 3 4 GND
Line-Out L 5 6 Line-Out R
Speaker L 7 8 Speaker R
Line-In L 9 10 Line-In R
GND 11 12 NC
GND 13 14 NC
GND 15 16 NC
2.4.28.1 Signal Description – Audio Connecter (JP4)
Signal Signal Description
Mic / Mic Bias The MIC signal is used for microphone input. This input is fed to the left
microphone channel.
Mic Bias provides 3.3V supplied through 3.2K Ω with capacitive decoupling to
GND. This signal may be used for bias of some microphone types.
Line-In L/R Left and right line in signals.
Line-Out L/R Left and right line out signals. Both signals are capacitor coupled and should have
GND as return.
Speaker L/R Left and right speaker out signals
ECM-5510 User’s Manual
59
ECM-5510
2.4.29 LCD Backlight Brightness Adjustment Connector (JP12)
Signal PIN
(Recommended: 4.7KΩ, >1/16W)
2.4.30 -5V/-12V PC/104 Voltage Connector (JP15)
GND
VR
+5V
JP12
1
2
3
Variation Resistor
3
2
1
VCC
CN13
pin 4
60 ECM-5510 User’s Manual
Signal PIN
-12V
-5V
1
2
2.4.31 Parallel Port Connector (LPT1)
User’s Manual
Signal PIN PIN Signal
STB# 1 2 AFD#
PD0
PD1
PD2 7 8 SLIN#
PD3
PD4
PD5
PD6
PD7
ACK# 19 20
BUSY 21 22
PE 23 24
SLCT 25 26
3 4 ERR#
5 6 INIT#
9 10 GND
11 12
13 14
15 16
17 18
GND
GND
GND
GND
GND
GND
GND
GND
ECM-5510 User’s Manual
61
ECM-5510
2.4.31.1 Signal Description – Parallel Port Connecter (LPT1)
Signal Signal Description
PD[7:0]
SLIN# Output line for detection of printer selection. This pin is pulled high internally.
SLCT
STB#
BUSY
ACK#
INIT# Output line for the printer initialization. This pin is pulled high internally.
AFD#
ERR#
Parallel data bus from PC board to printer. The data lines are able to operate in
PS/2 compatible bi-directional mode.
An active high input on this pin indicates that the printer is selected. This pin is
pulled high internally.
An active low output is used to latch the parallel data into the printer. This pin is
pulled high internally.
An active high input indicates that the printer is not ready to receive data. This pin
is pulled high internally.
An active low input on this pin indicates that the printer has received data and is
ready to accept more data. This pin is pulled high internally.
An active low output from this pin causes the printer to auto feed a line after a line
is printed.
This pin is pulled high internally.
An active low input on this pin indicates that the printer has encountered an error
condition. This pin is pulled high internally.
PE
An active high input on this pin indicates that the printer has detected the end of
the paper. This pin is pulled high internally.
2.4.32 Power Connector (PWR1)
Signal PIN
+5V
GND
GND
+12V
4
3
2
1
62 ECM-5510 User’s Manual
2.4.33 VGA Connector (VGA1)
User’s Manual
Signal PIN PIN Signal
RED 1 9 +5V
GREEN
BLUE
NC 4 12 DDAT
GND
GND
GND
GND
2.4.33.1 Signal Description – VGA Connecter (VGA1)
Signal Signal Description
HSYNC CRT horizontal synchronisation output.
VSYNC CRT vertical synchronisation output.
DCK
DAT
Display Data Channel Clock. Used as clock signal to/from monitors with DDC
interface.
Display Data Channel Data. Used as data signal to/from monitors with DDC
interface.
2 10 GND
3 11 NC
5 13 HSYNC
6 14
7 15
8 16
VSYNC
DCLK
NC
RED
GREEN
BLUE
Analog output carrying the red colour signal to the CRT. For 75 Ω cable
impedance.
Analog output carrying the green colour signal to the CRT. For 75 Ω cable
impedance.
Analog output carrying the blue colour signal to the CRT. For 75 Ω cable
impedance.
ECM-5510 User’s Manual
63
ECM-5510
3 BIOS Setup
64 ECM-5510 User’s Manual
User’s Manual
3.1 Starting Setup
The AwardBIOS™ is immediately activated when you first power on the computer. The
BIOS reads the system information contained in the CMOS and begins the process of
checking out the system and configuring it. When it finishes, the BIOS will seek an
operating system on one of the disks and then launch and turn control over to the operating
system.
While the BIOS is in control, the Setup program can be activated in one of two ways:
By pressing <Del> immediately after switching the system on, or
By pressing the <Del> key when the following message appears briefly at the bottom of the
screen during the POST (Power On Self Test).
Press DEL to enter SETUP
If the message disappears before you respond and you still wish to enter Setup, restart the
system to try again by turning it OFF then ON or pressing the "RESET" button on the
system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete>
keys. If you do not press the keys at the correct time and the system does not boot, an error
message will be displayed and you will again be asked to.
Press F1 to Continue, DEL to enter SETUP
ECM-5510 User’s Manual
65
ECM-5510
3.2 Using Setup
In general, you use the arrow keys to highlight items, press <Enter> to select, use the
PageUp and PageDown keys to change entries, press <F1> for help and press <Esc> to
quit. The following table provides more detail about how to navigate in the Setup program
using the keyboard.
Button Description
↑
↓
←
→
Esc key
PgUp key Increase the numeric value or make changes
PgDn key Decrease the numeric value or make changes
+ key Increase the numeric value or make changes
- key Decrease the numeric value or make changes
Move to previous item
Move to next item
Move to the item in the left hand
Move to the item in the right hand
Main Menu -- Quit and not save changes into CMOS
Status Page Setup Menu and Option Page Setup Menu -- Exit current page and
return to Main Menu
F1 key General help, only for Status Page Setup Menu and Option Page Setup Menu
(Shift) F2 key
F3 key Calendar, only for Status Page Setup Menu
F4 key Reserved
F5 key Restore the previous CMOS value from CMOS, only for Option Page Setup Menu
F6 key
F7 key Load the default
F8 key Reserved
F9 key Reserved
F10 key Save all the CMOS changes, only for Main Menu
Change color from total 16 colors. F2 to select color forward, (Shift) F2 to select
color backward
Load the default CMOS value from BIOS default table, only for Option Page Setup
Menu
• Navigating Through The Menu Bar
Use the left and right arrow keys to choose the menu you want to be in.
Note: Some of the navigation keys differ from one screen to another.
66 ECM-5510 User’s Manual
User’s Manual
• To Display a Sub Menu
Use the arrow keys to move the cursor to the sub menu you want. Then press
<Enter>. A “¾” pointer marks all sub menus.
3.3 Getting Help
Press F1 to pop up a small help window that describes the appropriate keys to use and the
possible selections for the highlighted item. To exit the Help Window press <Esc> or the F1
key again.
3.4 In Case of Problems
If, after making and saving system changes with Setup, you discover that your computer no
longer is able to boot, the AwardBIOS™ supports an override to the CMOS settings which
resets your system to its defaults.
The best advice is to only alter settings which you thoroughly understand. To this end, we
strongly recommend that you avoid making any changes to the chipset defaults. These
defaults have been carefully chosen by both Award and your systems manufacturer to
provide the absolute maximum performance and reliability. Even a seemingly small change
to the chipset setup has the potential for causing you to use the override.
ECM-5510 User’s Manual
67
ECM-5510
3.5 Main Menu
Once you enter the AwardBIOS™ CMOS Setup Utility, the Main Menu will appear on the
screen. The Main Menu allows you to select from several setup functions and two exit
choices. Use the arrow keys to select among the items and press <Enter> to accept and
enter the sub-menu.
Note that a brief description of each highlighted selection appears at the bottom of the
screen.
Note: The BIOS setup screens shown in this chapter are for reference purposes
only, and may not exactly match what you see on your screen.
Visit the Avalue website (www.avalue.com.tw) to download the latest
product and BIOS information.
68 ECM-5510 User’s Manual
User’s Manual
3.5.1 Standard CMOS Features
The items in Standard CMOS Setup Menu are divided into few categories. Each category
includes no, one or more than one setup items. Use the arrow keys to highlight the item and
then use the <PgUp> or <PgDn> keys to select the value you want in each item.
3.5.1.1 Main Menu Selection
This reference table shows the selections that you may make on the Main Menu.
Item Options Description
Time HH : MM : SS Set the system time
IDE Primary Master
IDE Primary Slave
Drive A
Drive B
Video
Halt On
Options are in 3.5.1.2
None
360K, 5.25 in
1.2M, 5.25 in
720K, 3.5 in
1.44M, 3.5 in
2.88M, 3.5 in
EGA/VGA
CGA 40
CGA 80
MONO
All Errors
No Errors
All, but Keyboard
All, but Diskette
All, but Disk/Key
Press <Enter> to enter the sub menu of
detailed options
Select the type of floppy disk drive installed in
your system
Select the default video device
Select the situation in which you want the BIOS
to stop the POST process and notify you
ECM-5510 User’s Manual
69
ECM-5510
3.5.1.2 IDE Adapter Setup
The IDE adapters control the hard disk drive. Use a separate sub menu to configure each
hard disk drive. The below Figure will shows the IDE primary master sub menu.
Item Options Description
Press Enter to auto-detect the HDD on
IDE HDD Auto-detection Press Enter
IDE Primary Master
IDE Primary Slave,
Access Mode
The following options are selectable only if the ‘IDE Channel …’ item is set to ‘Manual’
Cylinder
Head
Precomp
Landing zone
Sector
None
Auto
Manual
CHS
LBA
Large
Auto
Min = 0
Max = 65535
Min = 0
Max = 255
Min = 0
Max = 65535
Min = 0
Max = 65535
Min = 0
Max = 255
this channel. If detection is successful,
it fills the remaining fields on this
menu.
Selecting ‘manual’ lets you set the
remaining fields on this screen.
Selects the type of fixed disk. "User
Type" will let you select the number of
cylinders, heads, etc. Note:
PRECOMP=65535 means NONE !
Choose the access mode for this hard
disk
Set the number of cylinders for this
hard disk.
Set the number of read/write heads
**** Warning: Setting a value of 65535
means no hard disk
****
Number of sectors per track
70 ECM-5510 User’s Manual
User’s Manual
3.5.2 Advanced BIOS Features
This section allows you to configure your system for basic operation. You have the
opportunity to select the system’s default speed, boot-up sequence, keyboard operation,
shadowing and security.
3.5.2.1 Virus Warning
Allows you to choose the VIRUS Warning feature for IDE Hard Disk boot sector protection.
If this function is enabled and someone attempt to write data into this area, BIOS will show
a warning message on screen and alarm beep.
Item Description
Enabled
Disabled
Activates automatically when the system boots up causing a warning message to
appear when anything attempts to access the boot sector or hard disk partition table.
No warning message will appear when anything attempts to access the boot sector or
hard disk partition table.
3.5.2.2 CPU Internal Cache
This category speeds up memory access. However, it depends on CPU/chipset design.
The default value is en able.
Item Description
Enabled Enable cache
Disabled Disable cache
3.5.2.3 Quick Power On Self Test
This category speeds up Power On Self Test (POST) after you power up the computer. If it
is set to Enable, BIOS will shorten or skip some check items during POST.
Item Description
Enabled Enable quick POST
Disabled Normal POST
ECM-5510 User’s Manual
71
ECM-5510
3.5.2.4 First/Second/Third/Other Boot Device
The BIOS attempts to load the operating system from the devices in the sequence selected
in these items.
Item Description
Floppy Floppy Device
LS120 LS120 Device
HDD-0~1 Hard Disk Device 0~1
SCSI SCSI Device
CDROM CDROM Device
ZIP100 ZIP-100 Device
USB-FDD USB Floppy Device
USB-ZIP USB ZIP Device
USB-CDROM
USB-HDD
LAN Network Device
Disabled Disabled any boot device
USB CDROM Device
USB Hard Disk
3.5.2.5 Swap Floppy Drive
While system has two floppy drivers installed, this item will be affected. This function is to
assign physical drive B to logical drive A.
Item Description
Enabled Assign physical drive B to logical drive A
Disabled No change
3.5.2.6 Boot Up NumLock Status
Select power on state for NumLock.
Item Description
On Enable NumLock
Off Disable NumLock
3.5.2.7 Gate A20 Option
Select if chipset or keyboard controller should control Gate A20.
Item Description
Normal A pin in the keyboard controller controls Gate A20
Fast Lets chipset control Gate A20
3.5.2.8 Typematic Rate Setting
Key strokes repeat at a rate determined by the keyboard controller. When enabled, the
typematic rate and typematic delay can be selected.
Item Description
Enabled Enable typematic rate/delay setting
Disabled Disable typematic rate/delay setting
3.5.2.9 Typematic Rate <Chars/Sec>
Sets the number of times a second to repeat a key stroke when you hold the key down
The choices: 6, 8, 10, 12, 15, 20, 24, 30.
72 ECM-5510 User’s Manual
User’s Manual
3.5.2.10 Typematic Delay <Msec>
When the typematic rate is enabled, this selection allows you to select the delay between
when the key was first depressed and when the acceleration begins.
The choices: 250, 500, 750, 1000.
3.5.2.11 Security Option
Select whether the password is required every time the system boots or only when you
enter setup.
Item Description
System
Setup
The system will not boot and access to Setup will be denied if the correct password is
not entered at the prompt.
The system will boot, but access to Setup will be denied if the correct password is not
entered at the prompt.
Note: To disable security, select PASSWORD SETTING at Main Menu and then
you will be asked to enter password. Do not type anything and just press
<Enter>, it will disable security. Once the security is disabled, the system
will boot and you can enter Setup freely.
3.5.2.12 OS Select for DRAM > 64MB
Select the operating system that is running with greater than 64MB of RAM on the system.
Item Description
Non-OS2 Disable OS for over 64 MB DRAM
OS2 Enable OS for over 64 MB DRAM
3.5.2.13 Video BIOS Shadow
To allow copying Video BIOS into shadow RAM to improve video performance.
Item Description
Enable Copy Video BIOS into shadow RAM
Disable Do not copy Video BIOS into shadow RAM
3.5.2.14 C8000-CBFFF/CC000-CFFFF/D0000-D3FFF/D4000-D7FFF/D8000-DBFFF/DC0
00-DFFFF Shadow
These categories determine whether option ROMs will be copied to RAM. An example of
such option ROM would be support of on-board SCSI.
Item Description
Enabled Optional shadow is enabled
Disabled Optional shadow is Disabled
3.5.2.15 Full Screen LOGO Show
If the BIOS had the full screen logo in it, this item could allow enable/ disable the full screen
logo show on display.
Item Description
Enable Enable full screen logo show
Disable Disable full screen logo show
ECM-5510 User’s Manual
73
ECM-5510
3.5.2.16 Small Logo (EPA) Show
This item allows you enabled/disabled the small EPA logo show on screen at the POST
step.
Item Description
Enabled EPA Logo show is enabled
Disabled EPA Logo show is disabled
3.5.2.17 Onboard Lan Boot ROM
This item allows to boot over the network when system POST and shorten the booting time
by set disabled
Item Description
Enabled Enable Onboard LAN boot.
Disabled Disabled Onboard LAN boot.
3.5.2.18 Cyrix 6x86/MII CPUID
This item allows you to view the CPU ID of your Cyrix chipset during the boot up process of
your computer.
Item Description
Enabled Enable to view the Cyrix CPU ID.
Disabled Disable to view the Cyrix CPU ID
74 ECM-5510 User’s Manual
User’s Manual

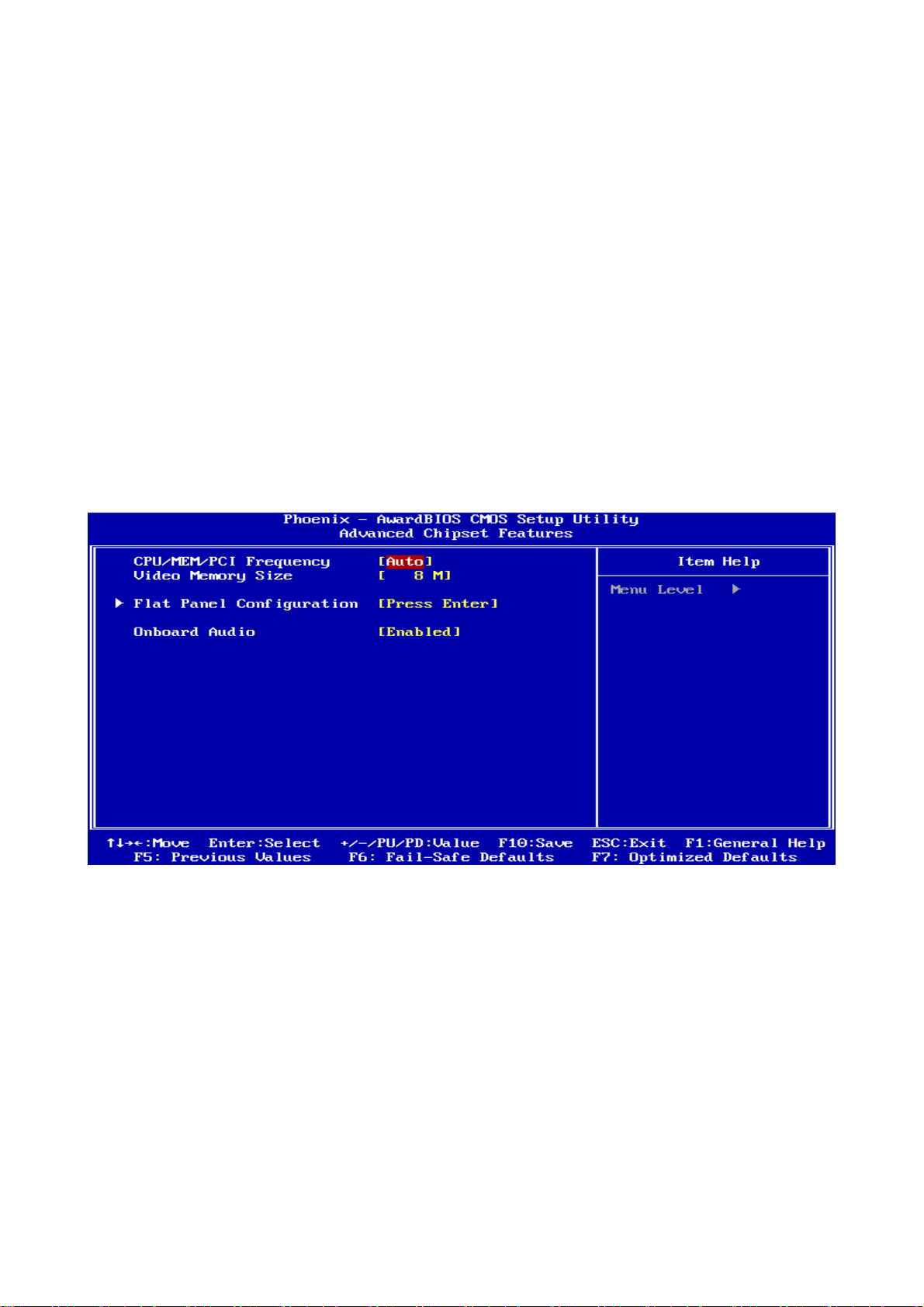

3.5.3 Advanced Chipset Features
This section allows you to configure the system based on the specific features of the
installed chipset. This chipset manages bus speeds and access to system memory
resources, such as DRAM and the external cache. It also coordinates communications
between the conventional ISA bus and the PCI bus. It must be stated that these items
should never need to be altered. The default settings have been chosen because they
provide the best operating conditions for your system. The only time you might consider
making any changes would be if you discovered that data was being lost while using your
system.
The first chipset settings deal with CPU access to dynamic random access memory
(DRAM). The default timings have been carefully chosen and should only be altered if data
is being lost. Such a scenario might well occur if your system had mixed speed DRAM
chips installed so that greater delays may be required to preserve the integrity of the data
held in the slower memory chips.
3.5.3.1 CPU/MEM/PCI Frequency
This item allows to select CPU/Memory/PCI frequency.
The choices: Auto, 200/133/66, 333/222/66, 400/266/66, 433/289/66.
3.5.3.2 Video Memory Size
This item allows to select video memory size.
The choices: None M, 4 M, 6 M, 8 M, 12 M, 16 M.
ECM-5510 User’s Manual
75
ECM-5510
3.5.3.3 Flat Panel Configuration
Item Options Description
Flat Panel Type
Refresh Rate
HSYNC Polarity High, Low Select polarity of HSYNC signals.
VSYNC Polarity Active High, Low
SHFCLK Active Period
LP Active Period
60Hz, 65Hz, 70Hz,
3.5.3.4 Onboard Audio
TFT, LVDS
Auto
72Hz, 75Hz, 85Hz
Active only,
Free running
Active running
Free running
This item allows to select the flat panel
type.
This refresh rate is only the number of
time the image is being refreshed on
the monitor screen.
Set the polarity of VSYNC signals
active.
Shift clock or pixel clock for the flat
panel data.
Latch Pulse is the line pulse or latch
pulse for the flat panel data.
This item allows you to enable the onboard audio function.
The choices: Enabled, Disabled.
76 ECM-5510 User’s Manual
3.5.4 Integrated Peripherals
Use this menu to specify your settings for integrated peripherals.
Item Options Description
On-Chip IDE Channel 1
Master Drive PIO Mode
Slave Drive PIO Mode
IDE Primary Master UDMA
IDE Primary Slave UDMA
IDE HDD Block Mode
Onboard FDC Controller
Enabled
Disabled
Auto
Mode 0
Mode 1
Mode 2
Mode 3
Mode 4
Auto
Disabled
Enabled
Disabled
Enabled
Disabled
This item allows to enable On-chip IDE channel.
The IDE PIO (Programmed Input/Output) fields
let you set a PIO mode (0-4) for each of the four
IDE devices that the onboard IDE interface
supports. Modes 0 through 4 provide
successively increased performance. In Auto
mode, the system automatically determines the
best mode for each device.
Ultra DMA implementation is possible only if
your IDE hard drive supports it and the
operating environment includes a DMA driver
(Windows 95 OSR2 or a third-party IDE bus
master driver). If the hard drive and the system
software both support Ultra DMA, select Auto to
enable BIOS support.
Block mode is also called block transfer,
multiple commands, or multiple sector
read/write. If the IDE hard drive supports block
mode (most new drives do), select Enabled for
automatic detection of the optimal number of
block read/writes per sector the drive can
support.
Select Enabled if your system has a floppy disk
controller (FDC) installed on the system board
and you wish to use it. If you are not going to
use FDC or the system has no floppy drive,
select Disabled in this field.
User’s Manual
ECM-5510 User’s Manual
77
ECM-5510
T
T
t
t
T
Item Options Description
Onboard Serial Port 1
Onboard Serial Port 2
UART Mode Select
RxD , TxD Active
IR Transmission Delay
UR2 Duplex Mode
Use IR Pins
Onboard Parallel Port
Parallel Port Mode
EPP Mode Select
ECP Mode Use DMA
Watch Dog Timer Select
Onboard Serial Port 3
Onboard Serial Port 4
PC104 IO Port
PC104 IRQ
Disable
3F8/IRQ4
2F8/IRQ3
3E8/IRQ4
2E8/IRQ3
Auto
IrDA
ASKIR
Normal
Hi,Hi
Hi,Lo
Lo,Hi
Lo,Lo
Enabled
Disabled
Half
Full
RxD2,TxD2
IR-Rx2Tx2
Disabled
378/IRQ7
278/IRQ5
3BC/IRQ7
SPP
EPP
ECP
ECP+EPP
Normal
EPP1.9
EPP1.7
1
3
Disabled,
10, 20, 30, 40 Sec.
1, 2, 4 Min.
Disable
3F8/IRQ4
2F8/IRQ3
3E8/IRQ4
2E8/IRQ3
Disabled, 220-22F
300-31F, 300-33F
2F8-3FF, 2F8-2FF
3E8-3EF, 2E8-2EF
Disabled
IRQ5, IRQ7
Select an address and corresponding interrupt
for the first and second serial ports.
Select UART2 mode as standard serial port or
IR port.
This item allows you to determine the active of
RxD, TxD level.
his item allows you to enable/disable the IR
ransmission Delay.
Select the value required by the IR device
connected to the IR port. Full-duplex mode
permits simultaneous two-direction
ransmission. Half-duplex mode permits
ransmission in one direction only at a time.
his item allows you to determine the pin
definition.
Select a matching address and interrupt for the
physical parallel (printer) port.
Select an operating mode for the onboard
parallel port. Select Compatible or Extended
unless you are certain both your hardware and
software support EPP or ECP mode.
Select EPP port type 1.7 or 1.9.
Select a DMA channel for the port.
This option will determine watch dog timer
Select an address and corresponding interrupt
for the first and second serial ports.
Select a matching I/O port address for add-on
PC/104 device.
Select a matching IRQ channel for add-on
PC/104 device.
78 ECM-5510 User’s Manual
User’s Manual
3.5.5 Power Management Setup
The Power Management Setup allows you to configure you system to most effectively save
energy while operating in a manner consistent with your own style of computer use.
3.5.5.1 Power Management
This category allows you to select the type (or degree) of power saving.
The choices: Disabled, Legacy, APM, ACPI.
3.5.5.2 MODEM Use IRQ
This determines the IRQ in which the MODEM can use.
The choices: NA, 3, 4, 5, 7, 9, 10, 11.
3.5.5.3 Power On By Alarm
This determines whether the system boot up if there’s an incoming call from the Modem.
The choices: Enable, Disabled.
ECM-5510 User’s Manual
79
ECM-5510
3.5.5.4 IRQ Wakeup Events
The VGA, LPT & COM, HDD & FDD, and PCI master are I/O events which can prevent the
system from entering a power saving mode or can awaken the system from such a mode.
When an I/O device wants to gain the attenetion of the operating system, it signals this by
causing an IRQ to occur. When the operating system is ready to respond to the request, it
interrupts itself and performs the service.
80 ECM-5510 User’s Manual
User’s Manual
3.5.6 PnP / PCI Configuration
This section describes configuring the PCI bus system. PCI, or Personal Computer
Interconnect, is a system which allows I/O devices to operate at speeds nearing the speed
the CPU itself uses when communicating with its own special components. This section
covers some very technical items and it is strongly recommended that only experienced
users should make any changes to the default settings.
3.5.6.1 PNP OS Installed
The operation system environment is Plug-and-Play aware sets “YES”
The choices: Yes, No.
3.5.6.2 Init Display First
This item allows you to decide to active whether PCI Slot or AGP first.
The choices: PCI Slot, Onboard.
3.5.6.3 Reset Configuration Data
Normally, you leave this field Disabled. Select Enabled to reset Extended System
Configuration Data (ESCD) when you exit Setup if you have installed a new add-on and the
system reconfiguration has caused such a serious conflict that the operating system cannot
boot.
The choices: Enabled, Disabled.
3.5.6.4 Resources Controlled By
The Award Plug and Play BIOS has the capacity to automatically configure all of the boot
and Plug and Play compatible devices. However, this capability means absolutely nothing
unless you are using a Plug and Play operating system such as Windows®95. If you set
this field to “manual” choose specific resources by going into each of the sub menu that
follows this field (a sub menu is preceded by a “¾”).
The choices: Auto(ESCD), Manual.
ECM-5510 User’s Manual
81
ECM-5510
3.5.6.5 PCI/VGA Palette Snoop
This item is to set non-standard VGA display adapters such as graphics accelerators or
MPEG video cards showing colors properly.
The choices: Enabled, Disabled.
3.5.7 PC Health Status
This section shows the status of your CPU, Fan & System.
3.5.7.1 Shutdown Temperature
This function allows to set the shutdown temperature to avoid overheating and destroying
the CPU and board.
The choices: Disabled, 60oC/140oF, 65oC/149oF, 70oC/158oF.
82 ECM-5510 User’s Manual
User’s Manual
3.5.8 Load Fail-Safe Defaults
Use this menu to load the BIOS default values for the minimal/stable performance for your
system to operate.
Press <Y> to load the BIOS default values for the most stable, m
inimal-performance system operations.
3.5.9 Load Optimized Defaults
Use this menu to load the BIOS default values that are factory settings for optimal
performance system operations. While Award has designed the custom BIOS to maximize
performance, the factory has the right to change these defaults to meet their needs.
Press <Y> to load the default values setting for optimal performance system operations.
ECM-5510 User’s Manual
83
ECM-5510
3.5.10 Set Supervisor / User Password
You can set either supervisor or user password, or both of them.
Supervisor Password: able to enter/change the options of setup menus.
User Password: able to enter but no right to change the options of setup menus.
Type the password, up to eight characters in length, and press <Enter>. The password
typed now will clear any previously entered password from CMOS memory. You will be
asked to confirm the password. Type the password again and press <Enter>. You may also
press <Esc> to abort the selection and not enter a password. To disable a password, just
press <Enter> when you are prompted to enter the password. A message will confirm the
password will be disabled. Once the password is disabled, the system will boot and you can
enter Setup freely.
84 ECM-5510 User’s Manual
User’s Manual
PASSWORD DISABLED.
When a password has been enabled, you will be prompted to enter it every time you try to
enter Setup. This prevents an unauthorized person from changing any part of your system
configuration. Additionally, when a password is enabled, you can also require the BIOS to
request a password every time your system is rebooted. This would prevent unauthorized
use of your computer. You determine when the password is required within the BIOS
Features Setup Menu and its Security option (see Section 3). If the Security option is set to
“System”, the password will be required both at boot and at entry to Setup. If set to “Setup”,
prompting only occurs when trying to enter Setup
3.5.11 Save & Exit Setup
Save CMOS value changes to CMOS and exit setup.
Enter <Y> to store the selection made in the menus in CMOS, a special section in memory
that stays on after turning the system off. The BIOS configures the system according to the
Setup selection stored in CMOS when boot the computer next time.
The system is restarted after saving the values.
ECM-5510 User’s Manual
85
ECM-5510
3.5.12 Exit Without Save
Abandon all CMOS value changes and exit setup, and the system is restarted after exiting.
86 ECM-5510 User’s Manual
User’s Manual
4 Drivers Installation
Note: Installation procedures and screen shots in this section are
for your reference and may not be exactly the same as
shown on your screen.
ECM-5510 User’s Manual
87
ECM-5510
4.1 Install Audio Driver (For AMD GX2)
Insert the Supporting CD-ROM to
CD-ROM drive, and it should show the
index page of Avalue’s products
automatically. If not, locate Index.htm and
choose the product from the menu left, or
link to \Driver_Audio\NS\GX2.
Note: The installation procedures and
screen shots in this section are
based on Windows XP operation
system.
Step 3. Select Multimedia Audio
Controller to Update Driver.
Step1. Click Start of the task bar, then the
System of Performance and
Maintenance in Control Panel.
Step 2. Click Device Manager of
Hardware.
88 ECM-5510 User’s Manual
Step 4. Select the Advanced item and
click Next.
Step 5. Select the specific location to
Next.

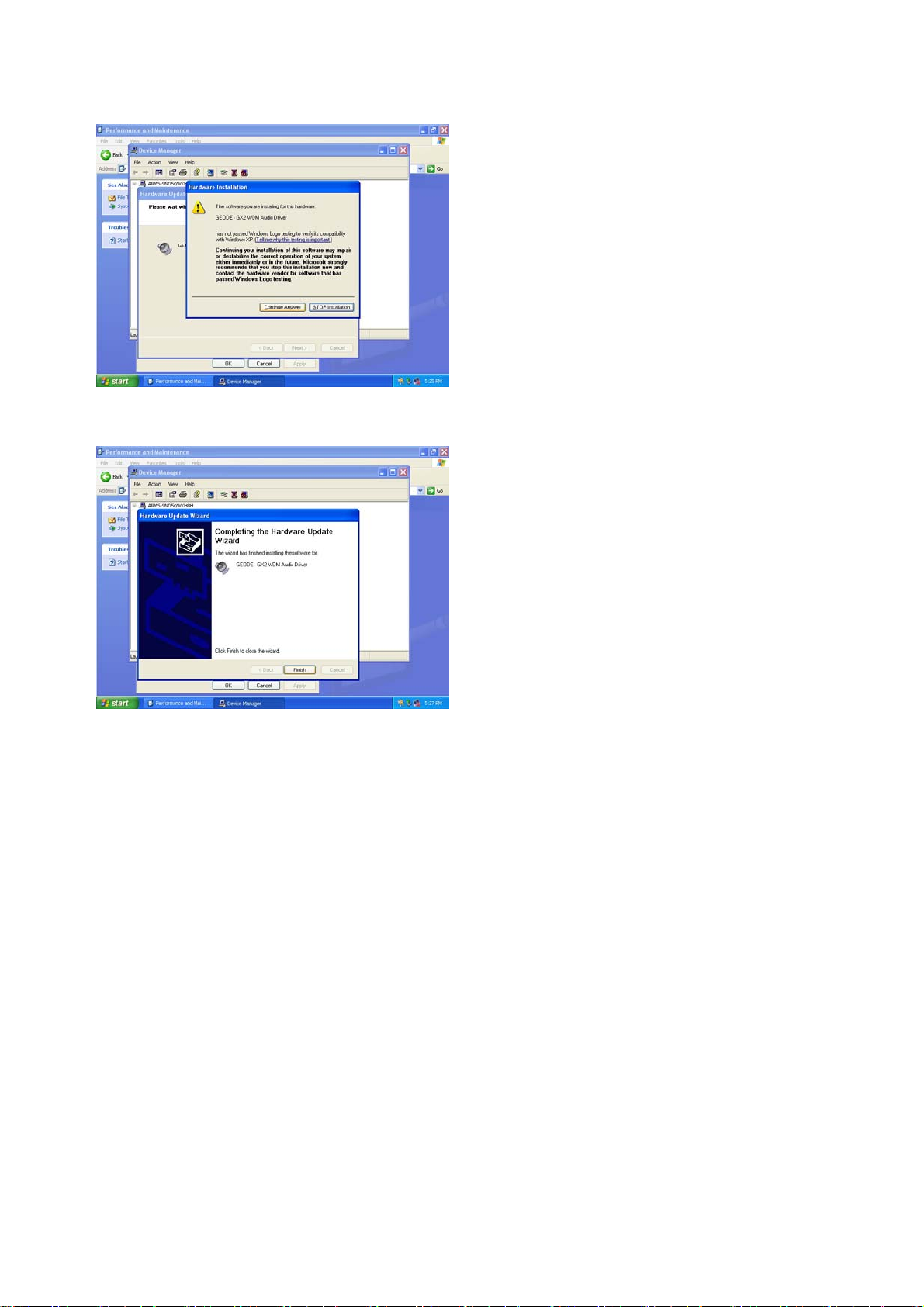

Step6. Click Continue Anyway to run the
installation.
User’s Manual
Step7. Click Finish to complete the setup.
ECM-5510 User’s Manual
89
ECM-5510
4.2 Install Display Driver (For AMD GX2)
Insert the Supporting CD-ROM to
CD-ROM drive, and it should show the
index page of Avalue’s products
automatically. If not, locate Index.htm and
choose the product from the menu left, or
link to \Driver_Video\NS\GX2.
Note: The installation procedures and
screen shots in this section are
based on Windows XP operation
system.
Step 3. Select Video Controller (VGA
Compatible to Update Driver.
Step1. Click Start of the task bar, then the
System of Performance and
Maintenance in Control Panel.
Step 2. Click Device Manager of
Hardware.
90 ECM-5510 User’s Manual
Step 4. Select the Advanced item and
click Next.
Step 5. Select the specific location to
Next.
Step6. Click Continue Anyway to run the
installation.
User’s Manual
Step7. Click Finish to complete the setup.
ECM-5510 User’s Manual
91
ECM-5510
4.3 Install Ethernet Driver (For Realtek RTL810x, RTL813x Family)
Insert the Supporting CD-ROM to
CD-ROM drive, and it should show the
index page of Avalue’s products
automatically. If not, locate Index.htm and
choose the product from the menu left, or
link to \Driver_Network\Realtek\
RTL810x_813X Family.
Note: The installation procedures and
screen shots in this section are
based on Windows XP operation
system.
Step 3. Click Yes to continue the
installation.
Step 1. Locate 「\Driver_Network\Realtek\
RTL810x_813X Family\Setup.exe」.
Step 2. Setup executing.
92 ECM-5510 User’s Manual
Step 4. Click Finish to complete the
setup.
User’s Manual
5 Measurement
Drawing
ECM-5510 User’s Manual
93
ECM-5510
94 ECM-5510 User’s Manual
(Unit: mm)
User’s Manual
Appendix A:
BIOS Revisions
BIOS Rev.
New Features
Bugs/Problems Solved
Known Problems
ECM-5510 User’s Manual
95
ECM-5510
Appendix B:
AWARD BIOS POST
Messages
96 ECM-5510 User’s Manual
User’s Manual
Overview
During the Power On Self-Test (POST), if the BIOS detects an error requiring you to do
something to fix, it will either sound a beep code or display a message.
If a message is displayed, it will be accompanied by:
PRESS F1 TO CONTINUE OR PRESS DEL TO ENTER SETUP
Post Beep
Currently there are two kinds of beep codes in BIOS. This code indicates that a video error
has occurred and the BIOS cannot initialize the video screen to display any additional
information. This beep code consists of a single long beep followed by two short beeps.
The other code indicates that your DRAM error has occurred. This beep code consists of a
single long beep repeatedly.
Error Messages
The following messages are examples of messages including errors detected by the BIOS
during POST and a description of what they mean and/or what you may do to correct the
error.
1. CMOS BATTERY HAS FAILED
CMOS battery is no longer functional. It should be replaced.
2. CMOS CHECKSUM ERROR
Checksum of CMOS is incorrect. This can indicate that CMOS has become corrupt. This
error may have been caused by a weak battery. Check the battery and replace if
necessary.
3. DISK BOOT FAILURE, INSERT SYSTEM DISK AND PRESS ENTER
No boot device was found. This could mean that either a boot drive was not detected or the
drive does not contain proper system boot files. Insert a system disk into Drive A: and
press <Enter>. If you assumed the system would boot from the hard drive, make sure the
controller is inserted correctly and all cables are properly attached. Also be sure the disk
is formatted as a boot device. Then reboot the system.
4. DISKETTE DRIVES OR TYPES MISMATCH ERROR - RUN SETUP
Type of diskette drive installed in the system is different from the CMOS definition. Run
Setup to reconfigure the drive type correctly.
ECM-5510 User’s Manual
97
ECM-5510
5. DISPLAY SWITCH IS SET INCORRECTLY
Display switch on the motherboard can be set to either monochrome or color. This indicates
the switch is set to a different setting than indicated in Setup. Determine which setting is
correct, and then either turn off the system and change the jumper, or enter Setup and
change the VIDEO selection.
6. DISPLAY TYPE HAS CHANGED SINCE LAST BOOT
Since last powering off the system, the display adapter has been changed. You must
configure the system for the new display type.
7. EISA Configuration Checksum Error
PLEASE RUN EISA CONFIGURATION UTILITY
The EISA non-volatile RAM checksum is incorrect or cannot correctly read the EISA slot.
This can indicate either the EISA non-volatile memory has become corrupt or the slot has
been configured incorrectly. Also be sure the card is installed firmly in the slot.
8. EISA Configuration Is Not Complete
PLEASE RUN EISA CONFIGURATION UTILITY
The slot configuration information stored in the EISA non-volatile memory is incomplete.
Note: When either of these errors appears, the system will boot in ISA mode,
which allows you to run the EISA Configuration Utility.
9. ERROR ENCOUNTERED INITIALIZING HARD DRIVE
Hard drive cannot be initialized. Be sure the adapter is installed correctly and all cables are
correctly and firmly attached. Also be sure the correct hard drive type is selected in Setup.
10. ERROR INITIALIZING HARD DISK CONTROLLER
Cannot initialize controller. Make sure the cord is correctly and firmly installed in the bus.
Be sure the correct hard drive type is selected in Setup. Also check to see if any jumper
needs to be set correctly on the hard drive.
11. FLOPPY DISK CNTRLR ERROR OR NO CNTRLR PRESENT
Cannot find or initialize the floppy drive controller. Make sure the controller is installed
correctly and firmly. If there are no floppy drives installed, be sure the Diskette Drive
selection in Setup is set to NONE.
98 ECM-5510 User’s Manual
User’s Manual
12. Invalid EISA Configuration
PLEASE RUN EISA CONFIGURATION UTILITY
The non-volatile memory containing EISA configuration information was programmed
incorrectly or has become corrupt. Re-run EISA configuration utility to correctly program the
memory.
Note: When either of these errors appears, the system will boot in ISA mode,
which allows you to run the EISA Configuration Utility.
13. KEYBOARD ERROR OR NO KEYBOARD PRESENT
Cannot initialize the keyboard. Make sure the keyboard is attached correctly and no keys
are being pressed during the boot.
If you are purposely configuring the system without a keyboard, set the error halt condition
in Setup to HALT ON ALL, BUT KEYBOARD. This will cause the BIOS to ignore the
missing keyboard and continue the boot.
14. Memory Address Error at ...
Indicates a memory address error at a specific location. You can use this location along
with the memory map for your system to find and replace the bad memory chips.
15. Memory parity Error at ...
Indicates a memory parity error at a specific location. You can use this location along with
the memory map for your system to find and replace the bad memory chips.
16. MEMORY SIZE HAS CHANGED SINCE LAST BOOT
Memory has been added or removed since the last boot. In EISA mode use Configuration
Utility to reconfigure the memory configuration. In ISA mode enter Setup and enter the new
memory size in the memory fields.
17. Memory Verify Error at ...
Indicates an error verifying a value already written to memory. Use the location along with
your system's memory map to locate the bad chip.
18. OFFENDING ADDRESS NOT FOUND
This message is used in conjunction with the I/O CHANNEL CHECK and RAM PARITY
ERROR messages when the segment that has caused the problem cannot be isolated.
19. OFFENDING SEGMENT:
This message is used in conjunction with the I/O CHANNEL CHECK and RAM PARITY
ERROR messages when the segment that has caused the problem has been isolated.
ECM-5510 User’s Manual
99
ECM-5510
20. PRESS A KEY TO REBOOT
This will be displayed at the bottom screen when an error occurs that requires you to reboot.
Press any key and the system will reboot.
21. PRESS F1 TO DISABLE NMI, F2 TO REBOOT
When BIOS detects a Non-maskable Interrupt condition during boot, this will allow you to
disable the NMI and continue to boot, or you can reboot the system with the NMI enabled.
22. RAM PARITY ERROR - CHECKING FOR SEGMENT ...
Indicates a parity error in Random Access Memory.
23. Should Be Empty But EISA Board Found
PLEASE RUN EISA CONFIGURATION UTILITY
A valid board ID was found in a slot that was configured as having no board ID.
Note: When either of these errors appears, the system will boot in ISA mode,
which allows you to run the EISA Configuration Utility.
24. Should Have EISA Board But Not Found
PLEASE RUN EISA CONFIGURATION UTILITY
The board installed is not responding to the ID request, or no board ID has been found in
the indicated slot.
Note: When either of these errors appears, the system will boot in ISA mode,
which allows you to run the EISA Configuration Utility.
25. Slot Not Empty
Indicates that a slot designated as empty by the EISA Configuration Utility actually contains
a board.
Note: When either of these errors appears, the system will boot in ISA mode,
which allows you to run the EISA Configuration Utility.
26. SYSTEM HALTED, (CTRL-ALT-DEL) TO REBOOT ...
Indicates the present boot attempt has been aborted and the system must be rebooted.
Press and hold down the CTRL and ALT keys and press DEL.
