HP (Hewlett-Packard) E0J81UAABA, E0J61UAABA, E0J75UA, E0J83UAABA, E0J92UAABA User Manual

HP Pavilion 17 TouchSmart Notebook PC HP Pavilion 17 Notebook PC
Maintenance and Service Guide
© Copyright 2014 Hewlett-Packard Development Company, L.P.
AMD, the AMD Arrow logo, and combinations thereof, are trademarks of Advanced Micro Devices, Inc. Bluetooth is a trademark owned by its proprietor and used by Hewlett-Packard Company under license. Intel, Celeron, Core, and Pentium are U.S. registered trademarks of Intel Corporation. Microsoft and Windows are U.S. registered trademarks of the Microsoft group of companies. SD Logo is a trademark of its proprietor.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Third Edition: January 2014
First Edition: April 2013
Document Part Number: 718337-003
Product notice
This guide describes features that are common to most models. Some features may not be available on your computer.
Not all features are available in all editions of Windows 8. This computer may require upgraded and/or separately purchased hardware, drivers, and/or software to take full advantage of Windows 8 functionality.
http://www.microsoft.com for details.
See
Software terms
By installing, copying, downloading, or otherwise using any software product preinstalled on this computer, you agree to be bound by the terms of the HP End User License Agreement (EULA). If you do not accept these license terms, your sole remedy is to return the entire unused product (hardware and software) within 14 days for a refund subject to the refund policy of your place of purchase.
For any further information or to request a full refund of the computer, please contact your local point of sale (the seller).
Important Notice about Customer Self-Repair Parts
CAUTION: Your computer includes Customer Self-Repair parts and parts that should only be
accessed by an authorized service provider. See Chapter 5, "Removal and replacement procedures for Customer Self-Repair parts," for details. Accessing parts described in Chapter 6, "Removal and replacement procedures for Authorized Service Provider only parts," can damage the computer or void your warranty.
iii
iv Important Notice about Customer Self-Repair Parts
Safety warning notice
WARNING! To reduce the possibility of heat-related injuries or of overheating the device, do not
place the device directly on your lap or obstruct the device air vents. Use the device only on a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The device and the AC adapter comply with the user-accessible surface temperature limits defined by the International Standard for Safety of Information Technology Equipment (IEC 60950).
v
vi Safety warning notice
Table of contents
1 Product description ........................................................................................................................................ 1
2 External component identification .............................................................................................................. 10
Finding your hardware and software information ............................................................................... 10
Locating hardware ............................................................................................................. 10
Display ................................................................................................................................................ 10
Buttons and speakers ......................................................................................................................... 12
Keys ................................................................................................................................................... 13
Lights .................................................................................................................................................. 14
TouchPad ........................................................................................................................................... 15
Left side .............................................................................................................................................. 15
Right side ........................................................................................................................................... 17
Bottom ................................................................................................................................................ 18
Labels ................................................................................................................................................. 18
3 Illustrated parts catalog ............................................................................................................................... 20
Computer major components ............................................................................................................. 20
Display assembly subcomponents ..................................................................................................... 28
Mass storage devices ......................................................................................................................... 30
Miscellaneous parts ............................................................................................................................ 31
Sequential part number listing ............................................................................................................ 31
4 Removal and replacement procedures preliminary requirements ........................................................... 41
Tools required .................................................................................................................................... 41
Service considerations ....................................................................................................................... 41
Plastic parts ....................................................................................................................... 41
Cables and connectors ...................................................................................................... 42
Drive handling .................................................................................................................... 42
Grounding guidelines ......................................................................................................................... 42
Electrostatic discharge damage ......................................................................................... 42
Packaging and transporting guidelines ............................................................. 44
Workstation guidelines ..................................................................... 44
5 Removal and replacement procedures for Customer Self-Repair parts ................................................. 46
Component replacement procedures ................................................................................................. 46
Battery ............................................................................................................................... 47
vii
Optical drive ....................................................................................................................... 48
Hard drive .......................................................................................................................... 49
WLAN module .................................................................................................................... 52
Memory module ................................................................................................................. 54
6 Removal and replacement procedures for Authorized Service Provider parts ...................................... 55
Component replacement procedures ................................................................................................. 55
Keyboard ........................................................................................................................... 56
Top cover ........................................................................................................................... 60
Power button board ........................................................................................................... 63
TouchPad button board ..................................................................................................... 64
Display assembly ............................................................................................................... 65

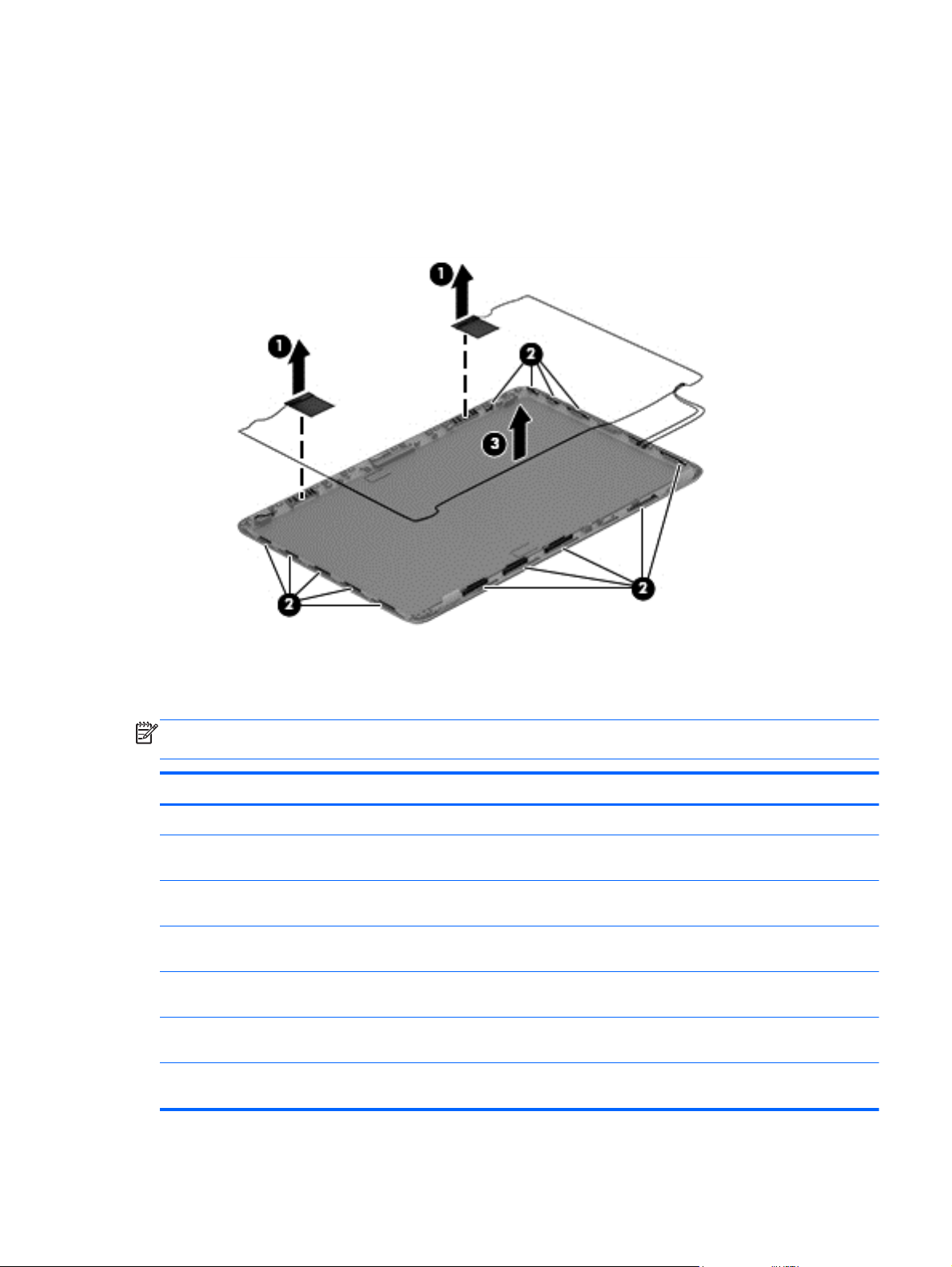

Display assembly subcomponents .................................................................................... 67

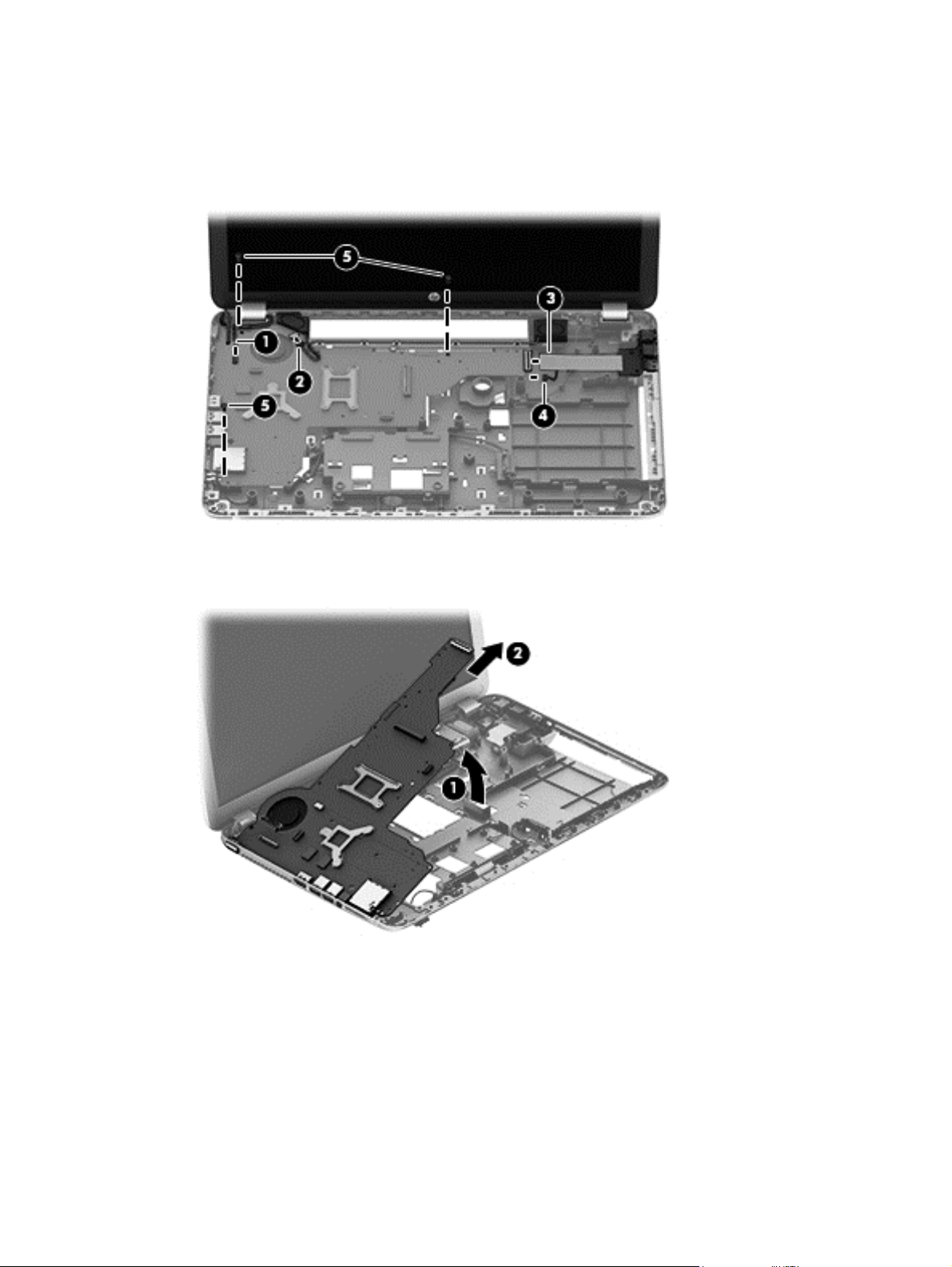

System board ..................................................................................................................... 73
RTC battery ....................................................................................................................... 78

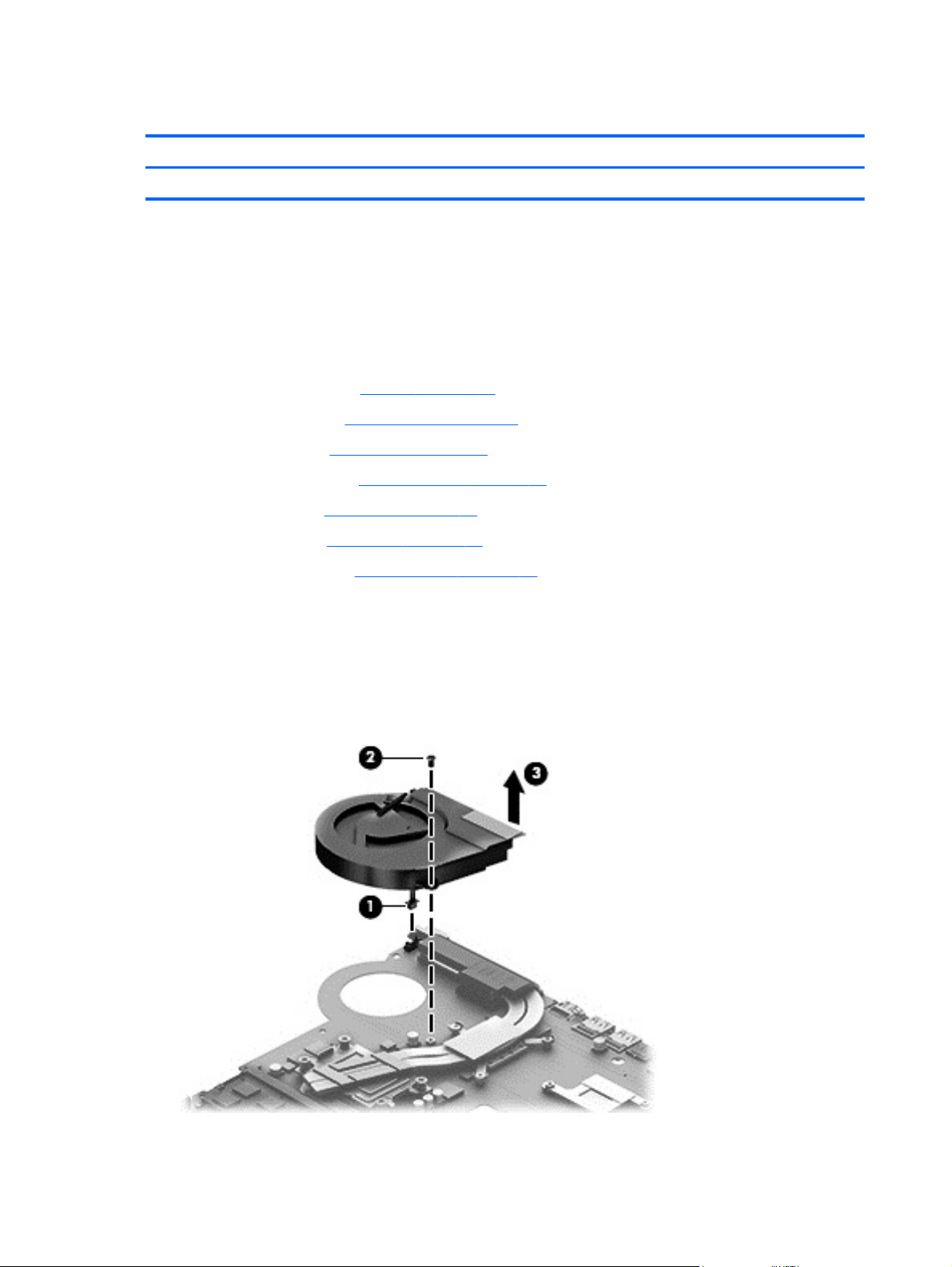

Fan ..................................................................................................................................... 80

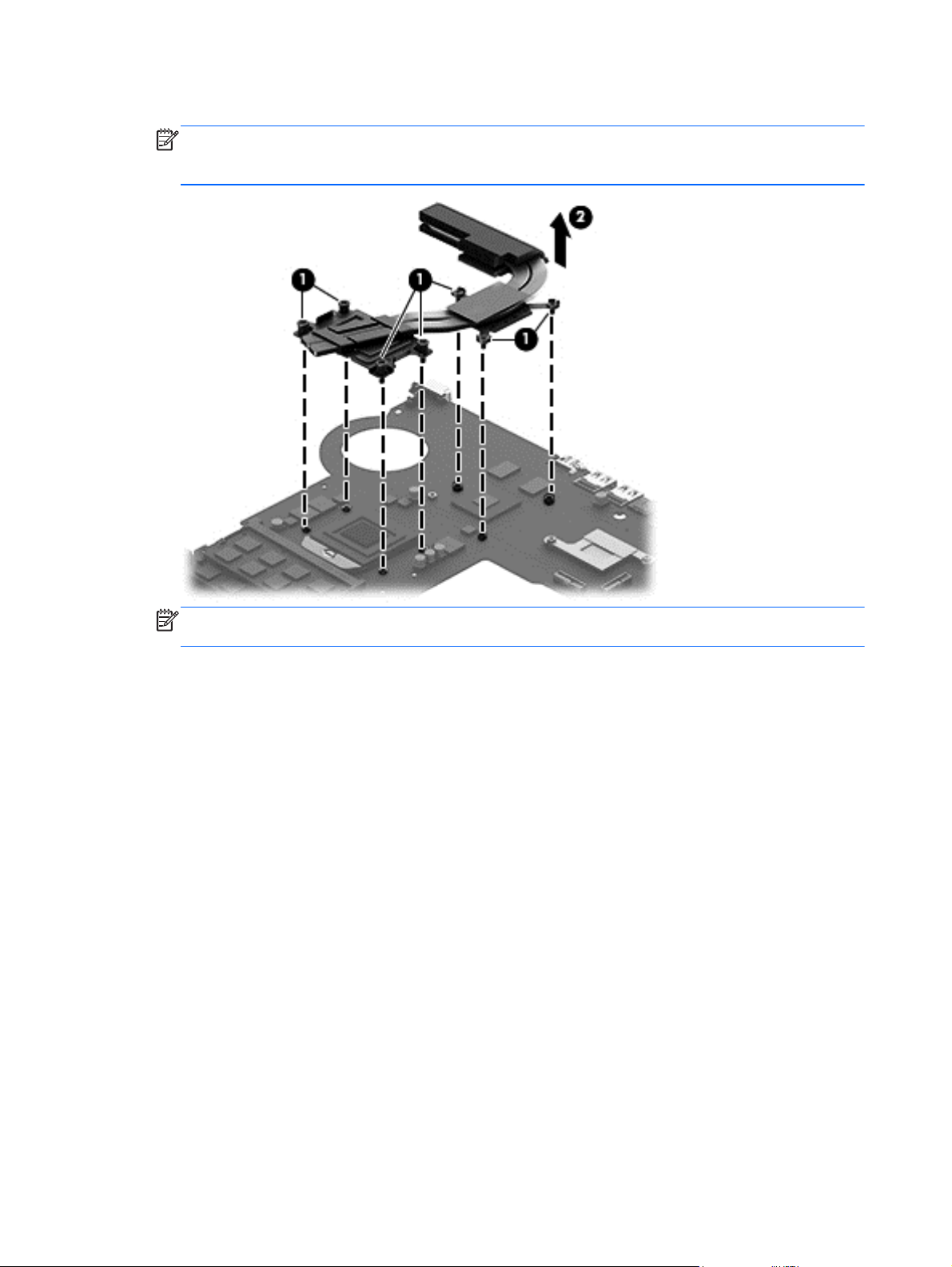

Heat sink ............................................................................................................................ 81
Processor ........................................................................................................................... 85
Speakers ............................................................................................................................ 86
RJ-45/USB board ............................................................................................................... 88
Power connector cable ...................................................................................................... 89

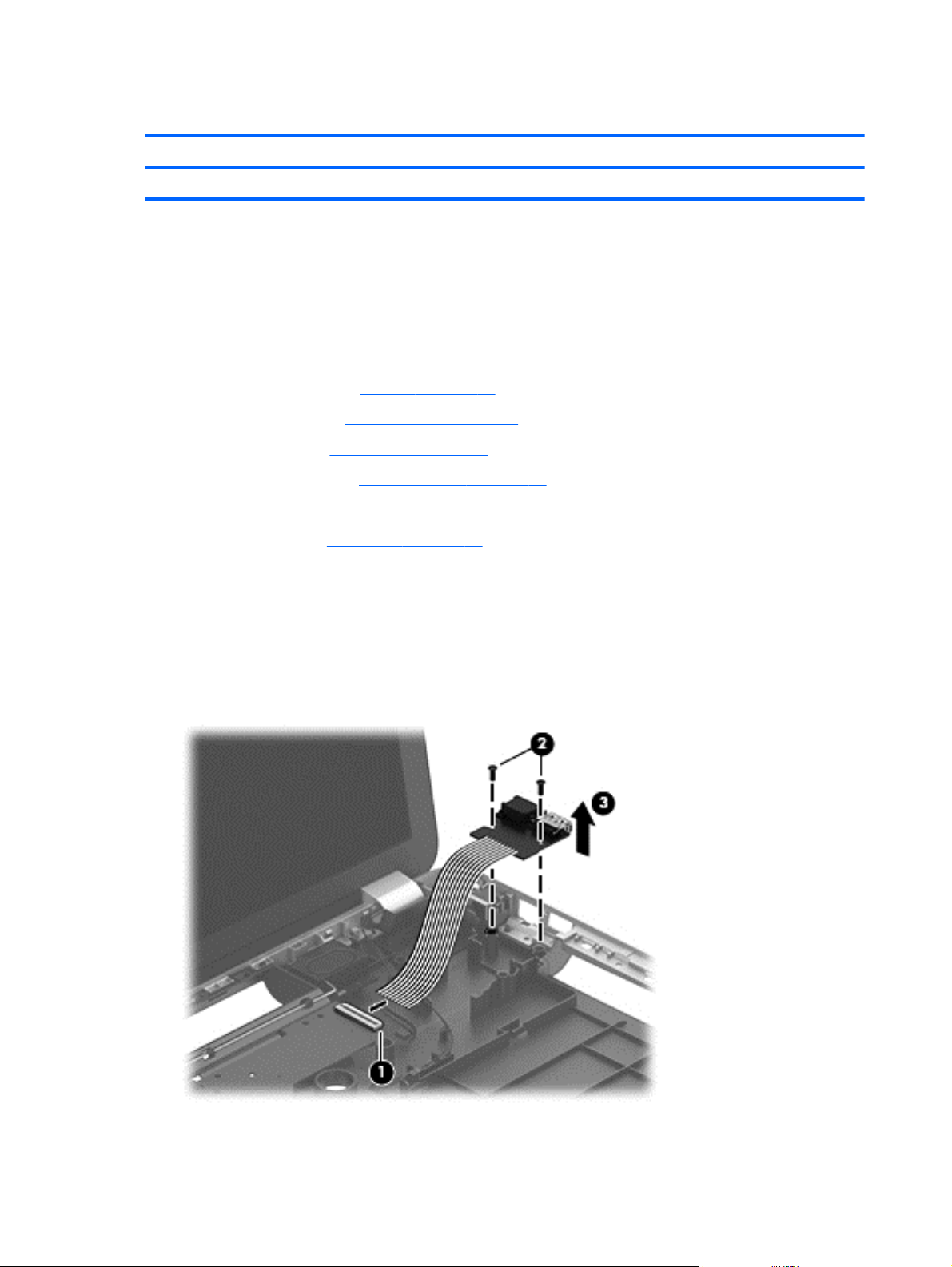

Optical drive connector cable ............................................................................................ 90
PCH heat sink .................................................................................................................... 91
7 Using Setup Utility (BIOS) and HP PC Hardware Diagnostics (UEFI) ...................................................... 93
Starting Setup Utility (BIOS) ............................................................................................................... 93
Updating the BIOS ............................................................................................................................. 93
Determining the BIOS version ........................................................................................... 93
Downloading a BIOS update ............................................................................................. 94
Using HP PC Hardware Diagnostics (UEFI) ...................................................................................... 95
Downloading HP PC Hardware Diagnostics (UEFI) to a USB device ............................... 95
8 Specifications ................................................................................................................................................ 96
Computer specifications ..................................................................................................................... 96
17.3 inch display specifications .......................................................................................................... 96
Hard drive specifications .................................................................................................................... 97
9 Backing up, restoring, and recovering ....................................................................................................... 98
Creating recovery media and backups ............................................................................................... 98
Creating HP Recovery media ............................................................................................ 98
viii
Restore and recovery ......................................................................................................................... 99
Recovering using HP Recovery Manager ........................................................................ 100
What you need to know ................................................................................... 100
Using the HP Recovery partition ..................................................................... 100
Using HP Recovery media to recover ............................................................. 101
Changing the computer boot order ................................................................. 101
Removing the HP Recovery partition ............................................................................... 102
10 Power cord set requirements .................................................................................................................. 103
Requirements for all countries .......................................................................................................... 103
Requirements for specific countries and regions ............................................................................. 104
11 Recycling ................................................................................................................................................... 106
Index ................................................................................................................................................................. 107
ix
x

1 Product description

Category Description Computer models
equipped with an
AMD processor
Product Name HP Pavilion 17 TouchSmart Notebook PC
HP Pavilion 17 Notebook PC
Processors AMD
AMD® A10-5750M 2.50 GHz
processor (turbo up to 3.50 GHz; 1600 MHz FSB, 4.0 MB L2 cache, DDR3, quad core, 35 W)
AMD A10-4600M 2.30 GHz
processor (turbo up to 3.20 GHz; 1600 MHz FSB, 4.0 MB L2 cache, DDR3, quad core, 35 W)
AMD A8-5550M 2.10 GHz processor
(turbo up to 3.10 GHz; 1600 MHz FSB, 4.0 MB L2 cache, DDR3, quad core, 35 W)
AMD A8-4500M 1.90 GHz processor
(turbo up to 2.80 GHz; 1600 MHz FSB, 4.0 MB L2 cache, DDR3, quad core, 35 W)
AMD A6-5350M 2.90 GHz processor
(turbo up to 3.50 GHz; 1600 MHz FSB, 1.0 MB L2 cache, DDR3, dual core, 35 W), not supported for use on computer models equipped with Windows® 8.1
AMD A6-5200 2.0 GHz processor
(1600 MHz, 2 MB L2 cache, DDR3L, quad core, 25 W)
AMD A6-4400M 2.70 GHz processor
(turbo up to 3.20 GHz; 1600 MHz FSB, 1.0 MB L2 cache, DDR3, dual core, 35 W)
√√
Computer models
equipped with an
Intel processor
AMD A4-5150M 2.70 GHz processor
(turbo up to 3.30 GHz; 1600 MHz FSB, 1.0 MB L2 cache, DDR3, dual core, 35 W); not supported for use on computer models equipped with Windows 8.1
AMD A4-5000 1.5 GHz processor
(1600MHz, 2 MB L2 cache DDR3L, quad core, 15 W)
AMD E1-2500 1.4 GHz processor
(1600MHz, 1 MB L2 cache, DDR3L), dual core 15 W)
1
Category Description Computer models
equipped with an
AMD processor
Computer models
equipped with an
Intel processor
Processors (continued) 4th Generation Intel Core
Intel® Core® i7-4702MQ 2.20 GHz
processor (SC turbo up to 2.90 GHz; 1600 MHz FSB, 6.0 MB L3 cache, quad core, 37 W)
Intel Core i5-4200M 2.5 GHz
processor (SC turbo up to 3.10 GHz; 1600 MHz FSB, 3.0 MB L3 cache, dual core, 37 W)
Intel Core i3-4000M 2.40 GHz
processor (1600 MHz FSB, 3.0 MB L3 cache, dual core, 37 W)
Intel Pentium® 3550M 2.40 GHz
processor (1600 MHz FSB, 2.0 MB L3 cache, dual core, 37 W)
Intel Celeron® 2950M 2.00 GHz
processor (1600 MHz FSB, 2.0 MB L3 cache, 37 W)
3rd Generation Intel Core
Intel Core i7-3632QM (2.2 GHz
processor (SC turbo up to 3.2GHz, 1600 MHz, 6 MB L3 Cache, DDR3, quad core, 35 W)
Intel Core i5-3230M 2.60 GHz
processor (SC turbo up to 3.20 GHz; 1600 MHz FSB, 3.0 MB L3 cache, dual core, 35 W)
Intel Core i3-3130M 2.60 GHz
processor (1600 MHz FSB, 3.0 MB L3 cache, dual core, 35 W)
Intel Core i3-3110M 2.40 GHz
processor (1333 MHz FSB, 3.0 MB L3 cache, dual core, 35 W)
Chipset AMD A76M fusion controller hub
Intel HM86 Express Chipset
2 Chapter 1 Product description
Intel Pentium 2030M 2.50 GHz
processor (1600 MHz FSB, 2.0 MB L3 cache, dual core, 35 W)
Intel Pentium 2020M 2.40 GHz
processor (1600 MHz FSB, 2.0 MB L3 cache, dual core, 35 W)
Intel Celeron 1005M 1.90 GHz
processor (1600 MHz, 2.0 MB L3 cache, dual core, 35 W)
Intel HM76 Express Chipset
Category Description Computer models
equipped with an
AMD processor
Computer models
equipped with an
Intel processor
Graphics Internal graphics:
AMD Radeon™ HD 8650G graphics
on computer models equipped with an AMD A10-5750M processor
AMD Radeon HD 8550G graphics on
computer models equipped with an AMD A8-5550M processor
AMD Radeon HD 8450G graphics on
computer models equipped with an AMD A6-5350M processor; not supported for use on computer models equipped with Windows 8.1
AMD Radeon HD 8350G graphics on
computer models equipped with an AMD A4-5150M processor; not supported for use on computer models equipped with Windows 8.1
AMD Radeon HD 8400 graphics on
computer models equipped with an AMD A6-5200 processor
AMD Radeon HD 8330 graphics on
computer models equipped with an AMD A4-5000 processor
AMD Radeon HD 8240 graphics on
computer models equipped with an AMD E1-2500 processor
AMD Radeon HD 7660G on
computer models equipped with an A10-4600M processor
AMD Radeon HD 7640G on
computer models equipped with an AMD A8-4500M processor
AMD Radeon HD 7520G on
computer models equipped with an AMD A6-4400M processor
3
Category Description Computer models
equipped with an
AMD processor
Computer models
equipped with an
Intel processor
Graphics (continued) Switchable graphics:
AMD Radeon HD 8670M with 1 GB
of dedicated video memory (128 M x 16 DDR3 1 GHz x 4 pcs; 1 GHz downgrade to 900 MHz)
AMD Radeon HD 8670M with 2 GB
of dedicated video memory (256 M x 16 DDR3 1 GHz x 4 pcs; 1 GHz downgrade to 900 MHz)
Support for HD decode, DX11, and HDMI
Support for PX5.5 (supported for use on computer models equipped with Windows
8.0)
Support for PX7.0 (supported for use on computer models equipped with Windows
8.1)
AMD Start Now (AMD IOIC) 1.0 on computer models equipped with an AMD A10-5750, A8-5550, A6-5350, or A4-5150 processor
Dual graphics:
AMD Radeon HD 8650G + HD
8670M dual graphics on computer models equipped with an AMD A10-5750 processor
AMD Radeon HD 8550G + HD
8670M dual graphics on computer models equipped with an AMD A8-5550 processor
4 Chapter 1 Product description
AMD Radeon HD 8450G + HD
8670M dual graphics on computer models equipped with an AMD A6-5350 processor; not supported for use on computer models equipped with Windows 8.1
AMD Radeon HD 7660G + HD
8670M dual graphics on computer models equipped with an AMD A10-4600M processor
AMD Radeon HD 7640G + HD
8670M dual graphics on computer models equipped with an A8-4500M processor
AMD Radeon HD 7520G + HD
8670M Dual Graphics dual graphics on computer models equipped with an A6-4400M processor
Category Description Computer models
equipped with an
AMD processor
Computer models
equipped with an
Intel processor
Graphics (continued) Internal graphics:
Intel HD Graphics 4600 on computer
models equipped with an Intel 4th Generation Core processor
Intel HD Graphics 4000 on computer
models equipped with an Intel 3rd Generation Core processor
Intel HD Graphics on computer
models equipped with an Intel Pentium or Celeron processor
Switchable Discrete Graphics:
AMD Radeon HD 8670M (64 bit), M2
package, 28 nm, 25 W, 4 pcs of dedicated video memory (2 GB VRAM, 256 MB×16, DDR3, 1 GHz×4 pcs)
AMD Radeon HD 8670M (64 bit), M2
package, 28 nm, 25 W, 4 pcs of dedicated video memory (1 GB VRAM, 128 MB×16, DDR3, 1 GHz×4 pcs, 1 GHz bridge to 900 MHz)
Support for HD decode, DX11, and HDMI
Support for PX5.5 (supported for use on computer models equipped with Windows
8.0)
Support for MS Hybrid Graphic
Panel
17.3 in, high-definition+ (HD+), white
light-emitting diode (WLED), BrightView (1600×900), wedge (6.0 mm), SVA, typical brightness 200 nits, 16:9 ultra wide aspect ratio
17.3 in, HD+ WLED AntiGlare
(1600x900) wedge (6.0 mm) SVA touchscreen solution with flush glass, multitouch enabled
√√
5
Category Description Computer models
equipped with an
AMD processor
Computer models
equipped with an
Intel processor
Memory Two customer-accessible/upgradable
memory module slots
Support for DDR3L (1600 MHz) dual channel
Support for DDR3L-1600 MHz single channel (for use on computer models equipped with an AMD A6-5200, A4-500, or E1-2500 processor)
Support for up to 12288 MB of system RAM in the following configurations:
12288 MB (8192 MB x 1+ 4096 MB x
1), not supported for use on computer models equipped with a 32 bit OS
8192 MB (8192 MB×1, 4096 MB×2),
not supported for use on computer models equipped with a 32 bit OS
6144 MB (4096 MB+2048 MB), not
supported for use on computer models equipped with a 32 bit OS
4096 MB (4096 MB×1)
Hard drive Support for 6.35 cm (2.5 in) hard drives in
7.0 mm (.28 in) and 9.5 mm (.37 in) thickness
√√
√√
Support for Serial ATA
Support for HP 3D DriveGuard hard drive protection
Support for the following hard drives:
1 TB, 5400 rpm, 9.5 mm
750 GB, 5400 rpm, 9.5 mm
640 GB, 5400 rpm, 9.5 mm
(supported for use on computer models equipped with Intel processors and supported for use on computer models equipped with AMD processors with Windows 8.0)
500 GB, 5400 rpm, 9.5, and 7.0 mm
Optical drive 9.5 mm tray load
SATA
Fixed (not modular)
DVD±RW Double Layer SuperMulti Drive
√√
6 Chapter 1 Product description
Category Description Computer models
equipped with an
AMD processor
Computer models
equipped with an
Intel processor
Audio and video Dual speakers
Single digital microphone
HD Audio
DTS sound+
Integrated HP TrueVision HD webcam (fixed [no tilt], activity LED, 1280×720 by 30 frames per second)
Ethernet Integrated 10/100 network interface card
(NIC)
Wireless Integrated wireless local area network
(WLAN) options by way of wireless module
Two WLAN antennas built into display assembly
Compatible with Miracast-certified devices.
Support for the following WLAN formats:
Qualcomm Atheros QCA9485
802.11b/g/n WiFi Adapter
Qualcomm Atheros AR9565 802.11b/
1×1 WiFi + Combo Adapter
Ralink R
WiFi and Bluetooth 4.0 Combo Adapter
Realtek RTL8188EE 802.11b/g/n
WiFi Adapter
Bluetooth 4.0
LE 802.11b/g/n 1×1
T3290
√√
√√
√√
g/n
External media cards HP 2 in-1 multiformat Digital Media
Intel Centrino Wireless-N 2230
Combo Adapter (not supported for use on computer models equipped with Windows 8.1)
Intel Wireless-N 7260BN 802.11b/g/n
2×2 WiFi + Bluetooth 4.0 Combo Adapter
Antenna support for 802.11a/b/g/n ­Multiple-Input and Multiple-Output (MIMO) support 2x2
Reader Slot with push-push technology. Reads data from and writes data to digital memory cards such as Secure Digital (SD).
√√
7
Category Description Computer models
equipped with an
AMD processor
Computer models
equipped with an
Intel processor
Ports
Keyboard/pointing devices
AC adapter, HP Smart
Audio in (mono microphone)/audio-
out (stereo headphone) combo jack
HDMI v1.4 supporting up to
1920×1080 @ 60Hz
RJ-45 (Ethernet)
USB: two USB 3.0 ports, one USB
2.0 port
VGA (Dsub 15 pin) supporting:
1920×1600 external resolution
@ 60 Hz
2048×1536 @ 75Hz (computer
models equipped with an Intel processor only)
Hot plug and unplug
Autodetection for correct output
to wide-aspect versus standard aspect video
Full-size, island-style keyboard with numeric keypad in black or white finish
Gesture support: MultiTouch gestures enabled, two-finger scrolling, and pinch­zoom as default
Taps enabled by default
√√
√√
Support for Windows 8 modern trackpad
Power requirements Support for the following AC adapters:
90 W HP Smart AC adapter (PFC,
4.5 mm)
65 W HP Smart AC adapter (non-
PFC, 4.5 mm)
Support for the following batteries:
6 cell, 62 Wh, 2.80 Ah, Li-ion battery
6 cell, 47 Wh, 2.20 Ah, Li-ion battery
Security Security cable lock √√
√√
√√
8 Chapter 1 Product description
Category Description Computer models
equipped with an
AMD processor
Computer models
equipped with an
Intel processor
Operating system Preinstalled:
Windows 8.1 Standard
Windows 8 Standard
FreeDOS
Serviceability End user replaceable parts:
AC adapter
Battery (system)
Hard drive
Memory modules (expansion and
primary)
Optical drive
WLAN module
√√
√√
9

2 External component identification

Finding your hardware and software information

Locating hardware

To find out what hardware is installed on your computer:
1. From the Start screen, type control panel, and then select Control Panel.
2. Select System and Security, and then in the System area, click Device Manager in the left
column.
A list reveals all the devices installed in your computer.

Display

Item Component Description
(1) Internal display switch Turns off the display and initiates Sleep if the display is
(2) WLAN antennas (2)* Send and receive wireless signals to communicate
(3) Webcam light On: The webcam is in use.
(4) Webcam Records video and captures still photographs.
10 Chapter 2 External component identification
closed while the power is on.
NOTE: The internal display switch is not visible from
the outside of the computer.
with WLANs.
Item Component Description
(5) Internal microphone Records sound.
*The antennas are not visible from the outside of the computer. For optimal transmission, keep the areas immediately around the antennas free from obstructions. For wireless regulatory notices, see the section of the Regulatory, Safety, and Environmental Notices that applies to your country or region. To access this guide, from the Start screen, type support, select the HP Support Assistant app.
Display 11

Buttons and speakers

Item Component Description
(1) Power button When the computer is off, press the button to turn
(2) Speakers (2) Produce sound.
on the computer.
When the computer is on, press the button briefly
to initiate Sleep.
When the computer is in the Sleep state, press the
button briefly to exit Sleep.
When the computer is in Hibernation, press the
button briefly to exit Hibernation.
CAUTION: Pressing and holding down the power
button will result in the loss of unsaved information.
If the computer has stopped responding and Microsoft® Windows shutdown procedures are ineffective, press and hold the power button down for at least 5 seconds to turn off the computer.
NOTE: For select models, the Intel Rapid Start
Technology feature is enabled at the factory. Rapid Start Technology allows your computer to resume quickly from inactivity.
12 Chapter 2 External component identification

Keys

Item Component Description
(1) esc key Reveals system information when pressed in
combination with the fn key.
(2) fn key Reveals system information when pressed in
combination with the esc key.
(3) Windows key Returns you to the Start screen from an open app or the
Windows desktop.
NOTE: Pressing the Windows logo key again will
return you to the previous screen.
(4) Action keys Execute frequently used system functions.
(5) num lk key Controls the function of the integrated numeric keypad.
(6) Integrated numeric keypad Set at the factory to function like an external numeric
Press the key to alternate between the standard numeric function found on an external keypad (this function is turned on at the factory) and the navigational function (indicated by the directional arrows on the keys).
NOTE: The keypad function that is active when the
computer is turned off is reinstated when the computer is turned back on.
keypad. To alternate between this numeric function and the navigational function (indicated by the directional arrows on the keys), press the num lock key.
Keys 13

Lights

Item Component Description
(1) Power light
(2) Mute light Amber: Computer sound is off.
(3) Wireless light On: An integrated wireless device, such as a WLAN
(4) Caps lock light On: Caps lock is on, which switches the keys to all
White: The computer is on.
Blinking white: The computer is in the Sleep state,
which is an energy-saving mode. The computer shuts off power to the display and other unneeded components.
Off: The computer is off or in Hibernation.
Hibernation is an energy-saving mode that uses the least amount of power.
NOTE: For select models, the Intel Rapid Start
Technology feature is enabled at the factory. Rapid Start Technology allows your computer to resume quickly from inactivity.
Off: Computer sound is on.
device and/or a Bluetooth device, is on.
NOTE: On some models, the wireless light is amber
when all wireless devices are off.
capital letters.
14 Chapter 2 External component identification

TouchPad

Item Component Description
(1) TouchPad zone Moves the on-screen pointer and selects or activates
(2) Left TouchPad button Functions like the left button on an external mouse.
(3) Right TouchPad button Functions like the right button on an external mouse.

Left side

Item Component Description
(1) External monitor port Connects an external VGA monitor or projector.
(2) Vent Enables airflow to cool internal components.
items on the screen.
NOTE: The TouchPad also supports edge-swipe
gestures.
NOTE: The computer fan starts up automatically to
cool internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.
(3) HDMI port Connects an optional video or audio device, such as a
high-definition television, any compatible digital or audio component, or a high-speed HDMI device.
(4) USB 3.0 ports (2) Connect optional USB 3.0 devices and provide
enhanced USB power performance.
TouchPad 15
Item Component Description
(5) Audio-out (headphone) jack/Audio in
(microphone) jack
(6) Media Card Reader Reads data from and writes data to digital memory
(7) Hard drive light Blinking white: The hard drive is being accessed.
(8) Power light
Connects optional powered stereo speakers, headphones, earbuds, a headset, or a television audio cable. Also connects an optional headset microphone. This jack does not support optional microphone-only devices.
WARNING! To reduce the risk of personal injury,
adjust the volume before putting on headphones, earbuds, or a headset. For additional safety information, refer to the Regulatory, Safety, and Environmental Notices. To access this guide, from the Start screen, type support, select the HP Support Assistant app, select My computer, and then select User guides.
NOTE: When a device is connected to the jack, the
computer speakers are disabled.
NOTE: Be sure that the device cable has a 4-
conductor connector that supports both audio-out (headphone) and audio in (microphone).
cards such as Secure Digital (SD).
Amber: HP 3D DriveGuard has temporarily parked
the hard drive.
White: The computer is on.
Blinking white: The computer is in the Sleep state,
which is an energy-saving mode. The computer shuts off power to the display and other unneeded components.
Off: The computer is off or in Hibernation.
Hibernation is an energy-saving mode that uses the least amount of power.
16 Chapter 2 External component identification
NOTE: For select models, the Intel Rapid Start
Technology feature is enabled at the factory. Rapid Start Technology allows your computer to resume quickly from inactivity.

Right side

Item Component Description
(1) Optical drive Reads and writes to an optical disc.
(2) Optical drive eject button Releases the disc tray.
(3) USB 2.0 port Connects an optional USB device.
(4) RJ-45 (network) jack Connects a network cable.
(5) AC adapter light White: The AC adapter is connected and the
(6) Power connector Connects an AC adapter.
(7) Security cable slot Attaches an optional security cable to the computer.
battery is charged.
Amber: The AC adapter is connected and the
battery is charging.
Off: The computer is using DC power.
NOTE: The security cable is designed to act as a
deterrent, but it may not prevent the computer from being mishandled or stolen.
Right side 17

Bottom

Item Component Description

Labels

The labels affixed to the computer provide information you may need when you troubleshoot system problems or travel internationally with the computer.
(1) Battery bay Holds the battery.
(2) Vents (5) Enable airflow to cool internal components.
NOTE: The computer fan starts up automatically to
cool internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.
(3) Battery release latch Releases the battery from the battery bay.

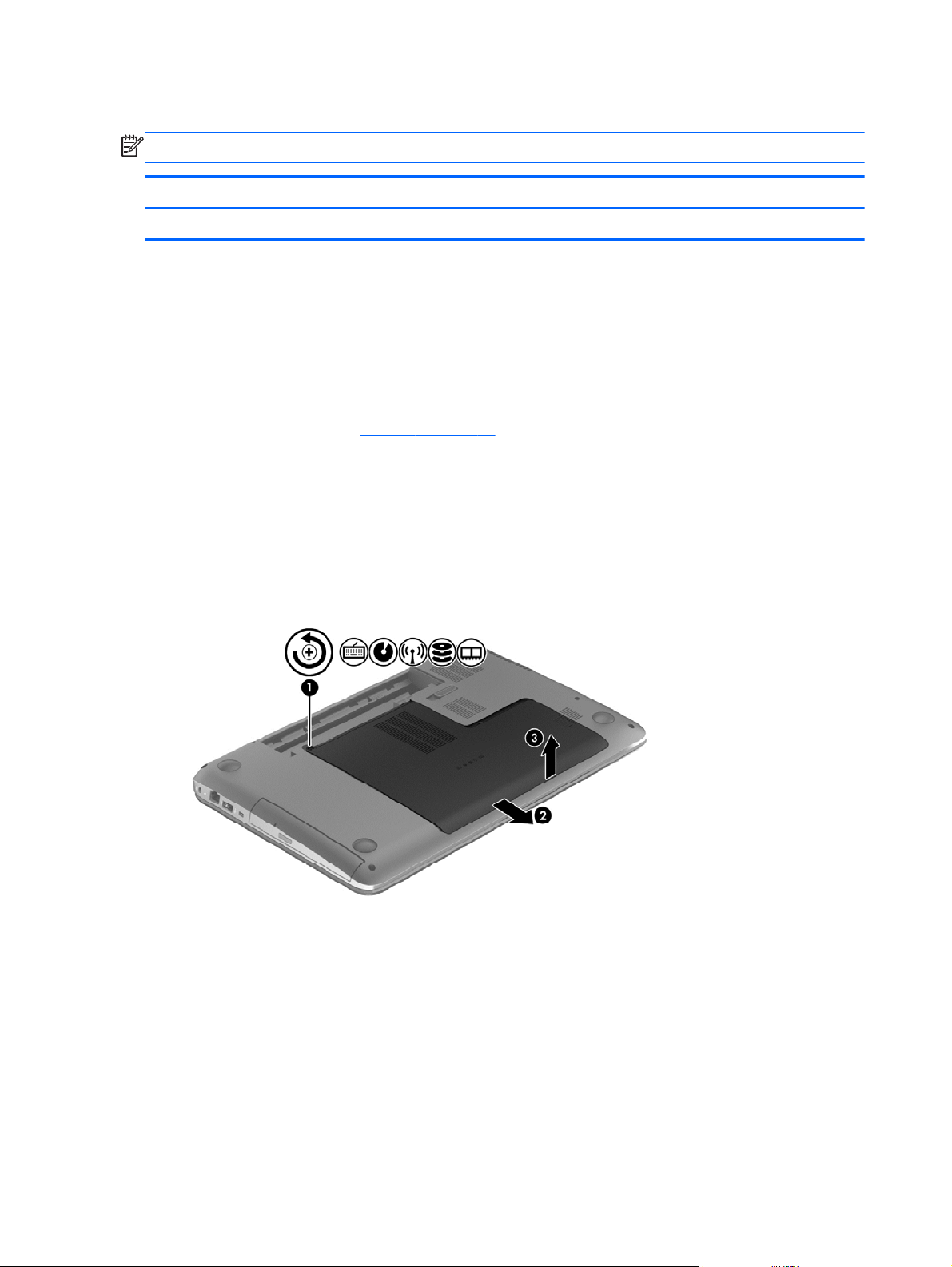

(4) Service cover Provides access to the hard drive bay, the WLAN
module slot, and the memory module slots.
CAUTION: To prevent an unresponsive system,
replace the wireless module only with a wireless module authorized for use in the computer by the governmental agency that regulates wireless devices in your country or region. If you replace the module and then receive a warning message, remove the module to restore computer functionality, and then contact support through Help and Support. From the Start screen, type h, and then select Help and Support.
IMPORTANT: All labels described in this section will be located in one of 3 places depending on
your computer model: Affixed to the bottom of the computer, located in the battery bay, or under the service door.
18 Chapter 2 External component identification
Service label—Provides important information to identify your computer. When contacting
support, you will probably be asked for the serial number, and possibly for the product number or the model number. Locate these numbers before you contact support.
NOTE: Your service labels will resemble one of the examples shown below. Refer to the
illustration that most closely matches the service label on your computer.
Component
(1) Product name
(2) Serial number
(3) Product number
(4) Warranty period
(5) Model number (select models only)
Component
(1) Serial number
(2) Product number
(3) Warranty period
(4) Model number (select models only)
(5) Revision number
Regulatory label(s)—Provide(s) regulatory information about the computer.
Wireless certification label(s)—Provide(s) information about optional wireless devices and the
approval markings for the countries or regions in which the devices have been approved for use.
Labels 19

3 Illustrated parts catalog

Computer major components

20 Chapter 3 Illustrated parts catalog
Item Component Spare part number

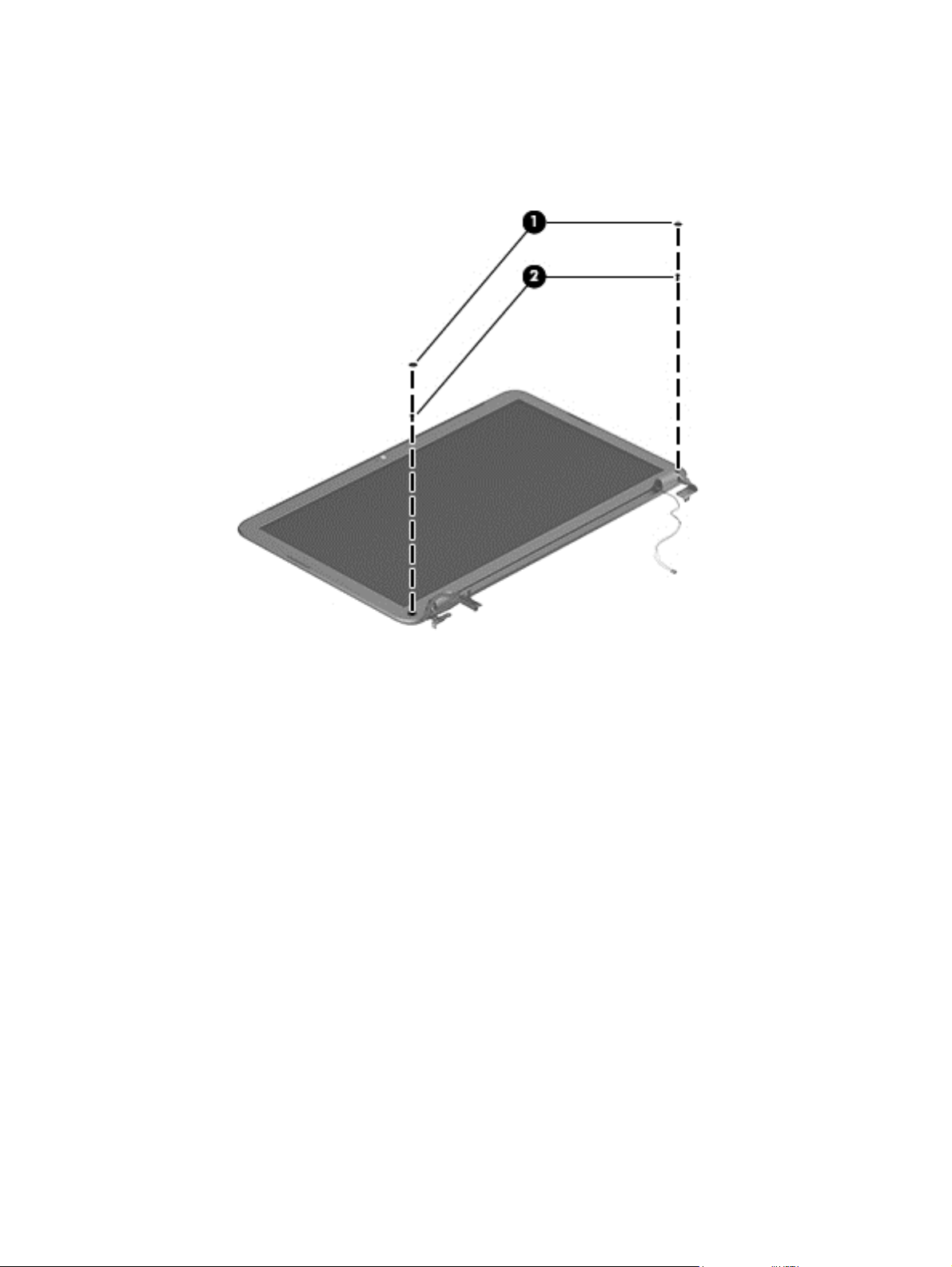

(1) Display assembly:
17.3 in (43.94 cm), HD+, WLED, BrightView, AG, SVA, LED TouchSmart display
17.3 in (43.94 cm), HD+, WLED, BrightView, AG, SVA, LED display assembly for HP Pavilion 17 Notebook

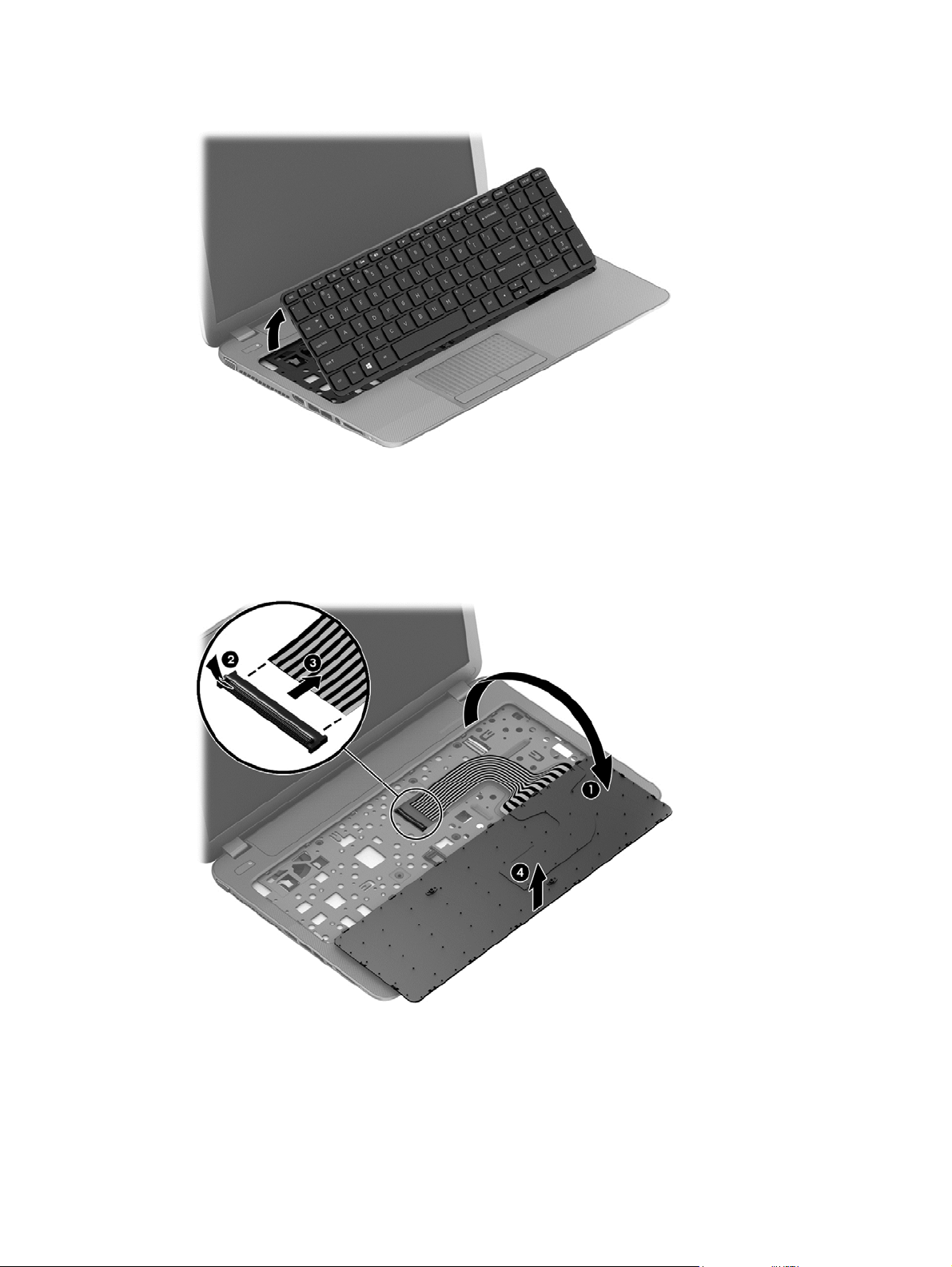

(2) Keyboard (includes keyboard cable):
In black finish for use on all computer models in Belgium 720670-A41
In black finish for use only on computer models equipped with an Intel processor
In black finish for use on all computer models in Canada 720670-DB1
In black finish for use on all computer models in the Czech Republic and Slovakia 720670-FL1
In black finish for use on all computer models in Denmark, Finland, Norway, and
In black finish for use on all computer models in France 720670-051
In black finish for use on all computer models in Germany 720670-041
In black finish for use on all computer models in Greece 720670-151
In black finish for use on all computer models in Hungary 720670-211
In black finish for use only on computer models equipped with an Intel processor
assembly for HP Pavilion 17 TouchSmart Notebook models
models. This display assembly is spared at the subcomponent level only. For more display assembly spare part information, see
in Bulgaria
Sweden
in Israel
Display assembly subcomponents on page 28.
749970-001
720670-261
720670-DH1
720670-BB1
In black finish for use on all computer models in Italy 720670-061
In black finish for use on all computer models Internationally 720670-B31
In black finish for use only on computer models equipped with an AMD processor
in Portugal
In black finish for use on all computer models in Romania 720670-271
In black finish for use on all computer models in Russia 720670-251
In black finish for use only on computer models equipped with an Intel processor
in Saudi Arabia
In black finish for use on all computer models the Adriatic Region 720670-BA1
In black finish for use on all computer models in Spain 720670-071
In black finish for use on all computer models in Switzerland 720670-BG1
In black finish for use on all computer models in Turkey 720670-141
In black finish for use on all computer models in the United Kingdom 720670-031
In black finish for use on all computer models in the United States 720670-001
In white finish for use on all computer models in Belgium 724535-A41
In white finish for use only on computer models equipped with an Intel processor
in Bulgaria
In white finish for use on all computer models in Canada 724535-DB1
720670-131
720670-171
724535-261
Computer major components 21
Item Component Spare part number
In white finish for use on all computer models in the Czech Republic and Slovakia 724535-FL1
In white finish for use on all computer models in Denmark, Finland, Norway, and
Sweden
In white finish for use on all computer models in France 724535-051
In white finish for use on all computer models in Germany 724535-041
In white finish for use on all computer models in Greece 724535-151
In white finish for on all computer models in Hungary 724535-211
In white finish for use only on computer models equipped with an Intel processor
in Israel
In white finish for use on all computer models in Italy 724535-061
In white finish for use on all computer models Internationally 724535-B31
In white finish for use only on computer models equipped with an AMD processor
in Portugal
In white finish for use on all computer models in Romania 724535-271
In white finish for use on all computer models in Russia 724535-251
In white finish for use only on computer models equipped with an Intel processor
in Saudi Arabia
In white finish for use on all computer models in the Adriatic Region 724535-BA1
In white finish for use on all computer models in Spain 724535-071
724535-DH1
724535-BB1
724535-131
724535-171
In white finish for use on all computer models in Switzerland 724535-BG1
In white finish for use on all computer models in Turkey 724535-141
In white finish for use on all computer models in the United Kingdom 724535-031
In white finish for use on all computer models in the United States 724535-001
(3) Top cover (includes TouchPad):
In flyer red finish for use on all computer models 720681-001
In goji berry finish for use on all computer models 748414-001
In hazel berry finish for use on all computer models 748413-001
In mineral black finish for use on all computer models 733516-001
In pearl white finish for use on all computer models 720680-001
In regal purple finish for use on all computer models 720683-001
In revolutionary blue finish for use on all computer models 720682-001
In sparkling black and silver finish for use on all computer models 720684-001
(4) Power button board (includes cable)
For use with HP Pavilion 17 Notebook computer models only 720673-001
For use with HP Pavilion 17 TouchSmart Notebook computer models only 749969-001
22 Chapter 3 Illustrated parts catalog
Item Component Spare part number

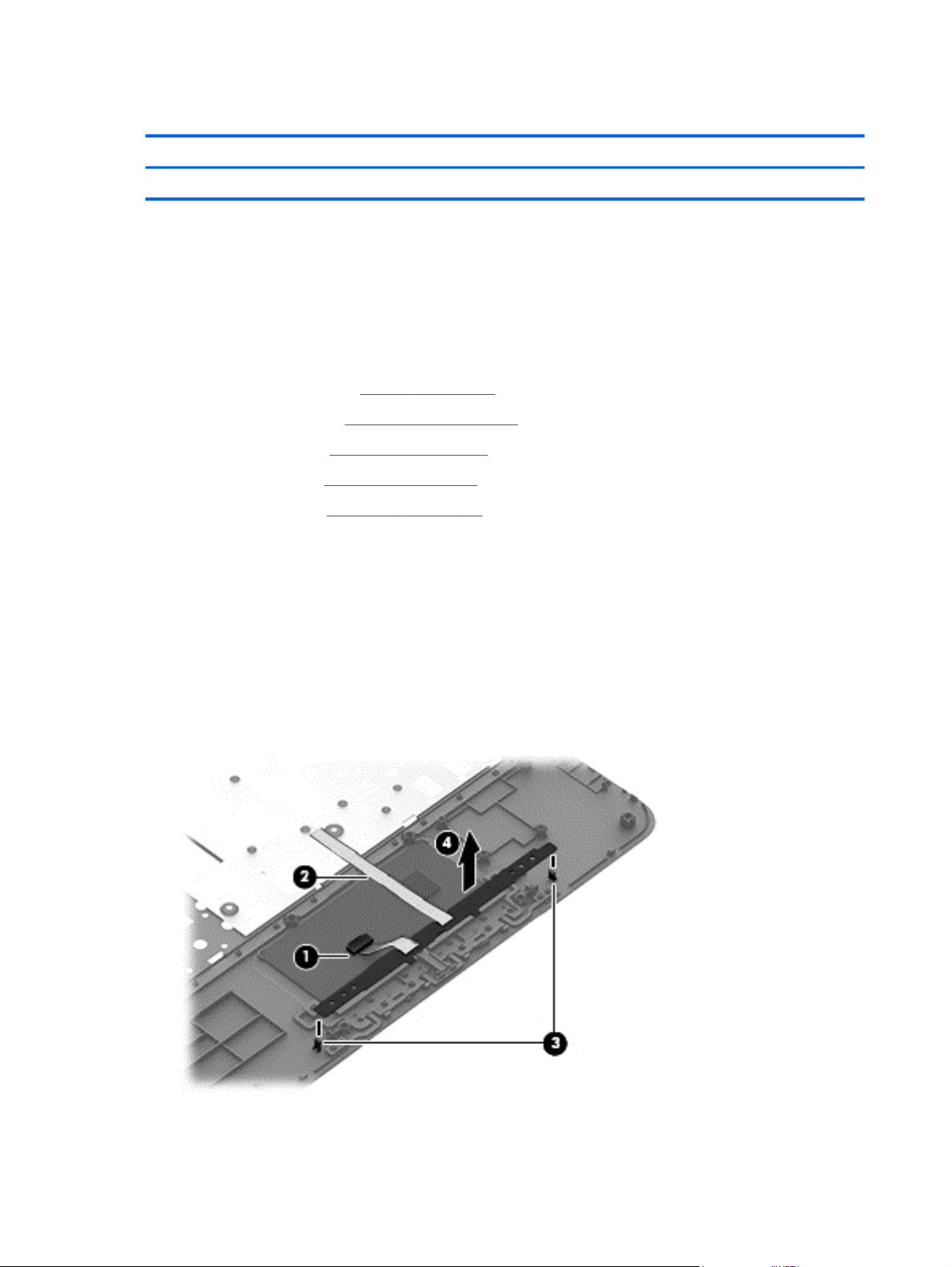

(5) TouchPad button board (includes TouchPad board cable and TouchPad button
board cable)
(6) System board (includes replacement thermal material):
HP Pavilion 17 Notebook computer models
For use only on computer models equipped with the AMD A76M chipset, a graphics
subsystem with 2 GB of discrete memory, and the Windows 8 Standard operating system
For use only on computer models equipped with the AMD A76M chipset, a graphics
subsystem with 2 GB of discrete memory, and the FreeDOS operating system
For use only on computer models equipped with the AMD A76M chipset, a graphics
subsystem with 1 GB of discrete memory, and the Windows 8 Standard operating system
For use only on computer models equipped with the AMD A76M chipset, a graphics
subsystem with 1 GB of discrete memory, and the FreeDOS operating system
For use only on computer models equipped with the AMD A76M chipset, a graphics
subsystem with UMA memory, and the Windows 8 Standard operating system
For use only on computer models equipped with the AMD A76M chipset, a graphics
subsystem with UMA memory, and the FreeDOS operating system
For use only on computer models equipped with an AMD A6-5200 processor,
a graphics subsystem with 1 GB of discrete memory, and the Windows 8 Standard operating system
720672-001
737131-501
737131-001
720692-501
720692-001
720691-501
720691-001
726634-501
For use only on computer models equipped with an AMD A6-5200 processor,
a graphics subsystem with 1 GB of discrete memory, and the FreeDOS operating system
For use only on computer models equipped with an AMD A6-5200 processor,
a graphics subsystem with UMA memory, and the Windows 8 Standard operating system
For use only on computer models equipped with an AMD A6-5200 processor,
a graphics subsystem with UMA memory, and the FreeDOS operating system
For use only on computer models equipped with an AMD A4-5000 processor,
a graphics subsystem with 1 GB of discrete memory, and the Windows 8.1 Standard operating system
For use only on computer models equipped with an AMD A4-5000 processor,
a graphics subsystem with 1 GB of discrete memory, and the FreeDOS operating system
For use only on computer models equipped with an AMD A4-5000 processor,
a graphics subsystem with a UMA memory, and the Windows 8 Standard operating system
For use only on computer models equipped with an AMD A4-5000 processor,
a graphics subsystem with a UMA memory, and the FreeDOS operating system
For use only on computer models equipped with an AMD E1-2500 processor, a
graphics subsystem with UMA memory, and the Windows 8 Standard operating system
For use only on computer models equipped with an AMD E1-2500 processor, a
graphics subsystem with UMA memory, and the FreeDOS operating system
726634-001
726633-501
726633-001
747002-501
747002-001
731534-501
731534-001
737452-501
737452-001
Computer major components 23
Item Component Spare part number
For use only on computer models equipped with the Intel HM86 chipset, a graphics
subsystem with 2 GB of discrete memory, and the Windows 8 Standard operating system
For use only on computer models equipped with the Intel HM86 chipset, a graphics
subsystem with 2 GB of discrete memory, and the FreeDOS operating system
For use only on computer models equipped with the Intel HM86 chipset, a graphics
subsystem with 1 GB of discrete memory, and the Windows 8 Standard operating system
For use only on computer models equipped with the Intel HM86 chipset, a graphics
subsystem with 1 GB of discrete memory, and the FreeDOS operating system
For use only on computer models equipped with the Intel HM86 chipset, a graphics
subsystem with UMA memory, and the Windows 8 Standard operating system
For use only on computer models equipped with the Intel HM86 chipset, a graphics
subsystem with UMA memory, and the FreeDOS operating system
For use only on computer models equipped with the Intel HM76 chipset, a graphics
subsystem with 2 GB of discrete memory, and the Windows 8 Standard operating system
For use only on computer models equipped with the Intel HM76 chipset, a graphics
subsystem with 2 GB of discrete memory, and the FreeDOS operating system
For use only on computer models equipped with an Intel Core i5 or Pentium
processor, a graphics subsystem with 1 GB of discrete memory, and the Windows 8 Standard operating system
713256-501
713256-001
735080-501
735080-001
713255-501
713255-001
720459-501
720459-001
713258-501
For use only on computer models equipped with an Intel Core i5 or Pentium
processor, a graphics subsystem with 1 GB of discrete memory, and the FreeDOS operating system
For use only on computer models equipped with an Intel Core i5 or Pentium
processor, a graphics subsystem with UMA memory, and the Windows 8 Standard operating system
For use only on computer models equipped with an Intel Core i5 or Pentium
processor, a graphics subsystem with UMA memory, and the FreeDOS operating system
For use only on computer models equipped with an Intel Core i3-3110M 2.40 GHz
processor, a graphics subsystem with 1 GB of discrete memory, and the Windows 8 Standard operating system
For use only on computer models equipped with an Intel Core i3-3110M 2.40 GHz
processor, a graphics subsystem with 1 GB of discrete memory, and the FreeDOS operating system
For use only on computer models equipped with an Intel Core i3-3110M 2.40 GHz
processor, a graphics subsystem with UMA memory, and the Windows 8 Standard operating system
For use only on computer models equipped with an Intel Core i3-3110M 2.40 GHz
processor, a graphics subsystem with UMA memory, and the FreeDOS operating system
HP Pavilion 17 TouchSmart Notebook computer models
For use only on computer models equipped with the AMD A76M chipset, a graphics
subsystem with UMA memory, and the FreeDOS operating system
713258-001
713257-501
713257-001
729844-501
729844-001
729843-501
729843-001
749966-001
24 Chapter 3 Illustrated parts catalog
Item Component Spare part number
For use only on computer models equipped with the AMD A76M chipset, a graphics
subsystem with UMA memory, and the Windows 8.1 Standard operating system
For use only on computer models equipped with the AMD A76M chipset, a graphics
subsystem with 1 GB of discrete memory, and the FreeDOS operating system
For use only on computer models equipped with the AMD A76M chipset, a graphics
subsystem with 1 GB of discrete memory, and the Windows 8.1 Standard operating system
For use only on computer models equipped with an AMD A6-5200 processor, a
graphics subsystem with UMA memory, and the FreeDOS operating system
For use only on computer models equipped with an AMD A6-5200 processor, a
graphics subsystem with UMA memory, and the Windows 8.1 Standard operating system
For use only on computer models equipped with an AMD A4-5000 processor, a
graphics subsystem with UMA memory, and the FreeDOS operating system
For use only on computer models equipped with an AMD A4-5000 processor, a
graphics subsystem with UMA memory, and the Windows 8.1 Standard operating system
For use only on computer models equipped with the Intel HM76 Express chipset,
a graphics subsystem with 1 GB of discrete memory, and the FreeDOS operating system
For use only on computer models equipped with the Intel HM76 Express chipset,
a graphics subsystem with 1 GB of discrete memory, and the Windows 8.1 Standard operating system
749966-501
749967-001
749967-501
749968-001
749968-501
758897-001
758897-501
749983-001
749983-501
For use only on computer models equipped with the Intel HM86 Express chipset, a
graphics subsystem with UMA memory, and the FreeDOS operating system
For use only on computer models equipped with the Intel HM86 Express chipset, a
graphics subsystem with UMA memory, and the Windows 8.1 Standard operating system
For use only on computer models equipped with the Intel HM86 Express chipset,
a graphics subsystem with 1 GB of discrete memory, and the FreeDOS operating system
For use only on computer models equipped with the Intel HM86 Express chipset,
a graphics subsystem with 1 GB of discrete memory, and the Windows 8.1 Standard operating system
Thermal Material Kit (includes thermal replacement material) 719864-001
(7) Fan (includes cable) 719860-001
(8) Processor (includes replacement thermal material):
AMD A10-5750M 2.50 GHz processor (turbo up to 3.50 GHz; 1600 MHz FSB, 4.0
MB L2 cache, DDR3, quad core, 35 W)
AMD A10-4600M 2.30 GHz processor (turbo up to 3.20 GHz; 1600 MHz FSB, 4.0
MB L2 cache, DDR3, quad core, 35 W)
AMD A8-5550M 2.10 GHz processor (turbo up to 3.10 GHz; 1600 MHz FSB, 4.0 MB
L2 cache, DDR3, quad core, 35 W)
AMD A8-4500M 1.90 GHz processor (turbo up to 2.80 GHz; 1600 MHz FSB, 4.0 MB
L2 cache, DDR3, quad core, 35 W)
749984-001
749984-501
749985-001
749985-501
713548-001
683046-001
713551-001
683048-001
Computer major components 25
Item Component Spare part number
AMD A6-5350M 2.90 GHz processor (turbo up to 3.50 GHz; 1600 MHz FSB, 1.0 MB
L2 cache, DDR3, dual core, 35 W)
AMD A6-4400M 2.70 GHz processor (turbo up to 3.20 GHz; 1600 MHz FSB, 1.0 MB
L2 cache, DDR3, dual core, 35 W)
AMD A4-5150M 2.70 GHz processor (turbo up to 3.30 GHz; 1600 MHz FSB, 1.0 MB
L2 cache, DDR3, dual core, 35 W); not supported for use on computer models equipped with Windows 8.1
Intel Core i7-4702MQ 2.20 GHz processor (SC turbo up to 2.90 GHz; 1600 MHz
FSB, 6.0 MB L3 cache, quad core, 37 W)
Intel Core i5-4200M 2.5 GHz processor (SC turbo up to 3.10 GHz; 1600 MHz FSB,
3.0 MB L3 cache, dual core, 37 W)
Intel Core i5-3230M 2.60 GHz processor (SC turbo up to 3.20 GHz; 1600 MHz FSB,
3.0 MB L3 cache, dual core, 35 W)
Intel Core i3-4000M 2.40 GHz processor (1600 MHz FSB, 3.0 MB L3 cache, dual
core, 37 W)
Intel Core i3-3130M 2.60 GHz processor (1600 MHz FSB, 3.0 MB L3 cache, dual
core, 35 W)
Intel Core i3-3110M 2.40 GHz processor (1333 MHz FSB, 3.0 MB L3 cache, dual
core, 35 W)
Intel Pentium i7-3632QM 2.2 GHz processor (SC turbo up to 3.2 GHz, 1600 MHz, 6
MB L3 cache, DDR3, quad core, 35 W)
713550-001
683047-001
713549-001
723522-001
737328-001
711903-001
737327-001
713163-001
682417-001
701658-001
Intel Pentium 3550M 2.40 GHz processor (1600 MHz FSB, 2.0 MB L3 cache,
dual core, 37 W)
Intel Pentium 2030M 2.50 GHz processor (1600 MHz FSB, 2.0 MB L3 cache,
dual core, 35 W)
Intel Pentium 2020M 2.40 GHz processor (1600 MHz FSB, 2.0 MB L3 cache,
dual core, 35 W)
Intel Celeron 2950M 2.00 GHz processor (1600 MHz FSB, 2.0 MB L3 cache, 37 W) 737326-001
Intel Celeron 1005M 1.90 GHz processor (1600 MHz, 2.0 MB L3 cache, dual core,
35 W)
Thermal Material Kit (includes thermal replacement material) 719864-001
(9) Heat sink (includes replacement thermal material):
For use only on computer models equipped with an AMD A10, A8, A6-4400M, or A4
processor and a graphics subsystem with discrete memory
For use only on computer models equipped with an AMD A10, A8, A4, or E1-2500
processor and a graphics subsystem with UMA memory
For use only on computer models equipped with an AMD A6-5200 and a graphics
subsystem with discrete memory
For use only on computer models equipped with an AMD A6-5200 and a graphics
subsystem with UMA memory
For use only on computer models equipped with an Intel processor and a graphics
subsystem with discrete memory
737329-001
700588-002
700628-001
739356-001
720690-001
720689-001
724885-001
724884-001
719862-001
For use only on computer models equipped with an Intel processor and a graphics
subsystem with UMA memory
26 Chapter 3 Illustrated parts catalog
719861-001
Item Component Spare part number
For use only on computer models equipped with an Intel Core i3-3110M processor
and a graphics subsystem with discrete memory
For use only on computer models equipped with an Intel Core i3-3110M processor
and a graphics subsystem with UMA memory
PCH heat sink 719863-001
Thermal Material Kit (includes thermal replacement material) 719864-001
(10) RTC battery (includes cable and double-sided tape)
RTC battery for use all on computer models except those equipped with an AMD
A6-5200, AMD A4-5000, or AMD E1-2500 processor
RTC battery for use only on computer models equipped with an AMD A6-5200, AMD
A4-5000, or AMD E1-2500 processor
(11) Optical drive connector cable 720668-001
(12) Speakers (include left and right speakers and cables) 720679-001
(13) Power connector cable 719859-001
(14) RJ-45/USB board (includes cable) 720674-001
(15) Battery:
6 cell, 62 Wh, 2.80 Ah, Li-ion battery 710417-001
6 cell, 47 Wh, 2.20 Ah, Li-ion battery 710416-001
736176-001
736175-001
637193-001
741976-001
(16) Base enclosure (includes 4 rubber feet, battery lock latch, battery release latch,
and RJ-45 cover)
For use only on HP Pavilion 17 Notebook computer models 720665-001
For use only on HP Pavilion 17 TouchSmart Notebook computer models 753890-001
Rubber Kit (not illustrated, includes front and rear rubber feet and display bezel
rubber screw covers)
(17) DVD±RW Double Layer SuperMulti Drive 720671-001
(18) Hard drive (does not include hard drive bracket or hard drive connector cable):
1 TB, 5400 rpm, 9.5 mm 676521-001
750 GB, 5400 rpm, 9.5 mm 634250-001
640 GB, 5400 rpm, 9.5 mm (supported for use on computer models equipped with
Intel processors and supported for use on computer models equipped with AMD processors with Windows 8.0)
500 GB, 5400 rpm, 7.0 mm 683802-001
Hard Drive Hardware Kit (not illustrated, includes hard drive bracket and hard drive
connector cable)
(19) Memory module (PC3L, 12800, 1600 MHz):
8 GB 693374-001
720677-001
669300-001
716179-001
4 GB 691740-001
2 GB 691739-001
Computer major components 27
Item Component Spare part number

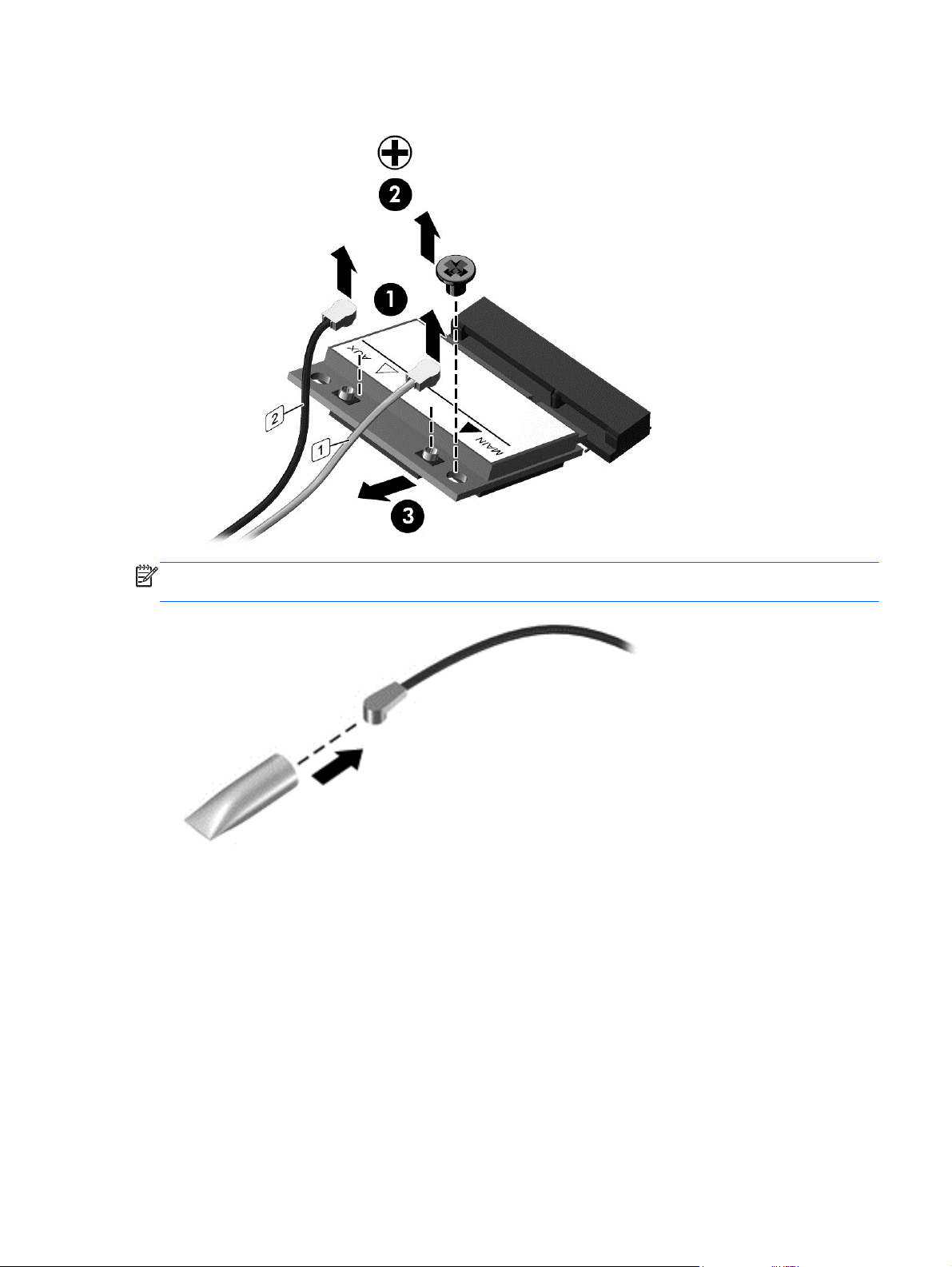

(20) WLAN module:
Qualcomm Atheros QCA9485 802.11b/g/n WiFi Adapter for use on all
computer models
Qualcomm Atheros AR9565 802.11b/g/n 1×1 WiFi + Bluetooth 4.0 Combo Adapter
for use on all computer models
Ralink RT3290LE 802.11b/g/n 1×1 WiFi and Bluetooth 4.0 Combo Adapter for use
on all computer models
Realtek RTL8188EE 802.11b/g/n WiFi Adapter for use on all computer models 709848-001
Intel Centrino Wireless-N 2230 Combo Adapter for use only on computer models
equipped with an Intel processor (not supported on computer models equipped with Windows 8.1)
Intel Wireless-N 7260BN 802.11b/g/n 2×2 WiFi + Bluetooth 4.0 Combo Adapter for
use only on computer models equipped with an Intel processor
(21) Service cover 720675-001

Display assembly subcomponents

NOTE: The display assembly subcomponents are for the HP Pavilion 17 Notebook non-touch
screen models only. The HP Pavilion 17 TouchSmart Notebook models are spared at the display assembly only.
675794-001
733476-001
690020-001
670290-001
717384-001
28 Chapter 3 Illustrated parts catalog
Item Component Spare part number

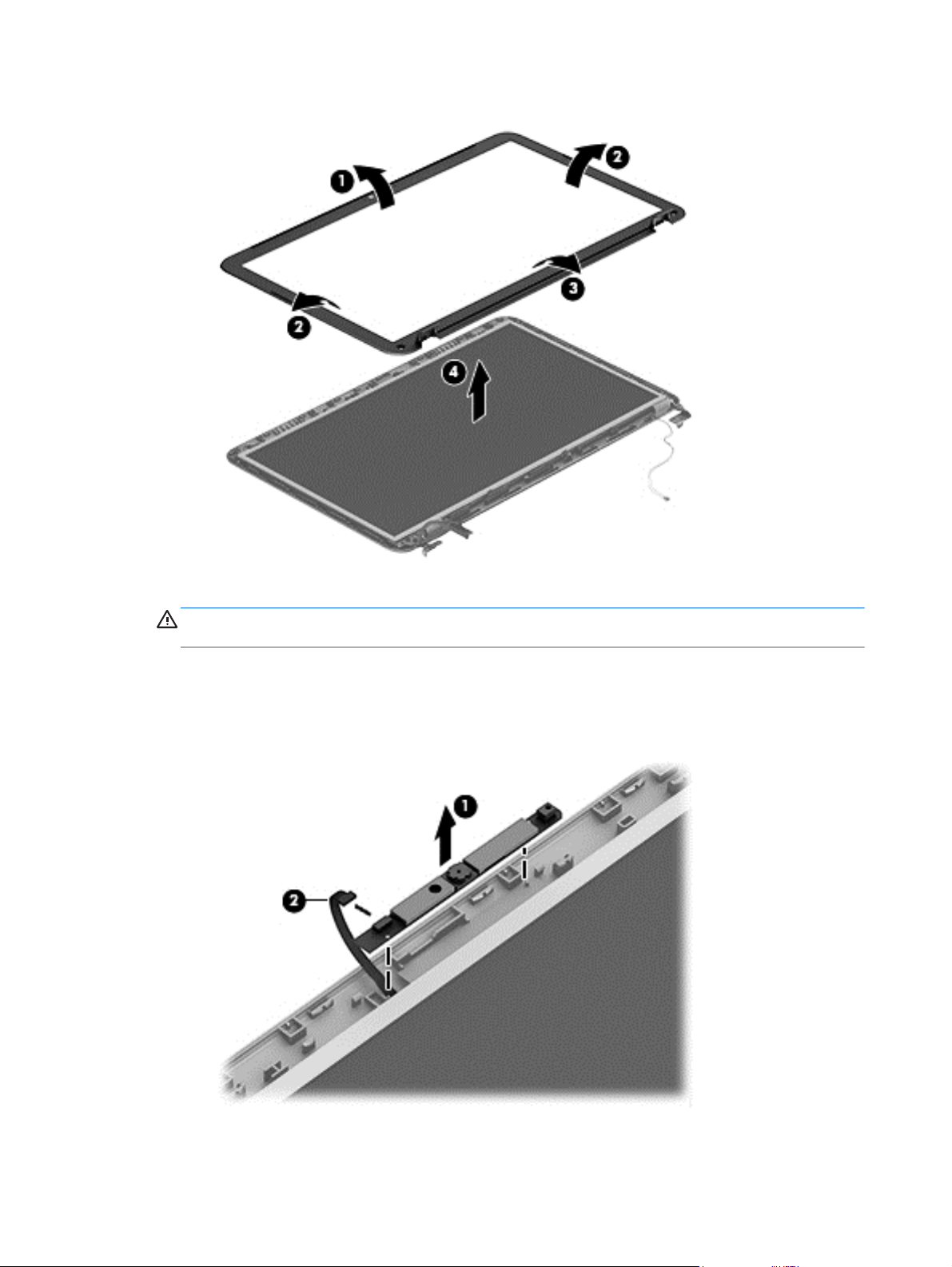

(1) Display bezel 720666-001
(2) 17.3 in (43.94 cm), BrightView, HD, LED, display panel 720676-001
(3) Display hinges (includes left and right hinges and hinge brackets) 720669-001
(4) Webcam/microphone module (includes double-sided adhesive) 719845-001
(5) Antenna Kit (includes left and right wireless antenna cables and transceivers) 720659-001
(6) Display panel cable (includes webcam/microphone module cable) 720667-001
(7) Display enclosure:
In flyer red finish 720661-001
In goji berry finish 748412-001
In hazel berry finish 748411-001
In mineral black finish 733515-001
In pearl white finish 720660-001
In regal purple finish 720663-001
In revolutionary blue finish 720662-001
In sparkling black and silver finish 720664-001
Display assembly subcomponents 29

Mass storage devices

Item Component Spare part number
(1) Hard drive (does not include hard drive bracket or hard drive connector cable):
1 TB, 5400 rpm, 9.5 mm 676521-001
750 GB, 5400 rpm, 9.5 mm 634250-001
640 GB, 5400 rpm, 9.5 mm (supported for use on computer models equipped with
Intel processors and supported for use on computer models equipped with AMD processors with Windows 8.0)
500 GB, 5400 rpm, 7.0 mm 683802-001

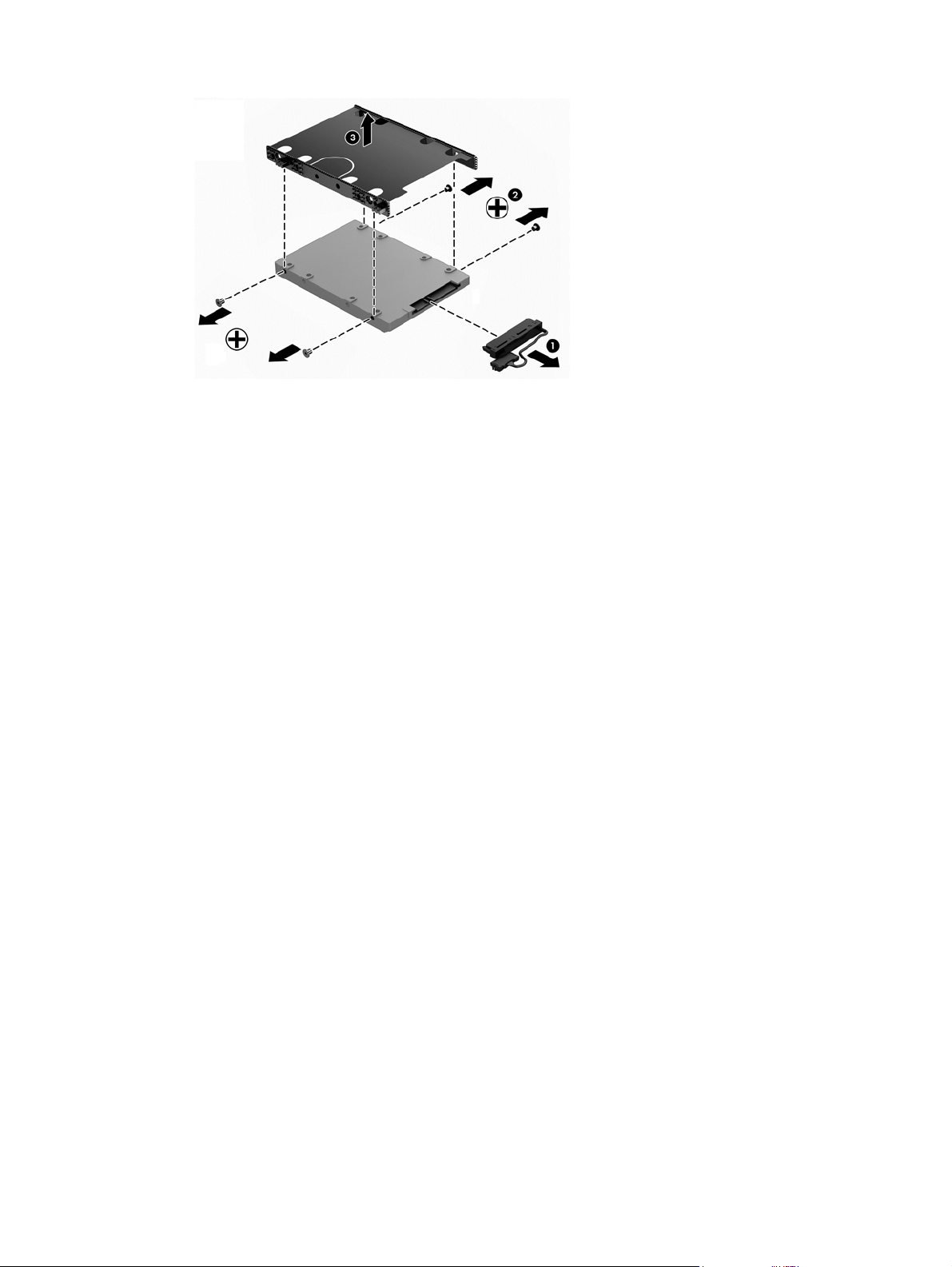

Hard Drive Hardware Kit, includes: 716179-001
(2a) Hard drive connector cable
(2b) Hard drive bracket
(3) External DVD±RW Double-Layer with SuperMulti Drive 720671-001
669300-001
30 Chapter 3 Illustrated parts catalog

Miscellaneous parts

Component Spare part number
AC adapter:
65 W HP Smart AC adapter (non-PFC, 4.5 mm) for use on all computer models 710412-001
90 W HP Smart AC adapter (PFC, 4.5 mm) for use on all computer models 710413-001
Power cord (3 pin, black, 1.83 m):
For use on all computer models in Denmark 490371-081
For use on all computer models in Europe 490371-021
For use only on computer models equipped with an Intel processor in India 490371-BB1
For use on all computer models in North America 490371-001
For use only on computer models equipped with an Intel processor in Northwest Africa 490371-AR1
For use on all computer models in Switzerland 490371-111
For use only on computer models equipped with an Intel processor in the United Kingdom and Singapore
Screw Kit 720678-001

Sequential part number listing

Spare part number Description
490371-001 Power cord for use on all computer models in North America (3 pin, black, 1.83 m)
490371-021 Power cord for use on all computer models in Europe (3 pin, black, 1.83 m)
490371-031 Power cord for use on all computer models in the United Kingdom and Singapore (3 pin, black,
1.83 m)
490371-081 Power cord for use on all computer models in Denmark (3 pin, black, 1.83 m)
490371-111 Power cord for use on all computer models in Switzerland (3 pin, black, 1.83 m)
490371-AR1 Power cord for use only on computer models equipped with an Intel processor in South Africa (3
pin, black, 1.83 m)
490371-BB1 Power cord for use only on computer models equipped with an Intel processor in Israel (3 pin,
black, 1.83 m)
634250-001 750 GB, 5400 rpm, SATA, 9.5 mm hard drive (does not include hard drive bracket or hard drive
connector cable)
490371-031
NOTE: The hard drive bracket and screws are included in the Hard Drive Hardware Kit, spare
part number 716179-001.
637193-001 RTC battery for use all on computer models except those equipped with an AMD A6-5200, AMD
A4-5000, or AMD E1-2500 processor (includes cable and double-sided tape)
Miscellaneous parts 31
Spare part number Description
669300-001 640 GB, 5400 rpm, SATA, 9.5 mm hard drive (does not include hard drive bracket or hard drive
670290-001 Intel Centrino Wireless-N 2230 Combo Adapter for use only on computer models equipped with
675794-001 Qualcomm Atheros QCA9485 802.11b/g/n WiFi Adapter for use on all computer models
676521-001 1 TB, 5400 rpm, SATA, 9.5 mm hard drive (does not include hard drive bracket or hard drive
682417-001 Intel Core i3-3110M 2.40 GHz processor (1333 MHz FSB, 3.0 MB L3 cache, dual core, 35 W;
683046-001 AMD A10-4600M 2.30 GHz processor (turbo up to 3.20 GHz; 1600 MHz FSB, 4.0 MB L2 cache,
683047-001 AMD A6-4400M 2.70 GHz processor (turbo up to 3.20 GHz; 1600 MHz FSB, 1.0 MB L2 cache,
683048-001 AMD A8-4500M 1.90 GHz processor (turbo up to 2.80 GHz; 1600 MHz FSB, 4.0 MB L2 cache,
683802-001 500 GB, 5400 rpm, SATA, 7.0 mm hard drive (does not include hard drive bracket or hard drive
connector cable); supported for use on computer models equipped with Intel processors and supported for use on computer models equipped with AMD processors with Windows 8.0
NOTE: The hard drive bracket and screws are included in the Hard Drive Hardware Kit, spare
part number 716179-001.
an Intel processor (not supported on computer models equipped with Windows 8.1)
connector cable)
NOTE: The hard drive bracket and screws are included in the Hard Drive Hardware Kit, spare
part number 716179-001.
includes replacement thermal material))
DDR3, quad core, 35 W; includes replacement thermal material)
DDR3, dual core, 35 W; includes replacement thermal material)
DDR3, quad core, 35 W; includes replacement thermal material)
connector cable)
NOTE: The hard drive bracket and screws are included in the Hard Drive Hardware Kit, spare
part number 716179-001.
690020-001 Ralink RT3290LE 802.11b/g/n 1×1 WiFi and Bluetooth 4.0 Combo Adapter for use on all
691739-001 2 GB memory module (PC3L, 12800, 1600 MHz)
691740-001 4 GB memory module (PC3L, 12800, 1600 MHz)
693374-001 8 GB memory module (PC3L, 12800, 1600 MHz)
700588-002 Intel Pentium 2030M 2.50 GHz processor (1600 MHz FSB, 2.0 MB L2 cache, dual core, 35 W;
700628-001 Intel Pentium 2020M 2.40 GHz processor (1600 MHz FSB, 2.0 MB L2 cache, dual core, 35 W;
709848-001 Realtek RTL8188EE 802.11b/g/n WiFi Adapter for use on all computer models
701658-001 Intel Core i7-3632QM 2.2 GHz processor (SC turbo up to 3.2GHz, 1600 MHz, 6 MB L3 cache,
710412-001 65 W HP Smart AC adapter (non-PFC, 4.5 mm) for use on all computer models
710413-001 90 W HP Smart AC adapter (PFC, 4.5 mm) for use on all computer models
710416-001 6 cell, 47 Wh, 2.20 Ah, Li-ion battery
710417-001 6 cell, 62 Wh, 2.80 Ah, Li-ion battery
computer models
includes replacement thermal material)
includes replacement thermal material)
DDR3, quad core, 35 W; includes replacement thermal material)
711903-001 Intel Core i5-3230M 2.60 GHz processor (SC turbo up to 3.20 GHz; 1600 MHz FSB, 3.0 MB L3
cache, dual core, 35 W; includes replacement thermal material)
32 Chapter 3 Illustrated parts catalog
Spare part number Description
713163-001 Intel Core i3-3130M 2.60 GHz processor (1600 MHz FSB, 3.0 MB L3 cache, dual core, 35 W;
713255-001 System board for use only on HP Pavilion 17 Notebook computer models equipped with the Intel
713255-501 System board for use only on HP Pavilion 17 Notebook computer models equipped with the Intel
713256-001 System board for use only on HP Pavilion 17 Notebook computer models equipped with the Intel
713256-501 System board for use only on HP Pavilion 17 Notebook computer models equipped with the Intel
713257-001 System board for use only on HP Pavilion 17 Notebook computer models equipped with an Intel
713257-501 System board for use only on HP Pavilion 17 Notebook computer models equipped with an Intel
713258-001 System board for use only on HP Pavilion 17 Notebook computer models equipped with an Intel
includes replacement thermal material)
HM86 chipset, a graphics subsystem with UMA memory, and the FreeDOS operating system (includes replacement thermal material)
HM86 chipset, a graphics subsystem with UMA memory, and the Windows 8 Standard operating system (includes replacement thermal material)
HM86 chipset, a graphics subsystem with 2 GB of discrete memory, and the FreeDOS operating system (includes replacement thermal material)
HM86 chipset, a graphics subsystem with 2 GB of discrete memory, and the Windows 8 Standard operating system (includes replacement thermal material)
Core i5 or Pentium processor, a graphics subsystem with UMA memory, and the FreeDOS operating system (includes replacement thermal material)
Core i5 or Pentium processor, a graphics subsystem with UMA memory, and the Windows 8 Standard operating system (includes replacement thermal material)
Core i5 or Pentium processor, a graphics subsystem with 1 GB of discrete memory, and the FreeDOS operating system (includes replacement thermal material)
713258-501 System board for use only on HP Pavilion 17 Notebook computer models equipped with an Intel
713548-001 AMD A10-5750M 2.50 GHz processor (turbo up to 3.50 GHz; 1600 MHz FSB, 4.0 MB L2 cache,
713549-001 AMD A4-5150M 2.70 GHz processor (turbo up to 3.30 GHz; 1600 MHz FSB, 1.0 MB L2 cache,
713550-001 AMD A6-5350M 2.90 GHz processor (turbo up to 3.50 GHz; 1600 MHz FSB, 1.0 MB L2 cache,
713551-001 AMD A8-5550M 2.10 GHz processor (turbo up to 3.10 GHz; 1600 MHz FSB, 4.0 MB L2 cache,
716179-001 Hard Drive Hardware Kit
717384-001 Intel Wireless-N 7260BN 802.11b/g/n 2×2 WiFi + Bluetooth 4.0 Combo Adapter for use only on
719845-001 Webcam/microphone module (includes double-sided adhesive)
719859-001 Power connector cable
719860-001 Fan (includes cable)
719861-001 Heat sink for use only on computer models equipped with an Intel processor and a graphics
719862-001 Heat sink for use only on computer models equipped with an Intel processor and a graphics
Core i5 or Pentium processor, a graphics subsystem with 1 GB of discrete memory, and the Windows 8 Standard operating system (includes replacement thermal material)
DDR3, quad core, 35 W)
DDR3, dual core, 35 W)
DDR3, dual core, 35 W)
DDR3, quad core, 35 W)
computer models equipped with an Intel processor
subsystem with UMA memory (includes thermal replacement material)
subsystem with discrete memory (includes thermal replacement material)
719863-001 PCH heat sink (includes thermal replacement material)
Sequential part number listing 33
Spare part number Description
719864-001 Thermal Material Kit (includes thermal replacement material)
720459-001 System board for use only on HP Pavilion 17 Notebook computer models equipped with the Intel
HM76 chipset, a graphics subsystem with 2 GB of discrete memory, and the FreeDOS operating system (includes thermal replacement material)
720459-501 System board for use only on HP Pavilion 17 Notebook computer models equipped with the Intel
720659-001 Wireless Antenna Kit (includes left and right wireless antenna cables and transceivers)
720660-001 Display enclosure in pearl white finish
720661-001 Display enclosure in flyer red finish
720662-001 Display enclosure in revolutionary blue finish
720663-001 Display enclosure in regal purple finish
720664-001 Display enclosure in sparkling black and silver finish
720665-001 Base enclosure for use only on HP Pavilion 17 Notebook computer models
720666-001 Display bezel
720667-001 Display panel cable (includes webcam/microphone module cable)
720668-001 Optical drive connector cable
720669-001 Display hinges (includes left and right hinges and hinge brackets)
720670-001 Keyboard with backlight in black finish for use on all computer models in the United States
720670-031 Keyboard with backlight in black finish for use on all computer models in the United Kingdom
HM76 chipset, a graphics subsystem with 2 GB of discrete memory, and the Windows 8 Standard operating system (includes thermal replacement material)
(includes backlight cable and keyboard cable)
(includes backlight cable and keyboard cable)
720670-041 Keyboard with backlight in black finish for use on all computer models in Germany (includes
backlight cable and keyboard cable)
720670-051 Keyboard with backlight in black finish for use on all computer models in France (includes
backlight cable and keyboard cable)
720670-061 Keyboard with backlight in black finish for use on all computer models in Italy (includes backlight
cable and keyboard cable)
720670-071 Keyboard with backlight in black finish for use on all computer models in Spain (includes backlight
cable and keyboard cable)
720670-131 Keyboard with backlight in black finish for use only on computer models equipped with an AMD
processor in Portugal (includes backlight cable and keyboard cable)
720670-141 Keyboard with backlight in black finish for use on all computer models in Turkey (includes
backlight cable and keyboard cable)
720670-151 Keyboard with backlight in black finish for use on all computer models in Greece (includes
backlight cable and keyboard cable)
720670-171 Keyboard with backlight in black finish for use only on computer models equipped with an Intel
processor in Saudi Arabia (includes backlight cable and keyboard cable)
720670-211 Keyboard with backlight in black finish for use on all computer models in Hungary (includes
backlight cable and keyboard cable)
34 Chapter 3 Illustrated parts catalog
Spare part number Description
720670-251 Keyboard with backlight in black finish for use on all computer models in Russia (includes
720670-261 Keyboard with backlight in black finish for use only on computer models equipped with an Intel
720670-271 Keyboard with backlight in black finish for use on all computer models in Romania (includes
720670-A41 Keyboard with backlight in black finish for use on all computer models in Belgium (includes
720670-B31 Keyboard with backlight in black finish for use on all computer models Internationally (includes
720670-BA1 Keyboard with backlight in black finish for use on all computer models the Adriatic Region
720670-BB1 Keyboard with backlight in black finish for use only on computer models equipped with an Intel
720670-BG1 Keyboard with backlight in black finish for use on all computer models in Switzerland (includes
720670-DB1 Keyboard with backlight in black finish for use on all computer models in Canada (includes
720670-DH1 Keyboard with backlight in black finish for use on all computer models in Denmark, Finland,
720670-FL1 Keyboard with backlight in black finish for use on all computer models in the Czech Republic
backlight cable and keyboard cable)
processor in Bulgaria (includes backlight cable and keyboard cable)
backlight cable and keyboard cable)
backlight cable and keyboard cable)
backlight cable and keyboard cable)
(includes backlight cable and keyboard cable)
processor in Israel (includes backlight cable and keyboard cable)
backlight cable and keyboard cable)
backlight cable and keyboard cable)
Norway, and Sweden (includes backlight cable and keyboard cable)
and Slovakia (includes backlight cable and keyboard cable)
720671-001 DVD±RW Double Layer SuperMulti Drive
720672-001 TouchPad button board (includes TouchPad board cable and TouchPad button board cable)
720673-001 Power button board for use with HP Pavilion 17 Notebook computer models only (includes cable)
720674-001 RJ-45/USB board (includes cable)
720675-001 Service cover
720676-001 17.3 in, BrightView, HD, LED, display panel
720677-001 Rubber Kit
720678-001 Screw Kit
720679-001 Speaker Kit (includes left and right speakers and cables)
720680-001 Top cover in pearl white finish (includes TouchPad)
720681-001 Top cover in flyer red finish (includes TouchPad)
720682-001 Top cover in revolutionary blue finish (includes TouchPad)
720683-001 Top cover in regal purple finish (includes TouchPad)
720684-001 Top cover in sparkling black and silver finish (includes TouchPad)
720689-001 Heat sink for use only on computer models equipped with an AMD A10, A8, A4, or E1-2500
720690-001 Heat sink for use only on computer models equipped with an AMD A10, A8, A6-4400M, or A4
processor and a graphics subsystem with UMA memory (includes thermal replacement material)
processor and a graphics subsystem with discrete memory (includes thermal replacement material)
Sequential part number listing 35
Spare part number Description
720691-001 System board for use only on HP Pavilion 17 Notebook computer models equipped with the AMD
720691-501 System board for use only on HP Pavilion 17 Notebook computer models equipped with the AMD
720692-001 System board for use only on HP Pavilion 17 Notebook computer models equipped with the AMD
720692-501 System board for use only on HP Pavilion 17 Notebook computer models equipped with the AMD
723522-001 Intel Quad Core i7-4702MQ 2.20 GHz processor (SC turbo up to 2.90 GHz; 1600 MHz FSB, 6.0
724535-001 Keyboard with backlight in white finish for use on all computer models in the United States
724535-031 Keyboard with backlight in white finish for use on all computer models in the United Kingdom
724535-041 Keyboard with backlight in white finish for use on all computer models in Germany (includes
724535-051 Keyboard with backlight in white finish for use on all computer models in France (includes
A76M chipset, a graphics subsystem with UMA memory, and the FreeDOS operating system (includes thermal replacement material)
A76M chipset, a graphics subsystem with UMA memory, and the Windows 8 Standard operating system (includes thermal replacement material)
A76M chipset, a graphics subsystem with 1 GB of discrete memory, and the FreeDOS operating system (includes thermal replacement material)
A76M chipset, a graphics subsystem with 1 GB of discrete memory, and the Windows 8 Standard operating system (includes thermal replacement material)
MB L3 cache, 37 W; includes thermal replacement material)
(includes backlight cable and keyboard cable)
(includes backlight cable and keyboard cable)
backlight cable and keyboard cable)
backlight cable and keyboard cable)
724535-061 Keyboard with backlight in white finish for use on all computer models in Italy (includes backlight
724535-071 Keyboard with backlight in white finish for use on all computer models in Spain (includes backlight
724535-131 Keyboard with backlight in white finish for use only on computer models equipped with an AMD
724535-141 Keyboard with backlight in white finish for use on all computer models in Turkey (includes
724535-151 Keyboard with backlight in white finish for use on all computer models in Greece (includes
724535-171 Keyboard with backlight in white finish for use only on computer models equipped with an Intel
724535-211 Keyboard with backlight in white finish for use on all computer models in Hungary (includes
724535-251 Keyboard with backlight in white finish for use on all computer models in Russia (includes
724535-261 Keyboard with backlight in white finish for use only on computer models equipped with an Intel
724535-271 Keyboard with backlight in white finish for use on all computer models in Romania (includes
724535-A41 Keyboard with backlight in white finish for use on all computer models in Belgium (includes
cable and keyboard cable)
cable and keyboard cable)
processor in Portugal (includes backlight cable and keyboard cable)
backlight cable and keyboard cable)
backlight cable and keyboard cable)
processor in Saudi Arabia (includes backlight cable and keyboard cable)
backlight cable and keyboard cable)
backlight cable and keyboard cable)
processor in Bulgaria (includes backlight cable and keyboard cable)
backlight cable and keyboard cable)
backlight cable and keyboard cable)
724535-B31 Keyboard with backlight in white finish for use on all computer models Internationally (includes
backlight cable and keyboard cable)
36 Chapter 3 Illustrated parts catalog
Spare part number Description
724535-BA1 Keyboard with backlight in white finish for use on all computer models in the Adriatic Region
724535-BB1 Keyboard with backlight in white finish for use only on computer models equipped with an Intel
724535-BG1 Keyboard with backlight in white finish for use on all computer models in Switzerland (includes
724535-DB1 Keyboard with backlight in white finish for use on all computer models in Canada (includes
724535-DH1 Keyboard with backlight in white finish for use on all computer models in Denmark, Finland,
724535-FL1 Keyboard with backlight in white finish for use on all computer models in the Czech Republic
724884-001 Heat sink for use only on computer models equipped with an AMD A6-5200 processor
724885-001 Heat sink for use only on computer models equipped with an AMD A6-5200 processor
726633-001 System board for use only on HP Pavilion 17 Notebook computer models equipped with an AMD
726633-501 System board for use only on HP Pavilion 17 Notebook computer models equipped with an AMD
(includes backlight cable and keyboard cable)
processor in Israel (includes backlight cable and keyboard cable)
backlight cable and keyboard cable)
backlight cable and keyboard cable)
Norway, and Sweden (includes backlight cable and keyboard cable)
and Slovakia (includes backlight cable and keyboard cable)
and a graphics subsystem with UMA memory (includes thermal replacement material)
and a graphics subsystem with discrete memory (includes thermal replacement material)
A6-5200 processor, a graphics subsystem with UMA memory, and the FreeDOS operating system (includes thermal replacement material)
A6-5200 processor, a graphics subsystem with UMA memory, and the Windows 8 Standard operating system (includes thermal replacement material)
726634-001 System board for use only on HP Pavilion 17 Notebook computer models equipped with an AMD
A6-5200 processor, a graphics subsystem with 1 GB of discrete memory, and the FreeDOS operating system (includes thermal replacement material)
726634-501 System board for use only on HP Pavilion 17 Notebook computer models equipped with an AMD
729843-001 System board for use only on HP Pavilion 17 Notebook computer models equipped with an Intel
729843-501 System board for use only on HP Pavilion 17 Notebook computer models equipped with an Intel
729844-001 System board for use only on HP Pavilion 17 Notebook computer models equipped with an Intel
729844-501 System board for use only on HP Pavilion 17 Notebook computer models equipped with an Intel
731534-001 System board for use only on HP Pavilion 17 Notebook computer models equipped with an AMD
731534-501 System board for use only on HP Pavilion 17 Notebook computer models equipped with an AMD
A6-5200 processor, a graphics subsystem with 1 GB of discrete memory, and the Windows 8 Standard operating system (includes thermal replacement material)
i3-3110M processor, a graphics subsystem with UMA memory, and the FreeDOS operating system (includes thermal replacement material)
Core i3-3110M processor, a graphics subsystem with UMA memory, and the Windows 8 Standard operating system (includes thermal replacement material)
Core i3-3110M processor, a graphics subsystem with 1 GB of discrete memory, and the FreeDOS operating system (includes thermal replacement material)
Core i3-3110M processor, a graphics subsystem with 1 GB of discrete memory, and the Windows 8 Standard operating system (includes thermal replacement material)
A4-5000 processor, a graphics subsystem with a UMA memory, and the FreeDOS operating system (includes thermal replacement material)
A4-5000 processor, a graphics subsystem with a UMA memory, and the Windows 8 Standard operating system (includes thermal replacement material)
Sequential part number listing 37
Spare part number Description
733476-001 Qualcomm Atheros AR9565 802.11b/g/n 1×1 WiFi + Bluetooth 4.0 Combo Adapter for use on all
733515-001 Display enclosure in mineral black finish for use on all computer models
733516-001 Top cover in mineral black finish for use on all computer models (includes TouchPad)
735080-001 System board for use only on HP Pavilion 17 Notebook computer models equipped with the Intel
735080-501 System board for use only on HP Pavilion 17 Notebook computer models equipped with the Intel
736175-001 Heat sink for use only on computer models equipped with an Intel Core i3-3110M processor
736176-001 Heat sink for use only on computer models equipped with an Intel Core i3-3110M processor
737131-001 System board for use only on HP Pavilion 17 Notebook computer models equipped with the AMD
737131-501 System board for use only on HP Pavilion 17 Notebook computer models equipped with the AMD
737326-001 Intel Celeron 2950M 2.00 GHz processor (1600 MHz FSB, 2.0 MB L3 cache, 37 W; includes
computer models
HM86 chipset, a graphics subsystem with 1 GB of discrete memory, and the FreeDOS operating system (includes thermal replacement material)
HM86 chipset, a graphics subsystem with 1 GB of discrete memory, and the Windows 8 Standard operating system (includes thermal replacement material)
and a graphics subsystem with UMA memory (includes thermal replacement material)
and a graphics subsystem with discrete memory (includes thermal replacement material)
A76M chipset, a graphics subsystem with 2 GB of discrete memory, and the FreeDOS operating system (includes thermal replacement material)
A76M chipset, a graphics subsystem with 2 GB of discrete memory, and the Windows 8 Standard operating system (includes thermal replacement material)
thermal replacement material)
737327-001 Intel Core i3-4000M 2.40 GHz processor (1600 MHz FSB, 3.0 MB L3 cache, dual core, 37 W;
includes thermal replacement material)
737328-001 Intel Core i5-4200M 2.5 GHz processor (SC turbo up to 3.10 GHz; 1600 MHz FSB, 3.0 MB L3
cache, dual core, 37 W; includes thermal replacement material)
737329-001 Intel Pentium 3550M 2.40 GHz processor (1600 MHz FSB, 2.0 MB L3 cache, dual core, 37 W;
includes thermal replacement material)
737452-001 System board for use only on HP Pavilion 17 Notebook computer models equipped with an AMD
E1-2500 processor, a graphics subsystem with UMA memory, and the FreeDOS operating system (includes thermal replacement material)
737452-501 System board for use only on computer HP Pavilion 17 Notebook computer equipped with an
739356-001 Intel Celeron 1005M 1.90GHz processor (1600 MHz, 2.0 MB L3 cache, dual core, 35 W)
741976-001 RTC battery for use only on computer models equipped with an AMD A6-5200, AMD A4-5000, or
747002-001 System board for use only on HP Pavilion 17 Notebook computer models equipped with an AMD
747002-501 System board for use only on HP Pavilion 17 Notebook computer models equipped with an AMD
748411-001 Display enclosure in hazel berry finish
AMD E1-2500 processor, a graphics subsystem with UMA memory, and the Windows 8 Standard operating system (includes thermal replacement material)
AMD E1-2500 processor (includes cable and double-sided tape)
A4-5000 processor, a graphics subsystem with 1 GB of discrete memory, and the FreeDOS operating system (includes thermal replacement material)
A4-5000 processor, a graphics subsystem with 1 GB of discrete memory, and the Windows 8.1 Standard operating system (includes thermal replacement material)
748412-001 Display enclosure in goji berry finish
38 Chapter 3 Illustrated parts catalog
Spare part number Description
748413-001 Top cover in hazel berry finish for use on all computer models (includes TouchPad)
748414-001 Top cover in goji berry finish for use on all computer models (includes TouchPad)
749966-001 System board for use only on HP Pavilion 17 TouchSmart Notebook computer models equipped
749966-501 System board for use only on HP Pavilion 17 TouchSmart Notebook computer models equipped
749967-001 System board for use only on HP Pavilion 17 TouchSmart Notebook computer models equipped
749967-501 System board for use only on HP Pavilion 17 TouchSmart Notebook computer models equipped
749968-001 System board for use only on HP Pavilion 17 TouchSmart Notebook computer models equipped
749968-501 System board for use only on HP Pavilion 17 TouchSmart Notebook computer models equipped
749969-001 Power button board for use with HP Pavilion 17 TouchSmart Notebook computer models only
749970-001 17.3 in (43.94 cm) display assembly, HD+, WLED, BrightView, AG, SVA, LED TouchSmart
with the AMD A76M chipset, a graphics subsystem with UMA memory, and the FreeDOS operating system (includes thermal replacement material)
with the AMD A76M chipset, a graphics subsystem with UMA memory, and the Windows 8.1 Standard operating system (includes thermal replacement material)
with the AMD A76M chipset, a graphics subsystem with 1 GB of discrete memory, and the FreeDOS operating system (includes thermal replacement material)
with the AMD A76M chipset, a graphics subsystem with 1 GB of discrete memory, and the Windows 8.1 Standard operating system (includes thermal replacement material)
with an AMD A6-5200 processor, a graphics subsystem with UMA memory, and the FreeDOS operating system (includes thermal replacement material)
with an AMD A6-5200 processor, a graphics subsystem with UMA memory, and the Windows 8.1 Standard operating system (includes thermal replacement material)
(includes cable)
display assembly for use only on HP Pavilion 17 TouchSmart Notebook computer models (includes webcam/microphone module and wireless antenna cables)
749983-001 System board for use only on HP Pavilion 17 TouchSmart Notebook computer models equipped
with the Intel HM76 Express chipset, a graphics subsystem with 1 GB of discrete memory, and the FreeDOS operating system (includes replacement thermal material)
749983-501 System board for use only on HP Pavilion 17 TouchSmart Notebook computer models equipped
749984-001 System board for use only on HP Pavilion 17 TouchSmart Notebook computer models equipped
749984-501 System board for use only on HP Pavilion 17 TouchSmart Notebook computer models equipped
749985-001 System board for use only on HP Pavilion 17 TouchSmart Notebook computer models equipped
749985-501 System board for use only on HP Pavilion 17 TouchSmart Notebook models equipped with the
753890-001 Base enclosure for use only on HP Pavilion 17 TouchSmart Notebook computer models
with the Intel HM76 Express chipset, a graphics subsystem with 1 GB of discrete memory, and the Windows 8.1 Standard operating system (includes replacement thermal material)
with the Intel HM86 Express chipset, a graphics subsystem with 1 GB of discrete memory, and the FreeDOS operating system (includes replacement thermal material)
with the Intel HM86 Express chipset, a graphics subsystem with 1 GB of discrete memory, and the Windows 8.1 Standard operating system (includes replacement thermal material)
with the Intel HM86 Express chipset, a graphics subsystem with 1 GB of discrete memory, and the FreeDOS operating system
Intel HM86 Express chipset, a graphics subsystem with 1 GB of discrete memory, and the Windows 8.1 Standard operating system
Sequential part number listing 39
Spare part number Description
758897-001 System board for use only on HP Pavilion 17 TouchSmart Notebook computer models equipped
758897-501 System board for use only on HP Pavilion 17 TouchSmart Notebook computer models equipped
with an AMD A4-5000 processor, a graphics subsystem with UMA memory, and the FreeDOS operating system (includes thermal replacement material)
with an AMD A4-5000 processor, a graphics subsystem with UMA memory, and the Windows 8.1 Standard operating system (includes thermal replacement material)
40 Chapter 3 Illustrated parts catalog
4 Removal and replacement procedures
preliminary requirements

Tools required

You will need the following tools to complete the removal and replacement procedures:
Flat-bladed screw driver
Magnetic screw driver
Phillips P0 and P1 screw drivers

Service considerations

The following sections include some of the considerations that you must keep in mind during disassembly and assembly procedures.
NOTE: As you remove each subassembly from the computer, place the subassembly (and all
accompanying screws) away from the work area to prevent damage.

Plastic parts

CAUTION: Using excessive force during disassembly and reassembly can damage plastic parts.
Use care when handling the plastic parts. Apply pressure only at the points designated in the maintenance instructions.
Tools required 41

Cables and connectors

CAUTION: When servicing the computer, be sure that cables are placed in their proper locations
during the reassembly process. Improper cable placement can damage the computer.
Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat or seat the cables during removal and insertion. Handle cables by the connector whenever possible. In all cases, avoid bending, twisting, or tearing cables. Be sure that cables are routed in such a way that they cannot be caught or snagged by parts being removed or replaced. Handle flex cables with extreme care; these cables tear easily.

Drive handling

CAUTION: Drives are fragile components that must be handled with care. To prevent damage to
the computer, damage to a drive, or loss of information, observe these precautions:
Before removing or inserting a hard drive, shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
Before handling a drive, be sure that you are discharged of static electricity. While handling a drive, avoid touching the connector.
Before removing a diskette drive or optical drive, be sure that a diskette or disc is not in the drive and be sure that the optical drive tray is closed.
Handle drives on surfaces covered with at least one inch of shock-proof foam.
Avoid dropping drives from any height onto any surface.
After removing a hard drive, an optical drive, or a diskette drive, place it in a static-proof bag.
Avoid exposing an internal hard drive to products that have magnetic fields, such as monitors or speakers.
Avoid exposing a drive to temperature extremes or liquids.
If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective packaging and label the package “FRAGILE.”

Grounding guidelines

Electrostatic discharge damage

Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many cases, ESD contains enough power to alter device parameters or melt silicon junctions.
A discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or microcircuitry. Even if the spark is neither felt nor heard, damage may have occurred.
An electronic device exposed to ESD may not be affected at all and can work perfectly throughout a normal cycle. Or the device may function normally for a while, then degrade in the internal layers, reducing its life expectancy.
42 Chapter 4 Removal and replacement procedures preliminary requirements
CAUTION: To prevent damage to the computer when you are removing or installing internal
components, observe these precautions:
Keep components in their electrostatic-safe containers until you are ready to install them.
Before touching an electronic component, discharge static electricity by using the guidelines described in this section.
Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.
If you remove a component, place it in an electrostatic-safe container.
The following table shows how humidity affects the electrostatic voltage levels generated by different activities.
CAUTION: A product can be degraded by as little as 700 V.
Typical electrostatic voltage levels
Relative humidity
Event 10% 40% 55%
Walking across carpet 35,000 V 15,000 V 7,500 V
Walking across vinyl floor 12,000 V 5,000 V 3,000 V
Motions of bench worker 6,000 V 800 V 400 V
Removing DIPS from plastic tube 2,000 V 700 V 400 V
Removing DIPS from vinyl tray 11,500 V 4,000 V 2,000 V
Removing DIPS from Styrofoam 14,500 V 5,000 V 3,500 V
Removing bubble pack from PCB 26,500 V 20,000 V 7,000 V
Packing PCBs in foam-lined box 21,000 V 11,000 V 5,000 V
Grounding guidelines 43
Packaging and transporting guidelines
Follow these grounding guidelines when packaging and transporting equipment:
To avoid hand contact, transport products in static-safe tubes, bags, or boxes.
Protect ESD-sensitive parts and assemblies with conductive or approved containers or
packaging.
Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.
Place items on a grounded surface before removing items from their containers.
Always be properly grounded when touching a component or assembly.
Store reusable ESD-sensitive parts from assemblies in protective packaging or nonconductive
foam.
Use transporters and conveyors made of antistatic belts and roller bushings. Be sure that
mechanized equipment used for moving materials is wired to ground and that proper materials are selected to avoid static charging. When grounding is not possible, use an ionizer to dissipate electric charges.
Workstation guidelines
Follow these grounding workstation guidelines:
Cover the workstation with approved static-shielding material.
Use a wrist strap connected to a properly grounded work surface and use properly grounded
tools and equipment.
Use conductive field service tools, such as cutters, screw drivers, and vacuums.
When fixtures must directly contact dissipative surfaces, use fixtures made only of static-safe
materials.
Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids and
Styrofoam.
Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle
these items only at static-free workstations.
Avoid contact with pins, leads, or circuitry.
Turn off power and input signals before inserting or removing connectors or test equipment.
44 Chapter 4 Removal and replacement procedures preliminary requirements
Equipment guidelines
Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.
When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible
straps with a minimum of one megohm ±10% resistance in the ground cords. To provide proper ground, wear a strap snugly against the skin at all times. On grounded mats with banana-plug connectors, use alligator clips to connect a wrist strap.
When standing, use foot straps and a grounded floor mat. Foot straps (heel, toe, or boot straps)
can be used at standing workstations and are compatible with most types of shoes or boots. On conductive floors or dissipative floor mats, use foot straps on both feet with a minimum of one megohm resistance between the operator and ground. To be effective, the conductive must be worn in contact with the skin.
The following grounding equipment is recommended to prevent electrostatic damage:
Antistatic tape
Antistatic smocks, aprons, and sleeve protectors
Conductive bins and other assembly or soldering aids
Nonconductive foam
Conductive tabletop workstations with ground cords of one megohm resistance
Static-dissipative tables or floor mats with hard ties to the ground
Field service kits
Static awareness labels
Material-handling packages
Nonconductive plastic bags, tubes, or boxes
Metal tote boxes
Electrostatic voltage levels and protective materials
The following table lists the shielding protection provided by antistatic bags and floor mats.
Material Use Voltage protection level
Antistatic plastics Bags 1,500 V
Carbon-loaded plastic Floor mats 7,500 V
Metallized laminate Floor mats 5,000 V
Grounding guidelines 45
5 Removal and replacement procedures
for Customer Self-Repair parts
NOTE: The Customer Self-Repair program is not available in all locations. Installing a part not
supported by the Customer Self-Repair program may void your warranty. Check your warranty to determine if Customer Self-Repair is supported in your location.

Component replacement procedures

NOTE: Please read and follow the procedures described here to access and replace Customer
Self-Repair parts successfully.
NOTE: Details about your computer, including model, serial number, product key, and length of
warranty, are on the labels on your computer. See
This chapter provides removal and replacement procedures for Customer Self-Repair parts.
There are as many as 9 screws that must be removed, replaced, and/or loosened when servicing Customer Self-Repair parts. Make special note of each screw size and location during removal and replacement.
Labels on page 18 for details.
46 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts

Battery

Description Spare part number
6-cell, 62-Wh, 2.80-Ah, Li-ion battery 710417-001
6-cell, 47-Wh, 2.20-Ah, Li-ion battery 710416-001
Before removing the battery, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
Remove the battery:
WARNING! To reduce potential safety issues, use only the user-replaceable battery provided with
the computer, a replacement battery provided by HP, or a compatible battery purchased from HP.
CAUTION: Removing a user-replaceable battery that is the sole power source for the computer can
cause loss of information. To prevent loss of information, save your work or shut down the computer through Windows before removing the battery.
1. Turn the computer upside down on a flat surface.
2. Slide the battery release latch (1) to release the battery.
NOTE: The battery release latch automatically returns to its original position.
3. Pivot the battery (2) upward.
4. Remove the battery (3) from the computer.
Reverse this procedure to install the battery.
Component replacement procedures 47

Optical drive

NOTE: This section applies only to computer models equipped with an Intel processor.
Description Spare part number
DVD±RW Double Layer SuperMulti Drive 720671-001
Before removing the optical drive, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the battery (see
Battery on page 47).
Remove the optical drive:
1. Loosen the Phillips PM3.0×10.5 captive screw (1) that secures the service cover to the
computer.
2. Slide the service cover (2) forward until it disengages from the computer.
3. Remove the service cover (3).
The service cover is available using spare part number 720675-001.
4. Position the computer with the left side toward you.
5. Remove the Phillips PM2.5×7.0 screw (1) that secures the optical drive to the computer.
6. Insert a flat-bladed screwdriver or similar tool into the optical drive tab access (2) and press the
tab to the left to release the optical drive from the computer.
48 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
7. Remove the optical drive (3).
Reverse this procedure to install the optical drive.

Hard drive

NOTE: The hard drive spare part kit does not include the hard drive bracket, hard drive connector
cable, and screws. These components are included in the Hard Drive Hardware Kit, spare part number 716179-001.
Description Spare part number
1 TB, 5400 rpm, 9.5 mm 676521-001
750 GB, 5400 rpm, 9.5 mm 634250-001
640 GB, 5400 rpm, 9.5 mm (supported for use on computer models equipped with Intel processors and supported for use on computer models equipped with AMD processors with Windows 8.0)
500 GB, 5400 rpm, 7.0 mm 683802-001
Before removing the hard drive, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
2. Disconnect the power from the computer by unplugging the power cord from the computer.
669300-001
computer on, and then shut it down through the operating system.
3. Disconnect all external devices from the computer.
4. Remove the battery (see
5. Remove the service cover (see
Battery on page 47).
Optical drive on page 48).
Component replacement procedures 49
Remove the hard drive:
1. Remove the two Phillips PM2.5×5.75 screws (1) that secure the hard drive to the computer.
2. Disconnect the hard drive connector cable (2) from the system board.
3. Lift up on the hard drive tab (1) to release the hard drive from the hard drive bay.
4. Remove the hard drive (2).
5. If it is necessary to disassemble the hard drive, perform the following steps:
a. Position the hard drive with the connector toward you.
b. Disconnect the hard drive connector cable (1) from the hard drive.
c. Remove the four Phillips PM2.5×3.25 screws (2) that secure the hard drive bracket to the
hard drive.
d. Remove the hard drive bracket (3) from the hard drive.
The hard drive bracket, hard drive connector cable, and screws are available in the Hard Drive Hardware Kit, spare part number 716179-001.
50 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
Reverse this procedure to install the hard drive.
Component replacement procedures 51

WLAN module

Description Spare part number
Qualcomm Atheros QCA9485 802.11b/g/n WiFi Adapter for use on all computer models 675794-001
Qualcomm Atheros AR9565 802.11b/g/n 1×1 WiFi + Bluetooth 4.0 Combo Adapter for use on all computer models
Ralink RT3290LE 802.11b/g/n 1×1 WiFi and Bluetooth 4.0 Combo Adapter for use on all computer models
Realtek RTL8188EE 802.11b/g/n WiFi Adapter for use on all computer models 709848-001
Intel Centrino Wireless-N 2230 Combo Adapter for use only on computer models equipped with an Intel processor (not supported on computer models equipped with Windows 8.1)
Intel Wireless-N 7260BN 802.11b/g/n 2×2 WiFi + Bluetooth 4.0 Combo Adapter for use only on computer models equipped with an Intel processor
733476-001
690020-001
670290-001
717384-001
CAUTION: To prevent an unresponsive system, replace the wireless module only with a wireless
module authorized for use in the computer by the governmental agency that regulates wireless devices in your country or region. If you replace the module and then receive a warning message, remove the module to restore device functionality, and then contact technical support.
Before removing the WLAN module, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the battery (see
5. Remove the service cover (see
Battery on page 47).
Optical drive on page 48).
Remove the WLAN module:
1. Disconnect the WLAN antenna cables (1) from the terminals on the WLAN module.
NOTE: The WLAN antenna cable labeled “1” connects to the WLAN module “Main” terminal
labeled “1”. The WLAN antenna cable labeled “2” connects to the WLAN module “Aux” terminal labeled “2”.
2. Remove the Phillips PM2.5×3.25 screw (2) that secures the WLAN module to the system board.
(The WLAN module tilts up.)
52 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
3. Remove the WLAN module (3) by pulling the module away from the slot at an angle.
NOTE: If the WLAN antenna cables are not connected to the terminals on the WLAN module, the
protective sleeves must be installed on the antenna connectors, as shown in the following illustration.
Reverse this procedure to install the WLAN module.
Component replacement procedures 53

Memory module

Description Spare part number
8 GB (PC3L, 12800, 1600 MHz) 693374-001
4 GB (PC3L, 12800, 1600 MHz) 691740-001
2 GB (PC3L, 12800, 1600 MHz) 691739-001
NOTE: Before adding new memory, make sure you update the computer to the latest BIOS. Refer
to
Updating the BIOS on page 93.
Before removing a memory module, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the battery (see
5. Remove the service cover (see
Battery on page 47).
Optical drive on page 48).
Remove the memory module:
1. Spread the retaining tabs (1) on each side of the memory module slot to release the memory
module. (The memory module tilts up.)
2. Remove the memory module (2) by pulling the module away from the slot at an angle.
Reverse this procedure to install a memory module.
54 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
6 Removal and replacement procedures
for Authorized Service Provider parts
CAUTION: Components described in this chapter should only be accessed by an authorized
service provider. Accessing these parts can damage the computer or void the warranty.

Component replacement procedures

This chapter provides removal and replacement procedures for Authorized Service Provider only parts.
There are as many as 62 screws that must be removed, replaced, and/or loosened when servicing the computer. Make special note of each screw size and location during removal and replacement.
Component replacement procedures 55

Keyboard

NOTE: The keyboard spare part kit includes a keyboard cable.
For use in country/region Spare part number
In black finish for use on all computer models in Belgium
In black finish for use only on computer models equipped with an Intel processor in Bulgaria
In black finish for use on all computer models in Canada
In black finish for use on all computer models in the Czech Republic and Slovakia
In black finish for use on all computer models in Denmark, Finland, Norway, and Sweden
In black finish for use on all computer models in France
In black finish for use on all computer models in Germany
In black finish for use on all computer models in Greece
In black finish for use on all computer models in Hungary
720670-A41 In black finish for use on all
computer models Internationally
720670-261 In black finish for use only on
computer models equipped with an AMD processor in Portugal
720670-DB1 In black finish for use on all
computer models in Romania
720670-FL1 In black finish for use on all
computer models in Russia
720670-DH1 In black finish for use only on
computer models equipped with an Intel processor in Saudi Arabia
720670-051 In black finish for use on all
computer models the Adriatic Region
720670-041 In black finish for use on all
computer models in Spain
720670-151 In black finish for use on all
computer models in Switzerland
720670-211 In black finish for use on all
computer models in Turkey
720670-B31
720670-131
720670-271
720670-251
720670-171
720670-BA1
720670-071
720670-BG1
720670-141
In black finish for use only on computer models equipped with an Intel processor in Israel
In black finish for use on all computer models in Italy
In white finish for use on all computer models in Belgium
In white finish for use only on computer models equipped with an Intel processor in Bulgaria
In white finish for use on all computer models in Canada
In white finish for use on all computer models in the Czech Republic and Slovakia
In white finish for use on all computer models in Denmark, Finland, Norway, and Sweden
720670-BB1 In black finish for use on all
computer models in the United Kingdom
720670-061 In black finish for use on all
computer models in the United States
724535-A41 In white finish for use on all
computer models Internationally
724535-261 In white finish for use only on
computer models equipped with an AMD processor in Portugal
724535-DB1 In white finish for use on all
computer models in Romania
724535-FL1 In white finish for use on all
computer models in Russia
724535-DH1 In white finish for use only on
computer models equipped with an Intel processor in Saudi Arabia
720670-031
720670-001
724535-B31
724535-131
724535-271
724535-251
724535-171
56 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
For use in country/region Spare part number
In white finish for use on all computer models in France
In white finish for use on all computer models in Germany
In white finish for use on all computer models in Greece
In white finish for use on all computer models in Hungary
In white finish for use only on computer models equipped with an Intel processor in Israel
In white finish for use on all computer models in Italy
724535-051 In white finish for use on all
computer models the Adriatic Region
724535-041 In white finish for use on all
computer models in Spain
724535-151 In white finish for use on all
computer models in Switzerland
724535-211 In white finish for use on all
computer models in Turkey
724535-BB1 In white finish for use on all
computer models in the United Kingdom
724535-061 In white finish for use on all
computer models in the United States
724535-BA1
724535-071
724535-BG1
724535-141
724535-031
724535-001
Before removing the keyboard, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the battery (see
5. Remove the service cover (see
Battery on page 47).
Optical drive on page 48).
Component replacement procedures 57
Remove the keyboard:

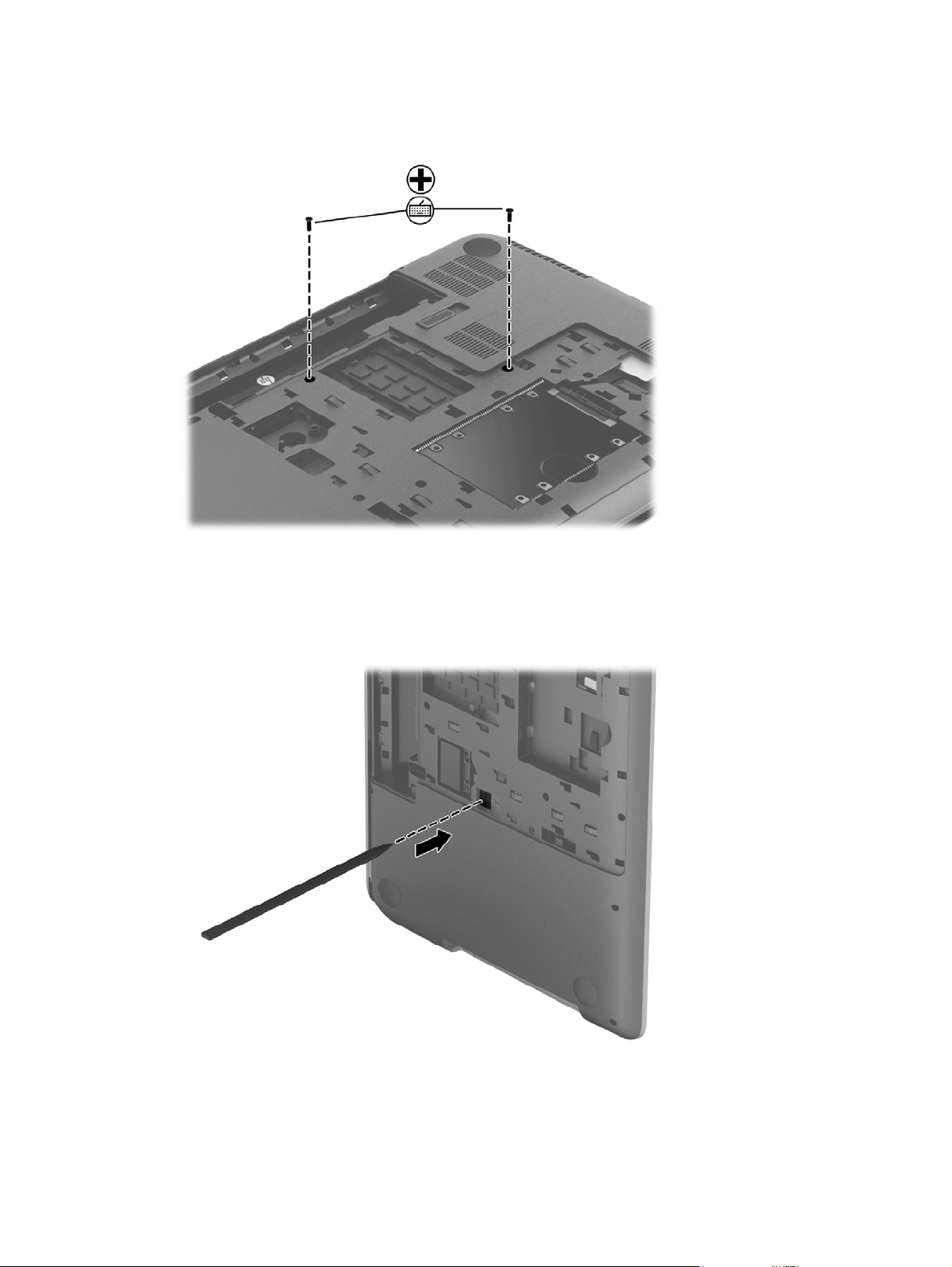

1. Remove the two Phillips PM2.5×7.0 screws that secure the keyboard to the computer.
2. Partially open the computer.
3. Rest and secure the computer on its left side.
4. Insert a thin tool into the keyboard release hole, and then press on the back of the keyboard until
the keyboard disengages from the computer.
5. Turn the computer right-side up, with the front toward you.
6. Open the computer as far as it will open.
58 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
7. Lift the rear edge of the keyboard until it rests at an angle.
8. Swing the rear edge of the keyboard (1) up and forward until it rests upside down on the
palm rest.
9. Release the zero insertion force (ZIF) connector (2) to which the keyboard ribbon cable is
attached, and then disconnect the keyboard ribbon cable (3) from the system board.
10. Remove the keyboard (4).
Reverse this procedure to install the keyboard.
Component replacement procedures 59

Top cover

NOTE: The top cover spare part kit includes the TouchPad.
Description Spare part number
In flyer red finish for use on all computer models 720681-001
In goji berry finish for use on all computer models 748414-001
In hazel berry finish for use on all computer models 748413-001
In mineral black finish for use on all computer models 733516-001
In pearl white finish for use on all computer models 720680-001
In regal purple finish for use on all computer models 720683-001
In revolutionary blue finish for use on all computer models 720682-001
In sparkling black and silver finish for use on all computer models 720684-001
Before removing the top cover, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the battery (see
a. Optical drive (see
b. Hard drive (see
c. Keyboard (see
Battery on page 47), and then remove the following components:
Optical drive on page 48)
Hard drive on page 49)
Keyboard on page 56)
NOTE: When replacing the top cover, be sure to remove the following components from the
defective top cover and install them on the replacement top cover:
Power button board (see
TouchPad button board (see
Power button board on page 63)
TouchPad button board on page 64)
Remove the top cover:
1. Close the computer.
2. Turn the computer upside down with the front toward you.
60 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

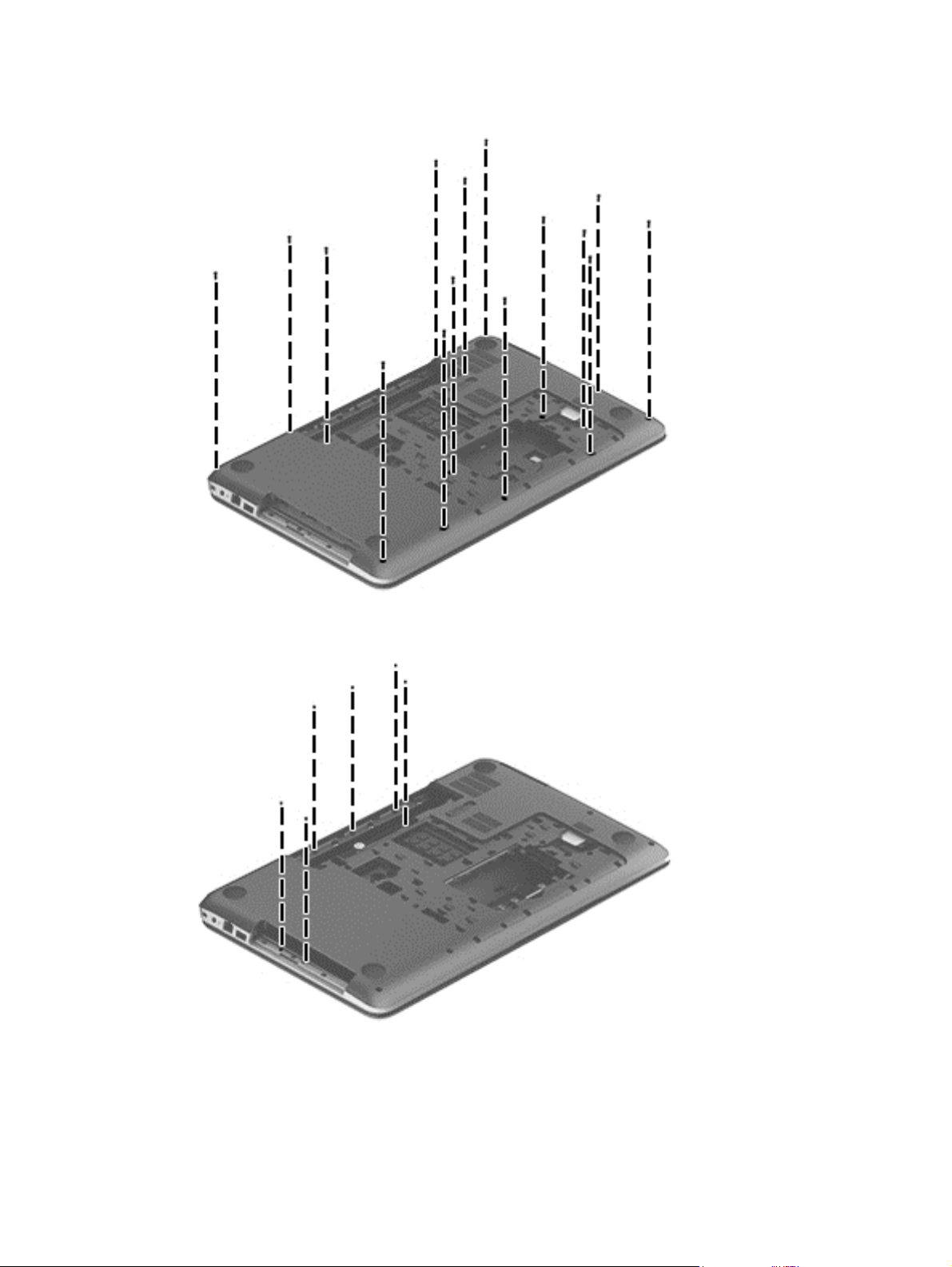

3. Remove the 15 Phillips PM2.5×7.0 screws that secure the top cover to the computer.
4. Remove the six Phillips PM2.0×3.0 screws that secure the top cover to the computer.
5. Turn the computer right side up with the front toward you.
6. Open the computer.
7. Release the ZIF connector (1) to which the power button board ribbon cable is attached, and
then disconnect the power button board ribbon cable from the system board.
Component replacement procedures 61
8. Release the ZIF connector (2) to which the TouchPad button board ribbon cable is attached, and
then disconnect the TouchPad button board ribbon cable from the system board.
9. Remove the three Phillips PM2.5×7.0 screws that secure the top cover to the computer.
10. Lift the rear edge of the top cover (1) until the left and right sides detach from the computer.
11. Remove the top cover (2).
Reverse this procedure to install the top cover.
62 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

Power button board

Description Spare part number
Power button board (includes cable)
For use only with HP Pavilion 17 Notebook computer models 720673-001
For use only with HP Pavilion 17 TouchSmart Notebook computer models 749969-001
Before removing the power button board, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the battery (see
a. Optical drive (see
b. Hard drive (see
c. Keyboard (see
d. Top cover (see
Battery on page 47), and then remove the following components:
Optical drive on page 48)
Hard drive on page 49)
Keyboard on page 56)
Top cover on page 60)
Remove the power button board:
1. Turn the top cover upside down, with the front toward you.
2. Remove the Phillips PM2.5×3.0 screw (1) that secures the power button board to the top cover.
3. Release the clips (2) that secure the power button board to the top cover.
4. Remove the power button board (3) and cable.
Reverse this procedure to install the power button board.
Component replacement procedures 63

TouchPad button board

Description Spare part number
TouchPad button board (includes TouchPad button board cable and TouchPad cable) 720672-001
Before removing the TouchPad button board, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the battery (see
a. Optical drive (see
b. Hard drive (see
c. Keyboard (see
d. Top cover (see
Battery on page 47), and then remove the following components:
Optical drive on page 48)
Hard drive on page 49)
Keyboard on page 56)
Top cover on page 60)
Remove the TouchPad button board:
1. Turn the top cover upside down with the front toward you.
2. Release the ZIF connector (1) to which the TouchPad board ribbon cable is attached, and then
disconnect the TouchPad board ribbon cable from the TouchPad board.
3. Detach the TouchPad button board ribbon cable (2) from the TouchPad board. (The TouchPad
button board ribbon cable is attached to the TouchPad board with double-sided adhesive.)
4. Release the two clips (3) that secure the TouchPad button board to the top cover.
5. Remove the TouchPad button board (4).
Reverse this procedure to install the TouchPad button board.
64 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

Display assembly

NOTE: The HP Pavilion 17 TouchSmart Notebook models are spared at the display assembly only.
For removal procedures for the HP Pavilion 17 Notebook non-touch screen models display assembly subcomponents, see
Component Spare part number
Display assembly subcomponents on page 67.
17.3 in (43.94 cm) display assembly, HD+, WLED, BrightView, AG, SVA, LED TouchSmart display assembly for HP Pavilion 17 TouchSmart Notebook models (includes webcam/ microphone module and wireless antenna cables)
749970-001
To remove the display assembly, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the battery (see
a. Optical drive (see
b. Hard drive (see
c. WLAN module (see
d. Keyboard (see
e. Top cover (see
Battery on page 47), and then remove the following components:
Optical drive on page 48)
Hard drive on page 49)
WLAN module on page 52)
Keyboard on page 56)
Top cover on page 60)
Remove the display assembly:
1. Disconnect the display panel cable (1) from the system board.
2. Release the display panel cable from the clips built into the base enclosure (2).
Component replacement procedures 65

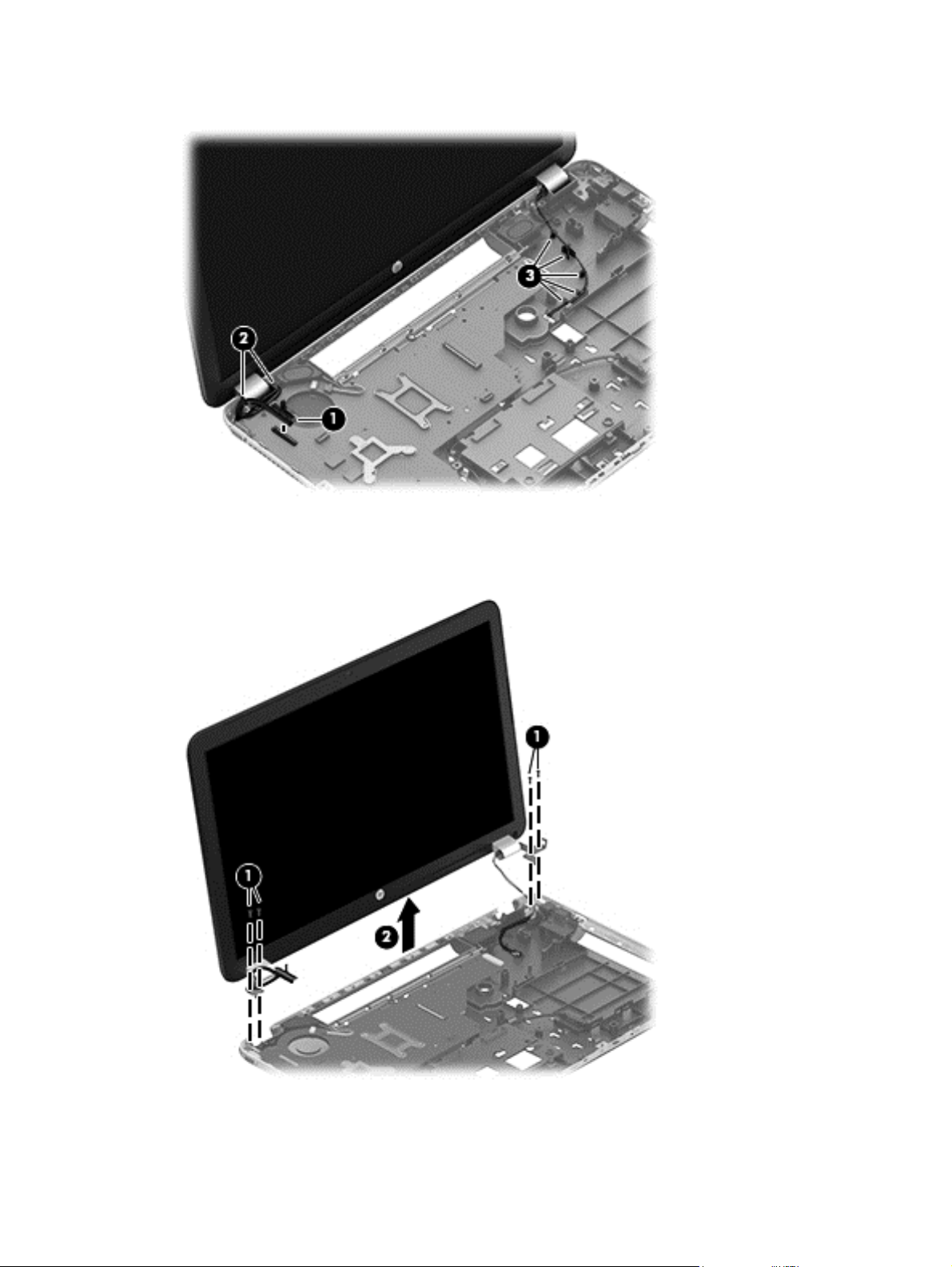

3. Release the wireless antenna cables from the clips built into the base enclosure (3).
4. Remove the four Phillips PM2.5×7.0 screws (1) that secure the display assembly to the
base enclosure.
5. Remove the display assembly (2) from the computer.
Reverse this procedure to reassemble and install the display assembly.
66 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

Display assembly subcomponents

NOTE: The display assembly subcomponents are for the HP Pavilion 17 Notebook non-touch
screen models only. For removal procedures for an HP Pavilion 17 TouchSmart Notebook model display assembly; see
Component Spare part number
Antenna Kit (includes left and right wireless antenna cables and transceivers) 720659-001
Display bezel 720666-001
Display enclosure:
In flyer red finish 720661-001
In goji berry finish 748412-001
In hazel berry finish 748411-001
In mineral black finish 733515-001
In pearl white finish 720660-001
In regal purple finish 720663-001
In revolutionary blue finish 720662-001
In sparkling black and silver finish 720664-001
Display assembly on page 65.
Display hinges (includes left and right hinges and hinge brackets) 720669-001
Display panel, 17.3 in (43.94 cm), BrightView, HD, LED, display panel 720676-001
Display panel cable (includes webcam/microphone module cable) 720667-001
Webcam/microphone module (includes double-sided adhesive) 719845-001
To remove the display assembly and access the display assembly subcomponents, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the battery (see
a. Optical drive (see
b. Hard drive (see
c. WLAN module (see
d. Keyboard (see
Battery on page 47), and then remove the following components:
Optical drive on page 48)
Hard drive on page 49)
WLAN module on page 52)
Keyboard on page 56)
e. Top cover (see
Top cover on page 60)
Remove the display assembly:
1. Disconnect the display panel cable (1) from the system board.
2. Release the display panel cable from the clips built into the base enclosure (2).
Component replacement procedures 67
3. Release the wireless antenna cables from the clips built into the base enclosure (3).
4. Remove the four Phillips PM2.5×7.0 screws (1) that secure the display assembly to the
base enclosure.
5. Remove the display assembly (2) from the computer.
68 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
6. If it is necessary to replace the display bezel or any of the display assembly subcomponents:
a. Remove the two screw covers (1) and the two Phillips PM2.5×5.5 screws (2) that secure
the display bezel to the display assembly.
The screw covers are available in the Rubber Kit, spare part number 720677-001.
b. Flex the inside edges of the top edge (1), the left and right sides (2), and the
bottom edge (3) of the display bezel until the bezel disengages from the display enclosure.
Component replacement procedures 69
c. Remove the display bezel (4).
7. If it is necessary to replace the webcam/microphone module:
CAUTION: Handle the webcam/microphone module with caution. This module has a
thin profile and is susceptible to damage when not handled carefully.
a. Detach the webcam/microphone module (1) from the display enclosure. (The webcam/
microphone module is attached to the display enclosure with double-sided adhesive.)
b. Disconnect the webcam/microphone module cable (1) from the webcam/
microphone module.
c. Remove the webcam/microphone module.
70 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
8. If it is necessary to replace the display panel:
a. Remove the six Phillips PM2.5×4.5 screws that secure the display panel to the
display enclosure.
CAUTION: Before turning the display panel upside down, make sure the work surface is
clear of tools, screws, and any other foreign objects. Failure to follow this caution can result in damage to the display panel.
b. Lift the top edge of the display panel (1) and swing it up and forward until it rests upside
down in front of the display enclosure.
c. Release the adhesive strip (2) that secures the display panel cable connector (3) to the
display panel.
d. Disconnect the display panel cable (4) from the display panel.
e. Remove the display panel.
Component replacement procedures 71
9. If it is necessary to replace the display hinges:
a. Remove the four Phillips PM2.0×3.0 screws (1) that secure the display hinges to the
display panel.
b. Remove the display hinges (2).
10. If it is necessary to replace the display panel cable:
a. Release the webcam/microphone module cable from the adhesive (1) attached to the
display enclosure.
b. Release the display panel cable from the clips (2) and routing channel built into the
display enclosure.
c. Remove the display panel cable (3).
72 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
11. If it is necessary to replace the wireless antenna:
a. Detach the wireless antenna transceivers (1) from the display enclosure. (The wireless
antenna transceivers are attached to the display enclosure with double-sided adhesive.)
b. Release the wireless antenna cables from the clips (2) and routing channel built into the
left, right, and bottom edges of the display enclosure.
c. Remove the wireless antenna (3).
Reverse this procedure to reassemble and install the display assembly subcomponents.

System board

NOTE: The system board spare part kit includes replacement thermal material. Replacement
thermal material is also available in the Thermal Material Kit, spare part number 719864-001.
Description Spare part number
HP Pavilion 17 Notebook computer models
For use only on computer models equipped with the AMD A76M chipset, a graphics subsystem with 2 GB of discrete memory, and the Windows 8 Standard operating system
For use only on computer models equipped with the AMD A76M chipset, a graphics subsystem with 2 GB of discrete memory, and the FreeDOS operating system
For use only on computer models equipped with the AMD A76M chipset, a graphics subsystem with 1 GB of discrete memory, and the Windows 8 Standard operating system
For use only on computer models equipped with the AMD A76M chipset, a graphics subsystem with 1 GB of discrete memory, and the FreeDOS operating system
For use only on computer models equipped with the AMD A76M chipset, a graphics subsystem with UMA memory, and the Windows 8 Standard operating system
For use only on computer models equipped with the AMD A76M chipset, a graphics subsystem with UMA memory, and the FreeDOS operating system
737131-501
737131-001
720692-501
720692-001
720691-501
720691-001
Component replacement procedures 73
Description Spare part number
For use only on computer models equipped with an AMD A6-5200 processor, a graphics subsystem with 1 GB of discrete memory, and the Windows 8 Standard operating system
For use only on computer models equipped with an AMD A6-5200 processor, a graphics subsystem with 1 GB of discrete memory, and the FreeDOS operating system
For use only on computer models equipped with an AMD A6-5200 processor, a graphics subsystem with UMA memory, and the Windows 8 Standard operating system
For use only on computer models equipped with an AMD A6-5200 processor, a graphics subsystem with UMA memory, and the FreeDOS operating system
For use only on computer models equipped with an AMD A4-5000 processor, a graphics subsystem with 1 GB of discrete memory, and the FreeDOS operating system
For use only on computer models equipped with an AMD A4-5000 processor, a graphics subsystem with 1 GB of discrete memory, and the Windows 8.1 Standard operating system
For use only on computer models equipped with an AMD A4-5000 processor, a graphics subsystem with a UMA memory, and the Windows 8 Standard operating system
For use only on computer models equipped with an AMD A4-5000 processor, a graphics subsystem with a UMA memory, and the FreeDOS operating system
For use only on computer models equipped with an AMD E1-2500 processor, a graphics subsystem with UMA memory, and the Windows 8 Standard operating system
For use only on computer models equipped with an AMD E1-2500 processor, a graphics subsystem with UMA memory, and the FreeDOS operating system
For use only on computer models equipped with the Intel HM86 chipset, a graphics subsystem with 2 GB of discrete memory, and the Windows 8 Standard operating system
726634-501
726634-001
726633-501
726633-001
747002-001
747002-501
731534-501
731534-001
737452-501
737452-001
713256-501
For use only on computer models equipped with the Intel HM86 chipset, a graphics subsystem with 2 GB of discrete memory, and the FreeDOS operating system
For use only on computer models equipped with the Intel HM86 chipset, a graphics subsystem with 1 GB of discrete memory, and the Windows 8 Standard operating system
For use only on computer models equipped with the Intel HM86 chipset, a graphics subsystem with 1 GB of discrete memory, and the FreeDOS operating system
For use only on computer models equipped with the Intel HM86 chipset, a graphics subsystem with UMA memory, and the Windows 8 Standard operating system
For use only on computer models equipped with the Intel HM86 chipset, a graphics subsystem with UMA memory, and the FreeDOS operating system
For use only on computer models equipped with the Intel HM76 chipset, a graphics subsystem with 2 GB of discrete memory, and the Windows 8 Standard operating system
For use only on computer models equipped with the Intel HM76 chipset, a graphics subsystem with 2 GB of discrete memory, and the FreeDOS operating system
For use only on computer models equipped with an Intel Core i5 or Pentium processor, a graphics subsystem with 1 GB of discrete memory, and the Windows 8 Standard operating system
For use only on computer models equipped with an Intel Core i5 or Pentium processor, a graphics subsystem with 1 GB of discrete memory, and the FreeDOS operating system
For use only on computer models equipped with an Intel Core i5 or Pentium processor, a graphics subsystem with UMA memory, and the Windows 8 Standard operating system
713256-001
735080-501
735080-001
713255-501
713255-001
720459-501
720459-001
713258-501
713258-001
713257-501
For use only on computer models equipped with an Intel Core i5 or Pentium processor, a graphics subsystem with UMA memory, and the FreeDOS operating system
74 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
713257-001
Description Spare part number
For use only on computer models equipped with an Intel Core i3-3110M processor, a graphics subsystem with 1 GB of discrete memory, and the Windows 8 Standard operating system
For use only on computer models equipped with an Intel Core i3-3110M processor, a graphics subsystem with 1 GB of discrete memory, and the FreeDOS operating system
For use only on computer models equipped with an Intel Core i3-3110M processor, a graphics subsystem with UMA memory, and the Windows 8 Standard operating system
For use only on computer models equipped with an Intel Core i3-3110M processor, a graphics subsystem with UMA memory, and the FreeDOS operating system
HP Pavilion 17 TouchSmart Notebook computer models
For use only on computer models equipped with the AMD A76M chipset, a graphics subsystem with UMA memory, and the FreeDOS operating system
For use only on computer models equipped with the AMD A76M chipset, a graphics subsystem with UMA memory, and the Windows 8.1 Standard operating system
For use only on computer models equipped with the AMD A76M chipset, a graphics subsystem with 1 GB of discrete memory, and the FreeDOS operating system
For use only on computer models equipped with the AMD A76M chipset, a graphics subsystem with 1 GB of discrete memory, and the Windows 8.1 Standard operating system
For use only on computer models equipped with an AMD A6-5200 processor, a graphics subsystem with UMA memory, and the FreeDOS operating system
For use only on computer models equipped with an AMD A6-5200 processor, a graphics subsystem with UMA memory, and the Windows 8.1 Standard operating system
729844-501
729844-001
729843-501
729843-001
749966-001
749966-501
749967-001
749967-501
749968-001
749968-501
For use only on computer models equipped with an AMD A4-5000 processor, a graphics subsystem with UMA memory, and the FreeDOS operating system
For use only on computer models equipped with an AMD A4-5000 processor, a graphics subsystem with UMA memory, and the Windows 8.1 Standard operating system
For use only on computer models equipped with the Intel HM76 Express chipset, a graphics subsystem with 1 GB of discrete memory, and the FreeDOS operating system
For use only on computer models equipped with the Intel HM76 Express chipset, a graphics subsystem with 1 GB of discrete memory, and the Windows 8.1 Standard operating system
For use only on computer models equipped with the Intel HM86 Express chipset, a graphics subsystem with UMA memory, and the FreeDOS operating system
For use only on computer models equipped with the Intel HM86 Express chipset, a graphics subsystem with UMA memory, and the Windows 8.1 Standard operating system
For use only on computer models equipped with the Intel HM86 Express chipset, a graphics subsystem with 1 GB of discrete memory, and the FreeDOS operating system
For use only on computer models equipped with the Intel HM86 Express chipset, a graphics subsystem with 1 GB of discrete memory, and the Windows 8.1 Standard operating system
758897-001
758897-501
749983-001
749983-501
749984-001
749984-501
749985-001
749985-501

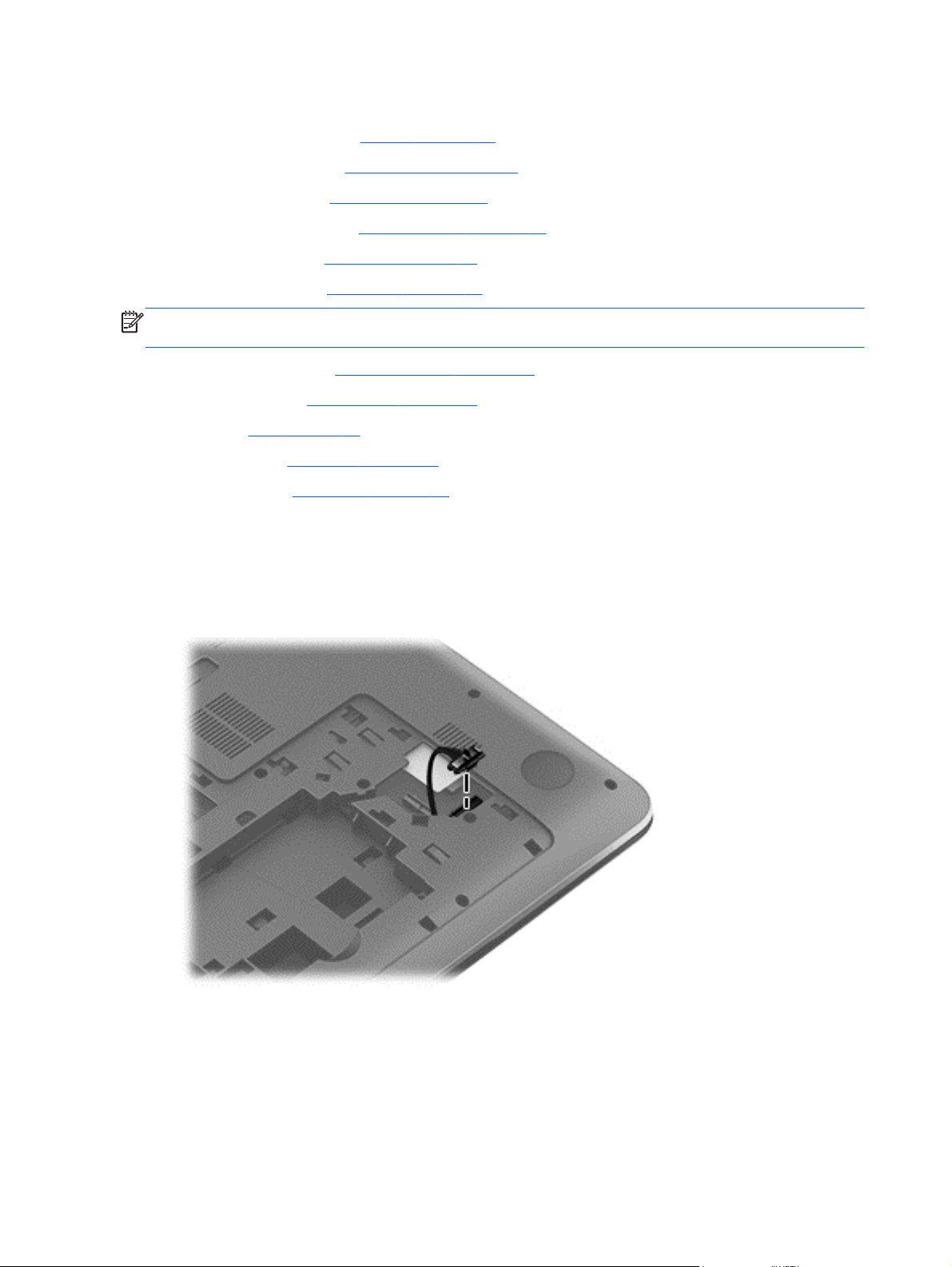

Before removing the system board, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
Component replacement procedures 75
3. Disconnect all external devices from the computer.
4. Remove the battery (see
a. Optical drive (see
b. Hard drive (see
c. WLAN module (see
d. Keyboard (see
e. Top cover (see
NOTE: When replacing the system board, be sure that the following components are removed from
the defective system board and installed on the replacement system board:
Memory module (see
RTC battery (see
Fan (see
Heat sink (see
Processor (see
Remove the system board:
1. Close the computer.
2. Turn the computer upside down with the front toward you.
Fan on page 80)
RTC battery on page 78)
Heat sink on page 81)
Processor on page 85)
Battery on page 47), and then remove the following components:
Optical drive on page 48)
Hard drive on page 49)
WLAN module on page 52)
Keyboard on page 56)
Top cover on page 60)
Memory module on page 54)
3. Disconnect the optical drive connector cable from the system board.
4. Turn the computer right side up with the front toward you.
5. Open the computer.
6. Disconnect the following cables from the system board:
(1) Display panel cable
(2) Speaker cable
76 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
(3) USB board ribbon cable
(4) Power connector cable
7. Remove the three Phillips PM2.5×7.0 screws (5) that secure the system board to the
base enclosure.
8. Lift the right side of the system board (1) until it rests at an angle.
9. Remove the system board (2) by sliding it up and to the right an angle.
Reverse this procedure to install the system board.
Component replacement procedures 77

RTC battery

Description Spare part number
RTC battery (includes cable and double-sided tape)
For use on all computer models except those equipped with an AMD A6-5200, AMD A4-5000, or AMD E1-2500 processor
For use only on computer models equipped with an AMD A6-5200, AMD A4-5000, or AMD E1-2500 processor
637193-001
741976-001
Before removing the RTC battery, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the battery (see
a. Optical drive (see
b. Hard drive (see
c. WLAN module (see
d. Keyboard (see
e. Top cover (see
f. System board (see
Battery on page 47), and then remove the following components:
Optical drive on page 48)
Hard drive on page 49)
WLAN module on page 52)
Keyboard on page 56)
Top cover on page 60)
System board on page 73)
Remove the RTC battery:
1. Turn the system board upside down with the front toward you.
2. Disconnect the RTC battery cable (1) from the system board.
78 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
3. Detach the RTC battery (2) from the system board. (The RTC battery is attached to the base
enclosure by double-sided tape.)
4. Remove the RTC battery.
Reverse this procedure to install the RTC battery.
Component replacement procedures 79
Fan
Description Spare part number
Fan (includes cable) 719860-001
Before removing the fan, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the battery (see
a. Optical drive (see
b. Hard drive (see
c. WLAN module (see
d. Keyboard (see
e. Top cover (see
f. System board (see
Battery on page 47), and then remove the following components:
Optical drive on page 48)
Hard drive on page 49)
WLAN module on page 52)
Keyboard on page 56)
Top cover on page 60)
System board on page 73)
Remove the fan:
1. Turn the system board upside down with the front toward you.
2. Disconnect the fan cable (1) from the system board.
3. Remove the Phillips PM2.0×5.0 screw (2) that secures the fan to the system board.
4. Remove the fan (3).
Reverse this procedure to install the fan.
80 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

Heat sink

NOTE: The heat sink spare part kit includes replacement thermal material. Replacement thermal
material is also available in the Thermal Material Kit, spare part number 719864-001.
Description Spare part number
For use only on computer models equipped with an AMD A10, A8, A6-4400M, or A4 processor and a graphics subsystem with discrete memory
For use only on computer models equipped with an AMD A10, A8, or A4 or E1-2500 processor and a graphics subsystem with UMA memory
For use only on computer models equipped with an AMD A6-5200 and a graphics subsystem with discrete memory
For use only on computer models equipped with an AMD A6-5200 and a graphics subsystem with UMA memory
For use only on computer models equipped with Intel processor and a graphics subsystem with discrete memory
For use only on computer models equipped with Intel processor and a graphics subsystem with UMA memory
For use only on computer models equipped with an Intel Core i3-3110M processor and a graphics subsystem with discrete memory
For use only on computer models equipped with an Intel Core i3-3110M processor and a graphics subsystem with UMA memory
720690-001
720689-001
724885-001
724884-001
719862-001
719861-001
736176-001
736175-001
Before removing the heat sink, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the battery (see
a. Optical drive (see
b. Hard drive (see
c. WLAN module (see
d. Keyboard (see
e. Top cover (see
f. System board (see
g. Fan (see
Fan on page 80)
Battery on page 47), and then remove the following components:
Optical drive on page 48)
Hard drive on page 49)
WLAN module on page 52)
Keyboard on page 56)
Top cover on page 60)
System board on page 73)
Remove the heat sink:
NOTE: Steps 1 and 2 apply to computer models equipped with a graphics subsystem with discrete
memory.
1. Following the 1 through 7 sequence stamped into the heat sink, loosen the seven captive
Phillips screws (1) that secure the heat sink to the system board.
Component replacement procedures 81
2. Remove the heat sink (2).
NOTE: Due to the adhesive quality of the thermal material located between the heat sink and
the system board components, it may be necessary to move the heat sink from side to side to detach it.
NOTE: Steps 3 and 4 apply to computer models equipped with a graphics subsystem with
UMA memory.
3. Following the 1 through 4 sequence stamped into the heat sink, loosen the four captive Phillips
screws (1) that secure the heat sink to the system board.
82 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
4. Remove the heat sink (2).
NOTE: Due to the adhesive quality of the thermal material located between the heat sink and
the system board components, it may be necessary to move the heat sink from side to side to detach it.
NOTE: The thermal material must be thoroughly cleaned from the surfaces of the heat sink and the
system board components each time the heat sink is removed. Replacement thermal material is included with the heat sink, processor, and system board spare part kits.
Thermal paste is used on the processor (1) and the heat sink section (2) that services it
Thermal paste is used on the graphics chip (3) and the heat sink section (4) that services it
Component replacement procedures 83
Reverse this procedure to install the heat sink.
84 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

Processor

NOTE: The processor spare part kit includes replacement thermal material. Replacement thermal
material is also available in the Thermal Material Kit, spare part number 719864-001.
Description Spare part number
AMD A10-5750M 2.50 GHz processor (turbo up to 3.50 GHz; 1600 MHz FSB, 4.0 MB L2 cache, DDR3, quad core, 35 W)
AMD A10-4600M 2.30 GHz processor (turbo up to 3.20 GHz; 1600 MHz FSB, 4.0 MB L2 cache, DDR3, quad core, 35 W)
AMD A8-5550M 2.10 GHz processor (turbo up to 3.10 GHz; 1600 MHz FSB, 4.0 MB L2 cache, DDR3, quad core, 35 W)
AMD A8-4500M 1.90 GHz processor (turbo up to 2.80 GHz; 1600 MHz FSB, 4.0 MB L2 cache, DDR3, quad core, 35 W)
AMD A6-5350M 2.90 GHz processor (turbo up to 3.50 GHz; 1600 MHz FSB, 1.0 MB L2 cache, DDR3, dual core, 35 W)
AMD A6-4400M 2.70 GHz processor (turbo up to 3.20 GHz; 1600 MHz FSB, 1.0 MB L2 cache, DDR3, dual core, 35 W)
AMD A4-5150M 2.70 GHz processor (turbo up to 3.30 GHz; 1600 MHz FSB, 1.0 MB L2 cache, DDR3, dual core, 35 W); not supported for use on computer models equipped with Windows 8.1
Intel Core i7-4702MQ 2.20 GHz processor (SC turbo up to 2.90 GHz; 1600 MHz FSB, 6.0 MB L3 cache, quad core, 37 W)
Intel Core i3-4000M 2.40 GHz processor (1600 MHz FSB, 3.0 MB L3 cache, dual core, 37 W) 737327-001
Intel Core i3-3130M 2.60 GHz processor (1600 MHz FSB, 3.0 MB L3 cache, dual core, 35 W) 713163-001
Intel Core i3-3110M 2.40 GHz processor (1333 MHz FSB, 3.0 MB L3 cache, dual core, 35 W) 682417-001
Intel Pentium i7-3632QM 2.2 GHz processor (SC turbo up to 3.2 GHz, 1600 MHz, 6 MB L3 cache, DDR3, quad core, 35 W)
713548-001
683046-001
713551-001
683048-001
713550-001
683047-001
713549-001
723522-001
701658-001
Intel Pentium 3550M 2.40 GHz processor (1600 MHz FSB, 2.0 MB L3 cache, dual core, 37 W) 737329-001
Intel Pentium 2030M 2.50 GHz processor (1600 MHz FSB, 2.0 MB L2 cache, dual core, 35 W) 700588-002
Intel Pentium 2020M 2.40 GHz processor (1600 MHz FSB, 2.0 MB L2 cache, dual core, 35 W) 700628-001
Intel Celeron 2950M 2.00 GHz processor (1600 MHz FSB, 2.0 MB L3 cache, 37 W) 737326-001
Intel Celeron 1005M 1.90GHz processor (1600 MHz, 2.0 MB L3 cache, dual core, 35 W) 739356-001
Before removing the processor, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the battery (see
a. Optical drive (see
b. Hard drive (see
Battery on page 47), and then remove the following components:
Optical drive on page 48)
Hard drive on page 49)
Component replacement procedures 85
c. WLAN module (see WLAN module on page 52)
d. Keyboard (see
e. Top cover (see
f. System board (see
g. Fan (see
h. Heat sink (see
Keyboard on page 56)
Top cover on page 60)
System board on page 73)
Fan on page 80)
Heat sink on page 81)
Remove the processor:
1. Use a flat-bladed screw driver (1) to turn the processor locking screw one-half turn
counterclockwise, until you hear a click.
2. Lift the processor (2) straight up, and remove it.
NOTE: The gold triangle (3) on the processor must be aligned with the triangle icon embossed
on the processor socket when you install the processor.
Reverse this procedure to install the processor.

Speakers

Description Spare part number
Speakers (include left and right speakers and cables) 720679-001
Before removing the speakers, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
86 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
3. Disconnect all external devices from the computer.
4. Remove the battery (see
a. Optical drive (see
b. Hard drive (see
c. WLAN module (see
d. Keyboard (see
e. Top cover (see
f. System board (see
Remove the speakers:
1. Release the speaker cables from the clips (1) and routing channel built into the base enclosure.
2. Release the clips (2) that secure the speakers to the base enclosure.
3. Remove the speakers (3).
Battery on page 47), and then remove the following components:
Optical drive on page 48)
Hard drive on page 49)
WLAN module on page 52)
Keyboard on page 56)
Top cover on page 60)
System board on page 73)
Reverse this procedure to install the speakers.
Component replacement procedures 87

RJ-45/USB board

Description Spare part number
RJ-45/USB board (includes cable) 720674-001
Before removing the RJ-45/USB board, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the battery (see
a. Optical drive (see
b. Hard drive (see
c. WLAN module (see
d. Keyboard (see
e. Top cover (see
Battery on page 47), and then remove the following components:
Optical drive on page 48)
Hard drive on page 49)
WLAN module on page 52)
Keyboard on page 56)
Top cover on page 60)
Remove the RJ-45/USB board:
1. Release the ZIF connector (1) to which the RJ-45/USB board ribbon cable is attached, and then
disconnect the RJ-45/USB board ribbon cable from the system board.
2. Remove the two Phillips PM2.5×7.0 screws (2) that secure the RJ-45/USB board to the
base enclosure.
3. Remove the RJ-45/USB board (3).
Reverse this procedure to install the RJ-45/USB board.
88 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

Power connector cable

Description Spare part number
Power connector cable 719859-001
Before removing the power connector cable, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the battery (see
a. Optical drive (see
b. Hard drive (see
c. WLAN module (see
d. Keyboard (see
e. Top cover (see
f. RJ-45/USB board (see
Battery on page 47), and then remove the following components:
Optical drive on page 48)
Hard drive on page 49)
WLAN module on page 52)
Keyboard on page 56)
Top cover on page 60)
RJ-45/USB board on page 88)
Remove the power connector cable:
1. Disconnect the power connector cable (1) from the system board.
2. Release the power connector cable from the clips (2) built into the base enclosure.
3. Release the power connector (3) from the clips and mold built into the base enclosure.
4. Remove the power connector cable.
Reverse this procedure to install the power connector cable.
Component replacement procedures 89

Optical drive connector cable

Description Spare part number
Optical drive connector cable 720668-001
Before removing the optical drive connector cable, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the battery (see
a. Optical drive (see
b. Hard drive (see
c. WLAN module (see
d. Keyboard (see
e. Top cover (see
f. System board (see
Battery on page 47), and then remove the following components:
Optical drive on page 48)
Hard drive on page 49)
WLAN module on page 52)
Keyboard on page 56)
Top cover on page 60)
System board on page 73)
Remove the optical drive connector cable:
1. Release the optical drive connector cable from the clips (1) and routing channel built into the
base enclosure.
2. Remove the optical drive connector cable (2).
Reverse this procedure to install the optical drive connector cable.
90 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
Loading...
