HP Pavilion ze4900, Compaq nx9040, Compaq mx9030, Compax nx9020, Compaq Presario 2200 Maintenance And Service Manual

Maintenance and Service
Guide

HP Pavilion ze4900 Notebook PC
HP Compaq nx9040, nx9030,
and

nx9020 Notebook PC

Compaq Presario 2200 Series Notebook

Document Part Number: 371025-001

August 2004

This guide is a troubleshooting reference used for maintaining
and servicing the notebook. It provides comprehensive
information on identifying notebook features, components, and
spare parts; troubleshooting notebook problems; and performing
notebook disassembly procedures.

Illustrated Parts Catalog

This chapter provides an illustrated parts breakdown and a
reference for spare part numbers and option part numbers.

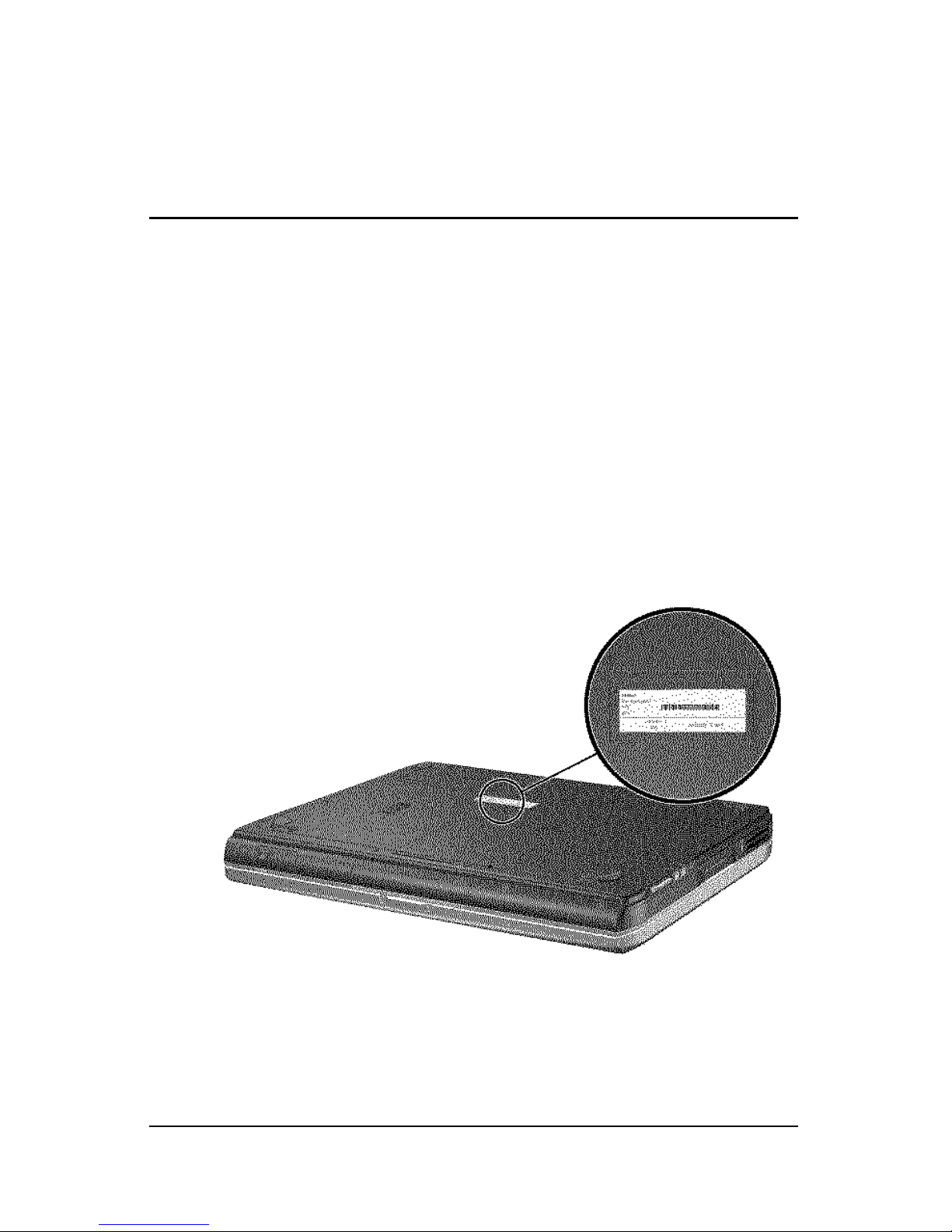

3.1 Serial Number Location

When ordering parts or requesting information, provide the
notebook serial number and model number located on the bottom
of the notebook.

3

Serial Number Location

Maintenance and Service Guide 3–1

Illustrated Parts Catalog

3.2 Notebook Major Components

Notebook Major Components

3–2 Maintenance and Service Guide

Spare Parts: Notebook Major Components

Item Description

1 Display assemblies

for use on HP Pavilion ze4900 notebook models

15.0-inch, XGA

14.1-inch, XGA

Illustrated Parts Catalog

Table 3- 1

Spare Part
Number

371768-001
371767-001

for use on HP Compaq nx9040, nx9030,

nx9020 notebook models

and

15.0-inch, XGA

14.1-inch, XGA

for use on Compaq Presario 2200 notebook models

15.0-inch, XGA

14.1-inch, XGA

Display screw covers (not illustrated) 371813-001

2a Keyboard covers (includes speaker grilles and

switch board)

for use on HP Pavilion ze4900 notebook models
for use on HP Compaq nx9040, nx9030, and nx9020

notebook models
for use on Compaq Presario 2200 notebook models

2b Switch board

371772-001
371771-001

371770-001
371769-001

371802-001
371804-001

371803-001

Maintenance and Service Guide 3–3

Illustrated Parts Catalog

Notebook Major Components

3–4 Maintenance and Service Guide

Table 3- 1

Spare Parts: Notebook Major Components

Item Description

3 Keyboards

Illustrated Parts Catalog

(Continued)

Spare Part
Number

Belgium
Brazil
Czech

Republic
Denmark
France
French

Canada
Germany
Greece
Hungary
Iceland
International
Israel
Italy
Japan

4a Top cover (includes speakers and TouchPad)

for use in HP Pavilion ze4900 notebook models
for use in HP Compaq nx9040 notebook models
for use in HP Compaq nx9030 and nx9020 notebook

models
for use in Compaq Presario 2200 notebook models

371787-181
371787-201

371787-221
371787-081
371787-051

371787-121
371787-041
371787-151
371787-211
371787-DD1
371787-002
371787-BB1
371787-061
371787-291

Korea
Latin America
Norway
Portugal
Russia
Saudi Arabia
Slovakia
Slovenia
Spain
Sweden
Switzerland
Ta iw an
Thailand
Tu rk ey
United Kingdom
United States

371787-AD1
371787-161
371787-091
371787-131
371787-251
371787-171
371787-231
371787-BA1
371787-071
371787-101
371787-111
371787-AB1
371787-281
371787-141
371787-031
371787-001

371799-001
373291-001
371801-001

371800-001

4b Speakers

5 Heat sink 371796-001

Thermal Pad Kit (not illustrated) 371809-001

Maintenance and Service Guide 3–5

Illustrated Parts Catalog

Notebook Major Components

3–6 Maintenance and Service Guide

Table 3- 1

Spare Parts: Notebook Major Components

Item Description

6 Processors

Illustrated Parts Catalog

(Continued)

Spare Part
Number

Intel Pentium M 745 (1.8-GHz) with 400-MHz front
side bus (FSB)

Intel Pentium M 735 (1.7-GHz) with 400-MHz FSB
Intel Pentium M 725 (1.6-GHz) with 400-MHz FSB
Intel Pentium M 715 (1.5-GHz) with 400-MHz FSB
Intel Pentium M 705 and TJ85 (1.6-GHz) with

400-MHz FSB
Intel Pentium M 705 and TJ85 (1.5-GHz) with

400-MHz FSB

Intel Celeron M 340 (1.5-GHz) with 400-MHz FSB
Intel Celeron M 330 (1.4-GHz) with 400-MHz FSB
Intel Celeron M 320 (1.3-GHz) with 400-MHz FSB
Intel Celeron M 350 (1.3-GHz) with 400-MHz FSB

Thermal Pad Kit (not illustrated) 371809-001

7 System boards

for use only on notebook models without S-Video and
1394 digital connectors

for use only on notebook models with S-Video

1394 digital connectors

and
for use on HP Compaq nx9040 notebook models

371760-001

371759-001
371758-001
371757-001
371762-001

371761-001

371766-001
371765-001
371764-001
371763-001

371793-001

371794-001

371795-001

Hard drive guide (not illustrated) 371798-001

8a

8b

Maintenance and Service Guide 3–7

Diskette drive (for use on HP Compaq nx9040
notebook models only)

Diskette drive cover

371779-001

371805-001

Illustrated Parts Catalog

Notebook Major Components

3–8 Maintenance and Service Guide

Table 3- 1

Spare Parts: Notebook Major Components

Item Description

9a Base enclosures

Illustrated Parts Catalog

(Continued)

Spare Part
Number

for use only on notebook models without S-Video

1394 digital connectors

and
for use only on notebook models with S-Video

1394 digital connectors

and
for use on HP Compaq nx9040 notebook models

Rubber notebook feet and screw plugs

illustrated)

(not

Wireless LAN antenna cables (not illustrated) 371788-001

9b Base enclosure button panels

for use on HP Compaq nx9040 notebook models
for use on notebook models with wireless only
for use on notebook models with neither wireless

infrared

nor

10 Wireless button boards (includes cable)

for use on notebook models with infrared transceiver
for use on notebook models without infrared

transceiver

371791-001

371792-001

373290-001

371808-001

373020-001
373019-001
373018-001

373017-001

373016-001

11 Optical drives

4X Max DVD+R/RW
2X Max DVD+R/RW
24X Max DVD/CD-RW Combo Drive
8X Max DVD-ROM Drive
24X Max CD-ROM Drive

Maintenance and Service Guide 3–9

371784-001
371783-001
371782-001
371781-001
371780-001

Illustrated Parts Catalog

Notebook Major Components

3–10 Maintenance and Service Guide

Table 3- 1

Spare Parts: Notebook Major Components

Item Description

12a Hard drives, 4200-rpm

Illustrated Parts Catalog

(Continued)

Spare Part
Number

60-GB
40-GB
30-GB

12b Hard drive tray 371797-001

13 Mini PCI communications boards

Mini PCI 802.11b wireless LAN, MOW
Mini PCI 802.11b wireless LAN, ROW
Mini PCI 802.11b/g wireless LAN, MOW
Mini PCI 802.11b/g wireless LAN, MOW
Mini PCI 802.11b/g wireless LAN, BC

14 Memory modules

512-MB DDR
256-MB DDR
128-MB DDR

15a
15b

Memory module compartment cover and
Mini PCI compartment cover

371778-001
371777-001
371776-001

373023-001
373024-001
373025-001
373026-001
373027-001

371775-001
371774-001
371773-001

371806-001

16 Battery packs

8-cell Li-Ion
6-cell Li-Ion

Maintenance and Service Guide 3–11

371786-001
371785-001

Illustrated Parts Catalog

3.3 Mass Storage Devices

Mass Storage Devices

3–12 Maintenance and Service Guide

Illustrated Parts Catalog

Table 3-2

Mass Storage Devices

Spare Part Number Information

Spare Part

Item Description

1 Diskette drive 371779-001

2 Hard drives, 4200-rpm (includes hard drive bezel)

Number

60-GB
40-GB
30-GB

3 Optical drives

4X Max DVD+R/RW
2X Max DVD+R/RW
24X Max DVD/CD-RW Combo Drive
8X Max DVD-ROM Drive
24X Max CD-ROM Drive

371778-001
371777-001
371776-001

371784-001
371783-001
371782-001
371781-001
371780-001

Maintenance and Service Guide 3–13

Illustrated Parts Catalog

3.4 Miscellaneous

Table 3- 3

Spare Parts: Miscellaneous (not illustrated)

Spare Part

Description

Logo Kit 371812-001

65-watt AC adapter 371790-001

Power cords

Number

Australia
Brazil
Denmark
Europe
Israel
Italy
Japan
Korea
People’s Republic of China
Switzerland
United Kingdom
United States

Screw Kit (includes the following screws; refer to

Appendix C, “Screw Listing,” for more information on screw

specifications and usage).

■ PM2.0×9.0 screw

■ PM2.0×8.0 screw

■ PM2.0×6.0 screw

■ PM2.0×3.0 screw

■ HM5.0×9.0 screwlock

■ PM1.5×12.0 screw

373979-011
373979-201
373979-081
373979-021
373979-BB1
373979-061
373979-291
373979-AD1
373979-AA1
373979-111
373979-031
373979-001

373294-001

■ PM2.0×5.0 screw

■ PM2.0×4.0 screw

3–14 Maintenance and Service Guide

■ PM1.5×5.0 screw
