HP Compaq Presario S6100KR Specifications

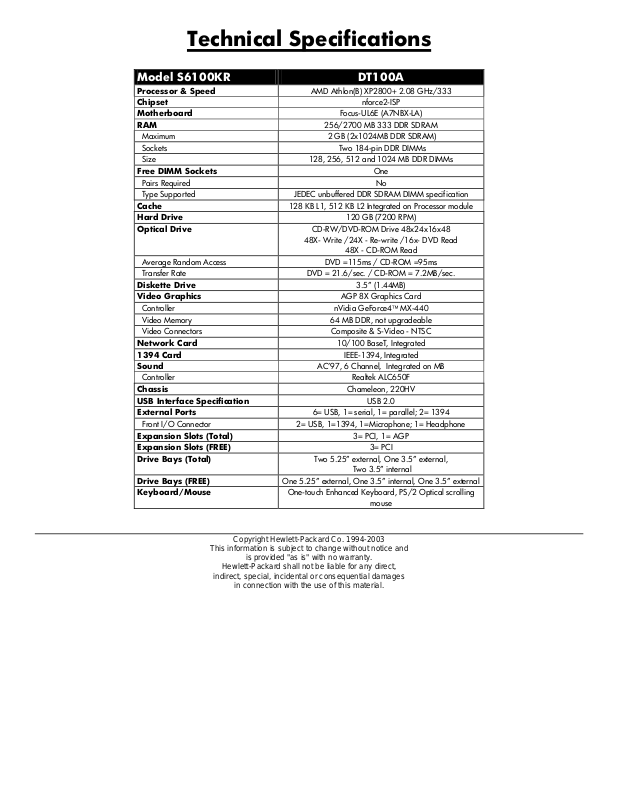

Technical Specifications

Model S6100KR DT100A

Processor & Speed AMD Athlon(B) XP2800+ 2.08 GHz/333
Chipset nforce2-ISP
Motherboard Focus-UL6E (A7NBX-LA)
RAM 256/2700 MB 333 DDR SDRAM

Maximum 2 GB (2x1024MB DDR SDRAM)
Sockets Two 184-pin DDR DIMMs
Size 128, 256, 512 and 1024 MB DDR DIMMs
Free DIMM Sockets One
Pairs Required No
Type Supported JEDEC unbuffered DDR SDRAM DIMM specification

Cache 128 KB L1, 512 KB L2 Integrated on Processor module
Hard Drive 120 GB (7200 RPM)
Optical Drive CD-RW/DVD-ROM Drive 48x24x16x48

48X- Write /24X - Re-write /16x- DVD Read

48X - CD-ROM Read
Average Random Access DVD =115ms / CD-ROM =95ms
Transfer Rate DVD = 21.6/sec. / CD-ROM = 7.2MB/sec.

Diskette Drive 3.5” (1.44MB)
Video Graphics AGP 8X Graphics Card

Controller nVidia GeForce4™ MX-440
Video Memory 64 MB DDR, not upgradeable
Video Connectors Composite & S-Video - NTSC

Network Card 10/100 BaseT, Integrated
1394 Card IEEE-1394, Integrated
Sound AC’97, 6 Channel, Integrated on MB
Controller Realtek ALC650F
Chassis Chameleon, 220HV
USB Interface Specification USB 2.0
External Ports 6= USB, 1= serial, 1= parallel; 2= 1394

Front I/O Connector 2= USB, 1=1394, 1=Microphone; 1= Headphone

Expansion Slots (Total) 3= PCI, 1= AGP
Expansion Slots (FREE) 3= PCI
Drive Bays (Total) Two 5.25” external, One 3.5” external,

Two 3.5” internal

Drive Bays (FREE) One 5.25” external, One 3.5” internal, One 3.5” external
Keyboard/Mouse One-touch Enhanced Keyboard, PS/2 Optical scrolling

mouse
