HP Compaq Presario S6080AN Specifications

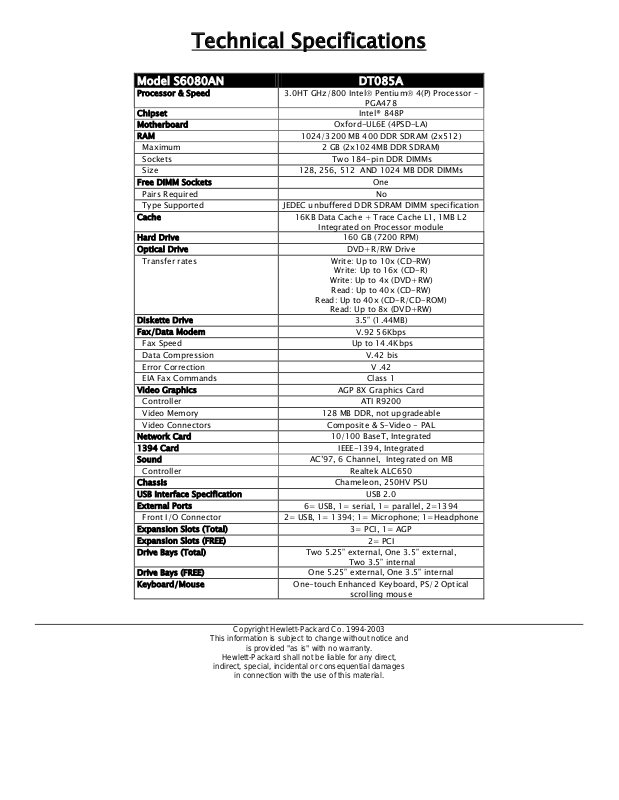

Technical Specifications

Model S6080AN DT085A

Processor & Speed

Chipset Intel® 848P
Motherboard Oxford-UL6E (4PSD-LA)
RAM 1024/3200 MB 400 DDR SDRAM (2x512)
Maximum 2 GB (2x1024MB DDR SDRAM)
Sockets Two 184-pin DDR DIMMs
Size 128, 256, 512 AND 1024 MB DDR DIMMs
Free DIMM Sockets One
Pairs Required No
Type Supported JEDEC unbuffered DDR SDRAM DIMM specification
Cache 16KB Data Cache + Trace Cache L1, 1MB L2

Hard Drive 160 GB (7200 RPM)
Optical Drive DVD+R/RW Drive
Transfer rates

Diskette Drive 3.5” (1.44MB)
Fax/Data Modem V.92 56Kbps
Fax Speed Up to 14.4Kbps
Data Compression V.42 bis
Error Correction V .42
EIA Fax Commands Class 1
Video Graphics AGP 8X Graphics Card
Controller ATI R9200
Video Memory 128 MB DDR, not upgradeable
Video Connectors Composite & S-Video - PAL
Network Card 10/100 BaseT, Integrated
1394 Card IEEE-1394, Integrated
Sound AC’97, 6 Channel, Integrated on MB
Controller Realtek ALC650
Chassis Chameleon, 250HV PSU
USB Interface Specification USB 2.0
External Ports 6= USB, 1= serial, 1= parallel, 2=1394
Front I/O Connector 2= USB, 1= 1394; 1= Microphone; 1=Headphone
Expansion Slots (Total) 3= PCI, 1= AGP
Expansion Slots (FREE) 2= PCI
Drive Bays (Total) Two 5.25” external, One 3.5” external,

Drive Bays (FREE) One 5.25” external, One 3.5” internal
Keyboard/Mouse One-touch Enhanced Keyboard, PS/2 Optical

Copyright Hewlett-Packard Co. 1994-2003

This information is subject to change without notice and

is provided "as is" with no warranty.

Hewlett-Packard shall not be liable for any direct,

indirect, special, incidental or consequential damages

in connection with the use of this material.

3.0HT GHz/800 Intel® Pentium® 4(P) Processor –
PGA478

Integrated on Processor module

Write: Up to 10x (CD-RW)

Write: Up to 16x (CD-R)

Write: Up to 4x (DVD+RW)

Read: Up to 40x (CD-RW)

Read: Up to 40x (CD-R/CD-ROM)

Read: Up to 8x (DVD+RW)

Two 3.5” internal

scrolling mouse
