HP Compaq 8710p, Compaq 8710w Maintenance and Service Guide

HP Compaq 8710p Notebook PC and HP Compaq 8710w Mobile Workstation
Maintenance and Service Guide
© Copyright 2007, 2008 Hewlett-Packard Development Company, L.P.
AMD, the AMD Arrow logo, and combinations thereof, are trademarks of Advanced Micro Devices, Inc. Bluetooth is a trademark owned by its proprietor and used by Hewlett-Packard Company under license. Intel and Core are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. Java is a US trademark of Sun Microsystems, Inc. Microsoft, Windows, and Windows Vista are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. SD Logo is a trademark of its proprietor.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Third Edition: July 2008
First Edition: June 2007
Document Part Number: 453579-003
MSG revision history
Revision Publication date Description
A September 2010 The part number for the T7100 1.8-GHz (2-MB L2 cache, 800-MHz FSB)
processor has been updated to 446440-001 in the following locations:
major components on page 19, Sequential part number listing on page 31, and Processor on page 77.
The 120-GB, 7200-rpm hard drive part number has been corrected to 454987-001 in the following location:
Computer major components on page 19.
Computer
The AC adapters have been updated in the following locations:
parts on page 29 and Sequential part number listing on page 31.
Miscellaneous
iii
iv MSG revision history
Safety warning notice
WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not
place the computer directly on your lap or obstruct the computer air vents. Use the computer only on a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer and the AC adapter comply with the user-accessible surface temperature limits defined by the International Standard for Safety of Information Technology Equipment (IEC 60950).
v
vi Safety warning notice
Table of contents
1 Product description ........................................................................................................................................ 1
2 External component identification ................................................................................................................ 8
Display components ............................................................................................................................. 8
Top components ................................................................................................................................... 9
Buttons, switches, and fingerprint reader ............................................................................ 9
Keys ................................................................................................................................... 10
Lights ................................................................................................................................. 11
Pointing devices ................................................................................................................. 13
Front components .............................................................................................................................. 14
Left-side components ......................................................................................................................... 15
Rear component ................................................................................................................................. 16
Right-side components ....................................................................................................................... 16
Bottom components ........................................................................................................................... 17
3 Illustrated parts catalog ............................................................................................................................... 18
Serial number location ........................................................................................................................ 18
Computer major components ............................................................................................................. 19
Plastics Kit .......................................................................................................................................... 27
Cable Kit ............................................................................................................................................. 28
Mass storage devices ......................................................................................................................... 29
Miscellaneous parts ............................................................................................................................ 29
Sequential part number listing ............................................................................................................ 31
4 Removal and replacement procedures ....................................................................................................... 39
Preliminary replacement requirements ............................................................................................... 39
Tools required .................................................................................................................... 39
Service considerations ....................................................................................................... 39
Plastic parts ....................................................................................................... 39
Cables and and pointing stick connectors ......................................................... 40
Drive handling ................................................................................................... 40
Grounding guidelines ......................................................................................................... 41
Electrostatic discharge damage ........................................................................ 41
vii
Packaging and transporting guidelines ............................................. 42
Workstation guidelines ..................................................................... 42
Equipment guidelines ....................................................................... 43
Unknown user password ................................................................................................... 44
Component replacement procedures ................................................................................................. 45
Serial number .................................................................................................................... 45
Computer feet .................................................................................................................... 45
Battery ............................................................................................................................... 46
Display inverter and ambient light sensor board ................................................................ 47
Hard drive .......................................................................................................................... 50
Bluetooth module ............................................................................................................... 53
Primary memory module .................................................................................................... 54
WLAN module .................................................................................................................... 56
RTC battery ....................................................................................................................... 59
Optical drive ....................................................................................................................... 60
Keyboard ........................................................................................................................... 62
Expansion memory module ............................................................................................... 65
TouchPad .......................................................................................................................... 66
Modem module .................................................................................................................. 68
Switch cover ...................................................................................................................... 69
Power button board ........................................................................................................... 71
Fan/heat sink assembly ..................................................................................................... 72
Graphics card .................................................................................................................... 74
Heat sink ............................................................................................................................ 76
Processor ........................................................................................................................... 77

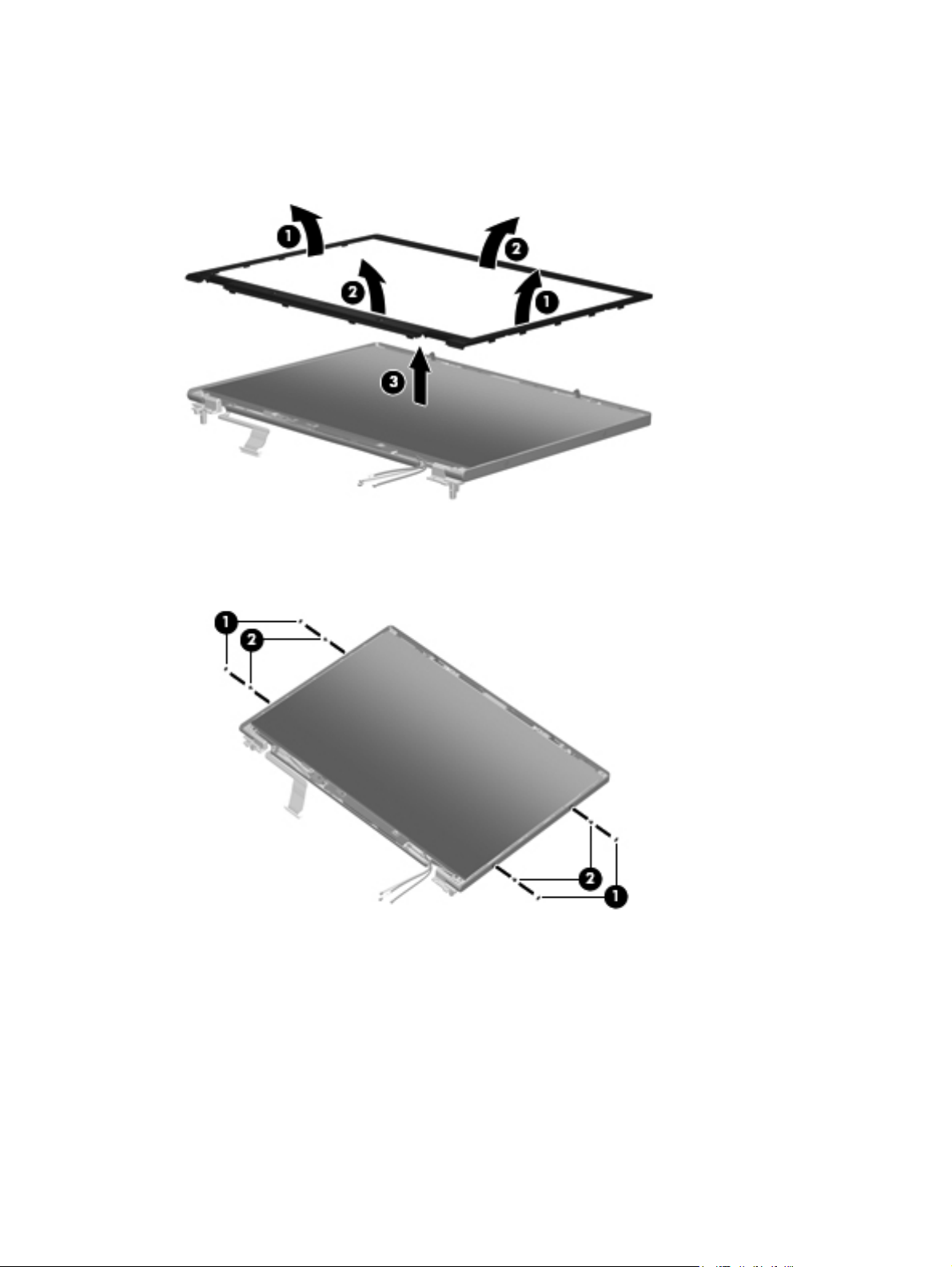

Display assembly ............................................................................................................... 79
Top cover ........................................................................................................................... 85
Speaker assembly ............................................................................................................. 87

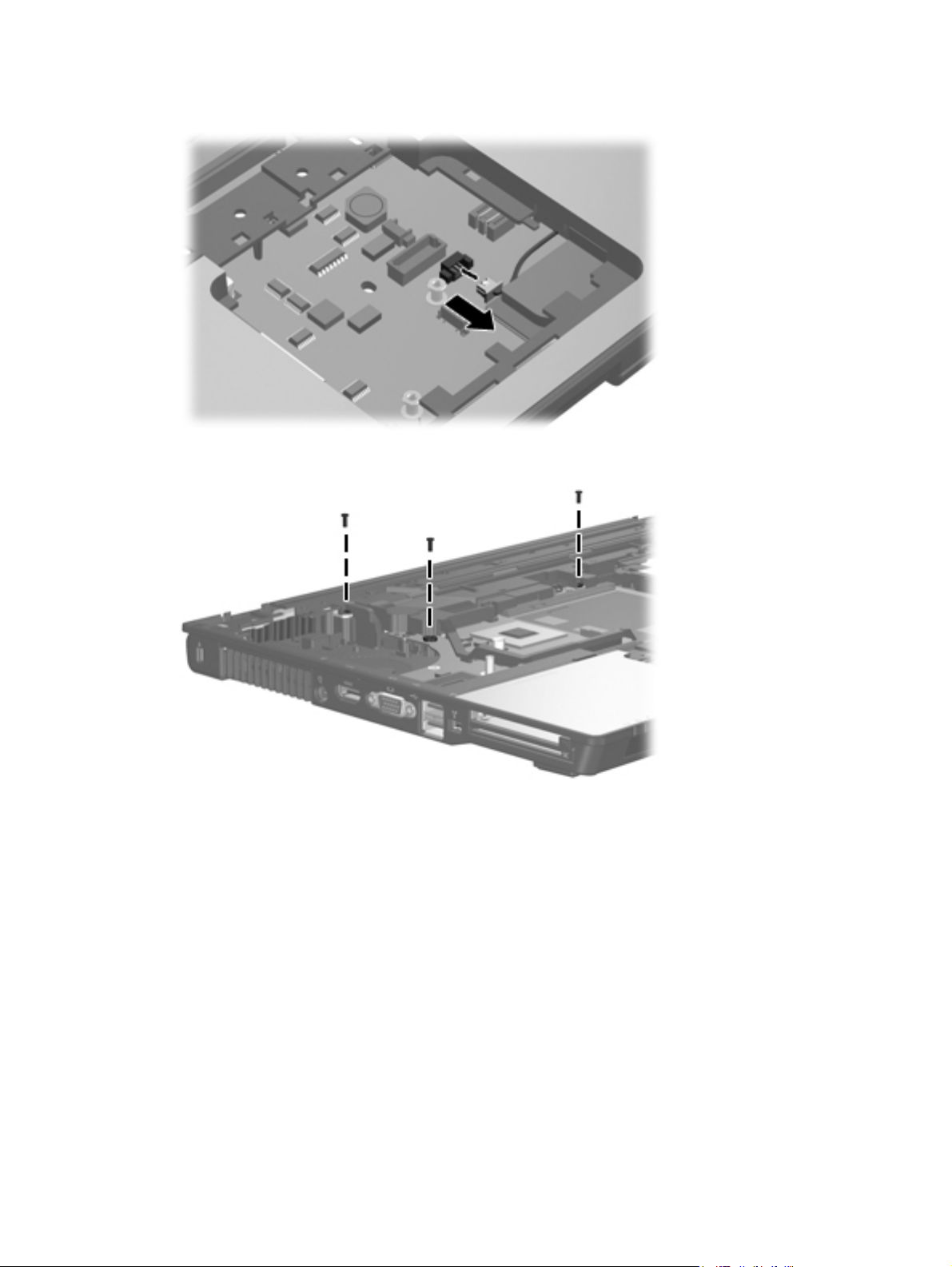

System board ..................................................................................................................... 89
USB/audio board ............................................................................................................... 93
PC Card assembly ............................................................................................................. 94
5 Computer Setup ............................................................................................................................................ 96
Starting Computer Setup .................................................................................................................... 96
Using Computer Setup ....................................................................................................................... 97
Navigating and selecting in Computer Setup ..................................................................... 97
Restoring factory settings in Computer Setup ................................................................... 97
Computer Setup menus ..................................................................................................................... 98
File menu ........................................................................................................................... 98
Security menu .................................................................................................................... 99
Diagnostics menu .............................................................................................................. 99
System Configuration menu ............................................................................................ 100
viii
6 Specifications .............................................................................................................................................. 102
Computer specifications ................................................................................................................... 102
17.0-inch, WUXGA+WVA display specifications .............................................................................. 103
17.0-inch, WSXGA+WVA display specifications .............................................................................. 104
17.0-inch, WXGA+WVA display specifications ................................................................................ 105
Hard drive specifications .................................................................................................................. 106
DVD±RW and CD-RW Double-Layer Combo Drive specifications .................................................. 107
DVD/CD-RW Combo Drive specifications ........................................................................................ 108
DVD-ROM Drive ............................................................................................................................... 109
System DMA specifications .............................................................................................................. 110
System memory map specifications ................................................................................................. 110
System interrupt specifications ......................................................................................................... 111
System I/O address specifications ................................................................................................... 112
7 Screw listing ................................................................................................................................................ 114
Phillips PM2.0×17.0 captive screw ................................................................................................... 115
Phillips PM2.5×13.0 captive screw ................................................................................................... 116
Phillips PM3.0×4.0 screw ................................................................................................................. 117
Phillips PM2.5×5.0 captive screw ..................................................................................................... 118
Phillips PM2.0×4.0 screw ................................................................................................................. 119
Torx TM2.5×9.0 screw ..................................................................................................................... 121
Torx TM2.5×4.0 screw ..................................................................................................................... 123
Phillips PM2.5×9.0 captive screw ..................................................................................................... 126
Torx T8M2.5×7.0 screw ................................................................................................................... 127
Phillips PM2.5×7.0 screw ................................................................................................................. 129
Torx T8M2.0×10.0 captive screw ..................................................................................................... 130
Hex Metric HM5.0×10.0 standoff ...................................................................................................... 131
Phillips PM2.5×7.0 captive screw ..................................................................................................... 132
Phillips PM2.0×6.0 screw ......................................................................................................
........... 133
8 Backup and recovery .................................................................................................................................. 134
Backup and recovery using Windows Vista ..................................................................................... 134
Creating recovery discs ................................................................................................... 134
Backing up your information ............................................................................................ 134
When to back up ............................................................................................. 135
Backup suggestions ........................................................................................ 135
Backing up specific files or folders .................................................................. 135
Backing up the entire hard drive ..................................................................... 136
Creating recovery points ................................................................................. 137
Scheduling backups ........................................................................................ 137
Performing a recovery ..................................................................................................... 137
Performing a recovery from the recovery discs ............................................... 138
Performing a recovery from the hard drive ...................................................... 138
ix
Initiating a recovery in Windows ..................................................... 139
Initiating a recovery from the hard drive recovery partition ............. 139
Backup and recovery using Windows XP ......................................................................................... 140
Creating recovery discs ................................................................................................... 140
Backing up your information ............................................................................................ 140
When to back up ............................................................................................. 141
Backup suggestions ........................................................................................ 141
Backing up specific files or folders .................................................................. 141
Backing up the entire hard drive ..................................................................... 142
Creating recovery points ................................................................................. 143
Scheduling backups ........................................................................................ 143
Performing a recovery ..................................................................................................... 143
Performing a recovery from the recovery discs ............................................... 144
Performing a recovery from the hard drive ...................................................... 144
Initiating a recovery in Windows ..................................................... 145
Initiating a recovery from the hard drive recovery partition ............. 145
9 Connector pin assignments ....................................................................................................................... 146
1394 ................................................................................................................................................. 146
Audio-out (headphone) ..................................................................................................................... 146
Audio-in (microphone) ...................................................................................................................... 147
External monitor ............................................................................................................................... 147
HDMI ................................................................................................................................................ 148
RJ-11 (modem) ................................................................................................................................ 149
RJ-45 (network) ................................................................................................................................ 150
Universal Serial Bus ......................................................................................................................... 151
10 Power cord set requirements .................................................................................................................. 152
Requirements for all countries and regions ...................................................................................... 152
Requirements for specific countries and regions ............................................................................. 153
11 Recycling ................................................................................................................................................... 154
Battery .............................................................................................................................................. 154
Display .............................................................................................................................................. 154
Index ................................................................................................................................................................. 160
x

1 Product description

Category Description HP Compaq 8710w
Mobile Workstation
Product Name HP Compaq 8710w Mobile
Workstation
HP Compaq 8710p Notebook PC
Processors Intel® Core™ 2 Duo processors
T9500 2.6-GHz processor 6-MB L2
cache, 800-MHz FSB
T9300 2.5-GHz processor 6-MB L2
cache, 800-MHz FSB
T8300 2.4-GHz processor 3-MB L2
cache, 800-MHz FSB
T8100 2.1-GHz processor 3-MB L2
cache, 800-MHz FSB
T7800 2.5-GHz processor 4-MB L2
cache, 800-MHz FSB
T7700 2.4-GHz processor 4-MB L2
cache, 800-MHz FSB
T7500 2.2-GHz processor 4-MB L2
cache, 800-MHz FSB
√√
√√
√√
√√
√√
√√
√√
HP Compaq 8710p Notebook PC
T7300 2.0-GHz processor 4-MB L2
cache, 800-MHz FSB
T7250 2.0-GHz processor 2-MB L2
cache, 800-MHz FSB
T7100 1.8-GHz processor 2-MB L2
cache, 800-MHz FSB
Chipset Northbridge: Intel 965PM with iAMT
support
Southbridge: Intel ICH8M-enhanced √√
Graphics nVidia NB8E-GLM (G84GLM-UU)
graphics card with 512-MB graphics subsystem memory operating at 800 MHz
√√
√√
√√
√√
1
Category Description HP Compaq 8710w
Mobile Workstation
HP Compaq 8710p Notebook PC
nVidia NB8P-NVS2 (G84M-GT)
graphics card with 256-MB graphics subsystem memory operating at 700 MHz (supports TurboCache)
OpenGL driver support
Panel All display assemblies include 3
wireless local area network (WLAN) antennae
17.0-inch WUXGA WVA AntiGlare √√
17.0-inch WSXGA+ WVA AntiGlare √√
17.0-inch WXGA+ AntiGlare √√
17.0-inch WSXGA+ Bright View √√
Supports privacy film √√
Memory 2 customer-accessible/upgradable
memory module slots
Supports dual-channel memory √√
Supports up to 8 GB of system RAM √√
PC2-5300, 667-MHz, DDR2 √√
√√
√√
2 Chapter 1 Product description
Category Description HP Compaq 8710w
Mobile Workstation
HP Compaq 8710p Notebook PC
Supports the following configurations:
8192-MB total system memory
(4096 × 2, dual-channel)
6144-MB total system memory
(4096 + 2048)
5120-MB total system memory
(4096 + 1024)
4608-MB total system memory
(4096 + 512)
4096-MB total system memory
(2048 × 2, dual channel
4096-MB total system memory
(4096 × 1)
3072-MB total system memory
(2048 + 1024)
2560-MB total system memory
(2048 + 512)
2048-MB total system memory
(1024 × 2, dual-channel)
2048-MB total system memory
(2048 × 1)
√√
1536-MB total system memory
(1024 + 512)
1024-MB total system memory
(512 × 2, dual-channel)
1024-MB total system memory
(1024 × 1)
512-MB total system memory
(512 × 1)
Hard drives Supports 9.5-mm, 2.5-inch hard drives √√
Customer-accessible √√
Serial ATA √√
Supports the following drives:
250-GB, 5400-rpm
200-GB, 7200--rpm
160-GB, 7200- and 5400-rpm
120-GB, 7200- and 5400-rpm
100-GB, 7200-rpm
80-GB, 7200- and 5400-rpm
√√
3
Category Description HP Compaq 8710w
Mobile Workstation
HP 3D DriveGuard √√
Optical drives Fixed (removal of 1 screw required) √√
Customer-accessible √√
Parallel ATA √√
12.7-mm tray load √√
HP Compaq 8710p Notebook PC
Supports the following drives:
DVD±RW and CD-RW Super
Multi Double-Layer Combo Drive with LightScribe
DVD±RW and CD-RW Super
Multi Double-Layer Combo Drive
DVD-CD/RW Combo Drive
Blu-Ray DVD-RW Combo Drive
DVD-ROM Drive
Diskette drive Supports external USB diskette drive
only
Supports boot from external USB
diskette drive
Supports 3-mode diskette drive √√
Microphone Integrated microphone √√
Audio HD audio - ADI1981 √√
Modem 56K V.92 1.5-inch data/fax modem with
digital line guard
HD audio interface √√
√√
√√
√√
√√
Modem cable included in Brazil, the
Czech Republic, Europe, France, Greece, Hungary, Israel, Latin America, Poland, Russia, Saudi Arabia, Slovakia, Slovenia, South Africa, Turkey, and the United Kingdom
Ethernet Intel 82566MM 10/100/1000 network
interface card (NIC) with iAMT
S3/S4/S5 wake on LAN: DC - no √√
S3/S4/S5 wake on LAN: AC - yes √√
NIC power-down technology √√
Wireless Integrated WLAN options by way of wireless module:
Three WLAN antennae built into
display assembly
Support for no-WLAN option √√
4 Chapter 1 Product description
√√
√√
√√
Category Description HP Compaq 8710w
Mobile Workstation
HP Compaq 8710p Notebook PC
Support for the following WLAN
formats:
Intel 802.11a/b/g/n with iAMT
support
Broadcom 802.11a/b/g
Intel 802.11a/b/g with iAMT
support
Broadcom 802.11b/g
Integrated personal area network (PAN) options by way of Bluetooth® module:
Support for no-WPAN option √√
Broadcom Bluetooth √√
External media card
Media Card Reader slot supporting SD,
Ports Audio-in (mono microphone) √√
Audio-out (stereo headphone) √√
One Type I/II PC Card slot, supporting 16-bit and 32-bit (Cardbus) PC Card modules
MMC, MS, MSP, xD, and Memory Stick Duo
√√
√√
√√
High-Definition Multimedia Interface
(HDMI)
RJ-11 (modem) √√
RJ-45 (Ethernet, includes link and
activity lights)
USB (6) √√
VGA (Dsub 15-pin) supporting 1600 ×
1200 external resolution at 75-GHz (hot plug/unplug with auto-detect)
3-pin AC power √√
Docking HP 3-in-1 NAS Docking Station, HP
Advanced Docking Station, and HP Docking Station
Keyboard/pointing devices
Dual point (pointing stick and
TouchPad only, with 2 TouchPad
14.4-inch keyboard with separate numeric keypad
TouchPad) with 3 pointing stick buttons and 3 TouchPad buttons and vertical scrolling (taps enabled as default)
buttons and vertical scrolling (taps enabled as default)
√√
√√
√√
√√
√√
√√
Windows Vista™ Hardware Start
Button
√√
5
Category Description HP Compaq 8710w
Mobile Workstation
HP Compaq 8710p Notebook PC
Power requirements
8-cell, 2.55-Ah (73-Wh) Li-ion battery √√
Support for 8-cell Extended Life Battery √√
Support for 12-cell Ultra Capacity
Security Full volume encryption √√
Integrated fingerprint reader √√
Integrated smart card reader √√
Preboot authentication (password,
The following AC adapters with localized cable plug support (3-wire plug with ground pin, supports 3-pin DC connector):
180-W PFC AC adapter
135-W PFC AC adapter
120-W non-PFC and PFC AC
adapters
90-W non-PFC and PFC AC
adapters
Battery
smart card)
√√
√√
√√
Security cable slot √√
Trusted platform module (TPM) V.1.2 √√
Operating system
Windows Vista Business 32/64 √√
Windows Vista Home Basic 32 √√
Windows® XP Professional √√
FreeDOS √√
Preinstalled with Microsoft® Office:
Windows Vista Business 32/64 with
Windows Vista Business 32/64 with
Windows XP Professional with Office
Windows XP Professional with Office
Restore media:
Preinstalled:
√√
Office 2007 Ready
Office 2007 Personal
√√
2007 Ready
√√
2007 Personal
Windows Vista Business 32/64 √√
Windows Vista Home Basic 32 √√
6 Chapter 1 Product description
Category Description HP Compaq 8710w
Mobile Workstation
Windows XP Professional √√
DRDVD XP √√
DRDVD Vista √√
Supported:
Windows® 2000 √√
Certified:
Linux √√
Serviceability End-user replaceable parts:
AC adapter √√
Battery (system) √√
Battery (RTC) √√
Hard drive √√
Memory module √√
Modem module √√
Optical drive √√
HP Compaq 8710p Notebook PC
WLAN module √√
7

2 External component identification

Display components

Item Component Function
(1) Ambient light sensor When activated, the sensor automatically adjusts the
display brightness based on the surrounding lighting conditions.
(2) Wireless antenna locations Send and receive wireless signals to communicate with
(3) Internal microphone Records sound.
WLANs.
8 Chapter 2 External component identification

Top components

Buttons, switches, and fingerprint reader

Item Component Function
(1) Power button
(2) Info button Launches Info Center, which enables you to open various
(3) Wireless button Turns the wireless feature on or off, but does not
When the computer is off, press the button to turn
on the computer.
When the computer is on, press the button to shut
down the computer.
When the computer is in the Sleep state (Windows
Vista) or in Standby (Windows XP), press the button briefly to exit the Sleep state or Standby.
When the computer is in Hibernation, press the
button briefly to exit Hibernation.
If the computer has stopped responding and Windows® shutdown procedures are ineffective, press and hold the power button for at least 5 seconds to turn off the computer.
To learn more about power settings, follow these steps:
In Windows Vista, select Start > Control Panel >
System and Maintenance > Power Options.
In Windows XP, select Start > Control Panel >
Performance and Maintenance > Power Options.
software solutions.
establish a wireless connection.
NOTE: A wireless network must be set up in order to
establish a wireless connection.
(4) Presentation button Starts the presentation feature.
(5) Volume mute button Mutes and restores speaker sound.
Top components 9

Keys

Item Component Function
(6) Volume scroll zone Adjusts speaker volume. Slide your finger to the left to
decrease volume and to the right to increase volume. You can also press the left side of the volume slider to decrease volume, or press the right side of the volume slider to increase volume.
(7) Calculator button Turns on the Windows calculator function.
(8) HP Fingerprint Sensor (fingerprint reader) Allows a fingerprint logon to Windows, instead of a
password logon.
NOTE: Your computer may look slightly different from the illustration in this section.
Item Component Function
(1) esc key Displays system information when pressed in
combination with the fn key.
(2) fn key Executes frequently used system functions when pressed
in combination with a function key or the esc key.
(3) Windows logo key Displays the Windows Start menu.
(4) Windows applications key Displays a shortcut menu for items beneath the pointer.
(5) Integrated numeric keypad Can be used like the keys on an external numeric
(6) Function keys Execute frequently used system functions when pressed
keypad.
in combination with the fn key.
10 Chapter 2 External component identification

Lights

Item Component Function
(1) Wireless lights (2)*
(2) Power lights (2)†
(3) Battery light
(4) Drive light
On: An integrated wireless device, such as a WLAN
device and/or a Bluetooth® device, is on.
Off: All wireless devices are off.
On: The computer is on.
Blinking: The computer is in the Sleep state
(Windows Vista) or Standby (Windows XP).
Blinking rapidly: An AC adapter with a higher power
rating should be connected.
Off: The computer is off or in Hibernation.
Amber: A battery is charging.
Green: A battery is close to full charge capacity.
Blinking amber: A battery that is the only available
power source has reached a low battery level. When the battery reaches a critical battery level, the battery light begins blinking rapidly.
Off: If the computer is plugged into an external
power source, the light turns off when all batteries in the computer are fully charged. If the computer is not plugged into an external power source, the light stays off until the battery reaches a low battery level.
Blinking green: The hard drive or optical drive is
being accessed.
Amber: HP 3D DriveGuard has temporarily parked
the internal hard drive.
(5) Caps lock light On: Caps lock is on.
(6) Num lock light On: Num lock is on or the integrated numeric keypad is
enabled.
Top components 11
Item Component Function
(7) Volume mute light
(8) Volume down light On: The volume scroll zone is being used to decrease
(9) Volume up light On: The volume scroll zone is being used to increase
*The 2 wireless lights display the same information. The light on the wireless button is visible only when the computer is open. The wireless light on the front of the computer is visible whether the computer is open or closed.
†The 2 power lights display the same information. The light on the power button is visible only when the computer is open. The power light on the front of the computer is visible whether the computer is open or closed.
Amber: Computer sound is turned off.
On: Computer sound is turned on.
speaker volume.
speaker volume.
12 Chapter 2 External component identification

Pointing devices

Item Component Function
(1) Pointing stick* Moves the pointer and selects or activates items on the
screen.
(2) Left pointing stick button* Functions like the left button on an external mouse.
(3) TouchPad* Moves the pointer and selects or activates items on the
(4) Left TouchPad button* Functions like the left button on an external mouse.
(5) Center TouchPad button* Functions like the center button on an external mouse.
(6) Right TouchPad button* Functions like the right button on an external mouse.
(7) TouchPad scroll zone Scrolls up or down.
(8) Right pointing stick button* Functions like the right button on an external mouse.
(9) Center pointing stick button* Functions like the center button on an external mouse.
*This table describes factory settings. View or change pointing device preferences as follows:
In Windows Vista, select Start > Control Panel > Hardware and Sound > Mouse.
In Windows XP, select Start > Control Panel > Printers and Other Hardware > Mouse.
screen.
Top components 13

Front components

Item Component Function
(1) Wireless light
(2) Power light
(3) Battery light
(4) Drive light
On: An integrated wireless device, such as a WLAN
device and/or a Bluetooth device, is on.
Off: All wireless devices are off.
On: The computer is on.
Blinking: The computer is in the Sleep state
(Windows Vista) or in Standby (Windows XP).
Blinking rapidly: An AC adapter with a higher power
rating should be connected.
Off: The computer is off or in Hibernation.
Amber: A battery is charging.
Green: A battery is close to full charge capacity.
Blinking amber: A battery that is the only available
power source has reached a low battery level. When the battery reaches a critical battery level, the battery light begins blinking rapidly.
Off: If the computer is plugged into an external
power source, the light turns off when all batteries in the computer are fully charged. If the computer is not plugged into an external power source, the light stays off until the battery reaches a low battery level.
Blinking green: The hard drive or optical drive is
being accessed.
(5) Speakers (2) Produce sound.
(6) Display release latch Opens the computer.
(7) Media Card Reader Supports the following optional digital card formats:
14 Chapter 2 External component identification
Amber: HP 3D DriveGuard has temporarily parked
the hard drive.
Secure Digital (SD) Memory Card, Memory Stick Pro, Memory Stick Duo, xD-Picture Card, and MultiMediaCard (MMC).

Left-side components

Item Component Function
(1) Security cable slot Attaches an optional security cable to the computer.
(2) Vent Enables airflow to cool internal components.
(3) Power connector Connects an AC adapter.
(4) HDMI port Connects an optional HDMI device.
NOTE: The security cable is designed to act as a
deterrent, but it may not prevent the computer from being mishandled or stolen.
NOTE: The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.
(5) External monitor port Connects an external VGA monitor or projector.
(6) USB ports (2) Connect optional USB devices.
(7) 1394 port Connects an optional IEEE 1394 or 1394a device, such
(8) Smart card reader Supports smart cards and Java™ cards.
(9) PC Card slot Supports optional Type I or Type II 32–bit (CardBus) or
(10) PC Card eject button Ejects a PC Card from the PC Card slot.
as a camcorder.
16–bit PC Cards.
Left-side components 15

Rear component

Component Function
Vent Enables airflow to cool internal components.

Right-side components

NOTE: The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.
Item Component Function
(1) Audio-out (headphone) jack Produces sound when connected to optional powered
stereo speakers, headphones, ear buds, a headset, or television audio.
(2) Audio-in (microphone) jack Connects an optional computer headset microphone,
stereo array microphone, or monaural microphone.
(3) USB ports (4) Connects up to 4 optional USB devices.
(4) Optical drive Reads an optical disc.
(5) Optical drive button Releases the media tray.
(6) RJ-11 (modem) jack Connects a modem cable.
(7) RJ-45 (network) jack Connects a network cable.
16 Chapter 2 External component identification

Bottom components

Item Component Function
(1) Battery bay Holds the battery.
(2) Battery release latches (2) Release the battery from the battery bay.
(3) Docking connector Connects an optional docking device.
(4) Accessory battery connector (slide open to expose) Connects an optional accessory battery.
(5) Hard drive bay Contains the hard drive and the Bluetooth module.
(6) Vents (3) Enable airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.
(7) Memory module/WLAN module compartment Contains the expansion memory module slot, the WLAN
module slot, and the RTC battery.
CAUTION: To prevent an unresponsive system,
replace the wireless module only with a wireless module authorized for use in the computer by the governmental agency that regulates wireless devices in your country or region. If you replace the module and then receive a warning message, remove the module to restore computer functionality, and then contact technical support through Help and Support.
Bottom components 17

3 Illustrated parts catalog

Serial number location

When ordering parts or requesting information, provide the computer serial number and model number located on the bottom of the computer.
18 Chapter 3 Illustrated parts catalog

Computer major components

Item Description Spare part number
(1) Display assemblies (include 3 WLAN antenna transceivers and cables)
17.0-inch, WUXGA WVA AntiGlare 450582-001
Computer major components 19
Item Description Spare part number
17.0-inch, WSXGA+ WVA AntiGlare 450580-001
17.0-inch, WSXGA+ WVA BrightView 450581-001
17.0-inch, WXGA+ AnitGlare 450583-001
Display internal components (not illustrated):
Ambient light sensor board 450480-001
Display bezel 450500-001
Display inverter 450498-001
Display Bracket Kit (includes left and right display hinges) 450570-001
Display panel cable 450571-001
Wireless Antenna Kit (includes 3 WLAN antenna transceivers and cables) 450475-001
Display enclosure for use with WUXGA display assemblies (includes 3 WLAN antenna
transceivers and cables)
Display enclosure for use with WSXGA+ and WXGA+ display assemblies (includes 3 WLAN
antenna transceivers and cables)
Display Rubber Kit (includes display bezel rubber screw covers) 450573-001
Display Screw Kit 450574-001
(2) Switch cover (includes LED board and cable) 450479-001
(3) Power button board (includes cable) 450481-001
(4) Keyboards with pointing stick (include pointing stick cable)
For use in Belgium 450471-A41
For use in Brazil 450471-201
For use in the Czech Republic 450471-221
For use in Denmark 450471-081
For use in France 450471-051
For use in French Canada 450471-121
For use in Germany 450471-041
For use in Greece 450471-151
456223-001
450572-001
For use in Hungary 450471-211
For use in Iceland 450471-DD1
For use in Israel 450471-BB1
For use in Italy 450471-061
For use in Japan 450471-291
For use in Latin America 450471-161
For use in the Netherlands and Europe 450471-021
For use in Norway 450471-091
