HP C4166B User Manual

Contents

How to
navigate

Index

HP LaserJet MFP Upgrade
Kit for HP LaserJet 8000,
8100, and 8150 Printers
(C4166B)

User Guide

Use of this electronic document indicates that you accept the Copyright and License terms.
Copyright 2000 Hewlett-Packard Company

2

Copyright and License

Copyright Hewlett-Packard Company 2000
All Right Reserved. Except as allowed by

copyright laws or herein, reproduction,
adaptation, or translation without prior written
permission is prohibited.

A user of an HP LaserJet 8000, 8100, or 8150
printer is granted a license to: a) print hard
copies of this Upgrade Kit User Guide for
PERSONAL, INTERNAL or COMPANY use
subject to the restriction not to sell, re-sell or
otherwise distribute the hard copies; and b)
place an electronic copy of this user guide on a
network server provided access to the electronic
copy is limited to PERSONAL, INTERNAL users
of the LaserJet 8000, 8100, or 8150 printer.

First Edition, October 2000

Warranty

The information contained in this document is
subject to change without notice.

Hewlett-Packard makes no warranty of any kind
with respect to this information.
HEWLETT-PACKARD SPECIFICALLY
DISCLAIMS THE IMPLIED WARRANTY OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE.

Hewlett-Packard shall not be liable for any direct,
indirect, incidental, consequential, or other
damage alleged in connection with the furnishing
or use of this information.

Trademark Credits

PostScript is a trademark of Adobe Systems
Incorporated which may be registered in certain
jurisdictions.

Arial, Monotype, and Times New Roman are U.S .
registered trademarks of the Monotype
Corporation.

CompuServe is a U.S. trademark of
CompuServe, Inc.

Helvetica, Palatino, Times, and Times Roman
are trademarks of Linotype AG and/or its
subsidiaries in the U.S. and other countries.

Microsoft, MS Windows, Windows, and Windows
NT are U.S. registered trademarks of Microsoft
Corporation.

TrueType is a U.S. trademark of Apple Computer,
Inc.

E

NERGY STAR

is a U.S. registered service mark

of the U.S. EPA.

3

HP Customer Care

Thank you for your purchase. Along with your product, you receive a variety of
support ser vices from Hewlett-Packard and our support partners. These
services are designed to give you the results you need, quickly and
professionally.

HP LaserJet MFP Upgrade Installation Support

U.S.A. only: 208-323-2551
Outside U.S.A.: Call the desired support ser vice for your country or region as

listed on pages 4

through 11.

4

Online Services:

For 24-hour access to information over your modem, we suggest these
services:

World Wide Web

Printer drivers, updated HP printer software, plus product and suppor t
information may be obtained from the following URLs:

in the U.S. http://www.hp.com
in Europe http://www2.hp.com

Printer drivers may be obtained from the following sites:
in Japan ftp://www.jpn.hp.com/drivers/

in Korea http://www.hp.co.kr
in Taiwan http://www.hp.com.tw
or the local driver website http://www.dds.com.tw

5

Obtaining software utilities and electronic information:

For U.S. and Canada:

Phone:

[phone]

Fax:

[phone]

Mail:

HP Distribution Center
247 30 Ave. R ocke fell er
Valencia, CA 91355
U.S.A.

Continued on next page.

6

For Asia-Pacific countries:

Contact Mentor Media at (65) 740-4477 (Hong Kong, Indonesia, Philippines,
Malaysia, or Singapore). For Korea, call (82) (2) 3270-0805 or
(82) (2) 3270-0893.

For Australia, New Zealand, and India:

For Australia and New Zealand, call (61) (2) 565-6099. For India, call
(91) (11) 682-6035.

For European English:

For U.K., call (44) [phone]. For Ireland and outside U.K., call
(44) [phone].

HP direct ordering for accessories or supplies:

Call 1 [phone] (U.S.) or 1 [phone] (Canada).

7

HP Support Assistant compact disc:

This support tool offers a comprehensive online information system designed
to provide technical and product information on HP products. To subscribe to
this quarterly ser vice in the U.S. or Canada, call 1 [phone]. In Hong
Kong, Indonesia, Malaysia, or Singapore, call Fulfill Plus at (65) 740-4477.

HP Service Information:

To locate HP-Authorized Dealers, call 1 [phone] (U.S.) or
1 [phone] (Canada).

HP Service Agreements:

Call 1 [phone] (U.S.) or 1 [phone] (Canada). For extended
service, call 1 [phone].

8

Customer support options worldwide

Customer Support and Product Repair Assistance for
the U.S. and Canada

Call [phone] Monday through Fr iday from 6 am to 6 pm, (Mountain
Time) free of charge during the warranty period. However, your standard
long-distance phone charges still apply. Have your system nearby and your
serial number ready when calling.

If you know your printer needs repair, call 1 [phone] to locate your
nearest HP-Authorized service provider, or call [phone] for HP
centralized service dispatch.

Post-warranty telephone assistance is available to answer your product
questions. Call [phone] ($2.50* per minute, U.S. only) or call
1 [phone] ($25* per call, Visa or MasterCard, U.S. and Canada)
Monday through Fr iday from 6 am to 6 pm (Mountain Time). Charges begin

only when you connect with a support technician. *Prices subject to change.

9

European Customer Support Center Language and
In-Country Options Available

Open Monday through Fr iday 8:30–18:00 CET
HP provides a free telephone support ser vice during the warranty period. By

calling a telephone number listed below, you will be connected to a responsive
team waiting to help you. If you require support after your warranty has
expired, you can receive support for a fee through the same telephone number.
The fee is charged on a per-incident basis. When calling HP, have the following
information ready: product name and serial number, date of purchase, and
description of the problem.

English Ireland: (353) (1) 662-5525

U.K.: (44) [phone]
International: (44) [phone]

Dutch Belgium: (32) (2) 626-8806

Netherlands: (31) (20) 606-8751

French France: (33) (01) 43-62-3434

Belgium: (32) (2) 626-8807
Switzerland: (41) (84) 880-1111

German Germany: (49) [phone]

Austria: (43) (1) 0660-6386
Norwegian Norway: (47) 2211-6299
Danish Denmark: (45) 3929-4099

Continued on next page.

10

Finnish Finland: (358) (9) 0203-47288
Swedish Sweden: (46) (8) 619-2170
Italian Italy: (39) (2) 264-10350
Spanish Spain: (34) (90) 232-1123
Portuguese Portugal: (351) (1) 441-7199

In-country support numbers

Argentina 787-8080
Australia (61) (3) 272-8000
Brazil 022-829-6612
Canada [phone]
Chile 800-360999
China (86) (10) 65053888-5959
Czech Republic (42) (2) 471-7321
Greece (30) (1) 689-6411
Hong Kong (852) 800-96-7729
Hungary (36) (1) 343-0310
India (91) (11) 682-6035

(91) (11) 682-6069

Continued on next page.

11

Indonesia (62) (21) 350-3408
Korea (82) (2) 3270-0700
Korea outside Seoul (82) [phone]
Japan (81) (3) 3335-8333
Malaysia (60) (3) 295-2566
Mexico (Mexico City) 01 800-22147
Mexico (outside Mexico City) 01 800-90529
New Zealand (64) (9) 356-6640
Philippines (63) (2) 894-1451
Poland (48) (22) 37-5065
Portugal (351) (1) 301-7330
Russia (7) (95) 923-5001
Singapore (65) 272-5300
Taiwan (886) [phone]
Thailand [phone]
Turkey (90) (1) 224-5925

12

Contents

Introduction

Navigation Features . . . . . . . . . . . . 15

Text Conventions . . . . . . . . . . . . . . 16

Additional Features of Acrobat

Reader . . . . . . . . . . . . . . . . . . . . . 17

Tips for Use . . . . . . . . . . . . . . . . . 19

1 HP Digital Copy

Overview. . . . . . . . . . . . . . . . . . . . . . 20

HP Digital Copy Installation . . . . . . . . 21

Installation Checklist . . . . . . . . . . . 21

Step 1. Locate HP Digital Copy

Parts. . . . . . . . . . . . . . . . . . . . . . . 22

Step 2. Prepare Printer and HP Digital

Copy Location . . . . . . . . . . . . . . . . 23

Step 3. Install the HP Digital Copy . 28
Step 4. Test HP Digital Copy

Operation . . . . . . . . . . . . . . . . . . . 40

Troubleshoot the HP Digital Copy . . 42

HP Digital Copy Operating Instructions 43

HP Digital Copy Features and

Benefits. . . . . . . . . . . . . . . . . . . . . 43

HP Digital Copy Control Panel . . . . . . 44

HP Digital Copy Settings . . . . . . . . 59

Loading documents into the Automatic

Document Feeder . . . . . . . . . . . . . 61

Loading documents onto the Flatbed63
Loading documents larger than the

Document Board . . . . . . . . . . . . . . 64

Reading a page from a thick book . 65

Paper Specifications . . . . . . . . . . . 66

Document Quality . . . . . . . . . . . . . 67

HP Digital Copy Maintenance . . . . . . 69

Clean the Document Cover, the
Document Holder, and the

Flatbed Glass . . . . . . . . . . . . . . . . 69

Cleaning the Automatic Document

Feeder . . . . . . . . . . . . . . . . . . . . . 70

Pad and Roller Maintenance . . . . . 72

HP Digital Copy Problem Solving . . . . 73

Temporary Error . . . . . . . . . . . . . . 74

Equipment Error . . . . . . . . . . . . . . 76

Foreign Interface Harness (FIH)

(8150 MFP only) . . . . . . . . . . . . . . . . 78

HP Digital Copy Warranty . . . . . . . . . 81

13

2

HP Digital Sender Module

Overview. . . . . . . . . . . . . . . . . . . . . . 82

A Regulatory Information

Overview. . . . . . . . . . . . . . . . . . . . . . 83

Declaration of Conformity . . . . . . . . 84

FCC Regulations . . . . . . . . . . . . . . 87

Canadian DOC Regulations . . . . . . 88

VCCI Statement (Japan) . . . . . . . . 88

Korean EMI statement . . . . . . . . . . 89

Introduction 14

Introduction

This section explains some of the features of this online user guide as well
as tips and tricks to help you use it to its greatest potential. It provides an
overview of the following information:

! Navigation Features
! Text Conventio ns
! Additional Features of Acrobat Reader
! Tips for Use

Additional features can be accessed through your Acrobat Reader menus and
toolbars.

Introduction 15

Navigation Features

Button Button Name Function

Page Up and Down
Arrows

The Page Up and Down arrows allow you to scroll
page-by-page through the online user guide. The
Page Up arrow allows you to go back one page,
while the Page Down arrow allows you to move
forward one page.

Table of Contents Icon This Table of Contents Icon calls up the table of

contents for the online user guide.

Introduction Icon The Introduction Icon calls up this introduction to

the guide.

Index Icon The Index Icon calls up the online user guide text

index. The inde x entries are link ed to their related
topics.

Introduction 16

Text Conventions

Some text is formatted differently to indicate specific meanings or functions.
Below is a table that defines the different text formats and what they indicate.

Text Format Style Meaning or Function

K

EY CAP

This format is used to represent buttons on the printer, as well as
keys on the computer keyboard.

Hypertext

This format is used to indicate that the text is linked to another
page of the document. Clicking on the underlined text takes you
to that page. Sometimes, a page number and section heading are
included in the blue underlined text, but any text for matted this
way indicates the presence of a link.

DISPLAY PANEL This format is used to indicate text that is displayed on the control

panel.

Input This format indicates that the text is typed by the user at a

command prompt or into a dialog box.

Introduction 17

Additional Features of Acrobat Reader

In addition to the navigation buttons provided on the right side of the page,
Adobe Acrobat Reader has a number of other features that you may find
useful.

Button Button Name Function

Actual Size This button sets the document view to the page’s actual

size.

Fit Page This button changes the document view so the page

fits in the window.

Fit Visible Width This button changes the document view so the visible

content and page width fit in the window.

Pag e O n ly This button displays the page only with no bookmarks

or thumbnails.

Continued on next page.

Introduction 18

Pag e W i th
Bookmarks

This button displays the page and bookmarks to the
different sections of the document in a window to the
left of the screen.

Pag e W i th
Thumbnails

This button displays the page and small images of each
page in a window to the left of the screen.

Back This button allows you to go to the previous link or to

undo your last change.

Find This button calls up the Find dialog.

Zoom This button allows you to change the page size.

Button Button Name Function

Introduction 19

Tips for Use

Use bookmarks to navigate between chapters.
When reading large amounts of text, turn off bookmarks and change the page

view to full screen.
Use the find function under the Tools menu to find specific terms.
To print this document - For best quality and quickest printing, always pr int

using a compatible PostScr ipt Level 2 emulation printer driver.

Chapter 1 HP Digital Copy 20

Overview

1

HP Digital Copy

Overview

The HP Digital Copy provides you with basic copy module features.

Continued on next page.

Chapter 1 HP Digital Copy 21

HP Digital Copy Installation

HP Digital Copy Installation

Installation Checklist

This section will help you install and set up the new HP Digital Copy (Model
C4230A). For proper installation, please complete each section in order.

! Unpack the HP Digital Copy (steps 1-2)
! Install the HP Digital Copy (step 3)
! Test HP Digital Copy operation (step 4)

WARNING! The HP Digital Copy is heavy. Two people should move it.

Chapter 1 HP Digital Copy 22

HP Digital Copy Installation

Step 1. Locate HP Digital Copy Parts

Flatbed

Automatic document
feeder input tray

Automatic document
feeder output bin

Extension

Extension

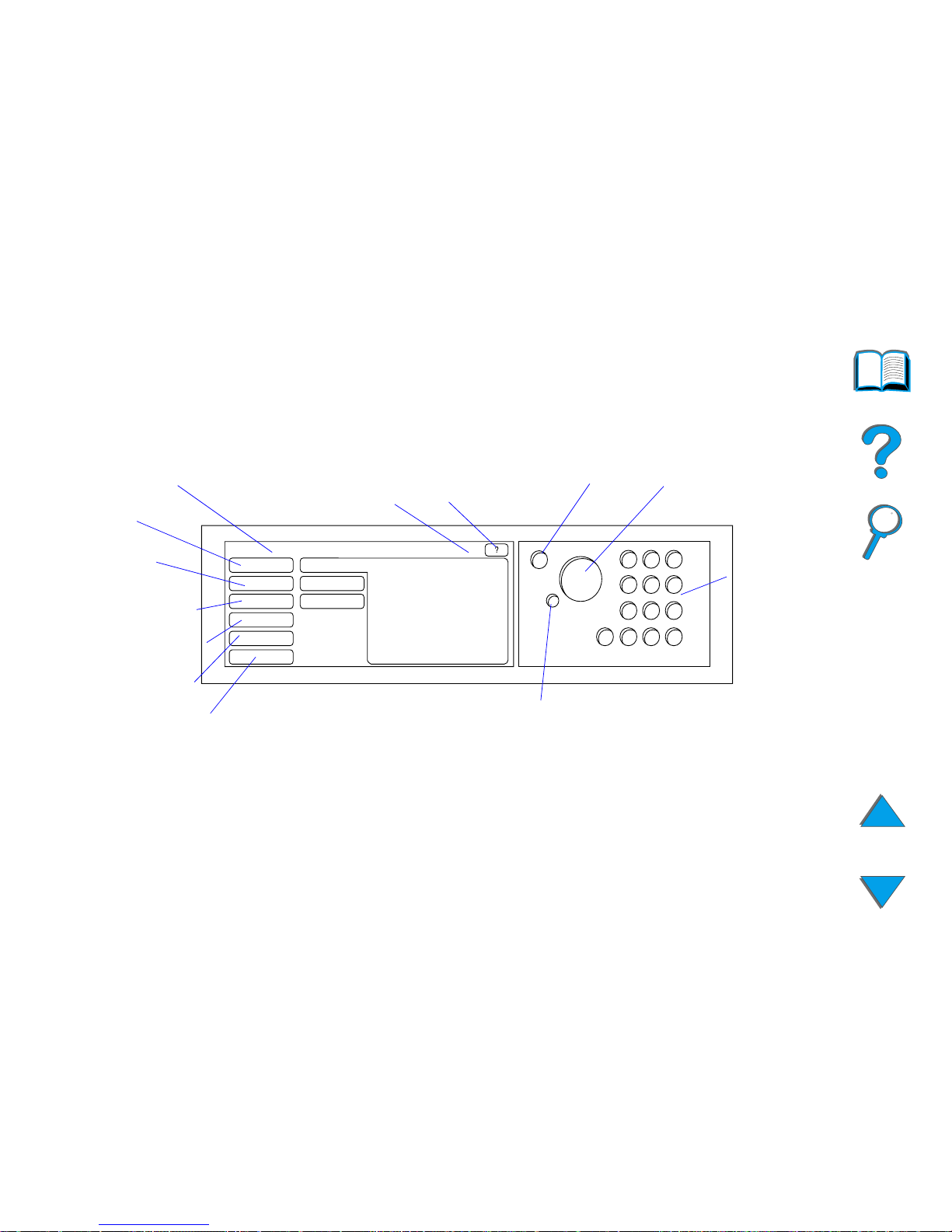

Graphical display
panel

Automatic
document feeder
lever

Control panel

Document cover and
holding pad

Automatic
document feeder

Paper guides

Pow e r switch
(rear)

32 MB memory
DIMM and 2
firmware DIMMS

Control panel
overlays

Installation
guide

Y power cord

HP Digital Sender
Module CD and
HP LaserJet MFP
Upgrade Kit CD

Copy Connect EIO
Board

Hard disk accessory

Copy Connect Cable

Chapter 1 HP Digital Copy 23

HP Digital Copy Installation

Step 2. Prepare Printer and HP Digital Copy Location

View with HP Digital
Copy on tabletop

Chapter 1 HP Digital Copy 24

HP Digital Copy Installation

35 in. (889 mm)

73 in. (1854 mm)

14.5 in.
(368 mm)

11 in.
(279 mm)

43 in. (1092 mm)

64 in. (1626 mm)

33 in. (838 mm)

19.5 in.
(495 mm)

Top and Side
Views (shown with
optional
accessories)

Chapter 1 HP Digital Copy 25

HP Digital Copy Installation

Location requirements for the HP Digital Copy

! A sturdy, level surface for placement of the printer and HP Digital Copy.
! Space allowance (see the graphic on page 24

) around the printer and

HP Digital Copy.

! A well-ventilated room.
! Relative humidity: 20% to 80%.
! Room temperature: 50° to 91° F (10° to 32.5° C).
! A stable environment with no abrupt temperature or humidity changes.
! No exposure to chemicals or direct sunlight.
! One dedicated 15 amp power outlet.

Note Be sure to leave enough space to completely extend the optional output

accessory away from the printer.

Chapter 1 HP Digital Copy 26

HP Digital Copy Installation

Installation Specifications

Item Specification

Dimensions
(mm)

Width:
43 in.

(1092 mm)

Depth:
26 in.

(660 mm)

Height:
22 in.

(559 mm)

Weight 49 lb. (22 kg)
Input power Voltage 100 to 127 Vac,

200 to 240 Vac

+10%/-10%
Phases Single Phase
Frequency 50 Hz or 60 Hz

+2%/4%

Power
consumption

100 Watts or

less

Chapter 1 HP Digital Copy 27

HP Digital Copy Installation

Environmental
condition

Device status Operating Not Operating
Temperature 50° F to 91° F

(10° C to

32.5° C)

-4° F to 122° F
(-20° C to
50° C)

Humidity 20% to 80% RH

(no

condensation)

15% to 90% RH
(no
condensation)

Item Specification

Chapter 1 HP Digital Copy 28

HP Digital Copy Installation

Step 3. Install the HP Digital Copy

Install the HP Digital Copy on the
Optional HP Digital Copy Stand

For detailed instructions on setting up the
HP Digital Copy Stand, see the installation
guide that came with the stand.

1 Place the HP Digital Copy Stand near the

desired location.

NOTE

Be sure to leave space for the installation of the
accessories. See the graphic on page 24

for
dimensions.
It is also important to leave space between the
stand and the desired location to allow access
to the cables during installation.
To use the HP Digital Copy Stand, you must
have installed a 2000-sheet Input Tray or a
2 x 500-sheet Input Tray.

Continued on next page.

1

Chapter 1 HP Digital Copy 29

HP Digital Copy Installation

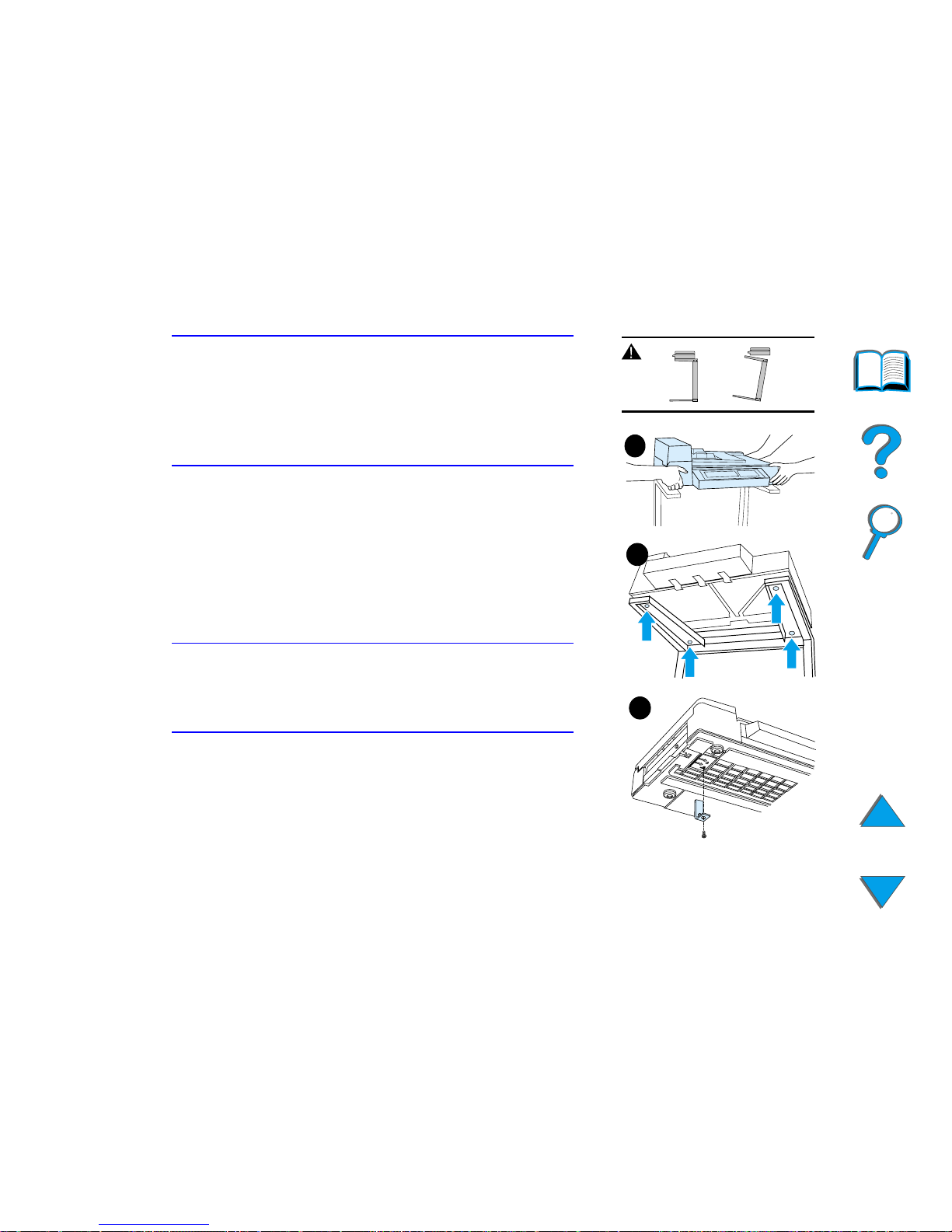

WARNING!

Use caution when completing the following steps.
Once you place the HP Digital Copy on the stand,
bumping or moving may cause it to tip. The printer
must be moved into position immediately after
installation of the HP Digital Copy is complete.

2 With one other person, lift the HP Digital Copy

and align it with the screws on the HP Digital
Copy Stand.

3 With a flathead screwdriver, screw the HP Digital

Copy onto the stand.

CAUTION

Operating the HP Digital Copy with the shipping lock
in place might damage the device.
It is important that you perform steps 4 and 5.

4 Unscrew and remove the shipping lock.

Continued on next page.

3

2

4

Chapter 1 HP Digital Copy 30

HP Digital Copy Installation

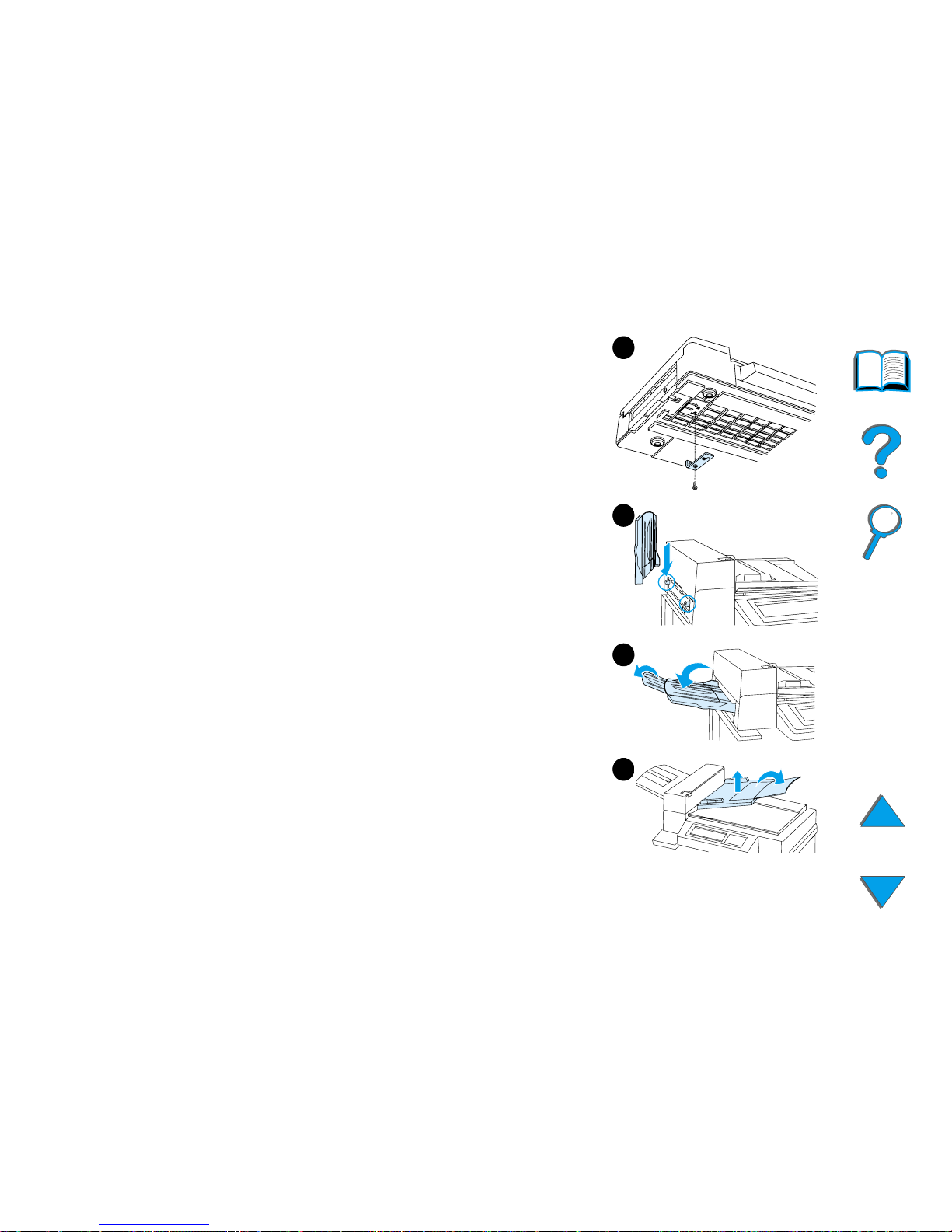

5 Rotate the shipping lock and reinsert it into the

HP Digital Copy in the unlocked position (this
shipping lock is necessary for future moves).

6 To install the output bin, hold the bin vertically

(as shown) and push down to attach the bin to
the metal guides.

7 Pull the output bin down. For longer paper, flip

the bin extension out as shown.

8 Lift the input tray up to lock it into place. For

longer paper, flip the tray extension out as
shown.

7

8

6

5

Chapter 1 HP Digital Copy 31

HP Digital Copy Installation

Install the Printer on the Optional
Input Accessory

For detailed instructions on installing the printer
onto the optional input accessory, see the
installation guide that comes with the accessor y.

1 Roll the Printer onto the Optional HP Digital

Copy Stand (gently rock the printer back and
forth as you push it onto the stand).

2 When the printer is in place, lock the wheels

and rotate the levelers up or down to stabilize
the printer.

1

2

rear
view

front view

Chapter 1 HP Digital Copy 32

HP Digital Copy Installation

Install the Optional Output Accessory

Note For detailed information on installing the optional output accessor y, see

the installation guide that came with the accessory.

1 Roll the optional output accessory onto the HP Digital Copy Stand.

Note Be sure to properly align the mounting bracket as you roll the optional

output accessory onto the HP Digital Copy Stand.

2 After the front two rollers are on the base of the HP Digital Copy Stand,

attach the mounting bracket.

Continued on next page.

Chapter 1 HP Digital Copy 33

HP Digital Copy Installation

3 Roll the optional output accessory toward the printer until it clicks into

place.

Note When locating the stand, be sure to leave enough space to completely

extend the optional output accessory away from the printer. (See page 24
for dimensions.)

mounting bracket

Chapter 1 HP Digital Copy 34

HP Digital Copy Installation

Install the Copy Connect EIO Board

CAUTION Make sure that the pr inter is turned off.

Insert the Copy Connect EIO Board that came with the HP Digital Copy into an
open EIO slot on the printer. (Use the screws that are in the existing EIO cover
to install the Copy Connect EIO Board.)

Note If a cover is on the open slot, use a screwdriver to remove the two

screws. Remove the cover and install the Copy Connect EIO Board.

Continued on next page.

Chapter 1 HP Digital Copy 35

HP Digital Copy Installation

Chapter 1 HP Digital Copy 36

HP Digital Copy Installation

Install the Copy Connect Cable

1 Plug the Copy Connect cable into the HP Digital Copy (A).

Note The icon on the cable should be facing up.

2 Plug the other end of the Copy Connect cable into the Copy Connect EIO

Board (B). (The HP logo facing as shown.)

3 If you have a copy stand, wrap the excess cable as shown in the graphic on

the next page (C).

Continued on next page.

View with HP Digital
Copy on tabletop

A

B

Chapter 1 HP Digital Copy 37

HP Digital Copy Installation

View with HP Digital Copy Stand
(shown with optional accessories)

C

A

B

Chapter 1 HP Digital Copy 38

HP Digital Copy Installation

Install the Y Power Cord

CAUTION

Turn off the printer and make sure the HP Digital
Copy power switch is in the off position before
you install the Y power cord.

1 Plug the main end of the Y power cord into

the HP Digital Copy.

2 Unplug the power cord from the printer.

Plug the power cord into the shor t end of
the Y power cord.

3 Plug the long end of the Y power cord into

the pr inter.

1

2

3

long

short

main

Chapter 1 HP Digital Copy 39

HP Digital Copy Installation

Install the Control Panel Overlay

1 Choose the control panel overlay printed with

your language.

2 Press the overlay in place on the

HP Digital Copy control panel until it clicks.

3 To remove the control panel overlay, insert a

screwdriver into the slot on the left side of the
overl ay.

Note

The language that appears on the HP Digital
Copy displa y is customiz ed through the language
selected on the printer. If the printer language is
set to a language other than those offered by the
HP Digital Copy, then the HP Digital Copy will
default to English.

1

2

3

Chapter 1 HP Digital Copy 40

HP Digital Copy Installation

Step 4. Test HP Digital Copy Operation

1 Turn on the printer. When READY displays, turn on the HP Digital Copy.
2 The HP Digital Copy displays the HP logo followed by icons that illustrate

the different initialization phases.

3 The HP Digital Copy displays READY TO COPY when it has finished

initialization.

Continued on next page.

Perfor ming
self tests

Attempting
to make
copy

Downloading
copy
resources

Initializing
copy module

Chapter 1 HP Digital Copy 41

HP Digital Copy Installation

Note The green LED lights up on the S

TART

button to show that the

HP Digital Copy is ready to copy (see page 56

). If there is a problem
getting to the READY TO COPY state with the HP Digital Copy, see page 42
or call your service provider.

4 Load the original document face down into the automatic document fe eder

or place it on the flatbed of the HP Digital Copy (see pages 61

and 63), and
select the desired number of copies. A green LED lights up on the
automatic document feeder cover to show that you have properly inserted
the documents into the feeder.

5 Press the S

TART

button on the display panel to start copying.

Note The original document will come out in the HP Digital Copy output bin

when using the automatic document feeder or will remain on the flatbed
of the HP Digital Copy. Output copies will be printed on the pr inter and
will be located in the printer output bin.

Chapter 1 HP Digital Copy 42

HP Digital Copy Installation

Troubleshoot the HP Digital Copy

Note For detailed information on troubleshooting, see HP Digital Copy Problem

Solving on page 73.

Problem Recommended Action

No power Check that all power cords are connected correctly.

Failed initialization
or
No copy

Check that the printer is turned on.
Check that the Copy Connect EIO Board is installed

correctly.
Check that the Copy Connect EIO cable is connected

correctly.

Chapter 1 HP Digital Copy 43

HP Digital Copy Operating Instructions

HP Digital Copy Operating Instructions

This section shows you how to use the HP Digital Copy and many of its
advanced features.

HP Digital Copy Features and Benefits

! Auto/Photo/Text modes
! Job Interrupt (at copy boundaries)
! N-up layout (printing multiple pages per sheet)
! Operator attendance animations (for example, paper jam recovery)
! Auto-configure to printer settings
! Copy books
! Custom stapling
! Pow e r Save
! One pass duplex scanning

Chapter 1 HP Digital Copy 44

HP Digital Copy Control Panel

HP Digital Copy Control Panel

Control Panel Layout and Display Settings

Reset

Stop

StartContext-sensitive

Help

Number of
Copies

Device Status
Message

Paper
Reduce/

Enlarge
2-sided/N-up
Output/Staple
Copy Quality

Numerical
Keypad

1

More Features

Chapter 1 HP Digital Copy 45

HP Digital Copy Control Panel

Status Bar

The Status Bar displays the current:

! device status message
! number of copies selected
! context-sensitive help button

device status message The READY TO COPY, COPYING, or ACCEPTING COPY JOBS message

is displayed. ACCEPTING COPY JOBS indicates that the printer
is busy. You can configure the next copy job when the printer
is busy.

number of copies
selected

The current number of copies selected for the copy job is
displayed. This setting defaults to 1.

context-sensitive help
butt on

This button remains present on the control panel display
unless an error is displayed. When selected, a help topic
related to the current control panel message appears.

Chapter 1 HP Digital Copy 46

HP Digital Copy Control Panel

Menu Tabs

Menu Tabs allow access to any of the HP Digital Copy settings. Each tab shows related
job settings. Select OK or Exit to make changes as you move from tab to tab. Press OK
to exit the menu tabs and start a copy job. Press Exit to return to the default display tab.
You can also select Start to begin a copy job before exiting the menu tabs.

Menu tabs

! paper tab
! reduce/enlarge tab
! 2-sided/N-up tab
! output/staple tab
! copy quality tab
! book copy tab
! job binding tab
! configuration tab
! about tab

Chapter 1 HP Digital Copy 47

HP Digital Copy Control Panel

paper tab Allows you to choose output paper for the copy job based

on size, tray, or type.

! Size - Shows the current size selected. When a selection

is made, the Tray list will update automatically.

! Tray - Shows the current tray selected. If the selected

paper size is currently installed in multiple trays, the Tray
selection text will highlight AUTOMATIC. This indicates that
the printer will make the tray selection based on its
auto-selection criteria. If the selected paper size is
located in only one tray, the location will be shown by the
list text. When a selection is made, the Size and Type will
update automatically.

Note

If you choose a paper type that is not already loaded in the
printer, the printer will prompt you to load Tray 1 with the
correct paper before the job is printed.

Menu Tabs (continued)

Chapter 1 HP Digital Copy 48

HP Digital Copy Control Panel

reduce/enlarge tab Allows you to enlarge or shrink the size of the document.

Allows you to choose the paper size for your original
document and specify a different size for the copy. For
example, copying from A4 to letter. You may also specify the
output paper size and then choose a scaling percent to
reduce or enlarge a region of the source document. You
may choose to copy a full-bleed page onto the printable
region of the output paper.

You are presented with the following controls for selecting
the desired paper scaling percent:

! Reduce/Enlarge - Shows input-to-output paper sizes.

When a size is selected, the proper scaling percent for
the currently selected input and output paper sizes is
displayed.

! Percent - Shows the current page scaling percent.

Menu Tabs (continued)

Chapter 1 HP Digital Copy 49

HP Digital Copy Control Panel

reduce/enlarge tab
(continued)

! Custom Media Reduction - This setting allows you to

switch between the standard/enlargement settings and
the custom mode. This allows you to choose your original
and copy document sizes independently.

When the Custom Media Reduction box is checked, you
can select a paper size under the Original list for your
original document and then select the paper size in the
Copy list for the size you want to copy. The percent text
box automatically calculates page scaling percent.

When the Custom Media Reduction box is unchecked,
you may select from a list of standard reduction or
enlargement settings, such as Letter (LTR) to Legal
(LGL). Also, you may select the Manual setting in order to
adjust the scaling percent by hand. When Manual is
selected you may increase or decrease the scaling
percent by one percent increments. You may reduce a
document by up to 25 percent or enlarge a document by
up to 200 percent. When you have chosen Manual, you
may also choose the size of your or iginal document. The
copier will reduce that document by the percent you have
selected.

Menu Tabs (continued)

Chapter 1 HP Digital Copy 50

HP Digital Copy Control Panel

reduce/enlarge tab
(continued)

! Shrink Page to Printable Region - This setting allows you

to adjust the page scaling percent. This allows you to
copy a full-bleed page onto the printable region of the
currently selected output paper size. There are limits to
how far out to the edge of the page the printer can print.
If you are copying a page that has printing all the way out
to the edges (full bleed), then checking this box will
cause the image to be reduced slightly so that the entire
edge-to-edge image may print within the printable region
of the output paper.

Menu Tabs (continued)

Chapter 1 HP Digital Copy 51

HP Digital Copy Control Panel

2-sided/N-up tab This tab has four controls for setting up the options and a

preview image that graphically illustrates the current
settings.

! 2-sided Copying - Shows the currently selected 2-sided

mode. Choose the two-sided mode you need. The
preview image will update to display your choice.

! Flip Pages Up - This setting is active if the you choose to

copy onto both sides of the output paper. By default, the
pages of the two-sided binding are flipped to the left, like
a book, when viewed from the backside of the job. When
this setting is checked, the pages are bound, appearing
flipped up when viewed from the backside of the job. The
preview image will update to display your choice.

! N-up Copying - Shows the currently selected number of

input pages to be printed on each outp ut page. Choose
the number of input pages needed to print on each output
page. The preview image will update to display your
choice.

! Print Page Border s - This setting is active when you select

two or more pages for each sheet. When checked, page
borders will print around each page image on the output
page. The preview image will update to display your
choice.

Menu Tabs (continued)

Chapter 1 HP Digital Copy 52

HP Digital Copy Control Panel

output/staple tab You can configure the output and stapling options using the

two main controls on this tab.

! Output Bin - Shows the currently selected output bin.

Choose which bin the copy job will be delivered to. If the
output bin is set to the stapling bin and a stapling option
is selected, then changing the output bin to another
location will turn off the stapling option.

! Stapling - Allows you to choose stapling options. The

number of options displayed will depend on the stapling
device installed. If you select an option to have the output
stapled, then the Output Bin setting will change to display
that stapling can only take place in the staple bin.

copy quality tab ! Copy Mode - You may change the copy quality settings

from this tab. There are three settings to choose from in
Copy Mode:

Auto - This is the default mode.
Photo - This mode is optimized for photo clarity.
Text - This mode is optimized for text sharpness.

! Brightness - You may change the brightness setting from

this tab. Press the left or right arrow to increase or
decrease the brightness level as indicated by the slider.
There are five settings for brightness.

Menu Tabs (continued)

Chapter 1 HP Digital Copy 53

HP Digital Copy Control Panel

book copy tab Allows you to make a copy of an open book with a single

page of output for each page of the book. Align the spine of
the book with the book markings on the flatbed paper
guides.

! Follow the prompts provided on the control panel when

using this mode.

! You can copy multiple pages from a book and bind them

together as one job. See the job binding tab description
for more information.

job binding tab Takes multiple copies from the flatbed and binds them

together as one job. All other copy settings, such as
stapling and number of copies, will be applied to the bound
job.

! Follow the prompts provided on the control panel when

using this mode.

configuration tab Provides configuration settings for the HP Digital Copy.

For example:

! Allows you to turn on or off the audible key feedback.
! Allows you to adjust the control panel display contrast.

Menu Tabs (continued)

Chapter 1 HP Digital Copy 54

HP Digital Copy Control Panel

about tab Used to find available help topics.

Displays:

! system version information
! current page counts for the flatbed and automatic

document feeder

! number of pages until the next required service

Context-sensitive Help

Press the to enter the HP Digital Copy help system. Follow the prompts provided in
the help system to find quick descriptions of HP Digital Copy features and functions.

Menu Tabs (continued)

Chapter 1 HP Digital Copy 55

HP Digital Copy Control Panel

Default Configurations

If the HP Digital Copy is idle and unattended for one minute, the HP Digital Copy
settings will return to the default configuration. Press the Reset key on the control panel
to return all of the HP Digital Copy settings to the default configuration.

The setting changes that you make will remain for one minute before they reset to a
default setting. For example, if you walk up to the HP Digital Copy and press the 5 key,
the number of copies selected will be set to five. If you do not make any other setting
changes and do not initiate a job by pressing the Start key within one minute, then the
number of copies selected will automatically return to one.

After a copy job is completed, the current settings will not change until after another
minute expires. This makes it possible to set up the HP Digital Copy settings in a
particular manner only once for a number of jobs.

Note:

The post-job timeout period will be shor ter than the idle timeout period.

Chapter 1 HP Digital Copy 56

HP Digital Copy Control Panel

Button/LED Functions

Continued on next page.

Paper Sensor LED

STOP

RESET

START

Start Button LED

Keys 0-9

C

Chapter 1 HP Digital Copy 57

HP Digital Copy Control Panel

Name of the
button and LED Function

Button 0-9 Use to enter the number of copies you desire.

May also be used periodically to enter a
numerical value.

RESET Resets all of the copier settings to the default

val u es.

START Begins a copy job or continues a copy job that

has been interrupted because of an error.

STOP Stops a copy job.
C Clears the number of copies setting. (Does not

clear the other copy module settings.)

LED Paper Sensor

LED

Illuminates when paper is aligned correctly in the

automatic document feeder.
Start Button

LED

See Start Button LED

on page 58 for a detailed

description of this LED.

Chapter 1 HP Digital Copy 58

HP Digital Copy Control Panel

Start Button LED

Note When the copy module is in Power Save mode, the back light of the

display panel will be turned off and the Start LED (green) will flash at a
slow rate to indicate that the system is turned on. To bring the system out
of Power Save mode, place paper in the automatic document feeder,
press any key on the numerical keypad, or touch the touchscreen.

LED\State On Flashing Slow Flashing Fast

Green The copy module is

ready to make copies.

The copy module is in
Pow e r S a v e m o d e .

The copy module is
making copies.

Amber The copy module has a

critical error. Turn the
printer and copy
module off, and then
turn the printer and
copy module on.

The copy module has an
error and requires
attention.

The copy module
has an error that
requires attention
from your service
provider.

Chapter 1 HP Digital Copy 59

HP Digital Copy Control Panel

HP Digital Copy Settings

Feature Description Default

Number of copies 1 to 999 1
Paper Source Select Selection of paper tray

Selection by paper size

Auto-select (any tray)
Letter/A4
Plain

Collation Collated

Grouped (uncollated)
Stapled
Select output bin

Collated

Reduce/Enlarge 25% to 200% in 1% increments

Support standard presets, such as
Legal to Letter.

100%

Continued on next page.

Chapter 1 HP Digital Copy 60

HP Digital Copy Control Panel

Copy quality auto, text, photo auto
Duplex 1-1, 1-2, 2-1, 2-2

If the printer does not have a
duplexer installed, then 1-2 and 2-2
are not available.

1-1

N-up 1-up, 2-up, 4-up

2-up documents will be rotated.

1-up

Book copy Copies an open book with a single

page of output for each page of the
book.

Not selected

Brightness 5 levels (2 lighter, normal, 2 darker) Normal

Feature Description Default

Chapter 1 HP Digital Copy 61

HP Digital Copy Control Panel

Loading documents into the Automatic Document Feeder

1 Pull up on the automatic document feeder

input tray (A) and place the bar (B) in
operating position.

2 Square up and insert paper face down into

the input tray. Only load paper up to the line
indicator on the paper guide.

Note

The system will exit Power Save when you place
the document into the automatic document
fee der.
The LED will light up when paper is loaded
correctly.
Remove paper clips and staples. Flatten the
staple holes.

3 If the document size exceeds A4 or Letter

size, extend the input tray and output bin by
flipping out the extensions.

Continued on next page.

1

B

A

2

3

Chapter 1 HP Digital Copy 62

HP Digital Copy Control Panel

4 Set the guides so that there is a little amount

of clearance between the side edges and the
guides. Adjust the guides to the document
size.

Note

Squeeze the guide lever to free the guides.
Load documents so that the thickness is less
than 0.32 inches (8 mm).
Set the guides so that they touch the document
sides.

5 After a document is copied, remove the

original from the HP Digital Copy and the
copy from the printer output bin.

4

5

Chapter 1 HP Digital Copy 63

HP Digital Copy Control Panel

Loading documents onto the Flatbed

1 Open the document cover.
2 Place the document face down and align the

top left with the reference mark. Slowly close
the document cover and press S

TART

.

1

2

Chapter 1 HP Digital Copy 64

HP Digital Copy Control Panel

Loading documents larger than the Document Board

1 Open the document cover about 80°.

Remove the cover by unscrewing the thumb
screw (bottom arrow) and then sliding the
cover in the direction of the top arrow.

2 Place the document face down on the

document bed and press S

TART

.

When the job is complete, remove the
document. Reattach the document cover
and close.

2

1

Chapter 1 HP Digital Copy 65

HP Digital Copy Control Panel

Reading a page from a thick book

1 Open the document cover.
2 Place the book face down on the document bed

and press S

TART

.

Note

Do not move the book during job operation.

For advanced book copy features, see page 53

.

1

2

Chapter 1 HP Digital Copy 66

HP Digital Copy Control Panel

Paper Specifications

Supported Sizes

! Ledger - 11 x 17 in. (279 x 432 mm)
! Executive - 7.3 x 10.5 in. (191 x 267 mm)
! Letter - 8.5 x 11 in. (216 x 279 mm)
! Legal - 8.5 x 14 in. (216 x 356 mm)
! A3 - 11.7 x 16.5 in. (297 x 419 mm)
! A4 - 8.3 x 11.7 in. (210 x 297 mm)
! A5 - 5.8 x 8.2 in. (148 x 210 mm)
! B4 (JIS) - 10.1 x 14.3 in. (257 x 364 mm)
! B5 (JIS) - 7 x 9.9 in. (176 x 250 mm)

Note The automatic document feeder holds up to 50 sheets of paper.

Chapter 1 HP Digital Copy 67

HP Digital Copy Control Panel

Document Quality

Do not load the following into the Automatic
Document Feeder

! Carbonless paper
! Carbonless forms
! Paper with clips or staples
! Paper that has been clipped or stapled
! Paper with wet ink
! Labels

Precautions

The following documents might be hard to feed through the automatic
document feeder. If the document slips in the automatic document feeder
(Jam Error) or a double feed occurs often, use the HP Digital Copy flatbed.

! Paper of unequal thickness, such as envelopes
! Paper with large wrinkles or curl
! Color copied paper

Continued on next page.

Chapter 1 HP Digital Copy 68

HP Digital Copy Control Panel

! Paper with folds or tears
! Tracing paper
! Coated paper
! Carbon paper
! Paper smaller than 6 x 4 in. (148 x 105 mm)

or larger than A3 or Double Letter

! Other than paper

" cloth
" metal foil

" transparency film
! Photographic paper
! Paper with notches on the side
! Paper that is not rectangular
! Thin paper

Chapter 1 HP Digital Copy 69

HP Digital Copy Maintenance

HP Digital Copy Maintenance

Clean the Document Cover, the Document Holder, and
the Flatbed Glass

Use a dry cloth or a cloth with a neutral cleanser or isopropyl alcohol to
remove dirt from the document cover, document holder, and flatbed glass.

CAUTION Do not use organic solvents such as a thinner.

Make sure that no liquid enters the scanner from the edges of the flatbed
glass.

Document Cover

Flatbed GlassDocument Holder

Chapter 1 HP Digital Copy 70

HP Digital Copy Maintenance

Cleaning the Automatic Document Feeder

Continued on next page.

Pad

Idler Roller

Automatic Document
Fee de r Gl a ss

Pap e r Gu i d e

Pick Roller

Exit Roller

Fee d R o l le r

Chapter 1 HP Digital Copy 71

HP Digital Copy Maintenance

Note If the HP Digital Copy is experiencing chronic misfeeds, then contact your

service provider to have it cleaned.

Pad Use a cloth with isopropyl alcohol to wipe the pad in a downward

direction. Be careful not to hook the springs when wiping. A dirty
pad can cause double feeds.

Automatic
Document Feeder
Glass

Wipe the glass lightly with a cloth and isopropyl alcohol to remove
any paper dust or toner. Dirty glass can cause vertical streaking
when using the automatic document feeder.

Pick Roller Use a cloth with isopropyl alcohol to wipe the roller in a horizontal

direction. Be careful not to damage the surface of the roller. A
dirty pick roller can cause misfeeds, paper slipage, and jams.

Feed, Exit, and
Idler Rollers

Use a cloth with isopropyl alcohol to wipe the rollers in a
horizontal direction. Make sure to remove any built-up toner or
ink. Be sure the rollers are dry before using the automatic
document feeder. Dir ty rollers can cause paper jams.

Pap er G ui d e Gently wipe the paper guide area. A dirty or worn paper guide can

cause vertical streaking.

Chapter 1 HP Digital Copy 72

HP Digital Copy Maintenance

Pad and Roller Maintenance

Cleaning of the pad and rollers is recommended every 6,000 pages.
Every 60,000 pages the pad and pick roller need to be replaced.
Print a configuration page for page count information since the last

maintenance. To print a configuration page, turn the printer on and be sure
READY is displayed. Press M

ENU

until INFORMATION MENU displays. Press I

TEM

until PRINT CONFIGURATION displays. Press S

ELECT

to print the configuration

pages.
Call your service provider to perform this service.

Chapter 1 HP Digital Copy 73

HP Digital Copy Problem Solving

HP Digital Copy Problem Solving

This section shows status messages that display on the HP Digital Copy
control panel when there is a problem with the HP Digital Copy. There are
two different types of errors made by the HP Digital Copy:

! Temporary Error
! Equipment Error

For printer error messages and problem solving info rmation, see the printer
user guide.

All error conditions will fill up the entire HP Digital Copy control panel display.

WARNING! Make sure the power is off and the main power to the system has been

disconnected before servicing.

Chapter 1 HP Digital Copy 74

HP Digital Copy Problem Solving

Temporary Error

A Temporary Error displays when problems with the paper path occur. The
control panel will display the specific error and graphically illustra te the actions
needed to correct the error.

Continued on next page.

Aut omatic
Document Feeder

Chapter 1 HP Digital Copy 75

HP Digital Copy Problem Solving

Error Message Description

ADF PAPER JAM A page has jammed inside of the automatic document feeder and

must be cleared for copying to continue.

ADF COVER IS OPEN The automatic document feeder cover is open and must be closed

for copying to continue.

ADF MISFEED A misfeed occurred from the automatic document feeder input

tray. Restack the pages in the automatic document feeder input
tray. Press S

TART

to continue the copy job.

Chapter 1 HP Digital Copy 76

HP Digital Copy Problem Solving

Equipment Error

To correct an equipment error, turn the printer and HP Digital Copy off and
then turn the prin ter and HP Digital Copy on. If the error message persists,
then call your service provider.

Continued on next page.

Chapter 1 HP Digital Copy 77

HP Digital Copy Problem Solving

Error Message Description

Device Error:
Backside RAM Buffer
Failure

An error occurred while accessing the backside RAM
buffer. This error might require service to correct.

Device Error:
Motor Fuse Failure

The motor has a blown fuse. This error might require
service to correct.

Device Error:
Lamp Fuse Failure

The lamp has a blown fuse. This error might require
service to correct.

Device Error:
Backside Optical Failure

A problem occurred with the backside optical system.
This error might require service to correct.

Device Error:
Frontside Optical Error

A problem occurred with the frontside optical system.

Device Error:
Mechanical Failure

A mechanical problem occurred. Check to make sure
that the shipping lock has been removed and reinserted
properly.

Chapter 1 HP Digital Copy 78

Foreign Interface Harness (FIH) (8150 MFP only)

Foreign Interface Harness (FIH)
(8150 MFP only)

This feature allows you to use a job accounting device to monitor the number
of copies sent through the HP Digital Copy. This feature is only available for
the HP LaserJet 8150 printer.

Note The number of printed pages from the printer are not counted using the

Foreign Interface Harness (FIH). Only the number of copied pages from
the HP Digital Copy are counted.

To enable this feature, you must first contact the specific job accounting device
vendor to obtain the job accounting hardware controller (if necessary) and
cable. Once the hardware controller and cable are present, perform the
following steps:

1 Plug the Foreign Interface Harness cable into the printer connection

labeled AUX. (The printer can be on or off.)

Continued on next page.

Chapter 1 HP Digital Copy 79

Foreign Interface Harness (FIH) (8150 MFP only)

2 There are two options for configuring and activating the Foreign Interface

Harness.

" Access and run the fih.exe file from the following Web site:

http://www.hp.com/go/8150mfp_fih

Note Hewlett-Packard highly recommends that you choose the above option.

This option provides the most up-to-date installation and configuration
fea tures.

OR

" Access and run the fih.exe file on the HP LaserJet MFP Upgrade Kit CD

that you received with the HP Digital Copy.

Continued on next page.

Chapter 1 HP Digital Copy 80

Foreign Interface Harness (FIH) (8150 MFP only)

3 To activate the job accounting device:

The message Copier Disabled. Please check the External Copy

Device. appears on the HP Digital Copy display panel until you activate

the job accounting device. (See the user guide that came with the job

accounting device for activation instructions.)

Copy jobs will not be able to print unless one of the following occurs:

" The job accounting device is activated.

" The feature is turned off using the PJL command (via accessing and

executing the fih.exe file mentioned in step 2).

" C

ANCEL JOB

is selected from the copier or printer control panel.

Note If Copying Interrupted...Please check the External Copy Device

appears on the HP Digital Copy display panel, print and copy jobs are
held up. Follow step 3 to clear the message.

4 Copy documents. (See page 43

for copying information.)

If the HP Digital Copy is not copying documents, make sure that the Foreign

Interface Harness cable is attached properly to the AUX connection. If the

problem persists, make sure that the printer processed the PJL command

properly (via accessing and executing the fih.exe file mentioned in step 2)

or see the user guide that came with the job accounting device.

Chapter 1 HP Digital Copy 81

HP Digital Copy Warranty

HP Digital Copy Warranty

For warranty information, see the user guide supplied with your specific
HP LaserJet printer.

Chapter 2 HP Digital Sender Module 82

Overview

2

HP Digital Sender Module

Overview

The HP Digital Sender Module includes the HP Digital Copy and a
Windows NT® server or workstation that is running the HP Digital Sender
Module Service. The HP Digital Sender Module converts black-and-white
documents, drawings, and photographs into electronic form and distributes
them directly to Internet e-mail addresses.

A companion program called the HP Address Book Manager (ABM) combines
e-mail addresses into distribution lists. The system administrator can create
destinations and e-mail distribution lists and make them available to users.

For more information on the HP Digital Sender Module, see the documentation
included with the software CD that came with this kit.

Appendix A Regulatory Information 83

Overview

A

Regulatory Information

Overview

! Declaration of Conformity
! FCC Regulations
! Canadian DOC Regulations
! VCCI Statement (Japan)
! Korean EMI statement

Appendix A Regulatory Information 84

Overview

Declaration of Conformity

according to ISO/IEC Guide 22 and EN 45014

Manufacturer's Name: Hewlett-Packard Company

Manufacturer's Address: 11311 Chinden Boulevard

Boise, Idaho 83714-1021, USA

declares, that the product

Product Name: HP Digital Copier

Model Number: C4230A

Product Options: ALL

conforms to the following Product Specifications:

Safety: IEC 950:1991+A1+A2+A3+A4/ EN 60950:1992+A1+A2+A3+A4

Appendix A Regulatory Information 85

Overview

IEC 825-1:1993/EN 60825-1:1994 Class 1 (Laser/LED)

EMC: CISPR 22:1993 / EN 55022:1994 Class A

1

)

EN 50081-1:1992

EN 50082-1:1992

IEC 801-2:1991 / prEN 55024-2:1992 -3 kV CD, 8 kV AD

IEC 801-3:1984 / prEN 55024-3:1991 - 3 V/m

IEC 801-4:1988 / prEN 55024-4:1992 - 1.0 kV Power Lines

0.5 kV Signal Lines

FCC Title 47 CFR, Part 15 Class A

2

/ ICES-002, Issue 2

AS / NZS 3548:1995

Supplementary Information:

The product herewith complies with the requirements of the EMC Directive 89/336/EEC
and the Low Voltage Directive 73/23/EEC, and carries the CE-Marking accordingly.

Appendix A Regulatory Information 86

Overview

1) The product was tested in a typical configuration with Hewlett-Packard Personal
Computer Systems.

2) This Device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation

Boise, Idaho USA
June 03, 1998

Australia Contact: Product Regulations Manager, Hewlett-Packard

Australia Ltd., 31-41 Joseph Street, Blackburn,
Victoria 3130, Australia.

European Contact: Your Local Hewlett-Packard Sales and Service Office

or Hewlett-Packard GmbH, Department HQ-TRE,
Herrenberger Straße 130, D-71034 Böblingen
(Germany) (FAX: [phone]).

USA Contact: Product Regulations Manager, Hewlett-Packard

Company, PO Box 15, Mail Stop 160, Boise, ID,
83707-0015 (Phone: [phone]).

Appendix A Regulatory Information 87

Overview

FCC Regulations

This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC ru les. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate
radio frequency energy. If this equipment is not installed and used in
accordance with the instructions, it may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause har mful
interference to radio or television reception, which can be deter mined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:

! Reorient or relocate the receiving antenna.
! Increase separation between equipment and receiver.
! Connect equipment to an outlet on a circuit different from that to which the

receiver is located.

! Consult your dealer or an experienced radio/TV technician.

Note Any changes or modifications to the printer that are not expressly

approved by HP could void the user’s authority to operate this equipment.
Use of a shielded interface cable is required to comply with the Class B

limits of Part 15 of FCC rules.

Appendix A Regulatory Information 88

Overview

Note The printer without the HP Digital Copy complies with Class B limits.

For more regulatory information, see the HP LaserJet MFP Upgrade Kit online
user guide.

Canadian DOC Regulations

Complies with Canadian EMC Class A requirements.
<<Conforme á la classe A des nor mes canadiennes de compatibilité

électromagnétiques. << CEM>>.>>
