HP ProLiant BL45p Generation 2 Server Blade

Overview

HP ProLiant BL45p Generation 2 (G2) Server Blade

Primary Side – HP ProLiant BL45p G2 Server Blade

1.

Primary Side Access Panel

2.

Processor 3 Memory Banks E and F

3.

Primary Side: Up to two AMD Opteron™ 8000 Series
processors (shown with Processor 1 installed, two
additional processors on Secondary Side)

4.

Up to 2 small form factor (SFF) SAS or SATA hot-plug
hard disk drives (optional)

5.

Power On/Standby Button

6.

Front panel LEDs

7.

Redundant Fan Module

8.

Processor 1 Memory Banks A and B

9.

Smart Array E200i Controller cache module

10.

Optional Dual Port Fibre Channel Adapter (QLogic-based
or Emulex-based)

11.

Optional NIC Adapter (single function or multifunction
Gigabit)

DA - 12579 Worldwide QuickSpecs — Version 9 — 11.12.2007

Page 1

QuickSpecs

Overview

HP ProLiant BL45p Generation 2 Server Blade

Secondary Side – HP ProLiant BL45p G2 Server Blade

1.

Secondary Side Access Panel

2.

Processor 2 Memory Banks C and D

3.

Up to two AMD Opteron™ 8000 Series processors (shown with Processor 2 installed, two additional processors on
Primary Side)

4.

Redundant Fan Module

5.

Processor 4 Memory Banks G and H
Other features on Secondary Side include an additional connector for an optional single or multifunction Gigabit NIC
server adapter, and a connector for an optional Dual Port Fibre Channel adapter (QLogic-based or Emulex-based.)

What's New

Support for 36 GB and 72 GB 15K DP Serial Attached SCSI (SAS) SFF Hot Plug Hard Drives
Support for 72 GB and 146 GB10K DP Serial Attached SCSI (SAS) SFF Hot Plug Hard Drives

At A Glance

This document covers the HP ProLiant BL45p G2 server blade only. For more information on HP BladeSystems p-Class
Infrastructure and HP BladeSystem p-Class Interconnect Components, please see the following QuickSpecs:
HP BladeSystem p-Class Infrastructure QuickSpecs:

http://h18000.www1.hp.com/products/quickspecs/12330_div/12330_div.html

HP BladeSystem p-Class Interconnect Components QuickSpecs:

http://h18000.www1.hp.com/products/quickspecs/12331_div/12331_div.html

The HP ProLiant BL45p Generation 2 server blade delivers maximum quad-processor performance, enterprise
manageability and availability, and superior expansion capabilities to the datacenter.

and

Processor

Memory

S

torage Controller

:
Up to four AMD Opteron™ 8000 series processors
Supports up to four AMD Opteron processors Model 8220 (2.8 GHz, 95W) featuring 1MB Level 2 cache
memory per core
Processors are connected through 1 GHz HyperTransport™ links
ServerWorks HT-1000 and HT-2100 chipsets

:
Up to 64 GB of memory, PC2-5300 Registered DDR2 (667 MHz) memory, 16 DIMM slots
Advanced ECC memory support
Supports 2:1 memory interleaving

:

DA - 12579 Worldwide QuickSpecs — Version 9 — 11.12.2007

Page 2

QuickSpecs

Overview

Integrated Smart Array E200i controller with 64 MB cache
Supports RAID 0, 1
Optional 128MB battery-backed write cache (BBWC) module for internal storage data protection

Internal Drive Support

Up to 2 small form factor (SFF) SAS or SATA hot-plug hard disk drives (support for SATA hard drives via
Factory Integration only)

Network Controller

Two (2) embedded NC373i Multifunction Gigabit Server Adapters with TCP/IP Offload Engine for Microsoft
Windows
One (1) embedded NC324i Dual Port Gigabit Network Adapter for HP BladeSystem
One (1) additional 10/100 NIC dedicated to iLO 2 management

Optional Mezzanine Card support

Supports (2) Fibre Channel Adapters

Dual-Port Fibre Channel Mezzanine (2-Gb) options for SAN connectivity (Choice of Emulex or QLogic)

Supports (2) networking cards for four (4) additional Ethernet network ports, choose from the following:

HP NC374m PCI Express Dual Port Multifunction Gigabit Server Adapter for HP BladeSystem with
TCP/IP Offload Engine for Microsoft Windows
HP NC320m PCI Express Dual Port Gigabit Server Adapter for HP BladeSystem

USB Ports

Redundancy

Operating Systems

Form Factor

Management

Enclosures

Warranty

:
One (1) internal USB 2.0 connector for security key devices and USB drive keys
I/O cable with two (2) USB 2.0 ports, one (1) video port, one (1) iLO 2 port and one (1) kernel debug port. The
cable was specifically designed to aid in initial server image deployment and ships with every HP BladeSystem
p-Class server blade enclosure

:
The HP BL45p G2 server features ten (10) integrated fans for sufficient cooling. The redundant fan design
allows for uninterrupted server operations

Supports Windows, Linux, Solaris, and VMware ESX Server

:
The HP ProLiant BL45p G2 server blade plugs vertically into an HP BladeSystem p-Class server blade
enclosure
HP BladeSystem p-Class server blade enclosures with enhanced backplane components might be required
depending on which HP ProLiant server blade model is selected.

:
Integrated Lights-Out 2 (iLO 2) Standard Blade Edition (includes virtual KVM and graphical remote console at
no additional cost)

:
The HP BladeSystem p-Class server blade enclosure is 6U (10.5-inches) in height, 19-inches wide and holds up
to 4 HP ProLiant BL45p G2 server blades plugged vertically

:
Protected by HP Services and a worldwide network of HP Authorized Channel Partners. Three-year parts, 3
Year Labor and 3 Year on-site limited global warranty. Certain restrictions and exclusions apply. SATA hard
drives have a one year warranty

:

:

:

HP ProLiant BL45p Generation 2 Server Blade

:

DA - 12579 Worldwide QuickSpecs — Version 9 — 11.12.2007

Page 3

QuickSpecs

Standard Features

HP ProLiant BL45p Generation 2 Server Blade

NOTE:

specifications, please visit:

Processor

NOTE:

or four processor
configurations only

Upgradeability

Cache Memory

Chipset

Memory

For a brief, printer friendly data sheet that describes this product and informs you of the essential capabilities and

AMD Opteron™ processor Model 8220 (2.8 GHz)

Support for two

AMD Opteron processor Model 8218 (2.6GHz)

AMD Opteron processor Model 8216 (2.4GHz)

AMD Opteron processor Model 8214 (2.2GHz)

AMD Opteron processor Model 8212 (2.0GHz)

NOTE:

Virtualization™ and DDR2 memory technology. AMD Opteron 8000 Series processors are
connected through 1 GHz HyperTransport™ links.

NOTE:

Upgradeable to quad processing (4 processors)

1MB Level 2 cache memory per core

ServerWorks HT-1000 and HT-2100

Type

Standard

Maximum

NOTE:

"Memory" section of this HP BL45p G2 QuickSpecs.

http://h71028.www7.hp.com/ERC/downloads/4AA0-7987ENW.pdf

*

AMD Opteron 8000 Series processors are 64-bit, dual-core, and support AMD

*Offered via Factory Integration (North America) or Specials (EMEA and APJ) only.

PC2-5300 Registered DDR2 DIMMs (667 MHz)

4 GB (4 x 1 GB)

64 GB (16 x 4 GB)

Memory must be installed in pairs. For additional memory configuration guidelines, see

Network Controller

Expansion Slots

Integrated
Manageability

Two (2) embedded NC373i Multifunction Gigabit Network Adapters for HP BladeSystem
One (1) embedded NC324i Dual Port Gigabit Network Adapter

One (1) additional 10/100 NIC dedicated to iLO 2 Management

NOTE:

components to utilize all four possible NIC's (HP P/N's 281404-B22, 243564-B22 or 380625-B22).

No PCI slots; all features are integrated. Additional network and fibre channel connectivity is
available via optional mezzanine cards.

I/O cable connectors:

(2)USB 2.0 ports, (1) video port, (1) iLO 2 port and (1) kernel debug port

(2) I/O cables ship with every HP BladeSystem p-Class server blade enclosure

Tested USB devices (keyboard, mouse, floppy) are listed in the "Options" section of this
QuickSpecs

Integrated Lights-Out 2 (iLO 2) Standard Blade Edition (integrated on motherboard)

Must use a HP BladeSystem p-Class server blade enclosure with enhanced backplane

DA - 12579 Worldwide QuickSpecs — Version 9 — 11.12.2007

Page 4

QuickSpecs

Standard Features

HP ProLiant BL45p Generation 2 Server Blade

Storage Controller

Maximum Internal
Storage

Graphics

Graphics Resolution
Supported

Fiber Channel on the
HP ProLiant BL45p G2
server blade

Smart Array E200i
Controller

Hot-plug Serial Attach
SCSI (SAS)

Hot-plug Serial ATA
(SATA)

Integrated ATI RN-50 1280 x 1024 x 16M color (32 MB DDR1 memory)

Resolution Color Depths

The HP ProLiant BL45p G2 supports two (2) optional, dual port fiber channel adapters for SAN
connectivity and redundancy. Customers are offered a choice of either QLogic-based or Emulex­based fiber channel adapters. Both adapters are mezzanine circuit boards which connect directly
to the server blade system board. These fiber channel adapters are available via option kits and
must be ordered separately.

64MB memory module supports RAID 1, 0
Supports SAS and SATA disk drives
Available upgrades: 128MB battery-backed write cache (BBWC)
module

292GB SAS

240GB SATA

Depths 1280 x 1024, 64k, 256, 16
1024 x 768, 16.7M, 64k, 256, 16
800 x 600, 16.7M, 64k, 256, 16
640 x 480, 16.7M, 64k, 256, 16

2 x 146GB Serial SCSI

2 x 120GB Serial ATA

Compatible SAN

QLogic-based

Utilizes a QLogic ISP2312 chipset
The HP QLogic-based dual port Fibre Channel Adapter (P/N 361426-B21) is
compatible with the HP ProLiant BL20p G3, BL20p G4, BL25p G2, and BL45p G2
server blades. It cannot be used with HP ProLiant BL25p G1, BL35p, or BL45p G1
server blades
Includes two small form factor pluggable transceivers with LC connectors for
installation into the Patch Panel 2, CGESM or GbE2 Interconnect Switch (with the
Storage Connectivity Kit)

Emulex-based

Utilizes an Emulex "Thor" chipset
The HP Emulex-based dual port fibre channel HBA (P/N 394757-B21) is compatible
with the HP ProLiant BL20p G3, BL20p G4, BL25p G2, and BL45p G2 server blades.
It cannot be used with HP ProLiant BL25p G1, BL35p, or BL45p G1 server blades
There are no SFP's included in the Emulex mezzanine kit for use with ProLiant BL p­Class Fibre Channel pass-through interconnects. If you require SFPs for use with an
Emulex mezzanine and a FC pass through interconnect please order an SFP option

kit (P/N 397577-B21) which will provide 2 FC SFPs per option kit
Two ports on each Dual-port Fibre Channel Mezzanine Card provide a redundant Fibre
Channel connection to each server blade
Supports up to 2 Gb/s Fibre Channel equipment

HP ProLiant BL45p G2 server blades are optimized for StorageWorks MSA, EVA, and XP arrays.

HP ProLiant BL45p G2 server blades are compatible with select 3rd party SANs (please see blade
storage page for more details):

http://h18000.www1.hp.com/products/servers/proliant-bl/p-class/storage.html

DA - 12579 Worldwide QuickSpecs — Version 9 — 11.12.2007

Page 5

QuickSpecs

Standard Features

HP ProLiant BL45p Generation 2 Server Blade

Insight Control
Environment for
BladeSystem

Starting July 9, 2007, HP Insight Control management suites and most HP ProLiant Essentials will
include one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid
access to HP support staff and proactive delivery of software updates. From more information
about this service, please visit:

Insight Control Environment for BladeSystem delivers foundation management for HP
BladeSystem lifecycles, including hardware resource deployment, health monitoring, software
version control, performance monitoring, vulnerability, scanning and patch management.
Installs and licenses the following components by default using a wizard-based integrated
installer:

HP Systems Insight Manager
HP iLO Select Pack
HP Insight Power Manager
HP ProLiant Essentials Rapid Deployment Pack
HP ProLiant Essentials Performance Management Pack
HP ProLiant Essentials Vulnerability and Patch Management Pack
HP ProLiant Essentials Virtual Machine Management Pack

Additional ProLiant Essentials software and management tools included on the Insight Control
Management DVD can be installed manually.

Server Migration Pack - Universal Pack
HP Open Service Event Manager
HP Instant Support Enterprise Edition

http://www.hp.com/services/insight

.

ProLiant Essentials
Foundation Pack
Software for the
ProLiant BL Server

NOTE:

in the Insight Control Management media kit.

NOTE:

Management DVD, which can be delivered with HP BladeSystem c-Class enclosures with a
choice of licensing options. Licensing options include a free 30 day evaluation license for 8
servers (default option for every enclosure order), a full purchased license for 8 blade servers or a
full purchased license for 16 blade servers). For additional information on HP c-Class
Infrastructure please visit: HP BladeSystem c-Class Infrastructure QuickSpecs:

http://h18000.www1.hp.com/products/quickspecs/12517_div/12517_div.html

NOTE:

BladeSystem, HP Systems Insight Manager and Essentials software refer to

http://www.hp.com/servers/proliantessentials

HP Systems Insight
Manager

ProLiant Essentials
Rapid Deployment Pack

ProLiant Essentials
Performance
Management Pack

Server Migration Pack - Universal Edition can be installed from the SMP-P2P CD included

Insight Control Environment for HP BladeSystem can be installed from the Insight Control

For additional product and licensing information about Insight Control Environment for

.

HP Systems Insight Manager (HP SIM) provides a unified, secure and
extensible environment to centrally manage servers, storage and other
infrastructure devices across multiple operating system platforms.

Rapid Deployment Pack (RDP) is an automated deployment and
provisioning solution for all ProLiant servers. RDP includes the Altiris
Deployment Solution and ProLiant Integration Module featuring ProLiant
server pre-configured events for OS installation, and optimized software
drivers, firmware and management agents. Every RDP CD includes 10­node trial licenses for evaluation purposes. RDP requires a license for
each server deployed and is available for purchase with blade servers.
For more information, visit

Performance Management Pack (offered exclusively through the Insight
Control suites) - a performance management solution that identifies and
explains hardware performance bottlenecks on ProLiant servers and
attached options enabling users to better utilize their valuable resources

http://www.hp.com/servers/rdp

.

DA - 12579 Worldwide QuickSpecs — Version 9 — 11.12.2007

Page 6

QuickSpecs

Standard Features

HP ProLiant BL45p Generation 2 Server Blade

Virtual Machine
Management Pack

Vulnerability and Patch
Management Pack

Insight Management
Agents

Subscriber's Choice

ROMPaq, support
software, and
configuration utilities

Optional ProLiant
Essentials Value
Packs

Virtual Machine Management Pack - provides central management and
control of virtual machines from Microsoft and VMware. Integrated
approach provides the ability to manage both physical and virtual
resources from a single management console

Vulnerability and Patch Management Pack (offered exclusively through
the Insight Control suites) - identifies and remediates software security
vulnerabilities due to missing patches as well operating system
configurations that can be exploited by viruses, worms, and other
blended threats.

Insight Management Agents should be installed on all HP servers to
present system instrumentation, health and configuration information
into HP Systems Insight Manager and the HP System Management
Homepage. The HP System Management Homepage aggregates
systems data from Insight Management Agents and other HP
management tools, providing a consolidated browser-based interface
for managing individual servers,

Subscriber's Choice Driver and Support Alerts/Notifications is a web­based email subscription service that provides software and driver
change notifications for ProLiant products. Sign up at

http://www.hp.com/go/subscriberschoice

and customize your profile to receive various new alerts as they become
available, on a weekly or monthly basis.

The latest drivers and firmware fully optimized and tested for your
ProLiant server and options, available on the RDP Media kit, SmartStart
or downloadable from Software and Drivers download pages, linked
from the SmartStart website at

HP Insight Control management suites and most HP ProLiant
Essentials will include one year of 24 x 7 HP Software Technical
Support and Update Service ensuring rapid access to HP support staff
and proactive delivery of software updates. From more information
about this service, please visit:

http://www.hp.com/go/support

http://www.hp.com/services/insight

.

.

Optional software offerings that selectively extend the functionality of an
Adaptive Infrastructure to address specific business problems and
needs:

Insight Control Environment for BladeSystem

Systems Insight Manager and ProLiant Essentials software, and
brings the value of Insight Control to ProLiant customers by
delivering comprehensive health and performance monitoring,
remote control, vulnerability scanning and patch management as
well as flexible deployment and power management through an
integrated installation package and streamlined licensing. For
more information, visit:

Server Migration Pack - Universal Editio

replacing, or virtualizing your existing server? Effortlessly
transition to new virtual or physical HP ProLiant servers or
BladeSystem with automated, accurate and affordable migration
of OS, application and data. SMP Universal automates the
manual processes required for migrating servers between
physical or virtual platforms, whether migrating to VMware or
Microsoft virtual machines. SMP Universal allows all of the
following:

Physical to ProLiant
Physical to virtual
Virtual to virtual
Virtual to ProLiant

http://www.hp.com/go/ice

is based on HP

n - Upgrading,

DA - 12579 Worldwide QuickSpecs — Version 9 — 11.12.2007

Page 7

QuickSpecs

Standard Features

HP ProLiant BL45p Generation 2 Server Blade

Virtual Machine Management Pack

virtualization by unifying the management of physical and virtual
servers in HP Systems Insight Manager. The Virtual Machine
Management Pack plug-in provides central management and
control of VMware and Microsoft virtual machines and provides
physical host to virtual machine association.

NOTE:

ProLiant Essentials Value Packs. Refer to

http://www.hp.com/servers/proliantessentials

Essentials Value Pack product QuickSpecs for more information.

Optional Remote
Management

NOTE:

ProLiant Essentials Value Packs. Refer to

http://www.hp.com/servers/proliantessentials

Essentials Value Pack product QuickSpecs for more information.

NOTE:

7 Software Technical Support and Update Service. If you have any
questions about this service please visit the HP website at

http://www.hp.com/services/insight

Flexible and volume quantity license kits are available for

Integrated Lights-Out Select Pack - upgrades the iLO 2 processor
with enhanced console sharing and replay, virtual media (floppy,
CD/DVD, USB key), virtual folders, historical power reporting,
power capping and enterprise security (directory services and
two-factor authentication) for servers managed using remote
consoles available in iLO 2 Standard and iLO 2 Standard Blade
Edition.

Flexible and volume quantity license kits are available for

Selected software packages listed here include one year of 24 x

- Get the most out of server

or the various ProLiant

or the various ProLiant

SmartStart

OS Support

SmartStart is a tool that simplifies single server setup, providing a rapid way to deploy reliable and
consistent server configurations. SmartStart can now deploy the ProLiant BL45p G2 server blades
using the I/O port with an attached USB CD-ROM device. To obtain a copy of SmartStart for your
blade server, redeem the coupon that is included with your Blade server or order your copy from
the SmartStart web site. For more information, please visit the SmartStart Web site at

http://www.hp.com/servers/smartstart

SmartStart version supported (minimum): SmartStart 7.60

Windows Server 2003, Web edition
Windows Server 2003, Server/Standard edition (32 & 64 bit editions)
Windows Server 2003, Enterprise edition (32 & 64 bit editions)
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
Solaris 10 (32 & 64 bit editions)
VMware ESX Server 3

NOTE:

For a complete and up-to-date listing of supported OSs and versions, please visit our OS

Support Matrix at:

NOTE:

please see:

NOTE:

Web site at:

NOTE:

Bladesystem Server Linux matrix

http://h18004.www1.hp.com/products/servers/linux/hpLinuxcert.html

For an up-to-date listing of the latest drivers available for the HP ProLiant BL p-Class,

For a more complete and up-to-date information on Linux support, please visit HP Linux

For more Linux OS support & certification information, please visit our the ProLiant &

http://www.hp.com/go/supportos

http://h18004.www1.hp.com/support/files/server/us/family/model/5342.html

http://h18000.www1.hp.com/products/servers/linux/hpLinuxcert.html

.

.

.

.

DA - 12579 Worldwide QuickSpecs — Version 9 — 11.12.2007

Page 8

QuickSpecs

Standard Features

HP ProLiant BL45p Generation 2 Server Blade

Supported Software
Options

Integrated
Manageability

VMware Virtualization Software

NOTE:

For more information on HP's Certified and Supported HP ProLiant Servers, please visit
the VMware Server Support Matrix at:

http://h18004.www1.hp.com/products/servers/software/vmware/hpvmwarecert.html

Integrated Lights-Out 2 (iLO 2) Standard Blade Edition (integrated on motherboard)

Virtual KVM based remote console
Virtual Media (single server, browser based access only)
Remote Serial Console
Virtual Power Button Control
Virtual Unit ID control
Integrated Remote Console
Dedicated network connectivity
Embedded system health
Browser, command line and scripted access
Automatic IP Configuration via DHCP/DNS/WINS
Industry Standard RC4, 128-bit Secure Sockets Layer (SSL) and Secure Shell (SSH)
Security
IML and iLO Event Logging
Support for 12 user accounts with customizable access privilege
Single sign-on from HP BladeSystem Onboard Administrator

Availability

Security

Dual Port Fibre Channel Mezzanine Card (optional) for redundant SAN connection
Two hot-plug SAS/SATA hard drive bays and integrated RAID (Smart Array E200i)
controller on every server blade (Battery-backed write cache is optional)
Redundant ROM on every server blade
Advanced ECC Memory support on every server blade - Advanced ECC can actually correct
a multi-bit error (up to 4 bits) that occurs within one memory chip
Redundant fan design on every server blade - The HP BL45p G2 server features ten (10)
integrated fans for sufficient cooling. A single fan on each side of the server can fail without
interrupting server operations indefinitely
Network adapter teaming (network fault tolerance, transmit load balancing, switch-assisted
load balancing)

Power-on password
Administrator's password One (1) internal USB 2.0 connector for security key devices and
USB drive keys
Integrated Lights-Out 2 has 12 customizable user accounts and SSL encryption
Integrated Lights-Out 2 can be disabled via a Global Setting

DA - 12579 Worldwide QuickSpecs — Version 9 — 11.12.2007

Page 9

QuickSpecs

Standard Features

HP ProLiant BL45p Generation 2 Server Blade

Factory Express
Portfolio for Servers
and Storage

HP Enterprise
Configurator

Service and Support

HP Factory Express offers configuration, customization, integration and deployment services for
HP servers and storage products. Customers can choose how their factory solutions are built,
tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex
configuration and design services as well as individual factory services, such as image loading,
asset tagging, and custom packaging. HP products supported through Factory Express include a
wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP
BladeSystem, HP 9000 servers as well as the MSA1000, VA7xxx, EVA, XP, rackable tape
libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact
your sales representative or go to

The HP eCo-Enterprise Configurator now provides factory default racking for our HP hardware
portfolio. This approach is aligned with our strategic direction to meet the needs and expectations
of our valued customers. If you require "custom" rack configuration, please contact HP's Customer
Business Center or an Authorized Partner for assistance.

This product is covered by a global limited warranty and supported by HP Services and a
worldwide network of HP Authorized Channel Partners. Hardware diagnostic support and repair is
available for three years from date of purchase. Support for software and initial setup is available
for 90 days from date of purchase. Additional support may be covered under the warranty or
available for an additional fee. Enhancements to warranty services are available through HP Care
Pack services or customized service agreements.

http://www.hp.com/go/factory-express

.

NOTE:

information regarding worldwide limited warranty and technical support is available at:

http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

NOTE:

This warranty supports the HP ProLiant 35p Server Blades.

NOTE:

site support.

NOTE:

on-site support.

NOTE:

year warranty that is upgradeable to 3 years via Care Pack

HP services provide total care and support expertise with committed response designed to meet
your IT and business needs.

The HP Care Pack services ProLiant BL p-Class server blades, cover the server blade and all HP
branded hardware options qualified for the server, purchased at the same time or afterwards,
internal to the server.

HP Care Pack services for HP BladeSystem p-Class server blade enclosure covers the enclosure
including patch panels, HP supported Ethernet interconnects, power enclosure with power
supplies and power distribution.

To fully capitalize on your HP ProLiant servers' capabilities requires a service partner who
thoroughly understands your server technology and systems environment. HP Services, an
industry leader in provision of multi vendor support solutions provides a range of support services
designed to meet the varying needs of business. Whether an SMB or large global corporation HP
has a ProLiant server support offer to help you speedily deploy and maximize system uptime.

Server Warranty includes 3 year Parts, 3 year Labor, 3-year on-site support. Additional

Server Blade Limited Warranty includes 3 year Parts, 1 year Labor, 1-year on-site support.

Server Blade Enclosure Limited Warranty includes 3 year Parts, 3 year Labor, 3-year on-

Server Blade Interconnect Limited Warranty includes 3 year Parts, 3 year Labor, 3-year

The p-Class SAN switch limited warranty is unique to the SAN switch which includes 1

Recommended Service

management.

DA - 12579 Worldwide QuickSpecs — Version 9 — 11.12.2007

- Simplify ProLiant solution implementation, maintenance and

Page 10

QuickSpecs

Standard Features

HP ProLiant BL45p Generation 2 Server Blade

Support Service
Deployment Service

Enhanced Service

Support Service
Deployment Service

Switches

Installation & Start-Up service for HP BladeSystem Infrastructure plus HP BladeSystem Enhanced
Network Installation and Start-UP as per the Customer Description and/or Data Sheet. To be
delivered on a scheduled basis 8am-5pm, M-F, excluding HP holidays.

For a complete listing of service offerings and information visit:

http://www.hp.com/services/bladesystemservices
http://www.hp.com/go/proliant/carepack

- 4-Hour Response Coverage, 3-Year, 24 x 7, Same Business Day

- Installation and Start Up for HP BladeSystem Infrastructure

- Optimize service level to increase IT performance and availability

- HP Proactive BladeSystem Service, 1-Year

- Enhanced Network Installation and Start-up for HP BladeSystem

DA - 12579 Worldwide QuickSpecs — Version 9 — 11.12.2007

Page 11

QuickSpecs

Models

Dual-Core Models

HP ProLiant BL45p G2
2220, 2GB (2P)

438216-B21

HP BL45P G2 8218 4GB
(2P)

408669-B21

HP BL45P G2 8216 4GB
(2P)

408668-B21

HP BL45P G2 8214 4GB
(2P)

408667-B21

Processor(s)

Cache Memory

Memory

Network Adapter

Storage Controller

Hard Drives

Internal Storage

Optical Drive

Form Factor

HP ProLiant BL45p Generation 2 Server Blade

(2) AMD Opteron™ processor Model 8220 (2.8 GHz, 95W))
(2) AMD Opteron processors Model 8218 (2.6 GHz, 95W)
(2) AMD Opteron processors Model 8216 (2.4 GHz, 95W)
(2) AMD Opteron processors Model 8214 (2.2 GHz, 95W)

1MB Level 2 cache memory per core

4 GB (4 x 1 GB) PC2-5300, Registered DDR2-667

Two (2) embedded NC373i Multifunction Gigabit Network Adapters
One (1) embedded NC324i Dual Port Gigabit Network Adapter
Plus one (1) additional 10/100 NIC dedicated to iLO 2 management

Smart Array E200i Controller with 64MB (optional 128MB battery­backed write cache module available)

(2) SFF SAS/SATA drive bays; no hard drives ship standard

Up to 292GB SFF SAS (with optional hot-plug hard disk drives)
Up to 240GB SFF SATA (with optional hot-plug hard disk drives)

None

Up to 4 HP BL45p G2 server blades plug vertically an HP BladeSystem
p-Class server blade enclosure

NOTE:

enhanced backplane components might be required depending on
which HP ProLiant server blade model is selected. Please visit the
enclosure compatibility matrix at

http://www.hp.com/go/bladesystem/enclosure/compatibility

HP BladeSystem p-Class server blade enclosures with

.

DA - 12579 Worldwide QuickSpecs — Version 9 — 11.12.2007

Page 12

QuickSpecs

HP ProLiant BL45p Generation 2 Server Blade

Configuration Information - Factory Integrated Models

NOTE:

configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales
representative for information on CTO product offerings and requirements.

NOTE:

Configure-to-order servers must start with a CTO Chassis.

NOTE:
NOTE:

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid

HP does not allow factory integration of options into standard models listed above.

This product offering does not support HP Factory Express Server Configuration Level 1.
FIO indicates that this option only available as a Factory Installable Option.

Step 1: Base Server Blade Configuration

Models

HP ProLiant BL45p G2 CTO Blade (US)

Configurable Model ships with:

Four embedded Gigabit Ethernet NIC ports:

Two (2) embedded NC373i Multifunction Gigabit Network Adapters
One (1) embedded NC324i Dual Port Gigabit Network Adapter

Plus (1) additional 10/100 NIC dedicated to iLO 2 management.

Integrated Smart Array E200i controller

NOTE:

64 MB module or the optional 128 MB module in step 2 below.

Two small form factor (SFF) SAS/SATA hot-plug hard drive bays

Integrated Lights-Out 2 Standard Blade Edition

Controller cache module selection is required. Select either the standard

404840-B21

Step 2: Choose Required Options (one of the following from each list unless
otherwise noted):

Processors

Memory

For dual (2) processor configurations choose

AMD Opteron™ processor Model 8220 (2.8 GHz, 95W) Option Kit, FIO Base

AMD Opteron processor Model 8218 (2.6GHz, 95W) Option Kit, FIO Base

AMD Opteron processor Model 8216 (2.4GHz, 95W) Option Kit, FIO Base

AMD Opteron processor Model 8214 (2.2GHz, 95W) Option Kit, FIO Base

AMD Opteron processor Model 8212 (2.0GHz, 95W) Option Kit, FIO Base

OR

For quad (4) processor configurations choose

AMD Opteron processor Model 8220 (2.8 GHz, 95W) Option Kit, FIO Base

AMD Opteron processor Model 8218 (2.6GHz, 95W) Option Kit, FIO Base

AMD Opteron processor Model 8216 (2.4GHz, 95W) Option Kit, FIO Base

AMD Opteron processor Model 8214 (2.2GHz, 95W) Option Kit, FIO Base

AMD Opteron processor Model 8212 (2.0GHz, 95W) Option Kit, FIO Base

Plus

(ONE of the following):

AMD Opteron processor Model 8220 (2.8 GHz, 95W) Option Kit, FIO Base

AMD Opteron processor Model 8218 (2.6 GHz, 95W) Option Kit, FIO Base

AMD Opteron processor Model 8216 (2.4GHz, 95W) Option Kit, FIO Base

AMD Opteron processor Model 8214 (2.2GHz, 95W) Option Kit, FIO Base

AMD Opteron processor Model 8212 (2.0GHz, 95W) Option Kit, FIO Base

NOTE:

processors.

NOTE:

configurations.

HP 1GB REG PC2-5300 2x512MB 1RANK Kit

HP ProLiant BL45p G2 processor option kits (-B21 and -L21) contain two

The HP ProLiant BL45p G2 only supports 2 and 4 processor

(ONE of the following):

(ONE of the following):

438218-L21

409390-L21

409391-L21

409392-L21

415666-L21

438218-L21

409390-L21

409391-L21

409392-L21

415666-L21

438218-B21

409390-B21

409391-B21

409392-B21

415666-B21

408850-B21

DA - 12579 Worldwide QuickSpecs — Version 9 — 11.12.2007

Page 13

QuickSpecs

HP ProLiant BL45p Generation 2 Server Blade

Configuration Information - Factory Integrated Models

HP 2GB REG PC2-5300 2x1GB 1RANK Kit

HP 4GB REG PC2-5300 2x2GB 2RANK Kit

HP 8GB REG PC2-5300 2x4GB 2RANK Kit

Controller Cache

NOTE:

guidelines, see "Memory" section of this HP BL45p G2 QuickSpecs.

64 MB Cache – FIO Only

128MB Battery-Backed Write Cache with Battery Housing

NOTE:

Must be installed in pairs. For additional memory configuration

Supports the Smart Array E200i Controller.

Step 3: Choose Additional Options for Factory Integration

NOTE:

server blade enclosures, interconnect options, and power subsystem options;
please see the following QuickSpecs:

HP BladeSystem p-Class Infrastructure QuickSpecs:

http://h18000.www1.hp.com/products/quickspecs/12330_div/12330_div.html

and HP BladeSystem p-Class Interconnect Components QuickSpecs:

http://h18000.www1.hp.com/products/quickspecs/12331_div/12331_div.html

And/or refer to the "Options" section below.

For additional options, please refer to the "Options" section below. For

408851-B21

408853-B21

408854-B21

405102-B21

346914-B21

DA - 12579 Worldwide QuickSpecs — Version 9 — 11.12.2007

Page 14

QuickSpecs

Options

HP ProLiant BL45p Generation 2 Server Blade

Communications

Fibre Channel

NOTE:

2 of the following:

HP NC320m PCI Express Dual Port Gigabit server adapter for HP BladeSystem

HP NC374m PCI Express Dual Port Multifunction Gigabit server adapter for HP
BladeSystem

NOTE:

motherboards. There are two dedicated networking connectors which support
two (2) optional Ethernet NIC mezzanine adapter cards, either the HP NC320m
PCI Express Dual Port Gigabit server adapter or the HP NC374m PCI Express
Dual Port Multifunction Gigabit server adapter. The other two (2) connectors are
dedicated for optional, fibre channel mezzanine card adapters.

NOTE:

of the following:

HP QLogic-based Fibre Channel Mezzanine HBA for HP p-Class BladeSystem

NOTE:

for installation into the Patch Panel 2, CGESM or GbE2 Interconnect Switch
(with the Storage Connectivity Kit.)

OR

HP Emulex-based Fibre Channel Mezzanine HBA for HP p-Class BladeSystem

NOTE:

Emulex-based Fibre Channel Adapter. If SFPs are required, please order the
SFP option kit (P/N 397577-B21) which includes 2-2Gb SFPs per option kit.

HP 2-2Gb SFP for Fibre Channel pass through kit

NOTE:

when ordering Emulex based Fibre Channel Mezzanine card for HP p-Class
BladeSystem (P/N 394757-B21).

Up to two optional NIC mezzanine adapters are available. Choose up to

There are four mezzanine adapter card connectors on the HP BL45p G2

Up to two optional FC mezzanine adapters are available. Choose up to 2

Includes two small form factor pluggable transceivers with LC connectors

SFPs for use with pass through SAN switches not included with the

Must select if SFP for use with pass through SAN switches is required

405095-B21

405094-B21

361426-B21

394757-B21

397577-B21

HP Insight Control and
ProLiant Essentials
Offerings

Insight Control Environment for BladeSystem

HP Insight Control Environment for BladeSystem, No Media 1-Server License
including 1 year of 24x7 Technical Support and Updates

NOTE:

Includes one year of 24 x 7 HP Software Technical Support and Update Service.

NOTE:

http://h18000.www1.hp.com/products/quickspecs/12631_div/12631_div.HTML

ProLiant Essentials Value Packs

NOTE:

select ProLiant Essentials software products. Please see the appropriate Insight
Control and ProLiant Essentials QuickSpecs for additional information.

Rapid Deployment Pack

ProLiant Essentials Rapid Deployment Pack No Media 1-Server License
including 1 year of 24x7 Technical Support and Updates

NOTE:

Customer will receive a printed license entitlement certificate via physical
shipment. The license entitlement certificate must be redeemed online or via fax
in order to obtain the license activation key(s). Includes one year of 24 x 7 HP
Software Technical Support and Update Service.

ProLiant Essentials BL p-Class Server Blade Enclosure with Enhanced
Backplane Components and RDP Software Option Kit - 8 server

NOTE:

available with the purchase of ProLiant BL p-Class server blade enclosure
(Blade Enclosure QS only)

Contains 1 license for each of RDP, PMP, VPM, IPM and iLO Select.

For additional License Kits, please see the QuickSpecs at:

Electronic licensing options are available for Insight Control suites and

This license allows 1 server to be deployed and managed via RDP.

This license allows 8 servers to be deployed and managed. Only

453484-B21

452151-B21

281404-B22

DA - 12579 Worldwide QuickSpecs — Version 9 — 11.12.2007

Page 15

QuickSpecs

Options

HP ProLiant BL45p Generation 2 Server Blade

NOTE:

please see the QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/11053_div/11053_div.HTML

Server Migration Pack - Universal Edition

HP Server Migration Pack - Universal Edition, No Media, Physical / Virtual to
ProLiant Single Migration License, including 1 year of 24x7 Technical Support

NOTE:

Customer will receive a printed license entitlement certificate and documentation
via physical shipment. The license entitlement certificate must be redeemed
online or via fax in order to obtain the license activation key(s). Includes one
year of 24 x 7 HP Software Technical Support Service

HP Server Migration Pack - Universal Edition, No Media, Physical / Virtual to
Virtual Single Migration License, including 1 year of 24x7 Technical Support

NOTE:

Customer will receive a printed license entitlement certificate and documentation
via physical shipment. The license entitlement certificate must be redeemed
online or via fax in order to obtain the license activation key(s). Includes one
year of 24 x 7 HP Software Technical Support Service.

HP Server Migration Pack - Universal Edition, No Media, 1-Year Unlimited
Migration License, including 1 year of 24x7 Technical Support

NOTE:

virtual, virtual to virtual, and virtual to ProLiant) for one year. Customer will
receive a printed license entitlement certificate and documentation via physical
shipment. The license entitlement certificate must be redeemed online or via fax
in order to obtain the license activation key(s). Includes one year of 24 x 7 HP
Software Technical Support Service

NOTE:

please see the QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/12855_div/12855_div.HTML

Virtual Machine Management Pack

ProLiant Essentials Virtual Machine Management Pack, No Media, 1-Server
License, including 1 year of 24x7 Technical Support and Updates

NOTE:

shipment. The license entitlement certificate must be redeemed online or via fax
in order to obtain the license activation key(s). Includes one year of 24 x 7 HP
Software Technical Support and Update Service.

NOTE:

please see the QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/12328_div/12328_div.HTML

NOTE:

Essentials Value Packs. Refer to
the various ProLiant Essentials Value Pack product QuickSpecs for more
information.

NOTE:

the following URL:

Remote Management

NOTE:

select ProLiant Essentials software products. Please see the appropriate Insight
Control and ProLiant Essentials QuickSpecs for additional information.

ProLiant Essentials Integrated Lights-Out Select Pack

ProLiant Essentials Integrated Lights-Out Select Pack, No Media, 1-Server
License

For additional ProLiant Essentials Rapid Deployment Pack License Kits

This license allows 1 physical to ProLiant or virtual to ProLiant migration.

This license allows 1 physical to virtual or virtual to virtual migration.

This license allows unlimited migrations (physical to ProLiant, physical to

For additional Server Migration Pack - Universal Edition License Kits

Customer will receive a printed license entitlement certificate via physical

For additional ProLiant Virtual Machine Management Pack License Kits

Flexible and volume quantity license kits are available for ProLiant

http://www.hp.com/servers/proliantessentials

For more information regarding ProLiant Essentials Software, please see

http://www.hp.com/servers/proliantessentials

Electronic licensing options are available for Insight Control suites and

.

or

460750-B21

460753-B21

460756-B21

452153-B21

452158-B21

DA - 12579 Worldwide QuickSpecs — Version 9 — 11.12.2007

Page 16

QuickSpecs

Options

HP ProLiant BL45p Generation 2 Server Blade

HP Insight Control
Linux Edition for HP
BladeSystem

Processors

Featuring:

BladeSystem servers and ProLiant ML/DL servers in text console environments.

NOTE:

see the QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/12362_div/12362_div.HTML

HP Insight Control Linux Edition 1.6 -No Media, 1-Server License, including 1
year of 24x7 Technical Support and Updates

NOTE:

HP Insight Control Linux Edition.

HP Insight Control Linux Edition 1.6,No Media, 8-Server License, including 1
year of 24x7 Technical Support and Updates

NOTE:

via HP Insight Control Linux Edition.

HP Insight Control Linux Edition 1.6, No Media, Flexible-Quantity License,
including 1 year of 24x7 Technical Support and Updates

NOTE:

you to specify the license quantity. When ordering this part number, the quantity
ordered will be the number of licenses embedded in a single activation key. A
single kit containing that key is then delivered to you.

AMD Opteron™ processor Model 8220 (2.8 GHz, 95W) Option Kit, FIO Base

AMD Opteron processor Model 8218 (2.6 GHz, 95W) Option Kit

AMD Opteron processor Model 8216 (2.4GHz, 95W) Option Kit

AMD Opteron processor Model 8214 (2.2GHz, 95W) Option Kit

AMD Opteron processor Model 8212 (2.0GHz, 95W) Option Kit

NOTE:

AMD Virtualization™ and DDR2 memory technology. AMD Opteron 8000 Series
processors are connected through 1 GHz HyperTransport™ links.

NOTE:

processors.

NOTE:

configurations.

sophisticated remote control and security features for HP

For additional ProLiant Essentials Integrated Lights-Out Packs please

This license allows one (1) server blade to be deployed and managed via

This license allows eight (8) server blades to be deployed and managed

For use with multiple servers (minimum of 5). This part number allows

AMD Opteron 8000 Series processors are 64-bit, dual-core, and support

HP ProLiant BL45p G2 processor option kits (-B21) contain two

The HP ProLiant BL45p G2 only supports 2 and 4 processor

452155-B21

452156-B21

452157-B21

438218-B21

409390-B21

409391-B21

409392-B21

415666-B21

Memory

DIMMs)

(SDRAM

HP 1GB REG PC2-5300 2x512MB 1RANK Kit

HP 2GB REG PC2-5300 2x1GB 1RANK Kit

HP 4GB REG PC2-5300 2x2GB 2RANK Kit

HP 8GB REG PC2-5300 2x4GB 2RANK Kit

NOTE:

guidelines, see "Memory" section of this HP BL45p G2 QuickSpecs.

Must be installed in pairs. For additional memory configuration

DA - 12579 Worldwide QuickSpecs — Version 9 — 11.12.2007

408850-B21

408851-B21

408853-B21

408854-B21

Page 17

QuickSpecs

Options

HP ProLiant BL45p Generation 2 Server Blade

Hard Drives

Serial Attached SCSI (SAS) SFF Hot-plug

HP 72GB 3G SAS 15k SFF DP HDD

HP 72GB 3G SAS 15K SFF SP HDD

HP 36GB 3G SAS 15K SFF DP HDD

HP 36GB 3G SAS 15K SFF SP HDD

HP 146GB 3G SAS 10K SFF DP HDD

HP 146GB 3G SAS 10K SFF HDD

HP 72GB 3G SAS 10K SFF DP HDD

HP 72GB 3G SAS 10K SFF SP HDD

HP 36GB 3G SAS 10K SFF SP HDD

NOTE:
NOTE:

such as capacity, height, width, interface, transfer rate, seek time, physical
configuration, and operating temperature:

http://h18000.www1.hp.com/products/quickspecs/12244_div/12244_div.html

(Worldwide)

Serial-ATA (SATA) SFF Hot-plug

HP 120GB 1.5G SATA 5.4K SFF HDD

HP 60GB 1.5G SATA 5.4K SFF HDD

NOTE:

QuickSpecs for Technical Specifications such as capacity, height, width,
interface, transfer rate, seek time, physical configuration, and operating
temperature:

http://h18000.www1.hp.com/products/quickspecs/11940_div/11940_div.html

(Worldwide)

SAS drives have a 3 year warranty.
Please see the SAS Hard Drive QuickSpecs for Technical Specifications

SATA drives have a 1 year warranty. Please see the SATA Hard Drive

418371-B21

431935-B21

418369-B21

431933-B21

418367-B21

431958-B21

384842-B21

375861-B21

375859-B21

431786-B21

379306-B21

Controller Cache

HP BladeSystem p­Class Other Options

HP StorageWorks
Modular Smart Array
1500 cs

128 MB Battery-Backed Cache Enabler

NOTE:

Supports the Smart Array E200i Controller.

HP BladeSystem p-Class Diagnostic Station

NOTE:

blades and the BL p-Class interconnect switch outside of the server blade
enclosure. The option provides power and a data interface so that "offline"
upgrade and diagnostic functions may be performed.

Modular Smart Array 1500 Controller Shelf

NOTE:

for additional options and configuration information at:

http://www.hp.com/go/MSA1500cs

The Diagnostic Station allows access to the HP ProLiant p-Class server

Please see the StorageWorks Modular SAN Array 1500 cs QuickSpecs

346914-B21

230743-B21

AA986A

DA - 12579 Worldwide QuickSpecs — Version 9 — 11.12.2007

Page 18

QuickSpecs

Options

HP ProLiant BL45p Generation 2 Server Blade

Cluster Options

ProLiant Cluster Starter Kit

NOTE:

please see the following QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/11935_div/11935_div.html

(Worldwide)

HP HA/F200 for Entry SAN Cluster

NOTE:

SAN please see the following QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/11932_div/11932_div.html

(Worldwide)

ProLiant Cluster HA/F500 for the Enterprise SAN

NOTE:

Enterprise SAN please see the following QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/11933_div/11933_div.html

(Worldwide)

NOTE:

Cluster for Oracle RAC please go to:

http://www.hp.com/solutions/highavailability/oracle

HP Serviceguard for Linux ProLiant Cluster, A.11.18 (2 license version - Red Hat
EL 4&5, SUSE SLES10)

HP Serviceguard for Linux, A.11.18 (single license version - Red Hat EL 4&5,
SUSE SLES10)

HP Serviceguard for Linux and Red Hat Global File System - 1 year subscription

HP Serviceguard for Linux and Red Hat Global File System - 3 years
subscription

NOTE:

License, please see the following QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/11518_div/11518_div.html

(Worldwide)

For additional information regarding the ProLiant Cluster Starter Kit

For additional information regarding the ProLiant Cluster for Entry Level

For additional information regarding the ProLiant Cluster HA/F500 for

For configuration/certification options for the HP Parallel Database

For additional information regarding the HP Serviceguard for Linux

364023-B22

364026-B22

364024-B21

305199-B27

307754-B27

T2798AA#001

T2798AA#003

USB Options

HP Rack 5000 Series

(Metallic Carbonite)

USB 2-Button Optical Mouse (Carbonite)

HP USB 04 Standard Keyboard

USB 2.0 4-port HUB

HP 1GB USB 2.0 Floppy Drive Key

HP 256MB USB 2.0 Floppy Drive Key

External USB 2.0 Multi-Bay II Cradle

Multibay II 9.5mm DVD Drive

HP5642 Rack-Unassembled

NOTE:

Please see the HP Rack 5642 QuickSpecs for additional part numbers
and Technical Specifications such as height, width, depth, weight, and color:

http://h18000.www1.hp.com/products/quickspecs/12074_div/12074_div.html

(Worldwide)

NOTE:

For additional information regarding Rack Cabinets, please see the
following URL:

http://www.hp.com/go/rackandpower

DC172B

DT528A#xxx

DG954A

442085-B21

442084-B21

PA509A

PA849A

358254-B21

DA - 12579 Worldwide QuickSpecs — Version 9 — 11.12.2007

Page 19

QuickSpecs

Options

HP ProLiant BL45p Generation 2 Server Blade

HP Rack 10000 G2
Series

(Graphite Metallic)

10842 G2 (42U) 800mm Wide Rack Cabinet - Pallet

10842 G2 (42U) 800mm Wide Rack Cabinet - Shock Pallet

10647 G2 (47U) Rack Cabinet - Pallet

10642 G2 (42U) Rack Cabinet - Pallet

10642 G2 (42U) Rack Cabinet - Shock Pallet

10642 G2 (42U) Rack Cabinet - Crated

10642 G2 (42U) Rack Cabinet, with Extension - Shock Pallet*

10636 G2 (36U) Rack Cabinet - Pallet

10636 G2 (36U) Rack Cabinet - Shock Pallet

10636 G2 (36U) Rack Cabinet - Crate

10636 G2 (36U) Rack Cabinet, with Extension - Shock Pallet*

10622 G2 (22U) Rack Cabinet - Pallet

10622 G2 (22U) Rack Cabinet - Shock Pallet

NOTE:

Please see the Rack 10000 G2 QuickSpecs for additional part numbers
and Technical Specifications such as height, width, depth, weight, and color:

http://h18000.www1.hp.com/products/quickspecs/12402_div/12402_div.html

(Worldwide)

NOTE:

For additional information regarding Rack Cabinets, please see the
following URL:

http://www.hp.com/go/rackandpower

AF041A

AF042A

AF031A

AF001A

AF002A

AF003A

AF004A

AF011A

AF012A

AF013A

AF014A

AF021A

AF022A

HP Rack 10000 Series

(Graphite Metallic)

HP S10614 (14U) Rack Cabinet – Shock Pallet

HP 10647 (47U) Rack Cabinet – Shock Pallet

HP Rack 10622 (22U) Cabinet – Crated

NOTE:

xxxxxx-B22 (shock pallet) used to ship racks with equipment installed (by
custom systems, VARs and Channels). xxxxxx-B23 (crated) used for air
shipments of empty racks.

NOTE:

It is mandatory to use a shock pallet in order to ship racks with
equipment installed.

NOTE:

Please see the Rack 10000 QuickSpecs for additional part number and
Technical Specifications such as height, width, depth, weight, and color:

http://h18000.www1.hp.com/products/quickspecs/10995_div/10995_div.html

(Worldwide)

NOTE:

For additional information regarding Rack Cabinets, please see the
following URL:

http://www.hp.com/go/rackandpower

.

292302-B22

245160-B23

245163-B23

DA - 12579 Worldwide QuickSpecs — Version 9 — 11.12.2007

Page 20

QuickSpecs

Options

HP ProLiant BL45p Generation 2 Server Blade

Monitors and
Keyboards

TFT7210R Rack Mounted 17" Monitor

TFT7600 Rack Mounted 17" Monitor – US

TFT7600 Rack Mounted 17" Monitor – UK

TFT7600 Rack Mounted 17" Monitor – GR

TFT7600 Rack Mounted 17" Monitor – FR

TFT7600 Rack Mounted 17" Monitor – IT

TFT7600 Rack Mounted 17" Monitor – SP

TFT7600 Rack Mounted 17" Monitor – DEN

TFT7600 Rack Mounted 17" Monitor – NOR

TFT7600 Rack Mounted 17" Monitor – SE/FI

TFT7600 Rack Mounted 17" Monitor – SWI

TFT7600 Rack Mounted 17" Monitor – PORT

TFT7600 Rack Mounted 17" Monitor – BEL

TFT7600 Rack Mounted 17" Monitor – JPN2

TFT7600 Rack Mounted 17" Monitor – RUS

TFT7600 Rack Mounted 17" Monitor – INTL

1U Rackmount Keyboard with USB, US

1U Rackmount Keyboard with USB, UK

1U Rackmount Keyboard with USB, GR

1U Rackmount Keyboard with USB, FR

1U Rackmount Keyboard with USB, ITL

1U Rackmount Keyboard with USB, SP

1U Rackmount Keyboard with USB, DEN

1U Rackmount Keyboard with USB, NOR

1U Rackmount Keyboard with USB, SE/FI

1U Rackmount Keyboard with USB, SWI

1U Rackmount Keyboard with USB, PORT

1U Rackmount Keyboard with USB, BEL

1U Rackmount Keyboard with USB, JPN2

1U Rackmount Keyboard with USB, RUS

1U Rackmount Keyboard with USB, INTL

NOTE:

following URL:

http://h18000.www1.hp.com/products/servers/proliantstorage/rack­ptions/index.html

For additional information regarding Rack Options, please see the

.

348373-B21

AG052A

AG053A

AG054A

AG055A

AG056A

AG057A

AG058A

AG059A

AG060A

AG061A

AG062A

AG063A

AG064A

AG065A

AG066A

AG072A

AG073A

AG074A

AG075A

AG076A

AG077A

AG078A

AG079A

AG080A

AG081A

AG082A

AG083A

AG084A

AG085A

AG086A

DA - 12579 Worldwide QuickSpecs — Version 9 — 11.12.2007

Page 21

QuickSpecs

Options

HP ProLiant BL45p Generation 2 Server Blade

HP KVM Switch
Options

HP Serial Console
Server Options

HP BladeSystem p-class KVM Interface Adapter,1 pack

HP KVM CAT5 0x1x8 Server Console

HP KVM CAT5 0x2x16 Server Console Switch

PS/2 Interface Adapter, 1-pack

PS/2 Interface Adapter, 8-pack

USB Interface Adapter, 1-pack

Serial Interface Adapter, 1-pack with power supply

NOTE:

Cat5e cables are required to connect Interface Adapters to Consoles
Switches. Cat52 cables can be found at the following URL:

http://www.hp.com/go/kvm

NOTE:

For additional information regarding KVM switches, Serial Console
servers, rack mount monitors, keyboards and all related options please see the
following URL:

HP 16 Port Serial Console Server (worldwide)

HP 48 Port Serial Console Server (worldwide)

Serial Adapter, RJ45-DB9 DCE Female, 1 Pack

Serial Adapter, RJ45-DB9 DCE Female, 8 Pack

NOTE: Cat5e cables are required to connect Serial Adapters to Serial Console

Servers. Additional Serial Adapters and Cat5e cables can be found at the
following URL:

2x1x16 IP Console Switch with Virtual Media

4x1x16 IP Console Switch with Virtual Media

2x16 Server Console Switch with Virtual Media

PS/2 Virtual Media Interface Adapter, 1 pack

NOTE:

Requires PS/2 and one USB port on server.

NOTE:

servers, rack mount monitors, keyboards and all related options please see the
following URL:

For additional information regarding KVM switches, Serial Console

http://www.hp.com/go/kvm

http://www.hp.com/go/kvm

http://www.hp.com/go/kvm

.

.

AF100A

336044-B21

336045-B21

262588-B21

262587-B21

336047-B21

373045-B21

AF101A

AF102A

AF103A

AF110A

AF601A

AF602A

AF600A

AF604A

Service and Support
Offerings

Pack Services)

(HP Care

NOTE:

The HP Care Pack service part numbers below for HP BladeSystem p­Class server blades, cover the server blade and all HP branded hardware
options qualified for the server, purchased at the same time or afterwards,
internal to the server.

Hardware Services On-site Service

4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic

4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic

6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years,
Electronic

NOTE:

The HP Care Pack service part numbers below for HP BladeSystem p­Class server blade enclosure covers the enclosure including patch panels, HP
supported Ethernet interconnects, power enclosure with power supplies and
power distribution.

Hardware Services On-site Service

4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic

4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic

6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years,
Electronic

DA - 12579 Worldwide QuickSpecs — Version 9 — 11.12.2007

UD187E

UD188E

UD189E

HC031E

HC032E

HC033E

Page 22

QuickSpecs

Options

NOTE:

The HP Care Pack service part numbers below covers the HP
BladeSystem Brocade and McData SAN Switches.

Hardware Services On-site Service

Next Business Day On-site Service, 5-Day x 9-Hour Coverage, 3 Years,
Electronic

Hardware Installation, Electronic

4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, (24 port) Electronic

4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic

4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic

6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years,
Electronic

Installation & Start-up Services

HP Installation & Startup Service for HP BladeSystem Infrastructure

NOTE:

includes remote service planning, onsite deployment of hardware and software,
installation verification testing and customer orientation. Hardware deployment
covers the installation of a single BladeSystem enclosure that include server
blades (up to 16), Ethernet network interconnect, and power options. Software
deployment covers the installation and configuration of HP Systems Insight
Manager (SIM), HP Rapid Deployment Pack (RDP), and deploy up to two
operating system editions of either Windows or Linux, using scripted operating
system installation software

Installation and Start Up Service for HP BladeSystem

ProLiant BL p-Class Blade Server Hardware Installation, Electronic

HP BladeSystem p-Class Enclosure and Server Blade Hardware Installation,
Electronic

Installation and Start-up of Rapid Deployment Pack, Electronic

NOTE:

a Deployment Server. Includes the deployment of a single server. This new
server will be deployed using either one of the pre-configured scripts or an
image. In addition, the service will provide for the capture and storage of the
configuration of the newly deployed server and orientation on product usage. To
be delivered during standard office ours, standard office days.

Provides for the Installation and Start-up of Rapid Deployment Pack
Implementation of Rapid Deployment Pack (Basic) (Electronic)

HP ProLiant Essentials Vulnerability and Patch Management Pack Installation
and Startup Service. (Electronic)

NOTE:

Management (VPM) software on a customer designated server, configuration of
the VPM software to acquire security patches, enabling the VPM software to
scan up to five (5) systems, applying the security patches to the designated
servers, generating a report from VPM that shows the vulnerability assessment
results, and providing customer with an orientation to the software.

Provides for the Installation and Start-up of System Insight Manager (Electronic)

Provides for the Installation and Start-up of System Insight Manager (Electronic)

NOTE:

http://www.hp.com/hps/carepack/services/

Software Operating Environment Care Packs

Microsoft Software Operating Environment Software Telephone 9x5 - 3 incident
(Electronic)

Red Hat Software Operating Environment Software Telephone 9x5 - 10 incident
(Electronic)

provides for an integrated hardware and software implementation that

Provides for the installation on a Customer supplied server designated as

Service coverage: onsite installation of the Vulnerability and Patch

For more information, customer/resellers can contact

HP ProLiant BL45p Generation 2 Server Blade

UC007E

U5988E

UE438E

UC008E

UC009E

UC023E

UC905E

.

UE604E
UA219E

U4971E

U5683E

UA042E

UC929E

UA041E

UA040E

U8169E

U3402E

DA - 12579 Worldwide QuickSpecs — Version 9 — 11.12.2007

Page 23

QuickSpecs

Options

HP ProLiant BL45p Generation 2 Server Blade

SUSE Software Operating Environment Software Telephone 9x5 - 3 incident
(Electronic)

ProLiant Essentials Operating Environment, - 5 Day, 8x5,1 year, 3 incident
(Electronic)

Software Operating Environment Care Packs

NOTE:

http://www.hp.com/hps/carepack/services/

HP Proactive BladeSystem Service Care Pack

1 Year, HP Proactive BladeSystem Service UG858E

NOTE:

http://www.hp.com/services/proactivebladeservice

For more information, customer/resellers can contact

For more information, customer/resellers can contact

U9615E

U8222E

UG858E

DA - 12579 Worldwide QuickSpecs — Version 9 — 11.12.2007

Page 24

QuickSpecs

HP ProLiant BL45p Generation 2 Server Blade

Memory

DIMM Installation Rules:

All DIMMs must be PC2-5300 Registered DDR2 DIMMs (667 MHz.)

1.
Both DIMM slots in a memory bank must be populated.

2.
Both DIMMs in a memory bank must be identical.

3.
Processor 1 memory bank A must always be populated.

4.
DIMM banks are active only when the corresponding processor socket is populated.

5.
If installing only one bank on a processor, populate the bank physically farthest from the processor.

6.
If mixing DIMM sizes on the same processor, the largest capacity DIMMs must be populated in the bank physically

7.
farthest from the processor. The smallest capacity DIMMs must be populated in the bank physically nearest the
processor.
For optimal performance in most applications, populate the first memory bank for every populated processor socket.

8.

HP ProLiant BL45p G2 Server Blade
Standard Memory

4096-MB (4 x 1024 MB) of PC2-5300, Registered DDR2-667 DIMMs.

Standard Memory Plus Optional Memory

Up to 53,248-MB of PC2-5300, Registered DDR2-667 DIMM memory is available with the installation of optional PC2-5300,
Registered DDR2-667 DIMM memory expansion kits.

(2P Model)

Standard Memory Replaced with Optional Memory

Up to 65,536-MB of PC2-5300, Registered DDR2-667 DIMM memory is available with the removal of standard memory and
the installation of optional PC2-5300, Registered DDR2-667 DIMM memory expansion kits.

Memory

Standard

Optional

Maximum

4096 MB

53,248 MB

65,536 MB

1 2 3 4 5 6 7 8

1024 MB 1024 MB

9 10 11 12 13 14 15 16

Empty Empty Empty Empty Empty Empty Empty Empty

1 2 3 4 5 6 7 8

4096 MB 4096 MB 1024 MB 1024 MB 4096 MB 4096 MB 1024 MB 1024 MB

9 10 11 12 13 14 15 16

4096 MB 4096 MB 4096 MB 4096 MB 4096 MB 4096 MB 4096 MB 4096 MB

1 2 3 4 5 6 7 8

4096 MB 4096 MB 4096 MB 4096 MB 4096 MB 4096 MB 4096 MB 4096 MB

9 10 11 12 13 14 15 16

4096 MB 4096 MB 4096 MB 4096 MB 4096 MB 4096 MB 4096 MB 4096 MB

Empty Empty

Slot

1024 MB 1024 MB

Empty Empty

Following are memory options available from HP:

HP 1GB REG PC2-5300 2x512MB 1RANK Kit

HP 2GB REG PC2-5300 2x1GB 1RANK Kit

HP 4GB REG PC2-5300 2x2GB 2RANK Kit

HP 8GB REG PC2-5300 2x4GB 2RANK Kit

408850-B21

408851-B21

408853-B21

408854-B21

DA - 12579 Worldwide QuickSpecs — Version 9 — 11.12.2007

Page 25

QuickSpecs

Storage

HP ProLiant BL45p Generation 2 Server Blade

Drive Support

SFF SAS Hard Drives Hot-plug

72GB 15K SP SAS
36 GB 15K SP SAS
146 GB 10 SAS
72GB 10K SAS
36 GB 10K SAS

SFF SATA Hard Drives Hot-plug

120 GB 5.4K SATA
60 GB 5.4K SATA

Quantity

Supported

Quantity

Supported

1

2

3-4

Position

Supported

2

2

3-4

Position

Supported

3-4

Controller

Integrated Smart Array E200i Controller

Controller

Integrated Smart Array E200i Controller

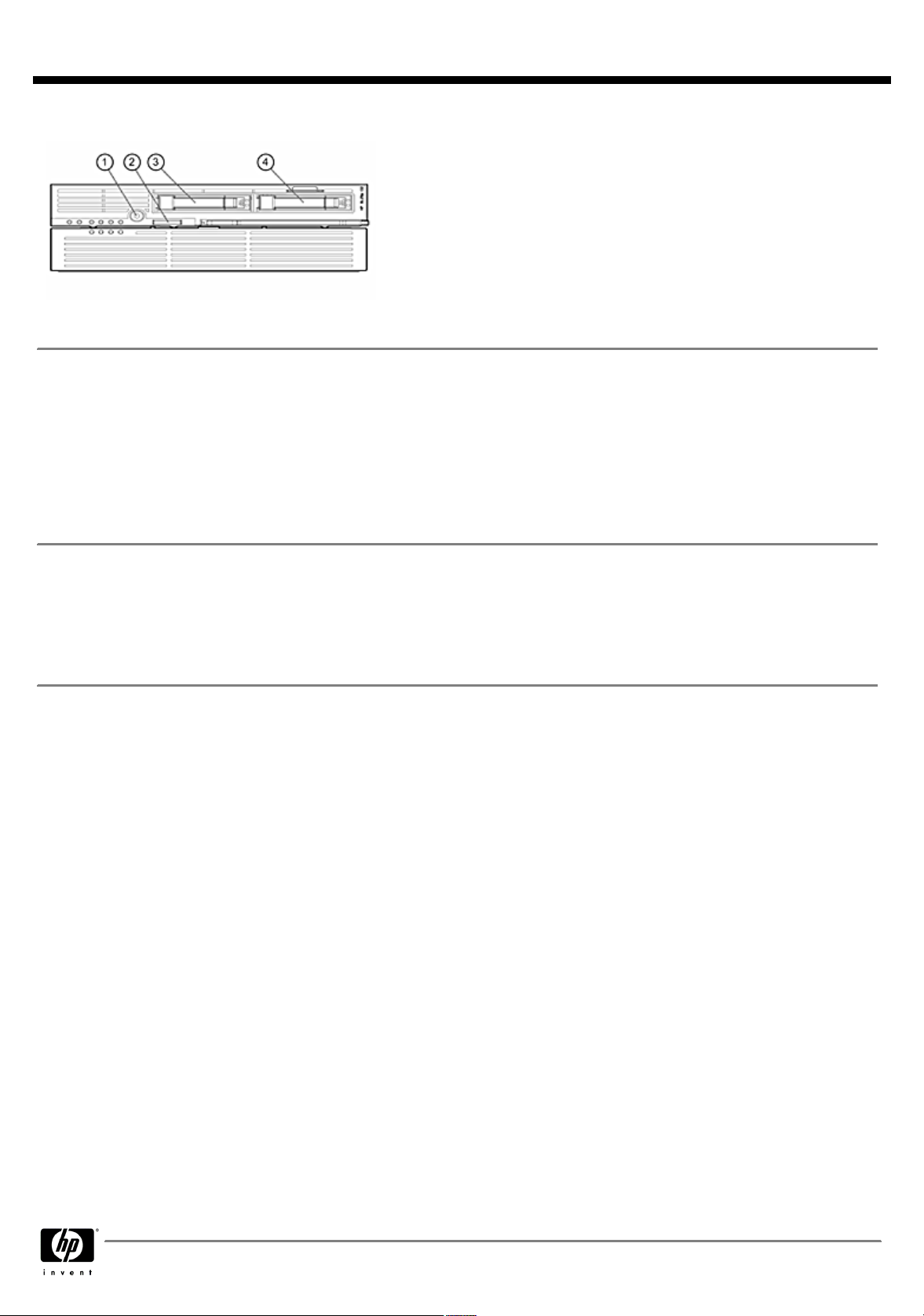

Power On/Standby button

Local I/O cable connector*

Two (2) SFF SAS or SATA Hot-plug Hard Drives

NOTE:

*The local I/O connector is used with the local
I/O cable to perform server blade configuration and
diagnostic procedures.

Power Specifications

To review typical system power ratings use the Active Answers Power Calculator which is available via the online tool
located at URL:

http://www.hp.com/go/bladesystem/powercalculator

DA - 12579 Worldwide QuickSpecs — Version 9 — 11.12.2007

Page 26

QuickSpecs

Technical Specifications

HP ProLiant BL45p Generation 2 Server Blade

System Unit

Smart Array E200i
Controller

Dimensions

Weight

Temperature Range*Operating

Relative Humidity

(non-condensing)

*NOTE:

(1.8°F per 1,000 ft) to 3048 m (10,000 ft) is applicable. No direct sunlight allowed. Upper operating
limit is 3,048m (10,000 ft) or 70 Kpa/10.1 psia. Upper non-operating limit is 9,144 m (30,000 ft) or

30.3 KPa/4.4 psia.

**NOTE

(113°F). Altitude maximum for storage corresponds to a pressure minimum of 70 KPa.

Disk Drive and
Enclosure Interface

Cache Memory Speed

Server Interface

SAS Speed

Cache Memory

Logical Volumes
Supported

Maximum Logical Drive
Capacity

Host Memory
Addressing

RAID Support

Upgradeable Firmware

(HxWxD)

(maximum)

**

All temperature ratings shown are for sea level. An altitude derating of 1°C per 304.8 m

: Storage maximum humidity of 95% is based on a maximum temperature of 45°C

3.425 x 10.29 x 28.00 in (8.699 x 26.14 x 71.1 cm)

31.40 lb (14.24 kg)

Shipping

Storage

Maximum Wet Bulb
Temperature

Operating

Shipping

Storage

3G SAS (Serial Attached SCSI)

1.5G SATA (Serial Advanced Technology Attachment)

DDR-1/266 MHz provides up to 4.2 GB/s maximum bandwidth.

x4 2.5G PCIe provides 2GB/s maximum bandwidth.

x2 3G SAS provides 600MB/s maximum bandwidth.

40-bit 64MB or 128MB cache: ECC protection, battery-backed, and
transportable

Up to 32 logical volumes

292GB (2 x 146GB)

64-bit, supporting greater than 4GB server memory space

RAID 1 (Mirroring)

RAID 0 (Striping)

Upgradeable Firmware

50° to 95°F (10° to 35°C)

-40° to 140°F (-40° to 60°C)

-4° to 140°F (-20° to 60°C)

86°F (30°C)

10% to 90%

10% to 90%

10% to 95%

Two (2) Embedded
NC373i Multifunction
Gigabit Network
Adapters

Network Interface

Data Transfer Method

Network Transfer Rate

DA - 12579 Worldwide QuickSpecs — Version 9 — 11.12.2007

Blackplane connection

PCI-Express, four lanes (x4)

1000Mbps

Page 27

QuickSpecs

Technical Specifications

HP ProLiant BL45p Generation 2 Server Blade

Environment-friendly
Products and
Approach

© Copyright 2007 Hewlett-Packard Development Company, L.P.

The information contained herein is subject to change without notice.

Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. AMD is a US registered trademark of
AMD Corporation.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such
products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for
technical or editorial errors or omissions contained herein.

End-of-life
Management and
Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and
recycling programs in many geographic areas. For trade-in information,
please go to
please go to:
sales office. Products returned to HP will be recycled, recovered or
disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to
provide treatment information for each product type for use by treatment
facilities. This information (product disassembly instructions) is posted
on the Hewlett Packard web site at:
instructions may be used by recyclers and other WEEE treatment
facilities as well as HP OEM customers who integrate and re-sell HP
equipment.

http://www.hp.com/go/green

http://www.hp.com/go/green

http://www.hp.com/go/green

. To recycle your product,

or contact your nearest HP

. These

For hard drives, 1 GB = 1 billion bytes. Actual formatted capacity is less.

DA - 12579 Worldwide QuickSpecs — Version 9 — 11.12.2007

Page 28
