HP B6191-90029 User Manual

EMS Hardware Monitors User's Guide

Manufacturing Part Number: B6191-90029

May 2005

Legal Notices

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements

accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Printed in the US. Conﬁdential computer software. Valid license from HP required for possession, use or copying. Consistent

with FAR 12.211 and 12.212, Commercial Computer Software, Computer Software Documentation, and Technical Data for Commercial Items are licensed to the U.S. Government under vendor’s standard commercial license.

Trademark Notices

UNIX is a registered trademark of The Open Group.

Printing History

The printing date and part number indicate the current edition. The printing date changes when a new edition is printed. (Minor corrections and updates which are incorporated at reprint do not cause the date to change.) The part number changes when extensive technical changes are incorporated.

New editions of this manual will incorporate all material updated since the previous edition. May 2005 Edition 7 June 2004 Edition 6 December 2003 Edition 5 July 2003 Edition 4 April 2003 Edition 3 February 2003 Edition 2 September 2001 Edition 1 Internal Date: July 17, 2001

Event Management Lab Hewlett-Packard Co. 19091 Pruneridge Ave. Cupertino, CA 95014

1. Introduction

Hardware Monitoring Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

What is Hardware Monitoring? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

How Does Hardware Monitoring Work? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Beneﬁts of Hardware Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Products Supported by Hardware Monitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Tips for Hardware Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Hardware Monitoring Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

2. Installing and Using Monitors

The Steps Involved . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Installing EMS Hardware Monitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

IOSCAN Utility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Supported System Conﬁguration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Removing EMS Hardware Monitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Checking for Special Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Using Hardware Monitoring Requests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

What Is a Monitoring Request? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Some Monitoring Request Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Running the Monitoring Request Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Enabling Hardware Event Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Default Monitoring Requests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Listing Monitor Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Viewing Current Monitoring Requests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Adding a Monitoring Request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Example of Adding a Monitoring Request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Modifying Monitoring Requests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Verifying Hardware Event Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Checking Detailed Monitoring Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Retrieving and Interpreting Event Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Sample Event Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Deleting Monitoring Requests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Disabling Hardware Event Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Contents

3. Detailed Description

The Detailed Picture of Hardware Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Components from Three Different Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Hardware Monitoring Request Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

EMS Hardware Event Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Polling or Asynchronous? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Startup Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Peripheral Status Monitor (PSM) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Event Monitoring Service (EMS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

File Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Startup Process (in Detail) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Asynchronous Event Detection (in Detail) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Contents

Event Polling (in Detail). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

4. Using the Peripheral Status Monitor

Peripheral Status Monitor Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

How Does the PSM Work? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

PSM Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

PSM States . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

PSM Resource Paths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Conﬁguring MC/ServiceGuard Package Dependencies with the PSM . . . . . . . . . . . . . . . . . . . . . . . . . 79

Conﬁguring Package Dependencies using SAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Conﬁguring Package Dependencies by Editing the Conﬁguration File . . . . . . . . . . . . . . . . . . . . . . . 81

Creating EMS Monitoring Requests for PSM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82

Monitoring Request Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Specifying When to Send Event - <Notify>. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Determining the Frequency of Events - <Options> . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Setting the Polling Interval - <Polling Interval> . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Selecting Protocols for Sending Events - <Notify Via> . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Adding a Notiﬁcation Comment - <Comment> . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Copying Monitoring Requests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Modifying Monitoring Requests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Removing Monitoring Requests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Viewing Monitoring Requests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Using the set_ﬁxed Utility to Restore Hardware UP State . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

5. Hardware Monitor Conﬁguration Files

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Understanding Multiple-View and Non-Multiple-View Monitor Classes . . . . . . . . . . . . . . . . . . . . . . 94

Monitor Conﬁguration File Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Client Conﬁguration File. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Clients: Targets for Events. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Creating a Client Conﬁguration File (*.clcfg) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Verifying Monitors with a Test Event . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Sample Client Conﬁguration File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Monitor-Speciﬁc and Global Conﬁguration Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

File Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

File Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Considerations for Modifying the Monitor Conﬁguration File Settings . . . . . . . . . . . . . . . . . . . . . . 102

Monitor Conﬁguration File Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Sample Global Conﬁguration File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Sample Monitor-Speciﬁc Conﬁguration File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Startup Conﬁguration File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

File Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

File Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

Considerations for Modifying the Startup Conﬁguration File Settings . . . . . . . . . . . . . . . . . . . . . . 118

Default File Entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Peripheral Status Monitor (PSM) Conﬁguration File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

File Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

File Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Considerations for Modifying the PSM Conﬁguration File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

Example File Entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

Pushing EMS Hardware Monitors conﬁguration to multiple systems . . . . . . . . . . . . . . . . . . . . . . . . . 126

6. Special Procedures

Fibre Channel Arbitrated Loop Hub Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Supported Products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Special Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Resource Path . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Executable File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Monitor Behavior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

PSM State Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Initial Monitor Conﬁguration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Adding or Removing an FC-AL Hub . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

Conﬁguration Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

Fibre Channel Switch Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Supported Products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Special Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Resource Path . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Executable File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Monitor Behavior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

PSM State Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Initial Monitor Conﬁguration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Adding or Removing an FC Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Conﬁguration Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Contents

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Contents

Tables

Table 1-1. Hardware Monitoring Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Table 2-1. Disk Arrays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Table 2-2. Disk Products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Table 2-3. Tape Products (monitored by SCSI Tape Devices Monitor) . . . . . . . . . . . . . . . . . . . . . . . 31

Table 2-4. High Availability Storage Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Table 2-5. Fibre Channel SCSI Multiplexers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Table 2-6. Fibre Channel Adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Table 2-7. Fibre Channel Arbitrated Loop (FC-AL) Hub . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Table 2-8. Fibre Channel Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Table 2-9. Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Table 2-10. System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Table 2-11. Interface Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Table 2-12. Others . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Table 2-13. Default Monitoring Requests for Each Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Table 2-14. Monitoring Requests Conﬁguration Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Table 2-15. Event Severity Levels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Table 3-1. File Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Table 4-1. PSM Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Table 4-2. PSM Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Table 4-3. PSM Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Table 5-1. Monitor Conﬁguration File Entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Table 5-2. Startup Conﬁguration File Entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Table 5-3. Startup Conﬁguration File Entries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Table 5-4. Default Monitoring Requests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Table 5-5. PSM Conﬁguration File Fields. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

Table 6-1. PSM Conﬁguration File Fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

Table 6-2. PSM Conﬁguration File Fields. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

Tables

Figures

Figure 1-1. Components Involved in Hardware Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Figure 2-1. The Steps for Installing and Conﬁguring Hardware Monitoring. . . . . . . . . . . . . . . . . . 27

Figure 2-2. Building a Monitoring Request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Figure 3-1. Hardware Monitoring Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Figure 3-2. Monitoring Startup Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

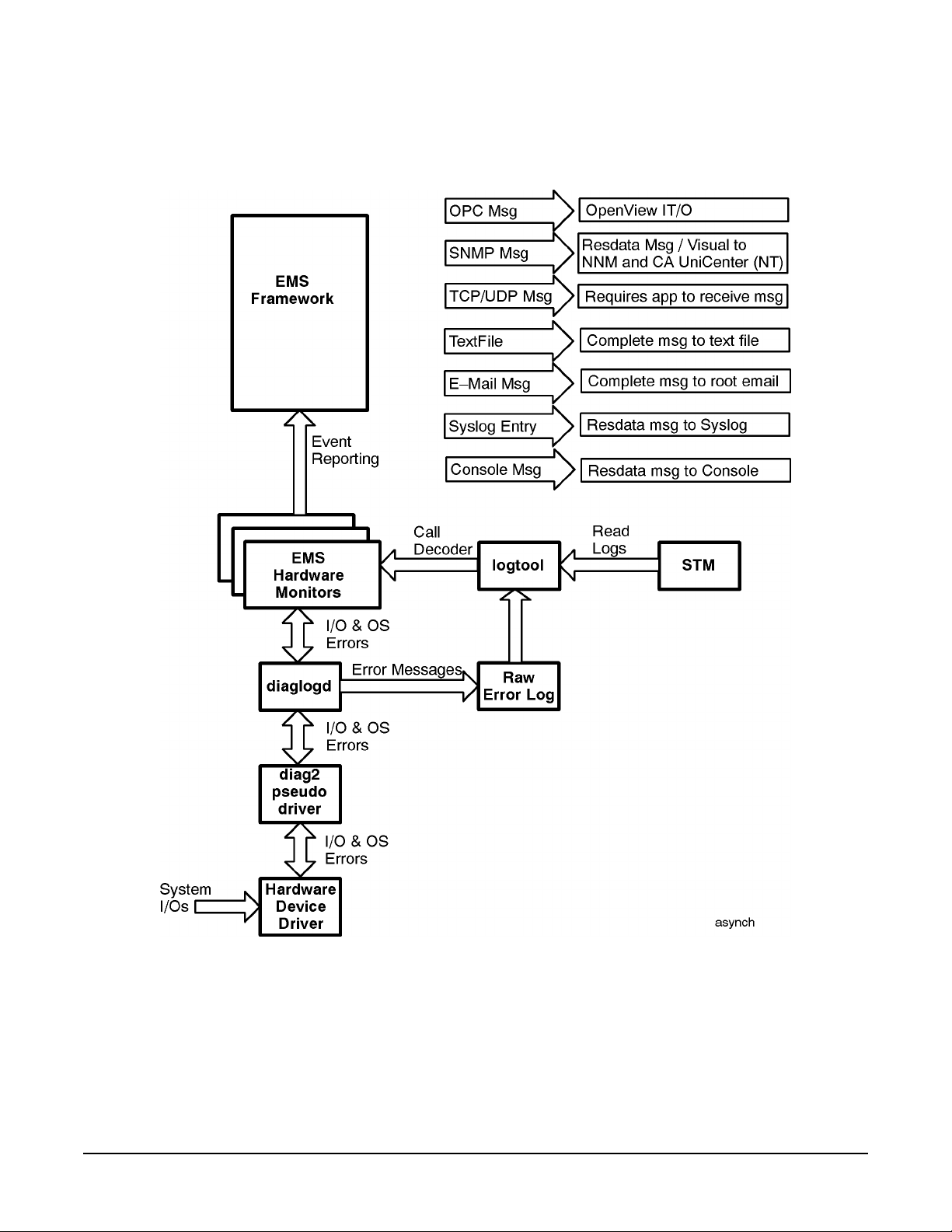

Figure 3-3. Asynchronous Event Detection Process. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Figure 3-4. Monitoring Polling Process. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Figure 3-5. Memory Monitor Polling Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Figure 4-1. Peripheral Status Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Figures

About This Manual

This guide is intended for use by system administrators and others involved in managing HP-UX system hardware resources. It describes the installation and use of (EMS) Hardware Monitors—an important tool in managing the operation and health of system hardware resources.

The book is organized as follows:

• Chapter 1, “Introduction,” provides a foundation for understanding what the hardware monitors are and how they work. This material will help you use the hardware event monitors efﬁciently.

• Chapter 2, “Installing and Using Monitors,” describes the procedures for creating and managing monitoring requests.

• Chapter 3, “Detailed Description,” gives a detailed picture of the components involved in hardware monitoring, their interaction, and the ﬁles involved.

• Chapter 4, “Using the Peripheral Status Monitor,”covers the Peripheral Status Monitor (PSM), which serves as the interface between the event-driven hardware event monitors and MC/ServiceGuard.

• Chapter 5, “Hardware Monitor Conﬁguration Files,” describes how to control the operation of hardware monitors by modifying the conﬁguration ﬁles.

• Chapter 6, “Special Procedures,” describes monitor-speciﬁc tasks.

NOTE The information previously contained in the chapter titled “Monitor Data Sheets,” has been

moved to the Web at http://docs.hp.com/hpux/onlinedocs/diag/ems/emd_summ.htm. An HP-UX man page is available for each monitor. To access the man page, type:

man

monitorname

where

Typographical Conventions

This guide uses the following typographical conventions:

NOTE Notes contain important information.

CAUTION Caution messages indicate procedures which, if not observed, could result in damage to your

equipment or loss of your data.

WARNING Warning messages indicate procedures or practices which, if not observed, could

result in personal injury.

Supporting Documentation

The following documentation contains information related to the installation and use of the hardware event monitors:

monitorname

is the executable ﬁle listed in the data sheet.

• Support Plus: Diagnostics User's Guide - provides information on installing the EMS Hardware Monitors

• Managing MC/ServiceGuard (B3936-90024) - provides information on creating package dependencies for hardware resources

• Using EMS HA Monitors (B5735-90001) - provides detailed information on using EMS to create monitoring requests.

Note: This manual pertains to High Availability (HA) Monitors rather than to the EMS Hardware Monitors.

Related Web sites

The following Web sites provide information on hardware monitoring.

• http://docs.hp.com/en/diag.html—the online library for information about EMS Hardware Monitors

• http://docs.hp.com/en/onlinedocs/diag/ems/emd_summ.htm—Data sheets for the hardware event monitors

Reader Comments

We welcome your comments on our documentation. If you have editorial suggestions or recommended improvements for this document, please write to us. You can give your feedback at the online customer feedback web site http://www.docs.hp.com/en/feedback.html. Please include the following information in your message:

• Title of the manual you are referencing.

• Manual part number (from the title page).

• Edition number or publication date (from the title page).

• Your name.

• Your company’s name.

Serious errors, such as technical inaccuracies that may render a program or a hardware device inoperative, should be reported to the HP Response Center or directly to a Support Engineer.

Introduction

1 Introduction

This chapter introduces the EMS Hardware Monitors. The topics discussed in this chapter include the following:

• What is hardware monitoring?

• How does hardware monitoring work?

• Beneﬁts of hardware monitoring

• Products supported by hardware monitoring

• Tips for hardware monitoring

• Hardware monitoring terms

NOTE Do I Really Need to Read This Chapter?

Although it is not essential that you read this material before using the hardware monitors, it will help you understand how monitoring works, which in turn should help you use it effectively. New users are strongly encouraged to read through the general overview material before proceeding to Chapter 2, “Installing and Using Monitors”.

Chapter 1

Introduction

Hardware Monitoring Overview

What is Hardware Monitoring?

Hardware monitoring is the process of watching a hardware resource (such as a disk) for the occurrence of any unusual activity, called an event. When an event occurs, it is reported using a variety of notiﬁcation methods (such as email). Event detection and notiﬁcation are all handled automatically with minimal involvement on your part.

To achieve a high level of system reliability and availability, it is essential that you know when any system resource is experiencing a problem. Hardware monitoring gives you the ability to detect problems with your system hardware resources. By providing immediate detection and notiﬁcation, hardware monitoring allows you to quickly identify and correct problems—often before they impact system operation.

Another important feature of hardware monitoring is its integration with applications responsible for maintaining system availability, such as MC/ServiceGuard. It is vital that these applications be alerted to hardware problems immediately so they can take the necessary action to avoid system interruption. Hardware monitoring is easily integrated with MC/ServiceGuard, and the necessary notiﬁcation methods are provided for communication with other applications such as HP OpenView.

Hardware monitoring is designed to provide a high level of protection against system hardware failure with minimal impact on system performance. By using hardware monitoring, you can virtually eliminate undetected hardware failures that could interrupt system operation or cause data loss.

Chapter 1

Introduction

Hardware Monitoring Overview

How Does Hardware Monitoring Work?

The following ﬁgure shows the basic components involved in hardware monitoring.

Figure 1-1 Components Involved in Hardware Monitoring

The typical hardware monitoring process works as follows:

1. While monitoring its hardware resources, the hardware event monitor detects some type of abnormal behavior on one of the resources.

2. The hardware event monitor creates the appropriate event message, which includes suggested corrective action, and passes it to the Event Monitoring Service (EMS).

3. EMS sends the event message to the system administrator using the notiﬁcation method speciﬁed in the monitoring request.

4. The system administrator (or Hewlett-Packard service provider) receives the messages, corrects the problem, and returns the hardware to its normal operating condition.

5. If the PSM has been properly conﬁgured, events are also processed by the PSM. The PSM changes the device status to DOWN if the event is serious enough. The change in device status is passed to EMS, which in turn alerts MC/ServiceGuard. The DOWN status will cause MC/ServiceGuard to failover any package associated with the failed hardware resource.

NOTE The Difference Between Hardware Event Monitoring and Hardware Status

Monitoring

Hardware event monitoring is the detection of events experienced by a hardware resource. It is the task of the EMS Hardware Monitors to detect hardware events. Events are temporary in the sense that the monitor detects them but does not remember them. Of course the event itself may not be temporary—a failed disk will likely remain failed until it is replaced.

Hardware status monitoring is an extension of event monitoring that converts an event to a change in device status. This conversion, performed by the PSM, provides a mechanism for remembering the occurrence of an event by storing the resultant status. This persistence provides compatibility with applications such as MC/ServiceGuard, which require a change in device status to manage high availability packages.

Chapter 1

Introduction

Hardware Monitoring Overview

Beneﬁts of Hardware Monitoring

Hardware monitoring provides the following beneﬁts:

• Reduces system downtime by detecting hardware failures when they occur, allowing you to quickly identify and correct problems.

• Integrates with MC/ServiceGuard and other applications responsible for maintaining system availability. These applications can now add many hardware resources to the components they monitor.

• Minimizes the time required to isolate and repair failures through detailed messages describing what the problem is and how to ﬁx it.

• Includes a default monitoring conﬁguration that offers immediate protection for your system hardware without any intervention on your part after monitoring is enabled.

• Provides a common tool for monitoring a wide variety of system hardware resources.

• Offers a variety of notiﬁcation methods to alert you when a problem occurs. You no longer need to check the system console to determine if something has gone wrong.

• Requires minimal maintenance once installed and conﬁgured. New hardware resources added to the system are automatically included in the monitoring structure.

Chapter 1

Introduction

Hardware Monitoring Overview

Products Supported by Hardware Monitors

EMS Hardware Monitors are provided for a wide range of system hardware resources. The following list identiﬁes the types of hardware supported by monitors at the time of publication. A detailed list of the speciﬁc hardware products supported by each hardware monitor is included in http://docs.hp.com/en/diag/ - the online library for information about EMS Hardware Monitors (look for “Supported Products” under EMS Hardware Monitors).

• HP disk arrays, including AutoRAID Disk Arrays and High Availability Disk Arrays

• HP disk devices, including CD-ROM drives and MO drives

• HP SCSI tape devices, including many DLT libraries and autochangers

• HP Fibre Channel SCSI Multiplexer

• HP Fibre Channel Adapters

• HP Fibre Channel Adapter (A5158)

• High Availability Storage Systems

• HP Fibre Channel Arbitrated Loop Hubs

• HP Fibre Channel Switch

• System memory

• Core hardware

• Low Priority Machine Checks (LPMCs)

• HP-UX kernel resources

• HP Fibre Channel disk array FC60

• SCSI1, SCSI2, SCSI3 interface cards

• System information

• HP UPSs (Uninterruptible Power Systems)

• Devices supported by HP device management software (Remote Monitor)

NOTE Will new products be supported?

Hewlett-Packard's strategy is to provide monitoring for all critical system hardware resources, including new products. For the latest information on what products are supported by EMS Hardware Monitors, visit the hardware monitoring web pages available at www.docs.hp.com/en/diag/ - the online library for information about EMS Hardware Monitors (look for "Supported Products" under EMS Hardware Monitors).

Chapter 1

Introduction

Hardware Monitoring Overview

Tips for Hardware Monitoring

Here are some tips for using hardware monitoring.

✓ Keep hardware monitoring enabled to protect your system from undetected failures. Hardware

monitoring is an important tool for maintaining high-availability on your system. In a high-availability environment, the failure of a hardware resource makes the system vulnerable to another failure. Until the failed hardware is repaired, the backup hardware resource represents a single-point of failure. Without hardware monitoring you may not be aware of the failure. But if you are using hardware monitoring, you are alerted to the failure. This allows you to repair the failure and restore high-availability as quickly as possible.

✓ Integrate the PSM into your MC/ServiceGuard strategy. An important feature of hardware

monitoring is its ability to communicate with applications responsible for maintaining system availability, such as MC/ServiceGuard. The PSM allows you to integrate hardware monitoring into MC/ServiceGuard. The PSM gives you the ability to failover a package based on an event detected by hardware monitoring. If you are using MC/ServiceGuard, you should consider using the PSM to include your system hardware resources in the MC/ServiceGuard strategy. In addition, the necessary notiﬁcation methods are provided for communicating with network management application such as HP OpenView.

✓ Utilize the many notiﬁcation methods available. The notiﬁcation methods provided by hardware

monitoring provide a great deal of ﬂexibility in designing a strategy to keep you informed of how well your system hardware is working. The default monitoring conﬁguration was selected to provide a variety of notiﬁcation for all supported hardware resources. As you become familiar with hardware monitoring, you may want to customize the monitoring to meet your individual requirements.

✓ Use e-mail and/or text ﬁle notiﬁcation methods for all your requests. Both of these methods,

which are included in the default monitoring, receive the entire content of the message so you can read it immediately. Methods such as console and syslog alert you to the occurrence of an event but do not deliver the entire message. You are required to retrieve the message using the resdata utility, which requires an additional step.

✓ Use the `All monitors' option when creating a monitoring request. This option enables monitoring

request to all monitors. It ensures any new class of hardware resource added to your system is automatically monitored. This means that new hardware is protected from undetected hardware failure with no effort on your part.

✓ Easily replicate your hardware monitoring on all your systems. Once you have implemented a

hardware monitoring strategy on one of your systems, you can replicate that same monitoring on other systems. Simply copy all of the hardware monitor conﬁguration ﬁles to each system that will use the same monitoring. The monitor conﬁguration ﬁles are found at /var/stm/config/tools/monitor. Of course, you must have installed hardware event monitoring on each system before you copy the conﬁguration ﬁles to it. Be sure to enable monitoring on all systems.

Chapter 1

Introduction

Hardware Monitoring Overview

Hardware Monitoring Terms

The following terms are used throughout this guide. Understanding them is important when learning how the hardware event monitors work and how to use them effectively.

Table 1-1 Hardware Monitoring Terms

Term Deﬁnition

Asynchronous event detection

Default monitoring request

Event Monitoring Service (EMS)

EMS Hardware Monitors

EMS High Availability (HA) Monitors

The ability to detect an event at the time it occurs. When an event occurs the monitor is immediately aware of it. This method provides quicker notiﬁcation response than polling.

The default monitoring conﬁguration created when the EMS Hardware Monitors are installed. The default requests ensure that a complete level of protection is automatically provided for all supported hardware resources.

The application framework used for monitoring system resources on HP-UX 10.20 and 11.x. EMS Hardware Monitors use the EMS framework for reporting events and creating PSM monitoring requests. The EMS framework is also used by EMS High Availability Monitors.

The monitors described in this manual. They monitor hardware resources such as I/O devices (disk arrays, tape drives, etc.), interface cards, and memory. They are distributed on the Support Plus Media and are managed with the Hardware Monitoring Request Manager (monconﬁg).

These monitors are different from EMS Hardware Monitors and are not described in this manual. They monitor disk resources, cluster resources, network resources and system resources. They are designed for a high availability environment and are available at additional cost. For more information, refer to Using EMS HA Monitors, which is available at http://docs.hp.com/en/ha.html.

Event severity level Each event that occurs within the hardware is assigned a

severity level, which reﬂects the impact the event may have on system operation. The severity levels provide the mechanism for directing event notiﬁcation. For example, you may choose a notiﬁcation method for critical events that will alert you immediately to their occurrence, and direct less important events to a log ﬁle for examination at your convenience. Also, when used with MC/ServiceGuard to determine failover criteria, severe and critical events cause failover.

Hardware event Any unusual or notable activity experienced by a hardware

resource. For example, a disk drive that is not responding, or a tape drive that does not have a tape loaded. When any such activity occurs, the occurrence is reported as an event to the event monitor.

Chapter 1

Introduction

Hardware Monitoring Overview

Table 1-1 Hardware Monitoring Terms (Continued)

Term Deﬁnition

Hardware event monitor

Hardware resource A hardware device used in system operation. Resources

MC/ServiceGuard Hewlett-Packard's application for creating and managing

A monitor daemon that gathers information on the operational status of hardware resources. Each monitor is responsible for watching a speciﬁc group or type of hardware resources. For example, the tape monitor handles all tape devices on the system. The monitor may use polling or asynchronous event detection for tracking events.

Unlike a status monitor, an event monitor does not “remember” the occurrence of an event. It simply detects and reports the event. An event can be converted into a more permanent status condition using the PSM.

supported by hardware monitoring include mass storage devices such as disks and tapes, connectivity devices such as hubs and multiplexors, and device adapters.

High Availability clusters of HP 9000 Series 800 computers. A High Availability computer system allows application services to continue in spite of a hardware or software failure. Hardware monitoring integrates with MC/ServiceGuard to ensure that hardware problems are detected and reported immediately, allowing MC/ServiceGuard to take the necessary action to maintain system availability. MC/ServiceGuard is available at additional cost

Monitoring request A group of settings that deﬁne how events for a speciﬁc

monitor are handled by EMS. A monitoring request identiﬁes the severity levels of interest and the type of notiﬁcation method to use when an event occurs. A monitoring request is applied to each hardware device (or instance) supported by the monitor.

Monitoring requests are created for hardware events using the Hardware Monitoring Request Manager. Monitoring requests are created for changes in hardware status using the EMS GUI.

Multiple-view As of the HP-UX 11.00/10.20 June 2000 release (IPR 0006),

certain monitors will allow event reporting to be tailored for different targets (clients). This “multiple-view” (“Predictive-enabled”) feature will be added to all hardware monitors in future releases. Previously, hardware monitors generated events the same way for all targets. The problem is that different targets, such as HP Support Applications, may have different requirements for events.

Chapter 1

Table 1-1 Hardware Monitoring Terms (Continued)

Term Deﬁnition

Introduction

Hardware Monitoring Overview

Peripheral Status Monitor (PSM)

Polling The process of connecting to a hardware resource at regular

Predictive-enabled See “multiple-view.” This feature enables hardware monitors

Resource instance A speciﬁc hardware device. The resource instance is the last

Resource path Hardware event monitors are organized into classes (and

Included with the hardware event monitors, the PSM is a monitor daemon that acts as a hardware status monitor by converting events to changes in hardware resource status. This provides compatibility with MC/ServiceGuard, which uses changes in status to manage cluster resources. Through the EMS GUI, the PSM is also used to create hardware status monitoring requests.

intervals to determine its status. Any events that occur between polling intervals will not be detected until the next poll, unless the monitor supports asynchronous event monitoring.

to work with HP Support Applications.

element of the resource path and is typically the hardware path to the resource (e.g., 10_12_5.0.0), but it may also be a product ID as in the case of AutoRAID disk arrays. There may be multiple instances for a monitor, each one representing a unique hardware device for which the monitor is responsible.

subclasses) for creating monitoring requests. These classes identify the unique path to each hardware resource supported by the monitor. Two similar resource paths exist for each hardware resource—an event path used for creating event monitoring requests, and a status path used for creating PSM monitoring requests.

Chapter 1

Introduction

Hardware Monitoring Overview

Chapter 1

Installing and Using Monitors

2 Installing and Using Monitors

This chapter instructs you how to use the EMS Hardware Monitors to manage your hardware resources. The topics discussed in this chapter include:

• An overview of the steps involved

• Installing EMS Hardware Monitors

• Adding and managing monitor requests

• Disabling and enabling EMS Hardware Monitors

NOTE You don't need to completely understand the terms and concepts to begin protecting your

system with EMS Hardware Monitors by following the procedures in this chapter. If a term or concept puzzles you, refer to Chapter 1, “Introduction,” or to Chapter 3, “Detailed Description.”

Chapter 2

Installing and Using Monitors

The Steps Involved

The steps involved in installing and conﬁguring hardware monitoring are shown in Figure 2-1 on page 27. Each step is described in detail in this chapter on the page indicated. Installation of Support Tools is necessary if you have Diagnostic/IPR Media release earlier than the June 1999 release only. With HP-UX 11i, the Support Tools are automatically installed when the OS is installed.

Step 1: Install the Support Tools from the most current copy of Support Plus Media you can ﬁnd. You can also download this package over the Web. See “Installing EMS Hardware Monitors”. This step is necessary if you have Diagnostic/IPR Media release earlier than the June 1999 release only.

Step 2: Examine the list of supported products to see if any of your devices has special requirements in order to be monitored. For example, if monitoring FC-AL hubs, edit the ﬁle: /var/stm/config/tools/monitor/dm_fc_hub. See “Fibre Channel Arbitrated Loop Hub Monitor”.

Step 3: Enable hardware event monitoring. See “Enabling Hardware Event Monitoring”. This step is necessary if you have Diagnostic/IPR Media release earlier than the June 1999 release only.

Step 4: Determine whether default monitoring requests are adequate. See “Viewing Current Monitoring Requests”.

Step 5: Add or modify monitoring requests as necessary. See “Adding a Monitoring Request” and “Modifying Monitoring Requests”.

Step 6: If desired, verify monitor operation (recommended, but optional). See “Verifying Hardware Event Monitoring”.

NOTE How Long Will it Take to Get Hardware Monitoring Working? (For Diagnostic/IPR

Media released earlier than the June 1999 release only.)

You can get hardware monitoring installed and working in minutes. Once the software is installed, you simply need to run the Hardware Monitoring Request Manager and enable monitoring. The default hardware monitoring conﬁguration should meet your monitoring requirements without any changes or modiﬁcations. If you ﬁnd that the default monitoring should be customized, you can always return later and add or modify monitoring requests as needed.

NOTE If I'm Already Using EMS HA Monitors, Can I Also Use the EMS GUI to Manage

Hardware Monitoring?

For the most part, no. Hardware event monitoring is managed using the Hardware Monitoring Request Manager, which serves the same function the EMS GUI serves for the EMS HA monitors. The only portion of hardware monitoring that is managed using the EMS GUI is status monitoring done using the PSM described in Chapter 4, “Using the Peripheral Status Monitor.”

Chapter 2

Installing and Using Monitors

The Steps Involved

Figure 2-1 The Steps for Installing and Conﬁguring Hardware Monitoring

Chapter 2

Installing and Using Monitors

Installing EMS Hardware Monitors

The EMS Hardware Monitors software is distributed with the Support Tools (diagnostics). All the necessary ﬁles for hardware monitoring are installed automatically when the Support Tools are installed. There are several different ways that the Support Tools are installed:

• The Support Plus Media: installing the OnlineDiag depot from the Support Plus Media using swinstall.

• HP Software Depot website: downloading the “Support Tools for the HP 9000” in the “Enhancement Releases” product category, then using swinstall to install the OnlineDiag depot.

• Automatic: with HP-UX 11i, the Support Tools are automatically installed from the OE CD-ROM when the operating system is installed.

Complete instructions for installing STM are contained in Chapter 5 of the Support Plus: Diagnostics User's Guide.

The following software components are installed for hardware monitoring:

• All hardware event monitors

• Monitor conﬁguration ﬁles

• Monitoring Request Manager

• EMS framework, including the EMS graphical interface

All EMS Hardware Monitors on the CD-ROM will be installed on your system, but only those that support hardware resources you are using will be active. If you add a new hardware resource to your system that uses an installed monitor, the monitor will be launched when the system is restarted or following the execution of the IOSCAN utility (which performs a real/hard ioscan).

NOTE Reinstalling or upgrading the STM software will erase the current PSM conﬁguration. Any

MC/ServiceGuard package dependencies or EMS monitoring requests you have created with the PSM will be lost. Before reinstalling the STM software, record the current PSM conﬁguration so you can easily recreate it after the software has been installed. Or you can comment out the PSM dependencies in the ServiceGuard conﬁguration ﬁles, then re-enable them after the STM software has been installed.

IOSCAN Utility

When you execute the IOSCAN utility, a “real/hard” ioscan is performed. The utility performs a scan of your system hardware, gathering the most-current information.

Conversely, ‘ioscan -k’ is used by hardware monitors and diagnostics to obtain their information about conﬁgured devices. The data returned by ‘ioscan -k’ is only as accurate as the last system reboot, or when a “real/hard” ioscan is executed. This means that if a device or component is added to / removed from the system, a “real/hard” ioscan should be executed in order to ensure an updated IOSCAN table in the kernel for use by the hardware monitors and diagnostics. Otherwise, the hardware monitors and diagnostics will operate on a stale, inaccurate picture of the system’s conﬁguration.

Supported System Conﬁguration

To use the hardware event monitors, your system must meet the following requirements:

Chapter 2

Installing and Using Monitors

Installing EMS Hardware Monitors

• HP 9000 Series 700 or 800 Computer

• HP-UX 10.20 or 11.x (Hardware event monitoring is not currently available on the special high security systems, HP-UX 10.26 (TOS) and HP-UX 11.04 (VVOS).

• Support Plus Media, the more current the better. The hardware event monitors were ﬁrst distributed in the HP-UX 10.20/11.00 February 1999 release (IPR 9902). Before the September 1999 release, the Support Plus Media was called the Diagnostic/IPR Media.

Rather than use the Support Plus Media, you can download the Support Tools (including STM and the hardware event monitors) over the Web. See Chapter 5 of the Support Plus: Diagnostics User's Guide for more information

• If you are using MC/ServiceGuard (optional), you must have version A.10.11 on HP-UX 10.20, or version A.11.04 for HP-UX 11.x.

Removing EMS Hardware Monitors

The hardware monitoring software can be removed using the swremove utility. Run swremove and select the OnlineDiag bundle. This will remove the hardware monitoring software components and the STM software

components.

Chapter 2

Installing and Using Monitors

Checking for Special Requirements

Some devices have special requirements in order to be monitored. Examine the tables of supported products below to see if any of your devices have special requirements.

Table 2-1 Disk Arrays

Product

HP AutoRAID Disk Array

Supported by: AutoRAID Disk Array Monitor

HP High Availability Disk Array

Supported by: High-Availability Disk Array Monitor

HP Fast/Wide SCSI Disk Array

Supported by: Fast/Wide SCSI Disk Array Monitor

HP Fibre Channel High Availability Disk Array (Model 60/FC)

Supported by Disk Array FC60 Monitor

Model/Product

Number

12H 12

30/FC 20 10

C243XHA None

HP SureStore E Disk Array

FC60

Requirements

Requires the following ARMServer versions:

HP-UX 10.XX (PHCO_23261); HP-UX 11.00 (PHCO_23262); HP-UX 11.11 (Patch PHCO_23263)

None

HP-UX 10.20 (PHCO_26822); HP-UX 11.00 (PHCO_26823); HP-UX 11.11 (PHCO_26824)

Special

HP Storage Works Modular SAN array 1000

Supported by: HP Storage Works Modular SAN array 1000 Monitor

HP Storage Works Modular SAN array 1000

None

Chapter 2

Table 2-2 Disk Products

Installing and Using Monitors

Checking for Special Requirements

Product

All disks bound to the sdisk and disc30 drivers and not under the control of another event monitor (such as a disk array monitor).

Hitachi XP128, XP256, XP512 and XP1024 drives and EMC Symetrix drives are not supported, since these drives have their own monitoring.

Supported by: Disk Monitor

Important: HP Storage Works SDLT 160/320 GB Tape Drive and the HP Ultrium 460 External Tape Drive are not supported by the Online Diagnostics product. Some STM tools may function but these tools are not supported. The diagnostics tools and utilities that support these devices are HP Storage Works Library and Tape Tools (L&TT). These tools can be downloaded free of cost from the web site http://www.hp.com/support/tapetools.

This monitor should be disabled while taking a backup since EMS polling can interfere with the backup process.

Tape products are monitored on releases prior to HP-UX 11i v2 May 2005 only. However, they are not monitored in the current release.

Model/Product

Number

NA None

Special

Requirements

Table 2-3 Tape Products (monitored by SCSI Tape Devices Monitor)

Product

DDS-2 Autoloader A3400A None

DDS-3 Autoloader A3716A None

DDS-4 Autoloader C6370A, C6371A March 00 Release

DLT4000 4/48 Library; HP-UX; Differential SCSI

DLT4000 2/48 Library; HP-UX; Differential SCSI

DLT4000 2/28 Library; HP-UX; Differential SCSI

DLT 4000 and 7000; 2/28; Drives Differential; Robotics SE/Diff

DLT 4000 & 7000; 4/48: Drives Differential; Robotics SE/Diff

Model/Product

Number

A3544A None

A3545A None

A3546A None

A4850A None

A4855A None

Special

Requirements

Chapter 2

Installing and Using Monitors

Checking for Special Requirements

Table 2-3 Tape Products (monitored by SCSI Tape Devices Monitor) (Continued)

Product

DLT 4000 and 7000; 15 slot; Deskside/Rack; Differential

DLT 4000 and 7000; 588 slot; Drives Diff; Robotics SE

DLT 4000 and 7000; 100 slot; Drives Diff; Robotics SE

DLT 4000 and 7000; 30 slot; Differential A4853A None

DLT7000 8-slot Library A5501A March 00 Release

DLT8000 8-slot Library A1375A March 00 Release

DLT8000 20-slot Library A5583A,A5584A,

DLT8000 40-slot Library A5585A, A5586A,

Model/Product

Number

A4851A None

A4845A None

A4846A None

March 00 Release A4680AZ, A4680AHP, A4681AHP

March 00 Release A4682AZ, A4682AHP, A4683AHP

Special

Requirements

DLT8000 60-slot Library A5587A, A5588A,

A4684AZ, A4684AHP, A4685AHP

DLT8000 100-slot Library A4665A, A4666A June 00 Release

DLT8000 120-slot Library A4667A, A4668A June 00 Release

DLT8000 140-slot Library A4669A, A4670A June 00 Release

DLT8000 700-slot Library A5597A March 00 Release

DLT8000 180-slot Library A5617A March 00 Release

In addition to the above products, the SCSI Tape Devices Monitor supports all SCSI tape resources bound to the PCI tape driver.

SCSI tape resources bound to tape2 - NIO (HP-PB) tape driver and stape - GSC (HSC) tape driver are not supported on HP-UX 11i v2 May 2005 release.

The SCSI tape devices monitor also supports the following tape libraries and autoloaders: DDS-2 Autoloader DDS-3 Autoloader DLT 4000 & 7000; HP Surestore Tape Library Model 2/28 DLT 4000 & 7000; HP Surestore Tape Library Model 4/48 DLT 4000 & 7000; 588 slot; Drives Diff; Robotics SE

March 00 Release

Chapter 2

Installing and Using Monitors

Checking for Special Requirements

DLT 4000 & 7000; 100 slot; Drives Diff; Robotics SE DLT 4000 & 7000; 30 slot; Differential

As of the March 2000 release (IPR0003), the monitor also supports the following devices: DDS-4 Autoloader DLT7000 HP Surestore Tape Autoloader Model 1/9 DLT8000 HP Surestore Tape Autoloader Model 1/9 DLT 8000 HP Surestore Tape Library Model 2/20 DLT8000 HP Surestore Tape Library Model 4/40 DLT8000 HP Surestore Tape Library Model 6/60 DLT8000 HP Surestore Tape Library Model 20/700 DLT8000 HP Surestore Tape Library Model 10/180

As of the June 2000 release (IPR0006), the monitor also supports the following devices: DLT8000 100-slot, 120-slot, 140-slot Library

As of the September 2000 release (IPR0009), the monitor also supports the following devices: Ultrium HP Surestore Tape Library Model 20/700 Ultrium HP Surestore Tape Library Model 10/180

As of the September 2002 release (HWE0209), the monitor also supports the following devices: Ultrium 20, 40, 60, 100, 120, and 140-slot Library Ultrium HP Surestore Tape Autoloader Model 1/9

Table 2-4 High Availability Storage Systems

Product

HP High Availability Storage System

Supported by: High-Availability Storage System Monitor

HP Surestore E Disk System

Supported by: High-Availability Storage System Monitor

HP Surestore Disk System

Supported by: High-Availability Storage System Monitor

HP Surestore Disk System

Supported by: High-Availability Storage System Monitor

Model/Product

Number

1010D None

SC10 None

2300 None

2405 None

Special

Requirements

Chapter 2

Installing and Using Monitors

Checking for Special Requirements

Table 2-5 Fibre Channel SCSI Multiplexers

Product

HP Fibre Channel SCSI Multiplexer

Supported by: Fibre Channel SCSI Multiplexer Monitor

Model/Product

A3308A Firmware version

Table 2-6 Fibre Channel Adapters

Product

HP Fibre Mass Storage Channel Adapters

Supported by: Fibre Channel Mass Storage Channel Adapter

Fibre Channel Mass Storage Channel Adapter

Supported by: A5158A Fibre Channel Mass Storage Channel Adapter (dm_TL_adapter)

Model/Product

A3404A A3591A A3636A A3740A

A5158A A6684A A6795A

Number

Special

Requirements

3840

Special

Requirements

The following driver

revisions are

required: B.10.20

TFC plus Dart40;

B.11.00 release

IPR9808 (Rocklin

version)

B.11.00 Tachlite

driver (td) Dart 48

B.11.00 release IPR

0003 or later

B.10.20 release June

2001 or later

Please see the

following web sites

for current product

updates/information

and the latest

information on the

driver and STM

versions required for

the Fibre Channel

host bus adapters:

For product support

information:

http://itrc.hp.com

For documentation:

http://docs.hp.com

Chapter 2

Table 2-7 Fibre Channel Arbitrated Loop (FC-AL) Hub

Installing and Using Monitors

Checking for Special Requirements

Product

HP Fibre Channel Arbitrated Loop Hubs

Supported by: Fibre Channel Arbitrated Loop Hub Monitor

Model/Product

Number

A3724A A4839A

Special Requirements

The FC-AL Hub monitor requires: Device Firmware revisions:

• Device Agent Firmware revision 2.14 or greater

• Hub Controller Firmware revision 3.06 or greater

Firmware and installation instructions are available at

http://www.software.hp.com

C++ runtime support patches:

• 10.20 PHSS_22354 (has a dependency: PHSS_17225)

• 11.00 PHSS_32574

Before using the hub monitor, edit the monitor conﬁguration ﬁle (/var/stm/conﬁg/tools/monitor/dm_fc_hub.cfg ) to indicate what hubs will be monitored. See “Fibre Channel Arbitrated Loop Hub Monitor” on page 128.

Table 2-8 Fibre Channel Switch

Product

HP Fibre Channel Switch

Supported by: Fibre Channel Switch Monitor

Model/Product

Number

A5223A A5224A A5625A A7347A

The FC Switch monitor requires: C++ runtime support patches:

• 10.20 PHSS_22354 (has a dependency:

• 11.00 PHSS_32574

Before using the switch monitor, edit the monitor conﬁguration ﬁle (/var/stm/conﬁg/tools/monitor/dm_fc_sw.cfg) to indicate what switches will be monitored. See “Fibre Channel Arbitrated Loop Hub Monitor” on page 128.

Special Requirements

PHSS_17225)

Chapter 2

Installing and Using Monitors

Checking for Special Requirements

Table 2-9 Memory

Product

All system memory on PA-RISC systems.

Supported by: PA Memory Monitor

Itanium Memory Monitor: monitor for all system memory on Itanium systems.

Supported by: Itanium Memory Monitor

Table 2-10 System

Product

A monitor designed to monitor all system chassis logs.

Supported by: Chassis Code Monitor

Core hardware (hardware within the SPU cabinet). For example, resources associated with intake temperature. On some systems, other hardware resources such as power supplies are monitored.

Model/Product

Number

NA None

NA HP-UX 11.22 OS or

later

Model/Product

Number

Superdome S-Class

NA HP-UX 11.x

For HP-UX 11.11 OS only. The chassis code logging daemon (cclogd) must be up and running.

Special

Requirements

Special

Requirements

Supported by: Core Hardware Monitor

Corrected Machine Checks (CMCs) experienced by Itanium-based systems.

Supported by: CMC Monitor

Corrected Platform Error (CPE) Monitor for all Itanium-based systems.

Supported by: Itanium Core Hardware Monitor

Core hardware on PA-RISC and Itanium systems. For example, resources associated with temperature or power supply.

Supported by: Itanium Core Hardware Monitor

NA HP-UX 11.20 or later

NA HP-UX 11.23 OS or

later

NA HP-UX 11.20 or later

Chapter 2

Table 2-10 System (Continued)

Installing and Using Monitors

Checking for Special Requirements

Product

Low Priority Machine Checks (LPMCs)

Supported by: LPMC Monitor

IPMI Forward Progress Log Monitor monitors IPMI FPL log entries on the system.

Supported by: IPMI Forward Progress Log Monitor

HP-UX Kernel Resources

Supported by: Kernel Resource Monitor

Model/Product

Number

NA HP-UX 11.x

NA All HP-UX IPF

systems running HP-UX 11.23 or later.

All HP-UX PA systems running HP-UX 11.23 or later.

The ia64_corehw monitor must be running.

Hardware: HP9000 (/V) S700 and S800

Software: HP-UX

11.0 (B.11.0), both 32 bit and 64 bit

HP-UX 11.x. Requires conﬁguration through SAM.

Special

Requirements

System Status

Supported by: System Status Monitor

Table 2-11 Interface Cards

Product

SCSI1, SCSI2, & SCSI3 interface cards.

Supported by: SCSI123 Monitor

NA None

Model/Product

Number

NA None

Requirements

Special

Chapter 2

Installing and Using Monitors

Checking for Special Requirements

Table 2-12 Others

Product

iSCSI Subsystem

HP-UX software solution for iSCSI protocol.

Supported by: iSCSI Subsystem Monitor

All devices managed by HP device management software. Current plans are for many different types of devices to be supported, including disk drives, disk arrays, disk jbods, tape drives, tape libraries, FC hubs, switches and bridges.

Supported by: Remote Monitor

Model/Product

Number

NA HP-UX 11.23, Patch

PHSS_30457 for IA

11.23 (11.23) Codename: iHOP For product support

information:

http://itrc.hp.com

For documentation: http://docs.hp.com.

As of July 13, 2000:

HP A6188A storage array

HP A6189A storage array

HP A6218A storage array

HP-UX 11xx, Sept. 2000 or later TCP/IP port 2818 must be available.

Special

Requirements

HP UPSs (Uninterruptible Power Systems):

Supported by: UPS Monitor

As of January 2003:

HP A6189B storage array

HP Power Trust A2941A (600 VA) A2994A (1300 VA) A2996B (1.3kVA) A2997B (1.8kVA) A2998B (3.0kVA) A3589B (5.5kVA)

HP Power TrustII A1353A (2.0kVA, 120V) A1354A (2.0kVA, 240V) A1356A (3.0kVA, 240V)

Explorer UPS

The HP-UX monitoring daemon, ups_mond, which is shipped on all Series 800 systems (but not on S700 systems)

Chapter 2

Installing and Using Monitors

Using Hardware Monitoring Requests

Monitoring requests are used to implement your strategy for monitoring hardware resources. The Hardware Monitoring Request Manager is the tool you use to create and manage hardware event monitoring requests. The following procedures describe how to use the Hardware Monitoring Request Manager to perform the tasks involved in managing monitoring requests for all hardware event monitors.

What Is a Monitoring Request?

A monitoring request is the mechanism by which you manage how hardware event notiﬁcation takes place. EMS uses a monitoring request to determine what events should be reported, and what notiﬁcation method should be used to report them.

In building a monitoring request, you deﬁne the components that comprise the monitoring request. See Figure 2-2 on page 40.

When building a request you must make the following decisions:

• WHAT hardware should be monitored? This is deﬁned by selecting the monitor responsible for the hardware resources you want to monitor. You can select multiple monitors for each monitoring request, which gives you the ability to use a single request for a variety of hardware.

• WHAT events should be reported? Although the monitor can detect all hardware events, you can limit the events that are reported. This is done by specifying the severity level(s) and an arithmetic operator. Each severity level is assigned a numeric value to work with the operator (e.g., CRITICAL=5). Together these settings determine which events to report. For example, you may be interested in all events greater than or equal to Major Warning (>=MAJOR WARNING).

• HOW will notiﬁcation be sent? You must select the notiﬁcation method you want to use when an event occurs. You may want to use several notiﬁcation methods, but each method will require its own monitoring request.

Some Monitoring Request Examples

The following monitoring request applies to all monitors. It sends all events with a severity greater than or equal to MAJOR WARNING to an email address of sysad@hp.com:

Send events generated by all monitors with severity >= MAJOR WARNING to EMAIL sysad@hp.com

The following monitoring request sends information events for all monitors to a text log:

Send events generated by all monitors with severity = INFORMATION to TEXTLOG /var/opt/resmon/log/information.log

Chapter 2

Installing and Using Monitors

Using Hardware Monitoring Requests

Figure 2-2 Building a Monitoring Request

Chapter 2

Installing and Using Monitors

Running the Monitoring Request Manager

NOTE You must be logged on as root to run the Monitoring Request Manager.

To run the Monitoring Request Manager, type:

/etc/opt/resmon/lbin/monconfig

The opening screen indicates if monitoring is currently enabled or disabled. Since the June 1999 release, monitoring is enabled by default.

The opening screen looks like this:

======================================================== ========== Event Monitoring Service =========== ========== Monitoring Request Manager =========== ========================================================

INDICATES

EVENT MONITORING IS CURRENTLY ENABLED <== MONITORING

STATUS ======================================================== ====== Monitoring Request Manager Main Menu ======== ======================================================== Select:

(S)how current monitoring requests configured via monconfig (C)heck detailed monitoring status (L)ist descriptions of available monitor (A)dd a monitoring request <== MAIN MENU (D)elete a monitoring request SELECTION (M)odify an existing monitoring request OPTIONS (E)nable Monitoring (K)ill (disable) monitoring (H)elp (Q)uit

Enter selection: [s]

Chapter 2

Installing and Using Monitors

Enabling Hardware Event Monitoring

Hardware event monitoring must be enabled to protect your system from undetected hardware failures. All hardware monitoring requests are ignored while monitoring is disabled. Once monitoring has been enabled, all hardware event monitors and their associated monitoring requests will become operational.

NOTE As of the June 1999 release, the hardware event monitors are automatically enabled when the

Support Tools bundle containing STM and the monitors is installed.

NOTE Are There Any Fibre Channel Arbitrated Loop Hubs or Fibre Channel Switches You

Want to Monitor?

An EMS Hardware Monitor is included for FC-AL hubs and FC switches. However, unlike the other hardware monitors, these monitors require some initial conﬁguration before they will function. To ensure that your FC-AL hubs or FC switches are monitored, you should perform the initial conﬁguration before enabling monitoring. For information on performing the initial conﬁguration, refer to “Fibre Channel Arbitrated Loop Hub Monitor”, and “Fibre Channel Switch Monitor” in Chapter 6, “Special Procedures.” When you have conﬁgured these monitors. return here and continue with the procedure to enable monitoring.

To enable hardware event monitoring (only necessary for February and April 1999 releases):

1. Run the Hardware Monitoring Request Manager by typing:

/etc/opt/resmon/lbin/monconfig

2. From the main menu selection prompt, enter E

Hardware event monitoring is now enabled. The default monitoring requests shown in Table 2-13 on page 43 will be used to monitor your hardware. If these settings are adequate, you are done. If you want to add or modify the monitoring you can do so using the Monitoring Request Manager.

Chapter 2

Installing and Using Monitors

Enabling Hardware Event Monitoring

Default Monitoring Requests

A set of default monitoring requests are created for each hardware event monitor. These default requests provide a complete level of monitoring and protection for the hardware resources under the control of the monitor. The default monitoring requests listed in Table 2-13 on page 43 are used for all hardware event monitors.

NOTE When to Modify the Default Monitoring Requests

You can use the default monitoring requests provided and achieve a complete level of protection. However, the default monitoring requests provide a limited number of notiﬁcation options. By modifying or adding new monitoring requests, you gain greater control over what notiﬁcation methods are used to alert you when events occur. You can add new notiﬁcation methods or remove those that may not be required. Creating custom monitoring requests also allows you to manage which severity levels you want reported.

Table 2-13 Default Monitoring Requests for Each Monitor

Severity Levels Notiﬁcation Method

All TEXTLOG File:

/var/opt/resmon/log/event.log

Serious, Critical.

As of IPR 9904 Major Warning

Serious, Critical.

As of IPR 9904 Major Warning

Serious, Critical.

As of IPR 9904 Major Warning

SYSLOG

CONSOLE. Note: As of the June 1999 release, messages

are no longer sent to the console by default.

EMAIL address: root

Chapter 2

Installing and Using Monitors

Listing Monitor Descriptions

One of the ﬁrst steps in managing monitoring requests is selecting the proper monitor for the hardware resource. You must know what hardware resources each monitor is responsible for to ensure that you select the proper monitor. Listing the descriptions of the available monitors will show you what hardware resources each monitor supports.

To list the descriptions of available monitors:

1. Run the Hardware Monitoring Request Manager by entering:

/etc/opt/resmon/lbin/monconfig

2. From the main menu selection prompt, enter L

A complete list of the available monitors and the hardware type each monitor supports is displayed. Identify the name of the desired monitor and then proceed with the monitoring request task.

NOTE For a detailed list of the speciﬁc products each monitor supports, refer to the Diagnostics

website at:

http://docs.hp.com/en/diag/

Under “EMS Hardware Monitors,” click on “Supported Products” and “Data Sheets.” You can also refer to the man page for the particular monitor; for example, “man_disk_em”.

Chapter 2

Installing and Using Monitors

Viewing Current Monitoring Requests

Before adding or modifying monitoring requests, you should examine the current monitoring requests. These include the default monitoring requests created during system startup. By examining the current requests, you can determine what additional requests may be needed to implement your monitoring and notiﬁcation strategy.

The option to Show Monitoring Requests displays all the monitoring requests that have been created using the Hardware Monitoring Request Manager, even requests that are inactive. See “Checking Detailed Monitoring Status” on page 54, for information on viewing only active monitoring requests.

To view (or show) the current monitoring requests:

1. Run the Hardware Monitoring Request Manager by entering:

/etc/opt/resmon/lbin/monconfig

2. From the main menu selection prompt, enter S

A list of all the current monitoring requests conﬁgured for the hardware event monitors is displayed. The display will be similar to the following screen, which shows the default monitoring requests.

============================================================ ========== Current Monitoring Requests =============== ============================================================

EVENT MONITORING IS CURRENTLY ENABLED

The current monitor configuration is:

1) Send events generated by all monitors

with severity >= INFORMATION to TEXTLOG / var/opt/resmon/log/event.log

2) Send events generated by all monitors

with severity >= MAJOR WARNING to SYSLOG

3) Send events generated by all monitors

with severity >= MAJOR WARNING to EMAIL root

Hit <enter> to continue...

Chapter 2

Installing and Using Monitors

Adding a Monitoring Request

Adding a monitoring request is a convenient way to add another notiﬁcation method for a monitor. Each new notiﬁcation method requires its own monitoring request.

Monitoring requests can only be added at the monitor level, which creates an identical request for all instances of the hardware resources supported by the monitor. Monitoring requests cannot be added for a speciﬁc hardware instance. An “A(ll)” option allows you to add a monitoring request for all monitors in one operation.

NOTE Using the “All monitors” option when creating a request has the beneﬁt of applying the request

to a new class of supported hardware resource that you may add to your system. This ensures that the new hardware is automatically included in your monitoring strategy.

To add a monitoring request:

1. Run the Hardware Monitoring Request Manager by typing:

/etc/opt/resmon/lbin/monconfig

2. From the main menu selection prompt, enter A.

3. At the Monitors selection prompt, enter the number assigned to the monitor for which you are creating a request. The numbers for the monitors are listed on the screen. You can enter multiple numbers separated by commas, or you can enter “a” to create a request for all monitors.

4. At the Criteria Threshold prompt, enter the number for the desired severity level. See Table 2-15 on page 48.

5. At the Criteria Operator prompt, enter the number for the desired operator. See Table 2-14 on page 47.

6. At the Notiﬁcation Method prompt, enter the number for the desired method. See Table 2-14 on page 47. If the notiﬁcation method you selected requires you to input additional information, do so when promoted.

7. At the User Comment prompt, enter any comments about this monitoring request that you desire. This text will be sent with events which match this monitoring request. This feature is NEW, as of the June 2000 release.

8. At the Client Conﬁguration File prompt, enter (C)lear to use the default client conﬁguration ﬁle, or enter A(dd) to specify the name of a speciﬁc client conﬁguration ﬁle for this request. This ﬁle allows you to enable/disable events, set thresholding criteria and severity levels for events on a per-client basis (for example, for HP Support Applications). Adding a client conﬁguration ﬁle at this prompt does not create or edit the ﬁle; it merely sets up the monitoring request to use the ﬁle. Unless you have a speciﬁc client that requires a client conﬁguration ﬁle, choose (C)lear (the default). This feature is NEW, as of the June 2000 release. It is only valid for monitors that are Multiple-View (Predictive-Enabled).

9. Save the request when prompted.

Repeat the above steps for each new monitoring request.

NOTE Are monitoring requests automatically applied to new hardware resources?

Because monitoring requests are created at the monitor level and not at the hardware instance level, a new hardware resource added to the system inherits the same monitoring requests assigned to other hardware of the same type. This ensures that new hardware is automatically

Chapter 2

added to the monitoring conﬁguration. When you restart the system or execute the IOSCAN utility (thus performing a real/hard IOSCAN), the new hardware will be included in event monitoring.

If you add a new class of supported hardware resource to your system, any monitoring requests that apply to All monitors are used for the new hardware, ensuring that your hardware is protected immediately from undetected failure.

For hardware monitoring to recognize new devices, the new devices must be properly added and conﬁgured, so that they are recognized by the kernel (ioscan -k must see them).

Table 2-14 Monitoring Requests Conﬁguration Settings

Setting Description

Installing and Using Monitors

Adding a Monitoring Request

Criteria Thresholds

Criteria Operators

This value identiﬁes the severity level used in conjunction with the criteria operator to generate an event message. See Table 2-15 on page 48, for an explanation of severity levels.

This value identiﬁes the arithmetic operator used with the criteria threshold to control what events are reported. Valid operators are:

< (less than) <= (less than or equal to) > (greater than) >= (greater than or equal than) ! (not equal to)

Operators treat each severity level as a numeric value assigned as follows:

Critical = 5 Serious = 4 Major warning = 3 Minor warning = 2 Informational = 1

The criteria operators allow you to direct events of several severity levels using the same notiﬁcation method. For example, to direct both Serious and Critical events using the same method, you would use a condition of >= Serious.

Chapter 2

Installing and Using Monitors

Adding a Monitoring Request

Table 2-14 Monitoring Requests Conﬁguration Settings (Continued)

Setting Description

Notiﬁcation Method

The following notiﬁcation methods are available. EMAIL* - sends notiﬁcation to the speciﬁed email address

TEXTLOG* - sends notiﬁcation to speciﬁed ﬁle SNMP - sends notiﬁcation using SNMP traps CONSOLE - sends notiﬁcation to the system console TCP - sends notiﬁcation to the speciﬁed target host and port UDP - sends notiﬁcation to the speciﬁed target host and port OPC - sends notiﬁcation to OpenView ITO applications (available only on systems with OpenView installed). SYSLOG - sends notiﬁcation to the system log

Only one notiﬁcation method can be selected for each monitor request, consequently you will need to create multiple requests to direct event notiﬁcation to different targets. * These are the only methods that deliver the entire content of the event message. The remaining methods alert you to the occurrence of an event, but require you to retrieve the complete message content using resdata explained later in this chapter.

Table 2-15 Event Severity Levels

Event

Severity

Level Description

MC/ServiceGuard

Response

Critical An event that will or has already

caused data loss, system down time, or other loss of service. System operation will be impacted and normal use of the hardware should not continue until the problem is corrected. Immediate action is required to correct the problem.

Serious An event that may cause data loss,

system down time, or other loss of service if left uncorrected. System operation and normal use of the hardware may be impacted. The problem should be repaired as soon as possible.

Major Warning

An event that could escalate to a Serious condition if not corrected. System operation should not be impacted and normal use of the hardware can continue. The problem should be repaired at a convenient time.

If MC/ServiceGuard is installed and this is a critical component, a package fail-over WILL occur.

If MC/ServiceGuard is installed and this is a critical component, a package fail-over WILL NOT occur.

Chapter 2

Table 2-15 Event Severity Levels (Continued)

Event

Severity

Level Description

Installing and Using Monitors

Adding a Monitoring Request

MC/ServiceGuard

Response

Minor Warning

Information An event that occurs as part of the

An event that will not likely escalate to a more severe condition if let uncorrected. System operation will not be interrupted and normal use of the hardware can continue. The problem can be repaired at a convenient time.

normal operation of the hardware. No action is required.

If MC/ServiceGuard is installed and this is a critical component, a package fail-over WILL NOT occur.

Chapter 2

Installing and Using Monitors

Adding a Monitoring Request

Example of Adding a Monitoring Request

The following example illustrates the process of adding a monitoring request. In this example a request is added that will send all CRITICAL events detected by the AutoRAID disk array monitor to an email address of admin@hp.com.

=================================================================== =========== Monitoring Configuration Main Menu ============= =================================================================== Select:

(S)how current monitoring requests configured via monconfig (C)heck detailed monitoring status (L)ist descriptions of available monitors (A)dd a monitoring request (D)elete a monitoring request (M)odify an existing monitoring request (E)nable Monitoring (K)ill (disable) monitoring (H)elp (Q)uit

Enter selection: [s] a <== SELECT ADD OPTION

=========================================================================== ===================== Add Monitoring Request ===================== ===========================================================================

Start of edit configuration:

A monitoring request consists of:

A list of monitors to which it applies A severity range (A relational expression and a severity. For example, %< "MAJOR WARNING" means events with a severity "INFORMATION" and "MINOR WARNING") A notification method

Please answer the following questions to specify a monitoring request.

Monitors to which this configuration can apply:

1) /storage/events/disk_arrays/AutoRAID

2) /storage/events/disks/default

3) /adapters/events/FC_adapter

4) /connectivity/events/multiplexors/FC_SCSI_mux

5) /storage/events/enclosures/ses_enclosure

6) /storage/events/tapes/SCSI_tape

7) /storage/events/disk_arrays/FW_SCSI

8) /storage/events/disk_arrays/High_Availability Enter monitor numbers separated by commas {or (A)ll monitors, (Q)uit, (H)elp} [a] 1 <== SELECT AUTORAID MONITOR

Criteria Thresholds:

1) Informational 2) Minor Warning 3) Major Warning

4) Serious 5) Critical Enter selection {or (Q)uit,(H)elp} [4] 5 <== SELECT ONLY

CRITICAL EVENTS

Criteria Operator:

1) %< 2) %<= 3) > 4) >= 5) = 6) ! Enter selection {or (Q)uit,(H)elp} [4] 5 <== (=CRITICAL)

Notification Method:

1) UDP 2) TCP 3) OPC 4) SNMP

5) TEXTLOG 6) SYSLOG 7) EMAIL 8) CONSOLE Enter selection {or (Q)uit,(H)elp} [7] <== SELECT EMAIL

ADDRESS FOR

Chapter 2

Enter Email Address: [root] admin@hp.com admin@hp.com

User Comment:

(C)lear (A)dd Enter selection {or (Q)uit,(H)elp} [c] a <== ADD COMMENT Enter comment: [] This is a test message. IF DESIRED

Client Configuration File:

(C)lear (A)dd Use Clear to use the default file. Enter selection {or (Q)uit,(H)elp} [c] c <== SPECIFY CLCFG FILE

IF DESIRED (USUALLY CHOOSE DEFAULT)

New entry:

Send events generated by all monitors

/storage/events/disk_arrays/AutoRAID <== NEW MONITORING with severity = CRITICAL to EMAIL admin@hp.com REQUEST with comment:

This is a test message

Are you sure you want to keep these changes?

{(Y)es,(N)o,(H)elp} [n] y

Installing and Using Monitors

Adding a Monitoring Request

Chapter 2

Installing and Using Monitors

Modifying Monitoring Requests

Modifying an existing monitoring request is a convenient way to alter one of the settings used in the request. Simply select a monitoring request and then change the desired setting. All other aspects of the request remain unchanged.

To modify a monitoring request:

1. Run the Hardware Monitoring Request Manager by typing:

/etc/opt/resmon/lbin/monconfig

2. From the main menu selection prompt, enter M All current monitoring requests are displayed.

3. From the list of current monitoring requests, enter the number of the request you want to modify.

4. As you are prompted for each monitoring request setting, change the settings to achieve the desired results.

5. Save the request when prompted.

Chapter 2

Installing and Using Monitors

Verifying Hardware Event Monitoring

Once you have created the monitoring requests you need for your system, you may want to verify that they are working as you expect. The most effective way of verifying hardware event monitoring is to simulate a hardware failure or event. Depending on the hardware, you can do this by removing a disk from an array, unplugging a cable, turning off the hardware resource, using known defective media, etc.

The simulated fault should generate event messages using all the notiﬁcation methods you have speciﬁed. If it does not, check the monitoring requests and make sure they are conﬁgured properly.

Chapter 2

Installing and Using Monitors

Checking Detailed Monitoring Status

This option lets you view the detailed information for all active monitoring requests. This information is organized by resource instance, and lists all the monitoring requests currently applied to each instance.

Unlike the option to Show Monitoring Requests which displays all the monitoring requests that have been created using the Hardware Monitoring Request Manager, the detailed status displays only the requests that are currently active. For example, you can create a monitoring request for a monitor that is inactive, but it will not be displayed in the detailed list.

A monitor that is not active will be identiﬁed with a status of NOT MONITORING. Any monitor that does not have any resources to monitor will be inactive.

NOTE Where Did the TCP Requests Come From?

You may notice that most resources have a TCP monitoring request that you did not create. This request is created automatically by the Peripheral Status Monitor (PSM) to allow it to gather event information from each monitor.

The following sample is representative of the types of entries displayed for detailed monitoring status.

For /storage/events/disks/default/10_12_5.2.0: Events >= 1 (INFORMATION) Goto TEXTLOG; file=/var/opt/resmon/log/event.log Events >= 4 (MAJOR WARNING) Goto SYSLOG Events >= 4 (MAJOR WARNING) Goto EMAIL; addr=root Events = 5 (CRITICAL) Goto TCP; host=hpbs1266.boi.hp.com port=53327

For /adapters/events/FC_adapter/8_12.8: Events >= 1 (INFORMATION) Goto TEXTLOG; file=/var/opt/resmon/log/event.log Events >= 4 (MAJOR WARNING) Goto SYSLOG Events >= 4 (MAJOR WARNING) Goto EMAIL; addr=root

>/connectivity/events/multiplexors/FC_SCSI_mux ... NOT MONITORING. (Possibly there is no hardware to monitor.)

>/system/events/memory ... OK. For /system/events/memory/49: Events >= 1 (INFORMATION) Goto TEXTLOG; file=/var/opt/resmon/log/event.log Events >= 4 (MAJOR WARNING) Goto SYSLOG Events >= 4 (MAJOR WARNING) Goto EMAIL; addr=root Events >= 4 (MAJOR WARNING) Goto TCP; host=hpbs1266.boi.hp.com port=53327

Chapter 2

Installing and Using Monitors

Retrieving and Interpreting Event Messages

Event messages generated by hardware monitoring can be delivered using a variety of notiﬁcation methods. To simplify receiving event messages you may want to use the email and/or textﬁle notiﬁcation methods. Both of these methods, which are included in the default monitoring, receive the entire content of the message so you can read it immediately.

Methods such as console, syslog, and SNMP alert you to the occurrence of an event but do not deliver the entire message. You are required to retrieve it using the resdata utility. For these methods, the event notiﬁcation will include a message similar to the following:

Execute the following command to obtain event details: /opt/resmon/bin/resdata

-R 392036357 -r /storage/events/tapes/SCSI_tape/10_12_5.0.0 -n 392036353 -a

It is important that you execute the command exactly as indicated, including the two critical number ﬁelds that are indexes for the resdata entries.

Sample Event Message

The following is a portion of a sample event message.

> Event Monitoring Service Event Notification %<

Notification Time: Wed Sep 9 10:48:30 1998

hpbs8684 sent Event Monitor notification information:

/storage/events/disks/default/10_4_4.0.0 is >= 1. Its current value is CRITICAL(5).

Event data from monitor:

Event Time : Wed Sep 9 10:48:30 1998 Hostname : hpbs8684.boi.hp.com IP Address : 15.62.120.25 Event Id : 0x0035f6b15e00000000 Monitor : disk_em Event # : 100037 Event Class : I/O Severity : CRITICAL

Disk at hardware path 10/4/4.0.0 : Media failure Associated OS error log entry id(s):

000000000000000000

Description of Error:

The device was unsuccessful in reading data for the current I/O request due to an error on the medium. The data could not be recovered. The request was likely processed in a way which could cause damage to or loss of data.

Probable Cause / Recommended Action:

The medium in the device is flawed. If the medium is removable, replace the medium with a fresh one. Alternatively, if the medium is not removable, the device has experienced a hardware failure. Repair or replace the device, as necessary.

=-+-=-+-=-+-=-+-=-+-=-+-=-+-=-+-=-+-=-+-=-+-=-+-=-+-=-+-=-+-=-+-=-+-=-+-=-+-=

Chapter 2

Installing and Using Monitors

Deleting Monitoring Requests

You may want to delete any monitor requests for a hardware resource that has been removed from your system. Only requests created exclusively for the missing resource should be deleted.

CAUTION Use careful consideration before deleting monitoring requests or you may make your system

vulnerable to undetected hardware failures. This is particularly true for the default monitoring requests, which provide protection for all the supported hardware resources on your system.

To delete a monitoring request:

1. Run the Hardware Monitoring Request Manager by typing:

/etc/opt/resmon/lbin/monconfig

2. From the main menu selection prompt, enter D All current monitoring requests are displayed.

3. From the list of current monitoring requests, enter the number assigned to the request you want to delete.

4. Delete the request when prompted to do so.

Chapter 2

Installing and Using Monitors

Disabling Hardware Event Monitoring

You can disable hardware event monitoring if desired. However, all EMS Hardware Monitors will be disabled. You cannot disable a speciﬁc monitor. While monitoring is disabled, all monitoring requests are disabled. The monitoring requests are retained and become operational when monitoring is re-enabled.

CAUTION Use careful consideration before disabling hardware event monitoring. Be aware that ALL

hardware monitoring will be disabled. While monitoring is disabled, your hardware resources are vulnerable to undetected failures.

Disabling monitoring will impact MC/ServiceGuard if package dependencies have been created for the hardware event monitors.

To disable hardware event monitoring:

1. Run the Hardware Monitoring Request Manager by typing:

/etc/opt/resmon/lbin/monconfig

2. From the main menu selection prompt, enter K.

3. Conﬁrm disabling when prompted to do so. When you are ready to re-enable hardware event monitoring, see “Enabling Hardware Event Monitoring”.

Chapter 2

Installing and Using Monitors

Disabling Hardware Event Monitoring

Chapter 2

Detailed Description

3 Detailed Description

This chapter describes EMS Hardware Monitors in detail. The topics discussed in this chapter include:

• Hardware monitoring architecture.

• Hardware monitoring request manager.

• EMS hardware event monitor.

• Polling or asynchronous?

• Startup client.

• Peripheral status monitor.

• Event monitoring service (EMS).

• File locations.

• Startup process (in detail).

• Asynchronous event detection (in detail).

• Event polling (in detail).

Chapter 3

Detailed Description

The Detailed Picture of Hardware Monitoring

The following ﬁgure shows the major components involved in hardware monitoring and the communication paths between them.

Figure 3-1 Hardware Monitoring Architecture

Chapter 3

Detailed Description

The Detailed Picture of Hardware Monitoring

Components from Three Different Applications

Hardware event monitoring involves components from three different applications:

• Event Monitoring System (EMS) provides the framework for event notiﬁcation. EMS was originally developed to support system monitoring, but the existing framework is used to manage hardware event monitoring as well.

• Hardware event monitoring components include the event monitor, associated conﬁguration ﬁles, and the hardware monitoring request manager.

• Support Tools Manager provides the low-level error handling components that are also used for recording and viewing system errors.

Hardware Monitoring Request Manager

Hardware event monitoring requests are created and managed using the Hardware Monitoring Request Manager program. This tool allows you to easily create monitoring requests for all the hardware event

monitors running on your system. The Hardware Monitoring Request Manager uses all the notiﬁcation methods supported by Event Monitoring Service (EMS), giving you the ability to create a consistent notiﬁcation strategy for both system resources and hardware resources. The Hardware Monitoring Request Manager is also used to enable or disable hardware monitoring.

Once created, all hardware event monitoring requests are handled by EMS, which uses the request settings to determine how an event should be reported.

Chapter 3

Detailed Description

The Detailed Picture of Hardware Monitoring

EMS Hardware Event Monitor

The EMS hardware event monitor is the key component in the event monitoring architecture. An event monitor is a daemon process, running in the background continuously. The event monitor watches all instances of the hardware resources it supports, waiting for the occurrence of any failures or other unusual events. The monitor may use polling, asynchronous event detection, or both.

When an event occurs, the monitor alerts EMS and passes it the appropriate event message. The event monitor also tells the PSM about the event. If the event is serious enough the PSM will change the status of the hardware to DOWN.

Two conﬁguration ﬁles control the operation of each hardware event monitor:

• Global monitor conﬁguration ﬁle. The settings deﬁned in this ﬁle are used for all hardware event monitors, unless overridden by a monitor-speciﬁc ﬁle.

• Monitor-speciﬁc conﬁguration ﬁle. Each monitor includes its own conﬁguration ﬁle with optimized settings. The settings deﬁned in the monitor-speciﬁc ﬁle override corresponding settings deﬁned in the global conﬁguration ﬁle.

NOTE The settings deﬁned by the monitor-speciﬁc conﬁguration ﬁle have been carefully selected to

meet the needs of most users. It is possible to alter these settings, but it is not recommended unless you fully understand the implications of doing so. For information on modifying the monitor-speciﬁc conﬁguration ﬁles, see Chapter 5, “Hardware Monitor Conﬁguration Files.”

NOTE As of the June 2000 release, several of the hardware monitors have been converted to be

“multiple-view” (Predictive-enabled). These monitors use a different ﬁle for conﬁguration, the Client Conﬁguration File.

Polling or Asynchronous?

Hardware event monitors employ two methods of tracking events: polling and asynchronous event detection. A monitor may use one or both of the methods to detect events.

Using polling, a monitor checks the status of its hardware resources at regular intervals, typically 60 minutes. Any unusual condition reported by the hardware will trigger an event by the monitor. The polling interval is selected to provide reasonable detection without impacting system performance. The main disadvantage of polling is that an event will not be detected until the next time the resource is polled, which makes the system vulnerable to another hardware failure.

Asynchronous detection allows a monitor to detect an event when it occurs, usually during an I/O to the device. An event typically results in a log entry made by the hardware device driver. The monitor detects the log entry and initiates the event notiﬁcation. Asynchronous event monitoring allows immediate notiﬁcation and response to a critical situation.

Startup Client

The startup client launches and conﬁgures the hardware event monitors each time the system is started, or following the execution of the IOSCAN utility (thus performing a real/hard ioscan). The startup client starts each monitor and conﬁgures its hardware resources using a set of default monitoring requests.

Chapter 3

Detailed Description

The Detailed Picture of Hardware Monitoring

Each monitor has its own startup conﬁguration ﬁle, which contains the default monitoring requests and any customized requests created using the Hardware Monitoring Request Manager. During system startup, following the execution of the IOSCAN utility (thus performing a real/hard ioscan), or when managing requests using the Hardware Monitoring Request Manager, the startup client reads each conﬁguration ﬁle and creates the monitoring requests deﬁned by the entries in the ﬁle. The Hardware Monitoring Request Manager updates the contents of the startup conﬁguration ﬁle when you add or modify monitoring requests.

Peripheral Status Monitor (PSM)

The sole purpose of the peripheral status monitor (PSM) is to convert events detected by a hardware event monitor to changes in hardware resource status. This conversion is required for use with MC/ServiceGuard in controlling package failover. When an event occurs, the PSM determines if it is serious enough to warrant a change in hardware resource status to DOWN. If it is, the PSM alerts EMS, which then informs MC/ServiceGuard.

More information about the PSM is included in Chapter 4, “Using the Peripheral Status Monitor.”

Event Monitoring Service (EMS)

The event monitoring service (EMS) provides the framework within which hardware monitoring takes place. EMS manages the monitoring requests created for each monitor. When an event occurs, the associated monitor alerts EMS and passes it an event message. EMS then uses the monitoring request to determine how (or if) the event message should be delivered. EMS manages all hardware event notiﬁcation.

EMS also provides the graphical interface for creating and managing PSM monitoring requests. Like event monitoring requests, all PSM monitoring requests are managed by EMS.

Other system monitors are available for EMS at additional cost. For more information on EMS and available monitors, see Using EMS HA Monitors (B5735-90001).

Chapter 3

Detailed Description

The Detailed Picture of Hardware Monitoring

File Locations

The following table lists the locations of the ﬁles involved in hardware monitoring.

Table 3-1 File Locations

Directories and Files Description

/usr/sbin/stm/uut/bin/tools/monitor/monitor_name Monitor executable ﬁles.

/var/stm/config/tools/monitor/Global.cfg Default monitor conﬁguration ﬁle.

/var/stm/config/tools/monitor/monitor_name.cfg Monitor-speciﬁc conﬁguration ﬁles.

/var/stm/config/tools/monitor/default_monitor_name.clcfg Monitor client conﬁguration ﬁle.

Only for hardware monitors converted to multiple-view (Predictive-enabled). New as of June 2000 release.

/var/stm/config/tools/monitor/monitor_name.sapcfg Monitor startup conﬁguration ﬁles.

/var/stm/config/tools/monitor/monitor_name.psmcfg PSM conﬁguration ﬁles.

/etc/opt/resmon/lbin/monconfig Hardware Monitoring Request

Manager ﬁle

/etc/opt/resmon/lbin/startcfg_client Startup client ﬁle

/etc/opt/resmon/lbin/set_fixed PSM set_ﬁxed utility ﬁle

/etc/opt/resmon/dictionary/monitor_name.dict Monitor dictionary ﬁles

In the above table, monitor_name is the name of a particular monitor such as armmon.

Chapter 3

Detailed Description

The Detailed Picture of Hardware Monitoring

Startup Process (in Detail)

The following steps describe the process used to start the hardware monitoring. The startup process is illustrated in Figure 3-2 on page 65.

The startup process is managed by the startup client (startcfg_client). The startup client is run when the system is restarted, following the execution of the IOSCAN utility (performing a real/hard ioscan), when the enable monitoring command is executed from the Hardware Monitoring Request Manager, or when monconﬁg changes the monitor requests.

1. When the system is restarted, following the execution of the IOSCAN utility (performing a real/hard ioscan), or when the enable monitoring command is executed, the Hardware Monitoring Request Manager (monconfig) calls the start up client (startcfg_client).

2. The startup client reads the contents of a monitor startup conﬁguration ﬁle and registers the monitoring requests contained in the ﬁle with the EMS registrar. This causes the associated monitor to start running. If monitoring is already enabled, the startup client unregisters all current monitoring requests, then reads the content of the startup conﬁguration ﬁles and registers the requests again.

3. The monitor examines the IOSCAN (ioscan -k) results table to determine if there are any hardware resources on the system that it is responsible for monitoring. If it ﬁnds such resources, the monitor continues to run. If it does not ﬁnd any resources, the monitor stops.

4. If the monitor supports asynchronous event detection, it registers with diaglogd, indicating what types of errors the monitor wants to receive. The monitor may specify a product description, product number, or driver name.

5. The startup client then repeats the process for all monitor startup conﬁguration ﬁles.

Figure 3-2 Monitoring Startup Process

Chapter 3

Detailed Description

The Detailed Picture of Hardware Monitoring

Disabling Monitoring

Hardware monitoring can be disabled using the Hardware Monitoring Request Manager. Disabling monitoring disables all EMS Hardware Monitors. Individual monitors cannot be disabled using the Hardware Monitoring Request Manager.

When monitoring is disabled all existing monitoring requests are unregistered, and then a kill -2 command is issued to stop all monitors.

Chapter 3

Detailed Description

The Detailed Picture of Hardware Monitoring

Asynchronous Event Detection (in Detail)

The following steps describe the process involved in asynchronous event detection. The asynchronous detection is illustrated in Figure 3-3 on page 68.

1. A device driver detects an error during an I/O with the device.

2. The device driver passes the error information, including SCSI sense data, to the diag2 pseudo driver, which adds information indicating the instance of the driver logging the error to the message header. The error message is then passed to the diaglogd daemon used by STM to monitor recoverable errors.

3. Diaglogd uses the instance information to retrieve hardware path, product type, product name, and driver name information from the message header. This information is used to determine which monitor, if any, the information should be passed to. The error message is also written to the raw error log (/var/stm/logs/os/log#.raw.cur).

During startup, each asynchronous monitor registered with diaglogd, indicating what types of errors the monitor wants to receive. The monitor may specify a product description, product number, or driver name. If a monitor is registered to receive the error, the message is passed to it.

4. The monitor decodes the error to determine if an event should be reported. If an event should be reported, the monitor passes the event message to Event Monitoring Service (EMS).

5. EMS uses the current monitoring requests for the monitor to determine what action to take. Based on the requests, the event is reported using the speciﬁed notiﬁcation method(s).

Event Decoding

In addition to monitoring hardware, many of the EMS hardware monitors also act as message decoders for logtool, which is used to read the contents of the raw error log. If the error uses an EMS hardware monitor as the decoder, logtool launches a new instance of the monitor to perform the decoding. In this way all events that have occurred on the device, including those IGNORED by the monitor, can be viewed.

Chapter 3

Detailed Description

The Detailed Picture of Hardware Monitoring

Figure 3-3 Asynchronous Event Detection Process

Chapter 3

Detailed Description

The Detailed Picture of Hardware Monitoring

Event Polling (in Detail)

The following is the process used for gathering event information using polling. The polling process is illustrated in Figure 3-4 on page 70.

1. At the interval deﬁned by the polling value in the monitor conﬁguration ﬁle, the monitor communicates with all the devices it is currently monitoring. The monitor sends pass-thru commands to all SCSI devices, and uses the appropriate protocol for other types of devices. The exact type and sequence of communication used during a polling operation is monitor-speciﬁc.

2. Each device responds to the message from the monitor by returning data indicating its status. The information returned in response to polling is not entered in the raw error log.

3. The monitor interprets the information from the device to determine if an event should be reported. If an event should be reported, the monitor passes the event message to EMS.

4. EMS uses the current monitoring requests for the monitor to determine what action to take. Based on the requests, the event is reported using the speciﬁed notiﬁcation method(s).

FC-AL Hub and FC Switch Polling Processes

Unlike the other EMS hardware monitors, the FC-AL hub monitor and FC switch monitor use SNMP to gather information from the hubs or switches they are monitoring. Using the hub or switch IP addresses deﬁned in the hub or switch conﬁguration ﬁles, the monitor polls the devices at the deﬁned polling interval (60 minutes by default) using SNMP.

The reporting of events is handled in the same way as all other monitors. Event information gathered by the hub and switch monitors does not get written to the raw error log, and the hub and switch monitors do not act as a decoder for logtool.

PA Memory Monitor Polling

The memory monitor polling process uses different components to retrieve event information. The memory monitor polling process is illustrated in Figure 3-5 on page 71.

1. At regular intervals (default 60 minutes) the memlogd daemon polls the memory hardware.

2. If a single-bit error is detected, memlogd uses the values from the memory conﬁguration ﬁle to determine the severity of the error, and then passes the appropriate event message to the memory monitor.

The error is also logged in memlog, which can read using logtool. All decoding of memory error messages is performed by memlogd.

3. The memory monitor determines if the event should be reported. If the event should be reported, the monitor passes the event message to Event Monitoring Service (EMS).

4. EMS uses the current monitoring requests for the memory monitor to determine what action to take. Based on the requests, the event is reported using the speciﬁed notiﬁcation method(s).

Chapter 3

Detailed Description

The Detailed Picture of Hardware Monitoring

Figure 3-4 Monitoring Polling Process

Chapter 3

Figure 3-5 Memory Monitor Polling Process

Detailed Description

The Detailed Picture of Hardware Monitoring

Chapter 3

Detailed Description

The Detailed Picture of Hardware Monitoring

Chapter 3

Using the Peripheral Status Monitor

4 Using the Peripheral Status Monitor

This chapter describes the Peripheral Status Monitor, which converts hardware events to status information for use by MC/ServiceGuard. The topics in this chapter include:

• An overview of the PSM

• How to conﬁgure MC/ServiceGuard package dependencies with the PSM

• How to create EMS monitoring requests for the PSM

Chapter 4

Using the Peripheral Status Monitor

Peripheral Status Monitor Overview

The primary function of the Peripheral Status Monitor, or PSM, is to convert hardware events into changes in device status. These changes in status can then be used by MC/ServiceGuard to control package failover.

The information in Chapter 2, “Installing and Using Monitors,” described how to conﬁgure your system to detect hardware events using the Monitoring Request Manager. In this chapter you will learn how to use the PSM to convert these events into changes in device status using the EMS GUI, which is accessed through SAM.

NOTE Can I Use the PSM Without MC/ServiceGuard?

Even if you are not using MC/ServiceGuard, you can still use the PSM to create hardware status monitoring requests using EMS. This allows you to get notiﬁcation for changes in hardware resource status, much as you can for other EMS monitors. If you create a PSM monitoring request, when a hardware event occurs you may be alerted twice—once for the event itself and again if the event caused the status of the resource to change to DOWN.

Chapter 4

Using the Peripheral Status Monitor

How Does the PSM Work?

The PSM converts hardware events detected by the EMS Hardware Monitors to “UP” or “DOWN” status, which is used by MC/ServiceGuard in controlling package failover. Figure 4-1 on page 76 illustrates how the PSM works with the other components of hardware monitoring.

Because hardware event monitors detect and report the occurrence of events rather that resource status, a method is required to alert MC/ServiceGuard when a hardware resource has a status that may impact data availability. The PSM provides this functionality, serving as the interface between the hardware event monitors and MC/ServiceGuard.

Some monitors can determine when a problem has been corrected and the hardware is functioning properly. These monitors automatically alert the PSM when the hardware is ﬁxed, and the PSM will return the state of the hardware to UP. Other monitors do not have the capability of determining when the hardware problem is corrected. With these monitors it will be necessary for the user to use the set_fixed utility to manually return the operational state to UP.

Chapter 4

Using the Peripheral Status Monitor

How Does the PSM Work?

Figure 4-1 Peripheral Status Monitor

Chapter 4

Using the Peripheral Status Monitor

How Does the PSM Work?

PSM Components

The PSM comprises the following components, which are installed along with the hardware event monitors. Each component has its own man page containing detailed information about its operation.

• psmctd - the Peripheral Status Client/Target daemon used to monitor the state of hardware resources.

• psmmon - the utility used to monitor the state of resources recognized by the psmctd daemon.

• set_fixed - the utility used to manually change the status of a hardware resource from DOWN to UP. Used only for monitors that do not the have capability to perform this operation automatically.

PSM States

The PSM can assume the three status conditions shown in the following table. These are the values you can use to deﬁne a monitoring request.

Table 4-1 PSM Status

Condition Interpretation

Up The hardware is operating normally.

Down An event has occurred that indicates a

failure with the hardware.

Unknown Cannot determine the state of the

hardware. This state is treated as DOWN by the PSM.

PSM Resource Paths

Selecting a hardware resource for PSM monitoring requires the selection of the correct resource path. The resource class path is the means by which EMS identiﬁes system resources. Resources are divided into classes and subclasses based on their type or function. For example, the resource classes for PSM monitoring include adapters, connectivity, and storage.

The resource path ends with the resource instance, which uniquely identiﬁes a hardware resource. There is an instance for each individual hardware resource supported by the monitor. The resource instance is typically the hardware path to the device (e.g., 10_12_5.0.0), but it may also be a device name as in the case of AutoRAID disk arrays.

EMS monitoring requests are applied at the resource instance level. This is unlike event monitoring requests created using the Hardware Monitoring Request Manager, which are applied at the monitor level. Thus when creating an EMS monitoring request you must select the speciﬁc resource you want to monitor. An all (*) option allows you to apply a PSM monitoring request to all current instances of the hardware. A monitoring request will not be applied to new hardware added to the system after the request is created.

PSM resource class path names are structured as follows:

/top_level_resource_class/status/subclass/subclass/instance

For example, the PSM resource class path for a SCSI tape device at hardware path 10_12_5.0.0 would be:

/storage/status/tapes/SCSI_tape/10_12_5.0.0

The PSM resource class path for an AutoRAID disk array with an ID of 000000105781 would be:

/storage/status/disk_arrays/AutoRAID/000000105781

Chapter 4

Using the Peripheral Status Monitor

How Does the PSM Work?

The status resource class path for each monitor is included in the monitor descriptions are available on the Web at http://docs.hp.com/hpux/onlinedocs/diag/ems/emd_summ.htm.

An HP-UX man page is available for each monitor. To access the man page, type (where executable ﬁle listed in the data sheet): man

monitorname

is the

Chapter 4

Using the Peripheral Status Monitor

Conﬁguring MC/ServiceGuard Package Dependencies with the PSM

The PSM allows you to create MC/ServiceGuard package dependencies for resources monitored by EMS Hardware Monitors.

To use the PSM with MC/ServiceGuard, you conﬁgure one or more of the resource instances available in the PSM as MC/ServiceGuard package dependencies. This creates an EMS monitoring request that monitors the status of the resource and alerts MC/ServiceGuard if the status of the resource changes.

Here are some examples of how PSM monitoring requests might be used:

• In a cluster where one copy of data is shared between all nodes in a cluster, you may want to failover a package if the host adapter has failed on the node running the package. Because buses, controllers, and disks are shared, package failover to another node because of bus, controller, or disk failure would not successfully run the package. To make sure you have proper failover in a shared data environment, you must create identical package dependencies on all nodes in the cluster. MC/ServiceGuard can then compare the resource “UP” values on all nodes and failover to the node that has the correct resources available.

• In a cluster where each node has its own copy of data, you may want to failover a package to another node for a host adapter, bus, controller, or disk failure. In this sort of cluster of web servers, where each node has a copy of the data and users are distributed for load balancing, you can failover a package to another node with the correct resources available. Again, the package resource dependencies should be conﬁgured the same on all nodes.

NOTE You should create the same requests on all nodes in an MC/ServiceGuard cluster.

There are two methods for conﬁguring PSM package dependencies; using SAM, or by editing the package conﬁguration ﬁle.

Chapter 4

Using the Peripheral Status Monitor

Conﬁguring MC/ServiceGuard Package Dependencies with the PSM

Conﬁguring Package Dependencies using SAM

The procedure assumes you have taken the necessary steps to create the package to which you will be adding resource dependencies. Complete instructions for conﬁguring MC/ServiceGuard clusters and packages are provided in Managing MC/ServiceGuard.

To create a package resource dependency:

1. From the command line, start the graphical version of SAM by typing: sam

2. Double-click the Clusters icon.

3. Double-click the High Availability Clusters icon.

4. Double-click on the Package Conﬁguration icon. The High Availability Clusters screen is displayed showing all requests conﬁgured on that system.

5. From the Actions menu, select either Create/Add a Package or Modify Package Conﬁguration. Depending on which option you selected, the Create/Add Package screen is displayed or the Modify

Package screen is displayed.

6. If you have not yet done so, specify a Package Name and Node and Specify a Package SUBNET Address. Then click on “Specify Package Resource Dependencies…” to add PSM resources as package dependencies. The Package Resource Dependencies screen is displayed.

7. To make a package dependent on an EMS HA Monitors resource, click Add Resource. The Add Resources screen is displayed listing all the installed resources discovered by MC/ServiceGuard. The resource classes used for PSM monitoring are adapters, connectivity, storage, and system.

8. Double-click on the appropriate PSM resource class, then on the status class, then on the remaining resource subclasses until the PSM monitor instances are displayed in the Resource Names list. Select the desired PSM resource and click OK. A Resource Parameters screen is displayed

9. Enter an appropriate Resource Polling Interval value. This value determines how often EMS checks the PSM for changes in status. The value you select for polling should be related to how critical the resource is to system operation. You may want to use a short polling interval for critical resources, and a longer interval for non-critical resources. Be aware that polling can impact system performance, so avoid using a short polling interval for all resources.

10. Select UP from the list of Available Resource Values, then click < — Add — .

11. Click OK to add the package dependency.

Package failover will now occur if the status of the resource changes from UP.

Chapter 4

Using the Peripheral Status Monitor

Conﬁguring MC/ServiceGuard Package Dependencies with the PSM

Conﬁguring Package Dependencies by Editing the Conﬁguration File

You can also add PSM package dependencies by editing the package conﬁguration ﬁle in /etc/cmcluster/pkg.ascii. See the Managing MC/ServiceGuard for details on modifying this ﬁle.

When using the MC/ServiceGuard commands (e.g., cmapplyconf) to specify the use of the PSM Resource Monitor, the section of the package conﬁguration ﬁle that has the keyword “RESOURCE_NAME” must be uncommented and set to the value of the resource name of interest. The PSM has a different resource path name for hardware resource being monitored.

For example, assume you want to create a dependency on a SCSI disk that has a resource path of /storage/status/disks/default/10_0_5.0.0. You want to use a polling interval of 10 seconds and identify UP as the only state that will not cause failover. The following entry would be added to the conﬁguration ﬁle to add a package dependency for this disk:

RESOURCE_NAME /storage/status/disks/default/10_0_5.0.0 RESOURCE_POLLING_INTERVAL 10 RESOURCE_UP_VALUE =UP

Chapter 4

Using the Peripheral Status Monitor

Creating EMS Monitoring Requests for PSM

In addition to creating MC/ServiceGuard package dependencies, you can also use the PSM to create EMS monitoring requests. Because it is a state monitor rather than an event monitor, the process and options available for creating PSM requests with EMS are identical to those for the other system monitors available for EMS.

To create a PSM monitoring request:

1. From the command line, start the graphical version of SAM by typing: sam

2. Double-click the Resource Management icon.

3. Double-click on the Event Monitoring Service icon. The Event Monitoring Service main screen is displayed showing all monitoring requests conﬁgured on the

system. Included are any PSM monitoring requests you may have created, and any requests created for other EMS monitors that may be running on your system. If you have not created any requests, the ﬁeld area of the screen will be empty.

4. From the Actions menu select Add Monitoring Request. The top level resource classes are displayed. The resource classes used for PSM monitoring are adapters,

connectivity, storage, and system.

5. Double-click on the appropriate resource class, then on the status class, then on the remaining resource subclasses until the PSM monitor instances are displayed in the Resource Instance list.

6. Select the desired PSM resource instance and click OK. If there are multiple instances, you can select the * (All Instances) option to apply the monitoring request to all instances of the selected resource. All Instances is a convenient way to create many requests at one time.

The Monitoring Request Parameters screen is displayed for the selected PSM resource.

7. Using the various parameter ﬁelds available, deﬁne the monitoring request. A description of the various parameters and how they are used is included in the following section.

Although there are many possible ways to deﬁne the monitoring request, the following settings are recommended for PSM requests:

• Notify conditions set to “Notify When value is…Not Equal Up (0)”

• Options set to Initial and Return

• Polling Interval set to an appropriate value

• Notify via set to the desired notiﬁcation method

8. Click OK to save the monitoring request. The request will be added to those in the Current Monitoring Requests screen.

Repeat the above steps for each new PSM monitoring request. It will be necessary to create a new monitoring request for each notiﬁcation method.

Chapter 4

Using the Peripheral Status Monitor

Monitoring Request Parameters

The following information describes in detail the monitoring request parameters and offers tips on how to use them.

Specifying When to Send Event - <Notify>

One of the ﬁrst steps in creating a monitoring request involves specifying the conditions under which you want to be alerted. The following options are available for selecting when to send an alert.

Table 4-2 PSM Status

When value is…

When value changes

At each interval

You deﬁne the conditions under which you wish to be notiﬁed for a particular resource using an operator (=, not equal, >, >=, <, <=) and a value returned by the monitor (UP, DOWN, UNKNOWN). Text values are mapped to numerical values.

This notiﬁcation might be used for a resource that does not change frequently, but you need to know each time it does.

This sends notiﬁcation at each polling interval. It would most commonly be used for reminders or gathering data for system analysis. Use this for only a small number of resources at a time, and with long polling intervals of several minutes or hours; there is a risk of affecting system performance.

Determining the Frequency of Events - <Options>

If you select the When value is… from the <Notify> options, the Options box is displayed. Select one or more of these options:

Table 4-3 PSM Status

Initial Use this option for testing a new request to ensure it is sending alerts

to the desired destinations.

Repeat Use this option for urgent alerts. The Repeat option sends an alert at

each polling interval as long as the notify condition is met. Use this option with caution; there is a risk of high CPU use or ﬁlling log ﬁles and alert windows.

Return Use this option to track when a condition returns to its previous

value.

These Options are not available if you have selected When value changes or At each interval from the <Notify> list. In these cases the options default to:

• Repeat and Return - Not selected

• Initial - Selected

Chapter 4

Using the Peripheral Status Monitor

Monitoring Request Parameters

Setting the Polling Interval - <Polling Interval>

The polling interval speciﬁes how often EMS will check the PSM for changes in hardware status. The polling interval is the maximum amount of elapsed time before EMS will be aware of a change in status for the hardware resource being monitored. A short polling interval will ensure that you have recent data. However, a short polling interval may use more CPU and system resources. You must weigh the importance of being able to respond quickly against the importance of maintaining good system performance.

Some considerations include:

• MC/ServiceGuard monitors resources every few seconds. You may want to use a short polling interval (30 seconds or less) when it is critical that you make a quick failover decision.

• You may want a polling interval of 5 minutes or so for monitoring less critical resources.

• You may want to set a very long polling interval (4 hours) to monitor failed disks that are not essential to the system, but which should be replaced in the next few days.

Selecting Protocols for Sending Events - <Notify Via>

Using the <Notify via> option, you can specify the method EMS uses to send events. The options are:

opcmsg ITO

This option sends messages to ITO applications via the opcmsg daemon. IT Operation 4.0 or above must be installed on the resource server for this option to display.

The ITO message severity options are:

• Critical

• Major

• Minor

• Warning

• Normal

A speciﬁed severity other than Normal is returned under the following conditions:

• The When value is . . . condition evaluates to TRUE

• The When value changes condition evaluates to TRUE

See the HP OpenView IT/Operations Administrators Task Guide (Part Number B4249-90003) for more information on conﬁguring notiﬁcation severity.

Templates for conﬁguring IT/Operations and Network Node events can be found on the Hewlett-Packard High Availability public web page at http://www.hp.com/go/ha.

To set the opcmsg ITO:

1. Specify the notiﬁcation type from the <Notify> list.

2. Select the opcmsg ITO option from the <Notify via> list.

3. Select the severity from the <Severity> list, (Critical, Major, Minor, Warning, Normal).

Chapter 4

Using the Peripheral Status Monitor

Monitoring Request Parameters

SNMP traps

This option sends messages to applications using SNMP traps, such as Network Node Manager. See HP OpenView Using Network Node Manager (P/N J1169-90002) for more information on conﬁguring SNMP

traps. The following traps are used by EMS:

EMS_ENTERPRISE_OID "1.3.6.1.4.1.11.2.3.1.7" EMS_NORMAL_OID "1.3.6.1.4.1.11.2.3.1.7.0.1" - Normal notification EMS_ABNORMAL_OID "1.3.6.1.4.1.11.2.3.1.7.0.2" - Abnormal notification EMS_REBOOT_OID "1.3.6.1.4.1.11.2.3.1.7.0.3" - Reboot notification EMS_RESTART_OID "1.3.6.1.4.1.11.2.3.1.7.0.4" - Restart notification EMS_NORMAL_SEV_OID "1.3.6.1.4.1.11.2.3.1.7.0.5" - Problem Event w/Normal Severity notification EMS_WARNING_SEV_OID "1.3.6.1.4.1.11.2.3.1.7.0.6" - Problem Event w/Warning Severity notification EMS_MINOR_SEV_OID "1.3.6.1.4.1.11.2.3.1.7.0.7" - Problem Event w/Minor Severity notification EMS_MAJOR_SEV_OID "1.3.6.1.4.1.11.2.3.1.7.0.8" - Problem Event w/Major Severity notification EMS_CRITICAL_SEV_OID "1.3.6.1.4.1.11.2.3.1.7.0.9" - Problem Event w/Critical Severity notification

Specify the ITO message severity for both normal and abnormal events:

• Critical

• Major

• Minor

• Warning

• Normal

A speciﬁed severity other than Normal is returned under the following conditions: Certain SNMP trap monitoring requests can map directly to severity levels. For these requests, a toggle

button <Map severity from value> is displayed. If this is selected, options selected from <Severity> are ignored.

• The When value is… condition evaluates to TRUE

• The When value changes condition evaluates to TRUE

To set the SNMP trap:

1. Specify the notiﬁcation type from the <Notify> list.

2. Select the opcmsg ITO option from the <Notify via> list.

3. Select the severity from the <Severity> list, (Critical, Major, Minor, Warning, Normal).

TCP and UDP

This option sends TCP or UDP encoded events to the target host name and port indicated for that request. Thus the message can be directed to a user-written socket program.

To set the TCP or UDP conditions:

1. Select the TCP or UDP option, as appropriate, from the <Notify via> list.

2. Specify the target host name and the port.

email

This option sends event notiﬁcation to the speciﬁed email address

Chapter 4

Using the Peripheral Status Monitor

Monitoring Request Parameters

To set for email notiﬁcation:

1. Select the Email option from the <Notify via> list.

2. Specify the full email address in the Email Address ﬁeld.

syslog

This option sends event notiﬁcation to the system log. For an abnormal event, a system logging level of error will be associated with the logged message. An abnormal event message (error) is returned under the following conditions:

• The When value is . . . condition evaluates to TRUE

• The When value changes condition evaluates to TRUE

To set for a system log notiﬁcation:

1. Select the Syslog option from the <Notify via> list.

Console

This option sends event notiﬁcation to the system console.

To set for a console notiﬁcation:

1. Select the Console option from the <Notify via> list.

Textlog

This option sends event notiﬁcation to the speciﬁed ﬁle.

To set for an text log notiﬁcation:

1. Select the Textlog option from the <Notify via> list.

2. Specify the ﬁlename and path in the File Path ﬁeld. A default path, /var/opt/resmon/log/event.log, is displayed when the Textlog option is selected. Note that EMS HA Monitors will not create the ﬁle, it will add notiﬁcations to an existing ﬁle.

Adding a Notiﬁcation Comment - <Comment>

The notiﬁcation comment is useful for sending task reminders to the recipients of an event. For example, you may want to add the name of the person to contact if an event occurs. If you have conﬁgured MC/ServiceGuard package dependencies, you may want to enter the package name as a comment in the corresponding request.

Chapter 4

Using the Peripheral Status Monitor

Copying Monitoring Requests

There are two ways to use the copy function:

• To create requests for multiple resources using the same monitoring parameters. This is a quick way to

set requests for multiple resources.

• To create requests for the same resource using different monitoring parameters. This is a quick way to

create requests that send events using multiple notiﬁcation methods.

To create requests for multiple resources using the same monitoring parameters:

1. From the Event Monitoring Service main screen, select the monitoring request whose parameters you

wish to copy. You need to have conﬁgured at least one similar request for a similar instance.

2. From the Actions menu select Copy Monitoring Request.

The Add Monitoring Request screen is displayed.

3. From the Add Monitoring Request screen, select a different resource instance and click OK.

The Monitoring Request Parameters screen is displayed.

4. Click OK in the Monitoring Request Parameters screen.

A message is displayed indicating the new request has been added, and the Event Monitoring Service main screen is displayed.

To create requests for the same resource using different monitoring parameters:

1. From the Event Monitor Service main screen, select the monitoring request with the instance for which

you wish to have multiple monitoring requests. You need to have conﬁgured at least one request for the instance.

2. From the Actions menu select Copy Monitoring Request.

The Add Monitoring Request screen is displayed.

3. Click OK in the Add Monitoring Request screen.

The Monitoring Request Parameters screen is displayed.

4. In the Monitoring Request Parameters screen, modify the parameters as desired.

5. Click OK.

A message is displayed indicating the new request has been added, and the Event Monitoring Service main screen is displayed.

Chapter 4

Using the Peripheral Status Monitor

Modifying Monitoring Requests

To change the monitoring parameters of a request:

1. From the Event Monitoring Service main screen, select the monitoring request whose parameters you

wish to modify.

2. From the Actions menu select Modify Monitoring Request.

The Monitoring Request Parameters screen is displayed.

3. In the Monitoring Request Parameters screen, modify the parameters as desired.

4. Click OK. A message is displayed indicating the request has been modiﬁed, and the Event Monitoring Service main

screen is displayed.

Chapter 4

Using the Peripheral Status Monitor

Removing Monitoring Requests

The Remove Monitoring Requests functions with multiple requests as well as single requests.

To remove monitoring requests:

1. From the Event Monitoring Service main screen, select the monitoring request you wish to remove.

To select contiguous multiple requests, hold the Shift key and click. To select individual multiple requests, hold the Ctrl key and click.

2. From the Actions menu select Remove Monitoring Request.

A Conﬁrmation screen is displayed.

3. Click OK.

A message is displayed indicating the request(s) has been removed, and the Event Monitoring Service main screen is displayed.

4. To start monitoring the resource again you must recreate the request, either by copying a similar request

for a similar resource or by re-entering the information.

Chapter 4

Using the Peripheral Status Monitor

Viewing Monitoring Requests

To view the parameters for a monitoring request:

1. From the Event Monitoring Service main screen, select the monitoring request you wish to view and

either:

• Double-click, or

• From the Actions menu select View Monitoring Request The View Monitoring Request Parameters screen is displayed. The parameters listed here match the

parameters speciﬁed for the monitoring request.

2. To exit the View Monitoring Request screen, click OK.

Chapter 4

Using the Peripheral Status Monitor

Using the set_ﬁxed Utility to Restore Hardware UP State

Using the set_fixed Utility to Restore Hardware UP State

Most hardware event monitors cannot detect when a hardware failure has been repaired and the resource has been returned to normal operation. Consequently, these monitors cannot alert the PSM to change the status of its hardware resources from DOWN to UP. It is necessary for you to manually change the status of the hardware resources using the set_fixed utility included with the PSM. To determine if a monitor requires use of the set_fixed utility, refer to the monitor descriptions in Chapter 6, “Monitor Data Sheets.”

The set_fixed utility includes its own man page describing how to change the state of the resource.

NOTE Make sure you have repaired the problem before you use the set_fixed utility to return the

hardware resource status to UP. If the hardware is not repaired, the change in status to UP may cause MC/ServiceGuard to erroneously assume the hardware is working properly.

To restore the operating state of a resource to UP:

1. If necessary, list the hardware resources that currently have a status of DOWN by typing:

/etc/opt/resmon/lbin/set_fixed -L

2. Set the status of the DOWN hardware resource to UP by typing:

set_fixed -n

resource_name

The resource_name is the status resource path name to the hardware resource that has been repaired. When specifying the resource_name you can use wildcards such as “*” to indicate all instances.

Example 4-1 Example of Using set_fixed

The following example sets to UP the status of the SCSI tape device at hardware path 10_12_5.0.0

set_fixed -n /storage/status/tapes/SCSI_tape/10_12_5.0.0

The following example sets to UP the status of all AutoRAID disk arrays.

set_fixed -n /storage/status/disk_arrays/AutoRAID/*

Chapter 4

Using the Peripheral Status Monitor

Using the set_ﬁxed Utility to Restore Hardware UP State

Chapter 4

Hardware Monitor Conﬁguration Files

5 Hardware Monitor Conﬁguration Files

Several conﬁguration ﬁles are used to control the operation of each hardware event monitor. The operation of the monitor can be altered by editing the contents of the various conﬁguration ﬁles. Before altering the contents of a conﬁguration ﬁle, you should have a thorough understanding of what effects the changes will have on monitor operation. The following paragraphs should provide the understanding you need for using conﬁguration ﬁles properly.

CAUTION Before editing any conﬁguration ﬁle, create a backup copy of it. This will allow you to recreate

the original environment if the changes you make do not produce the desired results.

Chapter 5

Hardware Monitor Conﬁguration Files

Overview

Understanding Multiple-View and Non-Multiple-View Monitor Classes

EMS Hardware Monitors are divided into two classes: Multiple-View and Non-Multiple-View. Multiple-View monitors allow you to specify different event messages (for the same monitor) to one or more targets (“clients”). Targets may have different requirements for events, so event messages can be conﬁgured to be unique for each target. Non-Multiple-View monitor event messages are generated in the same way for all targets.

Within these two monitor classes, there are conﬁguration ﬁles that control the operation of each hardware event monitor. Both classes of monitors use the Global and Monitor-speciﬁc conﬁguration ﬁles (.cfg) to conﬁgure required monitor settings such as POLL_INTERVAL. In addition, Multiple-View monitors also use the Client Conﬁguration ﬁle (.clcfg). The client conﬁguration ﬁle allows you to conﬁgure different event messages for multiple targets.

Monitor Conﬁguration File Types

The following conﬁguration ﬁles control the operation of each hardware event monitor:

• Global monitor conﬁguration ﬁle. The settings deﬁned in this ﬁle are used for all monitors, unless

overridden by a monitor-speciﬁc or client conﬁguration ﬁle.

• Monitor-speciﬁc conﬁguration ﬁle. Each monitor includes its own conﬁguration ﬁle with optimized

settings. Settings deﬁned in the monitor-speciﬁc ﬁle override comparable settings deﬁned in the global conﬁguration ﬁle.

• Client conﬁguration ﬁle. With Multiple-View hardware monitors, you can create a different Client

Conﬁguration File (*.clcfg) for each target. Settings deﬁned in the client conﬁguration ﬁle override comparable settings deﬁned in either the global or monitor-speciﬁc conﬁguration ﬁles.

NOTE For Multiple-View monitors, settings not deﬁned in the Client Conﬁguration File (*.clcfg) such

as the POLL_INTERVAL, must be deﬁned in either the Global or Monitor-speciﬁc conﬁguration ﬁle (*.cfg).

Chapter 5

Hardware Monitor Conﬁguration Files

Client Conﬁguration File

As of the June 2000 release, several of the hardware monitors have been converted to be multiple-view. These monitors use an additional ﬁle for conﬁguration, the Client Conﬁguration File (for example, default_disk_em.clcfg.)

The immediate purpose of this change is to enable HP Support Applications to work with hardware monitors. There will also be long-term beneﬁts, as well.

Clients: Targets for Events

When a hardware monitor detects an event, it can send an event message to one or more targets (“clients”). Previously, EMS hardware monitors generated events in the same way for all targets. The problem is that different targets, such as HP Support, may have different requirements for events.

The June 2000 release introduced the Multiple-View feature to several monitors; this feature will be added to most hardware monitors in future releases.

Creating a Client Conﬁguration File (*.clcfg)

With Multiple-View hardware monitors, you can create a different Client Conﬁguration File (*.clcfg) for each target. In this ﬁle, you can specify:

• The text to be included in event messages.

• “Qualiﬁcation requirements”: the time or value thresholds a problem must meet in order to generate an

event. For example, the default time threshold might be to send an event if the problem is seen six times in 24 hours; however, HP Support may want to see the event three times in 24 hours. Another example: the default value threshold might be to send the event when the value associated with the problem is greater than or equal to 80, but HP Support may want to see the event when the value is greater than or equal to 70.

• Events to be enabled/disabled for a given target. For example, event 1 may be enabled for target #1, but

disabled for target #2.

• Severity level for an event sent to a given target. For example, event 3 may have a severity level of

CRITICAL for target #1, but a severity level of MAJOR_WARNING for target #2.

The default Client Conﬁguration File (*.clcfg) is:

/var/stm/config/tools/monitor/default_MONITOR_NAME.clcfg

For example:

/var/stm/config/tools/monitor/default_disk_em.clcfg

The Client Conﬁguration File for the HP Support Applications client would be:

/var/stm/config/tools/monitor/xxx_disk_em.clcfg

Verifying Monitors with a Test Event

As of the June 2000 release of the diagnostics, a standalone program is available to cause multiple-view EMS hardware monitors to generate a test event:

/opt/resmon/bin/send_test_event

Chapter 5

Hardware Monitor Conﬁguration Files

Client Conﬁguration File

/etc/opt/resmon/lbin/send_test_event

The program was created for HP Support Applications to ensure that the communication mechanism from the monitor to HP Support is working. However, it can be used by customers to ensure the same thing: that the communication mechanisms from the monitor to their notiﬁcation method (email, event log, SNMP trap, etc.) are working.

The program will not work with monitors that have not been updated to be multiple-view. In the long-term, all monitors are planned to be updated to be multiple-view.

Before the send_test_event program can be run, the monitors must be enabled and conﬁgured. (That is, when you run monconﬁg, it should say that monitoring is enabled and when you do a “Check”, the requests show up.)

The test event is #103 with a default severity of "INFORMATION". To test delivery to notiﬁcation targets that by default only receive higher severity events (e.g. syslog or email to root, which receive "MAJOR_WARNING" or higher events only), you must edit the .clcfg ﬁle for the monitor to change the severity of event #103.

For more information on the command, see the manpage for send_test_event.

Sample Client Conﬁguration File

The following is a sample of a client conﬁguration (.clcfg) ﬁle.

# There are 4 types of entries in this file. HOST_ID, DEV_ID, EQ, # CLCFG_VERSION. Each entry starts with the appropriate tag, # followed by one or more colon separated fields. The number of fields and # valid values for each field depends # on the tag. # # Each entry in this file must be one line. Meaning, no returns can be # put in the middle of a line. This may mean that the EQ entries will wrap. # Text fields in the entries are case sensitive. # # Host ids that should be added to the event. This information will # be added in the order the tags are listed # Possible host ids are: # host_model_num # host_os_version # host_fw_version # host_serial_num # host_sw_id # host_ems_version # host_stm_version # Example: # HOST_ID: host_ems_version : host_stm_version HOST_ID:host_model_num:host_ems_version:host_stm_version

# Device ids that should be added to the event. This information will be # added in the order the tags are listed # NOTE: these are specific to this monitor # Example: # DEV_ID: dev_product : dev_qualifier DEV_ID:dev_pdev:dev_inq_vendor:dev_inq_prod:dev_fw_version:dev_serial_num #DEV_ID:dev_pdev:dev_comp_tag2

# Event qualification entries for events generated by this monitor. # NOTE: the event numbers are specific to this monitor. # Example:

Chapter 5

Hardware Monitor Conﬁguration Files

# EQ : event_number : severity : enable flag : suppression time : time window : # threshold : value threshold 1 : operator 1 : operator 2 : value threshold 2 # event_number : the number of the event # string of "OTHER" means use this entry when no other EQ entry matches # event number # # severity : the severity of the event. Valid values are: #CRITICAL #SERIOUS #MAJOR_WARNING #MINOR_WARNING #INFORMATION # # enable flag : whether the event is enabled. Valid values are: #TRUE - event is enabled #FALSE - event is not enabled # # suppression time : time, in seconds, to suppress generation and trending # for this event after generating the event. # Valid values are: #NOT_USED - Never suppress the event #1 - maxint - number of seconds to suppress # # time window: amount of time, in seconds, event must be seen to # qualify event. Valid values are: #NOT_USED - time window thresholding not used #ANY - time window thresholding used but no time window specified #1-maxint - time need to see threshold events to qualify # # threshold : number of times in time window event must be seen to qualify # event. Valid values are: #1-maxint # NOTE: to configure event to always be generated every time it is seen, # threshold should be set to 1 and time window should be set to "ANY" # value threshold X, operator X : value thresholds to qualify event. # Valid values for value threshold depend on the type of value associated # with the event. However, predefined value of "NONE" means this value # threshold is not used. Valid values for operator X are: #NO_OP - this operator not used # >, < , >=, <=,==, !=. # These values are used to qualify the event using the following logic: # value threshold 1 operator 1 value operator 2 value threshold 2 # For example, if the value is an integer and want to qualify event if # value is between 60 and 70, inclusive, the entry would be: # 60 : <= : <= 70. If the value is an integer and want to qualify event # if value is > 70, the entry would be : NONE : NO_OP : > : 70.

Client Conﬁguration File

# # # Define event #100 to be information severity, enabled, never suppressed # and qualified every time it occurs EQ:100:INFORMATION:TRUE:NOT_USED: ANY:1:NONE:NO_OP:NO_OP:NONE # Define event #101 to be critical severity, enabled, never suppressed # and qualified every time it occurs EQ:101:CRITICAL:TRUE:NOT_USED:ANY:1:NONE:NO_OP:NO_OP:NONE EQ:100072:CRITICAL:TRUE:NOT_USED: ANY :1:NONE:NO_OP:NO_OP:NONE # # CLCFG_VERSION is used to define the version of this file # This information will be added to the additional event data portion # of the event text # CLCFG_VERSION:V.UU.FF CLCFG_VERSION:A.01.01

EQ:103:INFORMATION:TRUE:NOT_USED:ANY:1:NONE:NO_OP:NO_OP:NONE

Chapter 5

Hardware Monitor Conﬁguration Files

Client Conﬁguration File

# msa1000 events EQ:110:INFORMATION:TRUE:NOT_USED:ANY:1:NONE:NO_OP:NO_OP:NONE # EQ:111:INFORMATION:TRUE:NOT_USED:ANY:1:NONE:NO_OP:NO_OP:NONE # EQ:120:INFORMATION:TRUE:NOT_USED:ANY:1:NONE:NO_OP:NO_OP:NONE # EQ:121:INFORMATION:TRUE:NOT_USED:ANY:1:NONE:NO_OP:NO_OP:NONE # EQ:130:INFORMATION:TRUE:NOT_USED:ANY:1:NONE:NO_OP:NO_OP:NONE # EQ:131:INFORMATION:TRUE:NOT_USED:ANY:1:NONE:NO_OP:NO_OP:NONE # EQ:140:INFORMATION:TRUE:NOT_USED:ANY:1:NONE:NO_OP:NO_OP:NONE # EQ:141:INFORMATION:TRUE:NOT_USED:ANY:1:NONE:NO_OP:NO_OP:NONE # EQ:150:INFORMATION:TRUE:NOT_USED:ANY:1:NONE:NO_OP:NO_OP:NONE # EQ:151:INFORMATION:TRUE:NOT_USED:ANY:1:NONE:NO_OP:NO_OP:NONE # EQ:220:CRITICAL:TRUE:NOT_USED:ANY:1:NONE:NO_OP:NO_OP:NONE # EQ:221:MAJOR_WARNING:TRUE:NOT_USED:ANY:1:NONE:NO_OP:NO_OP:NONE # EQ:222:INFORMATION:TRUE:NOT_USED:ANY:1:NONE:NO_OP:NO_OP:NONE # EQ:230:INFORMATION:TRUE:NOT_USED:ANY:1:NONE:NO_OP:NO_OP:NONE # EQ:231:INFORMATION:TRUE:NOT_USED:ANY:1:NONE:NO_OP:NO_OP:NONE # EQ:232:CRITICAL:TRUE:NOT_USED:ANY:1:NONE:NO_OP:NO_OP:NONE # EQ:233:INFORMATION:TRUE:NOT_USED:ANY:1:NONE:NO_OP:NO_OP:NONE # EQ:300:INFORMATION:TRUE:NOT_USED:ANY:1:NONE:NO_OP:NO_OP:NONE # EQ:301:MAJOR_WARNING:TRUE:NOT_USED:ANY:1:NONE:NO_OP:NO_OP:NONE # EQ:302:INFORMATION:TRUE:NOT_USED:ANY:1:NONE:NO_OP:NO_OP:NONE # EQ:310:CRITICAL:TRUE:NOT_USED:ANY:1:NONE:NO_OP:NO_OP:NONE # EQ:312:INFORMATION:TRUE:NOT_USED:ANY:1:NONE:NO_OP:NO_OP:NONE # EQ:320:CRITICAL:TRUE:NOT_USED:ANY:1:NONE:NO_OP:NO_OP:NONE # EQ:322:INFORMATION:TRUE:NOT_USED:ANY:1:NONE:NO_OP:NO_OP:NONE # EQ:330:CRITICAL:TRUE:NOT_USED:ANY:1:NONE:NO_OP:NO_OP:NONE # EQ:331:CRITICAL:TRUE:NOT_USED:ANY:1:NONE:NO_OP:NO_OP:NONE # EQ:400:CRITICAL:TRUE:NOT_USED:ANY:1:NONE:NO_OP:NO_OP:NONE # EQ:500:INFORMATION:TRUE:NOT_USED:ANY:1:NONE:NO_OP:NO_OP:NONE # EQ:501:MAJOR_WARNING:TRUE:NOT_USED:ANY:1:NONE:NO_OP:NO_OP:NONE # EQ:502:CRITICAL:TRUE:NOT_USED:ANY:1:NONE:NO_OP:NO_OP:NONE # EQ:503:CRITICAL:TRUE:NOT_USED:ANY:1:NONE:NO_OP:NO_OP:NONE #

Chapter 5

EQ:510:CRITICAL:TRUE:NOT_USED:ANY:1:NONE:NO_OP:NO_OP:NONE # EQ:520:INFORMATION:TRUE:NOT_USED:ANY:1:NONE:NO_OP:NO_OP:NONE # EQ:600:INFORMATION:TRUE:NOT_USED:ANY:1:NONE:NO_OP:NO_OP:NONE # EQ:900:MAJOR_WARNING:TRUE:NOT_USED:ANY:1:NONE:NO_OP:NO_OP:NONE # EQ:901:INFORMATION:TRUE:NOT_USED:ANY:1:NONE:NO_OP:NO_OP:NONE # EQ:902:MAJOR_WARNING:TRUE:NOT_USED:ANY:1:NONE:NO_OP:NO_OP:NONE # EQ:903:INFORMATION:TRUE:NOT_USED:ANY:1:NONE:NO_OP:NO_OP:NONE # EQ:904:INFORMATION:TRUE:NOT_USED:ANY:1:NONE:NO_OP:NO_OP:NONE # EQ:905:MAJOR_WARNING:TRUE:NOT_USED:ANY:1:NONE:NO_OP:NO_OP:NONE # EQ:906:INFORMATION:TRUE:NOT_USED:ANY:1:NONE:NO_OP:NO_OP:NONE #

Hardware Monitor Conﬁguration Files

Client Conﬁguration File

Chapter 5

Hardware Monitor Conﬁguration Files

Monitor-Speciﬁc and Global Conﬁguration Files

The common operating parameters deﬁned by the monitor-speciﬁc and global conﬁguration ﬁles for all non-multiple-view monitors include:

• Polling Interval - identiﬁes the frequency at which the monitor polls the hardware for status. This value

is selected to provide current device status without seriously impacting system performance.

• Repeat Frequency - indicates how often the same event should be reported. Events that continue to exist

should not overburden the system with a continuous stream of messages. A value of once a day is used as the default repeat frequency.

• Severity Action - determines whether the severity level will be passed to EMS for reporting or ignored.

• Event Deﬁnition - identiﬁes each event handled by the monitor, deﬁnes its severity level, and determines

what action the monitor will take when the event occurs. Actions include ignoring the event, passing it on to EMS, or using the default action deﬁned by the Severity Action setting.

NOTE When Do Changes Made to a Conﬁguration File Take Effect?

Changes made to a monitor-speciﬁc conﬁguration ﬁle are invoked at the next polling interval or when an event occurs, which ever comes ﬁrst. In either of these situations, the monitor reads its conﬁguration ﬁle for any changes and implements any new settings.

File Names

Global conﬁguration ﬁle: /var/stm/config/tools/monitor/Global.cfg The ﬁle naming convention for the monitor-speciﬁc conﬁguration ﬁles is:

/var/stm/config/tools/monitor/monitor_name.cfg monitorname is the name of the monitor executable

File Format

Settings in the device conﬁguration ﬁle use the following conventions:

• Conﬁguration settings consist of a term deﬁning the characteristic to be conﬁgured, followed by a value

assigned to the term. For example, POLL_INTERVAL 60

• There must be at least one space between the term and each value.

• Comments begin with the pound character (#) and continue until the end of the line. A comment may

occur on a line by itself, or after a blank space following the value in a conﬁguration entry. For example, either of the following are valid comments:

# Valid values for severity_name are:

SEVERITY_ACTION CRITICAL NOTIFY # notify on critical events

100

Chapter 5

HP B6191-90029 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
