HP Automatic Document Feeder User Guide

Automatic Document Feeder

User’s Guide

HP ScanJet Scanners

Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under copyright laws.

RESTRICTED RIGHTS LEGEND

Use, duplication or disclosure is subject to restrictions as set forth in contract subdivision (c)(1)(ii) of the Rights in Technical Data and Computer Software Clause 52.227FAR14.

Material scanned by this product may be protected by governmental laws and other regulation, such as copyright laws. The customer is solely responsible for complying with all such laws and regulations.

Publication number C5195-90000

First Edition, September 1997

....................................................................................................................................................................................................................................

Warranty

The information contained in this document is subject to change without notice.

Hewlett-Packard makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.

Hewlett-Packard shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

This document contains proprietary information which is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced, or translated to another language without the written consent of the Hewlett-Packard Company.

Changes or modification of this equipment not expressly approved by Hewlett-Packard could void the user’s authority to operate this equipment. Only use the cables, connectors, power cords and accessories supplied with this equipment or expressly approved by Hewlett-Packard.

FCC Radio Frequency Interference Statement for Model C5195

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and the receiver.

•

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•

Consult the dealer or an experienced radio/TV technician for help.

Changes or modification of this equipment not expressly approved by Hewlett-Packard could void the user’s authority to operate this equipment. Only use the cables, connectors, power cords and accessories supplied with this equipment or expressly approved byHewlett-Packard.

Installing the ADF

............................................................................................

1-2

1

What the ADF Can Do

1-3

1-4

Step 1: Unpack the ADF

Step 2: Connect the ADF

What the ADF Can Do

The Automatic Document Feeder (ADF) is a powerful addition to your HP ScanJet color scanner. With the ADF, you can automatically scan up to 25 pages at a time (more or less depending on the paper weight)In addition, you can:

•

Automatically scan and convert multiple pages of text by using the ADF with optical character recognition (OCR) software. This dramatically reduces the time it takes to input text for creating documents such as newletters.

•

Automatically scan multiple pages of images by using the ADF with image scanning software.

•

Scan text and images at the same time by using the ADF with scanning software.

•

Electronically store, retrieve, and send scanned documents as needed by using document

ADF on an HP ScanJet Scanner

management software.

....................................................................................................................................................................................................................................

The following sections explain how to install your ADF.

What the ADF Can Do

1-2

rollers

hatch

separation pad

paper load lever

Step 1: Unpack

the ADF

....................................................................................................................................................................................................................................

Check for damage while unpacking the ADF.

1

If you notice any damage, notify the dealer or mail order company where you bought the scanner.

Save the box and packing materials in case you need

2

to transport the ADF.

Become familiar with the ADF parts shown below:

3

Hatch up

1-3

Step 1: Unpack the ADF

flat gray bar

input tray

output tray

user-replaceable window

mounting posts (under ADF)

Input tray up

Step 2: Connect

the ADF

If your ADF came with your scanner, start at

Note

Step 8 on page 1-6.

Turn off the scanner by unplugging the power cord

1

from the electrical outlet.

Open the cover.

2

Grasp both sides of the hinged end of the scanner

3

cover and pull straight up until the cover comes off the scanner. You may need to move the cover from side to side to pull it off.

far back.

Do not bend the cover too

....................................................................................................................................................................................................................................

Removing the scanner cover

Step 2: Connect the ADF

1-4

....................................................................................................................................................................................................................................

Store the cover on a flat, smooth surface in a safe

4

place. You will not need the scanner cover as long as the ADF is installed.

Hold the ADF with the mounting posts perpendicular

5

to the scanner.

Align the mounting posts with the slots at the rear of

6

the scanner body. Ensure both posts are in the same position.

Lower the ADF until the mounting posts are seated

7

firmly in the scanner.

1-5

Inserting the ADF

mounting posts

Step 2: Connect the ADF

Hold the ADF connector cable so that the arrow on

8

the plug is on top. This helps you align the pins in the plug with their holes in the socket on the scanner.

Attach the ADF connector cable by pushing it firmly

9

all the way into the round accessory connector socket on the back of the scanner.

You may need to tip the scanner/ADF assembly on its side to connect the cable:

Attaching the ADF

connector cable

Plug the scanner’s power cord into the electrical

10

outlet to turn on the scanner.

....................................................................................................................................................................................................................................

Never connect or remove the ADF from the

Note

scanner unless the scanner’s power cord is unplugged from the electrical outlet.

Step 2: Connect the ADF

1-6

Using the ADF

2

............................................................................................

2-2

Tips for Better Paper Handling

2-4

2-8

Scanning Pages from the ADF

Scanning a Single Page

Tips for Better Paper

Handling

Follow these tips when you scan with your ADF:

•

Remove any paper from the scanner glass before using the ADF.

•

Straighten any curls or wrinkles from your pages before putting them on the document tray. If this is not possible, do not scan these pages using the ADF. Instead, use the scanner glass, or make a photocopy of the documents and scan the photocopies.

•

Do not use the ADF to scan sheets of uncommon paper or other media, such as:

•

Transparencies

•

Gummed-back paper

•

Magazine pages

•

Lightweight (“onionskin”) carbons

....................................................................................................................................................................................................................................

ADF on an HP ScanJet

Tips for Better Paper Handling

2-2

....................................................................................................................................................................................................................................

•

Remove staples, paper clips, and any other materials from documents.

•

Avoid documents with tears, perforations, or punch holes.

•

Use the ADF with paper that fits the following dimensions:

Width Height

Minimum 5.8 inches

14.8 cm

8.3 inches

21.1 cm

Maximum 8.5 inches

21.6 cm

•

For paper smaller than the minimum size, use the

14 inches

35.6 cm

scanner glass instead of the ADF. Paper smaller than the minimum may cause a paper jam.

•

For paper lighter than 16-lb. bond (60 g/m2) or heavier than 28-lb. bond (105 g/m

2

), use the scanner glass

instead of the ADF.

2-3

Tips for Better Paper Handling

Scanning Pages from

the ADF

Prior to scanning:

Note

•

Place the paper stack with the pages face up in reading order on the input tray.

After scanning:

•

The stack is returned in the output tray with the pages face down in reading order.

Loading Paper into the ADF

Make sure the scanner is plugged into an electrical

1

outlet.

Make sure the scanner’s glass is free of paper.

2

Move the paper load lever to the number 1 position:

3

....................................................................................................................................................................................................................................

Paper load lever

at number 1

Scanning Pages from the ADF

2-4

....................................................................................................................................................................................................................................

Put the top end of the paper stack face up on the input

4

tray with the first page to be scanned at the top of the stack.

Push the paper stack up against the side of the ADF

5

input tray nearest the lever. Slide it into the ADF until the paper stack does not move any further:

Placing paper in

the input tray

2-5

ADF osts

Scanning Pages from the ADF

Move the paper load lever to the number 3 position:

6

Paper load

lever at

number 3

The ADF is now loaded and ready for scanning.

....................................................................................................................................................................................................................................

Scanning Pages from the ADF

2-6

If the scan

appears

as vertical

streaks across

the page, make sure

there is no paper on the

scanner glass.

....................................................................................................................................................................................................................................

Scan the Document in the ADF

The ADF works with many software packages that are compatible with HP ScanJet color scanners. To scan a document, see the user’s manual of the software package you are using.

If you insert a small page into the ADF, you may

Note

need to lift the input tray to retrieve the page after scanning.

The scanner scans pages from the ADF when:

Note

•

The paper is loaded, and

•

The paper load lever is in position 3.

Otherwise, the scanner performs a flatbed scan from the scanner glass.

2-7

Scanning Pages from the ADF

Scanning a

Single Page

Scanning a Single Page when the ADF is Installed

Remove any paper from the input tray.

1

Lift the ADF (by lifting from below the output tray) to

2

expose the scanner glass.

Place the document face down on the scanner in the

3

upper-right corner.

Lower the ADF.

4

Thick documents (up to 20 mm), such as a book,

Note

will fit under the ADF for scanning on the scanner glass. For documents thicker than 20 mm, lift the ADF for scanning.

For large documents, lift the ADF and push back

Note

gently toward the rear of the scanner. The ADF will move 20 mm back from its normal position.

....................................................................................................................................................................................................................................

If the

document on

the scanner

glass is a thin

page, you may need to

place a second sheet of

paper behind the

document to get a better

scanned image.

For best results, choose

a different color for the

second page (the

backing sheet).

Scanning a Single Page

2-8

Maintaining the ADF

............................................................................................

3-2

3-4

3

Cleaning the ADF

Replacing the ADF Window

3-6

Removing the ADF

3-7

Ordering Parts and Supplies

Cleaning the ADF

You must clean five parts of the ADF/scanner assembly to maintain high quality scanning:

•

Scanner glass

•

ADF window

•

Gray bar above the ADF window

•

Rollers

•

Separation pad

To clean the ADF:

Turn off the scanner by unplugging the power cord

1

from the electrical outlet.

Wipe the scanner glass (particularly the 2 inches

2

below the ADF user-replaceable window) and the ADF window with a soft, clean, lint-free cloth. You also may dampen the cloth with water, isopropyl alcohol, or window cleaner, if necessary.

Do not use other

Note

cleaning fluids! They may damage the ADF window. Never spray the cleaning fluid directly on the ADF.

Check the flat gray bar above

3

the ADF window. The bar should be gray without black or other markings. If necessary, clean the flat gray bar.

....................................................................................................................................................................................................................................

Cleaning the

ADF window

Cleaning the ADF

3-2

....................................................................................................................................................................................................................................

4 5

separation pad

Lift the hatch.

Wipe the rollers and separation pad with a soft, clean, lint-free cloth. You may also use isopropyl alcohol, if necessary.

Separation pad under the hatch

3-3

Cleaning the ADF

Replacing the

ADF Window

If the ADF window becomes scratched or uncleanable, you may need to replace it. Order the ADF window from Hewlett-Packard (see “Ordering Parts and Supplies” on page 3-7).

To remove the ADF window:

Remove the ADF from the scanner (see “Removing

1

the ADF” on page 3-6).

Lift the input tray of the ADF to expose the

2

ADF window.

Using a small

3

coin, push each of the four Z-shaped hooks until the tab snaps out of position. Push the long, pointed tab on the end of the window.

Z-shaped hook

Pushing the Z-shaped hooks

....................................................................................................................................................................................................................................

The ADF window is free to pull out:

Removing the ADF window

Replacing the ADF Window

3-4

....................................................................................................................................................................................................................................

To install the ADF window:

Position the four Z-shaped hooks of the ADF window

1

into the four holes on the bottom of the ADF.

Rotate the ADF window back until it contacts the

2

bottom of the ADF.

Check that the long, pointed tab is on the inside of the

3

ADF.

Beginning the with Z-shaped hook closest to the long,

4

pointed tab, push each of the Z-shaped hooks toward the back of the ADF.

Verify that the long, pointed tab is on the inside of

5

the ADF.

3-5

Replacing the ADF Window

Removing the ADF

To remove the ADF:

Unplug the scanner’s

1

power cord from the electrical outlet.

Disconnect the ADF

2

connector cable from the back of the scanner.

Lift the ADF off the rear of

3

the scanner. Lift firmly using your fingers to separate the rear bracket from the scanner.

Store the ADF in its original box for protection.

Replace the scanner cover:

4

Insert the mounting posts into the corresponding

a

slots at the rear of the scanner body.

Lower the scanner cover until the mounting posts

b

are seated firmly in the scanner.

Make sure both posts are in the same position.

c

....................................................................................................................................................................................................................................

Disconnecting the ADF

connector cable

Replacing the scanner cover

Removing the ADF

3-6

Ordering Parts

and Supplies

....................................................................................................................................................................................................................................

Order parts and supplies for your hardware, including cables, additional manuals, and other accessories, from you local HP dealer.

If your HP dealer cannot supply the parts, call the HP Support Materials group at:

(800) 227-8164

(800) 387-3154

U.S.A.

Canada

3-7

Ordering Parts and Supplies

Clearing Paper Jams

............................................................................................

4-2

4

Clearing Paper Jams

How you clear a paper jam depends on where the paper jams in the ADF:

•

If the paper jams “early” in its path through the ADF and the page is still visible at the top of the ADF:

Open the ADF access hatch.

1

Grasp the paper and pull forward to release.

2

Lifting the access hatch

to clear the jam

....................................................................................................................................................................................................................................

You may damage the page if you remove it from

Note

the ADF while the paper load lever is in the number 1 position.

DO NOT

move the paper load lever back to the number 1 position (back) until all pages have been removed from the paper path.

Clearing Paper Jams

4-2

•

If the paper has moved further through the ADF and cannot be easily pulled after lifting the access hatch:

Open the hatch.

1

Lift the ADF input tray.

2

Grasp the paper and pull forward to release.

3

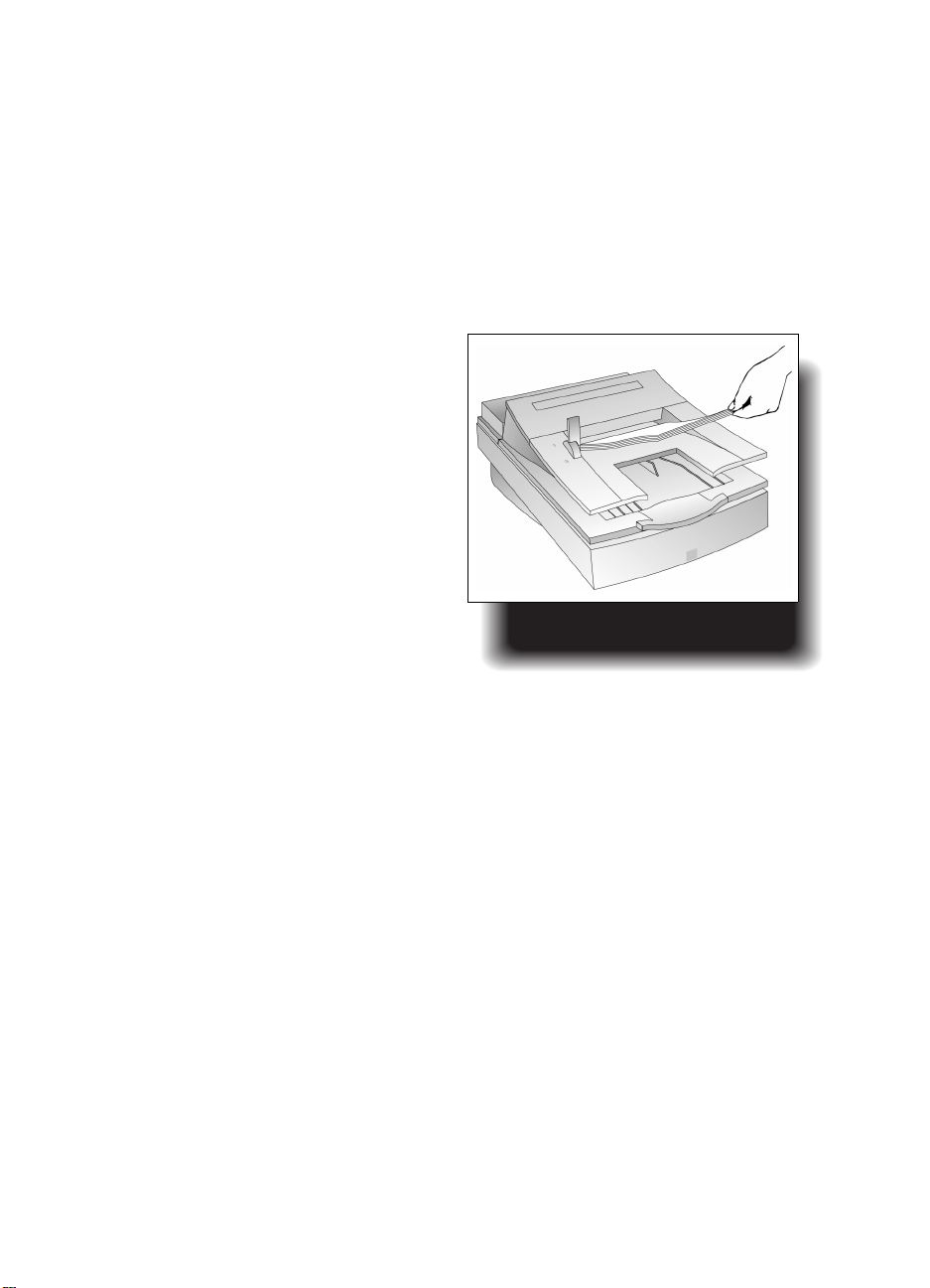

Lifting the input tray

to clear the jam

DO NOT attempt to adjust the ADF

Note

parts that become visible when you lift the access hatch and input tray. These parts are serviceable only by an HP authorized dealer.

....................................................................................................................................................................................................................................

Clearing Paper Jams

4-3

Supplementary Information

5

............................................................................................

5-2

Warranty Terms

5-5

ADF Specifications

5-6

Regulatory Information

Warranty Terms

HEWLETT-PACKARD

LIMITED WARRANTY STATEMENT

HP PRODUCT DURATION OF LIMITED WARRANTY

HP ScanJet Automatic 1 year Document Feeder

1. HP warrants to you, the end-user customer, that HP hardware, accessories and supplies will be free from defects in materials and workmanship after the date of purchase, for the period specified above. If HP receives notice of such defects during the warranty period, HP will, at its option, either repair or replace products which prove to be defective. Replacement products may be either new or like-new.

2. HP warrants to you that HP software will not fail to execute its programming instructions after the date of purchase, for the period specified above, due to defects in material and workmanship when properly installed and used. If HP receives notice of such defects during the warranty period, HP will replace software media which does not execute its programming instructions due to such defects.

3. HP does not warrant that the operation of HP products will be uninterrupted or error free. If HP is unable, within a reasonable time, to repair or replace any product to a condition as warranted, you will be entitled to a refund of the purchase price upon prompt return of the product.

....................................................................................................................................................................................................................................

5-2

....................................................................................................................................................................................................................................

4. HP products may contain remanufactured parts equivalent to new in performance or may have been subject to incidental use.

5. Warranty does not apply to defects resulting from (a) improper or inadequate maintenance or calibration, (b) software, interfacing, parts or supplies not supplied by HP, (c) unauthorized modification or misuse, (d) operation outside of the published environmental specifications for the product, or (e) improper site preparation or maintenance.

6. HP MAKES NO OTHER EXPRESS WARRANTY OR CONDITION WHETHER WRITTEN OR ORAL. TO THE EXTENT ALLOWED BY LOCAL LAW, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE IS LIMITED TO THE DURATION OF THE EXPRESS WARRANTY SET FORTH ABOVE. Some countries, states or provinces do not allow limitations on the duration of an implied warranty, so the above limitation or exclusion might not apply to you. This warranty gives you specific legal rights and you might also have other rights that vary from country to country, state to state, or province to province.

5-3

7. TO THE EXTE NT ALLOWED BY LOCAL LAW, THE REMEDIES IN THIS WARRANTY STATEMENT ARE YOUR SOLE AND EXCLUSIVE REMEDIES. EXCEPT AS INDICATED ABOVE, IN NO EVENT WILL HP OR ITS SUPPLIERS BE LIABLE FOR LOSS OF DATA OR FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL (INCLUDING LOST PROFIT OR DATA), OR OTHER DAMAGE, WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. Some countries, states or provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

FOR CONSUMER TRANSACTIONS IN AUSTRALIA AND NEW ZEALAND: THE WARRANTY TERMS CONTAINED IN THIS STATEMENT, EXCEPT TO THE EXTENT LAWFULLY PERMITTED, DO NOT EXCLUDE, RESTRICT OR MODIFY AND ARE IN ADDITION TO THE MANDATORY STATUTORY RIGHTS APPLICABLE TO THE SALE OF THIS PRODUCT TO YOU.

Hardware repair services

To speak to someone to verify that your ADF needs repair, please call the HP Customer Support Center. If your ADF requires repair, the HP Support Agent will coordinate the process. Please refer to the list of HP service and support phone numbers supplied with your scanner. This service is free of charge during the warranty period of your ADF. Beyond the warranty period, repairs will be charged on a time and materials basis.

....................................................................................................................................................................................................................................

5-4

ADF Specifications

....................................................................................................................................................................................................................................

Feature Specification

Size 11.94 by 19.5 by 3.63 inches (above scanner)

Weight 4.3 lbs/1.95 kg

Paper tray capacity

Maximum paper size 8.5 by 14 inches (216 by 356 mm)

Minimum paper size 8.27 by 5.85 inches (210 by 149 mm)

Maximum paper weight

Minimum paper weight

Power Requirements 24 V dc, 260 mA

(303 by 495 by 92 mm)

25 sheets of 20 lb bond (75 g/m2)

28 lb bond (105 g/m2)

16 lb bond (60 g/m2)

5-5

ADF Specifications

Regulatory

Information

Japan VCCI Declaration

The VCCI statement below is required in Japan. It is similar to the FCC regulations.

German Noise Declaration

The German noise declaration is required in Germany. It gives noise output figures for the ADF.

Geräuschemission

LpS < 70 dB

am Arbeitsplatz normaler Betrieb nach DIN 45635 T. 19

Die Daten sind die Ergebnisse von Typprüfungen

....................................................................................................................................................................................................................................

Regulatory Information

5-6

FCC Declaration of

Conformity

....................................................................................................................................................................................................................................

Manufacturer’s Name:

Manufacturer’s Address:

Contact Person:

Telephone:

Product Name:

Model Number(s):

Product Options:

The manufacturer listed above declares that this product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician.

Changes or modification of this equipment not expressly approved by Hewlett-Packard could void the user’s authority to operate this equipment. Only use the cables, connectors, power cords and accessories supplied with this equipment or expressly approved by Hewlett-Packard.

Hewlett-Packard Company

Greeley Hardcopy Division 700 71st Avenue Greeley, Colorado 80634 USA

GHC Regulatory Manager

970-350-5600

HP ScanJet ADF

C5195 (may contain suffix)

None

5-7

Test report on file:

Date:

FCC Declaration of Conformity

C5195-1

January, 1998

Declaration of

Conformity

According to ISO/IEC Guide 22 and EN 45014:

Manufacturer’s Name:

Manufacturer’s Address:

Declares that the product:

Product Name:

Model Number(s):

Product Options:

Conforms to the following Product Specifications:

Safety:

EMC:

EN 60950: 1992 + A1: 1992 + A2: 1993 + A3: 1995 EN 60825-1: 1994

CISPR 22: 1993, Class B / EN 55022: 1994, Class B EN 50082-1: 1992

IEC 801-2: 1991 / prEN 55024-2: 1992, 4kV CD, 8 kV AD IEC 801-3: 1984 / prEN 55024-3: 1991, 3 V/m

Hewlett-Packard Company

Greeley Hardcopy Division 700 71st Avenue Greeley, Colorado 80634 USA

HP ScanJet ADF

C5195 (may contain suffix)

None

....................................................................................................................................................................................................................................

Supplementary Information:

The product herewith complies with the requirements of the Low Voltage Directive 73/23/EEC and the EMC Directive 89/336/EEC and carries the CEmarking accordingly. LEDs in this product are Class 1 in accordance to EN60825-1.

Greeley, Colorado, USA, January, 1998

Declaration of Conformity

5-8

Glossary

G

access hatch

The cover over the top of the ADF input tray that is opened to remove jammed paper.

accessory connector socket

The circular socket on the back of the scanner where the connector cable is inserted.

ADF (automatic document feeder)

A scanner accessory that feeds a paper stack to the scanner.

ADF window

A clear plastic strip on the bottom of the ADF that provides access to the scanner optics. This window must be clean and undamaged in order to obtain high quality scanned images using the ADF.

connector cable

The cable connecting the ADF to the scanner.

....................................................................................................................................................................................................................................

input tray

The top surface of the ADF where documents are loaded before being fed into the scanner.

mounting posts

The hinged posts on the rear of the ADF that are inserted into the scanner body during installation.

OCR (optical character recognition)

Software that converts scanned text into editable text that can be inserted into a word processor or desktop publishing program.

output tray

The tray below the input tray on the ADF that holds the paper ejected after scanning is complete.

G-1

paper jam

A condition where a sheet of paper is not properly fed, causing an interruption in ADF operation.

paper load lever

The manually operated lever used to load paper into the ADF input tray.

paper stack

The stack of documents that are placed in the input tray and are fed by the ADF.

scanner cover

The cover of the scanner that is removed before the ADF is installed.

scanner glass

The glass surface on top of the scanner where a document is scanned.

separation pad

Rubber-like pad under the ADF hatch used to separate pages as they enter the ADF.

....................................................................................................................................................................................................................................

G

G-2

Index

I

A

ADF

cleaning installing parts of regulatory information removing specifications unpacking

ADF window

installing removing replacing

3-2

1-4 to 1-6

1-3

5-6

3-6

5-5

1-3

3-5 3-4 3-4

C

Cleaning, steps for

Connecting the ADF

Connector cable

attaching disconnecting

1-6

3-2

1-4

3-6

H

Hatch

1-3

I

Input tray

Installing the ADF

1-3

1-4 to 1-6

M

Mounting posts, loading onto

1-5

O

Output tray

1-3

P

Paper

checking loading oversized thick thin

weight Paper jams, clearing

Paper load lever

Paper stack

inserting

securing

small size Parts, ordering

2-2

2-4

2-8

2-3

4-2

1-3, 2-4

2-5

2-6

2-7

3-7

S

Scanner cover

replacing

storing Scanner glass, checking

Scanning

from flatbed

single pages

using ADF

with backing sheet Software

document management

image processing

OCR

3-6

1-5

2-7

2-8

2-7

2-8

1-2

2-2

1-2

U

Unpacking the ADF

1-3

Index

1

HP Automatic Document Feeder User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Installing the ADF

Using the ADF

Tips for Better Paper Handling

Scanning Pages from the ADF

Maintaining the ADF

Cleaning the ADF

Removing the ADF

Clearing Paper Jams

Clearing Paper Jams

Supplementary Information

ADF Specifications

Regulatory Information

FCC Declaration of Conformity

Declaration of Conformity

Glossary

Index
