HP AF452A, AF453A, AF454A Specification
The industry leading HP R/T3000 Uninterruptible Power System (UPS) packs up to 3000 watts into a space saving 2U design. Proven
Digital Signal Processor (DSP) provides clean, reliable power protection in an energy efficient transformer-less design while reducing
generated heat.
The HP R/T3000 UPS includes a Rack to Tower Conversion Kit for non rack applications outside the data center. In this
configuration the HP R/T3000 can provide powerful protection to multiple tower servers as well as tower Blade Enclosures such as
the HP c3000 BladeSystem.
In addition, Extended Runtime Modules (ERM) are available to increase battery run time during a power outage. ERMs can be used
in both rack mount and tower configuration with the HP R/T3000 UPS.

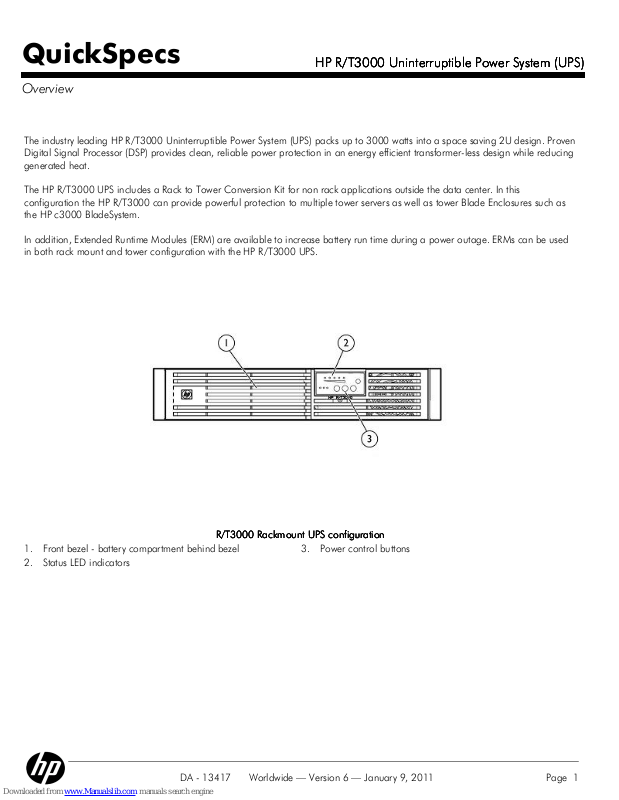

R/T3000 Rackmount UPS configuration
R/T3000 Rackmount UPS configurationR/T3000 Rackmount UPS configuration
R/T3000 Rackmount UPS configuration
1.
Front bezel - battery compartment behind bezel
3.
Power control buttons
2.
Status LED indicators
QuickSpecs
HP R/T3000 Uninterruptible Power System (UPS)
HP R/T3000 Uninterruptible Power System (UPS)HP R/T3000 Uninterruptible Power System (UPS)
HP R/T3000 Uninterruptible Power System (UPS)
Overview
DA - 13417 Worldwide — Version 6 — January 9, 2011
Page 1
R/T3000 Tower UPS configuration with optional Extended Runtime Module
R/T3000 Tower UPS configuration with optional Extended Runtime ModuleR/T3000 Tower UPS configuration with optional Extended Runtime Module
R/T3000 Tower UPS configuration with optional Extended Runtime Module
1.
Optional Extended Runtime Module
3.
Tower UPS floor stands
2.
R/T3000 in Tower UPS configuration
Models
ModelsModels
Models
HP R/T3000 2880VA Low Voltage NA/JPN 2U Rackmount Uninterruptible Power System
AF452A
HP R/T3000 3300VA High Voltage NA/JPN 2U Rackmount Uninterruptible Power System
AF453A
HP R/T3000 3300VA INTL 2U Rackmount Uninterruptible Power System
AF454A
Kit Contents
Kit ContentsKit Contents
Kit Contents
HP UPS R/T3000
HP Power Management Software CD
Power Products Documentation CD
Depth adjustable fixed rack mounting rails, mounting brackets, cord retention clips
Rack to Tower Conversion Kit and floor stand
Communications cables
AF453A and AF454A also includes 1 PDU Extension Bar (7 x C13 outlets each)
QuickSpecs
HP R/T3000 Uninterruptible Power System (UPS)
HP R/T3000 Uninterruptible Power System (UPS)HP R/T3000 Uninterruptible Power System (UPS)
HP R/T3000 Uninterruptible Power System (UPS)
Overview
DA - 13417 Worldwide — Version 6 — January 9, 2011
Page 2
Key Features
Key FeaturesKey Features
Key Features
New convertible design can be used as a 2U rack mountable UPS or as a standalone tower UPS
Increased power density with up to 3300VA / 3000 Watts (200-240V models)
Greater system uptime with support for up to two Extended Runtime Modules (ERM)
Easy configuration through enhanced front panel display
Enterprise-wide intelligent manageability with bundled power management software
Support for the HP UPS Management Module that extends the power management capabilities of
the UPS
More efficient voltage regulation using digital signal processing technology
Ultimate long-term battery reliability with HP Enhanced Battery Management
Enhanced system flexibility with two independently controlled load segments
Support for Remote Emergency Power Off (REPO) circuitry
Easy serviceability through modular design
Hot-Swappable Batteries
Backed by a three year warranty with the first year including parts and labor. HP's Pre-Failure
warranty, and a $250,000 load protection guarantee*. (Certain restrictions and exclusions apply;
*Load protection guarantee available in North America only.
)
Optional upgrades include:
Extended Runtime Modules (ERMs)
Management Cards
New Convertible Design
New Convertible DesignNew Convertible Design
New Convertible Design
The R/T3000 can be used in a traditional rack mount environment or converted to a Tower UPS to
support powerful Tower servers even Tower Blade Servers such as the HP c3000 BladeSystem.
2U Power Packed Design
2U Power Packed Design2U Power Packed Design
2U Power Packed Design
Rated near unity at 3300VA / 3000W (200-240V models), the HP UPS R/T3000 packs more power in
space-conserving rack-mount design, allowing you to support more critical equipment in your rack.
Increase System Uptime
Increase System UptimeIncrease System Uptime
Increase System Uptime
with Extended Runtime
with Extended Runtimewith Extended Runtime
with Extended Runtime
Modules
ModulesModules
Modules
The Extended Runtime Modules are external battery modules that occupy 2U (3.5 inches) of rack space
each. The HP UPS R/T3000 supports up to two Extended Runtime Modules (ERM), in either rack mount
or tower configuration, which extend your overall battery runtime.
Lower Cost of Ownership
Lower Cost of OwnershipLower Cost of Ownership
Lower Cost of Ownership
with Innovative
with Innovativewith Innovative
with Innovative
Technology
TechnologyTechnology
Technology
The HP UPS R/T3000 utilizes a new industry-leading technology that continually conditions and regulates
power without using the battery, thereby increasing the life of the battery. The output voltage is
automatically regulated, based on the connected load and the input voltage.
Investment Protection with
Investment Protection withInvestment Protection with
Investment Protection with
HP Enhanced Battery
HP Enhanced BatteryHP Enhanced Battery
HP Enhanced Battery
Management
ManagementManagement
Management
HP UPS R/T3000 incorporates Enhanced Battery Management: an exclusive, patented technology that
doubles battery service life, optimizes battery recharge time, and provides advance notice of pending
battery failure. With Enhanced Battery Management, you have a lower total cost of ownership and
receive the best in the industry protection for your critical equipment.
Enhanced Flexibility
Enhanced FlexibilityEnhanced Flexibility
Enhanced Flexibility
The high voltage R/T3000 UPS include one PDU Extension Bar. The extension bar has seven C13 outlets
for powering equipment in the rack and attaches to the C19 outlets on the back of the UPS. The 6.5 foot
(2 meter) cord allows the extension bar to be mounted in many locations inside the rear of the rack.
QuickSpecs
HP R/T3000 Uninterruptible Power System (UPS)
HP R/T3000 Uninterruptible Power System (UPS)HP R/T3000 Uninterruptible Power System (UPS)
HP R/T3000 Uninterruptible Power System (UPS)
Standard Features
DA - 13417 Worldwide — Version 6 — January 9, 2011
Page 3
Remotely Monitor UPSs on
Remotely Monitor UPSs onRemotely Monitor UPSs on
Remotely Monitor UPSs on
the Network
the Networkthe Network
the Network
The optional HP UPS Management Module features the ability to perform simultaneous network and outof-band communications. It enables network administrators to remotely monitor UPSs and reboot
network devices. It provides SNMP functionality, including power event alerts, network power diagnostics,
and remote UPS reboot and testing. Used in conjunction with HP Systems Insight Manager or other
SNMP capable Network Management Software, power-related problems on the network are quickly
discovered and remedied.
Enhanced Front Panel
Enhanced Front PanelEnhanced Front Panel
Enhanced Front Panel
Display
DisplayDisplay
Display
LED and switch membrane integrated into the front panel with power controls and status and load
indicators for easy visibility.
HP R/T3000 UPS Front Panel
HP R/T3000 UPS Front PanelHP R/T3000 UPS Front Panel
HP R/T3000 UPS Front Panel
1.
Dual function LED: Self Test and load indicator (10% load)
7.
Power on button
2.
Dual function LED: Battery fault and Load Indicator (25%
load)
8.
Power off button
3.
Dual function LED: Site wiring fault and load indicator (50%
load)
9.
Test/Alarm reset button
4.
Dual function LED: Over Temperature and load indicator
(75% load)
10.
On bypass indicator
5.
Dual function LED: Overload and load indicator (100%)
11.
On battery indicator
6.
Start on battery button
12.
Utility power indicator
