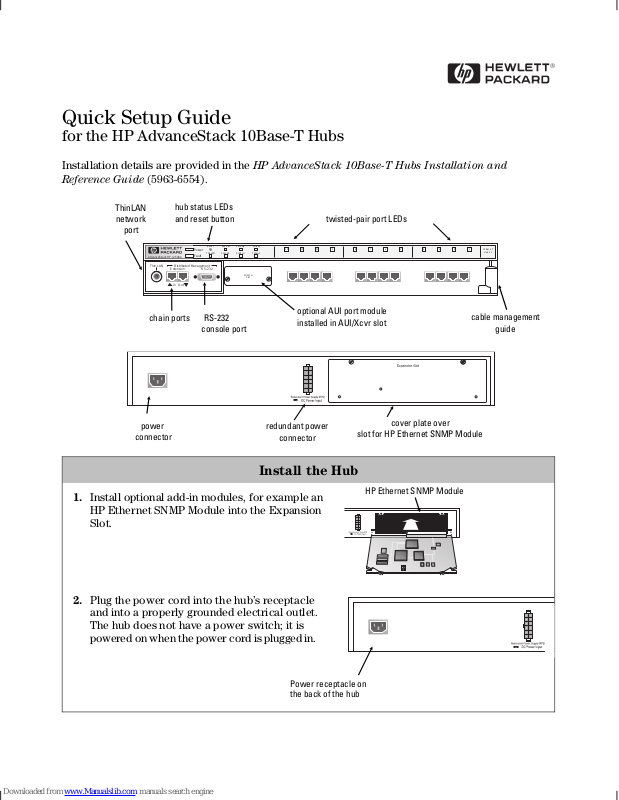

Quick Setup Guide
for the HP AdvanceStack 10Base-T Hubs
Installation details are provided in the HP AdvanceStack 10Base-T Hubs Installation and
Reference Guide (5963-6554).
ThinLAN
network
hub status LEDs
and reset button
port
Reset Exp Slot Security Activity
Power
ThinLAN Console AUI/Xcvr Collision
Distributed Management
Extension
In Out
Fault
RS-232
AUI/Xcvr
Slot
AdvanceStack HP J2600A
Thin LAN
chain ports RS-232
console port
power
redundant power
connector
Install the Hub
Install optional add-in modules, for example an
1.
HP Ethernet SNMP Module into the Expansion
Slot.
twisted-pair port LEDs
optional AUI port module
installed in AUI/Xcvr slot
connector
7
85
6
129 310 41112
cover plate over
slot for HP Ethernet SNMP Module
HP Ethernet SNMP Module
10Base-T
Hub-12
cable management
guide
Plug the power cord into the hub’s receptacle
2.
and into a properly grounded electrical outlet.
The hub does not have a power switch; it is
powered on when the power cord is plugged in.
Power receptacle on
the back of the
hub

Check the LEDs on the hub’s front panel. When
3.
the hub is powered on, it performs
a 3 to 60 second self-diagnostic test. When the
test completes, the following occurs:
– Power LED is on.
– RPS LED is on if a Redundant Power Supply is
connected (available at the end of 1995).
– Fault LED is off.
– If an SNMP Module is installed, the Exp Slot
LED is on.
If the Fault LED stays on, the hub has
encountered an unrecoverable error. See
chapter 4, “Troubleshooting”.
Before mounting, unplug the hub.
4.
Install the hub into a rack or cabinet following
5.
pages 1-5 through 1-10 (in the accompanying hub
manual) and power the hub back on.
Status LEDs
Hub-to-End Node Connection
Push the RJ-45 plug into the RJ-45 jack until the
1.
tab on the plug clicks into place.
Push the other end of the cable into the LAN
2.
adapter in the end node such as a PC, printer, or
print server.
BB
24681012 1357911
10Base-T
Hub-24
24681012
1357911
RJ-45 plug
unshielded twisted-pair
cable

Hub-to-Hub Connections
1. To connect the hub to another hub, push the
“crossover” cable RJ-45 plug into the RJ-45 jack
until the tab on the plug clicks into place.
Push the other end of the cable into the
2.
connecting hub.
ThinLAN Backbone Connection
If you are connecting your hubs together on a
ThinLAN backbone, follow these steps:
Attach a ThinLAN cable section
1.
to one side of a BNC “T”
connector.
50-ohm
terminator
twisted-pair
“crossover” cable
OR
ThinLAN cable
Attach another ThinLAN cable
2.
section or a 50-ohm terminator
to the other side of the “T”
connector.
Attach the “T” connector to the
3.
ThinLAN port.
Cover the BNC connector
4.
with an insulating cover.
Note:
Each ThinLAN cable segment must be
terminated using a 50-ohm terminator at each end. In
the illustration above, a 50-ohm terminator would be
placed on one side of the BNC “T” connector if that
connector is at the end of the cable segment.
BNC “T”
connector

© 1995 Hewlett-Packard Company
HP Part Number:
5963-6555
Edition 1, July 1995
Printed in Singapore
