HP Action Cam AC200 User Manual

i

Table of Contents

Preface .............................................................................iv

Precautions......................................................................vi

Operating conditions................................................. vii

Notes on Waterproof Case........................................... viii

Before You Start............................................................. xi

1 Introducing the Camcorder.......................12

1.1 System Requirements .........................................12

1.2 Features ...............................................................12

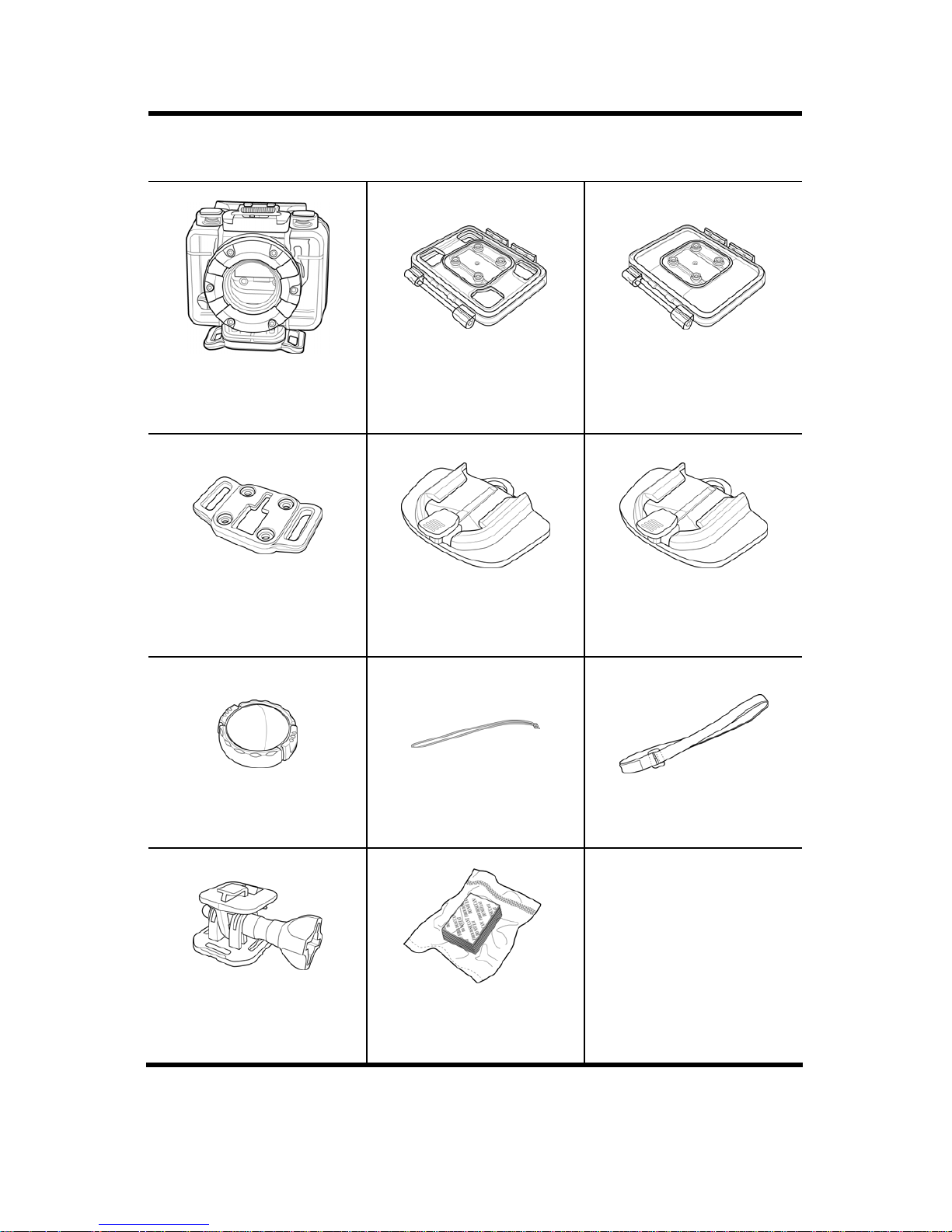

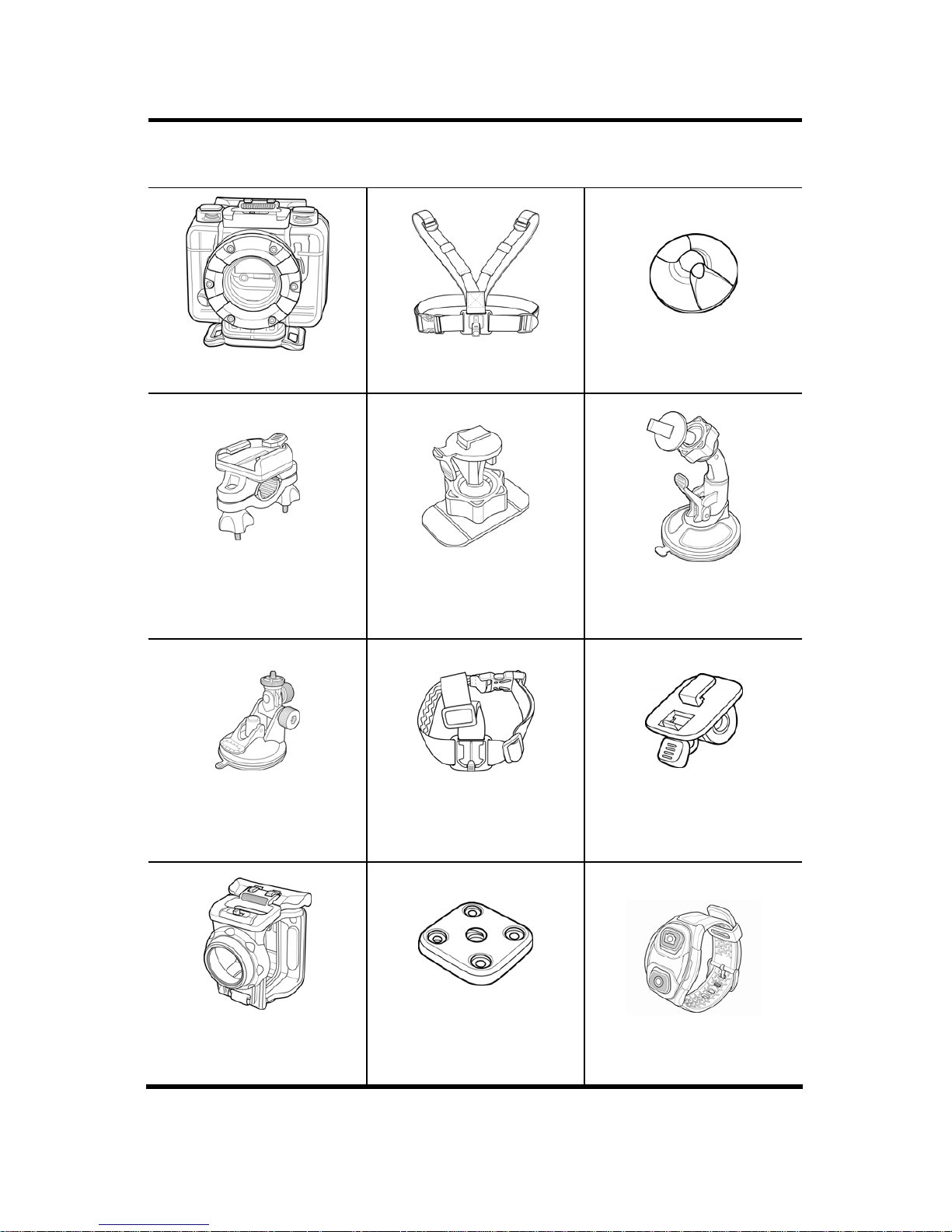

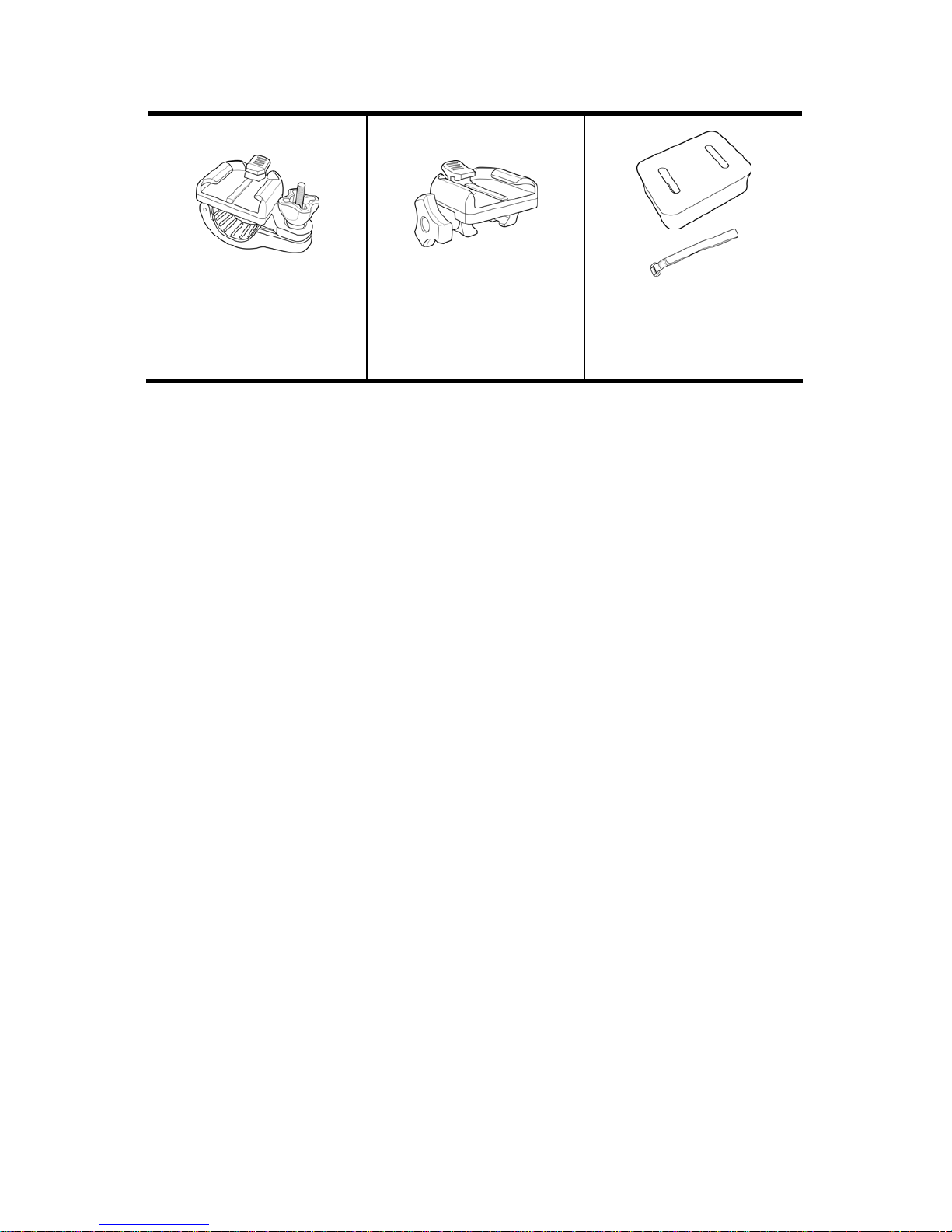

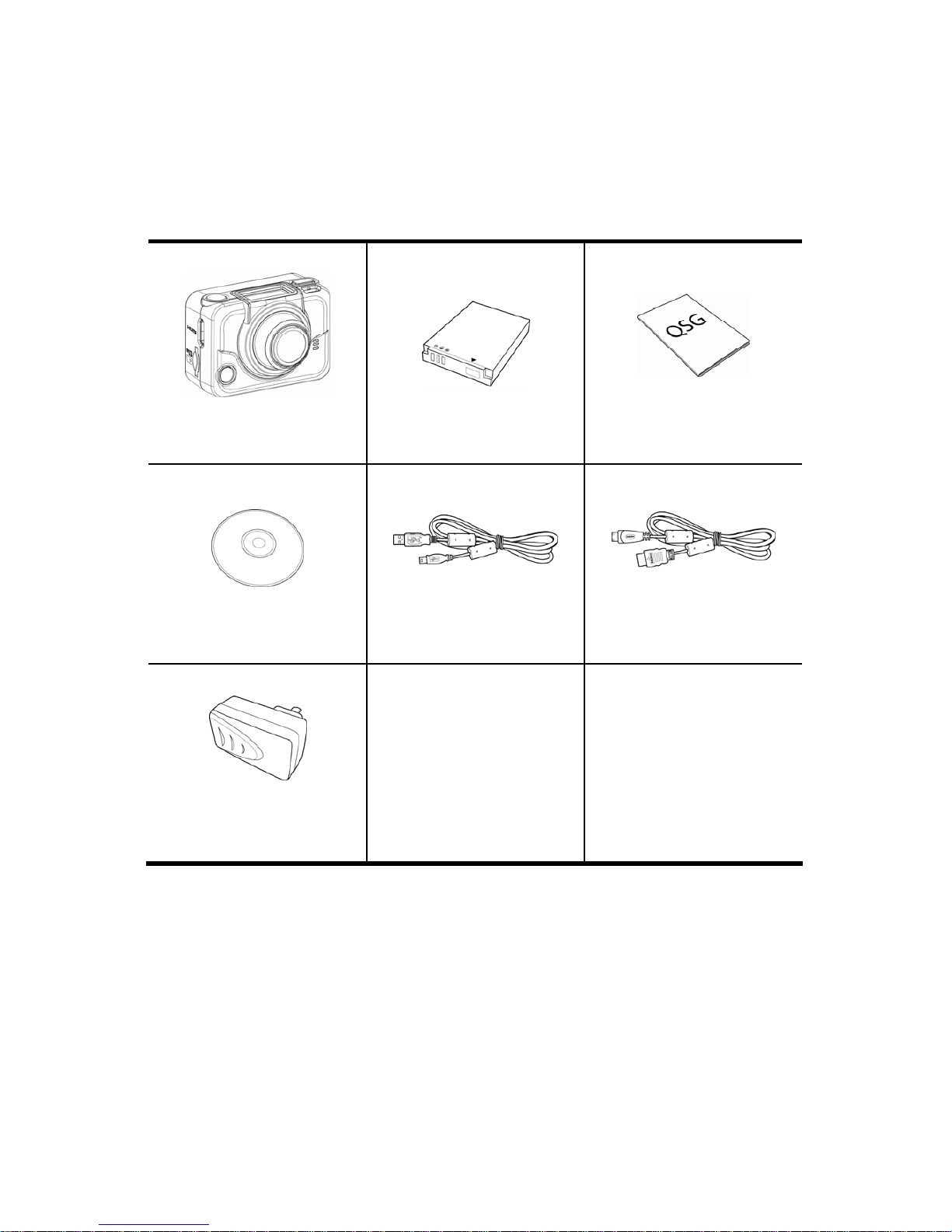

1.3 Unpacking the Camcorder ...................................13

1.4 About the Camcorder...........................................17

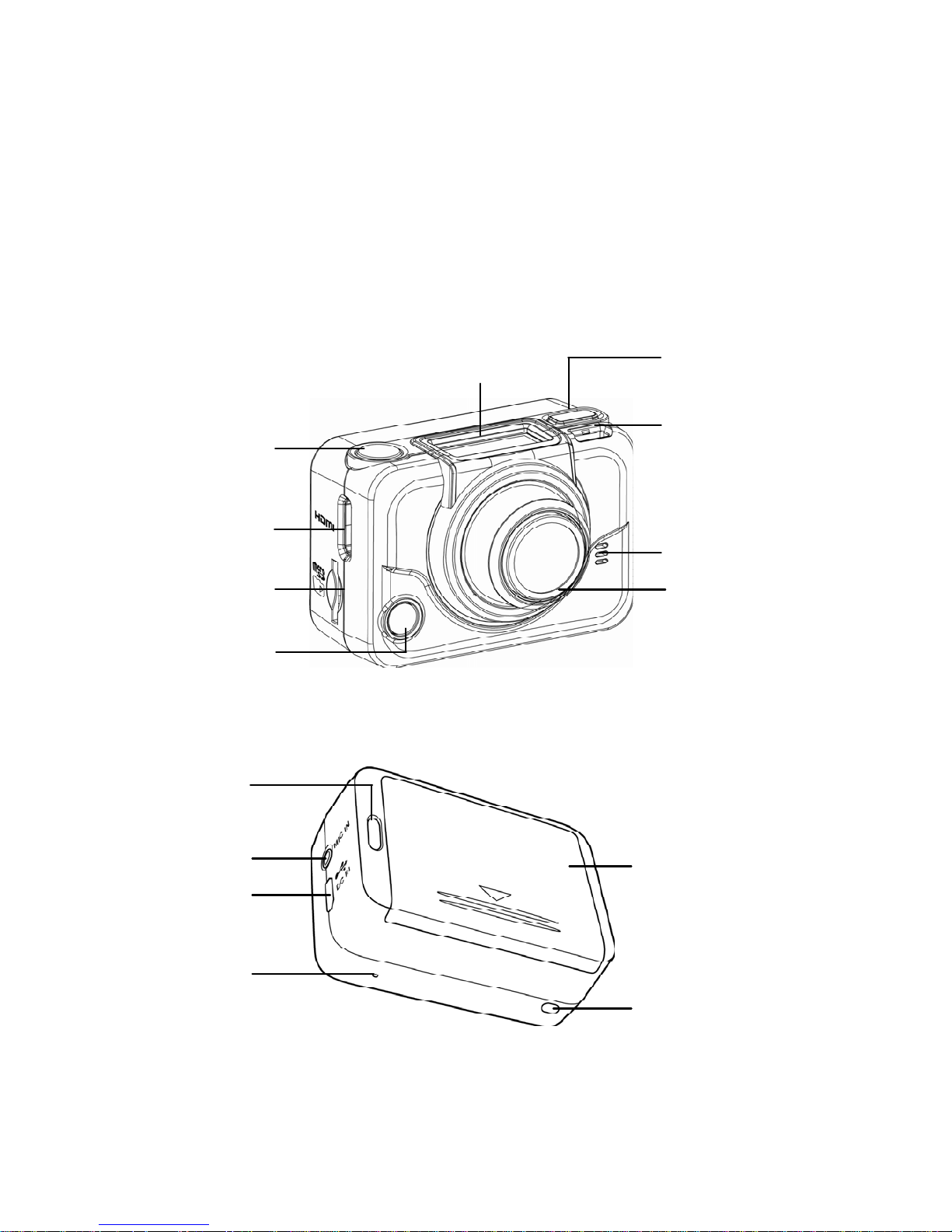

1.4.1 Camcorder Views........................................17

1.4.2 Button Functions ........................................18

1.4.3 LED Indicators.............................................19

2 Getting Started .........................................20

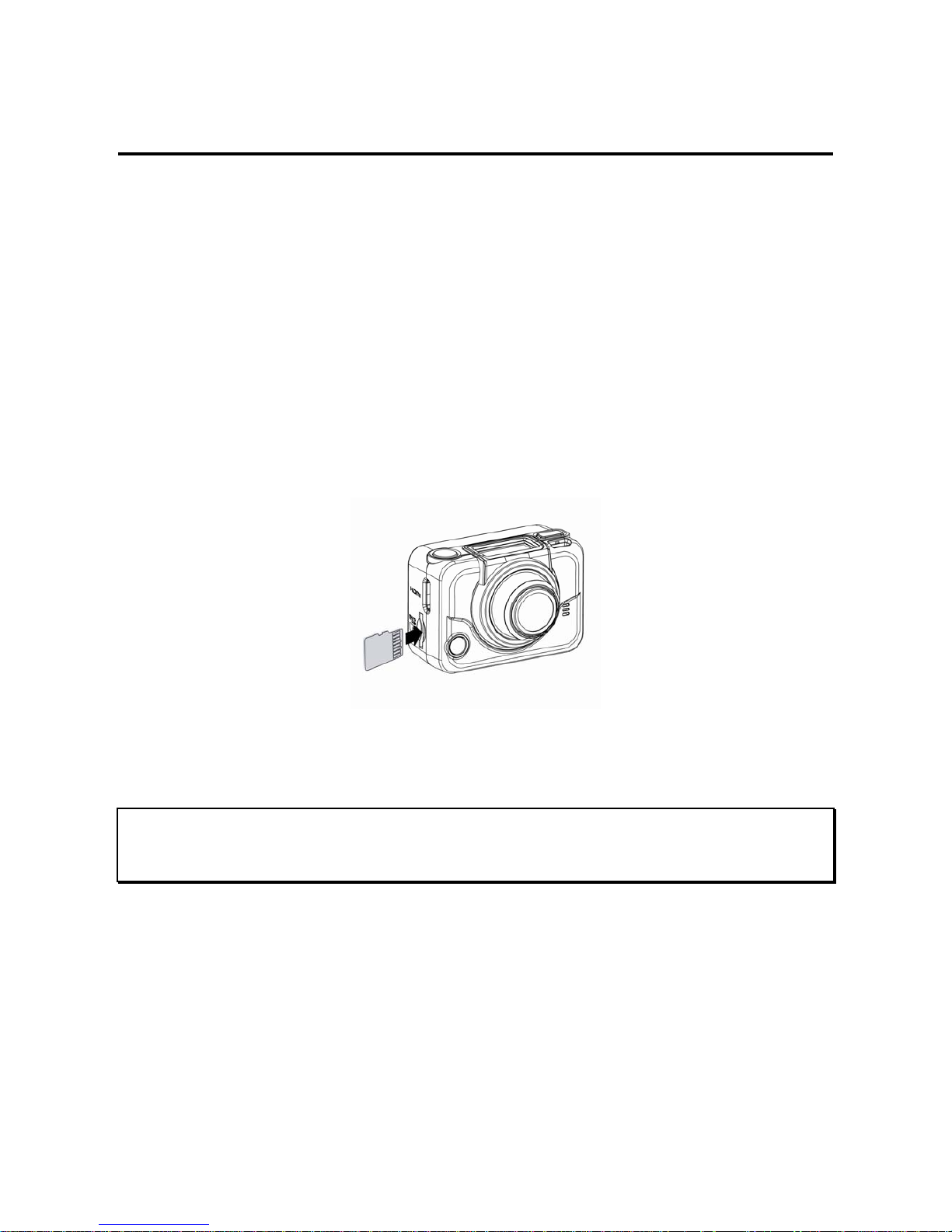

2.1 Installing the microSD Card ................................20

2.1.1 Removing the microSD card .......................21

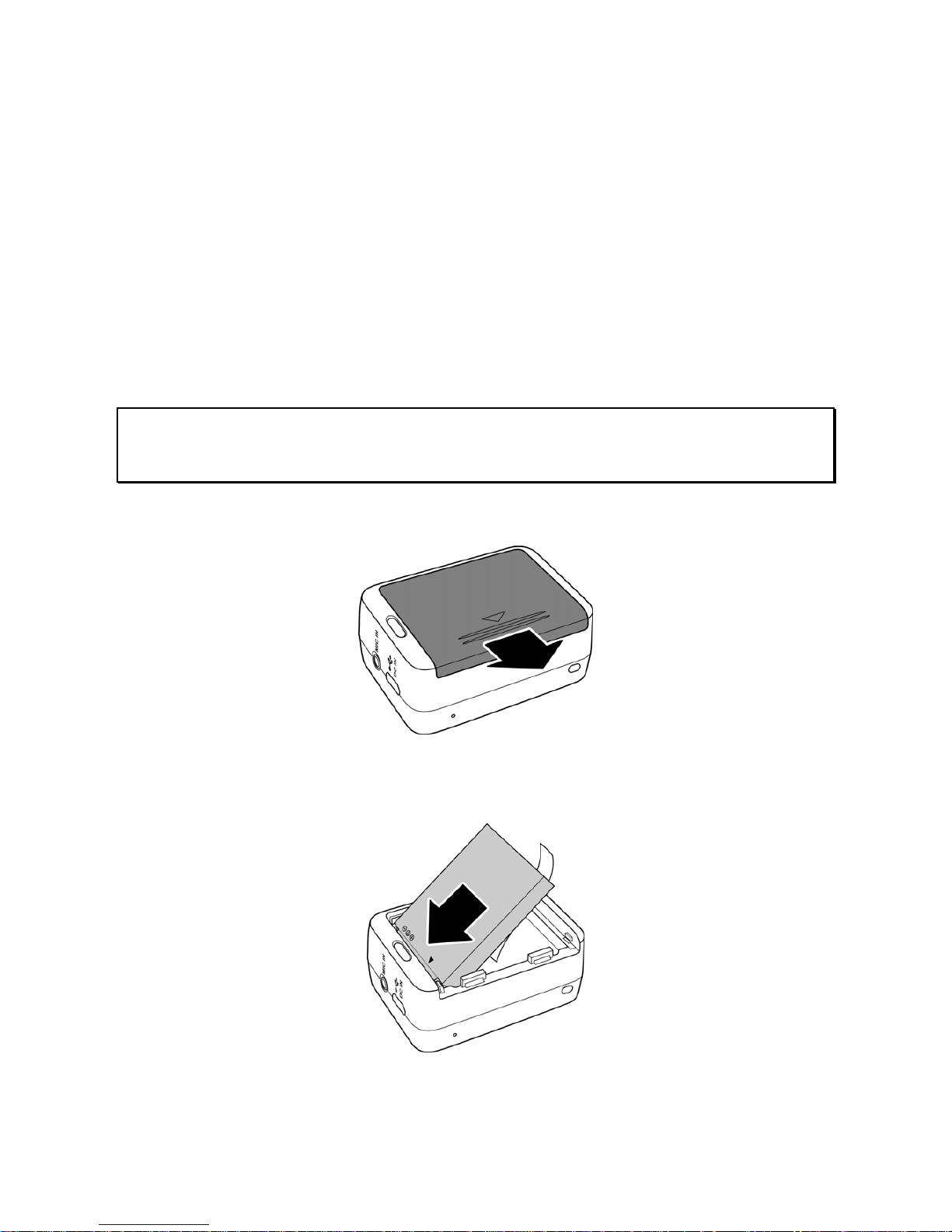

2.2 Installing the Battery.......................................... 21

2.2.1 Removing the battery.................................22

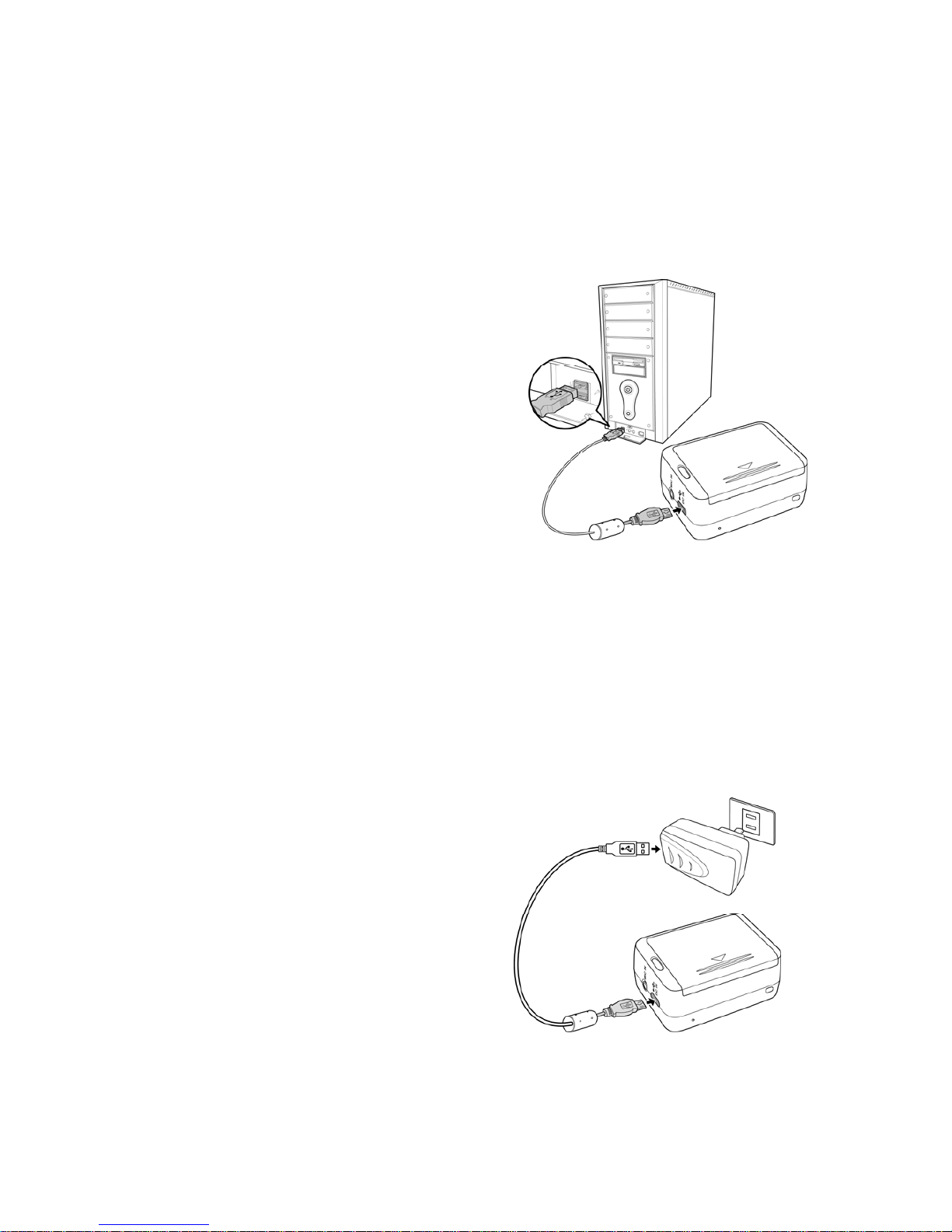

2.3 Charging the Battery ........................................... 23

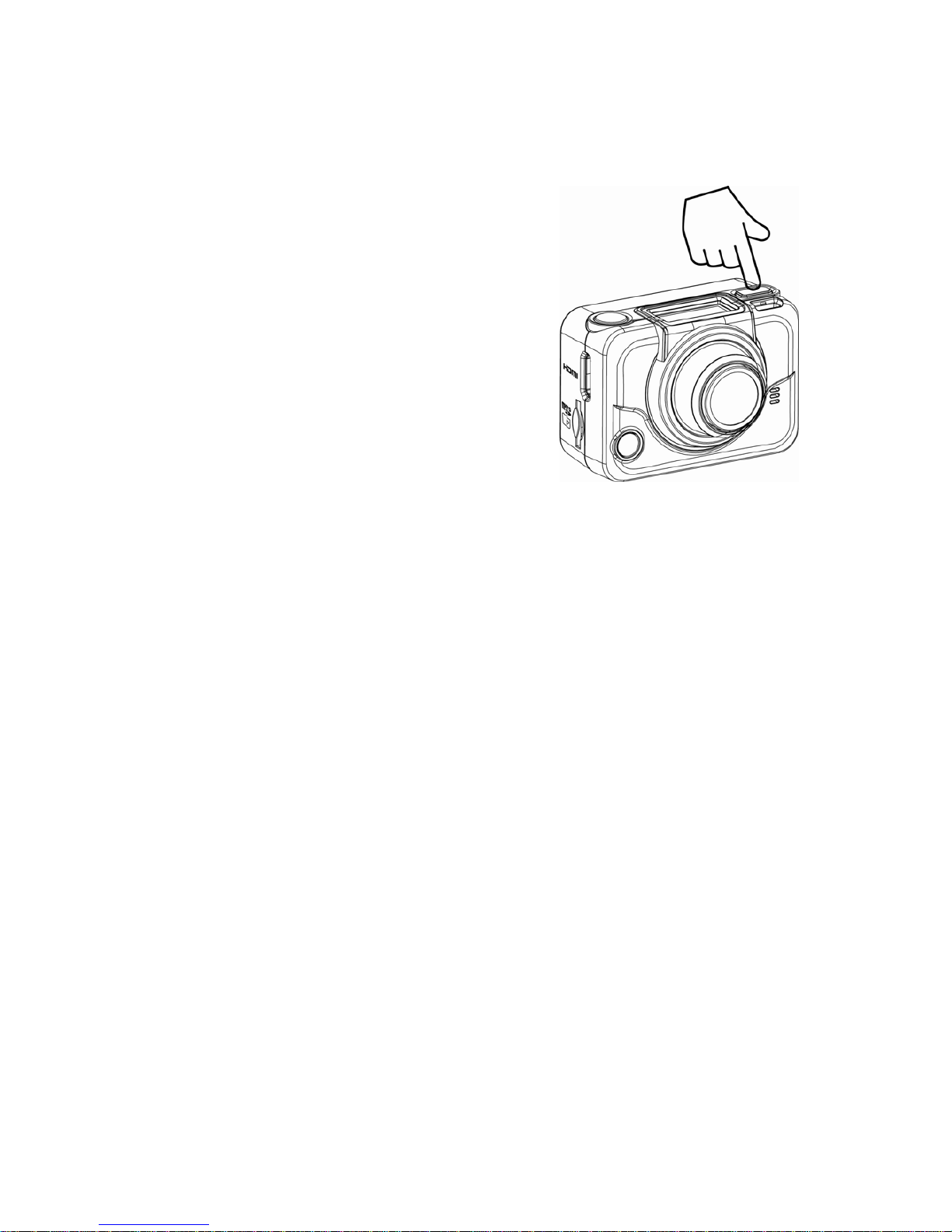

2.4 Turning ON/ OFF the Camcorder.........................24

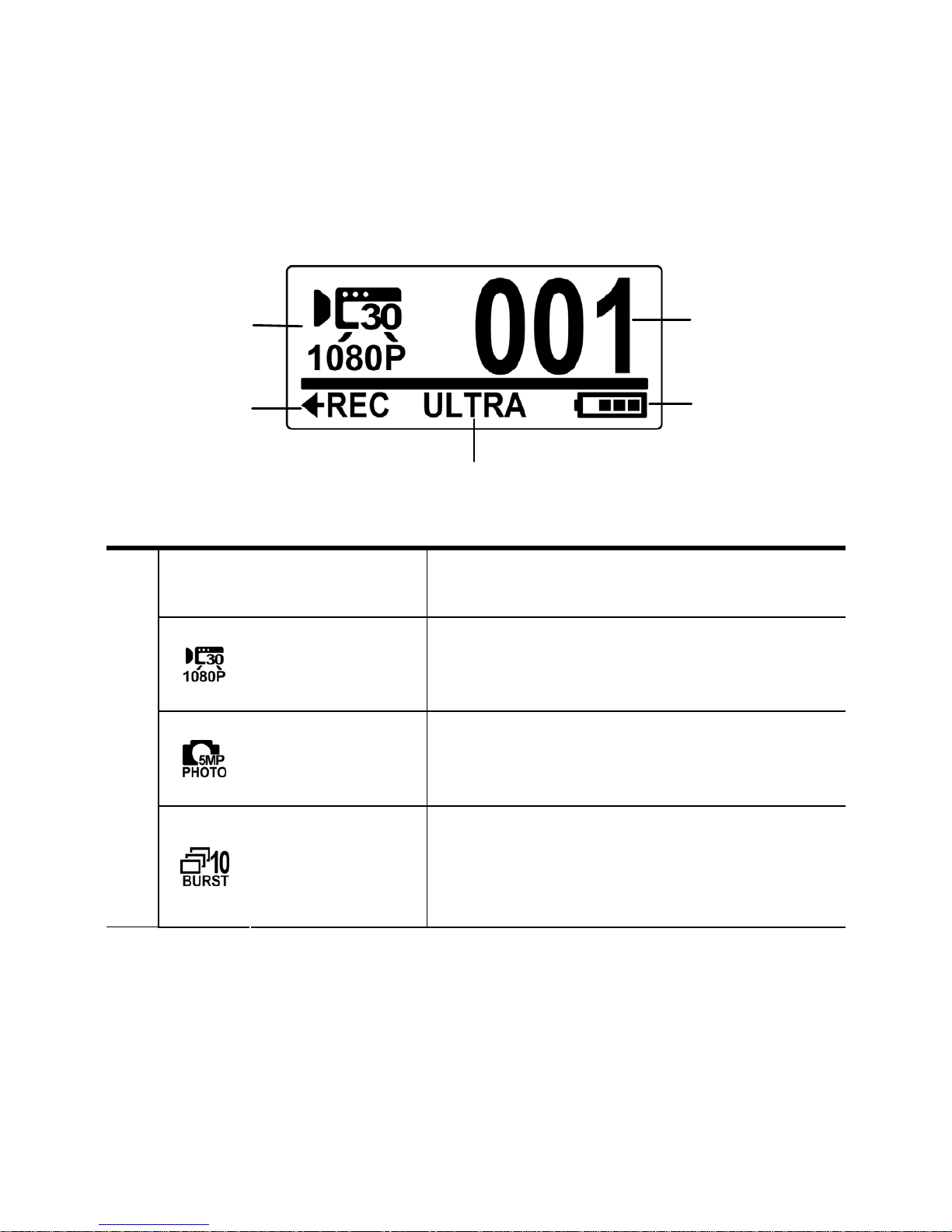

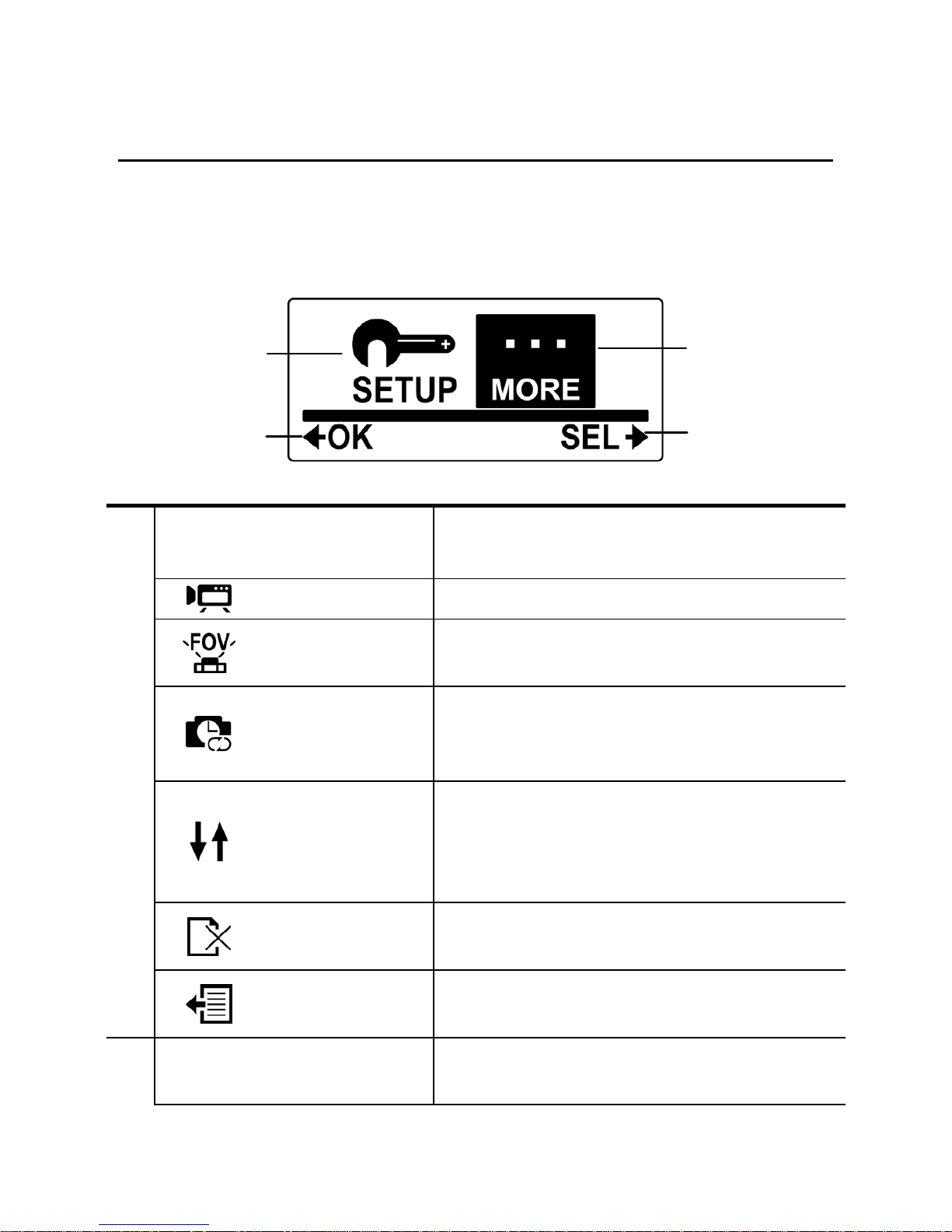

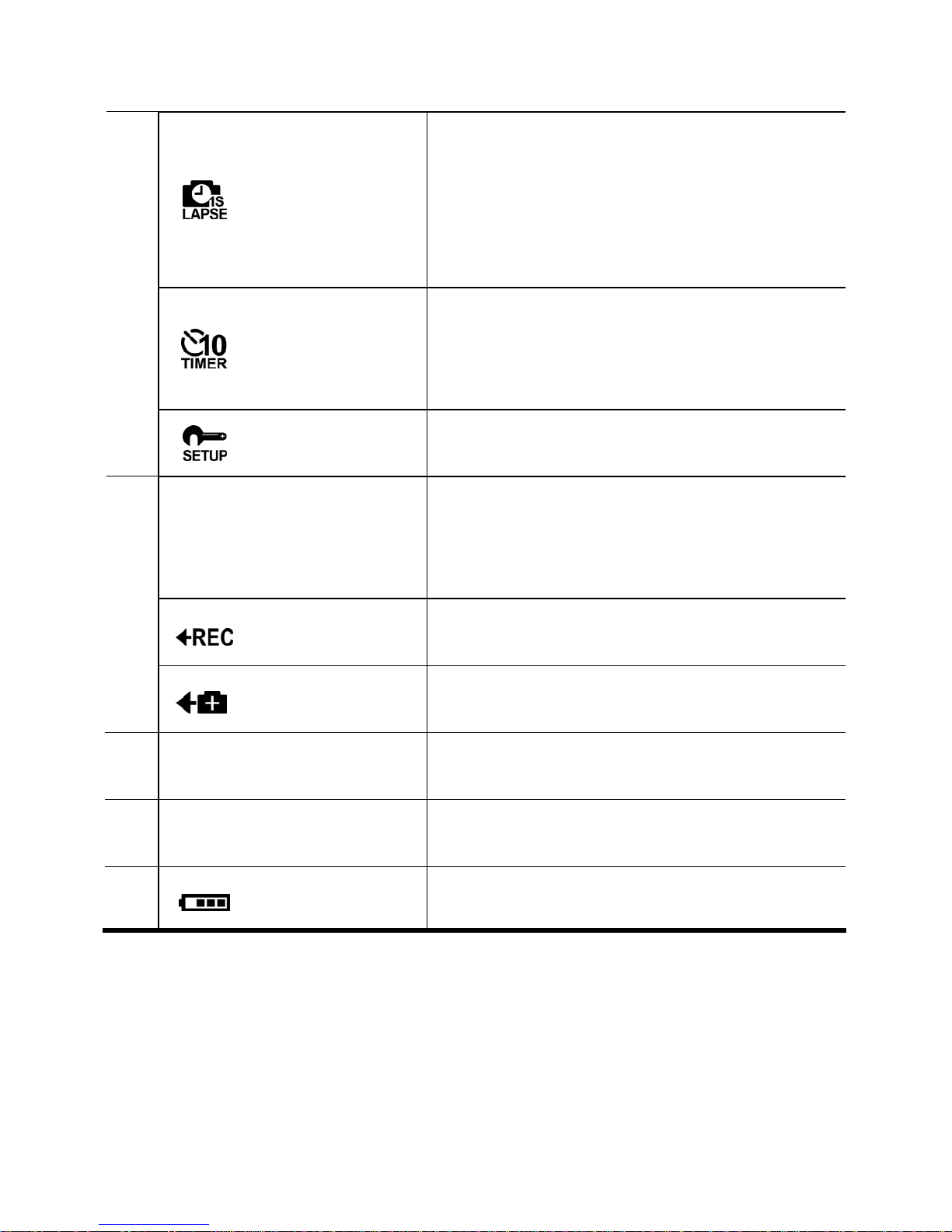

2.5 OLED Screen..........................................................25

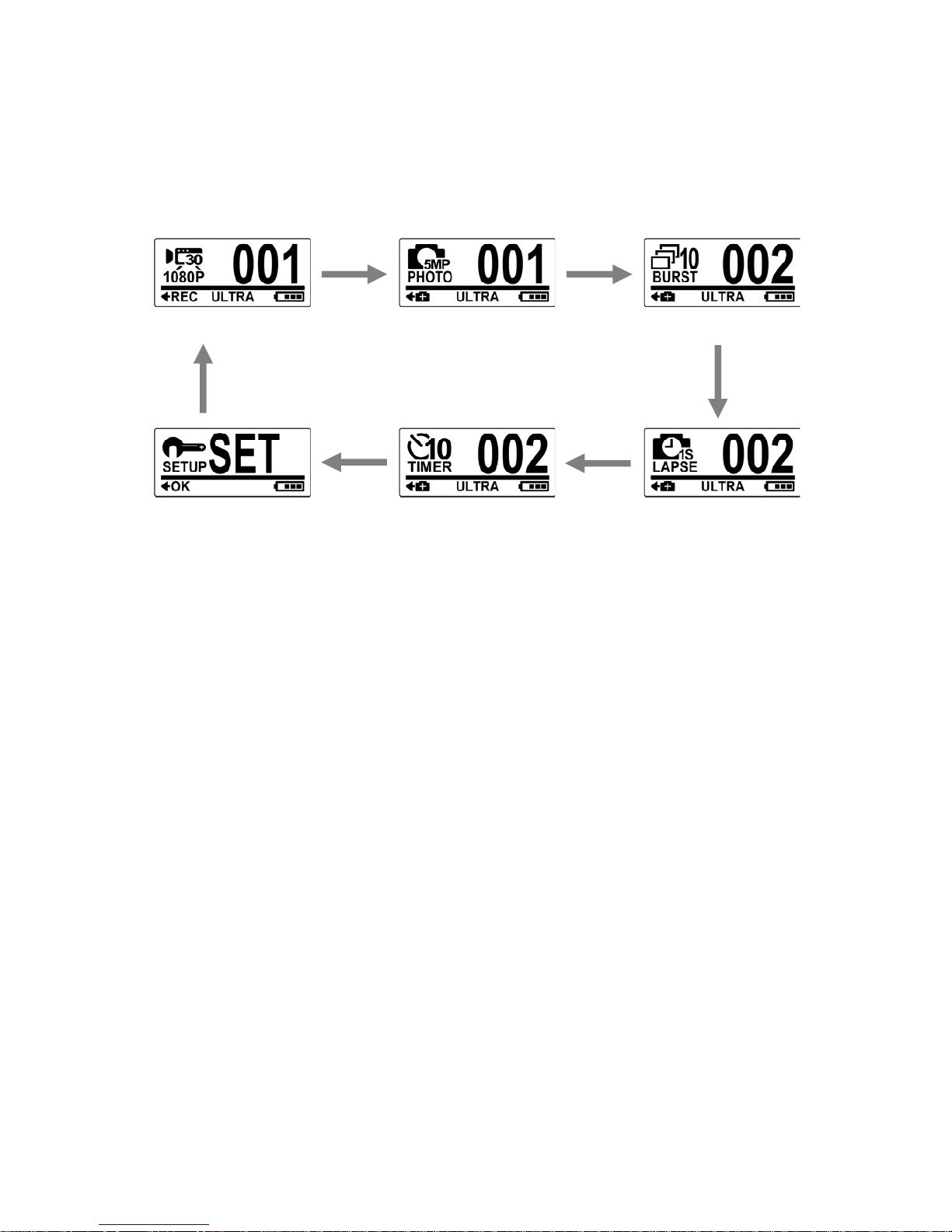

2.6 Changing Modes...................................................27

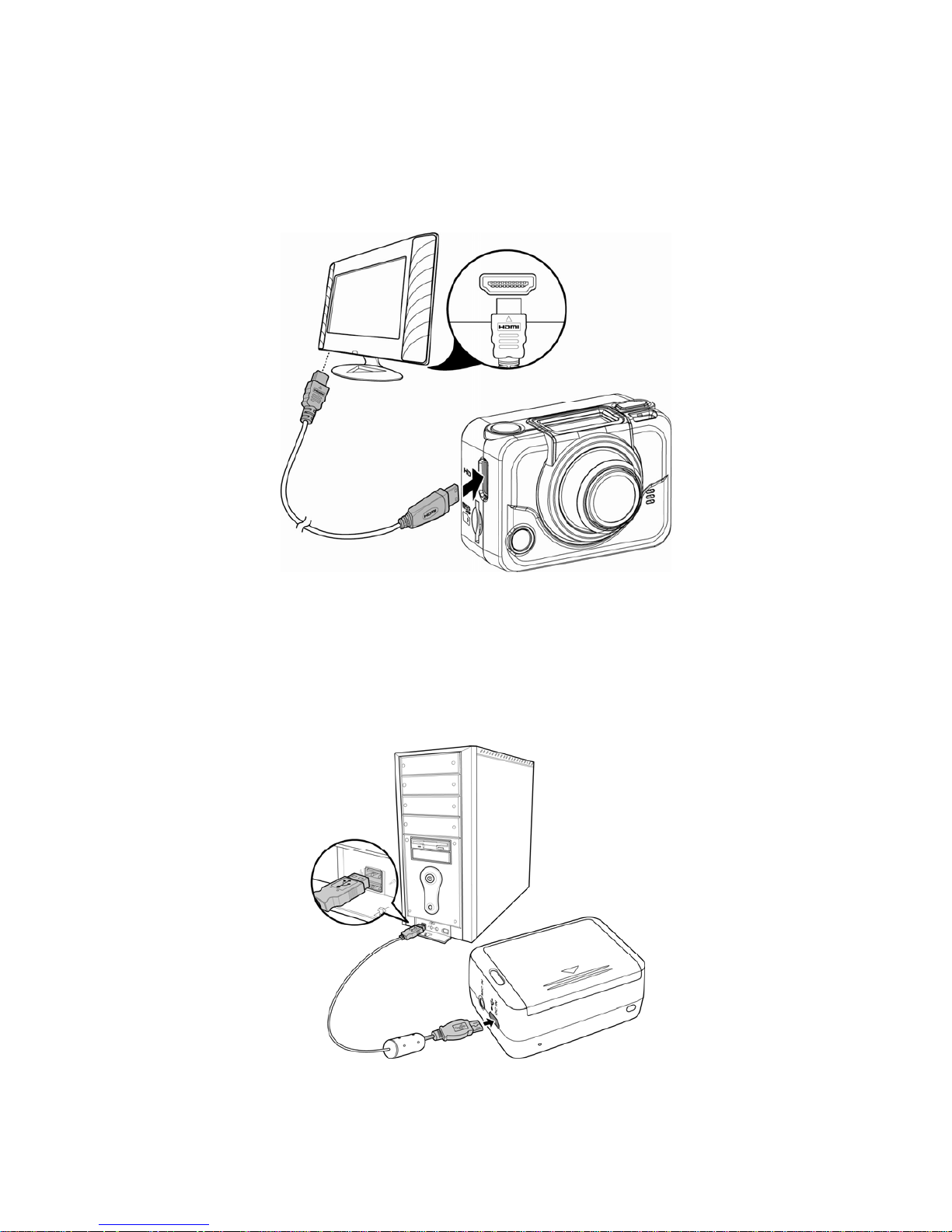

2.7 Connecting to TV (HDMI Cable) ...........................28

ii

2.8 Connecting to PC (Micro USB Cable)....................28

3 Capturing Videos and Photos...................29

3.1 Recording Videos .................................................29

3.2 Taking Photos ......................................................29

3.2.1 Burst Shooting............................................29

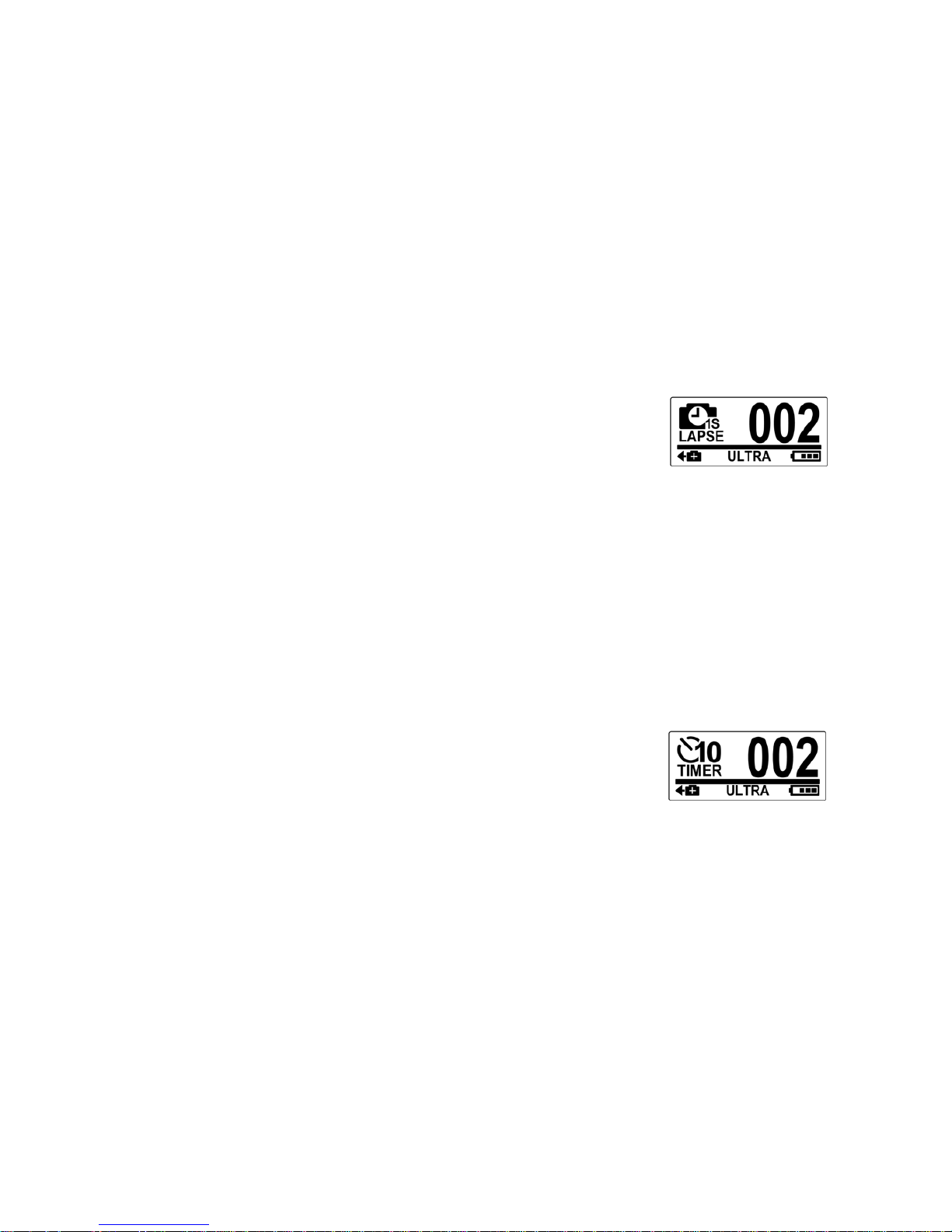

3.2.2 Time Lapse Shooting..................................30

3.2.3 Self-Timer ...................................................30

4 Adjusting the Settings.............................. 31

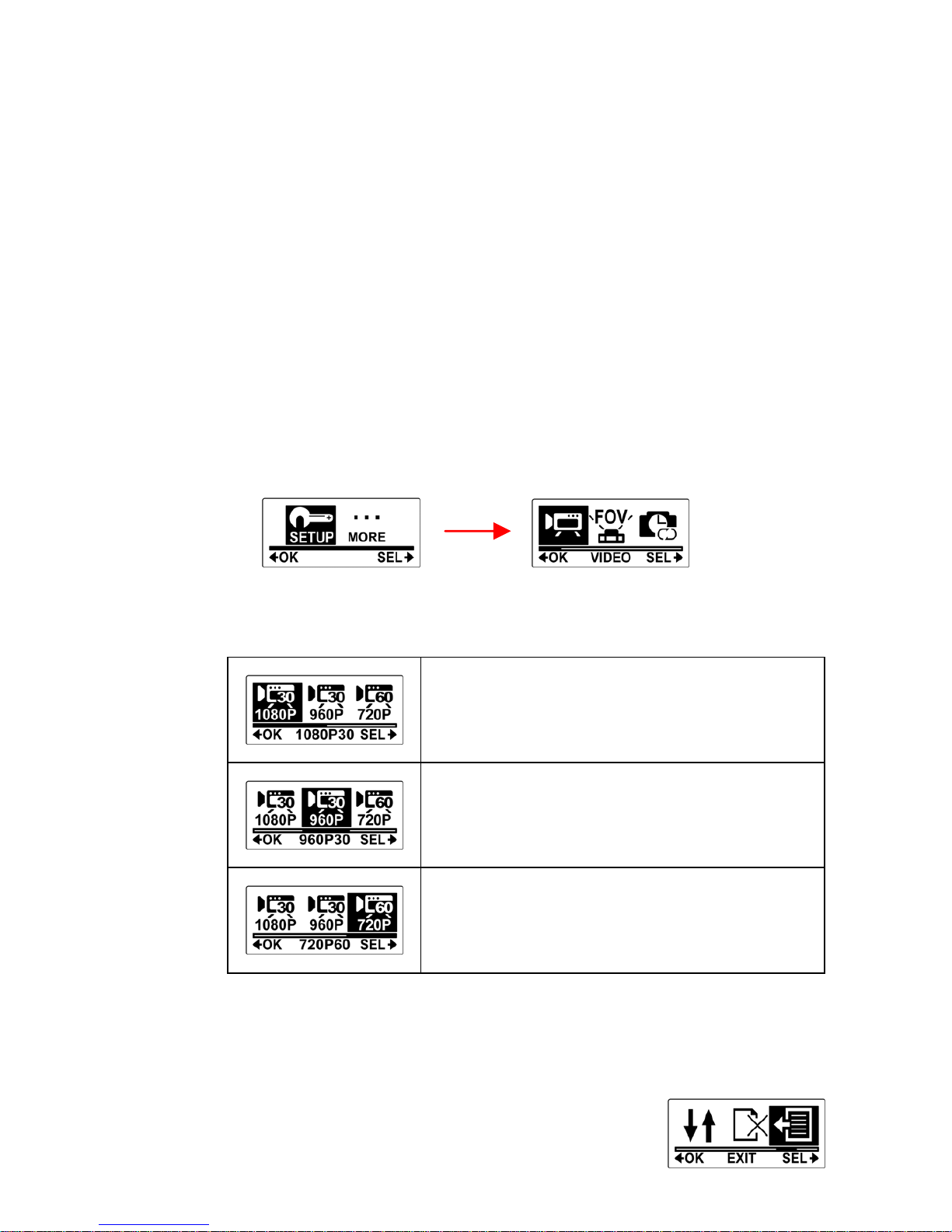

4.1 Video Resolution..................................................33

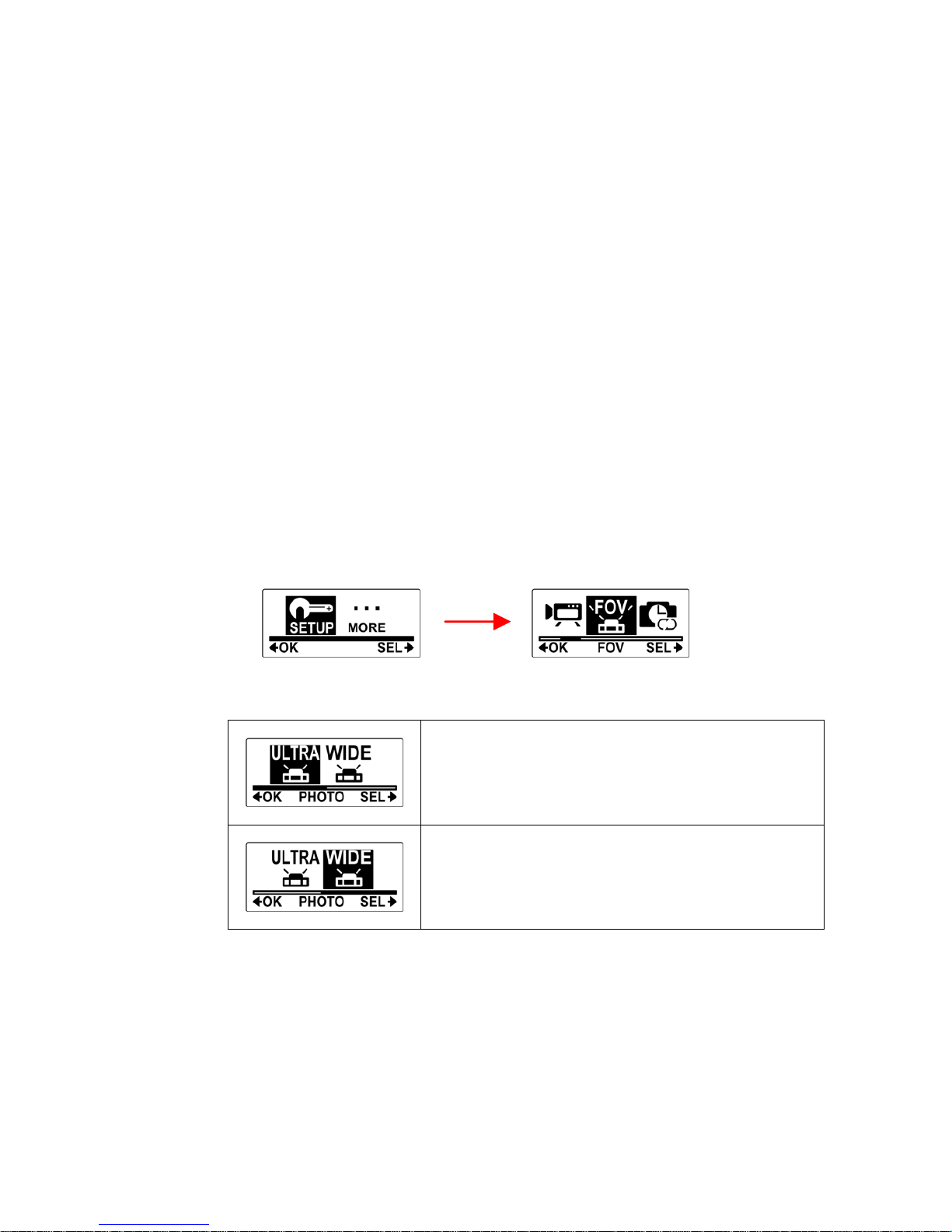

4.2 Field of View (FOV)...............................................34

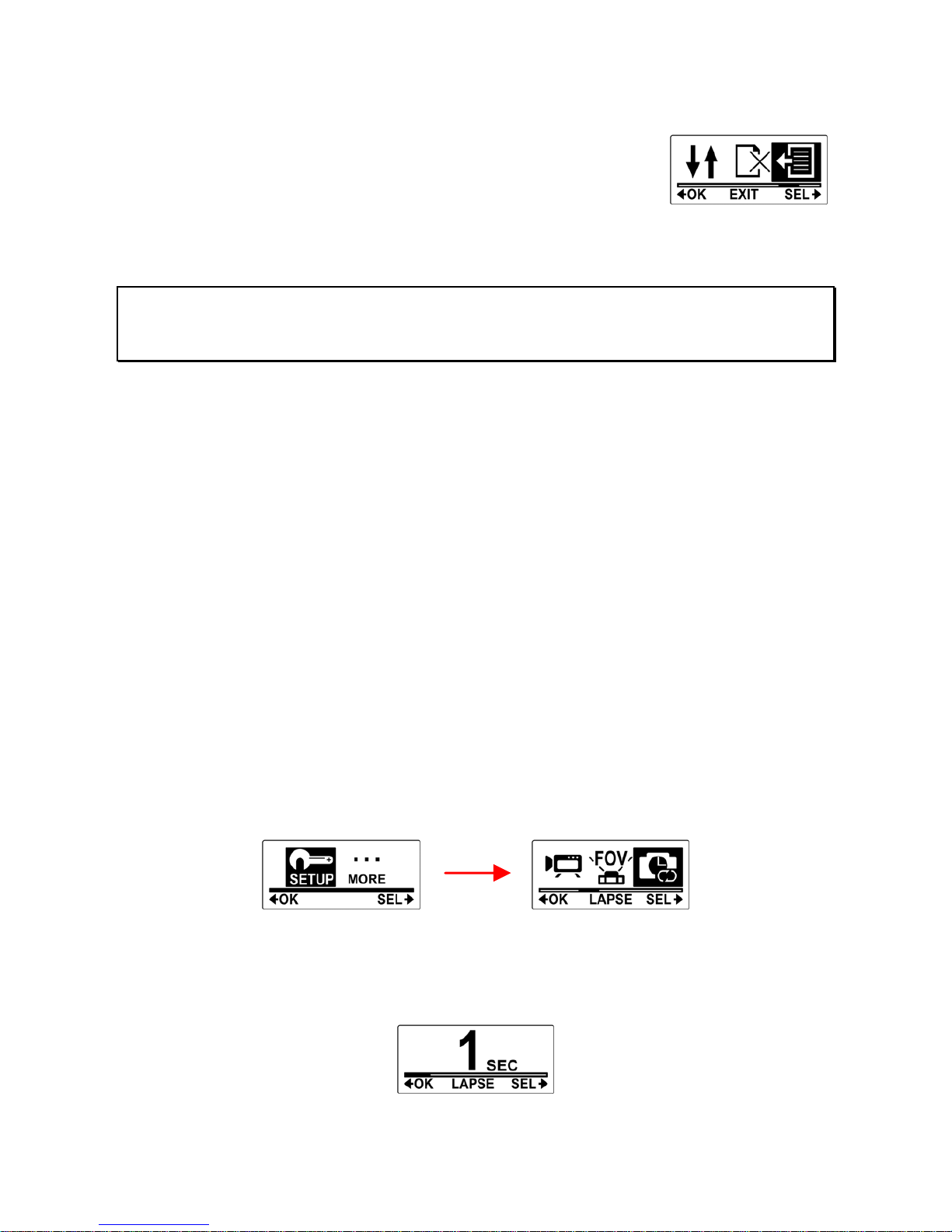

4.3 Shooting Interval.................................................35

4.4 Up/Down...............................................................36

4.5 Delete ...................................................................37

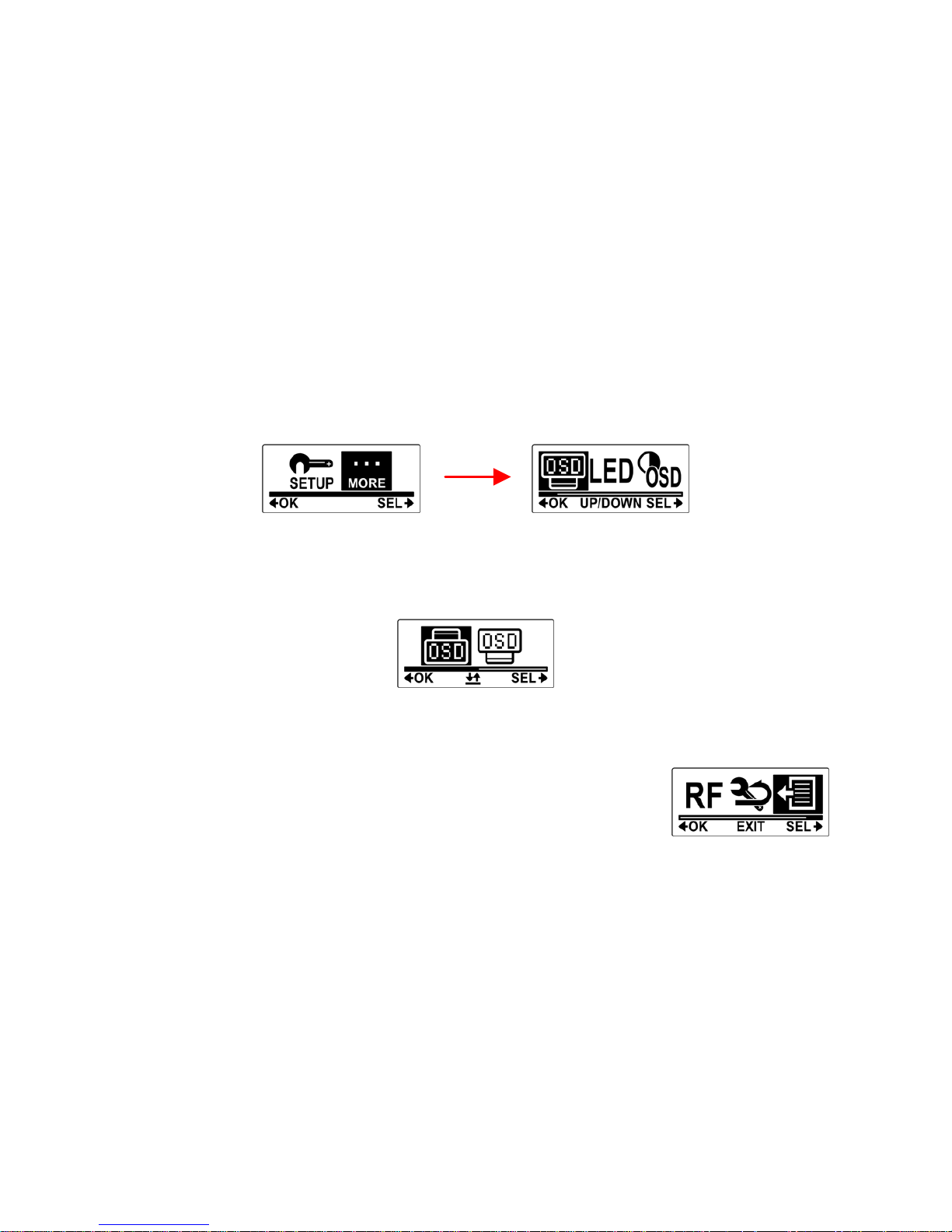

4.6 OSD Up/Down.......................................................39

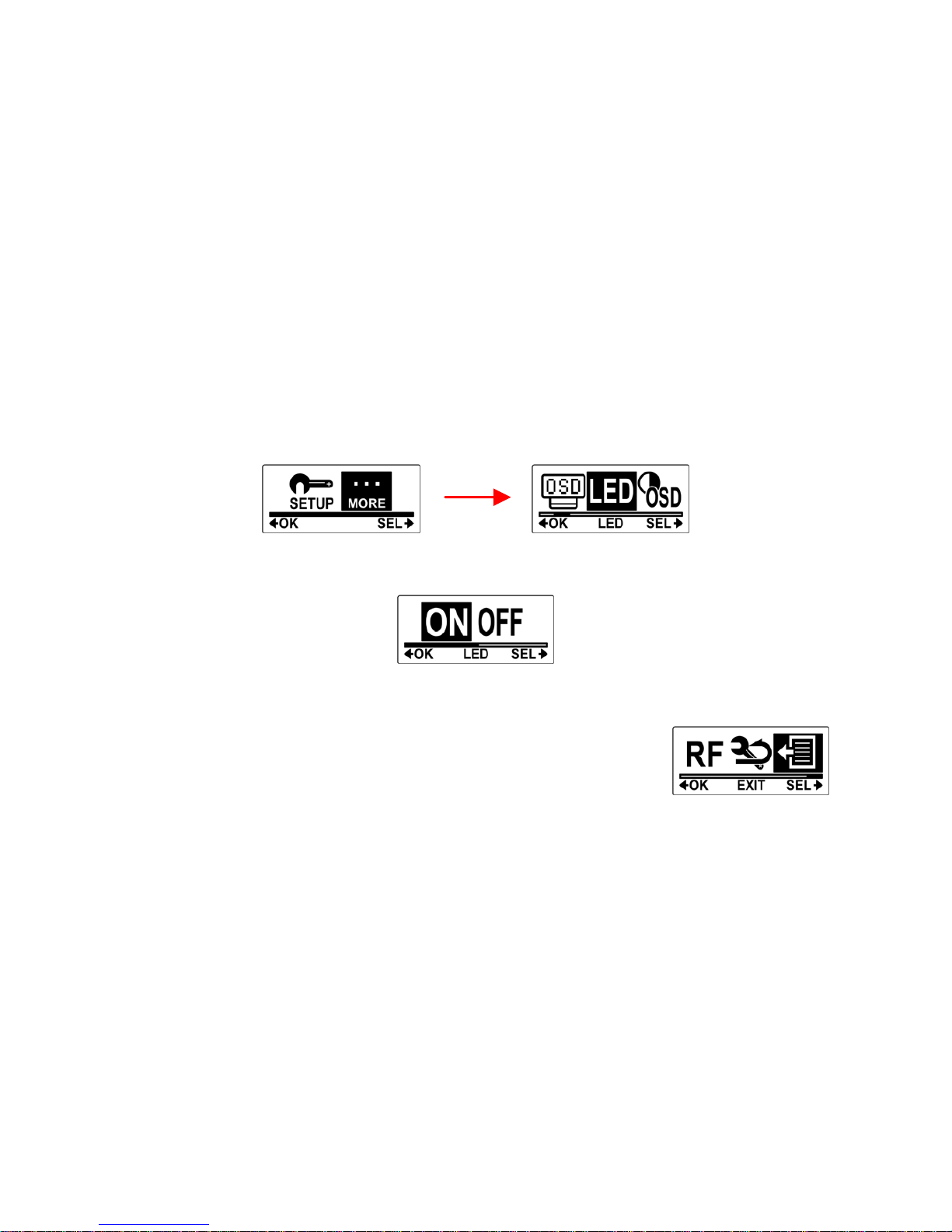

4.7 LED ........................................................................40

4.8 Brightness ............................................................41

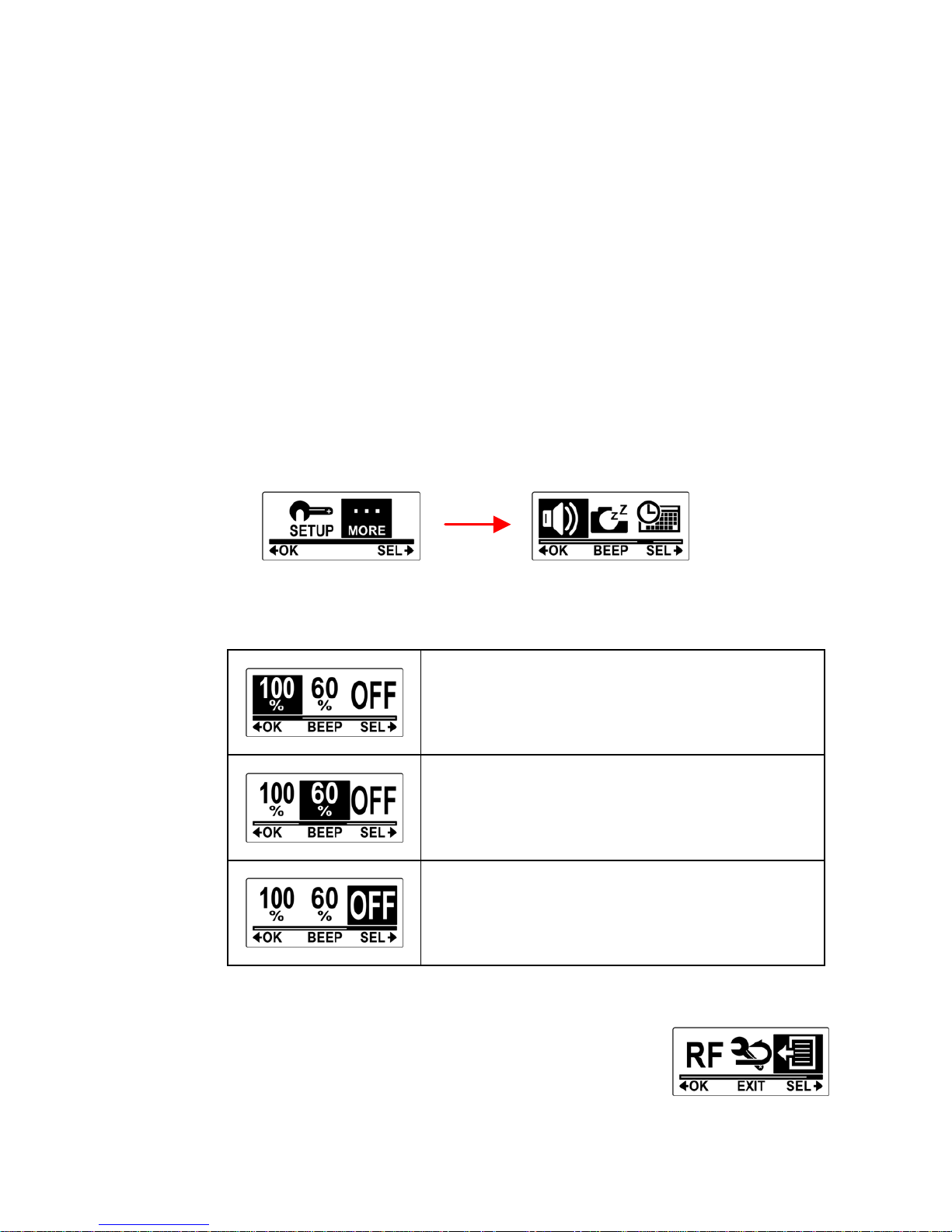

4.9 Beep ......................................................................42

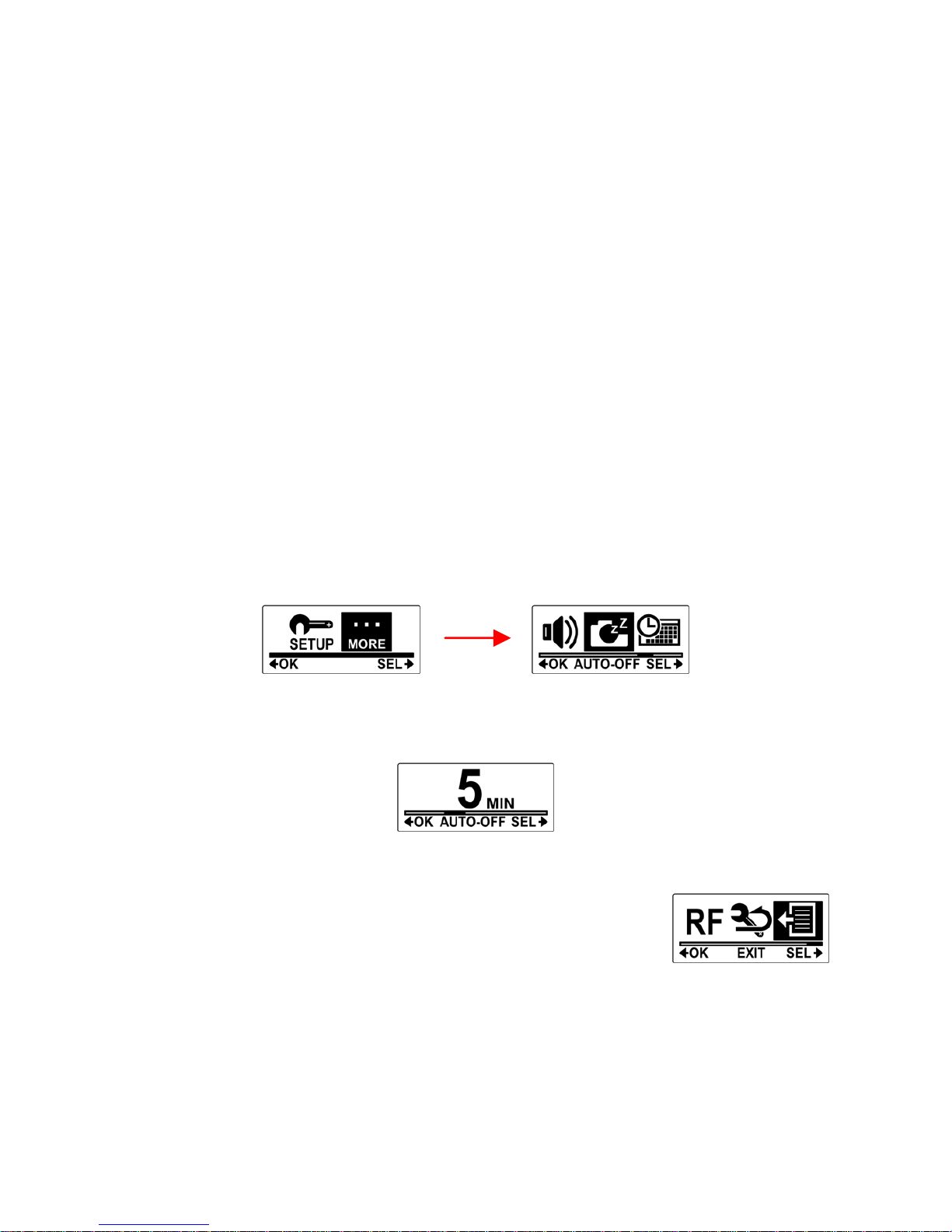

4.10 Auto-Off ...............................................................43

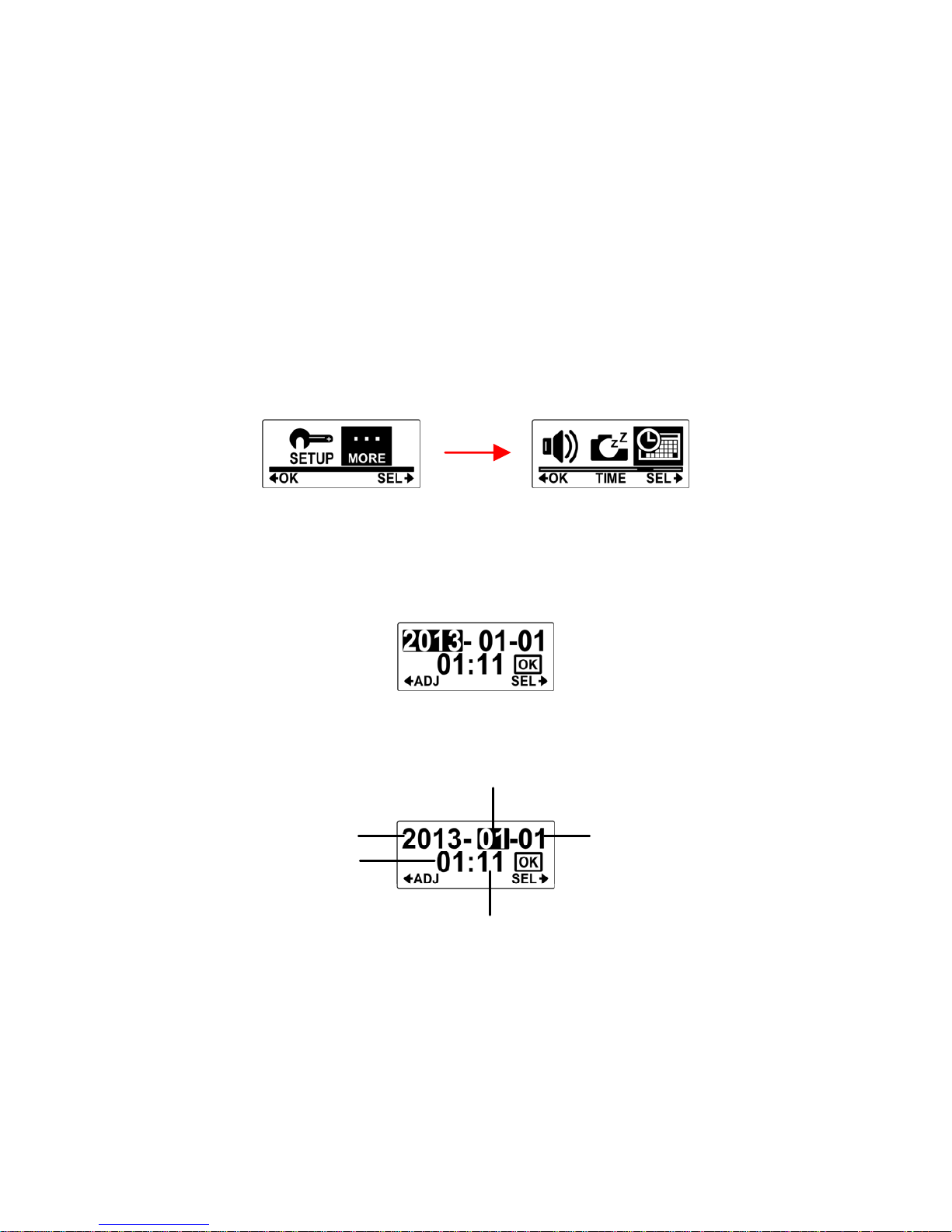

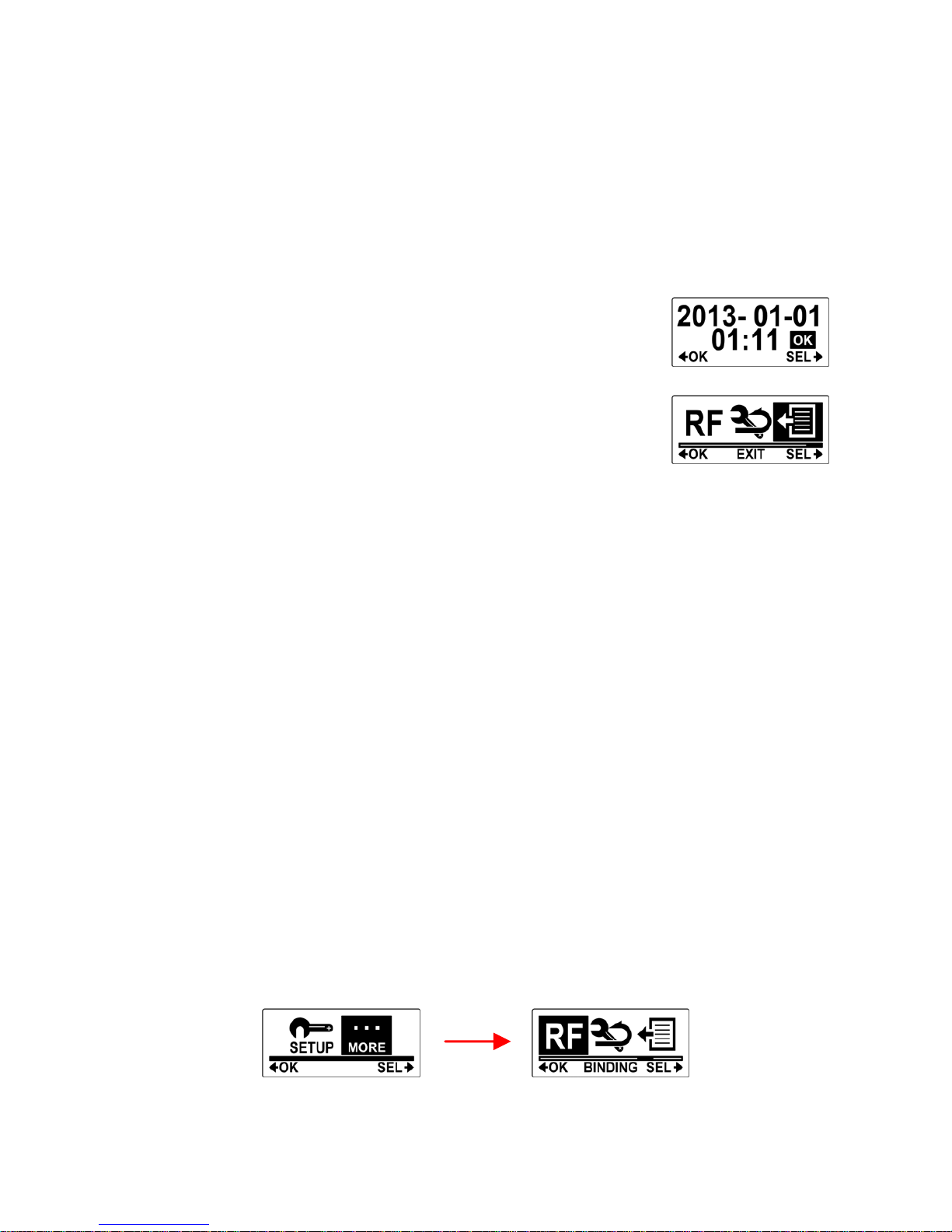

4.11 Date and Time ...................................................... 44

4.12 RF ..........................................................................45

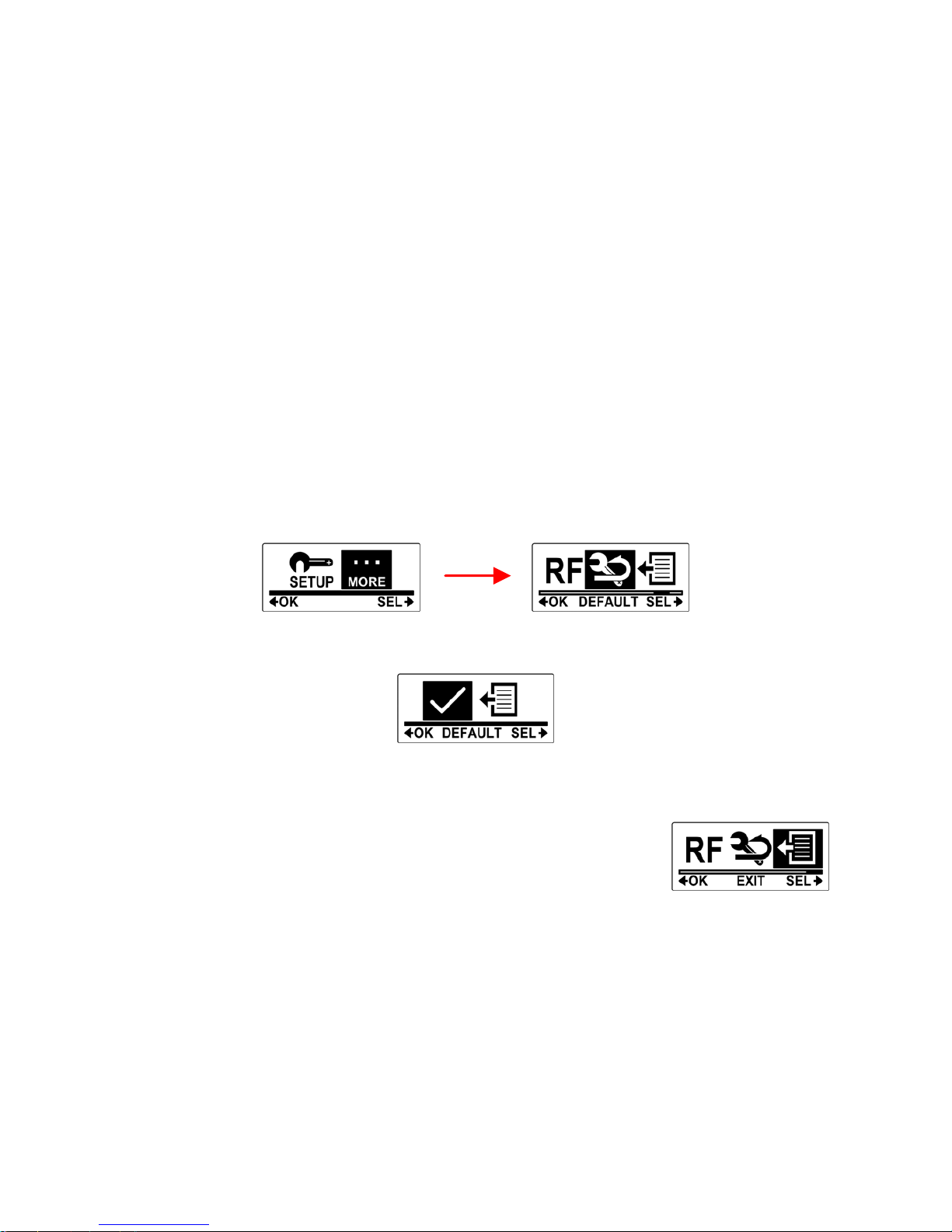

4.13 Factory Default....................................................47

5 Using the Accessories...............................48

5.1 Waterproof Case ..................................................48

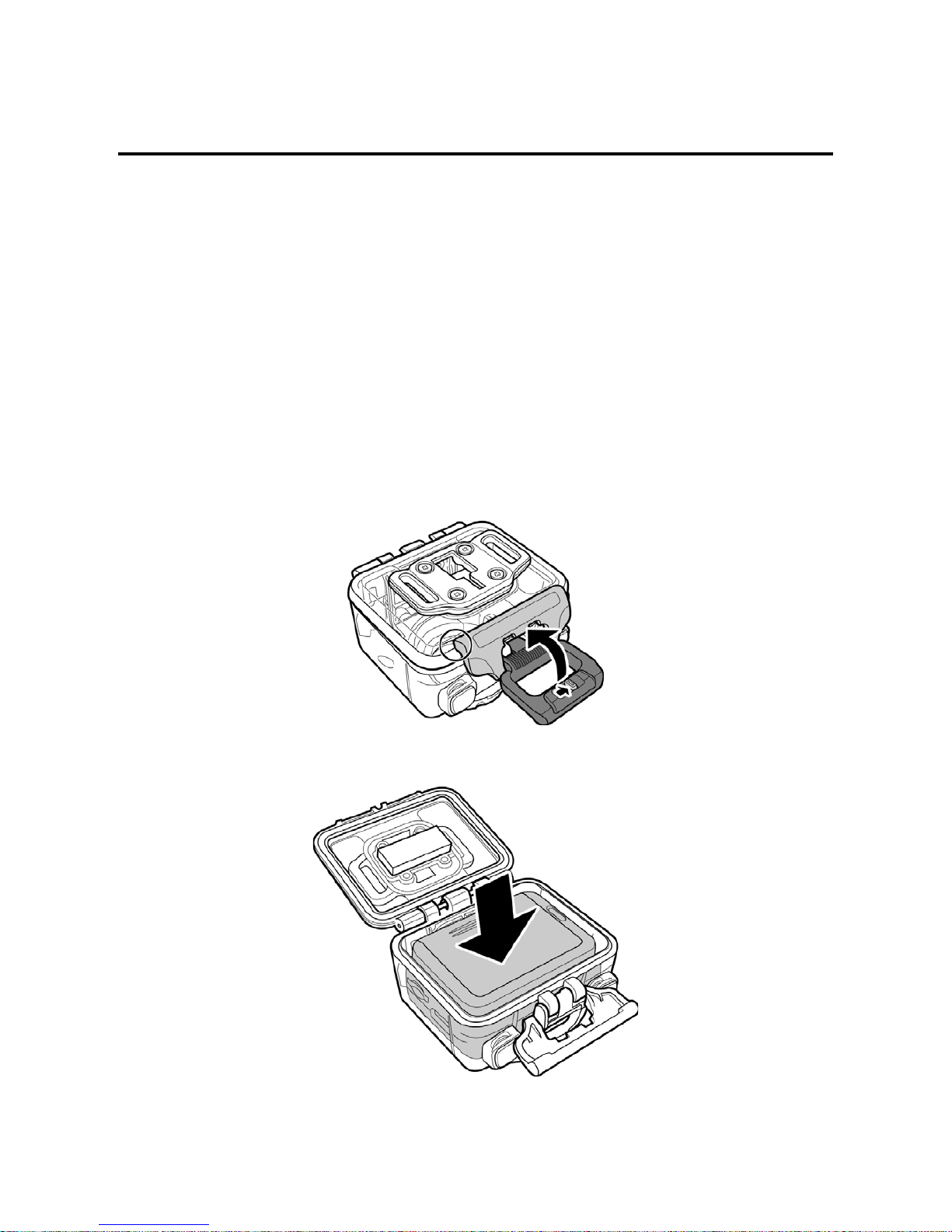

5.1.1 Using the Waterproof Case.........................48

5.1.2 Changing the T Tip Adapter ........................49

iii

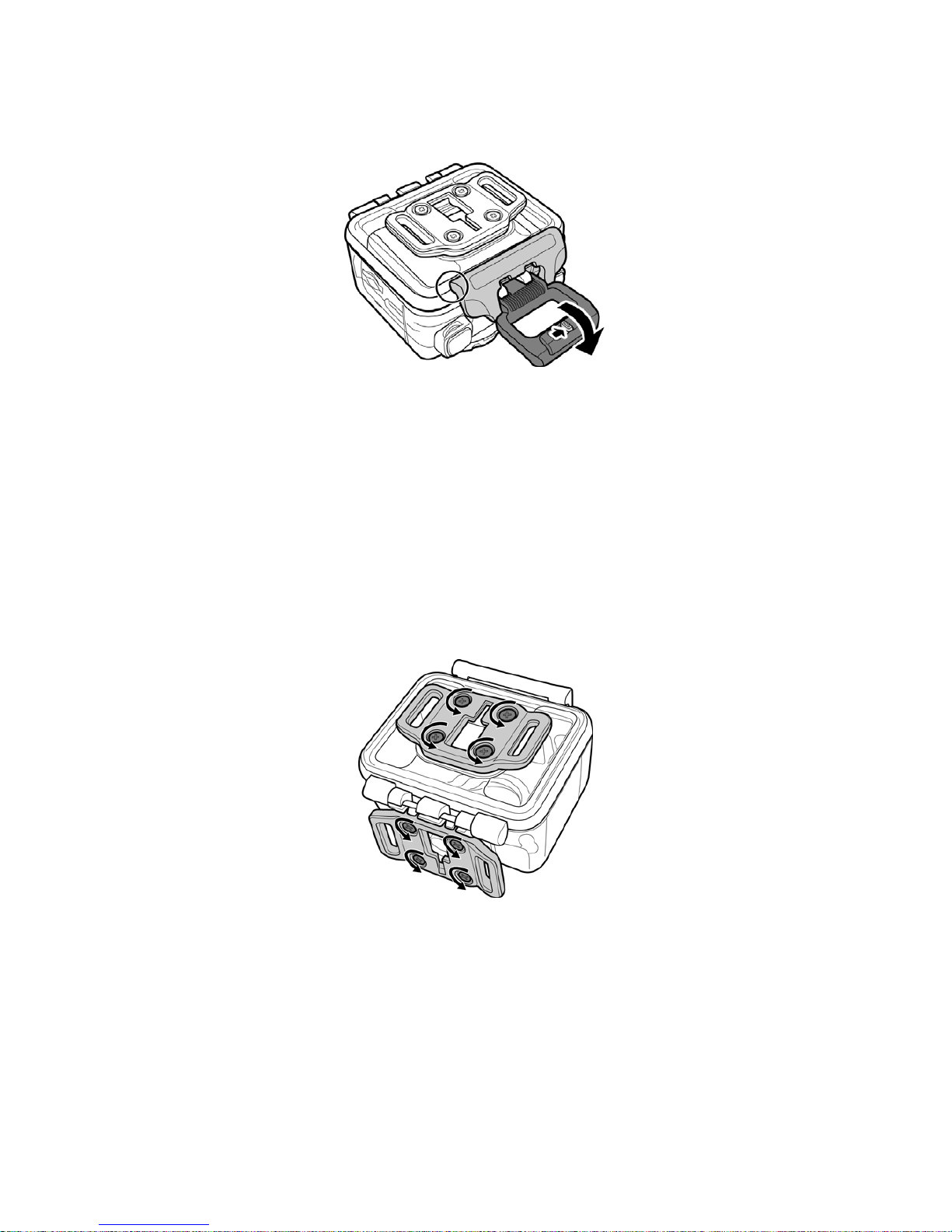

5.1.3 Changing the Housing Back Door ...............50

5.2 Velcro Strap .........................................................50

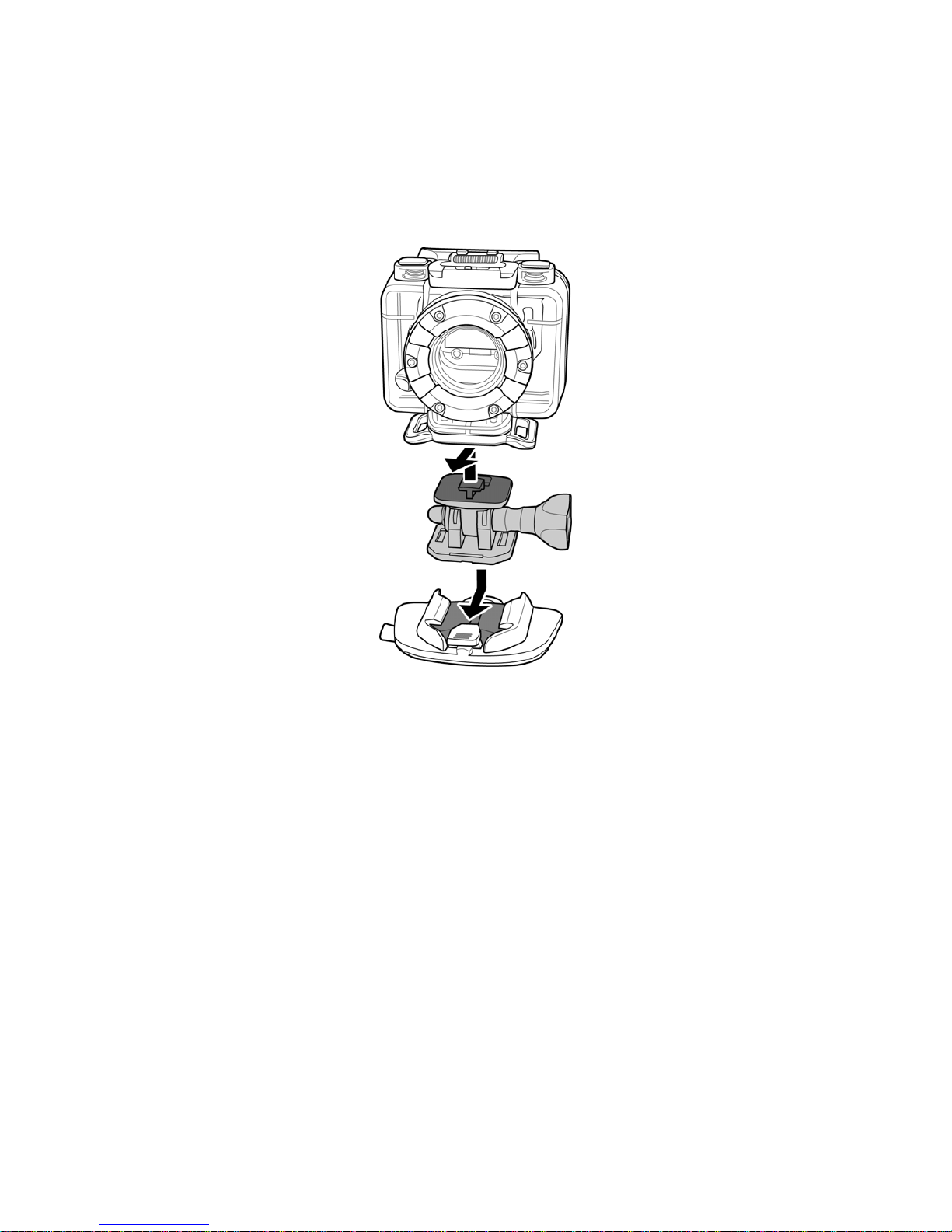

5.3 Assembling the Camcorder Accessories.............51

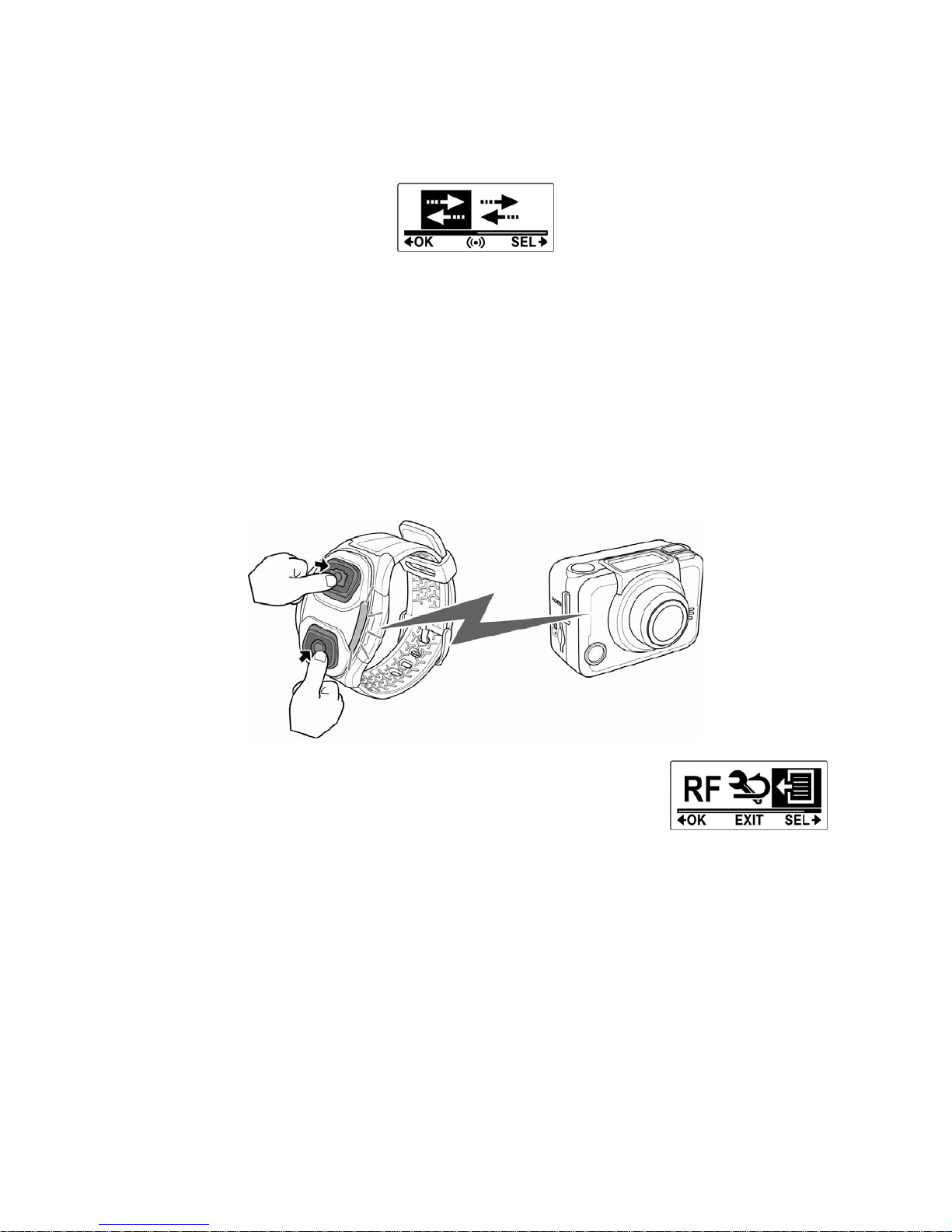

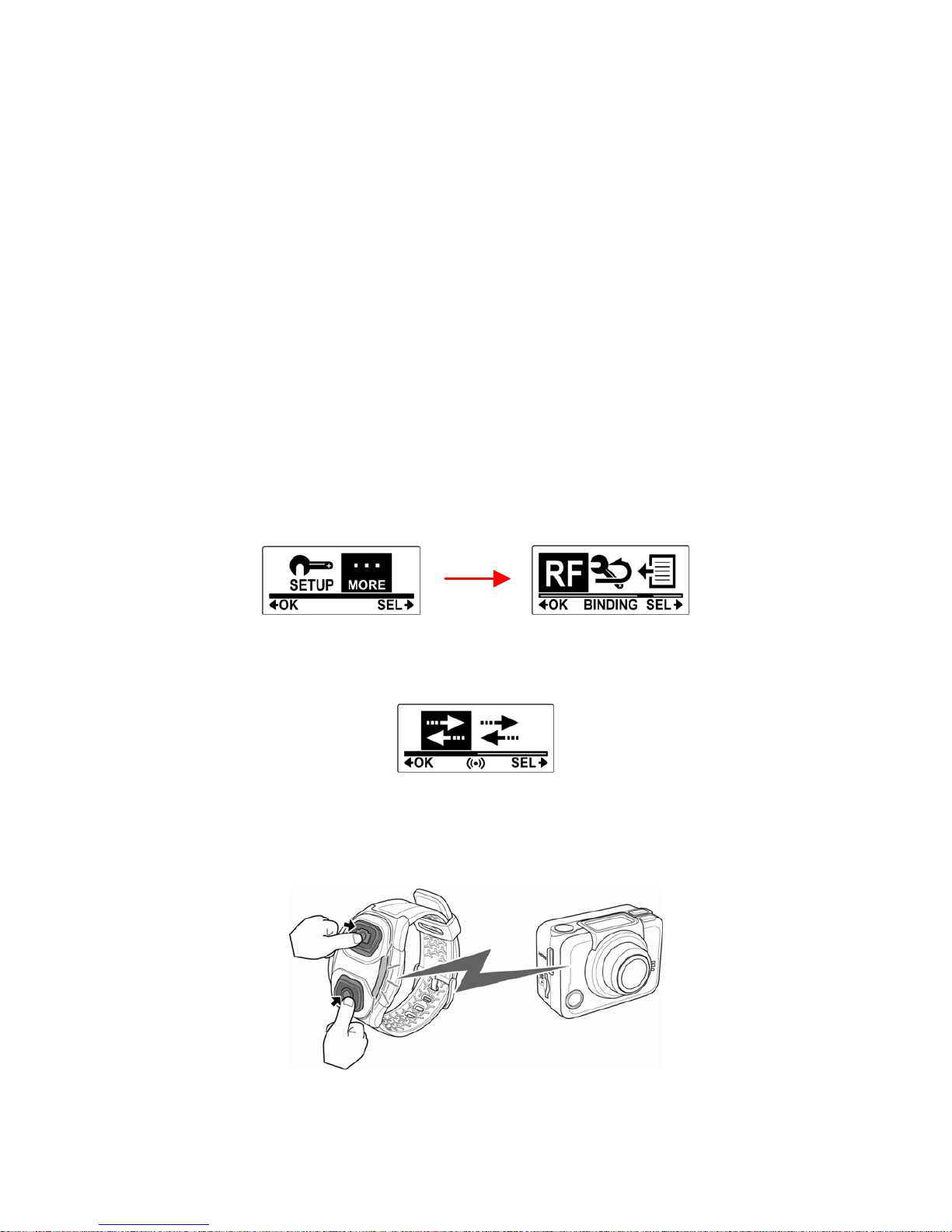

5.4 Wrist Strap Remote Control................................52

Appendix ............................................................54

Specifications.................................................................54

Troubleshooting.............................................................56

iv

Preface

About this Manual

This manual is designed to demonstrate the features of your HP Action
Camac200w/ac200. All information presented is as accurate as possible
but is subject to change without notice. HP shall not be liable for
technical or editorial errors or omissions contained herein.
For the latest reversion, visit www.hp.com/support.

Copyright

This manual contains proprietary information protected by copyright. All
rights are reserved. No part of this manual may be reproduced by any
mechanical, electronic or other means, in any form, without prior written
permission of the manufacturer.
© Copyright 2013

Federal Communications Commission notice

This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following
measures:

· Reorient or relocate the receiving antenna.

· Increase the separation between the equipment and receiver.

· Connect the equipment to an outlet on a circuit different from that to
which the receiver is connected.

· Consult the dealer or an experienced radio or television technician for
help.

v

Modifications:

The FCC requires the user to be notified that any changes or
modifications made to this device that are not expressly approved by HP
may void the user's authority to operate the equipment.

Trademark Recognition

Windows XP/Vista/Windows 7/Windows 8 are registered trademarks of
Microsoft Corporation in the United States and/or other countries.
Macintosh and Mac OS are registered trademarks of Apple Inc. In addition,
all other companies or product names are trademarks or registered
trademarks of their respective companies.

Radiation Exposure Statement

The product comply with the FCC portable RF exposure limit set forth for
an uncontrolled environment and are safe for intended operation as
described in this manual. The further RF exposure reduction can be
achieved if the product can be kept as far as possible from the user body
or set the device to lower output power if such function is available.

vi

Precautions

General precautions

 Do not store the product in dusty, dirty, or sandy areas, as its

components may be damaged.

 Do not store the product in a hot environment. High temperatures

can shorten the life of electronic devices, damage batteries and
warp or melt certain plastics.

 Do not store the product in cold areas. When the product warms up

to its normal temperature, moisture can form inside, which may
damage the electronic circuits.

 Do not attempt to open the casing or attempt your own repairs.

High-voltage internal components create the risk of electric shock
when exposed.

 Do not drop or knock the product. Rough handling may damage the

internal components.

 Do not use harsh chemicals, cleaning solvents or strong detergents

to clean the product. Wipe the product with a slightly damp soft
cloth.

 Do not open the battery cover while an image is being recorded.

Doing so will not only make storage of the current image
impossible, it can also corrupt other image data already stored on
file.

 If the product or any of its accessories are not working properly,

take them to your nearest qualified service center. The personnel
there will assist you and if necessary, arrange for the product to be
repaired.

 Test for proper operation before using the camcorder.

vii

Operating conditions

 This camcorder is designed for use in temperatures ranging from

0°C to 45°C (32°F to 113°F).

 Do not use or keep the camcorder in the following areas:

- In areas subject to direct sunlight

- In areas subject to high humidity or dust

- Near air conditioners, heaters, or other areas subject to
temperature extremes

- Inside of a closed vehicle, especially one parked in the sun.

- In areas subject to strong vibration

Power supply

 Use only the type of battery that came with your camcorder. Using

any other type of battery may damage the equipment and
invalidate the warranty.

 Ensure the battery is inserted correctly. Inserting the battery

incorrectly can cause damage to the product and possibly start a
fire.

 Remove the battery to avoid leakage if the camcorder is not going

to be used for a long time.

 If the battery is crushed or damaged, dispose of it immediately to

avoid damages to your camera or injury to yourself.

viii

Notes on Waterproof Case

Waterproof Case performance

 The waterproof case performance is equivalent to

IPX8 (60m/1hr).

 Underwater time limit: Do not use the waterproof case underwater

for more than 60 minutes and 60 meters to ensure water
resistance.

 The waterproof case is not dust-proof.
 The camera and other accessories are not waterproof unless

enclosed by the waterproof case.

 When using the camcorder in cold or humid environments or when

going underwater, use the anti-fog insert to prevent fogging. The
anti-fog insert only provides a certain degree of prevention, results
vary depending on the actual environment. The anti-fog insert is
not for long-term use, it must be replaced regularly.

Notes before going underwater:

(Do the following actions indoors. Do not do these actions on sandy or
dusty environment or near the water’s edge.)

 Check if the area surrounding the waterproof case lock is clean, do

not allow dirt or sand or foreign objects around it.

 Ensure that the waterproof case is closed.
 Ensure that the waterproof case has no cracks or scratches. If the

waterproof case has been dropped, contact your dealer for a
replacement.

ix

Notes for general use:

 Avoid opening or closing the waterproof case near the water’s edge

(sea, lake, beach, lake, etc.). Do not open or close the waterproof
case lock with wet hands, or hands with sand or dust.

 The accessories (batteries, etc.) used with the camcorder are not

water resistant, be careful in using them.

 Do not drop the waterproof case to ensure waterproof durability.
 Do not place the waterproof case in temperatures above 45°C or

below 0°C to ensure waterproof durability.

 Do not attempt to make alterations on the waterproof case or seal

the vents yourself, doing so may damage its waterproof ability.

When using the camcorder

 The waterproof properties of the waterproof case apply to fresh

water and saltwater only; they do not apply to cleaning substances,
chemicals, or water from spas, etc. Any such liquids should be
wiped off immediately.

 Do not immerse the waterproof case in water at a depth greater

than 60 meters.

 Do not subject the waterproof case to highly pressurized water.
 Do not immerse in water for longer than 60 minutes. After 60

minutes of use in water, allow the waterproof case to dry for at
least 10 minutes.

 Do not immerse in water warmer than 45°C (113°F).
 Do not open or close the waterproof case lock with wet hands.
 Do not open the waterproof case lock next to water or a pool.
 The waterproof case is not dust-proof.
 Do not bump or knock the waterproof case underwater, otherwise

the lock may open.

x

Notes on waterproof case maintenance

 The waterproof of sealing material is replaceable for a fee. The

material should be replaced once a year to maintain its water
resistance.

After using the waterproof case

 Be sure to come ashore within 60 minutes after going underwater,

this will maintain the appearance, quality and water resistance of
the waterproof case.

 After taking pictures underwater, clean the waterproof case with

running tap water. Do not use any soapy water, mild detergents,
alcohol or similar liquids to clean the case.

 Wipe off water drops on the waterproof case with a soft lint-free

cloth (avoid fiber). Be sure to wait until the waterproof case is
completely dry before opening the waterproof case lock.

 After removing the camcorder from the waterproof case, soak the

waterproof case in a bucket of clean water for about 10 minutes.
After 10 minutes, wipe the waterproof case dry with a lint-free
cloth. Place the waterproof case in a well ventilated cool place to
dry naturally (do not place under direct sunlight).

Other notes

 If water accidentally enters the camcorder or any problem occurs

when it is in water, please get it out of the water immediately and
take proper actions. Dry the camcorder and send it for repair, if
required.

 Information is subject to change without notice. Refer to the

important notes in the manual supplied with the camcorder.

xi

Before You Start

Take some test shots before you use your camcorder.

Before taking pictures with this camcorder, test the camcorder
beforehand to ensure that it functions properly. Any additional loss
caused by the malfunction of this product (such as costs of photography
or any loss of benefit generated by the photography) is not the
responsibility of the manufacturer and no compensation will be given
for it.

Copyright information

Take care to observe "No Photography" notices in certain locations. In
these cases, you cannot record any live performance, improvisation or
exhibits, even for personal purposes. Any transfer of pictures or memory
card data must be conducted under the constraints of copyright law.

12

1 Introducing the Camcorder

Read this section to learn about the features and functions of the
camcorder. This chapter also covers system requirements, package
contents, and descriptions of the hardware components.

1.1 System Requirements

The camcorder requires a PC with the following specifications:

 Windows

®

8 / 7 / Vista / XP (SP2) operating system

 Intel

®

/ AMD Dual-Core CPU or higher

 At least 1 GB of RAM or higher
 At least DirectX 9 video card, DirectX 10 is recommended
 Standard USB 1.1 port or higher
 At least 2GB or greater available hard disk space

1.2 Features

The camcorder offers a variety of features and functions including:

 Full HD 1080p (30fps.)
 H.246 Video Clip
 170° Wide Angle Lens
 Up to 5 Megapixel Photos
 Sports Camera functionality
 Li-ion Battery
 External Waterproof Case

 Note:

A USB 1.1 port will enable you to transfer files to and from
your host PC, but transfer speeds will be faster with a USB 2.0

p

ort.

13

1.3 Unpacking the Camcorder

The following items should be present in the package. If any item is
missing or appears damaged, contact your dealer immediately.

HP Action Cam ac200 Li-ion Battery Quick Start Guide

CD-ROM Micro USB Cable HDMI Cable (optional)

AC Adapter

14

Standard Accessories

Waterproof Case Vented Housing

Backdoor

Waterproof Housing

Backdoor

T Tip Adapter Flat Adhesive Socket

Curved Adhesive

Socket

Lens Cap Secure Tether Velcro Strap

Swivel T Tip Anti-fog Inserts

15

Optional Accessories

Diving Case Chest Mount Adhesive Anchor

Bike Mount Adhesive

Ball Head T Tip

Ball Head T Tip with

Suction Cup

Suction Mount for

Tripod

Vented Head Mount

T Tip for General

Mounts

Camera Holder Tripod Adapter Wrist Strap Remote

Control

16

Telescope Mount

(Camouflaged Sticker

included)

Rail Mount

(Camouflaged Sticker

included)

Floaty Cake and

Velcro Strap

1

7

1.4 About the Camcorder

Refer to the following illustrations to familiarize yourself with the
buttons and controls of this camcorder.

1.4.1 Camcorder Views

Power/Status
LED 1

Lens

Speaker

HDMI port

Shutter button

Power/Status/B

attery LED 2

Power / Mode
button

OLED screen

microSD card

slot

Battery compartment
cover

Power/Status LED 4

Microphone

jack

Micro USB

port

Microphone

Power/Status

LED 3

18

1.4.2 Button Functions

Power / Mode

Button

 Press and hold for 3 seconds to turn the

camcorder on or off.

 Press to switch to different modes: Video,

Photo, Burst, Time Lapse, Self-timer, and
Set mode.

 In Set mode, press to scroll through menu

items.

Shutter Button

 In Video mode, press to start/stop video

recording.

 In Photo mode, press to take a photo.
 In Set mode, press to select an item.

19

1.4.3 LED Indicators

The camcorder has four LED indicators.

The Power/Status LEDs are located on top, on the bottom, and on the
back of the camcorder. These LEDs are designed for users to see the
status of the camcorder whichever way the camcorder is held or
mounted.

LED Color Description

Green Power is on

Green Blinking Taking photos

Red Blinking Video recording in progress / RF

remote control in progress

Power / Status
LED

Red Blinking
Rapidly

Self-timer

Red Blinking

Battery is charging

Battery LED

Off Full charge

20

2 Getting Started

Read this section to learn how to start using the camcorder. This section
covers basic functions such as switching on, installing the battery and
microSD card, and configuring preliminary settings. See later chapters
for advanced functions.

2.1 Installing the microSD Card

A microSD card is required to capture photos and videos. The camcorder
supports microSDHC cards up to 32GB (class 6 speed or greater).

1. Insert the microSD card into the card slot with the gold

contacts facing the front of the device.

2. Push the microSD card until it clicks into place.

 Warning: Do not remove the microSD card while data is being

recorded. Doing so may corrupt the saved data and damage the card.

21

2.1.1 Removing the microSD card

1. Turn off the camcorder.

2. With a fingertip, push the microSD card to eject it from the

slot.

3. Remove the microSD card.

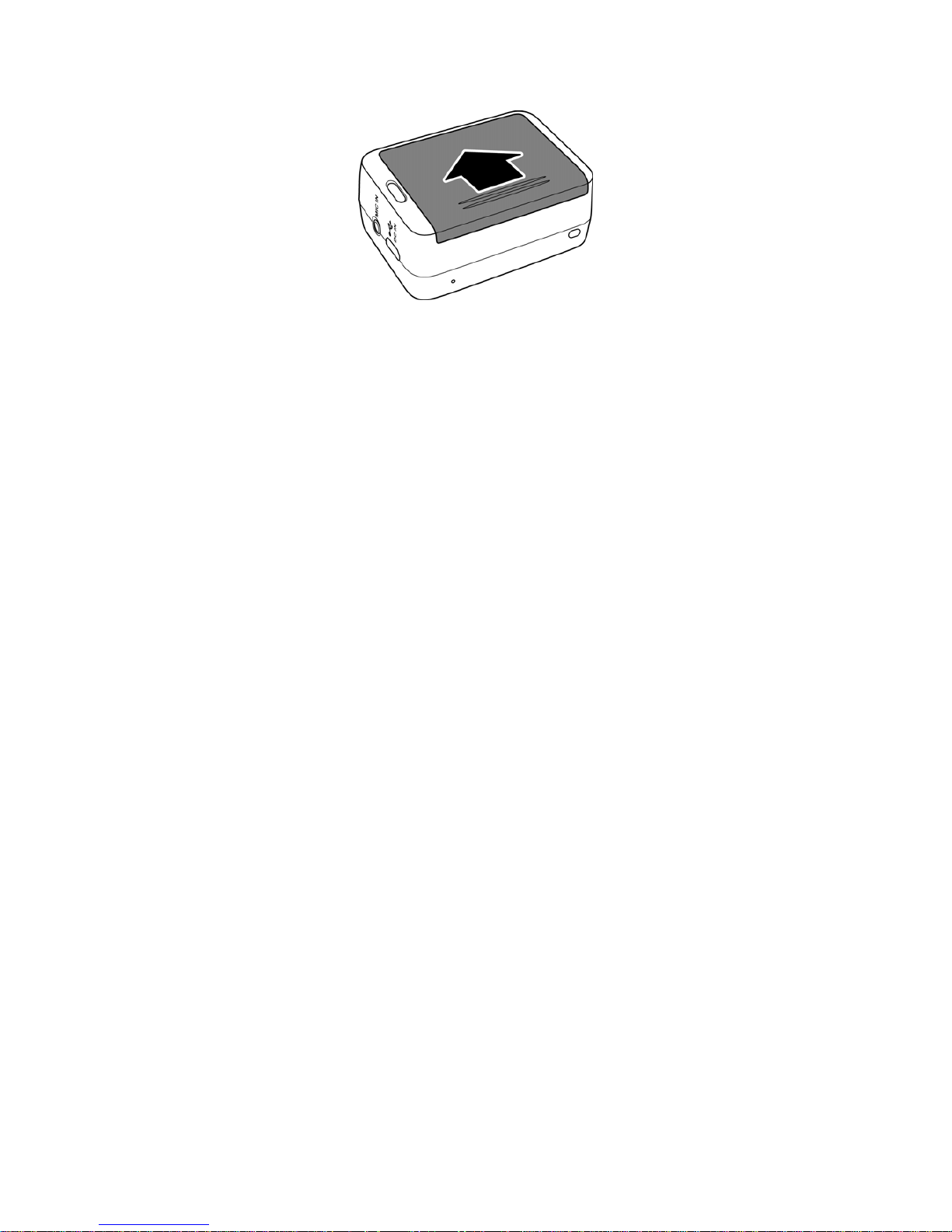

2.2 Installing the Battery

 Warning: Use only the supplied battery or a similar battery

recommended by the manufacturer or the dealer.

1. Push down the battery compartment cover to open it.

2. Align the battery contacts and then insert the battery into the

compartment with the ribbon underneath the battery.

3. Close the battery compartment cover.

22

2.2.1 Removing the battery

1. Open the battery compartment cover.

2. Pull the ribbon to remove the battery.

23

2.3 Charging the Battery

You can charge the battery using the micro USB cable that came with the
camcorder. Follow the steps below to charge the battery.

1. Install the battery into the

battery compartment.

2. Plug the micro USB

connector to the micro USB
port of your device.

3. Plug the other end of the

micro USB cable to a
computer.

The battery LED blinks red. After a full charge, the LED turns off.

Approximate charging time is 240 minutes with a USB connection.
Actual charging time depends on current battery capacity and
charging conditions.

You may also use the supplied
AC adapter to charge your
camera battery.

24

2.4 Turning ON/ OFF the Camcorder

 To turn on the camcorder, press the

Power button. The Power/Status
LED indicator lights green for 3
seconds.

 To turn off the camcorder, press and

hold the Power button for 3 seconds.

25

2.5 OLED Screen

When the camcorder is turned on, the OLED screen displays the following
information:

3

1

4

5

2

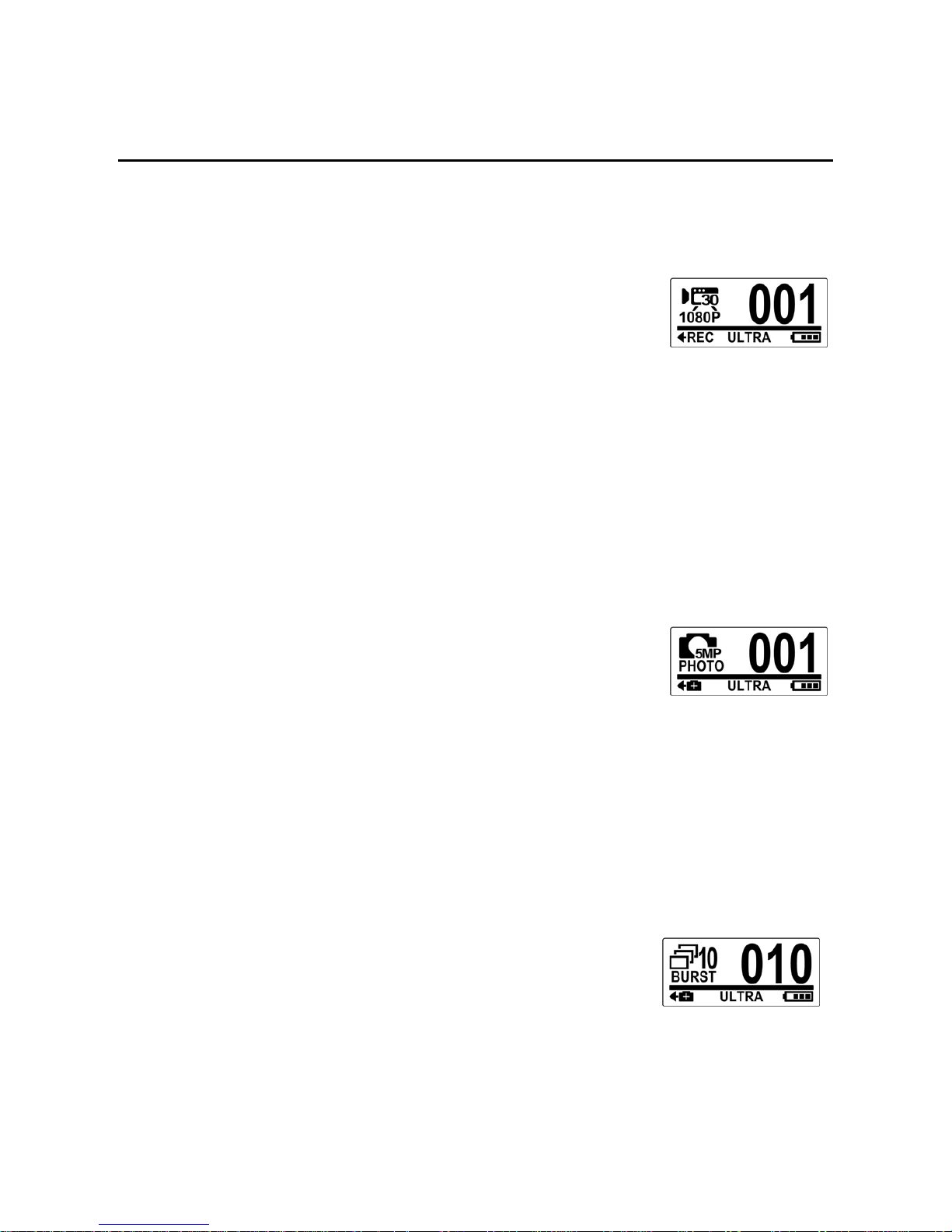

Current Mode

Displays the current mode of the
camcorder.

Video Mode

Use this mode to record videos. The
icon also indicates the current video
recording settings.

Photo Mode

Use this mode to capture photos. The
icon also indicates the current capture
settings.

1

Burst Mode

Use this mode to capture 10 continuous
photos with one press of the Shutter
button. The icon also indicates the
current capture settings.

26

Time Lapse
Mode

In this mode, photos are continuously
captured with a specific interval time
when the Shutter button is pressed. To
stop capturing, press the Shutter
button again. The icon also indicates
the current capture settings.

Self-timer
Mode

In this mode, photos are taken 10
seconds after pressing the Shutter
button. The icon also indicates the
current capture settings.

1

Set Mode

Use this mode to adjust the settings of
your camcorder.

Button Function

Indicates the operation that the
camcorder will do when the Shutter
button is pressed. The displayed icon
varies depending on the mode.

Record

Press the Shutter button to record
videos.

2

Capture

Press the Shutter button to capture
photos.

3 Field of View (FOV)

Indicates the field of view of the
camera lens: Wide or Ultra.

4 Number of Files

Indicates the total number of videos
and photos saved in the micro SD card.

5

Battery Indicates the battery capacity.

2

7

2.6 Changing Modes

Press the Mode button repeatedly to switch modes.

Video Mode Photo Mode Burst Mode

Setting Mode

Self-Timer Mode

Time Lapse Mode

28

2.7 Connecting to TV (HDMI Cable)

You can also connect the camcorder to a TV using the HDMI cable
(optional).

2.8 Connecting to PC (Micro USB Cable)

Connect the camcorder to a computer with the micro USB cable provided
as shown.

29

3 Capturing Videos and Photos

3.1 Recording Videos

1. Turn on the camcorder. By default, the camcorder

automatically opens to Video mode.

2. Press the Shutter button to start

recording.

3. Press the Shutter button to stop recording.

3.2 Taking Photos

1. Turn on the camcorder.

2. Press the Mode button to switch to Photo mode.

3. Press the Shutter button to capture a

photo.

3.2.1 Burst Shooting

This feature allows you to capture 10 photos with one press of the
Shutter button.

1. Press the Mode button repeatedly to switch to Burst mode.

2. Press the Shutter button to start

capturing photos.

30

3.2.2 Time Lapse Shooting

This feature allows you to continuously capture photos with one press of
the Shutter button at the preset interval time (1/3/5/10/30/60 seconds).
Shooting only stops when the Shutter button is pressed again. Those
continuous shots are combined and saved into one video automatically.
The recorded video is played back in fast motion (faster than the normal
playback speed). You can use this feature to record videos such as
evolution of a construction project, weather changes, or flower blossom.

1. Press the Mode button repeatedly to switch to Time Lapse

mode.

2. Press the Shutter button to start

capturing photos.

3. Press the Shutter button again to stop capturing photos.

3.2.3 Self-Timer

This feature allows you to capture a photo after a 10-second delay.

1. Press the Mode button repeatedly to switch to Self-timer

mode.

2. Press the Shutter button. The photo is

captured after 10 seconds.

31

4 Adjusting the Settings

To adjust the camcorder settings, press the Mode button repeatedly to
switch to Set mode and then press the Shutter button to confirm. The
screen below is displayed:

1

2

4

3

SETUP Menu

Select SETUP to adjust capture
settings.

Video Select to adjust the video resolution.

FOV

Select to adjust the field of view of the
camera.

Time Lapse

Select to adjust the interval time
between capturing photos in Time
Lapse mode.

Up/Down

Select to set the camcorder direction
upside down. This feature is useful
when using the camcorder as a vehicle
recorder.

Delete

Select to delete captured videos or
photos from the micro SD card.

1

Exit

Select to close the SETUP menu and
return to the previous menu screen.

2

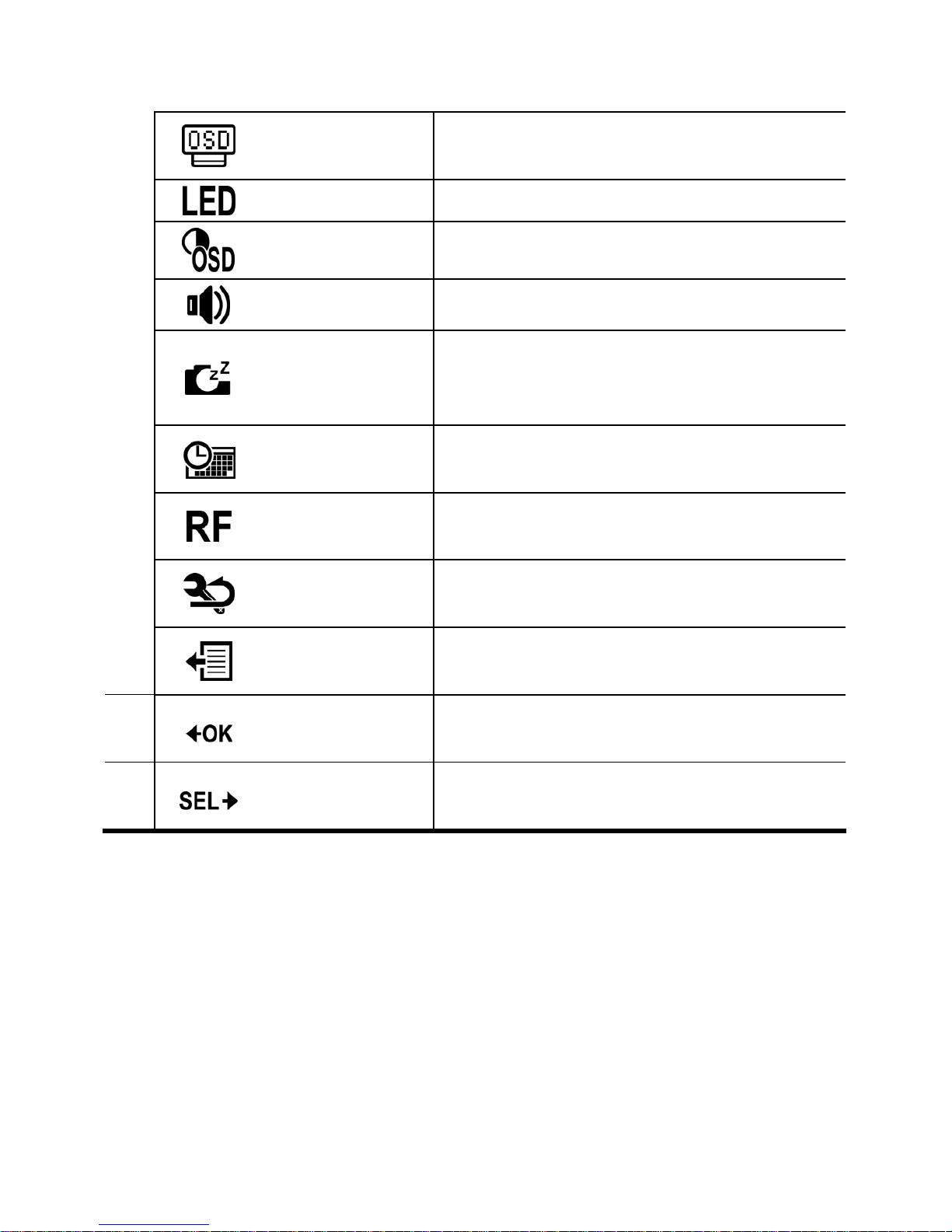

MORE Menu

Select MORE to adjust basic camera
settings.

32

Up/Down

Select to set the direction of the OSD
screen display.

LED Select to turn the LED on or off.

Bright Select to adjust the screen brightness.

Beep Select to adjust the beep volume.

Auto-Off

Select to set the time for the
camcorder to automatically turn off
when not in use.

Time

Select to set the camcorder date and
time.

RF

Select to pair with the RF remote
control.

Default

Select to set the camcorder to default
factory settings.

Exit

Select to close the MORE menu and
return to the previous menu screen.

3

Confirm

Press the Shutter button to confirm a
highlighted item.

4

Select

Press the Mode button to scroll and
highlight menu items.

33

4.1 Video Resolution

The HP ac200w captures photos with a fixed resolution of 5M and
supports three resolution options for videos.

Do the following to select the video resolution.

1. Press the Mode button repeatedly to change to SET mode.

2. Press the Shutter button to enter SET mode.

3. Press the Mode button to highlight SETUP.

4. Press the Shutter button to enter the SETUP menu.

5. Press the Shutter button to enter the VIDEO submenu.

6. Press the Mode button repeatedly to scroll through the

resolution options.

16:9 Full HD Video,
1080P (1920x1080, 30fps)

4:3 Widest HD Video,
960P (1280x960, 30fps)

16:9 HD video,
720P (1280x720, 60fps)

7. Press the Shutter button to confirm.

8. To exit the menu, press the Mode button repeatedly until the

EXIT screen appears.

34

9. Press the Shutter button to exit SET mode.

4.2 Field of View (FOV)

This menu allows you to select the view angle of the camcorder lens.

Do the following to select the FOV.

1. Press the Mode button repeatedly to change to SET mode.

2. Press the Shutter button to enter SET mode.

3. Press the Mode button to highlight SETUP.

4. Press the Shutter button to enter the SETUP menu.

5. Press the Mode button to highlight FOV.

6. Press the Shutter button to enter the FOV submenu.

7. Press the Mode button to select ULTRA or WIDE.

Ultra wide angle lens

Wide angle lens

8. Press the Shutter button to confirm.

35

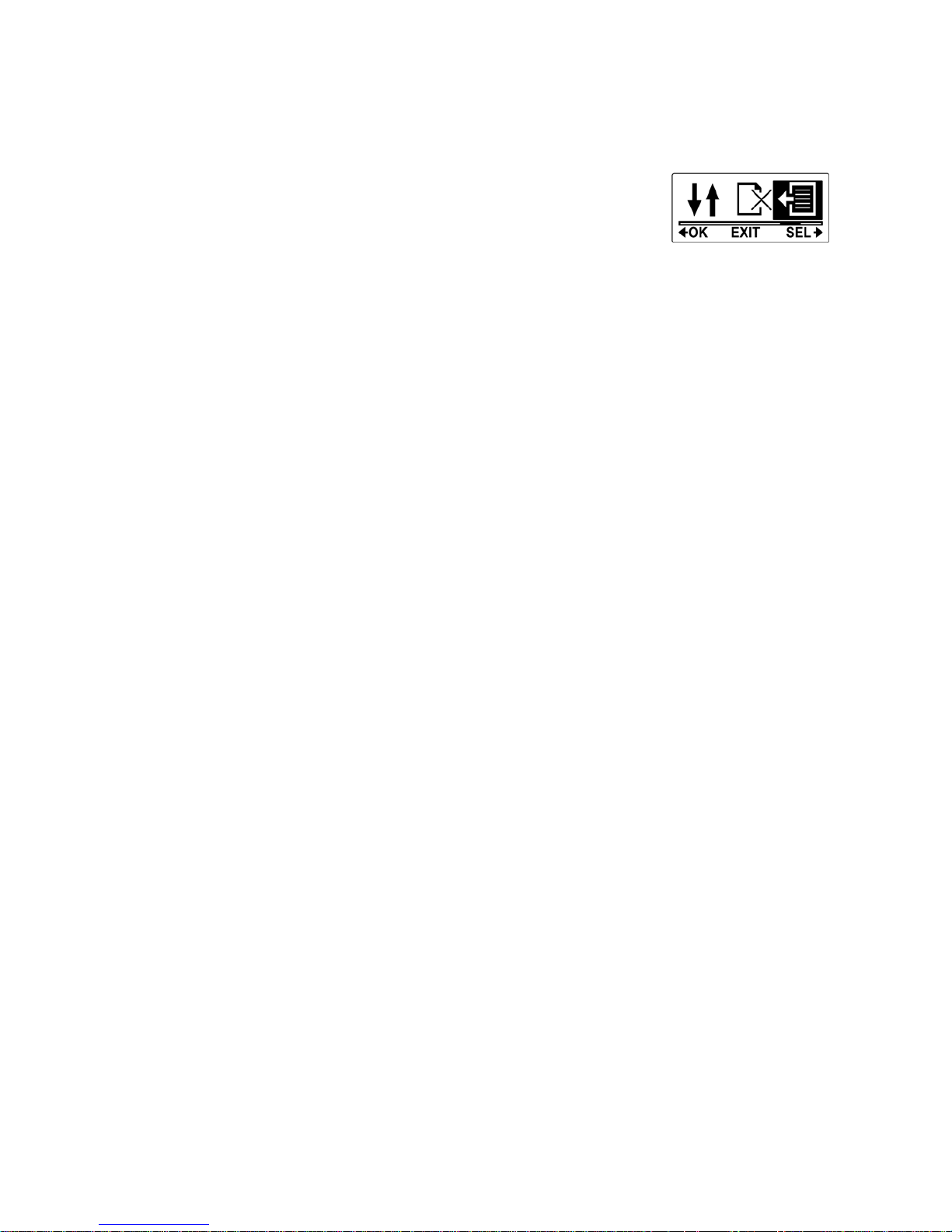

9. To exit the menu, press the Mode button

repeatedly until the EXIT screen appears.

10. Press the Shutter button to exit SET

mode.

 Note: Ultra and Wide are only available in Photo mode. The FOV for

Video mode is always Ultra.

4.3 Shooting Interval

This menu allows you to select the interval options when capturing
photos using Lapse mode.

Do the following to select the shooting interval.

1. Press the Mode button repeatedly to change to SET mode.

2. Press the Shutter button to enter SET mode.

3. Press the Mode button to highlight SETUP.

4. Press the Shutter button to enter the SETUP menu.

5. Press the Mode button to highlight LAPSE.

6. Press the Shutter button to enter the LAPSE submenu.

7. Press the Mode button repeatedly to scroll through the

shooting interval options: 1 SEC, 3 SEC, 5 SEC, 10 SEC,
30 SEC, and 60 SEC.

36

8. Press the Shutter button to confirm.

9. To exit the menu, press the Mode button

repeatedly until the EXIT screen appears.

10. Press the Shutter button to exit SET

mode.

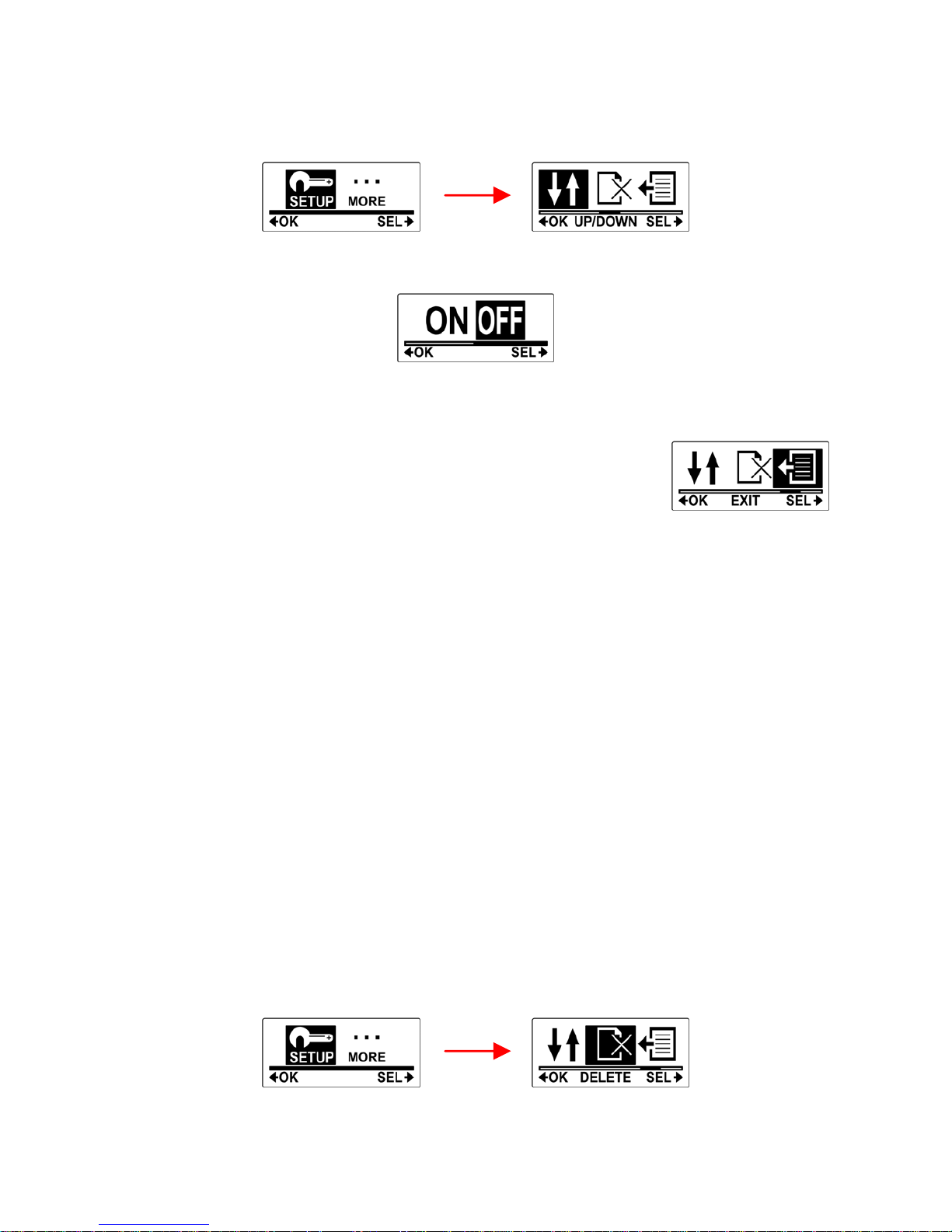

4.4 Up/Down

This menu allows you to capture videos and photos upside down. You can
enable this feature when you mount the camera upside down so that the
captured shots appear right side up when you review it on your computer
or TV.

Do the following to enable this feature.

1. Press the Mode button repeatedly to change to SET mode.

2. Press the Shutter button to enter SET mode.

3. Press the Mode button to highlight SETUP.

4. Press the Shutter button to enter the SETUP menu.

5. Press the Mode button to highlight UP/DOWN.

3

7

6. Press the Shutter button to enter the UP/DOWN submenu.

7. Press the Mode button to select ON or OFF.

8. Press the Shutter button to confirm.

9. To exit the menu, press the Mode button

repeatedly until the EXIT screen appears.

10. Press the Shutter button to exit SET

mode.

4.5 Delete

This menu allows you to delete all files in the Micro SD card.

Do the following to delete all files.

1. Press the Mode button repeatedly to change to SET mode.

2. Press the Select button to enter SET mode.

3. Press the Mode button to highlight SETUP.

4. Press the Shutter button to enter the SETUP menu.

5. Press the Mode button repeatedly to highlight DELETE.

6. Press the Shutter button to enter the DELETE submenu.

38

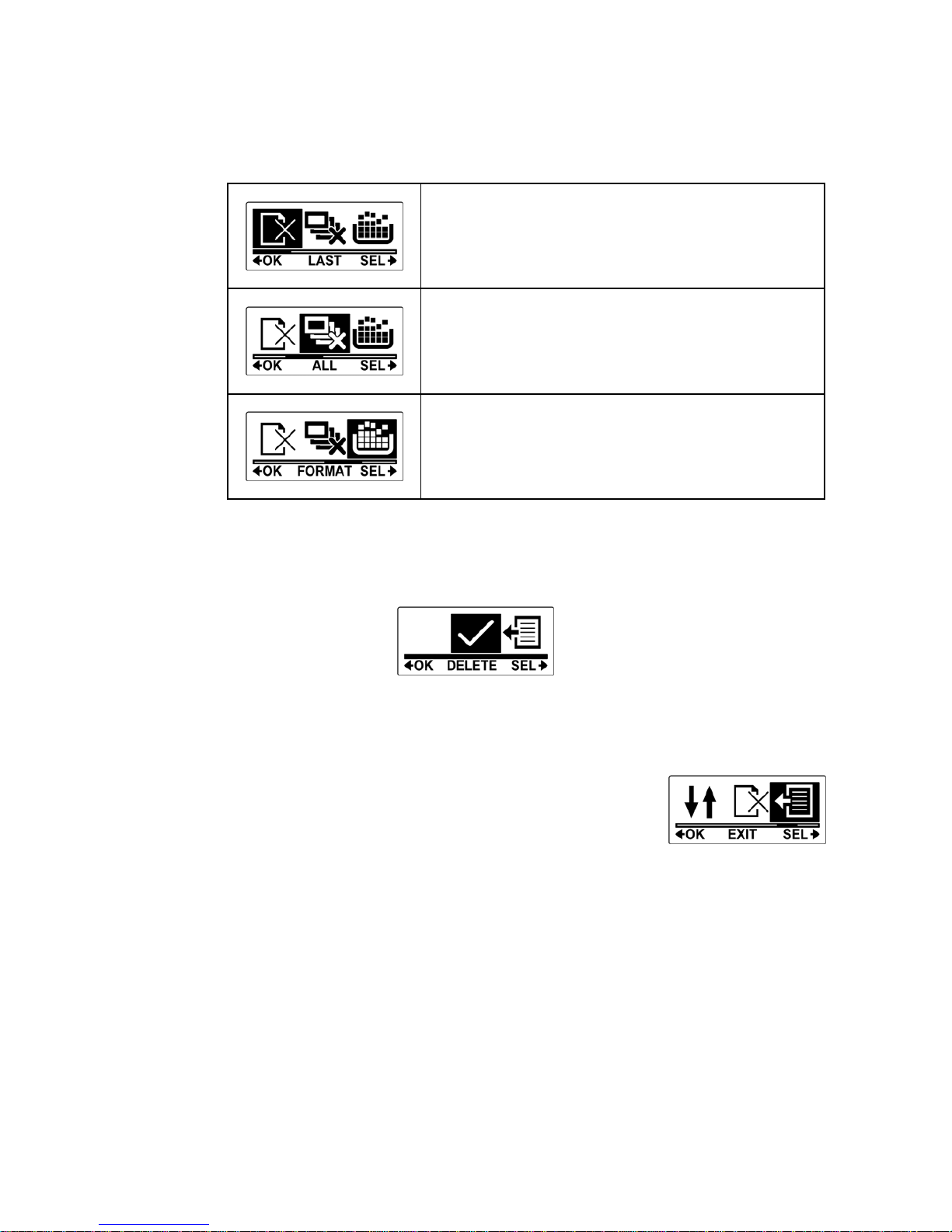

7. Press the Mode button repeatedly to scroll through the delete

options.

To delete the last captured video or
photo.

To delete all files in the micro SD card.

To format the micro SD card.

8. Press the Shutter button to confirm.

9. Press the Mode button to select √ to confirm deletion.

10. Press the Shutter button to confirm.

11. To exit the menu, press the Mode button repeatedly until the

EXIT screen appears.

12. Press the Shutter button to exit SET

mode.

39

4.6 OSD Up/Down

This menu allows you to display the OLED screen upside down.
Do the following to enable this feature.

1. Press the Mode button repeatedly to change to SET mode.

2. Press the Shutter button to enter SET mode.

3. Press the Shutter button to enter the MORE menu.

4. Press the Shutter button to enter the UP/DOWN submenu.

5. Press the Mode button to select OSD UP or OSD DOWN.

6. Press the Shutter button to confirm.

7. To exit the menu, press the Mode button

repeatedly until the EXIT screen appears.

8. Press the Shutter button to exit SET

mode.

40

4.7 LED

This menu allows you to turn the LED on or off.

Do the following to turn the LED on or off.

1. Press the Mode button repeatedly to change to SET mode.

2. Press the Shutter button to enter SET mode.

3. Press the Shutter button to enter the MORE menu.

4. Press the Mode button to highlight LED.

5. Press the Shutter button to enter the LED submenu.

6. Press the Mode button to select ON or OFF.

7. Press the Shutter button to confirm.

8. To exit the menu, press the Mode button

repeatedly until the EXIT screen appears.

9. Press the Shutter button to exit SET mode.

41

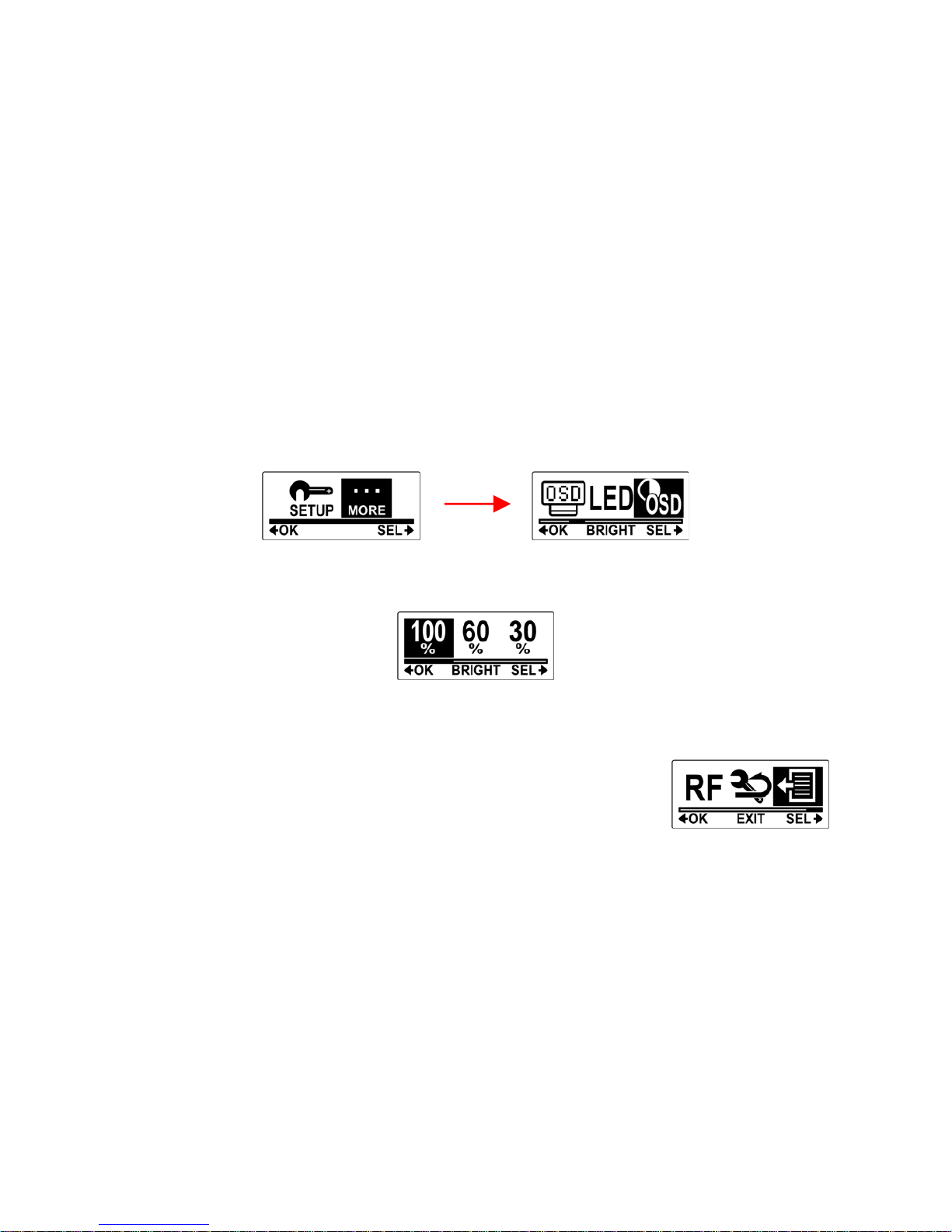

4.8 Brightness

This menu allows you to adjust the OLED screen brightness.
Do the following to adjust the screen brightness.

1. Press the Mode button repeatedly to change to SET mode.

2. Press the Shutter button to enter SET mode.

3. Press the Shutter button to enter the MORE menu.

4. Press the Mode button repeatedly to highlight BRIGHT.

5. Press the Shutter button to enter the BRIGHT submenu.

6. Press the Mode button repeatedly to select 100%, 60%, or

30%.

7. Press the Shutter button to confirm.

8. To exit the menu, press the Mode button

repeatedly until the EXIT screen appears.

9. Press the Shutter button to exit SET

mode.

42

4.9 Beep

This menu allows you to enable or disable the beep sound when you
press the Power / Mode or Shutter buttons.

Do the following to enable or disable the beep sound.

1. Press the Mode button repeatedly to change to SET mode.

2. Press the Shutter button to enter SET mode.

3. Press the Shutter button to enter the MORE menu.

4. Press the Mode button repeatedly to highlight BEEP.

5. Press the Shutter button to enter the BEEP submenu.

6. Press the Mode button repeatedly to scroll through the beep

options.

To set the beep volume to its loudest.

To set the beep volume to middle
range.

To turn off beep.

7. Press the Shutter button to confirm.

8. To exit the menu, press the Mode button

repeatedly until the EXIT screen appears.

43

9. Press the Shutter button to exit SET mode.

4.10 Auto-Off

This menu allows you to program the camcorder to automatically turn
off after being idle for a specific period of time, or you can set the setting
to OFF to keep the camcorder on until you manually turn it off.

Do the following to select the auto-off option.

1. Press the Mode button repeatedly to change to SET mode.

2. Press the Shutter button to enter SET mode.

3. Press the Shutter button to enter the MORE menu.

4. Press the Mode button repeatedly to highlight AUTO-OFF.

5. Press the Shutter button to enter the AUTO-OFF submenu.

6. Press the Mode button repeatedly to select 1 MIN, 3 MIN, 5

MIN, 10 MIN, 30 MIN, 60 MIN, or OFF.

7. Press the Shutter button to confirm.

8. To exit the menu, press the Mode button

repeatedly until the EXIT screen appears.

9. Press the Shutter button to exit SET mode.

44

4.11 Date and Time

This menu allows you to set the camcorder date and time settings.

Do the following to set the camcorder date and time.

1. Press the Mode button repeatedly to change to SET mode.

2. Press the Shutter button to enter SET mode.

3. Press the Shutter button to enter the MORE menu.

4. Press the Mode button to highlight TIME.

5. Press the Shutter button to enter the TIME submenu. The

Year is highlighted.

6. Press the Shutter button repeatedly to adjust the year.

7. When done, press the Mode button to go to the month field.

Year

Hour

Minute

Month

Day

8. Press the Shutter button repeatedly to adjust the month

value, and then press the Mode button to go to the day field.

9. Press the Shutter button repeatedly to adjust the day value,

and then press the Mode button to go to the hour field.

45

10. Press the Shutter button repeatedly to adjust the hour value,

and then press the Mode button to go to the minute field.

11. Press the Shutter button repeatedly to adjust the minute

value, and then press the Mode button to highlight OK.

12. Press the Shutter button to complete the date and time

setting.

13. To exit the menu, press the Mode button

repeatedly until the EXIT screen appears.

14. Press the Shutter button to exit SET

mode.

4.12 RF

This menu allows you to pair your camcorder with the RF wrist strap
remote control (optional accessory). When the devices are paired, you
can record videos or capture photos by pressing the corresponding
buttons on the RF wrist strap remote control.

Do the following to pair your RF wrist strap remote control.

1. Press the Mode button repeatedly to change to SET mode.

2. Press the Shutter button to enter SET mode.

3. Press the Shutter button to enter the MORE menu.

4. Press the Mode button to highlight BINDING.

5. Press the Shutter button to enter the BINDING submenu.

46

6. The camcorder RF antenna is enabled and ready to be paired

with the RF wrist strap remote control.

7. Press both the video and photo buttons on your RF wrist strap

remote control to process pairing. When the red LED on the RF
wrist strap remote control flash once, pairing is complete.

8. To exit the menu, press the Mode button

repeatedly until the EXIT screen appears.

9. Press the Shutter button to exit SET mode.

4

7

4.13 Factory Default

This menu allows you to restore the default factory settings of your
camcorder.

Do the following to restore the factory default settings.

1. Press the Mode button repeatedly to change to SET mode.

2. Press the Shutter button to enter SET mode.

3. Press the Shutter button to enter the MORE menu.

4. Press the Mode button to highlight DEFAULT.

5. Press the Shutter button to enter the DEFAULT submenu.

6. Press the Mode button to select √.

7. Press the Shutter button to confirm.

8. To exit the menu, press the Mode button

repeatedly until the EXIT screen appears.

9. Press the Shutter button to exit SET

mode.

48

5 Using the Accessories

The camcorder comes with rugged accessories for all your sporting
needs.

5.1 Waterproof Case

The waterproof case allows you to take underwater shots or use it with
the surface mount, bike mount, or chest strap to capture other water
sports activities.

5.1.1 Using the Waterproof Case

1. Release the case lock and flip open the waterproof case.

2. Install the camcorder inside the waterproof case.

49

3. Secure the waterproof case lock.

The waterproof case can be used with other accessories such as the
swivel T tip, bike mount, chest mount, head mount, etc.

5.1.2 Changing the T Tip Adapter

Depending on the accessories that you want to use with the case, the T
tip adapter may be detached and attached to another housing back door
or location. To detach the T tip adapter, remove the four screws securing
each tip adapter to the case.

50

5.1.3 Changing the Housing Back Door

Depending on the accessories that you want to use with the case, you
may need to change the housing back door. Two back doors are included
in the standard package: the waterproof housing back door, and the
vented housing back door.

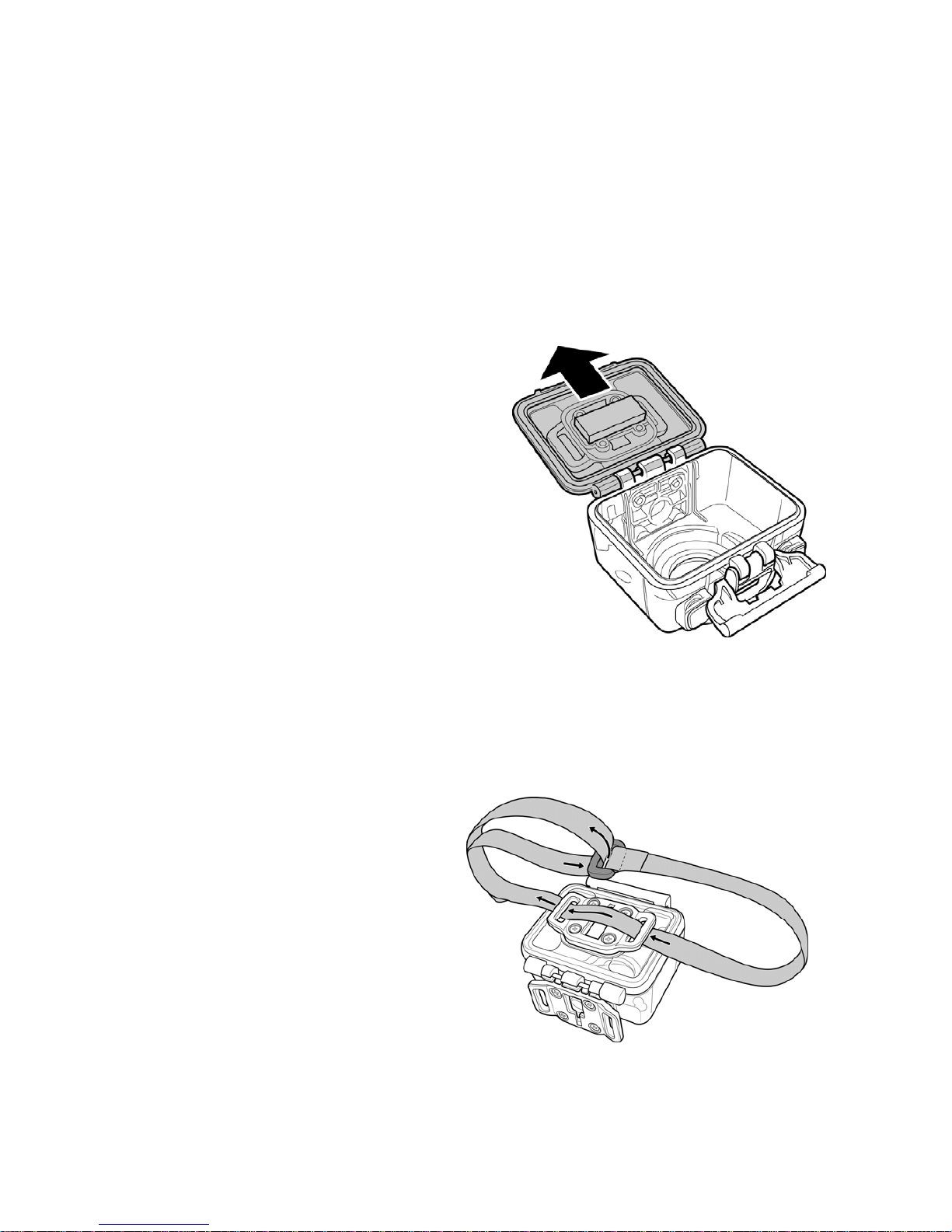

Do the following to change the housing back door:

1. Open the back door

completely.

2. Pull to detach the back

door from the case.

3. Detach the T tip adapter

from the current back
door and install the T tip
adapter to the back door
you want to use.

4. Install the back door.

5.2 Velcro Strap

The Velcro strap can be used to secure the waterproof case onto any
object to conveniently record
photos and videos.

To install the Velcro strap, insert
the strap through the strap
holes of the tip adapter as
shown below.

51

5.3 Assembling the Camcorder Accessories

Lock the T tip adapter to the T tip of the adjoining accessories to install
them to your camcorder.

52

5.4 Wrist Strap Remote Control

Before using the RF wrist strap remote control, you must pair it with the
camcorder. Take note that only one camcorder can be paired to the RF
wrist strap remote control at a time.

Do the following to pair your RF wrist strap remote control.

1. On the camcorder, press the Mode button repeatedly to

change to SET mode.

2. Press the Shutter button to enter SET mode.

3. Press the Shutter button to enter the MORE menu.

4. Press the Mode button to highlight BINDING.

5. Press the Shutter button to enter the BINDING submenu.

6. The camcorder RF antenna is enabled and ready to be paired

with the RF wrist strap remote control.

7. On your RF wrist strap remote control, press both the Video

and Photo buttons at the same time. When the red LED flash
once, pairing is complete.

53

8. Press the Video button to start and stop video recording. To

take photos, press the Photo button.

 Note 1: To take photos using burst mode, time lapse, or self-timer,

switch to the respective mode on your camcorder and then press the
Photo button on your RF wrist strap remote control. However, only
one photo can be taken in time lapse mode when using the RF wrist
strap remote control.

 Note 2: Even if your camcorder is in Video mode, you can still take

photos by pressing the Photo button on your RF wrist strap remote
control.

 Note 3: The maximum operation distance of the remote control is

approximately 5m when the RF wrist strap remote control is pointed
at the remote control sensor of the camcorder.

54

Appendix

Specifications

General

Imaging sensor 1/2.5” CMOS 5.0 Megapixel Sensor

Active pixels 5.0 Megapixel

Storage media Internal: Built-in 128MB Flash Memory

SD Card, SDHC compatible (up to SDHC 32GB
Class6)

Sensor sensitivity Auto

Camera Optics Fixed lens

Wide: F2.8, f=2.5mm
110°/1080p, 150°/720p, 162° in 960p,
165 in 5M Photo

Focus range 30cm ~ infinity

Still image Format: JPEG (EXIF 2.2), DCF

Resolution: 5M
Mode: Signal shot 10 Photo Burst, Time-Lapse
(every 1, 3, 5, 10, 30, 60 sec)

Movie clips Format: H.264 (AVI)

Resolution: 1080p: 1920x1080 (30fps),
960p: 1280x960 (30fps),
720p: 1280x720 (60fps)

Zoom NA

Exposure Setting Auto

55

General

EV Compensation -2.0EV ~ +2.0EV (Auto)

PC interface USB 2.0 (High Speed)

TV out format HDMI

Shutter speed Still: 1/30 ~ 1/4000 sec.

Video: 1/30 ~ 1/2000 sec.

Auto power off 1min / 3min / 5min / 10min / 30min / 60min /

Off

Power supply Rechargeable 1130 mAh Li-ion Battery

Dimensions 42.7 (H) x 59.2 (W) x 26.4 (D) mm.

(without lens)

Weight

Approx. 783g (without Waterproof Case)

56

Troubleshooting

Problem Possible Cause Solution

The battery LED is
flashing red.

The battery is almost
used up.

Replace with a new
battery or charge the
battery.

Nothing happens
when the Shutter
button is pressed.

The Micro SD card is
full. You cannot take
photos or record
videos at this point.

Transfer the Micro SD
card files to the
computer or delete the
files in the Micro SD
card.

Nothing happens
when the Shutter
button is pressed.
“000” appears on
the screen.

The Micro SD card may
have compatibility
issues.

Format the Micro SD card
first using the camcorder
(Delete menu). If it still
does not work, format
the Micro SD card using
the PC.

Nothing happens
when the Shutter
button is pressed.
“000” appears on
the screen.

The Micro SD card is
not inserted.

Insert the Micro SD card.

5

7
