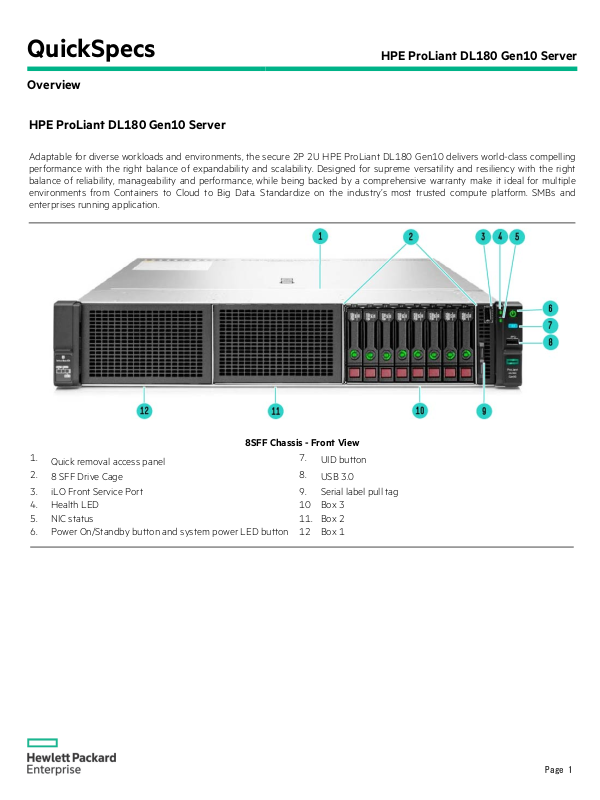

Page 1

QuickSpecs

HPE ProLiant DL180 Gen10 Server

Overview

HPE ProLiant DL180 Gen10 Server

Adaptable for diver

compelling

performance

with the right

balance of reliability

while being backed by a comprehensive warranty make it ideal for multiple

enviro

SMBs and

enterprises running application

8SFF Chassis - Front View

Quick removal access panel

UID button

8 SFF Drive Cage

USB

iLO Front Service Port

Serial label pull tag

Health LED

Box 3

NIC status

11.

Box 2

Power On/Standby button and system power LED button

Box 1

se workloads and environments, the secure 2P 2U HPE ProLiant DL180 Gen10 delivers world-class

with the right balance of expandability and scalability. Designed for supreme versatility and resiliency

, manageability and performance,

nments from Containers to Cloud to Big Data. Standardize on the industry’s most trusted compute platform.

3.0

Page

Page 2

QuickSpecs

HPE ProLiant DL180 Gen10 Server

Overview

8SFF Chassis – with optional 2nd CPU - Internal View

Fan cage shown with 6 Hot-swap fans

Power Supply

DDR4 DIMM slots. Shown fully populated in 16 slots (8 per processor)

Primary PCIe riser, standard

Optional HPE Smart Storage Battery (Battery not shown)

Flexible Smart Array Connector

Drive Backplane

Mini-SAS port 2

2 Processors, heatsink showing

Mini-SAS port 1

System Battery

Mini-SAS port 3

Internal USB 3.0 port

SATA Ports

Connection for second (optional) riser (Requires second CPU)

Connector

Page

Page 3

QuickSpecs

HPE ProLiant DL180 Gen10 Server

Overview

Rear View

Primary Riser. PCI Slots (Slots 1-3 top to bottom, riser shipped standard, not shown)

VGA Port

Secondary Riser. PCI Slots (Slots 4-6top, not shown, requires second riser card, and second processor).

Dedicated iLO management port

Power Supply (Redundant Hot plug shown)

USB connectors 3.0 (2)

Embedded 2 x 1GbE Network Adapter

Page

Page 4

QuickSpecs

HPE ProLiant DL180 Gen10 Server

Overview

LFF Chassis - Front View

Quick removal access panel

USB 3.0

iLO Front Service Port

LFF Drive cage

Health LED

Box 3

NIC Status

Box 2

Power On/Standby button and system power LED button

Box 1

UID button

Page

Page 5

QuickSpecs

HPE ProLiant DL180 Gen10 Server

Overview

What’s New Additional options available to add as “ad

• 1Gb/10Gb/25Gb PCIe stand-up network adapaters

Platform Information Form Factor 2U rack

Chassis Types

8 SFF 8 LFF

NOTE: All models come with the S100i Smart Array Controller with embedded software RAID support for 14 drives. However this

needs to be enabled using Enable SW RAID option (784308-B21) while configuring.

System Fans

Standard – fan types

Non-Redundant

Redundant

1P Model

3 fans (4,5,6)

4 fans (2,4,5,6)

2P Model

5 fans (2,3,4,5,6)

6 fans (1,2,3,4,5,6)

-hoc” in OCA

• Introducing the ‘8 to 12 LFF’ and ‘16 to 24 SFF’ Upgrade Kits

• SATA M.2 options

• HPE 8GB 1Rx8 PC4-2666V-R Smart Kit

• Upto 4TB SATA LFF HDDs

• Upto 2TB SATA/SAS SFF HDDs

Page

Page 6

QuickSpecs

HPE ProLiant DL180 Gen10 Server

Standard Features

Intel Xeon Models

CPU

Cores

L3 Cache

Power

UPI

DDR4

Memory

Silver Processors

Silver 4110 Processor

2.1 GHz

11.00 MB

85W

2 @ 9.6 GT/s

2400 MT/s

768 GB

Bronze Processors

Bronze 3106 Processor

1.7 GHz

11.00 MB

85W

2 @ 9.6 GT/s

2133 MT/s

768 GB

Channel DDR4 @ 2400 MHz providing up to 768 GB memory

bit FMA), 48 lanes PCIe 3.0,

Channel DDR4 @ 2133 MHz providing up to

768GB memory capacity. Intel AVX-512(1x 512-bit FMA), 48 lanes PCIe 3.0, standard RAS supported.

Chipset

URL: http://www.intel.com/products/server/chipsets/

On System Management Chipset

NOTE: Read and learn more in the iLO QuickSpecs.

Memory

DIMM Slots Available

8 DIMM slots per processor, 6 channels per processor, 2 channels @ 2 DIMMs per channel, 4 channels @ 1 DIMM per channel

Maximum capacity (RDIMM)

256 GB

16 x 16 GB RDIMM @ 2400 MT/s

Memory Protection

Processors – Up to 2 of the following depending on model.

NOTE: For more information regarding Intel Xeon processors, please see the following http://www.intel.com/xeon

Frequency

NOTE: Silver – 4100 Series - 2 Socket supports 2UPI @ 9.6 GT/s, 6-

capacity. Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1x 512standard RAS supported. NOTE: Bronze – 3100 Series - 2 Socket supports 2UPI @ 9.6 GT/s, supports 6-

Intel C622 Chipset

NOTE: For more information regarding Intel® chipsets, please see the following

HPE iLO 5 ASIC

per socket

One of the following depending on model Type:

HPE DDR4 SmartMemory, Registered (RDIMM), HPE DDR4 Standard Memory, Registered (RDIMM)

For details on the HPE Server Memory Options RAS feature, visit: http://www.hpe.com/docs/memory-ras-feature.

Page

Page 7

QuickSpecs

HPE ProLiant DL180 Gen10 Server

Standard Features

Expansion Slots

Slots #

Technology

Bus

Width

Connector Width

Slot Form Factor

Notes

PCIe 3.0

Full-height,

full-length slot

Proc 1

PCIe 3.0

Full-height,

Proc 1

PCIe 3.0

Full-height,

half-length slot

Proc 1

NOTE: Bus Width Indicates the number of physical electrical lanes running to the connector.

FlexibleLOM

Slots #

Technology

Bus

Width

Connector Width

Slot Form Factor

Notes

PCIe 3.0

Full-height,

Proc 1

PCIe 3.0

Full-height,

half-length slot

Proc 1

PCIe 3.0

FlexibleLOM

Proc 1

NOTE: Bus Width Indicates the number of physical electrical lanes running to the connector. NOTE: This riser is necessary to install FlexibleLOM adapters

CPU1 x16x8 riser

Slots #

Technology

Bus

Width

Connector Width

Slot Form Factor

Notes

PCIe 3.0

X16

Full-height,

full-length slot

Proc 1

PCIe 3.0

Full-height, half-

length slot

Proc 1

NOTE: Bus Width Indicates the number of physical electrical lanes running to the connector.

CPU2 x8x8x8 riser

Slots #

Technology

Bus

Width

Connector Width

Slot Form Factor

Notes

PCIe 3.0

Full-height,

full-length slot

Proc 2

PCIe 3.0

Full-height,

half-length slot

Proc 2

PCIe 3.0

Low profile

Proc 2

NOTE: Bus Width Indicates the number of physical electrical lanes running to the connector. NOTE: When populating the second optional riser slot, the second processor must be installed.

Storage Controllers

kout

One of the following depending on model

CPU1 x8x8x8 riser

half-length slot

full-length slot

The Gen10 controller naming framework has been updated to simplify identification as depicted below. For a more detailed brea of the available Gen10 Smart Array controllers visit the HPE Smart Array Gen10 Controllers Data Sheet.

Page

Page 8

QuickSpecs

HPE ProLiant DL180 Gen10 Server

Standard Features

Software RAID

an additional controller will

HPE Smart Array S100i SR Gen10 SW RAID only supports Windows and does not support Linux. For Linux users, HPE

disk RAID 1 boot volume. For more information

Essential RAID Controller

Internal Storage Devices

None ship standard

Maximum Internal Storage

Capacity

Configuration

Hot Plug SFF SAS

9.6 TB

8X1.2 TB

Hot Plug SFF SAS SSD

3.2 TB

8X400 GB

Hot Plug SFF SATA SSD

Hot Plug LFF SATA HDD

3.8 TB

32 TB

8X480 GB

8X4 TB

Power Supply

less

size" a power supply for specific server configurations. This flexibility

14 jumper cord (A0K02A). This jumper cord is also included with

HPE Server power supplies

• HPE Smart Array S100i SR Gen10 SW RAID

NOTE: HPE Smart Array S100i SR Gen10 SW RAID will operate in UEFI mode only. For legacy support be needed, and for CTO orders please also select the Legacy mode settings part, 758959-B22.

NOTE: HPE Smart Array S100i SR Gen10 SW RAID is off by default and must be enabled. NOTE: The S100i uses 14 embedded SATA ports NOTE:

offers a solution that uses in-distro open-source software to create a twovisit: https://downloads.linux.hpe.com/SDR/project/lsrrb/

• HPE Smart Array E208i-p SR Gen10 Controller

• HPE Smart Array E208e-p SR Gen10 Controller

• HPE Smart Array E208i-a SR Gen10 Controller

Performance RAID Controller

• HPE Smart Array P408i-a SR Gen10 Controller

NOTE: Performance RAID Controllers require the HPE Smart Storage Battery (P01366-B21) which is sold separately.

One of the following depending on model

Hard Drives

Hot Plug LFF SAS HDD

32 TB

8X4 TB

HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

NOTE: Available in 94% efficiency.

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, toolinstallation into HPE ProLiant Gen10 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation an offer multiple power output options, allowing users to "righthelps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center. All pre-configured servers ship with a standard 6-foot IEC C-13/Ceach standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page. To review the power requirements for your selected system, please use the HPE Power Advisor Tool. For information on power specifications and technical content visit

Page

Page 9

QuickSpecs

HPE ProLiant DL180 Gen10 Server

Standard Features

Interfaces

Video

1 rear – VGA Port (standard )

Network Ports

2 x 1 Gb ports shipping standard with optional Media Module, FlexibleLOM or stand up card

Management Network Port

1 Gb Dedicated

Front iLO Service Port

1 standard

Micro SD Slot

1 Micro SD

pluggable device. Customers should not attempt to plug an

SD card into the SD slot while the server is powered.

USB 3.0

Up to 4 total: 1 front, 2 rear, 1 internal (secure),

Operating Systems and Virtualization Software Support for ProLiant Servers

Industry Standard Compliance

For additional technical thermal details regarding ambient temperatures, humidity and features support please

• UEFI (Unified Extensible Firmware Interface Forum)

• Windows Server 2019 (Certified)

• Windows Server 2016

• VMware vSphere 6.0 U3

• VMware vSphere 6.5 U2

• Red Hat Enterprise Linux (RHEL)

• SUSE Linux Enterprise Server 12 SP4

• ACPI 6.1 Compliant

• PCIe 3.0 Compliant

• WOL Support

• Microsoft® Logo certifications

• PXE Support

• USB 3.0 Compliant (internal)

• SMBIOS 3.1

• UEFI 2.6

• Redfish API

• IPMI 2.0

• Secure Digital 2.0

• Advanced Encryption Standard (AES)

• Triple Data Encrytion Standard (3DES)

• SNMP v3

• TLS 1.2

• DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)

• Active Directory v1.0

• ASHRAE A3/A4

NOTE:

visit: http://www.hpe.com/servers/ashrae.

NOTE: The Micro SD slot is not a hot-

7.6 (with Kbase)

Page

Page 10

QuickSpecs

HPE ProLiant DL180 Gen10 Server

Standard Features

Graphics

− 4 Gbit DDR 3 with ECC protection

HPE Server UEFI/Legacy ROM

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured

have a UEFI Class 2

Based Setup Utility (RBSU) of legacy BIOS. For more

information, please visit http://www.hpe.com/servers/uefi.

HPE Server UEFI/Legacy ROM

• Workload Profiles for simple performance optimization

UEFI Boot Mode only:

ProLiant Gen10 Server.

Embedded Management

Learn more at http://www.hpe.com/info/ilo.

UEFI

http://www.hpe.com/servers/uefi

Intelligent Provisioning

Learn more athttp://www.hpe.com/servers/intelligentprovisioning.

• Integrated Video Standard

− Video modes up to 1920 x 1200@60Hz (32 bpp)

− 16MB Video Memory

• HPE iLO 5 on system management memory

− 32 MB Flash

configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen10 servers implementation and support both UEFI Mode (default) and Legacy BIOS Mode.

NOTE: The UEFI System Utilities tool is analogous to the HPE ROM-

UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

• Secure Boot and Secure Start enable for enhanced security

• Operating system specific functionality

• Support for > 2.2 TB (using GPT) boot drives

• USB 3.0 Stack

• Embedded UEFI Shell

• Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant

• PXE boot support for IPv6 networks

• iSCSI Software Initiator Support.

• HTTP/HTTPs Boot support as a PXE alternative.

Boot support for option cards that only support a UEFI option ROM

NOTE: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI. NOTE: UEFI FIO Setting (758959-B22) can be selected to configure the system in Legacy mode in the factory for your HPE

HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO.

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI). Learn more at

Hassle free server and OS provisioning for 1 or more servers with Intelligent Provisioning.

Page

Page 11

QuickSpecs

HPE ProLiant DL180 Gen10 Server

Standard Features

iLO RESTful API

RESTful API is Redfish API conformance and offers simplified server management automation such as configuration and

maintenance tasks based on modern industry standards. Learn more at http://www.hpe.com/info/restfulapi.

Server Utilities

ive

Active Health System Viewer

repair

recommendations, to learn more visit: http://www.hpe.com/servers/ahsv.

Smart Update

Keep your servers up to date with the HPE Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware

Service Pack for ProLiant

as a single

iLO Amplifier Pack

http://www.hpe.com/servers/iLOamplifierpack

HPE iLO Mobile Application

For additional information please visit: http://www.hpe.com/info/ilo/mobileapp.

RESTful Interface Tool

at scale.

http://www.hpe.com/info/resttool

Scripting Tools

Provision one to many servers using your own scripts to discover and deploy with Scripting Tool (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at http://www.hpe.com/servers/powershell.

HPE Systems Insight Manager (HPE SIM)

ity

HPE servers. HPE SIM also integrates with Smart Update Manager to provide

http://www.hpe.com/info/hpesim

iLO

Active Health System

The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proact health monitoring of HPE servers. Learn more at http://www.hpe.com/servers/ahs.

Use the Active Health System Viewer, a web-based portal, to easily read AHS logs and speed problem resolution with HPE self-

and driver updates of the Service Pack for ProLiant (SPP). Learn more at http://www.hpe.com/info/smartupdate.

The Service Pack for ProLiant (SPP) is a comprehensive collection of server firmware, drivers, and system software tested solution stack, which is delivered as a single ISO image. Learn more at http://www.hpe.com/servers/spp

Designed for large enterprise and service provider environments with hundreds of HPE servers, the iLO Amplifier Pack is a fre downloadable open virtual application (OVA) that delivers the power to discover, inventory and update Gen8, Gen9 and Gen10 HP servers at unmatched speed and scale. Use with an iLO Advanced License to unlock full capabilities. Learn more at

Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile device

RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers Learn more at

Ideal for environments already using HPE SIM, it allows you to monitor the health of your HPE ProLiant Servers and HPE Integr Servers. Also provides you with basic support for nonquick and seamless firmware updates. Learn more at

Page

Page 12

QuickSpecs

HPE ProLiant DL180 Gen10 Server

Standard Features

Security

• Secure erase of NAND/User data

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of Hewlett Packard

m date of

vices

a one year or

Year Onsite support with next business day response. Warranty

use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1)

e also designed for easy replacement but may involve added complexity.

replace Optional CSR parts at no charge. Additional information

http://h17007.www1.hpe.com/us/en/enterprise/servers/warranty/.

• UEFI Secure Boot and Secure Start support

• Immutable Silicon Root of Trust

• FIPS 140-2 validation (iLO 5 certification in progress)

• Common Criteria certification (iLO 5 certification in progress)

• Configurable for PCI DSS compliance

• Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser

• Support for Commercial National Security Algorithms (CNSA)

• Tamper-free updates – components digitally signed and verified

• Secure Recovery – recover critical firmware to known good state on detection of compromised firmware

• Ability to rollback firmware

Enterprise Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years fro purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty ser are available through HPE Pointnext operational services or customized service agreements. Hard drives have either three year warranty; refer to the specific hard drive QuickSpecs for details.

NOTE: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-

repairs may be accomplished through the Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replac a Mandatory CSR part; 2) Optional CSR parts ar Customers may choose to have Hewlett Packard Enterprise regarding worldwide limited warranty and technical support is available at:

Page

Page 13

QuickSpecs

HPE ProLiant DL180 Gen10 Server

Optional Features

Server Management

management framework that includes software for the centralized

http://www.hpe.com/info/cmu.

Rack and Power Infrastructure

and business grow. We’ve reinvented our

r words,

ry leader,

nt and system

HPE G2 Advanced and Enterprise Racks are perfect for the server room or today’s modern data center with enhanced airflow and

coded outlets and

effective power protection for any type workload. Some UPSs include options for remote

Learn more about HPE Racks, KVM, PDUs and UPSs at HPE Rack and Power Infrastructure.

HPE Insight Cluster Management Utility (CMU)

HPE Insight Cluster Management Utility is a HyperScale provisioning, management and monitoring of nodes and infrastructure. Learn more at

The story may end with servers, but it starts with the foundation that makes compute go – entire portfolio of rack and power products to make IT infrastructure more secure, more practical, and more efficient. In othe we’ve created a stronger, smarter, and simpler infrastructure to help you get the most out of your IT equipment. As an indust Hewlett Packard Enterprise is uniquely positioned to address the key concerns of power, cooling, cable manageme access.

thermal management, flexible cable management, and a 10 year Warranty to support higher density computing.

HPE G2 PDUs offer reliable power in flexible form factors that operate at temperatures up to 60°, include colorload segments and a low-profile design for optimal access to the rack and support for dense rack environments.

HPE Uninterruptible Power Systems are costmanagement and extended runtime modules so you’re critical dense data center is covered in power outages.

HPE KVM Solutions include a console and switches designed to work with your server and IT equipment reliably. We’ve got a costeffective KVM switch for your first rack and multiple connection IP switches with remote management and security capabilities keep your data center rack up and running.

Page

Page 14

QuickSpecs

HPE ProLiant DL180 Gen10 Server

Service

and Support

HPE Pointnext - Service and Support Achieve maximum return from your IT investment

Get the expertise you need at every step of the IT journey with HPE Pointnext services and support. We help you lower your risks and costs using proven best practices, automation and methodologies that have been tested and refined by of Hewlett Packard Enterprise experts through thousands of implementations and deployments

HPE Pointnext specializes in flawless and on

budget execution, and creative configurations that get the most out of software and hardware alike. We collaborate with your IT team from technical design to implementation, build to migration, distribution, and finally to operational consulting and service

Integration and performance services provide resources to help you get your systems up and running quickly and augment

Consume IT services on your terms, getting the specific value that you need for your business. HPE GreenLake Flex Capacity enables you to scale easily by adding capacity in minutes, not months. You pay only for what you actually need, creating true pay

use outcomes. Simplify your IT planning, capacity forecasting, and cost allocation with HPE GreenLake. Learn more about

Connect your devices:

receive

failure alerts, automatic call logging, and automatic parts dispatch. HPE Proactive Care Service customers will

y available to you

Learn more about getting connected at http://www.hpe.com/services/getconnected

Other related Services

bringing

https://www.hpe.com/h20195/V2/GetPDF.aspx/5981-9356EN.pdf

HPE Education Services

Book on a class today and

learn how to get the most from your technology investment. http://www.hpe.com/ww/learn

HPE Support Center

usiness

e with

allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you

warranty, HPE Support Service

http://www.hpe.com/services

globally.

-time implementation, on-

•

your IT staff for projects.

• HPE Foundation Care provides fast problem resolution with comprehensive coverage and access to experts.

• HPE Proactive Care provides proactive problem prevention and an enhanced support experience for your systems.

-per-

HPE Pointnext services and solutions for your business.

Unlock all of the benefits of your technology investment by connecting your products to Hewlett Packard Enterprise. Reduce do time and improve diagnostic accuracy with a single consolidated view of your environment. By connecting, you will 24x7monitoring, prebenefit from proactive activities to help prevent issues and increase optimization. All of these benefits are alread with your server storage and networking products, securely connected to HPE support.

HPE Server Hardware Installation

Provides for the basic hardware installation of HPE branded servers, storage devices and networking options to assist you in your new hardware into operation in a timely and professional manner.

Keep your IT staff trained making sure they have the right skills to deliver on your business outcomes.

The HPE Support Center is a personalized online support portal with access to information, tools and experts to support HPE b products. Submit support cases online, chat with Hewlett Packard Enterprise experts, access support resources or collaborat peers. Learn more http://www.hpe.com/support/hpesc The HPE Support Center Mobile App* can get access to personalized IT support anywhere, anytime.

HPE Insight Remote Support and HPE Support Center are available at no additional cost with a HPE or HPE contractual support agreement.

NOTE: *HPE Support Center Mobile App is subject to local availability.

For more information:

Page

Page 15

QuickSpecs

HPE ProLiant DL180 Gen10 Server

Service and Support

Parts and Materials

supported replacement parts and materials necessary to maintain the covered hardware

the

replaced

ckard

Enterprise due to malfunction.

Hewlett Packard Enterprise will provide HPEproduct in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Pa

Page

Page 16

QuickSpecs

HPE ProLiant DL180 Gen10 Server

Pre

-configured Models

SMB offering - Base Configuration (choose one of the following)

SKUs are not currently available in all countries. Please contact your local sales representative for additional

information

SMB Models - SFF

SKU Number

879513-B21

879514-B21

Model Name

HPE ProLiant DL180 Gen10 3106 1.7GHz 8-core

1P 16GB-R S100i 8SFF 1x500W PS Server

HPE ProLiant DL180 Gen10 4110 2.1GHz 8-core

1P 16GB-R S100i 8SFF 1x500W PS Server

Chassis

8SFF

Processor

3106 (1.7GHz/8-core/85W)

4110 (2.1GHz/8-core/85W)

Number of Processors

One processor with Standard heatsink

Memory

HPE 16GB 1Rx4 PC4-2666V-R Smart Kit

Network Controller

Embedded 2-Port 1GbE

Storage Controller

Embedded 14Port S100i

NOTE:

Embedded 14Port S100i

NOTE:

Hard Drive

None included

Optical Drive

None included

PCIe Slots

3 Standard in Primary Riser

Power Supply

1X500 Hot Plug

Fans

4 Fans

Management

HPE iLO5

Rail Kit

SFF Easy Install

Form Factor

2U Rack

Warranty

3-year parts, 3-year labor, 3-year onsite support with next business day response

NOTE: UEFI is the standard default for all SMB models

NOTE:These

SATA only

Page

Page 17

QuickSpecs

HPE ProLiant DL180 Gen10 Server

Pre

-configured Models

SMB Model - LFF

HPE ProLiant DL180

8LFF 1x500W

879512-B21

Model Name

HPE ProLiant DL180 Gen10 4110 2.1GHz 8-core 1P 16GB-R S100i 8LFF 1x500W

Chassis

8LFF

Processor

4110 (2.1GHz/8-core/85W)

Number of Processors

One processor with Standard heatsink

Memory

HPE 16GB 1Rx4 PC4-2666V-R Smart Kit

Network Controller

Embedded 2-Port 1GbE

Storage Controller

Embedded 14Port S100i

NOTE: SATA

Hard Drive

None included

Optical Drive

None included

PCIe Slots

3 Standard in Primary Riser start

Power Supply

1X500 Hot Plug

Fans

4 Fans

Management

HPE iLO5

Rail Kit

SFF Easy Install

Form Factor

2U Rack

Warranty

3-year parts, 3-year labor, 3-year onsite support with next business day response

NOTE: UEFI is the standard default for all SMB models

Gen10 4110 2.1GHz 8core 1P 16GB-R S100i

Page

Page 18

QuickSpecs

HPE ProLiant DL180 Gen10 Server

Core Options

HPE Processors

Processor Option Kits

HPE DL180 Gen10 Intel Xeon-Silver 4110 (2.1GHz/8-core/85W) Processor Kit

879731-B21

HPE DL180 Gen10 Intel Xeon-Bronze 3106 (1.7GHz/8-core/85W) Processor Kit

879729-B21

NOTE: Up to two processors supported. NOTE: Turbo2: Intel® Turbo Boost Technology 2.0 provides more computing power when you need it with performance that

adapts to spikes in your workload and delivers more performance upside than then previous generation turbo technology.

NOTE:

aximum memory speed of the processor. Actual memory speed may depend on the quantity and type

of DIMMs installed.

Memory Selection

To streamline the configuration process for HPE ProLiant Gen10 servers and to provide the best product availability, HPE recommends memory from the list located here: Best product availability is limited to US, Canada, and Latin America at this time.

HPE SmartMemory

HPE 16GB (1x16GB) Single Rank x4 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit

815098-B21

HPE Drives Enterprise

HPE 1.2TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

872479-B21

HPE 600GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

872477-B21

HPE 300GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

872475-B21

Midline – 6G SAS – LFF Drives

HPE 4TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty Digitally Signed Firmware HDD

861683-B21

HPE 2TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty Digitally Signed Firmware HDD

861681-B21

HPE 1TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty Digitally Signed Firmware HDD

861686-B21

Midline – 6G SATA – LFF Drives

HPE 4TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty Digitally Signed Firmware HDD

833928-B21

HPE 2TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty Digitally Signed Firmware HDD

833926-B21

SSD Selection To streamline the configuration process for HPE ProLiant Gen10 servers and to provide the best product availability, HPE recommends SSDs from the list located here: Best product availability is limited to US, Canada, and Latin America at this time. To further assist with configuration, HPE also offers an SSD Selector Tool located here: http://ssd.hpe.com

SAS - Mixed Use - SFF - Solid State Drives

HPE 400GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

P04525-B21

SATA - Mixed Use - SFF - Solid State Drives

HPE 480GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

P07922-B21

FlexibleLOM adapters

HPE Ethernet 10/25Gb 2-port 640FLR-SFP28 Adapter

817749-B21

NOTE: The DL180 Gen10 chassis ships with 2x 1 Gb embedded. NOTE: Only one FlexibleLOM can be added to the server. These options are upgradeable and can be changed from the original

configuration after the server is shipped.

NOTE: NOTE:

optic environments must be

purchased separately. Please see the related NIC QuickSpecs for

https://www.hpe.com/us/en/product adapters.4118472.html

DDR4 speed is the m

- 12G SAS - SFF Drives

http://www.hpe.com/products/recommend.

FlexibleLOM Enablement Kit (866941-B21) is required to install these adapters Direct Attach Cable (DAC) for copper environments or fiber transceivers and cables for fiber-

-catalog/servers/adapters/pip.models.hpe-storefabric-converged-network-

Technical Specifications and additional information:

Page

Page 19

QuickSpecs

HPE ProLiant DL180 Gen10 Server

Core Options

HPE I/O Expansion Options

HPE DL180 Gen10 CPU1 x8x8x8 PCIe Riser Kit

878484-B21

HPE DL180 Gen10 CPU2 x8/x8/x8 PCIe Riser Kit

866945-B21

HPE DL180 Gen10 CPU1 FlexibleLOM Riser Kit

866941-B21

HPE Power Supplies

HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

865408-B21

HPE C13 - Nema 5-15P US/CA 110V 10Amp 1.83m Power Cord

AF556A

Page

Page 20

QuickSpecs

HPE ProLiant DL180 Gen10 Server

Additional Options

Embedded Management HPE iLO Advanced

HPE iLO Advanced Electronic License with 1yr Support on iLO Licensed Features

E6U59ABE

HPE iLO Advanced 1-server License with 1yr Support on iLO Licensed Features

512485-B21

HPE iLO Advanced Flexible Quantity License with 1yr Support on iLO Licensed Features

512486-B21

HPE iLO Advanced AKA Tracking License with 1yr Support on iLO Licensed Features

512487-B21

HPE iLO Advanced Electronic License with 3yr Support on iLO Licensed Features

E6U64ABE

HPE iLO Advanced 1-server License with 3yr Support on iLO Licensed Features

BD505A

HPE iLO Advanced Flexible Quantity License with 3yr Support on iLO Licensed Features

BD506A

HPE iLO Advanced AKA Tracking License with 3yr Support on iLO Licensed Features

BD507A

HPE Smart Array Controllers

kout

of the available Gen10 Smart Array controllers visit the HPE Smart Array Gen10 Controllers Data Sheet.

Essential RAID Controllers

NOTE: E208i-p and E208e-p PCIe plug-in controllers use a PCIe slot.

HPE Smart Array E208i-p SR Gen10 (8 Internal Lanes/No Cache) 12G SAS PCIe Plug-in Controller

804394-B21

HPE Smart Array E208e-p SR Gen10 (8 External Lanes/No Cache) 12G SAS PCIe Plug-in Controller

804398-B21

HPE Smart Array E208i-a SR Gen10 (8 Internal Lanes/No Cache) 12G SAS Modular Controller

804326-B21

NOTE: ‘SFF Box3 to Smart Array E208i-a/P408i-a Cable Kit’ (882011-B21) is required for the installation of the controllers E208ia or P408i-a

Performance RAID Controller

HPE Smart Array P408i-a SR Gen10 (8 Internal Lanes/2GB Cache) 12G SAS Modular Controller

804331-B21

NOTE: ‘SFF Box3 to Smart Array E208i-a/P408i-a Cable Kit’ (882011-B21) is required for the installation of the controllers E208ia or P408i-a

Optional Upgrades

HPE 96W Smart Storage Battery (up to 20 Devices) with 145mm Cable Kit

P01366-B21

HPE DL180 Gen10 SFF Box3 to Smart Array E208i-a/P408i-a Cable Kit

882011-B21

HPE DL180 Gen10 LFF to Smart Array E208i-a/P408i-a Cable Kit

882015-B21

NOTE: Provides backup power for multiple HPE Smart Array controllers or other devices.

HPE Tape Backup

http://www.hpe.com/storage/BURAcompatibility.

The Gen10 controller naming framework has been updated to simplify identification as depicted below. For a more detailed brea

For the complete range of tape drives, autoloaders, libraries and media see:

https://www.hpe.com/us/en/storage/storeever-tape-storage.html

For hardware and software compatibility of Hewlett Packard Enterprise tape backup products

Page

Page 21

QuickSpecs

HPE ProLiant DL180 Gen10 Server

Additional Options

HPE Racks

HPE Enterprise Series Racks QuickSpecs

HPE Power Distribution Units (PDUs)

for information on these products and their

for information on these products and

their specifications.

HPE Uninterruptible Power Systems (UPS)

for information on these products and HPE Rack Options Please see the HPE KVM Switches web page for information on these products and their specifications.

Additional options available to add as “ad-hoc” in OCA

NOTE:*These options will not be visible in OCA and must be added manually via the ad-hoc section

Drive Bay Upgrade Kits

HPE DL180 Gen10 8 to 12LFF Upgrade Kit

866963-B21

NOTE: This kit is required for a upgrade of 8 to 12 LFF

HPE DL180 Gen10 16 to 24SFF Upgrade Kit

875144-B21

NOTE: For a second upgrade of more than 16 SFF SAS/SATA HDDs 875158-B21 must be ordered, including 875158-B21 for the first upgrade.

HPE DL180 Gen10 8 to 16SFF FIO Upgrade Kit

875151-B21

HPE DL180 Gen10 16 to 24SFF FIO Upgrade Kit

875158-B21

HPE Memory

HPE 32GB (1x32GB) Dual Rank x4 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit

815100-B21

NOTE: The maximum memory speed is a function of the memory type, memory configuration, and processor model.

HPE Drives Enterprise

HPE 1.8TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD

872481-B21

HPE 600GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

870757-B21

HPE 300GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

870753-B21

Midline - 12G SAS - SFF Drives

HPE 2TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e HDD

765466-B21

Midline 6G SATA - SFF Drives

HPE 2TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD

765455-B21

HPE 1TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty Digitally Signed Firmware HDD

655710-B21

Midline - 6G SATA - LFF Drives

HPE 2TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty Digitally Signed Firmware HDD

861681-B21

HPE 4TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty Digitally Signed Firmware HDD

861683-B21

Please see the HPE Advanced Series Racks QuickSpecs for information on additional racks options and rack specifications. Please see the

Please see the HPE Basic Power Distribution Units (PDU) QuickSpecs for information on these products and their specifications. Please see the HPE Metered Power Distribution Units (PDU) QuickSpecs for information on these products and their specifications. Please see the HPE Intelligent Power Distribution Unit (PDU) QuickSpecs specifications. Please see the HPE Metered and Switched Power Distribution Units (PDU) QuickSpecs

To learn more, please visit the HPE Uninterruptible Power Systems (UPS) web page. Please see the HPE DirectFlow Three Phase Uninterruptible Power System QuickSpecs their specifications. Please see the HPE Line Interactive Single Phase UPS QuickSpecs for information on these products and their specifications.

for information on additional racks options and rack specifications.

- 12G SAS - SFF Drives

Page

Page 22

QuickSpecs

HPE ProLiant DL180 Gen10 Server

Additional Options

SSD Selection Mixed Use - 12G SAS - SFF - Solid State Drives

HPE 800GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

P04527-B21

Read Intensive - 12G SAS - SFF - Solid State Drives

HPE 960GB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

P04517-B21

Read Intensive - SATA - SFF - Solid State Drives

HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

P05924-B21

Mixed Use - SATA - SFF - Solid State Drives

HPE 960GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

P07926-B21

Internal Dual M.2 Kit

HPE Universal SATA HHHL 3yr Wty M.2 Kit

878783-B21

NOTE: This kit can support up to two M.2 SSDs and supports Software RAID only. Both M.2 SSDs must be of the same type and capacity.

Read Intensive - M.2 - Solid State Drives (2280 type)

HPE 480GB SATA 6G Read Intensive M.2 2280 3yr Wty Digitally Signed Firmware SSD

875498-B21

NOTE: HPE Universal SATA HHHL 3yr Wty M.2 Kit- 878783-B21” and “HPE DL180 Gen10 M.2 Cable Kit866456-B21” with M.2.

Mixed Use - M.2 - Solid State Drives (2280 type)

HPE 240GB SATA 6G Mixed Use M.2 2280 3yr Wty Digitally Signed Firmware SSD

875488-B21

NOTE: Must also select “HPE Universal SATA HHHL 3yr Wty M.2 Kit- 878783-B21” and “HPE DL180 Gen10 M.2 Cable Kit-866456-B21” with M.2.

M.2 Cable Kit

HPE DL180 Gen10 M.2 SATA Cable Kit

875135-B21

NOTE: Must be selected along with “HPE Universal SATA HHHL 3yr Wty M.2 Kit- 878783-B21”

HPE Networking 10 Gigabit Ethernet adapters

HPE Ethernet 10Gb 2-port 530SFP Adapter

652503-B21

HPE Ethernet 10Gb 2-port 521T Adapter

867707-B21

NOTE: Max 1 per system

HPE Ethernet 10Gb 2-port 530T Adapter

656596-B21

25 Gigabit Ethernet adapters

HPE Ethernet 10/25Gb 2-port 631SFP28 Adapter

817718-B21

1 Gigabit Ethernet adapters

HPE Ethernet 1Gb 4-port 366T Adapter

811546-B21

NOTE: Max 1 per system. Can only be installed in Slot 1

Page

Page 23

QuickSpecs

HPE ProLiant DL180 Gen10 Server

Memory

Memory Population guidelines

HPE DL160/DL180 Gen 10 Servers Front Server

(2+1+1 slots per channel)

HPE ProLiant Gen10 8 slot per CPU DIMM population order

NOTE: *Unbalanced, not recommended

General Memory Population Rules and Guidelines:

The maximum memory capacity is a function of the number of DIMM slots on the platform, the largest DIMM capacity

To realize the performance memory capabilities listed in this document, HPE DDR4 SmartMemory is required. For additional

• Install DIMMs only if the corresponding processor is installed.

• If only one processor is installed in a two-processor system, only half of the DIMM slots are available.

• To maximize performance, it is recommended to balance the total memory capacity between all installed processors.

• When two processors are installed, balance the DIMMs across the two processors.

• White DIMM slots denote the first slot to be populated in a channel.

• The maximum memory speed is a function of the memory type, memory configuration, and processor model.

•

qualified on the platform, the number and model of installed processors qualified on the platform.

information, please see the HPE DDR4 SmartMemory QuickSpecs.

Page

Page 24

QuickSpecs

HPE ProLiant DL180 Gen10 Server

Memory

HPE DDR4 SmartMemory

DIMM Type

HPE SKU P/N

815098-B21

SKU Description

HPE 16GB (1x16GB) Single Rank x4 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit

DIMM Rank ->

Single Rank (1R)

DIMM Capacity ->

16GB

Voltage

1.2V

DRAM depth [bit]

DRAM Width [bit]

DRAM Density

8Gb

CAS Latency

19-19-19

DIMM Native Speed (MT/s)

2666 MT/s

Intel Xeon® Silver 41xx/ Processors Officially Supported Memory Speed (MT/s)

2400 MT/s

Intel Xeon® Bronze 31xx Processors Officially Supported Memory Speed (MT/s)

2133 MT/s

HPE Server Memory Speed (MT/s): Intel Xeon®Silver 41xx Processors *

2400 MT/s

HPE Server Memory Speed (MT/s): Intel Xeon®Bronze 31xx Processors *

2133 MT/s

NOTE: *The maximum memory speed is a function of the memory type, memory configuration, and processor model.

Pre Configured Models

Standard Memory

Maximum Memory Plus Optional

Memory

3106

16 GB (1x16 GB RDIMM DR)

256 GB (16x 16 GB)

4110 (SFF)

16 GB (1x16 GB RDIMM DR)

256 GB (16x 16 GB)

4110 (LFF)

16 GB (1x16 GB RDIMM DR)

256 GB (16x 16 GB)

DDR4 memory options part number decoder

NOTE:

For more information on memory, please see the Memory Quickspecs:

1 DIMM Per Channel 2 DIMM Per Channel

1 DIMM Per Channel

2 DIMM Per Channel

Capacity references are rounded to the common gigabyte (GB) values.

• 16GB = 16,384 MB

HPE DDR4 SmartMemory

Page

Page 25

QuickSpecs

HPE ProLiant DL180 Gen10 Server

Storage

8 SFF Drives

LFF Drives

Page

Page 26

QuickSpecs

HPE ProLiant DL180 Gen10 Server

Technical Specifications

System Unit

Dimensions

8.75 x 44.54 x 63.47 cm 3.44 x 17.54 x 24.99 in

Weight (approximate)

26.0 kg

Minimum: 8 SFF/LFF chassis with 1x SFF/LFF HDD and 7 HDD blanks, 2x Drive Bay blanks, 1x processor including standard heatsink, 1x power supply (plus blank), 1x Smart Array, 1x Riser installed, cables for the above)

Input Requirements

Rated Line Voltage

100 to 120 VAC 200 to 2

BTU Rating

Maximum

For 500W Power Supply: 1979 BTU/hr (at 100 VAC), 1911 BTU/hr (at 200 VAC), 1965 BTU/hr (at 240 VAC) for China Only

Power Supply Output (per power supply)

Rated Steady-State

For 500W Power Supply: 500W (at 100 VAC), 500W (at 240 VAC), 500W (at 240 VAC) input for China only

System Inlet Temperature

Standard Operating

10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 20°C/hr (36°F/hr). The upper limit and rate of change may be limited by the type and number of options installed. System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F).

Extended Ambient

For approved hardware configurations, the supported system inlet range is extended to be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft). The approved hardware configurations for this system are listed at the URL: For approved hardware configurations, the supported system inlet range is extended to be: 40° to 45°C (104° to 113°F) at sea level with an altitude derating of 1.0°C per every 125 m (1.8°F per every 410 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft). The approved hardware configurations for this system are listed at the URL:

http://www.hpe.com/servers/ashrae

performance may be reduced if operating in the extended

ambient operating range or with a fan fault.

Non-operating

-30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).

Relative Humidity

Operating

8% to 90% - Relative humidity (Rh), 28°C maximum wet bulb temperature, non-condensing.

(Non-condensing)

Non-operating

5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing..

Altitude

Operating

3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Non-operating

9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

58.0 lb

(per power supply)

Power

Temperature

Operating Temperature

40 VAC

http://www.hpe.com/servers/ashrae

System

Page

Page 27

QuickSpecs

HPE ProLiant DL180 Gen10 Server

Technical Specifications

Acoustic Noise

Weighted sound pressure

ISO

7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). The listed sound levels apply to standard shipping

tion

from the HPE EMESC website for further technical details regarding the configurations listed below.

Configuration SKU

Entry(LFF) Entry(SFF)

Base(LFF) Base(SFF)

Performance(LFF) Performance(SFF)

Idle L

WAd

4.2 B

4.3 B

4.7 B

pAm

26.6 dBA

27.0 dBA

28.5 dBA

Operating

WAd

5.2 B

5.4 B

5.7 B

pAm

35.4 dBA

37.2 dBA

39.7 dBA

NOTE: Acoustics levels presented here are generated by the test configuration only. Acoustics levels will vary depending on

oduct specifications is based on sample (type) testing, evaluation, or assessment. This

Emissions Classification (EMC) – Regulatory Information

To view the regulatory information for your product, view the Safety and Compliance Information for Server, Storage, Power,

http://www.hpe.com/support/Safety-Compliance-EnterpriseProducts

HPE Smart Array

QuickSpecs.

Environment-friendly Products and Approach - End-of-life Management and Recycling

, in many geographic areas, for our

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by

te. These

who

integrate and re-sell Hewlett Packard Enterprise equipment.

Listed are the declared A-Weighted sound power levels (L levels (L

) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with

pAm

) and declared average bystander position A-

WAd

configurations. Additional options may result in increased sound levels. Please have your HPE representative provide informa

system configuration. Values are subject to change without notification and are for reference only.

NOTE: Product conformance to cited pr product or family of products is eligible to bear the appropriate compliance logos and statements.

NOTE: The Listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels.

Networking, and Rack Products, available at the Hewlett Packard Enterprise Support Center:

For information on the HPE Smart Array E208i-p SR Gen10 Controller please refer to their QuickSpecs. For information on the HPE Smart Array E208e-p SR Gen10 Controller please refer to their

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web si instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers

Page

Page 28

QuickSpecs

HPE ProLiant DL180 Gen10 Server

Summary of Changes

Date

Version History

Action

Description of Change

12-Aug-2019

Version 7

Changed

Overview, Standard Features and Additional Options sections were updated.

30-Jul-2019

Version 6

Changed

Additional Options section was updated.

01-Jul-2019

Version 5

Changed

Overview, Standard Features, Service and Support, Configuration Information and Additional Options sections were updated.

03-Jun-2019

Version 4

Changed

Overview, Standard Features, Service and Support, Configuration Information, Additional Options, Memory, Storage and Technical Specifications sections were updated.

02-Apr-2019

Version 3

Changed

Standard Features and Additional Options sections were updated.

04-Mar-2019

Version 2

Changed

Internal View image has been updated

04-Feb-2019

Version 1

New

New QuickSpecs.

© Copyright 2019 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

Intel and Xeon are registered trademarks of In

Microsoft, Windows, and Windows Server are U.S. registered trademarks of the Microsoft group of companies. For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less

a00021862enw - 16058 - Worldwide - V7 - 12-August-2019

tel Corporation in the U.S. and other countries.

Page
