Page 1

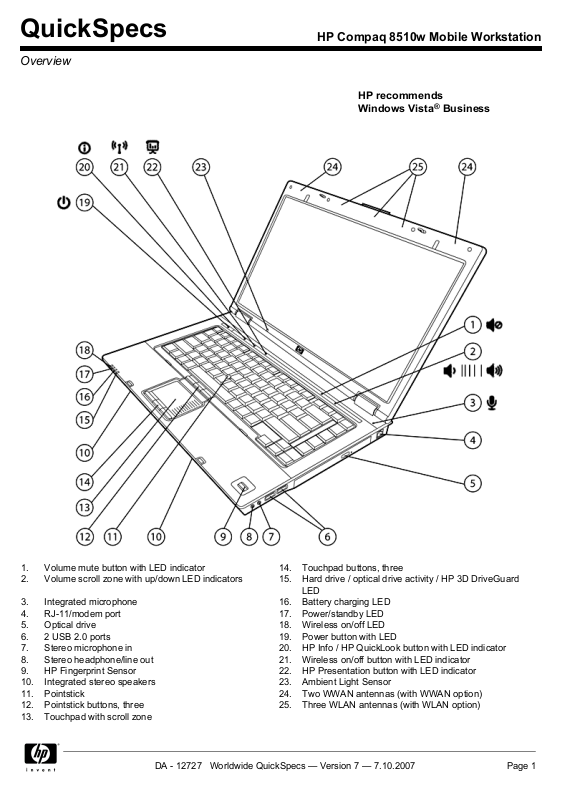

QuickSpecs

Overview

HP Compaq 8510w Mobile Workstation

HP recommends Windows Vista® Business

Volume mute button with LED indicator

Volume scroll zone with up/down LED indicators

Integrated microphone

RJ-11/modem port

Optical drive

2 USB 2.0 ports

Stereo microphone in

Stereo headphone/line out

HP Fingerprint Sensor

10.

Integrated stereo speakers

11.

Pointstick

12.

Pointstick buttons, three

13.

Touchpad with scroll zone

DA - 12727 Worldwide QuickSpecs — Version 7 — 7.10.2007

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

Touchpad buttons, three Hard drive / optical drive activity / HP 3D DriveGuard LED Battery charging LED Power/standby LED Wireless on/off LED Power button with LED HP Info / HP QuickLook button with LED indicator Wireless on/off button with LED indicator HP Presentation button with LED indicator Ambient Light Sensor Two WWAN antennas (with WWAN option) Three WLAN antennas (with WLAN option)

Page 1

Page 2

QuickSpecs

Overview

Kensington Lock slot

RJ-45/Ethernet port

1394a port

HDMI port

2 USB 2.0 ports

Integrated Smart Card Reader

10.

11.

HP Compaq 8510w Mobile Workstation

Secure Digital (SD) slot Type I/II PC Card slot PC Card eject button VGA/external monitor connector Power connector

At A Glance

Genuine Windows Vista Business*, Genuine Windows XP Professional, or FreeDOS Thin, lightweight design starting at 6.1 lb/2.77 kg and 1.1-inch/27.5 mm thin at front Intel® Centrino® Pro processor technology capable, with Intel Core™2 Duo processors NVIDIA Quadro FX 570M graphics with up to 256MB dedicated memory (512 MB TurboCache), or ATI Mobility FireGL V5600 graphics with up to 256 MB dedicated memory (512 MB HyperMemory) Flexible wireless connectivity options:

Integrated HP ev2200 1xEV-DO or HP hs2300 HSDPA Broadband Wireless module Integrated 802.11 a/b/g/draft-n, a/b/g, or b/g wireless LAN module

Bluetooth® DirectX 10 support and Dual Link DVI (available through optional docking) provides faster rendering capabilities and support for ultra-high resolution monitors HDMI high definition video/audio port Optional Blu-Ray DVD+/-RW SuperMulti DL Drive Widescreen 15.4-inch diagonal display with wide-viewing angle (select models), Ambient Light Sensor and HP Privacy Filter support Enhanced security features including integrated Smart Card Reader, Drive Encryption for HP ProtectTools, HP Fingerprint Sensor, TPM 1.2** HP QuickLook for instant access to email, calendar, and contact information Up to 160-GB 5400 rpm or 100-GB 7200 rpm user-removable hard drive with HP 3D DriveGuard protection Enhanced reliability with HP DuraKeys, HP DuraFinish, and magnesium alloy display enclosures and support structures Touch-sensitive controls for HP Info Center, HP QuickLook, wireless on/off, HP Presentation button, volume up, volume down, and mute Up to 4 GB of 667-MHz DDR2 SDRAM, dual channel memory support Integrated Intel Gigabit Network Connection (10/100/1000 NIC) Enhanced dual pointing devices (touchpad with scroll zone and pointstick) Secure Digital (SD) slot

* TPM module disabled where not permitted by law (for example, Russia and China). ** At initial boot, either 32- or 64-bit can be selected. This is a one time selection and the other version will be deleted.

DA - 12727 Worldwide QuickSpecs — Version 7 — 7.10.2007

Page 2

Page 3

QuickSpecs

Standard Features

HP Compaq 8510w Mobile Workstation

Processors

Operating System

Intel Core 2 Duo Processor T7700 (2.40-GHz, 800-MHz FSB, 4-MB L2 cache)*

Intel Core 2 Duo Processor T7500 (2.20-GHz, 800-MHz FSB, 4-MB L2 cache)*

Intel Core 2 Duo Processor T7300 (2.00-GHz, 800-MHz FSB, 4-MB L2 cache)*

Intel Core 2 Duo Processor T7100 (1.80-GHz, 800-MHz FSB, 2-MB L2 cache)*

* Intel's numbering is not a measurement of higher performance.

NOTE:

speeds in battery optimization mode.

Preinstalled

Supported

Certified

†

version will be deleted. * Certain Windows Vista product features require advanced or additional hardware. See

http://www.microsoft.com/windowsvista/getready/hardwarereqs.mspx http://www.microsoft.com/windowsvista/getready/capable.mspx

Upgrade Advisor can help you determine which features of Windows Vista will run on your computer. To download the tool, visit

Processor speed denotes maximum performance mode; processors will run at lower

Genuine Windows Vista Business†* Genuine Windows XP Professional FreeDOS

Genuine Windows Vista Enterprise* Genuine Windows 2000

SuSE Linux Enterprise Desktop 10

At initial boot, either 32- or 64-bit can be selected. This is a one time selection and the other

and

for details. Windows Vista

http://www.windowsvista.com/upgradeadvisor

Chipset

Intel Centrino Pro processor technology capable

Graphics

Mobile Intel PM965 with 800-MHz front side bus

Intel Centrino Pro processor technology is a selectable feature that is available on units configured with an Intel Wireless WiFi Link 4965AGN or 4965AG. It provides advances in remote manageability, security, energy efficient performance, and wireless connectivity. Intel Active Management Technology (AMT) offers built-in manageability and proactive security for networked notebook PCs, even when they are powered off* or when the operating system is inoperable. It can help identify threats before they reach the operating system, isolate infected systems, and update PCs regardless of their power state.

*Requires a Windows operating system, network hardware and software, connection with a power source, and a direct (non-VPN) corporate network connection which is either cable or wireless LAN.

NOTE:

technology, requires additional 3rd party software in order to run. Availability of future "virtual appliances" applications for Centrino Pro processor technology is dependant on 3rd party software providers. Compatibility of this generation of Centrino Pro technology-based hardware with future "virtual appliances" and Microsoft Windows Vista operating system is to be determined.

NVIDIA Quadro FX 570M graphics with up to 256MB dedicated memory (512 MB TurboCache), or ATI Mobility FireGL V5600 graphics with up to 256 MB dedicated memory (512 MB HyperMemory)* Microsoft DirectX 10 support

*Indicates dedicated video memory and shared system memory. Up to 1024 MB HyperMemory is available with Windows Vista when installed system memory is 3 GB or more.

Some functionality of Intel Centrino Pro, such as Intel AMT and Intel Virtualization

DA - 12727 Worldwide QuickSpecs — Version 7 — 7.10.2007

Page 3

Page 4

QuickSpecs

Standard Features

HP Compaq 8510w Mobile Workstation

Display

Memory

Internal

External

Standard

Maximum

Dual-channel

NOTE:

recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed. Above 3-GB, all memory may not be available due to system resource requirements.

Due to the non-industry standard nature of some third-party memory modules, we

15.4-inch diagonal WXGA anti-glare (1280 x 800 resolution)

15.4-inch diagonal WSXGA+ anti-glare wide-viewing angle (1680 x 1050 resolution)

15.4-inch WUXGA anti-glare wide-viewing angle (1920 x 1200 resolution) Ambient light sensor Integrated lid switch HP Privacy Filter support

Up to 32-bit per pixel color depth

VGA

port supports resolutions up to 2048 x 1536 at 75 Hz, and lower

resolutions at up to 100 Hz

HDMI

1.2 port supports direct connection to high-definition displays with up to 1920 x 1080 resolution and 7-channel audio with one convenient cable (not included).

DVI

port in optional HP Docking Station (sold separately) supports resolutions up to 1920 x 1200 for single-link DVI monitors and up to 2560 x 1600 for dual-link DVI monitors.

NOTE:

resolution and color depth settings.

512-MB, 1024-MB, 2048-MB, or 4096-MB 667-MHz DDR2 SDRAM; two SODIMM slots supporting dual channel memory

Upgradeable to 4096-MB with 2048-MB SODIMM in slots 1 and 2

Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots. Above 3-GB, all memory may not be available due to system resource requirements.

Resolutions are dependent upon monitor capability, and

Communications

Integrated Intel Gigabit Network Connection (10/100/1000 NIC)*

56K V.92 modem**

* The term "10/100/1000" or "Gigabit" Ethernet indicates compliance with IEEE standard 802.3ab for Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission, connection to a Gigabit Ethernet server and network infrastructure is required.

** Designed for downloads from 56K modem compliant sources. Maximum achievable download transmission rates currently do not reach 56 KB/s, and will vary with line conditions. Modem availability is subject to country regulatory approval.

DA - 12727 Worldwide QuickSpecs — Version 7 — 7.10.2007

Page 4

Page 5

QuickSpecs

Standard Features

HP Compaq 8510w Mobile Workstation

Wireless Devices

Support for a broad range of secure, integrated wireless LAN and wireless WAN options featuring support for the latest industry standards. Wireless LAN is factory configurable or available as an option to be added later. Broadband Wireless (WWAN) requires Windows Vista Business or Windows XP Professional and is available in select countries as a standard, factory configurable feature only. Integrated Bluetooth is also available (factory configurable only) and can be combined with any of the supported wireless LAN and wireless WAN options.

HP ev2200 1xEV-DO Broadband Wireless Module

HP hs2300 HSDPA Broadband Wireless Module

All 802.11a/b/g integrated wireless LAN options

Intel Wireless WiFi Link 4965AGN

Intel Wireless WiFi Link 4965AG

Intel PRO/Wireless 3945BG Network Connection

Broadcom 4311AG

802.11a/b/g WiFi Adapter

Broadcom 4311BG

802.11b/g WiFi Adapter

HP Integrated Module with Bluetooth Wireless Technology

Integrated WWAN module connects to the Verizon Wireless BroadbandAccess and NationalAccess networks (US only) Supports CDMA 1xEV-DO, 1xRTT connections at 850 and 1900 MHz.

NOTE:

details, go to

Two 850/900/1800/1900/2100-MHz antennas integrated in the top of the display panel support current and future WWAN technologies

Integrated WWAN module that provides connection to GSM, GPRS, EDGE, UMTS, and HSDPA mobile networks in many countries. Currently available for the Cingular network service in the U.S. (supports international roaming).

NOTE:

required.

Two 850/900/1800/1900/2100-MHz antennas integrated in the top of the display panel support current and future WWAN technologies.

Wi-Fi certified Cisco Compatible Extensions support (Version 4.0) with Microsoft Windows XP Wired Equivalent Privacy (WEP) support up to 128-bit keys Wi-Fi Protected Access (WPA) and WPA2 support

802.1x authentication support, including EAP-TLS, EAP-TTLS, PEAPGTC, PEAP-MSCHAPv2, and LEAP Advanced Encryption Standard (AES) support WiFi certified for WPA2, WMM Three antennas integrated in the display enclosure

Integrated support for 802.11a, b, g, and draft-n Up to 300-mbps data rate

Integrated support for 802.11 a, b and g Up to 54-mbps data rate

Integrated support for 802.11 b and g Up to 54-mbps data rate

Integrated support for 802.11 a, b and g Up to 54-mbps data rate

Integrated support for 802.11 b and g Up to 54-mbps data rate

Bluetooth Specification v2.0 compliant Works with a wide range of Bluetooth devices

Separately purchased Verizon Wireless service is required. For

http://www.hp.com/go/broadbandwireless

Separately purchased mobile network operator service is

DA - 12727 Worldwide QuickSpecs — Version 7 — 7.10.2007

Page 5

Page 6

QuickSpecs

Standard Features

HP Compaq 8510w Mobile Workstation

Keyboard

Touch-sensitive controls

Pointing device

Expansion card slots

The 101/102-key compatible keyboard features an industry standard, full-pitch key layout with desktop keyboard features, such as the isolated inverted-T cursor control keys, editing keys, both left and right control and alt keys, and 12 function keys. US and International key layouts are available. Other features include an integrated numeric keypad, hotkeys for instant access to power conservation, brightness, and other features, 19-mm x 19-mm key pitch (center-to-center spacing), 2.5-mm stroke, and comfort-dished keycaps.

HP DuraKeys is a clear coating applied over the notebook keyboard that helps protect the finish and the printed characters on the keys. HP DuraFinish helps protect the finish on the keyboard deck, graphics, and icons from normal wear and tear.

Touch-sensitive controls provide easy access to the following features: HP Info Center, HP QuickLook, wireless on/off, HP Presentation button, external volume up, volume down, and mute

Enhanced dual pointing devices (touchpad with scroll zone and pointstick, both with three pick buttons)

1 Type I/II PC Card slot

Integrated Smart Card Reader

Secure Digital slot

Supports 32-bit CardBus and 16-bit PC Cards

Compatible with ISO 7816 compliant Smart Cards PC/SC interface support

Supports SD (Secure Digital), MMC (MultiMedia Card)

Storage

Hard drives

NOTE:

cycles. Up to 10 GB is reserved for the system recovery software.

HP 3D DriveGuard

Optical drives

NOTE:

These hard drives are customer removable and will withstand multiple insertion/removal

Optical drive is user replacable with HP option. Requires single screw removal.

80/120/160-GB 5400 rpm SMART SATA 80/100-GB 7200 rpm SMART SATA

The hard drive is mounted directly to the notebook frame, reducing the transmission of shock away from the hard drive. Uses three-axis digital motion detection with intelligent sensitivity to help protect the hard drive during normal use from shock and vibration. The digital accelerometer temporarily halts all data transfer and parks the hard drive when abrupt motion is detected.

DVD-ROM Drive DVD/CD-RW Combo Drive DVD+/-RW SuperMulti DL Drive DVD+/-RW SuperMulti DL LightScribe Drive Blu-Ray Disc DVD+/-RW SuperMulti DL Drive

DA - 12727 Worldwide QuickSpecs — Version 7 — 7.10.2007

Page 6

Page 7

QuickSpecs

Standard Features

HP Compaq 8510w Mobile Workstation

Interfaces

Audio

PC Card slot

Smart Card Reader

Secure Digital (SD) slot

External Monitor

1394a

Stereo microphone in

Stereo headphone/line out

Power connector

RJ-11/modem

RJ-45/Ethernet

HDMI

USB 2.0

Docking connector

Secondary battery connector

LED status indicators

High Definition Audio support w/24-bit DAC Integrated stereo speakers Integrated microphone Touch-sensitive controls for volume up, volume down, and mute Stereo headphone/line out Stereo microphone in

One Type I/II PC Card slot

One

One – VGA

One – 4-pin connector

One

One – 1.2 compatible

Four

One

Fifteen

Software

Preinstalled software with Windows Vista or Windows XP

Software provided on disc

Additional software available from the web

PDF Complete HP Backup and Recovery Manager HP Help and Support Center HP QuickLook (Windows Vista only) HP OpenView Radia Management Agent HP Performance Tuning Framework HP Universal Print Driver HP ProtectTools Security Manager: BIOS Configuration for HP ProtectTools Credential Manager for HP ProtectTools Device Access Manager for HP ProtectTools Drive Encryption for HP ProtectTools Embedded Security for HP ProtectTools HP Quick Launch Buttons HP Wireless Assistant Microsoft Office Ready with 60-day Office Professional 2007 Trial Edition (select models) Roxio Creator 9 (for optional DVD+/-RW and DVD/CDRW drives) Synaptics Touchpad Driver Symantec Norton Internet Security with complimentary 60-day live update Intervideo WinDVD – DVD/Blu-Ray Disc Player

Roxio Creator 9 (for optional Blu-Ray Disc drives)

HP Client Manager Java Card Security for HP ProtectTools

DA - 12727 Worldwide QuickSpecs — Version 7 — 7.10.2007

Page 7

Page 8

QuickSpecs

Standard Features

HP Compaq 8510w Mobile Workstation

Workstation ISV Certifications

MCAD

(Mechanical CAD/Architectural Engineering and Construction)

DCC

(Digital Content Creation)

GIS

(Geographic Information Systems)

Oil and Gas

AutoDesk AutoCAD AutoDesk Inventor AutoDesk Revit Bentley Microstation Dassault Catia V5 UGS I-DEAS NX 10 UGS I-DEAS NX 11 UGS/PLM Unigraphics NX, NX2, NX3 PTC Pro/E 2001 Mechanica PTC Pro/E Wildfire Mechanica MSC.Patran UGS Solidedge Solidworks ICEM Surf CoCreate OneSpace Designer SensAble PTC DV Mockup

Discreet 3DS MAX/Combustion Alias Maya Alias Studio Tools Avid SoftImage XSI/3D Avid Express Pro Adobe Premiere/After Effects

ESRI ArcGIS 9

SMT Landmark/GeoGrpahix EDS Roxar Schlumberger/Petrel

HP Performance Tuning Framework

HP Backup and Recovery Manager

SMBIOS Version 2.4

HP Performance Tuning Framework (PTF) enables optimal configuration of HP Mobile Workstations delivering stability and best performance. HP PTF will guide your system setup allowing a "custom" configuration that best matches the workstation to user requirements.

Each unit is shipped with HP Backup and Recovery Manager. HP Backup and Recovery Manager can provide data and system file protection for HP business PCs to enable fast recovery if the system becomes corrupted or if important information is accidentally deleted. HP Backup and Recovery Manager can perform scheduled or manual backups of the entire drive or individual files and folders. Up to 10 GB of the hard drive is reserved for the system recovery software. HP Backup and Recovery Manager can also create software recovery CDs or DVDs (requires optional CD-RW or DVD+/-RW hardware).

System Management BIOS, previously known as DMI BIOS, is used to store system management information.

DA - 12727 Worldwide QuickSpecs — Version 7 — 7.10.2007

Page 8

Page 9

QuickSpecs

Standard Features

HP Compaq 8510w Mobile Workstation

HP ProtectTools Security Manager

Security

HP ProtectTools Security Manager is the security platform for business notebooks and desktops. The HP ProtectTools Security Manager is an extensible client security console that delivers enhanced security capabilities through add-on software modules. Modules currently available are:

BIOS Configuration for HP ProtectTools Credential Manager for HP ProtectTools Device Access Manager for HP ProtectTools Drive Encryption for HP ProtectTools Embedded Security for HP ProtectTools Java Card Security for HP ProtectTools

Standard Features

Optional Features

* TPM module disabled where use is restricted by law; for example, Russia and China. For more information on HP security solutions refer to

HP ProtectTools Security Manager HP Fingerprint Sensor Integrated Smart Card Reader Configuration Control Hardware Memory Change Alert Ownership Tag Setup Password Power-On Password TPM 1.2 Embedded Security Chip* TPM Enhanced DriveLock* HP Disk Sanitizer HP 3D DriveGuard Kensington Lock Slot Support for Computrace / LoJack for Laptops (must be purchased separately)

HP Privacy Filter

Narrows viewing area so that screen data is visible only to persons directly in front of the monitor

http://www.hp.com/go/security

Power Supply

*HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. HP Fast Charge does not apply to 12-cell Ultra-Capacity batteries.

Battery

External 90-watt Smart AC adapter, 6-foot (1.8-meter) power cord included. Total length including external AC adapter is 12 feet (3.66 meter). HP Fast Charge*

Primary battery

Optional HP Extended Life Battery

Optional HP UltraCapacity Battery

8-cell (73 WHr) Lithium-Ion battery

8-cell (52 WHr) high capacity Lithium-Ion battery

12-cell (95 WHr) high capacity Lithium-Ion battery

DA - 12727 Worldwide QuickSpecs — Version 7 — 7.10.2007

Page 9

Page 10

QuickSpecs

Standard Features

HP Compaq 8510w Mobile Workstation

Battery Life

System Standby Time

Power Conservation

Docking and Stands

Primary battery

Primary battery and optional HP Extended Life Battery

Primary battery and optional HP UltraCapacity Battery

NOTE:

Professional. Battery life will vary depending on the product configuration, product model, applications loaded on the product, power management settings of the product, and the product features used by the customer. As with all batteries, the maximum capacity of this battery will decrease with time and usage.

Up to 2 weeks

NVIDIA PowerMizer 7.0 technology or ATI PowerPlay technology

Hibernation

Standby

ACPI compliance

HP 3-in-1 NAS Docking Station HP Advanced Docking Station HP Docking Station HP Standard Monitor Stand HP Adjustable Notebook Stand HP External MultiBay II

The listed battery life measurements were taken on models running Microsoft Windows XP

Up to 5 hours

Up to 9 hours

Up to 11 hours and 45 minutes

Service and Support

HP's shared docking solutions provide simple and convenient port replication and cable management. Features include Gigabit NIC pass through, modem pass through, legacy parallel and serial ports, S-video TV out, composite video, Dual Link DVI-D, USB 2.0 ports, integrated security mechanism*, integrated MultiBay II and ExpressCard** slots. These docking solutions are compatible across multiple Business Notebook platforms enabling a lower total cost of ownership.

* HP/Kensington Cable Lock required (purchased separately) ** HP 3-in-1 NAS Docking Station and HP Advanced Docking Station only

HP Services offers limited 3-year, 1-year and 90-day warranty options depending on country; 1-year limited warranty on primary battery. On-site service and warranty upgrades are also available.

NOTE:

details.

http://h20000.www2.hp.com/bizsupport/TechSupport/ProductRoot.jsp

Certain restrictions and exclusions apply. Consult the HP Customer Support Center for

DA - 12727 Worldwide QuickSpecs — Version 7 — 7.10.2007

Page 10

Page 11

QuickSpecs

Options

HP Compaq 8510w Mobile Workstation

Memory

MultiBay II Storage

(9.5-mm)

Other Storage

Communications

HP 512-MB (DDR2 667 MHz) SODIMM

HP 1-GB (DDR2 667 MHz) SODIMM

HP 2-GB (DDR2 667 MHz) SODIMM

HP MultiBay II DVD-ROM Drive

HP MultiBay II DVD/CD-RW Combo Drive

HP MultiBay II DVD+/-RW SuperMulti DL Drive

HP 80-GB 5400rpm MultiBay II Hard Drive

Requires HP 3-in-1 NAS Docking Station, HP Advanced Docking Station, or HP External

MultiBay II

HP 80-GB 5400rpm Primary SATA Hard Drive

HP 120-GB 5400rpm Primary SATA Hard Drive

DVD+/-RW SuperMulti DL LightScribe Drive

HP Notebooks USB Diskette Drive

Intel Wireless WiFi Link 4965AGN option kit

EM993AA

EM994AA

EM995AA

ET354AA

RT080AA

ET353AA

RT081AA#xxx

PA849A

PA850A

PA851A

PH357A

DC361B

Expansion Solutions

Power

Carrying Cases

HP Docking Station with Smart Adapter

HP Advanced Docking Station with Smart Adapter

HP 3-in1 NAS Docking Station

HP Standard Monitor Stand

HP Adjustable Notebook Stand

HP External MultiBay II

HP 2-Bay Battery Charging Station (North America)

HP 2-Bay Battery Charging Station (rest of world)

HP 10-Bay Battery Charging Station (North America)

HP Battery Adapter Kit

HP 90W Smart AC Adapter

HP 90W Smart Auto Adapter

HP 65W AC/Auto/Air Combo Smart Adapter

HP 8-Cell Li-Ion Primary Battery

HP 8-cell Extended Life Battery

HP 12-cell Ultra-Capacity Battery

HP Value Nylon Case

HP Universal Nylon Case

HP Executive Leather Case

HP Deluxe Nylon Backpack

HP Universal Messenger Bag

HP Deluxe Roller Case

EN488AA#xxx

EN489AA#xxx

EM537AA#xxx

PA507A

PA508A

PA509A#xxx

DT533A#xxx

EW424AA#xxx

DT534A#ABA

PK402A

ED495AA#xxx

ED493AA

ED993AA#xxx

PB992A

PB993A

EJ092AA

RR314AA

RR315AA

RR316AA

RR317AA

GD404AA

GD405AA

DA - 12727 Worldwide QuickSpecs — Version 7 — 7.10.2007

Page 11

Page 12

QuickSpecs

Options

HP Compaq 8510w Mobile Workstation

Security

Input/Output Devices

HP PC Card Smart Card Reader with Java Card

HP ProtectTools Java Card – 10 units

HP/Kensington MicroSaver Security Lock

HP PS/2 Keyboard & Mouse Bundle*

HP USB Keyboard & Mouse Bundle

HP USB/PS2 Optical 2-Button Scroll Mouse

HP USB Optical Travel Mouse

HP Bluetooth PC Card Mouse

* Requires HP Docking Station, HP Advanced Docking Station, or HP 3-in-1 NAS Docking Station

EL347AA

EL348AA

PC766A

RC464AA#xxx

RC465AA#xxx

DC369A

RH304AA

RJ316AA

DA - 12727 Worldwide QuickSpecs — Version 7 — 7.10.2007

Page 12

Page 13

QuickSpecs

Memory

667-MHz DDR2 SDRAM Two DIMM slots supporting dual channel memory DIMM sizes supported: 512 MB, 1024 MB, 2048 MB

Standard Memory

512 MB (512 MB x 1) 1024 MB (1024 MB x 1 or 512 MB x 2) 2048 MB (2048 MB x 1 or 1024 MB x 2) 4096 MB (2048 MB x 2)

HP Compaq 8510w Mobile Workstation

Optional Memory Upgrades

Support for up to 4096 MB of memory with the installation of optional DDR2 SDRAM memory kits. Both memory slots are user accessible. Please refer to the Hardware and Software Guide for installation procedures. Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots.

Up to

1024 MB 1024 MB 1024 MB 1536 MB 1024 MB 2048 MB 1024 MB 1024 MB 4096 MB 2048 MB 2048 MB

NOTE:

third-party memory modules, we strongly recommend using only HP branded memory modules to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed. Above 3-GB, all memory may not be available due to system resource requirements.

Memory Upgrades

This chart does not represent all possible memory configurations. Due to the non-industry standard nature of some

HP 512-MB (DDR2 667 MHz) SODIMM

HP 1024-MB (DDR2 667 MHz) SODIMM

HP 2048-MB (DDR2 667 MHz) SODIMM

Slot 1 Slot 2

Empty

512 MB 512 MB

512 MB

EM993AA

EM994AA

EM995AA

DA - 12727 Worldwide QuickSpecs — Version 7 — 7.10.2007

Page 13

Page 14

QuickSpecs

Storage

Optical Drive Support

HP Compaq 8510w Mobile Workstation

DVD-ROM Drive

DVD/CD-RW Combo Drive

DVD+/-RW SuperMulti DL Drive

DVD+/-RW SuperMulti DL LightScribe Drive

Blu-Ray Disc DVD+/-RW SuperMulti DL Drive

Hard Drive Support

Primary Hard Drives

160-GB 5400 rpm SMART SATA Hard Drive

120-GB 5400 rpm SMART SATA Hard Drive

80-GB 5400 rpm SMART SATA Hard Drive

100-GB 7200 rpm SMART SATA Hard Drive

80-GB 7200 rpm SMART SATA Hard Drive

Quantity Supported

One

Quantity Supported

One

Drive Bay

Fixed optical drive bay

Drive Bay

Dedicated hard drive bay

DA - 12727 Worldwide QuickSpecs — Version 7 — 7.10.2007

Page 14

Page 15

QuickSpecs

Technical Specifications

HP Compaq 8510w Mobile Workstation

System Unit

Dimensions

Weight

NOTE:

weight includes 8-cell battery, hard drive, 512-MB memory, 802.11 wireless communications module, Bluetooth, and optical drive. Weight varies by configuration and components.

Stand-Alone Power Requirements

Temperature

Relative Humidity

Shock

Random Vibration

Altitude

(unpressurized)

Industry Standard Certifications

(HxWxD)

Height varies depending upon where on the notebook the measurement is made. Starting

1.1 in (at front) x 14.0 in x 10.24 in

27.5 mm (at front) x 357 mm x 260 mm

Starting from 6.1 lb (2.77 kg)

Normal Operating Voltage

Average Operating Power

Max Operating Power

Operating

Non-operating

Operating

Non-operating

Operating

Non-operating

Operating

Non-operating

Operating

Non-operating

CSA

FCC Compliance

Energy Star Compliant

ICES

Australia / NZ A-Tick Compliance

CCC

Japan VCCI Compliance

MIC

BSMI

CE Marking Compliance

BELLIS

CIT

GOST

Saudi Arabian Compliance (ICCP)

SABS

UKRSERTCOMPUTER

18.5 V

12.5 W

< 90 W

32° to 95° F (0° to 35° C) (not writing optical)

41° to 95° F (5° to 35° C) (writing optical)

-4° to 140° F (-20° to 60° C)

10% to 90%, non-condensing

5% to 95%, 101.6° F (38.7° C) maximum wet bulb temperature

125 G, 2 ms, half-sine

200 G, 2 ms, half-sine

0.75 grms

1.50 grms

-50 to 10,000 ft (-15.24 to 3,048 m)

-50 to 40,000 ft (-15.24 to 12,192 m)

Yes

DA - 12727 Worldwide QuickSpecs — Version 7 — 7.10.2007

Page 15

Page 16

QuickSpecs

Technical Specifications

HP Compaq 8510w Mobile Workstation

HP 90W Smart AC Adapter

Dimensions

Weight

Input

Output

Connector

Environmental Design

EMI and Safety Certifications

5.24 x 2.28 x 1.1 in (13.3 x 5.8 x 2.9 cm)

0.86 lb (390 g)

100 to 240 VAC

Input Efficiency

Input frequency range

Input AC current

Output power

DC output

Hold-up time

Output current limit

3 pin/grounded, mates with interchangeable cords

Operating temperature

Non-operating (storage) temperature

Altitude

Humidity

Storage Humidity

CE Mark – full compliance with LVD and EMC directives; Worldwide safety standards – IEC60950, EN60950, UL60950, Class1, SELV; Agency approvals – C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B, CISPR22 Class B, CCC, NOM-1 NYCE; MTBF- over 200,000 hours at 25°C ambient condition.

83% min at 115 VAC

47 to 63 Hz

1.5 A at 90 VAC, 0.75 A at 180 VAC PFC Version

2.4 A at 90 VAC, 1.2 A at 180 VAC NON PFC Version

90W

18.5V

5 msec at 115 VAC input

<11A, Over voltage protection- 29V max automatic shutdown

32° to 104° F (0° to 40° C)

–4° to 149° F (–20° to 65° C)

0 to 10,000 ft (0 to 3,048 m)

20% to 80%

10% to 90%

Optional HP UltraCapacity Battery

Dimensions

Weight

Cells/Type

Energy

Temperature

Battery Re-Charge Time

Fuel Gauge

(H x W x L)

1.3 x 6.0 x 10.6 in (3.33 x 15.25 x 26.88 cm)

1.77 lb (0.803 kg)

12-cell Lithium-Ion

Watt-hour Capacity

Operating (Charging)

Operating (Discharging)

Non-operating

Smart Adapter

System ON

When pressed, LEDs light indicating level of charge remaining on battery

95Wh

32° to 113° F (0° to 45° C)

14° to 140° F (–10° to 60° C)

–4° to 140° F (–20° to 60° C)

3 to 4 hours

4 to 5 hours (depending on system power consumption)

DA - 12727 Worldwide QuickSpecs — Version 7 — 7.10.2007

Page 16

Page 17

QuickSpecs

Technical Specifications

HP Compaq 8510w Mobile Workstation

Optional HP Extended Life Battery

8-Cell (73WHr) LithiumIon battery

Dimensions

Weight

Cells/Type

Energy

Temperature

Battery Re-Charge Time

Fuel Gauge

Dimensions

Weight

Cells/Type

Energy

Temperature

Battery Re-Charge Time

(H x W x L)

1.0 x 3.9 x 8.7 in (2.5 x 10.0 x 22.0 cm)

1.00 lb (0.455 kg)

8-cell Lithium-Ion

Watt-hour Capacity

Operating (Charging)

Operating (Discharging)

Non-operating

System in OFF mode or Standby

System ON

HP Fast Charge

When pressed, LEDs light indicating level of charge remaining on battery

0.8 x 1.9 x 10.6 in (2.0 x 4.8 x 27.0 cm)

0.980 lb (0.445 kg)

8-cell Lithium-Ion

Watt-hour Capacity

Operating (Charging)

Operating (Discharging)

Non-operating

System in OFF mode or Standby

System ON

HP Fast Charge

52Wh

32° to 113° F (0° to 45° C)

14° to 140° F (–10° to 60° C)

–4° to 140° F (–20° to 60° C)

3 hours

3 to 5 hours (depending on system power consumption)

Charges the battery up to 90% within 90 minutes when system is OFF

73Wh

32° to 113° F (0° to 45° C)

14° to 140° F (–10° to 60° C)

–4° to 140° F (–20° to 60° C)

2.5 hours

3 to 5 hours (depending on system power consumption)

Charges the battery up to 90% within 1.5 hours when system is OFF

15.4-inch WUXGA wideviewing angle, antiglare

Dimensions

Diagonal Size

Surface Treatment

Contrast Ratio

Refresh Rate

Brightness

Pixel Resolution

Backlight

PPI

Viewing Angle

DA - 12727 Worldwide QuickSpecs — Version 7 — 7.10.2007

(W x H)

13.0 x 8.1 in (33.1 x 20.7 cm)

15.4 in (39.1 cm)

Anti-glare

300:1 (typical)

60 Hz

200 nit (typical)

Pitch

Format

Configuration

CCFL

147

±60° Horizontal, ± 50° Vertical (minimum)

0.173 mm

1920 x 1200

RGB stripe

Page 17

Page 18

QuickSpecs

Technical Specifications

HP Compaq 8510w Mobile Workstation

15.4-inch WSXGA+ wide-viewing angle, anti-glare

15.4-inch WXGA antiglare

Dimensions

Diagonal Size

Surface Treatment

Contrast Ratio

Refresh Rate

Brightness

Pixel Resolution

Backlight

PPI

Viewing Angle

Active Area

Diagonal Size

Surface Treatment

Contrast Ratio

Refresh Rate

Brightness

Pixel Resolution

Backlight

PPI

Viewing Angle

(W x H)

13.0 x 8.1 in (33.1 x 20.7 cm)

15.4 in (39.1 cm)

Anti-glare

300:1 (typical)

60 Hz

200 nit (typical)

Pitch

Format

Configuration

CCFL

129

±60° Horizontal, ± 50° Vertical (minimum)

13.0 x 8.1 in (33.1 x 20.7 cm)

15.4 in (39.1 cm)

Anti-glare

300:1 (typical)

60 Hz

200 nit (typical)

Pitch

Format

Configuration

CCFL

±30° Horizontal, ±10° Vertical (minimum)

0.197 mm

1680 x 1050

RGB stripe

0.259 mm

1280 x 800

RGB stripe

Hard Drives

100-GB 7200 rpm SATA

Drive Weight

Capacity

Height

Width

Interface

Transfer Rate

Seek Time

(typical reads, including settling)

Rotational Speed

Logical Blocks

Operating Temperature

Features

0.25 lb (113 g)

100 GB

0.37 in (9.5 mm)

2.75 in (70 mm)

ATA-7 / SATA 1.0a

Synchronous (maximum)

Single Track

Average

Maximum

7200 rpm

195,371,568

41° to 140° F (5° to 60° C) [case temp]

ATA Security

100 MB/s (Drive Capability)

1 ms

10 ms

18 ms

DA - 12727 Worldwide QuickSpecs — Version 7 — 7.10.2007

Page 18

Page 19

QuickSpecs

Technical Specifications

HP Compaq 8510w Mobile Workstation

80-GB 7200 rpm SATA

160-GB 5400 rpm SATA

Drive Weight

Capacity

Height

Width

Interface

Transfer Rate

Seek Time

(typical reads, including settling)

Rotational Speed

Logical Blocks

Operating Temperature

Features

Drive Weight

Capacity

Height

Width

Interface

Transfer Rate

Seek Time

(typical reads, including settling)

Rotational Speed

Logical Blocks

Operating Temperature

Features

0.25 lb (113 g)

80 GB

0.37 in (9.5 mm)

2.75 in (70 mm)

ATA-7 / SATA 1.0a

Synchronous (maximum)

Single Track

Average

Maximum

7200 rpm

156,301,488

41° to 140° F (5° to 60° C) [case temp]

ATA Security

0.22 lb (101 g)

160 GB

0.37 in (9.5 mm)

2.75 in (70 mm)

ATA-7 / SATA 1.0a

Synchronous

(maximum)

Single Track

Average

Maximum

5400 rpm

312,581,808

41° to 140° F (5° to 60° C) [case temp]

ATA Security

100 MB/s (Drive Capability)

1 ms

10 ms

18 ms

100 MB/s (Drive Capability)

3 ms

13ms

24 ms

120-GB 5400 rpm SATA

Drive Weight

Capacity

Height

Width

Interface

Transfer Rate

Seek Time

(typical reads, including settling)

Rotational Speed

Logical Blocks

Operating Temperature

Features

DA - 12727 Worldwide QuickSpecs — Version 7 — 7.10.2007

0.22 lb (101 g)

120 GB

0.37 in (9.5 mm)

2.75 in (70 mm)

ATA-7 / SATA 1.0a

Synchronous

(maximum)

Single Track

Average

Maximum

5400 rpm

234,441,648

41° to 140° F (5° to 60° C) [case temp]

ATA Security

100 MB/s (Drive Capability)

3 ms

13ms

24 ms

Page 19

Page 20

QuickSpecs

Technical Specifications

HP Compaq 8510w Mobile Workstation

80-GB 5400 rpm SATA

Optical Drives – Fixed

DVD-ROM Drive

Drive Weight

Capacity

Height

Width

Interface

Transfer Rate

Seek Time

(typical reads, including settling)

Rotational Speed

Logical Blocks

Operating Temperature

Features

Access Times

Max Data Transfer Rate

Transfer Mode

Interface

Supported Media

Max Media Capacity

(read)

Transport

(read)

(write)

0.22 lb (101 g)

80 GB

0.37 in (9.5 mm)

2.75 in (70 mm)

ATA-7 / SATA 1.0a

Synchronous (maximum)

Single Track

Average

Maximum

5400 rpm

156,301,488

41° to 140° F (5° to 60° C) [case temp]

ATA Security

Random

24X CD-ROM

8X-DVD

Multiword DMA Mode 2

EIDE

CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW

None

4.7 GB

Tray Loading

100 MB/s (Drive Capability)

3 ms

13 ms

24 ms

<116 ms CD

<125 ms DVD

3,600 KB/s

10,800 KB/s

DA - 12727 Worldwide QuickSpecs — Version 7 — 7.10.2007

Page 20

Page 21

QuickSpecs

Technical Specifications

HP Compaq 8510w Mobile Workstation

DVD/CD-RW Combo Drive

DVD+/-RW SuperMulti DL Drive

Access Times

Max Data Transfer Rate

Transfer Mode

Interface

Supported Media

Max Media Capacity

(read)

Max Media Capacity

(write)

Transport

Access Times

Max Data Transfer Rate

Transfer Mode

Interface

Supported Media

Max Media Capacity

(read)

Max Media Capacity

(write)

Transport

(read)

(write)

(read)

(write)

Random

24X CD-ROM

8X DVD

24X CD-R

24X CD-RW

Multiword DMA Mode 2

EIDE

CD-R, CD-RW

8.5 GB

700 MB

Tray loading

Random

24X CD-ROM

8X DVD

24X CD-R

16X CD-RW

8X DVD+R

4X DVD+RW

8X DVD-R

4X DVD-RW

2.4X DVD+R(9)

5X DVD-RAM

Multiword DMA Mode

EIDE

CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW, DVD-RAM

8.5 GB

Tray Loading

<110 ms CD

<130 ms DVD

3,600 KB/s

10,800 KB/s

3,600 KB/s

<175 ms CD

<230 ms DVD

3,600 KB/s

10,800 KB/s

3,600 KB/s

2,400 KB/s

10,800 KB/s

5,400 KB/s

10,800 KB/s

5,400 KB/s

2,700 KB/s

6,750 KB/s

DA - 12727 Worldwide QuickSpecs — Version 7 — 7.10.2007

Page 21

Page 22

QuickSpecs

Technical Specifications

HP Compaq 8510w Mobile Workstation

DVD+/-RW SuperMulti DL LightScribe Drive

Access Times

Max Data Transfer Rate

Transfer Mode

Interface

Supported Media

Max Media Capacity

(read)

Max Media Capacity

(write)

Transport

(read)

(write)

Random

24X CD-ROM

8X DVD

24X CD-R

16X CD-RW

8X DVD+R

4X DVD+RW

8X DVD-R

4X DVD-RW

2.4X DVD+R(9)

5X DVD-RAM

Multiword DMA Mode

EIDE

CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW, DVD-RAM, LightScribe

8.5 GB

Tray Loading

<175 ms CD

<230 ms DVD

3,600 KB/s

10,800 KB/s

3,600 KB/s

2,400 KB/s

10,800 KB/s

5,400 KB/s

10,800 KB/s

5,400 KB/s

2,700 KB/s

6,750 KB/s

Blu-Ray Disc DVD+/-RW SuperMulti DL Drive

Access Times

Max Data Transfer Rate

Transfer Mode

Interface

Random

24X CD-ROM

8X DVD-ROM

8X CD-R

8X CD-RW

8X DVD+R

4X DVD+RW

8X DVD-R

4X DVD-RW

2.4X DVD+R(9)

5X DVD-RAM

1X BD-ROM

1X BD-R

1X BD-RE

Multiword DMA Mode

EIDE

<140 ms CD-ROM

<160 ms DVD-ROM

<300 ms BD-ROM

3,600 KB/s

10,800 KB/s

1,200 KB/s

10,800 KB/s

5,400 KB/s

10,800 KB/s

5,400 KB/s

2,700 KB/s

6,750 KB/s

4,500 KB/s

DA - 12727 Worldwide QuickSpecs — Version 7 — 7.10.2007

Page 22

Page 23

QuickSpecs

Technical Specifications

HP Compaq 8510w Mobile Workstation

Security

HP Fingerprint Sensor

Supported Media

Max Media Capacity

(read)

Max Media Capacity

(write)

Transport

Mobile Voltage Operation

Operating Temperature

Current Consumption @ 3.3V

High-Rate Image Capture

ESD Resistance

Detection Matrix

(read)

(write)

CD-R, CD-RW, DVD+R, DVD+R(9), DVD+RW, DVD-R, DVD-R(9), DVD-RW, DVD-RAM, BD-R, BD-RE

50.0 GB

Tray Loading

3.0V–3.6V Single Supply

32° – 158°F (0° – 70°C)

Less than 70 mA peak imaging and scrolling Less than 25 mA hardware finger detection Advanced Power Management

Up to 240 image frames /sec

IEC 61000-4-2 Level 4 (±15KV)

192 x 16 Pixels

9.7mm x 0.81mm 500 ppi High-Resolution Images

Audio

Hardware

Implementation

Volume Controls

Full Duplex

Sound Blaster Pro compatible

Microphone In

Headphone/Line Out

Integrated Microphone

ADI1981HD High Definition CODEC

Volume up, volume down, and mute

Yes

Stereo

Yes

DA - 12727 Worldwide QuickSpecs — Version 7 — 7.10.2007

Page 23

Page 24

QuickSpecs

Technical Specifications

HP Compaq 8510w Mobile Workstation

Audio Output Quality

Integrated Stereo Speakers

Communications

Integrated Intel Gigabit Network Connection

(10/100/1000 NIC)

Frequency Response

Signal to Noise Ratio

Total Harmonic Distortion

Noise Floor

Play/Record Sampling Rate

(s)

DAC

ADC

Power Rating

Impedance

Ethernet Features

Power Management

Performance Features

Manageability

Interface

NIC Device Driver Name

Drivers Available

20 Hz – 20 kHz

>85 dB

0.01%

-110 dB

8 kHZ – 48kHz

16, 20 or 24-bit

16 or 20-bit

2 Watts

4 Ohms

10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 13-

14) 100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses 21-30) 1000 Mbit/s operation (1000BASE-T; IEEE 802.3z and 802.3ab; IEEE

802.3 clauses 34-42) Auto-Negotiation (Automatic Speed Selection) Full Duplex Operation at all Speeds, Half Duplex operation at 10 and 100 Mbit/s IEEE 802.1p QoS (Quality of Service) Support IEEE 802.3x Flow Control (IEEE 802.3 clauses 31-32; configurable)

ACPI compliant -- multiple power modes Situation-sensitive features reduce power consumption

TCP/IP/UDP Checksum Offload (configurable)

Wake-on-LAN from standby and hibernation (Magic Packet and Microsoft Wake-Up Frame); Wake-on-LAN from off (Magic Packet only) PXE 2.1 Remote Boot Statistics Gathering (SNMP MIB II, Ethernet-like MIB, Ethernet MIB (802.3x, clause 30)) Comprehensive diagnostic and configuration software suite Intel Advanced Management Technology (iAMT)

PCI Express x1

Intel 82566MM Gigabit Network Connection

Microsoft Windows Vista Microsoft Windows XP

DA - 12727 Worldwide QuickSpecs — Version 7 — 7.10.2007

Page 24

Page 25

QuickSpecs

Technical Specifications

HP Compaq 8510w Mobile Workstation

V.92 56K Data/Fax Modem

Form Factor

Power Management Support

Approvals/ Certifications

Data Mode Capabilities

Fax Mode Capabilities

Command Set

MDC 1.5 Daughtercard

APM Revision 1.2, ACPI

UL, CSA, NEMKO, CCIB, Industry Canada, FCC Part 68, CTR21, FCC Part 15 Class B, Canadian ICES-003 Class B, C.I.S.P.R.22, Australian ACA, CE Mark, Other Countries

V.92 data

V.8bis

V.80

V44, V.42bis, MNP5 (Compression)

V.42 (LAPM, MNP2-4) (Error Correction)

Optional symbol rates:

2800, 3429 Asymmetric Symbol rates

Synchronous primary channel data signaling rates:

3600, 31200 Automatic rate re-negotiation V.34 V.32bis V.32 V.23 V.22bis V.22 V.21 Bell 212A Bell 103J

TIA/EIA-578-B (Class 1) T.30, T.4 (Group 3) V.17 V.29 V.27ter V.21 Channel 2

V.250 (Partial) TIA-602 Identification: +GMI, +GMM, +GMR Port control: +IPR, +ICF, +IFC, +ILRR Modulation: +MS, +MR, +MA Error control: +ES, +ER, +EB, +ESR, +ETBM Data compression: +DS, +DR V.251

DA - 12727 Worldwide QuickSpecs — Version 7 — 7.10.2007

Page 25

Page 26

QuickSpecs

Technical Specifications

HP Compaq 8510w Mobile Workstation

HP ev2200 1xEV-DO Broadband Wireless Module

Band and Power Class

Wireless Protocol Standards

Wireless Parametric Standards

Interoperability

Frequency Band

Data Rates

Mode)

Maximum Output Power

Power Consumption

(maximum)

Power Consumption, Sleep Mode

Power Management

Antenna Type

Form Factor

Weight

Dimensions

Width x Thickness)

Voltage, Operating

Temperature, Operating

TIA/EIA/IS-98-D)

Temperature, Nonoperating, 96 hours

(from MIL-STD 202 Method 108)

Humidity, Nonoperating

Configuration Utilities

LED Activity

(Packet

(Length x

(from

0 (North American Cellular) – Class III; 1 (North American PCS) – Class II

CDMA 1x Release 0/A; IS-95A, IS-95B, IS-2000

Meets or exceeds TIA/EIA IS-98-D

CDG 22 (TIA/EIA/IS-95-A) CDG 53(TIA/EIA/IS-95-B) C.S0031 (TIA/EIA/IS-2000) CDG 64 (TIA/EIA/IS-2000) C.S0032 (TIA/EIA/IS-866)

Dual Band: 850 MHz (Cellular) and 1900 MHz (PCS)

IS-856 rates up to 2.4 Mbps IS-2000 data rates up to 307.2 kbps

24dBm (+/-1)

500mA

1.7mA – 3.5mA

USB selective suspend CDMA slotted mode sleep and dormant modes

High efficiency dual band antennae with spatial diversity, mounted in the display enclosure

PCI-Express MiniCard

0.35 oz (10 g)

2.01 x 1.18 x 0.18 in (51 x 30 x 4.5 mm)

3.3v +/- 10%

–22° to 140° F (–30° to 60° C) (full RF performance) –22° to 167° F (–30° to 75° C) (reduced RF performance)

–40° to 185° F (–40° to 85° C)

85% relative humidity for 48 hours @ 185° F (85° C) (non-condensing)

Verizon Wireless VZAccess Manager

LED Off – Radio Off; Solid LED On – Radio On

DA - 12727 Worldwide QuickSpecs — Version 7 — 7.10.2007

Page 26

Page 27

QuickSpecs

Technical Specifications

HP Compaq 8510w Mobile Workstation

HP hs2300 HSDPA Broadband Wireless Module

Frequency Bands and Power Class

Wireless Protocol Standards

Wireless Parametric Standards

Additional Standards Compliance

Data Rates

(Packet Mode)

Chipset and Module

Maximum Output Power

Power Consumption

(maximum)

Power Consumption, Sleep Mode

Power Management

Antenna Type

Form Factor

Weight

Dimensions

Width x Thickness)

Voltage, Operating

Temperature, Operating

Temperature, Nonoperating, 96 hours

(from MIL-STD 202 Method 108)

Humidity, Nonoperating

LED Activity

Configuration Utilities

(Length x

850/1900/2100MHz WCDMA Power class 3 (+24dBm) 850MHz GSM/GPRS/EDGE 900MHz GSM/GPRS/EDGE, 1800MHz GSM/GPRS/EDGE 1900MHz GSM/GPRS/EDGE EDGE E2 power GPRS/EDGE Multislot Class 12 GPRS PCS/DCS power class 1 GSM power class 4

GPRS/EDGE: 3GPP R99 GERAN P1 WCDMA Release 5 (R5) High-Speed Downlink Packet Access (HSDPA) 3.6Mbps GSM Phase 2+

Complies with 3GPP specifications

FCC parts 15/22/24, CE, Microsoft WHQL, R&TTE directive 1999/5/EC (health, safety, EMC, spectrum), GCF-CC (Module), European Union Directive 2002/95/EC (restrictions of the use of certain Hazardous Substances (RoHS) in electronic equipment), Infrastructure Interoperability Testing (IOT)

Designed maximum data rate: EDGE 118 kbps UL / 236 kbps DL UMTS 384 kbps UL / 384 kbps DL HSDPA 384 kbps UL / 3.6 Mbps DL

Qualcomm MSM6280 chipset; Sierra Wireless MC8775 module

32 dBm (+/-2) GSM/EDGE GMSK mode

800mA

4 – 8mA

USB Selective Suspend sleep and standby mode

High efficiency 5- band antennae, mounted in the display enclosure

PCI-Express MiniCard

0.35 oz (10 g)

2.01 x 1.18 x 0.18 in (51 x 30 x 4.5 mm)

3.3v +/- 10%

–22° to 140° F (–30° to 60° C) (full RF performance) –22° to 167° F (–30° to 75° C) (reduced RF performance)

–40° to 185° F (–40° to 85° C)

85% relative humidity for 48 hours @ 185° F (85° C) (non-condensing)

LED Off – Radio Off; Solid LED On – Radio On

Varies per country and mobile network operator

DA - 12727 Worldwide QuickSpecs — Version 7 — 7.10.2007

Page 27

Page 28

QuickSpecs

Technical Specifications

HP Compaq 8510w Mobile Workstation

Intel PRO/Wireless 3945BG Network Connection

Wireless LAN Standards

Interoperability

Frequency Band

Data Rates

Modulation

Security

Sub-channels

Media Access Protocol

Network Architecture Models

Roaming

Output Power

CKK)

Output Power

OFDM; power varies by data rate)

Power Consumption

Power Management

Receiver Sensitivity454 Mbps: -72 dBm, 11 Mbps: -88 dBm , 1 Mbps: -97 dBm

Antenna Connections

Range

Form Factor

Weight

Dimensions

Operating Voltage

Temperature

Humidity

Altitude

(for

IEEE 802.11b IEEE 802.11g

Wi-Fi certified Cisco Compatible Extensions Program compliant with Microsoft Windows 2000 and XP (details at

http://www.hp.com/go/notebooks/WLAN

2.4 GHz

802.11b: 1, 2, 5.5, 11 Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Direct Sequence Spread Spectrum DBPSK, DQPSK, CCK, OFDM

Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES, 802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-MSCHAPv2, LEAP, EAP-FAST, EAP-SIM.

Support for Cisco Security Features (proven compatibility with Cisco Aironet infrastructure products through the Cisco Compatible Extensions Program Version 4).

Multinational support with frequency bands and channels compliant to local regulations.

CSMA/CA (Collision Avoidance) with ACK

Ad-hoc (Peer to Peer) Infrastructure (Access Point Required)

IEEE 802.11 compliant roaming between access points

15 dBm

Transmit: 1.8 Watts (max) Receive: 1.4 Watts (max) Idle mode3: 150 mW (nominal) Sleep mode: 30 mW (max)

ACPI compliant power management

802.11 compliant power saving mode

2 U.FL type connectors, 50 ohm nominal impedance

802.11 b – Typical (@1 Mbps)

802.11 g – Typical (@1 Mbps)

PCI-Express MiniCard

0.013 lb (6 g)

0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm)

3.3V +/- 9%, 1.5V +/- 5%

Operating Non-operating

1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment

32° to 176° F (0° to 80° C) –40° to 176° F (–40° to 80° C)

10% to 90% (non-condensing) 5% to 95% (non-condensing)

0 to 10,000 ft (3,048 m) 0 to 50,000 ft (15,240 m)

)

DA - 12727 Worldwide QuickSpecs — Version 7 — 7.10.2007

Page 28

Page 29

QuickSpecs

Technical Specifications

HP Compaq 8510w Mobile Workstation

Intel Wireless WiFi Link 4965AG

Configuration Utility5Microsoft Windows 2000 or XP

Choice of Configuration Utility:

Microsoft Windows XP Wireless Network Connection Manager Intel PROSet for Microsoft Windows 2000 or XP (required for Cisco Compatible Extensions support)

Microsoft Windows Vista

Microsoft Windows Vista Wireless Network Connection Manager

LED Activity

Check latest software/driver release for updates on supported security features.

1. Maximum output power may vary by country according to local regulations.

2. In Power Save Polling mode.

3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation)

4. and a packet error rate of 10% for 802.11a/g (OFDM modulation). WLAN supplier's client utility is required for Cisco Compatible Extensions support with

5. Microsoft Windows 2000 or XP. WLAN may also be compatible with certain third-party software supplicants.

Wireless LAN Standards

Interoperability

Frequency Band

Data Rates

Modulation

Security

LED Off – Radio OFF; Solid LED On – Radio ON

IEEE 802.11a IEEE 802.11b IEEE 802.11g

Wi-Fi certified Cisco Compatible Extensions Program compliant with Microsoft Windows 2000 and XP (details at

http://www.hp.com/go/notebooks/WLAN

2.4 GHz and 5 GHz

802.11b: 1, 2, 5.5, 11 Mbps

802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Direct Sequence Spread Spectrum DBPSK, DQPSK, CCK, OFDM

Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES (support for key sizes of 128, 192, and 256 bits), 802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAPMSCHAPv2, LEAP, EAP-FAST.

)

Support for Cisco Security Features (proven compatibility with Cisco Aironet infrastructure products through the Cisco Compatible Extensions Program Version 4) with Microsoft Windows 2000 and XP only.

Sub-channels

Media Access Protocol

Network Architecture Models

Roaming

Output Power

CKK)

Output Power

OFDM; power varies by data rate)

DA - 12727 Worldwide QuickSpecs — Version 7 — 7.10.2007

(for

Multinational support with frequency bands and channels compliant to local regulations.

CSMA/CA (Collision Avoidance) with ACK

Ad-hoc (Peer to Peer) Infrastructure (Access Point Required)

IEEE 802.11 compliant roaming between access points

15 dBm

Page 29

Page 30

QuickSpecs

Technical Specifications

HP Compaq 8510w Mobile Workstation

Power Consumption

Power Management

Receiver Sensitivity454 Mbps: -74 dBm, 6 Mbps: -90 dBm

Antenna Connections

Range

Form Factor

Weight

Dimensions

Operating Voltage

Temperature

Humidity

Altitude

Configuration Utility5Microsoft Windows 2000 or XP

Transmit: 1.6 Watts (average) Receive: 1.1 Watts (average) Idle mode3: 30 mW (average) Radio off: 20 mW (max)

ACPI compliant power management

802.11 compliant power saving mode

2 U.FL type connectors, 50 ohm nominal impedance

802.11 a – Typical (@6 Mbps)

802.11 b – Typical (@1 Mbps)

802.11 g – Typical (@1 Mbps)

PCI-Express MiniCard

0.013 lb (6 g)

0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm)

3.3V +/- 9%, 1.5V +/- 5%

Operating Non-operating

Choice of Configuration Utility:

600 feet – Outdoor Open Area 150 feet – Indoor, Office environment

1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment

32° to 176° F (0° to 80° C) –40° to 176° F (–40° to 80° C)

10% to 90% (non-condensing) 5% to 90% (non-condensing)

0 to 10,000 ft (3,048 m) 0 to 50,000 ft (15,240 m)

Intel Wireless WiFi Link 4965AGN

Microsoft Windows XP Wireless Network Connection Manager Intel PROSet for Microsoft Windows 2000 or XP (required for Cisco Compatible Extensions support)

Microsoft Windows Vista

Microsoft Windows Vista Wireless Network Connection Manager

LED Activity

Check latest software/driver release for updates on supported security features.

1. Maximum output power may vary by country according to local regulations.

2. In Power Save Polling mode and on battery power.

3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation)

4. and a packet error rate of 10% for 802.11a/g (OFDM modulation). WLAN supplier's client utility is required for Cisco Compatible Extensions support with

5. Microsoft Windows 2000 or XP. WLAN may also be compatible with certain third-party software supplicants.

Wireless LAN Standards

LED Off – Radio OFF; Solid LED On – Radio ON

IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n (draft 1.02)

DA - 12727 Worldwide QuickSpecs — Version 7 — 7.10.2007

Page 30

Page 31

QuickSpecs

Technical Specifications

HP Compaq 8510w Mobile Workstation

Interoperability

Frequency Band

Data Rates

Modulation

Security

Sub-channels

Media Access Protocol

Network Architecture Models

Roaming

Output Power

CKK)

Output Power

OFDM; power varies by data rate)

Power Consumption

Power Management

Receiver Sensitivity4300 Mbps: -68 dBm, 54 Mbps: -74 dBm, 6 Mbps: -90 dBm

Antenna Connections

Range

Form Factor

Weight

Dimensions

Operating Voltage

(for

Wi-Fi certified (802.11abg only) Cisco Compatible Extensions Program compliant (802.11abg only) with Microsoft Windows 2000 and XP (details at

http://www.hp.com/go/notebooks/WLAN

Tested with wireless access points from several major manufacturers (details at

2.4 GHz and 5 GHz

802.11b: 1, 2, 5.5, 11 Mbps

802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n (draft): 66 possible data rates, ranging from 6 Mbps to 300 Mbps, depending on the combination of Bandwidth, Modulation Coding Scheme, and Guard Interval used, as defined in IEEE 802.11n (draft) specification

Direct Sequence Spread Spectrum DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM

Multinational support with frequency bands and channels compliant to local regulations.

CSMA/CA (Collision Avoidance) with ACK

Ad-hoc (Peer to Peer) Infrastructure (Access Point Required)

IEEE 802.11 compliant roaming between access points

15 dBm

Transmit: 2.3 Watts (average, with two spatial streams) Receive: 1.9 Watts (average with three receive chains) Idle mode3: 30 mW (average) Radio off: 20 mW (max)

ACPI compliant power management

802.11 compliant power saving mode

3 U.FL type connectors, 50 ohm nominal impedance

802.11 a – Typical (@6 Mbps)

802.11 b – Typical (@1 Mbps)

802.11 g – Typical (@1 Mbps)

PCI-Express MiniCard

0.013 lb (6 g)

0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm)

3.3V +/- 9%, 1.5V +/- 5%

http://www.hp.com/go/notebooks/WLAN/

600 feet – Outdoor Open Area 150 feet – Indoor, Office environment

1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment

)

draft-n)

DA - 12727 Worldwide QuickSpecs — Version 7 — 7.10.2007

Page 31

Page 32

QuickSpecs

Technical Specifications

HP Compaq 8510w Mobile Workstation

Temperature

Humidity

Altitude

Configuration Utility5Microsoft Windows 2000 or XP

LED Activity

Check latest software/driver release for updates on supported security features.

1. Maximum output power may vary by country according to local regulations.

2. In Power Save Polling mode and on battery power.

3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation)

4. and a packet error rate of 10% for 802.11a/g (OFDM modulation). WLAN supplier's client utility is required for Cisco Compatible Extensions support with

5. Microsoft Windows 2000 or XP. WLAN may also be compatible with certain third-party software supplicants.

Operating Non-operating

Choice of Configuration Utility:

Microsoft Windows XP Wireless Network Connection Manager Intel PROSet for Microsoft Windows 2000 or XP (required for Cisco Compatible Extensions support)

Microsoft Windows Vista

Microsoft Windows Vista Wireless Network Connection Manager

LED Off – Radio OFF; Solid LED On – Radio ON

32° to 176° F (0° to 80° C) –40° to 176° F (–40° to 80° C)

10% to 90% (non-condensing) 5% to 90% (non-condensing)

0 to 10,000 ft (3,048 m) 0 to 50,000 ft (15,240 m)

Broadcom 4311AG

802.11a/b/g WiFi Adapter

Wireless LAN Standards

Interoperability

Frequency Band

Data Rates

Modulation

Security

Sub-channels

Media Access Protocol

Network Architecture Models

Roaming

Output Power

CKK)

(for

IEEE 802.11a IEEE 802.11b IEEE 802.11g

Wi-Fi certified Cisco Compatible Extensions Program compliant with Microsoft Windows 2000 and XP (details at

http://www.hp.com/go/notebooks/WLAN

2.4 GHz and 5 GHz

802.11b: 1, 2, 5.5, 11 Mbps

802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Direct Sequence Spread Spectrum DBPSK, DQPSK, CCK, OFDM

Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES, 802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-MSCHAPv2, LEAP, EAP-FAST.

Support for Cisco Security Features (proven compatibility with Cisco Aironet infrastructure products through the Cisco Compatible Extensions Program Version 4).

Multinational support with frequency bands and channels compliant to local regulations.

CSMA/CA (Collision Avoidance) with ACK

Ad-hoc (Peer to Peer) Infrastructure (Access Point Required)

IEEE 802.11 compliant roaming between access points

17.5 dBm

)

DA - 12727 Worldwide QuickSpecs — Version 7 — 7.10.2007

Page 32

Page 33

QuickSpecs

Technical Specifications

HP Compaq 8510w Mobile Workstation

Output Power

OFDM; power varies by data rate)

Power Consumption

Power Management

Receiver Sensitivity454 Mbps: -72 dBm, 11 Mbps: -88 dBm , 1 Mbps: -97 dBm

Antenna type

Range

Form Factor

Weight

Dimensions

Operating Voltage

Temperature

Humidity

Altitude

Configuration Utility5Microsoft Windows 2000 or XP

(for

15 dBm

Transmit: 2.0 W (max) Receive: 1.5 W (max) Idle mode3: 390 mW (nominal) Sleep mode: 20 mW (max)

ACPI compliant power management

802.11 compliant power saving mode

High efficiency dual band antenna with spatial diversity, mounted in the display enclosure

802.11 a – Typical (@6 Mbps)

802.11 b – Typical (@1 Mbps)

802.11 g – Typical (@1 Mbps)

PCI-Express MiniCard

0.026 lb (12 g)

0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm)

3.3v +/- 10%

Operating Non-operating

Choice of Configuration Utility:

600 feet – Outdoor Open Area 150 feet – Indoor, Office environment

1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment

32° to 176° F (0° to 80° C)

-40° to 176° F (-40° to 80° C)

10% to 90% (non-condensing) 5% to 95% (non-condensing)

0 to 10,000 ft (3,048 m) 0 to 50,000 ft (15,240 m)

Microsoft Windows XP Wireless Network Connection Manager Broadcom Wireless Configuration Utility (required for Cisco Compatible Extensions support)

Microsoft Windows Vista

Microsoft Windows Vista Wireless Network Connection Manager

LED Activity

Check latest software/driver release for updates on supported security features.

1. Maximum output power may vary by country according to local regulations.

2. In Power Save Polling mode.

3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation)

4. and a packet error rate of 10% for 802.11a/g (OFDM modulation). WLAN supplier's client utility is required for Cisco Compatible Extensions support with

5. Microsoft Windows 2000 or XP. WLAN may also be compatible with certain third-party software supplicants.

LED Off – Radio OFF; Solid LED On – Radio ON

DA - 12727 Worldwide QuickSpecs — Version 7 — 7.10.2007

Page 33

Page 34

QuickSpecs

Technical Specifications

HP Compaq 8510w Mobile Workstation

Broadcom 4311BG

802.11b/g WiFi Adapter

Wireless LAN Standards

Interoperability

Frequency Band

Data Rates

Modulation

Security

Sub-channels

Media Access Protocol

Network Architecture Models

Roaming

Output Power

CKK)

Output Power

OFDM; power varies by data rate)

Power Consumption

Power Management

Receiver Sensitivity454 Mbps: -72 dBm, 11 Mbps: -88 dBm , 1 Mbps: -97 dBm

Antenna type

Range

Form Factor

Weight

Dimensions

Operating Voltage

Temperature

Humidity

Altitude

(for

IEEE 802.11b IEEE 802.11g

Wi-Fi certified Cisco Compatible Extensions Program compliant with Microsoft Windows 2000 and XP (details at

http://www.hp.com/go/notebooks/WLAN

2.4 GHz

802.11b: 1, 2, 5.5, 11 Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Direct Sequence Spread Spectrum DBPSK, DQPSK, CCK, OFDM

Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES, 802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-MSCHAPv2, LEAP, EAP-FAST.

Support for Cisco Security Features (proven compatibility with Cisco Aironet infrastructure products through the Cisco Compatible Extensions Program Version 4).

Multinational support with frequency bands and channels compliant to local regulations.

CSMA/CA (Collision Avoidance) with ACK

Ad-hoc (Peer to Peer) Infrastructure (Access Point Required)

IEEE 802.11 compliant roaming between access points

17.5 dBm

15 dBm

Transmit: 2.0 W (max) Receive: 1.5 W (max) Idle mode3: 390 mW (nominal) Sleep mode: 20 mW (max)

ACPI compliant power management

802.11 compliant power saving mode

High efficiency dual band antenna with spatial diversity, mounted in the display enclosure

802.11 b – Typical (@1 Mbps)

802.11 g – Typical (@1 Mbps)

PCI-Express MiniCard

0.026 lb (12 g)

0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm)

3.3v +/- 10%

Operating Non-operating

1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment

32° to 176° F (0° to 80° C) –40° to 176° F (–40° to 80° C)

10% to 90% (non-condensing) 5% to 95% (non-condensing)

0 to 10,000 ft (3,048 m) 0 to 50,000 ft (15,240 m)

)

DA - 12727 Worldwide QuickSpecs — Version 7 — 7.10.2007

Page 34

Page 35

QuickSpecs

Technical Specifications

HP Compaq 8510w Mobile Workstation

HP Integrated Module with Bluetooth Wireless Technology

Configuration Utility5Microsoft Windows 2000 or XP

Choice of Configuration Utility:

Microsoft Windows XP Wireless Network Connection Manager Broadcom Wireless Configuration Utility (required for Cisco Compatible Extensions support)

Microsoft Windows Vista

Microsoft Windows Vista Wireless Network Connection Manager

LED Activity

Check latest software/driver release for updates on supported security features.

1. Maximum output power may vary by country according to local regulations.

2. In Power Save Polling mode.

3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation)

4. and a packet error rate of 10% for 802.11a/g (OFDM modulation). WLAN supplier's client utility is required for Cisco Compatible Extensions support with

5. Microsoft Windows 2000 or XP. WLAN may also be compatible with certain third-party software supplicants.

Bluetooth Specification

Dimensions

Frequency Band

Number of Available Channels

Data Rates and Throughput

Transmit Power

Receiver Sensitivity

Power Consumption

Antenna

Range

Electrical Interface

OS Support

Bluetooth Software Supported

Link Topology

Security

Power Management

Certifications

LED Off – Radio OFF; Solid LED On – Radio ON

2.0 Compliant

1.02 x 0.55 x 0.22 in (26 x 14 x 5.7 mm)

2402 to 2480 MHz

79 (1 MHz) available channels

3 Mbps data rate; throughput up to 2.17 Mbps

Synchronous Connection Oriented links up to 3, 64 kbps, voice channels

Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric or 1306.9 kbps symmetric

-6 dBm to 4 dBm (Bluetooth Class II)

Better than -80 dBM at 0.1 % raw bit error rate

Peak (Tx) 264 mW

Peak (Rx) 231 mW

Sleep <1 mW

Internally integrated within module

Up 33 ft (10 m)

USB 2.0 compliant

Microsoft Windows Plug and Play compliant

Genuine Windows Vista

Genuine Windows XP

Genuine Windows 2000

Broadcom Bluetooth for Windows

Microsoft Windows XP Bluetooth Software

Point to Point, Multipoint Pico Nets up to 7 slaves

Full support of Bluetooth Security Provisions

Microsoft Windows ACPI, and USB Bus Support

Self configurable to optimize power conservation in all operating modes, including Standby, Hold, Park, and Sniff

All necessary regulatory approvals for supported countries, including:

DA - 12727 Worldwide QuickSpecs — Version 7 — 7.10.2007

Page 35

Page 36

QuickSpecs

Technical Specifications

HP Compaq 8510w Mobile Workstation

Temperature

Humidity

Altitude

Bluetooth Profiles Supported

indicates the profile is also supported by Microsoft Windows XP SP2

FCC (47 CFR) Part 15C, Section 15.247 & 15.249

ETS 300 328, ETS 300 826

Low Voltage Directive IEC950

UL, CSA, and CE Mark

Operating

Non-operating

Operating

Non-operating

Operating

Non-operating

(with Bluetooth for Windows 4.0 software)

Serial Port Profile (SPP)*

Dial-Up Networking (DUN)*

Generic Object Exchange Profile (GOEP)

Object Push Profile (OPP)*

File Transfer Profile (FTP)

Synchronization Profile (SYNC)

Hard Copy Cable Replacement (HCRP)*

Personal Area Networking Profile (PAN)*

Human Interface Device Profile (HID)*

FAX Profile (FAX)

Basic Imaging Profile (BIP)

Headset Profile (HSP)

Hands Free Profile (HFP)

Advanced Audio Distribution Profile (A2DP)

-4° to 158° F (-20° to 70° C)

-40° to 176° F (-40° to 80° C)

10% to 90%

5% to 95%

15,000 ft (4,572 m)

40,000 ft (12,192 m)

All rights reserved. Microsoft, Windows, Windows Vista and Windows XP are registered trademarks or trademarks of Microsoft Corporation in the U.S. and/or other countries. Core 2 Duo and Celeron are registered trademarks or trademarks of Intel Corporation in the U.S. and/or other countries. Bluetooth is a registered trademark of Bluetooth SIG, Inc., in the U.S. and other countries. All other product names mentioned herein may be trademarks of their respective companies.

The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

DA - 12727 Worldwide QuickSpecs — Version 7 — 7.10.2007

Page 36
