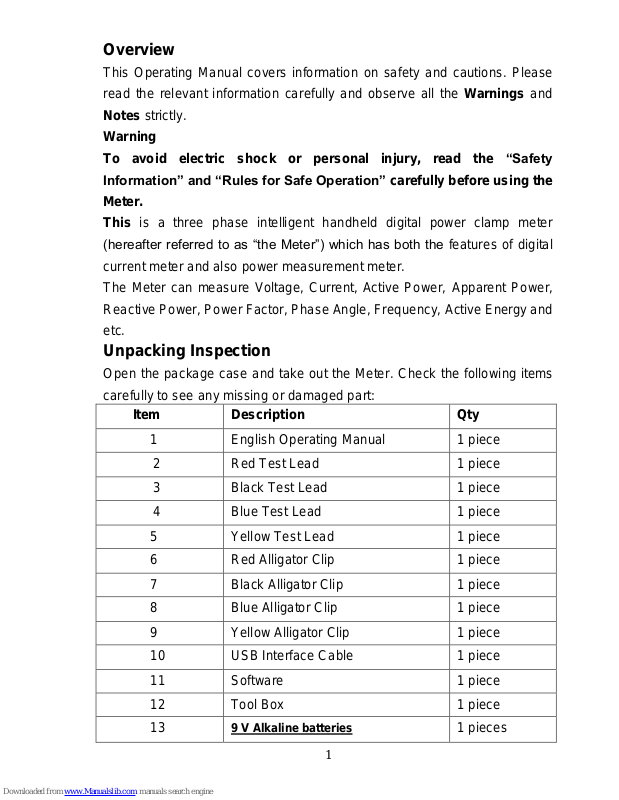

Overview
This Operating Manual covers information on safety and cautions. Please
read the relevant information carefully and observe all the Warnings and
Notes strictly.
Warning
To avoid electric shock or personal injury, read the “Safety
Information” and “Rules for Safe Operation” carefully before using the
Meter.
This is a three phase intelligent handheld digital power clamp meter
(hereafter referred to as “the Meter”) which has both the features of digital
current meter and also power measurement meter.
The Meter can measure Voltage, Current, Active Power, Apparent Power,
Reactive Power, Power Factor, Phase Angle, Frequency, Active Energy and
etc.
Unpacking Inspection
Open the package case and take out the Meter. Check the following items
carefully to see any missing or damaged part:
Item
Description
Qty
1
English Operating Manual
1 piece
2
Red Test Lead
1 piece
3
Black Test Lead
1 piece
4
Blue Test Lead
1 piece
5
Yellow Test Lead
1 piece
6
Red Alligator Clip
1 piece
7
Black Alligator Clip
1 piece
8
Blue Alligator Clip
1 piece
9
Yellow Alligator Clip
1 piece
10
USB Interface Cable
1 piece
11
Software
1 piece
12
Tool Box
1 piece
13
9 V Alkaline batteries
1 pieces
Page 2
2
In the event you find any missing or damage, please contact your dealer
immediately.
Safety Information
This Meter complies with the standards IEC61010: in pollution degree 2,
overvoltage category (CAT. III 600V,CAT IV 300V) and double insulation.
CAT. III: Distribution level, fixed installation, with smaller transient
overvoltages than CAT. IV
CAT.IV: Primary supply level, overhead lines, cable systems etc.
Use the Meter only as specified in this operating manual, otherwise the
protection provided by the Meter may be impaired.
In this manual, a Warning identifies conditions and actions that pose
hazards to the user, or may damage the Meter or the equipment under test.
A Note identifies the information that user should pay attention to
International electrical symbols used on the Meter and in this Operating
Manual are explained on page 6.
Rules For Safe Operation
Warning
To avoid possible electric shock or personal injury, and to avoid
possible damage to the Meter or to the equipment under test, adhere
to the following rules:
Before using the Meter inspect the case. Do not use the Meter if it
is damaged or the case (or part of the case) is removed. Look for
cracks or missing plastic. Pay attention to the insulation around the
connectors.
Inspect the test leads for damaged insulation or exposed metal.
Replace damaged test leads with identical model number or electrical
specifications before using the Meter.
Do not apply more that the rated voltage, as marked on the Meter.
When measurement has been completed, disconnect the
connection between the test leads and the circuit under test, remove
the testing leads away from the input terminals of the Meter and turn
Page 3
3
the Meter power off.
Do not carry out the measurement when the Meter’s back case and
/ or battery door is opened to avoid electric shock.
When the Meter working at an effective voltage over 30V in AC,
special care should be taken.
Use the proper terminals and function for your Measurements.
Do not use or store the Meter in an environment of high
temperature, humidity, explosive, inflammable and strong magnetic
field. The performance of the Meter may deteriorate after dampened.
Do not use the Meter if the surface of it is wet or the user’s hands
are wet.
When using the test leads, keep your fingers behind the finger
guards.
Replace the battery as soon as the battery Indicator appears.
With a low battery, the Meter might produce false readings that can
lead to electric shock and personal injury.
When opening the battery door, must make sure the Meter is
power off.
When servicing the Meter, use only the same model number or
identical electrical specifications replacement parts.
The internal circuit of the Meter shall not be altered at will to avoid
damage of the Meter and any accident.
Soft cloth and mild detergent should be used to clean the surface
of the Meter when servicing.
No abrasive and solvent should be used to prevent the surface of the
Meter from corrosion, damage and accident.
The Meter is suitable for indoor use.
Turn the Meter off when it is not in use and take out the battery
when not using for a long time.
Constantly check the battery as it may leak when it has been using
for some time, replace the battery as soon as leaking appears.
A leaking battery will damage the Meter.
Page 4
4
International Electrical Symbols
AC (Alternating Current)
Grounding
Double Insulated
Warning. Refer to the Operating Manual
Deficiency of Built-In Battery
Danger of High Voltage
Conforms to Standards of European Union
The Meter Structure
A. The Meter Front Structure (see figure 1)
figure 1
Page 5
5
1
Transformer Jaw: designed to pick up the AC and DC
current flowing through the conductor. It could transfer
current to voltage. The tested conductor must vertically
go through the Jaw center
2 Hand Guards: to protect user’s hand from
touching the dangerous area.
3
LIGHT button (auto display backlight button)
4
MIN/ ▼button
5
LOAD button (recall data)
6
LCD Display
7
A Input Terminal (First phase measurement)
8
B Input Terminal
(Second phase measurement)
9
COM Input Terminal
10
C Input Terminal (Third phase measurement)
11
CLEAR button (maximum and minimum)
12
SELECT button (press to select alternate
function and sum of Watts measurement)
13
button (Sum)
14
SAVE button (data store button)
15
Max/▲ button
16
HOLD button
17
Rotary Switch
18
USB
19
The distributing line device will avoid the dangerous when
distributing electrical wire with hands
20
Leads Cramp in the Clamp easy for fixed one Lead when
you need test two separation vertices
Page 6
6
B. Button operation performed
Button
Operation Performed
HOLD
● Press HOLD to enter the Hold mode in any mode,
appears and the Meter beeps.
● Press HOLD again to exit the Hold mode to return to
measurement mode, the Meter beeps and disappears.
LIGHT
● Press LIGHT to turn the display backlight on.
● The display backlight will be off automatically after 30
seconds.
Rotary Switch
use this switch to select functions
● “kW” Range--Active power

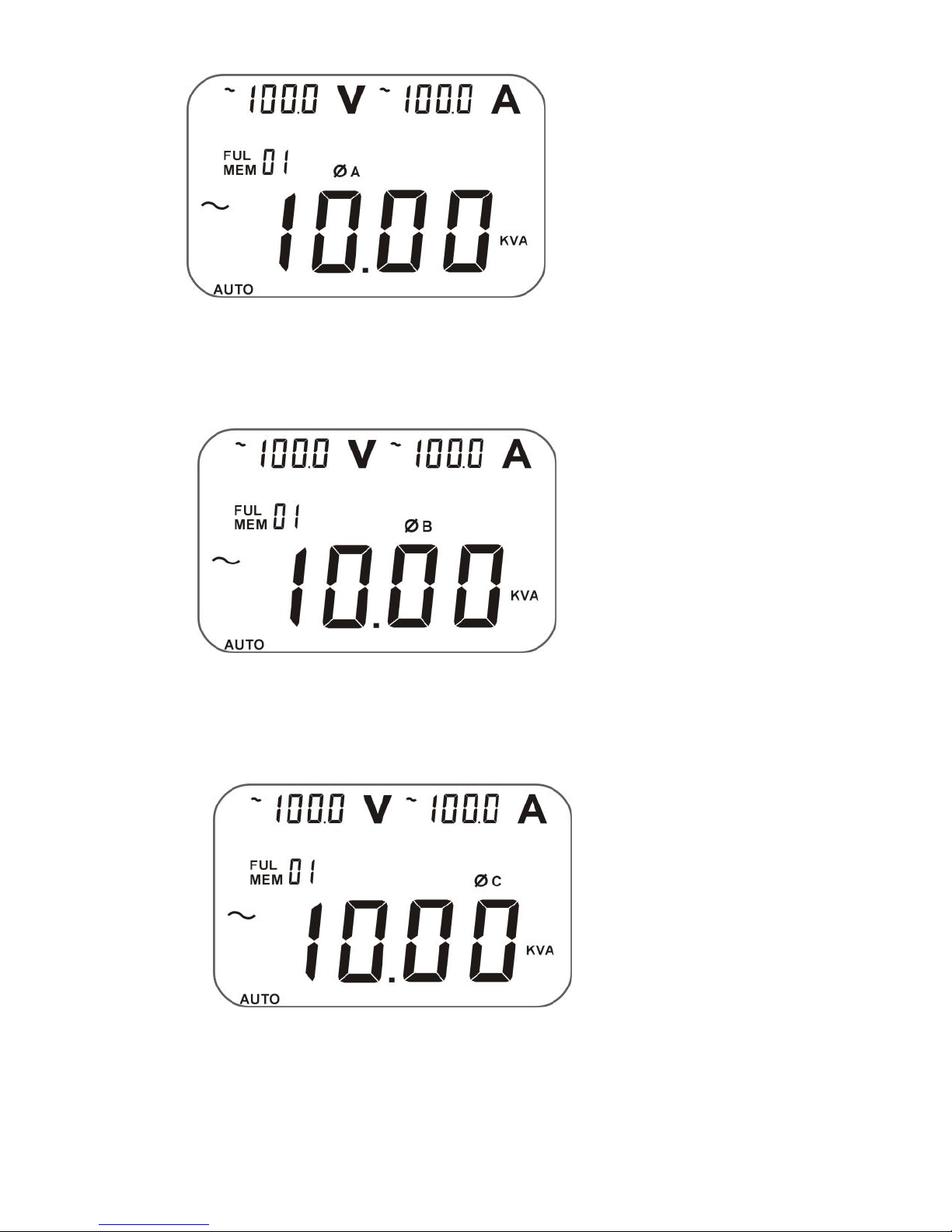

● ”kVA” Range--Apparent power
● “kVar” Range --Reactive Power

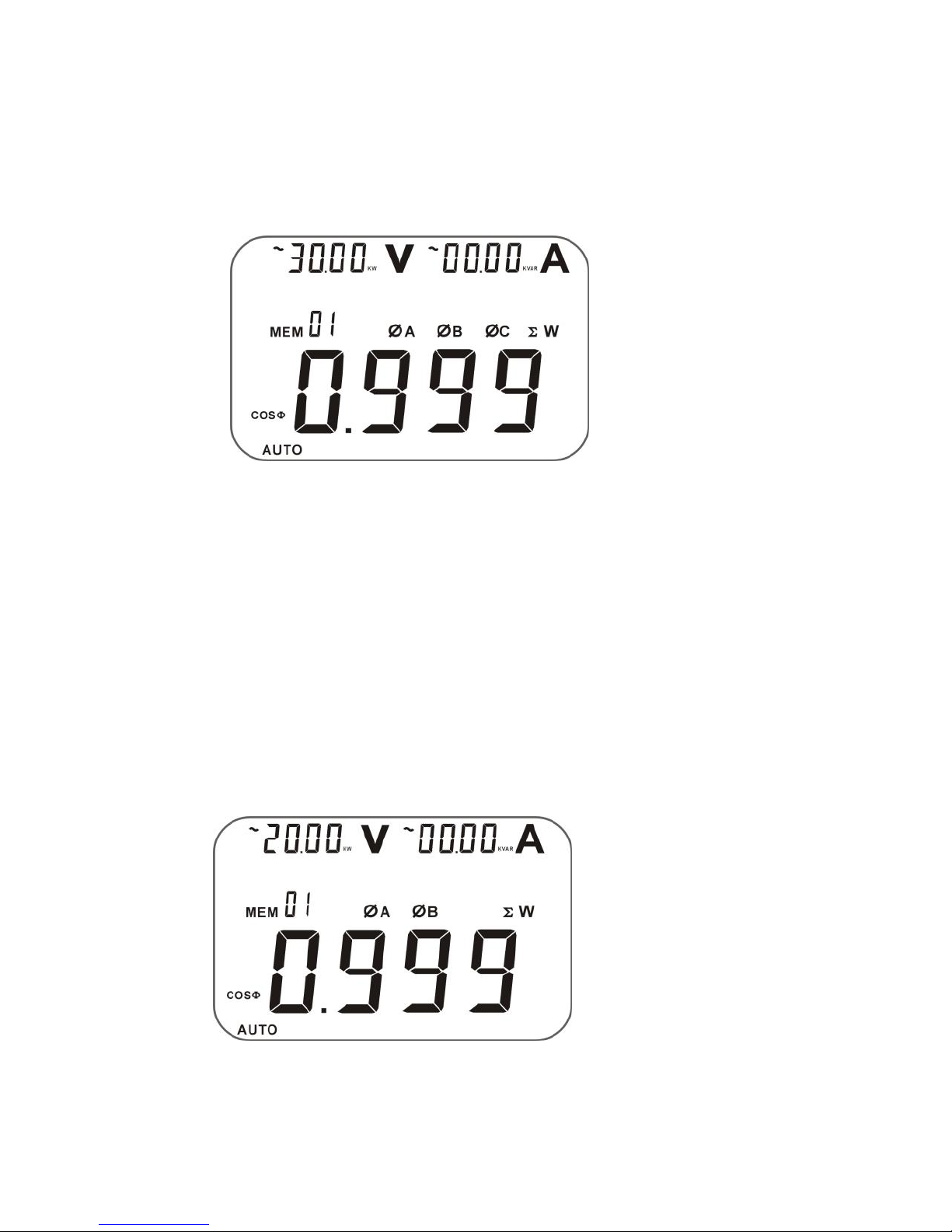

● “COSф” Range--Power factor
● “ф” Range-- Phase Angle

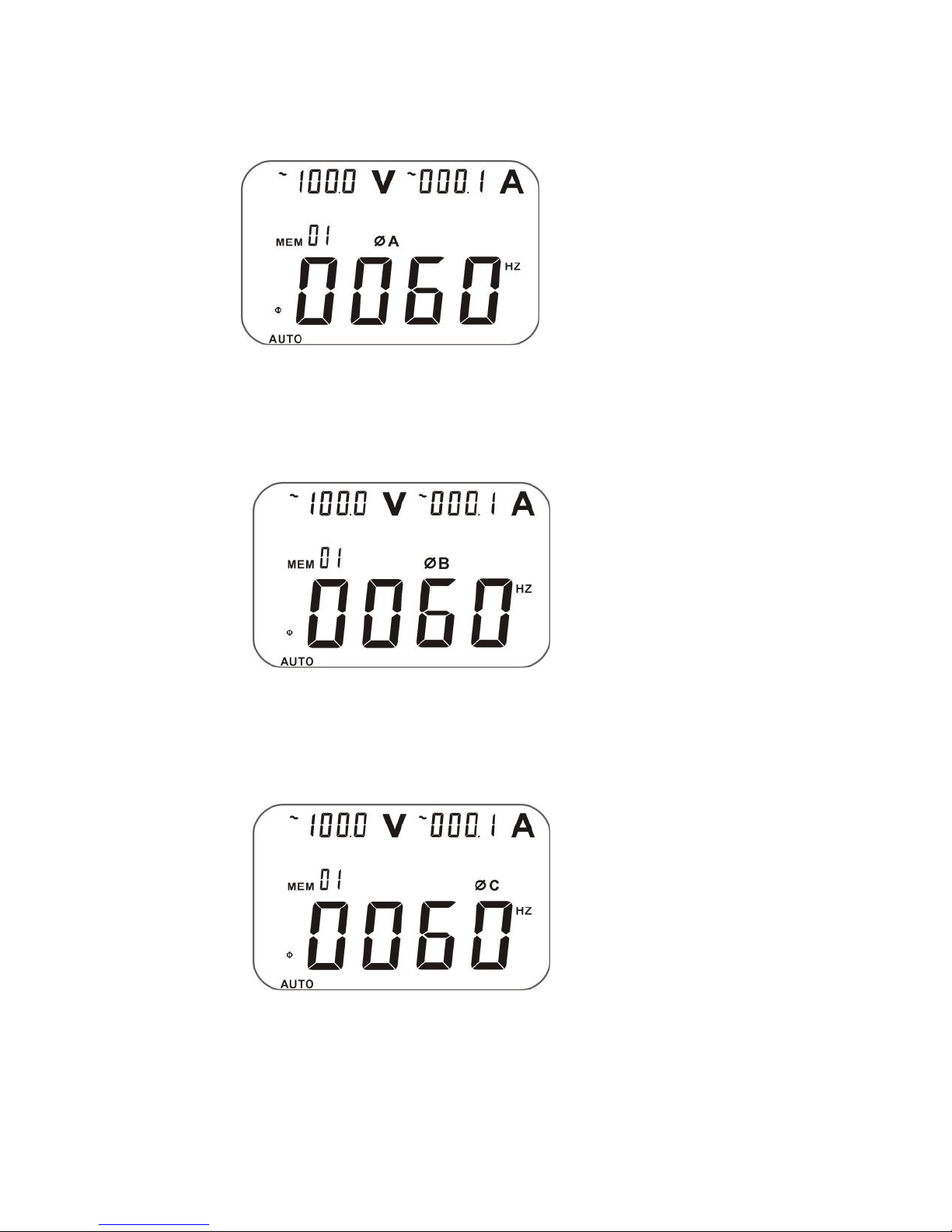

● “Hz” Range-- Frequency

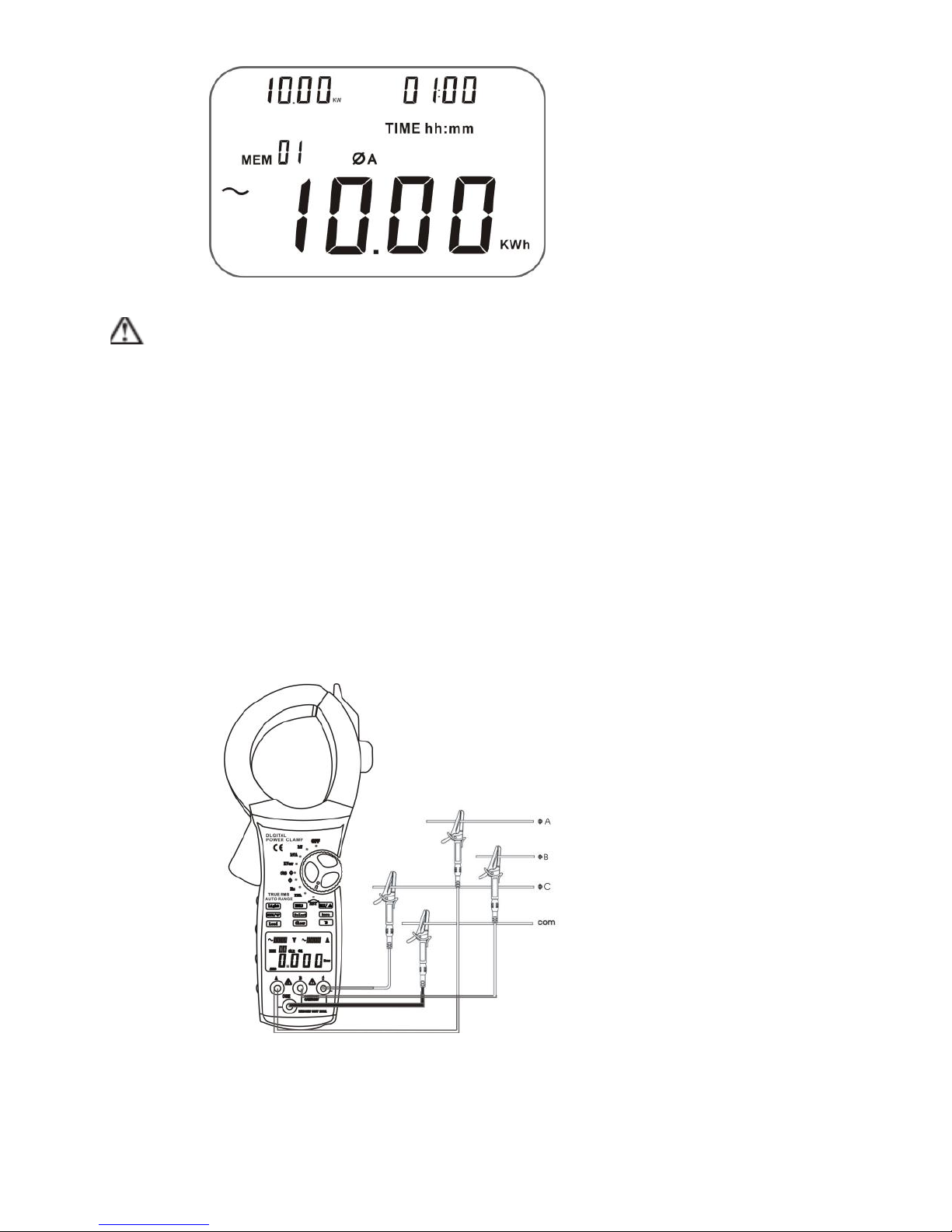

● “kWh” Range--Active Energy

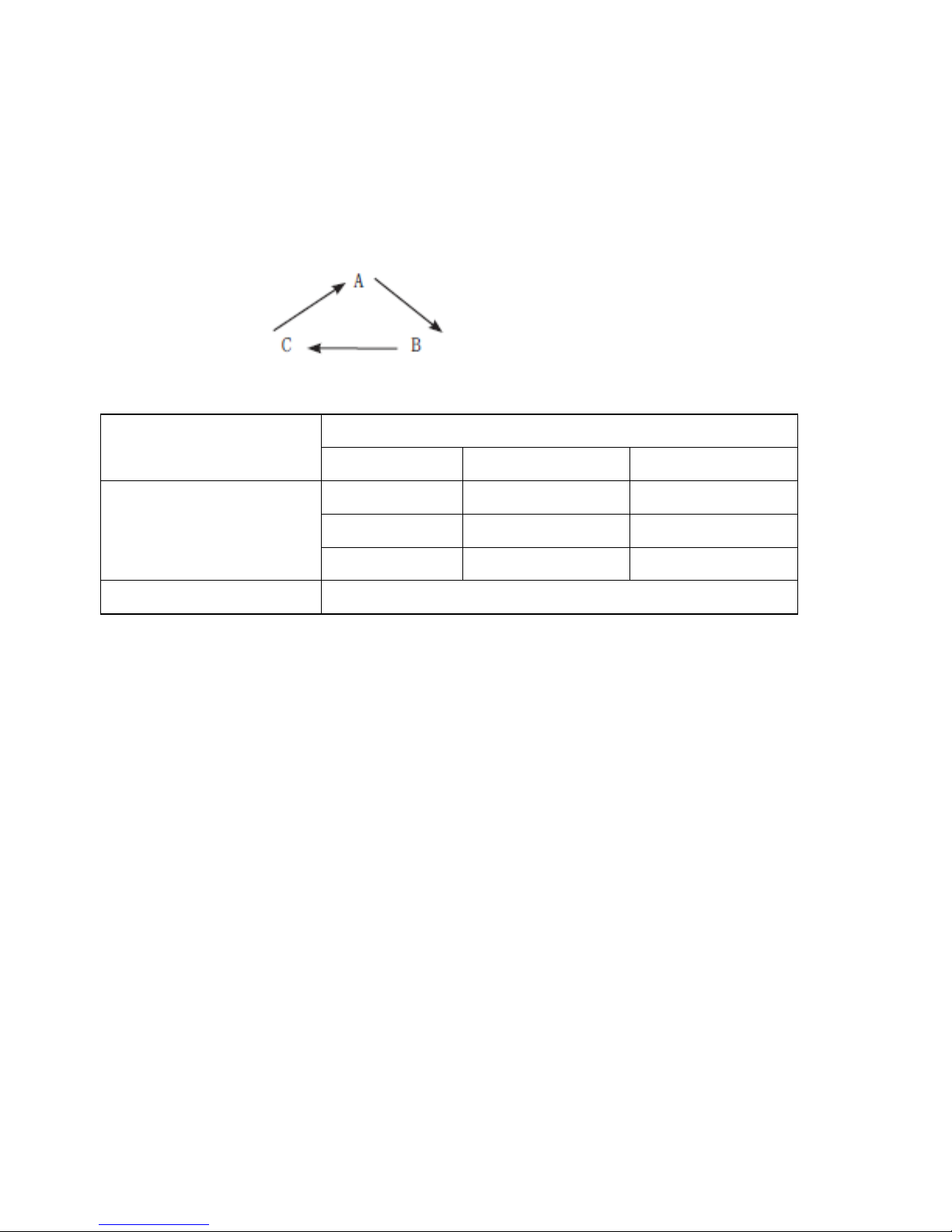

● “RST” Range-- Phase sequence detection
MAX/▲
● Press to start recording of maximum value, it valid at
voltage, current, active power and apparent power ranges
only.
● Press once at LOAD mode, MR icon shown, the Meter
displays the next stored reading, the left secondary display
showing the index increase one.
● Press once at ∑mode, CAL icon shown,
the Meter steps through sum of active power (main display) +
sum of reactive power (secondary display) and sum of power
factor (main display) + sum of apparent power.
LOAD
● Press once to enter LOAD mode, MR appears and the
Meter beeps.
● Press again to exit LOAD mode, MR disappears and the
Meter beeps.
● Press and hold LOAD for 1 second to display the stored
data quickly.
NOTICE: Please make sure switch choose corresponding
function when load data.
For example : save data in KW function, If want load it again ,
should turn on rotary switch choose KW function first.
Page 7
7
∑

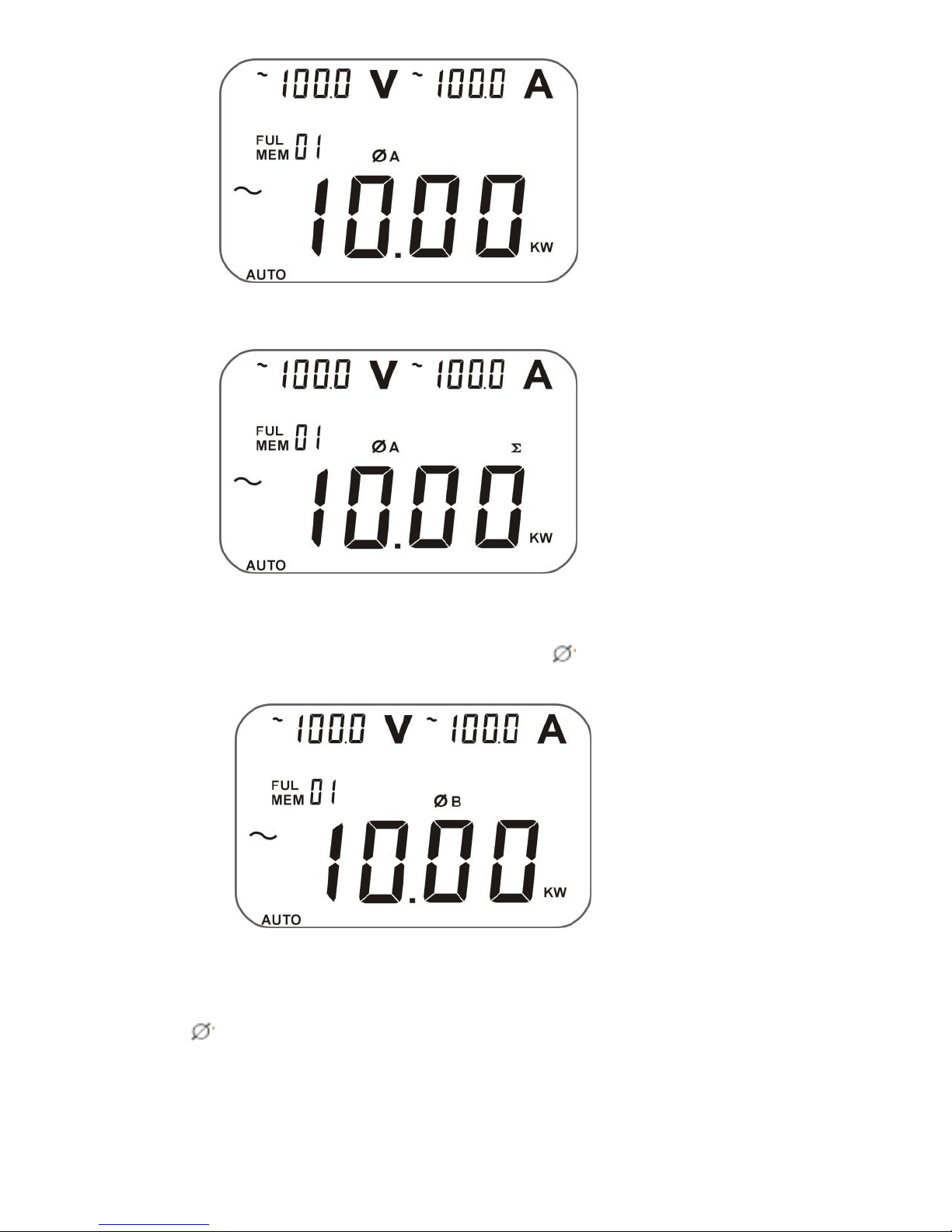

●At Active power (main display) + Phase angle (secondary
display) mode, press ∑once button to sum up the current
first phase of 3 phase measurement result. Then carry out
second phase power measurement.
● Press ∑ again to sum up the second phase power
measurement result, then carry out third phase power
measurement.
● Press ∑ again to sum up the third phase power
measurement result, then press SELECT to enter the
measurement of sum of the watts mode, the display
shows the 3 phase sum of the watts value.
● If got needless phase result when measure 2 phases,
don’t press Σ , just press SELECT for skip direct, and got
the total power of 2 phases .
SAVE
● Press once to store single reading, MEM appears
and the Meter beeps.
●The maximum number of data store is 99, when it
achieves 99, the Meter shows FUL. Press CLEAR to
clear the stored reading in order to store next reading.
SELECT
● At active power (main display) + phase angle
(secondary display) mode, press SELECT button to
step through first phase, second phase, third phase
and sum of watts.
● At other mode, press SELECT to step through first
phase, second phase and the third phase.
MIN /▼
●Press to start recording of minimum value, it valid at
voltage, current, active power and apparent power
ranges only.
● Press once at LOAD mode, MR icon
shown, the Meter displays the previous stored reading,
the left secondary display showing the index decrease
one.
● Press once at mode, CAL icon shown,
the Meter steps through sum of active power (main
display) + sum of reactive power (secondary display)
and sum of power factor (main display) + sum of
apparent power.
CLEAR
● At active energy range, press to reset time the zero,
then restart the timing.
● At all other ranges, press to clear stored readings.
Page 8
8
Display Symbols (see figure 3)
figure 3
Page 9
9
Number
Symbol
Meaning
1
A
First phase symbol
2
B
Second phase symbol
3
C
Third phase symbol
4
hh
Unit for hour
5
mm
Unit for minute
6
∑W
Watt: Sum of Watt
7
The battery is low.
Warning: To avoid false readings, which
could lead to possible electric shock or
personal injury, replace the battery as soon as
the battery indicator appears.
8
Symbol of Unit.
9
MIN
Minimum reading
10
MAX
Maximum reading
11
CLR
Indicator for clear the stored reading
12
High voltage symbol
13
Indicates negative reading
14
MR
Indicator for recall the stored reading
15
MEM
Indicator for data store
16
FUL
Indicator for data stored is full
17
Data hold is active
Page 10
10
Measurement Operation
Preparation
● Turn on Rotary Switch 。
●Replace the battery as soon as the battery indicator “ ” appears on the
display.
A. AC Voltage (main display) + Frequency
(secondary display) Measurement (see figure 4)
figure 4
The AC Voltage ranges are:15V, 100V, 300V and 600V
The frequency range is:20Hz~100Hz
To measure AC voltage + frequency, connect the Meter as follows:
Page 11
11
1. Insert the red test lead into the V A terminal, blue test lead into the V B
terminal, yellow test lead to V C input terminal and black test lead to the
COM input terminal.
2. Connect the red test leads (VA input terminal), blue test leads (VB input
terminal) and yellow test leads (VC input terminal) to the corresponding
three phases loaded live wire. Black test lead (COM input terminal) to the
corresponding three phases loaded neutral wire.
3. Press SELECT to select phase location, the display shows the
corresponding phase symbol. VA means the first phase A, VB means
the first phase B,VC means the first phase C.
4. The display shows the corresponding True RMS voltage value and
frequency value of each phase.
5. Press MAX/▲ , the LCD displays MAX, it starts recording the maximum
AC voltage True RMS value. Press MAX/▲ again to show the current AC
voltage True RMS value.
6. Press MIN/▼ the LCD displays MAX, it starts recording the minimum AC
voltage True RMS value. Press MAX/▼ again to show the current AC
voltage True RMS value.
7. The display shows 9999 when the input voltage is higher than 600V rms.
Note
●When the measurement has been completed, disconnect the connection
between the testing leads and the circuit under test and remove testing
leads from the input terminals.
B. AC Current (main display) + AC Voltage (secondary display)
Measurement
The AC current ranges are: 40A, 100A, 400A and 1000A
The AC Voltage ranges are: 15V, 100V, 300V and 600V
To measure AC current + AC voltage, connect the Meter as follows:
1. Press the Kw to select AC Current (main display) + AC Voltage
(secondary display) range.
2. Press the lever to open the transformer jaw.
3. Center the conductor within the transformer jaw, then release the Meter
slowly until the transformer jaw is completely closed, Make sure the
conductor to be tested is placed at the center of the transformer jaw,
Page 12
12
otherwise it will cause deviation. The Meter can only measure one
conductor at a time, to measure more than one conductor at a time will
cause deviation.
4. The double display shows the AC current True RMS value and AC
voltage True RMS value.
5. Press MAX/▲, the LCD displays MAX, it starts recording the maximum
AC current True RMS value.
Press MAX/▲ again to show the present AC True RMS value.
6. Press MIN/▼ , the LCD displays MAX, it starts recording the minimum
AC current True RMS value. Press MAX/▲ , again to show the present AC
current True RMS value.
7. The display shows 9999 when the current of the tested conductor is
higher than 1000A rms.
Note
●When the measurement has been completed, disconnect the connection
between the conductor under test and the jaw, and remove the conductor
away from the transformer jaw of the Meter.
C. Active Power (main display) + Phase Angle (secondary display)
Measurement
The active power ranges are:40A, 100A, 400A and 1000A
The phase angle ranges are: 0° ~360°
Warning
To avoid damages to the Meter or harms to you, do you measure
higher than AC voltage 600 v.r.s. and AC current 1000A v.r.s.
To measure active power + phase angle, connect the Meter as follows:
1. Press the MENU to select Active power (main display) + Phase angle
(secondary display) range.
2. Press the lever to open the transformer jaw, and clamp them to the
corresponding phase of tested conductor. If user needs to measure any
phase of the 3 phase, then clamp them to that phase’s conductor.
3. Connecting method (see figure 6, 7, 8):
● When measuring 3 phase 4 wires, connect the
Meter as figure 6.
Page 13
13
figure 6
Insert red test leads to A input terminal.
Insert blue test leads to B input terminal
Insert yellow test leads to C input terminal and connecting it to every live
wire of the 3 phase.
Insert black test leads to COM input terminal and connect it to the neutral
wire of the 3 phase.
Page 14
14
●When measuring 3 phase 3 wires, connect the Meter as figure 7.
figure 7
Insert red test leads to A input terminal.
Insert blue test leads to B input terminal
Insert black test leads to COM input terminal and connect it to the
neutral wire of the 3 phase.
● When measuring single phase 2 wires, connect the Meter as figure 8
Page 15
15
figure 8
Insert red test lead to A, B or C input terminal corresponding to one
of A, Bor C phase
Insert black test leads to COM input terminal.
Connecting the two test leads to live and neutral wires.
4. When measuring 3 phases 4 wires:(see figure 9, 10, 11, 12, 13, 14, 15,
16)
● Press SELECT to choose first phase A, see figure 9. The double
displays show the active power kW value and also the voltage and current
value of A.
Page 16
16
figure 9
● If necessary, press∑ to get the sum of watts as figure 10.
figure 10
● After sum up the current power measurement value of the first phase,
then press SELECT to choose the second phase B, as figure 11
figure 11
● The double display shows the value of active power kW and voltage
current of B.
Page 17
17
● If necessary, press∑ to get the sum of watts as figure 12.
figure12
● After sum up the current power measurement value of the second
phase, then press SELECT again to choose the third phase C, as
figure 13.
figure 13
● The double display shows the value of active power KW and voltage
current of C.
● If necessary, press∑ to get the sum of watts as figure 14
Figure14
● After sum up the current power measurement value of the third phase,
Page 18
18
finally press SELECT again to display the 3 phase sum of active power
value and reactive power value.
● Press MAX/▲ or MIN/ ▼as figure 15 to step through in sequence
three phase sum of active power+ three phase sum of reactive power, and
three phase sum of power factor + 3 phase sum of apparent power.
Figure15
5. When measuring 3 phase 3 wires:
● The first and second phase measuring method is same as 3 phase 4
wires.
● Jump over the third phase measurement.
● Press SELECT to display the 3 phase sum of active power and reactive
power.
●Press MAX/▲ or MIN/▼ as figure 16 to step through in sequence three
phase sum of active power+ three phase sum of reactive power, and three
phase sum of power factor + 3 phase sum of apparent power.
Figure16
6. The maximum power is 600kW of single phase, 9999 will be displayed
Page 19
19
when it is over than that. The maximum range is 1800kW of three phase
sum of active power, 9999 will be displayed when it is over than that.
7. Press MAX/▲ , the display shows MAX, it starts recording the
maximum active power value. Press again to display the current active
power value.
8. Press MIN/▼ , the display shows MIN, it starts recording the minimum
active power value. Press again to display the current active power value.
Note
● When there is no input or single phase, the Meter displays 9999.∑
button is not valid.
● It can only sum up the current measurement value. The maximum and
minimum value cannot be summed up.
● Only at this range can carry out sum of watts measurement, other
ranges cannot carry out this measurement.
● When testing has been completed, disconnect the connection between
the testing leads and the circuit under test and remove testing leads from
the input terminals.
D. Apparent Power (main display) + Reactive Power (secondary
display) Measurement.
To avoid damages to the Meter or harms to you, do you measure
higher than AC voltage 600V rms and AC current 1000A rms.
Warning
1. To test for Apparent power (main display) + Reactive power (secondary
display), connect the Meter as follows: Press the MENU to select Apparent
power (main display) + Reactive power (secondary display) range.
2. Press the lever to open the transformer jaw, and clamp them to the
corresponding phase of tested conductor. If user needs to measure any
phase of the 3 phase, then clamp them to that phase’s conductor.
3. The connecting method of 3 phases 4 wires, 3 phases 3 wires or single
phase 2 wires, see figure 6, 7 and 8
4. When measuring 3 phase 4 wires:(see figure 17, 18, 19)
● Press SELECT to choose the first phase A, see figure 17.
Page 20
20
figure 17
● The double display shows the first phase value of apparent power kVA
and reactive power Kvar. Then press SELECT again to choose the second
● phase B, see figure 18.
figure 18
● The double display shows the second phase value of apparent power
kVA and reactive power Kvar.
● Press SELECT again to choose the third phase 3,see figure 19.
figure 19
● The double display shows the third phase value of apparent power kVA
and reactive power Kvar.
Page 21
21
5. When measuring 3 phase 3 wires:
● The first phase and second phase operating method is same as three
phase 4 wires.
● Jump over the third phase measurement.
6. The maximum measuring range is 600kW when measuring single phase
apparent power kVA and reactive power Kvar, 9999 will be displayed when
it is over than that.
7. Press MAX/ ▲, the display shows MAX, it starts recording the maximum
apparent power value. Press again to display the current apparent power
value.
8. Press MIN/▼ , the display shows MIN, it starts recording the minimum
apparent power value. Press again to display the current apparent power
value.
Note
● When testing has been completed, disconnect the connection between
the testing leads and the circuit under test and remove testing leads from
the input terminals.
E. Power Factor (main display) + Phase Angle (secondary display)
Measurement Warning to avoid damages to the Meter or harms to you,
do you measure higher than AC voltage 600V rms and AC current
1000A rms.
To test for Power factor (main display) + Phase angle (secondary display),
connect the Meter as follows:
1. Press the MENU to select Power factor (main display) + Phase angle
(secondary display) range.
2. Press the lever to open the transformer jaw, and clamp them to the
corresponding phase of tested conductor. If user needs to measure any
phase of the 3 phase, then clamp them to that phase’s conductor.
3. The connecting method of 3 phases 4 wires, 3 phases 3 wires or single
phase 2 wires, see figure 6, 7 and 8
4. When measuring 3 phase 4 wires: (see figure 20, 21, 22)
● Press SELECT to choose the first phase A, see figure 20.
Page 22
22
figure 20
● The double display shows the first phase value of power factor PF and
phase angle PG.
● Then press SELECT again to choose the second phase B, see figure
21.
figure 21
● The double display shows the second phase value of power factor PF
and phase angle PG.
● Press SELECT again to choose the third phase 3,see figure 22.
figure 22
● The double display shows the third phase value of power factor PF and
phase angle PG.
Page 23
23
5. When measuring 3 phase 3 wires:
● The first phase and second phase operating method is same as three
phase 4 wires.
● Jump over the third phase measurement.
6. MAX/ ▲and MIN/▼ are not valid when measuring power factor.
Note
● When testing has been completed, disconnect the connection between
the testing leads and the circuit under test and remove testing leads from
the input terminals.
F. Active Energy (main display) + Time (secondary display)
Measurement
Warning
To avoid damages to the Meter or harms to you, do you measure
higher than AC voltage 600V rms and AC current 1000A rms.
To test for Active Energy (main display) + Time (secondary display),
connect the Meter as follows:
1. Press the MENU to select Power factor (main display) + Phase angle
(secondary display) range.
2. Press the lever to open the transformer jaw, and clamp them to the
corresponding phase of tested conductor. If user needs to measure any
phase of the 3 phase, then clamp them to that phase’s conductor
3. The connecting method of 3 phase 4 wires, 3 phases 3 wires or single
phase 2 wires, see figure 6, 7 and 8
4. Press SELECT to choose one of the three phases ( 1, 2, 3), see figure
23.
figure 23
● The double display shows the value of tested object’s active engergy
Page 24
24
kWh value and the measuring time of the corresponding phase.
● The measuring reading gets increasing along with the time increases.
Press HOLD to read a particular time kWh value. Then the reading and time
are locked, but still continuous accumulate measuring time.
● After read the data, press HOLD again to continous measurement. kWh
value continous accumulate and the measuring time jumps to the present
measuring time.
● When the measuring time is over 24 hours or the Meter is switched to
other measuring ranges, active energy measuring will stop.
● The maximum reading of active energy is 9999kWh. 9999 will be
displayed when the reading is over than that.
5. MAX/▲ and MIN/▼ are not valid when measuring active energy.
6. Press CLEAR to reset the time.
Note
● When there is no input signal, it cannot carry out active energy
measurement.
● When there is input signal, the maximum waiting time is around 10s
before timing.
● When testing has been completed, disconnect the connection between
the testing leads and the circuit under test and remove testing leads from
the input terminals.
G. Phase Angle(φ)+Voltage(V)+Current(A)
(1) Turn on Rotary Switch to "φ" function.
(2)Press the lever to open the transformer jaw, and clamp them to the
corresponding phase of tested conductor. If user needs to measure any
phase of the 3 phase, then clamp them to that phase’s conductor.
(3) The connecting method of 3 phases 4 wires, 3 phases 3 wires or single
phase 2 wires, see figure 4, 5 and 6
(4) Press SELECT to choose the phase φA. See figure 24
figure 24
Page 25
25
The double display shows the φA value of phase Angle φ,Voltage value and
also Current value. Then press SELECT to choose Second phase φB
figure 25
The double display shows the φB value of phase Angle φ,Voltage value and
also Current value. Then press SELECT to choose Second phase φC
figure 26
Measuring 1 phase and 2 phase as same as 3 phase 4 wires. Skip the third
phase measurement
(5) This feature file, no maximum and minimum measurement
Warning
To avoid damages to the meter or harms to you,do you measure
higher than AC voltage 600(r.m.s )and AC Current 1000A (r.m.s)
H. Frequency(Hz)+Voltage(V)+Current(A)
(1) Set the Rotary Switch to " Hz " position.
(2) Press the lever to open the transformer jaw, and clamp them to the
corresponding phase of tested conductor. If user needs to measure any
phase of the 3 phase, then clamp them to that phase’s conductor.
Page 26
26
(3)The connecting method of 3 phases 4 wires, 3 phases 3 wires or single
phase 2 wires, see figure 4, 5 and 6
(4) Press SELECT to choose the first phase φA. See figure 27.
figure 27
The double display shows the φA value of Frequency Hz Voltage value and
also Current value. Then press SELECT to choose 2 phase φB See figure
28
figure 28
The double display shows the φB value of Frequency Hz Voltage value and
also Current value. Then press SELECT to choose 3 phase φB See figure
29
figure29
The double display shows the φB value of Frequency Hz Voltage value and
also Current value. When measuring 3 phase 3 wires:
The first phase and second phase operating method is same as third phase
Page 27
27
4 wires. Jump over the third phase measurement
(5) This feature file, no maximum and minimum measurement
Warning
To avoid damages to the meter or harms to you,do you measure
higher than AC voltage 600(r.m.s )and AC Current 1000A (r.m.s)
Frequency measurement is the voltage signal measured the frequency, not
the current signal of frequency。
I Active Energy(kWh)+Active Power(kW)+Time(mm:s)
(1) Set the Rotary Switch to " kWh " position.
(2) Clamp the corresponding target test lead ( Clamp A test lead for
measure A phase.... )
(3) The connecting method of 3 phases 4 wires, 3 phases 3 wires or single
phase 2 wires, see figure 4, 5 and 6
(4)Press SELECT to choose one of A, Bor C phase (as figure 30)
● The double display shows tested object’s active engergy kWh value and
the measuring time of the corresponding phase.
● The measuring reading gets increasing along with the time increases.
Press HOLD to read a particular time kWh value. Then the reading and time
are locked, but still continuous accumulate measuring time.
● After read the data, press HOLD again to continous measurement. kWh
value continous accumulate.
● When the measuring time is over 24 hours or the Meter is switched to
other measuring ranges, active energy measuring will stop.
● The maximum reading of active energy is 9999kWh. 9999 will be
displayed when the reading is over than that.
(5) This feature file, no maximum and minimum measurement
(6) Press CLEAR to reset the time
(7) No USB communication
Page 28
28
figure30
Warning
1) To avoid damages to the meter or harms to you,do you measure
higher than AC voltage 600(r.m.s )and AC Current 1000A (r.m.s)
2) No signal excluding the measurement of power, signal input,
needs to wait for a maximum time of 10 S start time.
3) The data is not saved after power off, After reboot re-count
J Phase sequence detection
（1）Turn on Rotary Switch to select “RST ”，(figure 30)
figure 30
Put Red test lead into “ V A” hole, put blue test lead into “ V B ” ,Put Yellow
Page 29
29
test lead into “VC” hole, Put black test lead into “COM” hole. And put the
four test pens connected to the await measuring power supply or load side
of three-phase and ground terminal. For the three-phase four-wire loading
return circuit, Meter displays the phase sequence test results.
（2）Three horizontal line from top to bottom on behalf of A, B, C phase,
Such as lack of one phase, will be displayed. Lack A Phase will missing the
top of the horizontal line. Lack B phase will missing the bottom of the
horizontal line. As shown in Figure 25, on behalf of lack of A phase voltage。
figure 25
（3）If the three-phase positive sequence, it will show "E", as shown in
Figure 26.。
Figure 26
（4）If the three-phase anti-order, it will display "Y", as shown in Figure 27,
Page 30
30
Figure 27
Positive sequence arrange is shown below, “A” hole , “B” hole and “C”
hole are connect A phase, B phase, C phase according to below form, and
when the three phase voltage is beyond 100v ,
LCD display Positive sequence test results. In Figure 35
positive sequence
hole
a b c
A、B、C phasic
A B C B C
A
C A B
test results
Positive sequence
(5)Three-phase four-wire loads, if it has no signal or a phase voltage less
than 100V, when, LCD display missing-phase test results。
((6) Non-USB communication。
Note: The positive and negative sequence detection voltage range of 100V
~ 500V.
True RMS Measurement and Average Value Measurement
The True RMS measurement method can measure accurately the effective
value of non-sine wave input signal.
Average value measurement method can measure the mean value of one
sine wave input signal, and then displays it as RMS value
When the input waveform has distortion, measuring tolerance will be
included. The total tolerance depends on the total distortion. Below table 1
shows the waveform coefficient and the relationship and the requested
changing factor of sine wave, square wave, pulse rectangle wave, sawtooth
triangle wave, RMS value and average value.
Specifications
Page 31
31
A. General Specifications
● Maximum Voltage between any Terminals and grounding: Refer to
different range input protection voltage.
● Display: Multi LCD displays, Maximum display 9999.
●Ranges: Auto
● Overloading: Display 9999.
● Battery Deficiency: Display .
● Data Holding: Display
● Data Logging: Maximum 99, Single or Continuous records
● Data Recall
● Maximum and Minimum value display: Voltage, Current, Active Power
and Apparent Power ranges
● Display Backlight: White color
● Computer connection: USB
● Calibration Feature
● Sleep Mode: To preserve battery life, the Meter automatically turns off if
you do not turn press any button for around 15 minutes., except at active
factor range.
● Sampling: 3 times per second.
● Max. Jaw Size: 55mm diameter.
● Analogue Bar Graph
● Power: 9 V Alkaline batteries
● Dimensions: 303mm x 112mm x 39mm
● Weight: Approximate 601g
B. Environmental Requirements
● The Meter is suitable for indoor use.
● Altitude: Operating: 2000m
Storage: 10000m
● Temperature and humidity:
Operating:
0 ~ 30 ( 85%R.H)
30 ~ 40 ( 75%R.H)
Page 32
32
40 ~ 50 ( 45%R.H)
Storage:-10 ~ +60 ( 85%R.H)
● Safety/ Compliances: IEC 61010 CAT.III 600V,
CAT.IV 300V overvoltage and double insulation standard, pollution degree 2
● Certification:
Accurate Specifications
Accuracy :±(a% reading + b digits),guarantee for 1 year.
Operating temperature:23℃±5 ℃
Operating humidity:45～75%R.H
A. AC Voltage (True RMS)
B. Frequency
Range
Resolution
Accuracy
20Hz～100Hz
1Hz
± (0.5%+5)
Min Input Voltage：10V
C. AC Current (True RMS)
Range
Resolution
Accuracy
Allowable Maximum overload
protection current
40A
0.1A
± (2.5%+15)
1000A RMS
400A
1000A
400-800
1A
± (2.5%+15)
Range
Resolution
Accuracy
Allowable Maximum overload
protection voltage
Input
Impedance
15V
0.1V
± (1.2%+5)
600 RMS
10 MΩ
100V
300V
600V
Page 33
33
800-1000
± (3.5%+20)
·Allowable maximum overload protection current:1000A RMS
D.Active Power (w=V×A×COS Ф)
Current/Voltage
Voltages Range
15V
100V
300V
600V
Current
Range
40A
0.60kW
4.00kW
12.00kW
24.00kW
100A
1.50kW
10.00kw
30.00kW
60.00kW
400A
6.00kW
40.00kW
120.0kW
240.0kW
1000A
15.00kW
100.0kW
300.0kW
600.0kW
Accuracy
± (3%+15)
Resolution
＜ 1000KW:0.01KW
≥ 100KW:0.1KW
Remarks
Min Input Voltage：10V
·Allowable maximum overload protection voltage:600V RMS
·Allowable maximum overload protection current:1000A RMS
E. Apparent Power (VA = V × A )
Current/Voltage
Voltages Range
15V
100V
300V
600V
Current
Range
40A
0.60kVA
4.00kVA
12.00kVA
24.00kVA
100A
1.50kVA
10.00kVA
30.00kVA
60.00kVA
400A
6.00kVA
40.00kVA
120.0kVA
240.0kVA
1000A
15.00kVA
100.0kVA
300.0kVA
600.0kVA
Accuracy
± (3%+15)
Resolution
＜ 1000KVA :0.01KVA
≥ 100KVA :0.1KVA
Page 34
34
Remarks:
.Min Input Voltage：10V
·Allowable maximum overload protection voltage:600V RMS
·Allowable maximum overload protection current:1000A RMS
F. Reactive Power (Var =V×A×SINФ)
Current/Voltage
Voltages Range
15V
100V
300V
600V
Current
Range
40A
0.60kVar
4.00kVar
12.00kVar
24.00kVar
100A
1.50kVar
10.00kVar
30.00kVar
60.00kVar
400A
6.00kVar
40.00kVar
120.0kVar
240.0kVar
1000A
15.00kVar
100.0kVar
300.0kVar
600.0kVar
Accuracy
15V/1000A Range :±(4%+25) Other
Range :±(4%+20)
Resolution
＜ 1000kVar:0.01kVar
≥ 100kVar:0.1kVar
Remarks
Min Input Current/Voltage：10A/10V
·Allowable maximum overload protection voltage:600V RMS
·Allowable maximum overload protection current:1000A RMS
G. Power Factor (PF = W/VA )
Range
Accuracy
Resolution
Measuring Condition
0.3~1
(capacitive or
inductive)
±0.022
0.001
The minimum measuring
current 10A
The minimum measuring
voltage 45V
0.3~1
(capacitive or
inductive)
For reference only
Measuring current less than
10A OR
Measuring voltage less than
45V
Remarks
Page 35
35
·Min Input Voltage：10V
·Allowable maximum overload protection voltage:600V RMS
·Allowable maximum overload protection current:1000A RMS
H. Phase Angle ( PG =acos (PF))
Range
Accuracy
Resolution
Measuring Condition
0°~360°
±1°
1°
The minimum measuring current 10A
The minimum measuring voltage 45V
0°~360°
For reference only
Measuring current less than 10A OR
Measuring voltage less than 45V
·Min Input Current/Voltage：10A/10V
I. Active Energy (kWh)
Range
Accuracy
Resolution
1~9999kWh
±(3%+2)
0.001kWh
Remarks:
·Allowable maximum overload protection voltage:600V RMS
·Allowable maximum overload protection current:1000A RMS
MAINTENANCE
This section provides basic maintenance information including battery
replacement instruction.
Warning
Do not attempt to repair or service your Meter unless you are qualified
to do so and have the relevant calibration, performance test, and
service information.
To avoid electrical shock or damage to the Met do not get water inside
the case.
A. General Service
● Periodically wipe the case with a damp cloth and mild detergent. Do not
use abrasives or solvents.
● To clean the terminals with cotton bar with detergent, as dirt or moisture
Page 36
36
in the terminals can affect readings.
● Turn the Meter power off when it is not in use.
● Take out the battery when it is not using for a long time.
● Do not use or store the Meter in a place of humidity, high temperature,
explosive, inflammable and strong magnetic field.
B. Replacing the Battery
Warning
To avoid false readings, which could lead to possible electric shock or
personal injury, replace the battery as soon as the battery indicator “ ”
appears.
Make sure the transformer jaw and the tests leads are disconected
from the circuit being tested before opening the case bottom.
To replace the battery:.
1. Press POWER to turn the Meter off and remove all the connections from
the input terminals
2. Turn the Meter’s front case down.
3. Remove the screw from the battery door, and separate the battery door
from the case bottom.
4. Rejoin the case bottom and the battery compartment ,and reinstall the
screw.
Above picture and content just for your reference. Please
be subject to the actual products if anything different or
updated. Please pardon for not informing in advance.
Page 37
37
TABLE OF CONTENTS
TITLE PAGE
Overview…………………………………………………………………………. 1
Unpacking Inspection…………………………………………………………... 1
Safety Information………………………………………………………………. 2
Rules For Safe Operation……………………………………………………… 2
International Electrical Symbols………………………………………………..4
A. The Meter Structure………………………………………………………….4
B. The Meter Front Structure…………………………………………………...4
Functional Buttons……………………………………………………………….6
Display Symbols…………………………………………………………………8
Measurement Operation………………………………………………………..10
A. AC Voltage + Frequency Measurement…………………………………...10
B. AC Current + AC Voltage Measurement…………………………………..11
C. Active Power + Phase Angle Measurement………………………………12
D. Apparent Power + Reactive Power Measurement……………………….19
E. Power Factor + Phase Angle Measurement………………………………21
F. Active Energy + Time Measurement……………………………………….23
G. Phase Angle + Voltage + Current..........................................................24
H. Frequency + Voltage + Current…………………………………………….25
I. Active Energy + Active Power + Time………………………………………27
J. Phase Sequence Detection…………………………………………………28
True RMS Measurement and Average Value Measurement……………….27
Specifications……………………………………………………………………30
A. General Specifications………………………………………………………30
B. Environmental Requirements………………………………………………31
Accuracy Specifications………………………………………………………..32
A. AC Voltage……………………………………………………………………32
B. Frequency…………………………………………………………………….32
C. AC Current……………………………………………………………………32
D. Active Power………………………………………………………………….33
E. Apparent Power………………………………………………………………33
F. Reactive Power………………………………………………………………34
G. Power Factor…………………………………………………………………34
H. Phase Angle………………………………………………………………….35
Page 38
38
I. Active Energy………………………………………………………………….35
Maintenance……………………………………………………………………..35
A. General Service………………………………………………………………35
B. Replacing the Battery………………………………………………………..36
Page 39
OPERATING MANUAL
DIGITAL POWER CLAMP METER
850F
Loading...
