Page 1
Product overview
The HP 6600 Router Series is a family of high-performance WAN routers that is ideal for campus and data center WAN edge and
aggregation deployments.
These routers are built with a multicore architecture offering distributed or centralized processing to help balance performance and
cost. The 6600 Router Series delivers robust routing, security, full Layer 2 switching, and modular high-density WAN and LAN interface
options, all integrated in a single high-performance routing platform.
In addition, the HP 6600 Router Series features robust carrier-class reliability capabilities to help reduce disruption from network or
system failures.

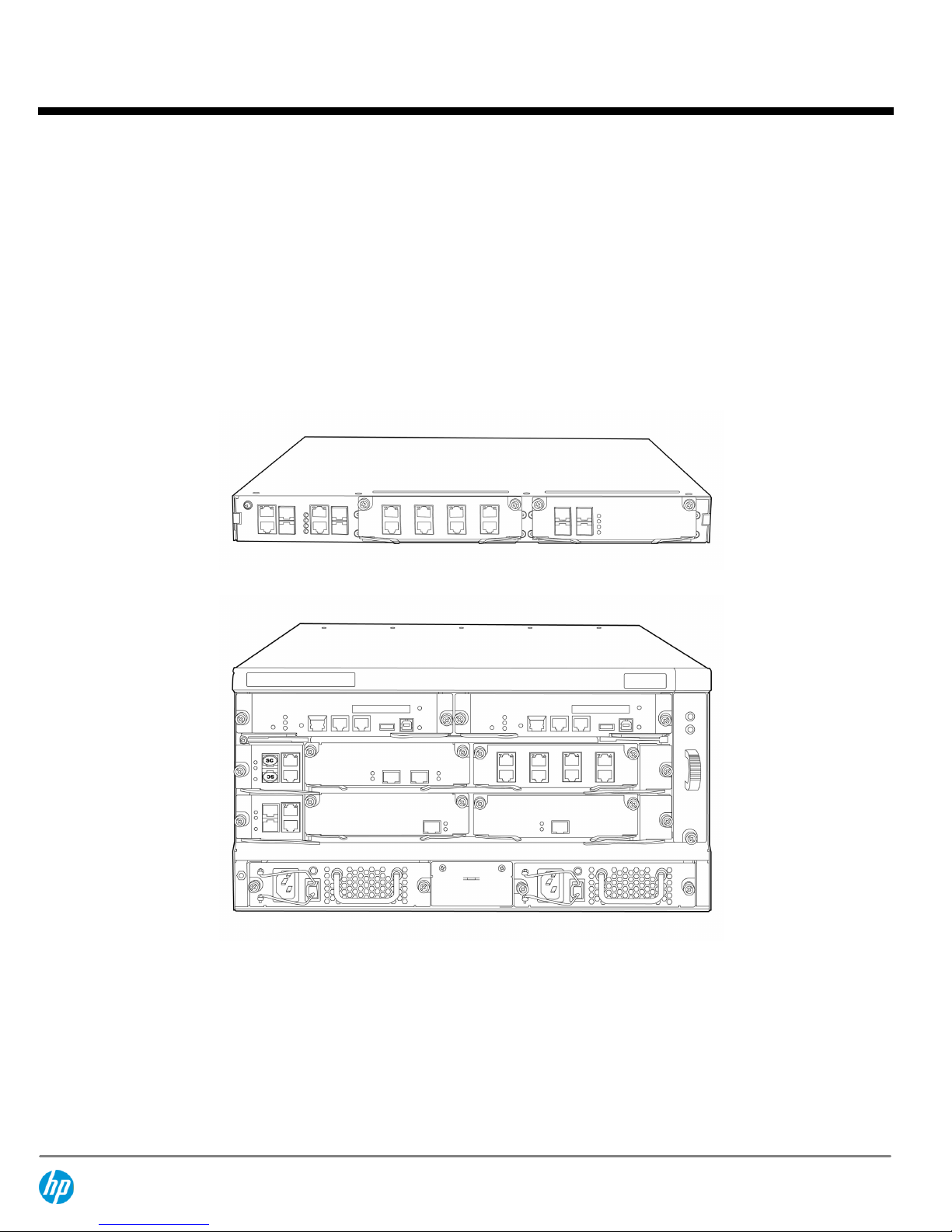

HP 6602 Router Chassis
HP 6604 Router Chassis
QuickSpecs
HP 6600 Router Series
Overview
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 1
Page 2
HP 6608 Router Chassis
QuickSpecs
HP 6600 Router Series
Overview
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 2
Page 3
HP 6616 Router Chassis
QuickSpecs
HP 6600 Router Series
Overview
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 3
Page 4
Key features
High-performance WAN routing
Multi-core distributed or centralized processing
Comprehensive routing, switching, and security
Embedded hardware encryption
Robust high availability and resiliency
Features and benefits
Quality of Service
(QoS)
Traffic policing
supports Committed Access Rate (CAR) and line rate
Congestion management
supports FIFO, PQ, CQ, WFQ, CBQ, and RTPQ
Other QoS technologies
supports traffic shaping, FR QoS, MPLS QoS, and MP QoS/LFI
Congestion avoidance
weighted random early detection (WRED)/random early detection (RED)
Management
Management interface control
provides management access through modem port and terminal interface, as well as in-band and out-of-band Ethernet ports
Management security
:
includes multiple administration levels, with password protection and restricted access to critical configuration commands;
access control lists (ACLs) provide telnet and SNMP access; local and remote syslog capability allows logging of all access
SNMP v1, v2, and v3
provides complete support of SNMP, as well as full support of industry-standard MIBs and private MIB extensions
Industry-standard CLI with a hierarchical structure
reduces training needs and increases productivity in multivendor installations
Remote monitoring
(RMON)
uses standard SNMP to monitor essential network functions; supports events, alarm, history, and statistics group plus a private
alarm extension group
Debug and sampler utility
supports ping and traceroute for both IPv4 and IPv6
Network Quality Analyzer
(NQA)
analyzes network performance and service quality by sending test packets, and provides network performance and service
quality parameters such as jitter, TCP, or FTP connection delays and file transfer rates; allows a network manager to determine
overall network performance and to diagnose and locate network congestion points or failures
Network Time Protocol
(NTP)
synchronizes timekeeping among distributed time servers and clients; keeps timekeeping consistent among all clock-dependent
devices within the network so that the devices can provide diverse applications based on the consistent time
FTP and TFTP support
File Transfer Protocol allows bidirectional transfers over a TCP/IP network and is used for configuration updates; Trivial FTP is a
simpler method using User Datagram Protocol (UDP)
Loopback
supports internal loopback testing for maintenance purposes and high availability; loopback detection protects the system from
incorrect cabling or network configurations and can be enabled on a port or VLAN
Internet Group Management Protocol
(IGMP)
QuickSpecs
HP 6600 Router Series
Overview
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 4
Page 5
is used by IP hosts to establish and maintain multicast groups; supports v1, v2, and v3; utilizes Any-Source Multicast (ASM) or
Source-Specific Multicast (SSM) to manage IPv4 multicast networks
Connectivity
High port density
provides up to 16 interface module slots, and high-density Ethernet interface cards; a single card can provide up to 48 GbE
interfaces, which enables the routers to fully satisfy the demands of high-density Ethernet (MSTP) link distribution
Multiple WAN interfaces
support Fast Ethernet/Gigabit Ethernet/10GbE ports, OC3~OC48 POS/CPOS, and ATM ports
Flexible port selection
provides a combination of fiber and copper interface modules, 100/1000BASE-X auto speed selection, and 10/100/1000BASE-T
auto speed detection plus auto duplex and MDI/MDI-X; speed is adaptable between 155 M POS and 622 M POS
Performance
Industry-leading performance
provides up to 252 Mpps forwarding performance
Flexible chassis selection
consists of 4 models: 16 HIM-slot chassis, 8 HIM-slot chassis, 4 HIM-slot chassis, and 2 HIM-slot chassis
Scalable system design
backplane is designed for smooth bandwidth upgrade
Resiliency and high availability
Separate data and control planes
provide greater flexibility and enable continual services
Hitless software upgrades
allow patches to be installed without restarting the device, increasing network uptime and simplifying maintenance
Redundant design of main processing unit and power supply
increases the overall system availability
Virtual Router Redundancy Protocol (VRRP)
enables fast convergence of routes and packet forwarding when links fail, ensuring high network availability
IP Fast Reroute Framework
(FRR)
nodes are configured with backup ports and routes; local implementation requires no cooperation of adjacent devices,
simplifying the deployment; solves the traditional convergence faults in IP forwarding; provides restoration within 50 ms, with
the restoration time independent of the number of routes and fast link switchovers without route convergence
Graceful restart
features are fully supported, including graceful restart for OSPF, IS-IS, Border Gateway Protocol (BGP), LDP, and RSVP; network
remains stable during the active-standby switchover; after the switchover, the device quickly learns the network routes by
communicating with adjacent routers; forwarding remains uninterrupted during the switchover to realize nonstop forwarding
(NSF)
Hot-swappable modules
facilitates the replacement of hardware interface modules without impacting the traffic flow through the system
Layer 3 services
Address Resolution Protocol
(ARP)
determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of
duplicate IP addresses; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2
network
QuickSpecs
HP 6600 Router Series
Overview
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 5
Page 6
User Datagram Protocol (UDP) helper
redirects UDP broadcasts to specific IP subnets to prevent server spoofing
Dynamic Host Configuration Protocol
(DHCP)
simplifies the management of large IP networks and supports client and server; DHCP Relay enables DHCP operation across
subnets
Domain Name System
(DNS)
provides a distributed database that translates domain names and IP addresses, which simplifies network design; supports
client and server
Layer 3 routing
Static IPv4 routing
provides simple manually configured IPv4 routing
Routing Information Protocol
uses a distance vector algorithm with UDP packets for route determination; supports RIPv1 and RIPv2 routing; includes loop
protection
Open shortest path first (OSPF)
delivers faster convergence; uses this link-state routing Interior Gateway Protocol (IGP), which supports ECMP, NSSA, and MD5
authentication for increased security and graceful restart for faster failure recovery
Intermediate system to intermediate system
(IS-IS)
uses a path vector Interior Gateway Protocol (IGP), which is defined by the ISO organization for IS-IS routing and extended by
IETF RFC 1195 to operate in both TCP/IP and the OSI reference model (Integrated IS-IS)
Static IPv6 routing
provides simple manually configured IPv6 routing
Dual IP stack
maintains separate stacks for IPv4 and IPv6 to ease the transition from an IPv4-only network to an IPv6-only network design
Routing Information Protocol next generation
(RIPng)
extends RIPv2 to support IPv6 addressing
OSPFv3
provides OSPF support for IPv6
BGP+
extends BGP-4 to support Multiprotocol BGP (MBGP), including support for IPv6 addressing
IS-IS for IPv6
extends IS-IS to support IPv6 addressing
IPv6 tunneling
allows IPv6 packets to traverse IPv4-only networks by encapsulating the IPv6 packet into a standard IPv4 packet; supports
manually configured, 6to4, and Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) tunnels; is an important element for
the transition from IPv4 to IPv6
Multiprotocol Label Switching
(MPLS)
uses BGP to advertise routes across Label Switched Paths (LSPs), but uses simple labels to forward packets from any Layer 2 or
Layer 3 protocol, which reduces complexity and increases performance; supports graceful restart for reduced failure impact;
supports LSP tunneling and multilevel stacks
Multiprotocol Label Switching
(MPLS)
Layer 3 VPN
allows Layer 3 VPNs across a provider network; uses MP-BGP to establish private routes for increased security; supports RFC
2547bis multiple autonomous system VPNs for added flexibility
Multiprotocol Label Switching (MPLS) Layer 2 VPN
establishes simple Layer 2 point-to-point VPNs across a provider network using only MPLS Label Distribution Protocol (LDP);
requires no routing and therefore decreases complexity, increases performance, and allows VPNs of non-routable protocols;
uses no routing information for increased security; supports Circuit Cross Connect (CCC), Static Virtual Circuits (SVCs), Martini
draft, and Kompella-draft technologies
QuickSpecs
HP 6600 Router Series
Overview
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 6
Page 7
Policy routing
allows custom filters for increased performance and security; supports ACLs, IP prefix, AS paths, community lists, and aggregate
policies
Multicast VPN
supports Multicast Domain (MD) multicast VPN, which can be distributed on separate service cards, providing high performance
and flexible configuration
Border Gateway Protocol 4
Exterior Gateway Protocol (EGP) with path vector protocol uses TCP for enhanced reliability for the route discovery process,
reduces bandwidth consumption by advertising only incremental updates, and supports extensive policies to increase flexibility
and scale to large networks
OSPFv3 MCE
Multi-VPN-Instance CE (MCE) binds different VPNs to different interfaces on one single CE; the OSPFv3 MCE feature creates and
maintains separate OSPFv3 routing tables for each IPv6 VPN to isolate VPN services in the device
Security
Access control list
supports powerful ACLs for both IPv4 and IPv6; ACLs are used for filtering traffic to prevent illegal users from accessing the
network or for controlling network traffic flow; rules can either deny or permit traffic to be forwarded; rules can be based on a
Layer 2 header or a Layer 3 protocol header; rules can also be set to operate on specific dates or times
Remote Authentication Dial-In User Service (RADIUS)
eases switch security access administration by using a password authentication server
Terminal Access Controller Access-Control System (TACACS+)
delivers an authentication tool using TCP with encryption of the full authentication request, providing additional security
Network address translation (NAT)
supports repeated multiplexing of a port and automatic 5-tuple collision detection, enabling NAPT to support unlimited
connections; supports blacklist in NAT/NAPT/internal server, a limit on the number of connections, session log, and multiinstance
Secure shell (SSHv2)
uses external servers to securely log in to a remote device; with authentication and encryption, it protects against IP spoofing
and plain-text password interception; increases the security of Secure FTP (SFTP) transfers
Unicast Reverse Path Forwarding (URPF)
allows normal packets to be forwarded correctly, but discards the attaching packet due to lack of reverse path route or incorrect
inbound interface; prevents source spoofing and distributed attacks; supports distributed URPF
Dynamic Virtual Private Network (DVPN)
collects, maintains, and distributes dynamic public addresses through the VPN Address Management (VAM) protocol, making
VPN establishment available between enterprise branches that use dynamic addresses to access the public network; compared
to traditional VPN technologies, DVPN technology is more flexible and has richer features, such as NAT traversal of DVPN
packets, AAA identity authentication, IPSec protection of data packets, and multiple VPN dom
Multicast support
Internet Group Management Protocol
(IGMP)
is used by IP hosts to establish and maintain multicast groups; supports v1, v2, and v3; utilizes Any-Source Multicast (ASM) or
Source-Specific Multicast (SSM) to manage IPv4 multicast networks
Protocol Independent Multicast
(PIM)
is used for IPv4 and IPv6 multicast applications; supports PIM Dense Mode (PIM-DM), Sparse Mode (PIM-SM), and Source-Specific
Mode (PIM-SSM)
'
Multicast Source Discovery Protocol
(MSDP)
is used for interdomain multicast applications, allowing multiple PIM-SM domains to interoperate
Multicast Border Gateway Protocol
(MBGP)
QuickSpecs
HP 6600 Router Series
Overview
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 7
Page 8
allows multicast traffic to be forwarded across BGP networks separately from unicast traffic
Integration
Embedded VPN firewall
provides enhanced stateful packet inspection and filtering; provides advanced VPN services with 3DES and AES encryption at
high performance and low latency
Open Application Architecture (OOA)
provides both software and hardware platforms based on open standards so that third-party applications can be integrated
seamlessly into routers
Additional information
Green initiative support
provides support for RoHS and WEEE regulations
Product architecture
Multicore CPU
delivers multi-thread processing, with eight cores and 32 hardware threads
Distributed processing
the main processing engine and service engine have separate hardware for high performance and parallel processing; the main
processing engine is used for route calculation and system management, while the service engine is used for service processing
Separate FIP card and interface card
interface cards are separated from the FIP card to support flexible service configurations
Warranty and support
1-year Warranty 2.0
advance hardware replacement with 10-calendar-day delivery (available in most countries)
Electronic and telephone support (for Warranty 2.0)
limited electronic and 24x7 telephone support is available from HP for the entire warranty period; to reach our support centers,
refer to
www.hp.com/networking/contact-support
; for details on the duration of support provided with your product purchase,
refer to
www.hp.com/networking/warrantysummary
Software releases
to find software for your product, refer to
www.hp.com/networking/support
; for details on the software releases available with
your product purchase, refer to
www.hp.com/networking/warrantysummary
QuickSpecs
HP 6600 Router Series
Overview
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 8
Page 9
Build To Order:
BTO is a standalone unit with no integration. BTO products ship standalone are not part of a CTO or Rack-Shippable solution.
Models
HP 6602 Router Chassis
JC176A
4 SFP ports (Min 0 // Max 4 SFP 1G Transceivers)
2 HIM/MIM slots (Min=0 \ Max=2 HIM Modules or 2 MIM Modules or 1 Each)
2 - 1G DDR2 SDRAM included (JC071A)
1 - 150w Power Supply included
1U High
See Configuration
Note: 1,3,4
Russian Reduced Encryption
JC176A#A59
HP HSR6602-G Router
JG353A
4 SFP ports (Min 0 // Max 4 SFP 1G Transceivers)
1 Service Module Slot (FIP10 or FIP20 Modules only)
1 - 2G DDR3 SDRAM included (JG482A)
Must select min 1 Power Supply
2U High
See Configuration
Note: 1,3,5
HP HSR6602-XG Router
JG354A
4 SFP ports (Min 0 // Max 4 SFP 1G Transceivers)
2 10GbE SFP+ ports (Min 0 // Max 2 SFP+ 10G Transceivers)
1 Service Module Slot (FIP10 or FIP20 Modules only)
2 - 2G DDR3 SDRAM included (JG482A)
Must select min 1 Power Supply
2U High
See Configuration
Note: 1,2,3,5
HP 6604 Router Chassis
JC178B
2 Service Modules slots (FIP10, FIP20, FIP110 or FIP210 Modules only)
2 MPU (for management module) slots
Must select Router Software License
Must select Management Module
Must select min 1 Power Supply
5U High
See Configuration
Note: 5
HP 6608 Router Chassis
JC177B
8 Service Modules slots (FIP10, FIP20, FIP110 or FIP210 Modules only)
2 MPU (for management module) slots
Must select Router Software License
Must select Management Module
Must select min 2 Power Supply
20U High
See Configuration
Note: 5
HP 6616 Router Chassis
JC496A
8 Service Modules slots (FIP10, FIP20, FIP110 or FIP210 Modules only)
2 MPU (for management module) slots
Must select Router Software License
Must select Management Module
Must select min 2 Power Supply
20U High
See Configuration
Note: 5
Configuration Rules:
QuickSpecs
HP 6600 Router Series
Configuration
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 9
Page 10
Note 1
The following Transceivers install into this Router:
HP X125 1G SFP LC LH40 1310nm Transceiver
JD061A
HP X120 1G SFP LC LH40 1550nm Transceiver
JD062A
HP X125 1G SFP LC LH70 Transceiver
JD063B
HP X120 1G SFP LC LH100 Transceiver
JD103A
HP X120 1G SFP LC BX 10-U Transceiver
JD098B
HP X120 1G SFP LC BX 10-D Transceiver
JD099B
Note 2
The following Transceivers install into this Router: (Use #0D1 if switch is CTO)
HP X130 10G SFP+ LC SR Transceiver
JD092B
HP X130 10G SFP+ LC ER 40km Transceiver
JG234A
HP X130 10G SFP+ LC LR Transceiver
JD094B
Note 3
If this product is ordered for delivery to Russia, it must be ordered with the A59 option (also allowed for other
countries desiring Low Encryption), then #A59 is the required option for BTO, and must be added in addition to #0D1
for CTO.
Note 4
Localization required. (See Localization Menu)
Note 5
Show following warning when Router is selected - "Warning - Min/Max of 1 JC180A HP 6600 Router Software
License is required when ordering this Router Chassis"
Configuration Information - Factory Integrated Models - CTO
HP 66xx CTO Router Solution
JG498A
SSP trigger sku
HP HSR 6602-G Router
JG353A
4 SFP ports (Min 0 // Max 4 SFP 1G Transceivers)
1 Service Module Slot (FIP10 or FIP20 Modules only)
1 - 2G DDR3 SDRAM included (JG482A)
Must select min 1 Power Supply
2U High
See Configuration
Note: 2, 4, 10
HP HSR 6602-XG Router
JG354A
4 SFP ports (Min 0 // Max 4 SFP 1G Transceivers)
2 10GbE SFP+ ports (Min 0 // Max 2 SFP+ 10G Transceivers)
2 - 2G DDR3 SDRAM included (JG482A)
1 Service Module Slot (FIP10 or FIP20 Modules only)
Must select min 1 Power Supply
2U High
See Configuration
Note: 2,3,10
HP 6604 Router Chassis
JC178B
2 Service Modules slots (FIP10, FIP20, FIP110 or FIP210 Modules only)
2 MPU (for management module) slots
Must select Router Software License
Must select Management Module
Must select min 1 Power Supply
5U High
See Configuration
Note: 1,10
HP 6608 Router Chassis
JC177B
QuickSpecs
HP 6600 Router Series
Configuration
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 10
Page 11
4 Service Modules slots (FIP10, FIP20, FIP110 or FIP210 Modules only)
2 MPU (for management module) slots
Must select Router Software License
Must select Management Module
Must select min 1 Power Supply
7U High
See Configuration
Note: 1,10
HP 6616 Router Chassis
JC496A
8 Service Modules slots (FIP10, FIP20, FIP110 or FIP210 Modules only)
2 MPU (for management module) slots
Must select Router Software License
Must select Management Module
Must select min 2 Power Supply
20U High
See Configuration
Note: 1,10
Configuration Rules:
Note 1
Show following warning when Router is selected - "Warning - Min/Max of 1 JC180A HP 6600 Router Software
License is required when ordering this Router Chassis"
Note 2
The following Transceivers install into this Router:
HP X125 1G SFP LC LH40 1310nm Transceiver
JD061A
HP X120 1G SFP LC LH40 1550nm Transceiver
JD062A
HP X125 1G SFP LC LH70 Transceiver
JD063B
HP X120 1G SFP LC LH100 Transceiver
JD103A
HP X120 1G SFP LC BX 10-U Transceiver
JD098B
HP X120 1G SFP LC BX 10-D Transceiver
JD099B
Note 3
The following Transceivers install into this Router: (Use #0D1 if switch is CTO)
HP X130 10G SFP+ LC SR Transceiver
JD092B
HP X130 10G SFP+ LC ER 40km Transceiver
JG234A
HP X130 10G SFP+ LC LR Transceiver
JD094B
Note 10
If the Router Chassis is Box Level Factory Integrated (CTO), Then the #0D1 is required on the Router Chassis and
integrated to the JG498A - HP 6600 CTO Enablement.(Min 1/Max 1 Router per SSP)
Rack Level Integration CTO Models
Models
HP HSR 6602-G Router
JG353A
4 SFP ports (Min 0 // Max 4 SFP 1G Transceivers)
1 Service Module Slot (FIP10 or FIP20 Modules only)
1 - 2G DDR3 SDRAM included (JG482A)
Must select min 1 Power Supply
2U High
See Configuration
Note: 1, 4
Russian Reduced Encryption
JG353A#A59
HP HSR6602-XG Router
JG354A
4 SFP ports (Min 0 // Max 4 SFP 1G Transceivers)
2 10GbE SFP+ ports (Min 0 // Max 2 SFP+ 10G Transceivers)
1 Service Module Slot (FIP10 or FIP20 Modules only)
2 - 2G DDR3 SDRAM included (JG482A)
See Configuration
Note:1, 2, 4
QuickSpecs
HP 6600 Router Series
Configuration
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 11
Page 12
2 CF Memory slots: (Min 0 // Max 1)
Must select min 1 Power Supply
2U High
Russian Reduced Encryption
JG354A#A59
HP 6604 Router Chassis
JC178B
2 Service Modules slots (FIP10, FIP20, FIP110 or FIP210 Modules only)
2 MPU (for management module) slots
Must select Router Software License
Must select Management Module
Must select min 1 Power Supply
5U High
See Configuration
Note:3
HP 6608 Router Chassis
JC177B
4 Service Modules slots (FIP10, FIP20, FIP110 or FIP210 Modules only)
2 MPU (for management module) slots
Must select Router Software License
Must select Management Module
Must select min 1 Power Supply
7U High
See Configuration
Note:3
HP 6616 Router Chassis
JC496A
8 Service Modules slots (FIP10, FIP20, FIP110 or FIP210 Modules only)
2 MPU (for management module) slots
Must select Router Software License
Must select Management Module
Must select min 2 Power Supply
20U High
See Configuration
Note:3
Configuration Rules:
Note 1
The following Transceivers install into this Router:
HP X125 1G SFP LC LH40 1310nm Transceiver
JD061A
HP X120 1G SFP LC LH40 1550nm Transceiver
JD062A
HP X125 1G SFP LC LH70 Transceiver
JD063B
HP X120 1G SFP LC LH100 Transceiver
JD103A
HP X120 1G SFP LC BX 10-U Transceiver
JD098B
HP X120 1G SFP LC BX 10-D Transceiver
JD099B
Note 2
The following Transceivers install into this Router: (Use #0D1 if switch is CTO)
HP X130 10G SFP+ LC SR Transceiver
JD092A
HP X130 10G SFP+ LC ER 40km Transceiver
JG234A
HP X130 10G SFP+ LC LR Transceiver
JD094A
Note 3
Show following warning when Router is selected - "Warning - Min/Max of 1 JC180A HP 6600 Router Software
License is required when ordering this Router Chassis"
Note 4
If this product is ordered for delivery to Russia, it must be ordered with the A59 option (also allowed for other
countries desiring Low Encryption), then #A59 is the required option for BTO, and must be added in addition to #0D1
for CTO.
QuickSpecs
HP 6600 Router Series
Configuration
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 12
Page 13
Enter the following menu selections as integrated to the CTO Model X server above if order is factory built.
Internal Power
Supplies
(JC176A Router Only ) // Not Supported
(JC496A Only) System (std 0 // max 4) User Selection (min 2 // max 4) per router
(JC177B and JC178B Only) - System (std 0 // max 2) User Selection (min 1 // max 2) per router
(JG353A, JG776A, JG354A, JG777A Only) - System (std 0 // max 2) User Selection (min 1 // max 2) per router
HP 7500 650W DC Power Supply
JD209A
See Configuration
Note:1,2
HP 7500 650W AC Power Supply
JD217A
includes 1 x c13, 650w
See Configuration
Note:1,2,5
PDU Cable NA/MEX/TW/JP
JD217A#B2B
C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW
JD217A#B2C
C15 PDU Jumper Cord (ROW)
High Volt Switch/Router to Wall Power Cord
JD217A#B2E
NEMA L6-20P Cord (NA/MEX/JP/TW)
HP 6616 650W DC Router Power Supply
JC493A
See Configuration
Note:1,3
HP 6616 650W AC Router Power Supply
JC492A
includes 1 x c13, 650w
See Configuration
Note:1,3,5
PDU Cable NA/MEX/TW/JP
JC492A#B2B
C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW
JC492A#B2C
C15 PDU Jumper Cord (ROW)
High Volt Switch/Router to Wall Power Cord
JC492A#B2E
NEMA L6-20P Cord (NA/MEX/JP/TW)
HP 5800 300W DC Power Supply
JC090A
See Configuration
Note: 4
HP 5800 300W AC Power Supply
JC087A
includes 1 x c13, 650w
See Configuration
Note:1,4,5,6
PDU Cable NA/MEX/TW/JP
JC087A#B2B
C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW
JC087A#B2C
C15 PDU Jumper Cord (ROW)
Configuration Rules
QuickSpecs
HP 6600 Router Series
Configuration
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 13
Page 14
Note 1
If 2 power supplies are selected they must be the same Sku number.
Note 2
Only supported on the 6604 (JC178B) and (JC177B) 6608 routers.
Note 3
Only supported on the 6616 (JC496A) routers.
Note 4
Only supported on the new JG353A, JG776A, JG354A, JG777A routers.
Note 5
Localization (Wall Power Cord) required on orders without #B2B, #B2C (PDU Power Cord) or #B2E.
(See Localization Menu))
Note 6
When Switches/Routers are Factory Racked, Then #B2B, or #B2C should be the Defaulted Power
Cable option on the Switches/Routers.
Remarks:
Drop down under power supply should offer the following options and results:
Switch/Router/Power Supply to PDU Power Cord - #B2B in North America, Mexico, Taiwan, and
Japan or #B2C ROW. (Watson Default B2B or B2C for Rack Level CTO)
Switch/Router/Power Supply to Wall Power Cord - Localized Option (Watson Default for BTO and
Box Level CTO)
High Volt Switch/Router/Power Supply to Wall Power Cord - #B2E Option. (Offered only in
North America, Mexico, Taiwan, and Japan)
HP 6602 Router Chassis - Chile - English localization
JC176A#A1X
Power Cord: Quantity : 1, CEI 23-50, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store #:
8121-0825
HP 6602 Router Chassis - U.S. - English localization
JC176A#ABA
Power Cord: Quantity : 1, NEMA 5-15P, C13 STRAIGHT, 125 V, 10 A, 3 meters, 9.85 feet , Part
Store #: 8121-0822
HP 6602 Router Chassis - Europe - English localization
JC176A#ABB
Power Cord: Quantity : 1, CEE 7-VII, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store #:
8121-0823
HP 6602 Router Chassis - Australia - English localization
JC176A#ABG
Power Cord: Quantity : 1, AS/NZS 3112, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part
Store #: 8121-0828
HP 6602 Router Chassis - Brazil - Portuguese localization
JC176A#AC4
Power Cord: Quantity : 1, NBR 14136 Fig13, C13 STRAIGHT, 250 V, 2.5 A, 2.5 meters, 8.21 feet ,
Part Store #: 8121-1069
HP 6602 Router Chassis - Korea - English localization
JC176A#AC6
Power Cord: Quantity : 1, CEE 7-VII, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store #:
8121-0823
HP 6602 Router Chassis - United Kingdom - English localization
JC176A#ACC
Power Cord: Quantity : 1, BS 1363/A, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store
#: 8121-0824
HP 6602 Router Chassis - Switzerland - English localization
JC176A#ACD
Power Cord: Quantity : 1, SEV 6534-2 Type 12, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet ,
Part Store #: 8121-0827
HP 6602 Router Chassis - Denmark - English localization
JC176A#ACE
Power Cord: Quantity : 1, DK 2-5A, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store #:
8121-0826
HP 6602 Router Chassis - Denmark - English localization
JC176A#ACE
Power Cord: Quantity : 1, DK 2-5A, C13 STRAIGHT, 250 V, 10 A, 1.9 meters, 6.24 feet , Part Store
#: 8121-0733
HP 6602 Router Chassis - Japan - English localization
JC176A#ACF
QuickSpecs
HP 6600 Router Series
Configuration
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 14
Page 15
Power Cord: Quantity : 1, JIS C 8303, C13 STRAIGHT, 125 V, 12 A, 2.3 meters, 7.55 feet , Part Store
#: 8120-4753
HP 6602 Router Chassis - India - English localization
JC176A#ACJ
Power Cord: Quantity : 1, IS 1293, C13 STRAIGHT, 250 V, 10 A, 2.3 meters, 7.55 feet , Part Store #:
8121-0780
HP 6602 Router Chassis - South Africa - English localization
JC176A#ACQ
Power Cord: Quantity : 1, SABS 164, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store #:
8121-0919
HP 6602 Router Chassis - Israel - English localization
JC176A#AKJ
Power Cord: Quantity : 1, SI 32 90-DEG, C13 STRAIGHT, 250 V, 10 A, 2.5 meters, 8.21 feet , Part
Store #: 8121-1035
HP 6602 Router Chassis - Thailand - English localization
JC176A#AKL
Power Cord: Quantity : 1, NEMA 5-15P, C13 STRAIGHT, 250 V, 10 A, 2.5 meters, 8.21 feet , Part
Store #: 8121-0673
HP 6602 Router Chassis - China - English localization
JC176A#AKM
Power Cord: Quantity : 1, GB 1002, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store #:
8121-0829
HP 6602 Router Chassis - Taiwan - English localization
JC176A#ARB
Power Cord: Quantity : 1, CNS 690 Type 2(1), C13 STRAIGHT, 125 V, 13 A, 1.9 meters, 6.24 feet ,
Part Store #: 8121-0964
HP 6602 Router Chassis - Taiwan - English localization
JC176A#ARB
Power Cord: Quantity : 1, CNS 690 Type 2(1), C13 STRAIGHT, 125 V, 13 A, 3.6 meters, 11.82 feet ,
Part Store #: 8121-0965
HP 6602 Router Chassis - Argentina - English localization
JC176A#ARM
Power Cord: Quantity : 1, IRAM 2073, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store
#: 8121-0883
HP 7500 650W AC Power Supply - Chile - English localization
JD217A#A1X
Power Cord: Quantity : 1, CEI 23-50, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store #:
8121-0825
HP 7500 650W AC Power Supply - U.S. - English localization
JD217A#ABA
Power Cord: Quantity : 1, NEMA 5-15P, C13 STRAIGHT, 125 V, 10 A, 3 meters, 9.85 feet , Part
Store #: 8121-0822
HP 7500 650W AC Power Supply - Europe - English localization
JD217A#ABB
Power Cord: Quantity : 1, CEE 7-VII, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store #:
8121-0823
HP 7500 650W AC Power Supply - Australia - English localization
JD217A#ABG
Power Cord: Quantity : 1, AS/NZS 3112, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part
Store #: 8121-0828
HP 7500 650W AC Power Supply - Brazil - Portuguese localization
JD217A#AC4
Power Cord: Quantity : 1, NBR 14136 Fig13, C13 STRAIGHT, 250 V, 2.5 A, 2.5 meters, 8.21 feet ,
Part Store #: 8121-1069
HP 7500 650W AC Power Supply - Korea - English localization
JD217A#AC6
Power Cord: Quantity : 1, CEE 7-VII, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store #:
8121-0823
HP 7500 650W AC Power Supply - United Kingdom - English localization
JD217A#ACC
Power Cord: Quantity : 1, BS 1363/A, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store
#: 8121-0824
QuickSpecs
HP 6600 Router Series
Configuration
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 15
Page 16
HP 7500 650W AC Power Supply - Switzerland - English localization
JD217A#ACD
Power Cord: Quantity : 1, SEV 6534-2 Type 12, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet ,
Part Store #: 8121-0827
HP 7500 650W AC Power Supply - Denmark - English localization
JD217A#ACE
Power Cord: Quantity : 1, DK 2-5A, C13 STRAIGHT, 250 V, 10 A, 1.9 meters, 6.24 feet , Part Store
#: 8121-0733
HP 7500 650W AC Power Supply - Japan - English localization
JD217A#ACF
Power Cord: Quantity : 1, JIS C 8303, C13 STRAIGHT, 125 V, 12 A, 2.3 meters, 7.55 feet , Part Store
#: 8120-4753
HP 7500 650W AC Power Supply - India - English localization
JD217A#ACJ
Power Cord: Quantity : 1, SABS 164, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store #:
8121-0919
HP 7500 650W AC Power Supply - South Africa - English localization
JD217A#ACQ
Power Cord: Quantity : 1, SABS 164, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store #:
8121-0919
HP 7500 650W AC Power Supply - Israel - English localization
JD217A#AKJ
Power Cord: Quantity : 1, SI 32 90-DEG, C13 STRAIGHT, 250 V, 10 A, 2.5 meters, 8.21 feet , Part
Store #: 8121-1035
HP 7500 650W AC Power Supply - Thailand - English localization
JD217A#AKL
Power Cord: Quantity : 1, NEMA 5-15P, C13 STRAIGHT, 250 V, 10 A, 2.5 meters, 8.21 feet , Part
Store #: 8121-0673
HP 7500 650W AC Power Supply - China - English localization
JD217A#AKM
Power Cord: Quantity : 1, GB 1002, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store #:
8121-0829
HP 7500 650W AC Power Supply - Taiwan - English localization
JD217A#ARB
Power Cord: Quantity : 1, CNS 690 Type 2(1), C13 STRAIGHT, 125 V, 13 A, 1.9 meters, 6.24 feet ,
Part Store #: 8121-0964
HP 7500 650W AC Power Supply - Argentina - English localization
JD217A#ARM
Power Cord: Quantity : 1, IRAM 2073, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store
#: 8121-0883
HP 6616 650W AC Router Power Supply - Chile - English localization
JC492A#A1X
Power Cord: Quantity : 1, CEI 23-50, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store #:
8121-0825
HP 6616 650W AC Router Power Supply - U.S. - English localization
JC492A#ABA
Power Cord: Quantity : 1, NEMA 5-15P, C13 STRAIGHT, 125 V, 10 A, 3 meters, 9.85 feet , Part
Store #: 8121-0822
HP 6616 650W AC Router Power Supply - Europe - English localization
JC492A#ABB
Power Cord: Quantity : 1, CEE 7-VII, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store #:
8121-0823
HP 6616 650W AC Router Power Supply - Australia - English localization
JC492A#ABG
Power Cord: Quantity : 1, AS/NZS 3112, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part
Store #: 8121-0828
HP 6616 650W AC Router Power Supply - Brazil - Portuguese localization
JC492A#AC4
Power Cord: Quantity : 1, NBR 14136 Fig13, C13 STRAIGHT, 250 V, 2.5 A, 2.5 meters, 8.21 feet ,
Part Store #: 8121-1069
QuickSpecs
HP 6600 Router Series
Configuration
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 16
Page 17
HP 6616 650W AC Router Power Supply - Korea - English localization
JC492A#AC6
Power Cord: Quantity : 1, CEE 7-VII, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store #:
8121-0823
HP 6616 650W AC Router Power Supply - United Kingdom - English localization
JC492A#ACC
Power Cord: Quantity : 1, BS 1363/A, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store
#: 8121-0824
HP 6616 650W AC Router Power Supply - Switzerland - English localization
JC492A#ACD
Power Cord: Quantity : 1, SEV 6534-2 Type 12, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet ,
Part Store #: 8121-0827
HP 6616 650W AC Router Power Supply - Denmark - English localization
JC492A#ACE
Power Cord: Quantity : 1, DK 2-5A, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store #:
8121-0826
HP 6616 650W AC Router Power Supply - Japan - English localization
JC492A#ACF
Power Cord: Quantity : 1, JIS C 8303, C13 STRAIGHT, 125 V, 12 A, 2.3 meters, 7.55 feet , Part Store
#: 8120-4753
HP 6616 650W AC Router Power Supply - India - English localization
JC492A#ACJ
Power Cord: Quantity : 1, SABS 164, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store #:
8121-0919
HP 6616 650W AC Router Power Supply - South Africa - English localization
JC492A#ACQ
Power Cord: Quantity : 1, SABS 164, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store #:
8121-0919
HP 6616 650W AC Router Power Supply - Israel - English localization
JC492A#AKJ
Power Cord: Quantity : 1, SI 32 90-DEG, C13 STRAIGHT, 250 V, 10 A, 2.5 meters, 8.21 feet , Part
Store #: 8121-1035
HP 6616 650W AC Router Power Supply - Thailand - English localization
JC492A#AKL
Power Cord: Quantity : 1, NEMA 5-15P, C13 STRAIGHT, 250 V, 10 A, 2.5 meters, 8.21 feet , Part
Store #: 8121-0673
HP 6616 650W AC Router Power Supply - China - English localization
JC492A#AKM
Power Cord: Quantity : 1, GB 1002, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store #:
8121-0829
HP 6616 650W AC Router Power Supply - Taiwan - English localization
JC492A#ARB
Power Cord: Quantity : 1, CNS 690 Type 2(1), C13 STRAIGHT, 125 V, 13 A, 3.6 meters, 11.82 feet ,
Part Store #: 8121-0965
HP 6616 650W AC Router Power Supply - Argentina - English localization
JC492A#ARM
Power Cord: Quantity : 1, IRAM 2073, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store
#: 8121-0883
HP 5800 300W AC Power Supply - Chile - English localization
JC087A#A1X
Power Cord: Quantity : 1, CEI 23-50, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store #:
8121-0825
HP 5800 300W AC Power Supply - U.S. - English localization
JC087A#ABA
Power Cord: Quantity : 1, NEMA 5-15P, C13 STRAIGHT, 125 V, 10 A, 3 meters, 9.85 feet , Part
Store #: 8121-0822
HP 5800 300W AC Power Supply - Europe - English localization
JC087A#ABB
Power Cord: Quantity : 1, CEE 7-VII, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store #:
8121-0823
QuickSpecs
HP 6600 Router Series
Configuration
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 17
Page 18
HP 5800 300W AC Power Supply - Australia - English localization
JC087A#ABG
Power Cord: Quantity : 1, AS/NZS 3112, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part
Store #: 8121-0828
HP 5800 300W AC Power Supply - Brazil - Portuguese localization
JC087A#AC4
Power Cord: Quantity : 1, NBR 14136 Fig13, C13 STRAIGHT, 250 V, 2.5 A, 2.5 meters, 8.21 feet ,
Part Store #: 8121-1069
HP 5800 300W AC Power Supply - Korea - English localization
JC087A#AC6
Power Cord: Quantity : 1, CEE 7-VII, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store #:
8121-0823
HP 5800 300W AC Power Supply - United Kingdom - English localization
JC087A#ACC
Power Cord: Quantity : 1, BS 1363/A, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store
#: 8121-0824
HP 5800 300W AC Power Supply - Switzerland - English localization
JC087A#ACD
Power Cord: Quantity : 1, SEV 6534-2 Type 12, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet ,
Part Store #: 8121-0827
HP 5800 300W AC Power Supply - Denmark - English localization
JC087A#ACE
Power Cord: Quantity : 1, DK 2-5A, C13 STRAIGHT, 250 V, 10 A, 1.9 meters, 6.24 feet , Part Store
#: 8121-0733
HP 5800 300W AC Power Supply - Denmark - English localization
JC087A#ACE
Power Cord: Quantity : 1, DK 2-5A, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store #:
8121-0826
HP 5800 300W AC Power Supply - Japan - English localization
JC087A#ACF
Power Cord: Quantity : 1, JIS C 8303, C13 STRAIGHT, 125 V, 12 A, 2.3 meters, 7.55 feet , Part Store
#: 8120-4753
HP 5800 300W AC Power Supply - India - English localization
JC087A#ACJ
Power Cord: Quantity : 1, IS 1293, C13 STRAIGHT, 250 V, 10 A, 2.3 meters, 7.55 feet , Part Store #:
8121-0780
HP 5800 300W AC Power Supply - South Africa - English localization
JC087A#ACQ
Power Cord: Quantity : 1, SABS 164, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store #:
8121-0919
HP 5800 300W AC Power Supply - Israel - English localization
JC087A#AKJ
Power Cord: Quantity : 1, SI 32 90-DEG, C13 STRAIGHT, 250 V, 10 A, 2.5 meters, 8.21 feet , Part
Store #: 8121-1035
HP 5800 300W AC Power Supply - Thailand - English localization
JC087A#AKL
Power Cord: Quantity : 1, NEMA 5-15P, C13 STRAIGHT, 250 V, 10 A, 2.5 meters, 8.21 feet , Part
Store #: 8121-0673
HP 5800 300W AC Power Supply - China - English localization
JC087A#AKM
Power Cord: Quantity : 1, GB 1002, C13 STRAIGHT, 250 V, 10 A, 1.9 meters, 6.24 feet , Part Store
#: 8121-0742
HP 5800 300W AC Power Supply - China - English localization
JC087A#AKM
Power Cord: Quantity : 1, GB 1002, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store #:
8121-0829
HP 5800 300W AC Power Supply - Taiwan - English localization
JC087A#ARB
Power Cord: Quantity : 1, CNS 690 Type 2(1), C13 STRAIGHT, 125 V, 13 A, 1.9 meters, 6.24 feet ,
Part Store #: 8121-0964
QuickSpecs
HP 6600 Router Series
Configuration
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 18
Page 19
HP 5800 300W AC Power Supply - Taiwan - English localization
JC087A#ARB
Power Cord: Quantity : 1, CNS 690 Type 2(1), C13 STRAIGHT, 125 V, 13 A, 3.6 meters, 11.82 feet ,
Part Store #: 8121-0965
HP 5800 300W AC Power Supply - Argentina - English localization
JC087A#ARM
Power Cord: Quantity : 1, IRAM 2073, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store
#: 8121-0883
HP RPS 800 Redundant Power Supply - Chile - English localization
JD183A#A1X
Power Cord: Quantity : 1, CEI 23-50, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store #:
8121-0825
HP RPS 800 Redundant Power Supply - U.S. - English localization
JD183A#ABA
Power Cord: Quantity : 1, NEMA 5-15P, C13 STRAIGHT, 125 V, 10 A, 3 meters, 9.85 feet , Part
Store #: 8121-0822
HP RPS 800 Redundant Power Supply - Europe - English localization
JD183A#ABB
Power Cord: Quantity : 1, CEE 7-VII, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store #:
8121-0823
HP RPS 800 Redundant Power Supply - Australia - English localization
JD183A#ABG
Power Cord: Quantity : 1, AS/NZS 3112, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part
Store #: 8121-0828
HP RPS 800 Redundant Power Supply - Brazil - Portuguese localization
JD183A#AC4
Power Cord: Quantity : 1, NBR 14136 Fig13, C13 STRAIGHT, 250 V, 2.5 A, 2.5 meters, 8.21 feet ,
Part Store #: 8121-1069
HP RPS 800 Redundant Power Supply - Korea - English localization
JD183A#AC6
Power Cord: Quantity : 1, CEE 7-VII, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store #:
8121-0823
HP RPS 800 Redundant Power Supply - United Kingdom - English localization
JD183A#ACC
Power Cord: Quantity : 1, BS 1363/A, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store
#: 8121-0824
HP RPS 800 Redundant Power Supply - Switzerland - English localization
JD183A#ACD
Power Cord: Quantity : 1, SEV 6534-2 Type 12, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet ,
Part Store #: 8121-0827
HP RPS 800 Redundant Power Supply - Denmark - English localization
JD183A#ACE
Power Cord: Quantity : 1, DK 2-5A, C13 STRAIGHT, 250 V, 10 A, 1.9 meters, 6.24 feet , Part Store
#: 8121-0733
HP RPS 800 Redundant Power Supply - Japan - English localization
JD183A#ACF
Power Cord: Quantity : 1, JIS C 8303, C13 STRAIGHT, 125 V, 12 A, 2.3 meters, 7.55 feet , Part Store
#: 8120-4753
HP RPS 800 Redundant Power Supply - India - English localization
JD183A#ACJ
Power Cord: Quantity : 1, SABS 164, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store #:
8121-0919
HP RPS 800 Redundant Power Supply - South Africa - English localization
JD183A#ACQ
Power Cord: Quantity : 1, SABS 164, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store #:
8121-0919
HP RPS 800 Redundant Power Supply - Israel - English localization
JD183A#AKJ
Power Cord: Quantity : 1, SI 32 90-DEG, C13 STRAIGHT, 250 V, 10 A, 2.5 meters, 8.21 feet , Part
Store #: 8121-1035
QuickSpecs
HP 6600 Router Series
Configuration
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 19
Page 20
HP RPS 800 Redundant Power Supply - Thailand - English localization
JD183A#AKL
Power Cord: Quantity : 1, NEMA 5-15P, C13 STRAIGHT, 250 V, 10 A, 2.5 meters, 8.21 feet , Part
Store #: 8121-0673
HP RPS 800 Redundant Power Supply - China - English localization
JD183A#AKM
Power Cord: Quantity : 1, GB 1002, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store #:
8121-0829
HP RPS 800 Redundant Power Supply - Taiwan - English localization
JD183A#ARB
Power Cord: Quantity : 1, CNS 690 Type 2(1), C13 STRAIGHT, 125 V, 13 A, 1.9 meters, 6.24 feet ,
Part Store #: 8121-0964
HP RPS 800 Redundant Power Supply - Argentina - English localization
JD183A#ARM
Power Cord: Quantity : 1, IRAM 2073, C13 STRAIGHT, 250 V, 10 A, 3 meters, 9.85 feet , Part Store
#: 8121-0883
Modules
Management
Module
slots
(JC176A, JG353A, JG776A, JG354A, JG777A Routers Only ) // Not Supported
(JC496A,JC177B,JC178B Router) System (std 0 // max 2) User Selection (min 1 // max 2) install in
Service Engine Module
HP 6600 MCP-X1 Router MPU
JG355A
Min 0 // Max 4 SFP1G Transceivers
1 - 2GB DDR3 SDRAM Included (JG482A)
See Configuration
Note: 1,4,7,8
Russian Reduced Encryption
JG355A#A59
HP 6600 MCP-X2 Router MPU
JG356A
Min 0 // Max 4 SFP 1G Transceivers
Min 0 // Max 2 SFP+10G Transceivers
2 - 2GB DDR3 SDRAM Included (JG482A)
See Configuration
Note: 1,4,6,7,8
Russian Reduced Encryption
JG356A#A59
HP 6600 RPE-X1 Main Processing Unit
JC165A
1 - 1GB DDR2 SDRAM Included (JC701A)
See Configuration
Note: 1,2,3,4,9
Russian Reduced Encryption
JC165A#A59
HP 6600 RSE-X1 Main Processing Unit
JC566A
2 - 1GB DDR2 SDRAM Included (JC701A)
See Configuration
Note: 1,4,9
Russian Reduced Encryption
JC566A#A59
Note 1
No mixing of any type of MPU. Must all be the same sku.
Note 2
If the RPE-X1 (JC165A or JG781A) is selected then the HP 6600RPE-X1 Carrier Card
(JC497A) must be added to order as well.
Note 4
If this product is ordered for delivery to Russia, it must be ordered with the A59 option
(also allowed for other countries desiring Low Encryption), then #A59 is the required
option for BTO, and must be added in addition to #0D1 for CTO.
Note 5
The following Transceivers install into this Module: (Use #0D1 if router is CTO) - if
applicable
HP X120 1G SFP LC SX Transceiver
JD118B
HP X120 1G SFP LC LX Transceiver
JD119B
HP X125 1G SFP LC LH40 1310nm Transceiver
JD061A
HP X120 1G SFP LC LH40 1550nm Transceiver
JD062A
QuickSpecs
HP 6600 Router Series
Configuration
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 20
Page 21
HP X125 1G SFP LC LH70 Transceiver
JD063B
HP X120 1G SFP LC LH100 Transceiver
JD103A
HP X120 1G SFP LC BX 10-U Transceiver
JD098B
HP X120 1G SFP LC BX 10-D Transceiver
JD099B
HP X115 100M SFP LC FX Transceiver
JD102B
HP X110 100M SFP LC LX Transceiver
JD120B
HP X110 100M SFP LC LH40 Transceiver
JD090A
HP X110 100M SFP LC LH80 Transceiver
JD091A
Note 6
The following SIC Modules install into this Module: (Use #0D1 if router is CTO) - if
applicable
HP X130 10G SFP+ LC SR Transceiver
JD092A
HP X130 10G SFP+ LC LR Transceiver
JD094A
Note 7
The following Transceivers install into this Module: (Use #0D1 if switch is CTO)
HP X125 1G SFP LC LH40 1310nm Transceiver
JD061A
HP X120 1G SFP LC LH40 1550nm Transceiver
JD062A
HP X125 1G SFP LC LH70 Transceiver
JD063B
HP X120 1G SFP LC LH100 Transceiver
JD103A
HP X120 1G SFP LC BX 10-U Transceiver
JD098B
HP X120 1G SFP LC BX 10-D Transceiver
JD099B
Note 8
FIP-10 or FIP-20 Modules Only work with these MPUs: JG355A, JG778A, JG356A
Note 9
FIP-110 or FIP-210 Modules Only work with these MPUs: JC165A, JG781A, JC566A,
JG780A
Remarks
RSE-X1 (JC566A, JG780A) occupies a full-width slot.
RPE-X1 (JC165A, JG781A) occupies half-width slot.
Service
Module Slot
(JC176A Router Only ) // Not Supported
(JG353A, JG776A, JG354A, JG777A Routers Only ) System (std 0 // max 1) User
Selection (min 0 // max 1) per router
See Configuration
Note:1
(JC178B Router Only ) System (std 0 // max 2) User Selection (min 0 // max 2)
per router
See Configuration
Note:1
(JC177B Router Only ) System (std 0 // max 4) User Selection (min 0 // max 4)
per router
See Configuration
Note:1
(JC496A Router Only ) System (std 0 // max 8) User Selection (min 0 // max 8)
per router
See Configuration
Note:1
HP 6600 FIP-10 Flex Intf Pltfrm Rtr Mod
JG357A
Min=0 \ Max=4 MIM Modules
See Configuration
Note: 4,8
HP 6600 FIP-20 Flex Intf Pltfrm Rtr Mod
JG358A
Min=0 \ Max=2 HIM Modules or 2 MIM Modules or 1 Each
See Configuration
Note: 5,8
HP 6600 FIP-110 Flexible Interface Platform Module
JC166B
min=0 \ max=2 SFP1G \\ Min=0 \ Max=4 MIM Modules
2 - 1GB DDR2 SDRAM Included (JC071A)
See Configuration
Note: 2,4,7
HP 6600 FIP-210 Flexible Interface Platform Module
JC167B
min=0 \ max=2 SFP 1G \\ Min=0 \ Max=2 HIM Modules or 2 MIM Modules
or 1 Each
2 - 1GB DDR2 SDRAM Included (JC071A)
See Configuration
Note: 2,5,7
QuickSpecs
HP 6600 Router Series
Configuration
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 21
Page 22
HP 6600 48-port Gig-T Service Aggregation Platform Module
JC567A
No Transceivers
2 - 1GB DDR2 SDRAM Included (JC071A)
See Configuration
Note: 6,7
HP 6600 24-port GbE SFP Service Aggregation Platform Module
JC568A
min=0 \ max=24 SFP 100M/1G
2 - 1GB DDR2 SDRAM Included (JC071A)
See Configuration
Note: 3,6,7
HP 6600 48p GbE SFP Svc Agg Pltfm Mod
JG556A
min=0 \ max=48 SFP 100M/1G
2 - 1GB DDR2 SDRAM Included (JC071A)
See Configuration
Note: 3,6,7
Configuration Rules
Note 1
If 2 of JC566A, JG355A or JG356A, JG778A, JG780A are selected, Then the Service
Module slots max is reduced by 1.
Note 2
The following Transceivers installs into this Service Module: (Use #0D1 if router is CTO)
- if applicable
HP X120 1G SFP LC SX Transceiver
JD118B
HP X120 1G SFP LC LX Transceiver
JD119B
HP X125 1G SFP LC LH40 1310nm Transceiver
JD061A
HP X120 1G SFP LC LH40 1550nm Transceiver
JD062A
HP X125 1G SFP LC LH70 Transceiver
JD063B
HP X120 1G SFP LC LH100 Transceiver
JD103A
HP X120 1G SFP LC BX 10-U Transceiver
JD098B
HP X120 1G SFP LC BX 10-D Transceiver
JD099B
Note 3
The following Transceivers install into this Service Module: (Use #0D1 if router is CTO) if applicable
HP X120 1G SFP LC SX Transceiver
JD118B
HP X120 1G SFP LC LX Transceiver
JD119B
HP X125 1G SFP LC LH40 1310nm Transceiver
JD061A
HP X120 1G SFP LC LH40 1550nm Transceiver
JD062A
HP X125 1G SFP LC LH70 Transceiver
JD063B
HP X120 1G SFP LC LH100 Transceiver
JD103A
HP X120 1G SFP LC BX 10-U Transceiver
JD098B
HP X120 1G SFP LC BX 10-D Transceiver
JD099B
HP X115 100M SFP LC FX Transceiver
JD102B
HP X110 100M SFP LC LX Transceiver
JD120B
HP X110 100M SFP LC LH40 Transceiver
JD090A
HP X110 100M SFP LC LH80 Transceiver
JD091A
HP X115 100M SFP LC BX 10-U Transceiver
JD100A
HP X115 100M SFP LC BX 10-D Transceiver
JD101A
HP X120 1G SFP RJ45 T Transceiver
JD089B
Note 4
The following Modules installs into this Service Module: Max = 4 (Use #0D1 if router is
CTO) - if applicable
HP MSR 2-port Enhanced Serial MIM Mod
JD540A
HP MSR 4-port Enhanced Serial MIM Module
JD541A
HP MSR 8-port Sync/Async Interface Enhanced Module
JD552A
HP MSR 1-port FT3/CT3 MIM Module
JD628A
QuickSpecs
HP 6600 Router Series
Configuration
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 22
Page 23
HP 6600 8-port T1 MIM Router Module
JC160A
HP 6600 8-port Fractional T1 MIM Router Module
JC159A
HP MSR 8-port E1/CE1/PRI (75ohm) MIM Module
JD563A
HP MSR 8-port Fractional E1 MIM Module
JF255A
HP MSR 1-port FE3/CE3 MIM Module
JD630A
Note 5
The following Modules installs into this Service Module: Max = 2 (Use #0D1 if router is
CTO) - if applicable
HP MSR 2-port Enhanced Serial MIM Mod
JD540A
HP MSR 4-port Enhanced Serial MIM Module
JD541A
HP MSR 8-port Sync/Async Interface Enhanced Module
JD552A
HP MSR 1-port FT3/CT3 MIM Module
JD628A
HP 6600 8-port T1 MIM Router Module
JC160A
HP 6600 8-port Fractional T1 MIM Router Module
JC159A
HP 6600 1-port OC-3 (E1/T1) CPOS HIM Router Module
JC161A
HP 6600 2-port OC-3 E1/T1 CPOS HIM Router Module
JC162A
HP 6600 4GbE WAN HIM Router Module
JC163A
HP 6600 8GbE WAN HIM Router Module
JC164A
HP 6600 2-port OC-3 E3/T3 CPOS HIM Router Module
JC169A
HP 6600 1-port OC-3 (E3/T3) CPOS HIM Router Module
JC170A
HP 6600 4-port GbE SFP HIM Router Module
JC171A
HP 6600 4-port OC-3 / 2-port OC-12 POS HIM Router Module
JC172A
HP 6600 1-port OC-48/STM-16 POS (SFP) Router Module
JC494A
HP 6600 2-port OC-3 / 1-port OC-12 POS HIM Router Module
JC173A
HP 6600 8-port GbE SFP HIM Router Module
JC174A
HP 6600 1-port 10GbE XFP HIM Router Module
JC168A
HP 6600 1-port OC-3c/STM-1c ATM HIM Router Module
JC175A
HP 6600 2-port OC-3c/STM-1c ATM SFP Router Module
JC495A
HP A6600 8-port 10/100Base-T HIM Module
JC575A
HP A6600 2-port OC-48c/STM-16c RPR SFP HIM Module
JC576A
HP MSR 8-port E1/CE1/PRI (75ohm) MIM Module
JD563A
HP MSR 8-port Fractional E1 MIM Module
JF255A
HP MSR 1-port FE3/CE3 MIM Module
JD630A
HP 6600 8-p OC-3/12c POS/GbE SFP HIM Mod
JG673A
Note 6
If this Module is selected, Then the JC566A - HP A6600 RSE-X1 Main Processing Unit is
required.
Note 7
This module is only supported in the following routers:
HP 6616 Router Chassis
JC496A
HP 6608 Router Chassis
JC177B
HP 6604 Router Chassis
JC178B
Note 8
If this Module is selected the JC178B, JC177B, and JC496A leagacy
routers, Then one of the following routers is required
HP 6600 MCP-X1 Router Main Processing Unit
JG355A
HP 6600 MCP-X2 Router Main Processing Unit
JG356A
(JC176A legacy Router does not support this module.)
QuickSpecs
HP 6600 Router Series
Configuration
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 23
Page 24
MIM and HIM
router Modules
(JC176A Router Only ) System (std 0 // max 2) User Selection (min 0 // max 2) per router
System (std 0 // max 2 or 4) User Selection (min 0 // max 2 or 4) per Service Module (See Service
Modules for Port information)
HP 6600 1p OC-3 (E1/T1) CPOS HIM Rtr Mod
JC161A
min=0 \ max=1 SFP
See Configuration
Note: 1,2
HP 6600 2p OC-3 E1/T1 CPOS HIM Rtr Mod
JC162A
min=0 \ max=2 SFP
See Configuration
Note: 1,2
HP 6600 2p OC-3 E3/T3 CPOS HIM Rtr Mod
JC169A
min=0 \ max=2 SFP
See Configuration
Note: 1,2
HP 6600 1p OC-3 (E3/T3) CPOS HIM Rtr Mod
JC170A
min=0 \ max=1 SFP
See Configuration
Note: 1,2
HP 6600 4-port GbE SFP HIM Router Module
JC171A
min=0 \ max=4 SFP
See Configuration
Note: 1,3
HP 6600 4p OC-3/2p OC-12 POS HIM Rtr Mod
JC172A
min=0 \ max=4 SFP
See Configuration
Note: 1,2,4,7
HP 6600 2p OC-3/1p OC-12 POS HIM Rtr Mod
JC173A
min=0 \ max=2 SFP
See Configuration
Note: 1,2,4,8
HP 6600 1-p OC-48/STM-16 POS SFP Rtr Mo
JC494A
min=0 \ max=1 SFP
See Configuration
Note: 1,5
HP 6600 8-port GbE SFP HIM Router Module
JC174A
min=0 \ max=8 SFP
See Configuration
Note: 1,3
HP 6600 1p OC-3c/STM-1c ATM HIM Rtr Mod
JC175A
min=0 \ max=1 SFP
See Configuration
Note: 1,2
HP 6600 2p OC-3c/STM-1c ATM SFP Rtr Mod
JC495A
min=0 \ max=2 SFP
See Configuration
Note: 1,2
HP 6600 1p 10GbE XFP HIM Rtr Module
JC168A
min=0 \ max=1 XFP
Se
e Configuration
Note: 1,6
HP A6600 2-p OC48c RPR SFP HIM Module
JC576A
min=0 \ max=2 SFP
See Configuration
Note: 1,5
HP 2-Port Enhanced Serial MIM A-MSR Mod
JD540A
min=0 \ max=2 Serial Port Cable
See Configuration
Note: 1,9
HP 4-Port Enhanced Serial MIM A-MSR Mod
JD541A
QuickSpecs
HP 6600 Router Series
Configuration
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 24
Page 25
min=0 \ max=4 Serial Port Cable
See Configuration
Note: 1,9
HP 8p Enh Sync/Async Interface A-MSR Mod
JD552A
min=0 \ max=8 Serial Port Cable
See Configuration
Note: 1,9
HP MSR 1-port FT3/CT3 MIM Module
JD628A
min=0 \ max=2 E3/T3 Cable
See Configuration
Note: 1,11
HP 6600 8-port T1 MIM Router Module
JC160A
No Transceivers
See Configuration
Note: 1
HP 6600 8-port Fractional T1 MIM Rtr Mod
JC159A
No Transceivers
See Configuration
Note: 1
HP 6600 4GbE WAN HIM Router Module
JC163A
No Transceivers
See Configuration
Note: 1
HP 6600 8GbE WAN HIM Router Module
JC164A
No Transceivers
See Configuration
Note: 1
HP A6600 8-port 10/100Base-T HIM Module
JC575A
No Transceivers
See Configuration
Note: 1
HP A-MSR 8-p E1/CE1/PRI (75ohm) MIM Mod
JD563A
must select 1 8-port E1 Cable
See Configuration
Note: 1,10
HP MSR 8-port E1/Fractional E1 (75ohm) MIM Module
JF255A
must select 1 8-port E1 Cable
See Configuration
Note: 1,10
HP MSR 1-port FE3/CE3 MIM Module
JD630A
min=0 \ max=2 E3/T3 Cable
See Configuration
Note: 1,11
HP 6600 8-p OC-3/12c POS/GbE SFP HIM Mod
JG673A
min=0 \ max=8 SFP
See Configuration
Note: 1,4,13
Configuration Rules
Note 1
These Modules can install directly to the JC176A - HP A6602 Router
Routers JC177B, JC178B, JC496A Requires JC166B, JC167B, JG357A or JG358A Flex Int
Platform Module to install HIM or MIM modules.
Routers JG353A, JG776A, and JG354A, JG777A Requires the JG357A or JG358A Flex Int
Platform Module to install HIM or MIM modules.
Note 2
The following Transceivers install into this Module: (Use #0D1 if router is CTO) - if
applicable
QuickSpecs
HP 6600 Router Series
Configuration
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 25
Page 26
HP X115 100M SFP LC FX Transceiver
JD102B
HP X110 100M SFP LC LX Transceiver
JD120B
HP X110 100M SFP LC LH40 Transceiver
JD090A
HP X110 100M SFP LC LH80 Transceiver
JD091A
Note 3
The following Transceivers install into this Module: (Use #0D1 if router is CTO) - if
applicable
HP X120 1G SFP LC SX Transceiver
JD118B
HP X120 1G SFP LC LX Transceiver
JD119B
HP X125 1G SFP LC LH40 1310nm Transceiver
JD061A
HP X120 1G SFP LC LH40 1550nm Transceiver
JD062A
HP X125 1G SFP LC LH70 Transceiver
JD063B
HP X120 1G SFP LC LH100 Transceiver
JD103A
HP X120 1G SFP LC BX 10-U Transceiver
JD098B
HP X120 1G SFP LC BX 10-D Transceiver
JD099B
HP X115 100M SFP LC BX 10-U Transceiver
JD100A
HP X115 100M SFP LC BX 10-D Transceiver
JD101A
HP X115 100M SFP LC FX Transceiver
JD102B
HP X110 100M SFP LC LX Transceiver
JD120B
HP X110 100M SFP LC LH40 Transceiver
JD090A
HP X110 100M SFP LC LH80 Transceiver
JD091A
Note 4
The following Transceivers install into this Module (Use #0D1 if router is CTO) - if
applicable
HP X120 622M SFP LC LX 15km Transceiver
JF829A
HP X120 622M SFP LC LH 80km 1550 Transceiver
JF831A
HP X120 622M SFP LC LH 40km 1310 Transceiver
JF830A
Note 5
The following Transceivers install into this Module: (Use #0D1 if router is CTO) - if
applicable
HP X160 2.5G SFP LC 2km Transceiver
JD084A
HP X160 2.5G SFP LC 15km Transceiver
JD085A
HP X160 2.5G SFP LC 40km Transceiver
JD086A
HP X160 2.5G SFP LC 80km Transceiver
JD087A
Note 6
The following Transceivers install into this Module: (Use #0D1 if router is CTO) - if
applicable
HP X135 10G XFP LC ER Transceiver
JD11A
HP X130 10G XFP LC LR Single Mode 10km 1310nm Transceiver
JD108B
HP X130 10G XFP LC SR Transceiver
JD117B
Note 7
min=0 \ max=4 SFP (JD102B,JD120B,JD090A,JD091A)
min=0 \ max=2 SFP (JF829A,JF831A,JF830A)
X110 100M LC Transceiver (JD102B,JD120B,JD090A and JD091A) and X120 622M LC
Transceiver (JF829A,JF831A and JF830A) cannot be used at the same time
Note 8
min=0 \ max=2 SFP (JD102B,JD120B,JD090A,JD091A)
min=0 \ max=1 SFP (JF829A,JF831A,JF830A)
X110 100M LC Transceiver (JD102B,JD120B,JD090A and JD091A) and X120 622M LC
Transceiver (JF829A,JF831A and JF830A) cannot be used at the same time
Note 9
The following Cables install into this Module:
HP X200 V.24 DTE 3m Serial Port Cable
JD519A
QuickSpecs
HP 6600 Router Series
Configuration
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 26
Page 27
HP X200 V.24 DCE 3m Serial Port Cable
JD521A
HP X200 V.35 DTE 3m Serial Port Cable
JD523A
HP X200 V.35 DCE 3m Serial Port Cable
JD525A
HP X200 X.21 DTE 3m Serial Port Cable
JD527A
HP X200 X.21 DCE 3m Serial Port Cable
JD529A
HP X260 RS449 3m DTE Serial Port Cable
JF825A
HP X260 RS449 3m DCE Serial Port Cable
JF826A
HP X260 RS530 3m DTE Serial Port Cable
JF827A
HP X260 RS530 3m DCE Serial Port Cable
JF828A
Note 10
The following Cable install into this Module:
HP X260 8E1 BNC 75 ohm 3m Router Cable
JD512A
Note 11
The following E3/T3 Cable and Connector install into this Module:
HP X260 T3/E3 Router Cable
JD531A
HP X260 E3-30 E3/T3 Router Cable
JD533A
Note 12
If this Module is selected, Then one of the following routers is required:
HP 6616 Router Chassis
JC496A
HP 6608 Router Chassis
JC177B
HP 6604 Router Chassis
JC178B
Note 13
The following Transceivers install into this Module: (Use #0D1 if router is CTO) - if
applicable
HP X120 1G SFP LC SX Transceiver
JD118B
HP X120 1G SFP LC LX Transceiver
JD119B
HP X125 1G SFP LC LH40 1310nm Transceiver
JD061A
HP X120 1G SFP LC LH40 1550nm Transceiver
JD062A
HP X125 1G SFP LC LH70 Transceiver
JD063B
HP X120 1G SFP LC LH100 Transceiver
JD103A
HP X120 1G SFP LC BX 10-U Transceiver
JD098B
HP X120 1G SFP LC BX 10-D Transceiver
JD099B
HP X115 100M SFP LC FX Transceiver
JD102B
HP X110 100M SFP LC LX Transceiver
JD120B
HP X110 100M SFP LC LH40 Transceiver
JD090A
HP X110 100M SFP LC LH80 Transceiver
JD091A
HP X110 100M SFP LC BX 10-U Transceiver
JD100A
HP X110 100M SFP LC BX 10-D Transceiver
JD101A
Transceivers
SFP Transceivers
HP X110 100M SFP LC LX Transceiver
JD120B
HP X110 100M SFP LC LH40 Transceiver
JD090A
HP X110 100M SFP LC LH80 Transceiver
JD091A
HP X110 100M SFP LC BX 10-U Transceiver
JD100A
HP X110 100M SFP LC BX 10-D Transceiver
JD101A
HP X115 100M SFP LC FX Transceiver
JD102B
HP X120 622M SFP LC LX 15km Transceiver
JF829A
HP X120 622M SFP LC LH 80km 1550 XCVR
JF831A
HP X120 622M SFP LC LH 40km 1310 XCVR
JF830A
HP X125 1G SFP LC LH40 1310nm XCVR
JD061A
QuickSpecs
HP 6600 Router Series
Configuration
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 27
Page 28
HP X120 1G SFP LC LH40 1550nm XCVR
JD062A
HP X120 1G SFP LC LH100 Transceiver
JD103A
HP X120 1G SFP LC SX Transceiver
JD118B
HP X120 1G SFP LC LX Transceiver
JD119B
HP X125 1G SFP LC LH70 Transceiver
JD063B
HP X120 1G SFP RJ45 T Transceiver
JD089B
HP X120 1G SFP LC BX 10-U Transceiver
JD098B
See Configuration
Note:1
HP X120 1G SFP LC BX 10-D Transceiver
JD099B
See Configuration
Note:1
HP X160 2.5G SFP LC 2km Transceiver
JD084A
HP X160 2.5G SFP LC 15km Transceiver
JD085A
HP X160 2.5G SFP LC 40km Transceiver
JD086A
HP X160 2.5G SFP LC 80km Transceiver
JD087A
Note 1
Must be used in pairs for both ends
SFP+
Transceivers
HP X130 10G SFP+ LC SR Transceiver
JD092B
HP X130 10G SFP+ LC LR Transceiver
JD094B
HP X130 10G SFP+ LC ER 40km Transceiver
JG234A
XFP Transceivers
HP X135 10G XFP LC ER Transceiver
JD121A
HP X130 10G XFP LC LR 1310nm Transceiver
JD108B
HP X130 10G XFP LC SR Transceiver
JD117B
Cables
HP X200 V.24 DTE 3m Serial Port Cable
JD519A
HP X200 V.24 DCE 3m Serial Port Cable
JD521A
HP X200 V.35 DTE 3m Serial Port Cable
JD523A
HP X200 V.35 DCE 3m Serial Port Cable
JD525A
HP X200 X.21 DTE 3m Serial Port Cable
JD527A
HP X200 X.21 DCE 3m Serial Port Cable
JD529A
HP X260 RS449 3m DTE Serial Port Cable
JF825A
HP X260 RS449 3m DCE Serial Port Cable
JF826A
HP X260 RS530 3m DTE Serial Port Cable
JF827A
HP X260 RS530 3m DCE Serial Port Cable
JF828A
HP X260 E1 RJ45 BNC 75-120 ohm Conversion Router Cable
JD511A
HP X260 8E1 BNC 75 ohm 3m Router Cable
JD512A
HP X260 T3/E3 Router Cable
JD531A
HP X260 E3-30 E3/T3 Router Cable
JD533A
Remarks
The following cable is used for RJ45 BNC Conversion
HP X260 E1 RJ45 BNC 75-120 ohm Conversion Router Cable
JD511A
QuickSpecs
HP 6600 Router Series
Configuration
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 28
Page 29
Router Specific
Options
Licenses
System (std 0 // max 1) User Selection (min 0 // max 1) per switch enclosure
HP MSR50 Router Software License
JD434A
SDRAM
System (std 1 // max 2) User Selection (min 0 // max 2) per Main Processing
Module
HP A-Series 2GB DDR2 SDRAM
JG205A
See Configuration
Note:1
HP MSR 256MB SDRAM
JD647A
See Configuration
Note:1
HP MSR 512MB SDRAM
JD648A
See Configuration
Note:1
Configuration Rules
These Memory Modules are supported on the following routers only:
Note 1
HP MSR50 G2 Main Processing Unit
JD429B
HP MSR50 Main Processing Unit
JD653A
Compact Flash
cards
System (std 0 // max 1) User Selection (min 0 // max 1)
HP X600 1G Compact Flash Card
JC684A
HP X600 512M Compact Flash Card
JC685A
HP X600 256M Compact Flash Card
JC686A
Configuration Rules
These CF Cards are supported on the following routers only:
Note 1
HP MSR50 G2 Main Processing Unit
JD429B
HP MSR50 Main Processing Unit
JD653A
License Software
JF235A, JF287A, and JF679A Only System (std 0 // max 1) User Selection (min
0 // max 1)
HP MSR30 Router Software License
JD679A
Router Enclosure
Options
Carrier
Card
System (std 0 // max 1) User Selection (min 0 // max 1) per routers
HP X260 E3-30 E3/T3 Router Cable
JC497A
NOTE:
RPE-X1 (JC165A, JG781A) is supported with HP 6600RPE-X1 Carrier
Card (JC497A)
Dustproof
Frames
User Selection (min 0 // max 1) per router
HP 6604 Dustproof Router Frame
JC572A
NOTE:
This Frame installs to the following routers only:
JC496A - HP A6616 Router Chassis
HP 6608 Dustproof Router Frame
JC573A
NOTE:
This Frame installs to the following routers only:
JC177B - HP A6608 Router Chassis
HP 6616 Dustproof Router Frame
JC574A
QuickSpecs
HP 6600 Router Series
Configuration
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 29
Page 30
NOTE:
This Frame installs to the following routers only:
JC178B - HP A6604 Router Chassis
External
Redundant Power
supply
JC176A only - System (std 0 // max 1) User Selection (min 0 // max 1) per
router
HP RPS 800 Redundant Power Supply
JD183A
NOTE:
JD637 - HP X290 MSR30 1m RPS Cable is required if power supply is
selected.
NOTE:
Localization required. (See Localization Menu for list.)
Remarks:
Installation Guide recommends a tray be installed in the rack to
support the weight.
Redundant Power
supply cable
JC176A only - System (std 0 // max 1) User Selection (min 0 // max 1) per
router
HP X290 MSR30 1m RPS Cable
JD637A
NOTE:
If the JD183A - HP RPS 800 A Redundant Power Supply is selected Then
this sku is required.
Router Software
License
User Selection (min 1 // max 1) per router
HP 6600 Router Software License
JC180A
NOTE:
This License installs to the following routers only:
JC496A - HP A6616 Router Chassis
JC177B - HP A6608 Router Chassis
JC178B - HP A6604 Router Chassis
Spare Fan
Assembly
User Selection (min 0 // max 1) per router
HP 6602-A Router Spare Fan Assembly
JG359A
NOTE:
This Fan Assembly installs to the following routers only:
JG353A - HP HSR6602-G Router
JG354A - HP HSR6602-XG Router
HP 6604 Spare Router Fan Assembly
JC569A
NOTE:
This Fan Assembly installs to the following routers only:
JC178B - HP A6604 Router Chassis
HP 6608 Spare Router Fan Assembly
JC570A
NOTE:
This Fan Assembly installs to the following routers only:
JC177B - HP A6608 Router Chassis
HP 6616 Spare Router Fan Assembly
JC571A
NOTE:
This Fan Assembly installs to the following routers only:
JC496A - HP A6616 Router Chassis
Memory
HP X610 2G VLP DDR3 SDRAM Memory
JG482A
QuickSpecs
HP 6600 Router Series
Configuration
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 30
Page 31
NOTE:
System (std 1 // max 2) User Selection (min 0 // max 1)
Only supported on:
JG353A - HP HSR6602-G Router
JG776A - HP HSR6602-G TAA Router
JG355A - HP 6600 MCP-X1 Router MPU
HP 6600 1GB SDRAM
JC179A
NOTE:
This memory installs to the following routers only:
JC496A - HP 6616 Router Chassis
JC177B - HP 6608 Router Chassis
JC178B - HP 6604 Router Chassis
HP X610 1GB DDR2 SDRAM Memory
JC071A
NOTE:
System (std 1 // max 2) User Selection (min 0 // max 1)
Only supported on:
JC165A - HP 6600 RPE-X1 Main Processing Unit
JG781A - HP 6600 RPE-X1 Router TAA MPU
Compact Flash
JG353A, JG776A, JG354A, JG777A only - System (std 1 // max 2) User Selection
(min 0 // max 1) per router
HP X600 512M Compact Flash Card
JC685A
NOTE:
This Compact Flash installs to the following routers only:
JG353A - HP HSR6602-G Router
JG354A - HP HSR6602-XG Router
HP X600 1G Compact Flash Card
JC684A
NOTE:
This Compact Flash installs to the following routers only:
JG353A - HP HSR6602-G Router
JG354A - HP HSR6602-XG Router
QuickSpecs
HP 6600 Router Series
Configuration
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 31
Page 32
HP 6602 Router
(JC176A)
I/O ports and slots
2 HIM slots
Physical characteristics
Dimensions
17.40(w) x 18.11(d) x 1.73(h) in (44.2 x 46 x 4.4 cm) (1U height
Weight
14.77 lb (6.7 kg)
Full configuration weight
16.53 lb (7.5 kg)
Memory and processor
Multi-core MIPS @ 1000 MHz, 2 GB DDR2 SDRAM, 4 GB DDR2 SDRAM, 256 MB flash, 1 GB flash; packet
buffer size: 128 MB DDR2 SDRAM
Mounting
EIA standard 19 in. rack
Performance
Throughput
up to 4.5 million pps
Routing table size
1000000 entries (IPv4), 300000 entries (IPv6)
Forwarding table size
1000000 entries (IPv4), 100000 entries (IPv6)
Backplane bandwidth
48 Gb/s
Environment
Operating temperature
32ºF to 113ºF (0ºC to 45ºC)
Operating relative
humidity
10% to 95%, noncondensing
Nonoperating/Storage
temperature
14°F to 131°F (-10°C to 55°C)
Nonoperating/Storage
relative humidity
5% to 95%, noncondensing
Electrical characteristics
Frequency
50/60 +/- 2 Hz
Maximum heat
dissipation
410 BTU/hr (432.55 kJ/hr)
AC Voltage
100-240 VAC
Maximum power rating
150 W
Reliability
MTBF (years)
26.24
MTTR (hours)
1.0
Safety
CSA 22.2 No. 60950; cUL (CSA 22.2 No. 60950); CSA 22.2 No. 60950 3rd edition; CSA 22.2 No. 950; CSA 950;
cUL (CSA 950); EN 60950/IEC 60950; UL 1950 3rd edition; UL 1950; UL 60950; UL 60950-1; CAN/CSA 22.2
No. 60950; CAN/CSA 22.2 No. 60950-1; EN 60825; AS/NZS 60950; KN 60950; GOST R MEK60950; EN
60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; EN 609500 Safety
Information Technology Equipment; UL 60950; CSA 22.2 No. 60950/cUL; IEC 60950; IEC 60950-1; EN
60950; EN 60950-1; IEC 60825; CSA 22.2 No. 950-95; IEC 60950-1:2001 (with CB Report); CAN/CSA-C22.2
No. 60950-1-03; CAN/CSA-C22.2 No. 60950-1; CSA 60950-1; CSA C22.2 60950-1; EU RoHS Compliant; EN
60950-1/A11; CSA 22.2 60950-1; EN 60950: 2000, ZB and ZC Deviations; IEC 60950: 1999, Corr Feb 2000,
all national deviations; As/NZS 60950:2000, Australia; UL 60950-1:2003; UL 60950-1:2001; CSA 22.2
60950-1:2003; IEC 60950-1:2001; EN 60950-1:2001; CSA 22.2-60950; AS/NZS 60950: 2000 Australia,
Russian GOST Safety Approval; CSA 22.2 No. 950 3rd Edition 1995; UL 60950 3rd Edition; CAN/CSA 22.2 No.
60950-00/UL 60950 3rd Edition, Safety Information for Technology Equipment; EN 60950/IEC 60950 3rd
Edition; UL 60950 Standard for the Safety of Information Technology Equipment; EN 60825: Safety of
Laser Products
QuickSpecs
HP 6600 Router Series
Technical Specifications
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 32
Page 33
Emissions
FCC part 15 Class A; FCC Rules Part 15, Subpart B Class A; EN 55022/CISPR-22 Class A; VCCI Class A; EN
55022/CISPR 22 Class A; EN 55022 Class A; CISPR 22 Class A; EN 55024; CISPR 22/A2; IEC/EN 61000-3-2;
IEC/EN 61000-3-3; EN 55024/A1; IEC 61000:4-2, 4-3, 4-4, 4-5, 4-6, 4-8, 4-11; BSMI CNS 13438; EMC
Directive 89/336/EEC; ICES-003 Class A; ANSI C63.4 2003; CISPR 24; ETSI EN 300 386 V1.3.3; AS/NZS CISPR
22 Class A; EN 61000-3-2; EN 61000-3-3; Korean EMI Class A; CNS 13438 Class A; EN
55024:1998; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-4-11
Management
IMC - Intelligent Management Center; command-line interface; limited command-line interface; out-ofband management (serial RS-232C); out-of-band management (DB-9 serial port console); out-of-band
management; SNMP Manager; Telnet; RMON1; FTP; in-line and out-of-band; terminal interface (serial
RS-232C); modem interface; IEEE 802.3 Ethernet MIB; Ethernet Interface MIB
Notes
Routers that will be shipped to Russia will support only low-level encryption (56 bit)
security features by default.
Services
3-year, parts only, global next-day advance exchange (HP826E)
3-year, 4-hour onsite, 13x5 coverage for hardware (HP830E)
3-year, 4-hour onsite, 24x7 coverage for hardware (HP817E)
3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support (HP820E)
3-year, 24x7 SW phone support, software updates (HP823E)
1-year, post-warranty, 4-hour onsite, 13x5 coverage for hardware (HR524E)
1-year, post-warranty, 4-hour onsite, 24x7 coverage for hardware (HR525E)
1-year, post-warranty, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support (HR526E
4-year, 4-hour onsite, 13x5 coverage for hardware (HP831E)
4-year, 4-hour onsite, 24x7 coverage for hardware (HP818E)
4-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (HP821E)
4-year, 24x7 SW phone support, software updates (HP824E)
5-year, 4-hour onsite, 13x5 coverage for hardware (HP832E)
5-year, 4-hour onsite, 24x7 coverage for hardware (HP819E)
5-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (HP822E)
5-year, 24x7 SW phone support, software updates (HP825E)
3 Yr 6 hr Call-to-Repair Onsite (HP827E)
4 Yr 6 hr Call-to-Repair Onsite (HP828E)
5 Yr 6 hr Call-to-Repair Onsite (HP829E)
1-year, 6 hour Call-To-Repair Onsite for hardware (HR528E)
1-year, 24x7 software phone support, software updates (HR527E)
Refer to the HP website at:
www.hp.com/networking/services
for details on the service-level descriptions
and product numbers. For details about services and response times in your area, please contact your local
HP sales office.
HP 6604 Router Chassis
(JC178B)
I/O ports and slots
4 HIM slots2 SAP slots or , or a combination
Additional ports and slots
2 MPU (for management modules) slots
Physical characteristics
Dimensions
17.17(w) x 18.9(d) x 8.66(h) in (43.61 x 48.01 x 22 cm) (5U height)
Weight
45.19 lb (20.5 kg)
Full configuration weight
83.77 lb (38 kg)
Memory and processor
Multi-core MIPS @ 1000 MHz, 2 GB DDR2 SDRAM, 4 GB DDR2 SDRAM, 256 MB flash, 1
GB flash; packet buffer size: 128 MB DDR2 SDRAM
Mounting
EIA standard 19 in. rack
QuickSpecs
HP 6600 Router Series
Technical Specifications
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 33
Page 34
Performance
Throughput
up to 36 million pps
Routing table size
2000000 entries (IPv4), 500000 entries (IPv6)
Forwarding table size
1000000 entries (IPv4), 300000 entries (IPv6)
Backplane bandwidth
100 Gb/s
Environment
Operating temperature
32ºF to 113ºF (0ºC to 45ºC)
Nonoperating/Storage
temperature
14°F to 131°F (-10°C to 55°C)
Operating relative
humidity
5% to 95%, noncondensing
Electrical characteristics
Frequency
50/60 +/- 2 Hz
Maximum heat
dissipation
1126 BTU/hr (1187.93 kJ/hr)
AC Voltage
100-240 VAC
Maximum power rating
650 W
Availability
MTBF (years)
31.19
MTTR (hours)
1.0
Safety
CSA 22.2 No. 60950; cUL (CSA 22.2 No. 60950); CSA 22.2 No. 60950 3rd edition; CSA 22.2 No. 950; CSA 950;
cUL (CSA 950); EN 60950/IEC 60950; UL 1950 3rd edition; UL 1950; UL 60950; UL 60950-1; CAN/CSA 22.2
No. 60950; CAN/CSA 22.2 No. 60950-1; EN 60825; AS/NZS 60950; KN 60950; GOST R MEK60950; EN
60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; EN 609500 Safety
Information Technology Equipment; UL 60950; CSA 22.2 No. 60950/cUL; IEC 60950; IEC 60950-1; EN
60950; EN 60950-1; IEC 60825; CSA 22.2 No. 950-95; IEC 60950-1:2001 (with CB Report); CAN/CSA-C22.2
No. 60950-1-03; CAN/CSA-C22.2 No. 60950-1; CSA 60950-1; CSA C22.2 60950-1; EU RoHS Compliant; EN
60950-1/A11; CSA 22.2 60950-1; EN 60950: 2000, ZB and ZC Deviations; IEC 60950: 1999, Corr Feb 2000,
all national deviations; As/NZS 60950:2000, Australia; UL 60950-1:2003; UL 60950-1:2001; CSA 22.2
60950-1:2003; IEC 60950-1:2001; EN 60950-1:2001; CSA 22.2-60950; AS/NZS 60950: 2000 Australia,
Russian GOST Safety Approval; CSA 22.2 No. 950 3rd Edition 1995; UL 60950 3rd Edition; CAN/CSA 22.2 No.
60950-00/UL 60950 3rd Edition, Safety Information for Technology Equipment; EN 60950/IEC 60950 3rd
Edition; UL 60950 Standard for the Safety of Information Technology Equipment; EN 60825: Safety of
Laser Products
Emissions
FCC part 15 Class A; FCC Rules Part 15, Subpart B Class A; EN 55022/CISPR-22 Class A; VCCI Class A; EN
55022/CISPR 22 Class A; EN 55022 Class A; CISPR 22 Class A; EN 55024; CISPR 22/A2; IEC/EN 61000-3-2;
IEC/EN 61000-3-3; EN 55024/A1; IEC 61000:4-2, 4-3, 4-4, 4-5, 4-6, 4-8, 4-11; BSMI CNS 13438; EMC
Directive 89/336/EEC; ICES-003 Class A; ANSI C63.4 2003; CISPR 24; ETSI EN 300 386 V1.3.3; AS/NZS CISPR
22 Class A; EN 61000-3-2; EN 61000-3-3; Korean EMI Class A; CNS 13438 Class A; EN
55024:1998; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-4-11
Management
IMC - Intelligent Management Center; command-line interface; limited command-line interface; out-ofband management (serial RS-232C); out-of-band management (DB-9 serial port console); out-of-band
management; SNMP Manager; Telnet; RMON1; FTP; in-line and out-of-band; terminal interface (serial
RS-232C); modem interface; IEEE 802.3 Ethernet MIB; Ethernet Interface MIB
Notes
The chassis supports a maximum of four HIM or two SAP slots, or a combination thereof; it supports two
HIM or one SAP slot with the redundant JC566A.
The forwarding table size shown is with the use of JC566A. JC165A delivers forwarding of 500,000 IPv4
and 100,000 IPv6 addresses.
Services
3-year, parts only, global next-day advance exchange (UW054E)
3-year, 4-hour onsite, 13x5 coverage for hardware (UW062E)
QuickSpecs
HP 6600 Router Series
Technical Specifications
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 34
Page 35
3-year, 4-hour onsite, 24x7 coverage for hardware (UV930E)
3-year, 4-hour onsite, 24x7 coverage for hardware (HR530E)
3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support (UV943E)
3-year, 24x7 SW phone support, software updates (UV955E)
1-year, post-warranty, 4-hour onsite, 13x5 coverage for hardware (HR529E)
1-year, post-warranty, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support
(HR531E)
4-year, 4-hour onsite, 13x5 coverage for hardware (UW063E)
4-year, 4-hour onsite, 24x7 coverage for hardware (UV931E)
4-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UV944E)
4-year, 24x7 SW phone support, software updates (UV956E)
5-year, 4-hour onsite, 13x5 coverage for hardware (UW064E)
5-year, 4-hour onsite, 24x7 coverage for hardware (UV932E)
5-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UV945E)
5-year, 24x7 SW phone support, software updates (UV957E)
3 Yr 6 hr Call-to-Repair Onsite (UW055E)
4 Yr 6 hr Call-to-Repair Onsite (UW056E)
5 Yr 6 hr Call-to-Repair Onsite (UW057E)
1-year, 6 hour Call-To-Repair Onsite for hardware (HR533E)
1-year, 24x7 software phone support, software updates (HR532E)
Refer to the HP website at:
www.hp.com/networking/services
for details on the service-level descriptions
and product numbers. For details about services and response times in your area, please contact your local
HP sales office.
HP 6608 Router Chassis
(JC177B)
I/O ports and slots
8 HIM slots, 4 SAP slots, or a combination
Additional ports and slots
2 MPU (for management modules) slots
Physical characteristics
Dimensions
17.17(w) x 18.74(d) x 12.13(h) in (43.61 x 47.6 x 30.81 cm) (7U height)
Weight
54.01 lb (24.5 kg)
Full configuration weight
110.23 lb (50 kg)
Mounting and enclosure
EIA standard 19 in. rack
Performance
Throughput
up to 108 mpps
Routing table size
2000000 entries (IPv4), 500000 entries (IPv6)
Forwarding table size
1000000 entries (IPv4), 300000 entries (IPv6)
Backplane bandwidth
300 Gb/s
Environment
Operating temperature
32ºF to 113ºF (0ºC to 45ºC)
Nonoperating/Storage
temperature
14°F to 131°F (-10°C to 55°C)
Operating relative
humidity
10% to 95%, noncondensing
Nonoperating/Storage
relative humidity
5% to 95%, noncondensing
Electrical characteristics
Frequency
50/60 +/- 2 Hz
QuickSpecs
HP 6600 Router Series
Technical Specifications
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 35
Page 36
Maximum heat
dissipation
1910 BTU/hr (2015.05 kJ/hr)
AC Voltage
100-240 VAC
Maximum power rating
650 W
Reliability
MTBF (years)
26.80
MTTR (hours)
1.0
Safety
CSA 22.2 No. 60950; cUL (CSA 22.2 No. 60950); CSA 22.2 No. 60950 3rd edition; CSA 22.2 No. 950; CSA 950;
cUL (CSA 950); EN 60950/IEC 60950; UL 1950 3rd edition; UL 1950; UL 60950; UL 60950-1; CAN/CSA 22.2
No. 60950; CAN/CSA 22.2 No. 60950-1; EN 60825; AS/NZS 60950; KN 60950; GOST R MEK60950; EN
60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; EN 609500 Safety
Information Technology Equipment; UL 60950; CSA 22.2 No. 60950/cUL; IEC 60950; IEC 60950-1; EN
60950; EN 60950-1; IEC 60825; CSA 22.2 No. 950-95; IEC 60950-1:2001 (with CB Report); CAN/CSA-C22.2
No. 60950-1-03; CAN/CSA-C22.2 No. 60950-1; CSA 60950-1; CSA C22.2 60950-1; EU RoHS Compliant; EN
60950-1/A11; CSA 22.2 60950-1; EN 60950: 2000, ZB and ZC Deviations; IEC 60950: 1999, Corr Feb 2000,
all national deviations; As/NZS 60950:2000, Australia; UL 60950-1:2003; UL 60950-1:2001; CSA 22.2
60950-1:2003; IEC 60950-1:2001; EN 60950-1:2001; CSA 22.2-60950; AS/NZS 60950: 2000 Australia,
Russian GOST Safety Approval; CSA 22.2 No. 950 3rd Edition 1995; UL 60950 3rd Edition; CAN/CSA 22.2 No.
60950-00/UL 60950 3rd Edition, Safety Information for Technology Equipment; EN 60950/IEC 60950 3rd
Edition; UL 60950 Standard for the Safety of Information Technology Equipment; EN 60825: Safety of
Laser Products
Emissions
FCC part 15 Class A; FCC Rules Part 15, Subpart B Class A; EN 55022/CISPR-22 Class A; VCCI Class A; EN
55022/CISPR 22 Class A; EN 55022 Class A; CISPR 22 Class A; EN 55024; CISPR 22/A2; IEC/EN 61000-3-2;
IEC/EN 61000-3-3; EN 55024/A1; IEC 61000:4-2, 4-3, 4-4, 4-5, 4-6, 4-8, 4-11; BSMI CNS 13438; EMC
Directive 89/336/EEC; ICES-003 Class A; ANSI C63.4 2003; CISPR 24; ETSI EN 300 386 V1.3.3; AS/NZS CISPR
22 Class A; EN 61000-3-2; EN 61000-3-3; Korean EMI Class A; CNS 13438 Class A; EN
55024:1998; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-4-11
Management
IMC - Intelligent Management Center; command-line interface; limited command-line interface; out-ofband management (serial RS-232C); out-of-band management (DB-9 serial port console); out-of-band
management; SNMP Manager; Telnet; RMON1; FTP; in-line and out-of-band; terminal interface (serial
RS-232C); modem interface; IEEE 802.3 Ethernet MIB; Ethernet Interface MIB
Notes
The chassis supports a maximum of eight HIM or four SAP slots, or a combination thereof; it supports six
HIM or three SAP slots, or a combination thereof, with the redundant JC566A.
The forwarding table size shown is with the use of JC566A. JC165A delivers forwarding of 500,000 IPv4
and 100,000 IPv6 addresses.
Services
3-year, parts only, global next-day advance exchange (UW054E)
3-year, 4-hour onsite, 13x5 coverage for hardware (UW062E)
3-year, 4-hour onsite, 24x7 coverage for hardware (UV930E)
3-year, 4-hour onsite, 24x7 coverage for hardware (HR530E)
3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support (UV943E)
3-year, 24x7 SW phone support, software updates (UV955E)
1-year, post-warranty, 4-hour onsite, 13x5 coverage for hardware (HR529E)
1-year, post-warranty, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support
(HR531E)
4-year, 4-hour onsite, 13x5 coverage for hardware (UW063E)
4-year, 4-hour onsite, 24x7 coverage for hardware (UV931E)
4-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UV944E)
4-year, 24x7 SW phone support, software updates (UV956E)
5-year, 4-hour onsite, 13x5 coverage for hardware (UW064E)
QuickSpecs
HP 6600 Router Series
Technical Specifications
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 36
Page 37
5-year, 4-hour onsite, 24x7 coverage for hardware (UV932E)
5-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UV945E)
5-year, 24x7 SW phone support, software updates (UV957E)
3 Yr 6 hr Call-to-Repair Onsite (UW055E)
4 Yr 6 hr Call-to-Repair Onsite (UW056E)
5 Yr 6 hr Call-to-Repair Onsite (UW057E)
1-year, 6 hour Call-To-Repair Onsite for hardware (HR533E)
1-year, 24x7 software phone support, software updates (HR532E)
Refer to the HP website at:
www.hp.com/networking/services
for details on the service-level descriptions
and product numbers. For details about services and response times in your area, please contact your local
HP sales office.
HP 6616 Router Chassis
(JC496A)
I/O ports and slots
16 HIM slots, 8 SAP slots, or a combination
Additional ports and slots
2 MPU (for management modules) slots
Physical characteristics
Dimensions
17.17(w) x 18.74(d) x 34.88(h) in (43.61 x 47.6 x 88.6 cm) (20U height)
Weight
116.84 lb (53 kg)
Full configuration weight
220.46 lb (100 kg)
Mounting
EIA standard 19 in. rack
Performance
Throughput
up to 252 million pps
Routing table size
2000000 entries (IPv4), 500000 entries (IPv6)
Forwarding table size
1000000 entries (IPv4), 300000 entries (IPv6)
Backplane bandwidth
100 Gb/s
Environment
Operating temperature
32ºF to 113ºF (0ºC to 45ºC)
Nonoperating/Storage
temperature
14°F to 131°F (-10°C to 55°C)
Operating relative
humidity
10% to 95%, noncondensing
Nonoperating/Storage
relative humidity
5% to 95%, noncondensing
Electrical characteristics
Frequency
50/60 +/- 2 Hz
Maximum heat
dissipation
4265 BTU/hr (4499.58 kJ/hr)
AC Voltage
100 - 240 VAC
Maximum power rating
1950 W
Reliability
MTBF (years)
24.50
MTTR (hours)
1.0
Safety
CSA 22.2 No. 60950; cUL (CSA 22.2 No. 60950); CSA 22.2 No. 60950 3rd edition; CSA 22.2 No. 950; CSA 950;
cUL (CSA 950); EN 60950/IEC 60950; UL 1950 3rd edition; UL 1950; UL 60950; UL 60950-1; CAN/CSA 22.2
No. 60950; CAN/CSA 22.2 No. 60950-1; EN 60825; AS/NZS 60950; KN 60950; GOST R MEK60950; EN
60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; EN 609500 Safety
Information Technology Equipment; UL 60950; CSA 22.2 No. 60950/cUL; IEC 60950; IEC 60950-1; EN
QuickSpecs
HP 6600 Router Series
Technical Specifications
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 37
Page 38
60950; EN 60950-1; IEC 60825; CSA 22.2 No. 950-95; IEC 60950-1:2001 (with CB Report); CAN/CSA-C22.2
No. 60950-1-03; CAN/CSA-C22.2 No. 60950-1; CSA 60950-1; CSA C22.2 60950-1; EU RoHS Compliant; EN
60950-1/A11; CSA 22.2 60950-1; EN 60950: 2000, ZB and ZC Deviations; IEC 60950: 1999, Corr Feb 2000,
all national deviations; As/NZS 60950:2000, Australia; UL 60950-1:2003; UL 60950-1:2001; CSA 22.2
60950-1:2003; IEC 60950-1:2001; EN 60950-1:2001; CSA 22.2-60950; AS/NZS 60950: 2000 Australia,
Russian GOST Safety Approval; CSA 22.2 No. 950 3rd Edition 1995; UL 60950 3rd Edition; CAN/CSA 22.2 No.
60950-00/UL 60950 3rd Edition, Safety Information for Technology Equipment; EN 60950/IEC 60950 3rd
Edition; UL 60950 Standard for the Safety of Information Technology Equipment; EN 60825: Safety of
Laser Products
Emissions
FCC part 15 Class A; FCC Rules Part 15, Subpart B Class A; EN 55022/CISPR-22 Class A; VCCI Class A; EN
55022/CISPR 22 Class A; EN 55022 Class A; CISPR 22 Class A; EN 55024; CISPR 22/A2; IEC/EN 61000-3-2;
IEC/EN 61000-3-3; EN 55024/A1; IEC 61000:4-2, 4-3, 4-4, 4-5, 4-6, 4-8, 4-11; BSMI CNS 13438; EMC
Directive 89/336/EEC; ICES-003 Class A; ANSI C63.4 2003; CISPR 24; ETSI EN 300 386 V1.3.3; AS/NZS CISPR
22 Class A; EN 61000-3-2; EN 61000-3-3; Korean EMI Class A; CNS 13438 Class A; EN 55024:1998; EN
61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-4-11
Management
IMC - Intelligent Management Center; command-line interface; limited command-line interface; out-ofband management (serial RS-232C); out-of-band management (DB-9 serial port console); out-of-band
management; SNMP Manager; Telnet; RMON1; FTP; in-line and out-of-band; terminal interface (serial
RS-232C); modem interface; IEEE 802.3 Ethernet MIB; Ethernet Interface MIB
Services
3-year, parts only, global next-day advance exchange (UW054E)
3-year, 4-hour onsite, 13x5 coverage for hardware (UW062E)
3-year, 4-hour onsite, 24x7 coverage for hardware (UV930E)
3-year, 4-hour onsite, 24x7 coverage for hardware (UV930E)
3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support (UV943E)
3-year, 24x7 SW phone support, software updates (UV955E)
1-year, post-warranty, 4-hour onsite, 13x5 coverage for hardware (HR529E)
1-year, post-warranty, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support
(HR531E)
4-year, 4-hour onsite, 13x5 coverage for hardware (UW063E)
4-year, 4-hour onsite, 24x7 coverage for hardware (UV931E)
4-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UV944E)
4-year, 24x7 SW phone support, software updates (UV956E)
5-year, 4-hour onsite, 13x5 coverage for hardware (UW064E)
5-year, 4-hour onsite, 24x7 coverage for hardware (UV932E)
5-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UV945E)
5-year, 24x7 SW phone support, software updates (UV957E)
3 Yr 6 hr Call-to-Repair Onsite (UW055E)
4 Yr 6 hr Call-to-Repair Onsite (UW056E)
5 Yr 6 hr Call-to-Repair Onsite (UW057E)
1-year, 6 hour Call-To-Repair Onsite for hardware (HR533E)
1-year, 24x7 software phone support, software updates (HR532E)
Refer to the HP website at:
www.hp.com/networking/services
for details on the service-level descriptions
and product numbers. For details about services and response times in your area, please contact your local
HP sales office.
Standards and protocols
(applies to all products in
series)
BGP
RFC 1267 Border Gateway Protocol 3 (BGP-3)
RFC 1657 Definitions of Managed Objects for BGPv4
RFC 1771 BGPv4
RFC 1772 Application of the BGP
IPv6
RFC 1350 TFTP
RFC 1881 IPv6 Address Allocation Management
RFC 1886 DNS Extension for IPv6
RFC 1887 IPv6 Unicast Address Allocation
QuickSpecs
HP 6600 Router Series
Technical Specifications
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 38
Page 39
RFC 1773 Experience with the BGP-4 Protocol
RFC 1774 BGP-4 Protocol Analysis
RFC 1997 BGP Communities Attribute
RFC 1998 PPP Gandalf FZA Compression Protocol
RFC 2385 BGP Session Protection via TCP MD5
RFC 2439 BGP Route Flap Damping
RFC 2796 BGP Route Reflection
RFC 2842 Capability Advertisement with BGP-4
RFC 2858 BGP-4 Multi-Protocol Extensions
RFC 2918 Route Refresh Capability
RFC 4271 A Border Gateway Protocol 4 (BGP-4)
RFC 4272 BGP Security Vulnerabilities Analysis
RFC 4274 BGP-4 Protocol Analysis
RFC 4275 BGP-4 MIB Implementation Survey
RFC 4276 BGP-4 Implementation Report
RFC 4277 Experience with the BGP-4 Protocol
RFC 4360 BGP Extended Communities Attribute
RFC 4451 BGP MULTI_EXIT_DISC (MED)
Considerations
RFC 4456 BGP Route Reflection: An Alternative to
Full Mesh Internal BGP (IBGP)
RFC 4486 Subcodes for BGP Cease Notification
Message
RFC 4724 Graceful Restart Mechanism for BGP
RFC 4760 Multiprotocol Extensions for BGP-4
RFC 4893 BGP Support for Four-octet AS Number
Space
RFC 5065 Autonomous System Confederations for
BGP
RFC 5291 Outbound Route Filtering Capability for
BGP-4
RFC 5292 Address-Prefix-Based Outbound Route
Filter for BGP-4
RFC 5398 Autonomous System (AS) Number
Reservation for Documentation Use
RFC 5883 BFD for Multihop Paths
Denial of service protection
CPU DoS Protection
Rate Limiting by ACLs
Device management
RFC 1155 Structure and Mgmt Information (SMIv1)
RFC 1157 SNMPv1/v2c
RFC 1305 NTPv3
RFC 1901 (Community based SNMPv2)
RFC 1901-1907 SNMPv2c, SMIv2 and Revised MIB-II
RFC 1902 (SNMPv2)
RFC 1908 (SNMP v1/2 Coexistence)
RFC 1945 Hypertext Transfer Protocol -- HTTP/1.0
RFC 2068 Hypertext Transfer Protocol -- HTTP/1.1
Architecture
RFC 1981 IPv6 Path MTU Discovery
RFC 2080 RIPng for IPv6
RFC 2292 Advanced Sockets API for IPv6
RFC 2373 IPv6 Addressing Architecture
RFC 2375 IPv6 Multicast Address Assignments
RFC 2460 IPv6 Specification
RFC 2461 IPv6 Neighbor Discovery
RFC 2462 IPv6 Stateless Address Auto-configuration
RFC 2463 ICMPv6
RFC 2464 Transmission of IPv6 over Ethernet
Networks
RFC 2472 IP Version 6 over PPP
RFC 2473 Generic Packet Tunneling in IPv6
RFC 2475 IPv6 DiffServ Architecture
RFC 2529 Transmission of IPv6 Packets over IPv4
RFC 2545 Use of MP-BGP-4 for IPv6
RFC 2553 Basic Socket Interface Extensions for IPv6
RFC 2710 Multicast Listener Discovery (MLD) for IPv6
RFC 2711 IPv6 Router Alert Option
RFC 2740 OSPFv3 for IPv6
RFC 2893 Transition Mechanisms for IPv6 Hosts and
Routers
RFC 2894 Router Renumbering for IPv6
RFC 2925 Definitions of Managed Objects for
Remote Ping, Traceroute, and Lookup Operations
(Ping only)
RFC 2925 Remote Operations MIB (Ping only)
RFC 3056 Connection of IPv6 Domains via IPv4
Clouds
RFC 3162 RADIUS and IPv6
RFC 3306 Unicast-Prefix-based IPv6 Multicast
Addresses
RFC 3307 IPv6 Multicast Address Allocation
RFC 3315 DHCPv6 (client and relay)
RFC 3315 DHCPv6 (client only)
RFC 3363 DNS support
RFC 3484 Default Address Selection for IPv6
RFC 3493 Basic Socket Interface Extensions for IPv6
RFC 3513 IPv6 Addressing Architecture
RFC 3542 Advanced Sockets API for IPv6
RFC 3587 IPv6 Global Unicast Address Format
RFC 3596 DNS Extension for IPv6
RFC 3646 DNS Configuration options for Dynamic
Host Configuration Protocol for IPv6
RFC 3736 Stateless Dynamic Host Configuration
Protocol (DHCP) Service for IPv6
RFC 3810 MLDv2 (host joins only)
RFC 3810 MLDv2 for IPv6
RFC 3810 Multicast Listener Discovery Version 2
(MLDv2) for IPv6
QuickSpecs
HP 6600 Router Series
Technical Specifications
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 39
Page 40
RFC 2452 MIB for TCP6
RFC 2454 MIB for UDP6
RFC 2573 (SNMPv3 Applications)
RFC 2576 (Coexistence between SNMP V1, V2, V3)
RFC 2578-2580 SMIv2
RFC 2579 (SMIv2 Text Conventions)
RFC 2580 (SMIv2 Conformance)
RFC 2819 (RMON groups Alarm, Event, History and
Statistics only)
RFC 2819 RMON
RFC 3410 (Management Framework)
RFC 3416 (SNMP Protocol Operations v2)
RFC 3417 (SNMP Transport Mappings)
Multiple Configuration Files
Multiple Software Images
SNMP v3 and RMON RFC support
SSHv1/SSHv2 Secure Shell
TACACS/TACACS+
General protocols
IEEE 802.1ad Q-in-Q
IEEE 802.1ad Q-in-Q
IEEE 802.1ag Service Layer OAM
IEEE 802.1ah Provider Backbone Bridges
IEEE 802.1AX-2008 Link Aggregation
IEEE 802.1D MAC Bridges
IEEE 802.1p Priority
IEEE 802.1Q (GVRP)
IEEE 802.1Q VLANs
IEEE 802.1s (MSTP)
IEEE 802.1s Multiple Spanning Trees
IEEE 802.1v VLAN classification by Protocol and Port
IEEE 802.1w Rapid Reconfiguration of Spanning Tree
IEEE 802.1X PAE
IEEE 802.3 Type 10BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3ac (VLAN Tagging Extension)
IEEE 802.3ad Link Aggregation (LAG)
IEEE 802.3ad Link Aggregation Control Protocol
(LACP)
IEEE 802.3ae 10-Gigabit Ethernet
IEEE 802.3ag Ethernet OAM
IEEE 802.3ah Ethernet in First Mile over Point to
Point Fiber - EFMF
IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-X
IEEE 802.3x Flow Control
IEEE 802.3z 1000BASE-X
RFC 768 UDP
RFC 783 TFTP Protocol (revision 2)
RFC 791 IP
RFC 3956 Embedding the Rendezvous Point (RP)
Address in an IPv6 Multicast Address
RFC 4001 Textual Conventions for Internet Network
Addresses
RFC 4007 IPv6 Scoped Address Architecture
RFC 4022 MIB for TCP
RFC 4113 MIB for UDP
RFC 4251 SSHv6 Architecture
RFC 4252 SSHv6 Authentication
RFC 4252 SSHv6 Transport Layer
RFC 4253 SSHv6 Transport Layer
RFC 4254 SSHv6 Connection
RFC 4291 IP Version 6 Addressing Architecture
RFC 4293 MIB for IP
RFC 4419 Key Exchange for SSH
RFC 4443 ICMPv6
RFC 4541 IGMP & MLD Snooping Switch
RFC 4552 Authentication/Confidentiality for OSPFv3
RFC 4798 Connecting IPv6 Islands over IPv4 MPLS
Using IPv6 Provider Edge Routers (6PE)
RFC 4861 IPv6 Neighbor Discovery
RFC 4862 IPv6 Stateless Address Auto-configuration
RFC 4940 IANA Considerations for OSPF
RFC 5072 IP Version 6 over PPP
RFC 5095 Deprecation of Type 0 Routing Headers in
IPv6
RFC 5340 OSPF for IPv6
RFC 5340 OSPFv3 for IPv6
RFC 5722 Handling of Overlapping IPv6 Fragments
RFC 5881 BFD for IPv4 and IPv6 (Single Hop)
MIBs
IEEE 8021-PAE-MIB
IEEE 8023-LAG-MIB
RFC 1156 (TCP/IP MIB)
RFC 1212 Concise MIB Definitions
RFC 1213 MIB II
RFC 1229 Interface MIB Extensions
RFC 1286 Bridge MIB
RFC 1493 Bridge MIB
RFC 1573 SNMP MIB II
RFC 1643 Ethernet MIB
RFC 1650 Ethernet-Like MIB
RFC 1657 BGP-4 MIB
RFC 1724 RIPv2 MIB
RFC 1757 Remote Network Monitoring MIB
RFC 1850 OSPFv2 MIB
RFC 1907 SNMPv2 MIB
RFC 2011 SNMPv2 MIB for IP
RFC 2012 SNMPv2 MIB for TCP
RFC 2013 SNMPv2 MIB for UDP
QuickSpecs
HP 6600 Router Series
Technical Specifications
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 40
Page 41
RFC 792 ICMP
RFC 793 TCP
RFC 826 ARP
RFC 854 TELNET
RFC 855 Telnet Option Specification
RFC 856 TELNET
RFC 857 Telnet Echo Option
RFC 858 Telnet Suppress Go Ahead Option
RFC 894 IP over Ethernet
RFC 896 Congestion Control in IP/TCP Internetworks
RFC 906 TFTP Bootstrap
RFC 925 Multi-LAN Address Resolution
RFC 950 Internet Standard Subnetting Procedure
RFC 951 BOOTP
RFC 959 File Transfer Protocol (FTP)
RFC 1006 ISO transport services on top of the TCP:
Version 3
RFC 1027 Proxy ARP
RFC 1034 Domain Concepts and Facilities
RFC 1035 Domain Implementation and Specification
RFC 1042 IP Datagrams
RFC 1058 RIPv1
RFC 1071 Computing the Internet Checksum
RFC 1091 Telnet Terminal-Type Option
RFC 1093 NSFNET routing architecture
RFC 1122 Host Requirements
RFC 1141 Incremental updating of the Internet
checksum
RFC 1142 OSI IS-IS Intra-domain Routing Protocol
RFC 1144 Compressing TCP/IP headers for lowspeed serial links
RFC 1171 Point-to-Point Protocol for the
transmission of multi-protocol datagrams over
Point-to-Point links
RFC 1191 Path MTU discovery
RFC 1195 OSI ISIS for IP and Dual Environments
RFC 1213 Management Information Base for
Network Management of TCP/IP-based internets
RFC 1253 (OSPF v2)
RFC 1256 ICMP Router Discovery Protocol (IRDP)
RFC 1293 Inverse Address Resolution Protocol
RFC 1305 NTPv3
RFC 1315 Management Information Base for Frame
Relay DTEs
RFC 1321 The MD5 Message-Digest Algorithm
RFC 1332 The PPP Internet Protocol Control
Protocol (IPCP)
RFC 1333 PPP Link Quality Monitoring
RFC 1334 PPP Authentication Protocols (PAP)
RFC 1334 PPP Authentication Protocols (PAP)
RFC 1349 Type of Service
RFC 2021 RMONv2 MIB
RFC 2096 IP Forwarding Table MIB
RFC 2233 Interface MIB
RFC 2233 Interfaces MIB
RFC 2273 SNMP-NOTIFICATION-MIB
RFC 2452 IPV6-TCP-MIB
RFC 2454 IPV6-UDP-MIB
RFC 2465 IPv6 MIB
RFC 2466 ICMPv6 MIB
RFC 2571 SNMP Framework MIB
RFC 2572 SNMP-MPD MIB
RFC 2574 SNMP USM MIB
RFC 2618 RADIUS Client MIB
RFC 2620 RADIUS Accounting MIB
RFC 2665 Ethernet-Like-MIB
RFC 2668 802.3 MAU MIB
RFC 2674 802.1p and IEEE 802.1Q Bridge MIB
RFC 2688 MAU-MIB
RFC 2737 Entity MIB (Version 2)
RFC 2787 VRRP MIB
RFC 2819 RMON MIB
RFC 2863 The Interfaces Group MIB
RFC 2925 Ping MIB
RFC 2932IP (Multicast Routing MIB)
RFC 2933 IGMP MIB
RFC 3273 HC-RMON MIB
RFC 3414 SNMP-User based-SM MIB
RFC 3415 SNMP-View based-ACM MIB
RFC 3418 MIB for SNMPv3
RFC 3621 Power Ethernet MIB
RFC 3813 MPLS LSR MIB
RFC 3814 MPLS FTN MIB
RFC 3815 MPLS LDP MIB
RFC 3826 AES for SNMP's USM MIB
RFC 4113 UDP MIB
RFC 4133 Entity MIB (Version 3)
RFC 4221 MPLS FTN MIB
LLDP-EXT-DOT1-MIB
LLDP-EXT-DOT3-MIB
LLDP-MIB
Network management
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
IEEE 802.1D (STP)
RFC 1098 A Simple Network Management Protocol
(SNMP)
RFC 1155 Structure of Management Information
RFC 1157 SNMPv1
RFC 1215 SNMP Generic traps
RFC 1382 SNMP MIB Extension for the X.25 Packet
Layer
QuickSpecs
HP 6600 Router Series
Technical Specifications
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 41
Page 42
RFC 1350 TFTP Protocol (revision 2)
RFC 1377 The PPP OSI Network Layer Control
Protocol (OSINLCP)
RFC 1381 SNMP MIB Extension for X.25 LAPB
RFC 1389 RIPv2 MIB Extension
RFC 1471 The Definitions of Managed Objects for the
Link Control Protocol of the Point-to-Point Protocol
RFC 1472 The Definitions of Managed Objects for the
Security Protocols of the Point-to-Point Protocol
RFC 1473 The Definitions of Managed Objects for the
IP Network Control Protocol of the Point-to-Point
Protocol
RFC 1490 Multiprotocol Interconnect over Frame
Relay
RFC 1519 CIDR
RFC 1531 Dynamic Host Configuration Protocol
RFC 1533 DHCP Options and BOOTP Vendor
Extensions
RFC 1534 DHCP/BOOTP Interoperation
RFC 1541 DHCP
RFC 1542 BOOTP Extensions
RFC 1542 Clarifications and Extensions for the
Bootstrap Protocol
RFC 1552 The PPP Internetworking Packet Exchange
Control Protocol (IPXCP)
RFC 1577 Classical IP and ARP over ATM
RFC 1613 Cisco Systems X.25 over TCP (XOT)
RFC 1624 Incremental Internet Checksum
RFC 1631 NAT
RFC 1638 PPP Bridging Control Protocol (BCP)
RFC 1661 The Point-to-Point Protocol (PPP)
RFC 1662 PPP in HDLC-like Framing
RFC 1695 Definitions of Managed Objects for ATM
Management Version 8.0 using SMIv2
RFC 1700 Assigned Numbers
RFC 1701 Generic Routing Encapsulation
RFC 1702 Generic Routing Encapsulation over IPv4
networks
RFC 1721 RIP-2 Analysis
RFC 1722 RIP-2 Applicability
RFC 1723 RIP v2
RFC 1812 IPv4 Routing
RFC 1829 The ESP DES-CBC Transform
RFC 1853 IP in IP Tunneling
RFC 1877 PPP Internet Protocol Control Protocol
Extensions for Name Server Addresses
RFC 1944 Benchmarking Methodology for Network
Interconnect Devices
RFC 1945 Hypertext Transfer Protocol -- HTTP/1.0
RFC 1973 PPP in Frame Relay
RFC 1974 PPP Stac LZS Compression Protocol
RFC 1757 RMON 4 groups: Stats, History, Alarms and
Events
RFC 1901 SNMPv2 Introduction
RFC 1902 SNMPv2 Structure
RFC 1903 SNMPv2 Textual Conventions
RFC 1904 SNMPv2 Conformance
RFC 1905 SNMPv2 Protocol Operations
RFC 1906 SNMPv2 Transport Mappings
RFC 1918 Private Internet Address Allocation
RFC 2272 SNMPv3 Management Protocol
RFC 2273 SNMPv3 Applications
RFC 2274 USM for SNMPv3
RFC 2275 VACM for SNMPv3
RFC 2570 SNMPv3 Overview
RFC 2571 SNMP Management Frameworks
RFC 2572 SNMPv3 Message Processing
RFC 2573 SNMPv3 Applications
RFC 2574 SNMPv3 User-based Security Model (USM)
RFC 2575 SNMPv3 View-based Access Control Model
(VACM)
RFC 2575 VACM for SNMP
RFC 2576 Coexistence between SNMP versions
RFC 2578 SMIv2
RFC 2581 TCP6
RFC 2819 Four groups of RMON: 1 (statistics), 2
(history), 3 (alarm) and 9 (events)
RFC 3164 BSD syslog Protocol
RFC 3176 sFlow
RFC 3411 SNMP Management Frameworks
RFC 3412 SNMPv3 Message Processing
RFC 3413 Simple Network Management Protocol
(SNMP) Applications
RFC 3414 SNMPv3 User-based Security Model (USM)
RFC 3415 SNMPv3 View-based Access Control Model
VACM)
RFC 3584 Coexistence between Version 1 and
Version 2 of the Internet-standard Network
RFC 3593 Textual Conventions for MIB Modules
Using Performance History Based on 15 Minute
RFC 3636 Definitions of Managed Objects for IEEE
802.3 Medium Attachment Units (MAUs)
RFC 4292 IP Forwarding Table MIB
RFC 4502 Remote Network Monitoring Management
Information Base Version 2
RFC 4878 Definitions and Managed Objects for
Operations, Administration, and Maintenance (OAM)
Functions on
ANSI/TIA-1057 LLDP Media Endpoint Discovery
(LLDP-MED)
SNMPv1/v2
SNMPv1/v2c
QuickSpecs
HP 6600 Router Series
Technical Specifications
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 42
Page 43
RFC 1981 Path MTU Discovery for IP version 6
RFC 1990 The PPP Multilink Protocol (MP)
RFC 1994 PPP Challenge Handshake Authentication
Protocol (CHAP)
RFC 2003 IP Encapsulation within IP
RFC 2082 RIP-2 MD5 Authentication
RFC 2091 Trigger RIP
RFC 2104 HMAC: Keyed-Hashing for Message
Authentication
RFC 2131 DHCP
RFC 2132 DHCP Options and BOOTP Vendor
Extensions
RFC 2138 Remote Authentication Dial In User Service
(RADIUS)
RFC 2205 Resource ReSerVation Protocol (RSVP) Version 1 Functional Specification
RFC 2209 Resource ReSerVation Protocol (RSVP) -Version 1 Message Processing Rules
RFC 2225 Classical IP and ARP over ATM
RFC 2236 IGMP Snooping
RFC 2246 The TLS Protocol Version 1.0
RFC 2251 Lightweight Directory Access Protocol (v3)
RFC 2252 Lightweight Directory Access Protocol
(v3): Attribute Syntax Definitions
RFC 2280 Routing Policy Specification Language
(RPSL)
RFC 2283 MBGP
RFC 2284 EAP over LAN
RFC 2338 VRRP
RFC 2338 VRRP (Premium Edge License)
RFC 2364 PPP Over AAL5
RFC 2374 An Aggregatable Global Unicast Address
Format
RFC 2390 Inverse Address Resolution Protocol
RFC 2427 Multiprotocol Interconnect over Frame
Relay
RFC 2451 The ESP CBC-Mode Cipher Algorithms
RFC 2453 RIPv2
RFC 2510 Internet X.509 Public Key Infrastructure
Certificate Management Protocols
RFC 2511 Internet X.509 Certificate Request
Message Format
RFC 2514 Definitions of Textual Conventions and
OBJECT-IDENTITIES for ATM Management
RFC 2515 Definitions of Managed Objects for ATM
Management
RFC 2516 A Method for Transmitting PPP Over
Ethernet (PPPoE)
RFC 2519 A Framework for Inter-Domain Route
Aggregation
RFC 2529 Transmission of IPv6 over IPv4 Domains
SNMPv1/v2c (read only)
SNMPv1/v2c/v3
OSPF
RFC 1245 OSPF protocol analysis
RFC 1246 Experience with OSPF
RFC 1253 OSPFv2 MIB
RFC 1583 OSPFv2
RFC 1587 OSPF NSSA
RFC 1745 OSPF Interactions
RFC 1765 OSPF Database Overflow
RFC 1850 OSPFv2 Management Information Base
(MIB), traps
RFC 2178 OSPFv2
RFC 2328 OSPFv2
RFC 2328 OSPFv2
RFC 2328 OSPFv2 (Premium Edge License)
RFC 2370 OSPF Opaque LSA Option
RFC 3101 OSPF NSSA
RFC 3623 Graceful OSPF Restart
RFC 3630 Traffic Engineering Extensions to OSPF
Version 2
RFC 4061 Benchmarking Basic OSPF Single Router
Control Plane Convergence
RFC 4062 OSPF Benchmarking Terminology and
Concepts
RFC 4063 Considerations When Using Basic OSPF
Convergence Benchmarks
RFC 4222 Prioritized Treatment of Specific OSPF
Version 2 Packets and Congestion Avoidance
RFC 4577 OSPF as the Provider/Customer Edge
Protocol for BGP/MPLS IP Virtual Private Networks
(VPNs)
RFC 4811 OSPF Out-of-Band LSDB
Resynchronization
RFC 4812 OSPF Restart Signaling
RFC 4813 OSPF Link-Local Signaling
RFC 5187 OSPFv3 Graceful Restart
RFC 5340 OSPF for IPv6
RFC 5340 OSPFv3 for IPv6
RFC 5613 OSPF Link-Local Signaling
QoS/CoS
IEEE 802.1P (CoS)
RFC 2309 Recommendations on queue management
and congestion avoidance in the Internet
RFC 2474 DiffServ Precedence, including 8
queues/port
RFC 2474 DiffServ precedence, with 4 queues per
port
QuickSpecs
HP 6600 Router Series
Technical Specifications
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 43
Page 44
without Explicit Tunnels
RFC 2544 Benchmarking Methodology for Network
Interconnect Devices
RFC 2581 TCP Congestion Control
RFC 2615 PPP over SONET/SDH (Synchronous
Optical Network/Synchronous Digital Hierarchy)
RFC 2616 HTTP Compatibility v1.1
RFC 2617 HTTP Authentication: Basic and Digest
Access Authentication
RFC 2622 Routing Policy Specification Language
(RPSL)
RFC 2644 Directed Broadcast Control
RFC 2661 L2TP
RFC 2663 NAT Terminology and Considerations
RFC 2684 Multiprotocol Encapsulation over ATM
Adaptation Layer 5
RFC 2694 DNS extensions to Network Address
Translators (DNS_ALG)
RFC 2702 Requirements for Traffic Engineering Over
MPLS
RFC 2716 PPP EAP TLS Authentication Protocol
RFC 2747 RSVP Cryptographic Authentication
RFC 2763 Dynamic Name-to-System ID mapping
support
RFC 2765 Stateless IP/ICMP Translation Algorithm
(SIIT)
RFC 2766 Network Address Translation - Protocol
Translation (NAT-PT)
RFC 2767 Dual Stacks IPv4 & IPv6
RFC 2782 A DNS RR (DNS Resource Record) for
specifying the location of services (DNS SRV) Domain
Name System Server
RFC 2784 Generic Routing Encapsulation (GRE)
RFC 2787 Definitions of Managed Objects for VRRP
RFC 2833 RTP Payload for DTMF Digits, Telephony
Tones and Telephony Signals
RFC 2856 Textual Conventions for Additional High
Capacity Data Types
RFC 2865 Remote Authentication Dial In User Service
(RADIUS)
RFC 2866 RADIUS Accounting
RFC 2868 RADIUS Attributes for Tunnel Protocol
Support
RFC 2869 RADIUS Extensions
RFC 2915 The Naming Authority Pointer (NAPTR)
DNS Resource Record
RFC 2916 E.164 number and DNS P. Faltstrom
RFC 2961 RSVP Refresh Overhead Reduction
Extensions
RFC 2965 HTTP State Management Mechanism
RFC 2966 Domain-wide Prefix Distribution with Two-
RFC 2474 DS Field in the IPv4 and IPv6 Headers
RFC 2474 DSCP DiffServ
RFC 2474, with 4 queues per port
RFC 2475 DiffServ Architecture
RFC 2597 DiffServ Assured Forwarding (AF)
RFC 2597 DiffServ Assured Forwarding (AF)- partial
support
RFC 2598 DiffServ Expedited Forwarding (EF)
RFC 2697 A Single Rate Three Color Marker
RFC 2698 A Two Rate Three Color Marker
RFC 2751 Signaled Preemption Priority Policy
Element
RFC 3247 Supplemental Information for the New
Definition of the EF PHB (Expedited Forwarding PerHop Behavior)
RFC 3260 New Terminology and Clarifications for
DiffServ
RFC 3662 A Lower Effort Per-Domain Behavior (PDB)
for Differentiated Services
RFC 4594 Configuration Guidelines for DiffServ
Service Classes
Ingress Rate Limiting
Security
IEEE 802.1X Port Based Network Access Control
RFC 1321 The MD5 Message-Digest Algorithm
RFC 1492 TACACS+
RFC 2082 RIP-2 MD5 Authentication
RFC 2104 Keyed-Hashing for Message
Authentication
RFC 2138 RADIUS Authentication
RFC 2139 RADIUS Accounting
RFC 2209 RSVP-Message Processing
RFC 2246 Transport Layer Security (TLS)
RFC 2459 Internet X.509 Public Key Infrastructure
Certificate and CRL Profile
RFC 2548 Microsoft Vendor-specific RADIUS
Attributes
RFC 2716 PPP EAP TLS Authentication Protocol
RFC 2818 HTTP Over TLS
RFC 2865 RADIUS (client only)
RFC 2865 RADIUS Authentication
RFC 2866 RADIUS Accounting
RFC 2867 RADIUS Accounting Modifications for
Tunnel Protocol Support
RFC 2868 RADIUS Attributes for Tunnel Protocol
Support
RFC 2869 RADIUS Extensions
RFC 3567 Intermediate System (IS) to IS
Cryptographic Authentication
RFC 3576 Dynamic Authorization Extensions to
QuickSpecs
HP 6600 Router Series
Technical Specifications
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 44
Page 45
Level IS-IS
RFC 2973 IS-IS Mesh Groups
RFC 2993 Architectural Implications of NAT
RFC 3022 Traditional IP Network Address Translator
(Traditional NAT)
RFC 3027 Protocol Complications with the IP
Network Address Translator
RFC 3031 Multiprotocol Label Switching Architecture
RFC 3032 MPLS Label Stack Encoding
RFC 3036 LDP Specification
RFC 3046 DHCP Relay Agent Information Option
RFC 3063 MPLS Loop Prevention Mechanism
RFC 3065 Support AS confederation
RFC 3137 OSPF Stub Router Advertisement
RFC 3209 RSVP-TE Extensions to RSVP for LSP
Tunnels
RFC 3210 Applicability Statement for Extensions to
RSVP for LSP-Tunnels
RFC 3212 Constraint-Based LSP setup using LDP
(CR-LDP)
RFC 3214 LSP Modification Using CR-LDP
RFC 3215 LDP State Machine
RFC 3246 Expedited Forwarding PHB
RFC 3268 Advanced Encryption Standard (AES)
Ciphersuites for Transport Layer Security (TLS)
RFC 3272 Overview and Principles of Internet Traffic
Engineering
RFC 3277 IS-IS Transient Blackhole Avoidance
RFC 3279 Algorithms and Identifiers for the Internet
X.509 Public Key Infrastructure Certificate and
Certificate Revocation List (CRL) Profile
RFC 3280 Internet X.509 Public Key Infrastructure
Certificate and Certificate Revocation List (CRL)
Profile
RFC 3359 Reserved Type, Length and Value (TLV)
Codepoints in Intermediate System to Intermediate
System
RFC 3392 Support BGP capabilities advertisement
RFC 3410 Applicability Statements for SNMP
RFC 3416 Protocol Operations for SNMP
RFC 3417 Transport Mappings for the Simple
Network Management Protocol (SNMP)
RFC 3442 The Classless Static Route Option for
Dynamic Host Configuration Protocol (DHCP) version
4
RFC 3479 Fault Tolerance for the Label Distribution
Protocol (LDP)
RFC 3487 Graceful Restart Mechanism for LDP
RFC 3509 OSPF ABR Behavior
RFC 3526 More Modular Exponential (MODP) DiffieHellman groups for Internet Key Exchange (IKE)
RADIUS
RFC 3579 RADIUS Support For Extensible
Authentication Protocol (EAP)
RFC 3580 IEEE 802.1X RADIUS
RFC 4250 The Secure Shell (SSH) Protocol Assigned
Numbers
RFC 5214 Intra-Site Automatic Tunnel Addressing
Protocol (ISATAP)
Access Control Lists (ACLs)
Guest VLAN for 802.1x
MAC Authentication
Port Security
Secure Sockets Layer (SSL)
SSHv1 Secure Shell
SSHv1.5 Secure Shell
SSHv1/SSHv2 Secure Shell
SSHv2 Secure Shell
VPN
RFC 2403 - HMAC-MD5-96
RFC 2404 - HMAC-SHA1-96
RFC 2405 - DES-CBC Cipher algorithm
RFC 2407 - Domain of interpretation
RFC 2547 BGP/MPLS VPNs
RFC 2764 A Framework for IP Based Virtual Private
Networks
RFC 2796 BGP Route Reflection - An Alternative to
Full Mesh IBGP
RFC 2842 Capabilities Advertisement with BGP-4
RFC 2858 Multiprotocol Extensions for BGP-4
RFC 2917 A Core MPLS IP VPN Architecture
RFC 2918 Route Refresh Capability for BGP-4
RFC 3107 Carrying Label Information in BGP-4
RFC 4301 - Security Architecture for the Internet
Protocol
RFC 4302 - IP Authentication Header (AH)
RFC 4303 - IP Encapsulating Security Payload (ESP)
RFC 4305 - Cryptographic Algorithm Implementation
Requirements for ESP and AH
IKEv1
RFC 2865 - Remote Authentication Dial In User
Service (RADIUS)
RFC 3748 - Extensible Authentication Protocol (EAP)
RFC 4109 Algorithms for Internet Key Exchange
version 1 (IKEv1)
MPLS
RFC 3037 LDP (Label Distribution Protocol)
Applicability
RFC 3270 Multi-Protocol Label Switching (MPLS)
QuickSpecs
HP 6600 Router Series
Technical Specifications
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 45
Page 46
RFC 3562 Key Management Considerations for the
TCP MD5 Signature Option
RFC 3564 Requirements for Support of
Differentiated Services-aware MPLS Traffic
Engineering
RFC 3567 Intermediate System to Intermediate
System (IS-IS) Cryptographic Authentication
RFC 3590 Source Address Selection for the Multicast
Listener Discovery (MLD) Protocol
RFC 3602 The AES-CBC Cipher Algorithm and Its Use
with IPSec
RFC 3619 Ethernet Automatic Protection Switching
(EAPS)
RFC 3623 Graceful OSPF Restart
RFC 3704 Unicast Reverse Path Forwarding (URPF)
RFC 3706 A Traffic-Based Method of Detecting Dead
Internet Key Exchange (IKE) Peers
RFC 3768 VRRP
RFC 3768 VRRP
RFC 3768 VRRP (Premium Edge License)
RFC 3784 ISIS TE support
RFC 3786 Extending the Number of IS-IS LSP
Fragments Beyond the 256 Limit
RFC 3811 Definitions of Textual Conventions (TCs)
for Multiprotocol Label Switching (MPLS)
Management
RFC 3812 Multiprotocol Label Switching (MPLS)
Traffic Engineering (TE) Management Information
Base (MIB)
RFC 3847 Restart signaling for IS-IS
RFC 3879 Deprecating Site Local Addresses
RFC 3906 Calculating Interior Gateway Protocol (IGP)
Routes Over Traffic Engineering Tunnels
RFC 3917 Requirements for IP Flow Information
Export (IPFIX)
RFC 3954 Cisco Systems NetFlow Services Export
Version 9
RFC 4213 Basic IPv6 Transition Mechanisms
RFC 4884 Extended ICMP to Support Multi-Part
Messages
RFC 5082 The Generalized TTL Security Mechanism
(GTSM)
RFC 5286 Basic Specification for IP Fast Reroute:
Loop-Free Alternates
RFC 5880 Bidirectional Forwarding Detection
RFC 5882 Generic Application of BFD
IP Ping
IP multicast
RFC 1112 IGMP
RFC 2236 IGMPv2
Support of Differentiated Services
RFC 3429 Assignment of the 'OAM Alert Label' for
Multiprotocol Label Switching
RFC 3443 Time To Live (TTL) Processing in MultiProtocol Label Switching (MPLS) Networks
RFC 3478 Graceful Restart Mechanism for Label
Distribution Protocol
RFC 3612 Applicability Statement for Restart
Mechanisms for the Label Distribution
RFC 3916 Requirements for Pseudo-Wire Emulation
Edge-to-Edge (PWE3)
RFC 3985 Pseudo Wire Emulation Edge-to-Edge
(PWE3) Architecture
RFC 4023 Encapsulating MPLS in IP or Generic
Routing Encapsulation (GRE)
RFC 4090 Fast Reroute Extensions to RSVP-TE for
LSP Tunnels
RFC 4105 Requirements for Inter-Area MPLS Traffic
Engineering
RFC 4124 Protocol Extensions for Support of
Diffserv-aware MPLS Traffic Engineering
RFC 4125 Maximum Allocation Bandwidth
Constraints Model for Diffserv-aware MPLS Traffic
RFC 4127 Russian Dolls Bandwidth Constraints
Model for Diffserv-aware MPLS Traffic
RFC 4182 Removing a Restriction on the use of MPLS
Explicit NULL
RFC 4216 MPLS Inter-Autonomous System (AS)
Traffic Engineering (TE) Requirements
RFC 4364 BGP/MPLS IP Virtual Private Networks
(VPNs)
RFC 4365 Applicability Statement for BGP/MPLS IP
Virtual Private Networks (VPNs)
RFC 4381 Analyses of the Security of BGP/MPLS IP
VPNs
RFC 4385 Pseudowire Emulation Edge-to-Edge
(PWE3) Control Word for Use over an MPLS PSN
RFC 4446 IANA Allocations for Pseudowire Edge to
Edge Emulation (PWE3)
RFC 4448 Encapsulation Methods for Transport of
Ethernet over MPLS Networks
RFC 4576 Using a Link State Advertisement (LSA)
Options Bit to Prevent Looping in BGP/MPLS
RFC 4618 Encapsulation Methods for Transport of
PPP/High-Level Data Link Control (HDLC) over MPLS
Networks
RFC 4619 Encapsulation Methods for Transport of
Frame Relay over Multiprotocol Label
RFC 4659 BGP-MPLS IP Virtual Private Network
(VPN) Extension for IPv6 VPN
RFC 4664 Framework for Layer 2 Virtual Private
QuickSpecs
HP 6600 Router Series
Technical Specifications
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 46
Page 47
RFC 2283 Multiprotocol Extensions for BGP-4
RFC 2362 PIM Sparse Mode
RFC 2362 PIM Sparse Mode
RFC 2362 PIM Sparse Mode (Premium Edge License)
RFC 2365 Administratively Scoped IP Multicast
RFC 2934 Protocol Independent Multicast MIB for
IPv4
RFC 3376 IGMPv3
RFC 3376 IGMPv3 (host joins only)
RFC 3446 Anycast Rendezvous Point (RP)
mechanism using Protocol Independent Multicast
(PIM) and Multicast Source Discovery Protocol
(MSDP)
RFC 3569 An Overview of Source-Specific Multicast
(SSM)
RFC 3618 Multicast Source Discovery Protocol
(MSDP)
RFC 3973 Draft 2 PIM Dense Mode
RFC 3973 Draft 2 PIM Dense Mode
RFC 3973 PIM Dense Mode
RFC 3973 PIM Dense Mode
RFC 3973 PIM Dense Mode (Premium Edge License)
RFC 4601 Draft 10 PIM Sparse Mode
RFC 4601 Draft 10 PIM Sparse Mode
RFC 4604 Using Internet Group Management
Protocol Version 3 (IGMPv3) and Multicast Listener
Discovery Protocol Version 2 (MLDv2) for SourceSpecific Multicast
RFC 4605 IGMP/MLD Proxying
RFC 4607 Source-Specific Multicast for IP
RFC 4608 Source-Specific Protocol Independent
Multicast in 232/8 (PIM SSM)
RFC 4611 Multicast Source Discovery Protocol
(MSDP) Deployment Scenarios
RFC 4950 ICMP Extensions for Multiprotocol Label
Switching
RFC 5015 Bidirectional Protocol Independent
Multicast (BIDIR-PIM)
RFC 5059 Bootstrap Router (BSR) Mechanism for
Protocol Independent Multicast (PIM)
RFC 5060 Protocol Independent Multicast MIB
RFC 5240 Protocol Independent Multicast (PIM)
Bootstrap Router MIB
Networks
RFC 4665 Service Requirements for Layer 2 Provider
Provisioned Virtual Private Networks
RFC 4717 Encapsulation Methods for Transport of
Asynchronous Transfer Mode (ATM) over MPLS
RFC 4761 Virtual Private LAN Service (VPLS) Using
BGP for Auto-Discovery and Signaling
RFC 4762 Virtual Private LAN Service (VPLS) Using
Label Distribution Protocol (LDP) Signaling
RFC 4764 Framework for Layer 2 Virtual Private
Networks (L2VPNs)
RFC 4765 Service Requirements for Layer 2 Provider
Provisioned Virtual Private Networks
RFC 4816 Pseudowire Emulation Edge-to-Edge
(PWE3) Asynchronous Transfer Mode (ATM)
RFC 4941 Privacy Extensions for Stateless Address
Autoconfiguration in IPv6
RFC 5085 Pseudowire Virtual Circuit Connectivity
Verification (VCCV): A Control Channel
RFC 5443 LDP IGP Synchronization
RFC 5601 Pseudowire (PW) Management
Information Base (MIB)
RFC 5602 Pseudowire (PW) over MPLS PSN
Management Information Base (MIB)
IPSec
RFC 1828 IP Authentication using Keyed MD5
RFC 2401 IP Security Architecture
RFC 2402 IP Authentication Header
RFC 2406 IP Encapsulating Security Payload
RFC 2407 - Domain of interpretation
RFC 2408 - Internet Security Association and Key
Management Protocol (ISAKMP)
RFC 2409 - The Internet Key Exchange
RFC 2410 - The NULL Encryption Algorithm and its
use with IPSec
RFC 2411 IP Security Document Roadmap
RFC 2412 – OAKLEY
RFC 2865 - Remote Authentication Dial In User
Service (RADIUS)
RFC 4835 Cryptographic Algorithm Implementation
Requirements for Encapsulating Security
PKI
RFC 5280 Internet X.509 Public Key Infrastructure
Certificate and Certificate Revocation List (CRL)
Profile
QuickSpecs
HP 6600 Router Series
Technical Specifications
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 47
Page 48
HP 6600 Router Series
accessories
Transceivers
HP X110 100M SFP LC LH40 Transceiver
JD090A
HP X110 100M SFP LC LH80 Transceiver
JD091A
HP X110 100M SFP LC FX Transceiver
JD102B
HP X110 100M SFP LC LX Transceiver
JD120B
HP X120 622M SFP LC LX 15km Transceiver
JF829A
HP X120 622M SFP LC LH 40km 1310 Transceiver
JF830A
HP X120 622M SFP LC LH 80km 1550 Transceiver
JF831A
HP X125 1G SFP LC LH40 1310nm Transceiver
JD061A
HP X120 1G SFP LC LH40 1550nm Transceiver
JD062A
HP X120 1G SFP LC BX 10-U Transceiver
JD098B
HP X120 1G SFP LC BX 10-D Transceiver
JD099B
HP X120 1G SFP LC LH100 Transceiver
JD103A
HP X120 1G SFP LC SX Transceiver
JD118B
HP X120 1G SFP LC LX Transceiver
JD119B
HP X125 1G SFP LC LH70 Transceiver
JD063B
HP X120 1G SFP RJ45 T Transceiver
JD089B
HP X160 2.5G SFP LC 2km Transceiver
JD084A
HP X160 2.5G SFP LC 15km Transceiver
JD085A
HP X160 2.5G SFP LC 40km Transceiver
JD086A
HP X160 2.5G SFP LC 80km Transceiver
JD087A
HP X135 10G XFP LC ER Transceiver
JD121A
HP X130 10G XFP LC LR Transceiver
JD108B
HP X130 10G XFP LC SR Transceiver
JD117B
Cables
HP X200 V.24 DTE 3m Serial Port Cable
JD519A
HP X200 V.24 DCE 3m Serial Port Cable
JD521A
HP X200 V.35 DTE 3m Serial Port Cable
JD523A
HP X200 V.35 DCE 3m Serial Port Cable
JD525A
HP X200 X.21 DTE 3m Serial Port Cable
JD527A
HP X200 X.21 DCE 3m Serial Port Cable
JD529A
HP X260 RS449 3m DTE Serial Port Cable
JF825A
HP X260 RS449 3m DCE Serial Port Cable
JF826A
HP X260 RS530 3m DTE Serial Port Cable
JF827A
HP X260 RS530 3m DCE Serial Port Cable
JF828A
HP X260 8E1 BNC 75 ohm 3m Router Cable
JD512A
HP X260 E1 RJ45 BNC 75-120 ohm Conversion Router Cable
JD511A
Router Modules
HP 6600 RSE-X1 Main Processing Unit
JC566A
HP 6600 RPE-X1 Main Processing Unit
JC165A
HP 6600 MCP-X1 Router Main Processing Unit
JG355A
HP 6600 MCP-X2 Router Main Processing Unit
JG356A
HP 6600 FIP-10 Flexible Interface Platform Router Module
JG357A
HP 6600 FIP-20 Flexible Interface Platform Router Module
JG358A
QuickSpecs
HP 6600 Router Series
Accessories
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 48
Page 49
HP 6600 FIP-110 Flexible Interface Platform Module
JC166B
HP 6600 FIP-210 Flexible Interface Platform Module
JC167B
HP 6600 8-port OC-3c/OC-12c POS / GbE SFP HIM Module
JG673A
HP 6600 1-port OC-3/STM-1 (E1/T1) CPOS SFP HIM Module
JC161A
HP 6600 2-port OC-3/STM-1 (E1/T1) CPOS SFP HIM Module
JC162A
HP 6600 2-port OC-3/STM-1 (E3/T3) CPOS SFP HIM Module
JC169A
HP 6600 1-port OC-3/STM-1 (E3/T3) CPOS SFP HIM Module
JC170A
HP 6600 4-port OC-3c/STM-1c or 2-port OC-12c/STM-4c POS SFP HIM Module
JC172A
HP 6600 2-port OC-3c/STM-1c or 1-port OC-12c/STM-4c POS SFP HIM Module
JC173A
HP 6600 1-port OC-48c/STM-16c POS/CPOS SFP HIM Module
JC494A
HP 6600 1-port OC-3c/STM-1c ATM SFP HIM Module
JC175A
HP 6600 2-port OC-3c/STM-1c ATM SFP HIM Module
JC495A
HP 6600 4-port GbE SFP HIM Module
JC171A
HP 6600 8-port GbE SFP HIM Module
JC174A
HP 6600 4-port Gig-T HIM Module
JC163A
HP 6600 8-port Gig-T HIM Module
JC164A
HP 6600 1-port 10-GbE XFP HIM Module
JC168A
HP MSR 2-port Enhanced Sync/Async Serial MIM Module
JD540A
HP MSR 4-port Enhanced Sync/Async Serial MIM Module
JD541A
HP MSR 8-port Enhanced Sync/Async Serial MIM Module
JD552A
HP MSR 8-port E1/CE1/PRI (75ohm) MIM Module
JD563A
HP MSR 8-port E1/Fractional E1 (75ohm) MIM Module
JF255A
HP MSR 8-port T1/CT1/PRI MIM Module
JC160A
HP MSR 1-port E3/CE3/FE3 MIM Module
JD630A
HP MSR 8-port T1/Fractional T1 MIM Module
JC159A
HP MSR 1-port FT3/CT3 MIM Module
JD628A
HP 6600 8-port 10/100Base-T HIM Module
JC575A
HP 6600 2-port OC-48c/STM-16c RPR SFP HIM Module
JC576A
HP 6600 48-port GbE SFP Service Aggregation Platform Module -
JG556A
HP 6600 48-port Gig-T Service Aggregation Platform Module
JC567A
HP 6600 24-port GbE SFP Service Aggregation Platform Module
JC568A
HP MSR 8-port E1 / CE1 / PRI (75ohm) HMIM Module
JG452A
HP MSR 4-port E1 / CE1 / PRI HMIM Module
JG451A
HP MSR 2-port E1 / CE1 / PRI HMIM Module
JG450A
HP MSR 1-port T3 / CT3 / FT3 HMIM Module
JG435A
HP MSR 1-port E3 / CE3 / FE3 HMIM Module
JG436A
Memory
HP 6600 1 GB SDRAM Memory
JC179A
HP 6602 Router (JC176A)
HP RPS 800 Redundant Power Supply
JD183A
HP X290 MSR30 1m RPS Cable
JD637A
HP 6604 Router Chassis (JC178B)
HP X130 10G SFP+ LC SR Transceiver
JD092B
HP X130 10G SFP+ LC LR Transceiver
JD094B
HP X130 10G SFP+ LC ER 40km Transceiver
JG234A
QuickSpecs
HP 6600 Router Series
Accessories
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 49
Page 50
HP 7500 650W DC Power Supply
JD209A
HP 7500 650W AC Power Supply
JD217A
HP 6604 Dustproof Frame
JC572A
HP 6604 Spare Fan Assembly
JC569A
HP 6600 Router Software License
JC180A
HP 6600 MCP-X1 Router Main Processing Unit
JG355A
HP 6600 MCP-X2 Router Main Processing Unit
JG356A
HP 6600 RPE-X1 Main Processing Unit
JC165A
HP 6600 RSE-X1 Main Processing Unit
JC566A
HP 6600 24-port GbE SFP Service Aggregation Platform Module
JC568A
HP 6600 48-port Gig-T Service Aggregation Platform Module
JC567A
HP 6600 FIP-10 Flexible Interface Platform Router Module
JG357A
HP 6600 FIP-110 Flexible Interface Platform Module
JC166B
HP 6600 FIP-20 Flexible Interface Platform Router Module
JG358A
HP 6600 FIP-210 Flexible Interface Platform Module
JC167B
HP 6608 Router Chassis (JC177B)
HP X130 10G SFP+ LC SR Transceiver
JD092B
HP X130 10G SFP+ LC LR Transceiver
JD094B
HP X130 10G SFP+ LC ER 40km Transceiver
JG234A
HP 7500 650W DC Power Supply
JD209A
HP 7500 650W AC Power Supply
JD217A
HP 6608 Spare Fan Assembly
JC570A
HP 6608 Dustproof Frame
JC573A
HP 6600 Router Software License
JC180A
HP 6600 MCP-X1 Router Main Processing Unit
JG355A
HP 6600 MCP-X2 Router Main Processing Unit
JG356A
HP 6600 RPE-X1 Main Processing Unit
JC165A
HP 6600 RSE-X1 Main Processing Unit
JC566A
HP 6600 24-port GbE SFP Service Aggregation Platform Module
JC568A
HP 6600 48-port Gig-T Service Aggregation Platform Module
JC567A
HP 6600 FIP-10 Flexible Interface Platform Router Module
JG357A
HP 6600 FIP-110 Flexible Interface Platform Module
JC166B
HP 6600 FIP-20 Flexible Interface Platform Router Module
JG358A
HP 6600 FIP-210 Flexible Interface Platform Module
JC167B
HP 6616 Router Chassis (JC496A)
HP X130 10G SFP+ LC SR Transceiver
JD092B
HP X130 10G SFP+ LC LR Transceiver
JD094B
HP X130 10G SFP+ LC ER 40km Transceiver
JG234A
HP 6600 650W AC Power Supply
JC492A
HP 6600 650W DC Power Supply
JC493A
HP 6616 Spare Fan Assembly
JC571A
HP 6616 Dustproof Frame
JC574A
HP 6600 RPE-X1 Carrier Card
JC497A
HP 6600 Router Software License
JC180A
HP 6600 MCP-X1 Router Main Processing Unit
JG355A
QuickSpecs
HP 6600 Router Series
Accessories
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 50
Page 51
HP 6600 MCP-X2 Router Main Processing Unit
JG356A
HP 6600 RPE-X1 Main Processing Unit
JC165A
HP 6600 RSE-X1 Main Processing Unit
JC566A
HP 6600 24-port GbE SFP Service Aggregation Platform Module
JC568A
HP 6600 48-port Gig-T Service Aggregation Platform Module
JC567A
HP 6600 FIP-10 Flexible Interface Platform Router Module
JG357A
HP 6600 FIP-110 Flexible Interface Platform Module
JC166B
HP 6600 FIP-20 Flexible Interface Platform Router Module
JG358A
HP 6600 FIP-210 Flexible Interface Platform Module
JC167B
QuickSpecs
HP 6600 Router Series
Accessories
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 51
Page 52
NOTE:
Details are not available for all accessories. The following specifications were available at the time of publication.
HP X125 1G SFP LC LH40
1310nm Transceiver
(JD061A)
A small form-factor
pluggable SFP Gigabit LH40
transceiver that provides a
full duplex Gigabit solution
up to 40km on a singlemode fiber.
Ports
1 LC 1000Base-LH port (no IEEE standard exists for 1550 nm optics)
Connectivity
Connector type
LC
Wavelength
1310 nm
Physical characteristics
Dimensions
2.17(d) x 0.6(w) x 0.46(h) in. (5.51 x 1.52 x 1.17
cm)
Full configuration weight
0.04 lb. (0.02 kg)
Electrical characteristics
Power consumption typical
0.8 W
Power consumption
maximum
1.0 W
Cabling
Cable type:
Single-mode fiber optic, complying with ITU-T G.652;
Maximum distance:
40km distance
Fiber type
Single Mode
Services
Refer to the HP website at
www.hp.com/networking/services
for details on
the service-level descriptions and product numbers. For details about services
and response times in your area, please contact your local HP sales office.
HP X120 1G SFP LC LH40
1550nm Transceiver
(JD062A)
A small form-factor
pluggable (SFP) Gigabit
LH40 transceiver that
provides a full-duplex
Gigabit solution up to 40
km on a single mode fiber.
Ports
1 LC 1000BASE-LH port (no IEEE standard exists for 1550 nm optics)
Connectivity
Connector type
LC
Wavelength
1550 nm
Physical characteristics
Dimensions
2.17(d) x 0.6(w) x 0.46(h) in. (5.51 x 1.52 x 1.17
cm)
Full configuration weight
0.04 lb. (0.02 kg)
Electrical characteristics
Power consumption typical
0.8 W
Power consumption
maximum
1.0 W
Cabling
Cable type:
Single-mode fiber optic, complying with ITU-T G.652;
Maximum distance:
40km distance
Fiber type
Single Mode
Services
Refer to the HP website at
www.hp.com/networking/services
for details on
the service-level descriptions and product numbers. For details about services
and response times in your area, please contact your local HP sales office.
QuickSpecs
HP 6600 Router Series
Accessory Product Details
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 52
Page 53
HP X120 1G SFP LC BX 10U Transceiver
(JD098B)
A small form-factor
pluggable (SFP) Gigabit LXBX10-U transceiver that
provides a full duplex
Gigabit solution up to
10km on a single mode
cable.
Ports
1 LC 1000BASE-BX10 port (IEEE 802.3ah Type 1000BASE-BX10-U); Duplex:
full only
Connectivity
Connector type
LC
Physical characteristics
Dimensions
2.17(d) x 0.6(w) x 0.46(h) in. (5.51 x 1.52 x 1.17
cm)
Full configuration weight
0.04 lb. (0.02 kg)
Electrical characteristics
Power consumption
typical
0.8 W
Power consumption
maximum
1.0 W
Cabling
Maximum distance:
• 10km
Fiber type
Single Mode
Notes
TX 1310nm RX 1490nm
Services
Refer to the HP website at:
www.hp.com/networking/services
for details on
the service-level descriptions and product numbers. For details about services
and response times in your area, please contact your local HP sales office.
HP X120 1G SFP LC BX 10D Transceiver
(JD099B)
A small form-factor
pluggable (SFP) Gigabit LXBX10-D transceiver that
provides a full duplex
Gigabit solution up to
10km on a single mode
cable.
Ports
1 LC 1000BASE-BX10 port (IEEE 802.3ah Type 1000BASE-BX10-D); Duplex:
full only
Connectivity
Connector type
LC
Physical characteristics
Dimensions
2.17(d) x 0.6(w) x 0.46(h) in. (5.51 x 1.52 x 1.17
cm)
Full configuration weight
0.04 lb. (0.02 kg)
Electrical characteristics
Power consumption
typical
0.8 W
Power consumption
maximum
1.0 W
Cabling
Maximum distance:
• Up to 10km
Fiber type
Single Mode
Notes
TX 1490nm RX 1310nm
Services
Refer to the HP website at
www.hp.com/networking/services
for details on
the service-level descriptions and product numbers. For details about services
and response times in your area, please contact your local HP sales office.
QuickSpecs
HP 6600 Router Series
Accessory Product Details
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 53
Page 54
HP X120 1G SFP LC LH100
Transceiver
(JD103A)
A small form factor
pluggable (SFP) Gigabit
LH100 transceiver that
provides a full-duplex
Gigabit solution up to
100km on a single mode
fiber.
Ports
1 LC 1000BASE-LH port (no IEEE standard exists for 1550 nm optics)
Connectivity
Connector type
LC
Wavelength
1550 nm
Electrical characteristics
Power consumption
typical
0.8 W
Power consumption
maximum
1.0 W
Cabling
Cable type:
Single-mode fiber optic, complying with ITU-T G.652;
Maximum distance:
• Up to 100km
Fiber type
Single Mode
Services
Refer to the HP website at
www.hp.com/networking/services
for details on
the service-level descriptions and product numbers. For details about services
and response times in your area, please contact your local HP sales office.
HP X120 1G SFP LC SX
Transceiver
(JD118B)
A small form-factor
pluggable (SFP) Gigabit SX
transceiver that provides a
full-duplex Gigabit solution
up to 550m on a Multimode
fiber.
Ports
1 LC 1000BASE-SX port
Connectivity
Connector type
LC
Wavelength
850 nm
Physical characteristics
Dimensions
2.17(d) x 0.6(w) x 0.46(h) in. (5.51 x 1.52 x 1.17
cm)
Full configuration weight
0.04 lb. (0.02 kg)
Electrical characteristics
Power consumption
typical
0.8 W
Power consumption
maximum
1.0 W
Cabling
Maximum distance:
• FDDI Grade distance = 220m
• OM1 = 275m
• OM2 = 500m
• OM3 = Not Specified by standard
Cable length
up to 550m
Fiber type
Multi Mode
Services
Refer to the HP website at
www.hp.com/networking/services
for details on
the service-level descriptions and product numbers. For details about services
and response times in your area, please contact your local HP sales office.
QuickSpecs
HP 6600 Router Series
Accessory Product Details
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 54
Page 55
HP X120 1G SFP LC LX
Transceiver
(JD119B)
A small form-factor
pluggable (SFP) Gigabig LX
transceiver that provides a
full duplex Gigabit solution
up to 550m on MMF or
10Km on SMF
Ports
1 SFP 1000BASE-LX port (IEEE 802.3z Type 1000BASE-LX)
Connectivity
Connector type
LC
Wavelength
1300 nm
Physical characteristics
Dimensions
2.17(d) x 0.6(w) x 0.46(h) in. (5.51 x 1.52 x 1.17
cm)
Full configuration weight
0.04 lb. (0.02 kg)
Electrical characteristics
Power consumption
typical
0.8 W
Power consumption
maximum
1.0 W
Cabling
Cable type:
Either single mode or multimode;
Maximum distance:
• 550m for Multimode
• 10km for Singlemode
Fiber type
Both
Services
Refer to the HP website at
www.hp.com/networking/services
for details on
the service-level descriptions and product numbers. For details about services
and response times in your area, please contact your local HP sales office.
HP X125 1G SFP LC LH70
Transceiver
(JD063B)
A small form-factor
pluggable (SFP) Gigabit
LH70 transceiver that
provides a full-duplex
Gigabit solution up to
70km on a single-mode
fiber.
Ports
1 LC 1000BASE-LH port (no IEEE standard exists for 1550 nm optics)
Connectivity
Connector type
LC
Wavelength
1550 nm
Physical characteristics
Dimensions
2.17(d) x 0.6(w) x 0.46(h) in. (5.51 x 1.52 x 1.17
cm)
Full configuration weight
0.04 lb. (0.02 kg)
Electrical characteristics
Power consumption
typical
0.8 W
Power consumption
maximum
1.0 W
Cabling
Cable type:
Single-mode fiber optic, complying with ITU-T G.652;
Maximum distance:
• 70km
Fiber type
Single Mode
Services
Refer to the HP website at
www.hp.com/networking/services
for details on
the service-level descriptions and product numbers. For details about services
and response times in your area, please contact your local HP sales office.
QuickSpecs
HP 6600 Router Series
Accessory Product Details
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 55
Page 56
HP X120 1G SFP RJ45 T
Transceiver
(JD089B)
A small form factor
pluggable (SFP) Gigabit
1000Base-T transceiver
that provides a full duplex
Gigabit solution up to
100m on a Cat-5+ cable.
Ports
1 RJ-45 1000BASE-T port (IEEE 802.3ab Type 1000BASE-T)
Connectivity
Connector type
RJ-45
Physical characteristics
Dimensions
2.71(d) x 0.54(w) x 0.55(h) in. (6.88 x 1.37 x 1.4
cm)
Full configuration weight
0.07 lb. (0.03 kg)
Electrical characteristics
Power consumption
typical
0.8 W
Power consumption
maximum
1.0 W
Cabling
Cable type:
1000BASE-T: Category 5 (5E or better recommended), 100 Ù differential 4pair unshielded twisted pair (UTP) or shielded twisted pair (STP) balanced,
complying with IEEE 802.3ab 1000BASE-T;
Maximum distance:
• 100m
Services
Refer to the HP website at
www.hp.com/networking/services
for details on
the service-level descriptions and product numbers. For details about services
and response times in your area, please contact your local HP sales office.
HP 7500 650W DC Power
Supply
(JD209A)
Physical characteristics
Dimensions
13.78(d) x 5.51(w) x 1.57(h) in. (35 x 14 x 4 cm)
(1U height)
Weight
4.96 lb. (2.25 kg)
Electrical characteristics
Voltage
0~-48/-60V
Current
0/25 A
Idle power
97.5 W
Maximum power rating
650 W
PoE power
0 W
Notes
Idle power is the actual power consumption of the
device with no ports connected.
Maximum power rating and maximum heat
dissipation are the worst-case theoretical
maximum numbers provided for planning the
infrastructure with fully loaded
PoE (if equipped), 100% traffic, all ports plugged
in, and all modules populated.
Services
Refer to the HP website at
www.hp.com/networking/services
for details on
the service-level descriptions and product numbers. For details about services
and response times in your area, please contact your local HP sales office.
QuickSpecs
HP 6600 Router Series
Accessory Product Details
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 56
Page 57
HP 7500 650W AC Power
Supply
(JD217A)
Physical characteristics
Dimensions
13.78(d) x 5.51(w) x 1.57(h) in. (35 x 14 x 4 cm)
(1U height)
Weight
5.34 lb. (2.42 kg)
Electrical characteristics
Voltage
100-120/200-240 VAC
Current
0/10 A
Idle power
97.5 W
Maximum power rating
650 W
PoE power
0 W
Frequency
50/60 Hz
Notes
Idle power is the actual power consumption of the
device with no ports connected.
Maximum power rating and maximum heat
dissipation are the worst-case theoretical
maximum numbers provided for planning the
infrastructure with fully loaded
PoE (if equipped), 100% traffic, all ports plugged
in, and all modules populated.
650W AC Power Supply uses a 10-A AC power
cable
Services
Refer to the HP website at
www.hp.com/networking/services
for details on
the service-level descriptions and product numbers. For details about services
and response times in your area, please contact your local HP sales office.
To learn more, visit:
www.hp.com/networking
© Copyright 2014 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
QuickSpecs
HP 6600 Router Series
Accessory Product Details
DA - 13811 Worldwide — Version 21 — February 18, 2014
Page 57
Loading...
