HP 652497-B21 Specification

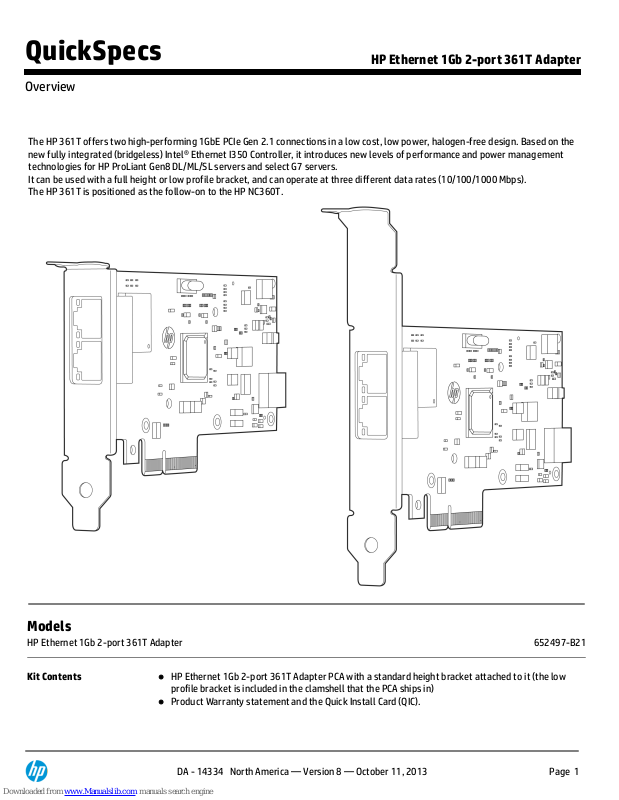

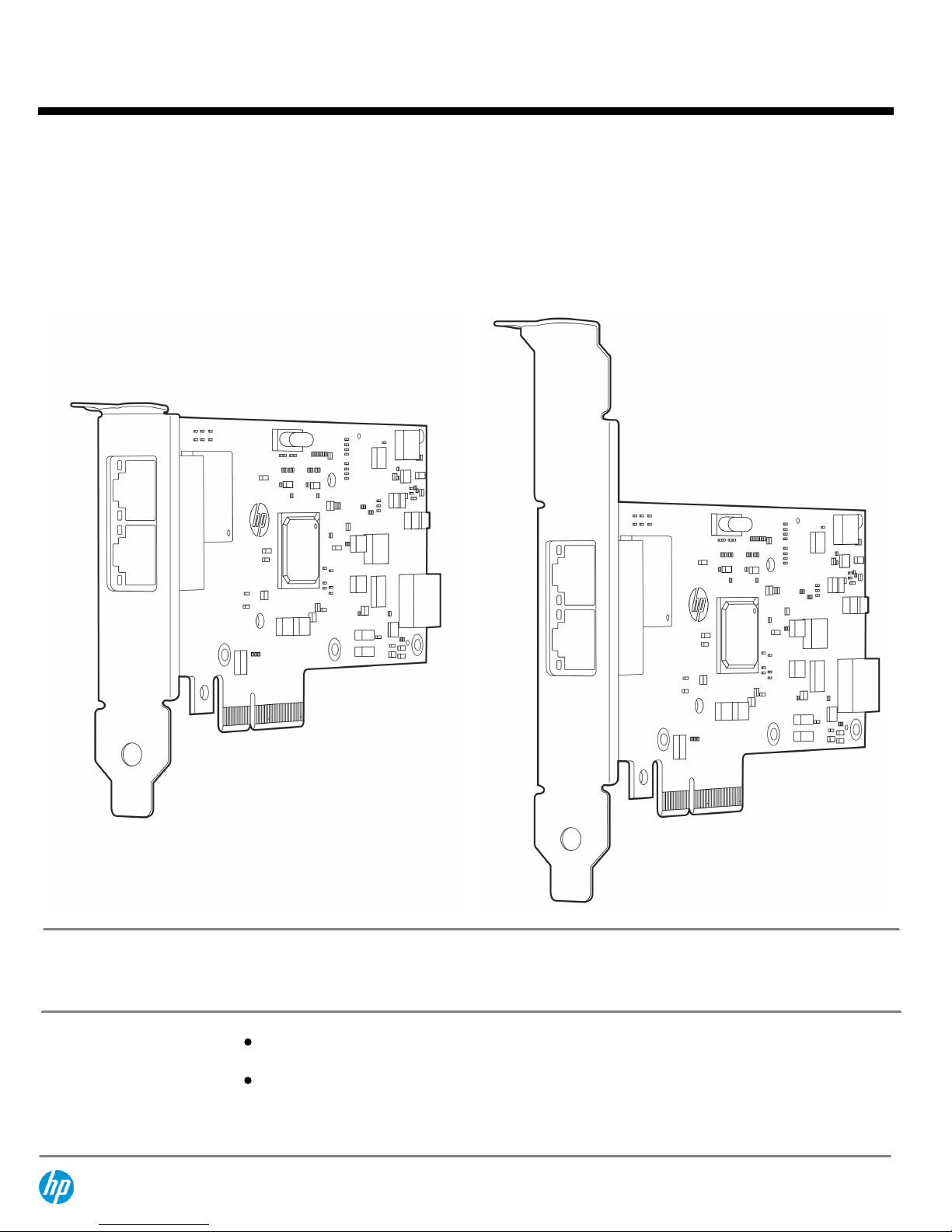

The HP 361T offers two high-performing 1GbE PCIe Gen 2.1 connections in a low cost, low power, halogen-free design. Based on the
new fully integrated (bridgeless) Intel® Ethernet I350 Controller, it introduces new levels of performance and power management
technologies for HP ProLiant Gen8 DL/ML/SL servers and select G7 servers.
It can be used with a full height or low profile bracket, and can operate at three different data rates (10/100/1000 Mbps).
The HP 361T is positioned as the follow-on to the HP NC360T.

Models

HP Ethernet 1Gb 2-port 361T Adapter

652497-B21

Kit Contents

HP Ethernet 1Gb 2-port 361T Adapter PCA with a standard height bracket attached to it (the low
profile bracket is included in the clamshell that the PCA ships in)
Product Warranty statement and the Quick Install Card (QIC).

QuickSpecs

HP Ethernet 1Gb 2-port 361T Adapter

Overview

DA - 14334 North America — Version 8 — October 11, 2013

Page 1

Server Support

ProLiant DL (rack-optimized)

:

HP ProLiant DL160 Gen8
HP ProLiant DL165 G7
HP ProLiant DL320e Gen8
HP ProLiant DL320e Gen8 v2
HP ProLiant DL360e Gen8
HP ProLiant DL360p Gen8
HP ProLiant DL380e Gen8
HP ProLiant DL380p Gen8
HP ProLiant DL385p Gen8
HP ProLiant DL560 Gen8
HP ProLiant DL580 G7
HP ProLiant DL585 G7
HP ProLiant DL980 G7

ProLiant ML (expansion-optimized)

:

HP ProLiant ML310e Gen8
HP ProLiant ML310e Gen8 v2
HP ProLiant ML350e Gen8
HP ProLiant ML350e Gen8 v2
HP ProLiant ML350p Gen8

ProLiant SL (scalable line)

:

HP ProLiant SL210t Gen8
HP ProLiant SL230s Gen8
HP ProLiant SL250s Gen8
HP ProLiant SL270s Gen8

NOTE:

This is a list of supported servers. Some may be discontinued.

QuickSpecs

HP Ethernet 1Gb 2-port 361T Adapter

Compatibility

DA - 14334 North America — Version 8 — October 11, 2013

Page 2

Features

Product Highlights

Two Gigabit Ethernet Ports
Supported on HP ProLiant Gen8 & Select G7 Rack & Tower servers
Intel® Ethernet I350 controller
Designed with server needs in mind:

IEEE 802.1p, 802.1Q, 802.3, 802.3ad, and 802.3x
EEE, EFI/uEFI support
ProLiant Teaming including Network Fault Tolerance, Transmit Load Balancing, and Switch­Assisted Load Balancing

9.5K Jumbo frames
DMA Coalescing
IEEE 1588 (Precision Time Stamping) & 802.1AS (Hardware enabled Time Synchronization)
TCP/IP checksum offload (TCO) and large send offload (LSO)
PXE
Intel® Integrated I/O and Data Direct I/O for increased performance and reduced latency
Virtualization with VMDq
IPv6 packet transmit and receive (excluding all offload capabilities); IPv6 aware SNMPv1
agent for Windows

Performance

Gigabit Throughput
Combined with Legacy
Ethernet Support

10/100/1000 Mbps Ethernet transfer rate delivers outstanding network performance that improves
response time and removes bottlenecks. Because the HP 361T supports both 10Mbps Ethernet and
100Mbps Fast Ethernet in addition to Gigabit Ethernet, users are guaranteed end-to-end protocol support
across their enterprise.

PCI Express Interface

HP was an early champion of PCI Express bus technology and has played a key role in the development and
industry adoption of the PCI Express specification. The HP 361T features a high performance Intel®
Ethernet Controller I350 and offers a four lane (x4) PCI Express bus based on the PCIe v2.1 standard,
yielding faster transmissions with lower CPU utilization than earlier solutions.

Load Balancing

Transmit Load Balancing (TLB) and Switch-assisted Load Balancing (SLB) are two advanced features that
customers can use to build a bigger pipe for improved networking bandwidth. These port bonding
techniques enable users to install up to four dual-port HP 361T adapters (total of 8 ports) in a HP ProLiant
server and aggregate their throughput up to a theoretical maximum of 16 Gigabits per second full-duplex
transmissions.

Jumbo Frames

Jumbo Frames (also known as Extended Frames) offer a 9.5K byte Maximum Transmission Unit (MTU),
which is approximately six times the size of traditional Ethernet frames. Like all HP ProLiant server
adapters, the HP 361Tsupports jumbo frames as a way to achieve higher throughput and better CPU
utilization when deployed in a network infrastructure that supports them. Jumbo frames are particularly
useful for database transfers and tape backups.

QuickSpecs

HP Ethernet 1Gb 2-port 361T Adapter

Standard Features

DA - 14334 North America — Version 8 — October 11, 2013

Page 3

Optimized for
Virtualization

I/O Virtualization support for Intel's Virtual Machine Device Queues (VMDq), VMware NetQueue and
Microsoft VMQ help meet the performance demands of consolidated virtual workloads.

Compliant with Single-Root I/O Virtualization (SR-IOV), accommodating multiple Virtual Machines (VMs) to
share single PCIe resources. The device is capable of SR-IOV, and requires Firmware, Software and OS
support

IEEE 1588 & 802.1AS

Hardware assist for IEEE 1588 and IEEE 802.1AS time synchronization implementations for time sensitive
applications.

Power Management
Technologies

The 361T supports latest power management technologies such as Energy Efficient Ethernet & DMA
coalescing:

Energy Efficient Ethernet

: Compliant with IEEE 802.3az, featuring advanced power savings

features throttles power usage with network load activity.

DMA Coalescing

: Supports DMA Coalescing, the incoming data packets and interrupts associated

with these DMA calls are intelligently batched to keep the system devices in lower power states.

Intel® Integrated I/O with
Data Direct I/O

New on HP ProLiant Gen8 servers, Intel® Integrated I/O features reduces memory access from I/O on local
socket which speeds up CPU data transfer and accelerates inbound and outbound traffic flows. Together,
Integrated I/O and Data Direct I/O technologies reduce system power, increases I/O performance and
reduced I/O latency.

PXE Boot

Support for pre-boot execution environment (PXE) enables automatic deployment of computing resources
remotely from anywhere. It allows a new or existing server to boot over the network and download
software, including the operating system, from a management/ deployment server at another location on
the network. Additionally, PXE enables decentralized software distribution and remote troubleshooting
and repairs.

Linux boot via PXE or BOOTP, Windows Deployment Services, or UEFI which allows networked computer to
boot using a program code image supplied by a remote server. It complies with the Pre-boot eXecution
Environment (PXE) Version 2.1 specification.

HP Sea of Sensors 3D

Support for HP Sea of Sensors 3D Technology which is a collection of 32 sensors that automatically track
thermal activity - heat - across the server. When temperatures get too high, sensors can kick on fans and
make other adjustments to reduce energy usage. What makes it better is the upgrade from all six fans
kicking on at one time to a new system where only one kicks on - the one in proximity of the area that
started heating up - thus reducing the amount of energy used for cooling.

QuickSpecs

HP Ethernet 1Gb 2-port 361T Adapter

Standard Features

DA - 14334 North America — Version 8 — October 11, 2013

Page 4

Scalability and Reliability

Dual Ports

Two Gigabit ports allow users to save slots in situations where their servers are slot-constrained. HP has
long been an advocate of dual port adapters for servers; the HP 361T is the latest best-of-breed dual port
devices for HP ProLiant servers.

NOTE:

Port enumeration on the HP 361T is from the top down, i.e. the port near the top of the adapter is

port #1 and the port closest to the gold teeth is port #2

Network Fault Tolerance

(NFT)

Network Fault Tolerance, sometimes called "failover" or "NIC Redundancy," allows for the installation of
multiple server adapters so that the active device can be backed up by a redundant adapter to improve
availability. HP's teaming utility also allows users to specify that when a failed adapter is fixed and
replaced, the original adapter resumes its function as the primary network connection.

Distance capabilities

The HP 361T supports cable runs up to 100 meters (328 feet).

Network Management

Auto-negotiation

The HP 361T automatically senses and configures itself to the speed of the device to which it is attached. It
also automatically configures for half or full duplex, depending on the duplex mode of the switch, hub, or
router at the other end of the cable.

Wake-on-LAN

The HP 361T provides Wake-on-LAN (WOL) support through the PCI Express bus. A system that supports
Wake on LAN can remain available to a systems administrator during its normal downtime. Once the
machine is awakened, the systems administrator can remotely control, audit, debug, or manage the
machine.

Management Support

Like all HP ProLiant server adapters, the HP 361T ships with drivers and agents that can be managed from
all versions of Systems Insight Manager. Additionally, it supports any management application that
supports SNMP.

Server Integration

The SmartStart configuration utility includes setup support for the HP 361T so that the adapter can be
configured as part of the SmartStart configuration process. Insight Manager can recognize the 361T
individually or in a port-bonded team, and it can collect and report SNMP statistics on the adapter events.
Integrated Management Log (IML) support is provided by the 361T for critical event logging on HP ProLiant
servers.

Configuration Utilities

Each HP 361T ships with a suite of operating system-tailored configuration utilities that allow the user to
enable initial diagnostics and configure adapter teaming. This includes a patented teaming GUI for
Microsoft Windows operating systems. Additionally, support for scripted installations of teams in a
Microsoft Windows environment allow for unattended OS installations

LED Indicators

Bracket LED indicators show link integrity, network activity, and speed on each port for easy
troubleshooting.

QuickSpecs

HP Ethernet 1Gb 2-port 361T Adapter

Standard Features

DA - 14334 North America — Version 8 — October 11, 2013

Page 5

Warranty

Maximum

: The remaining warranty of the HP product in which it is installed (to a maximum three-year,

limited warranty).

Minimum

: One year limited warranty.

See Internet address

http://www.hp.com

for overall information on HP.

QuickSpecs

HP Ethernet 1Gb 2-port 361T Adapter

Standard Features

DA - 14334 North America — Version 8 — October 11, 2013

Page 6

Service and Support

HP Technology Services

HP Technology Services offers you technical consultants and support expertise to solve your most
complex infrastructure problems. We help keep your business running, boost availability, and avoid
downtime.

Protect your business beyond warranty with HP Care Pack Services

When you buy HP Options, it's also a good time to think about what level of service you may need. HP Care
Pack services provide total care and support expertise with committed response choices designed to meet
your IT and business need.

HP Foundation Care services deliver scalable support-packages for HP industry-standard servers and
software. You can choose the type and level of service that is most suitable for your business needs. New
to this portfolio is HP Collaborative Support. If you are running business critical environments, HP offers
Proactive Care or Critical Advantage. These services help you deliver high levels of application availability
through proactive service management and advanced technical response.

Here is the support service recommendation from the Foundation Care and Proactive Care portfolio. For
customized support service solution, HP can work with you to tailor a service solution for your unique
support requirements using broader services portfolio of Foundation Care and Proactive Care.

Recommended HP Care Pack Services for optimal satisfaction with your HP product

Recommended Services

3-Year HP 24x7 4 hour Response, Proactive Care

Helps optimize your systems and delivers high levels of application availability through proactive service
management and advanced technical response. A skilled Technical Manager will own your query or issue
end to end until resolved, delivering a single point of contact for you

OR

3-Year HP 24x7 4 hour Response, HP Collaborative Support

Provides problem resolution support across the stack of HW, firmware, and HP and 3rd party SW. In case
the issue is with 3rd party SW, HP does known issue resolution. If HP cannot solve the issue, it will contact
the third-party vendor and create a problem incident on your behalf

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA3-8232ENW.pdf

HP Installation of ProLiant Add On Options Service

This easy-to-buy, easy-to-use HP Care Pack service helps ensure that your new HP hardware or software is
installed smoothly, efficiently, and with minimal disruption of your IT and business operations

QuickSpecs

HP Ethernet 1Gb 2-port 361T Adapter

Service and Support

DA - 14334 North America — Version 8 — October 11, 2013

Page 7

Related HP Care Pack Services to enhance your HP product experience

Related Services

3-Year HP 24x7 4 hour Response, Proactive Care

Helps optimize your systems and delivers high levels of application availability through proactive service
management and advanced technical response. A skilled Technical Manager will own your query or issue
end to end until resolved, delivering a single point of contact for you

OR

3-Year HP 24x7 4 hour Response, Hardware Support Onsite Service

Provides you with rapid remote support and if required an HP authorized representative who will arrive on
site any time and day of the year to begin hardware maintenance service within 4 hours of the service
request being logged

http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EEE.pdf

3-Year HP 6-hour Onsite Call-to-Repair, HP Collaborative Support

Offers customers a single point of contact for server problem diagnosis, hardware problem resolution to
return the hardware in operating condition within 6 hours of the initial service request to the HP Global
Solution Center, and basic software problem diagnosis, fault isolation, and resolution if available to HP.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA3-8232ENW.pdf

HP Proactive Select Service

Provides a flexible way to purchase HP best-in-class consultancy and technical services. You can buy
Proactive Select Service Credits when you purchase your hardware and then use the credits over the next
12 months.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENN.pdf

Insight Remote Support

Provides 24 X 7 remote monitoring, proactive notifications, and problem resolution. Learn more

http://www.hp.com/go/insightremotesupport

HP Support Center

Personalized online support portal with access to information, tools and experts to support HP business
products. Submit support cases online, chat with HP experts, access support resources or collaborate with
peers. Learn more

http://www.hp.com/go/hpsc

HP's Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for
live support. Now, you can get access to personalized IT support anywhere, anytime.
HP Insight Remote Support and HP Support Center are available at no additional cost with a HP warranty,
HP Care Pack or HP contractual support agreement.

*HP' Support Center Mobile App is subject to local availability

Parts and materials

HP will provide HP-supported replacement parts and materials necessary to maintain the covered
hardware product in operating condition, including parts and materials for available and recommended
engineering improvements. Supplies and consumable parts will not be provided as part of this service;
standard warranty terms and conditions apply. Parts and components that have exceeded their maximum
supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating
manual or the technical product data sheet will not be provided, repaired or replaced as part of this service.

QuickSpecs

HP Ethernet 1Gb 2-port 361T Adapter

Service and Support

DA - 14334 North America — Version 8 — October 11, 2013

Page 8

Warranty / Service
Coverage

For ProLiant servers and storage systems, this service covers HP-branded hardware options qualified for
the server, purchased at the same time or afterward, internal to the enclosure, as well as external
monitors up to 22" and tower UPS products; these items will be covered at the same service level and for
the same coverage period as the server unless the maximum supported lifetime and/or the maximum
usage limitation has been exceeded. Coverage of the UPS battery is not included; standard warranty terms
and conditions apply.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives
replaced by HP due to malfunction. It does not apply to any exchange of Disk or SSD/Flash Drives that have
not failed. SSD/Flash Drives that are specified by HP as consumable parts and/or that have exceeded
maximum supported lifetime and/or the maximum usage limit as set forth in the manufacturer's operating
manual or the technical data sheet are not eligible for the defective media retention service feature option.

For more information

To learn more on services for HP ESSN Options, please contact your HP sales representative or HP
Authorized Channel Partner. Or visit:

http://www.hp.com/services/proliant

or

www.hp.com/services/bladesystem

QuickSpecs

HP Ethernet 1Gb 2-port 361T Adapter

Service and Support

DA - 14334 North America — Version 8 — October 11, 2013

Page 9

Gigabit Server Adapters

HP NC112T PCI Express Gigabit Server Adapter

503746-B21

HP NC360T PCI-E Dual Port Gigabit Server Adapter

412648-B21

HP NC364T PCI-E Quad Port Gigabit Server Adapter

435508-B21

HP NC365T 4-port Ethernet Server Adapter

593722-B21

HP NC373F PCI-E Multifunction 1000SX Gigabit Svr Adapter

394793-B21

HP NC373T PCI-E Multifunction Gigabit Server Adapter

394791-B21

HP NC375T PCI Express Quad Port Gigabit Server Adapter

538696-B21

HP NC382T PCI Express Dual Port Multifunction Gigabit Server Adapter

458492-B21

HP Ethernet 1Gb 4-port 331T Adapter

647594-B21

HP Ethernet 1Gb 2-port 332T Adapter

615732-B21

10 Gigabit Server
Adapters

NOTE:

A minimum of two Gigabytes (2 GB) of server memory is required per each
adapter.

HP NC522SFP Dual Port 10GbE Gigabit Server Adapter

468332-B21

HP NC523SFP 10Gb 2-port Server Adapter

593717-B21

HP NC524SFP Dual Port 10GbE Module

NOTE:

NC524SFP is available only on DL370 G6, ML370 G6, DL580 G7, DL585 G7, and
DL980 G7.

489892-B21

HP NC550SFP Dual Port 10GbE Server Adapter

581201-B21

HP NC552SFP 10Gb 2-port Ethernet Server Adapter

614203-B21

HP Ethernet 10Gb 2-port 530SFP Adapter

652503-B21

HP Ethernet 10Gb 2-port 530T Adapter

656596-B21

HP Ethernet 10Gb 2-port 560SFP+ Adapter

665249-B21

HP Ethernet 10Gb 2-port 561T Adapter

716591-B21

HP Ethernet 10Gb 2-port 570SFP+ Adapter

718904-B21

FlexibleLOM Adapters

NOTE:

A minimum of two Gigabytes (2 GB) of server memory is required per each
adapter.

Ethernet Adapters

HP Ethernet 1Gb 4-port 331FLR Adapter

629135-B21

HP Ethernet 1Gb 4-port 366FLR Adapter

665240-B21

HP Ethernet 10Gb 2-port 530FLR-SFP+ Adapter

647581-B21

HP Ethernet 10Gb 2-port 560FLR-SFP+ Adapter

665243-B21

HP Ethernet 10Gb 2-port 561FLR-T Adapter

700699-B21

HP Ethernet 10Gb 2-port 570FLR-SFP+ Adapter

717491-B21

FlexFabric Adapters

HP FlexFabric 10Gb 2-port 526FLR SFP+ Adapter

629138-B21

HP FlexFabric 10Gb 2-port 533FLR-T Adapter

700759-B21

HP FlexFabric 10Gb 2-port 534FLR-SFP+ Adapter

700751-B21

HP FlexFabric 10Gb 2-port 554FLR-SFP+ Adapter

629142-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
information:

www.hp.com/go/ProLiantNICs

QuickSpecs

HP Ethernet 1Gb 2-port 361T Adapter

Related Options

DA - 14334 North America — Version 8 — October 11, 2013

Page 10

Compliance

802.3, 802.3u, 802.3x, 802.3ab, 802.3ad, 802.1p, 802.1Q, 802.3az, IEEE 1588
PCIe v2.0 standard
RoHS (6 of 6)
FCC (U.S. only) Class B
DOC (Canada) Class B
CE EN 55024, EN55022 Class B
VCCI Class II
UL 1950
CSA 950
EN 60950
CE
ACPI 1.1a
Microsoft WHQL (Windows Hardware Quality Labs)

General Specifications

Communications
Processor

Intel® Ethernet I350 Controller

Data rate

10/100/1000 Mbps, Half- and full-duplex

Data path

Four lane (x4) PCI Express compatible with x4, x8, and x16 PCI Express slots

Interrupt levels

Automatically configured

Cable Connector

Two RJ-45

Bus Connector

PCIe

Distance and
Wiring

Up to 328 feet/100 m with Category 5 (or better) twisted-pair cabling

Card Dimensions

(without
brackets)
(L x W)

5.3 x 2.5 in (13.50cm x 6.4 cm)

Power and Environmental
Specifications

Operating

Temperature

32° to 131° F (0° to 55° C )

Humidity

10% to 95% non-condensing

Non-operating

Temperature

-40° to 185° F (-40° to 85° C)

Humidity

-5% to 95%

Power requirement

4.1W idle without EEE link partner

3.2W idle with EEE link partner

4.2W maximum

Emissions Standards

FCC Class B, VCCI Class B, BSMI Class A, CISPR 22 Class B,
EN 55022 Class B, EN55024-1, ICES-003 Class B, MIC Class B, ACA Class B

Safety Compliant

UL, Canada UL, EN60950

Operating System
Support

Microsoft Windows Server 2008
Microsoft Windows HPC Server 2008
Red Hat Enterprise Linux 5.7, 6.1
SUSE Linux Enterprise Server
Solaris 10
ESX/ESXi 4.1 & ESXi 5.0
Citrix Xenserver 6.0
Microsoft Windows Hyper-V

NOTE:

For more Linux OS support & certification information, please visit our the ProLiant & BladeSystem

QuickSpecs

HP Ethernet 1Gb 2-port 361T Adapter

Technical Specifications

DA - 14334 North America — Version 8 — October 11, 2013

Page 11

Server Linux matrix:

http://h18004.www1.hp.com/products/servers/linux/hplinuxcert.html

NOTE:

For more OS support & certification information, please visit the NIC driver download web pages at

this location:

http://h18004.www1.hp.com/support/files/networking/us/index.html

Environment-friendly
Products and Approach

End-of-life Management
and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go to

http://www.hp.com/go/green

. To recycle your product, please go to:

http://www.hp.com/go/green

or contact your nearest HP sales office.
Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at:

http://www.hp.com/go/green

. These instructions may be
used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.

© Copyright 2013 Hewlett-Packard Development Company, L.P.

The information contained herein is subject to change without notice.

Windows is a US registered trademark of Microsoft Corporation.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.

QuickSpecs

HP Ethernet 1Gb 2-port 361T Adapter

Technical Specifications

DA - 14334 North America — Version 8 — October 11, 2013

Page 12
