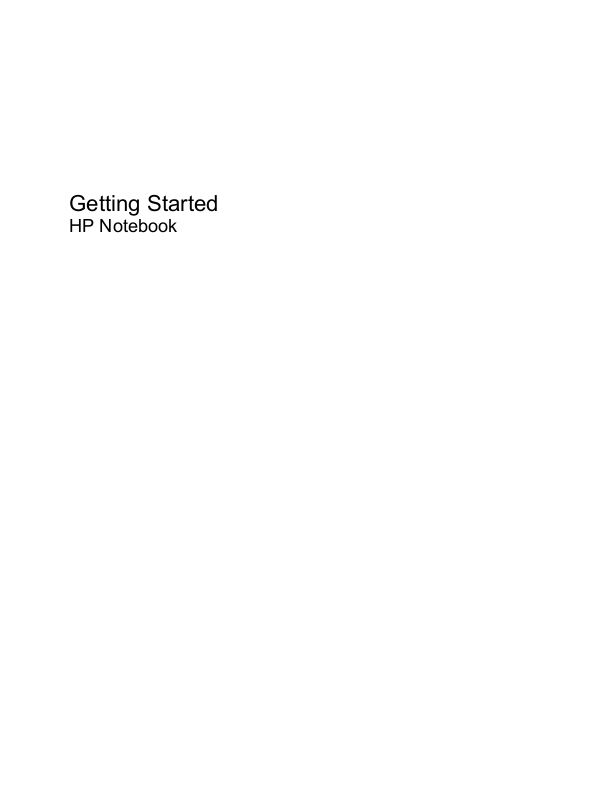

HP 649932-001 User Manual
Getting Started
HP Notebook
© Copyright 2011 Hewlett-Packard
Development Company, L.P.
Bluetooth is a trademark owned by its
proprietor and used by Hewlett-Packard
Company under license. Microsoft and
Windows are U.S. registered trademarks of
Microsoft Corporation. SD Logo is a
trademark of its proprietor.
The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.
First Edition: April 2011
Document Part Number: 649932-001
Product notice
This guide describes features that are
common to most models. Some features
may not be available on your computer.
Software terms
By installing, copying, downloading, or
otherwise using any software product preinstalled on this computer, you agree to be
bound by the terms of the HP End User
License Agreement (EULA). If you do not
accept these license terms, your sole
remedy is to return the entire unused product
(hardware and software) within 14 days for a
refund subject to the refund policy of your
place of purchase.
For any further information or for requesting
a full refund of the computer, please contact
your local point of sale (the seller).
Safety warning notice
WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not
place the computer directly on your lap or obstruct the computer air vents. Use the computer only on a
hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft
surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to come
into contact with the skin or a soft surface, such as pillows or rugs or clothing, during operation. The
computer and the AC adapter comply with the user-accessible surface temperature limits defined by
the International Standard for Safety of Information Technology Equipment (IEC 60950).
iii
iv Safety warning notice
Table of contents
1 Welcome
Finding information ............................................................................................................................... 2
2 Getting to know your computer
Top ....................................................................................................................................................... 4
TouchPad ............................................................................................................................ 4
Lights ................................................................................................................................... 5
Buttons ................................................................................................................................. 6
Keys ..................................................................................................................................... 7
Front ..................................................................................................................................................... 8
Right side ............................................................................................................................................. 9
Left side .............................................................................................................................................. 10
Display ................................................................................................................................................ 11
Bottom ................................................................................................................................................ 12
3 HP QuickWeb
Starting HP QuickWeb ....................................................................................................................... 14
4 Networking
Using an Internet service provider (ISP) ............................................................................................ 16
Connecting to a wireless network ....................................................................................................... 16
Connecting to an existing WLAN ....................................................................................... 17
Setting up a new WLAN network ....................................................................................... 17
Configuring a wireless router ............................................................................ 18
Protecting your WLAN ....................................................................................... 18
5 Keyboard and pointing devices
Using the keyboard ............................................................................................................................ 20
Using the action keys ......................................................................................................... 20
Using the hotkeys .............................................................................................................. 21
Using pointing devices ....................................................................................................................... 22
Setting pointing device preferences ................................................................................... 22
Using the TouchPad .......................................................................................................... 23
v
6 Maintenance
Inserting or removing the battery ........................................................................................................ 28
Replacing or upgrading the hard drive ............................................................................................... 30
Adding or replacing memory modules ................................................................................................ 34
Removing or installing the RJ45 cover ............................................................................................... 38
Updating programs and drivers .......................................................................................................... 39
Routine care ....................................................................................................................................... 39
Turning the TouchPad on and off ...................................................................... 23
Navigating ......................................................................................................... 24
Selecting ........................................................................................................... 25
Using TouchPad gestures ................................................................................. 25
Scrolling ............................................................................................ 26
Pinching/Zooming ............................................................................. 26
Rotating ............................................................................................ 27
Removing the hard drive .................................................................................................... 30
Installing a hard drive ......................................................................................................... 32
Cleaning the display .......................................................................................................... 39
Cleaning the TouchPad and keyboard .............................................................................. 39
7 Backup and recovery
Restore ............................................................................................................................................... 41
Creating restore media ....................................................................................................................... 41
Performing a system restore .............................................................................................................. 42
Restoring using the dedicated recovery partition (select models only) .............................. 42
Restoring using the restore media ..................................................................................... 43
Changing the computer boot order .................................................................................... 44
Backing up and recovering your information ...................................................................................... 44
Using Windows Backup and Restore ................................................................................ 45
Using Windows system restore points ............................................................................... 46
8 Customer support
Contacting customer support ............................................................................................................. 47
Labels ................................................................................................................................................. 48
9 Specifications
Input power ......................................................................................................................................... 49
Operating environment ....................................................................................................................... 50
When to create restore points ........................................................................... 46
Create a system restore point ........................................................................... 46
Restore to a previous date and time ................................................................. 46
Index ................................................................................................................................................................... 51
vi
1Welcome
Finding information
●
After you set up and register the computer, it is important to take the following steps:
Set up HP QuickWeb—Immediately access the Internet, widgets, and communication programs
●
without launching your main operating system. For more information, refer to
on page 13.
Connect to the Internet—Set up your wired or wireless network so that you can connect to the
●
Internet. For more information, refer to
Update your antivirus software—Protect your computer from damage caused by viruses. The
●
software is preinstalled on the computer and includes a limited subscription for free updates. For
more information, refer to the HP Notebook Reference Guide. For instructions on accessing this
guide, refer to
Finding information on page 2.
HP QuickWeb
Networking on page 15.
Get to know your computer—Learn about your computer features. Refer to
●
computer on page 4 and Keyboard and pointing devices on page 19 for additional information.
Create recovery discs or a recovery flash drive—Recover the operating system and software
●
to factory settings in case of system instability or failure. For instructions, refer to
recovery on page 40.
Find installed software—Access a list of the software preinstalled on the computer. Select
●
Start > All Programs. For details about using the software included with the computer, refer to the
software manufacturer's instructions, which may be provided with the software or on the
manufacturer's Web site.
Getting to know your
Backup and
1
Finding information
The computer comes with several resources to help you perform various tasks.
Resources For information about
Quick Setup poster
Getting Started
To access this guide:
Select Start > Help and Support > User Guides.
– or –
Select Start > All Programs > HP > HP
Documentation.
HP Notebook Reference Guide
To access this guide:
Select Start > Help and Support > User Guides.
– or –
Select Start > All Programs > HP > HP
Documentation.
Help and Support
How to set up the computer
●
Help to identify computer components
●
Computer features
●
How to connect to a wireless network
●
How to use the keyboard and pointing devices
●
How to replace or upgrade the hard drive and memory modules
●
How to perform a backup and recovery
●
How to contact customer support
●
Computer specifications
●
Power management features
●
How to maximize battery life
●
How to use the multimedia features of the computer
●
How to protect the computer
●
How to care for the computer
●
How to update the software
●
Operating system information
●
To access Help and Support, select Start > Help and
Support.
NOTE: For country- or region-specific support, go to
http://www.hp.com/support, select your country or
region, and follow the on-screen instructions.
Regulatory, Safety and Environmental Notices
To access this guide:
Select Start > Help and Support > User Guides.
– or –
Select Start > All Programs > HP > HP
Documentation.
Safety & Comfort Guide
To access this guide:
Select Start > Help and Support > User Guides.
– or –
Select Start > All Programs > HP > HP
Documentation.
Software, driver, and BIOS updates
●
Troubleshooting tools
●
How to access technical support
●
Regulatory and safety information
●
Battery disposal information
●
Proper workstation setup, posture, health, and work habits
●
Electrical and mechanical safety information
●
2 Chapter 1 Welcome
Resources For information about
– or –
Go to
http://www.hp.com/ergo.
Worldwide Telephone Numbers booklet
This booklet is provided with your computer.
HP Web site
To access this Web site, go to
support.
Limited Warranty*
To access the warranty:
Select Start > Help and Support > User Guides >
View Warranty Information.
– or –
Select Start > All Programs > HP > HP
Documentation > View Warranty Information.
– or –
Go to
http://www.hp.com/go/orderdocuments.
*You can find the expressly provided HP Limited Warranty applicable to your product in the start menu on your PC and/or in
the CD/DVD provided in the box. For some countries/regions a printed HP Limited Warranty is provided in the box. In countries/
regions where the warranty is not provided in printed format, you may request a printed copy from http://www.hp.com/go/
orderdocuments or write to:
http://www.hp.com/
HP support telephone numbers
Support information
●
Ordering parts and finding additional help
●
Software, driver, and BIOS updates
●
Accessories available for the device
●
Warranty information
North America: Hewlett Packard, MS POD, 11311 Chinden Blvd, Boise, ID 83714, USA
●
Europe, Middle East, Africa: Hewlett Packard, POD, Via G. Di Vittorio, 9, 20063, Cernusco s/Naviglio (MI), Italy
●
Asia Pacific: Hewlett Packard, POD, P.O. Box 200, Alexandra Post Office, Singapore 911507
●
Please include your product name, warranty period (found on your serial number label), name and postal address.
Finding information 3
2 Getting to know your computer
Top
●
Front
●
Right side
●
Left side
●
Display
●
Bottom
●
Top
TouchPad
Component Description
(1) TouchPad light Turns the TouchPad on and off. Quickly double-tap the
TouchPad light to turn the TouchPad on and off.
(2) TouchPad zone Moves the pointer and selects or activates items on the
4 Chapter 2 Getting to know your computer
screen.
Lights
Component Description
(3) Left TouchPad button Functions like the left button on an external mouse.
(4) Right TouchPad button Functions like the right button on an external mouse.
Component Description
(1) TouchPad light
(2) Caps lock light
(3) Mute light
(4) Wireless light
Amber: The TouchPad is off.
●
Off: The TouchPad is on.
●
White: Caps lock is on.
●
Off: Caps lock is off.
●
Amber: Computer sound is off.
●
Off: Computer sound is on.
●
White: An integrated wireless device, such as a wireless
●
local area network (WLAN) device and/or a Bluetooth®
device, is on.
Amber: All wireless devices are off.
●
Top 5
Buttons
Component Description
(1) Power button
When the computer is off, press the button to turn on the
●
computer.
When the computer is on, press the button briefly to
●
initiate Sleep.
When the computer is in the Sleep state, press the
●
button briefly to exit Sleep.
When the computer is in Hibernation, press the button
●
briefly to exit Hibernation.
If the computer has stopped responding and Windows®
shutdown procedures are ineffective, press and hold the
power button for at least 5 seconds to turn off the computer.
To learn more about your power settings, select Start >
Control Panel > System and Security > Power Options, or
refer to the HP Notebook Reference Guide.
6 Chapter 2 Getting to know your computer
Keys
Component Description
(1) esc key Displays system information when pressed in combination
with the fn key.
(2) fn key Executes frequently used system functions when pressed in
combination with a function key, the num lk key, or the esc
key.
(3) Windows logo key Displays the Windows Start menu.
(4) Windows applications key Displays a shortcut menu for items beneath the pointer.
(5) Function keys Execute frequently used system functions when pressed in
combination with a function key, the num lk key, or the esc
key.
Top 7
Front
Component Description
Speakers Produce sound.
8 Chapter 2 Getting to know your computer
Right side
Component Description
(1) Digital Media Slot Supports the following digital card formats:
MultiMediaCard
●
Secure Digital (SD) Card
●
(2) Audio-out (headphone) jack/Audio-in
(microphone) jack
(3) USB ports (2) Connect optional USB devices.
(4) External monitor port Connects an external VGA monitor or projector.
(5) RJ-45 (network) jack (under the cover) Connects a network cable.
Connects optional powered stereo speakers, headphones,
earbuds, a headset, or television audio. Also connects an
optional headset microphone.
WARNING! To reduce the risk of personal injury, adjust the
volume before putting on headphones, earbuds, or a
headset. For additional safety information, refer to the
Regulatory, Safety and Environmental Notices.
NOTE: When a device is connected to the jack, the
computer speakers are disabled.
NOTE: A 4–conductor audio jack plug headphone with
microphone is needed in order to use the microphone
function.
Right side 9
Left side
Component Description
(1) Power connector Connects an AC adapter.
(2) Security cable slot Attaches an optional security cable to the computer.
(3) Vent Enables airflow to cool internal components.
NOTE: The security cable is designed to act as a deterrent,
but it may not prevent the computer from being mishandled
or stolen.
NOTE: The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal for
the internal fan to cycle on and off during routine operation.
(4) Hard drive light
(5) Power light
(6) HDMI port Connects an optional video or audio device, such as a high-
(7) USB port Connects an optional USB device.
Blinking white: The hard drive is being accessed.
●
Amber: HP ProtectSmart Hard Drive Protection has
●
temporarily parked the hard drive.
NOTE: For information on HP ProtectSmart Hard
Drive Protection, refer to the HP Notebook Reference
Guide.
White: The computer is on.
●
Blinking white: The computer is in the Sleep state.
●
Off: The computer is off or in Hibernation.
●
definition television, or any compatible digital or audio
component.
10 Chapter 2 Getting to know your computer
Display
Component Description
(1) WLAN antennas (2)* Send and receive wireless signals to communicate with wireless
local area networks (WLAN).
(2) WWAN antennas (2)* (select models only) Send and receive wireless signals to communicate with wireless
wide-area networks (WWAN).
(3) Webcam light On: The webcam is in use.
(4) Webcam Records video and captures still photographs.
To use the webcam, select Start > All Programs > Cyberlink
YouCam > Cyberlink YouCam
(5) Internal microphone Records sound.
*The antennas are not visible from the outside of the computer. For optimal transmission, keep the areas immediately around
the antennas free from obstructions. To see wireless regulatory notices, refer to the section of the Regulatory, Safety and
Environmental Notices that applies to your country or region. These notices are located in Help and Support.
Display 11
Bottom
Component Description
(1) Battery Removable battery.
(2) Battery release latch Releases the battery from the battery bay.
(3) SIM slot (select models only) Supports a wireless subscriber identity module (SIM). The
(4) Service cover Remove to access the hard drive and memory components.
SIM slot is located inside the battery bay.
12 Chapter 2 Getting to know your computer
Loading...
