HP 571956-B21, 605865-B21 Specification

Page 1

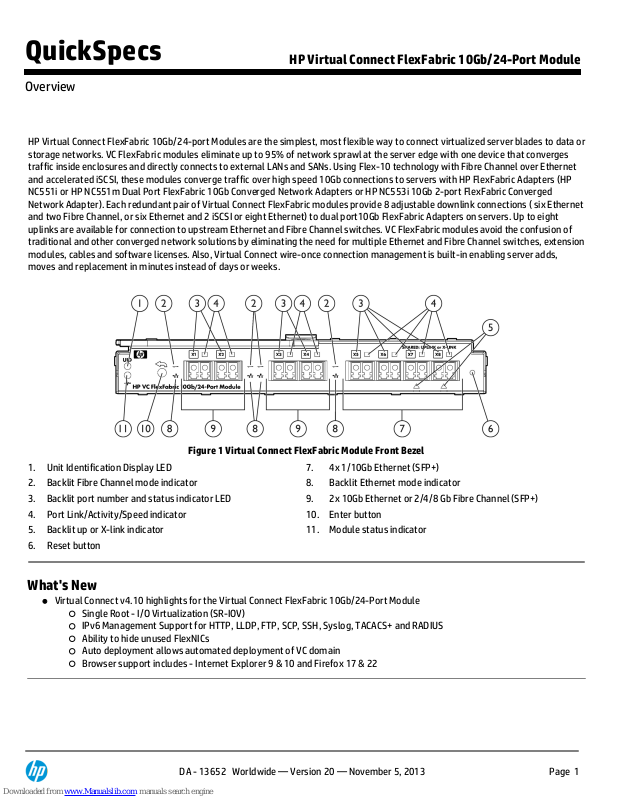

HP Virtual Connect FlexFabric 10Gb/24-port Modules are the simplest, most flexible way to connect virtualized server blades to data or storage networks. VC FlexFabric modules eliminate up to 95% of network sprawl at the server edge with one device that converges traffic inside enclosures and directly connects to external LANs and SANs. Using Flex-10 technology with Fibre Channel over Ethernet and accelerated iSCSI, these modules converge traffic over high speed 10Gb connections to servers with HP FlexFabric Adapters (HP NC551i or HP NC551m Dual Port FlexFabric 10Gb Converged Network Adapters or HP NC553i 10Gb 2-port FlexFabric Converged Network Adapter). Each redundant pair of Virtual Connect FlexFabric modules provide 8 adjustable downlink connections ( six Ethernet and two Fibre Channel, or six Ethernet and 2 iSCSI or eight Ethernet) to dual port10Gb FlexFabric Adapters on servers. Up to eight uplinks are available for connection to upstream Ethernet and Fibre Channel switches. VC FlexFabric modules avoid the confusion of traditional and other converged network solutions by eliminating the need for multiple Ethernet and Fibre Channel switches, extension modules, cables and software licenses. Also, Virtual Connect wire-once connection management is built-in enabling server adds, moves and replacement in minutes instead of days or weeks.

Figure 1 Virtual Connect FlexFabric Module Front Bezel

Unit Identification Display LED

4x 1/10Gb Ethernet (SFP+)

Backlit Fibre Channel mode indicator

Backlit Ethernet mode indicator

Backlit port number and status indicator LED

2x 10Gb Ethernet or 2/4/8 Gb Fibre Channel (SFP+)

Port Link/Activity/Speed indicator

10.

Enter button

Backlit up or X-link indicator

11.

Module status indicator

Reset button

What's New

Virtual Connect v4.10 highlights for the Virtual Connect FlexFabric 10Gb/24-Port Module

Single Root - I/O Virtualization (SR-IOV) IPv6 Management Support for HTTP, LLDP, FTP, SCP, SSH, Syslog, TACACS+ and RADIUS Ability to hide unused FlexNICs Auto deployment allows automated deployment of VC domain Browser support includes - Internet Explorer 9 & 10 and Firefox 17 & 22

QuickSpecs

HP Virtual Connect FlexFabric 10Gb/24-Port Module

Overview

DA - 13652 Worldwide — Version 20 — November 5, 2013

Page 1

Page 2

Models

HP Virtual Connect FlexFabric 10Gb/24-port Module for c-Class BladeSystem

571956-B21

HP Virtual Connect FlexFabric 10/24 Enterprise Edition BLc7000 Option

605865-B21

NOTE:

Includes 2 x HP Virtual Connect FlexFabric 10Gb/24-port modules plus 1 x VCEM BL-c7000 enclosure license. Customer will receive a printed license entitlement certificate and 2 Virtual Connect modules as a single deliverable. The license entitlement certificate must be redeemed online or via fax to obtain the VCEM license activation key.

QuickSpecs

HP Virtual Connect FlexFabric 10Gb/24-Port Module

Overview

DA - 13652 Worldwide — Version 20 — November 5, 2013

Page 2

Page 3

Compatibility

HP BladeSystem c-Class Virtual Connect Firmware v4.10 and the HP Virtual Connect FlexFabric 10Gb/24port Module support the following hardware.

HP Servers

All HP ProLiant and Integrity server blades with their supported Ethernet adapters and the following server blades with supported FlexFabric (integrated or mezzanine) and Ethernet Adapters

HP ProLiant Server Blades

HP ProLiant BL2x220c G6 Server Series HP ProLiant BL2x220c G7 Server Series HP ProLiant BL280c G6 Server Series HP ProLiant BL420c Gen8 Server Blade HP ProLiant BL460c G6 Server Series HP ProLiant BL460c G7 Server Series HP ProLiant BL460c Gen8 Server Blade HP Proliant BL460c Gen8 Server Blade with Intel E5-2600 v2 series Processors HP ProLiant BL465c G6 Server Series HP ProLiant BL465c G7 Server Series HP ProLiant BL465c Gen8 Server Blade HP ProLiant BL490c G6 Server Series HP ProLiant BL495c G6 Server Series HP ProLiant BL620c G7 Server Series HP ProLiant BL660c Gen8 Server Blade HP ProLiant BL680c G7 Server Series HP ProLiant BL685c G6 Server Series HP ProLiant BL685c G7 Server Series

Integrity Server Blades

HP Integrity BL860c Server Blade HP Integrity BL860c i2 Server Blade HP Integrity BL860c i4 Server Blade HP Integrity BL870c Server Blade HP Integrity BL870c i2 Server Blade HP Integrity BL870c i4 Server Blade HP Integrity BL890c i2 Server Blade HP Integrity BL890c i4 Server Blade

NOTE:

Some servers listed above may be discontinued.

NOTE:

HP Integrity BL8x0c i2 servers require VC FW 3.0 or higher. HP Integrity BL8x0c i4 servers require VC

FW 3.7 or higher.

HP Network Adapters

FlexFabric adapter:

HP NC551i Dual Port FlexFabric 10Gb Converged Network Adapter HP NC551m Dual Port FlexFabric 10Gb Converged Network Adapter HP NC553i 10Gb 2-port FlexFabric Converged Network Adapter HP NC553m 10Gb 2-port FlexFabric Converged Network Adapter HP FlexFabric 10Gb 2-port 554M Adapter HP FlexFabric 10Gb 2-port 554FLB Adapter HP FlexFabric 10Gb 2-port 534FLB Adapter HP FlexFabric 10Gb 2-port 534M Adapter

QuickSpecs

HP Virtual Connect FlexFabric 10Gb/24-Port Module

Supported Products

DA - 13652 Worldwide — Version 20 — November 5, 2013

Page 3

Page 4

Ethernet and Flex-10 Ethernet adapters:

HP NC325m PCI Express Quad Port 1Gb server adapter HP NC326i Integrated Dual Port PCI Express Gigabit Server Adapter HP NC326m PCI Express Dual Port Multifunction Gigabit Server Adapter HP NC360m Dual Port 1GbE BL-c Adapter HP NC364m Quad Port 1GbE BL-c Adapter HP NC370i Dual Port Multifunction Gigabit Network Adapter HP NC373i Dual Port Multifunction Gigabit Network Adapter HP NC373m Dual Port Multifunction Gigabit Network Adapter HP NC382i Integrated Dual Port PCI Express Gigabit Server Adapter HP NC382m Integrated Dual Port PCI Express Gigabit Server Adapter HP NC522m Dual Port Flex-10 10GbE Multifunction BL-c Adapter HP NC532i Dual Port Flex-10 10GbE Multifunction BL-c Adapter HP NC532m Dual Port Flex-10 10GbE Multifunction BL-c Adapter HP NC542m Dual Port Flex-10 10GbE BL-c Adapter HP NC550m 10Gb 2-port PCIe x8 Flex-10 Ethernet Adapter HP NC522m Dual Port Flex-10 10GbE Multifunction BL-c Adapter HP Flex-10 10Gb 2-port 530FLB Adapter HP Flex-10 10Gb 2-port 530M Adapter HP Flex-10 10Gb 2-port 552M Adapter HP Ethernet 1Gb 2-port 361FLB Adapter HP Ethernet 1Gb 4-port 366M Adapter

NOTE:

Consult individual server blade QuickSpecs for specific adapter support.

NOTE:

Some options listed above may be discontinued.

NOTE:

For IPv6 management, Onboard Administrator version 4.00 or higher is required.

HP BladeSystem c-Class Enclosures

HP BladeSystem c-Class c7000 Enclosure with Onboard Administrator

NOTE:

VC FlexFabric modules are not supported in BladeSystem c3000 enclosures.

Virtual Connect Firmware

Virtual Connect Firmware v4.10 is recommended with the following release sets for HP ProLiant and HP Integrity environments

HP ProLiant server blades

HP Service Pack for ProLiant: Version SPP 2013.09.0 (B) or greater

The HP Service Pack for ProLiant (SPP) with HP Smart Update Manager (HP SUM) as the deployment engine provides a comprehensive approach to firmware and system software maintenance. The SPP is a comprehensive collection of firmware and system software components, all tested together as a single solution stack that include drivers, agents, utilities, firmware packages for HP ProLiant servers, controllers, storage, blades and enclosures, and other options. It is available on all supported HP ProLiant Gen 8 servers (HP ProLiant SL/ML/DL/BL 100, 200, 300, 500, 700, 900 servers, and HP CloudSystem Matrix) in addition to earlier generation HP ProLiant servers. The SPP is released with most major HP ProLiant server releases

To access the latest HP Service Pack for ProLiant click here:

www.hp.com/go/server/service_packs/updates

HP Integrity i4 Server Blades

QuickSpecs

HP Virtual Connect FlexFabric 10Gb/24-Port Module

Supported Products

DA - 13652 Worldwide — Version 20 — November 5, 2013

Page 4

Page 5

Recommended HP Smart Update Firmware

: HP Smart Update Firmware-HP Integrity BL860c/870c/890c i2 System Firmware Bundle for Linux/Windows, 44.01

To access latest HP Smart Update Firmware, click here:

http://h18004.www1.hp.com/products/blades/integrity-release-sets.html

HP Integrity i2 Server Blades

HP Smart Update Firmware-HP Integrity BL860c/870c/890c i2 System Firmware Bundle for Linux/Windows, 26.36

For HP Integrity BL860c and BL870c use System Firmware 04.31

Supported Configurations

HP BladeSystem c7000 Enclosure - Rear View

Upper Fan System

Interconnect Bays 7 / 8

Interconnect Bays 1 /2

On Board Administrator

Interconnect Bays 3 / 4

Lower Fan System

Interconnect Bays 5 / 6

Rear Redundant Power Complex

Mezzanines

c7000 Port Mapping

Port mapping differs slightly between full height and half height server blades due to the support for additional Mezzanine cards on the full height version. HP has simplified the processes of mapping Mezzanine ports to switch ports by providing intelligent management tools via the Onboard Administrator and HP Insight Manager Software. The Onboard Administrator Guide and Enclosure Setup and Installation Guide provide detailed information on port mapping.

QuickSpecs

HP Virtual Connect FlexFabric 10Gb/24-Port Module

Supported Products

DA - 13652 Worldwide — Version 20 — November 5, 2013

Page 5

Page 6

Half Height Server Blade

Full Height Server Blade

HP BladeSystem c7000 Enclosure

NOTE:

The following tables show a number of supported configurations for an HP BladeSystem c7000 Enclosure with Virtual Connect

FlexFabric Modules. Not all possible combinations are shown here.

NOTE:

VC FlexFabric modules are not supported in HP BladeSystem c3000 enclosures.

Interconnect Module Configurations

Server Network

Adapters Used

[Bay 1]

VC FlexFabric

VC FlexFabric or Empty

[Bay 2]

Integrated FlexFabric Adapter

[Bay 3]

Empty

[Bay 4]

[Bay 5]

Empty

[Bay 6]

[Bay 7]

Empty

[Bay 8]

[Bay 1]

VC FlexFabric

VC FlexFabric or Empty

[Bay 2]

FLEXFABRIC ADAPTER

Integrated FlexFabric Adapter

[Bay 3]

VC FlexFabric

VC FlexFabric or Empty

[Bay 4]

FlexFabric Adapter Mezzanine

[Bay 5]

Empty

[Bay 6]

[Bay 7]

Empty

[Bay 8]

[Bay 1]

VC FlexFabric

VC FlexFabric or Empty

[Bay 2]

Integrated FlexFabric Adapter

[Bay 3]

VC FlexFabric

VC FlexFabric or Empty

[Bay 4]

FlexFabric Adapter Mezzanine

[Bay 5]

VC FlexFabric

VC FlexFabric or Empty

[Bay 6]

FlexFabric Adapter Mezzanine

[Bay 7]

Empty

[Bay 8]

QuickSpecs

HP Virtual Connect FlexFabric 10Gb/24-Port Module

Supported Products

DA - 13652 Worldwide — Version 20 — November 5, 2013

Page 6

Page 7

[Bay 1]

VC FlexFabric

VC FlexFabric or Empty

[Bay 2]

Integrated FlexFabric Adapter

[Bay 3]

VC FlexFabric

VC FlexFabric or Empty

[Bay 4]

FlexFabric Adapter Mezzanine

[Bay 5]

VC FlexFabric

VC FlexFabric or Empty

[Bay 6]

FlexFabric Adapter Mezzanine

[Bay 7]

VC FlexFabric

VC FlexFabric or Empty

[Bay 8]

FlexFabric Adapter Mezzanine

[Bay 1]

VC FlexFabric

VC FlexFabric or Empty

[Bay 2]

Integrated FlexFabric Adapter

[Bay 3]

VC Flex-10 VC Flex-10/10D VC FC

VC Flex-10 or Empty VC Flex-10/10D or Empty VC FC or Empty

[Bay 4]

Flex-10/Enet or

FC HBA

Mezzanine

[Bay 5]

Empty

[Bay 6]

[Bay 7]

Empty

[Bay 8]

[Bay 1]

VC FlexFabric

VC FlexFabric or Empty

[Bay 2]

Integrated FlexFabric Adapter

[Bay 3]

VC Flex-10 VC Flex-10/10D VC FC

VC Flex-10 or Empty VC Flex-10/10D or Empty VC FC or Empty

[Bay 4]

Flex-10/Enet or

FC HBA

Mezzanine

[Bay 5]

VC Flex-10 VC Flex-10/10D VC FC

VC Flex-10 or Empty VC Flex-10/10D or Empty VC FC or Empty

[Bay 6]

Flex-10/Enet or

FC HBA

Mezzanine

[Bay 7]

Empty

[Bay 8]

[Bay 1]

VC FlexFabric

VC FlexFabric or Empty

[Bay 2]

Integrated FlexFabric Adapter

[Bay 3]

VC Flex-10 VC Flex-10/10D VC FC

VC Flex-10 or Empty VC Flex-10/10D or Empty VC FC or Empty

[Bay 4]

Flex-10/Enet or

FC HBA Mezzanine

[Bay 5]

VC Flex-10 VC Flex-10/10D VC FC

VC Flex-10 or Empty VC Flex-10/10D or Empty VC FC or Empty

[Bay 6]

Flex-10/Enet or

FC HBA Mezzanine

[Bay 7]

VC Flex-10 VC Flex-10/10D VC FC

VC Flex-10 or Empty VC Flex-10/10D or Empty VC FC3 or Empty

[Bay 8]

Flex-10/Enet or

FC HBA Mezzanine

[Bay 1]

Empty

[Bay 2]

[Bay 3]

VC FlexFabric

VC FlexFabric or Empty

[Bay 4]

FlexFabric Adapter Mezzanine

[Bay 5]

Empty

[Bay 6]

[Bay 7]

Empty

[Bay 8]

[Bay 1]

VC Flex-10

VC Flex-10 or Empty

[Bay 2]

Flex-10/Enet LOM

[Bay 3]

VC FlexFabric

VC FlexFabric or Empty

[Bay 4]

FlexFabric Adapter Mezzanine

[Bay 5]

Empty

[Bay 6]

[Bay 7]

Empty

[Bay 8]

QuickSpecs

HP Virtual Connect FlexFabric 10Gb/24-Port Module

Supported Products

DA - 13652 Worldwide — Version 20 — November 5, 2013

Page 7

Page 8

[Bay 1]

VC Flex-10

VC Flex-10 or Empty

[Bay 2]

Flex-10/Enet LOM

[Bay 3]

VC FlexFabric

VC FlexFabric or Empty

[Bay 4]

FlexFabric Adapter Mezzanine

[Bay 5]

VC Flex-10 VC Flex-10/10D VC FC VC FlexFabric

VC Flex-10 or Empty VC Flex-10/10D or Empty VC FC or Empty VC FlexFabric or Empty

[Bay 6]

Flex-10/Enet, FC HBA or FlexFabric

Adapter Mezzanine

[Bay 7]

Empty

[Bay 8]

[Bay 1]

VC Flex-10 VC FlexFabric

->->VC Flex-10 or Empty VC FlexFabric2 or Empty

[Bay 2]

Flex-10/Enet LOM

[Bay 3]

VC FlexFabric

VC FlexFabric or Empty

[Bay 4]

FlexFabric Adapter Mezzanine

[Bay 5]

VC Flex-10 VC Flex-10/10D VC FC VC FlexFabric

VC Flex-10 or Empty VC Flex-10/10D or Empty VC FC or Empty VC FlexFabric or Empty

[Bay 6]

Flex-10/Enet, FC HBA or FlexFabric

Adapter Mezzanine

[Bay 7]

VC Flex-10 VC Flex-10/10D VC FC

VC FlexFabric

VC Flex-10 or Empty VC Flex-10/10D or Empty VC FC3 or Empty VC FlexFabric or Empty

[Bay 8]

Flex-10/Enet, FC HBA or FlexFabric

Adapter Mezzanine

Requires HP ProLiant BL G7 server blades with HP NC551i or HP NC553i Dual Port FlexFabric 10Gb Converged Network Adapter.

Supports Ethernet only when connected to server blades without embedded NC551i Dual Port FlexFabric 10Gb Converged Network

Adapter.

Requires full-height servers.

Required Cabling

NOTE:

Twinax direct attach copper (0.5 to 7m). 7m is not supported on ports X1-X4

NOTE:

Direct Attach Copper cables listed in the options section below is fully supported by HP. HP recommends use of these cables. If not identified as a "supported" DAC, VC will allow the connection to proceed if the discovery process indicates the cable meets the following criteria: connector=copper pigtail; transceiver code=active cable or passive cable; speed >=10Gb; length between 1m and 7m, inclusive. The connection is logged as an unsupported cable. Prior to requesting support from HP, a DAC from the supported list must be used to validate the issue.

Maximum Distances

Multimode OM1

62.5/125 micron

Multimode OM2 50/125 micron

Multimode OM3 50/125 micron

Singlemode 9 micron

2 - 26m/33m

2 - 82m

2 - 300m

2 -10km

LRM

0.5 - 220m 0.5 - 220m 0.5 - 220m

QuickSpecs

HP Virtual Connect FlexFabric 10Gb/24-Port Module

Supported Products

DA - 13652 Worldwide — Version 20 — November 5, 2013

Page 8

Page 9

Table below lists distance for various cables types for Fibre Channel interface

Maximum Cable Distance (Meters) for Multi-mode Fiber Shortwave

Multimode Fiber Type

Fiber Channel Data Rate (Gbps)

OM1 OM2 OM3 OM4

8Gbps

21m 50m

150m 190m

4Gbps

70m

150m 380m 400m

2Gbps

150m 300m 500m 500m

Stacking Configuration

Stacking links are used to interconnect Virtual Connect Ethernet/FlexFabric Modules when using more than one enclosure or when using more than two Virtual Connect Ethernet/FlexFabric Modules in a single enclosure. All Virtual Connect Modules within the VC Domain must be interconnected. The following provides recommended configurations.

Interconnecting the modules allows all Ethernet NICs or CNAs on all server blades in the Virtual Connect domain to have access to any Virtual Connect Ethernet uplink port. By using these module-to-module links, a single pair of uplinks can be used as the data center Ethernet network connections for the entire Virtual Connect domain, and allows any server blade to be connected to any Ethernet network.

For additional stacking configuration information go to: HP Virtual Connect for c-Class BladeSystem Setup and Installation Guide (

http://bizsupport1.austin.hp.com/bc/docs/support/SupportManual/c01732252/c01732252.pdf

NOTE:

Two (2) internal 10Gb links are provided between Virtual Connect modules in horizontally adjacent bays. Also, VC FlexFabric and VC Flex-10 configuration requires a HP ProCurve XFP to SFP+ 1m Direct Attach Copper Cable to connect an HP Virtual Connect FlexFabric Module and HP Virtual Connect Flex-10 Ethernet Module.

QuickSpecs

HP Virtual Connect FlexFabric 10Gb/24-Port Module

Supported Products

DA - 13652 Worldwide — Version 20 — November 5, 2013

Page 9

Page 10

Product Features

Performance

16 x 10Gb Ethernet downlinks to server blade NICs and FlexFabric Adapters Each 10Gb downlink supports up to 3 FlexNICs and 1 FlexHBA or 4 FlexNICs Each FlexHBA can be configured to transport either Fiber Channel over Ethernet/CEE or Accelerated iSCSI protocol. Each FlexNIC and FlexHBA is recognized by the server as a PCI-e physical function device with adjustable speeds from 100Mb to 10Gb in 100Mb increments when connected to a HP NC553i 10Gb 2-port FlexFabric Converged Network Adapter or any Flex-10 NIC and from 1Gb to 10Gb in 100Mb increments when connected to a NC551i Dual Port FlexFabric 10Gb Converged Network Adapter or NC551m Dual Port FlexFabric 10Gb Converged Network Adapter 4 SFP+ external uplink ports configurable as either 10Gb Ethernet or 2/4/8Gb auto-negotiating Fibre Channel connections to external LAN or SAN switches 4 SFP+ external uplink ports configurable as 1/10Gb auto-negotiating Ethernet connected to external LAN switches 8 x 10Gb SR, LR fiber and copper SFP+ uplink ports (4 ports also support 10Gb LRM fiber SFP+) Extended list of direct attach copper cable connections supported 2 x 10Gb shared internal cross connects for redundancy and stacking HBA aggregation on FC configured uplink ports using ANSI T11 standards-based N_Port ID Virtualization (NPIV) technology Allows up to 255 virtual machines running on the same physical server to access separate storage resources Low latency (1.5 µs Ethernet ports and 2.0 µs Enet/Fibre Channel ports) throughput provides switch-like performance. Line Rate, full-duplex 480 Gbps bridging fabric MTU up to 9216 Bytes - Jumbo Frames Supports up to 32,000 L2 MAC entries VLAN Tagging, Pass-Thru and Link Aggregation supported on all uplinks In tunneled VLAN mode, up to 4,096 networks are supported per network uplink and server downlink. In mapped VLAN mode, up to 1,000 networks are supported on network uplinks per Share Uplink Set, domain or module and on server downlinks up to 162 networks are supported per 10Gb physical port (VC v3.30 or later). Stack multiple Virtual Connect FlexFabric modules with other VC FlexFabric, VC Flex-10 or VC Ethernet Modules across up to 4 BladeSystem enclosures allowing any server Ethernet port to connect to any Ethernet uplink

Management

Integrated Virtual Connect Manager included with every module, providing out-of-the-box, secure HTTP and scriptable CLI interfaces for individual Virtual Connect domain configuration and management. Pre-configure server I/O configurations prior to server installation for easy deployment Move, add, or change server network connections on the fly without impacting LAN and SAN administrator Monitoring and management via industry standard SNMP v.1 and v.2 Supported by Virtual Connect Enterprise Manager (VCEM) v6.2 and higher for centralized connection and workload management for hundreds of Virtual Connect domains. Learn more at:

www.hp.com/go/vcem

CLI commands provide access to essential system status, resource utilization, MAC forwarding tables, interfaces, and throughput to assist datacenter network troubleshooting

QuickSpecs

HP Virtual Connect FlexFabric 10Gb/24-Port Module

Standard Features

DA - 13652 Worldwide — Version 20 — November 5, 2013

Page 10

Page 11

Displays Fibre Channel and Ethernet port statistics via the VCM CLI, GUI and SNMP interfaces Port Mirroring on any uplink provides network troubleshooting support with Network Analyzers IGMP Snooping optimizes network traffic and reduces bandwidth for multicast applications such as streaming applications LDAP, RADIUS, TACACS+ compatible role based authentication, authorization and accounting (RADIUS and TACACS+ require v3.30 or greater. Accounting supported in LDAP and TACACS+) Recognizes and directs Server-Side VLAN tags Network access groups prevent enabling specific network combinations in the same server profile Provisioned storage resource is associated directly to a specific virtual machine - even if the virtual server is re-allocated within the BladeSystem Server-side NPIV removes storage management constraint of a single physical HBA on a server blade Does not add to SAN switch domains or require traditional SAN management Centralized configuration of boot from iSCSI or Fibre Channel network storage via Virtual Connect Manager GUI and CLI Remotely update Virtual Connect firmware on multiple modules using Virtual Connect Support Utility 1.9.0 or greater CLI auto-filling with TAB key GUI and CLI session timeout for security QoS configurable based on DOT1P and DSCP Configurable filtering of multicast traffic

Options

Virtual Connect Enterprise Manager (VCEM), provides a central console for multiple VC domains including up to 250 domains with 1,000 HP BladeSystem c-Class enclosures Optional HP 10Gb SFP+ SR, LR, and LRM modules and 10Gb SFP+ Copper cables in 0.5m, 1m, 3m, 5m, and 7m lengths Optional HP 8 Gb SFP+ and 4 Gb SFP optical transceivers Supports all Ethernet-NICs, Flex-10 NICs and FlexFabric adapters for BladeSystem c-Class server blades (Supported functionality defined by each adapter) Supports use with other VC modules within the same enclosure (VC Flex-10/10D and Flex-10 Ethernet Module, VC 4 and 8 Gb Fibre Channel Modules).

QuickSpecs

HP Virtual Connect FlexFabric 10Gb/24-Port Module

Standard Features

DA - 13652 Worldwide — Version 20 — November 5, 2013

Page 11

Page 12

Service and Support

HP Technology Services for Industry Standard Servers and BladeSystem

Capitalizing on HP ProLiant server and HP BladeSystem capabilities requires a service partner who understands your increasingly complex business technology environment. That's why it makes sense to team up with the people who know HP infrastructure hardware and software best - the experienced professionals at HP Services.

Protect your business beyond warranty with HP Care Pack Services

HP Care Pack services offer complete care and support expertise with committed response choices designed to meet your IT and business needs.

HP Foundation Care services offer scalable reactive support-packages for HP servers and software. You can choose the type and level of service that is most suitable for your IT and business needs. HP Proactive Care delivers high levels of system availability through proactive service management and advanced technical response. HP Datacenter Care provides highly flexible environmental support to address unique customer business needs.

Choose a recommended service appropriate to your product or contact your HP sales representative or authorized HP ServiceOne partner for additional HP Care Pack services information.

Recommended HP Care Pack Services for your HP product

Optimized Care

3-Year HP 6 hour Call to Repair Response, Proactive Care

Combined reactive and proactive support for hardware and software helping optimize your systems and delivering high levels of availability through proactive service management and advanced technical response. Hardware problem resolution to return the hardware in operating condition within 6 hours of the initial service request. A Technical Account Manager, as your single point of contact, will own your call or issue end to end until resolved.

http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA3-8855EEE.pdf

HP Installation and Startup Service for HP BladeSystem c-Class Infrastructure for c7000 enclosure

Provides for hardware installation (c-Class ProLiant and Integrity server blades, storage blades, Ethernet Interconnects and Virtual Connect) and software installation and startup of a BladeSystem c7000 Infrastructure in a single enclosure including deployment of OS (two servers), HP Insight Control and Server Deployment (formerly RDP).

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA0-5964ENW.pdf

HP Installation and Startup Service for HP BladeSystem c-Class Enhanced Network

HP Provides for the configuration and testing of BladeSystem Ethernet interconnect switches and Virtual Connect to facilitate proper implementation of network protocols and access to advanced features.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4aa0-5969ENW.pdf

Standard Care

3-Year HP 24x7 4 hour response, Proactive Care Service

This service gives you combined reactive and proactive support including rapid access to our Advanced Solution Center to manage and prevent problems and a Technical Support Specialist with a broad level of technical knowledge that will engage with additional technical expertise as needed from HP's vast global resources.

http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA3-8855EEE.pdf

HP Installation and Startup Service for HP BladeSystem c-Class Infrastructure for c7000 enclosure

QuickSpecs

HP Virtual Connect FlexFabric 10Gb/24-Port Module

Service and Support, HP Care Pack and Warranty Information

DA - 13652 Worldwide — Version 20 — November 5, 2013

Page 12

Page 13

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA0-5964ENW.pdf

HP Installation and Startup Service for HP BladeSystem c-Class Enhanced Network

http://h20195.www2.hp.com/V2/GetPDF.aspx/4aa0-5969ENW.pdf

Related Services

HP Proactive Care Personalized Support - Environmental Option

The Personalized Support option provides an assigned Account Support Manager who can bring best practices from across the industry plus extra technical skills to your IT team. This option is only available as an add-on to HP Proactive Care Support.

HP Proactive Select Service

Provides a flexible way to purchase HP best-in-class consultancy and technical services. You can buy Proactive Select Service Credits when you purchase your hardware and then use the credits over the next 12 months. http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENN.pdf Additional HP Care Pack services can be found at:

http://www.hp.com/go/cpc

Insight Online/Insight Remote Support

HP Insight Remote Support provides 24 X 7 remote monitoring, proactive notifications, and problem resolution. This comes at no additional cost with your HP solution. Learn more about Insight Remote Support http://www.hp.com/go/insightremotesupport and Insight Online

http://www.hp.com/go/insightonline

NOTE:

Insight Remote Support is a prerequisite for Proactive Care. All blades within a single HP

BladeSystem enclosure must be at the same service level.

HP Support Center

Personalized online support portal with access to information, tools and experts to support HP business products. Submit support cases online, chat with HP experts, access support resources or collaborate with peers. Learn more

http://www.hp.com/go/hpsc

HP's Support Center Mobile App allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalized IT support anywhere, anytime. HP Insight Remote Support and HP Support Center are available at no additional cost with a HP warranty, HP Care Pack or HP contractual support agreement.

NOTE:

HP Support Center Mobile App is subject to local availability.

Parts and materials

HP will provide HP-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by HP due to malfunction.

Warranty

Server Blade Interconnect Limited Warranty includes 1 year Parts, 1 year Labor, 1-year on-site support. Additional information regarding worldwide limited warranty and technical support is available at:

http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

For more information

To learn more on HP ProLiant servers and HP BladeSystem servers, please contact your HP sales representative or HP Authorized Channel Partner. Or visit:

www.hp.com/services/bladesystem

QuickSpecs

HP Virtual Connect FlexFabric 10Gb/24-Port Module

Service and Support, HP Care Pack and Warranty Information

DA - 13652 Worldwide — Version 20 — November 5, 2013

Page 13

Page 14

QuickSpecs

HP Virtual Connect FlexFabric 10Gb/24-Port Module

Service and Support, HP Care Pack and Warranty Information

DA - 13652 Worldwide — Version 20 — November 5, 2013

Page 14

Page 15

Cabling and Transceiver Options

Copper Cables

HP BladeSystem c-Class Small Form-Factor Pluggable .5m 10GbE Copper Cable

487649-B21

HP BladeSystem c-Class Small Form-Factor Pluggable 1m 10GbE Copper Cable

487652-B21

HP BladeSystem c-Class Small Form-Factor Pluggable 3m 10GbE Copper Cable

487655-B21

HP BladeSystem c-Class Small Form-Factor Pluggable 5m 10GbE Copper Cable

537963-B21

HP BladeSystem c-Class Small Form-Factor Pluggable 7m 10GbE Copper Cable

487658-B21

HP C-series SFP+ to SFP+ Active Copper 7.0m Direct Attach Cable

QK701A

HP C-series SFP+ to SFP+ Active Copper 10.0m Direct Attach Cable

QK702A

HP X242 10G SFP+ to SFP+ 10m Direct Attach Copper Cable

J9286B

HP X242 10G SFP+ to SFP+ 15m Direct Attach Copper Cable

J9287B

HP X242 10G SFP+ to SFP+ 1m Direct Attach Copper Cable

J9281B

HP X242 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

J9283B

HP X242 10G SFP+ to SFP+ 7m Direct Attach Copper Cable

J9285B

HP X240 10G SFP+ to SFP+ 0.65m Direct Attach Copper Cable

JD095B

HP X240 10G SFP+ to SFP+ 1.2m Direct Attach Copper Cable

JD096B

HP X240 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

JD097B

HP X244 10G XFP to SFP+ 1m Direct Attach Copper Cable

J9300A

HP 10G X244 XFP to SFP+ 3m Direct Attach Copper Cable

J9301A

HP 10G X244 XFP to SFP+ 5m Direct Attach Copper Cable

J9302A

HP C-Series SFP+ to SFP+ Copper 3.0m Direct Attach Cable

AP784A

HP C-Series SFP+ to SFP+ Copper 5.0m Direct Attach Cable

AP785A

HP B-series SFP+ to SFP+ Active Copper 1.0m Direct Attach Cable

NOTE:

Equivalent to Brocade 10Gbps Direct Attached SFP+Copper Cable - 1m (PN XBR-

TWX-0101).

AP818A

HP B-series SFP+ to SFP+ Active Copper 3.0m Direct Attach Cable

NOTE:

Equivalent to Brocade 10Gbps Direct Attached SFP+Copper Cable -3m (PN XBR-

TWX-0301).

AP819A

HP B-series SFP+ to SFP+ Active Copper 5.0m Direct Attach Cable

NOTE:

Equivalent to Brocade 10Gbps Direct Attached SFP+Copper Cable-5m (PN XBR-

TWX-0501).

AP820A

Ethernet Optical Transceivers

HP BladeSystem c-Class 10Gb Short Range Small Form-Factor Pluggable Option

455883-B21

HP BladeSystem c-Class 10Gb Long Range Small Form-Factor Pluggable Option

NOTE:

Requires single-mode fiber.

455886-B21

HP BladeSystem c-Class 10Gb Long Range Mode Small Form-Factor Pluggable Option

455889-B21

HP BLc Virtual Connect 1Gb SX Small Form Factor Pluggable Option Kit

453151-B21

HP BLc Virtual Connect 1Gb RJ-45 Small Form Factor Pluggable Option Kit

453154-B21

Fibre Channel Optical Transceivers

HP 8Gb Shortwave B-series Fibre Channel 1 Pack SFP+ Transceiver

AJ716B

HP 8Gb Long Wave B-series 10km Fibre Channel 1 Pack SFP+ Transceiver

AJ717A

HP 8Gb Short Wave Fibre Channel SFP+ 1 Pack

AJ718A

QuickSpecs

HP Virtual Connect FlexFabric 10Gb/24-Port Module

Related Options

DA - 13652 Worldwide — Version 20 — November 5, 2013

Page 15

Page 16

HP 4Gb Short Wave B-series Fibre Channel 1 Pack SFP Transceiver

AJ715A

HP 4Gb Long Wave B-series 30km Fibre Channel SFP Transceiver 1 Pack

AN211A

HP LC to LC Multi-mode OM3 2-Fiber 0.5m 1-Pack Fiber Optic Cable

AJ833A

HP LC to LC Multi-mode OM3 2-Fiber 1.0m 1-Pack Fiber Optic Cable

AJ834A

HP LC to LC Multi-mode OM3 2-Fiber 2.0m 1-Pack Fiber Optic Cable

AJ835A

HP LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable

AJ836A

HP LC to LC Multi-mode OM3 2-Fiber 15.0m 1-Pack Fiber Optic Cable

AJ837A

HP LC to LC Multi-mode OM3 2-Fiber 30.0m 1-Pack Fiber Optic Cable

AJ838A

HP LC to LC Multi-mode OM3 2-Fiber 50.0m 1-Pack Fiber Optic Cable

AJ839A

NOTE:

7m DAC (P/N J9285B) length is supported on VC FlexFabric module ports X5-X8.

Ports X1-X4 support up to 5m DAC lengths.

NOTE:

In addition to the supported HP and non-HP Copper cables above, Virtual Connect provides "allowed" connections using third party cables that meet the following criteria: connector=copper pigtail; transceiver code=active cable or passive cable; speed equal or less than 10Gb; length between 1m and 7m, inclusive. All "allowed" DACs are connected and logged. Prior to requesting support from HP, a DAC from the supported list above must be used to verify a cable issue is not involved.

NOTE:

Two 8Gb Shortwave FC transceivers are offered to allow consistency with those used in other VC 8Gb Fibre Channel Modules in your environment. HP 8Gb Shortwave Bseries Fibre Channel 1 Pack SFP+ Transceivers (A716A) supports VC FC 8Gb 24-port modules. HP 8Gb Short Wave Fibre Channel SFP+ 1 Pack Transceivers (AJ718A) also supports VC FC 8Gb 20-port modules.

Service and Support Offerings

NOTE:

HP Care Pack services for the c7000 and c3000 Enclosures cover the enclosure, power supplies and fans. HP Virtual Connect FlexFabric 10Gb/24-Port Modules are also covered by the c7000 and c3000 enclosures Care Pack services

NOTE:

Some options, including Fibre Channel and InfiniBand switches for the HP c-Class BladeSystem, are not covered under the c7000/c3000 enclosure Care Packs and carry separate Care Packs. Care Pack service level support for these options should always be uplifted to match existing storage or server service level

Proactive Care Services for the c7000 Enclosure

HP 3 year 4 hour 24x7 c7000 Enclosure Proactive Care Service

U3C33E

HP 3 year 6 hour Call To Repair 24x7 c7000 Enclosure Proactive Care Service

U3C36E

HP 3 year 4 hour 24x7 c7000 Enclosure with Insight Control Proactive Care Service

U3P10E

HP 3 year 6 hour Call To Repair 24x7 c7000 Enclosure with Insight Control Proactive Care Service

U3P13E

Proactive Care Services for the c3000 Enclosure

HP 3 year 4 hour 24x7 c3000 Enclosure Proactive Care Service

U3C42E

HP 3 year 6 hour Call To Repair 24x7 c3000 Enclosure Proactive Care Service

U3C45E

HP 3 year 4 hour 24x7 c3000 Enclosure with Insight Control Proactive Care Service

U3P19E

HP 3 year 6 hour Call To Repair 24x7 c3000 Enclosure with Insight Control Proactive Care Service

U3P22E

HP Proactive Care Personalized Support (Environmental Option)

QuickSpecs

HP Virtual Connect FlexFabric 10Gb/24-Port Module

Related Options

DA - 13652 Worldwide — Version 20 — November 5, 2013

Page 16

Page 17

HP 3yr Provides annual personalized proactive supp for existing Proactive Care ISS centric environmt

U6W98E

Installation & Start-up Services recommended for the c7000

HP Startup Blade System c-Class Infrastructure Service

UE602E

HP Startup Blade System c-Class Enhanced Network Service

UE603E

Installation & Start-up Services recommended for the c3000

HP Startup c3000 with Insight Control and Operating System and Server Blade Service

UF817E

HP Startup BladeSystem c3000 + Operating System Service

UF818E

HP Startup BladeSystem c3000 Enclosed Network Service

UF814E

Additional HP Care Pack services can be found at:

http://www.hp.com/go/cpc

QuickSpecs

HP Virtual Connect FlexFabric 10Gb/24-Port Module

Related Options

DA - 13652 Worldwide — Version 20 — November 5, 2013

Page 17

Page 18

Shipping Dimensions

Length

10.55 in (267.97 mm)

Width

7.58 in (192.53 mm)

Height

1.10 in (27.94 mm)

Shipping Weight

Approximately1.27Kg (2.8 Lbs)

Product Specifications Hardware

Performance

Line Rate, full-duplex 240Gbps bridging fabric Non-blocking architecture Maximum transmission unit (MTU) of up to 9216 bytes (jumbo frames)

Connectors and Cabling

16 x 10Gb downlinks through the midplane 2 x 10Gb cross connect links 4 x 10Gb SR, LR fiber and copper uplinks SFP+ 4 x 10Gb SR, LRM and LR fiber and copper uplinks SFP+ 1 internal interface to c-Class Onboard Administrator Module

Indicators

Recessed Momentary Reset Switch Momentary Next/Step Switch Backlit port number, configuration and status indicator LED, one per bulkhead port, blue/amber/green Module status indicator, amber/green Module locator (UID), blue Link indicator, one per SFP+-port, green/amber/orange Active multiplexed port indicator, green

Weight

1.27Kg (2.8 Lbs)

Latency

1.2 µs on Ethernet only ports

1.7u µs Enet/FC ports

External FC Port Type

Configured as Node port s (N_Port), 2Gb, 4Gb or 8Gb auto- negotiating SFP ports

Classes of Service

Class 2 and Class 3 Fibre Channel services

Scalability

Does not contribute to the total switch limit.

Buffer Credits

8 buffer credits per port, ASIC embedded memory

Environmental Ranges

Temperature Range

Specification

10C to 35C (50F to 95F)

Temperature Range

Operating

10C to 35C (50F to 95F)

Shipping

Shipping -40C to 60C (-40F to 140F)

Storage

-20°C to 60°C (-4F to 140°F)

Maximum wet bulb temperature

30C (80F)

Relative Humidity

(noncondensing)

Operating

10% to 90%

Shipping

10% to 90%

QuickSpecs

HP Virtual Connect FlexFabric 10Gb/24-Port Module

Technical Specifications

DA - 13652 Worldwide — Version 20 — November 5, 2013

Page 18

Page 19

* All temperature ratings shown are for sea level. An altitude derating of 1°C per 304.8 m (1.8°F per 1,000 ft) to 3048 m (10,000 ft) is applicable. No direct sunlight allowed. Upper operating limit is 3,048m (10,000 ft) or 70 Kpa/10.1 psia. Upper non-operating limit is 9,144 m (30,000 ft) or 30.3 KPa/4.4 psia. ** Storage maximum humidity of 95% is based on a maximum temperature of 45°C (113°F). Altitude maximum for storage corresponds to a pressure minimum of 70 KPa.

Power Specification

12V @ 9.17A (110 W)

Product Specifications Software

Security Features

HTTPS (HTTP exchanged over an SSL-encrypted session) is required for access to the Virtual Connect Manager. Access to the Virtual Connect Manager is via the system Onboard Administrator. Each user account can be configured for a combination of four access privileges to control and/or view elements in the Virtual Connect Manager. User verification by account name and password (Case Sensitive).

Each user account can be configured for a combination of four access privileges to control and/or view elements in the Virtual Connect Manager.

Role based customization to assign various privileges to Server Admin, Network Admin and Storage Admin.

LDAP Authentication services provide role based security via an LDAP SSL Directory Server connection.

TACACS+ authentication, authorization and accounting RADIUS authentication and authorization

Administrator controlled password length and strength requirements.

Private VLAN's for secure connectivity between servers within a domain.

Compliant with United States Department of Defense Policy on Use of Department of Defense (DoD) Information Systems Standard Consent Banner and User Agreement.

Configurable filtering of multicast traffic

GUI and CLI session timeout

Trunking, Failover and Other Networking Features

Shared Uplink Sets using Link Aggregation Control Protocol (LACP) allows the creation of Ethernet channeling with upstream switches that conform to IEEE

802.3ad. Ports can alternatively be configured for failover only.

External ports within a Port Set can be on the same VC Ethernet module or on multiple VC modules within the VC domain.

In the event of an uplink failure to a data center switch, the next highest performance uplink connection or aggregation will become active.

Fast MAC Cache failover enables rapid recovery of network connections when a standby module becomes active.

QuickSpecs

HP Virtual Connect FlexFabric 10Gb/24-Port Module

Technical Specifications

DA - 13652 Worldwide — Version 20 — November 5, 2013

Page 19

Page 20

Smart Link network senses a failed upstream switch connection and allows teamed NICs to properly failover.

Configure uplink speeds to Auto, 1Gb,or10Gb on the associated uplinks

VLAN Features

802.1Q VLAN supported on uplinks.

Uplink ports can be configured for VLAN tagging at egress or pass-thru of tagged VLAN packets from Server ports.

Native VLAN support for untagged packets on a shared uplink set. Packets can be targeted to a specific server ports.

Simultaneous tunneled and mapped VLAN connections to a single domain.

Industry Standard NPIV Support

The Virtual Connect FlexFabric module works by first converting FCoE traffic from multiple FLEXFABRIC ADAPTER ports to native Fibre Channel and then aggregating it over a single N-port uplink through the use of N_port_ID virtualization (NPIV). NPIV allows multiple distinguishable identities (multiple port WWNs or port IDs) over a single N-port connection. All Fibre Channel SAN switch vendors have support for NPIV in their latest firmware release. By conforming to the NPIV standard, SAN equipment interoperability simplified. The Virtual Connect FlexFabric Module can aggregate traffic from up to 255 physical and virtual servers per Fibre Channel uplink port and up to 255 virtual server connections per single downlink port.

Data Center Connectivity

Each Virtual Connect FlexFabric module supports up to 4 SAN fabrics and is typically connected to Fibre Channel switches that have been configured to run in NPIV mode. The 4 FC configurable uplink ports are speed selectable from 2, 4, or 8Gb/s.

The setup wizard allows SAN administrators to name the fabric that servers will connect into and set the oversubscription rate. Fibre Channel boot parameters and WWN administration are configurable options that can be integrated into server profiles.

In an NPIV environment, there is an initial brief login function between the Virtual Connect FlexFabric Module's uplink port and the data center SAN switch. Once completed, all FlexHBA connections appear as though they are directly connected between the server and the SAN switch. The Virtual Connect FlexFabric Module appears as a pass-thru device to the SAN, yet cables are reduced as much as 16:1

Management Features

Simple and intuitive Graphical User Interface (GUI) for defining, configuring, and managing all elements of the Virtual Connect Domain.

Setup Wizards for server profile creation and initial domain installation and configuration and network configuration.

Comprehensive administration, definition, and management of Ethernet Network, Shared Uplink Set, SAN Fabric management and Server Profiles

Embedded SNMP v1, v2 and SMI-S agents allow Network Management

QuickSpecs

HP Virtual Connect FlexFabric 10Gb/24-Port Module

Technical Specifications

DA - 13652 Worldwide — Version 20 — November 5, 2013

Page 20

Page 21

applications to query Virtual Connect for statistics and trap information.

A robust, scriptable and secure Command Line Interface simplifies management and enables macros to control common Virtual Connect tasks

Any uplink port can be used as a dedicated mirrored port for traffic analysis and troubleshooting by a Network Analyzer or Sniffer. Domain Management of user accounts, enclosure, Virtual Connect domain settings, and firmware updates

The location and status of Virtual Connect Modules in the HP c-Class Enclosure and Onboard Administrator can be viewed from the Hardware Status page. Including at-a-glance detailed information of the hardware elements via mouse-over pop-up windows.

MAC Address Administration allows local administration of predefined or userdefined MAC address ranges.

WWN Address Administration allows local administration of predefined WWN addresses ranges to allow pre-provisioning of SAN volumes

VC manager runs as a high-availability pair when an HP VC Module is installed in the adjacent bay. All configuration data is stored in flash memory and checkpointed to the standby module. Configurations can also be backed up to a workstation via the GUI.

A VC Ethernet module is not required in enclosure interconnect bay 1 or 2 when a VC FlexFabric Module is used in any bay as the primary VC module.

Up to 128 Network Access Groups can be defined to prevent enabling specific network combinations in the same server profile.

Supported by HP Virtual Connect Enterprise Management v7.2 and higher. Provides centralized network connection management and workload mobility for thousands of servers. Learn more at:

www.hp.com/go/vcem

QuickSpecs

HP Virtual Connect FlexFabric 10Gb/24-Port Module

Technical Specifications

DA - 13652 Worldwide — Version 20 — November 5, 2013

Page 21

Page 22

Management and Standards Support

Standards

INCITS FC-BB-5 Rev 2.00 IEEE 802.1Qbb IEEE 802.1Qaz IEEE 802.1AB LLDP IEEE 802.1Q (VLAN includes Native VLAN support and server side VLAN tag mapping) IEEE 802.2 LLC IEEE 802.3ad Link Aggregation IEEE 802.3ae 10Gb Fiber Ethernet IEEE 802.3aq 10Gb LRM Ethernet SNMP v.1, v.2 IGMP v1, v2, v3 ANCI T11 N_Port ID Virtualization FC-PH Rev. 4.3 FC-PH-2 FC-PH-3 FC-FLA FC-GS FC-GS-2 FC-GS-3 FC-FG FC-VI FC Element MIB RFC 2837 Fibre Alliance MIB Version 4.0 FC-BB5

Safety and Compliance

Safety Certifications

UL/CUL Recognition to UL/CSA 60950-1 TUV to EN 60950-1 CB report and certificate to IEC 60950-1 with all country deviations CE Marking

Electromagnetic Emissions Certifications FCC Part 15 Class A

FCC Part 15 Class A EN 55022 Class A (CISPR22 Class A) VCCI Class A AS/NZS 3548 Class A or AS/NZS CISPR22 Class A MIC Class A CE Marking

QuickSpecs

HP Virtual Connect FlexFabric 10Gb/24-Port Module

Technical Specifications

DA - 13652 Worldwide — Version 20 — November 5, 2013

Page 22

Page 23

Environment-friendly Products and Approach

End-of-life Management and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to:

http://www.hp.com/go/green

. To recycle your product, please go to:

http://www.hp.com/go/green

or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the HewlettPackard web site at:

http://www.hp.com/go/green

. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.

The information contained herein is subject to change without notice.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

QuickSpecs

HP Virtual Connect FlexFabric 10Gb/24-Port Module

Technical Specifications

DA - 13652 Worldwide — Version 20 — November 5, 2013

Page 23
