HP Vectra 500 Series PC

Models: 520 5/xx

525 5/xx

Hardware and BIOS

Technical Reference Manual

September 1996

Notice

The information contained in this document is subject to change without notice.

Hewlett-Packard makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.

Hewlett-Packard shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of Hewlett-Packard Company.

CompuServe

 is a trademark of Intel Corporation.

Intel Microsoft of Microsoft Corporation. Pentium UNIX

 is a registered trademark in the United States and other

countries, licensed exclusively through X/Open Company Limited.

Hewlett-Packard France Grenoble Personal Computer Division Technical Marketing 38053 Grenoble Cedex 9 France

 is a U.S. trademark of CompuServe, Inc.

, MS-DOS and Windows are U.S. registered trademarks

 is a U.S. registered trademark of Intel Corporation.

 1996 Hewlett-Packard Company

Preface

This manual is a technical reference and BIOS document for engineers and technicians providing system level support for HP Vectra 500 Series PCs for models 520 5/xx and 525 5/xx.

It is assumed that the reader possesses a detailed understanding of ATcompatible microprocessor functions and digital addressing techniques.

Technical information that is readily available from other sources, such as manufacturers’ proprietary publications, has not been reproduced.

This manual contains summary BIOS information only. For detailed information, it is recommended to read the reference work cited in the next section. For additional reference material, refer to the bibliography.

Ordering the Phoenix BIOS Manual

System BIOS for IBM PCs, Compatibles, and EISA Computers (ISBN 0-20157760-7) by Phoenix Technologies is available in many bookstores. It can also be ordered directly from the publisher as follows:

In the U.S.A.

Call Addison-Wesley in Massachusetts at +1-617-944-3700, and be prepared to give a credit card number and expiry date.

In Europe

Send your request to Addison-Wesley at the address given below, and be prepared to give a credit card number and expiry date.

Addison-Wesley Concertgebouwplein 25 1071 LM Amsterdam, The Netherlands Tel: +31 (20) 671 72 96 Fax: +31 (20) 675 21 41

Conventions

The following conventions are used throughout this manual to identify specific elements:

❒ Hexadecimal numbers are identified by a lower case h.

For example, 0FFFFFFFh or 32F5h

❒ Binary numbers and bit patterns are identified by a lower case b.

For example, 1101b or 10011011b

Bibliography

❒ System BIOS for IBM PCs, Compatibles, and EISA Computers

(ISBN 0-201-57760-7) by Phoenix Technologies. Addison-Wesley (publisher).

The following Hewlett-Packard publications may also assist the reader of this manual:

❒ HP Vectra 500 Series Service Handbook - 3rd edition.

HP Part Number: 5964-8385-EN.

❒ HP Vectra 500 Series Familiarization Guide.

HP Part Number: 5964-8384-EN.

❒ Online Acrobat Reader documents for either the desktop or minitower

packages. These books are:

Upgrade Guide - explaining how to upgrade and install memory, mass storage devices, expansion cards, and upgrade (overdrive) processors. Advanced Setup Guide - information about system configurations and characteristics, using the HP Setup program and communications options. Note: These online documents are customized for a particular platform, depending on the system board, desktop or minitower package, and communications options.

The following Intel publication provides more detailed information: ❒ Pentium Processor (241595-002)

1 HP Vectra 500 Series

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

System Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

D4051-63001 Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

D4051-63001- Desktop Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

D4051-63001 - Minitower Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

D3657-63001 Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

D3657-63001 - Desktop Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

D3657-63001 - Minitower Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

D3661-63001 Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

D3661-63001 - Minitower Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

System Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Comparison of HP Vectra 500 Series

Desktop and Minitower Models. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Principal Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Physical and Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . 21

Power Consumption. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Typical Power Consumption/Availability for ISA Expansion Card Slots .23

Typical Power Consumption/Availability for PCI Expansion Card Slots.23

Rear Panel Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

CD-ROM Drive Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

English 5

2 System Board - (SiS Chipset)

(Part Number: D4051-63001)

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

System Board Architecture. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

System Board Physical Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

SiS Chipset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Host/PCI Bridge (SiS 5511 Chip) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Feature Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Data Path (SiS 5512 Chip) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

PCI/ISA Bridge (SiS 5513 Chip). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

ISA Bus Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

DMA Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Interrupt Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Timer/Counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

System Board Switches and Jumpers (D4051-63001) . . . . . . . . . . . . . . 38

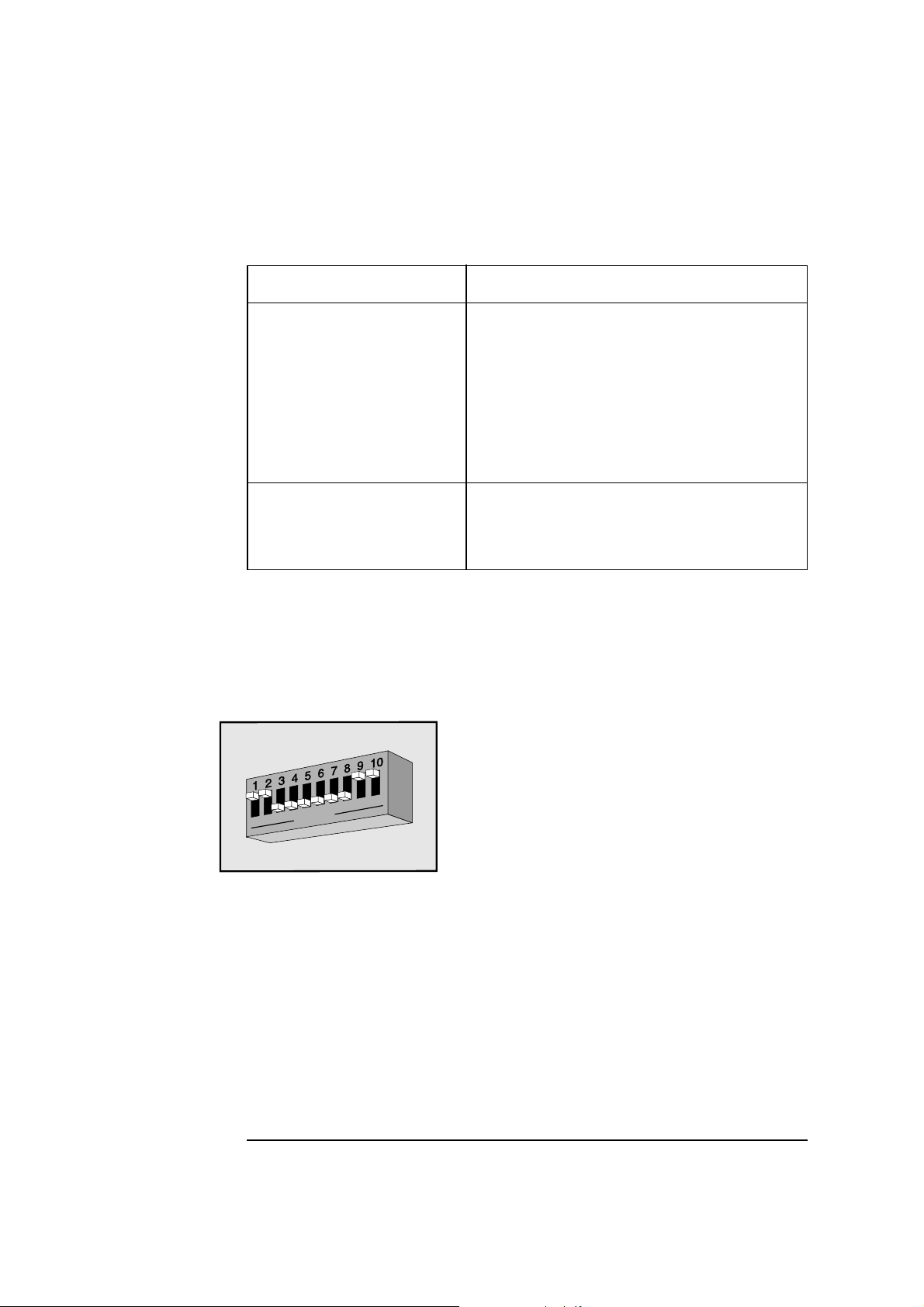

SW1 Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

SW2 Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

CPU Bus Frequency Jumper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Cache Jumper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Space-Bar Power-On Feature Jumper . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Processor Socket (D4051-63001) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Memory Sockets (D4051-63001) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Backplane (D4051-63001) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Desktop Backplane . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Minitower Backplane. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

6 English

Devices on the Processor Local Bus (D4051-63001). . . . . . . . . . . . . 44

Main Memory (UMA). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Cache Memory (D4051-63001) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Level-1 Cache Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Level-2 Cache Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Pentium Processor (D4051-63001) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Superscalar Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Floating Point Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Dynamic Branch Prediction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Instruction and Data Cache . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Data Integrity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Advanced Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Devices on the PCI Bus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Graphics/Integrated Video (D4051-63001) . . . . . . . . . . . . . . . . . . . . . . . 48

Video Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Integrated Drive Electronics (IDE) Controller . . . . . . . . . . . . . . . . . . . . 49

Transfer Rates Versus Modes of Operation. . . . . . . . . . . . . . . . . . . . . . . .50

Disk Capacity Versus Modes of Addressing . . . . . . . . . . . . . . . . . . . . . . .51

Devices on the ISA Bus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Super I/O Chip (NS 87308 or NS 87307) . . . . . . . . . . . . . . . . . . . . . . . . . 52

Serial/Parallel Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Floppy Drive Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

Keyboard and Mouse Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

BIOS (version: GX.07.xx) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

HP Setup Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Flash ROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Little Ben . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

English 7

3 System Board

(P/Ns D3657-63001 and D3661-63001)

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

D3657-63001 Models. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Desktop Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Minitower Models. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

D3661-63001 Models. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Minitower Models. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Configuration Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

System Board Architecture. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

System Board Physical Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Principal Components and Features . . . . . . . . . . . . . . . . . . . . . . . . . 62

PCI Chipset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

PCI, Cache and Memory Controller (SB82437FX-66) . . . . . . . . . . . . . . 63

SB82437FX-66 Feature Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Data Path Unit (SB82438FX). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

The PCI/ISA Bridge and IDE Controller (SB82371FB). . . . . . . . . . . . . . 65

The SB82438FX and SB82371FB Feature Summary . . . . . . . . . . . . . . . 65

System Board Configuration Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Processor Socket. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

VRM Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Main Memory Sockets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Advanced Power Management (APM). . . . . . . . . . . . . . . . . . . . . . . . . . . 68

HP Vectra 500 Series Desktop Backplane . . . . . . . . . . . . . . . . . . . . . . . . 68

HP Vectra 500 Series Minitower Backplane. . . . . . . . . . . . . . . . . . . . . . . 69

Devices on the Processor Local Bus . . . . . . . . . . . . . . . . . . . . . . . . . 70

Pentium Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

8 English

Superscalar Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

Floating Point Unit (FPU) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

Dynamic Branch Prediction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

Instruction and Data Cache . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

Data Integrity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

Bus Frequencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

Cache Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Main Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Devices on the PCI Bus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Video Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

S3 Trio 64PnP Video Controller. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76

Video DRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76

Video Resolutions Supported. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76

Integrated Drive Electronics (IDE) Controller . . . . . . . . . . . . . . . . . . . . 76

Other PCI Accessory Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Devices on the ISA Bus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Super I/O Chip (SMC FDC37C932). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Serial/Parallel Communications Ports. . . . . . . . . . . . . . . . . . . . . . . . . . . .78

Floppy Drive Controller (FDC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

Keyboard and Mouse Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

Real-Time Clock (RTC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

Serial EEPROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

System ROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Other ISA Accessory Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

English 9

4 Summary of the HP/Phoenix BIOS

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

HP/Phoenix BIOS Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Updating the System ROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Error Diagnostics and Suggested Corrective Actions . . . . . . . . . . . . . . . 83

Little Ben . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

HP/Phoenix BIOS (BIOS version: GX.07.xx) . . . . . . . . . . . . . . . . . . 85

Setup Program (BIOS version: GX.07.xx) . . . . . . . . . . . . . . . . . . . . . . . . 85

Main Menu (BIOS version: GX.07.xx) . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Configuration Menu (BIOS version: GX.07.xx) . . . . . . . . . . . . . . . . . . . . 86

Security Menu (BIOS version: GX.07.xx). . . . . . . . . . . . . . . . . . . . . . . . . 87

Power Menu (BIOS version: GX.07.xx) . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Summary Configuration Screen (BIOS version: GX.07.xx). . . . . . . . . . . 88

I/O Addresses Used by the System (BIOS version: GX.07.xx) . . . . . . . . 90

System Memory Map (BIOS version: GX.07.xx) . . . . . . . . . . . . . . . . . . . 90

BIOS I/O Port Map (BIOS version: GX.07.xx) . . . . . . . . . . . . . . . . . . . . . 91

System Board Components (BIOS version: GX.07.xx) . . . . . . . . . . . . . . 92

DMA Channel Controllers (BIOS version: GX.07.xx) . . . . . . . . . . . . . . . 92

Interrupt Controllers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

PCI Interrupt Request Lines (BIOS version: GX.07.xx) . . . . . . . . . . . . . 94

Power-On Self-Test (BIOS version: GX.07.xx) . . . . . . . . . . . . . . . . . . . . 94

Error Messages (BIOS version: GX.07.xx) . . . . . . . . . . . . . . . . . . . . . . . 97

Beep Codes (BIOS version: GX.07.xx). . . . . . . . . . . . . . . . . . . . . . . . . . . 99

HP/Phoenix BIOS (BIOS version: GJ.07.xx). . . . . . . . . . . . . . . . . . 100

Setup Program (BIOS version: GJ.07.xx) . . . . . . . . . . . . . . . . . . . . . . . 100

Main Menu (BIOS version: GJ.07.xx) . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Preferences Menu (BIOS version: GJ.07.xx) . . . . . . . . . . . . . . . . . . . . . 101

Configuration Menu (BIOS version: GJ.07.xx). . . . . . . . . . . . . . . . . . . . 101

10 English

Security Menu (BIOS version: GJ.07.xx) . . . . . . . . . . . . . . . . . . . . . . . .102

Power Menu (BIOS version: GJ.07.xx) . . . . . . . . . . . . . . . . . . . . . . . . . .102

Summary Configuration Screen (BIOS version: GJ.07.xx) . . . . . . . . . .103

I/O Addresses Used by the System (BIOS version: GJ.07.xx). . . . . . . . 104

System Memory Map (BIOS version: GJ.07.xx) . . . . . . . . . . . . . . . . . . . 104

BIOS I/O Port Map (BIOS version: GJ.07.xx). . . . . . . . . . . . . . . . . . . . . 105

Addressing System Board Components

(BIOS version: GJ.07.xx). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

DMA Channel Controllers (BIOS version: GJ.07.xx) . . . . . . . . . . . . . . .106

Interrupt Controllers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .107

PCI Interrupt Request Lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .108

Power-On Self-Test (BIOS version: GJ.07.xx) . . . . . . . . . . . . . . . . . . . . 109

Shadow Ram (BIOS version: GJ.07.xx). . . . . . . . . . . . . . . . . . . . . . . . . .109

Error Messages (BIOS version: GJ.07.xx) . . . . . . . . . . . . . . . . . . . . . . . 113

Beep Codes (BIOS version: GJ.07.xx) . . . . . . . . . . . . . . . . . . . . . . . . . . 114

5 Video Controllers

SiS 6205 Video Controller. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

SiS 6205 Video Controller Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Upgrading Video Memory (UMA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

Using the HP Dynamic Video Feature. . . . . . . . . . . . . . . . . . . . . . . . . . .118

Typical Windows 95 Video Resolutions (SiS 6205 Chip) . . . . . . . . . . . .118

VESA Feature Connector (SiS 6205 Chip). . . . . . . . . . . . . . . . . . . . . . . 119

The Integrated Ultra VGA Video Controller. . . . . . . . . . . . . . . . . . . 120

S3 Trio 64 Video Controller Summary . . . . . . . . . . . . . . . . . . . . . . . . . . 120

S3 Trio 64 Video Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

S3 Trio 64 Video Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Typical Windows 95 Video Resolutions (S3 Trio 64) . . . . . . . . . . . . . . . 125

VESA Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

English 11

Matrox MGA Millennium Video Controller Card . . . . . . . . . . . . . . 127

MGA Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

MGA Video Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Available MGA Video Resolutions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

MGA Video BIOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

Further Information About MGA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

DB15 Connector Pinout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

6 Aztech AT3300

Audio Fax/Data Modem

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Communications Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

European Firmware and Telephone Line Configuration. . . . . . . . 137

Configuring the firmware code. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

Aztech AT3300 Localisation Utility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Using the HyperTerminal Application . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .143

12 English

HP Vectra 500 Series

This chapter provides a description of the HP Vectra 500 Series desktop (Models 520 5/xx) and minitower (Models 525 5/xx) computers with detailed system specifications. The HP Vectra 500 Series computers are Pentium processor-based, constructed around the Peripheral Component Interconnect (PCI) bus and Industry Standard Architecture (ISA) bus.

1 HP Vectra 500 Series

Introduction

Three group types have been defined to help identify the various system configurations available on the HP 500 Series desktop and minitower packages. Within each group, a product number and the appropriate HP Vectra 500 Series model have been associated with the HP Service Part Number.

The HP Service Part Numbers are:

• D4051-63001

• D3657-63001

• D3661-63001

An HP Service Part Number group contains details of a specific system configuration. For example, if there is a need to perform a check on a certain product number, first determine which group type it belongs to, then refer to System Features, on page 17, for a list of main features.

1 HP Vectra 500 Series

System Overview

D4051-63001 Models

The HP Service Part Number D4051-63001 group contains HP Vectra 500 Series models that have the following features: Unified Memory Architecture (UMA), main memory upgradable to 192 MB, and the SiS (Silicon Integrated System) 6205 video graphic controller.

D4051-63001- Desktop Models

The following table shows the models and their associated product numbers.

Model Product Number

520 5/133 D4402A D4403A D4404A D4434A

520 CD

5/133 D4413A D4414A D4437A D4460A

5/120 D4420A D4428A

520 MCx

5/133 D4440A D4442A

520 MCx

5/166 D4443A

1 =Includes CD-ROM 2 =Includes CD-ROM and Modem/Audio

D4051-63001 - Minitower Models

The following table shows the models and their associated product numbers.

Model Product Number

525 5/133 D4454A

525 CD

5/166 D4422A D4423A D4424A D4425A

5/133 D4416A D4418A D4419A

525 MCx

5/166 D4426A D4427A D4439A D4441A

1 =Includes CD-ROM 2 =Includes CD-ROM and Modem/Audio

1 HP Vectra 500 Series

System Overview

D3657-63001 Models

The HP Service Part Number D3657-63001 group contains HP Vectra 500 Series models that have the following features: separate main memory and video memory, and an integrated 32/64 Ultra VGA video graphic controller.

D3657-63001 - Desktop Models

The following table shows the models and their associated product numbers.

Model Product Number

520 MCx

5/133 D4479A

520 MCx

5/166 D4480A

1 =Includes CD-ROM

2 =Includes CD-ROM and Modem/Audio

D3657-63001 - Minitower Models

The following table shows the models and their associated product numbers.

Model Product Number

525 5/166 D4483A

525 5/200 D4474A

525 CD

5/133 D4475A

525 CD

5/166 D4476A

525 CD

5/200 D4470A D4472A

525 MCx

5/133 D4477A

5/166 D4478A

525 MCx

5/200 D4473A D4481A D4482A

1 =Includes CD-ROM

2 =Includes CD-ROM and Modem/Audio

1 HP Vectra 500 Series

System Overview

D3661-63001 Model

The HP Service Part Number D3661-63001 group contains one HP Vectra 500 Series model that has the following features: separate main memory and a Matrox MGA millennium video card.

D3661-63001 - Minitower Model

The following table shows the model and its associated product number.

Model Product Number

525 MCx

5/200 D4471A

1 =Includes CD-ROM

2 =Includes CD-ROM and Modem/Audio

System Features

The following table shows the main features available on the various HP Vectra 500 Series PC models. The table definitions are:

Shading Description

Indicates that the feature is only valid for this type of system.

Features

System Board

Main Memory

Video Controller

Video Memory

HP Service Part Number:

D4051-63001

Unified Memory Architecture (UMA)

12 or 16 MB. Maximum 192 MB

SiS 6205 Graphic Trio 64 PnP on PCI Bus Matrox MGA Millennium card

1 MB upgrade to 2 MB 1 MB upgrade to 2 MB

Installing two 512 KB modules

HP Service Part Number:

D3657-63001 and D3661-63001

Separate Main Memory and Video Memory

8, 12 ,16 or 32 MB.

Maximum 128MB

2 MB standard, upgradable to 4 MB or 8 MB.

Pentium Processor

120MHz,133MHz,166MHz 133MHz, 166MHz, 180MHz,

200MHz

1 HP Vectra 500 Series

System Overview

Features

Level-two cache memory (optional)

HP Service Part Number:

D4051-63001

256 KB synchronous cache are standard on the following models:

U.S./Canada D4403, D4422A, D4428A, D4437A, D4439A, D4442A, D4470A, D4475A, D4476A, D4477A, D4478A, D4471A, D4481A

Europe D4416A, D4441A, D4443A, D4472A, D4473A

Latin America D4425A, D4427A

Brazil D4480A

China, India, Korea D4426A, D4482A

Asia/Pacific Partner D4434A, D4454A, D4474A, D4483A

HP Service Part Number:

D3657-63001 and D3661-63001

1 HP Vectra 500 Series

System Overview

Comparison of HP Vectra 500 Series Desktop and Minitower Models

The HP Vectra 500 Series PCs come in two packages, a desktop box and a minitower box. The following table shows the differences between the two packages.

Component Desktop Minitower

IDE Controller Primary channel connectors

IDE Controller Secondary channel connectors

Floppy disk controller connectors

Expansion card slots (on backplane)

Internal device shelves One for hard disk drive

Front-access device shelves One 3.5-inch

Two connectors for hard disk drives

One connector is for a CD-ROM

Two connectors :

- One for a 3.5-inch floppy disk drive

- One for either a tape drive or a

5.25-inch disk drive

Two 16-bit ISA (full-length 30 cm / 12-inches) One Combination slot (32-bit PCI or one 16-bit ISA ) One 32-bit PCI (full-length)

One 5.25-inch One 5.25-inch, 1-inch high (or an internal drive)

Two connectors for hard disk drives

Two connectors for a supplementary hard disk drive and CD-ROM

Two connectors for 3.5-inch floppy disk drive One connector for 5.25-inch floppy

disk drive or a tape drive Maximum two devices connected simultaneously

Two 16-bit ISA (full-length 30 cm / 12-inches) One 16-bit ISA (short-length 15 cm / 6-inches) One Combination slot (32-bit PCI or one 16-bit ISA ) Two 32-bit PCI (full-length)

Two for hard disk drives

One 3.5-inch Three 5.25-inch

1 HP Vectra 500 Series

System Overview

Principal Features

This section includes the principal features of the system board that are available on both the desktop and minitower packages:

• An Enhanced IDE controller with two channels on the PCI bus.

• Rear panel connectors:

❒ 1 mouse socket ❒ 1 keyboard socket ❒ 1 display connector ❒ 1 parallel connector ❒ 2 serial ports

• a system ROM (using flash ROM technology) that can be easily updated

with the latest firmware, using the Phlash.exe program supplied with the firmware upgrade. The system ROM contains:

❒ the BIOS (system BIOS, video BIOS and low option ROM) ❒ menu-driven SETUP with context-sensitive help (in U.S. English only)

• a keyboard/mouse controller and interface.

1 HP Vectra 500 Series

System Overview

Physical and Environmental Specifications

The following tables show the physical and environmental specifications of the minitower and desktop computers. All the characteristics valid for both computers are grouped together at the end of the table.

Computer

Type

Minitower Weight

(excluding keyboard and display)

Dimensions 44 cm (Depth) by 19.2 cm (Width) by 43.8 cm (Height)

Footprint 0.084 m

Acoustic noise emission

Power supply • Input voltage: 100-127 VAC and 200-240 VAC over 50/60 Hz

Desktop Weight

(excluding keyboard and display)

Dimensions 39 cm (Depth) by 42 cm (Width) by 12.5 cm (Height)

Footprint 0.17 m

Characteristic

Description

13 kilograms (28.7 pounds)

(17.3 inches by 7.6 inches by 17.2 inches)

(0.9 sq ft)

≤ 40 dBA (as defined by DIN 45635 T.19 and ISO 7779)

manual switching between 115 & 230 V

• Power consumption: 30 W to 40 W (typical), 220 W (maximum)

• Power availability: 160 W continuous, 200 W peak

9 kilograms (20 pounds)

(15.3 inches by 16.5 inches by 4.9 inches)

(1.8 sq ft)

Acoustic noise emission Lw

Power supply • Input voltage: 100-127 VAC +200-240 VAC ac auto-ranging.

≤ 40 dBA, Lp ≤ 34 dBA

Input frequency: 50 / 60 Hz

• Power consumption: 30 W to 40 W (typical), 150 W (maximum)

• Power availability: 100 W continuous

1 HP Vectra 500 Series

System Overview

Computer

Type

These characteristics are valid for both the minitower and desktop computers.

Keyboard Flat 464 mm (Width) by 178 mm (Depth) by 33 mm (Height)

Operating temperature +5°C to +40°C (+40°F to +104°F)

Recommended operating temperature

Storage temperature -40°C to +70°C (-40°F to +158°F)

Over temperature shutdown +50°C ( +122°F)

Operating humidity 15% to 80% (relative)

Storage humidity 8% to 80% (relative)

Operating altitude 3100 m (10000 ft) max

Storage altitude 12200 m (40000 ft) max

Maximum thermal dissipation 91 kcal per hour (360 BTU per hour)

Standing 464 mm (Width) by 178 mm (Depth) by 51 mm (Height)

Characteristic

Description

+15°C to +30°C (+59°F to +104°F)

(18.3 inches by 7 inches by 1.3 inches)

(18.3 inches by 7 inches by 2 inches)

NOTE Operating temperature and humidity ranges may vary depending upon the mass

storage devices installed. High humidity levels can cause improper operation of disk drives. Low humidity ranges can aggravate static electricity problems and cause excessive wear of the disk surface.

1 HP Vectra 500 Series

System Overview

Power Consumption

NOTE The figures given below are valid for both the minitower and desktop computers

with a standard configuration—no expansion cards and no CD-ROM drive. For other configurations, the power consumption values will be higher.

Full Power Mode <44 W

Standby Mode <29 W

Suspend Mode <24 W

Off < 5 W

The power supply in the computer continues to supply power to the CMOS memory, even when turned off.

NOTE When the PC is turned off with the power button on the front panel, the power

consumption falls below 5 watts, but is not zero. The special on/off method used by this PC considerably extends the lifetime of the power supply. To reach zero power consumption in “off” mode, either unplug the PC from the power outlet or use a power block with a switch.

Typical Power Consumption/Availability for ISA Expansion Card Slots

+ 5 V 4.5A limit per slot (limited by system board)

+ 12 V 1.5A limit per slot (limited by system board)

- 5 V 0.1A total power limit (limited by power supply)

- 12 V 0.3A total power limit (limited by power supply)

Typical Power Consumption/Availability for PCI Expansion Card Slots

+ 5 V 4.5A maximum per slot

+ 12 V 0.5A maximum per slot

- 12 V 0.1A maximum per slot

1 HP Vectra 500 Series

System Overview

Rear Panel Connectors

The external connectors on the rear panel of the computer are used to connect the mouse, keyboard and display. The 25-pin parallel port can be used for connecting a parallel printer, while the two 9-pin buffered serial ports are for serial printers. The following diagram shows the rear panel connectors for the minitower and desktop computers.

Display Connector

Red-1

Green- 2

Blue- 3

NotUsed - 4

Ground- 5

Power Key- 6

+5Vdc - 4

NotUsed - 2

6- Ground 7- Ground 8- Ground

9- NotUsed

10- Ground

Keyboard Socket (upper) Mouse Socket (lower)

11- Not Used 12- Data from display (DDC1) 13- H-Sync 14- V-Sync 15- Not Used

5- Clock 3- Ground 1- Data

1- CF(DCD)

2- BB(RD) 3- BA(TD) 4-

Strobe- 1

DO- 2

D1- 3 D2- 4 D3- 5 D4- 6 D5- 7 D6- 8 D7- 9

ACK-10

BUSY-11

PE-12

SLCT-13

CD(DTR) AB(GND)

Serial Device Connectors

(DSR)CC - 6

(RTS)CA - 7 (CTS)CB - 8

(RI) CE - 9

14- AUTOFD 15- ERROR 16- INIT 17- SLIN 18- Ground 19- Ground 20- Ground 21- Ground 22- Ground 23- Ground 24- Ground 25- Ground

Parallel Device Connector

1 HP Vectra 500 Series

CD-ROM Drive Specifications

WARNING To avoid electrical shock and harm to your eyes by laser light, do not open the

CD-ROM drive enclosure. Do not attempt to make any adjustment to the CDROM drive. Refer servicing to qualified personnel only. The CD-ROM drive is a Class 1 laser product.

Data Capacity •656 MB (Mode 1)

•748 MB (Mode 2)

Data Transfer Rate Depends on the model. The single-speed rate is 150 KB/sec. Therefore, for

example, an 8X model has a data transfer rate of 1200 KB/sec.

Buffer Size •≥ 128 KB

Average Seek Time •< 200 ms (quadruple-speed and faster models)

Rotational Speed Depends on the model. The single-speed is 200-530 rpm. Therefore, for

example, an 8X model has a rotational speed of 1600-4240 rpm.

Interface •ATAPI

Laser •Type: Semiconductor Laser GaAlAs

•Wavelength: 785 nm ± 30 nm

•Output Power: 3 mW ± 3 mW

•Pulse Duration: T ≥ 3×10

−4

sec

Power Requirements •5 V, 12 V (see the label on the CD-ROM drive).

Supported CD-ROM Disks •CD-ROM XA (Mode 2 Form 1, Mode 2 Form 2)

•CD-Digital Audio

•Audio-combined CD-ROM

•CD-I disks (readable)

•CD-I Ready disks (readable)

•CD Bridge disks

•Photo CD (single and multisession)

1 HP Vectra 500 Series

CD-ROM Drive Specifications

System Board - (SiS Chipset) (Part Number: D4051-63001)

This section describes the components and features of the SiS (Silicon Integrated System) chipset-based system board. This system board has the HP Service Part Number: D4051-63001.

2 System Board - (SiS Chipset) (Part Number: D4051-63001)

Overview

The type of system board described in this section uses shared memory based on UMA (Unified Memory Architecture), meaning that there is no dedicated frame buffer used by the video controller (SiS 6205). Instead, the controller uses a portion of the system memory as a frame buffer.

The following tables show the models that are associated with the HP Service Part Number: D4051-63001. For further detailed information concerning system features and a comparison between the desktop and minitower models, refer to “System Features” on page 17.

Model (Desktops) Product Number

520 5/133 D4402A D4403A D4404A D4434A

5/133 D4413A D4414A D4437A D4460A

520 CD

520 MCx

5/120 D4420A D4428A

520 MCx

5/133 D4440A D4442A

520 MCx

5/166 D4443A

1 =Includes CD-ROM 2 = Includes CD-ROM and Modem/Audio

Model

(Minitowers)

525 5/133 D4454A

525 CD

5/166 D4422A D4423A D4424A D4425A

525 MCx

1 =Includes CD-ROM 2 = Includes CD-ROM and Modem/Audio

5/133 D4416A D4418A D4419A

5/166 D4426A D4427A D4439A D4441A

Product Number

2 System Board - (SiS Chipset) (Part Number: D4051-63001)

Overview

Configuration

• Supported Processor: P54CS.

• Level-2 (L2) 256 KB cache sockets.

• UMA Chipset from SiS consisting of three chips that interface between the three main buses (the Host bus, the PCI bus and the ISA bus):

SiS 5511: Host/PCI bridge, L2 cache memory controller and memory controller.

SiS 5512: PCI Local Data Buffer (Data Path).

SiS 5513: PCI/ISA bridge, plus integrated functions.

• Six SIMM module sockets for Extended Data Out (EDO) Dram main memory.

• Onboard graphic controller:

SiS 6205 used in UMA mode.

• NS 87308 or NS 87307: Super I/O which includes the following features:

Keyboard and mouse controller.

Floppy drive controller.

Two serial ports.

One parallel port.

• Little-Ben chip is an HP designed chip that takes care of security features, power management and some glue logic.

• APM (Advanced Power Management) 1.1 power management compliant.

• 2 Mb Flash Memory (28F020-150) for BIOS.

2 System Board - (SiS Chipset) (Part Number: D4051-63001)

System Board Architecture

The following diagram shows the architecture of the various components and the SiS chipset on the system board.

2 System Board - (SiS Chipset) (Part Number: D4051-63001)

System Board Physical Layout

The following system board diagram will help you identify where the different components and connections are located on the board. Refer to the section System Board Switches and Jumpers (D4051-63001) on page 38 for switches and jumper settings.

CD-ROM Connector (IDE Channel 2)

Backplane Connector Floppy Disk Drive Connector

HDD Connector (IDE Channel 1)

Mouse

Keyboard

Parallel

Serial A

Serial B

Video

JP4

VESA Feature Connector

Space-bar Power-on

Super I/O

J15 Product ID flag

1 2 3

SiS 6205

SW1

Graphics

controller

Multi-purpose Security Feature Switch

CPU Bus Frequency

BIOS Flash

Little

Ben

Main Memory Sockets

214

SiS 5513

PCI/ISA

bridge

SiS 5512

Data Buffer

SiS 5511

Memory

controller

Cache Jumper

C2 C1

B2 B1 A2 A1

Cache Memory Socket

1 2 3

SW2

1 2

Second Level

CPU Core Frequency

Processor Socket

Power Connector

Ext. Battery Connector

Status Panel VE

Battery

Power Connector 3.3 V

2 System Board - (SiS Chipset) (Part Number: D4051-63001)

SiS Chipset

The SiS chipset consists of three chips, each encapsulated in a 208-pin plastic quad flat pack (PQFP) package, that interface between the three main buses (the Host bus, the PCI bus and the ISA bus):

• The PCMC chip (SiS 5511) is a combined PL/PCI bridge and cache controller and main memory controller and PCI arbiter.

• The PLDB chip (SiS 5512) provides the PCI local data buffer/path.

• The PSIO chip (SiS 5513) provides the PCI/ISA bridge, responsible for transferring data between the PCI bus and the ISA bus, and also contains the IDE controller.

The block diagram on the following page, gives an overview of the computer’s structure. The SiS chipset is described in more detail later on in this chapter.

Pentium Processor

2 System Board - (SiS Chipset) (Part Number: D4051-63001)

SiS Chipset

Processor Local Bus (64 bit, 60/66 MHz)

Level-2

Cache

Host Bridge & Memory

Controller SiS 5511

CPU

Interface

Cache

Control

Memory

Control

PCI

Interface

SiS 5512

Control

UMA

Arbitration

PCI/ISA Bridge

SiS 5513

PCI Bus

Interface

IDE

ISA Bus

Interface

Controller

DMA

Controller

Interrupt

Controller

Control

Main

Memory

Video Controller SiS 6205

BIOS

(Flash Memory

28F020)

Super I/O

NS 87308 or

NS 87307

Data Path SiS 5512

PCI Bus

(32 bit, 30/33 MHz)

Little Ben

ISA Bus

(16 bit, 7.5/8.33 MHz)

2 System Board - (SiS Chipset) (Part Number: D4051-63001)

SiS Chipset

Host/PCI Bridge (SiS 5511 Chip)

The SiS 5511 chip (PCMC) bridges between the host bus and the PCI local bus. This device integrates cache and memory control functions and provides bus control functions for the transfer of information between the micro-processor, cache, main memory and the PCI bus.

The PCMC monitors each cycle initiated by the CPU, and forwards it to the PCI bus if the CPU cycle does not target the local memory. For the CPU or the PCI to the local memory cycles, the built-in cache and DRAM controller assumes the control to the secondary cache, DRAMs, and the SiS 5512 PCI local data buffer (PLDB).

The main features supported by the PCMC chip are:

• Intel Pentium CPU and CPU at 66/60/50 MHz (external clock speed).

• Integrated PCI bridge (asynchronous PCI clock always @ 33 MHz).

• Host bus frequencies of 50, 60, 66.667 MHz.

• VGA Shared Memory Architecture (with Direct Memory Access):

Direct Memory Accesses; Shared Memory Area 1M and 2M.

• PCI arbiter.

• Pipelined Address Mode of Pentium CPU.

• Integrated Second Level (L2) Cache Controller.

• DRAM Controller, supporting:

EDO DRAM; 32-bit/64-bit mix mode.

• Two Programmable Non-Cacheable Regions.

• Option to Disable Local Memory in Non-Cacheable Regions.

• Shadow RAM in Increments of 16 Kbytes.

• Supports SMM Mode of CPU.

• Supports CPU Stop Clock.

• Supports Break Switch.

2 System Board - (SiS Chipset) (Part Number: D4051-63001)

Feature Summary

Function Features

Cache controller ❒ 8 bits or 7 bits TAG with Direct mapped organization.

❒ Write back mode (only supported by BIOS) ❒ Uses burst and pipelined burst SRAMs. ❒ 64-KByte to 1 MByte cache summary ❒ Read/Write cycle of 3-1-1-1 using burst or pipelined SRAMS at

66 MHz.

Integrated DRAM controller ❒ Supports four banks of SIMMs.

❒ Supports 256K, 512K, 1MB, 2MB, 4MB, 16MB 70ns FP/EDO

DRAM.

❒ Supports 4K refresh DRAM. ❒ Supports 3V or 5V DRAM. ❒ Supports symmetrical and asymmetrical DRAM. ❒ Supports 32 bits/64 bits mixed mode configuration. ❒ Supports concurrent write back. ❒ Supports Read Cycle Power Saving Mode. ❒ Table-free DRAM configuration, auto-detect DRAM size, bank

density, single/double sided DRAM, EDO/FP DRAM for each bank.

❒ Supports CAS before RAS “Intelligent Refresh”. ❒ Supports Relocation of System Management Memory. ❒ Optional Parity Checking. ❒ Programmable CAS# Driving Current. ❒ Fully configurable for the Characteristic of Shadow RAM (640

KByte to 1 Mbyte).

❒ Supports EDO/FP 5/6-2-2-2/-3-3-3 burst read cycles.

SiS Chipset

Integrated PCI Bridge ❒ Supports asynchronous PCI clock.

❒ Translates the CPU cycles into the PCI bus cycles. ❒ Provides CPU-to-PCI Read Assembly and Write Disassembly

Mechanism.

❒ Translates sequential CPU-to-PCI Memory Write Cycles into PCI

Burst Cycles.

❒ Zero Wait State Burst Cycles. ❒ Provides a prefetch mechanism dedicated for IDE Read. ❒ Supports Advanced Snooping for PCI Master Bursting. ❒ Maximum PCI burst transfer from 256 bytes to 4 Kbytes.

PCI bus arbiter ❒ Supports PCI bus arbitration for up to four masters.

❒ Supports rotating priority mechanism. ❒ Hidden arbitration scheme minimizes arbitration overhead. ❒ Supports concurrence between CPU to memory and PCI to PCI.

2 System Board - (SiS Chipset) (Part Number: D4051-63001)

SiS Chipset

Data Path (SiS 5512 Chip)

The SiS 5512 PCI Local Data buffer (PLDB) provides bidirectional data buffering among the 64-bit Host Data Bus, the 64/32-bit Memory Data Bus, and the 32-bit PCI Address/Data Bus.

The PLDB incorporates three FIFOs (First In First Out) and one read buffer among the bridges of the CPU, PCI, and memory buses. This buffering scheme, among many things, smooths the differences in bandwidths between the three buses, therefore improving the overall system performance. During bus operations between the Host, PCI and Memory, the the PLDB receives control signals from the SiS 5511 PCMC, performs functions such as latching data, forwarding data to destination bus, data assemble and disassemble.

The PLDB mainly contains storage elements. The behavior of the Data Path chip is always controlled by the SiS 5511 Host/PCI bridge.

The main features of the SiS 5512 chip are:

• Supports full 64-bit Pentium Processor data bus.

• Provides a 32-bit interface to the PCI.

• Always sustains 0 Wait Performance on CPU-to-Memory.

• Always streams 0 Wait Performance on PCI-to/from-Memory Access.

• Supports built-in 32-bit General Purpose Register.

• Provides parity generation for memory writes.

• Provides optional parity checker for memory reads.

PCI/ISA Bridge (SiS 5513 Chip)

The SiS 5513 chip is a highly integrated PCI/ISA system I/O1 (PSIO) device that includes all the necessary system control logic used in the PCI/ISA specific applications. The PSIO device serves as a bridge between the PCI bus and the ISA bus, translates ISA master/DMA device cycles onto the PCI bus, and serves as a built-in PCI master/slave IDE interface.

It incorporates a seven-channel programmable DMA controller, 16-level programmable interrupt controller, a programmable timer with three counters with 256 bytes (CMOS SRAM not used), and an onboard Plug and

1. I/O = Input/Out

2 System Board - (SiS Chipset) (Part Number: D4051-63001)

SiS Chipset

Play port. The PSIO supports two bus master IDE channels providing up to four IDE devices. The PSIO does not require any IDE buffering to be used, and therefore no IDE buffers are used.

The SiS 5513 chip consists of:

• A PCI bridge that translates PCI cycles onto the ISA bus.

• ISA master/DMA device that translates cycles onto the PCI bus.

• A seven-channel programmable DMA controller.

• A sixteen-level programmable interrupt controller.

• A programmable timer with three counters.

• An onboard Plug and Play port.

• A built-in PCI master/slave IDE interface.

The PSIO PCI bus interface provides the interface between PSIO and the PCI bus. It contains both PCI master and slave bridges to the PCI bus. As a PCI slave, the PSIO responds to both I/O and memory transfers.

ISA Bus Controller

The PSIO ISA Bus Interface accepts cycles from the PCI bus interface and then translates them for the ISA bus. It also requests the PCI master bridge to generate PCI cycles on behalf of DMA or ISA master. The ISA bus interface contains a standard ISA Bus Controller and a Data Buffering logic. The PSIO can directly support six ISA slots without external data or address buffering.

DMA Controller

The PSIO contains a seven-channel DMA controller. The channel 0 to 3 is for 8bit DMA devices while channel 5 to 7 is for 16-bit devices. The channels can also be programmed for any of the four transfer modes: The three active modes (single, demand, block), can perform three different types of transfer: read, write and verify. The address generation circuitry in the PSIO can only support a 24-bit address for DMA devices.

Interrupt Controller

The PSIO provides an ISA-compatible interrupt controller that incorporates the functionality of two 82C59 interrupt controllers. The two controllers are cascaded so that 14 external and two internal interrupts are supported.

Timer/Counter

The PSIO contains a three-channel counter/timer. The counters use a division of

14.31818 MHz OSC input as the clock source.

2 System Board - (SiS Chipset) (Part Number: D4051-63001)

SiS Chipset

System Board Switches and Jumpers (D4051-63001)

The system board switches and jumpers are used to configure certain aspects of the computer.

SW1 Switch

This switch is multi-purpose and is used to modify Flash, CMOS and password settings.

Switch Default

Setting

1 OFF Flashing Enable Flashing Disable Updating the BIOS. Set the security

2 OFF CMOS is in normal

3 OFF Password is in normal

OFF ON COMMENTS

mode. Set the switch to the ON position to prevent the BIOS from being upgraded.

CMOS Clear To clear the CMOS configuration.

operation

Password Clear To clear the password. Set the

operation

Set the switch to the ON position and restart the PC. Return the switch to the OFF position and restart the PC to return to normal operation.

switch to the ON position and restart the PC. Return the switch to the OFF position and restart the PC to return to normal operation.

2 System Board - (SiS Chipset) (Part Number: D4051-63001)

SiS Chipset

SW2 Switch

This switch is used to select the internal CPU frequency by defining the CPU Bus Frequency / CPU Frequency ratio. If the processor is upgraded, the ratio might have to be changed to adapt to the new processor.

The following table includes some examples of the settings to use for different processor speeds:

Processor Speeds

CPU Frequency 100 MHz 2 / 3 OFF OFF 66 MHz 3 - 4

CPU Frequency 120 MHz 1 / 2 ON OFF 60 MHz 1 - 3

CPU Frequency 133 MHz 1 / 2 ON OFF 66 MHz 3 - 4

CPU Frequency 150 MHz 2 / 5 ON ON 60 MHz 1 - 3

CPU Frequency 166 MHz 2 / 5 ON ON 66 MHz 3 - 4

Switch Block SW2

Position

Ratio

1 2 CPU Bus

Jumper J7 Settings

Frequency

Pins Shorted

The default settings for Switch 2 and Jumper J7 depend on the particular HP Vectra 500 Series PC model.

CPU Bus Frequency Jumper

This jumper (J7) defines the CPU bus frequency. The following illustration shows how to set the desired bus frequency.

50 MHz 60 MHz 66 MHz

2 System Board - (SiS Chipset) (Part Number: D4051-63001)

SiS Chipset

Cache Jumper

This jumper (J6) selects either synchronous or asynchronous cache type. If the PC is not installed with any level-2 cache, the default jumper setting is synchronous cache. The following illustration shows the two cache-type jumper settings.

Synchronous Asynchronous

Space-Bar Power-On Feature Jumper

The Space-Bar Power-On feature (JP4 “KBD Start” on the system board) enables you to turn on the PC using the spacebar. To disable this feature, set the Space-Bar Power-On field in the Setup program to Disable, or remove the jumper. Removing the jumper overrides the setting in the Setup program.

Power-on

spacebar enabled

Power-on

spacebar disabled

NOTE: To use the Power-On spacebar feature, an HP Vectra Keyboard displaying a

Power-On icon is required.

2 System Board - (SiS Chipset) (Part Number: D4051-63001)

SiS Chipset

Processor Socket (D4051-63001)

The microprocessor is packaged in a pin-grid-array (PGA), which is seated on the system board in a zero-insertion-force (ZIF) socket.

Memory Sockets (D4051-63001)

There are six main memory module sockets available with the HP Vectra 500 Series minitower and desktop computers. The sockets are arranged in three banks (A to C), allowing memory installation up to a maximum of 192 MB.

The following illustration shows the physical layout of the memory bank organization.

Bank C

Bank B

Bank A

J10

J14

J13

SIMM Socket 6 (C2)

SIMM Socket 5 (C1)

SIMM Socket 4 (B2)

SIMM Socket 3 (B1)

SIMM Socket 2 (A2)

SIMM Socket 1 (A1)

2 System Board - (SiS Chipset) (Part Number: D4051-63001)

Backplane (D4051-63001)

Desktop Backplane

The HP Vectra 500 Series desktop backplane supports two 16-bit ISA (Industry Standard Architecture) cards, one 32-bit PCI (Peripheral Component Interconnect) card and has one combination slot for an ISA or PCI card.

1 x PCI

1 x ISA/PCI

Combination Slot

2 x ISA

System Board

Connector

The four expansion card slots are arranged as follows:

• Slot 1 - (the top slot) can be used for a 32-bit PCI card.

• Slot 2 - Combination slot that can be used for a 32-bit PCI card or a full-length (30 cm / 12 inches) 16-bit ISA card.

• Slot 3 - can be used for a full-length 16-bit ISA card (30 cm / 12 inches).

• Slot 4 - can be used for a half-length 16-bit ISA card (15 cm / 6 inches).

Slot 1

Slot 2

Slot 3

Slot 4

2 System Board - (SiS Chipset) (Part Number: D4051-63001)

Backplane (D4051-63001)

Minitower Backplane

The HP Vectra 500 Series minitower backplane supports three 16-bit ISA (Industry Standard Architecture) cards, two 32-bit PCI (Peripheral Component Interconnect) cards and has one combination slot for an ISA or PCI card.

Slot 6

3 x ISA

2 x PCI

1 x ISA/PCI

Combination Slot

System Board

Connector

Slot 5

Slot 4 Slot 3

Slot 2

Slot 1

The six expansion card slots are arranged as follows:

• Slot 1 - (the innermost) Combination slot that can be used for a half-length 16-bit ISA card (15 cm / 6 inches) or a 32-bit PCI card.

• Slot 2 - can be used for a 32-bit PCI card.

• Slot 3 - can be used for a 32-bit PCI card.

• Slot 4 - can be used for a full-length 16-bit ISA card (30 cm / 12 inches).

• Slot 5 - can be used for a full-length 16-bit ISA card (30 cm / 12 inches).

• Slot 6 - can be used for a full-length 16-bit ISA card (30 cm / 12 inches).

2 System Board - (SiS Chipset) (Part Number: D4051-63001)

Devices on the Processor Local Bus (D4051-63001)

Main Memory (UMA)

The SiS 5511 chip can support single-sided or double-sided 64/72 bits (with or without parity) FP (Fast Page mode) or EDO (Extended Data Output) DRAM (dynamic random-access memory) modules. Half populated banks are also supported. The PC can use 60 ns EDO or 70 ns FP DRAM.

It is also possible to mix the EDO DRAM and FP DRAM bank by bank and the corresponding DRAM timing will be switched automatically according to register setting. Both symmetrical and asymmetrical type DRAMs are supported.

The following table is an example of how to use the memory module banks, with three different configurations.

BANK A BANK B BANK C

Memory Total

8 MB 4 MB 4 MB

12 MB 4 MB 4 MB 4MB

16 MB 8 MB 8 MB

A1 A2 B1 B2 C1 C2

Cache Memory (D4051-63001)

The PC supports two levels of cache memory:

• Level-1 (L1), cache memory which is incorporated within the Pentium processor chip.

• Level-2 (L2), cache memory which is optionally installed as a memory module on the system board.

Cache memory acts as temporary storage for data and instructions from main memory. Since the system is likely to use the same data several times, it is faster to get it from the on-chip cache than from the main memory.

2 System Board - (SiS Chipset) (Part Number: D4051-63001)

Devices on the Processor Local Bus (D4051-63001)

Level-1 Cache Memory

The L1 cache memory is divided into two separate banks:

• L1 I-cache for instruction words.

• L1 D-cache for data words.

For more information about Level-1 cache, refer to “Instruction and Data Cache” on page 46.

Level-2 Cache Memory

The L2 cache memory, when installed, has a 32-byte line size. It is controlled by the Host Bridge chip (SiS 5511) in the system board chipset. A single HP cache memory module consists of 256 KB of direct mapped, synchronous, static random access memory (SRAM).

Pentium Processor (D4051-63001)

The Pentium processor uses 64-bit architecture and is 100% compatible with Intel’s family of x86 processors. All application software that has been written for Intel386 and Intel486 processors can run on the Pentium without modification. The Pentium processor contains all the features of the Intel486 processor, with the following added features which enhance performance:

• Superscalar Architecture

• Floating Point Unit

• Dynamic Branch Prediction

• Instruction and Data cache

• Data Integrity

• Supports MultiProcessor Specification (MPS) 1.1

• PCI bus architecture

• Advanced Power Management capability for reducing power consumption

The processor is seated in a Zero Insertion Force (ZIF) socket.

2 System Board - (SiS Chipset) (Part Number: D4051-63001)

Devices on the Processor Local Bus (D4051-63001)

Superscalar Architecture

The Pentium processor’s superscalar architecture has two instruction pipelines and a floating-point unit, each capable of independent operation. The two pipelines allow the Pentium to execute two integer instructions in parallel, in a single clock cycle. Using the pipelines halves the instruction execution time and almost doubles the performance of the processor, compared with an Intel486 microprocessor of the same frequency.

Frequently, the microprocessor can issue two instructions at once (one instruction to each pipeline). This is called instruction pairing. Each instruction must be simple. One pipeline will always receive the next sequential instruction of the one issued to the other pipeline.

Floating Point Unit

The Floating Point Unit (FPU) incorporates optimized algorithms and dedicated hardware for multiply, divide, and add functions. This increases the processing speed of common operations by a factor of three.

Dynamic Branch Prediction

The Pentium processor uses dynamic branch prediction. To dynamically predict instruction branches, the processor uses two prefetch buffers. One buffer is used to prefetch code in a linear way, the other to prefetch code depending on the contents of the Branch Target Buffer (BTB). The BTB is a small cache which keeps a record of the last instruction and address used. It uses this information to predict the way that the instruction will branch the next time it is used. When it has made a correct prediction, the branch is executed without delay, thereby enhancing performance.

Instruction and Data Cache

The Pentium processor has separate on-chip code instruction and data caches. Each cache is 8 KB in size with a 32-bit line. The cache acts as temporary storage for data and instructions from the main memory. As the system is likely to use the same data several times, it is faster to get it from the on-chip cache than from the main memory.

Each cache has a dedicated Translation Lookaside Buffer (TLB). The TLB is a cache of the most recently accessed memory pages. The data cache is configured to be Write-Back on a line-by-line basis (a line is an area of memory of a fixed size).

2 System Board - (SiS Chipset) (Part Number: D4051-63001)

Devices on the Processor Local Bus (D4051-63001)

The data cache tags (directory entries used to reference cached memory pages) are triple-ported to support two data transfers and an inquire cycle in the same clock cycle. The code cache tags are also triple-ported to support snooping (a way of tracking accesses to main memory by other devices) and split line accesses.

Individual pages of memory can be configured as cacheable or noncacheable by software or hardware. They can also be enabled and disabled by hardware or software.

Data Integrity

The processor uses a number of techniques to maintain data integrity. It employs two methods of error detection:

• Data Parity Checking

This is supported on a byte-by-byte basis, generating parity bits for data addresses sent out of the microprocessor. These parity bits are not used by the external subsystems.

• Internally

The processor uses functional redundancy checking to provide maximum error detection of the processor and its interface.

Advanced Power Management

The Advanced Power Management (APM) is a standard, defined by Intel and Microsoft, for a power-saving mode that is applicable under a wide range of operating systems. The version APM 1.1 supports the following modes: Fully-on, Standby, Suspend, and Off.

The Suspend mode is managed at the operating system level only, from the Windows 95 Start menu. There is no longer the inter-activity between BIOS Setup and operating systems, and no longer a “sleep at” item on the Setup program menus, to avoid the BIOS from shutting down the system at the wrong moment.

2 System Board - (SiS Chipset) (Part Number: D4051-63001)

Devices on the PCI Bus

Graphics/Integrated Video (D4051-63001)

The HP Vectra 500 Series PC uses the SiS 6205 video controller and supports video resolutions up to 1280 x 1024.

Video Controller

As explained earlier, the SiS 6205 video controller supports the UMA architecture, and therefore no dedicated video memory is loaded on the system board. The shared frame buffer is located in the system DRAM, and the video controller accesses it through the M A (MA) and M D (MD) bus. The SiS 6205 video controller arbitrates for the use of the system memory with the memory controller included in the SiS 5511 Host Bridge and Memory Controller. Whenever the video controller wants to access the memory bus, it makes a request to the SiS 5511 controller. This then grants the memory bus to the SiS 6205 video controller unless it is needed by the chipset. The arbitration scheme takes place through three signals: VGAREQ#, VGAGNT#, and PREQ (if the high/low priority scheme is enabled).

The SIS 6205 video controller offers full compatibility with VGA. In addition, the features are enhanced beyond Super VGA by hardware which accelerates graphical user interface operation in Windows 95.

The enhanced features include:

• Direct connectivity to PCI bus.

• True acceleration for 8, 16 and 32-bit pixel depths.

• 57 MHz clock for video memory.

• Fully programmable Pixel Clock Generator up to 135 MHz.

• Fast linear addressing with full software relocation.

For details about supported video resolutions, refer to “Video Controllers” on page 115 for a table containing all the video resolutions supported.

2 System Board - (SiS Chipset) (Part Number: D4051-63001)

Devices on the PCI Bus

Integrated Drive Electronics (IDE) Controller

The IDE controller is implemented as part of the PCI/ISA bridge chip. It is driven from the PCI bus and has PCI-Master capability. It supports Enhanced IDE (EIDE) and Standard IDE (Bus Master IDE). To use the Enhanced IDE features, though, hard disk drives must be compliant with Enhanced IDE.

The following table shows the two different cable sets for the desktop and minitower computers.

Desktop Minitower

The first cable attached to the connector marked HDD on the system board, supports:

The second cable attached to the connector marked CD-ROM on the system board, supports:

Up to two IDE hard disk drives Up to two IDE hard disk drives

Either an IDE CD-ROM drive or an IDE hard disk drive

An IDE CD-ROM drive and a third hard disk drive, or two IDE CD-ROM drives

The following tables show the possible multiple IDE drive combinations for the desktop and minitower computers when installing additional devices.

Desktop Configuration Connections to Data Cables

One hard disk drive 1. Bootable hard disk drive: Master connector, HDD data cable

Two hard disk drives 1. Bootable hard disk drive:

2. Second hard disk drive:

Three hard disk drives

One hard disk drive One CD-ROM drive

Two hard disk drives

One CD-ROM drive

1. Bootable hard disk drive:

2. Second hard disk drive:

3. Third hard disk drive:

1. Bootable hard disk drive:

2. CD-ROM drive:

1. Bootable hard disk drive:

2. Second hard disk drive:

3. CD-ROM drive:

Master connector, HDD data cable Slave connector, HDD data cable

Master connector, HDD data cable Slave connector, HDD data cable Master connector, CD-ROM data cable

Master connector, HDD data cable Master connector, CD-ROM data cable

Master connector, HDD data cable Slave connector, HDD data cable Master connector, CD-ROM data cable

2 System Board - (SiS Chipset) (Part Number: D4051-63001)

Devices on the PCI Bus

Minitower Configuration Connections to Data Cables

One hard disk drive 1. Bootable hard disk drive: Master connector, HDD data cable

Two hard disk drives 1. Bootable hard disk drive:

2. Second hard disk drive:

Three hard disk drives

One hard disk drive One CD-ROM drive

Two hard disk drives

One CD-ROM drive

Three hard disk drives One CD-ROM drive

Two hard disk drives

Two CD-ROM drives

1. Bootable hard disk drive:

2. Second hard disk drive:

3. Third hard disk drive:

1. Bootable hard disk drive:

2. CD-ROM drive:

1. Bootable hard disk drive:

2. Second hard disk drive:

3. CD-ROM drive:

1. Bootable hard disk drive:

2. Second hard disk drive:

3. Third hard disk drive:

4. CD-ROM drive:

1. Bootable hard disk drive:

2. Second hard disk drive:

3. CD-ROM driver:

4. Second CD-ROM drive:

Master connector, HDD data cable Slave connector, HDD data cable

Master connector, HDD data cable Slave connector, HDD data cable Master connector, CD-ROM data cable

Master connector, HDD data cable Master connector, CD-ROM data cable

Master connector, HDD data cable Slave connector, HDD data cable Master connector, CD-ROM data cable

Master connector, HDD data cable Slave connector, HDD data cable Master connector, CD-ROM data cable Slave connector, CD-ROM data cable

The BIOS uses the auto-detected drive information to select the fastest configuration supported by each installed IDE drive.

Transfer Rates Versus Modes of Operation

The IDE controller supports 32-bit Windows and DOS I/O transfers (many IDE controllers use Windows integral IDE driver which only supports 16-bit I/O transfers). It supports programmed I/O (PIO) modes up to mode 4 and direct memory access (DMA) modes up to mode 2 (giving a cycle time of 120 ns, and a transfer rate of 16.7 MB per second, in both cases).

The five PIO modes allow the following transfer rates:

Mode 0 1 2 3 4

Cycle time (ns) 600 383 240 180 120

Transfer rate (MBytes/s) 3.33 5.22 8.33 11.1 16.7

2 System Board - (SiS Chipset) (Part Number: D4051-63001)

Devices on the PCI Bus

The three DMA modes allow the following transfer rates:

Mode 0 1 2

Cycle time (ns) 480 150 120

Transfer rate (MBytes/s) 4.2 13.3 16.7

Operated in slave mode, the IDE controller saturates the PCI bus with transfers, thus limiting the actual achieved transfer rate to less than 10 MBytes per second.

Operated in master mode, though, the IDE controller is allowed to work autonomously of the processor, and the full 16.7 MBytes per second transfer rate can be achieved with less than 33% occupancy of the PCI bus (thus allowing the processor to do other work for more than 67% of the cycle times, while the IDE transfers take place in parallel).

Disk Capacity Versus Modes of Addressing

The amount of addressable space on the hard disk is limited by three factors:

• Physical size of the hard disk.

• Addressing limit of the IDE hardware.

• Addressing limit of the BIOS.

The Extended-CHS (Cylinder Header Sector) addressing scheme allows larger disk capacities to be addressed than under CHS, by performing a translation (for example regrouping the sectors so that there are twice as many logical tracks as is possible under the CHS addressing scheme).

Cylinders

per Device

CHS 64 16 1024 512 528 M

ECHS 64 256 1024 512 8.4 G

LBA - - 256 M (=2

If the Setup field has been set to (LBA) mode will be selected for each device that supports it.

Heads per

Cylinder

Sectors per

Track

automatic, the logical block addressing

Bytes per

Sector

) 512 137 G

Bytes per

Device

2 System Board - (SiS Chipset) (Part Number: D4051-63001)

Devices on the ISA Bus

Super I/O Chip (NS 87308 or NS 87307)

The basic input/output control functions are provided by the Super I/O chip, the NS 87308 or NS 87307. The Super I/O chip is contained within a 160-pin PQFP package. The chip provides the control for the following devices:

Logical

Device

0 Keyboard controller

1 Mouse controller

2 RTC and Advanced Power supply Controller (APC)

3 Floppy disk controller

4 Parallel port controller

5 UART2 & IR controller

6 UART1 controller

7 GPIO

8 Power management

Functions

The Super I/O chip incorporates one Plug and Play compatible chip, is 100% compatible with the ISA architecture, and provides:

• An integrated floppy drive controller.

• A keyboard controller.

• A mouse controller.

• A real-time clock (RTC).

• Two UART’s (serial ports ).

• An IEEE1284 parallel port.

• Three general purpose chip select signals

• General purpose I/O register set.

• An X-bus data buffer that connects the 8-bit X data bus to the ISA data bus.

• Non-Volatile Memory (NVM) support via the Chip Select 0 (CS0) signal that is powered by the V

CCH

2 System Board - (SiS Chipset) (Part Number: D4051-63001)

Devices on the ISA Bus

Feature Summary

Function Features

Floppy disk controller ❒ Software compatible with the DP8473, the 765A, and the

N82077

❒ 16-byte FIFO (default disabled) ❒ Burst and non-burst modes ❒ Perpendicular recording drive support ❒ New high-performance internal digital data separator (no

external filter components required)

❒ Low-power CMOS with enhanced power-down mode ❒ Automatic media-sense support

UARTs ❒ Software compatible with the PC16550A and PC16450

❒ A modifiable address that is referenced by a 16-bit programma-

ble register.

❒ 13 IRQ channel options. ❒ Shadow register support for write-only bits. ❒ Four 8-bit DMA options for UART2.

Bidirectional parallel port ❒ Enhanced Parallel Port (EPP) compatible

❒ Extended Capabilities Port (ECP) compatible ❒ Bidirectional under either software or hardware control ❒ Demand mode DMA support. ❒ Selection of internal pull-up or pull-down resistor for Paper End

(PE) pin.

❒ Reduction of PCI bus utilization by supporting a demand DMA

mode mechanism and a DMA fairness mechanism.

❒ Includes protection circuit against damage caused when printer

is switched on, or operated at higher voltages.

❒ Output buffers that can sink and source 14 mA.

Three general purpose pins for three separate chip select signals

❒ Programmed for game port control. ❒ Chip Select 0 (CS0) signal produces open drain and is powered

CCH

by the V

❒ Chip Select 1 (CS1) and 2 (CS2) signals have push-pull buffers

and are powered by the main V

❒ Decoding of chip select signals depends on the address and the

Address Enable (AEN) signal, and can be qualified using the Read (RD) and Write (WR) signals.

Enhanced power management ❒ Special configuration registers for power down

❒ Reduced current leakage from pins. ❒ Low-power CMOS technology. ❒ Ability to shut off clocks to all modules.

2 System Board - (SiS Chipset) (Part Number: D4051-63001)

Devices on the ISA Bus

Function Features

16 Single-Bit General Purpose I/O ports (GPIO)

Clock source options ❒ Source is a 32.768 kHz crystal (an internal frequency multiplier

General features ❒ All accesses to the Super I/O chip activates a Zero Wait State

❒ Modifiable addresses that are referenced by a 16-bit program-

mable register.

❒ Programmable direction for each signal (input or output). ❒ Programmable drive type for each output pin (open-drain or

push-pull).

❒ Programmable option for internal pull-up resistor on each input

pin.

❒ A back-drive protection circuit.

generates all the required internal frequencies).

❒ Source may be either a 48 MHz or 24 MHz clock input signal.

(ZWS) signal, except for accesses to the Enhanced Parallel Port (EPP) and to configuration registers.

❒ Accesses to all configuration registers is through an Index and a

Data register, which can be relocated within the ISA I/O address space.

❒ 160-pin Plastic Quad Flatpack (PQFP) package.

Serial/Parallel Ports

The Super I/O chip supports two serial ports and one bidirectional parallel port. The serial ports are high speed UARTs with 16-Byte FIFOs, and can be programmed as COM1, COM2, COM3, COM4, or disabled.

The parallel port can operate in four modes:

• Standard mode (PC/XT, PC/AT, and PS/2 compatible)

• Bidirectional mode (PC/XT, PC/AT, and PS/2 compatible)

• Enhanced mode (Enhanced Parallel Port or EPP compatible)

• High speed mode (MS/HP Extended Capabilities Port or ECP compatible).

It can be programmed as LPT1 (378h, IRQ7), LPT2 (278h, IRQ5), or disabled.

2 System Board - (SiS Chipset) (Part Number: D4051-63001)

Devices on the ISA Bus

Floppy Drive Controller

The Floppy Drive Controller (FDC) is software and register compatible with the 82077AA, and 100% IBM compatible. It has an A and B drive-swapping capability and a non-burst DMA option. The FDC supports any combination of the following: tape drives, 3.5 inch flexible disk drives, 5.25 inch flexible disk drives.

Keyboard and Mouse Controller

The PC has an 8042-based keyboard and mouse controller (the socket pin layouts are as shown on page 24). The C3758A keyboard is supplied for use with the Windows 95 operating system (though it will also work with other operating systems). It has the following capabilities:

• Space-bar power-on, to start the computer from the Off state (if

from keyboard

is enabled in the Setup program).

power on

• Windows key (next to the keys), which has the same effect as clicking the Start button on the Windows 95 task bar.

• Pull-down key (next to the right key), which has the same effect as clicking the right mouse button.

2 System Board - (SiS Chipset) (Part Number: D4051-63001)

BIOS (version: GX.07.xx)

The following section is an overview of the BIOS features available with the system identified by the BIOS version: GX.07.xx, installed on the HP Vectra 500 Series PC models with an HP Service Part Number: D4051-63001. For further detailed information about the BIOS, refer to chapter 4, Summary of the HP/Phoenix BIOS.

HP Setup Program

The PC has many security features to protect stored data, to protect the SETUP configuration, and to prevent unauthorized operation of software applications:

• User password.

• Administrator password (system configuration protection).

• Power-on prompt, with user or administrator password.

• Space-bar power-on protection. (Feature may be enabled or disabled.)

• Communications port protection. (Ports can enabled or disabled.)

• Floppy disk drive protection. (Disks can be read- or write-protected.)

• Boot protection. (Boot on floppy disk , CD-ROM and hard disk can be enabled or disabled).

Flash ROM

The PC uses 256 KB of 200ns, Flash ROM. The HP BIOS boot code contains SETUP, video BIOS, error messages, and ISA and PCI initialization. During programming of the Flash ROM, the power supply switch and the reset button are disabled to prevent accidental interruption.

Little Ben

Little Ben is an HP application specific integrated circuit (ASIC) that is connected between the chipset and the processor. It has been designed to act as a companion to the Super I/O chip.

System Board (P/Ns D3657-63001 and D3661-63001)

The two system boards described in this chapter use the Intel SB82437/8 PCI chipset. The two boards are the same except that D3657-63001 has an integrated (onboard) video controller and memory, whereas D3661-63001 uses a Matrox Millennium video card for its video controller and memory.

3 System Board (P/Ns D3657-63001 and D3661-63001)

Overview

This section lists the 520 and 525 models and product numbers that use the two system boards D3657-63001 and D3661-63001.

D3657-63001 Models

Desktop Models

The following table lists the desktop models and products that use the D3657-63001 system board.

Model Product Number

520 MCx2 5/133 D4479A

520 MCx2 5/166 D4480A

1 =Includes CD-ROM 2 =Includes CD-ROM and Modem/Audio

Minitower Models

The following table lists the minitower models and products that use the D3657-63001 system board.

Model Product Number

525 5/166 D4483A

525 5/200 D4474A

525 CD1 5/133 D4475A

525 CD1 5/166 D4476A

525 CD1 5/200 D4470A D4472A

525 MCx2 5/133 D4477A

525 MCx2 5/166 D4478A

525 MCx2 5/200 D4473A D4481A D4482A

1 =Includes CD-ROM 2 =Includes CD-ROM and Modem/Audio

3 System Board (P/Ns D3657-63001 and D3661-63001)

Overview

D3661-63001 Models

Minitower Models

The following table lists the minitower models and products that use the D3661-63001 system board.

Model Product Number

525 MCx2 5/200 D4471A

1 =Includes CD-ROM 2 =Includes CD-ROM and Modem/Audio

Configuration Summary

• Supported processors: P54C and P54CS.

• Level-2 cache memory socket - supports 256-KB cache memory module (the module is already installed in some PCs).

• Intel SB82437/8 PCI chipset which consists of four chips that interface between the three main buses (the processor’s local (PL) bus, the PCI bus, and the ISA bus).

❒ The PL/PCI bridge chip (SB82437FX-66) which also provides control

for the PCI bus, level-2 cache memory, and main memory.

❒ Two data path unit chips (SB82438FX) that provide a 64-bit data path

between the processor local bus and main memory modules.

❒ The PCI/ISA bridge chip (SB82371FB) which also provides control for

the IDE.

• Six SIMM sockets for EDO or FPM DRAM - up to 128 MB.

• Onboard video controller (S3 Trio64) offers full compatibility with VGA. Note that one model (D4471A) uses a Matrox MGA Millennium video card instead of the onboard video controller.

• Super I/O controller (SMC FDC37C932), driven from the ISA bus, supports two serial ports and one bidirectional multi-mode parallel port. It also provides control for two slow mass-storage devices (any suitable combination of floppy disk and tape drives).

• Little-Ben chip which takes care of security features and power management.

• 128-KB flash BIOS

3 System Board (P/Ns D3657-63001 and D3661-63001)

System Board Architecture

The following diagram shows the functional relationship between the various components on the system board.

Pentium

Processor

Intel

SB82437FX-

66 PL/PCI

Bridge

Intel

SB82371FB

PCI/ISA

Bridge

Local Bus

PCI Bus

IDE Controller Channel 1

IDE Controller Channel 2

ISA Bus

256 KB

Level-Two

Cache

Memory

(8 MB -

128 MB)

PCI Expansion Card

Slots

S3 Trio 64

Video

Controller

Keyboard

Mouse

SMC FDC37C932

Super I/O

Controller

Par allel

Serial 1

Serial 2

FDD

I/O Decode

Logic

Flash

Support

BIOS

Flash ROM

ISA Expansion

Card Slots

3 System Board (P/Ns D3657-63001 and D3661-63001)

System Board Physical Layout

The following diagram shows the physical layout of the system board.

* This video upgrade applies only to the models with integrated video controller.

3 System Board (P/Ns D3657-63001 and D3661-63001)

Principal Components and Features

PCI Chipset

The PCI chipset consists of four chips that interface between the three main buses (the processor’s local (PL) bus, the PCI bus, and the ISA bus):

• The PL/PCI bridge chip (SB82437FX-66) which also provides control for the PCI bus, level-2 cache memory, and main memory.

• Two data path unit chips (SB82438FX) that provide a 64-bit data path between the processor local bus and main memory modules.

• The PCI/ISA bridge chip (SB82371FB) also provides control for the IDE.

Pentium

Processor

Host Bus

SB82438FX

Data Path Unit

SB82438FX

Data Path Unit

Level-Two

Cache

SB82437FX-66 PCI, Cache

and Memory Controller

Cache

Controller

Write

Buffer

Memory

Controller

Main

Memory

Main

PCI Bus

SB82371FB

PCI/ISA Bridge

PCI

Master

PCI

Slave

APIC

BIOS

ISA Bus

Controller

IDE

Controller

ISA Bus

PCI

Master

PCI

Slave

3 System Board (P/Ns D3657-63001 and D3661-63001)

Principal Components and Features

PCI, Cache and Memory Controller (SB82437FX-66)

The SB82437FX-66 device integrates cache and memory control functions and provides bus control functions for the transfer of information between the microprocessor, cache, main memory and the PCI bus. The cache controller supports the Pentium Cache Write-Back mode and 256 KB of direct mapped, write-back level-two cache, using synchronous pipeline burst SRAMs.

SB82437FX-66 Feature Summary

Function Features

Cache controller ❒ Direct mapped organization

❒ Buffered write-back ❒ External cache tags ❒ 32-byte line size ❒ Uses synchronous pipeline burst SRAM ❒ Supports 3-1-1-1

burst reads

Write buffer ❒ Buffers all processor writes to main memory

❒ Buffers memory writes to PCI for selected memory regions ❒ Supports 3-1-1-1

DRAM controller ❒ Uses dedicated DRAM memory address and data buses

❒ Page mode - one or two pages open simultaneously ❒ Supports pipelined accesses ❒ Full RAS/CAS programmability ❒ Flexible bank configurations (each bank programmable for

DRAM size, bank width and single or double-sided modules)

❒ Self configuring bank start addresses ❒ Shadow RAM support for the memory region 640 KB - 1 MB

(in 16-KB segments)

❒ System management memory support ❒ RAS only refresh ❒ Fast memory access 7-2-2-2

memory

PCI slave interface ❒ Becomes processor (local) bus master to generate DRAM

requests on behalf of other PCI bus masters

❒ Supports PCI bus burst cycles ❒ Supports posted writes to DRAM for PCI burst writes ❒ Supports read-ahead from DRAM for PCI burst reads

write access timing

with Extended Data Out (EDO)

3 System Board (P/Ns D3657-63001 and D3661-63001)

Principal Components and Features

Function Features

PCI master interface ❒ Provides for programmable PCI bus memory regions in

memory address map

❒ Supports PCI bus burst cycles for 64-bit and 32-bit misaligned

Pentium reads and writes

❒ Optional posting of PCI memory and I/O writes ❒ Optional buffering of PCI memory writes ❒ Optional read-ahead for processor to PCI accesses

PCI bus arbiter ❒ Supports PCI bus arbitration for up to four masters

❒ Supports rotating priority scheme

The Pentium’s internal cache has a 32-byte line size, which is four times the width of the Pen-

tium’s host data bus. Burst reads and writes by the Pentium involve a full cache line, and so require four back-to-back cycles to complete. The first cycle in each burst of four always requires more time to complete than the three subsequent cycles. This is because the first cycle includes the addressing phase and precharge timing (for memory).

Data Path Unit (SB82438FX)

The SB82438FX component contains a 64-bit data path between the host bus and main memory. A 4×64-bit deep buffer provides 3-1-1-1 writes to main memory.

This buffer is used for:

• writes from processor to main memory

• level-two cache write-back cycles

• transfers from PCI to main memory.

3 System Board (P/Ns D3657-63001 and D3661-63001)

Principal Components and Features

The PCI/ISA Bridge and IDE Controller (SB82371FB)

The SB82371FB device serves as a bridge between the PCI bus and the ISA expansion bus, and incorporates a two-channel PCI IDE controller. It incorporates the logic for a PCI interface, a DMA interface, a DMA controller that supports fast DMA transfers, data buffers to isolate the PCI and ISA buses, Timer/Counter logic, and NMI control logic.

The SB82371FB PCI/ISA bridge also provides decode for the following peripheral devices:

• Flash BIOS

• Real Time Clock/CMOS Memory

• Keyboard/Mouse Controller

• Floppy Disk Controller

• Two Serial Ports

• One Parallel Port

• PCI Expansion Card Slots.

The SB82438FX and SB82371FB Feature Summary

Function Features

Data buffer (for SB82438FX and SB82371FB together)

PCI master / slave interface (for SB82371FB only)

❒ Provides a high performance 64-bit data path between the

processor (local) bus and main memory

❒ Provides a 32-bit data path to the PCI bus ❒ Provides a 8-deep x 64-bits wide write buffer for all processor

writes to main memory

❒ Provides a one-level posted write buffer for all processor

writes to PCI bus memory

❒ Fully compatible with PCI specification ❒ Supports PCI-to-ISA / ISA-to-PCI bus master cycle translations ❒ Supports programmable memory regions to provide fast

positive decode for PCI master accesses

❒ Implements subtractive decoding for unclaimed PCI cycles ❒ Supports PCI-to-ISA posted memory writes ❒ Translates DMA transfers for PCI slaves ❒ Supports PCI address/data parity generation and checking

3 System Board (P/Ns D3657-63001 and D3661-63001)

Principal Components and Features

Function Features

ISA bus controller (for SB82371FB only)

Fast IDE controller (for SB82371FB only)

❒ Fully compatible with ISA bus standard ❒ Supports asynchronous ISA bus operation up to 16 MHz ❒ Integrates:

❒ two 82C37A DMA controllers ❒ two 82C59A interrupt controllers ❒ 82C54 timer ❒ hidden ISA refresh controller ❒ support for BIOS ❒ port A, B and NMI logic

❒ Supports PIO and Bus Master IDE ❒ Supports up to Mode 4 timings ❒ Up to 22 MB/s transfer rate ❒ 8×32-bit buffer for Bus Master IDE PCI burst transfers

System Board Configuration Switches

The system board configuration switches are used to configure certain aspects of the computer.

Example of system board switch settings

OPEN

The system board switches used for configuring the PC are summarized in the following table.

Switch Setting

Switch Functions

3 System Board (P/Ns D3657-63001 and D3661-63001)

Principal Components and Features

Default

Setting

1 - 4

- Selects system board speed settings, refer to “Bus Frequencies” on page 72.

Open Enables User and Administrator passwords. Open

Closed Clears User and Administrator passwords.

Open CMOS memory acts as a non-volatile store for the Setup program.. Open

Closed Clears the Setup configuration data in the CMOS memory.

Selects system board speed settings, refer to “Bus Frequencies” on page 72.

Open Disables secure mode. Open

Closed Sets the security mode. Sets the switch to the closed position to prevent the

BIOS from being upgraded and to disable writing to disks.

Open Disables space-bar power-on. This setting overrides the setting in the Setup

program.

Closed Enables space-bar power-on. If you want to enable this feature, set this switch

to Closed. This setting overrides the setting in the Setup program.

Not used.

Open

Processor Socket

The microprocessor is packaged in a pin-grid-array (PGA), which is seated on the system board in a Zero-Insertion-Force (ZIF) socket.

VRM Socket

P54CS (133 150 and 200 MHz) Pentium processors require a 3.3V supply. Since the PC has a regulated 3.3 V output, a shorting block is used to connect the output directly to the processor.

The P54C 166 MHz Pentium processor requires slightly more than 3.3 V and therefore needs an active VRE voltage regulator module (VRM), in which the voltage is derived from both the 3.3 V and 5 V outlets of the power supply.

Main Memory Sockets

There are six main memory module sockets, arranged in three banks (A to C), allowing installation of up to 128 MB DRAM.

3 System Board (P/Ns D3657-63001 and D3661-63001)

Principal Components and Features

Advanced Power Management (APM)

The Suspend mode, which also used to be known as Sleep, is now managed at the operating system level only. There is no longer the inter-activity between BIOS Setup and operating systems, and no longer a “sleep at” item in the Setup menus. This is to avoid the BIOS from shutting down the system at the wrong moment.

HP Vectra 500 Series Desktop Backplane

1 x PCI

1 x ISA/PCI

Combination Slot

2 x ISA

System Board

Connector

Slot 1

Slot 2

Slot 3

Slot 4

The four expansion card slots are arranged as follows:

• Slot 1 - (the top slot) can be used for a 32-bit PCI card.

• Slot 2 - a combination slot that can be used for a 32-bit PCI card or a fulllength 16-bit ISA card (up to 30 cm / 12 inches).

• Slot 3 - can be used for a full-length 16-bit ISA card.

• Slot 4 - can be used for a half-length 16-bit ISA card (up to 15 cm / 6 inches).

3 System Board (P/Ns D3657-63001 and D3661-63001)

Principal Components and Features

HP Vectra 500 Series Minitower Backplane

Slot 6

3 x ISA

2 x PCI

1 x ISA/PCI

Combination Slot

System Board

Connector

Slot 5

Slot 4 Slot 3

Slot 2

Slot 1

The six expansion card slots are arranged as follows:

• Slot 1 - (the innermost) a combination slot that can be used for a half-length 16-bit ISA card (up to 15 cm / 6 inches) or a 32-bit PCI card .

• Slot 2 - can be used for a 32-bit PCI card.

• Slot 3 - can be used for a 32-bit PCI card.

• Slot 4 - can be used for a full length 16-bit ISA card (up to 30 cm / 12 inches).

• Slot 5 - can be used for a full length 16-bit ISA card.

• Slot 6 - can be used for a full length 16-bit ISA card.

3 System Board (P/Ns D3657-63001 and D3661-63001)

Devices on the Processor Local Bus

The following subsystems are associated with the Processor Local bus:

• Intel Pentium microprocessor

• cache memory

• main memory

Pentium Processor

The Pentium processor uses a 64-bit bus, and is 100% compatible with Intel’s family of x86 processors. All application software that has been written for Intel 80386 and Intel 80486 processors can run on the Pentium without modification. The Pentium processor contains all the features of the Intel 80486 processor, with the following added features which enhance performance:

• Superscalar Architecture

• Floating Point Unit

• Dynamic Branch Prediction

• Instruction and Data cache

• Data Integrity

• Ability to support MultiProcessor Specification (MPS) 1.1

• PCI bus architecture

• Advanced Power Management capability for reducing power consumption

The processor is seated in a Zero Insertion Force (ZIF) socket.

Superscalar Architecture

The Pentium processor’s superscalar architecture has two instruction pipelines and a floating-point unit, each capable of independent operation. The two pipelines allow the Pentium to execute two integer instructions in parallel, in a single clock cycle. This is called instruction pairing. Each instruction must be simple. One pipeline will always receive the next sequential instruction of the one issued to the other pipeline.

3 System Board (P/Ns D3657-63001 and D3661-63001)

Devices on the Processor Local Bus

Using the pipelines halves the instruction execution time and almost doubles the performance of the processor, compared with an Intel486 microprocessor of the same frequency.

Floating Point Unit (FPU)

The Floating Point Unit incorporates optimized algorithms and dedicated hardware for multiply, divide, and add functions. This increases the processing speed of common operations by a factor of three.

Dynamic Branch Prediction

The Pentium processor uses dynamic branch prediction. To dynamically predict instruction branches, the processor uses two prefetch buffers. One buffer is used to prefetch instruction code in a linear way, and the other to prefetch instruction code depending on the contents of the Branch Target Buffer (BTB). The BTB is a small cache which keeps a record of the last instruction and address used. It uses this information to predict the way that the instruction will branch the next time it is used. When it has made a correct prediction, the branch is executed without delay, thereby enhancing performance.

Instruction and Data Cache

The Pentium processor has separate on-chip code and data caches. Each cache is 8 KB in size with a 32-bit line. The cache acts as temporary storage for data and instructions from the main memory. As the system is likely to use the same data several times, it is faster to get it from the on-chip cache than from the main memory.

3 System Board (P/Ns D3657-63001 and D3661-63001)

Devices on the Processor Local Bus

Individual pages of memory can be configured as cacheable or noncacheable by software or hardware. They can also be enabled and disabled by hardware or software.

Data Integrity

The processor uses a number of techniques to maintain data integrity. It employs two methods of error detection:

• Data Parity Checking

This is supported on a byte-by-byte basis, generating parity bits for data addresses sent out of the microprocessor. These parity bits are not used by the external subsystems.

• Internally

The processor uses functional redundancy checking to provide maximum error detection of the processor and its interface.

Bus Frequencies

The Pentium processor uses internal clock multiplication. For example, a 150 MHz processor multiplies the 60 MHz system clock by 2.5.

Switches 1 and 2 set the frequency of the Processor-Local bus. Switches 3 and 4 set the clock multiplier ratio (system clock : local bus). Switch 7 sets the ISA bus speed.

If a processor upgrade is installed, the switch settings may need to be changed to adapt to the new processor. The following table shows the settings required for the different processors.

Switch Switch

Processor-

1 2

Open Closed 66 MHz Open Open Closed 1.5 100 MHz

Local Bus

Frequency

3 4 7

Frequency

Ratio

(Processor:

Local Bus)

Processor Frequency

Closed Open 60 MHz Closed Open Closed 2 120 MHz

Open Closed 66 MHz Closed Open Closed 2 133 MHz

Closed Open 60 MHz Closed Closed Closed 2.5 150 MHz

3 System Board (P/Ns D3657-63001 and D3661-63001)

Switch Switch

Devices on the Processor Local Bus

Processor-

1 2

Open Closed 66 MHz Closed Closed Closed 2.5 166 MHz

Closed Open 60 MHz Open Closed Closed 3.0 180 MHz

Open Closed 66 MHz Open Closed Closed 3.0 200 MHz

Local Bus

Frequency

3 4 7

Frequency

Ratio

(Processor:

Local Bus)

Processor

Frequency

The computer will execute erratically, if at all, if the configuration switches are set to operate at a higher processor speed than the processor is capable of supporting. This may cause damage to the PC.

Setting the switches to operate at a slower speed than the processor is capable of supporting would not cause any failure of operation but would cause instructions to be executed more slowly than they should be.

Cache Memory

The PC allows for the provision of two levels of cache memory:

• Level-one cache memory which is fabricated by Intel in the Pentium processor chip

• Level-two cache memory is optionally installed as a memory module on the system board

Each acts as temporary storage for data and instructions from the main memory. Since the system is likely to use the same data several times, it is faster to get it from the on-chip level-one cache than from the main memory.

The level-two cache memory, when fitted, has a 32-byte line size (a line is an area of memory of a fixed size). It is controlled by the PL/PCI bridge chip (SB82437FX). A single HP cache memory module consists of 256 KB of direct mapped, synchronous or asynchronous, static random access memory (SRAM). The synchronous cache memory module achieves 10% better performance than the asynchronous module.

3 System Board (P/Ns D3657-63001 and D3661-63001)

Devices on the Processor Local Bus

Main Memory

There are six main memory module sockets on the system board, enabling up to 128 MB of main memory to be installed. The sockets are arranged in three banks (A to C). Memory modules must be installed in pairs which are the same size to ensure that all the memory is configured correctly.

Fast memory access, with the timing pattern 7-2-2-2, is achieved by installing EDO RAM. The PC supports 60 ns EDO or 70 ns FPM DRAM.

The PL/PCI bridge chip (SB82437FX-66) provides the dedicated DRAM memory address and data buses. It implements a page mode of operation, allowing one or two pages to be open simultaneously.

The two data path unit chips (SB82438FX), controlled by the PL/PCI bridge chip, implement a 64-bit data path (not interleaved) between the processor local bus and main memory modules. They also provide a buffer, four 64-bit words in depth, which can be used for writes from processor to main memory, level-2 cache write-back cycles, and transfers from PCI to main memory. It also provides a one-level posted write buffer for all processor writes to the PCI bus memory.

3 System Board (P/Ns D3657-63001 and D3661-63001)

Devices on the PCI Bus

The PL/PCI bridge is implemented within the Intel SB82437FX-66 chip (see page 63). It is responsible for transferring data between the Processor-Local bus and the PCI bus.

As a PCI bus slave, this chip becomes the PL bus master, to generate DRAM requests on behalf of other PCI bus masters. It supports PCI bus burst cycles, posted writes to DRAM for PCI burst writes, and read-ahead from DRAM for PCI burst reads.

As a PCI bus master, this chip provides for programmable PCI bus memory regions in the memory address map, and supports PCI bus burst cycles for 64-bit and 32-bit misaligned Pentium reads and writes. It provides optional posting of PCI memory and I/O writes, optional buffering of PCI memory writes, and optional read-ahead for processor to PCI accesses.

As the PCI bus arbiter, it can handle up to four masters, using a rotating priority scheme.

The PCI bus handles the following peripheral devices:

• video controller

• IDE controller

• other devices in the PCI accessory slots.

Video Controller

Depending on the model, the PC uses one of the following:

• An integrated 32/64-bit Ultra VGA controller on the PCI bus, with 1 MB of

video memory. Memory can be increased to 2 MB by installing two 512 KB modules.

• A Matrox MGA Millennium card with 2 MB of video memory that can be

increased to 4 MB or 8 MB. The Matrox MGA Millennium video card is installed in one of the PCI slots on the backplane. For a full description of the Matrox MGA Millennium video card, refer to “Matrox MGA Millennium Video Controller Card” on page 127.

3 System Board (P/Ns D3657-63001 and D3661-63001)

Devices on the PCI Bus

S3 Trio 64PnP Video Controller

The integrated video subsystem consists of a PCI bus video controller and a DRAM array. The PC uses the S3 Trio 64 PnP video controller. This video controller embeds a RAMDAC, and supports video resolutions of up to 1280 x 1024. The S3 Trio 64PnP video controller offers full compatibility with VGA. In addition, the features are enhanced beyond Super VGA by hardware which accelerates graphical user interface operation in Windows 95.

The enhanced features include:

• Direct connectivity to PCI bus.

• True acceleration for 8, 16 and 32-bit pixel depths.

• 57 MHz clock for video memory.

• Fully programmable Pixel Clock Generator up to 135 MHz.

• Availability to support 2 MB DRAM.

• Fast linear addressing with full software relocation.

Video DRAM

The HP Vectra 500 Series PC is supplied with 1 MB of video DRAM. An additional 1 MB of video DRAM can be installed. The upgrade consists of two 512 KB video memory chips.

Video Resolutions Supported

For a full list of the different video resolutions available, refer to “S3 Trio 64 Video Modes” on page 121, for a table containing all the supported video resolutions.

Integrated Drive Electronics (IDE) Controller

The IDE controller is implemented as part of the PCI/ISA bridge chip (see page 65). It supports Enhanced IDE (EIDE) and Standard IDE (Bus Master IDE). To use the Enhanced IDE features, however, hard disk drives must be compliant with Enhanced IDE.

Up to four IDE devices can be supported: two connected to the primary channel cable, and two to the secondary channel cable. For minitower models, the primary and secondary channels are both fitted with IDE cables

3 System Board (P/Ns D3657-63001 and D3661-63001)

Devices on the PCI Bus

with two connectors. For desktop models, the primary channel cable is fitted with two connectors, and the secondary channel cable is fitted with one connector.

With EIDE, it is possible to have a fast device, such as a hard disk drive, and a slow device, such as a CD-ROM drive, on the same channel without affecting the performance of the fast device. However, in general, the primary channel cable is recommended for hard disk drives, and the secondary channel cable for CD-ROM drives. Indeed, if a CD-ROM is placed on the same channel as a hard disk drive, problems could be experienced activating the 32-bit access drivers.

Other PCI Accessory Devices

PCI expansion cards (accessory boards) are used for high-speed peripheral accessories. Up to three PCI cards can be installed in minitower models, and up to two PCI cards can be installed in desktop models.

3 System Board (P/Ns D3657-63001 and D3661-63001)

Devices on the ISA Bus

ThePCI/ISA Bridge chip (also known as PIIX, or as the system I/O chip, SIOA) is an Intel SB82371FB. It is responsible for transferring data between the PCI bus and the ISA expansion bus.

As the ISA bus controller, the chip supports asynchronous ISA bus operation up to 16 MHz. It integrates: two DMA controllers, two interrupt controllers, a timer, a hidden ISA refresh controller, support for the BIOS, data buffers to isolate the PCI and ISA buses, and NMI control logic. It also contains the two-channel PCI IDE controller (which is described on page 76).

The ISA bus handles the following devices:

• Super I/O controller.

• Serial EEPROM.

• System ROM.

• Other ISA accessory devices.

Super I/O Chip (SMC FDC37C932)

The basic input/output control functions are provided by the Super I/O chip, the SMC FDC37C932. This chip is 100% compatible with ISA architecture and contains the following:

• Serial / parallel communications ports.

• Flexible drive controller (FDC).

• Keyboard and mouse controller.

• Real time clock (RTC) and CMOS memory.

Serial/Parallel Communications Ports

The Super I/O chip supports two serial ports and one bidirectional parallel port. The serial ports are high-speed UARTs with 16-Byte FIFOs, and can be programmed as COM1, COM2, COM3, COM4, or disabled.

The parallel port can operate in four modes:

• Standard mode (PC/XT, PC/AT, and PS/2 compatible)

3 System Board (P/Ns D3657-63001 and D3661-63001)

Devices on the ISA Bus

• Bidirectional mode (PC/XT, PC/AT, and PS/2 compatible)

• Enhanced mode (Enhanced Parallel Port or EPP compatible)

• High speed mode (MS/HP Extended Capabilities Port or ECP compatible).

It can be programmed as LPT1 (378h, IRQ7), LPT2 (278h, IRQ5), or disabled.

Floppy Drive Controller (FDC)

The integrated Floppy Drive Controller (FDC) supports 3.5-inch and 5.25inch floppy disk drives, and tape drives. It is software and register compatible with the 82077AA, and 100% IBM compatible. It has an A and B drive-swapping capability and a non-burst DMA option.

Keyboard and Mouse Controller

• Space-bar power-on, to start the computer from the Off state (if

from keyboard

is enabled in the Setup program).

power on

• Windows key (next to the keys), which has the same effect as clicking the Start button on the Windows 95 task bar.

• Pull-down key (next to the right key), which has the same effect as clicking the right mouse button.

Real-Time Clock (RTC)

The real-time clock (RTC) is 146818A-compatible. The configuration RAM is implemented as 256 bytes of CMOS memory.

Serial EEPROM

This is non-volatile memory which holds the default values for the CMOS memory (in the event of battery failure, or the user pressing in Setup).

3 System Board (P/Ns D3657-63001 and D3661-63001)

Devices on the ISA Bus

System ROM

The PC uses 128 KB of 200 ns, Flash EEPROM implemented within a single 256 K X 8-bit ROM chip. This is a ROM that can be returned to its unprogrammed state, by the application of appropriate electrical signals to its pins, and then reprogrammed with the latest upgrade firmware.

The System ROM contains the system BIOS (including the boot code, the ISA and PCI initialization, RPO, DMI, the Setup program and the Power-On Self-Test routines, plus their error messages).

Refer to chapter 4, Summary of the HP/Phoenix BIOS, for more information on the BIOS.

Other ISA Accessory Devices

ISA expansion cards (accessory boards) are for slow peripheral accessories. For minitower models, there are four slots on the ISA bus for expansion cards (although one of these is a combination slot with the PCI bus). For desktop models, there are three slots on the ISA bus for expansion cards (although one of these is a combination slot with the PCI bus).

Summary of the HP/Phoenix BIOS

This chapter gives an overview of the two different versions of the HP/Phoenix BIOS installed on the HP Vectra 500 Series PC models.

4 Summary of the HP/Phoenix BIOS

Overview

The information concerning the different versions of the HP/Phoenix BIOS installed on the HP Vectra 500 Series models described in this chapter is divided into two main sections:

• The system BIOS identified by the version number GX.07.xx, installed on

the HP Vectra 500 Series PC models with an HP Service Part Number: D4051-63001. For a complete list of the computers associated with this part number, refer to “D4051-63001 Models” on page 15.

• The system BIOS identified by the version number GJ.07.xx installed on the HP Vectra 500 Series PC models with the HP Service Part Numbers: D3657-63001 and D3661-63001. For a complete list of the computers associated with these part numbers, refer to “D3657-63001 Models” on page 16 and “D3661-63001 Model” on page 17.

HP/Phoenix BIOS Description

The System ROM contains the system BIOS (including the boot code, the ISA and PCI initialization, DMI, the Setup program and the Power-On SelfTest routines, plus their error messages).

The PC uses 128 KB of 200ns, Flash EEPROM implemented within a single 256 K ✕ 8-bit ROM chip. This is a ROM that can be returned to its unprogrammed state, by the application of appropriate electrical signals to its pins, and then reprogrammed with the latest upgrade firmware.

Updating the System ROM

The System ROM can be updated with the latest BIOS firmware. It can be ordered from HP or downloaded from one of the HP online services.

The System ROM is updated by running the PHLASH utility, which is supplied with the BIOS upgrade file, definition file, PC since the utility which is supplied for a different model cannot be used with this one. It must be run from a diskette.

platform.bin. You must specify the model number of the

NN07xx.FUL, and the system

PHLASH.EXE,

4 Summary of the HP/Phoenix BIOS

HP/Phoenix BIOS Description

Before flashing, it is necessary to disable the “Secure Mode” switch on the system switches, and to type in the System Administrator Password when starting up the computer. The PCI and PnP information is erased in the process.

Do not switch off the computer until the system BIOS update procedure has completed, successfully or not, since irrecoverable damage to the ROM may otherwise be caused. While updating the flash ROM, the power supply switch and the reset button are disabled to prevent accidental interruption of the flash programming process.

When installing a new system board, the ROM will have a blank serial number field. This will be detected automatically by the BIOS. Depending on the type of system board, you may or may not be prompted to enter the serial number. The serial number is printed on the identification label on the back of the PC.

Error Diagnostics and Suggested Corrective Actions

The programs and data in the system ROM are accompanied by a check-sum code. If any of the programs or data ever become corrupted, the check-sum will not correspond with the contents of the ROM, and the appropriate part of the POST routine will attempt to report the error:

Cannot display error messages Flash ROM may be defective

The suggested corrective action is to reprogram the system ROM by running the same utility as is normally used for upgrading it.

4 Summary of the HP/Phoenix BIOS

HP/Phoenix BIOS Description

Little Ben

Little Ben is an HP application specific integrated circuit (ASIC) that is connected between the chipset and the processor. It has been designed to act as a companion to the Super I/O chip. It contains the following:

• Hard and soft power control.

• BIOS timer:

hardware-wired, 50 ms long 80 Hz beep module; automatic blinker that feeds the LEDs module with a 1 Hz oscillator signal.

• Flash access and protection (supporting 128, 256 or 512 ROMs).

• Super I/O protection.

• Glue logic:

Support for SMIs (for Intel’s SMM mode). Enhanced keyboard lock and external wake-up; IRQ generator controlled by software; SMI generator controlled by software; Programmable chip selects.

• 16-bit address decoding and remapping.

• Four general purpose I/O (Input/Output).

Little Ben is powered by battery, so its consumption has to be as low as possible. When VccState and PowerGood pins are both low, all output pins are in tri-state mode, except for RemoteOnBen which continues to be driven. This allows the PC to be restarted even after a power loss has occurred.

If the BIOS needs to turn off the PC, it must ensure that the PC is not locked by Little Ben’s lock bit. If it is, the power remains on, a red light is illuminated, and a buzzer is activated.

4 Summary of the HP/Phoenix BIOS

HP/Phoenix BIOS (BIOS version: GX.07.xx)

This section gives an overview of the HP/Phoenix BIOS identified by the BIOS version: GX.07.xx associated with the HP Vectra 500 Series models, HP Service Part Number D4051-63001.

The information in this section includes the following:

• Setup Program: with menu-driven context-sensitive help

(in U.S. English only).

• I/O Addresses Used by the System: the address space, with details of the interrupts used, described in the section I/O Addresses Used by the System (BIOS version: GX.07.xx), on page 90.

• The Power-On Self-Test or POST, which is the sequence of tests the PC performs to ensure that the system is functioning correctly, described in the section Power-On Self-Test (BIOS version: GX.07.xx), on page 94.

Setup Program (BIOS version: GX.07.xx)

You can interrupt the POST to run the Setup program by pressing when

F2=Setup message appears on the initial “Vectra” logo screen.

the

The band along the top of the screen offers five menus: Main, Configuration, Security, Power, and Exit. To select one of these, simply move to the appropriate name, using the left and right arrow keys. Each menu is discussed below.

Main Menu (BIOS version: GX.07.xx)

The Main Menu presents the user with a list of fields, such as “System Time” and “Key click”. These can be selected using the up and down arrow keys, and can have their values changed using the and keys.

The “Item-Specific Help” field changes automatically as the user moves the cursor between the fields. It tells the user what the currently highlighted field is for, and what the options are.

Some fields are not changeable. Examples include fields that are for information only, and fields whose contents become “frozen” by the setting of a value in some other field. Such fields are displayed in a different color, without the “[” and “]” brackets. When the user moves the cursor with the up and down arrow keys, such fields are skipped.

4 Summary of the HP/Phoenix BIOS

HP/Phoenix BIOS (BIOS version: GX.07.xx)

Some fields disappear completely when a choice in another field makes their appearance inappropriate (for example, the “Key auto-repeat speed” and “Delay before auto-repeat” fields disappear when the user selects

Yes in the

“Running Windows 95” field, since these parameters can then be set within the operating system).

Configuration Menu (BIOS version: GX.07.xx)

The Configuration Menu does not have the same structure as the Main Menu and Power Menu. Instead of presenting a list of fields, it offers the user a list of sub-menus. Again, the user steps between the options using the up and down arrow keys, but presses the key to enter the chosen submenu (and the key to go back again when finished).

If access to devices has been disabled in the Security Menu, then the configuration of those devices on the Configuration Menu becomes frozen, as shown in the diagram below for Serial port A. The field becomes starred, appears in a different color and cannot be changed.

Configuration

Integrated I/O Ports Item-Specific Help

Enables or disables the Parallel port [378h IRQ7 Par all el po rt m ode [Centronix TM] Serial Port A * 3F8h IRQ4 Serial Port B [Disabled]

[*] = The device is disabled for security reasons. To enable it, use the Security/Hardware Protection menu.

F1 Help

ESC Exit

ß à

Select Item F7/F8 Change Values F9 Setup Defaults

Select Menu Enter Select > Sub-Menu F10 Previous Values

]

on-board parallel port

at the specific address.

‘Disabled’ frees

resources used by the

port.

4 Summary of the HP/Phoenix BIOS

HP/Phoenix BIOS (BIOS version: GX.07.xx)

Disabling a device in the Configuration Menu (for example, Serial port B in the diagram above) has the advantage of freeing the resources (such as IRQs and peripheral addresses). Disabling a device in the Security Menu disables the access, does not free the resources, but has the advantage of temporarily disabling the device without losing the configuration settings.

Under the “Memory and Cache” sub-menu, memory caching can be set to

internal only, disabled or both; the memory hole can be enabled

between 15 MB and 16 MB

; the graphic POST can be disabled if there is a

Display Option ROM installed; the shadow/cache ISA option ROMs can be made accessible if detected as being fitted.

Under the “IDE” sub-menu, multi-sector transfers can be

2, 4, 8

standard; the integrated bus adapters can be set to non e, primary =IRQ15, secondary=IRQ14, or both.

, or 16; the translation method can be set to

disabled, or set

extended

Security Menu (BIOS version: GX.07.xx)

Sub-menus are presented for changing the characteristics and values of the User Password, the System Administrator Password, the amount of protection against use of the system’s drives and network connections (using the Hardware Protection sub-menu), and the amount of protection against being able to boot from the system’s drives and network connections (using the Start-Up Centre sub-menu).

The minimum lengths of either type of password can be set to a specific number of characters, or to 32 characters. A limit can be set for the maximum number of retries that are permitted if the password is mistyped, and whether a delay should be imposed (of successively increasing lengths: 4 seconds, 8 seconds, 16 seconds, and finally 32 seconds) before successive retries are accepted (using the

exponential setting for the “Lock Time Between Attempts”

field).

The “User Password” sub-menu grants access to the keyboard lock timer option. Once this password has been set, the menu gives access to the main sub-menu of user preferences.

none. The maximum length of each is

Under the “Hardware Protection” sub-menu, the following devices can have their access

unlocked/locked: flexible disk controller, IDE controllers,

serial and parallel ports, network controller. Writes to the flexible disk can

1. available only if ≥ 16 MB.

4 Summary of the HP/Phoenix BIOS

HP/Phoenix BIOS (BIOS version: GX.07.xx)

be locked, so as to prevent the exporting of data. Writes to the hard disk drive boot sector can also be

locked, for instance as a protection against

viruses. Under the “Start-Up Center” sub-menu, the Setup program not only allows

the user to select which devices are to be used (

yes or no) for booting up

the system, but also indicates their order of precedence when more than one is enabled: flexible disk drive, CD-ROM drive, or hard disk drive.

Power Menu (BIOS version: GX.07.xx)

The “Power” menu allows the user to set the standby delay. It also allows the system administrator to decide whether the mouse is enabled as a means of reactivating the system from Standby. It is also possible to specify whether the space-bar is enabled as a means of reactivating the system from Off.

Summary Configuration Screen (BIOS version: GX.07.xx)

You can press while the initial “Vectra” logo screen is being displayed to run the Setup program (as described in the previous sub-sections). Alternatively, you can press to view the summary configuration screen, an example of which is depicted on the next page. By default, this remains on the screen for 20 seconds, but by pressing once, it can be held on the screen until is pressed again, or until is pressed. Pressing will cause the PC to be turned off.

4 Summary of the HP/Phoenix BIOS

HP/Phoenix BIOS (BIOS version: GX.07.xx)

The following summary screen is an example of a system configuration.

Any line of text can be entered here as a ‘tatoo’ for the PC

BIOS Version : GX.07.xx PC Serial Number : 0000A00000

CPU Date Code : N/A

System RAM : 15 MB COM1 : 3F8H (Serial A)

Bank A : 8 MB (EDO) COM2 : 2F8H (Serial B)

Bank B : 8MB (EDO) COM3 : 3E8H (external)

Bank C : None COM4 : None

Video RAM : 1 MB LPT1 : 378H

System Cache : 256 KB

(synchronous)

Video Device : SiS LPT3 : None

1st IDE Device : HDD 1279 MB Flexible Disk A : 1.44 MB

2nd IDE Device : None Flexible Disk B : None

3rd IDE Device : None Display type : Not Available

4th IDE Device : None

ISA PnP : AZT3001 PnP Sound Device PCI Slot : Not Installed

ISA PnP : Not Installed PCI Slot : Not Installed

ISA PnP : Not Installed

LPT2 : None

<F1> to continue, <F2> to run SETUP, <F10> to power off, <F5> to retain

4 Summary of the HP/Phoenix BIOS

HP/Phoenix BIOS (BIOS version: GX.07.xx)

I/O Addresses Used by the System (BIOS version: GX.07.xx)

Peripheral devices, accessory devices and system controllers are accessed via the system I/O space. The 64 KB of addressable I/O space comprises 8-bit and 16-bit I/O ports (these are registers that are located in the various system components). When installing an expansion card, ensure that the I/O address space selected is in the free area of the space reserved for expansion cards (100h to 3FFh).

100h-109h HP reserved 15Ch-15Dh I/O controller 170h-177h, 376h IDE controller secondary channel 1F0h-1F7h, 3F6h IDE controller primary channel 278h-27Fh, 378h-37Fh Parallel port 2E8h-2EFh, 2F8h-2FFh, 3E8h-3EFh, 3F8h-3FFh Serial port 370h-371h Integrated I/O Controller 3B0h-3DFh Integrated video graphics controller 3F0h-3F5h, 3F7h Integrated floppy disk drive controller 496h-497h HP reserved 678h-67Bh Parallel port if ECP mode is selected 778h-77Bh Parallel port if ECP mode is selected

Refer to the BIOS I/O Port Map (BIOS version: GX.07.xx), on page 91 for more detailed information.

System Memory Map (BIOS version: GX.07.xx)

00000h - 9FFFFh 640 KB–Base Memory Area A0000h - BFFFFh 128 KB–Video Memory C0000h - C7FFFh 32 KB–Video BIOS C8000h - DFFFFh 96 KB–Expansion Cards Memory E0000h - EFFFFh 64 KB–Available F0000h - FFFFFh 64 KB–System BIOS 100000h - FFFFFFFFh 1 MB plus–Extended Memory

Reserved memory used by expansion cards must be located in the area from C8000h to EFFFFh.

4 Summary of the HP/Phoenix BIOS

HP/Phoenix BIOS (BIOS version: GX.07.xx)

BIOS I/O Port Map (BIOS version: GX.07.xx)

This section describes the HP BIOS port map. The next section provides more details about how the BIOS uses the system board components mentioned in the I/O port list.

I/O Address Ports Function Bits

0000-000F DMA controller 1 8

0020-0021 Interrupt controller 1 8

0040-0043 Interval timer 1 8

0060, 0064 Keyboard controller 8

0061 NMI status and control 8

0070 NMI mask register, RTC address 8

0071 RTC data 8

0081-0083, 008F DMA low page register 8

0092 Alternate reset and A20 Function 8

00A0-00A1 Interrupt controller 2 8

00C0-00DF DMA controller 2 8

00F0-00FF Co-processor error

0100-0109 HP reserved

015C-015D I/O Controller

0170-0177 IDE controller secondary channel

01F0-01F7 IDE controller primary channel

0278-027F Parallel port 3

02E8-02EF Serial Port 4

02F8-02FF Serial Port 2

0370-0375 Secondary floppy disk controller

0376 IDE controller secondary channel

0377 Secondary floppy disk controller

4 Summary of the HP/Phoenix BIOS

HP/Phoenix BIOS (BIOS version: GX.07.xx)

I/O Address Ports Function Bits

0378-037F Parallel port 2

03B0-03BB Integrated video graphics controller

03BC--03BF Parallel port 1

03C0-03DF Integrated video graphics controller

03E8-03EF Serial port 3

03F0-03F5 Floppy disk controller

03F6 IDE controller primary channel

03F7 Floppy disk controller

03F8-03FF Serial port 1

0496-0497 Internal ports (or HP reserved)

0CF8-0CFF Used for PCI configuration

These addresses are dedicated to configuration registers for PCI devices.

System Board Components (BIOS version: GX.07.xx)

This section provides more details of how the BIOS uses the system board components mentioned in the I/O port list.

DMA Channel Controllers (BIOS version: GX.07.xx)

Only “I/O-to-memory” and “memory-to-I/O” transfers are allowed. “I/O-to-I/O” and “memory-to-memory” transfers are disallowed by the hardware configuration.

The system controller supports seven DMA channels, each with a page register used to extend the addressing range of the channel to 16 MB.

4 Summary of the HP/Phoenix BIOS

HP/Phoenix BIOS (BIOS version: GX.07.xx)

The following table summarizes how the DMA channels are allocated.

First DMA controller (used for 8-bit transfers)

Channel Function

0 Available 1 Available or ECP mode for parallel port 2 Flexible disk I/O 3 Available or ECP mode for parallel port

Second DMA controller (used for 16-bit transfers)

Channel Function

4 Cascade from first DMA controller 5-6 Available 6-7 Available

Interrupt Controllers

(BIOS version: GX.07.xx)

The system has two 8259A compatible interrupt controllers. They are arranged as a master interrupt controller and a slave that is cascaded through the master.

The following table shows how the master and slave controllers are connected. As the HP Vectra 500 Series incorporates the Plug and Play mode, some of the IRQ settings indicated in the following table could be different. This table should be used as a guideline only. The Interrupt Requests (IRQ) are numbered sequentially, starting with the master controller, and followed by the slave.

IRQ (Interrupt Vector) Interrupt Request Description

IRQ0(08h) System timer IRQ1(09h) Keyboard controller

IRQ2(0Ah) Slave IRQ Cascade connection from INTC2 (Interrupt Controller 2)

IRQ8(70h) Real time clock

IRQ9(71h) Available for PCI expansion cards, if not used by ISA boards IRQ10(72h) Available for PCI expansion cards, if not used by ISA boards IRQ11(73h) Available for PCI expansion cards, if not used by ISA boards IRQ12(74h) Mouse IRQ13(75h) Pentium IRQ14(76h) Primary channel of IDE controller

4 Summary of the HP/Phoenix BIOS

HP/Phoenix BIOS (BIOS version: GX.07.xx)

IRQ15(77h) Free, if not used by secondary channel of IDE controller IRQ3(0Bh) Free, if not used for serial port IRQ4(0Ch) Free, if not used for serial port

IRQ5(0Dh) Free, if not used for parallel port

IRQ6(0Eh) Floppy disk drive controller IRQ7(0Fh) Free, if not used for parallel port

Using the Setup program:

• IRQ3 can be made available by disabling serial ports 2 and 4.

• IRQ4 can be made available by disabling serial ports 1 and 3.

• IRQ5 can be made available by disabling the parallel port 2.

• IRQ7 can be made available by disabling parallel ports 1 and 2.

• IRQ12 can be made available by disabling the mouse interrupt.

PCI Interrupt Request Lines (BIOS version: GX.07.xx)

PCI devices generate interrupt requests using up to four PCI interrupt request lines (INTA#, INTB#, INTC#, and INTD#).

When a PCI device makes an interrupt request, the request is re-directed to the system interrupt controller. The interrupt request will be re-directed to one of the IRQ lines made available for PCI devices.

All PCI devices with interrupt transfer support will use and share INTA#. A multiple-function PCI device may use several INT lines. These devices will require more than one system interrupt request line.

Power-On Self-Test (BIOS version: GX.07.xx)

This section describes the Power-On Self-Test (POST) routines, which are contained in the PC’s ROM BIOS, the error messages which can result, and the suggestions for corrective action.

Each time the system is powered on, or a reset is performed, the POST is executed. The POST process verifies the basic functionality of the system components and initializes certain system parameters. The POST performs the tests in the order described in the table on the next page.

The POST starts by displaying a graphic screen with the initial HP “Vectra” logo. If the POST detects an error, the error message is displayed inside a view system errors screen, in which the error message utility (EMU) not only displays the error diagnosis, but the suggestions for corrective action. Error codes are no longer displayed.

4 Summary of the HP/Phoenix BIOS

HP/Phoenix BIOS (BIOS version: GX.07.xx)

To see the tests performed during the POST, press when the initial HP “Vectra” logo appears, and the display will switch to text mode. In this mode, a summary configuration screen will be displayed at the end of the POST.

Devices, such as memory and hard disks, are configured automatically. The user is not requested to confirm the change. However, the user is prompted if a device is found to have gone missing since the previous boot. The user can simply accept the new configuration by pressing .

During the POST, the BIOS and other ROM data are copied into high-speed shadow RAM. The shadow RAM is addressed at the same physical location as the original ROM in a manner which is completely transparent to applications. It therefore appears to behave as very fast ROM. This technique provides faster access to the system BIOS firmware.

The table on the following page lists the POST routines in the order in which they are executed (from the shadow RAM). If the POST is initiated by a soft reset and , the RAM tests are not executed and shadow RAM is not cleared. In all other respects, the POST executes in the same way following power-on or a soft reset.

Test Description

LED Test

Processor Test

System (BIOS) ROM Test

RAM Refresh Timer Test

Interrupt RAM Test

Shadow the System ROM

BIOS

Load CMOS Memory

CMOS RAM Test

System BIOS Tests

Tests the LEDs on the control panel. Tests the processor’s registers. Test failure causes the boot process to

abort. Calculates an 8-bit checksum. Test failure causes the boot process to abort. Tests the RAM refresh timer circuitry. Test failure causes the boot process to abort. Checks the first 64 KB of system RAM used to store data corresponding to various system interrupt vector addresses. Test failures cause the boot process to abort. Tests the system ROM BIOS and shadows it. Failure to shadow the ROM BIOS will cause an error code to display. The boot process will continue, but the system will execute from ROM. This test is not performed after a soft reset (using and ). Checks the serial EEPROM and returns an error code if it has been corrupted. Copies the contents of the EEPROM into CMOS RAM. Checks the CMOS RAM for start-up power loss, verifies the CMOS RAM checksum(s). Test failure causes error codes to display.

4 Summary of the HP/Phoenix BIOS

HP/Phoenix BIOS (BIOS version: GX.07.xx)

Internal Cache

Memory Test

Initialize the Video

Test External Cache

Shadow SCSI ROM

8042 Self-Test

Timer 0/Timer 2 Test

DMA Subsystem Test

Interrupt Controller Test

Real-Time Clock Test

RAM Address Line

Independence Test

Size Extended Memory

Real-Mode Memory Test

(First 640KB)

Shadow RAM Test

Protected Mode RAM Test

(Extended RAM)

Keyboard Test

Tests the processor’s internal level-one cache RAM. Test failure causes an error code to display and the boot process to abort.

Video Tests

Initializes the video subsystem, tests the video shadow RAM, and, if required, shadows the video BIOS. A failure causes an error code to display, but the boot process continues.

System Board Tests

Tests the level-two cache. A failure causes an error code to display and disables the external cache. Tests for the presence of HP SCSI ROMs. If SCSI ROMs are detected, their contents are copied into the shadow RAM area. A failure will cause an error code to display. Downloads the 8042 and invokes the 8042 internal self-test. A failure causes an error code to display. Tests Timer 0 and Timer 2. Test failure causes an error code to display.

Checks the DMA controller registers. Test failure causes an error code to display. Tests the Interrupt masks, the master controller interrupt path (by forcing an IRQ0), and the industry-standard slave controller (by forcing an IRQ8). Test failure causes an error code to display. Checks the real-time clock registers and performs a test that ensures that the clock is running. Test failure causes an error code to display.

Memory Tests

Verifies the address independence of real-mode RAM (no address lines stuck together). Test failure causes an error code to display.

Sizes and clears the protected mode (extended) memory and writes the value into CMOS bytes 30h and 31h. If the system fails to switch to protected mode, an error code is displayed. Read/write test on real-mode RAM. (This test is not done during a reset using and ). The test checks each block of system RAM to determine how much is present. Test failure of a 64 KB block of memory causes an error code to display, and the test is aborted. Tests shadow RAM in 64-KB segments (except for segments beginning at A000h, B000h, and F000h). If they are not being used, segments C000h, D000h and E000h are tested. Test failure causes an error code to display. Tests protected RAM in 64 KB segments above 1 MB. (This test is not done during a reset using and ). Test failure causes an error code to display.

Keyboard / Mouse Tests

Invokes a built-in keyboard self-test of the keyboard’s microprocessor and tests for the presence of a keyboard and for stuck keyboard keys. Test failure causes an error code to display.

Mouse Test

Flexible Disk Controller

Subsystem Test

Internal Numeric Coprocessor

Test

Parallel Port Test

Serial Port Test

Hard Disk Controller

Subsystem Test

System Generation

Plug and Play Configuration

4 Summary of the HP/Phoenix BIOS

HP/Phoenix BIOS (BIOS version: GX.07.xx)

If a mouse is present, invokes a built-in mouse self-test of the mouse’s microprocessor and for stuck mouse buttons. Test failure causes an error code to display.

Tests of Flexible Disk Drive A

Tests for proper operation of the flexible disk controller. Test failure causes an error code to display.

Coprocessor Tests

Checks for proper operation of the numeric coprocessor part of the processor. Test failure causes an error code to display.

Parallel Port Tests

Tests the integrated parallel port registers, as well as any other parallel ports. Test failure causes an error code to display.

Serial Port Tests

Tests the integrated serial port registers, as well as any other serial ports. Test failure causes an error code to display.

Hard Disk Drive Tests

Tests for proper operation of the hard disk controller. Test failure causes an error code to display. The test does not detect hard disk replacement or changes in the size of the hard disk.

System Configuration Tests

Initiation of the system generation (SYSGEN) process, which compares the configuration information stored in the CMOS memory with the actual system. If a discrepancy is found, an error code will be displayed. Configures any Plug and Play device detected (either PCI or ISA):

❒ All PCI devices, and any ISA device necessary for loading the operating

system will be configured for use.

❒ Any ISA device that is not required for loading the operating system,

will be initialized (prepared for loading of a device driver), but not fully configured for use.

Error Messages (BIOS version: GX.07.xx)

When the PC is switched on or reset, a power-on hardware test is performed. If an error occurs, an error message is displayed.

HP’s new-style BIOS does not display POST error codes (such as 910B). These were displayed in the BIOS of previous HP Vectra PCs.

4 Summary of the HP/Phoenix BIOS

HP/Phoenix BIOS (BIOS version: GX.07.xx)

Message Corrective Action and/or Explanation

Operating system not found Check whether the disk, HDD, FDD or CD-ROM disk drive is

connected. If it is connected, check that it is detected by Setup. Check that your boot device is enabled on the Setup Security menu. If the problem persists, check that the boot device contains the operating system.

Missing operating system If you have configured HDD user parameters, check that

they are correct. Otherwise, use HDD type “Auto” parameters.

Failure fixed disk (preceded by a 30” time-out)

Check that HDD is connected. Check that HDD is detected in Setup. Check that boot on hard disk drive is enabled in Setup.

Diskette Drive A (or B) error Check whether the diskette drive is connected. Check

Setup for the configuration.

System battery is dead You may get this message if the PC is disconnected for a

few days. When you Power-on the PC, run Setup to update the configuration information. The message should no longer be displayed. Should the problem persist, replace the

battery. Keyboard error Check that the keyboard is connected. Resource Allocation Conflict -PCI

Clear CMOS. device 0079 on motherboard

Video Plug and Play interrupted or failed Re-enable in Setup and try again

System CMOS checksum bad - run Setup

You may have powered your PC Off/On too quickly and the

PC turned off Video plug and play as a protection.

CMOS contents have changed between 2 power-on

sessions. Run Setup for configuration. I/O device IRQ conflict Serial ports A and B may have been assigned the same IRQ.

Assign a different IRQ to each serial port and save the

configuration. No message, system “hangs” after

POST

Check that cache memory and main memory are correctly

set in their sockets. Other An error message may be displayed and the PC may “hang”

for 20 seconds and then beep. The POST is probably

checking for a mass storage device which it cannot find and

the PC is in Timeout Mode. After Timeout, run Setup to

check the configuration.

4 Summary of the HP/Phoenix BIOS

HP/Phoenix BIOS (BIOS version: GX.07.xx)

Beep Codes (BIOS version: GX.07.xx)

If a terminal error occurs during POST, the system issues a beep code before attempting to display the error. Beep codes are useful for identifying the error when the system is unable to display the error message.

Beep Pattern

Numeric Code Description

B4 This does not indicate an error.

There is one short beep before system startup.

98 Video configuration failure or

Option ROMs checksum failure

16H BIOS ROM checksum failure

20H DRAM refresh test failure

22H 8742 Keyboard controller test failure

2C RAM failure

2E RAM failure on data bits in low byte of

memory bus

30 RAM failure on data bits in high byte of

memory bus

46 ROM copyright notice check failure

58 Unexpected interrupts test failure

4 Summary of the HP/Phoenix BIOS

HP/Phoenix BIOS (BIOS version: GJ.07.xx)

This section gives an overview of the HP/Phoenix BIOS identified by the version number GJ.07.xx associated with the HP Vectra 500 Series models, HP Service part numbers: D3657-63001 and D3661-63001.

The information in this section is divided into three main sub-sections:

• Setup Program: with menu-driven context-sensitive help

(in U.S. English only).

• I/O Addresses Used by the System: the address space, with details of the interrupts used, described in the section I/O Addresses Used by the System (BIOS version: GJ.07.xx), on page 104.

• The Power-On-Self-Test or POST, which is the sequence of tests the PC performs to ensure that the system is functioning correctly, described in the section Power-On Self-Test (BIOS version: GJ.07.xx), on page 109.

Setup Program (BIOS version: GJ.07.xx)

You can interrupt the POST to run the Setup program by pressing when the

F2=Setup

The band along the top of the screen offers six menus: Main, Preferences, Configuration, Security, Power, and Exit. To select one of these, simply move to the appropriate name, using the left and right arrow keys. Each menu is discussed below.

message appears on the initial “Vectra” logo screen.

Main Menu (BIOS version: GJ.07.xx)

The Main Menu presents the user with a list of fields, such as “System Time” and “Running Windows 95”. These can be selected using the up and down arrow keys, and can have their values changed using the and keys.
