Getting Started
Copyright and License
The only warranties for Hewlett-Packard products and services are set forth in the express statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
HP assumes no responsibility for the use or reliability of its software on equipment that is not furnished by HP.
This document contains proprietary information that is protected by copyright. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of HP.
Hewlett-Packard Company
P.O. Box 4010
Cupertino, CA 95015–4010
USA
Copyright © 2011 Hewlett-Packard
Development Company, L.P.
This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.
Microsoft and Windows 7 are U.S. registered trademarks of Microsoft Corporation. The Windows logo and Windows 7 are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries/regions.
"Dr. Dre", "Beats" and the B logo are trademarks of Dr. Dre and Jimmy Iovine.
HP supports lawful use of technology and does not endorse or encourage the use of our products for purposes other than those permitted by copyright law.
The information in this document is subject to change without notice.
Understanding hard disk drive space
The hard disk drive on the Hewlett-Packard and Compaq computers with the Microsoft® Windows operating system preinstalled may appear to be smaller than the size stated in the product specifications, in the documentation, or on the box. Hard disk drives are described and advertised by manufacturers in terms of decimal (base 10) capacity. Microsoft Windows and other programs, such as FDISK, use the binary (base 2) numbering system.
In decimal notation, one megabyte (MB) is equal to 1,000,000 bytes, and one gigabyte (GB) is equal to 1,000,000,000 bytes. In the binary numbering system, one megabyte is equal to 1,048,576 bytes, and one gigabyte is equal to 1,073,741,824 bytes. Because of the different measuring systems, you may see a difference between the size reported by Microsoft Windows and the size advertised. The storage capacity of the hard disk drive is as advertised.
Microsoft Windows reports smaller capacity in the Windows Explorer tool and in the computer window because it shows information about one partition on the hard disk drive at a time. One of the partitions contains the System Recovery information.
Table of contents |
|
1 Getting information ..................................................................................................... |
1 |
2 Features ....................................................................................................................... |
4 |
3 Setting up your computer .......................................................................................... |
6 |
Protecting your computer ................................................................................ |
6 |
Guidelines for installing software and hardware devices ................................ |
7 |
Connecting to the Internet .............................................................................. |
7 |
Transferring files and settings to your new computer ..................................... |
9 |
Computer orientation .................................................................................... |
10 |
Connecting a game console ......................................................................... |
11 |
HP My Display TouchSmart Edition .............................................................. |
13 |
Using Beats Audio™ ..................................................................................... |
13 |
Using the HP TouchSmart with safety and comfort ...................................... |
14 |
4 Troubleshooting and maintenance ......................................................................... |
16 |
Computer does not start ............................................................................... |
16 |
Power ............................................................................................................ |
17 |
Display (screen) ............................................................................................ |
17 |
Keyboard and mouse (with cable) ................................................................ |
18 |
Keyboard and mouse (wireless) ................................................................... |
20 |
Speakers and sound ..................................................................................... |
21 |
Internet access ............................................................................................. |
21 |
Gaming mode ............................................................................................... |
22 |
Software troubleshooting .............................................................................. |
23 |
Maintenance ................................................................................................. |
26 |
System Recovery .......................................................................................... |
28 |
Recovery media ............................................................................................ |
32 |
ENWW |
iii |
iv |
ENWW |
1 Getting information
Type of information |
Where to find |
|
|
● Set up your computer. |
Setup documentation included with your computer. |
●See how-to videos about using the features of your computer.
Visit www.hp.com/supportvideos (English only)
Tap the Tutorial icon (select models only) in the carousel within the HP TouchSmart application.
● |
Use the computer. |
Getting Started (this guide) |
●Connect to the Internet.
●Recover factory settings.
●Troubleshoot the most common computer hardware and software issues.
●Find links to driver updates.
●Read frequently asked questions.
Help and Support:
Tap the Start button, and then tap Help and Support.
●Learn how to use the Microsoft® Windows® 7 operating system.
●Find Windows 7 support information.
Windows 7 troubleshooting tools:
1.Tap the Start button, tap Control Panel, and then tap System and Security.
2.Under Action Center, tap Find and fix problems (troubleshooting).
HP Support website: www.hp.com/support
Visit www.hp.com/go/win7
● |
Find electronic user guides |
HP Support website: www.hp.com/support |
|
and specifications for your |
|
|
computer model. |
|
●Order parts and find additional troubleshooting help.
● |
Find computer warranty |
Limited Warranty and Support Guide or the Warranty and Support |
|
information. |
Information included with your computer. |
●Get technical support.
ENWW |
1 |
Type of information |
Where to find |
|
|
|
|
● |
Get up-to-date information |
www.hp.com/support/consumer-forum |
|
and help from the Windows |
|
|
community. |
|
|
|
|
● Connect to a TV. |
Setup documentation included with your computer. |
|
|
|
|
|
|
Watching and Recording TV |
|
|
Tap the Start button, tap All Programs, and then tap User Guides. |
|
|
|
|
|
If the guide is not available there, visit www.hp.com/support |
|
|
|
● Get special utilities for |
PC Help & Tools folder |
|
|
computer owners. |
Tap the Start button, tap All Programs, and then tap PC Help & Tools. |
|
|
|
|
|
|
● |
Maintain your computer. |
HP Support Assistant — Maintains your computer performance and |
|
|
resolve problems faster by using automated updates, onboard |
|
|
diagnostics, and guided assistance. |
|
|
Tap the Start button, tap All Programs, tap HP, and then tap HP Support |
|
|
Assistant. |
|
|
|
● |
Find ergonomic information. |
Safety & Comfort Guide |
|
|
Tap the Start button, tap All Programs, and then tap User Guides or visit |
|
|
www.hp.com/ergo. |
●Wall-mounting your computer (select HP TouchSmart PC models only).
Wall-Mounting your HP TouchSmart
Tap Start, tap All Programs, and then tap User Guides.
If the guide is not available there, visit www.hp.com/support
WARNING! To reduce the risk of electrical shock or damage to your equipment: Place the computer in a location away from water, dust, moisture, and soot. These can increase the inside temperature, or can cause fire or electrocution.
WARNING! Do not disable the power cord grounding plug. Plug the power cord in a grounded (earthed) outlet that is easily accessible at all times.
WARNING! Disconnect power from the equipment by unplugging the power cord from the electrical outlet.
WARNING! The power supply is preset for the country/region in which you purchased your computer. If you move, check the voltage requirements for your new location before plugging the computer into an AC power outlet.
2 Chapter 1 Getting information |
ENWW |
WARNING! To prevent direct exposure to a laser beam, do not try to open the enclosure of the CD or DVD drives.
NOTE: Some features might not be available on systems that are shipped without a version of Microsoft Windows.
ENWW |
3 |
2 Features
Features vary by model.
The HP TouchSmart PC is a touch-enabled high-performance computer built into a high-definition widescreen display. The slim computer offers select features, that vary by model, such as an adjustable webcam, a CD/DVD and Blu-ray player and burner, Bluetooth capability, USB ports, a media card reader, Wireless 802.11n networking, full support for Beats Audio™ devices (sold separately), and high quality speakers.
Select HP TouchSmart PC models can be mounted on a wall using a standard VESA wall-mounting device (purchased separately).
HP TouchSmart 5.0 provides a unique, touch-based computer experience. Magic Canvas provides an interactive desktop that expands to the left and right, allowing you to spread out your applications and documents. Use the Carousel to place shortcuts to all of your favorite applications, folders, files, and Web pages. To launch the
software, tap the HP TouchSmart icon
on the desktop, or tap the Start button and then tap HP TouchSmart.
●The Magic Canvas
The Magic Canvas is an interactive background that grows as you scroll to the left and right. You are no longer confined to one background screen, but can have notes, programs and files spread across the canvas, expanding to the left and right of the screen.
◦Access a submenu, by tapping on the Magic Canvas, to change the background, write a note on the Magic Canvas and leave it there, and filter the media types that appear on your screen.
◦Customize the appearance of your Magic Canvas with stationary and moving objects.
◦Place playlists, slide shows, music, graffiti, videos, and photos on your Magic Canvas.
◦A carousel, of available applications and your favorite website shortcuts, appears at the bottom of the screen. Make a left and right sliding motion with your finger over the carousel to scroll continuously through the applications and website shortcuts.
●Creating Magnets
Magnets are content that you can place on the Magic Canvas. You can create magnets from some TouchSmart applications.
◦Drag content from an application (photos, music, playlists, notes, calendars) onto the Magic Canvas.
◦Create shortcuts to content.
◦Interact with magnets without having to open the application.
◦Pin magnets to the Magic Canvas to prevent them from scrolling off.
●Interaction with Applications
◦All active applications are highlighted in the carousel.
◦Applications can be scrolled on or off the screen.
◦Bring an application into view by touching it in the carousel.
4 Chapter 2 Features |
ENWW |
◦View all applications and website shortcuts by tapping the Quick Launch button.
◦Size application views to full screen, partial screen, or icon.
●Website Tiles
Add shortcut tiles to your favorite websites into the carousel.
For additional information about HP TouchSmart 5.0, tap the Start button, tap Help and Support, and then tap
HP TouchSmart, or tap the Help and Support icon on the Carousel and then tap HP TouchSmart.
ENWW |
5 |
3Setting up your computer
Follow the steps in the setup documentation included with your computer.
Place the computer so that all ventilation openings are unobstructed and cabling is not in a walkway or where it can be stepped on or damaged by placing furniture on it.
Connect all power cords from the computer and accessories to a power surge protection device that is specifically labeled as having surge protection, an uninterruptible power supply (UPS), or a similar device. If the computer has a television tuner or telephone connection, protect the computer by using surge protection with these signal inputs as well. Connect the television cable or the telephone line cord to the surge protection device, and then connect the device to the computer.
Download and install operating system updates.
Look in the computer box for additional printed details or updates.
Read the Safety and Regulatory Information document. Tap the Start button, tap All Programs, and then tap User Guides.
Read the Safety & Comfort Guide for proper workstation setup, posture, health and work habits, and electrical and mechanical safety information. Tap the Start button, tap All Programs, and then tap User Guides or visit www.hp.com/ergo.
Protecting your computer
Computer risk |
Computer feature |
|
|
Unauthorized use of the |
User password |
computer or user account |
A password is a group of characters that you choose to secure computer |
|
|
|
information. |
|
|
Unauthorized access to |
Administrator password |
Setup Utility, BIOS settings, |
|
and other system |
|
identification information |
|
|
|
Computer viruses |
Antivirus software |
|
The free trial antivirus software that is preinstalled on your computer can detect |
|
most viruses, remove them, and, in most cases, repair damage caused by |
|
viruses. For protection against new viruses beyond the trial period, purchase an |
|
extended update service. |
|
|
6 Chapter 3 Setting up your computer |
ENWW |
Computer risk |
Computer feature |
Unauthorized access to data and ongoing threats to the computer
Firewall software
●Windows 7 includes firewall software preinstalled on the computer.
●The antivirus software, which is preinstalled on the computer, includes firewall software.
Computer security |
Windows 7 critical security updates |
|
Microsoft continually updates the Windows 7 operating system. |
|
|
NOTE: Security solutions can deter theft, mishandling, and software attacks, but cannot prevent them.
Guidelines for installing software and hardware devices
After you complete the initial computer setup, you might want to install additional software programs or hardware devices. Check the operating system, memory, and other requirements listed before purchasing new software or hardware for your computer. Follow the software manufacturer's directions to install the new software.
NOTE: Use only licensed original software. Installing copied software could result in an unstable installation, infect the computer with a virus, or be illegal.
Connecting to the Internet
Steps to connect to the Internet:
1.Connect the hardware (sold separately).
ENWW |
Guidelines for installing software and hardware devices |
7 |

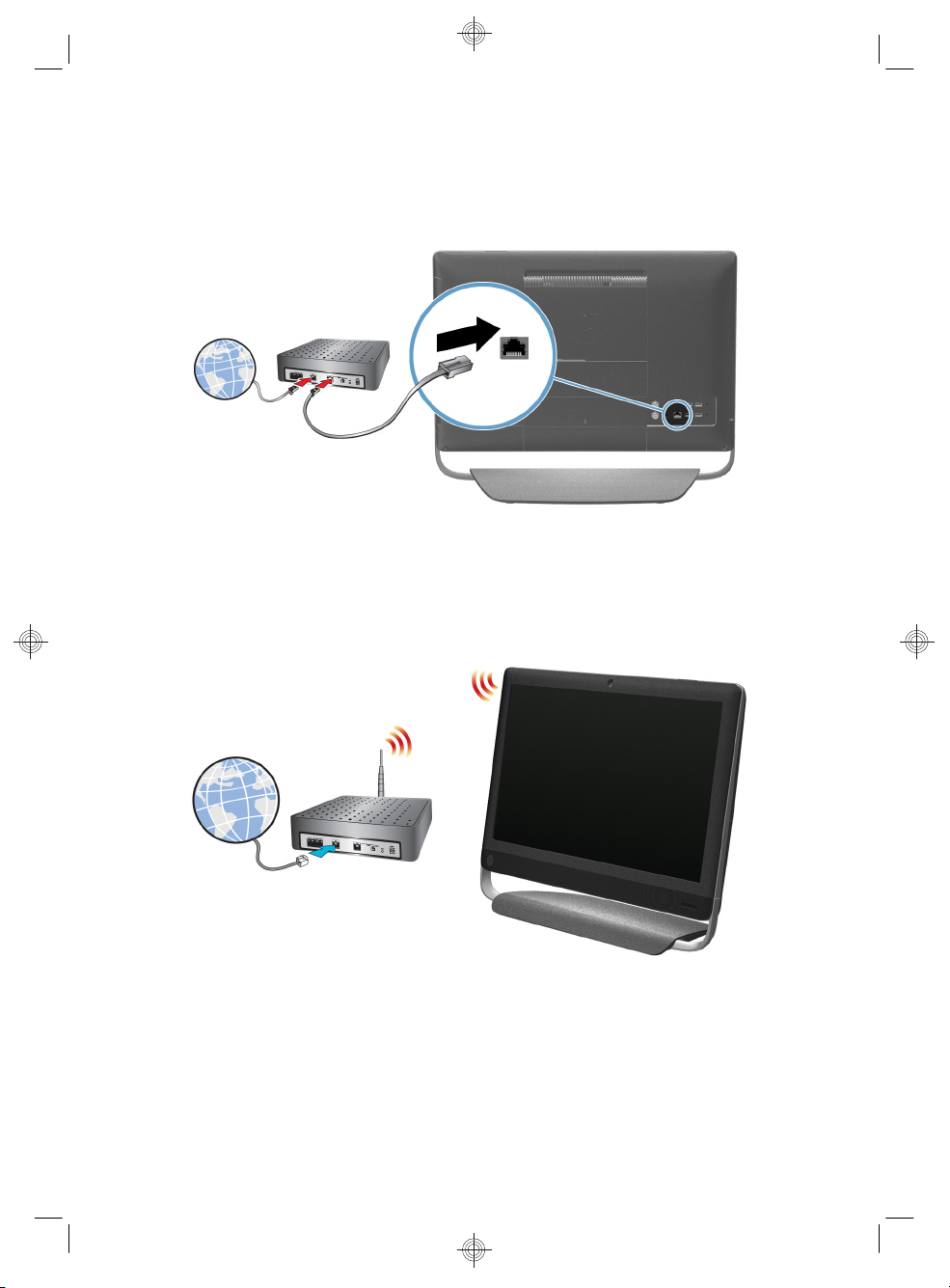

◦For a wired network connection, connect an Ethernet cable to the computer and to a network router or LAN device.
◦For a wireless network connection, use a wireless router with the computer to connect to a WLAN with an Internet connection.
2.Get Internet service.
8 Chapter 3 Setting up your computer |
ENWW |
◦Sign up with an Internet service provider (ISP). If you already have an account with an ISP, skip this step and follow the instructions provided by the ISP.
◦If you did not set up the computer for Internet service during the initial setup, do so now by using Online Services:
a.Tap the Start button, tap All Programs, and then tap Get Online.
b.Follow the onscreen instructions to select an ISP and set up Internet service.
NOTE: Online Services provides a list of ISPs; however, you might choose another ISP or transfer an existing account to this computer. To transfer existing accounts, follow the instructions provided by the ISP.
3.Using your Internet connection through your ISP, open a Web browser and browse the Internet.
NOTE: If you have issues connecting to the Internet, see Internet access on page 21.
Transferring files and settings to your new computer
You can copy files from another computer to your new computer by using CDs or DVDs, memory sticks, and external hard drives. You can also use Windows Easy Transfer software, which is included with Windows 7 (select models only), to copy files and settings to a storage device or, using an Easy Transfer Cable, directly from another computer to the new computer. The Easy Transfer Cable is a USB cable designed specifically to connect two computers and to work with the Windows Easy Transfer software.
NOTE: The Easy Transfer Cable is sold separately. A standard USB cable does not work.
To transfer your files and settings:
1.Tap the Start button, type Windows Easy Transfer into the Start Search box, and then tap Windows Easy Transfer.
2.Follow the onscreen instructions in the Windows Easy Transfer wizard to transfer your files to your new computer.
NOTE: Some features might not be available on systems that are shipped without a version of Microsoft Windows.
ENWW |
Transferring files and settings to your new computer |
9 |
Computer orientation

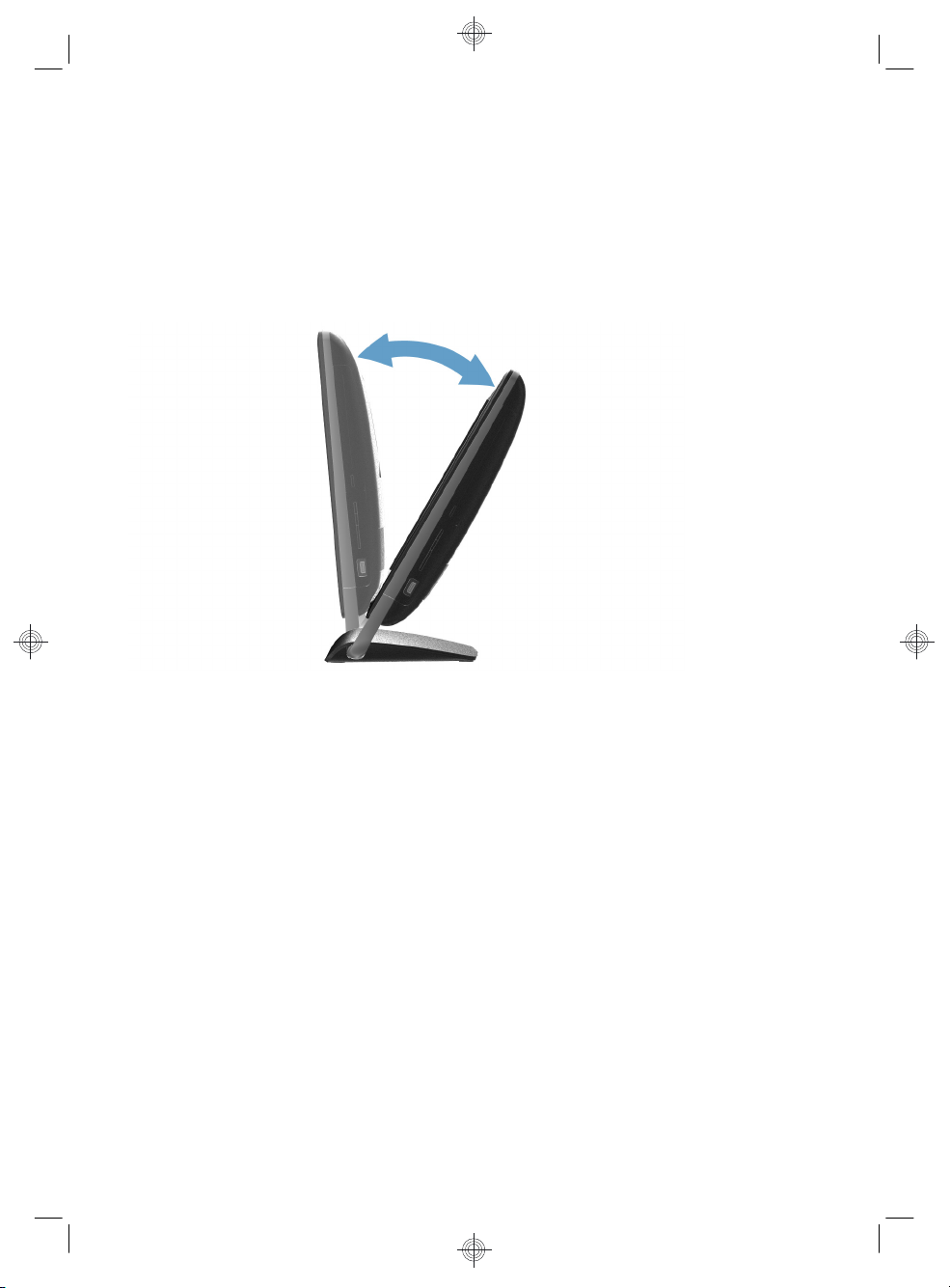

Your HP TouchSmart PC can be tilted from the stand, within the range of –5 degrees to 30 degrees.
If the computer is wall-mounted (select HP TouchSmart PC models only), it can be displayed in landscape orientation only. For instructions on wall-mounting your HP TouchSmart PC, refer to the Wall-Mounting your HP TouchSmart user guide.
10 Chapter 3 Setting up your computer |
ENWW |
Connecting a game console
Select HP TouchSmart PC models only
Some computer models allow you to use your system as a high-resolution monitor for gaming. An HDMI game console port is located on right side of the computer, at the bottom. You can get audio from the internal speakers, from headphones, or from external speakers connected to the A/V source connector (audio out) (1) located at the back of the computer.
1.Connect the game box cable to the HDMI port to enable onscreen display.
2.Connect the external speaker audio cable to the A/V source connector (1).
3.To switch between full screen mode and partial screen mode, tap the gaming image on the screen, or left click on the mouse.
CAUTION: When the system is in display mode, the computer is still running in the background. The keyboard, mouse, and touch screen function are active and still control the computer. It is recommended that you save and close all files before connecting the game console ports.
ENWW |
Connecting a game console 11 |
Using the remote control in gaming mode
Use the A/V source button
on your remote control to toggle between source modes: PC mode and gaming mode. If used while your are in gaming mode, the following buttons will still affect PC mode:
●A/V – Switches between sources (PC, HDMI)
●Volume – Affects the volume of the computer as well, when changed in gaming mode
●Mute – Mutes sound in games and on computer
●Media Center (Start) – Automatically switches back to computer and opens Media Center
●Power – Places the system into Sleep mode.
Return to PC mode from gaming mode
To return to PC mode from gaming mode, choose from any one of the following options:
●Tap the full screen to return to desktop
●Press ESC key to return to desktop
●Left click mouse to return to desktop
●Press the Ctrl+Alt+Del buttons simultaneously on the keyboard
●Press the Power/Sleep button on the keyboard or remote
●Press the Power/Sleep button on the computer
●Press the Media Center (Start) button on the remote
12 Chapter 3 Setting up your computer |
ENWW |
Adjusting settings with onscreen display (game console models only)
HP TouchSmart PCs with the game console option include an onscreen display (OSD) button on the right side of the computer, just above the volume buttons.
1.Press the display menu button
on the right side of the computer.
The onscreen display menu opens, enabling you to select the display mode (default, movie, text, or gaming), adjust brightness and contrast, and make other display and sound adjustments.
2.The + and ‒ buttons below the display menu button enable you to scroll up and down through the menu choices.
3.After you select the features you want to customize, press the OK button underneath the display menu button.
4.When you are finished, you can close the Onscreen Display menu by clicking or tapping the red X in the upper right corner or pressing the display menu button at the side of the computer
.
NOTE: When connected to the game console port, your system is in display mode; there is no recording capability.
HP My Display TouchSmart Edition
Select HP TouchSmart PC models only
HP My Display TouchSmart Edition allows you to adjust the screen display using the touch feature.
●You can adjust sound, brightness, and contrast.
●Viewing mode can be set to the factory default, or optimized for movie, text, or gaming.
●Status indicators let you know if the onscreen keyboard scroll lock, number lock, or caps lock are set.
●A settings screen lets you adjust color with the touch of a button.
●An options screen lets you set display options, set transparency, and check for updates.
HP My Display TouchSmart Edition can be accessed from the task tray, or by right-clicking on the desktop, or from the Start Menu, tap All Programs, tap HP, and then tap HP My Display TouchSmart Edition. Online help for HP My Display TouchSmart Edition is available by tapping the ? button in the upper right hand corner of the application screen.
Using Beats Audio™
Select HP TouchSmart PC models only
ENWW |
HP My Display TouchSmart Edition 13 |
Your HP TouchSmart PC features audio connectors (headphone and Audio Out ) that are optimized for Beats Audio™ headphones and external audio systems (purchased separately). Select HP TouchSmart PC models also include four Beats-optimized internal speakers and a Beats toggle button
on the keyboard.
Your computer comes ready for you to experience music with Beats enabled. To disable Beats, press the Beats toggle button; the Beats-off icon appears on the screen. To turn Beats on, press the Beats toggle button again. If your keyboard does not contain the Beats toggle button, press Fn+B to enable and disable Beats. Tap the Beats icon on the system tray to view the Beats user interface.
All you need to do is plug the Beats Audio headphones into the side headphone connector to experience crisp and clear sound separation. To experience the full capability of BEATS audio using the internal speakers, HP recommends connecting a matching HP subwoofer to the Sub connector on the back panel. If you are using an external audio system, plug it into the Audio Out connector on the back panel.
Using the HP TouchSmart with safety and comfort
Before you begin using the computer, arrange the computer and your work area to maintain your comfort and productivity. Refer to the Safety & Comfort Guide for important ergonomic information:
Visit www.hp.com/ergo on the Web.
WARNING! To reduce the risk of serious injury, read the Safety & Comfort Guide. It describes proper computer setup, posture, and health and work habits for computer users. It also provides important electrical and mechanical safety information.
14 Chapter 3 Setting up your computer |
ENWW |
Locate the HP TouchSmart PC in the room to minimize glare from the screen. You can also reduce glare by tilting the screen.
The HP TouchSmart screen can be used as an input device; therefore, the computer should be placed so that your shoulders and neck are comfortable.
The computer might need to be moved close to your body to keep your shoulders relaxed while you are touching the screen. Keep your shoulders low and your upper arm close to your body when you touch the screen. The more the screen is used for input, the more important this is.
You can position the computer in a variety of ways to provide a balance between relaxing your shoulders and keeping your head balanced comfortably over your neck. If you feel discomfort in your shoulders, try moving the computer closer to your body or lowering the height of the screen by lowering the work surface. If you feel discomfort in your upper back muscles and neck, try increasing the height of the screen by increasing the work surface height.
The graphic below shows correct body and computer positioning.
The graphic below shows incorrect usage.
ENWW |
Using the HP TouchSmart with safety and comfort 15 |
4 Troubleshooting and maintenance
Refer to the documentation provided by the product manufacturer for information about peripheral-specific problems, such as issues with a printer. The following sections present some issues you might encounter while installing, starting up, or using your computer and possible solutions.
For more information or for additional troubleshooting options, see Getting information on page 1.
Computer does not start
Symptom |
Possible solution |
||
|
|
||
Error message: |
Contact Support: www.hp.com/support |
||
Hard disk drive |
|
|
|
error. |
|
|
|
|
|
||
Computer will not |
Ensure that the cables connecting the computer to the external power source are plugged |
||
turn on or start. |
in properly. When the cables connecting the computer to the external power source are |
||
|
plugged in properly, and the wall outlet is functioning, the green power supply light on the |
||
|
back of the computer should be on; if it is not, contact Support. |
||
|
|
||
|
If the display (screen) is blank, the computer might not be properly connected. Plug in the |
||
|
computer and turn it on. |
||
|
|
||
|
Test the wall outlet by connecting a different electrical device to it. |
||
|
|
||
Computer seems |
Use the Windows Task Manager to close any programs not responding, or restart the |
||
to be locked up |
computer: |
||
and is not |
1. |
Press the Ctrl+Alt+Delete keys on the keyboard simultaneously. |
|
responding. |
|||
2. |
Tap Start Task Manager. |
||
|
|||
|
3. |
Tap the program that is not responding, and then tap End Task. |
|
If closing programs does not work, restart the computer:
1.Press the Ctrl+Alt+Delete keys on the keyboard simultaneously.
2.Tap the Arrow button next to the red Shut Down button, and then tap Restart.
Or, press and hold the Power button on the computer for 5 or more seconds to turn off the computer, and then press the Power button to restart the computer.
16 |
Chapter 4 Troubleshooting and maintenance |
ENWW |
Power
Symptom |
Possible solution |
|
|
Error message: |
When drive activity stops, remove the disc, and then press the spacebar on the keyboard. |
Invalid system |
The computer should start up. |
disk or Non- |
|
System disk or |
|
Disk error. |
|
|
|
Computer does |
Press and hold the Power button until the computer turns off. Check Power Settings. |
not turn off when |
|
the Power button |
|
is pressed. |
|
Computer shuts down automatically.
●The computer might be in an exceedingly hot environment. Let it cool down.
●Ensure that computer air vents are not blocked and that the internal fan is running — see Keeping the computer free of dust, dirt, and heat on page 27. (Your computer might not have an internal fan.)
Display (screen)
Symptom |
Possible solution |
|
|
Screen is blank. |
Reconnect the power plug to the back of the computer and to the wall outlet. |
|
|
|
Press the Power button to turn on the computer. |
|
|
|
Press the space bar on the keyboard or move the mouse to make the screen display |
|
visible again. |
|
|
|
Press the Sleep button (select models only), or the Esc key on the keyboard, to resume |
|
from Sleep mode. |
Images on the screen are too large or too small, or the images are fuzzy.
Adjust the display resolution setting in Windows 7:
1.Tap the Start button, and then tap Control Panel.
2.Under Appearance and Personalization, tap Adjust Screen Resolution.
3.Adjust resolution as necessary, and then tap Apply.
ENWW |
Power 17 |
Keyboard and mouse (with cable)
Symptom |
Possible solution |
|
|
Keyboard |
Use the mouse to turn off the computer, unplug and reconnect the keyboard to the back of |
commands and |
your computer, and then restart your computer. |
typing are not |
|
recognized by the |
|
computer. |
|
Mouse (with cable) does not work or is not detected.
Unplug and reconnect the mouse cable to your computer.
If the mouse is still not detected, turn off the computer, unplug and reconnect the mouse cable, and then restart the computer.
Cursor does not move using the arrow keys on the number keypad.
Press Num Lock on the keyboard to turn off Num Lock, so that the arrow keys on the number keypad can be used.
Cursor does not respond to mouse movement.
Use the keyboard to save changes in all open programs, and then restart your computer:
1.Press the Alt+Tab keys simultaneously to navigate to an open program.
2.Press the Ctrl + S key simultaneously to save your changes in the selected program (Ctrl + S is the keyboard shortcut for Save on most—not all—programs).
3.Repeat step 1 and step 2 to save changes in all open programs.
4.After saving changes in all open programs, press the Ctrl+Esc keys on the keyboard simultaneously to display the Windows Start menu.
5.Use the arrow keys to select the Arrow button that is next to Shut Down. Select Shut Down, and then press Enter.
6.After the shutdown is complete, unplug and reconnect the mouse connector to the back of your computer, and then restart your computer.
18 |
Chapter 4 Troubleshooting and maintenance |
ENWW |
Symptom |
Possible solution |
Cursor responds slowly, moves only vertically or horizontally, or does not track smoothly.
For a mouse with a roller ball:
●Clean the roller ball: Remove the roller ball cover from bottom of mouse (rotate it counterclockwise), remove the ball, and clean it by using a damp, lint-free cloth (not paper). Also clean the rollers on which the ball moves.
●Use a mouse pad or other rough surface under the mouse.
For an optical mouse:
●Clean the optical mouse: Gently wipe the light sensor lens on the bottom of the mouse by using a lint-free cloth (not paper).
●Use a mouse pad, white sheet of paper, or other less reflective surface under the mouse.
ENWW |
Keyboard and mouse (with cable) 19 |
Keyboard and mouse (wireless)
Symptom |
Possible solution |
Wireless keyboard or mouse does not work or is not detected.
●Ensure that you are using the wireless keyboard or wireless mouse within range of the receiver, approximately 10 meters (32 feet) for normal use, and within 30 cm (12 inches) during initial setup or for re-synchronization.
●Ensure that the mouse is not in Suspend mode, which occurs after 20 minutes of inactivity. Tap the left mouse button to reactivate it.
●Replace the batteries in the keyboard and mouse.
●Re-synchronize the keyboard and mouse to the receiver using the following steps.
The receiver, wireless keyboard, and wireless mouse shown in the following illustrations are examples; your models might vary.
IMPORTANT: During these steps, place the wireless keyboard and wireless mouse on the same level as the receiver, within 30 cm (12 inches) of the receiver, and away from interference from other devices.
1.Unplug the receiver from the USB connector on the computer, and then reconnect it. Your computer model might have a connector dedicated to the receiver.
2.Check that the mouse is on (1), and then push and hold the Connect button (2) on the underside of the mouse for 5 to 10 seconds until the LED on the receiver lights or stops flashing. The receiver connection session times out after 60 seconds. To ensure that the connection was established, and that the receiver did not time out instead, and then move the mouse and check for a response on the screen.
3.After the mouse connection is established, continue by using the following steps to repeat the procedure for the keyboard.
4.Push and hold the Connect button (1) on the underside of the keyboard for 5 to 10 seconds until the LED on the receiver lights or stops flashing.
20 |
Chapter 4 Troubleshooting and maintenance |
ENWW |
Loading...
