HP 5130-24G-PoE+-4SFP+ EI TAA, 5130-48G-PoE+-4SFP+ EI, 5130-48G-4SFP+ EI TAA, 5130-48G-4SFP+ EI, 5130-48G-PoE+-4SFP+ EI TAA Installation Manual

...
HP 5130 EI Switch Series
Installation Guide
P
Document version: 6W102-20150817
i
Contents
Preparing for installation ················································································································································· 1
Safety recommendations ·················································································································································· 2 Examining the installation site·········································································································································· 2
Temperature/humidity ············································································································································· 3 Cleanliness ································································································································································ 3 EMI ············································································································································································· 3
Laser safety ································································································································································ 4 Installation tools ································································································································································· 4 Installation accessories ····················································································································································· 4
Installing the switch ·························································································································································· 6
Installing the switch in a 19-inch rack ····························································································································· 6
Mounting brackets ···················································································································································· 6
Attaching the mounting brackets to the switch ······································································································ 7
Rack-mounting the switch ········································································································································· 9 Mounting the switch on a workbench ·························································································································· 10 Grounding the switch ···················································································································································· 11
Grounding the switch with a grounding strip ····································································································· 11
Grounding the switch with a grounding conductor buried in the earth ground ············································· 13
Grounding the switch by using the PE wire of the AC power cord ································································· 13 Installing and removing a power supply (HP 5130-24G-SFP-4SFP+ EI switch) ······················································ 14
Installing a power supply ····································································································································· 15
Removing a power supply ···································································································································· 15 Connecting the power cord ·········································································································································· 16
Connecting the switch to an AC power source·································································································· 17
Connecting the switch to a –48 VDC power source ························································································· 18
Connecting the switch to an RPS ························································································································· 19 Verifying the installation ················································································································································ 19
Accessing the switch for the first time ·························································································································· 21
Setting up the configuration environment ···················································································································· 21 Connecting the console cable······································································································································· 21 Setting terminal parameters ·········································································································································· 22 Powering on the switch·················································································································································· 22
Setting up an IRF fabric ················································································································································· 24
IRF fabric setup flowchart ·············································································································································· 24 Planning IRF fabric setup ··············································································································································· 25
Planning IRF fabric size and the installation site ································································································ 25
Identifying the master switch and planning IRF member IDs ············································································ 25
Planning IRF topology and connections ·············································································································· 26
Identifying physical IRF ports on the member switches ····················································································· 27
Planning the cabling scheme ······························································································································· 27 Configuring basic IRF settings ······································································································································· 29 Connecting the physical IRF ports ································································································································ 29 Verifying the IRF fabric setup ········································································································································ 29
Maintenance and troubleshooting ······························································································································· 31
Power supply failure ······················································································································································ 31
Fixed power supply failure ··································································································································· 31
Hot-swappable power supply failure ·················································································································· 32
ii
Configuration terminal problems ·································································································································· 33
No display on the configuration terminal ··········································································································· 33
Garbled display on the configuration terminal ·································································································· 33
Appendix A Chassis views and technical specifications ··························································································· 34

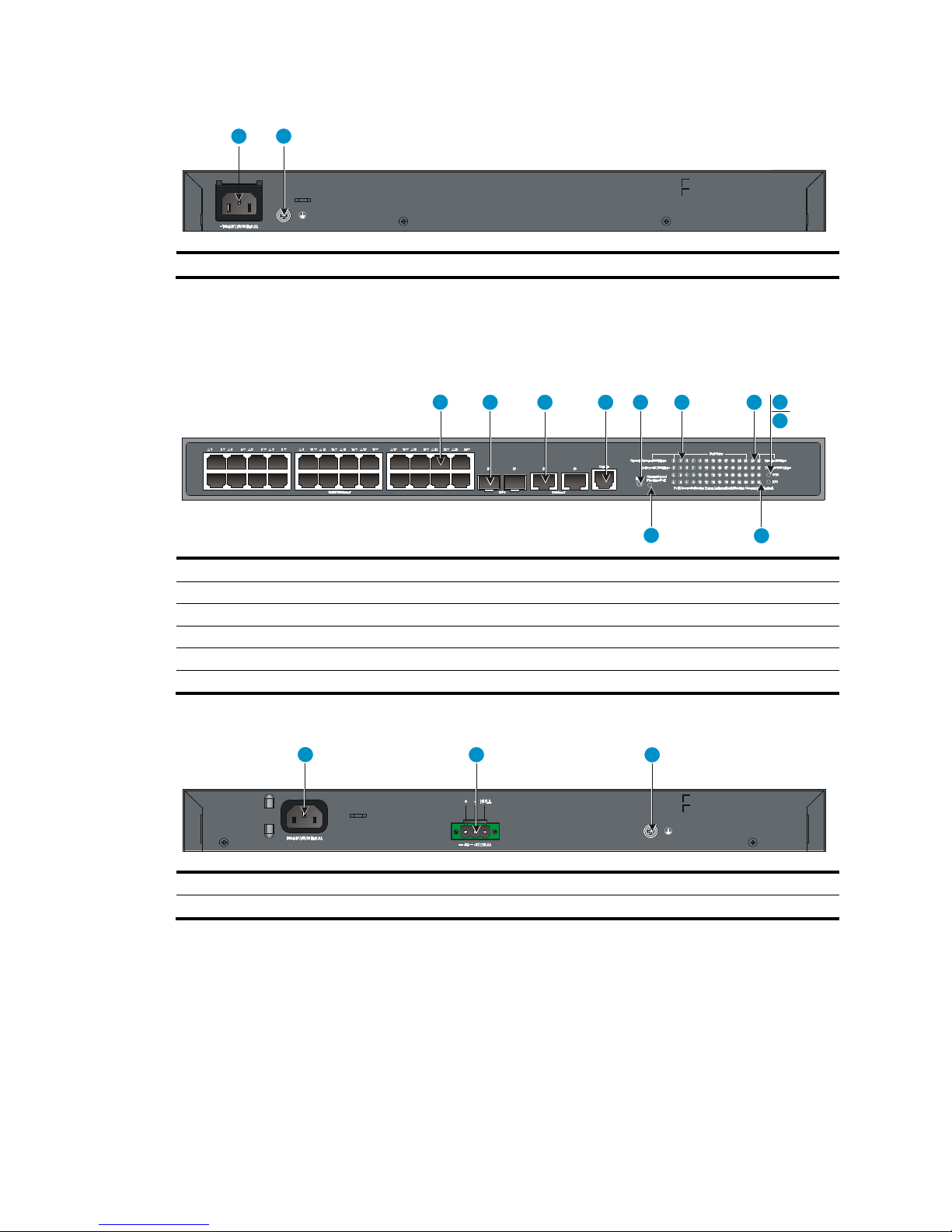

Chassis views ································································································································································· 34
HP 5130-24G-4SFP+ EI/HP 5130-24G-4SFP+ EI BR ······················································································· 34
HP 5130-24G-PoE+-4SFP+ (370W) EI/HP 5130-24G-PoE+-4SFP+ (370W) EI BR ····································· 35
HP 5130-24G-2SFP+-2XGT EI ····························································································································· 35
HP 5130-24G-PoE+-2SFP+-2XGT (370W) EI ···································································································· 36
HP 5130-48G-4SFP+ EI/HP 5130-48G-4SFP+ EI BR ······················································································· 37
HP 5130-48G-PoE+-4SFP+ (370W) EI/HP 5130-48G-PoE+-4SFP+ (370W) EI BR ····································· 37
HP 5130-48G-2SFP+-2XGT EI ····························································································································· 38
HP 5130-48G-PoE+-2SFP+-2XGT (370W) EI ···································································································· 39
HP 5130-24G-SFP-4SFP+ EI ································································································································· 39 Technical specifications ················································································································································· 40
Appendix B FRUs ··························································································································································· 44
Appendix C Ports and LEDs ·········································································································································· 45
Ports ················································································································································································· 45
Console port··························································································································································· 45
10/100/1000Base-T autosensing Ethernet port ······························································································· 45
1/10GBase-T autosensing Ethernet port ············································································································ 45
100/1000Base-X SFP port··································································································································· 46
SFP+ port ································································································································································ 48
Combo interface ···················································································································································· 49 LEDs ················································································································································································· 49
System status LED··················································································································································· 49
Power supply status LED ······································································································································· 50
RPS status LED ························································································································································ 50
Port mode LED ························································································································································ 50
10/100/1000Base-T autosensing Ethernet port LED ······················································································· 51
1/10GBase-T autosensing Ethernet port LEDs ··································································································· 53
100/1000Base-X SFP port LED ··························································································································· 54
SFP+ port LED ························································································································································ 55
Appendix D Cooling system ········································································································································· 57
Support and other resources ········································································································································· 58
Contacting HP ································································································································································ 58
Subscription service ·············································································································································· 58 Related information ························································································································································ 58
Documents ······························································································································································ 58
Websites ································································································································································· 58 Conventions ···································································································································································· 59
Index ················································································································································································ 61
1
Preparing for installation
Product code HP description Alias HP 5130 EI switches
JG932A HP 5130-24G-4SFP+ EI Switch HP 5130-24G-4SFP+ EI JG933A HP 5130-24G-SFP-4SFP+ EI Switch HP 5130-24G-SFP-4SFP+ EI JG934A HP 5130-48G-4SFP+ EI Switch HP 5130-48G-4SFP+ EI
JG936A HP 5130-24G-PoE+-4SFP+ (370W) EI Switch
HP 5130-24G-PoE+-4SFP+ (370W) EI
JG937A HP 5130-48G-PoE+-4SFP+ (370W) EI Switch
HP 5130-48G-PoE+-4SFP+ (370W) EI
JG938A HP 5130-24G-2SFP+-2XGT EI Switch HP 5130-24G-2SFP+-2XGT EI
JG939A HP 5130-48G-2SFP+-2XGT EI Switch HP 5130-48G-2SFP+-2XGT EI
JG940A HP 5130-24G-PoE+-2SFP+-2XGT (370W) EI Switch
HP 5130-24G-PoE+-2SFP+-2XGT (370W) EI
JG941A HP 5130-48G-PoE+-2SFP+-2XGT (370W) EI Switch
HP 5130-48G-PoE+-2SFP+-2XGT (370W) EI
JG975A HP 5130-24G-4SFP+ EI Brazil Switch HP 5130-24G-4SFP+ EI BR
JG976A HP 5130-48G-4SFP+ EI Brazil Switch HP 5130-48G-4SFP+ EI BR
JG977A HP 5130-24G-PoE+-4SFP+ (370W) EI Brazil Switch
HP 5130-24G-PoE+-4SFP+ (370W) EI BR
JG978A HP 5130-48G-PoE+-4SFP+ (370W) EI Brazil Switch
HP 5130-48G-PoE+-4SFP+ (370W) EI BR
Power supplies (applies only to the JG933A switch):
JD362A PSR150-A1 N/A
JD366A PSR150-D1 N/A
•
For regulatory identification purposes, the HP 5130-24G-4 SF P + EI , H P 513 0 -24G-SFP-4SFP+ EI, HP
513 0 -48G-4 SF P+ EI , H P 5130 -24G-PoE+-4 SF P + ( 370 W ) E I, HP 5130 -48G-PoE+-4SFP+ (370W) EI, H P 5130 -24G -2SFP+-2XGT EI, HP 513 0 -48G-2SFP+-2X GT E I , HP 513 0 -24G-PoE+-2SFP+-2XGT ( 37 0 W ) E I , H P 5130 -48G-PoE+-2SFP+-2X GT ( 370 W ) E I, H P 513 0 -24G-4SFP+ EI BR, HP 513 0 -48G-4 S F P + E I B R , H P 513 0 -24G-PoE+-4SFP+ (370W) EI BR, and HP 5130-48G-PoE+-4SFP+ (370W) EI BR switches are assigned Regulatory Model Numbers (RMNs). The RMNs for these switches are listed below. These RMNs should not be confused with the marketing name HP 5130 EI, or product codes JG932A, JG933A, JG934A, JG936A, JG937A, JG938A, JG939A, JG940A, JG941A, JG975A, JG976A, JG977A, and JG978A.
Product code RMN HP description
JG932A BJNGA-AD0027 HP 5130-24G-4SFP+ EI Switch
2
Product code RMN HP description
JG933A BJNGA-AD0028 HP 5130-24G-SFP-4SFP+ EI Switch
JG934A BJNGA-AD0029 HP 5130-48G-4SFP+ EI Switch
JG936A BJNGA-AD0031 HP 5130-24G-PoE+-4SFP+ (370W) EI Switch
JG937A BJNGA-AD0032 HP 5130-48G-PoE+-4SFP+ (370W) EI Switch
JG938A BJNGA-AD0033 HP 5130-24G-2SFP+-2XGT EI Switch
JG939A BJNGA-AD0034 HP 5130-48G-2SFP+-2XGT EI Switch
JG940A BJNGA-AD0035 HP 5130-24G-PoE+-2SFP+-2XGT (370W) EI Switch
JG941A BJNGA-AD0036 HP 5130-48G-PoE+-2SFP+-2XGT (370W) EI Switch
JG975A BJNGA-AD0027 HP 5130-24G-4SFP+ EI BR Switch
JG976A BJNGA-AD0028 HP 5130-48G-4SFP+ EI BR Switch
JG977A BJNGA-AD0031 HP 5130-24G-PoE+-4SFP+ (370W) EI BR Switch
JG978A BJNGA-AD0032 HP 5130-48G-PoE+-4SFP+ (370W) EI BR Switch
Safety recommendations
To avoid equipment damage or bodily injury, read the following safety recommendations before installation. Note that the recommendations do not cover every possible hazardous condition.
•
Before cleaning the switch, remove all power cords from the switch. Do not clean the switch with wet
cloth or liquid.
•
Do not place the switch near water or in a damp environment. Prevent water or moisture from
entering the switch chassis.
•
Do not place the switch on an unstable case or desk.
•
Ensure good ventilation at the installation site and keep the air inlet and outlet vents of the switch
free of obstruction.
•
Connect the yellow-green protection grounding cable before power-on.
•
Make sure the power source voltage is as required.
•
To avoid electrical shocks, do not open the chassis while the switch is operating or when the switch
is just powered off.
•
To avoid ESD damage, wear an ESD wrist strap to hot-swap a power supply.
Examining the installation site
The HP 5130 EI switches must be used indoors. You can mount your switch in a rack or on a workbench, but make sure:
•
Adequate clearance is reserved at the air inlet and exhaust vents for ventilation.
•
The rack or workbench has a good ventilation system.
•
The rack is sturdy enough to support the switch and its accessories.
•
The rack or workbench is reliably grounded.
3
To ensure correct operation and long service life of your switch, install it in an environment that meets the requirements described in the following subsections.
Temperature/humidity
Maintain temperature and humidity in the equipment room as described in "Technical specifications."
•
Lasting high relative humidity can cause poor insulation, electricity creepage, mechanical property
change of materials, and metal corrosion.
•
Lasting low relative humidity can cause washer contraction and ESD and bring problems including
loose captive screws and circuit failure.
•
High temperature can accelerate the aging of insulation materials and significantly lower the
reliability and lifespan of the switch.
For the temperature and humidity requirements of different switch models, see "Appendix A Chassis
views and technical specifications."
Cleanliness
Dust buildup on the chassis might result in electrostatic adsorption, which causes poor contact of metal components and contact points, especially when indoor relative humidity is low. In the worst case, electrostatic adsorption can cause communication failure.
Table 1 Dust concentration limit in the equipment room
Substance Concentration limit (particles/m³)
Dust ≤ 3 x 104 (no visible dust on the tabletop over three days)
NOTE:
Dust diameter ≥ 5 μm
The equipment room must also meet strict limits on salts, acids, and sulfides to eliminate corrosion and premature aging of components, as shown in Table 2.
Table 2 Harmful gas limits in the equipment room
Gas Maximum concentration (mg/m
3
)
SO2 0.2
H2S 0.006
NH3 0.05
Cl2 0.01
EMI
All electromagnetic interference (EMI) sources, from outside or inside of the switch and application system, adversely affect the switch in the following ways:
•
A conduction pattern of capacitance coupling.
•
Inductance coupling.
4
•
Electromagnetic wave radiation.
•
Common impedance (including the grounding system) coupling.
To prevent EMI, use the following guidelines:
•
If AC power is used, use a single-phase three-wire power receptacle with protective earth (PE) to
filter interference from the power grid.
•
Keep the switch far away from radio transmitting stations, radar stations, and high-frequency
devices to make sure the EMI levels do not exceed the compliant range.
•
Use electromagnetic shielding when necessary. For example, use shielded interface cables.
•
To prevent signal ports from getting damaged by over-voltage or over-current caused by lightning
strikes, only route interface cables indoors.
Laser safety
WARNING
!
Do not stare into any fiber port when the switch has power. The laser light emitted from the optical fiber might hurt your eyes.
The HP 513 0 E I switches are Class 1 laser devices.
Installation tools
•
Flat-blade screwdriver
•
Phillips screwdriver
•
ESD wrist strap
All these installation tools are user supplied.
Installation accessories
Table 3 Installation accessories
Product code
Description Quantity Applicable models
5066-0850
1 U four-hole mounting bracket kit (including one pair of mounting brackets and eight M4 countersunk screws)
1 kit
• H P 513 0 -24G-PoE+-4SFP+ (370W) EI
• H P 513 0 -48G-4SFP+ EI
• H P 513 0 -48G-PoE+-4SFP+ (370 W) EI
• H P 513 0 -24G-SFP-4SFP+ EI
• H P 513 0 -48G-2SFP+-2XGT EI
• H P 513 0 -24G-PoE+-2SFP+-2XGT (370W) EI
• H P 513 0 -48G-PoE+-2SFP+-2XGT (370W) EI
• H P 513 0 -48G-4SFP+ EI BR
• H P 513 0 -24G-PoE+-4SFP + (370W) EI BR
• H P 513 0 -48G-PoE+-4SFP+ (370 W) EI BR
5
Product code
Description Quantity Applicable models
5184-6978
1 U two-hole mounting bracket kit (including one pair of mounting brackets and four M4 countersunk screws)
1 kit
• H P 513 0 -24G-4SFP+ EI
• H P 513 0 -24G-2SFP+-2XGT EI
• H P 513 0 -24G-4SFP+ EI BR
N/A
M6 screw and floating nut
User supplied
All 5130 EI switches
5185-9292
Grounding cable
1
• H P 513 0 -24G-4SFP+ EI
• H P 513 0 -24G-SFP-4SFP+ EI
• H P 513 0 -48G-4SFP+ EI
• H P 513 0 -24G-2SFP+-2XGT EI
• H P 513 0 -48G-2SFP+-2XGT EI
• H P 513 0 -24G-4SFP+ EI BR
• H P 513 0 -48G-4SFP+ EI BR
5184-6729
Grounding cable
1
• H P 513 0 -24G-PoE+-4SFP+ (370W) EI
• H P 513 0 -48G-PoE+-4SFP+ (370 W) EI
• H P 513 0 -24G-PoE+-2SFP+-2XGT (370W) EI
• H P 513 0 -48G-PoE+-2SFP+-2XGT (370W) EI
• H P 513 0 -24G-PoE+-4SFP+ (370W) EI BR
• H P 513 0 -48G-PoE+-4SFP+ (370 W) EI BR
5185-9443
DC power cord
1 PSR150-D1
5184-6719
Console cable
1 All 5130 EI switches
5184-7298
Rubber feet
4 All 5130 EI switches
6
Installing the switch
CAUTION:
Keep the tamper-proof seal on a mounting screw on the chassis cover intact, and if you want to open the chassis, contact HP for permission. Otherwise, HP shall not be liable for any consequence.
Figure 1 Hardware installation flow
Installing the switch in a 19-inch rack
Mounting brackets
Table 4 describes the mounting brackets provided with the switch.
Start
Install the switch
Connect the grounding
cable
Connect the power cords
Verify the installation
Turn on the circuit breaker
Operating correctly?
Turn off the
circuit breaker
Troubleshoot
the switch
No
End
Has power supply slots?
Yes
Select and install power
supplies
Yes
No
7
Table 4 Mounting brackets provided with the switch
Switch model Mounting brackets Views
• H P 513 0-24G-4SFP+ EI
• H P 513 0 -24G-2SFP+-2XGT EI
• H P 513 0 -24G-4SFP+ EI BR
One pair of 1U two-hole mounting brackets
See Figure 2.
• H P 513 0 -24G-PoE+-4SFP+ (370W) EI
• H P 513 0 -24G-PoE+-2SFP+-2XGT (370W) EI
• H P 513 0 -48G-4SFP+ EI
• H P 513 0 -48G-PoE+-4SFP+ (370 W) EI
• H P 513 0 -24G-SFP-4SFP+ EI
• H P 513 0 -48G-4SFP+ EI BR
• H P 513 0 -48G-2SFP+-2XGT EI
• H P 513 0 -48G-PoE+-2SFP+-2XGT (370W) EI
• H P 513 0 -24G-PoE+-4SFP+ (370W) EI BR
• H P 513 0 -48G-PoE+-4SFP+ (370 W) EI BR
One pair of 1U four-hole mounting brackets
See Figure 3.
Figure 2 1U two-hole mounting bracket
(1) Screw hole for attaching the bracket to the switch (2 ) Screw hole for attaching the bracket to the rack
post
Figure 3 1U four-hole mounting bracket
(1) Screw hole for attaching the bracket to the switch (2 ) Screw hole for attaching the bracket to the rack
post
Attaching the mounting brackets to the switch
The H P 5130 -24G-4SFP+ EI, H P 5130 -24G-4SFP+ EI BR, H P 5130 -48G-4SFP+ EI BR, HP 513 0 -24G -PoE+-4SFP+ (370W) EI BR, H P 513 0 -24G-PoE+-4SFP+ (370W) EI,
1
2
1
2
8
H P 5130 -24G-2SFP+-2X GT E I , H P 513 0 -48G-2SFP+-2XGT EI, and H P 513 0 -48G-4SFP+ EI switches provide two mounting positions: one front mounting position (near the network ports) and one rear mounting position (near the power supplies).
The H P 513 0 -48G-PoE+-4SFP+ (370W) EI, H P 513 0 -48G-PoE+-4SFP+ (370W) EI BR, HP 513 0 -24G -PoE+-2SFP+-2XGT (370W) EI, H P 513 0 -48G-PoE+-2SFP+-2XGT (370W) EI, and HP 513 0 -24G-SFP-4SFP+ EI switches provide three mounting positions: one front mounting position (near the network ports), one mid-mounting position, and one rear mounting position (near the power supplies).
To attach the mounting brackets to the switch:
1. Determine the mounting position.
2. Align one mounting bracket with the screw holes at the mounting position. Use M4 screws
provided with the switch to attach the mounting bracket to the chassis.
3. Repeat step 2 to attach the other mounting bracket to the chassis. Figure 4 Attaching a two-hole mounting bracket to the front mounting position on an HP
5130-24G-4SFP+ EI switch
Figure 5 Attaching a two-hole mounting bracket to the rear mounting position on an HP 5130-24G-4SFP+ EI switch
Figure 6 Attaching a four-hole mounting bracket to the front mounting position on an HP 5130-24G-SFP-4SFP+ EI switch
9
Figure 7 Attaching a four-hole mounting bracket to the rear mounting position on an HP 5130-24G-SFP-4SFP+ EI switch
Figure 8 Attaching a four-hole mounting bracket to the mid-mounting position on an HP 5130-24G-SFP-4SFP+ EI switch
Rack-mounting the switch
This task requires two people. To mount the switch in the rack:
1. Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded.
2. Verify that the mounting brackets have been securely attached to the switch chassis.
3. Install cage nuts in the mounting holes in the rack posts.
4. One person holds the switch chassis and aligns the mounting brackets with the mounting holes in
the rack posts, and the other person attaches the mounting brackets with screws (user-supplied) to the rack.
5. Verify that the switch chassis is horizontal and secure. Figure 9 Mounting an HP 5130-24G-SFP-4SFP+ EI switch by the front mounting position
10
Figure 10 Mounting an HP 5130-24G-SFP-4SFP+ EI switch by the rear mounting position
Figure 11 Mounting an HP 5130-24G-SFP-4SFP+ EI switch by the mid-mounting position
Mounting the switch on a workbench
IMPORTANT:
•
Ensure 10 cm (3.9 in) of clearance around the chassis for heat dissipation.
• Do not place heavy objects on the switch.
If a standard 19-inch rack is not available, you can place you switch on a workbench.
To mount the switch on a workbench:
1. Verify that the workbench is sturdy and reliably grounded.
2. Place the switch with bottom up, and clean the round holes in the chassis bottom with dry cloth.
3. Attach the rubber feet to the four round holes in the chassis bottom.
4. Place the switch with upside up on the workbench.
11
Figure 12 Mounting the switch on a workbench
Grounding the switch
WARNING
!
Correctly connecting the switch grounding cable is crucial to lightning protection and EMI protection.
The power input end of the switch has a noise filter, whose central ground is directly connected to the chassis to form the chassis ground (commonly known as PGND). You must securely connect this chassis ground to the earth to minimize the potential for system damage, maximize the safety at the site, and minimize EMI susceptibility of the system.
You can ground the switch in one of the following ways, depending on the grounding conditions available at the installation site:
•
Grounding the switch with a grounding strip
•
Grounding the switch with a grounding conductor buried in the earth ground
•
Grounding the switch by using the PE wire of the AC power cord
NOTE:
The power and grounding terminals in this section are for illustration only.
Grounding the switch with a grounding strip
WARNING
!
Connect the grounding cable to the grounding system in the equipment room. Do not connect it to a fire main or lightning rod.
If a grounding strip is available at the installation site, use the grounding strip to ground the switch.
To ground the switch by using a grounding strip:
1. Connect one end of the grounding cable to the grounding screw on the switch. a. Remove the grounding screw from the rear panel of the switch chassis. b. Attach the grounding screw to the ring terminal of the grounding cable. c. Use a screwdriver to fasten the grounding screw into the grounding screw hole.
12
Figure 13 Connecting the grounding cable to the grounding hole of the switch
(1) Chassis rear panel
(2) Grounding sign
(3) Grounding hole
(4) Ring terminal
(5) Grounding cable
(6) Grounding screw
2. Connect the other end of the grounding cable to the grounding strip. a. Cut the grounding cable to a length according to the distance between the switch and the
grounding strip.
b. Peel 20 mm (0.79 in) of insulation sheath by using a wire stripper. c. Use the needle-nose pliers to bend the bare wire. d. Hook the grounding cable to the post on the grounding strip, and use the hex nut to secure the
cable to the post.
Figure 14 Connecting the grounding cable to a grounding strip
(1) Grounding post
(2) Grounding strip
(3) Grounding cable
(4) Hex nut
1
2 3
4
5
6
1
2
3
4
13
Grounding the switch with a grounding conductor buried in the earth ground
If the installation site has no grounding strips, but earth ground is available, hammer a 0.5 m (1.64 ft) or longer angle iron or steel tube into the earth ground to serve as a grounding conductor.
The dimensions of the angle iron must be at least 50 × 50 × 5 mm (1.97 × 1.97 × 0.20 in). The steel tube must be zinc-coated and its wall thickness must be at least 3.5 mm (0.14 in).
Weld the yellow-green grounding cable to the angel iron or steel tube and treat the joint for corrosion protection.
Figure 15 Grounding the switch by burying the grounding conductor into the earth ground
(1) Grounding screw (2) Grounding cable (3) Earth
(4) Joint
(5) Grounding conductor
(6) Chassis rear panel
Grounding the switch by using the PE wire of the AC power cord
If the installation site has no grounding strips or earth ground, ground an AC-powered switch through the PE wire of the power cord. Make sure the following requirements are met:
•
The power cord has a PE wire.
•
The ground contact in the power outlet is securely connected to the ground in the power distribution
room or on the AC transformer side.
•
The power cord is securely connected to the power outlet. If the ground contact in the power outlet
is not connected to the ground, report the problem and reconstruct the grounding system.
1
2 3
4 5
6
14
Figure 16 Grounding through the PE wire of the AC power cord
(1) Chassis rear panel
(2) Three-wire AC power cable
NOTE:
To guarantee the grounding effect,
use the grounding cable provided with the switch to connect to the
grounding strip in the equipment room as long as possible.
Installing and removing a power supply (HP 5130-24G-SFP-4SFP+ EI switch)
CAUTION:
Provide a circuit breaker for each power supply and make sure the circuit breaker is off before installation.
The HP 5130 -24G-SFP-4SFP+ EI switch provides two power supply slots and comes with power supply slot 1 empty and a filler panel in power supply slot 2. You c an install one power supply, or two power supplies for redundancy. For information about power supplies available for the HP 513 0 -24G-SFP-4SFP+ EI switch, see "Appendix B FRUs."
When two power supplies are installed, you can hot-swap a power supply. To avoid device damage and bodily injury, follow the procedures in Fi g ur e 17 and F i gu re 18 to install and replace a power supply.
Figure 17 Installation procedure
2
1
安装电源模块 连接电源线
给电源模块加电安装电源模块
连接电源线 给电源模块加电安装电源模块
连接电源线
给电源模块加电
Install the power supply
Connect the power cord
Turn on the circuit
breaker
15
Figure 18 Removal procedure
The installation and removal procedures are the same for the PSR150-A1 and PSR150-D1 power supplies. This guide uses the PSR150-A1 power supply as an example.
Installing a power supply
1. Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded.
2. Unpack the power supply and verify that the power supply model is as required.
3. Remove the filler panel (if any) from the target slot.
If you require only one power supply, install it in power supply slot 1 and make sure a filler panel is installed in power supply slot 2.
4. Orient the power supply with the upside up. Grasp the handle of the power supply with one hand
and support its bottom with the other, and slide the power supply slowly along the guide rails into the slot. See callout 1 in Figure 19.
To prevent damage to the power supply and the connector on the switch backplane, insert the power supply gently. If you encounter a hard resistance or the power supply tilts while inserting the power supply, pull out the power supply, realign it with the slot, and then insert it again.
5. Fasten the captive screws on the power supply with a Phillips screwdriver to secure the power
supply in the chassis. See callout 2 in Figure 19.
If the captive screw cannot be tightly fastened, examine the installation of the power supply.
Figure 19 Installing a PSR150-A1 power supply
Removing a power supply
1. Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded.
2. Power off the power supply and remove the power cord.
3. Loosen the captive screws on the power supply with a Phillips screwdriver until they are completely
disengaged from the chassis.
将电源模块断电
拆卸电源线
拆卸电源模块将电源模块断电
拆卸电源线
拆卸电源模块将电源模块断电
拆卸电源线
拆卸电源模块
Turn off the circuit
breaker
Remove the power cord
Remove the power
supply
1
2
2
16
4. Grasp the handle of the power supply with one hand and pull the module part way out. Support
the module bottom with the other hand, and pull the power supply slowly along the guide rails out of the slot.
5. Place the removed power supply in an antistatic bag.
Figure 20 Removing a PSR150-A1 power supply
Connecting the power cord
CAUTION:
•
Provide a circuit breaker for each power cord.
• Before connecting the power cord, make sure the circuit breaker on the power cord is turned off.
Table 5 Power cord connection procedures at a glance
Switch model Available power source
Connection procedure reference
• H P 513 0 -24G-4SFP+ EI
• H P 513 0 -24G-2SFP+-2XGT EI
•
H P 513 0 -24G-4SFP+ EI BR
AC power source
Connecting the switch to an AC power source
• H P 513 0 -48G-4SFP+ EI
• H P 513 0 -24G-SFP-4SFP+ EI
• H P 513 0 -48G-2SFP+-2XGT EI
• H P 513 0 -48G-4SFP+ EI BR
AC power source
Connecting the switch to an AC power source
–48 V DC power source in the equipment room
Connecting the switch to a –48 VDC power source
RPS Recommended HP RPS models: A-RPS800 (JD183A ) and A-RPS1600 (JG136A)
Connecting the switch to an RPS
• H P 513 0 -24G-PoE+-4SFP+ (370W) EI
•
HP 513 0 -48G-PoE+-4S FP+ (370 W ) EI
AC power source
Connecting the switch to an AC power source
1
2
1
17
Switch model Available power source
Connection procedure reference
HP A-RPS1600
Connecting the switch to an RPS
The H P 513 0 -24G-SFP-4SFP+ EI switch provides two power supply slots. The PS R 15 0 -A1 and P S R 15 0 -D1 power supplies are available for the HP 513 0 -24G-SFP-4SFP+ EI switch. The P S R15 0 -A1 power supply supports AC power input. The P SR 15 0 -D1 power supply supports –48 V DC power input and RPS power input.
Connecting the switch to an AC power source
Securing the AC power cord for a hot-swappable AC power supply
1. Insert the cable tie through the hole in the power supply handle.
2. Use the cable tie to secure the AC power cord to the power supply handle.
Figure 21 Securing the AC power cord for a hot-swappable AC power supply
Securing the AC power cord for a fixed power supply
1. Insert the cable tie through the cable bridge.
2. Use the cable tie to secure the AC power cord to the cable bridge.
1
2
Loading...
+ 49 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
