Getting Started
HP Compaq Notebook Series
Document Part Number: 393685-002
June 2005
This guide explains how to set up your hardware and software,
and begin using your notebook in Microsoft
® Windows®.
© Copyright 2005 Hewlett-Packard Development Company, L.P.
Microsoft and Windows are U.S. registered trademarks of Microsoft
Corporation. SD Logo is a trademark of its proprietor. Bluetooth is a
trademark owned by its proprietor and used by Hewlett-Packard Company
under license.
The information contained herein is subject to change without notice. The
only warranties for HP products and services are set forth in the express
warranty statements accompanying such products and services. Nothing
herein should be construed as constituting an additional warranty. HP shall
not be liable for technical or editorial errors or omissions contained herein.
Getting Started
HP Compaq Notebook Series
Second Edition June 2005
First Edition April 2005
Document Part Number: 393685-002
Contents
1 Hardware Setup
Step 1: Identify the Setup Hardware . . . . . . . . . . . . . . . . 1–3
Step 2: Insert the Battery Pack . . . . . . . . . . . . . . . . . . . . . 1–4
Step 3: Connect the Modem. . . . . . . . . . . . . . . . . . . . . . . 1–5
Step 4: Connect the Notebook to External Power . . . . . . 1–8
Step 5: Open the Notebook . . . . . . . . . . . . . . . . . . . . . . . 1–9
Step 6: Turn on the Notebook . . . . . . . . . . . . . . . . . . . . 1–10
2 Software Setup
View the Welcome Window . . . . . . . . . . . . . . . . . . . . . . 2–2
Select Your Regional Preferences . . . . . . . . . . . . . . . . . . 2–5
Accept the License Agreements. . . . . . . . . . . . . . . . . . . . 2–5
Name Your Notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–6
Create User Accounts. . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–7
Press the Finish Button. . . . . . . . . . . . . . . . . . . . . . . . . . . 2–8
3 Next Steps
Protect Your Notebook . . . . . . . . . . . . . . . . . . . . . . . . . . 3–1
Protect the Notebook from Viruses . . . . . . . . . . . . . . 3–2
Protect Your System Files . . . . . . . . . . . . . . . . . . . . . 3–3
Protect Your Privacy . . . . . . . . . . . . . . . . . . . . . . . . . 3–4
Protect the Notebook from Power Surges . . . . . . . . . 3–5
Use the Notebook Safely . . . . . . . . . . . . . . . . . . . . . . 3–6
Turn Off the Notebook Properly . . . . . . . . . . . . . . . . 3–7
Getting Started iii
Contents
Connect to the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–8
Enable Communication Hardware. . . . . . . . . . . . . . . 3–8
Set Up Internet Service . . . . . . . . . . . . . . . . . . . . . . . 3–9
4 Notebook Features
Top Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–2
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–2
Pointing Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–6
Buttons and Switches. . . . . . . . . . . . . . . . . . . . . . . . . 4–8
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–12
Front Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–13
Wireless Antennae (Select Models Only) . . . . . . . . . . . 4–15
Rear Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–16
Right-Side Components . . . . . . . . . . . . . . . . . . . . . . . . . 4–18
Left-Side Components . . . . . . . . . . . . . . . . . . . . . . . . . . 4–20
Bottom Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–23
Additional Hardware Components. . . . . . . . . . . . . . . . . 4–26
A System Recovery
Safeguarding Your Data. . . . . . . . . . . . . . . . . . . . . . . . . . A–1
Altiris Local Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . A–2
System Restore Points . . . . . . . . . . . . . . . . . . . . . . . . . . . A–3
Creating a System Restore Point . . . . . . . . . . . . . . . . A–4
Restoring to a Restore Point . . . . . . . . . . . . . . . . . . . A–4
Reinstalling Applications . . . . . . . . . . . . . . . . . . . . . . . . . A–5
Reinstalling Applications from the Hard Drive. . . . . A–6
Reinstalling Applications from Discs . . . . . . . . . . . . A–6
Repairing the Operating System . . . . . . . . . . . . . . . . . . . A–7
Reinstalling the Operating System. . . . . . . . . . . . . . . . . . A–8
Reinstalling Device Drivers and Other Software. . . . . . A–10
Index
iv Getting Started
Hardware Setup
Your notebook may look slightly different from the illustrations
✎
in this chapter.
CAUTION: To prevent file corruption and to ensure that the correct
Ä
drivers are installed:
■ Do not set up the notebook for the first time while the notebook is
docked in an optional docking device.
■ During the hardware and software setup procedures:
❏ Do not unplug the notebook from external power.
❏ Do not shut down the notebook or initiate standby or
hibernation.
❏ Do connect the modem cable as instructed in the “Step 3:
Connect the Modem” section later in this chapter, but do not
insert, remove, connect, or disconnect any other device, cable,
or cord.
1
Getting Started 1–1
Hardware Setup
During hardware setup, you will
1. Identify the hardware you need to set up the notebook.
2. Insert the battery pack into the notebook so that it can begin
to charge as soon as the notebook is connected to external
power.
3. Connect the modem.
4. Connect the notebook to external power.
5. Open the notebook.
6. Turn on the notebook.
After you turn on the notebook, you will be prompted to begin
software setup.
1–2 Getting Started
Hardware Setup
Step 1: Identify the Setup Hardware
To set up the notebook for the first time, you need the notebook,
the power cord 1, the AC adapter 2, and the battery pack 3.
If you would like to use the modem to access the Internet, you
will also need the modem cable 4.
If you are connecting the modem cable in a country where RJ-11
telephone jacks are not standard, you need the modem adapter 5
to connect the modem cable. (If you purchased the notebook in a
country where RJ-11 jacks are not standard, a modem adapter
specific to the country in which you purchased the notebook is
included with the notebook.)
WARNING: To reduce potential safety issues, use only the AC adapter
Å
or battery pack provided with the computer, a replacement AC adapter
or battery pack provided by HP, or a compatible AC adapter or battery
pack purchased as an accessory from HP with the computer.
Getting Started 1–3
Hardware Setup
Step 2: Insert the Battery Pack
This notebook supports up to 2 battery packs:
■ One primary lithium-ion battery pack is included with the
notebook.
■ The travel battery pack is an optional battery pack that can be
attached to the bottom of the notebook.
To insert the primary battery pack:
1. Turn the notebook upside down with the rear toward you.
2. Slide the battery pack 1 into the battery bay until it is seated.
The battery locking latch 2 automatically locks the battery
into place.
)
1–4 Getting Started
Step 3: Connect the Modem
To connect the modem so that you can access the Internet:
■ Follow the instructions in this section for connecting the
modem to an analog telephone line.
– or –
■ Follow the instructions provided by your Internet service
provider to connect the notebook to the Internet through
a DSL (Digital Subscriber Line) modem, cable modem, or
network connection. For more information about these and
other Internet connection methods, see the “Connect to the
Internet” section in Chapter 3, “Next Steps.”
It might be easier to connect your modem to a telephone line
✎
now and set up other Internet connections later, after you have
completed software setup.
Jacks for analog telephone lines vary by country.
■ If you are connecting the modem to a telephone line in
a country where RJ-11 (modem) jacks are standard, follow
the instructions in the “Connecting the Modem Cable” next
in this chapter.
■ If you are connecting the modem to a telephone line in
a country where RJ-11 (modem) jacks are not standard,
follow the instructions in the “Connecting the Modem with
an Adapter” later in this chapter.
Hardware Setup
WARNING: To reduce the risk of electric shock, disconnect the
Å
modem from the telephone network before accessing an internal
compartment of the notebook. Internal compartments include the
memory compartment, the battery bay, and the hard drive bay.
Getting Started 1–5
Hardware Setup
Connecting the Modem Cable
To connect the modem to an analog telephone line that has
an RJ-11 (modem) jack:
1. Turn the notebook display-side up on a flat surface near
an RJ-11 (modem) jack.
2. If your modem cable contains noise suppression circuitry 1,
which prevents interference with TV and radio reception,
orient the circuitry end of the cable toward the notebook.
3. Plug the modem cable 2 into the RJ-11 (modem) jack on the
notebook.
4. Plug the other end of the modem cable 3 into the
telephone jack.
Telephone wall jacks and modem cables vary in appearance by
✎
region and country.
1–6 Getting Started
Connecting the Modem with an Adapter
To connect the modem to an analog telephone line that does
not have an RJ-11 (modem) jack:
1. Turn the notebook display-side up on a flat surface near
a telephone jack.
2. If the modem cable contains noise suppression circuitry 1,
which prevents interference with TV and radio reception,
orient the circuitry end of the cable toward the notebook.
3. Plug the modem cable 2 into the RJ-11 (modem) jack on
the notebook.
4. Plug the modem cable 3 into the country-specific modem
adapter.
5. Plug the country-specific modem adapter 4 into the
telephone jack.
Telephone wall jacks and modem cables vary in appearance by
✎
region and country.
Hardware Setup
Getting Started 1–7
Hardware Setup
Step 4: Connect the Notebook to External Power
To connect the notebook to external AC power:
1. Plug the AC adapter cable 1 into the power connector.
(The power connector is on the rear of the notebook.)
2. Plug the power cord 2 into the AC adapter, and then into
an AC outlet 3.
When the notebook receives AC power, the battery pack begins
to charge and the battery light (on the front of the notebook) 4
is turned on. When the battery pack is fully charged, the battery
light is turned off.
It is recommended that you leave the notebook connected to
external power until the battery pack is fully charged and the
battery light is turned off. (A partially charged new battery pack
can run the notebook after software setup is complete, but battery
charge displays will not be accurate until the new battery pack has
been fully charged.)
Power cords and AC outlets vary in appearance by region and
✎
country.
1–8 Getting Started
Step 5: Open the Notebook
To open the notebook:
1. Slide the display release latch 1 to the right to release the
display.
2. Raise the display 2.
Hardware Setup
Getting Started 1–9
Hardware Setup
Step 6: Turn on the Notebook
To turn on the notebook:
» Press the power/standby button 1.
The power/standby light next to the power/standby button 2
and the power/standby light on the front of the notebook 3
are turned on, and you are prompted to begin software setup.
1–10 Getting Started
Software Setup
During software setup you can
■ Select regional preferences.
■ Accept license agreements.
■ Name your notebook.
■ Create user accounts.
You can change or add any settings you select or skip during the
setup process. For instructions, refer to Chapter 2, “Managing
Your Software,” in the Help and Support Guide located in the
Help and Support Center. To access the Help and Support Center,
select Start > Help and Support > User Guides.
Software setup begins when you respond to the setup prompt
on the notebook screen.
CAUTION: If you are prompted to select an operating system
Ä
language before a window called Welcome to Microsoft
Windows is displayed, choose carefully. On some models, the
languages that you do not choose are deleted from the system and
cannot be restored during software setup.
2
■ After you respond to the setup prompt, you must complete
the entire setup process without interruption. Setup time
varies.
■ During software setup, it is normal for some notebook
models to pause occasionally for several minutes. These
normal pauses are indicated by an hourglass icon.
Getting Started 2–1
Software Setup
View the Welcome Window
The first window in software setup is Welcome to Microsoft
Windows. This window welcomes you to your Microsoft®
Windows® operating system and introduces you to software
setup navigation:
■ To display additional information about the text in any
setup window:
Select the question mark icon in the lower-right corner of
the window or press the
■ To continue to the next window:
Select the Next button in the lower-right corner of the
window.
■ To return to the previous window:
Select the Back button in the lower-left corner of the window.
(This button is unavailable on the first window, Welcome to
Microsoft Windows.)
■ To skip a window without entering a preference:
Select the Skip button in the lower-right corner of the
window. (This button is unavailable on the first and some
succeeding windows.)
f1 key on your keyboard.
2–2 Getting Started
Software Setup
If your computer model has a TouchPad (select models only), to
navigate in a window, slide your finger on the TouchPad 1 in the
direction that you want to move the cursor. To select an item,
move the cursor over the item, and then press the left TouchPad
button 2.
Getting Started 2–3
Software Setup
If your computer model has a pointing stick (select models only),
navigate in a window by pressing the pointing stick 1 in the
direction that you want to move the pointer. To select an item,
move the pointer over the item, and then press the left pointing
stick button 2.
2–4 Getting Started
Software Setup
Select Your Regional Preferences
The next 2 windows prompt you to confirm or select regional
preferences. Regional preferences are preset for the country in
which you purchased the notebook.
■ Dates and currency window—The Windows operating
system will use the region and language preferences you
confirm or select in the How should dates and currency
appear? window to format dates and currency.
Notice that some languages have regional versions. The
versions are shown in parentheses after the language name.
■ Time zone window—The Windows operating system will use
the time zone you confirm or select in the What time zone are
you in? window to set the notebook clock.
Notice that you can select a check box to set the notebook
clock to adjust to daylight saving time.
Accept the License Agreements
In the End-User License Agreement window, you must
accept both the Microsoft End-User License Agreement and
the HP Software Product License Agreement to continue with
software setup.
■ To accept both agreements, select Yes, I accept them, and
then select Next.
■ To decline both agreements, select No, I don’t accept them,
and then select Next.
If you decline both agreements, you will not be permitted
to use the installed software. On the following screen you
will be offered only 2 options: You can choose Back to return
to the End-User License Agreement window or choose
Shutdown to turn off the notebook. When you start the
notebook after selecting Shutdown, the Welcome to Windows
window is displayed and you must again begin software
setup.
Getting Started 2–5
Software Setup
Name Your Notebook
If you plan to include your notebook on a home network, your
notebook must have a unique name. In the What’s your
computer’s name? window, you can retain the default name
shown in the Computer name text field or choose another name.
For example, you might want to base your notebook name on a
person’s name, “David,” or a location, “Familyroom.” In order for
your notebook name to be displayed on a network, the name
■ Must be no longer than 15 characters.
■ Must include only numerals (0-9), letters (A-Z and a-z),
and hyphens.
■ Cannot include spaces.
If you like, you can also enter a description of your notebook. The
description may contain more characters than the notebook name,
as well as spaces and special characters. For example, you could
describe your notebook as “David’s game machine.”
2–6 Getting Started
Create User Accounts
In the Who will use this computer? window, you can create
a user account for each person who might use the notebook.
Windows user accounts enable each notebook user to create a
personal Windows notebook environment. A user’s Windows
environment might include such customizations as display and
security settings, personal files, screen savers, and the appearance
of the Windows desktop.
When you turn on the notebook in Windows, a prompt to select a
Windows user account is displayed. When a Windows user
account is selected, Windows opens according to the preferences
set by that user.
The names you enter in the Who will use this computer? window
text fields are displayed on the list of user accounts displayed at
Windows startup.
Software Setup
Getting Started 2–7
Software Setup
Press the Finish Button
When the Thank you! window is displayed, read the text, and
then select Finish.
Your notebook saves your preferences, and then restarts in
Windows. Select your Windows user account, and you are ready
to begin using your notebook.
To protect your notebook and gain Internet access to software
updates and online assistance, it is recommended that you begin
your notebook use by following the suggestions in the next
chapter.
All Windows instructions in your notebook documentation
✎
describe Microsoft Windows XP procedures based on the default
Windows XP category view. For information about switching
between Windows XP classic view and Windows XP category
view, select Start > Help and Support > Customizing your
computer > Files, folders, and programs > Use Windows
classic folders.
2–8 Getting Started
Protect Your Notebook
You can use the information in this section to
■ Protect your notebook from viruses.
■ Protect your system files.
■ Protect your privacy.
■ Protect your notebook from power surges.
■ Use your notebook safely.
■ Turn off your notebook properly.
For information about other notebook security features, such
as passwords, device disabling, and using an optional security
cable lock, refer to the “Security” chapter in the Hardware and
Software Guide located in the Help and Support Center. To access
the Help and Support Center:
3
Next Steps
» Select Start > Help and Support > User Guides.
Getting Started 3–1
Next Steps
Protect the Notebook from Viruses
When you use the notebook for e-mail, network, or Internet
access, you expose the notebook to computer viruses. Computer
viruses can damage or disable your operating system,
applications, or utilities.
Norton AntiVirus software is preinstalled on your notebook to
protect against such viruses. Norton Antivirus software can detect
and destroy most viruses, and usually repair damage they have
caused. To provide protection against newly discovered viruses,
Norton Antivirus software must be periodically updated.
■ For information about using and updating your Norton
AntiVirus software, and f
troubleshooting:
Select Start > All Programs > Norton AntiVirus > Help
and Support.
■ For more information about computer viruses:
1. Select Start > Help and Support.
2. Type
viruses into the Search box.
or other information such as
3. Press
3–2 Getting Started
enter.
Protect Your System Files
System Restore is a Windows operating system feature that
enables you to undo harmful changes to your notebook software
by restoring your software to an earlier time, called a restore
point, when your software was functioning optimally.
Restore points are restorable, benchmark “snapshots” of your
application, driver, and operating system files. The notebook sets
restore points at regular intervals and might set additional restore
points whenever you change your personal settings or add
software or hardware.
Manually setting additional restore points provides additional
protection for your system files and settings. It is recommended
that you manually set restore points
■ Before you add or extensively modify software or hardware.
■ Periodically, whenever the system is performing optimally.
Restoring to any restore point does not affect your data files. For
example, restoring your system software to an earlier time will
not affect documents or e-mails that you saved after that time. All
System Restore procedures are reversible.
Next Steps
Setting a Restore Point
To set a system restore point manually:
1. Select Start > Help and Support > System Restore.
A System Restore window opens.
2. Follow the on-screen directions for setting a restore point.
Getting Started 3–3
Next Steps
Restoring to a Restore Point
To restore the notebook to a previous date and time when it was
functioning optimally:
1. Make sure the notebook is connected to reliable external
power through the AC adapter.
2. Select Start > Help and Support > System Restore.
The System Restore window opens.
3. Follow the on-screen directions for restoring the notebook.
Protect Your Privacy
When you use the notebook for Internet access, e-mail, or
networking, it is possible for unauthorized persons to obtain
information about you, your notebook, and your data. Firewall
software monitors incoming traffic on your computer by
including features such as logging and reporting, automatic
alarms, and user interfaces for configuring the firewall. Some
firewalls also monitor outgoing traffic. To protect your privacy, it
is recommended that you
■ Keep your Windows operating system updated. Many
Windows updates contain security enhancements. For
information about updating Windows, refer to the Hardware
and Software Guide located in the Help and Support Center.
To access the Help and Support Center:
Select Start > Help and Support > User Guides.
■ Use a firewall such as the Windows operating system firewall
that is available on your notebook. To learn more about this
firewall:
Select Start > Control Panel > Network and Internet
Connections > Windows Firewall > General tab.
3–4 Getting Started
Next Steps
Under some circumstances a firewall can block access to Internet
games, interfere with printer or file sharing on a network, or block
authorized e-mail attachments. To temporarily solve the problem,
disable the firewall, perform the task, and then enable the
firewall. To permanently resolve the problem, reconfigure the
firewall as follows:
■ If you are using Windows Firewall, select Start > Help and
Support to search for instructions on reconfiguring the
firewall.
■ If you are using an optional firewall, refer to the firewall
documentation or contact the firewall manufacturer.
Protect the Notebook from Power Surges
To protect the notebook from the power surges that may be
caused by irregular electrical service or an electrical storm:
■ Plug the notebook power cord into an optional, high-quality
surge protector. Surge protectors are available from most
computer or electronics retailers.
■ Provide surge protection on the cable that connects the
modem to a telephone line.
■ During an electrical storm, either run the notebook on
battery power or shut down the notebook and unplug the
power cord.
Getting Started 3–5
Next Steps
Use the Notebook Safely
WARNING: To reduce the risk of electric shock or damage to
Å
your equipment:
■ Plug the power cord into an AC outlet that is easily accessible
at all times.
■ Disconnect power from the notebook by unplugging the power cord
from the AC outlet (not by unplugging the power cord from
the notebook).
■ If provided with a 3-pin attachment plug on your power cord, plug
the cord into a grounded (earthed) 3-pin outlet. Do not disable the
power cord grounding pin; for example, by attaching a 2-pin
adapter. The grounding pin is an important safety feature.
WARNING: To reduce the risk of serious injury, read the Safety and
Å
Comfort Guide (not available in all languages). It describes proper
workstation setup; and proper posture, health, and work habits for
notebook users. The Safety and Comfort Guide also provides important
electrical and mechanical safety information. This guide is available on
the Web at
Center. To access the Help and Support Center, select Start > Help
and Support > User Guides.
http://www.hp.com/ergo, and in the Help and Support
WARNING: To avoid potential discomfort or burns, do not
Å
block the air vents or use the notebook on your lap for extended
periods. The notebook is designed to run demanding applications
at full power. As a result of increased power consumption, it is
normal for the notebook to feel warm or hot when used continuously.
The notebook complies with the user-accessible surface temperature
limits defined by the International Standard for Safety of Information
Technology Equipment (IEC 60950).
3–6 Getting Started
WARNING: To reduce potential safety issues, only the AC adapter
Å
or battery pack provided with the computer, a replacement AC adapter
or battery pack provided by HP, or a compatible AC adapter or battery
pack purchased as an accessory from HP should be used with the
computer.
For more safety and regulatory information, refer to Regulatory
and Safety Notices located in the Help and Support Center. To
access the Help and Support Center:
» Select Start > Help and Support > User Guides.
Some notebook models may be shipped with a User Guides disc
✎
that includes safety and regulatory information.
Turn Off the Notebook Properly
Whenever possible, turn off the notebook by using the
standard Windows shutdown procedure for your operating
system:
■ In Windows XP Home:
Select Start > Turn Off Computer > Turn Off.
Next Steps
■ In Windows XP Professional:
Select Start > Turn Off Computer > Turn Off. (If you
connect your notebook to a network domain, the name of
the Turn Off Computer button may be replaced by the Shut
Down button.)
Getting Started 3–7
Next Steps
If the notebook does not respond, try the following shutdown
procedures:
■ Press ctrl+alt+delete. Then, select Shut Down > Turn Off.
■ If the notebook does not respond to the ctrl+alt+delete
procedure, press and hold the power/standby button for at
least 5 seconds.
You should use the power/standby button to shut down the
Ä
notebook only when the system does not respond to any of
the shutdown procedures listed above. Using the
power/standby button to shut down the system can result in
file corruption and data loss.
Connect to the Internet
To connect the notebook to the Internet, you must enable your
communication hardware and have an account with an Internet
service provider (ISP). All Internet connection software
procedures are performed in Windows.
Enable Communication Hardware
Your modem is enabled when the modem cable is
connected to the notebook and to an analog telephone line.
■ If you connected the modem cable during hardware setup,
your modem is enabled. Proceed to “Set Up Internet Service”
next in this chapter.
■ If you did not connect the modem cable during hardware
setup:
a. Turn off your notebook.
b. Follow the instructions in the
“Step 3: Connect the Modem”
section of Chapter 1, “Hardware Setup.”
c. Start your notebook in Windows.
d. Then proceed to “Set Up Internet Service” next in this
chapter.
3–8 Getting Started
For information about setting up a wireless device, visit
http://www.hp.com/go/wireless.
For more information about modem, wireless, cable,
DSL (Digital Subscriber Line) and network connections,
select Start > Help and Support. The Help and Support utility
provides hardware and software information, instructions,
tutorials, and wizards that can help you set up or troubleshoot
a variety of connections.
Set Up Internet Service
You must set up Internet service before you can connect to the
Internet. HP has made arrangements with leading ISPs in many
locations to help you set up a new Internet account or to configure
your notebook to use an existing account.
Depending on your location, you might be able to set up
Internet service by using an ISP-provided icon on your desktop.
In all locations, you can set up Internet service by using
the Windows Internet Connection wizard.
Next Steps
Using an ISP-Provided Icon
If ISP-provided icons are supported in the country in which you
purchased your notebook, the icons might be displayed either
individually on the Windows desktop or grouped in a desktop
folder named Online Services.
To set up a new Internet account or configure your notebook to
use an existing account, double-click an icon, and then follow the
instructions on the screen.
Getting Started 3–9
Next Steps
Using the Internet Connection Wizard
You can use the Windows Internet Connection wizard to connect
to the Internet
■ If you already have an account with an ISP.
■ If you have a disc from an ISP.
■ If you do not have an Internet account and would like
to select an ISP from the list provided within the wizard.
(The list of ISP providers is not available in all regions.)
■ If you have selected an unlisted ISP and the ISP has provided
you with such information as a specific IP address, and POP3
and SMTP settings.
To access the Internet Connection wizard and instructions for
using the wizard:
1. Select Start > Help and Support.
2. In the Search text field, type
Make an Internet connection.
3. Then select Search.
It is recommended that you select the check box provided within
the wizard to enable the Windows Firewall. For more information
about firewalls, see the “Protect Your Privacy” section earlier in
this chapter.
User Guides
User guides, reference manuals, and other support information
for your computer is available through the Help and Support
Center. Select Start > Help and Support > User Guides.
3–10 Getting Started
Notebook Features
This chapter describes hardware features of the notebook.
Components included with your notebook may vary by
✎
geographical region and by model. The illustrations in this
chapter identify the standard external features included in most
notebook models. Refer to the illustrations that most closely
match your notebook model.
4
Getting Started 4–1
Notebook Features
Top Components
Lights
Refer to the illustration that most closely matches your notebook.
✎
Component Description
Power/standby light Green: The notebook is on.
1
Blinking green: The notebook is in
standby mode.
Off: The notebook is off or in
hibernation.
Wireless lights (2) On: An integrated wireless device,
2
4–2 Getting Started
such as a wireless local area network
(LAN) device and/or a Bluetooth
device is turned on.
®
(Continued)
Notebook Features
Component Description
Power/standby light Green: The notebook is on.
3
Blinking green: The notebook is in
standby mode.
Off: The notebook is off or in
hibernation.
Battery light Amber: A battery pack is charging.
4
Green: A battery pack is close to full
charge capacity.
Blinking amber: A battery pack that is
the only available power source has
reached a low-battery condition. When
the battery reaches a
low-battery condition, the battery light
begins blinking more quickly.
Off: If the notebook is connected to an
external power source, the light is
turned off when all batteries in the
notebook are fully charged. If the
notebook is not connected to an
external power source, the light is
turned off until the battery reaches a
low-battery condition.
critical
IDE (Integrated Drive
5
Electronics) drive light
Volume mute light On: System sound is turned off.
6
Num lock light On: Num lock is on or the embedded
7
Caps lock light On: Caps lock is on.
8
Getting Started 4–3
Blinking: The hard drive or optical drive
is being accessed.
numeric keypad is enabled.
Notebook Features
Component Description
Power/standby light Green: The notebook is on.
1
Blinking green: The notebook is in
standby mode.
Off: The notebook is off or in
hibernation.
Wireless lights (2) On: An integrated wireless device,
2
Power/standby light Green: The notebook is on.
3
4–4 Getting Started
such as a wireless LAN device and/or
a Bluetooth device is turned on.
Blinking green: The notebook is in
standby mode.
Off: The notebook is off or in
hibernation.
(Continued)
Notebook Features
Component Description
Battery light Amber: A battery pack is charging.
4
Green: A battery pack is close to full
charge capacity.
Blinking amber: A battery pack that is
the only available power source has
reached a low-battery condition. When
the battery reaches a
low-battery condition, the battery light
begins blinking more quickly.
Off: If the notebook is connected to an
external power source, the light is
turned off when all batteries in the
notebook are fully charged. If the
notebook is not connected to an
external power source, the light is
turned off until the battery reaches a
low-battery condition.
IDE drive light Blinking: The hard drive or optical drive
5
Num lock light On: Num lock is on or the embedded
6
Caps lock light On: Caps lock is on.
7
is being accessed.
numeric keypad is enabled.
critical
Getting Started 4–5
Notebook Features
Pointing Devices
TouchPad (Select Models Only)
Component Description
TouchPad* Moves the pointer and selects or
1
Left TouchPad button* Functions like the left button on an
2
Right TouchPad button* Functions like the right button on an
3
TouchPad scroll zone* Scrolls upward or downward.
4
*This table describes default settings. For information about changing the
functions of TouchPad features, see the “Setting TouchPad Preferences” in
Chapter 3 of the
4–6 Getting Started
Hardware and Software Guide.
activates items on the screen. Can be
set to perform other mouse functions,
such as scrolling, selecting, and
double-clicking.
external mouse.
external mouse.
Pointing Stick (Select Models Only)
Component Description
Notebook Features
Pointing stick Moves the pointer and selects or
1
Left pointing stick button Functions like the left button on an
2
Right pointing stick button Functions like the right button on an
3
Getting Started 4–7
activates items on the screen.
external mouse.
external mouse.
Notebook Features
Buttons and Switches
Refer to the illustration that most closely matches your notebook.
✎
Component Description
Power/standby button* When the notebook is:
1
■ Off, press the button to turn on the
notebook.
■ In standby, briefly press the button
to to exit standby.
■ In hibernation, briefly press the
button to exit hibernation.
If the notebook has stopped
responding and Microsoft® Windows®
shutdown procedures cannot be used,
press the power/standby button and
hold for at least 5 seconds to turn off
the notebook.
(Continued)
4–8 Getting Started
Notebook Features
Component Description
2 Display switch Initiates standby mode if the display
is closed while the notebook is
turned on.
3 Info Center button Launches Info Center.
For more information about the
✎
Info Center, refer to “Using Info
Center (Select Models Only)” in
Hardware and Software
the
located in the Help and
Guide
Support Center. To access the
Help and Support Center,
select Start > Help and
Support > User Guides.
Wireless button* Turns the wireless functionality on or
4
Presentation mode button Turns on Presentation mode.
5
off, but does not create a wireless
connection.
To establish a wireless
✎
connection, a wireless network
must already be set up. For
more information about
establishing a wireless
connection from Windows, visit
http://www.hp.com/go/wireless.
Volume mute button Mutes system sound.
6
Volume down button Decreases system sound.
7
Volume up button Increases system sound.
8
*This table describes default settings. For information about changing the
functions of power features, see the “Power Preferences” section in
Chapter 2 of the
changing the functions of wireless features, see Chapter 6 of the
and Software Guide.
Getting Started 4–9
Hardware and Software Guide
. For information about
Hardware
Notebook Features
Component Description
Power/standby button* When the notebook is:
1
■ Off, press the button to turn on the
■ In standby, briefly press the button
■ In hibernation, briefly press the
If the notebook has stopped
responding and Microsoft Windows
shutdown procedures cannot be used,
press the power/standby button and
hold for 5 seconds to turn off the
notebook.
Display switch Puts the notebook in standby if the
2
display is closed while the notebook is
turned on.
notebook.
to to exit standby.
button to exit hibernation.
(Continued)
4–10 Getting Started
Notebook Features
Component Description
Wireless button* Turns the wireless functionality on or
3
*This table describes default settings. For information about changing the
functions of power features, see the “Power Preferences” section in
Chapter 2 of the
changing the functions of wireless features, see Chapter 6 of the
and Software Guide.
Hardware and Software Guide.
off, but does not create a wireless
connection.
To establish a wireless
✎
connection, a wireless network
must already be set up. For
more information about
establishing a wireless
connection from Windows, visit
http://www.hp.com/go/wireless.
For information about
Hardware
Getting Started 4–11
Notebook Features
Keys
Your notebook may look slightly different from the illustration in
✎
this section.
Component Description
Function keys Execute frequently used system
1
fn key Executes frequently used system
2
Windows logo key Displays the Microsoft Windows
3
Windows applications key Displays a shortcut menu for items
4
Keypad keys Can be used like the keys on an
5
4–12 Getting Started
functions when pressed in combination
with the fn key.
functions when pressed in combination
with a function key or the esc
Start menu.
beneath the pointer.
external numeric keypad.
key.

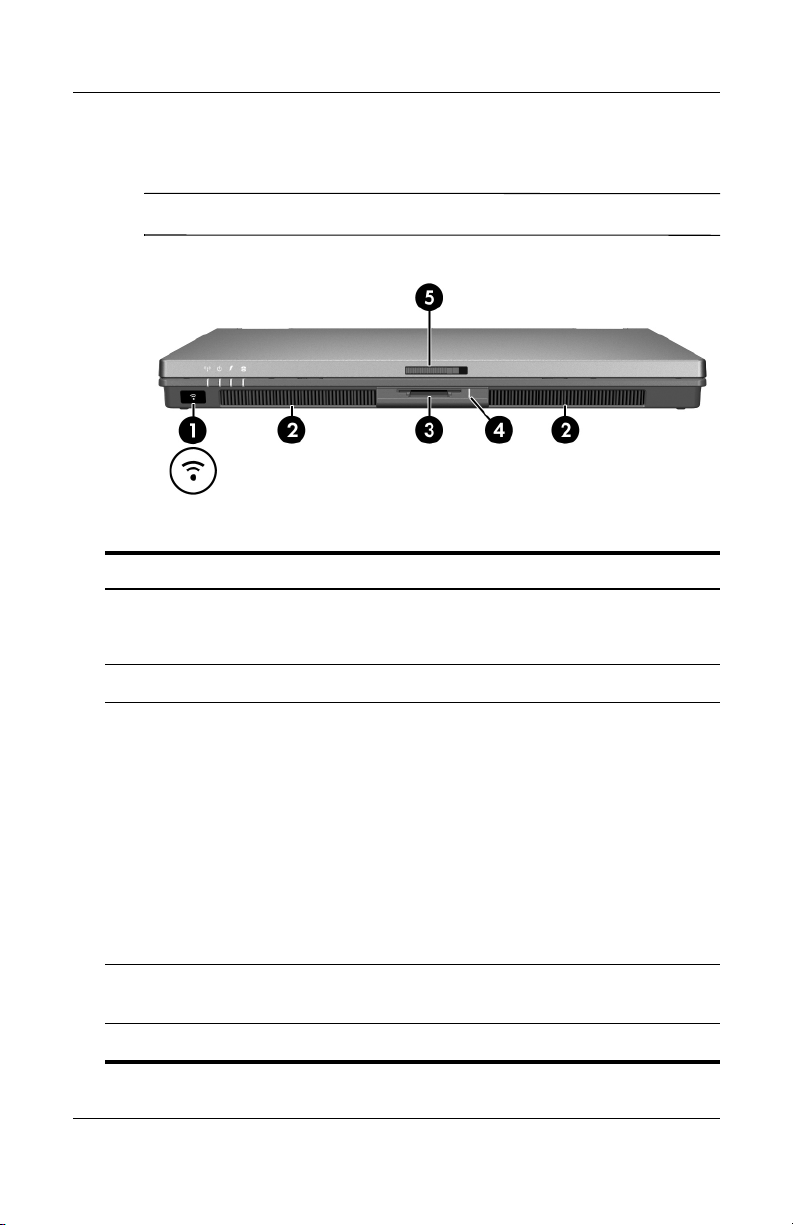

Front Components
Refer to the illustration that most closely matches your notebook.
✎
Component Description
Infrared port Provides wireless communication
1
between the notebook and an optional
IrDA-compliant device.
Notebook Features
Speakers (2) Produce system sound.
2
Digital Media Slot
3
(select models only)
6-in-1 Digital Media Slot light
4
(select models only)
Display release latch Opens the notebook.
5
Getting Started 4–13
Supports 6 optional digital memory
card formats: SD (Secure Digital)
Memory Card, MultiMediaCard,
Memory Stick, Memory Stick Pro,
Smart Media, and xD-Picture Card.
This notebook does not
Ä
support adapters in the 6-in-1
Digital Media Slot. Inserting
any kind of adapter into your
Digital Media Slot can
damage the media card.
On: Slot is accessing a digital
memory card.
Notebook Features
Component Description
Speaker Produce system sound.
1
Display release latch Opens the notebook.
2
4–14 Getting Started
Wireless Antennae (Select Models Only)
WARNING: Exposure to Radio Frequency Radiation.
Å
The radiated output power of this device is below the FCC radio
frequency exposure limits. Nevertheless, the device should be used in
such a manner that the potential for human contact during normal
operation is minimized. To avoid the possibility of exceeding the FCC
radio frequency exposure limits, human proximity to the antennae
should not be less than 20 cm (8 inches) during normal operation,
including when the notebook display is closed.
On select notebook models, there are 2 wireless antennae that
send and receive wireless device signals. They are not visible
from the outside of the notebook.
Your notebook may look slightly different from the illustration in
✎
this section.
Notebook Features
Getting Started 4–15
Notebook Features
Rear Components
Refer to the illustration that most closely matches your notebook.
✎
Component Description
Security cable slot Attaches an optional security cable to
1
the notebook.
Security solutions are
Ä
designed to act as deterrents.
These deterrents may not
prevent a product from being
mishandled or stolen.
Power connector Connects an AC adapter, or an
2
Parallel port Connects an optional printer.
3
S-Video-out jack Connects an optional S-Video
4
4–16 Getting Started
optional power adapter.
device such as a television, VCR,
camcorder, overhead projector, or
video capture card.
Notebook Features
Component Description
Security cable slot Attaches an optional security cable to
1
Power connector Connects an AC adapter, or an
2
the notebook.
Security solutions are
Ä
designed to act as deterrents.
These deterrents may not
prevent a product from being
mishandled or stolen.
optional power adapter.
Getting Started 4–17
Notebook Features
Right-Side Components
Refer to the illustration that most closely matches your notebook.
✎
Component Description
Audio-out (headphone) jack Produces system sound when
1
connected to optional powered stereo
speakers, headphones, headset, or
television audio.
Audio-in (microphone) jack Connects an optional stereo or
2
USB ports (2) Connect USB 1.1- and 2.0-compliant
3
Optical drive
4
(select models only)
Optical drive button
5
(select models only)
Serial port Connect an optional serial device.
6
4–18 Getting Started
monaural microphone.
devices to the notebook using a
standard USB cable, or connect an
optional External MultiBay II to the
notebook. The MultiBay II must also be
connected to an external power
source.
Reads an optical disc.
Releases the media tray.
Component Description
Audio-out (headphone) jack Produces system sound when
1
Audio-in (microphone) jack Connects an optional stereo or
2
connected to optional powered stereo
speakers, headphones, headset, or
television audio.
monaural microphone.
Notebook Features
Optical drive
3
(select models only)
Optical drive button
4
(select models only)
Getting Started 4–19
Reads an optical disc.
Releases the media tray.
Notebook Features
Left-Side Components
Refer to the illustration that most closely matches your notebook.
✎
Component Description
USB ports (2) Connect USB 1.1- and 2.0-compliant
1
devices to the notebook using a
standard USB cable, or connect an
optional External MultiBay II to the
notebook. The MultiBay II must be
connected to an external power
source.
External monitor port Connects an external monitor.
2
RJ-11 (modem) jack Connects a modem cable.
3
RJ-45 (network) jack Connects a network cable.
4
(Continued)
4–20 Getting Started
Notebook Features
Component Description
1394 port Connects an optional IEEE 1394
5
PC Card slots (2) Support optional Type I, Type II, or
6
PC Card slot eject buttons (2) Eject PC Cards from the
7
device, such as a camcorder.
Type III 32-bit (CardBus) or 16-bit
PC Cards. Some models may be
shipped with a smart card reader in the
bottom card slot.
PC Card slots.
Getting Started 4–21
Notebook Features
Component Description
USB ports (2) Connect USB 1.1- and 2.0-compliant
1
External monitor port Connects an external monitor.
2
devices to the notebook using a
standard USB cable, or connect an
optional External MultiBay II to the
notebook. The MultiBay II must be
connected to an external power
source.
RJ-11 (modem) jack Connects a modem cable.
3
RJ-45 (network) jack Connects a network cable.
4
1394 port Connects an optional IEEE 1394
5
PC Card slot (1) Supports an optional Type I, Type II, or
6
PC Card slot eject button (1) Ejects a PC Card from the
7
4–22 Getting Started
device, such as a camcorder.
Type III 32-bit (CardBus) or 16-bit
PC Card.
PC Card slot.
Bottom Components
Refer to the illustration that most closely matches your notebook.
✎
Notebook Features
Component Description
Primary battery bay Holds the primary battery pack.
1
Primary battery release
2
latches (2)
Travel battery connector Connects an optional travel battery.
3
Expansion memory module
4
compartment
Getting Started 4–23
Release the primary battery pack from
the battery bay.
Contains the expansion memory
module slot.
(Continued)
Notebook Features
Component Description
Hard drive bay Holds the hard drive.
5
Vents (4) Enable airflow to cool internal
6
components.
Ä
Docking connector Connects the notebook to an optional
7
docking device.
To prevent overheating, do
not obstruct vents. Use the
notebook only on a hard, flat
surface. Do not allow another
hard surface, such as a
printer, or a soft surface, such
as pillows, thick rugs, or
clothing, to block the airflow.
4–24 Getting Started
Component Description
Primary battery bay Holds the primary battery pack.
1
Notebook Features
Primary battery release
2
latches (2)
Travel battery connector Connects an optional travel battery.
3
Expansion memory module
4
compartment
Hard drive bay Holds the hard drive.
5
Vents (4) Enable airflow to cool internal
6
Getting Started 4–25
Release the primary battery pack from
the battery bay.
Contains the expansion memory
module slot.
components.
To prevent overheating, do
Ä
not obstruct vents. Use the
notebook only on a hard, flat
surface. Do not allow another
hard surface, such as a
printer, or a soft surface, such
as pillows, thick rugs, or
clothing, to block the airflow.
Notebook Features
Additional Hardware Components
Component Description
Power cord* Connects an AC adapter to an
1
AC adapter Converts AC power to DC power.
2
Primary battery pack Powers the notebook when the
3
Modem cable*
4
(select models only)
*Modem cables and power cords vary in appearance by region and country.
Battery packs vary by model.
4–26 Getting Started
AC electrical outlet.
notebook is not connected to external
power.
Connects an internal modem to an
RJ-11 telephone jack or to a
country-specific modem adapter.
System Recovery
The notebook system recovery process provides several ways to
recover optimal system functionality. For best results, attempt
to recover optimal notebook functionality by using the following
procedures in the order described here.
Safeguarding Your Data
Software or devices added to the notebook can cause your system
to become unstable. To safeguard your documents, store personal
files in the My Documents folder and periodically create a
backup copy of the My Documents folder.
A
Getting Started A–1
System Recovery
Altiris Local Recovery
Altiris Local Recovery is a preloaded application that protects the
files on your notebook by storing copies of files, called snapshots.
If files on your notebook are accidentally deleted or corrupted,
you can easily restore the files yourself. You can also restore your
complete file system to a previous state.
Altiris Local Recovery provides protection of files by backing up
files to a hidden Altiris recovery partition. When you install the
software, the Recovery Agent Partition Wizard guides you
through the process of creating the recovery partition. After the
partition is created, the notebook restarts and creates the first
snapshot. After the snapshot is created, the notebook restarts,
making the snapshot available for recovery through Windows.
By default, Local Recovery automatically takes snapshots of your
files on a regular basis. You can change the snapshot schedule.
For more information, refer to the Altiris Local Recovery Help.
To access your snapshots in the Altiris Recovery Agent folder:
1. Right-click the Altiris Recovery Agent icon on your desktop.
2. Click Open.
To restore one of the listed snapshots:
» Drag the snapshot file to the appropriate location on your
hard drive.
For more information on configuring and using Altiris Local
Recovery, visit the HP Web site at
or open the software and click Help on the menu bar.
A–2 Getting Started
http://www.hp.com/go/easydeploy,
System Restore Points
System Restore is an operating system feature that allows you to
reverse undesirable changes to your notebook by restoring the
notebook to an earlier state, called a restore point. A restore point
is a “snapshot” of your software, drivers, and operating system
files at a particular time. The notebook automatically creates
restore points at regular intervals and may create additional
restore points when you change your personal settings or add
software or hardware.
You can manually create additional restore points to provide
increased protection for your system files and settings. It is
recommended that you manually create restore points
■ Before you add or extensively modify software or hardware.
■ Periodically, whenever the system is performing optimally.
Restoring to any restore point does not affect your data files. For
example, restoring your system software to an earlier state will
not affect documents or e-mails that you saved after that time.
If you do not like the results of your restoration, you can
✎
reverse the restoration.
System Recovery
Getting Started A–3
System Recovery
Creating a System Restore Point
To create a system restore point:
1. Select Start > Help and Support.
2. Click System Restore.
The System Restore window opens.
3. Click Create a restore point, and then click Next.
4. Follow the on-screen instructions.
Restoring to a Restore Point
To restore the notebook to a previous date and time when it was
functioning optimally:
1. Select Start > Help and Support.
2. Click System Restore.
The System Restore window opens.
3. Click Restore my computer to an earlier time, and then
click Next.
4. Follow the on-screen instructions.
A–4 Getting Started
Reinstalling Applications
Applications preinstalled or preloaded on your notebook
can be reinstalled by using the Recovery disc or a third-party
software disc.
In most cases, the applications preloaded on your notebook,
✎
such as those available in the Software Setup utility, can be
reinstalled from your hard drive. To access the Software Setup
utility, select Start > All Programs > Software Setup.
The application reinstallation process replaces corrupted system
files within the application and reinstalls deleted system files
within the application.
■ In most cases: If the application you are reinstalling is still
installed on your notebook, the reinstallation process does not
affect your settings within the application.
■ In all cases: If an application has been deleted from your
notebook, the reinstallation process reinstalls the application
or utility to the factory image but cannot restore your
personal settings.
System Recovery
Getting Started A–5
System Recovery
Reinstalling Applications from the Hard Drive
To reinstall a preloaded application or utility from your hard
drive:
1. Select Start > All Programs > Software Setup, and then
follow the instructions on the screen.
2. When you are prompted to select the software you want
to reinstall, select or clear the appropriate check boxes.
Reinstalling Applications from Discs
To reinstall applications from discs:
1. Insert the disc into the optical drive.
❏ If autorun is enabled, an installation wizard opens.
❏ If autorun is disabled, select Start > Run. Enter
x:\setup.exe
where x is your optical drive designation
and then select OK.
2. When the installation wizard opens, follow the installation
instructions on the screen.
3. Restart the notebook if prompted.
A–6 Getting Started
System Recovery
Repairing the Operating System
To attempt an operating system repair without deleting your
personal data, use the Operating System disc that was shipped
with the notebook:
If your notebook does not have an optical drive, you may need
✎
to connect to an optional external MultiBay.
1. Connect the notebook to external power through the
AC adapter and turn on the notebook.
2. Immediately insert the Operating System disc into the
notebook.
3. Press and hold the power/standby button for at least 5 seconds
to turn off the computer.
4. Press the power/standby button again to turn on the notebook.
5. When prompted, press any key to start from the disc.
After a few minutes, you may need to select your language,
and then the Setup Wizard opens.
On the “Welcome to Setup” page, do not press R (step 8 in
✎
this procedure) until you have completed steps 6 and 7.
6. Press enter to continue.
A licensing agreement page is displayed.
7. Press
8. Press
Getting Started A–7
f8 to accept the agreement and continue.
The “Setup” page is displayed.
R to repair the selected Windows installation.
The repair process begins. This process takes 1 to 2 hours
to complete.
The notebook restarts in Windows after the process is
complete.
System Recovery
Reinstalling the Operating System
CAUTION: To protect your personal data and the software installed
Ä
on the notebook, back up your data before reinstalling the operating
system. See the Windows online Help utility to learn more about
backing up your files. Select Start > Help and Support. Then type
“backup” in the Search box.
During the reinstallation, you may be prompted for your
✎
Product Key. Your Product Key is provided on the Microsoft
Certificate of Authenticity label on the bottom of the notebook.
If other recovery efforts do not successfully repair the operating
system, you can reinstall it.
To reinstall the operating system:
If your notebook does not have an optical drive, you may need
✎
to connect to an optional external MultiBay.
1. Connect the notebook to external power through the
AC adapter and turn on the notebook.
2. Immediately insert the Operating System disc into the
notebook.
3. Press and hold the power/standby button for at least 5 seconds
to turn off the notebook.
4. Press the power/standby button again to turn on the notebook.
5. When prompted, press any key to start from the disc.
After a few minutes, you may need to select your language,
and then the Setup Wizard opens.
6. Press
7. Press
A–8 Getting Started
enter to continue.
A licensing agreement page is displayed.
f8 to accept the agreement and continue.
The “Setup” page is displayed.
System Recovery
8. Press esc to continue installing a new copy of the operating
system instead of repairing it.
9. Press
10. Press
enter to set up the operating system.
C to continue setup using this partition.
11. Select Format the partition using the NTFS file system
(Quick), and then press
Formatting this drive deletes all current files.
Ä
enter.
12. Press F to format the drive.
The reinstallation process begins. This process takes 1 to 2
hours to complete.
The notebook restarts in Windows when the process is
complete.
Getting Started A–9
System Recovery
Reinstalling Device Drivers and Other Software
After the operating system installation process is complete, you
must reinstall drivers.
To reinstall drivers, use the Recovery disc included with the
notebook:
1. While running Windows, insert the Recovery disc into the
optical drive.
2. If the disc does not start immediately:
a. Select Start > Run.
b. Then type D:\SWSETUP\APPINSTL\SETUP.EXE
where D indicates the optical drive.
3. Follow the on-screen instructions for installing the drivers.
After the drivers are reinstalled, you must reinstall any software
you added to the notebook. Follow the installation instructions
provided with the software.
A–10 Getting Started
Index
1394 port 4–21, 4–22
6-in-1 Digital Media Slot
6-in-1 Digital Media Slot light
4–13
4–13
A
AC adapter
connecting
identifying
Altiris Local Recovery
antennae
antivirus software
applications key, Windows
4–12
applications, reinstalling or
repairing
audio-in (microphone) jack
4–18, 4–19
audio-out (headphone) jack
4–18, 4–19
1–8
4–26
A–2
4–15
3–2
A–5
B
battery bay 4–23, 4–25
battery light
displaying charge status
1–8
identifying
4–3, 4–5
battery pack
charging
identifying
inserting
battery pack release latch
4–23, 4–25
bays
battery
hard drive
Bluetooth device, wireless
light
buttons
Info Center
mute
optical drive
PC Card Slot eject
4–22
power/standby
Presentation mode
TouchPad
volume
wireless
1–8
4–26
1–4
4–23, 4–25
4–24, 4–25
4–2, 4–4
4–9
4–9
4–18, 4–19
2–3, 2–4, 4–6
4–9
4–9, 4–11
4–21,
4–8, 4–10
4–9
Getting Started Index–1
Index
C
cables
modem
network
USB
caps lock light
category view, Windows
CDs, ISP
classic view, Windows
clock, setting notebook
compartments, memory
4–25
components
bottom
front
left-side
rear
right-side
top
connectors
docking
power
travel battery
cord, power
connecting
identifying
surge protection
country-specific modem
adapter
connecting
identifying
currency settings, software
setup
1–5, 3–5, 4–22,
4–26
4–22
4–18, 4–20, 4–22
4–3, 4–5
2–8
3–10
2–8
2–5
4–23,
4–23
4–13
4–20
4–16
4–18
4–2
4–24
4–16, 4–17
4–23, 4–25
1–8
4–26
3–5
1–7
1–3
2–5
D
date settings, software setup
2–5
daylight saving time setting,
software setup
display release latch
4–14
display switch, identifying
4–9, 4–10
docking connector
drives
4–24, 4–25
hard
optical
DSL connections
2–5
4–13,
4–24
4–18, 4–19
1–5, 3–9
E
eject buttons
optical drive
PC Card Slot
electrical storm, safety issues
3–5
exhaust vents
4–18, 4–19
4–21, 4–22
4–24, 4–25
F
firewalls 3–4
fn key 4–12
function keys
4–12
H
hard drive bay, indentifying
4–24, 4–25
headphone (audio-out) jack
4–18, 4–19
HP Software Product License
Agreement
2–5
Index–2 Getting Started
Index
I
IDE drive light 4–3, 4–5
IEC 60950 compliance
IEEE 1394 port
Info Center button
infrared port
Internet connection
enabling hardware
3–8
setting up Internet service
3–9
Internet Connection wizard
3–10
ISP service, setting up
4–21, 4–22
4–13
3–6
4–9
1–5,
3–9
J
jacks
audio-in (microphone)
4–18, 4–19
audio-out (headphone)
4–18, 4–19
RJ-11 (modem)
4–22, 4–26
RJ-45 (network)
1–5, 4–20,
4–22
K
keypad keys 4–12
keys
fn 4–12
function
keypad
Windows applications
Windows logo
4–12
4–12
4–12
4–12
L
language settings, software
2–1, 2–5
setup
latch
battery pack release
4–25
display release
lights
6-in-1 Digital Media Slot
4–13
battery
caps lock 4–3, 4–5
IDE drive
mute
num lock
power/standby
power/standby button
wireless
lock, security cable
4–17
1–8, 4–3, 4–5
4–3, 4–5
4–3
4–3, 4–5
4–4
4–2, 4–4
4–23,
4–13, 4–14
1–10, 4–3,
1–10
4–16,
M
memory module compartment
4–23, 4–25
Memory Stick
Memory Stick Pro
microphone (audio-in) jack
4–18, 4–19
Microsoft End-User License
Agreement
modem
connecting
country-specific adapter
1–3, 1–7
4–13
4–13
2–5
1–5, 3–8
Getting Started Index–3
Index
setting up Internet service
3–8
surge protection
virus protection
modem (RJ-11) jack
modem cable, connecting
3–8
monitor port
MultiMediaCard
mute button
mute light
4–20, 4–22
4–9
4–3
3–5
3–2
1–5
1–5,
4–13
N
navigation, software setup 2–2
network cable
network connections
networks (RJ-45) jack
noise suppression circuitry,
modem cable
Norton AntiVirus
notebook description and
name settings, software setup
2–6
notebook features
num lock light
4–22
3–9
4–22
1–6
3–2
4–1
4–3, 4–5
O
Online Services folder 3–9
opening the notebook
operating system
Internet Connection wizard
3–10
reinstalling
repairing
System Restore
updating
A–7
A–7
3–4
1–9
3–3
Operating System disc
A–8
optical drive
identifying
optical drive button
4–19
optical drive, identifying
4–19
overheating, safety
considerations
4–19
P
parallel port 4–16
PC Card Slot
PC Card Slot eject button
4–21, 4–22
pointing stick
buttons
location
ports
1394
infrared
monitor
parallel
serial
USB
power
running the notebook on
battery
surge protection
turning off notebook
turning on notebook
(Windows)
power adapter
power connector
4–17
4–21, 4–22
4–7
4–7
4–21, 4–22
4–13
4–20, 4–22
4–16
4–18
4–18, 4–20, 4–22
1–8
4–16, 4–17
A–1,
4–18,
4–18,
3–6
3–5
3–7
1–10
1–8, 4–16,
Index–4 Getting Started
Index
power cord 4–26
connecting
surge protection
power/standby button
4–10
turning off notebook
turning on notebook
(Windows)
power/standby light
4–3, 4–4
Presentation mode button
privacy protection features
3–4
1–8
3–5
4–8,
3–8
1–10
1–10,
4–9
R
Recovery disc A–1
regional settings (currency,
date, time zone, etc.),
software setup
regulatory information notices
3–7
reinstalling or repairing
software, procedure
reinstalling or repairing
software, System Restore
3–3
release latch
battery pack
display
restore point
RJ-11 (modem) jack
4–20, 4–22, 4–26
RJ-45 (network) jack
2–5
A–5
4–23, 4–25
4–13, 4–14
3–3
1–5,
4–22
S
Safety and Comfort Guide 3–6
scrolling zones, TouchPad
4–6
Secure Digital (SD) Memory
4–13
Card
security cable slot
serial port
shutting down notebook
slots
6-in-1 Digital Media
memory
PC Card
security cable
Smart Media (SM) card
snapshot
software
firewall
Internet Connection wizard
Norton AntiVirus
reinstalling
repairing
System Restore
software setup
accepting license
changing settings
navigating
pauses
setting notebook
setting regional preferences
setting user accounts
speakers
switch, display, identifying
4–9, 4–10
4–18
A–2
3–10
agreements
2–1
description, name
(currency, date, time
zone, etc.)
4–13, 4–14
4–16, 4–17
4–23, 4–25
4–21, 4–22
4–16, 4–17
3–4
A–5, A–7
A–5
2–5
2–2
2–5
3–7
4–13
4–13
3–2
3–3
2–1, 2–2
2–6
2–7
Getting Started Index–5
Index
System Restore 3–3
system restore points
A–3
T
telephone (RJ-11) jack 1–5
temperature, safety
considerations
time settings, software setup
2–5
TouchPad
travel battery connector
4–25
turning off notebook
turning on notebook
(Windows)
3–6
2–3, 2–4, 4–6
4–23,
3–7
1–10
U
USB cable 4–18, 4–20, 4–22
USB ports, identifying
4–20, 4–22
user account settings, software
2–7
setup
4–18,
V
vents, exhaust 4–24, 4–25
viruses, computer
volume buttons
3–2
4–9
W
Windows application key
4–12
Windows category vs.
Windows classic view
Windows logo key
wireless antennae
wireless button
wireless device documentation
3–9
Wireless Regulatory Notices
3–7
4–9, 4–11
2–8
4–12
4–15
X
xD-Picture Card 4–13
Index–6 Getting Started
Loading...
