Effective 2008 To Order, Call Toll-Free 1-800-BUEHLER (1-800-283-4537) 17

Abrasive Belt Grinders

SurfMet® 1 Belt Surfacer with Sink is a durable single station coarse grinder that is ideal for

metallographic, spectrographic and macrohardness test specimen preparation. Complete with
belt cooling, debris flushing system and rinse sink.The heavy-duty motor offers superior
durability and performace. Separate belt flushing and coolant controls guarantee ample
removal of particulate matter from the grinding belt, providing efficient cutting action and
critical specimen cooling.The stainless steel sink with faucet allows the convenienve of quickly
grinding and washing the specimen in one location. Includes a selection of CarbiMet® Abrasive
Belts and operating instructions.

16-1270-160 SurfMet® 1 Belt Surfacer, 115 VAC, 60 Hz, 1 phase

16-1270-250 SurfMet® 1 Belt Surfacer, 220 VAC, 50 Hz, 1 phase

SurfMet® 1 Belt Surfacer

Accessories

10-1250* Recirculating System
16-1278 Wear Plate Retrofit Kit for Belt Grinders
16-1279 Copper Wear Plate Retrofit Kit,useful for dry grinding

for increased heat transfer

16-1497 Recirculating System Cart
16-1498 TechMet® Cabinet, 30″ (762mm)
16-1499 TechMet® Cabinet, 36″ (914mm)
16-3100* VacuMet®Dust Removal System
16-3105 Collector Bags, Replacement for VacuMet®
16-3170 Hose and Connector Assembly SurfMet® I & II

10-4330-095 CoolMet® 2 Fluid, 33.8oz (1l)
10-4330-128 CoolMet® 2 Fluid, 1 Gallon (3.8l)
10-4330-640 CoolMet® 2 Fluid, 5 Gallon (19l)
16-5200-080-010 CarbiMet® MetSplice® Abrasive Belts, 4″ x 36″

(10.2cm x 91.4xm) / wet or dry use, package of 10,80 (P80) grit
16-5200-120-010 CarbiMet® MetSplice® Abrasive Belts, 4″ x 36″

(10.2cm x 91.4xm) / wet or dry use, package of 10,120 (P120) grit
16-5200-180-010 CarbiMet® MetSplice® Abrasive Belts, 4″ x 36″

(10.2cm x 91.4xm) / wet or dry use, package of 10,180 (P180) grit
16-5200-240-010 CarbiMet® MetSplice® Abrasive Belts, 4″ x 36″

(10.2cm x 91.4xm) / wet or dry use, package of 10,240 (P280) grit

DuoMet® 2 is a durable dual station coarse grinding unit that prepares specimens fast and
efficiently.Two belts of different grit sizes added for convenience.Complete with belt cooling,
debris flushing system and rinse sink.The stainless steel sink with faucet allows the convenienve
of quickly grinding and washing the specimen in one location. Includes a selection of
CarbiMet® Abrasive Belts and operating instructions.

16-1290* DuoMet® 2 Belt Surfacer

16-1295* DuoMet® 2 Belt Surfacer, Floor Model

DuoMet® 2 Belt Surfacer

39-1572 HandiMet® 2 Roll Grinder offers the user an exceptionally convenient and

economical instrument for manual grinding applications.The HandiMet® 2 provides a self
contained four-stage grinding station with controlled water flow for lubrication and cooling of
the specimen plus the flushing away of debris. Unique water activated clamping holds abrasive
papers firmly in position during grinding. Includes a selection of four abrasive paper rolls, water
hoses and operating instructions.

HandiMet® 2 Roll Grinder

* Specify Voltage & Frequency Required -160: 115 VAC, 60 Hz,1 phase -230:220 VAC,50 Hz,1 phase

Grinding/Polishing

Accessories

30-5143-240-001 240 grit CarbiMet® Abrasive Paper Roll
30-5143-320-001 320 grit CarbiMet® Abrasive Paper Roll

30-5143-400-001 400 grit CarbiMet® Abrasive Paper Roll
30-5143-600-001 600 grit CarbiMet® Abrasive Paper Roll

18 To Order, Call Toll-Free 1-800-BUEHLER (1-800-283-4537) Effective 2008

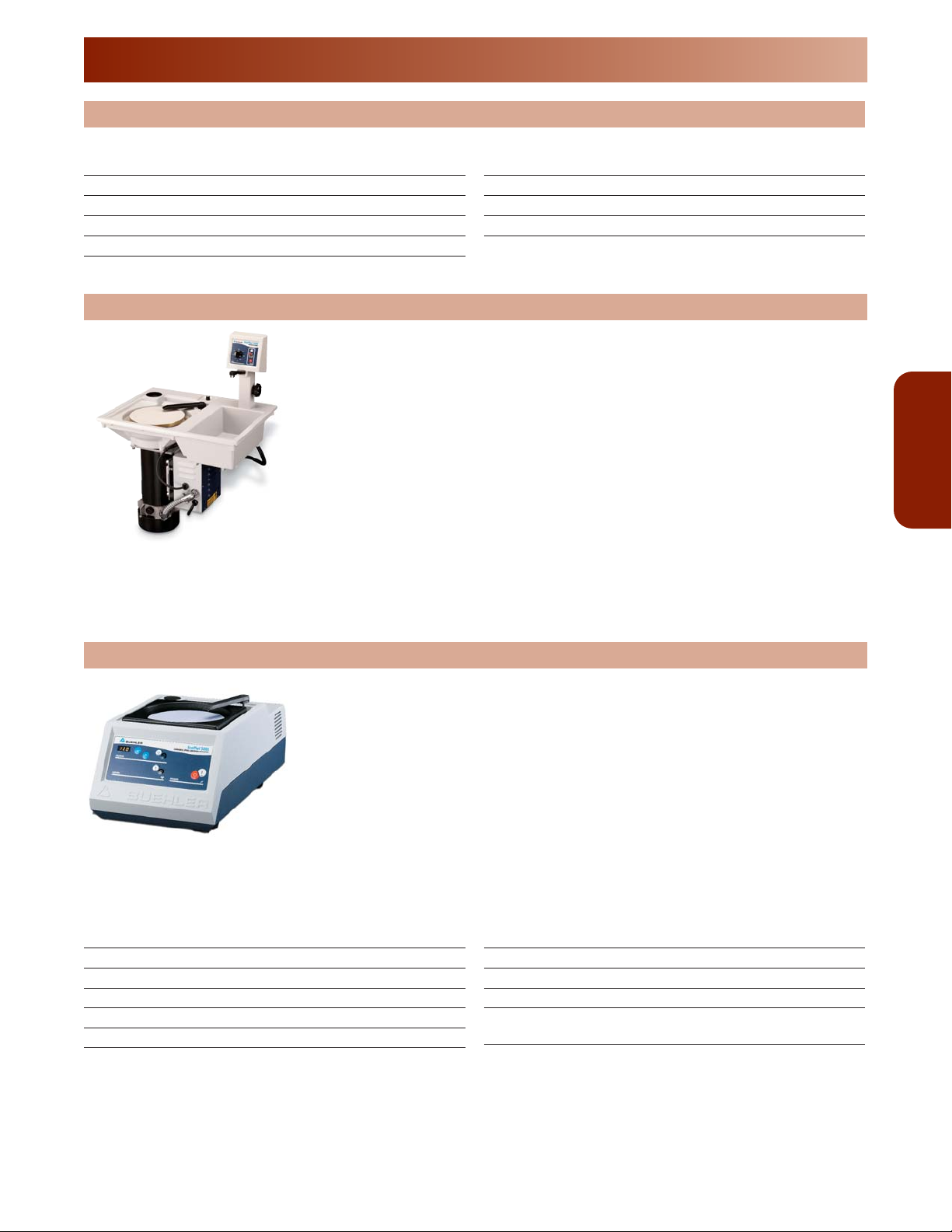

In-Table/Tabletop & Flush Mount Grinder-Polishers

The SuperMet® Grinder is a heavy-duty rotary coarse grinder with rapid material removal rates

designed to planar grind specimen surfaces. The SuperMet

®

Grinder comes with a balanced 12″

(305mm) bronze wheel powered by an 1800 rpm, 3 Hp (2.2 kW) motor, and a selection of
abrasive discs. It is offered in a 30″ (762mm) or 36″ (914mm) table height,or without a table,
which can be custom flush mounted.

15-1230-260 SuperMet® Grinder,30″ (762mm) height,220 VAC,60 Hz, 3 phase
15-1230-460 SuperMet® Grinder,30″ (762mm) height,440 VAC,60 Hz, 3 phase
15-1231-260 SuperMet® Grinder,36″ (914mm) height,220 VAC,60 Hz, 3 phase
15-1231-460 SuperMet® Grinder,36″ (914mm) height,440 VAC,60 Hz, 3 phase

15-1232-260 SuperMet® Grinder,Flush Mount (w/o table),220 VAC,60 Hz, 3 phase

15-1232-460 SuperMet® Grinder,Flush Mount (w/o table),440 VAC,60 Hz, 3 phase

SuperMet® Coarse Grinder

Accessories

15-5112-060-100 CarbiMet®, 60 Grit,Pack of 100
15-5112-120-100 CarbiMet®, 120 Grit,Pack of 100

15-5112-180-100 CarbiMet®, 180 Grit,Pack of 100

MiniMet® 1000 is designed for low volume laboratories preparing single specimens.This

semi-automatic grinder-polisher prepares a wide variety of materials using the three self
contained preparation bowls and easy-to-use touch panel controls.Its space saving design
employs a patented geometric action that combines the advantages of hand-lapping as well as
mechanical polishing. This motion provides a random polishing action, eliminating any induced
polishing artifacts. Comes complete with 3 polishing bowls, 3 glass discs,a small quantity of
consumables and operating instructions. CE marked.

69-1100 MiniMet® 1000, 80-264 VAC, 50/60 Hz,1 phase

MiniMet® 1000 Grinder-Polisher

Accessories

69-1111 Caged Specimen Holder, for 1″ (25mm) or 14″ (32mm)

Mounted Specimens

69-1112 Caged Specimen Holder, for 12″ (38mm) Mounts
69-1500 Polishing Bowls, 1 each Black, White, Blue, 4″ (100mm)

Diameter

69-1502 Storage Caddie for MiniMet® Bowls, Set of 3

69-1510 Replacement Glass Discs, Set of 3

69-1550 MiniMet® Alignment Fixture, With 3 Drill Bits

69-1552 Set of Three Drill Bits (Replacement)

69-1560 MiniMet®

Precision Thinning Attachment

69-1561 Glass Specimen Supports
69-1562 Glass Circular Slides, .496″ (13mm) Diameter,

(50 Pieces)

69-1566

MiniMet®

1000 Precision Thinning Attachment

69-1567 Glass Disc, 2.145″ (55mm) Diameter,(5 Pieces)

69-1570

MiniMet®

Electro-mechanical Attachment

69-1575 Electro-mechanical Accessories

69-1580

MiniMet®

Thin Section Attachment includes 3 bowls,

glass and section holder

69-1581 Thin Section Bowls, 1 each Black, White, Blue,
4w″ (121mm) Diameter

69-1582 Thin Section Glass Platens, Replacement,
4″ (100mm) diameter

69-1583

MiniMet®

Thin Section Slide Holder

69-1590 MiniMet® Wafer Polishing Attachment

DuoMet® 2 Belt Surfacer

Accessories

10-1250* Recirculating System
16-1497 Recirculating System Cart
16-1498 TechMet® Cabinet, 30″ (762mm)
16-1499 TechMet® Cabinet, 36″ (914mm)
16-3100* VacuMet® Dust Removal System
16-3180 Hose and Connector Assembly DuoMet® II
16-5200-080-010 CarbiMet® MetSplice® Abrasive Belts, 4″ x 36″

(10.2cm x 91.4xm) / wet or dry use, package of 10,80 (P80) grit

16-5200-120-010 CarbiMet® MetSplice® Abrasive Belts, 4″ x 36″
(10.2cm x 91.4xm) / wet or dry use, package of 10,120 (P120) grit

16-5200-180-010 CarbiMet® MetSplice® Abrasive Belts, 4″ x 36″
(10.2cm x 91.4xm) / wet or dry use, package of 10,180 (P180) grit

16-5200-240-010 CarbiMet® MetSplice® Abrasive Belts, 4″ x 36″
(10.2cm x 91.4xm) / wet or dry use, package of 10,240 (P280) grit

In-Table/Tabletop & Flush Mount Grinder-Polishers

Effective 2008 To Order, Call Toll-Free 1-800-BUEHLER (1-800-283-4537) 19

The MetaServ 3000® Grinder-Polishers are reliable and economical. Features include variable
platen speed from 50 to 500 rpm, corrosion resistant molded base, bright LED power indicator,
adjustable water flow nozzle and universal input voltage.Available in both single and dual
platens. Designed for use with 8″ (203mm), 10″ (254mm) or 12″ (305mm) platens. All are
upgradeable to semi-automatic preparation systems with the addition of the Vector® LC Power
Head. All MetaServ 3000 Grinder-Polishers include aluminum platen(s), splash ring(s),bowl
cover(s), paper holding band(s), cloth clamp(s),electrical power cord and operating instructions.
CE marked.

95-2900 MetaServ® 3000 Grinder-Polisher, 8″ (203mm)
95-2910 MetaServ® 3000 Grinder-Polisher,10″ (254mm)
95-2920 MetaServ® 3000 Grinder-Polisher,12″ (305mm)
95-2930 MetaServ® 3000 Grinder-Polisher,Dual, 8″ (203mm)
95-2940 MetaServ® 3000 Grinder-Polisher,Dual, 10″ (254mm)

MetaServ® 3000 Grinder-Polisher

Accessories

30-2008 Paper Holding Band, 8″ (203mm)
40-0500 Aluminum Platen, 10″ (254mm)
40-2058 Cloth Clamp, 8″ (203mm)
40-4061 Aluminum Platen, 8″ (203mm)
46-2012 Cloth Clamp, 12″ (305mm)
46-2013 Paper Holding Band, 12″ (305mm)

49-1777 Aluminum Platen, 12″ (305mm)
95-2825 Paper Holding Band, 10

″ (254mm)

95-2826 Cloth Clamp, 10

″ (254mm)

60-1996-115 Vector® LC Power Head, 115 VAC, 60 Hz, 1 Phase
60-1996-230 Vector® LC Power Head, 230 VAC, 50 Hz, 1 Phase

Alpha and Beta Grinder-Polishers are affordable,manual grinder-polishers offered in either

single or dual platen versions; both can be used with either an 8″ (203mm) or 10″ (254mm)
platen.The Alpha grinder-polisher offers the convenience of a basic two-speed grinder-polisher
(180/360 rpm). The Beta grinder-polisher offers the versatility of variable wheel speed (30-600
rpm). Both the Alpha and Beta feature rugged, quiet operation, heavy-duty mineral cast bases
and a w Hp (690 W) motor for long-lasting service. The Alpha and Beta grinder-polishers can be
upgraded to semi-automatic operation with the addition of the Vector® Power Head.Platens sold
separately.CE marked.

49-5500-115 Alpha Grinder-Polisher, Single Platen,115 VAC,50/60Hz 1 phase
49-5500-230 Alpha Grinder-Polisher, Single Platen,230 VAC,50/60Hz 1 phase
49-5502-115 Alpha Grinder-Polisher, Dual Platen,115 VAC,50/60Hz 1 phase
49-5502-230 Alpha Grinder-Polisher, Dual Platen,230 VAC,50/60Hz 1 phase
49-5100-115 Beta Grinder-Polisher, Single Platen, 115 VAC, 50/60Hz 1 phase
49-5100-230 Beta Grinder-Polisher, Single Platen, 230 VAC, 50/60Hz 1 phase
49-5102-115 Beta Grinder-Polisher, Dual Platen, 115 VAC, 50/60Hz 1 phase
49-5102-230 Beta Grinder-Polisher, Dual Platen, 230 VAC, 50/60Hz 1 phase

Alpha and Beta Grinder-Polishers

Grinding/Polishing

NEW

MiniMet® 1000 Grinder-Polisher

69-1111 & 69-1112 Caged Sample
Holder

69-1566 MiniMet®Precision Thinning
Attachment

69-1580 Thin Section Attachment

69-1502 Storage Caddie for MiniMet

®

Bowls, Set of 3
