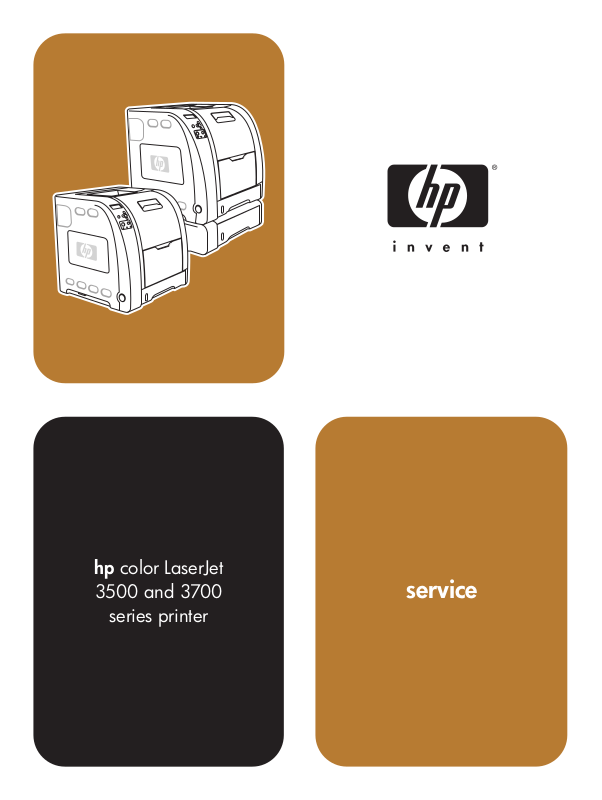

Page 1

hp color LaserJet

3500 and 3700

series printer

service

Page 2

Page 3

hp color LaserJet 3500 and 3700 series printer

service manual

Page 4

Reproduction, adaptation or translation without prior written permission is prohibited, except as allowed under the copyright laws.

The information contained herein is subject to change without notice.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Part number: Q1321-90930 Edition 1, 11/2003

Trademark Credits

Microsoft® is a U.S. registered trademark of Microsoft Corporation.

MS-DOS® is a U.S. registered trademark of the Microsoft Corporation.

*Pantone®, Inc.'s checkstandard trademark for color.

PostScript® is a trademark of Adobe Systems Incorporated.

TrueType™ is a U.S. trademark of Apple Computer, Inc.

UNIX® is a registered trademark of.The Open Group.

Windows, MS Windows, and Windows NT are U.S. registered trademarks of Microsoft Corporation.

Page 5

Conventions

This manual uses the following conventions:

● COLOR is used to emphasize items that are important to the material under discussion.

● Bold is used for menu items to click and for emphasis, particularly in situations where italic

type would be confusing.

● Italic type is used to indicate related documents or emphasis.

● DISPLAY type indicates text as seen on the printer control panel display.

● Commands you use on a computer keyboard or on the printer control panel are shown in

EYCAP. Two examples are MENU and STOP.

● COURIER type indicates text that you type on a computer keyboard exactly as shown.

Note Notes contain important information set off from the text.

CAUTION Caution messages alert you to the possibility of damage to equipment or loss of data.

WARNING! Warning messages alert you to the possibility of personal injury.

ENWW iii

Page 6

iv ENWW

Page 7

1 Printer description

Printer configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Printer features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Model and serial numbers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Power and regulatory information. . . . . . . . . . . . . . . . . . . . . . . . 8

Site requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Space requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Electrical specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Environmental specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Supply storage requirements . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Printer specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Duty cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Printer assemblies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Selecting paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Paper to avoid. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Paper that can damage the printer . . . . . . . . . . . . . . . . . . . . . . 16

Print media specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Supported media weights and sizes . . . . . . . . . . . . . . . . . . . . . 16

Printing on special media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Transparencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Glossy paper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Colored paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Envelopes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Heavy paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

HP LaserJet tough paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Preprinted forms and letterhead . . . . . . . . . . . . . . . . . . . . . . . . 22

Recycled paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Media weight. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Environmental product stewardship program . . . . . . . . . . . . . . . . . 24

Protecting the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

FCC Regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Safety statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Laser safety statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Toner safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Canadian DOC regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

EMI statement (Korea) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

VCCI statement (Japan) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Laser statement for Finland . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Declaration of conformities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

2 Service approach

Service approach . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Parts and supplies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Ordering parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Ordering supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Exchange program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Contents v

Page 8

World Wide Web . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

HP service parts information CD-ROM . . . . . . . . . . . . . . . . . 35

HP support assistant CD-ROM . . . . . . . . . . . . . . . . . . . . . . . . 35

Customer care reseller sales and service support center. . . . . 36

Ordering related documentation and software . . . . . . . . . . . . . 36

Warranty statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Hewlett-Packard limited warranty statement. . . . . . . . . . . . . . . 37

HP's Premium Protection Print Cartridge Warranty

Limited Warranty Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Premium Protection Warranty Color LaserJet Image Fuser Kit and Image Transfer Kit

Limited Warranty Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

HP maintenance agreements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

On-site service agreements . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

3 Installation and configuration

Checking the package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Unpacking the printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Installing the print cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Loading paper into Tray 3 (optional) . . . . . . . . . . . . . . . . . . . . . . . . 54

Loading paper into Tray 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Loading paper into Tray 1 (optional procedure) . . . . . . . . . . . . . . . 57

Connecting power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Installing a new control panel overlay (optional) . . . . . . . . . . . . . . . 60

Testing the printer operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Using PowerSave Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

USB configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Connecting the USB cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Parallel configuration (hp color LaserJet 3700 series printer only) . 63

Network configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Enhanced I/O (EIO) configuration

(hp color LaserJet 3700 series printer only) . . . . . . . . . . . . . . . . . . 64

HP Jetdirect print servers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Available enhanced I/O interfaces . . . . . . . . . . . . . . . . . . . . . . 65

NetWare networks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Windows and Windows NT networks . . . . . . . . . . . . . . . . . . . . 65

AppleTalk networks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

UNIX/Linux networks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Printer software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Printer drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Software for networks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Setting security on the printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Locking the control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Using an ASCII PJL escape sequence to set security . . . . . . 72

Printer memory for the HP Color LaserJet 3700 series printer . . . . 73

Installing memory and font DIMMs . . . . . . . . . . . . . . . . . . . . . . . . . 74

Enabling memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Enabling the language font DIMM (hp color LaserJet 3700 only)79

Checking DIMM installation (hp color LaserJet 3700 only). . . . 79

Installing an hp Jetdirect print server card

in the hp color LaserJet 3700 series printer . . . . . . . . . . . . . . . . . . 80

To install the HP Jetdirect print server card . . . . . . . . . . . . . . . 80

Installing an hp Jetdirect en3700 external print server . . . . . . . . . . 82

vi ENWW

Page 9

4 Printer maintenance

Cleaning the printer and accessories . . . . . . . . . . . . . . . . . . . . . . . 86

Cleaning spilled toner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Cleaning mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Managing supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Locating supplies and parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Replacing supply items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Replacing the transfer unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Replacing the fuser and pickup roller . . . . . . . . . . . . . . . . . . . . 97

5 Theory of operation

Basic operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Operation sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Power-on sequences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Engine control system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

DC controller PCB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Low-voltage power supply circuit . . . . . . . . . . . . . . . . . . . . . . 117

Low-voltage power supply circuit . . . . . . . . . . . . . . . . . . . . . . 122

Laser/scanner system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

Laser control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

Scanner motor control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

Image formation system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Print process. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Developing section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

Cartridge cleaning control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

Transfer section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

ITB cleaning control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160

Waste toner full detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

Transfer (ITB) unit detection . . . . . . . . . . . . . . . . . . . . . . . . . . 162

Transfer unit life detection. . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

ITB self-aligning mechanism. . . . . . . . . . . . . . . . . . . . . . . . . . 164

Primary transfer roller engaging/disengaging control . . . . . . . 165

Secondary transfer roller engaging/disengaging control. . . . . 166

Secondary transfer roller engaging/disengaging detection. . . 167

Color misregistration control . . . . . . . . . . . . . . . . . . . . . . . . . . 168

Image stabilization control . . . . . . . . . . . . . . . . . . . . . . . . . . . 171

Pickup/feed system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174

Pickup/feed unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177

Fuser/delivery unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183

Duplexing feed unit (HP 3700 printer only) . . . . . . . . . . . . . . . 185

Jam detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188

Paper feeder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190

Pickup/delivery sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191

Paper jam detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192

6 Removal and replacement

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196

Removal and replacement strategy . . . . . . . . . . . . . . . . . . . . 196

Repair notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196

Caution regarding electrostatic discharge (ESD) . . . . . . . . . . 196

Required tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197

Types of screws . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197

Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199

ENWW vii

Page 10

Print cartridges and transfer unit. . . . . . . . . . . . . . . . . . . . . . . 200

Covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201

Front door removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202

Left cover removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203

Left front cover removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204

Right cover removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206

Top cover removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207

Upper rear door removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207

Rear cover removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208

Lower rear door (rear output bin) removal . . . . . . . . . . . . . . 209

Tray 1 (multipurpose) removal . . . . . . . . . . . . . . . . . . . . . . . 209

Main Assemblies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210

Transfer unit removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211

Print cartridge removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212

Fuser removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213

Face-down delivery assembly removal . . . . . . . . . . . . . . . . 214

Laser/scanner assembly removal . . . . . . . . . . . . . . . . . . . . . 215

Image drive assembly removal . . . . . . . . . . . . . . . . . . . . . . . 215

Developing engaging drive assembly removal . . . . . . . . . . . 217

Pick-up/feed assembly removal . . . . . . . . . . . . . . . . . . . . . . . 218

Main assembly parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228

Tray 1 pick-up roller removal . . . . . . . . . . . . . . . . . . . . . . . . . 229

Tray 1 separation pad removal . . . . . . . . . . . . . . . . . . . . . . . 229

Tray 2 pick-up roller removal . . . . . . . . . . . . . . . . . . . . . . . . . 230

Tray 2 separation pad removal . . . . . . . . . . . . . . . . . . . . . . . 230

Secondary transfer charging roller removal . . . . . . . . . . . . . . 231

Fuser sleeve unit removal . . . . . . . . . . . . . . . . . . . . . . . . . . . 231

Pressure roller removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231

Main thermistor/sub-thermistor removal . . . . . . . . . . . . . . . 231

Thermoswitch removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231

Feed guide unit removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232

Swing guide removal, right . . . . . . . . . . . . . . . . . . . . . . . . . . . 234

Swing guide removal, left . . . . . . . . . . . . . . . . . . . . . . . . . . . 237

Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242

Door Switch (SW1) removal . . . . . . . . . . . . . . . . . . . . . . . . . 243

Test print switch (SW1001) removal . . . . . . . . . . . . . . . . . . . 243

Power switch (SW3001) removal . . . . . . . . . . . . . . . . . . . . . 243

Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244

Tray 1 (multipurpose tray) paper sensor (PS1) removal . . . . 245

Tray 2 (cassette) paper sensor (PS2) removal . . . . . . . . . . . 245

Registration paper sensor (PS4) removal . . . . . . . . . . . . . . . 247

Media sensor (PS5) removal . . . . . . . . . . . . . . . . . . . . . . . . 248

Fuser front paper sensor (PS6) removal . . . . . . . . . . . . . . . . 249

Fuser delivery paper sensor (PS7) removal . . . . . . . . . . . . . 249

Face-down delivery paper sensor (PS8) removal . . . . . . . . . 250

Reversed paper sensor (PS9) removal (HP3700 only) . . . . . 251

Duplex feed delivery paper sensor (PS10) removal

(HP 3700 only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252

Rear output bin paper sensor (PS11) removal . . . . . . . . . . . 252

Color misregistration sensor (PS12) removal . . . . . . . . . . . . 253

Waste toner level sensor (PS13) removal . . . . . . . . . . . . . . 254

Developing engaging sensor (PS14) removal . . . . . . . . . . . 254

Environment sensor (PS15) removal . . . . . . . . . . . . . . . . . . 255

Secondary transfer roller engaging sensor (PS16) removal . 255

Solenoids and Clutches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 256

viii ENWW

Page 11

Tray 1 (multipurpose tray) pick-up solenoid (SL1) removal . 257

Tray 2 pick-up solenoid (SL2) removal . . . . . . . . . . . . . . . . . 257

Secondary transfer roller engaging solenoid (SL4) removal 258

Duplex feed solenoid (SL5) removal (HP3700 only) . . . . . . 259

Registration clutch (CL1) removal . . . . . . . . . . . . . . . . . . . . . 260

Black (K) development clutch (CL2 - image drive) removal . 261

Developing engaging drive clutch (CL3) removal . . . . . . . . 261

Motor and fans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 262

Feed motor (M1) removal . . . . . . . . . . . . . . . . . . . . . . . . . . 263

Delivery motor (M2) removal . . . . . . . . . . . . . . . . . . . . . . . . 264

Drum motor (M3) removal . . . . . . . . . . . . . . . . . . . . . . . . . . 265

Developing motor (M4) removal . . . . . . . . . . . . . . . . . . . . . . 266

Primary transfer roller engaging motor (M5) removal . . . . . . 268

Exhaust fan (FAN1) removal . . . . . . . . . . . . . . . . . . . . . . . . 270

Circuit Boards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 271

DC controller PCB removal . . . . . . . . . . . . . . . . . . . . . . . . . 272

Formatter PCB removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273

High-voltage power supply PCB removal . . . . . . . . . . . . . . 276

Low-voltage power supply PCB removal . . . . . . . . . . . . . . . 279

Memory controller PCB removal . . . . . . . . . . . . . . . . . . . . . 280

Control Panel PCB removal . . . . . . . . . . . . . . . . . . . . . . . . . 281

Miscellaneous parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 282

Swing rod guide, left removal . . . . . . . . . . . . . . . . . . . . . . . . . 282

Swing rod/lock guide, right removal . . . . . . . . . . . . . . . . . . . . 282

Transfer contact assembly removal . . . . . . . . . . . . . . . . . . . . 282

Developing contact assembly . . . . . . . . . . . . . . . . . . . . . . . . . 283

Tray 2 (cassette) parts removal. . . . . . . . . . . . . . . . . . . . . . . . . . . 285

Tray 2 (cassette) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285

Cassette (Tray 2) guide, right, removal. . . . . . . . . . . . . . . . . . 285

500-Sheet paper feeder (Tray 3) covers . . . . . . . . . . . . . . . . . . . 290

Front cover removal - 500-sheet paper feeder . . . . . . . . . . . 290

Right cover removal - 500-sheet paper feeder . . . . . . . . . . . 291

Left cover removal - 500-sheet paper feeder . . . . . . . . . . . . 291

500-Sheet paper feeder internal parts. . . . . . . . . . . . . . . . . . . . . . 292

Pick-up roller removal - 500-sheet paper feeder . . . . . . . . . . 292

Separation pad removal - 500-sheet paper feeder . . . . . . . . 293

Pick-up drive unit removal - 500-sheet paper feeder . . . . . . 293

500-Sheet paper feeder sensor/solenoid/motor/PCB . . . . . . . . . . 294

500-Sheet paper feeder PCB removal - 500-sheet feeder . . 295

Pick-up clutch (CL4) removal - 500-sheet feeder . . . . . . . . . 295

Pick-up solenoid (SL3) removal - 500-sheet feeder . . . . . . . 296

Paper sensor (PS3) removal - 500-sheet feeder . . . . . . . . . 296

7 Troubleshooting

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 302

Troubleshooting process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 303

Pre-troubleshooting checklist . . . . . . . . . . . . . . . . . . . . . . . . 304

Troubleshooting flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . 305

Troubleshooting power-on . . . . . . . . . . . . . . . . . . . . . . . . . . 307

Printer error troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 308

Status messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 308

Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 308

Error messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 308

Critical error messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . 308

Alphabetical printer messages . . . . . . . . . . . . . . . . . . . . . . . 309

ENWW ix

Page 12

Numerical printer messages . . . . . . . . . . . . . . . . . . . . . . . . 325

Replacement parts configuration . . . . . . . . . . . . . . . . . . . . . . . . . 342

Formatter and DC Controller replaced at the same time . . 342

Formatter (New) replacement configuration . . . . . . . . . . . . 342

Formatter (previously installed in another printer)

replacement configuration . . . . . . . . . . . . . . . . . . . . . . . . . 343

DC Controller (New) replacement configuration . . . . . . . . . 343

DC Controller (previously installed in another printer)

replacement configuration . . . . . . . . . . . . . . . . . . . . . . . . 344

Media sensor (PS5) replacement configuration . . . . . . . . 344

Color Misregistration Sensor (PS12)

replacement configuration . . . . . . . . . . . . . . . . . . . . . . . . . 345

Laser/scanner Assembly replacement configuration . . . . . 345

Fuser replacement configuration . . . . . . . . . . . . . . . . . . . . 345

Transfer unit (ITB assembly) replacement configuration . . 345

Paper path troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 346

Paper path jam areas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 346

Paper jam error message . . . . . . . . . . . . . . . . . . . . . . . . . . 347

Paper path areas jam troubleshooting . . . . . . . . . . . . . . . . . . 349

Paper jam recovery feature . . . . . . . . . . . . . . . . . . . . . . . . 367

Avoiding paper jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 368

General paper path troubleshooting . . . . . . . . . . . . . . . . . . 369

Persistent jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 370

Image formation troubleshooting . . . . . . . . . . . . . . . . . . . . . . 371

Print quality problems associated with media . . . . . . . . . . . . 371

Overhead transparency defect . . . . . . . . . . . . . . . . . . . . . . . 371

Print quality problems associated with the environment . . . . 372

Print quality problems associated with paper jams . . . . . . . . 372

Print quality problems associated with toner buildup . . . . . . 372

Print quality troubleshooting pages . . . . . . . . . . . . . . . . . . . . 372

Calibrating the printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 373

Using Color . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 373

HP ImageREt 2400 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 373

Paper selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 373

Color options (available for the

hp color LaserJet 3700 series printer) . . . . . . . . . . . . . . . . 374

Standard red-green-blue (sRGB) . . . . . . . . . . . . . . . . . . . . . 374

Printing in four-colors [CMYK (available for the

hp color LaserJet 3700 series printer) . . . . . . . . . . . . . . 374

CMYK ink set emulation (PostScript only) . . . . . . . . . . . . . . 375

Managing color . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 375

Print in Grayscale . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 375

Automatic or manual color adjustment . . . . . . . . . . . . . . . . . 375

Matching colors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 377

Swatch book color matching

(HP Color LaserJet 3700 series printer only) . . . . . . . . . . . . 377

Adjusting color balance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 378

Image defects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 379

Repetitive defects troubleshooting . . . . . . . . . . . . . . . . . . . . . . . 388

Interface troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 391

Communications checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . 391

EIO troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 391

AUTOEXEC.BAT standard configurations . . . . . . . . . . . . . . 393

Printer Job Language (PJL) commands . . . . . . . . . . . . . . . 393

Control panel troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 396

x ENWW

Page 13

Printing a menu map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 396

Information menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 397

Paper handling menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 398

Configure device menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 399

Diagnostics menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 407

Service menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 408

Tools for troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 409

Embedded Web server

(HP Color LaserJet 3700 series printer only) . . . . . . . . . . . . 409

HP toolbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 412

Printer configuration page . . . . . . . . . . . . . . . . . . . . . . . . . . . 416

Supplies status page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 418

Usage page (HP 3700 only) . . . . . . . . . . . . . . . . . . . . . . . . . 419

Event log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 420

Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 421

Diagnostics flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 421

Engine diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 422

Diagnostics from the Control Panel . . . . . . . . . . . . . . . . . . . . . . . 424

Printer display menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 424

Diagnostics test menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 424

Information menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 432

Configure device menu/printing menu . . . . . . . . . . . . . . . . . . 432

Configure device menu/resets menu . . . . . . . . . . . . . . . . . . . 432

Configure device menu/print quality menu . . . . . . . . . . . . . . . 432

Test pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 433

Engine test page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 433

Formatter test page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 433

Engine resets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 434

Cold reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 434

NVRAM initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 434

Calibration bypass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 435

Calibrate Now . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 435

Service menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 436

Accessing the Service menu . . . . . . . . . . . . . . . . . . . . . . . . . 436

Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 438

Main parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 438

Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 439

Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 440

Solenoids and clutches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 441

Motors and fans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 442

PCBs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 443

Connector locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 445

500-sheet paper feeder connectors . . . . . . . . . . . . . . . . . . . . 449

General circuit diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 449

8 Parts and diagrams

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 454

Ordering parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 454

Supplies and accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . 454

Replacement parts configuration . . . . . . . . . . . . . . . . . . . . . . . . . 461

Formatter and DC Controller replaced at the same time . . . 461

Formatter (New) replacement configuration . . . . . . . . . . . . 461

Formatter (previously installed in another printer)

replacement configuration . . . . . . . . . . . . . . . . . . . . . . . . . . 462

DC Controller (New) replacement configuration . . . . . . . . . 462

ENWW xi

Page 14

DC Controller (previously installed in another printer)

replacement configuration . . . . . . . . . . . . . . . . . . . . . . . . . . 463

Media sensor (PS5) replacement configuration . . . . . . . . 463

Color Misregistration Sensor (PS12)

replacement configuration . . . . . . . . . . . . . . . . . . . . . . . . . 464

Laser/scanner Assembly replacement configuration . . . . . 464

Fuser replacement configuration . . . . . . . . . . . . . . . . . . . . 464

Transfer unit (ITB assembly) replacement configuration . . 464

Illustrations and parts lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 465

Alphabetical parts list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 511

Numerical parts list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 520

Index

xii ENWW

Page 15

Printer description

This chapter contains the following sections:

Printer configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Printer features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Model and serial numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Power and regulatory information . . . . . . . . . . . . . . . . . . . . . . . .8

Site requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Space requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Electrical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Environmental specifications . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Supply storage requirements. . . . . . . . . . . . . . . . . . . . . . . . . . .12

Printer specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Duty cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Printer assemblies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Selecting paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Paper to avoid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Paper that can damage the printer . . . . . . . . . . . . . . . . . . . . . .16

Print media specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Supported media weights and sizes . . . . . . . . . . . . . . . . . . . . .16

Printing on special media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Transparencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Glossy paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Colored paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Envelopes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Heavy paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

HP LaserJet tough paper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Preprinted forms and letterhead . . . . . . . . . . . . . . . . . . . . . . . .22

Recycled paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Media weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Environmental product stewardship program. . . . . . . . . . . . . . . . . .24

Protecting the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

FCC Regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Safety statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Laser safety statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Toner safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Canadian DOC regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

EMI statement (Korea). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

VCCI statement (Japan) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Laser statement for Finland . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Declaration of conformities. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

ENWW 1

Page 16

Printer configurations

Figure 1-1 HP Color LaserJet 3500 printer

The HP Color LaserJet 3500 printer is a four-color, laser printer that prints 12 pages per minute (ppm) in both monochrome (black and white) and color.

● Trays. The printer comes with a multipurpose tray (Tray 1) that holds up to 100 sheets of

various paper types and sizes or 10 envelopes and a 250-sheet paper feeder (Tray 2) that supports various paper sizes. It supports an optional 500-sheet paper feeder (Tray 3). See

Print media specifications for more information.

● Connectivity. The printer provides a Hi-Speed Universal Serial Port (USB) 2.0 port for

connectivity.

● Memory. The printer contains 64 megabytes (MB) of synchronous dynamic random access

memory (SDRAM).

Figure 1-2 HP Color LaserJet 3500n printer

2 Printer description ENWW

Page 17

The HP Color LaserJet 3500n printer includes the features of the HP Color LaserJet 3500 printer, plus an HP Jetdirect en3700 external print server for easy connectivity to 10baseT/100base-T networks.

Figure 1-3 HP Color LaserJet 3700 printer

The HP Color LaserJet 3700 printer is a four-color, laser printer that prints 16 ppm in both monochrome (black and white) and color.

● Trays. The printer comes with a multipurpose tray (Tray 1) that holds up to 100 sheets of

various paper types and sizes or 10 envelopes and a 250-sheet paper feeder (Tray 2) that supports various paper sizes. It supports an optional 500-sheet paper feeder (Tray 3). See

Print media specifications for more information.

● Connectivity. The printer provides a USB port and a standard bidirectional parallel port

(IEEE-1284 compliant) for connectivity.

● Memory. The printer contains 64 MB of SDRAM. To allow for memory expansion, the printer

has three dual inline memory module (DIMM) slots that accept 64, 128, or 256 MB RAM each. This printer can support up to 448 MB of memory.

Figure 1-4 HP Color LaserJet 3700n printer

ENWW Printer configurations 3

Page 18

The HP Color LaserJet 3700n printer includes the features of the HP Color LaserJet 3700 printer, plus an HP Jetdirect 615n print server for easy connectivity to 10/100 base-T networks.

Figure 1-5 HP Color LaserJet 3700dn printer

The HP Color LaserJet 3700dn printer includes the features of the HP Color LaserJet 3700n printer, automatic 2-sided (duplex) printing, and a total of 128 MB of SDRAM.

Figure 1-6 HP Color LaserJet 3700dtn printer

The HP Color LaserJet 3700dtn printer includes the features of the HP Color LaserJet 3700dn printer, plus an additional 500-sheet paper feeder (Tray 3).

4 Printer description ENWW

Page 19

Printer features

Table 1-1 Features

Feature HP Color LaserJet 3500 series

printer

Performance ● 12 ppm (in both monochrome and

color). If the performance of the printer is less than this, see the HP Color

LaserJet 3500 and 3700 series printer User Guide for factors

affecting printer performance.

● Prints on a variety of media. For more

information see Print media

specifications.

Memory

User interface

● 64 MB of SDRAM. ● 64 MB of SDRAM.

● Graphic display on control panel.

● Enhanced control panel help.

● HP toolbox (a web application for

status and troubleshooting information).

● Windows

PC and Apple Macintosh

print drivers.

HP Color LaserJet 3700 series printer

● 16 ppm (in both monochrome and

color). If the performance of the printer is less than this, see the HP Color

LaserJet 3500 and 3700 series printer User Guide for factors

affecting printer performance.

● Prints on a variety of media. For

more information see Print media

specifications.

● MIPS RISC 350 MHz processor.

● Can be expanded to 448 MB.

● Graphic display on control panel.

● Enhanced control panel help.

● HP toolbox (a web application for

status and troubleshooting information).

● Windows PC and Apple Macintosh

print drivers.

● Embedded Web server to access

support and order supplies (administrator tool for network connected printers).

Supported printer personalities

● Not applicable. ● HP PCL 6.

● PostScript 3 emulation.

● Automatic language switching.

Storage features ● Not applicable. ● Fonts and forms.

Environmental features

Fonts

● PowerSave setting.

● High content of recyclable

components and materials.

● Not applicable. ● 80 internal fonts available for both

● PowerSave setting.

● High content of recyclable

components and materials.

PCL and PostScript emulation.

● 80 printer-matching screen fonts in

TrueType

format available with the

software solution.

ENWW Printer features 5

Page 20

Table 1-1 Features

Feature HP Color LaserJet 3500 series

printer

Paper handling

● Prints on paper from 76 by 127 mm (3

by 5 inches) up to 215 by 355 mm (8.5 by 14 inches).

● Prints on paper with weights from

60 g/m2 to 163 g/m2 (16 to 43 lb bond).

● Prints on a wide range of media types

including glossy, heavy, labels, film, overhead transparencies, and envelopes.

● Multiple gloss levels.

● A 250-sheet paper feeder (Tray 2)

that supports letter, legal, executive, executive (JIS), A4, A5, B5 (JIS), B5 (ISO), and 216 by 330 mm (8.5 by 13 inches) paper sizes.

● Optional 500-sheet paper feeder that

supports letter and A4 paper sizes (Tray 3). For more information see

Print media specifications.

● A 150-sheet, face-down, output bin

(top) and a 25-sheet, face-up, output bin (rear).

HP Color LaserJet 3700 series printer

● Prints on paper from 76 by 127 mm

(3 by 5 inches) up to 215 by 355 mm (8.5 by 14 inches).

● Prints on paper with weights from

60 g/m2 to 163 g/m2 (16 to 43 lb bond).

● Prints on a wide range of media

types including glossy, heavy, labels, film, overhead transparencies, and envelopes.

● Multiple gloss levels.

● A 250-sheet paper feeder (Tray 2)

that supports letter, legal, executive, executive (JIS), A4, A5, B5 (JIS), B5 (ISO), and 216 by 330 mm (8.5 by 13 inches) paper sizes.

● Optional 500-sheet paper feeder that

supports letter and A4 paper sizes; standard on the HP Color LaserJet 3700dtn printer (Tray 3). For more information see Print media

specifications.

● A 150-sheet, face-down, output bin

(top) and a 25-sheet, face-up, output bin (rear).

● Automatic 2-sided printing on

HP Color LaserJet 3700dn and 3700dtn printers.

Accessories ● Optional 500-sheet paper feeder that

supports letter and A4 paper sizes (Tray 3).

Connectivity

● Hi-Speed Universal serial bus (USB)

2.0 cable interface.

● HP Jetdirect en3700 external print

server; standard on the HP Color LaserJet 3500n printer.

● HP Web Jetadmin software.

● Optional 500-sheet paper feeder

(Tray 3) that supports letter and A4 paper sizes; standard on the HP Color LaserJet 3700dtn printer (Tray 3).

● DIMM.

● Optional flash DIMM.

● Standard, bidirectional, parallel cable

interface (IEEE-1284 compliant) for backward compatibility.

● Universal serial bus (USB) cable

interface.

● Optional enhanced input/output

(EIO) network card; standard on HP Color LaserJet 3700n, 3700dn, and 3700dtn printers.

● HP Embedded Web Server.

● HP Web Jetadmin software.

6 Printer description ENWW

Page 21

Table 1-1 Features

Feature HP Color LaserJet 3500 series

Supplies ● Supplies status page contains

Identification

Model and serial numbers

The model number and serial numbers are listed on identification labels located on the rear of the printer. The model number is alphanumeric, such as Q1319A for the HP Color LaserJet 3500 printer. The serial number contains information about the country/region of origin, the printer version, production code, and the production number of the printer (see Figure 1-7).

printer

information on toner level, page count, and estimated pages remaining.

● No-shake cartridge design.

● Printer checks for authentic HP print

cartridges at cartridge installation.

● Internet-enabled supply ordering

capabilities (using HP toolbox).

HP Color LaserJet 3700 series printer

● Supplies status page contains

information on toner level, page count, and estimated pages remaining.

● No-shake cartridge design.

● Printer checks for authentic HP print

cartridges at cartridge installation.

● Internet-enabled supply ordering

capabilities (using HP toolbox).

Figure 1-7 Serial number information

Table 1-2 Model names and numbers

Model name Model number

HP Color LaserJet 3500 Q1319A

HP Color LaserJet 3500n Q1320A

HP Color LaserJet 3700 Q1321A

HP Color LaserJet 3700n Q1322A

HP Color LaserJet 3700dn Q1323A

HP Color LaserJet 3700dtn Q1324A

ENWW Identification 7

Page 22

Power and regulatory information

The identification label on the rear of the printer also contains power rating and regulatory information as shown in Figure 1-8.

CAUTION Converting the voltage on the printer can damage the printer. Do not use any voltage other than the

operating voltage. Any attempt to convert operating voltages will void the product warranty (for example, attempting to change a 110V printer to a 220V printer).

Figure 1-8 Sample label

8 Printer description ENWW

Page 23

Site requirements

The printer must be kept in a proper location to maintain the performance level that has been set at the factory. In particular, be sure that the environment adheres to the specifications listed in this chapter.

Below are recommendations for the printer location and placement. Make sure the printer has the following:

● a well-ventilated, dust-free area

● a hard, level surface (not more than a 2° angle) that can support

approximately 43.4 kg (95.5 lbs)

● a level surface that supports all four corners of the 500-sheet paper feeder

● a constant temperature and humidity. (Do not install near water sources, humidifiers, air

conditioners, refrigerators, or other major appliances)

Make sure to keep the printer away from the following:

● direct sunlight, dust, open flames, or water

● the direct flow of exhaust from air ventilation systems

● magnets and devices that emit a magnetic field

● areas subject to vibration

● walls or other objects (There must be enough space around the printer for proper access and

ventilation. See the figures Space requirements for the HP Color LaserJet 3500 series printer and Space requirements for the HP Color LaserJet 3700 series printer with optional Tray 3, on the following pages.)

ENWW Site requirements 9

Page 24

Space requirements

The printer must have the following amounts of space above and around it.

Figure 1-9 Space requirements for the HP Color LaserJet 3500 series printer

1 Height: 722 mm (28.4 in.) 2 Depth: 1480 mm (58.3 in.) 3 Width: 699.5 mm (27.6 in.)

Figure 1-10 Space requirements for the HP Color LaserJet 3700 series printer with optional Tray 3

1 Height: 862 mm (34 in.) 2 Depth: 1480 mm (58.3 in. 3 Width: 699.5 mm (27.6 in.

10 Printer description ENWW

Page 25

Electrical specifications

WARNING! Power requirements are based on the country/region where the printer is sold. Do not convert

operating voltages. This may damage the printer and void the product warranty.

Table 1-3 lists the electrical specifications required to run the printer safely and Table 1-4 lists the power consumption.

Table 1-3 Electrical specifications

Item 110-volt models 220-volt models

Power requirements 100 to 127 V (+/-10%)

50 to 60 Hz (+/- 2 Hz)

Minimum recommended circuit capacity for typical product

5.3 A 3 A

220 to 240 V (+/-10%) 50 to 60 Hz (+/- 2 Hz)

Table 1-4 Power consumption for 110 and 220-volt (average, in watts)

Product Active Idle Power Save Off Heat output-idle (BTU/hour)

HP Color LaserJet 3500 400 25 25 0.25 85

HP Color LaserJet 3500n 400 26 26 0.25 89

HP Color LaserJet 3700

HP Color LaserJet 3700n

HP Color LaserJet 3700dn

HP Color LaserJet 3700dtn

400 25 25 0.25 85

400 26 26 0.25 89

Note These values are subject to change. For current information, see http://www.hp.com/support/clj3500

for the HP Color LaserJet 3500 series printer or http://www.hp.com/support/clj3700

for the HP Color

LaserJet 3700 series printer.

PowerSave default activation time is 30 minutes.

Environmental specifications

Keep the printer within the environmental conditions shown in Table 1-5 for optimum performance.

Table 1-5 Environmental specifications

Environment Recommended Allowed

Temperature 17° to 25° C (62.6° to 77° F) 10° to 27° C (50° to 81° F)

Humidity 20% to 60% RH 10% to 70% RH

Altitude Not applicable 0 to 2600 m (0 to 8530 ft)

ENWW Site requirements 11

Page 26

Supply storage requirements

The life of supplies is greatly affected by their storage environment. Use Table 1-6 to determine the shelf life of stored supplies.

Table 1-6 Supply storage requirements

Item Storage time Storage condition

Temperature Normal (maximum of

2.5 years)

Severe (maximum of 18 days)

Maximum temperature change rate

Humidity Normal (maximum of

Atmospheric pressure 460 to 760 mm Hg (18.1 to 29.9 in Hg)

Storage time

The average storage time includes use time. Use cartridges within 2.5 years of the date code on the cartridge.

40° to 15° C (104° to 59° F) within 3 minutes

-20° to 25° C (-4° to 77° F) within 3 minutes

2.5 years)

Severe (maximum of 18 days)

2.5 years

0° to 35° C (32° to 95° F)

High: 35° to 40° C (95° to 104° F) Low: 0° to -20° C (32° to -4° F)

35% to 85% RH

High: 85% to 95% RH Low: 10% to 35% RH

12 Printer description ENWW

Page 27

Printer specifications

Table 1-7 provides the dimensions and weights of the printers.

Table 1-7 Physical dimensions

Product Height Depth Width Weight

HP Color LaserJet 3500 series printer with print cartridges

HP Color LaserJet 3500 series printer with print cartridges and optional Tray 3

HP Color LaserJet 3700 series printer with print cartridges

HP Color LaserJet 3700 series printer with print cartridges and optional Tray 3

HP Jetdirect en3700 external print server 35 mm

467 mm (18.4 in.)

603 mm (23.8 in.)

467 mm (18.4 in.)

603 mm (23.8 in.)

(1.4 in.)

447 mm (17.6 in.)

131 mm (5.2 in.)

499.5 mm (19.67 in.)

102 mm (4 in.)

36.6 kg (80.52 lbs)

42 kg (92.4 lbs)

37.8 kg (83.16 lbs)

43.4 kg (95.48 lbs)

0.159 kg (0.35 lbs)

Table 1-8 lists the acoustic emissions of the printer when it is printing and when in standby mode.

Table 1-8 Acoustic emissions

Activity level Operator (<1m) Bystander (1m) Sound power

Active L

Idle L

Powersave L

64 dB (A) L

pAm

55 dB (A)

pAm

(inaudible)

N/A dB (A) L

pAm

49 dB (A) L

pAm

40 dB (A) (inaudible) L

pAm

N/A dB (A) L

pAm

6.4 Bels (A) Idle

WAd

5.6 Bels (A) (inaudible)

WAd

N/A Bels (A)

WAd

Note These values are subject to change. For current information, see to http://www.hp.com/support/

clj3500 for the HP Color LaserJet 3500 series printer or http://www.hp.com/support/clj3700 for the

HP Color LaserJet 3700 series printer.

Duty cycle

The HP Color LaserJet 3500 series printer’s maximum duty cycle is 45,000 pages per month. The HP Color LaserJet 3700 series printer’s maximum duty cycle is 55,000 pages per month.

ENWW Printer specifications 13

Page 28

Printer assemblies

The two figures below show the location of each major assembly in the printer. These assemblies are described in the Installation and configuration chapter.

Figure 1-11 Front view, HP Color LaserJet 3500 and 3700 series printers (shown with additional 500-

sheet paper feeder)

1 on/off switch 2 Tray 3 (optional; 500 sheets of standard paper)

3 Tray 2 (250 sheets of standard paper) 4 Tray 1 (100 sheets of standard paper) 5 front door 6 printer control panel 7 output bin extender (for use with all media types) 8 output bin (150 sheets of standard paper)

9 DIMM access door (available on the HP Color LaserJet 3700 series printer)

14 Printer description ENWW

Page 29

Figure 1-12 Rear view, HP Color LaserJet 3500 and 3700 series printers (shown with additional 500-

sheet paper feeder)

1 upper rear door 2 parallel connection (available on the HP Color LaserJet 3700 series printer) 3 lower rear door (rear output bin) (25 sheets of standard paper) 4 USB connection 5 power connection 6 Tray 3 (optional) 7 on/off switch 8 EIO connection (available on the HP Color LaserJet 3700 series printer) 9 DIMM access door (available on the HP Color LaserJet 3700 series printer)

Selecting paper

You can use many types of paper and other print media with this printer. This section provides guidelines and specifications for selecting and using different print media.

Before purchasing any paper or specialized forms in quantity, verify that your paper supplier obtains and understands the print media requirements specified in the HP LaserJet Printer Family

Print Media Specification Guide. See the HP Color LaserJet 3500 and 3700 series printer User Guide or HP LaserJet Printer Family

Print Media Specification Guide for ordering information. To download a copy of the HP LaserJet Printer Family Print Media Specification Guide go to http://www.hp.com/support/clj3500

HP Color LaserJet 3500 series and to http://www.hp.com/support/clj3700 LaserJet 3700 series, and then select manuals.

It is possible that paper could meet all of the guidelines in this chapter or the HP LaserJet Printer Family Print Media Specification Guide and still not print satisfactorily. This may be due to abnormal characteristics of the printing environment or to other variables over which HewlettPackard has no control (for example, extremes in temperature and humidity).

Hewlett-Packard recommends testing any paper before buying it in large quantities.

CAUTION Using paper that does not conform to the specifications listed here or in the print media guide can

cause problems that require service. This service is not covered by the Hewlett-Packard warranty or service agreements.

ENWW Selecting paper 15

for the HP Color

for the

Page 30

Paper to avoid

The printer can handle many types of paper. Use of paper outside the printer specifications will cause a loss of print quality and will increase the chance of paper jams.

● Do not use paper that is too rough.

● Do not use paper with cutouts or perforations, other than standard 3-hole punched paper.

● Do not use multipart forms.

● Do not use paper that has already been printed on, or that has been fed through a

photocopier.

● Do not use paper with a watermark if you are printing solid patterns.

Paper that can damage the printer

In rare circumstances, paper can damage the printer. The following paper must be avoided to prevent possible damage to the printer:

● Do not use paper with staples attached.

● Do not use transparencies designed for Inkjet printers or other low temperature printers, or

transparencies designed for monochrome printing. Use only transparencies that are specified for use with HP Color LaserJet printers.

● Do not use photo paper intended for Inkjet printers.

● Do not use paper that is embossed or coated, and is not designed for the temperatures of the

HP Color LaserJet 3500 and 3700 series printer image fusers. Select paper that can tolerate temperatures of 190° C (374° F) for 0.1 second. HP produces a selection of paper that is designed for the HP Color LaserJet 3500 and 3700 series printer.

● Do not use letterhead paper with low temperature dyes or thermography. Preprinted forms or

letterhead must use inks that can tolerate temperatures of 190° C (374° F) for 0.1 second.

● Do not use any media that produces hazardous emissions, or that melts, offsets, or discolors

when exposed to 190° C (374° F) for 0.1 second.

Print media specifications

For optimum results, use conventional 75 g/m2 to 90 g/m2 (20 to 24 lb) photocopy paper. Verify that the paper is of good quality and is free of cuts, nicks, tears, spots, loose particles, dust, wrinkles, curls, or bent edges.

Supported media weights and sizes

Table 1-9 shows the media types and sizes supported by the printer and the printer accessories

Table 1-9 Tray 1 paper sizes

Tray 1 Dimensions Weight or thickness Capacity

Minimum size paper 76 by 127 mm

(3 by 5 in)

Maximum size paper 216 by 356 mm

(8.5 by 14 in)

Minimum size glossy 76 by 127 mm

(3 by 5 in)

16 Printer description ENWW

60 to 163 g/m (16 to 43 lb bond)

75 to 120 g/m (20 to 32 lb bond)

100 sheets (75 g/m

100 sheets (75 g/m2; 20 lb bond)

Maximum stack paper height: 12 mm (0.47 in)

; 20 lb bond)

Page 31

Table 1-9 Tray 1 paper sizes

Tray 1 Dimensions Weight or thickness Capacity

Maximum size glossy paper

Minimum size transparencies

216 by 356 mm (8.5 by 14 in)

76 by 127 mm (3 by 5 in)

75 to 120 g/m

(20 to 32 lb bond)

0.12 to 0.13 mm thick (4.7 to 5 mils thick)

Maximum stack height: 12 mm (0.47 in)

50 sheets

Maximum size transparencies

Minimum size envelopes 76 by 127 mm

Maximum size envelopes

Minimum size label 76 by 127 mm

Maximum size label 216 by 356 mm

Minimum size cardstock 76 by 127 mm

Maximum size cardstock 216 by 356 mm

The printer supports a wide range of standard and custom sizes of print media. Capacity can vary depending on media

weight and thickness and environmental conditions. Smoothness—100 to 250 (Sheffield).

Use only transparencies designed for use with HP Color LaserJet printers. This printer can detect transparencies that

were not designed for use with HP Color LaserJet printers.

216 by 356 mm (8.5 by 14 in)

(3 by 5 in)

216 by 356 mm (8.5 by 14 in)

(3 by 5 in)

(8.5 by 14 in)

(3 by 5 in)

(8.5 by 14 in)

0.12 to 0.13 mm thick (4.7 to 5 mils thick)

60 to 90 g/m

(16 to 24 lb bond)

60 to 90 g/m

(16 to 24 lb bond)

75 to 163 g/m

(20 to 43 lb bond)

75 to 163 g/m

(20 to 43 lb bond)

135 to 216 g/m

(50 to 80 lb cover)

135 to 216 g/m

(50 to 80 lb cover)

50 sheets

10 envelopes

50 sheets

The following table lists the standard sizes of paper that the printer supports in Tray 2.

Table 1-10 Tray 2 paper sizes

Tray 2 Dimensions Weight or thickness Capacity

Letter 216 by 279 mm

(8.5 by 11 in)

Legal 216 by 356 mm

(8.5 by 14 in)

Executive 184 by 267 mm

(7.3 by 10.5 in)

Executive (JIS) 216 by 330 mm

(8.5 by 13 in)

A4 210 by 297 mm

(8.3 by 11.7 in)

A5 148 by 210 mm

(5.8 by 8.3 in)

B5 (JIS) 182 by 257 mm

(7.2 by 10.1 in)

B5 (ISO) 176 by 250 mm

(6.9 by 9.8 in)

Capacity can vary depending on media weight and thickness, and environmental conditions.

60 to 105 g/m (16 to 28 lb bond)

250 sheets (75 g/m2; 20 lb bond)

ENWW Print media specifications 17

Page 32

The following table lists the standard sizes of paper that the printer supports in Tray 3.

Table 1-11 Tray 3 paper sizes

Tray 3 Dimensions Weight or thickness Capacity

Letter 215 by 279 mm

(8.5 by 11 in)

A4 210 by 296 mm

(8.3 by 11.7 in)

Capacity can vary depending on media weight and thickness, and environmental conditions.

60 to 105 g/m (16 to 28 lb bond)

500 sheets (75 g/m2; 20 lb bond)

Table 1-12 Automatic 2-sided printing (available on some models of the HP Color LaserJet 3700 series printer)

Automatic 2-sided

Dimensions Weight or thickness Capacity

printing

Letter 216 by 279 mm

(8.5 by 11 in)

Legal 216 by 356 mm

(8.5 by 14 in)

A4 210 by 297 mm

(8.3 by 11.7 in)

The printer automatically prints on paper weights up to 163 gm2 (43 lb bond). However, automatic 2-sided printing on

weights above the maximum value noted in this table can produce unexpected results.

60 to 105 g/m (16 to 28 lb bond)

unlimited sheets

Manual 2-sided printing. Any of the supported paper sizes and types listed for printing from Tray 1 can be manually duplexed. See the 2-sided (duplex) printing section in the HP Color

LaserJet 3500 and 3700 series printer User Guide for more information.

18 Printer description ENWW

Page 33

Printing on special media

Use these guidelines when printing on special types of media.

Transparencies

When printing on transparencies, use the following guidelines:

● Handle transparencies using the edges. Oils from your fingers deposited on the transparency

can cause print quality problems.

● Use only overhead transparencies recommended for use in this printer. Hewlett-Packard

recommends using HP Color LaserJet Transparencies with this printer. HP products are designed to work together for optimum printing results.

● In either the software application or the printer driver, select TRANSPARENCY as the media

type, or print from a tray that is configured for transparencies.

CAUTION Transparencies not designed for LaserJet printing will melt in the printer, causing damage to the

printer. Do not use transparencies designed for monochrome printing.

Glossy paper

When printing on glossy paper, use the following guidelines:

● In either the software application or the driver, select Glossy as the media type, or print from a

tray that is configured for glossy paper.

Select Glossy for media weights up to 105 g/m weights up to 120 g/m

● Because this affects all print jobs, it is important to return the printer to its original settings once

(32 lb bond).

(28 lb bond). Select Heavy Glossy for media

the job has printed.

Note Hewlett-Packard recommends using HP Color LaserJet Soft Gloss paper with this printer. HP

products are designed to work together for optimum printing results. If HP Color LaserJet Soft Gloss paper is not used with this printer, print quality may be compromised.

Colored paper

When printing on colored paper, use the following guidelines:

● Colored paper should be of the same high quality as white xerographic paper.

● Pigments used must be able to withstand the printer fusing temperature of 190° C (374° F) for

0.1 second without deterioration.

● Do not use paper with a colored coating that was added after the paper was produced.

● The printer creates colors by printing patterns of dots, overlaying and varying their spacing to

produce various colors. Varying the shade or color of the paper will affect the shades of the printed colors.

ENWW Printing on special media 19

Page 34

Envelopes

Note Envelopes can be printed only from Tray 1. Set the tray media size to the specific envelope size.

Adhere to the following guidelines to help ensure proper printing on envelopes and to help prevent printer jams:

● Do not load more than 10 envelopes into Tray 1.

● The weight rating of envelopes should not exceed 90 g/m

● Envelopes should be flat.

● Do not use envelopes with windows or clasps.

● Envelopes must not be wrinkled, nicked, or otherwise damaged.

● Envelopes with peel-off adhesive strips must use adhesives that can withstand the heat and

pressures of the printer fusing process.

● Envelopes should be loaded face-down with the top of the envelope to the left, and the short

edge feeding into the printer first.

Note In high humidity environments, envelopes should be printed long-edge first to prevent them from

sealing during printing. For long-edge printing, envelopes should be loaded long edge first, face down. See the Printing envelopes from Tray 1 section in the HP Color LaserJet 3500 and 3700 series printer User Guide to change the printer drivers envelope orientation.

(24 lb bond).

Labels

Note In either the application or the printer driver, select Labels as the media type, or configure Tray 1

for labels.

When printing labels, use the following guidelines:

● Verify that the label adhesive material can tolerate temperatures of 190° C (374° F) for 0.1

second.

● Verify that there is no exposed adhesive material between the labels. Exposed areas can

cause labels to peel off during printing, which can cause paper jams. Exposed adhesive can also cause damage to printer components.

● Do not re-feed a sheet of labels.

● Verify that labels lie flat.

● Do not use labels that are wrinkled, bubbled, or otherwise damaged.

20 Printer description ENWW

Page 35

Heavy paper

When printing on heavy paper, use the following guidelines:

● Any tray will print most heavy media that does not exceed 105 g/m

● Use cardstock only in Tray 1 (135 g/m

● In either the software application or the printer driver, select HEAVY (106 g/m

to 43 lb bond) or CARDSTOCK (135 g/m

to 216 g/m2; 50 to 80 lb cover).

to 216 g/m2; 50 to 80 lb cover) as the media type, or

(28 lb bond).

to 163 g/m2; 28

print from a tray that is configured for heavy paper. Because this setting affects all print jobs, it is important to return the printer back to its original settings once the job has printed.

CAUTION In general, do not use paper that is heavier than the media specification recommended for this printer.

Doing so can cause misfeeds, paper jams, reduced print quality, and excessive mechanical wear.

HP LaserJet tough paper

When printing on HP LaserJet Tough paper, use the following guidelines:

● Handle HP LaserJet Tough paper using the edges. Oils from your fingers deposited on

HP LaserJet Tough paper can cause print quality problems.

● Use only HP LaserJet Tough paper with this printer. HP products are designed to work

together for optimum printing results.

● In either the software application or the printer driver, select TOUGH PAPER as the media

type, or print from a tray that is configured for HP LaserJet Tough paper.

CAUTION Transparent media that are not designed for LaserJet printing will melt in the printer, causing damage

to the printer.

ENWW Printing on special media 21

Page 36

Preprinted forms and letterhead

When printing on preprinted forms and letterhead, use the following guidelines:

● Forms and letterhead must be printed with heat-resistant inks that will not melt, vaporize, or

release hazardous emissions when subjected to the printer fusing temperature of approximately 190° C (374° F) for 0.1 second.

● Inks must be non-flammable and should not adversely affect any printer rollers.

● Forms and letterhead should be sealed in a moisture-proof wrapping to prevent changes

during storage.

● Before loading preprinted paper such as forms and letterhead, verify that the ink on the paper

is dry. During the fusing process, wet ink can come off of preprinted paper.

● When duplex printing on the HP Color LaserJet 3700 series printer, load preprinted forms and

letterhead into Tray 2 and Tray 3 first side up, top edge toward the back of the tray. To load preprinted forms and letterhead into Tray 1, load them with the first side down, bottom edge in first.

● When simplex (1-sided) printing, load preprinted forms and letterhead into Tray 2 and Tray 3

face-up with the top edge of the page to the left. To load preprinted forms and letterhead into Tray 1, place them in the tray with the side to be printed on facing up, and top, short edge in first.

Recycled paper

This printer supports the use of recycled paper. Recycled paper must meet the same specifications as standard paper. See the HP LaserJet Printer Family Print Media Specification Guide. Hewlett-Packard recommends that recycled paper contain no more than five percent ground wood.

22 Printer description ENWW

Page 37

Media weight

Table 1-13 shows equivalent weights for different grades of paper. A boldface type value indicates a commonly available standard weight for that grade.

Note Text and book grades marked with an asterisk (*) actually calculate to 51, 61, 71, and 81 but are

rounded to standard book or text weights of 50, 60, 70, and 80.

Table 1-13 Weight equivalence table

Bond weight (17 by 22 in.)

Text/ Book weight (25 by 38

Cover weight (20 by 26 in.)

Bristol weight (22.5 by

28.5 in.)

Index weight (25.5 by

30.5 in.)

Tag weight (24 by 36 in.)

in.)

16# 41# 22# 27# 33# 37# 60 g/m2

17# 43# 24# 29# 35# 39# 64 g/m2

20# 50# * 28# 34# 42# 46# 75 g/m2

21# 54# 30# 36# 44# 49# 80 g/m2

24# 60# * 33# 41# 50# 55# 90 g/m2

27# 68# 37# 45# 55# 61# 100 g/m2

Metric weight

28# 70# * 39# 49# 58# 65# 105 g/m2

29# 74# 41# 50# 61# 68# 110 g/m2

32# 80# * 44# 55# 67# 74# 120 g/m2

36# 90# 50# 62# 75# 83# 135 g/m2

39# 100# 55# 67# 82# 91# 148 g/m2

40# 101# 55# 68# 83# 92# 150 g/m2

43# 110# 60# 74# 90# 100# 163 g/m2

45# 115# 63# 77# 94# 104# 170 g/m2

47# 119# 65# 80# 97# 108# 176 g/m2

51# 128# 70# 86# 105# 117# 190 g/m2

53# 134# 74# 90# 110# 122# 199 g/m2

54# 137# 75# 93# 113# 125# 203 g/m2

58# 146# 80# 98# 120# 133# 216 g/m2

65# 165# 90# 111# 135# 150# 244 g/m2

66# 169# 92# 114# 138# 154# 250 g/m2

67# 171# 94# 115# 140# 155# 253 g/m2

70# 178# 98# 120# 146# 162# 264 g/m2

72# 183# 100# 123# 150# 166# 271 g/m2

ENWW Printing on special media 23

Page 38

Environmental product stewardship program

Protecting the environment

Hewlett-Packard Company is committed to providing quality products in an environmentally sound manner. This product has been designed with several attributes to minimize impacts on the environment.

Ozone production

This product generates no appreciable ozone gas (O3).

Paper use

This product’s optional, automatic, 2-sided printing feature (duplex printing) can reduce paper usage and the resulting demands on natural resources.

Plastics

Plastic parts over 25 grams have markings according to international standards that enhance the ability to identify plastics for recycling purposes at the end of the product’s life.

HP LaserJet Printing Supplies

In many countries/regions, this product’s printing supplies (print cartridges, fuser, and transfer unit) can be returned to HP through the HP Printing Supplies Returns and Recycling Program. An easyto-use and free takeback program is available in over 48 countries/regions. Multi-lingual program information and instructions are included in every new HP LaserJet print cartridge and supplies package.

HP Printing Supplies Returns and Recycling Program information

Since 1990, the HP Printing Supplies Returns and Recycling Program has collected millions of used LaserJet print cartridges that otherwise might have been discarded in the world’s landfills. The HP LaserJet print cartridges and supplies are collected and bulk-shipped to our resource and recovery partners, who disassemble the cartridges. After a thorough quality inspection, selected parts are reclaimed for use in new cartridges. Remaining materials are separated and converted into raw materials for use by other industries to make a variety of useful products.

● U.S. returns. For a more environmentally responsible return of used cartridges and supplies,

HP encourages the use of bulk returns. Simply bundle two or more cartridges together and use the single, pre-paid, and pre-addressed UPS label that is supplied in the package. For more information in the U.S., call 1-800-340-2445 or visit the HP LaserJet Supplies website at http://

www.hp.com/recycle.

● Non-U.S. recycling returns. Non-U.S. customers should call the local HP Sales and Service

Office or visit the http://www.hp.com/recycle availability of the HP Supplies Returns and Recycling Program.

website for further information regarding

24 Printer description ENWW

Page 39

Recycled paper

This product is capable of using recycled papers when the paper meets the guidelines outlined in the HP LaserJet Printer Family Print Media Specification Guide. This product is suitable for the use of recycled paper according to DIN 19309.

Material restrictions

This product does not contain batteries. This product does not contain added mercury. This product contains lead in solder that could require special handling at end-of-life. For recycling information, see http://www.hp.com/recycle

the Electronics Industries Alliance website http://www.eiae.org

, contact your local authorities, or go to

Material Safety Data Sheet (MSDS)

Material Safety Data Sheets (MSDS) can be obtained by accessing the HP LaserJet Supplies website at http://www.hp.com/hpinfo/community/environment/productinfo/safety.htm

For more information

On HP environmental programs, including:

● Product environmental profile sheet for this and many related HP products

● HP’s commitment to the environment

● HP’s environmental management system

● HP’s end-of-life product return and recycling program

● Material Safety Data Sheets

See http://www.hp.com/environment

or http://www.hp.com/hpinfo/community/environment/.

ENWW Environmental product stewardship program 25

Page 40

FCC Regulations

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If this equipment is not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

● Reorient or relocate the receiving antenna.

● Increase separation between equipment and receiver.

● Connect equipment to an outlet on a circuit different from that to which the receiver is located.

● Consult your dealer or an experienced radio/TV technician.

Note Any changes or modifications to the printer that are not expressly approved by HP could void the

user’s authority to operate this equipment.

Use of a shielded interface cable is required to comply with the Class B limits of Part 15 of FCC rules.

26 Printer description ENWW

Page 41

Safety statements

Laser safety statement

The Center for Devices and Radiological Health (CDRH) of the U.S. Food and Drug Administration has implemented regulations for laser products manufactured since August 1, 1976. Compliance is mandatory for products marketed in the United States. The printer is certified as a “Class 1” laser product under the U.S. Department of Health and Human Services (DHHS) Radiation Performance Standard according to the Radiation Control for Health and Safety Act of 1968. Since radiation emitted inside the printer is completely confined within protective housings and external covers, the laser beam cannot escape during any phase of normal user operation.

WARNING! Using controls, making adjustments, or performing procedures other than those specified in this

service manual may result in exposure to hazardous radiation.

Toner safety

Hewlett-Packard encourages responsible disposal of HP LaserJet printer supply items through its Environmental Collection Program. For details on this program, see the recycling instruction guide enclosed with each supply item.

Note In case of toner spills, skin and clothing are best cleaned by removing as much toner as possible

with a dry tissue, then washing with cold water. Hot water causes toner to permanently set into clothing.

Canadian DOC regulations

Complies with Canadian EMC Class B requirements. «Conforme â la classe B des normes canadiennes de compatibilitê êlectromagnêtiques. «CEM».»

EMI statement (Korea)

Figure 1-13 EMI statement for Korea

ENWW Safety statements 27

Page 42

VCCI statement (Japan)

Figure 1-14 VCCI statement for Japan

Laser statement for Finland

Luokan 1 laserlaite

HP Color LaserJet 3500, 3500n, 3700, 3700n, 3700dn, 3700dtn, laserkirjoitin on käyttäjän kannalta turvallinen luokan 1 laserlaite. Normaalissa käytössä kirjoittimen suojakotelointi estää lasersäteen pääsyn laitteen ulkopuolelle. Laitteen turvallisuusluokka on määritetty standardin EN 60825-1 (1994) mukaisesti.

VAROITUS ! Laitteen käyttäminen muulla kuin käyttöohjeessa mainitulla tavalla saattaa altistaa käyttäjän

turvallisuusluokan 1 ylittävälle näkymättömälle lasersäteilylle. VARNING ! Om apparaten används på annat sätt än i bruksanvisning specificerats, kan användaren utsättas

för osynlig laserstrålning, som överskrider gränsen för laserklass 1. HUOLTO HP Color LaserJet 3500, 3500n, 3700, 3700n, 3700dn, 3700dtn -kirjoittimen sisällä ei ole käyttäjän

huollettavissa olevia kohteita. Laitteen saa avata ja huoltaa ainoastaan sen huoltamiseen koulutettu henkilö. Tällaiseksi huoltotoimenpiteeksi ei katsota väriainekasetin vaihtamista, paperiradan puhdistusta tai muita käyttäjän käsikirjassa lueteltuja, käyttäjän tehtäväksi tarkoitettuja ylläpitotoimia, jotka voidaan suorittaa ilman erikoistyökaluja.

VARO ! Mikäli kirjoittimen suojakotelo avataan, olet alttiina näkymättömällelasersäteilylle laitteen ollessa

toiminnassa. Älä katso säteeseen. VARNING ! Om laserprinterns skyddshölje öppnas då apparaten är i funktion, utsättas användaren för osynlig

laserstrålning. Betrakta ej strålen. Tiedot laitteessa käytettävän laserdiodin säteilyominaisuuksista: Aallonpituus 775-795 nm Teho 5 m W Luokan 3B laser.

28 Printer description ENWW

Page 43

Declaration of conformities

Declaration of Conformity

according to ISO/IEC Guide 22 and EN 45014

Manufacturer’s Name: Hewlett-Packard Company Manufacturer’s Address: 11311 Chinden Boulevard

Boise, Idaho 83714-1021, USA

declares, that the product

Product Name: HP Color LaserJet 3500 Regulatory Model Number

Product Options: ALL

conforms to the following Product Specifications:

Safety: IEC 60950:1999 / EN60950: 2000

EMC: CISPR 22:1997 / EN 55022:1998 Class B

Supplementary Information:

The product herewith complies with the requirements of the EMC Directive 89/336/EEC and the Low Voltage Directive 73/23/EEC, and carries the CE-Marking accordingly

1) The product was tested in a typical configuration with Hewlett-Packard Personal Computer Systems.

2) This Device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

3) For regulatory purposes, this product is assigned a Regulatory model number. This number should not be confused with the marketing names (HP Color LaserJet 3500 series) or the product numbers (Q1319A, Q1320A).

IEC 60825-1:1993 +A1 / EN 60825-1:1994 + A11 (Class 1 Laser/LED Product) GB4943-1995

EN 61000-3-2:1995 / A14 EN 61000-3-3:1995 EN 55024:1998

FCC Title 47 CFR, Part 15 Class B

BOISB-0302-01

Boise, Idaho USA

/ ICES-003, Issue 3 / GB9254-1998

12 August, 2003

For Regulatory Topics Only:

Australia Contact: Product Regulations Manager, Hewlett-Packard Australia Ltd., 31-41 Joseph Street, Blackburn, Victoria 3130, Australia.

European Contact: Your Local Hewlett-Packard Sales and Service Office or Hewlett-Packard Gmbh, Department HQ-TRE / Standards

USA Contact: Product Regulations Manager, Hewlett-Packard Company, PO Box 15, Mail Stop 160, Boise, Idaho 83707-0015

Europe, Herrenberger Straáe 140, D-71034 Böblingen (FAX: +49-7031-14-3143)

(Phone: 208-396-6000)

ENWW Declaration of conformities 29

Page 44

Declaration of Conformity according to ISO/IEC Guide 22 and EN 45014

Manufacturer’s Name: Hewlett-Packard Company Manufacturer’s Address: 11311 Chinden Boulevard

Boise, Idaho 83714-1021, USA

declares that the product

Product Name: HP Color LaserJet 3700/3700n/3700dn/3700dtn Regulatory Model Number Product Numbers:

BOISB-0302-00 Q1321A, Q1322A, Q1323A, Q1324A

Q2486A - Optional 500-Sheet Input Tray

Product Options: ALL

conforms to the following Product Specifications:

Safety: IEC 60950:1999 / EN60950: 2000

IEC 60825-1:1993 +A1:1997 +A2:2001 / EN 60825-1:1994 + A11:1996 + A2:2001 (Class 1 Laser/LED Product) / GB4943-1995

EMC: CISPR 22:1997 / EN 55022:1998 Class B

1), 3)

EN 61000-3-2:1995 / A14 EN 61000-3-3:1995 EN 55024:1998

FCC Title 47 CFR, Part 15 Class B

/ ICES-003, Issue 3 / GB9254-1998

Supplementary Information:

The product herewith complies with the requirements of the EMC Directive 89/336/EEC and the Low Voltage Directive 73/23/EEC, and carries the CE-Marking accordingly

1) The product was tested in a typical configuration with Hewlett-Packard Personal Computer Systems.

3) The product includes LAN (Local Area Network) options. When the interface cable is attached to LAN connectors, the product meets the requirements of EN55022 Class A in which case the following applies: "Warning - This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures".

4) For regulatory purposes, this product is assigned a Regulatory model number. This number should not be confused with the marketing names (HP Color LaserJet 3700 series) or the product numbers (Q1321A, Q1322A, Q1323A, Q1324A).

5) The suffix letter 'A' in the model number may be replaced by 'M', 'Q', 'V', or 'W' for early marketing or other prototype units. However, their construction is identical to units having a product number with suffix letter of 'A'. The product may include an additional suffix letter "R".

Boise, Idaho USA

12 August, 2003

For Regulatory Topics Only:

Australia Contact: Product Regulations Manager, Hewlett-Packard Australia Ltd., 31-41 Joseph Street, Blackburn, Victoria 3130, Australia.

European Contact: Your Local Hewlett-Packard Sales and Service Office or Hewlett-Packard Gmbh, Department HQ-TRE / Standards

Europe, Herrenberger Straáe 140, D-71034 Böblingen (FAX: +49-7031-14-3143)

USA Contact: Product Regulations Manager, Hewlett-Packard Company, PO Box 15, Mail Stop 160, Boise, Idaho 83707-0015 (Phone:

208-396-6000)

30 Printer description ENWW

Page 45

Declaration of Conformity

according to ISO/IEC Guide 22 and EN45014

Manufacturer’s Name: Hewlett-Packard Company Manufacturer’s Address: 8000 Foothills Blvd.

Roseville, CA 95747-5677, U.S.A.

declares that the product

Product Name: Jetdirect en3700 External Print Server Regulatory Model Number

J7942A

conforms to the following Product Specifications:

Safety: EN60950 (1992) +A1,A2,A3,A4,AII / IEC 950 (1991) +A1,A2,A3,A4

EN60825-1 (1994) / IEC 825-1 (1993), Class 1 GB 4943 (1995)

EMC: EN 55022 (1998) / CISPR-22 (1997) Class B

GB 9254 (1988) EN 55024 (1998) IEC 61000-4-2 (1995); EN 61000-4-2 (1995) IEC 61000-4-3 (1995); EN 61000-4-3 (1996) IEC 61000-4-4 (1995); EN 61000-4-4 (1995) IEC 61000-4-5 (1995); EN 61000-4-5 (1995) IEC 61000-4-6 (1996); EN 61000-4-6 (1996) IEC 61000-4-8 (1993); EN 61000-4-8 (1993) IEC 61000-4-11 (1994); EN 61000-4-11 (1994) EN61000-3-2 (1995) EN61000-3-3 (1995) FCC Title 47 CFR, Part 15 Class B

Supplementary Information:

The product herewith complies with the requirements of the Low Voltage Directive 73/23/EEC and the EMC Directive 89/336/EEC and carries the CE marking accordingly.

This product was tested in typical configurations with Hewlett-Packard Co. products.

Roseville, California 95747, USA

4 March 2003

For Regulatory Topics Only:

Australia Contact: Product Regulations Manager, Hewlett-Packard Australia Ltd., 31-41 Joseph Street, Blackburn, Victoria 3130, Australia.

European Contact: Your Local Hewlett-Packard Sales and Service Office or Hewlett-Packard Gmbh, Department HQ-TRE / Standards

Europe, Herrenberger Straáe 140, D-71034 Böblingen (FAX: +49-7031-14-3143)

USA Contact: Product Regulations Manager, Hewlett-Packard Company, PO Box 15, Mail Stop 160, Boise, Idaho 83707-0015 (Phone:

208-396-6000)

ENWW Declaration of conformities 31

Page 46

32 Printer description ENWW

Page 47

Service approach

Chapter contents

This chapter contains the following sections.
