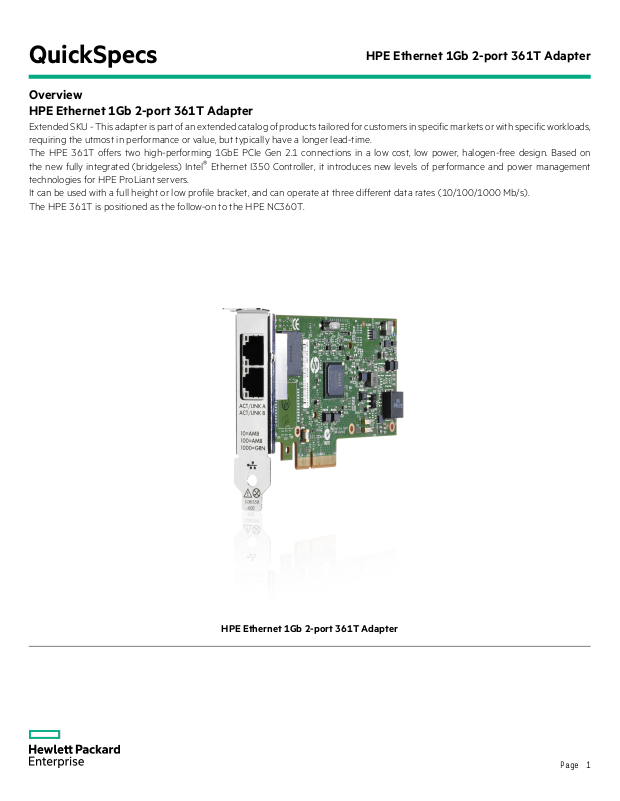

QuickSpecs
Overview
Overview
HPE Ethernet 1Gb 2-port 361T Adapter
HPE Ethernet 1Gb 2-port 361T Adapter
Extended SKU - This adapter is part of an extended catalog of products tailored for customers in specific markets or with specific workloads,
requiring the utmost in performance or value, but typically have a longer lead-time.
The HPE 361T offers two high-performing 1GbE PCIe Gen 2.1 connections in a low cost, low power, halogen-free design. Based on
the new fully integrated (bridgeless) Intel® Ethernet I350 Controller, it introduces new levels of performance and power management
technologies for HPE ProLiant servers.
It can be used with a full height or low profile bracket, and can operate at three different data rates (10/100/1000 Mb/s).
The HPE 361T is positioned as the follow-on to the HPE NC360T.
HPE Ethernet 1Gb 2-port 361T Adapter
Page 1
QuickSpecs HPE Ethernet 1Gb 2-port 361T Adapter
Platform Information
Platform Information
Kit Contents
HPE Ethernet 1Gb 2-port 361T Adapter
Standard height bracket attached, the low profile bracket included
Quick install card
Product warranty statement
Compatibility Supported Servers
Models
HPE Proliant DL20 Gen9 Server
HPE Proliant DL60 Gen9 Server
HPE Proliant DL80 Gen9 Server
HPE Proliant DL120 Gen9 Server
HPE Proliant DL160 Gen9 Server
HPE Proliant DL180 Gen9 Server
HPE Proliant DL360 Gen9 Server
HPE Proliant DL360 Gen10 Server
HPE Proliant DL380 Gen9 Server
HPE Proliant DL380 Gen10 Server
HPE ProLiant DL385 Gen10 Server
HPE Proliant DL560 Gen9 Server
HPE Proliant DL580 Gen9 Server
HPE Proliant ML30 Gen9 Server
HPE Proliant ML110 Gen9 Server
HPE Proliant ML150 Gen9 Server
HPE Proliant ML350 Gen9 Server
HPE Apollo 2000 - XL1x0r Gen9 Server
HPE Apollo 4500 – XL450 Gen9 Server
HPE Apollo 6500 - XL270d Gen9 Server
NOTE:
This is a list of supported servers. Some may be discontinued.
HP Ethernet 1Gb 2-port 361T Adapter 652497-B21
Page 2
QuickSpecs HPE Ethernet 1Gb 2-port 361T Adapter
Standard Features
Standard Features
At a Glance Features
• Two Gigabit Ethernet Ports
• Supported on HPE ProLiant servers
• Intel® Ethernet I350 controller
Designed with server needs in mind:
• IEEE 802.1p, 802.1Q, 802.3, 802.3ad, and 802.3x
• IEEE, EFI/uEFI support
• ProLiant Teaming including Network Fault Tolerance, Transmit Load Balancing, and Switch-Assisted Load
Balancing
• 9.5K Jumbo frames
• DMA Coalescing
• IEEE 1588 (Precision Time Stamping) & 802.1AS (Hardware enabled Time Synchronization)
• TCP/IP checksum offload (TCO) and large send offload (LSO)
• PXE
• Intel® Integrated I/O and Data Direct I/O for increased performance and reduced latency
• Virtualization with VMDq
• IPv6 packet transmit and receive (excluding all offload capabilities); IPv6 aware SNMPv1 agent for Windows
• Supports Wake-on-LAN (WoL)
Two Gigabit ports allow users to save slots in situations where their servers are slot-constrained. Hewlett
Packard Enterprise has long been an advocate of dual port adapters for servers; the HPE 361T is the latest
best-of-breed dual port devices for HPE ProLiant servers.
NOTE:
Port enumeration on the HPE 361T is from the top down, i.e. the port near the top of the adapter
is port #1 and the port closest to the gold teeth is port #2
ThroughputTheoretical Bandwidth
Auto-negotiation
Configuration Utilities
DMA Coalescing
This adapter delivers 2 Gb/s bi-directional Ethernet transfer rate per port (4 Gb/s per adapter), providing the
network performance needed to improve response times and alleviate bottlenecks.
This adapter automatically senses the speed of the device to which it is attached. It also automatically
configures for half or full duplex, depending on the duplex mode of the switch, hub, or router connected to
the adapter.
This adapter ships with a suite of operating system-tailored configuration utilities that allow the user to enable
initial diagnostics and configure adapter teaming. This includes a patented teaming GUI for Microsoft Windows
operating systems. Additionally, support for scripted installations of teams in a Microsoft Windows environment
allow for unattended OS installations.
Supports DMA Coalescing, the incoming data packets and interrupts associated with these DMA calls are
intelligently batched to keep the system devices in lower power states.
Page 3
QuickSpecs HPE Ethernet 1Gb 2-port 361T Adapter
Standard Features
Energy Efficient Ethernet
HPE Sea Of Sensors 3D
Intel Integrated I/O with Data Direct I/O
Jumbo Frames
LED Indicators
Compliant with IEEE 802.3az, featuring advanced power savings features throttles power usage with network
load activity.
Support for the HPE Sea of Sensors which is a collection of 32 sensors that automatically track thermal activity heat - across the server. When temperatures get too high, sensors can initiate fans and make other adjustments
to reduce energy usage. A significant improvement lies in the ability to apply fan speed increases only to the
portion of the system that is rising in temperature, rather than all six fans in unison, which reduces the amount
of energy used for cooling.
New on HPE ProLiant Gen8 servers, Intel® Integrated I/O features reduces memory access from I/O on local
socket which speeds up CPU data transfer and accelerates inbound and outbound traffic flows. Together,
Integrated I/O and Data Direct I/O technologies reduce system power, increases I/O performance and reduced
I/O latency.
This adapter supports Jumbo Frames (also known as extended frames), permitting up to a 9,500 byte (KB)
transmission unit (MTU) when running Ethernet I/O traffic. This is over six times the size of a standard 1500byte Ethernet frame. With Jumbo Frames, networks can achieve higher throughput performance and greater
CPU utilization. These attributes are particularly useful for database transfer and tape backup operations.
LED indicators show link integrity and network activity for easy troubleshooting.
Load Balancing
Management Support
Network Fault Tolerance (NFT)
PCI Express Interface
Preboot eXecution Environment (PXE)
Transmit Load Balancing (TLB) and Switch-assisted Load Balancing (SLB) are two advanced features that
customers can use to build a bigger pipe for improved networking bandwidth. These port-bonding techniques
enable users to install up to four dual-port HPE 361T adapters (total of 8 ports) in a HPE ProLiant server and
aggregate their throughput up to a theoretical maximum of 16 Gigabits per second full-duplex transmissions.
This adapter ships with agents that can be managed from HPE Systems Insight Manager or other management
application that support SNMP.
Network Fault Tolerance, sometimes called "failover" or "NIC Redundancy," allows for the installation of multiple
server adapters so that the active device can be backed up by a redundant adapter to improve availability.
The Hewlett Packard Enterprise teaming utility also allows users to specify that when a failed adapter is fixed
and replaced, the original adapter resumes its function as the primary network connection.
This adapter features a high performance Intel® Ethernet Controller I350 and offers a four lane (x4) PCI
Express bus based on the PCIe 2.1 standard, yielding faster transmissions with lower CPU utilization than
earlier solutions.
Support for PXE enables automatic deployment of computing resources remotely from anywhere. It allows a
new or existing server to boot over the network and download software, including the operating system, from a
Page 4
QuickSpecs HPE Ethernet 1Gb 2-port 361T Adapter
Standard Features
management/ deployment server at another location on the network.Additionally, PXE enables decentralized
software distribution and remote troubleshooting and repairs.
Server Integration
Precision Time Protocol (IEEE 1588 PTP)
VMware NewQueue and Microsoft Virtual Machine Queue (VMQ)
Wake-on-LAN
This adapter is a validated, tested, and qualified solution that is optimized for HPE ProLiant servers. Hewlett
Packard Enterprise validates a wide variety of major operating systems drivers with the full suite of web-based
enterprise management utilities including HPE Intelligent Provisioning and HPE Systems Insight Manager that
simplify network management.
This approach provides a more robust and reliable networking solution than offerings from other vendors and
provides users with a single point of contact for both their servers and their network adapters.
Synchronization of system clocks throughout a network, achieving clock accuracy in the sub-microsecond
range, making it suitable for measurement and control systems.
VMware NetQueue is technology that significantly improves performance of 10 Gigabit Ethernet network
adapters in virtualized environments.
Windows Hyper-V VMQ (VMQ) is a feature available on servers running Windows Server 2008 R2 with VMQenabled Ethernet adapters. VMQ uses hardware packet filtering to deliver packet data from an external virtual
machine network directly to virtual machines, which reduces the overhead of routing packets and copying
them from the management operating system to the virtual machine.
This adapter provides Wake-on-LAN (WoL) support through the PCI Express bus. A system that supports
Wake-on-LAN can remain available to the systems administrator during its normal downtime. Once the
machine is awakened, the systems administrator can remotely control, audit, debug, or manage the machine.
Warranty
Maximum: The remaining warranty of the HPE product in which it is installed (to a maximum three-year, limited
warranty).
Minimum: One year limited warranty.
NOTE:
Additional information regarding worldwide limited warranty and technical
support is available at: http://h17007.www1.hpe.com/us/en/enterprise/servers/warranty/
index.aspx#.V4e3tPkrJhE
Page 5
QuickSpecs HPE Ethernet 1Gb 2-port 361T Adapter
Service and Support
Service and Support
Service and Support NOTE:
Most HPE branded options sourced from HPE that are compatible with your product will be covered under
your main product support at the same level of coverage, allowing you to upgrade freely. Additional support is
required on select workload accelerators, switches, racks and UPS options 12KVA and over. Coverage of the
UPS battery is not included under HPE support services; standard warranty terms and conditions apply.
This adapter is covered under HPE Support Services/ Service Contract applied to the HPE
ProLiant Server or enclosure. No separate HPE Support Services# need to be purchased.
Warranty and Support Services
Protect your business beyond warranty with HPE Support Services
Parts and Materials
Warranty and Support Services will extend to include HPE options configured with your server or storage
device. The price of support service is not impacted by configuration details. HPE sourced options that are
compatible with your product will be covered under your server support at the same level of coverage allowing
you to upgrade freely. Installation for HPE options is available as needed. To keep support costs low for
everyone, some high value options will require additional support. Additional support is only required on select
high value workload accelerators, fibre switches, InfiniBand and UPS options 12KVA and over. Coverage of the
UPS battery is not included under TS support services; standard warranty terms and conditions apply.
HPE Technology Services delivers confidence, reduces risk and helps customers realize agility and stability.
Connect to HPE to help prevent problems and solve issues faster. HPE Support Services enable you to choose
the right service level, length of coverage and response time as you purchase your new server, giving you full
entitlement to the support you need for your IT and business.
Protect your product, beyond warranty.
Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to
maintain the covered hardware product in operating condition, including parts and materials for available
and recommended engineering improvements. Parts and components that have reached their maximum
supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual,
product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of
these services. The defective media retention service feature option applies only to Disk or eligible SSD/Flash
Drives replaced by Hewlett Packard Enterprise due to malfunction.
For more information
Visit the Hewlett Packard Enterprise Service and Support website.
Page 6
QuickSpecs HPE Ethernet 1Gb 2-port 361T Adapter
Technical Specifications
Technical Specifications
System Unit
Dimensions (L x W) 13.5 x 6.4 cm
5.3 x 2.5 in
NOTE:
Without Bracket
General Specifications
Power and Environmental Specifications
Operating System and Virtualization Support
Network Processor Intel® Ethernet I350 Controller
Data Rate 10/100/1000 Mbps, Half- and full-duplex
Data Path Four lane (x4) PCI Express compatible with x4, x8, and x16 PCI Express slots
Bus type PCI Express
Connector RJ-45 (Two)
Wiring Twisted-pair cabling
Cable Distance Up to 328 feet (100 m) with Category 5 (or better)
Interrupt Levels Automatically configured
Power 4.1W idle without EEE link partner
3.2W idle with EEE link partner
4.2W maximum
Temperature - Operating 0° to 55°C (32° to 131°F)
Temperature - Non-Operating -40° to 85° C (-40° to 185° F)
Humidity - Operating 10% to 95% non-condensing
Humidity - Non-operating -5% to 95% non-condensing
Emissions Classification FCC Class B, VCCI Class B, BSMI Class A, CISPR 22 Class B, EN 55022 Class
B, EN55024-1, ICES-003 Class B, MIC Class B, ACA Class B
RoHS Compliance 6 of 6
The Operating Systems supported by this adapter are based on the server OS support. Please refer to the OS
Support Matrix at https://www.hpe.com/us/en/servers/server-operating-systems.html.
Environmentfriendly Products and
Approach - End-oflife Management and
Recycling
Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many
geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered
or disposed of in a responsible manner.
The EU WEEE Directive (2012/19/EU) requires manufacturers to provide treatment information for each
product type for use by treatment facilities. This information (product disassembly instructions) is posted on
the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE
treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett
Packard Enterprise equipment.
Page 7
QuickSpecs HPE Ethernet 1Gb 2-port 361T Adapter
Summary of Changes
Summary of Changes
Date Version History Action Description of Change
05-Feb-2018 Version 16 Changed Overview section was updated
18-Dic-2017 Version 15 Changed Product Information- Compatibility was updated
06-Nov-2017 Version 14 Changed Technical Specifications-OS and VirtualizationSupport section was
updated.
16-Oct-2017 Version 13 Changed Overview, Standard Features-At a Glance, Technical Specifications-OS were
updated.
11-July-2017 Version 12 Changed Compatibility section was updated.
03-Apr-2017 Version 11 Changed Platform Information section was updated.
22-Jul-2016 Version 10 Changed QuickSpecs sections were updated.
Changed Related Options section was updated.17-Dec-2015 Version 9
Removed Obsolete SKUs deleted:
412648-B21, 435508-B21, 394793-B21, 394793-B21, 538696-B21,
458492-B21, 468332-B21, 489892-B21, 581201-B21, 503746-B21,
538696-B21, 458492-B21.
11-Oct-2013 Version 8 Added Added the HPE ProLiant ML350e Gen8 v2 to the Compatibility section.
10-Sep-2013 Version 7 Changed Compatibility, 10 Gigabit Server Adapters, and FlexibleLOM Servers were
revised.
19-Feb-2013 Version 6 Changed Changes were made in The Overview Section and Related Options Section.
04-Dec-2012 Version 5 Changed Changes made in Compatibility, Standard Features, and Related Options
sections.
10-Oct-2012 Version 4 Changed Changes made in Compatibility section.
24-Sep-2012 Version 3 Changed Changes made in the Compatibility section.
20-Aug-2012 Version 2 Changed Changes made in the Compatibility section.
04-Jun-2012 Version 1 New Initial version.
Sign up for updates
©
Copyright 2018 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change
without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express
warranty statements accompanying such products and services. Nothing herein should be construed as constituting an
additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained
herein.
c04111457 - 14334 - Worldwide - V16-05-February-2018
Loading...
