HP LaserJet 3000, 3600 and 3800 Series Printers ­Part Numbers Not Found in the Service Manual
Introduction
The following part numbers are not in the Service Manual.
Part Numbers
Part Description Part Number
Duplex ETB RM1-2752-000CN Electronic transfer belt (ETB) simplex models RM1-2759-000CN Plate Lock Release/Tray 2 Lift Tab RC1-6833-020CN Relay PCB
NOTE: This part for CLJ 3600 and 3800 models only.
Tray 2 cassette pickup roller RM1-2702-000CN
Toner cartridge lock kit
Tension spring (Figure 7-5, item 4 in Service Manual)
Main drive assembly RM1-2751-000CN
RM1-2632-000CN NOTE: This part for CLJ 3600 and 3800 models only.
Q5982-67925 NOTE: Please see Service Advisory
c00775200
RC1-6634-000CN
For HP and Channel Partner Internal Use
SUPPORT COMMUNICATION - SERVICE ACTION ADVISORY
Document ID: c00775200 Version: 5 HP Color LaserJet 3000, 3600 and 3800 Printers - Cartridge Lock Replacement Procedure Service Coverage Notice:
Unless otherwise specified, HP is responsible for part and/or labor costs associated with products that are under HP warranty at the time of service.
Release Date: 2006-12-11 Last Updated: 2006-12-11
DESCRIPTION The HP Color LaserJet 3800 Service Manual currently does not have instructions for replacing the main drive assembly or the cartridge locks. The cartridge locks are currently breaking and, until June 2006, the only solution was to replace the unit.
NOTE: This Service Action Advisory supercedes Service Advisory c00673707. Please use this Service Action Advisory for repairs after 04-Dec-2006.
A video of the replacement procedure is available: ftp://ftp.hp.com/pub/softlib/software8/COL17123/lj-
45472-1/tonerlock3.wmv
SCOPE The products indicated in the table below are affected by this advisory.
Product # Product Name Service Note Number for Reimbursement
Product # Product Name Service Note Number for Reimbursement
Q7533A HP Color LaserJet 3000 Q7533A - C00775200 Q7534A HP Color LaserJet 3000n Q7534A - C00775200 Q7535A HP Color LaserJet 3000dn Q7535A - C00775200 Q7536A HP Color LaserJet 3000dtn Q7536A - C00775200 Q5986A HP Color LaserJet 3600 Q5986A - C00775200 Q5987A HP Color LaserJet 3600n Q5987A - C00775200 Q5988A HP Color LaserJet 3600dn Q5988A - C00775200 Q5981A HP Color LaserJet 3800 Q5981A - C00775200 Q5982A HP Color LaserJet 3800n Q5982A - C00775200 Q5983A HP Color LaserJet 3800dn Q5983A - C00775200 Q5984A HP Color LaserJet 3800dtn Q5984A - C00775200
Products and Serial Number Cross Reference
Product Number Starting Serial Number Ending Serial Number
Q5981A CNABA00000 CNWBB72188 Q5982A CNABA00000 CNWBB54048 Q5982A CNABA00000 CNXBB30515 Q5983A CNACA00000 CNWCH30820 Q5983A JPACA00000 JPWCX01837 Q5983A JPACA00000 JPXCX00470 Q5984A CNACA00000 CNWCH31219 Q5984A JPACA00000 JPWCX01529 Q5987A CNABA00000 CNTBB53271 Q5988A CNACA00000 CNTCH31125 Q5988A JPACA00000 JPVCX00750 Q7534A CNABA00000 CNWBL05518 Q7534A CNABA00000 CNXBN03219 Q7535A JPACA00000 JPWCY00043 Q7535A JPACA00000 JPXCY00081 Q5981A CNAFA00000 CNXFB24233 Q5982A CNAFA00000 CNXFB24245 Q5983A CNAGA00000 CNXGH45539 Q5984A CNAGA00000 CNXGH45583 Q5986A CNAFA00000 CNVFB24244 Q5987A CNAFA00000 CNVFB24282 Q5988A CNAGA00000 CNVGH45972 Q7533A CNAFA00000 CNXFN040 42
Product Number Starting Serial Number Ending Serial Number
Q7534A CNAFA00000 CNXFN033 31 Q7535A CNAGA00000 CNXGR00812 Q7536A CNAGA00000 CNXGS02350 Q5981A CNAA00000 CNWKF09263 Q5981A CNKAA00000 CNXKF03388 Q5982A CNKAA00000 CNXKB24756 Q5983A CNALA00000 CNWLH31062 Q5983A CNALA00000 CNXLH45244 Q5986A CNAKA00000 CNTKF01991 Q5986A CNAKA00000 CNVKB24542 Q5987A CNAKA00000 CNVKB24761 Q5988A CNALA00000 CNVLH46862 Q7534A CNAKA00000 CNXKL09425 Q7535A CNALA00000 CNXLS05851
RESOLUTION Steps have been created to help replace the cartridge locks, along with timing tips for the main drive assembly. The service kit contains four new locks and four new springs. Replace all the locks, even if they are not broken.
NOTE: Determining if the printer has countermeasured or non-countermeasured cartridge locks can be accomplished by visually inspecting the locks. The countermeasured locks are white in color, the non-countermeasured locks are black.
Parts Required
Replacement Part Number Quantity Description
Q5982-67922 1 Cartridge Lock Kit (to replace all 4 locks at one time) SERVICE ACTION
To Be Performed By: Service Technicians
1. Remove the toner cartridges and ETB.
2. Remove the upper cover (Page 80 in the Service Manual).
3. Remove the right cover (Page 87 in the service Manual).
4. For duplex models: Remove the wires to the duplex fan in the front cover. Simply follow instructions 5 and 6 on page 77 ? 78 in the service manual. This allows for easier removal of the cable harnesses.
5. Unplug the following connectors from the driver PCA and remove the wires from the cable harnesses: a. J209, b. J406, c. J404, d. J213, e. J207, f. J203, g. J402, h. J206, I. J410, j. J208.
6. Remove the interlock switch assembly by removing the one screw attaching it to the chassis. Be aware of the clip at the top and the alignment knob when removing the assembly.
7. Remove the bottom cable harness. There is one screw at the top to remove. Hint: when you reinstall the guide, make sure that the rear locking tab is seated in the sheet-metal chassis. (See page 120 - 121 in the service manual). It may be necessary to disconnect the white door latch from the front door. (Notice the red arrow call-out).

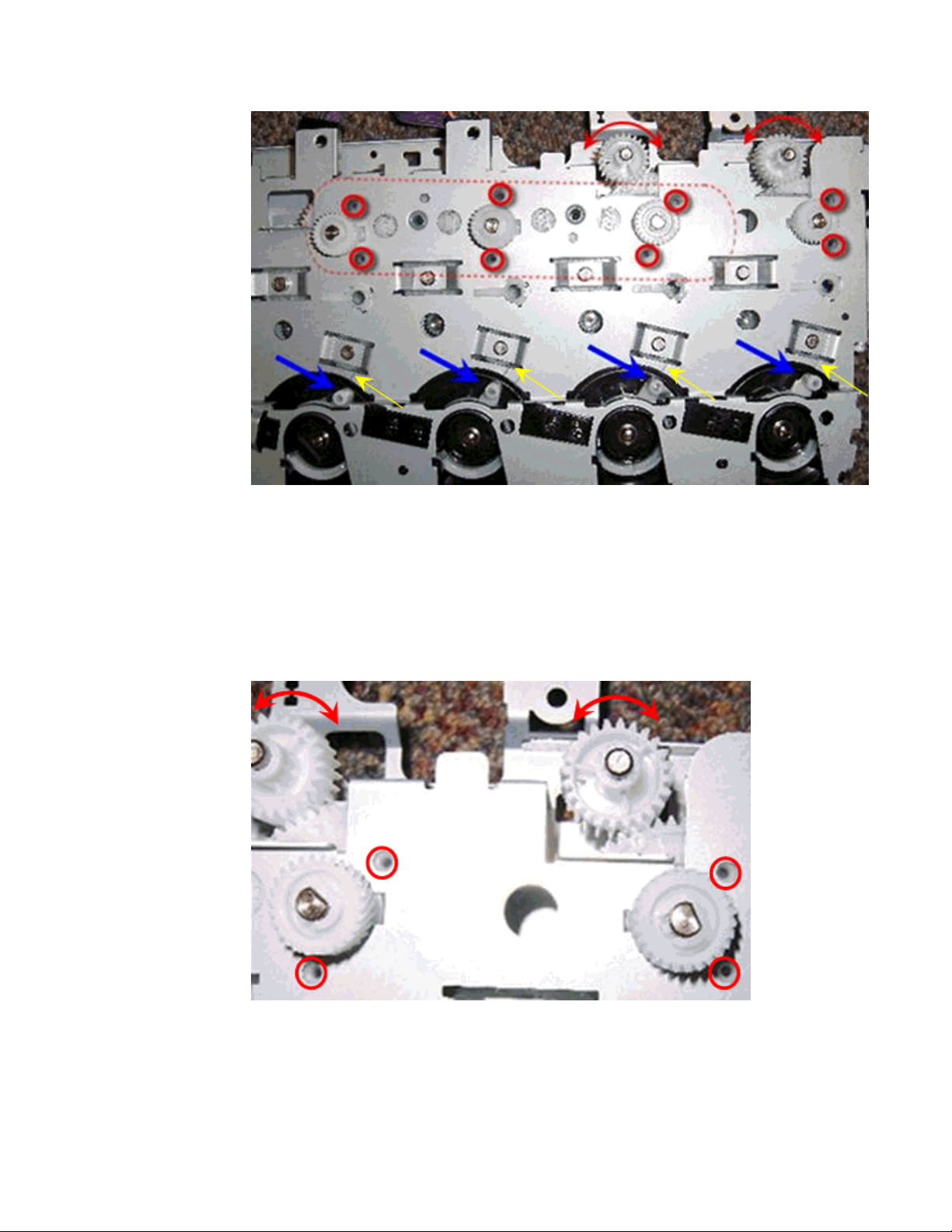

8. Remove the main drive assembly (MDA). There are six screws attaching the MDA to the chassis. Carefully note the locations of the screws to be removed.
CAUTION: Removing the incorrect screws could lead to opening up the MDA, requiring a unit replacement!
NOTE: Two gears may fall off, there are instructions in step 16 on how to align them during the re-installation process.

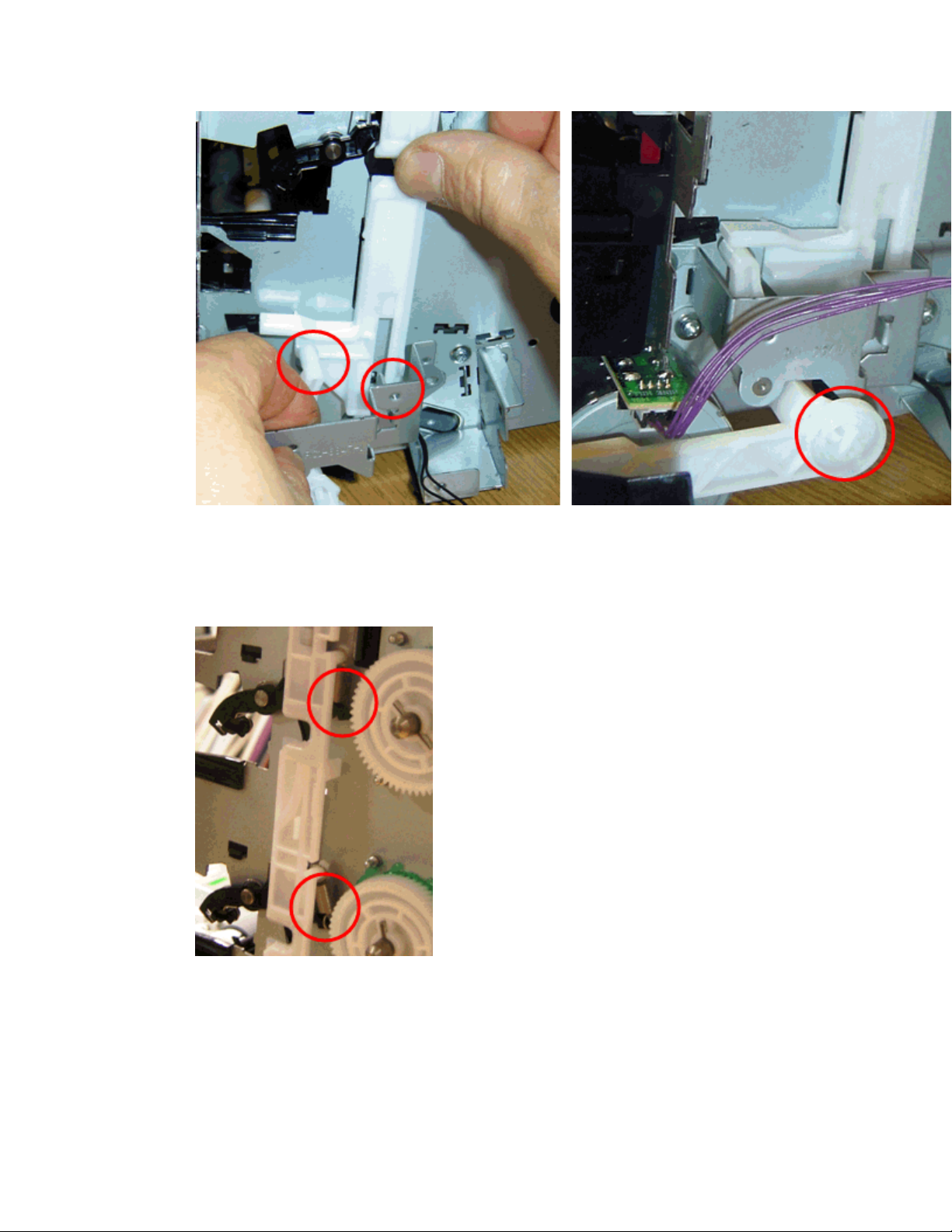

Remove the metal case by removing two screws. Remove the White Link Arm (see arrow in figure below)
9. Remove the white slide lever by pushing down from the top to release it from the two tabs. Carefully remove the lever by pulling out, be aware that four springs are attached to this lever and the individual cartridge locks.

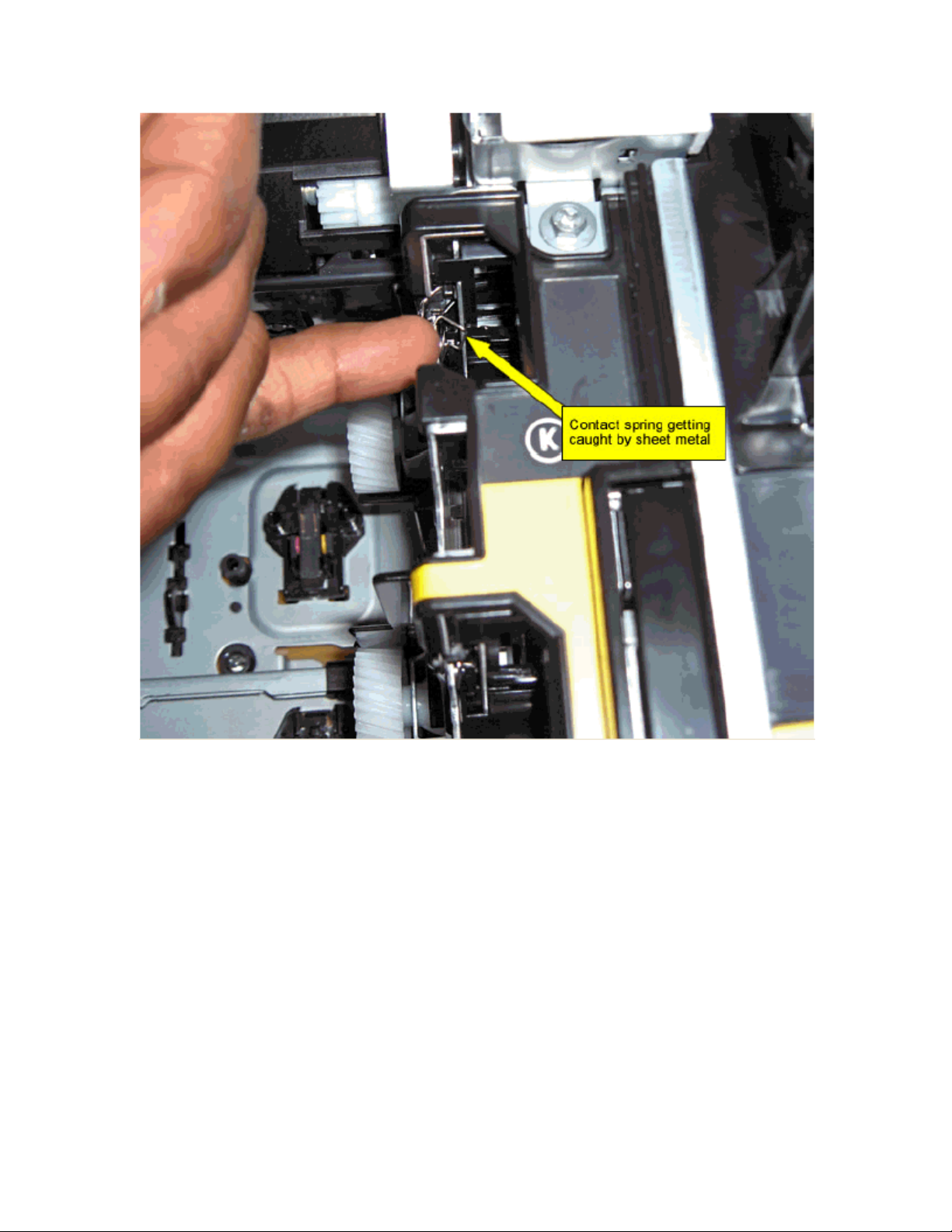

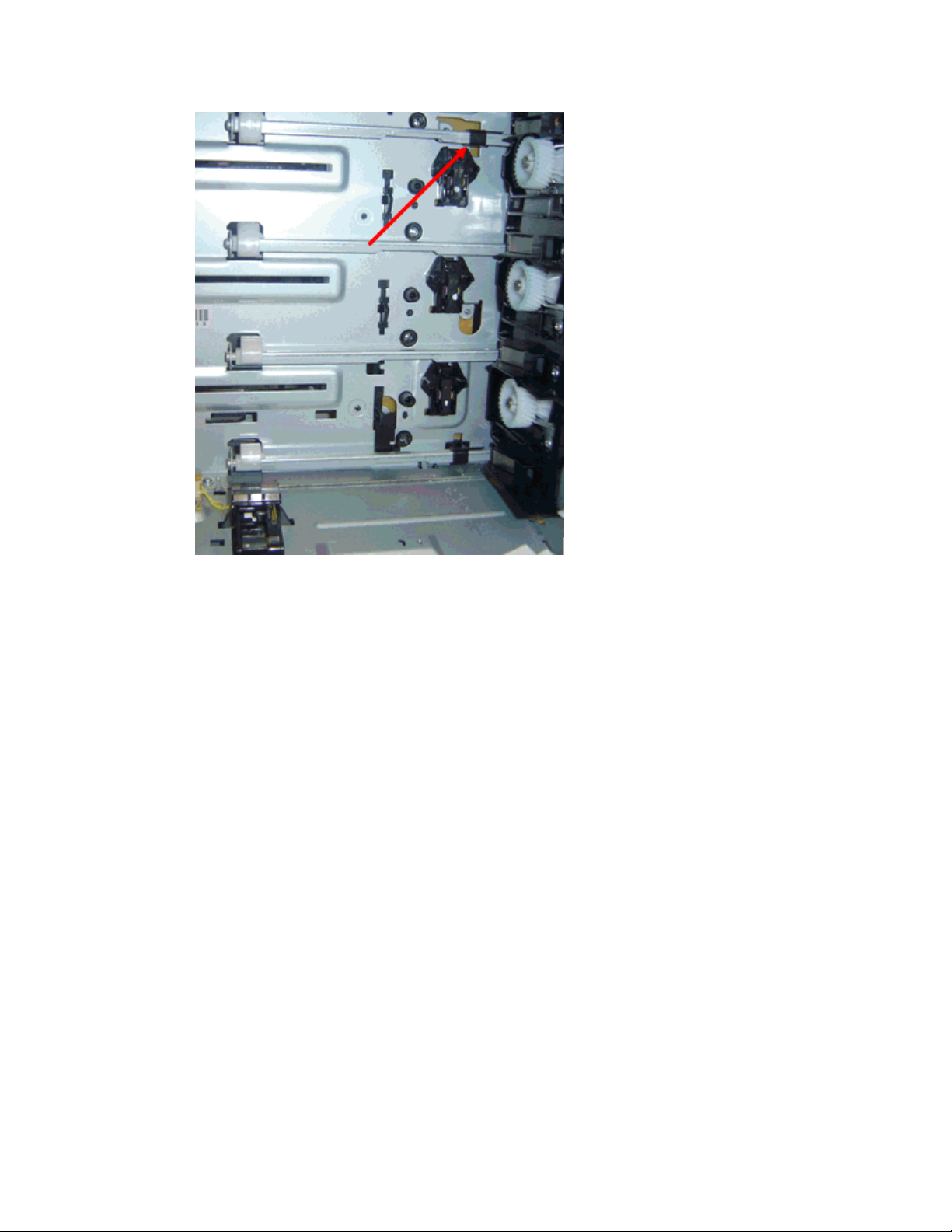

10. Once the sliding lever is removed, the cartridge locks can be accessed. The new grounding springs are not on the new cartridge locks and will need to be attached. Look at the current springs on the machine for guidance, and at the instructions below. Make sure to feed the hooked end through the hole at the end of the lock to begin with (See figure below.).

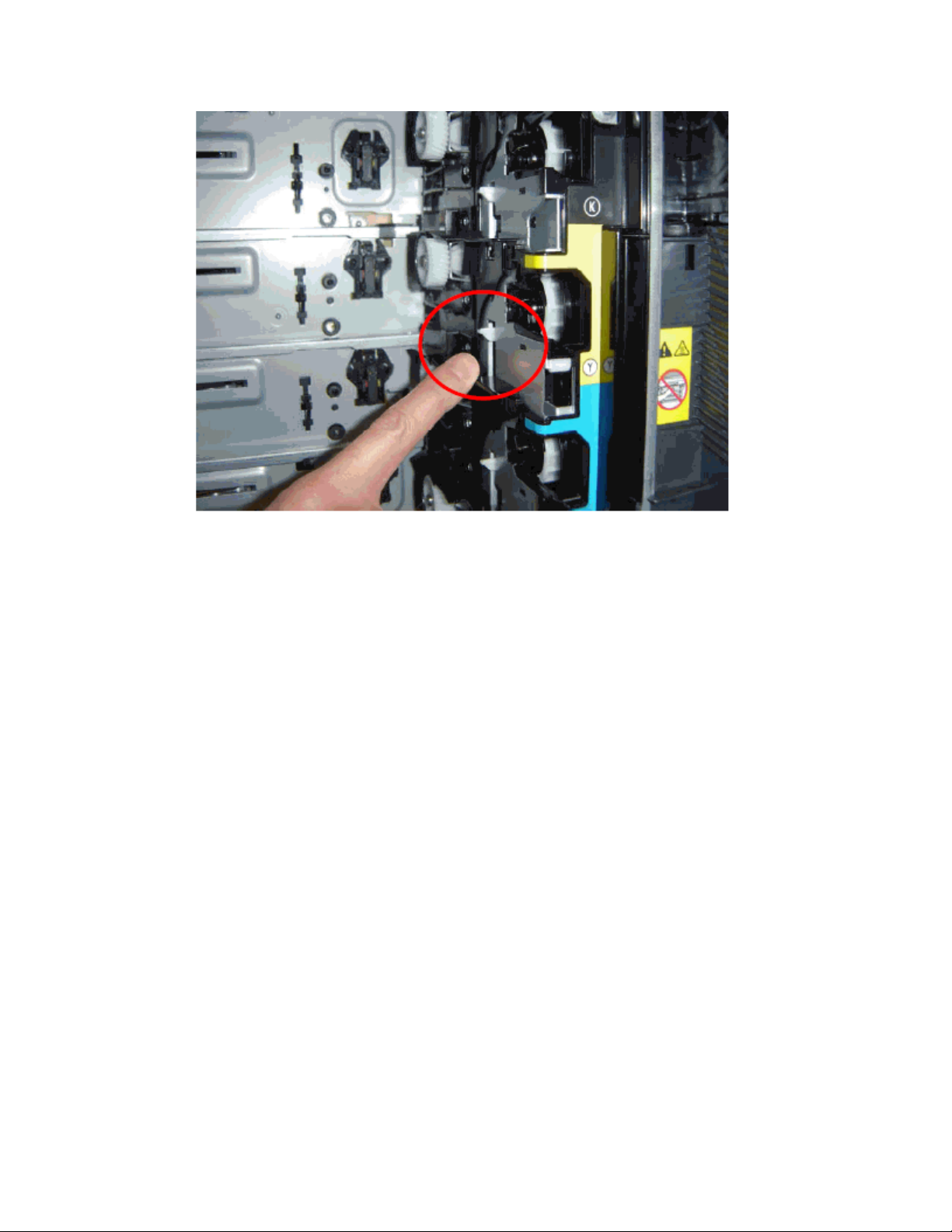

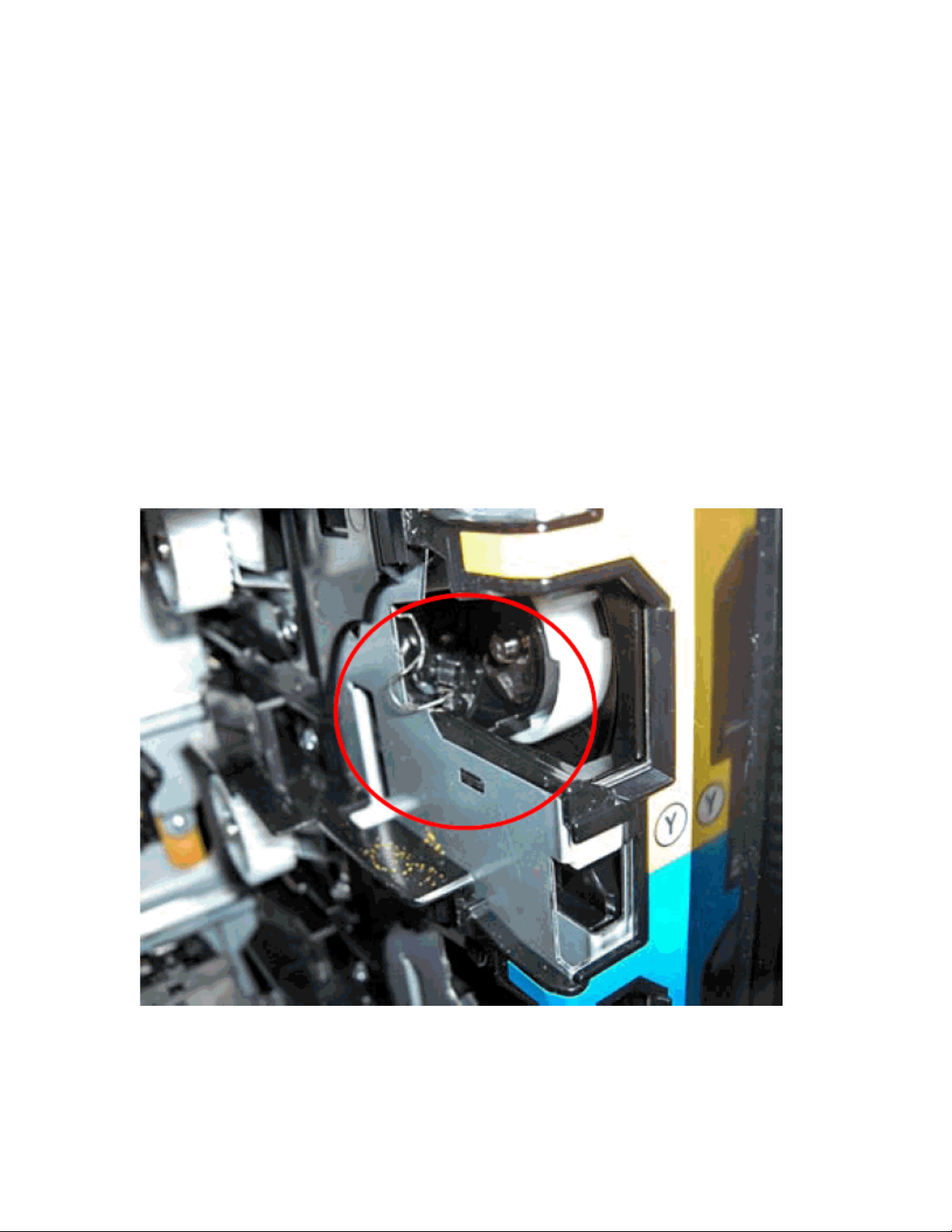

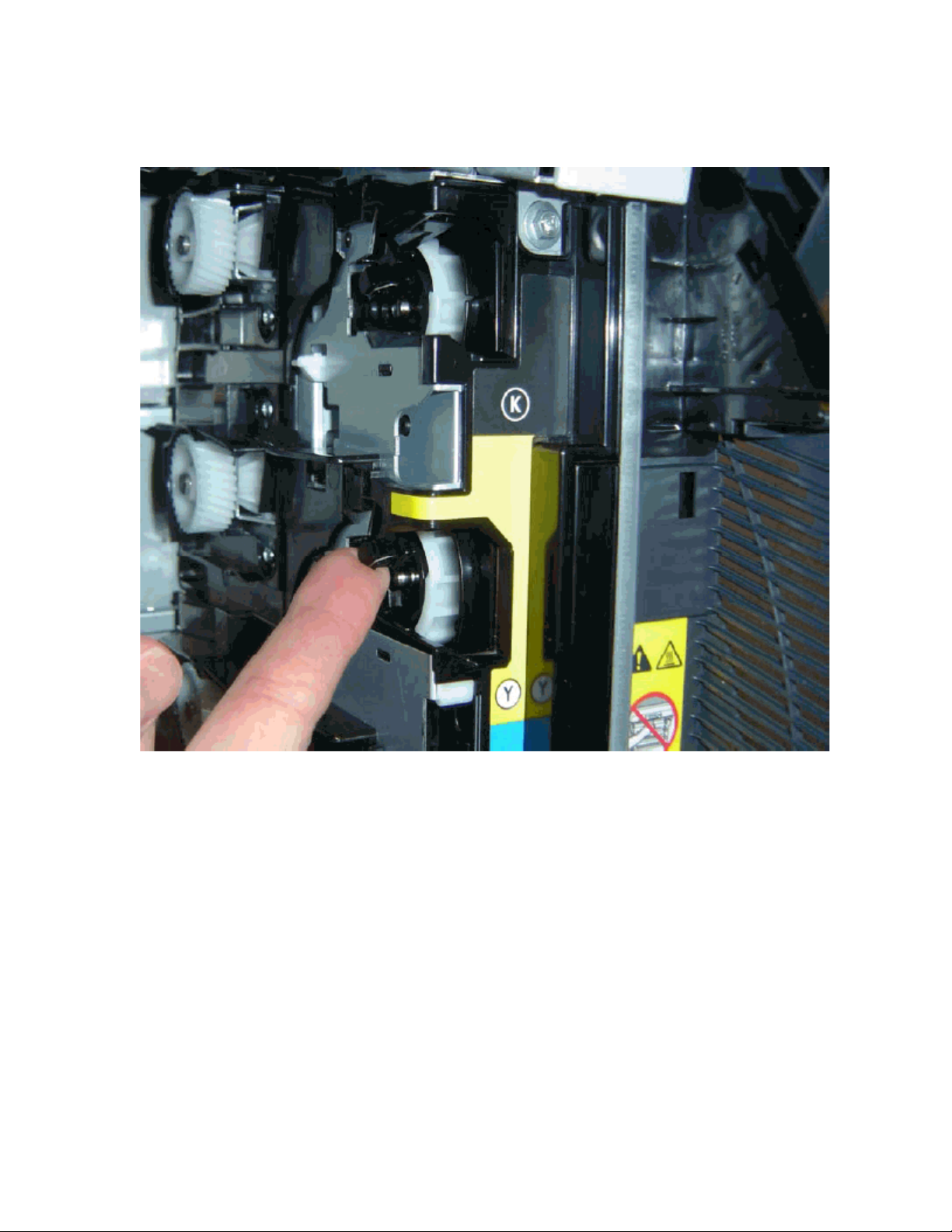

NOTE: The service kit has four new locks and four new springs in it, replace all the locks and springs, even if they are not currently broken. The new kit has white colored countermeasured locks. The picture below shows an old black non-countermeasured lock.
