HP 315EU User Manual
QuickSpecs
Overview

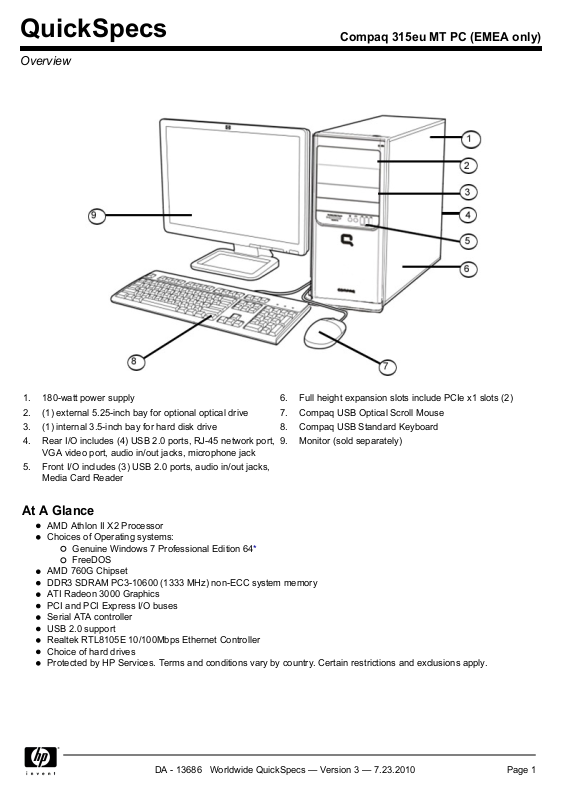

Compaq 315eu MT PC (EMEA only)
1.
180-watt power supply
2.
(1) external 5.25-inch bay for optional optical drive
3.
(1) internal 3.5-inch bay for hard disk drive
4.
Rear I/O includes (4) USB 2.0 ports, RJ-45 network port,
VGA video port, audio in/out jacks, microphone jack
5.
Front I/O includes (3) USB 2.0 ports, audio in/out jacks,
Media Card Reader
6.
Full height expansion slots include PCIe x1 slots (2)
7.
Compaq USB Optical Scroll Mouse
8.
Compaq USB Standard Keyboard
9.
Monitor (sold separately)
At A Glance
AMD Athlon II X2 Processor
Choices of Operating systems:
Genuine Windows 7 Professional Edition 64
FreeDOS
AMD 760G Chipset
DDR3 SDRAM PC3-10600 (1333 MHz) non-ECC system memory
ATI Radeon 3000 Graphics
PCI and PCI Express I/O buses
Serial ATA controller
USB 2.0 support
Realtek RTL8105E 10/100Mbps Ethernet Controller
Choice of hard drives
Protected by HP Services. Terms and conditions vary by country. Certain restrictions and exclusions apply.
*
DA - 13686 Worldwide QuickSpecs — Version 3 — 7.23.2010
Page 1
QuickSpecs
Compaq 315eu MT PC (EMEA only)
Standard Features and Configurable Components (availability may vary by country)
Processor and Speed
One of the following
Operating Systems and
Application Software
(availability varies by
region)
AMD Athlon II Dual Core Processors with HyperTransport Technology:
AMD Athlon II X2 215 Processor (2.7 GHz, 2MB L2 cache, HT bus 3.0)
Preinstalled
* System may require upgraded and/or separately purchased hardware and/or a DVD drive to
install the Windows 7 software and take full advantage of Windows 7 functionality.
See:
http://www.microsoft.com/windows/windows-7/
+ Windows 7 Professional disk may also be included for future upgrade if desired. To qualify for
this downgrade an end user must be a business (including governmental or educational
institutions) and is expected to order annually at least 25 customer systems with the same custom
image.
2007 Microsoft Office Ready PC
PDF Complete
CyberLink LabelPrint
CyberLink Power2Go
LightScribe Runtime
HP Vision Diagnostics
Corel WinDVD
CyberLink Recovery Manager
McAfee Total Protection - Small Business
++ Supporting software available with certain optical drive configurations
Genuine Windows 7 Professional Edition 64
FreeDOS
for details.
*
Hard Drives
System Memory
Optical Drive
Input Devices
320-GB Serial ATA 3.0-Gb/s NCQ, Smart IV (7200 rpm)
500-GB Serial ATA 3.0-Gb/s NCQ, Smart IV (7200 rpm)
640-GB Serial ATA 3.0-Gb/s NCQ, Smart IV (7200 rpm)
750-GB Serial ATA 3.0-Gb/s NCQ, Smart IV (7200 rpm)
2-GB DDR3 Synch DRAM 1333-MHz Non-ECC (2 x 1GB)
2-GB DDR3 Synch DRAM 1333-MHz Non-ECC (1 x 2GB)
3-GB DDR3 Synch DRAM 1333-MHz Non-ECC (1 x 2GB, 1x1GB)
4-GB DDR3 Synch DRAM 1333-MHz Non-ECC (2 x 2GB)
NOTE:
For systems configured with more than 3 GB of memory and a 32-bit operating system, all
memory may not be available due to system resource requirements. The actual memory speed for
DDR3 SDRAM depends on the maximum speed supported by the processor; for example, it may
be limited to 1066 MHz.
SATA SuperMulti LightScribe DVD Writer Drive
Keyboard
Compaq USB Standard Keyboard
Mouse
Compaq USB Optical Scroll Mouse
DA - 13686 Worldwide QuickSpecs — Version 3 — 7.23.2010
Page 2
QuickSpecs
Compaq 315eu MT PC (EMEA only)
Standard Features and Configurable Components (availability may vary by country)
Audio
Communication
Graphics
ALC662-VC1 5.1 channel codec
3D audio compliant and HD Audio compatible
Realtek RTL8105E 10/100Mbps Ethernet Controller
ATI Radeon 3000 Graphics
DA - 13686 Worldwide QuickSpecs — Version 3 — 7.23.2010
Page 3
QuickSpecs
System Details
Compaq 315eu MT PC (EMEA only)
Base Unit
Slots
Bays
USB Support
Interfaces
Micro ATX microtower chassis, including power supply and front bezel
Two (2) drive bays and two (2) expansion slots
Active type heatsink
System board with AMD 760G chipset, Realtek RTL8105E 10/100 Ethernet controller, ATI
Radeon 3000 graphics, and Realtek audio, (2) PCIe x1 slots, (2) DDR3 DIMM memory
slots, (4) Serial ATA data connectors
Product documentation on HDD Image
HP system restore thru HDD restore
Power cord
PCI
Memory Expansion
Internal
External
EHCI high-speed USB 2.0 controller
Three (3) front ports; Four (4) rear ports, Two (2) internal ports on system board
Front
: (3) USB 2.0 ports, audio in/out jacks
Rear
: (4) USB 2.0 ports, RJ-45 network port, VGA video port, audio in/out jacks, microphone jack
Two (2) full-height PCIe x1 slots
Two (2) DDR3 SDRAM DIMM slots (4 GB maximum memory support)
One (1) 3.5"
One (1) 5.25"
Weight & Dimensions
Technology and
Features
Chassis Dimensions
(H x D x W)
Packaged Dimensions
(L x H x W)
System Weight
Shipping Weight
Memory Type
Hard Drive Interfaces
Supported
373 x 365 x 165mm
14.68 x 14.37 x 6.49 in
585 x 498 x 245mm
23.03 x 19.61 x 9.65
22.4 lb (10.2 kg)
30.8 lb (14.0 kg)
PC3-10600 DDR3 SDRAM (1333MHz) non-ECC
Up to 4-GB maximum system memory supported
Serial ATA
DA - 13686 Worldwide QuickSpecs — Version 3 — 7.23.2010
Page 4
QuickSpecs
System Details
Compaq 315eu MT PC (EMEA only)
Chassis
Unit Environment and
Operating Conditions
Front Panel
Cooling Solutions
Supported
Slots Supported
Front I/O
Rear I/O
Drive Bays
Internal Speaker
Security
Power Supply
General Unit Operating Guidelines
Keep the computer away from excessive moisture, direct moisture and the extremes of heat
and cold, to ensure that unit is operated within the specified operating range.
Leave a 4 in (10.2 cm) clearance on all vented sides of the computer to permit the required
airflow.
Never restrict airflow into the computer by blocking any vents or air intakes.
Do not stack computers on top of each other or place computers so near each other that
they are subject to each other's re-circulated or preheated air.
Occasionally clean the air vents on the front, back, and any other vented side of the
computer. Lint, dust and other foreign matter can block the vents and limit the airflow.
If the computer is to be operated within a separate enclosure, intake and exhaust ventilation
must be provided on the enclosure, and the same operating guidelines listed above will still
apply.
Temperature Range
Relative Humidity
Maximum Altitude
(unpressurized)
NOTE:
Operating temperature is de-rated 1.0 deg C per 1000 ft (300 m) to 10,000 ft (3000 m)
above sea level, no direct sustained sunlight. Maximum rate of change is 10 deg C/Hr. The upper
limit may be limited by the type and number of options installed.
Power button
Power On LED
HDD Activity LED
Power Supply Fan (variable speed)
Active heatsink (variable speed)
Chassis fan
Two (2) full-height expansion slots
(3) USB 2.0 ports, audio in/out jacks
(4) USB 2.0 ports, RJ-45 network port, VGA video port, audio in/out
jacks, microphone jack
One (1) 5-1/4" external
One (1) 3-1/2" internal
N/A
Padlock loop
Kensington Lock Support
Support for chassis padlocks and cable lock devices
180-watt ATX Power Supply - PFC/non-PFC with a 115v/230v line
switch (varies by country/region)
Operating
Non-operating
Operating
Non-operating
Operating
Non-operating
32° to 104° F (0° to 40° C)
-22° to 149° F (-30° to 65° C)
10% to 90% (non-condensing at ambient)
5% to 95% (non-condensing at ambient)
10,000 ft (3048 m)
30,000 ft (9000 m)
DA - 13686 Worldwide QuickSpecs — Version 3 — 7.23.2010
Page 5
QuickSpecs
System Details
Compaq 315eu MT PC (EMEA only)
System Board
Processor
PWM
Chipset
Super I/O
Front Side Bus
Frequency
Memory
Clock Generator
Integrated Graphics
Audio
LOM
Storage
Expansion Slots
BIOS
Industrial Standard
Rear Side I/O Ports
On Board I/O Interfaces
Board Size
Additional Features
Socket AM3; industry standard Micro ATX form factor
Supports AMD Phenom™ II Quad and Dual Core processors, AMD
Athlon™ II Quad, Triple, and Dual Core processors
ISL6312 - 3 Phase
AMD 760G
IT8758E
HT3 (up to 5.2GT/s)
DDR3 SDRAM
2 x DIMM slots
SLG8LP625TTR
ATI Radeon 3000
ALC662-VC1 5.1 channel codec
Realtek RTL8105E 10/100 Fast Ethernet controller
Four Serial ATA interfaces (hard drive and optical drive)
2 x PCIe x1 slots
SPI EEPROM
PCI 2.3 compliant
USB 2.0
4 x USB 2.0 ports
1 x RJ-45 10/100 port
1 x D-sub 15 pin analog VGA port
3 x audio ports
1 x ATX power connector
1 x +12V power connector
1 x Front panel connector, Switch, LED (ON/Flash/OFF)
2 x Fan headers for CPU, chassis, with voltage/fan speed control
1 x header to support 2 USB 2.0 ports at front side
1 x header to support 2 front (Headphone/Mic) audio ports
1 x header to support USB media reader
Micro-ATX, PCB Size: 9.6 x 9.6 in (24.38 x 24.38 cm)
4-layer PCB with green color
Bootable without keyboard, mouse or monitor
Keyboard/mouse/USB wake up
Support S3, S4 and S5
ACPI status
Hardware monitor capability
CPU fan speed control
Network Interface
Integrated Realtek
RTL8105E 10/100 Fast
Ethernet Controller
DA - 13686 Worldwide QuickSpecs — Version 3 — 7.23.2010
Hardware Highlights
Features
PCIe x1 interface
10-Mbps and 100-Mbps operation
Crossover detection and auto-correction
Wake-on-Lan and remote Wake-up (Wakeon-LAN supported from S3, S4 only. Not
supported from S5)
Page 6
