HP 3125 Specifications

Download

Page 1

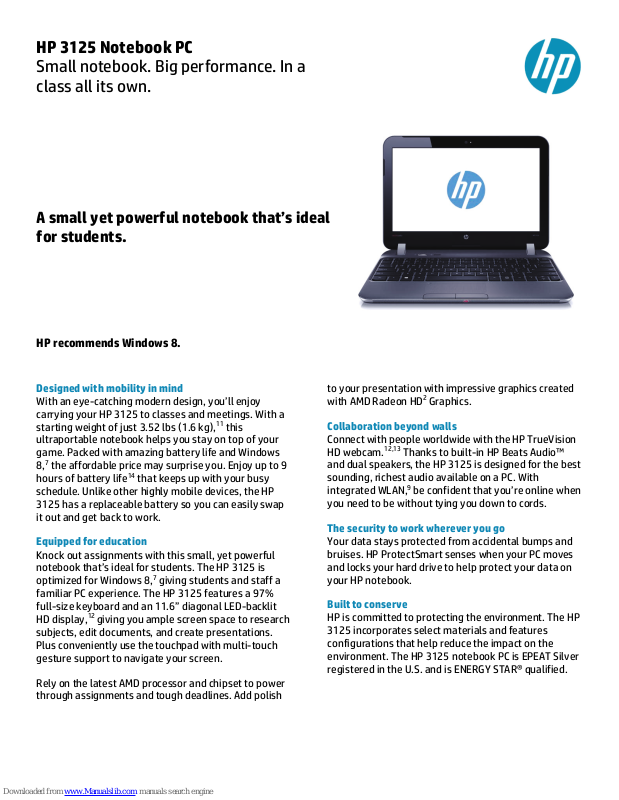

HP 3125 Notebook PC

Small notebook. Big performance. In a class all its own.

A small yet powerful notebook that’s ideal

for students.

HP recommends Windows 8.

Designed with mobility in mind

With an eye-catching modern design, you’ll enjoy carrying your HP 3125 to classes and meetings. With a starting weight of just 3.52 lbs (1.6 kg),11 this ultraportable notebook helps you stay on top of your game. Packed with amazing battery life and Windows 8,7 the affordable price may surprise you. Enjoy up to 9 hours of battery life14 that keeps up with your busy schedule. Unlike other highly mobile devices, the HP 3125 has a replaceable battery so you can easily swap it out and get back to work.

Equipped for education

Knock out assignments with this small, yet powerful notebook that’s ideal for students. The HP 3125 is optimized for Windows 8,7 giving students and staff a familiar PC experience. The HP 3125 features a 97% full-size keyboard and an 11.6” diagonal LED-backlit HD display, subjects, edit documents, and create presentations. Plus conveniently use the touchpad with multi-touch gesture support to navigate your screen.

Rely on the latest AMD processor and chipset to power through assignments and tough deadlines. Add polish

giving you ample screen space to research

to your presentation with impressive graphics created with AMD Radeon HD2 Graphics.

Collaboration beyond walls

Connect with people worldwide with the HP TrueVision HD webcam. and dual speakers, the HP 3125 is designed for the best sounding, richest audio available on a PC. With integrated WLAN,9 be confident that you’re online when you need to be without tying you down to cords.

The security to work wherever you go

Your data stays protected from accidental bumps and bruises. HP ProtectSmart senses when your PC moves and locks your hard drive to help protect your data on your HP notebook.

Built to conserve

HP is committed to protecting the environment. The HP 3125 incorporates select materials and features configurations that help reduce the impact on the environment. The HP 3125 notebook PC is EPEAT Silver registered in the U.S. and is ENERGY STAR® qualified.

12,13

Thanks to built-in HP Beats Audio™

Page 2

HP 3125 Notebook PC

HP recommends Windows 8.

SPECIFICATIONS

Operating system

Preinstalled

Windows 8 647 (emerging markets) Windows 8 Pro 647 FreeDOS

Supported

Windows 7 Professional Drivers18 (Web support only)

Processors1

AMD E2-2000 APU (1.75 GHz, 1 MB L2 cache, 1333 MHz) Dual Core 18W AMD E1-1500 APU (1.48 GHz, 1 MB L2 cache, 1066 MHz) Dual Core 18W

Chipset

AMD A68M FCH Chipset

Memory

2 GB/4 GB SODIMM DDR3 1333 MHz Single Channel Support (DDR3 –1600 downgrade to DDR3-1333 with E2-2000 APU) 2 GB/4 GB SODIMM DDR3 1066 MHz Single Channel Support (DDR3 –1600 downgrade to DDR3-1066 with E1-1500 APU) Two slots available to support dual-channel memory15, supports up to 8 GB total16

Internal storage2

320GB / 500GB 5400 rpm 7mm/9.5mm,2 HDD Protection Support / Accelerometer

Removable storage3

Optional HP External USB 2.0 DVD+/-R/RW Drive

3,6,8

Display

11.6-inch diagonal LED-backlit high definition12 BrightView (1366 x 768)

Expansion slots

Secure digital slot: supports SD, SDHC, SDXC and MMC

Graphics

AMD Radeon HD 7340 Graphics (E2-2000 APU) AMD Radeon HD 7310 Graphics (E1-1500 APU)

Audio/Visual

HP Beats Audio™, two integrated stereo speakers, integrated digital microphone, HP TrueVision HD

webcam13

Wireless Support

Ralink 802.11 b/g/n (1x1) + Bluetooth® Combo 4.0 HS,

9,10

Intel® Centrino® Advanced-N 6235 802.11a/b/g/n

(2x2) + Bluetooth® Combo

9,10

Ports and connectors

(2) USB 2.0 port, (1) USB 3.0, power connector, headphone-out jack, microphone–in jack, HDMI v1.4, VGA, RJ45 /Ethernet

Weight

Starting at 3.52 lb (<1.6 kg)11

Power

6-cell (55 WHr) lithium-ion battery, HP Smart 65W AC Adapter

Security

Security Lock Slot, (optional) HP Keyed Cable Lock6 and HP Notebook Combo Lock,6 Computrace Persistence Module,17 Norton Internet Security4

Configurable Software

Office Home & Business 2010, buy Microsoft Office to activate Office Software on this PC

Dimensions

8.46 x 11.48 x 0.83 front (1.25 rear) in / 215 x 291 x 21.1 front (31.9 rear) mm

Warranty and services

1-year limited warranty, terms and conditions may vary by country and region; optional HP Care Pack Services

5,6

available, see hp.com/go/lookuptool.

Page 3

HP 3125 Notebook PC

HP recommends Windows 8.

Windows 87

HP TrueVision HD

webcam

11.6-inch diagonal LED-backlit HD

BrightView display

HP Beats Audio™, two integrated stereo speakers

Page 4

HP 3125 Notebook PC

HP recommends Windows 8.

© Copyright 2013. Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Adobe is a trademark of Adobe Systems Incorporated. AMD is a trademark of Advanced Micro Devices, Inc. Bluetooth is a trademark of its proprietor and used by Hewlett-Packard Company under license. ENERGY STAR is a registered mark owned by the U.S. government. Intel Centrino is a trademark of Intel Corporation in the United States and other countries. All other trademarks are the property of their respective owners.

4AA4-4854ENA, January 2013

1. This system requires a separately purchased 64-bit operating system and 64-bit software products to take advantage of the 64-bit processing capabilities of the AMD 64 processor. Given the wide range of software applications available, performance of a system including a 64-bit operating system will vary. Multi- Core is designed to improve performance of multithreaded software products and hardwareaware multitasking operating systems and may require appropriate operating system software for full benefit. Not all customers or software applications will necessarily benefit from use of this technology. This PC does not support the AMD over-clocking feature. AMD’s numbering is not a measurement of clock speed.

2. For hard drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 16GB (for Windows 7) of system and up to 36GB (for Windows 8) disk is reserved for system recovery software.

3. Don’t copy copyright-protected materials. Actual speeds may vary. Double Layer media compatibility will widely vary with some home DVD players and DVD-ROM drives. Note that DVD-RAM cannot read or write to 2.6GB Single Sided/5.2 Double Sided-Version 1.0 Media.

4. 60 day trial period. Internet access required to receive updates. First update included. Subscription required for updates thereafter. This software is licensed to you by the manufacturer under the terms of its end user license agreement.

5. Service levels and response times for HP Care Packs may vary depending on geographic location. Restrictions and limitations apply. Service starts at date of hardware purchase. For details, visit hp.com/go/carepack.

6. Sold separately or as an optional feature.

7. Not all features are available in all editions of Windows 8. Systems may require upgraded and/or separately purchased hardware, drivers and/or software to take full advantage of Windows 8 functionality. See microsoft.com.

8. As HD DVD is a new format containing new technologies, certain disc, digital connection, compatibility and/or performance issues may arise, and do not constitute defects in the product. Flawless playback on all systems is not guaranteed. In order for some HD-DVD titles to play, they may require an HDMI digital connection and your display may require HDCP support. Blu-ray disks cannot be played on this drive. Note that DVD-RAM cannot read or write to 2.6GB Single Sided/5.2 GB Double Sided – Version 1.0 media. Actual speeds may vary. Don’t copy copyright-protected materials. Double Layer discs can store more data than single layer discs; discs burned with this drive may not be compatible with many existing single-layer DVD drives and players.

9. Wireless use requires separately purchased service contract. Check with your local vendor for coverage area and availability in your area. Connection and speeds will vary due to location, environment, network conditions, and other factors.

10. Wireless access point and Internet service required and sold separately. Availability of public wireless access points limited.

11. Weight will vary by configuration.

12. HD content required to view HD image.

13. Internet access required.

14. Testing conducted by HP consisting of full battery discharge while running a series of productivity scripts against the following applications (which may or may not be included with your particular product): Adobe® Acrobat Reader 7.0, Adobe® Illustrator® CS2, Adobe® Photoshop® CS2, Apple® QuickTime 7.1, Intervideo® WinDVD® 8, Macromedia® Flash 8, Microsoft® Office® 2003 Pro, Microsoft® Project 2003, and WinZip®

10.0. Prior to testing, the system was fully charged and set to display brightness of 60 nits, auto dim disabled, wireless off, suspend and hibernate disabled and all other programs, utilities, and services not essential to running the computer system or battery life test. Battery life will vary depending on the product model, configuration, loaded applications, features, use, wireless functionality and power management settings. The maximum capacity of the battery will naturally decrease with time and usage.

15. Dual Channel is only supported when the system is configured with DDR2 symmetric memory (i.e. 2x256).

16. Maximum memory capacities require Windows 64-bit operating systems or Linux. With Windows 32-bit operating systems, memory above 3 GB may not all be available due to system resource requirements.

17. The Computrace Agent is shipped turned off and must be activated by customers when they purchase a subscription. Subscriptions can be purchased for terms ranging from one to five years. Service is limited, check with Absolute Software for service availability outside of North America. The Absolute Recovery Guarantee is a limited warranty. Certain conditions apply. Data Delete is an optional service provided by Absolute Software. If utilized, the Recovery Guarantee is null and void. In order to use the Data Delete service, customers must first sign a Pre-Authorization agreement and then purchase one or more RSA SecurID tokens from Absolute Software. For more information, visit absolute.com.

18. System may require upgraded and/or separately purchased hardware to take full advantage of Windows 7 functionality. Not all features are in all editions of Windows 7. See microsoft.com/windows/windows-7/ for details.
