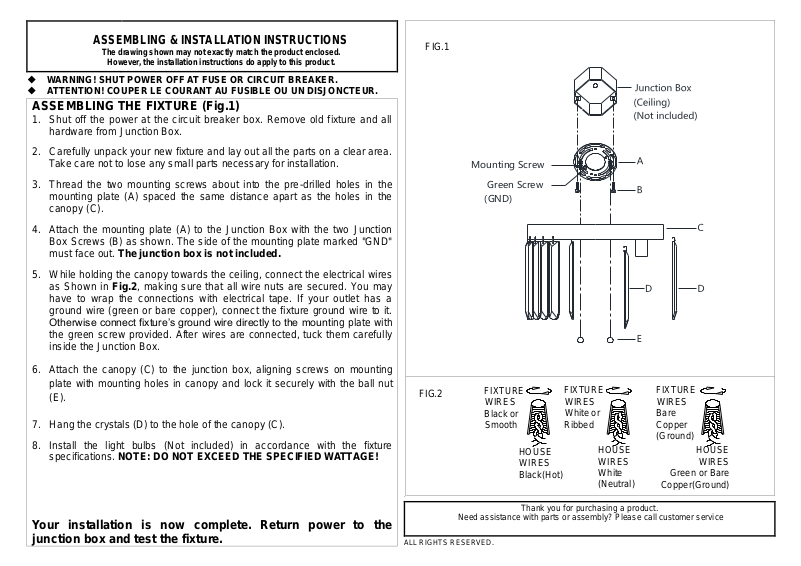

ASSEMBLING & INSTALLATION INSTRUCTIONS
The drawing shown may not exactly match the product enclosed.
However, the installation instructions do apply to this product.
ASSEMBLING THE FIXTURE (Fig.1)
1. Shut off the power at the circuit breaker box. Remove old fixture and all
hardware from Junction Box.
2. Carefully unpack your new fixture and lay out all the parts on a clear area.
Take care not to lose any small parts necessary for installation.
3. Thread the two mounting screws about into the pre-drilled holes in the
mounting plate (A) spaced the same distance apart as the holes in the
canopy (C).
4. Attach the mounting plate (A) to the Junction Box with the two Junction
Box Screws (B) as shown. The side of the mounting plate marked "GND"
must face out. The junction box is not included.
5. While holding the canopy towards the ceiling, connect the electrical wires
as Shown in Fig.2, making sure that all wire nuts are secured. You may
have to wrap the connections with electrical tape. If your outlet has a
ground wire (green or bare copper), connect the fixture ground wire to it.
Otherwise connect fixture’s ground wire directly to the mounting plate with
the green screw provided. After wires are connected, tuck them carefully
inside the Junction Box.
6. Attach the canopy (C) to the junction box, aligning screws on mounting
plate with mounting holes in canopy and lock it securely with the ball nut
(E).
7. Hang the crystals (D) to the hole of the canopy (C).
8. Install the light bulbs (Not included) in accordance with the fixture
specifications. NOTE: DO NOT EXCEED THE SPECIFIED WATTAGE!
Your installation is now complete. Return power to the
junction box and test the fixture.
Green Screw
(GND)
Mounting Screw
FIXTURE
WIRES
Black or
Smooth
HOUSE
WIRES
Black(Hot)
FIXTURE
WIRES
White or
Ribbed
FIXTURE
WIRES
Bare
Copper
(Ground)
HOUSE
WIRES
White
(Neutral)
HOUSE
WIRES
Green or Bare
Copper(Ground)
FIG.2
FIG.1
WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER.
ATTENTION! COUPER LE COURANT AU FUSIBLE OU UN DISJONCTEUR.
`
Thank you for purchasing a product.
Need assistance with parts or assembly? Please call customer service
ALL RIGHTS RESERVED.
