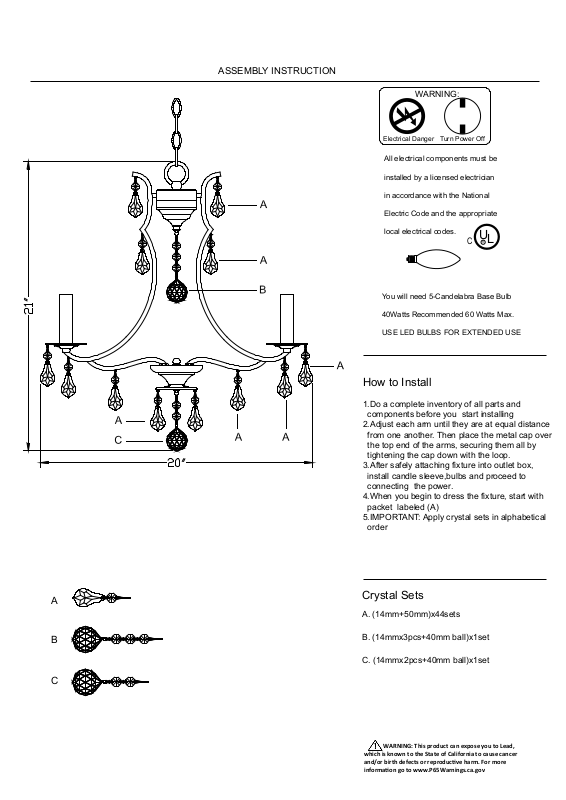

Page 1
ASSEMBLY INSTRUCTION
WARNING:
Electrical Danger Turn Power Off
All electrical components must be
installed by a licensed electrician
in accordance with the National
Electric Code and the appropriate
local electrical codes.
You will need 5-Candelabra Base Bulb
40Watts Recommended 60 Watts Max.
USE LED BULBS FOR EXTENDED USE
U
L
R
C
How to Install
1.Do a complete inventory of all parts and
components before you start installing
2.Adjust each arm until they are at equal distance
from one another. Then place the metal cap over
the top end of the arms, securing them all by
tightening the cap down with the loop.
3.After safely attaching fixture into outlet box,
install candle sleeve,bulbs and proceed to
connecting the power.
4.When you begin to dress the fixture, start with
packet labeled (A)
5.IMPORTANT: Apply crystal sets in alphabetical
order
A
Crystal Sets
A. (14mm+50mm)x44sets
B
B. (14mmx3pcs+40mm ball)x1set
C. (14mmx2pcs+40mm ball)x1set
C
WARNING: This product can expose you to Lead,
which is known to the State of California to cause cancer
and/or birth defects or reproducve harm. For more
informaon go to www.P65Warnings.ca.gov
Page 2
ASSEMBLY INSTRUCTION

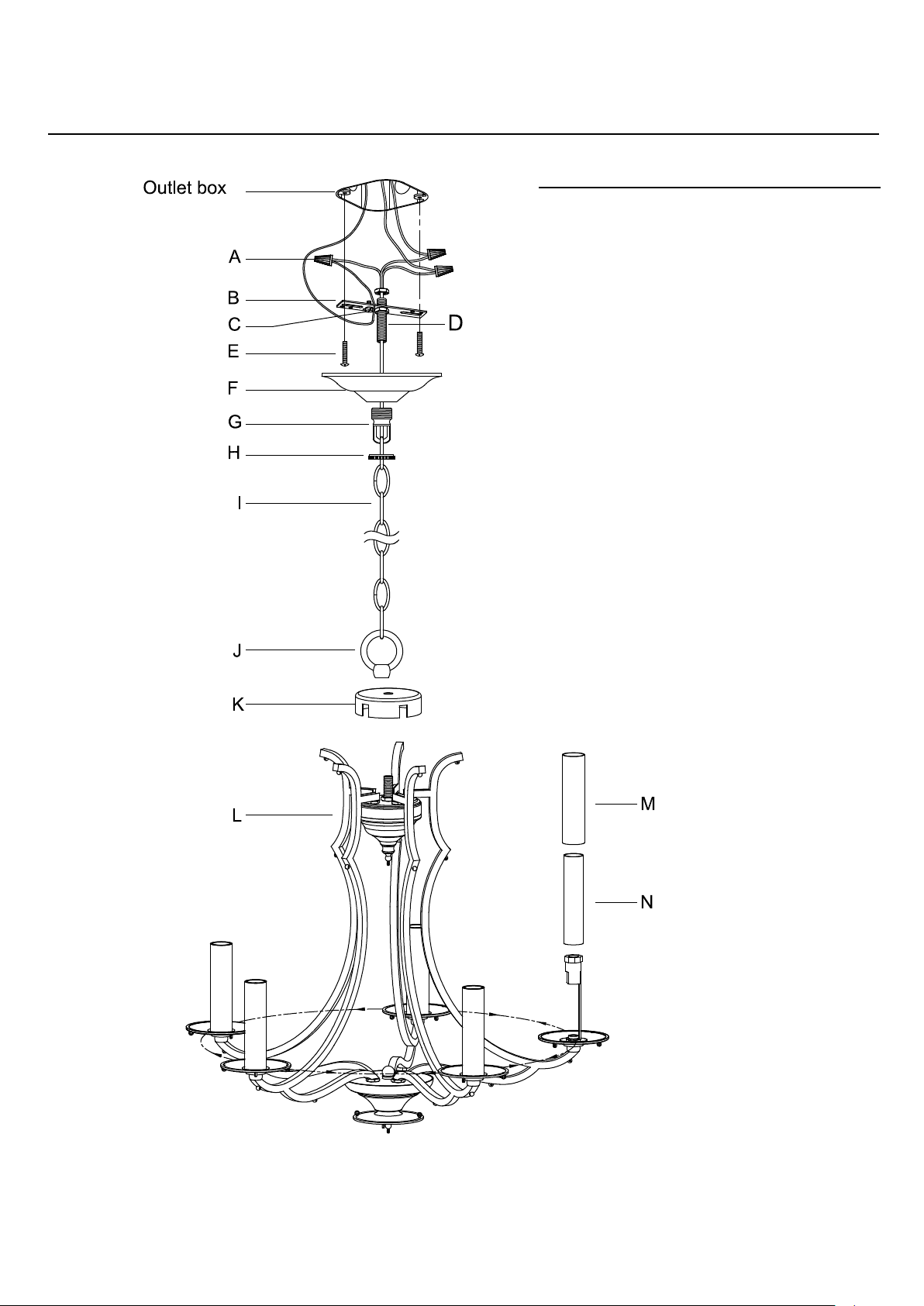

Part Number
Part Numbers
A. (3)-Wire Connector
B. (1)-Mounting Plate
C. (1)-Ground Screw
D. (1)-Nipple
E. (2)-Outlet Box Screws
F. (1)-Canopy (W5.29”xH1.25”)
G. (1)-Collar Loop
H. (1)-Collar Ring
K. (1)-Metal cap
M. (5)-Metal Sleeve (H4”)
N. (5)-Plastic Sleeve (H4”)
I. (1)-Chain;72”,4mm
J. (1)-Loop
L. (1)-Frame
