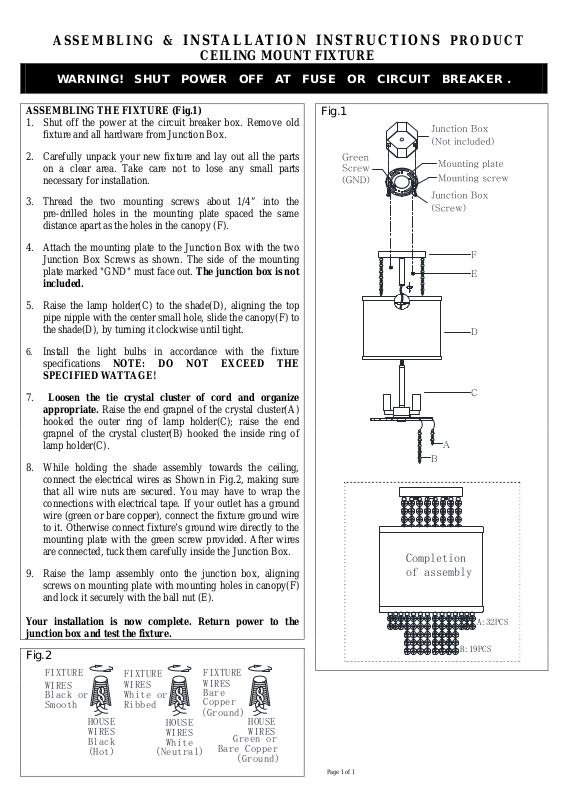

ASSEMBLING & INSTALLATION INSTRUCTIONS PRODUCT
CEILING MOUNT FIXTURE
WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER .
ASSEMBLING THE FIXTURE (Fig.1)
1. Shut off the power at the circuit breaker box. Remove old
fixture and all hardware from Junction Box.
2. Carefully unpack your new fixture and lay out all the parts
on a clear area. Take care not to lose any small parts
necessary for installation.
3. Thread the two mounting screws about 1/4” into the
pre-drilled holes in the mounting plate spaced the same
distance apart as the holes in the canopy (F).
4. Attach the mounting plate to the Junction Box with the two
Junction Box Screws as shown. The side of the mounting
plate marked "GND" must face out. The junction box is not
included.
5. Raise the lamp holder(C) to the shade(D), aligning the top
pipe nipple with the center small hole, slide the canopy(F) to
the shade(D), by turning it clockwise until tight.
6. Install the light bulbs in accordance with the fixture
specifications NOTE: DO NOT EXCEED THE
SPECIFIED WATTAGE!
7. Loosen the tie crystal cluster of cord and organize
appropriate. Raise the end grapnel of the crystal cluster(A)
hooked the outer ring of lamp holder(C); raise the end
grapnel of the crystal cluster(B) hooked the inside ring of
lamp holder(C).
8. While holding the shade assembly towards the ceiling,
connect the electrical wires as Shown in Fig.2, making sure
that all wire nuts are secured. You may have to wrap the
connections with electrical tape. If your outlet has a ground
wire (green or bare copper), connect the fixture ground wire
to it. Otherwise connect fixture’s ground wire directly to the
mounting plate with the green screw provided. After wires
are connected, tuck them carefully inside the Junction Box.
9. Raise the lamp assembly onto the junction box, aligning
screws on mounting plate with mounting holes in canopy(F)
and lock it securely with the ball nut (E).
Your installation is now complete. Return power to the
junction box and test the fixture.
Fig.2
FIXTURE
WIRES
Black or
Smooth
HOUSE
WIRES
Black
(Hot)
FIXTURE
WIRES
White or
Ribbed
HOUSE
WIRES
White
(Neutral)
FIXTURE
WIRES
Bare
Copper
(Ground)
Green or
Bare Copper
(Ground)
HOUSE
WIRES

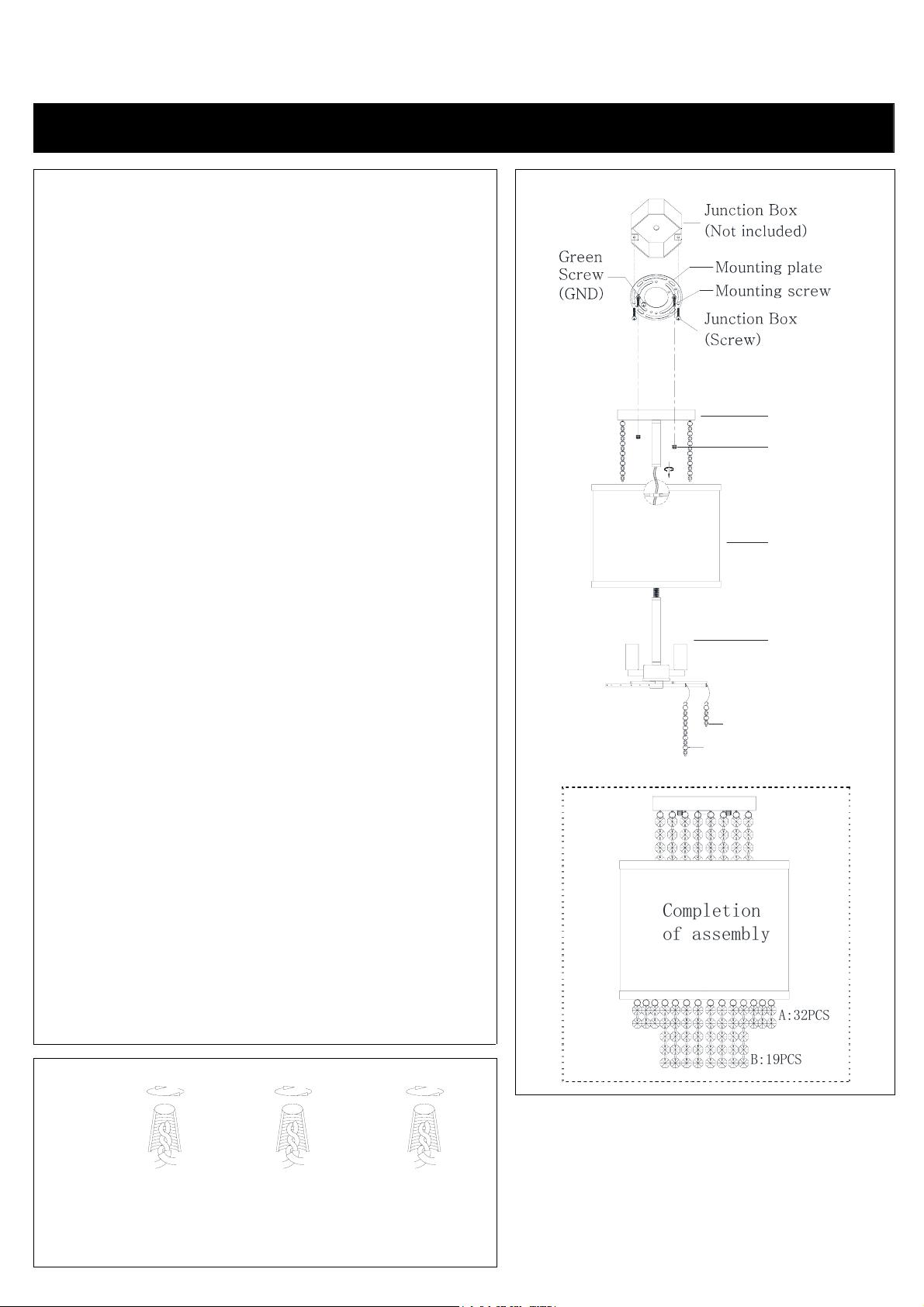

Fig.1
Page 1 of 1
A
B
Completion
of assembly
B:19PCS
F
E
D
C
A:32PCS
