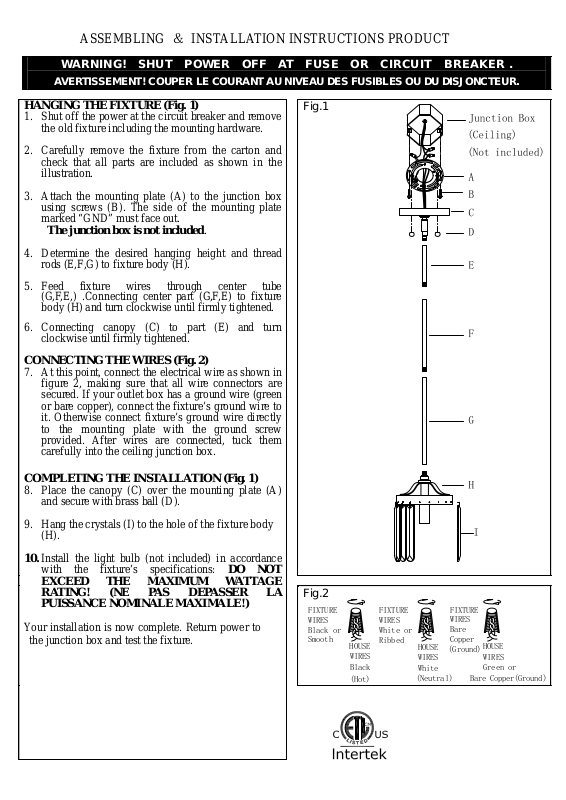

ASSEMBLING ＆ INSTALLATION INSTRUCTIONS PRODUCT
ARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER .
AVERTISSEMENT! COUPER LE COURANT AU NIVEAU DES FUSIBLES OU DU DISJONCTEUR.

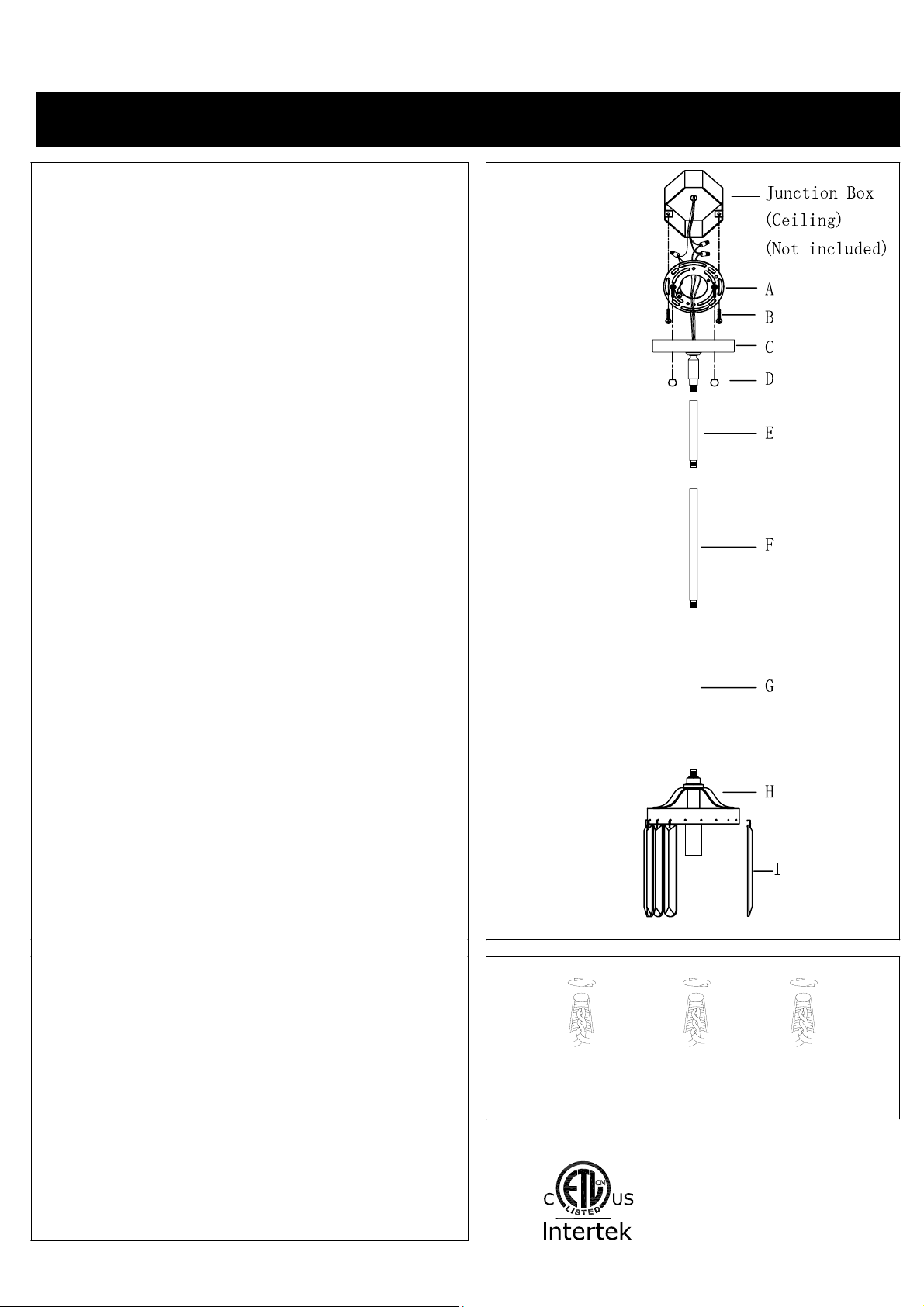

HANGING THE FIXTURE (Fig. 1)
1. Shut off the power at the circuit breaker and remove
the old fixture including the mounting hardware.
2. Carefully remove the fixture from the carton and
check that all parts are included as shown in the
illustration.
3. Attach the mounting plate (A) to the junction box
using screws (B). The side of the mounting plate
marked “GND” must face out.
The junction box is not included.
4. Determine the desired hanging height and thread
rods (E,F,G) to fixture body (H).
5. Feed fixture wires through center tube
(G,F,E,) .Connecting center part (G,F,E) to fixture
body (H) and turn clockwise until firmly tightened.
6. Connecting canopy (C) to part (E) and turn
clockwise until firmly tightened.
CONNECTING THE WIRES (Fig. 2)
7. At this point, connect the electrical wire as shown in
figure 2, making sure that all wire connectors are
secured. If your outlet box has a ground wire (green
or bare copper), connect the fixture’s ground wire to
it. Otherwise connect fixture’s ground wire directly
to the mounting plate with the ground screw
provided. After wires are connected, tuck them
carefully into the ceiling junction box.
COMPLETING THE INSTALLATION (Fig. 1)
8. Place the canopy (C) over the mounting plate (A)
and secure with brass ball (D).
9. Hang the crystals (I) to the hole of the fixture body
(H).
10. Install the light bulb (not included) in accordance
with the fixture’s specifications: DO NOT
EXCEED THE MAXIMUM WATTAGE
RATING! (NE PAS DEPASSER LA
PUISSANCE NOMINALE MAXIMALE!)
Your installation is now complete. Return power to
the junction box and test the fixture.
Fig.1
Fig.2
FIXTURE
WIRES
Black or
Smooth
FIXTURE
WIRES
Bare
Copper
(Ground)
HOUSE
WIRES
Green or
Bare Copper(Ground)
HOUSE
WIRES
Black
(Hot)
FIXTURE
WIRES
White or
Ribbed
HOUSE
WIRES
White
(Neutral)
