Operating instructions

DISHWASHER

English,1

Türkçe, 37

LFF 8214E

Español, 13 Português, 25

Contents

Installation, 2-3

Positioning and levelling Connecting the water and electricity supplies Advice regarding the first wash cycle Technical data

Description of the appliance, 4

Overall view Control panel

Loading the racks, 5

Lower rack Cutlery basket Upper rack

Start-up and use, 6-7

Starting the dishwasher Measuring out the detergent Wash options

Wash cycles, 8

Table of wash cycles

Rinse aid and refined salt, 9

Measuring out the rinse aid Measuring out the refined salt

Care and maintenance, 10

Shutting off the water and electricity supplies Cleaning the dishwasher Preventing unpleasant odours Cleaning the sprayer arms Cleaning the water inlet filter Cleaning the filters Leaving the machine unused for extended periods

Precautions, advice and Assistance,11

General safety Disposal Saving energy and respecting the environment Assistance

Troubleshooting, 12

Installation

Keep this instruction manual in a safe place for future reference. If the appliance is sold, given away or moved, please ensure the manual is kept with the machine, so that the new owner may benefit from the advice contained within it.

Please read this instruction manual carefully: it contains important information regarding the safe installation, use and maintenance of the appliance.

If the appliance must be moved at any time, keep it in an upright position; if absolutely necessary, it may be tilted onto its back.

This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments;

- farm houses;

- by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments.

Positioning and levelling

1. Remove the appliance from all packaging and check that it has not been damaged during transportation. If it has been damaged, contact the retailer and do not proceed any further with the installation process.

Connecting the water inlet hose

 To a suitable cold water connection point: before attaching

the hose, run the water until it is perfectly clear so that any impurities that may be present in the water do not clog the appliance; after performing this operation, screw the inlet hose tightly onto a tap with a ¾ gas threaded connection.

 To a suitable hot water connection point: your dishwasher

may be supplied with hot water from the mains supply (if you have a central heating system with radiators) provided that it does not exceed a temperature of 60°C. Screw the hose to the tap as described for connection to a cold water supply.

If the inlet hose is not long enough, contact a specialist

store or an authorised technician (see Assistance).

The water pressure must be within the values indicated in

the Technical data table (see adjacent information).

The hose should not be bent or compressed.

Connecting the water outlet hose

Connect the outlet hose (without bending it) to a drain duct with a minimum diameter of 4 cm.

2. Check the dishwasher by placing it so that its sides or back panel are in contact with the adjacent cabinets or even with the wall. This appliance can also be recessed under a single worktop

3. Position the dishwasher on a level and sturdy floor. If the floor is uneven, the front feet of the appliance may be adjusted until it reaches a horizontal position. If the appliance is levelled correctly, it will be more stable and much less likely to move or cause vibrations and noise while it is operating.

4 appliance on the central lower part of the dishwasher, turning a hexagonal spanner (red color) with an opening of 8 mm in a clockwise direction to increase the height or in an anticlockwise direction to decrease the height.

* (see the Assembly instruction sheet).

*. Adjust the height of the rear foot from the front of the

Connecting the water and electricity supplies

Connection to the water and electricity supplies should only be performed by a qualified technician.

The dishwasher should not stand on top of the water hoses or the electricity supply cable.

The appliance must be connected to the water supply network using new hoses. Do not use old hoses.

The water inlet and outlet hoses and the electricity supply cable may be positioned towards the right or the left in order to achieve the best possible installation.

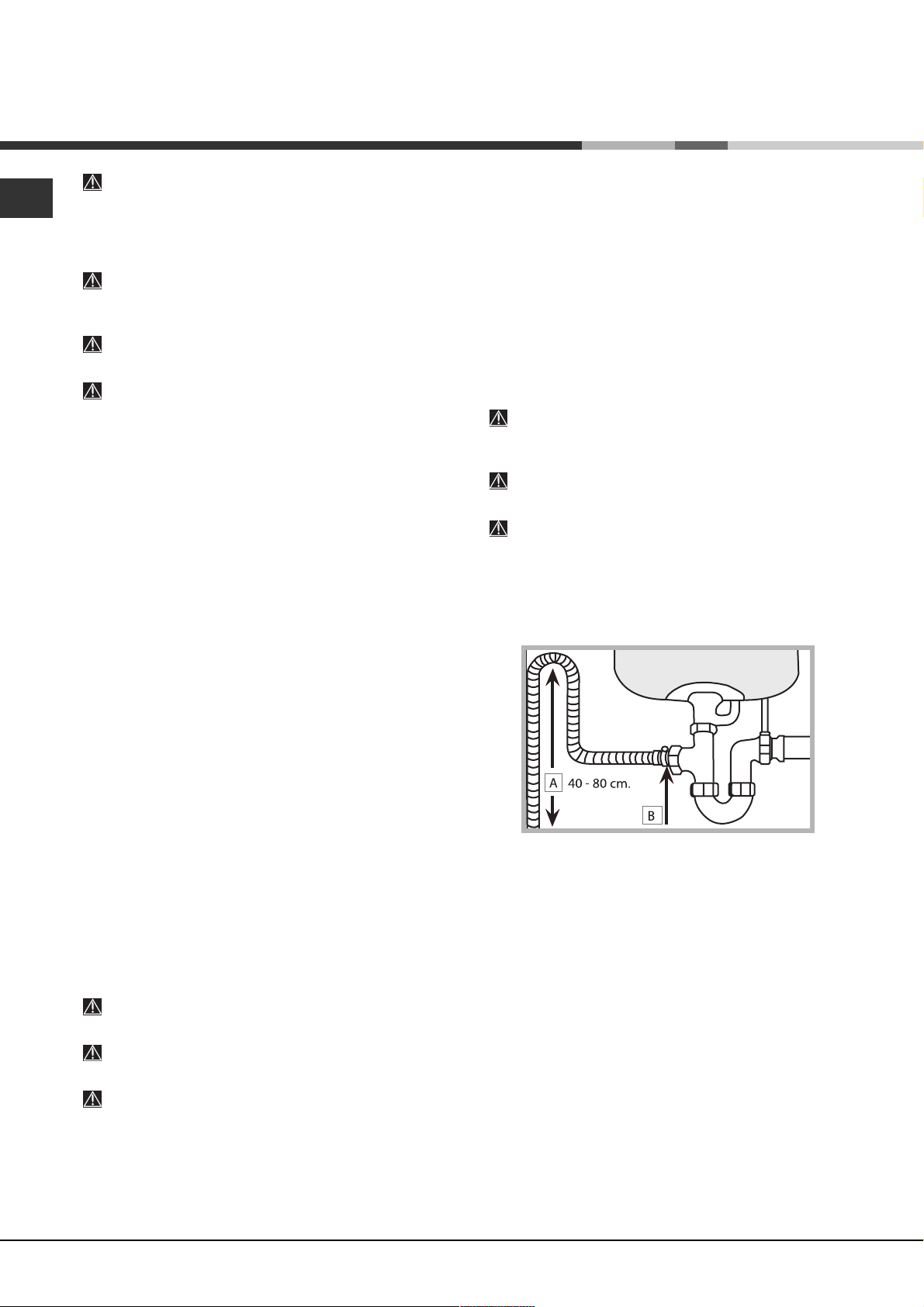

The outlet hose must be at a height ranging from 40 to 80 cm from the floor / surface where the dishwasher rests (A). Before connecting the water outlet hose to the sink drain, remove the plastic plug (B).

Anti-flooding protection

To ensure floods do not occur, the dishwasher:

- is provided with a special system which blocks the water supply in the event of anomalies or leaks from inside the appliance.

Some models are also equipped with the supplementary safety device New Acqua Stop flooding protection even in the event of a supply hose rupture.

WARNING: HAZARDOUS VOLTAGE!

Under no circumstance should the water inlet hose be cut as it contains live electrical parts.

*, which guarantees anti-

* Only available in selected models.

Electrical connection

Before inserting the plug into the electrical socket, make sure that:

 The socket is earthed and complies with current

regulations.

 The socket can withstand the maximum load of the

appliance, which is indicated on the data plate located on the inside of the door (see chapter entitled Description of the appliance).

 The power supply voltage falls within the values indicated

on the data plate on the inside of the door.

 The socket is compatible with the plug of the appliance. If

this is not the case, ask an authorised technician to replace the plug (see Assistance); do not use extension cables or multiple sockets.

Once the appliance has been installed, the power supply

cable and the electrical socket should be easily accessible.

The cable should not be bent or compressed.

If the power supply cable is damaged, it must be replaced by the manufacturer or its Technical Assistance Service in order to prevent all potential hazards. (See Assistance)

The Company shall not be held responsible for any incidents that occur if these regulations are not observed.

Anti-condensation strip*

After installing the dishwasher, open the door and stick the adhesive transparent strip under the wooden shelf in order to protect it from any condensation which may form.

Advice regarding the first wash cycle

After the appliance has been installed, immediately before running the first wash cycle, completely fill the salt dispenser with water and add only then approximately 1 kg of salt (see chapter entitled Rinse aid and refined salt). The water may overflow: this is normal and is not a cause for concern. Select the water hardness value (see chapter entitled Rinse aid and refined salt). machine, the LOW SALT indicator light

If the salt container is not filled, the water softener and the

heating element may be damaged as a result.

- After the salt has been poured into the

* switches off.

Technical data

Dimensions

Capacity 14 standard place-settings

Water supply pressure

Power supply voltage

Total absorbed power

Fuse See appliance data plate

width 60 cm height 85 cm depth 60 cm

0,05 ÷ 1MPa (0.5 ÷ 10 bar) 7,25 – 145 psi

See appliance data plate

This dishwasher conforms to the following European Community Directives:

-2006/95/EC (Low Voltage)

-2004/108/EC (Electromagnetic Compatibility)

-2005/32/EC (Comm. Reg. 1275/2008) (Ecodesign)

-2002/96/EC Waste Electrical and Electronic Equipment (WEEE)

* Only available in selected models.

Description of the appliance

Overall view

1. Upper rack

2. Upper sprayer arm

3. Tip-up compartments

4. Rack height adjuster

5. Lower rack

6. Lower sprayer arm

7. Cutlery basket

8. Washing filter

9. Salt dispenser

10. Detergent and rinse aid dispensers

11. Data plate

12. Control Panel

***

Control panel

Select wash

cycle button

Low salt

indicator light*

ON/OFF

indicator light

ON/OFF/Reset

button

Low rinse aid indicator light*

Wash cycle indicator lights

Delayed start button

Extra Dry option

button and

indicator light*

and indicator light*

Multi-functional tablets

button and indicator light*

Time remaining light-up display

Half load button and indicator light*

Washing indicator light

Drying indicator light

End indicator light

Start/Pause button and indicator light

***Only in completely built-in models. * Only available in selected models.

The number and type of wash cycles and options may vary depending on the dishwasher model.

Loading the racks

Before loading the racks, remove all food residues from the crockery and empty liquids from glasses and cups.

After loading the appliance, check that the sprayer arms can rotate freely.

Lower rack

The lower rack can hold pans, lids, plates, salad bowls, cutlery, etc. as seen in the Loading examples. Plates and large covers should be placed at the sides of the rack, ensuring that they do not block the rotation of the upper sprayer arm.

Some dishwasher models are fitted with tip-

up sections which can be

used in a vertical position when arranging plates or in a horizontal position when arranging pans and salad bowls.

Cutlery basket

The type of cutlery basket may vary according to the dishwasher model: it may be modular, non-modular or a sliding version. The non-modular basket must only be positioned at the front of the lower rack.

The modular basket may be separated into two parts, a solution which is recommended

when performing a half load wash (only in models offering this option), is available in a sliding version (positioned at any point on the lower rack by sliding it between the fixed or tip-up inserts.

- Both versions are fitted with a collapsible sliding system which means the cutlery can be arranged in the best possible way.

Knives and other utensils with sharp edges must be placed in the cutlery basket with the points facing downwards, or they must be positioned horizontally in the tip-up compartments on the upper rack.

Tilt A Tilt B Tilt C

- Lift the tip-up compartment, slide it gently and position it in the desired tilt angle.

Adjusting the height of the upper rack

In order to make it easier to arrange the crockery, the upper rack may be moved to a higher or lower level. (in models which offer the Baby cycle, the upper rack must be placed in its lower position when the appliance is being loaded).

The height of the upper rack should ideally be adjusted

WHEN THE RACK IS EMPTY.

Never lift or lower the rack on one side only.

Open the left and right guide rail stops and pull out the rack; position it higher or lower as required, slide it along the guide rails until the front wheels are in place and close the stops (see figure).

If the rack is fitted with Dual Space handles until it reaches its stop point, grip the handles at the sides of the rack and move it upwards or downwards, then slowly let it fall back into place.

* (see figure), pull out the upper rack

Loading examples for the upper/lower rack

Cutlery basket positioning examples

Upper rack

Load this rack with delicate and lightweight crockery: glasses, tea and coffee cups, saucers, small salad bowls, saucepans and small saucepans which are not too soiled, using the Loading examples as a guide.  Mugs and cups, long sharp knives and serving utensils: place these on the tip-up compartments

Tip-up compartments with adjustable tilt

- The tilt feature can be used to increase the space in the upper rack, to position wine glasses with different stem lengths safely and to improve drying performance.

**.

Baby Tip-up compartments

For dishwasher models with a Baby Cycle, tipup compartments suitable for washing bottles, rings and teats are provided. (see the instruction sheet)

Items which should not be washed in the dishwasher

 Wooden items, objects with wooden or horn handles or glued-

on parts.  Items made from aluminium, copper, brass, pewter or tin.  Items made from plastic material which is not heat-resistant.  Antique or hand-painted porcelain.  Antique silver. Silver which is not antique may, however, be

washed in the dishwasher using a delicate wash cycle,

provided that it does not come into contact with other metals.

We recommend the use of crockery which is dishwasher safe.

* Only available in selected models. ** The number and position may vary.

Start-up and use

Starting the dishwasher

1. Turn the water tap on.

2. Premere il tasto ON-OFF: si sente un breve bip, tutte le spie e il display si illuminano per alcuni secondi.

2. Press the ON/OFF button: you will hear a short beep; all the indicator lights and the display will light up for a few seconds.

3. Open the door and pour in a suitable amount of detergent (see below).

4. Load the racks (see Loading the racks) and shut the door.

5. Select the wash cycle in accordance with the type of crockery and its soil level (see Table of wash cycles) by pressing the P button.

6. Select the wash options

7. Start the cycle by pressing the Start/Pause button: a long beep signals the start of the wash cycle, the washing cycle indicator light switches on and the time remaining until the end of the cycle is displayed.

8. Two short beeps and one long one indicate the end of the wash cycle; the wash cycle indicator light flashes and the END indicator light switches on (fixed light). Switch off the appliance by pressing the ON/OFF button, shut off the water valve and unplug the appliance from the electricity socket.

9. Wait for a few minutes before removing the crockery, in order to avoid burns. Unload the racks, beginning with the lower level.

- The machine will switch off automatically during certain periods of inactivity, in order to minimise electricity consumption.

Modifying a wash cycle in progress

If a mistake was made during the wash cycle selection process it is possible to change the cycle, provided that it has only just begun: once the wash cycle has started, switch off the machine by pressing and holding the ON/OFF/Reset button. Switch it back on using the same button and select the desired wash cycle and options.

* (see adjacent information).

Measuring out the detergent

A good wash result also depends on the correct amount of detergent being used; exceeding the stated amount does not result in a more effective wash and increases environmental pollution.

Only use detergent which has been specifically designed for dishwashers.

DO NOT USE washing up liquid.

Using excessive detergent may result in foam residue remaining in the machine after the cycle has ended.

The use of tablets is only recommended for models which offer the MULTI-FUNCTIONAL TABLETS option.

To achieve the best results from each washing and drying cycle, powder detergent, rinse aid liquid and salt should be used.

Compartment A: Washing detergent Compartment B: Pre-wash detergent

when it requires 2, place the second tablet at the bottom of the appliance.

3. Remove detergent residues from the edges of the compartment and close the cover until it clicks.

1. Open cover C by pressing button D.

2. Pour in the detergent after consulting the Table of wash cycles:  For powder detergent use compartments A and B.  For detergent in tablet form: when the cycle requires 1 tablet, place it in compartment A and close the cover;

Adding extra crockery

Press the Start/Pause button (the corresponding indicator light will flash). Open the door, taking care to avoid the escaping steam, and place the crockery inside the appliance. Press the Start/Pause button (fixed light): the cycle will restart after a prolonged beep is emitted.

If the Start/Pause button is pressed so as to pause the machine, the wash cycle or the Delayed Start function (if selected) is interrupted. At this stage it is not possible to change the wash cycle.

Accidental interruptions

If the door is opened during the wash cycle, or if there is a power cut, the cycle stops. It starts again from the point at which it was interrupted once the door has been shut or once the electricity supply is restored.

* Only available in selected models.

Wash options*

The OPTIONS may only be set, modified or reset after the wash cycle has been selected and before the Start/ Pause button has been pressed.

Only the options which are compatible with the type of wash cycle set may be selected. If an option is not compatible with the selected wash cycle (see Table of wash cycles), the corresponding LED flashes rapidly 3 times and 2 short beeps will sound.

If an option is selected which is incompatible with another (previously selected) option, the indicator light corresponding to the option selected first will flash 3 times, 3 beeps will sound and it will be deselected, while the most recently selected option will remain active. To deselect an option which has been set by mistake, press the corresponding button again.

Extra drying*

To improve the dryness level of the crockery, press the EXTRA DRYING button; the indicator light will illuminate. If it is pressed again the option will be deselected.

The EXTRA DRYING option increases the duration of

the wash cycle.

Multi-functional tablets (Tabs)

This option optimises washing and drying results. When using multi-functional tablets, press the MULTIFUNCTIONAL TABLETS button. The corresponding indicator light will illuminate. The Multi-functional tablets option results in the lengthening of the wash cycle.

The MULTI-FUNCTIONAL TABLETS option remains

set for subsequent wash cycles if it is not deselected.

Half load using the upper rack

If there are not many dishes to be washed, a half load cycle may be used in order to save water, electricity and detergent. Select the wash cycle and press the HALF LOAD button: the indicator light will illuminate and the wash cycle will take place only in the upper rack.

Remember to load the upper rack only, and to

reduce the amount of detergent accordingly.

It is better to use powder detergent in this case.

This option is not compatible with the following

wash cycles: Speed and Baby.

Delayed start

It is possible to delay the start time of the cycle for a period of time between 1 and 24 hours.

1. After selecting the desired wash cycle and any other options, press the DELAYED START button: the corresponding indicator light will illuminate. Use the same button to select the time at which you wish the wash cycle to begin (after a period of 1 to 24 hours).

2. Confirm your selection using the Start/Pause button; the countdown will begin. The selected delay period indicator light flashes and the Start/Pause button stops flashing (the light becomes fixed instead).

3. When the set time has elapsed, a long beep sounds, the DELAYED START indicator light switches off and the wash cycle begins. To deselect the DELAYED START option, press the DELAYED START button repeatedly until the text OFF appears.

The Delayed Start function cannot be set once the

wash has been started.

The use of tablets is only recommended for models which offer the MULTI-FUNCTIONAL TABLETS option.

This option is not recommended for use with wash cycles which do not specify the use of multi-functional tablets

(see Table of options).

Table of options

Intensive

Normal

Daily A 60

Soak

Eco

Speed 25’

Crystal

Baby wash

A B C D

Delayed

Start

Yes

Half

Load

Tabs

Extra

Dry

Yes Yes Yes

Yes Yes No

Yes

No No

Yes Yes Yes

Yes No

Yes Yes Yes

No No

* Only available in selected models.

Wash cycles

For available OPTIONS please refer to the Table of options on the Start-up and use page.

If the crockery is only lightly soiled or if it has been rinsed with water before being placed in the dishwasher,

reduce the amount of detergent used accordingly.

The number and type of wash cycles and options may vary depending on the dishwasher model.

Wash cycle selection instructions

Heavily soiled dishes and pans (not to be used for delicate items).

Normally soiled pans and dishes. Standard daily wash cycle.

Limited quantity of daily soiling. (4 place settings + 1 saucepan +1 frying pan).

Pre-wash for dishes while awaiting completion of the load with the dishes from the next meal.

Environmentally-friendly wash cycle with low energy consumption levels, suitable for pans and dishes.

Economic and fast wash to be used for lightly soiled dishes. (Run cycle immediately after use) (2 plates + 2 glasses + 4 pieces of cutlery + 1 saucepan + 1 small frying pan).

Economic and fast wash for delicate items which are sensitive to high temperatures. (Run cycle immediately after use) (glasses upper rack + delicate plates, lower rack). Crystal

Disinfecting wash cycle suitable for washing bottles, rings and teats together with plates, cups, glasses and cutlery. The crockery should only be loaded on the upper rack.

Wash cycle

Intensive

Normal

Daily A 60

Soak

Eco

Baby Wash

Detergent (A) = compartment A (B) = compartment B

Powder Liquid Tablets

35 g (A)

29 g (A)

6 g (B)

25 g (A) 25 ml (A) 1 (A)

29 g (A)

6 g (B)

25 g (A) 25 ml (A) 1 (A)

35 g (A) 35 ml (A) 1 (A)

20 g (A) 20 ml (A)

35 ml (A)

29 ml (A)

6 ml (B)

29 ml (A)

6 ml (B)

1 (A)

Wash

cycles

which

include

drying

Yes A–B–C-D

Yes

Yes A–B-C-D

Yes

Options

A–B–C-D

A–B– C

A – B

A - C

A–B–C-D

Wash cycle

duration

(tolerance

±10%)

Hrs. Min.

2:25’

1:50’

1:00’

0:08’

2:55’

0:25’

1:30’

1:20'

Notes:

Optimum performance levels when using the "Daily wash" and "Speed wash" cycles can be achieved by observing the maximum amounts of crockery specified.

To make it easier to measure out the detergent, it is worth remembering that:

1 tablespoon = 15 grams of powder = approximately 15 ml of liquid - 1 teaspoon = 5 grams of powder = approximately 5 ml of liquid

* The Eco wash cycle adheres to the regulation EN-50242. Although it has a longer duration than other wash cycles it uses less

energy and is less harmful to the environment.

Note for Test Laboratories: for information relating to comparative EN testing conditions, please send an email to the following address: ASSISTENZA_EN_LVS@indesitcompany.com

Rinse aid and refined salt

Only use products which have been specifically designed for dishwashers. Do not use table salt or industrial salt, or washing up liquid. Follow the instructions given on the packaging.

If using a multi-functional product it is not necessary to add

rinse aid; however, we recommend that you add salt,

especially if you live in an area where the water is hard or very hard. Follow the instructions given on the packaging.

If you do not add salt or rinse aid, the LOW SALT

LOW RINSE AID

* indicator lights remain lit.

* and

Measuring out the rinse aid

Rinse aid makes it easier for the crockery to dry, as water runs off surfaces more readily and therefore does not leave streaks or marks. The rinse aid dispenser should be filled:  When the LOW RINSE AID panel is illuminated;

into the appliance tub.

Adjusting the amount of rinse aid

If you are not completely satisfied with the drying results, you may adjust the quantity of rinse aid used. Use a screwdriver to turn the dosage adjuster (F) to one of the 6 pre-set positions (the default position is set to 4):  If there are streaks on the crockery, set the adjustment device

to a lower number (1-3).

 If drops of water remain on the crockery or if there are

limescale marks present after the cycle has finished, set the adjuster to a higher number (4-6).

Setting the water hardness

Every dishwasher is equipped with a water softener which, by using refined salt designed especially for this type of appliance, supplies water without limescale which is then used to wash the crockery.

This dishwasher offers a setting which helps to reduce pollution and optimises washing performance in accordance with the water hardness level in your area. This information can be obtained from the organisation which supplies your household with water.

The water hardness adjustment procedure may vary depending on the dishwasher model purchased.

- Switch on the appliance by pressing the ON/OFF button.

- Press and hold the P button for a few seconds; after a short beep sounds, the water hardness setting will appear on the display and the Start/Pause button will begin to flash (the default water softening system setting is level !).

- Press the P button repeatedly until the desired hardness level has been reached (1-2-3-4-5 selected water hardness value will appear on the display.

* indicator light on the control

1. Open the dispenser by turning the lid (G) in an anticlockwise direction.

2. Pour in the rinse aid, making sure it does not overflow from the dispenser. If this happens, clean the spill

immediately with a dry cloth.

3. Screw the lid back on.

NEVER pour the rinse aid directly

* see Water hardness table). The

E.g.: hardness setting 1 ("1" appears on the display); hardness setting 2 ("2" appears on the display); hardness setting 3 ("3" appears on the display); etc., etc. up to a maximum of level 5. To exit the function, wait a few seconds or press one of the

option buttons button. Even if using multi-functional tablets, the salt dispenser should still be filled.

(°dH = hardness measured in German degrees - °f = hardness measured in French degrees - mmol/l = millimoles per litre)

*, or switch off the machine using the ON/OFF

Water Hardness Table

°dH °fH mmol/l level

0 6 0 10 0 1 1 6 11 11 20 1.1 2 2

12 17 21 30 2.1 3 3

17 34 31 60 3.1 6 4 34 50 61 90 6.1 9

For values between 0°f and 10°f, we do not recommend the use of salt. * this setting may cause a slight increase in the duration of the cycle.

Measuring out the refined salt

In order to achieve the best possible results using a wash cycle, make sure that the dispenser is never empty. Refined salt removes limescale from the water, thus avoiding the formation of deposits on crockery. The salt dispenser is located in the lower part of the dishwasher (see Description) and should be filled:  When the green float

the cap of the salt dispenser.  When the LOW SALT illuminated;

salt container right up to its edge (this should hold approximately 1 kg); it is not unusual for a little water to leak out.

4. Remove the funnel* and wipe any salt residue away from the opening; rinse the cap under running water and then screw it on, the head facing downwards so as to let the water flow out of the four cracks which are arranged in a star shape on the lower part of the cap. (the container cap with the green float*)

It is advisable to perform this procedure every time you add salt to the container.

Make sure the cap is screwed on tightly, so that no detergent can get into the container during the wash cycle (this could damage the water softener beyond repair).

When necessary, measure out the salt before a wash cycle so that any saline solution which has leaked out of the salt dispenser is removed.

* cannot be seen by simply looking at

* indicator light on the control panel is

1. Remove the lower rack and unscrew the container cap (anticlockwise).

2. The first time you do this: fill the water tank right up to its edge.

3. Position the funnel

* (see figure) and fill the

* Only available in selected models.

Care and maintenance

Shutting off the water and electricity

supplies

 Turn off the water tap after every wash cycle to avoid

leaks.

 Always unplug the appliance when cleaning it and

when performing maintenance work.

Cleaning the dishwasher

 The external surfaces of the machine and the control

panel may be cleaned using a non-abrasive cloth which has been dampened with water. Do not use solvents or abrasive products.

 Any marks on the inside of the appliance may be

removed using a cloth dampened with water and a little vinegar.

Preventing unpleasant odours

 Always keep the door of the appliance ajar in order to

avoid moisture from forming and being trapped inside the machine.

 Clean the seals around the door and detergent

dispensers regularly using a damp sponge. This will avoid food becoming trapped in the seals, which is the main cause behind the formation of unpleasant odours.

Cleaning the sprayer arms

Food residue may become encrusted onto the sprayer arms and block the holes used to spray the water. It is therefore recommended that the arms are checked from time to time and cleaned with a small non-metallic brush. The two sprayer arms may both be removed.

To remove the upper sprayer arm, rotate the locking ring in an anti-clockwise direction. The upper sprayer arm should be replaced with the holes facing upwards.

Clean the water inlet filter at the tap outlet regularly.

- Turn off the water tap.

- Unscrew the end of the water inlet hose, remove the filter and clean it carefully under running water.

- Replace the filter and screw the water hose back into

position.

Cleaning the filters

The filter assembly consists of three filters which remove food residues from the washing water and then recirculate the water. They should be cleaned if you wish to achieve the best results in every wash.

Clean the filters regularly.

The dishwasher should not be used without filters, or if the

filter is loose.

 After several washes, check the filter assembly and if necessary clean it thoroughly under running water, using a non-metallic brush and following the instructions below:

1. Turn the cylindrical filter C in an anti-clockwise direction and pull it out (fig. 1).

2. Remove the cup filter B by exerting a slight pressure on the side flaps (fig. 2).

3. Slide out the stainless steel plate filter A (fig. 3).

4. Inspect the trap and remove any food residue. NEVER REMOVE the wash cycle pump (black detail) (fig. 4).

The lower sprayer arm can be removed by pressing on the side tabs and pulling it upwards.

Cleaning the water inlet filter*

If the water hoses are new or have not been used for an extended period of time, let the water run to make sure it is clear and free of impurities before performing the necessary connections. If this precaution is not taken, the water inlet could become blocked and damage the dishwasher.

After cleaning the filters, replace the filter assembly and fix it in position correctly; this is essential for maintaining the efficient operation of the dishwasher.

Leaving the machine unused for extended periods

 Disconnect the appliance from the electricity supply and

shut off the water tap.

 Leave the door of the appliance ajar.

 When you return, run a wash cycle when the dishwasher is

empty.

* Only available in selected models.

Precautions, advice and Assistance

This appliance was designed and manufactured in compliance with current international safety standards. The following information has been provided for safety reasons and should therefore be read carefully.

General safety

 This appliance is not intended for use by persons

(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

 Children should be supervised to ensure that they do not

play with the appliance.

 The appliance was designed for domestic use inside the

home and is not intended for commercial or industrial use.

 The appliance must be used by adults only, to wash

domestic crockery in accordance with the instructions in this manual.

 The appliance must not be installed outdoors, even in

covered areas. It is extremely dangerous to leave the

machine exposed to rain and storms.  Do not touch the appliance when barefoot.  When unplugging the appliance always pull the plug from

the mains socket, do not pull on the cable.  The water supply tap must be shut off and the plug should

be removed from the electrical socket before cleaning the

appliance or carrying out any maintenance work.  If the appliance breaks down, do not under any

circumstances touch the internal parts in an attempt to

perform the repair work yourself.  Never touch the heating element.  Do not lean or sit on the open door of the appliance: this

may cause the appliance to overturn.  The door should not be left open as it may create a

dangerous obstacle.  Keep detergent and rinse aid out of reach of children.  The packaging material should not be used as a toy.

 Select a wash cycle which is suited to the type of crockery

and to the soil level of the crockery using the Table of wash cycles:

- For dishes with a normal soil level, use the Eco wash cycle, which guarantees low energy and water consumption levels.

- If the load is smaller than usual activate the Half load

* (see Start-up and use).

option

 If your electricity supply contract gives details of electricity

saving time bands, run wash cycles during the periods when a lower tariff is applied. The Delayed start (see Start-up and use) helps you organise the wash cycles accordingly.

* button

Phosphate-free and chlorine-free detergents containing enzymes

 We strongly recommend that you use detergents that do

not contain phosphates or chlorine, as these products are harmful to the environment.

 Enzymes provide a particularly effective action at

temperatures around 50°C, and as a result detergents containing enzymes can be used in conjunction with lowtemperature wash cycles in order to achieve the same results as a normal 65°C wash cycle.

 To avoid wasting detergent, use the product in appropriate

quantities based on the manufacturers recommendations, the hardness of the water and the soil level and quantity of crockery to be washed. Even if they are biodegradable, detergents contain substances which may alter the balance

of nature.

Assistance

Disposal

 Disposal of packaging materials: observe local legislation

so that the packaging may be reused.  The European Directive 2002/96/EC relating to Waste

Electrical and Electronic Equipment (WEEE) states that

household appliances should not be disposed of using the

normal solid urban waste cycle. Exhausted appliances

should be collected separately in order to optimise the cost

of re-using and recycling the materials inside the machine,

while preventing potential damage to the atmosphere and

to public health. The crossed-out dustbin is marked on all

products to remind the owner of their obligations regarding

separated waste collection.

For further information relating to the correct disposal of

household appliances, owners may contact the relevant

public authority or the local appliance dealer.

Saving energy and respecting the environment

Saving water and energy

 Only begin a wash cycle when the dishwasher is full. While

waiting for the dishwasher to be filled, prevent unpleasant

odours using the Soak cycle (see Wash cycles).

Before contacting Assistance:

 Check whether the problem can be resolved using the

Troubleshooting guide (see Troubleshooting).

 Restart the programme to check whether the problem has

ceased to exist.

 If the problem persists, contact the Authorised Technical

Assistance Service.

Never use the services of unauthorised technicians.

Please have the following information to hand:

 The type of malfunction.  The appliance model (Mod.).  The serial number (S/N). This information can be found on the appliance data plate (see Description of the appliance).

* Only available in selected models.

Troubleshooting

Whenever the appliance fails to work, check for a solution from the following list before calling for Assistance.

Problem: Possible causes / Solutions:

The dishwasher does not start or cannot be controlled

The door won’t close • The lock was released. Strongly push the door until a “clacking” noise is heard.

No water drains out from the dishwasher.

The dishwasher makes excessive noise.

The dishes and glasses are covered in a white film or limescale deposits.

The dishes and glasses are streaked or have a bluish tinge.

The crockery has not been dried properly.

The dishes are not clean. • The racks are overloaded (see Loading the racks).

• Switch off the appliance by pressing the ON/OFF button, switch it back on after approximately one minute and reset the program.

• The appliance has not been plugged in properly.

• The dishwasher door has not been shut properly.

• The dishwasher cycle has not yet finished.

• The water inlet hose is bent (see Installation).

• The drain duct is blocked.

• The filter is clogged up with food residues.

• The dishes are rattling against each other or against the sprayer arms.

• An excessive amount of foam has been produced: the detergent has not been

measured out correctly or it is not suitable for use in dishwashers (see Start-up and use).

• The level of the refined salt is low or the dosage setting is not suited to the hardness of the water (see Rinse aid and salt).

• The lid on the salt dispenser is not closed properly.

• The rinse aid has been used up or the dosage is too low.

• The rinse aid dosage is too high.

• A wash cycle without a drying program has been selected.

• The rinse aid has been used up or the dosage is too low (see Rinse aid and salt).

• The rinse aid dispenser setting is not suitable.

• The crockery is made from non-stick material or plastic.

• The crockery has not been arranged well.

• The sprayer arms cannot move freely.

• The wash cycle is too gentle (see Wash cycles).

• An excessive amount of foam has been produced: the detergent has not been

measured out correctly or it is not suitable for use in dishwashers (see Start-up and use).

• The lid on the rinse aid compartment has not been shut correctly.

• The filter is dirty or blocked (see Care and maintenance).

• The refined salt level is low (see Rinse aid and salt).

The dishwasher does not take any water in - Tap shut-off alarm

(The ON/OFF indicator light flashes and the display shows A-6).

Water inlet hose alarm / Water inlet filter blocked

(the ON/OFF indicator light flashes and the display shows A-7).

• There is no water in the mains supply.

• The water inlet hose is bent (see Installation).

• Turn on the tap and the appliance will start after a few minutes.

• The appliance lock has been activated because no action was taken when the

beeps sounded.

Switch off the appliance using the ON/OFF button, turn on the tap and switch the

appliance back on after 20 seconds by pressing the same button. Re-program the appliance and restart the wash cycle.

• Switch off the appliance by pressing the ON/OFF button. Shut off the water tap to eliminate the risk of flooding and remove the plug from the electrical socket.

Make sure the water inlet filter has not become blocked by impurities (see “Care

and maintenance” chapter).

Manual de Instrucciones

Español, 13

LFF 8214E

LAVAVAJILLAS

Sumario

Instalación, 14-15

Colocación y nivelación Conexiones hidráulicas y eléctricas Advertencias para el primer lavado Datos técnicos

Descripción del aparato, 16

Vista de conjunto Panel de control

Cargar los cestos, 17

Cesto inferior Cesto de los cubiertos Cesto superior

Puesta en funcionamiento y uso, 18-19

Poner en funcionamiento el lavavajillas Cargar el detergente Opciones de lavado

-5

Programas, 20

Tabla de programas

Abrillantador y sal regeneradora, 21

Cargar el abrillantador Cargar la sal regeneradora

Mantenimiento y cuidados, 22

Interrumpir el agua y la corriente eléctrica Limpiar el lavavajillas Evitar los malos olores Limpiar los rociadores Limpieza del filtro de entrada de agua Limpiar los filtros Si se ausenta durante largos períodos

Precauciones, consejos y Asistencia Técnica, 23

Seguridad general Eliminación Ahorrar y respetar el medio ambiente Asistencia Técnica

Anomalías y soluciones, 24

!

Instalación

-5

Es importante conservar este manual para poder

consultarlo en cualquier momento. En caso de venta, de cesión o de traslado, controle que permanezca junto con el aparato.

Lea atentamente las instrucciones: contienen información importante sobre la instalación, sobre el uso y sobre la seguridad.

En caso de traslado mantenga el aparato en posición vertical; si fuera necesario inclinarlo, hágalo hacia la parte posterior.

Este aparato ha sido proyectado para uso doméstico y para aplicaciones similares, por ejemplo:

- Áreas destinadas a cocina para el personal de tiendas, oficinas y otros ambientes de trabajo

- Casas agrícolas

- Uso por parte de clientes de hoteles, moteles y otros ambientes residenciales

- Bed and breakfast.

Colocación y nivelación

1. Desembale el aparato y controle que no haya sufrido daños durante el transporte. Si estuviera dañado, no lo conecte y llame al revendedor.

2. Coloque el lavavajillas haciendo adherir los costados o la parte posterior a los muebles adyacentes o a la pared. El aparato también se puede empotrar debajo de una superficie de trabajo continua

* (ver la hoja de Montaje).

Conexión del tubo de carga de agua

 A una toma de agua fría: enrosque bien el tubo de carga a

un grifo con boca roscada de ¾ gas; antes de enroscarlo, haga correr agua hasta que salga límpida para que las impurezas que pudiera contener no obstruyan el aparato.

 A una toma de agua caliente: en el caso de una instalación

centralizada de radiadores, el lavavajillas se puede alimentar con agua caliente de la red, mientras no supere una temperatura de 60ºC. Enrosque el tubo al grifo de la misma forma descrita para la toma de agua fría.

Si la longitud del tubo de carga no es la adecuada, diríjase a un negocio especializado o a un técnico autorizado (ver Asistencia Técnica).

La presión del agua debe estar comprendida entre los valores indicados en la tabla de Datos técnicos (ver al lado).

Controle que en el tubo no hayan pliegues ni estrangulaciones.

Conexión del tubo de descarga de agua

Conecte el tubo de descarga, sin plegarlo, a una tubería de descarga con un diámetro mínimo de 4 cm.

3. Coloque el lavavajillas sobre un piso plano y rígido. Compense las irregularidades desenroscando o enroscando las patas delanteras hasta que el aparato esté en posición horizontal. Una cuidadosa nivelación brinda estabilidad y evita vibraciones, ruidos y desplazamientos.

*. Para regular la altura de la pata posterior, accione el

4 casquillo hexagonal rojo que se encuentra en la parte inferior frontal y central del lavavajillas, utilizando una llave de boca hexagonal con una apertura de 8 mm. girando en sentido horario para aumentar la altura y en sentido antihorario para disminuirla. (ver la hoja de instrucciones para empotramiento anexada a la documentación).

Conexiones hidráulicas y eléctricas

La adaptación de las redes eléctricas e hidráulicas para la instalación debe ser realizada sólo por personal especializado.

El lavavajillas no se debe apoyar en los tubos ni en el cable de alimentación eléctrica.

El aparato debe conectarse a la red de distribución de agua empleando tubos nuevos. No reutilice los tubos viejos.

El tubo de descarga debe estar a una altura comprendida entre 40 y 80 cm. del piso o de la superficie de apoyo del lavavajillas (A). Antes de conectar el tubo de descarga del agua al sifón del lavabo, quite el tapón de plástico (B).

Los tubos de carga y de descarga de agua y el cable de alimentación eléctrica se pueden orientar hacia la derecha o hacia la izquierda para permitir una mejor instalación.

"

* Presente sólo en algunos modelos.

Dispositivo de seguridad contra inundación

Para garantizar que no se produzcan inundaciones, el lavavajillas:

- posee un sistema que interrumpe la entrada de agua en el caso de anomalías o de pérdidas desde el interior.

Algunos modelos poseen un dispositivo adicional de seguridad New Acqua Stop inundaciones aún en el caso de rotura del tubo de alimentación.

ATENCIÓN: ¡VOLTAJE PELIGROSO!

En ningún caso se debe cortar el tubo de carga de agua porque contiene partes conectadas a una fuente eléctrica.

*, que los protege contra

Conexión eléctrica

Antes de introducir el enchufe en la toma de corriente, controle que:

 la toma posea conexión a tierra y que sea conforme con la

ley;

 la toma sea capaz de soportar la carga máxima de

potencia de la máquina indicada en la placa de características ubicada en la contrapuerta (ver el capítulo Descripción del lavavajillas);

 la tensión de alimentación esté comprendida dentro de los

valores indicados en la placa de características ubicada en la contrapuerta;

 la toma sea compatible con el enchufe del aparato. Si no es

así, solicite la sustitución del enchufe a un técnico autorizado (ver Asistencia Técnica); no utilice prolongaciones ni tomas múltiples.

Una vez instalado el aparato, el cable de alimentación eléctrica y la toma de corriente deben ser fácilmente accesibles.

El cable no se debe plegar ni comprimir.

Si el cable de alimentación está dañado, deberá ser cambiado por el fabricante o por su servicio de asistencia técnica a fin de prevenir riesgos. (Ver Asistencia)

La Empresa declina toda responsabilidad cuando no se hayan respetado estas normas.

Cinta anticondensación*

Después de haber empotrado el lavavajillas, abra la puerta y pegue la cinta adhesiva transparente debajo de la superficie de madera para protegerla de una posible condensación.

Advertencias para el primer lavado

Después de la instalación e inmediatamente antes del primer lavado, llene completamente de agua el depósito de sal y agregue aproximadamente 1 kg. de sal (ver el capítulo Abrillantador y sal regeneradora): es normal que el agua se derrame. Seleccione el grado de dureza del agua (ver el capítulo Abrillantador y sal regeneradora). carga de sal, la luz indicadora de FALTA DE SAL

Cuando no se llena el contenedor de sal, se puede dañar

el ablandador de agua y el elemento que produce calor.

Datos técnicos

ancho: 60 cm

Dimensiones

Capacidad 14 cubiertos estándar Presión del agua

de alimentación Tensión de

alimentación Potencia total

absorbida Fusible Ver la placa de características

altura: 85 cm profundidad: 60 cm

0,05 ÷ 1MPa (0,5 ÷ 10 bar) 7,25 – 145 psi

Ver la placa de características

Este aparato es conforme a las siguientes Directivas de la Comunidad:

-2006/95/EC (Bajo Voltaje)

-2004/108/EC (Compatibilidad Electromagnética)

-2005/32/EC (Comm. Reg. 1275/2008) (Ecodesign)

-2002/96/EC

- Después de la

* se apaga.

-5

* Presente sólo en algunos modelos.

#

+ 33 hidden pages
