Page 1
Model type:
ARSL109CSI.L
Commercial code:
55001
Page 2
General notes
Technical Documentation guidelines
----------------------------------------------------------------------------------------------------------------------------------
-------------------------------------------------------------
You can find herewith some generic information to simplify cunsulting of technical documentation:
1. Models of same range share the same exploded views, which report the richest set of spare parts:generally, a model does not
necessarly have a related spare part for each particular shown on exploded views.
2. Some spare parts can not be represented directly on the exploded views (instruction booklets, specific kit, etc...). You can find
those codes in the spare parts list with the same reference of particular where spares are installed or with references 099, 999.
Instruction booklets, once managed, appear with 000 reference.
3. On the higher right site of each exploded view there is a serial number which indicates the beginning of the production of
certain range:some models might have more than an exploded view for a given category, each distinguished by a different serial
no.and linked to another spare parts list, In this case, serial no. is required to supply the right spare part code. Exploded view to be
considered is the one with a more recent serial no. but previous than the one of the model that needs assistance.
4.Exploded views might require further updates even after publishing. Addition of new spares will go on following the already
existing numeration references. Revision number of an exploded view is shown into last four digits of serial number into upper
right hand corner.
5.The spare parts list associated to an exploded view shows related codes of spares managed for a certain model; for each spare
part other informations are available:
REF: reference no of spare into a table; SUBSTITUTE: list of spare(s) which can replace a code but that keeps same functional
characteristics
INDUSTRIAL CODE: list of variables of a model (shown into model label) where such spare is used; NOTICE: code of
information(s) to refer to complete technical intervention, track for changes or to find correct spare part code.
6. Some notices, into a same section are generic therefore cannot be directly linked to a spare part. In order to assist a model in
the best way as possible, it is helpful to pay attention to all notices and constantly verify documentation updates
7.Technical documentation cover shows model name and its commercial codes
mod.ARSL109CSI.L page 2
Page 3
1140140B Exploded views
mod.ARSL109CSI.L page 3
Page 4
1140140B Spare parts list
Ref. Code From To S/N Substitute Description Notice Industrial
001 C00259287 pcb support led
002 C00259416 00702... 1 x C00277182 display led 3 knobs evoii ariston 24550010100
003 C00259420 pushbutton white pw on/off
004 C00255148 light guide option
005 C00259417 pushbutton white pw start/pause
006 C00255147 light guide status
007 C00255480 option buttons (led) (4)
008 C00091882 pivot pin drawer front 106.5x5
009 C00267800 control panel + handle pw
010 C00267030 wash timer knob white pw 12+4
011 C00259847 option knob
012 C00267744 door frame+glass evoii pw 150°
013 C00259409 door handle kit - white pw ariston
014 C00267746 plinth white pw ha cis
015 C00087084 foot
016 C00083828 foot spring (11x8.5mm)
020 C00263293 drain hose collar
021 C00133031 1 x C00109644 rear cover - white pw
024 C00254619 hinge
025 C00256725 screw testfer m4 x 16 mm
026 C00260421 1 x C00084817 blanking plate-rear(test plug)
028 C00267745 cabinet white (pw) snl hp/ar pw
029 C00194044 insulation pad (side panel)
031 C00145395 package wise csi
032 C00267747 worktop - white pw evoii snl cis
034 C00046667 wiring stop
035 C00141387 cable clamp hose
037 C00255691 start lens
038 C00094018 insulation pad (front panel)
099 C00012687 self-tapping screw hi-lo 3,5x13
mod.ARSL109CSI.L page 4
Page 5

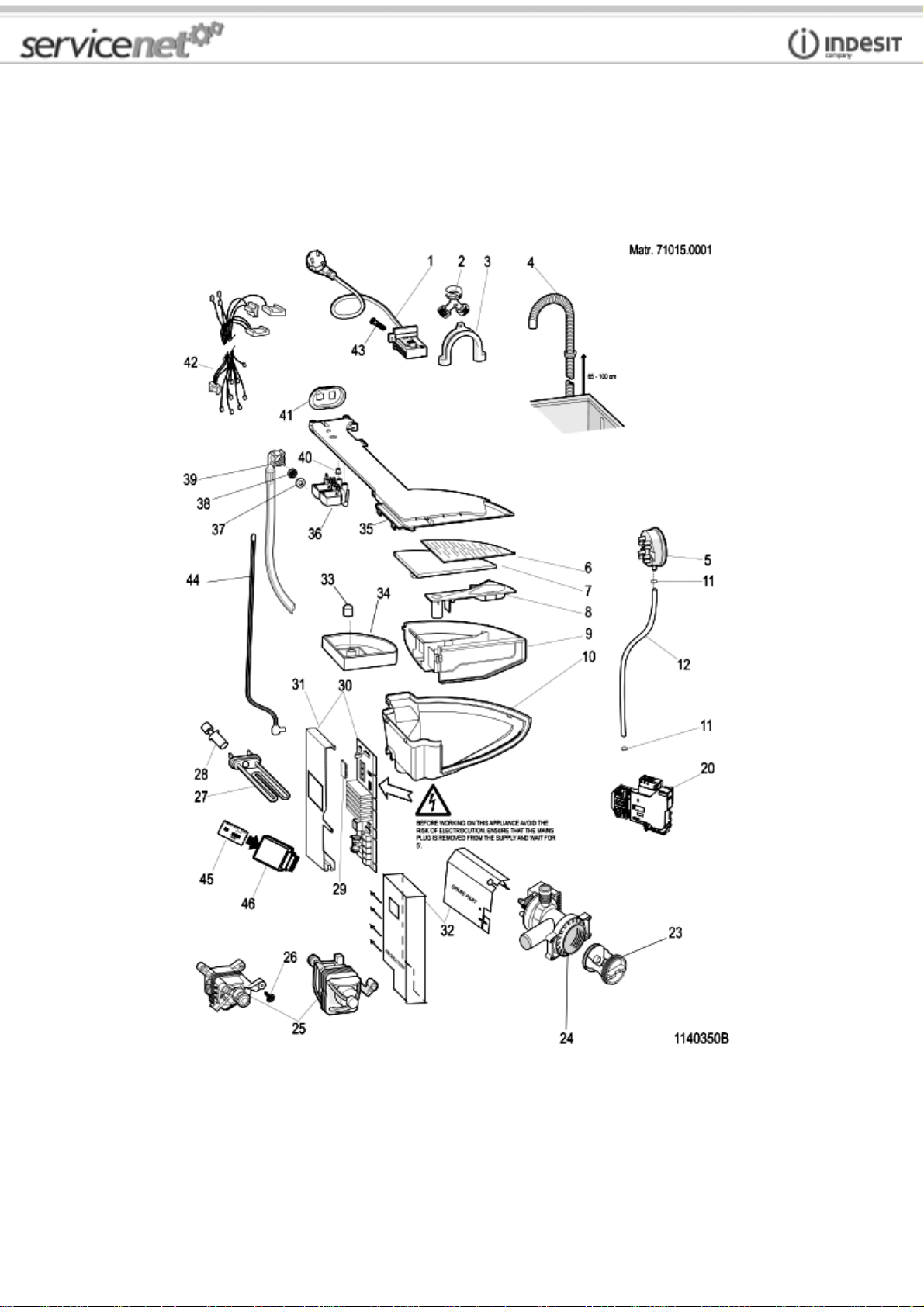

1140350B Exploded views
mod.ARSL109CSI.L page 5
Page 6
1140350B Spare parts list
Ref. Code From To S/N Substitute Description Notice Industrial
001 C00115769 00702... supply cable 3 x 1.0 1,5mt shuko 24550010100
003 C00019902 plastic -u- to make drain hose
004 C00091775 drain hose to sink
005 C00110328 00702... pressure switch 1 l.80 -55 + 24550010100
005 C00263210 bracket - pressure switch
008 C00046154 additive cover
009 C00046148 1 x C00281253 soap dispenser drawer (rotary)
010 C00064529 dispenser body (hl)
011 C00092412 hose clamp
012 C00041785 91219... air trap hose 540 mm.
012 C00144077 91220... pipe pressostat l= 540mm. evo ii
020 C00065185 1 x C00096210 bolt m4,5 x 11
020 C00254755 door interlock (hl)
023 C00045023 filter handle
023 C00045025 filter seal
023 C00045027 pump filter kit
024 C00092264 self cleaning drain pump (hl)
025 C00267805 motor triphase p40 cis
026 C00094744 screw locking motor/tub
027 C00094715 heating element 1700w
028 C00083915 thermistor ntc
030 C00271123 00702... 1 x C00254298 hl module triphase 3.5 (for card) 24550010100
033 C00046157 stopper detergent container
034 C00046152 additive container
035 C00267750 hopper cover evoii 1 ev
036 C00110333 fill valve 2 way (7lt rst 2.5)
037 C00005572 sealing washer-mains inlet hose
038 C00005781 inlet hose filter
039 C00003070 mains inlet hose cold 25c 10bar
040 C00064534 seal - dispenser to valve
041 C00263215 electrovalve support
042 C00267753 00702... wiring assembly arsl 24550010100
043 C00092348 self-scraping screw 3,5x8
044 C00256761 emergency door release strap
045 C00267801 00702... card arsl109csi.l sw 28550010000 24550010100
mod.ARSL109CSI.L page 6
Page 7
1140350B Spare parts list
Ref. Code From To S/N Substitute Description Notice Industrial
046 C00263927 1 x C00272306 smart card reader
mod.ARSL109CSI.L page 7
Page 8
1180260 Exploded views
mod.ARSL109CSI.L page 8
Page 9
1180260 Spare parts list
Ref. Code From To S/N Substitute Description Notice Industrial
001 C00109632 drum pulley d=280 mm h= 20mm
002 C00094741 1 x C00118612 screw locking counterweight/tub
003 C00109647 upper counterweight
004 C00064515 anchorage pad - suspension
005 C00109645 tank spring
006 C00109633 tub plastic 46l eviz.40l h=20mm
007 C00092155 door seal- rear retainer
008 C00145390 door bellows seal wise
009 C00092156 door seal retainer front
010 C00109646 front counterweight lipet
011 C00092172 ball oko evo ii
013 C00109648 hose tank to filter oko lipet
014 C00092411 1 x C00094908 hose clamp
016 C00094908 hose clamp
019 C00119212 hose tank to filter oko seal
020 C00055037 plastic expansion rivet
021 C00065152 nut romob m6x22x1,5
022 C00141273 1 x C00097259 shock absorber 100 n
023 C00066183 hose dispenser to tank
025 C00051739 00412... 1 x C00064786 m8 x 20 tefl. 10.9 screw
1 x C00143260
025 C00143260 00411... drum pulley bolt m8x23 torx tefl
026 C00145552 90531... belt 1201 j5
026 C00193233 90601... belt 1208j4
027 C00097565 lifter
mod.ARSL109CSI.L page 9
Page 10
Electric schemes and links
Cod. 16000000000
mod.ARSL109CSI.L page 10
Page 11
Legend
Legend: 16000000000
AQS Aquastop electrovalve Mzbn/MTA zbn timer motor
B Buzzer N Neutral or Terminal Board
BC Blocco Cesto NC Spin cycle exclusion
BF Terminal board contact, motor fan and dryer P Pressure switch
BP Buzzer P1 1st level pressure cut-off switch
C Condensator P2 2nd level pressure cut-off switch
CA Condensator PA High speed potentiometer
DV Switching device PB Low speed potentiometer
EF/CL Electro-Valve Cold Water / Bleach PL Pure Wool
EF/L Electro-Valve Cold Water / Wash PM Motor Thermoprotector
EF/P Electro-Valve Cold Water / Prewash PR Timer programmer or Pressure switch
ER Exclude Heating Element PS Drain pump
ET Thermostat disactivation R Heating element
EV Electrovalve RE Relay
EVA Dryer electrovalve RR Heating element
EVC Hot water electrovalve RV Speed regulator
EVF Elettrovalvola acqua fredda Ras/RA Dryer heating element
EVL Wash electrovalve S LED
EVP Pre Wash electrovalve SL Line LED
FA Antijamming filter SO Door LED
FD Delicate drying cycle thermostat SR Heating LED
FE Strong drying cycle thermostat ST Temperature selector
FRT Thermofusible Heating Element SV Speed Selector for Spin
I Inverter T Timer contacts
I1..2..3.. Switches/switching devices TA Drying timer contacts
IA Switch On/Off TB Low Temperature Thermostat
IC Switch N.C. - 1/2 Load TC Spider wheel earth
ID Switch display TFL Flange earth
IE Water Saving Device TG Main earth
IF Switch - Spin Reduction TH Thermostat
IP Door switch TH1 1st temperature thermostat
IR Line switch TH2 2nd temperature thermostat
IS Water-stop TH3 3rd temperature thermostat
mod.ARSL109CSI.L page 11
Page 12
L Line or Lamp THF Operating thermostat
LB Low Level THR Adjustable thermostat
LN Normal Level TM Motor earth
LS Pilot lamp TMB Main cabinet earth
M Earth-symbol TMP Motor thermal protector
MC Spin cycle motor TMS Thermostop
MI MOTOR WITH PULLEY TP Thermal protector
ML Wash cycle motor TPS Drain pump earth
MO Terminal Board TR Heating element earth
MP Door dip-switch TS Safety thermostat
MR Thermal Lock TT Timer earthing connection
MT Timer motor TTH Earthing Thermostat
MV Motor fan TV Tank earth
MV -Ras Dryer heating element ZBN Timer
mod.ARSL109CSI.L page 12
