Quick guide to your dishwasher

This manual explains pleasantly all your new electric household appliance has to offer. In addition, you will discover a world of useful hints and handy tips to help you get a better wash from your dishwasher and to make it last longer.

1. Installation and moving (p. 8)

Installation, after delivery or your moving house, is the most important procedure for the correct operation of your dishwasher. Always check:

1. That the electricity system is in accordance with norms;

2. That the water inlet and outlet hoses are connected correctly;

3. That the dishwasher is level on the ground. It is worth it: for the longer life span and the correct operation of your dishwasher.

2. Control panel at your orders (p.2)

ISHWASHER

Learn to get to know the parts which make up your dishwasher, you will use it better for it. This is where you will find the description of the controls and the internal parts.

3. How to load your dishes (p.3)

This page includes useful tips to help you load your dishwasher correctly and make the most of all the available space.

4. How to start your dishwasher (p. 4)

8. Safety for you and your family (p.9)

After loading the dishes, you need to select the right wash cycle and measure out the correct dose of detergent and rinse aid. Reading these pages will help you through all the wash phases.

5. Salt: an important ally (p. 7)

Using the right salt and in the right quantity will help you maintain your dishwasher in top condition, to wash better and to avoid possible damage caused by limescale.

Read this chapter carefully, as it will provide you with useful information on installation, use and maintenance safety. To avoid nasty surprises.

9. Special care and maintenance (p.10)

Once in a while, once a month, spend a little time on the filter assembly and the sprayer arms. This is where you can learn how.

10. Keeping your dishwasher in shape (p.10)

6. Advice and suggestions to help you make savings

as well (p. 7)

This is where you will find small tips on how to wash your dishes better and to help make savings by selecting a wash cycle which best suits the type of load.

Respect the few rules you will find here, and the result will be an enduring top-shape dishwasher.

11. Technical characteristics (p. 2)

All your appliance's technical data, in accordance with norms and regulations as always.

7. Troubleshooting (p. 9)

Before calling the technician, have a look here: a lot of problems can have an immediate solution. If you can't manage to solve it yourself, then call the Ariston helpline and any problem will be solved as quickly as possible.

12. Ariston is still with you after purchase (p.11)

Ariston supports its products by means of after-sales services and assistance, offering you special guarantees, professional assistance as well as quality spare parts and accessories. To find out more, call the Ariston Freefone Number.

ARISTON DISHWASHER - Instructions for installation and use

ISHWASHER

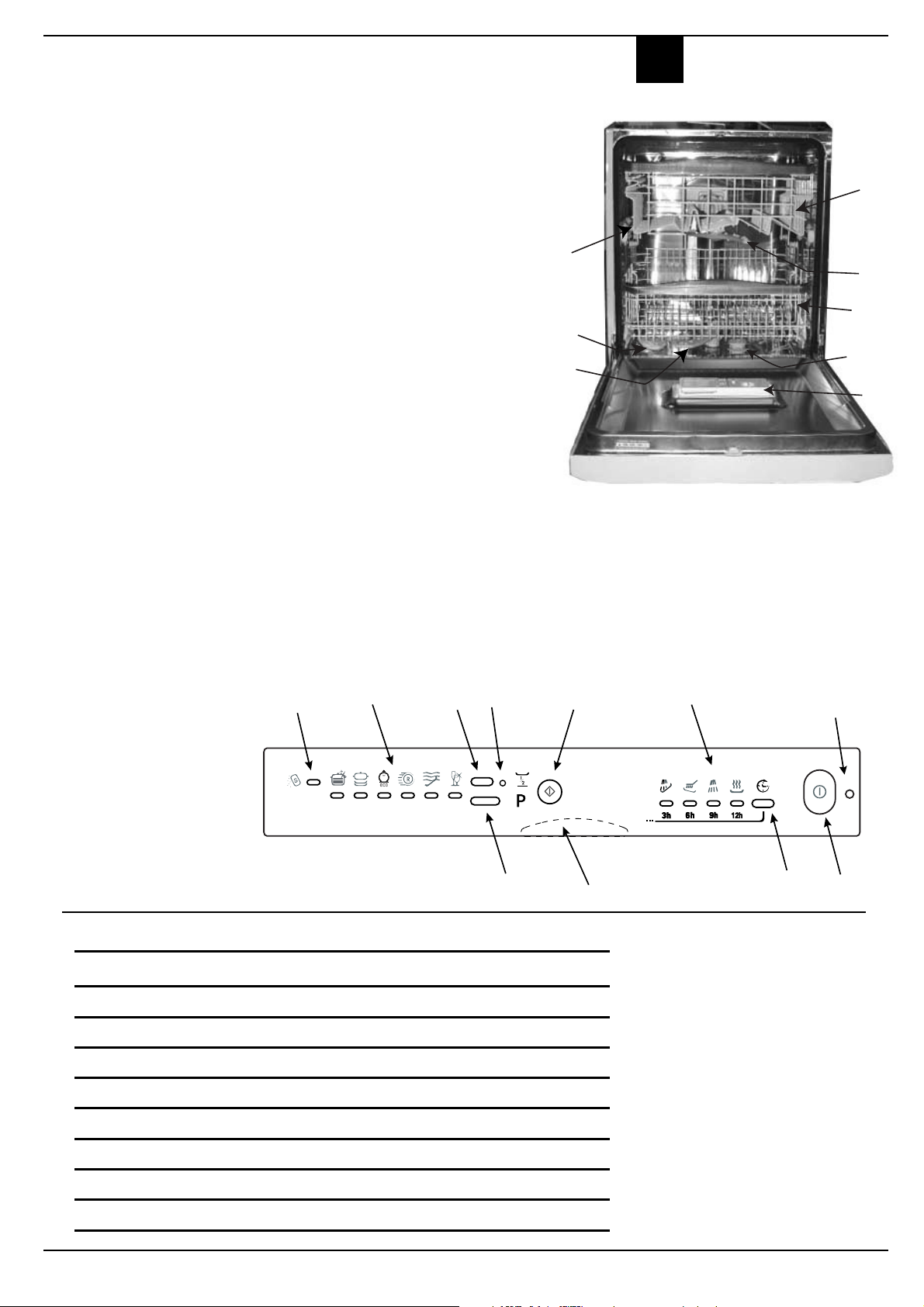

Let's open up your dishwasher together

How is it made?

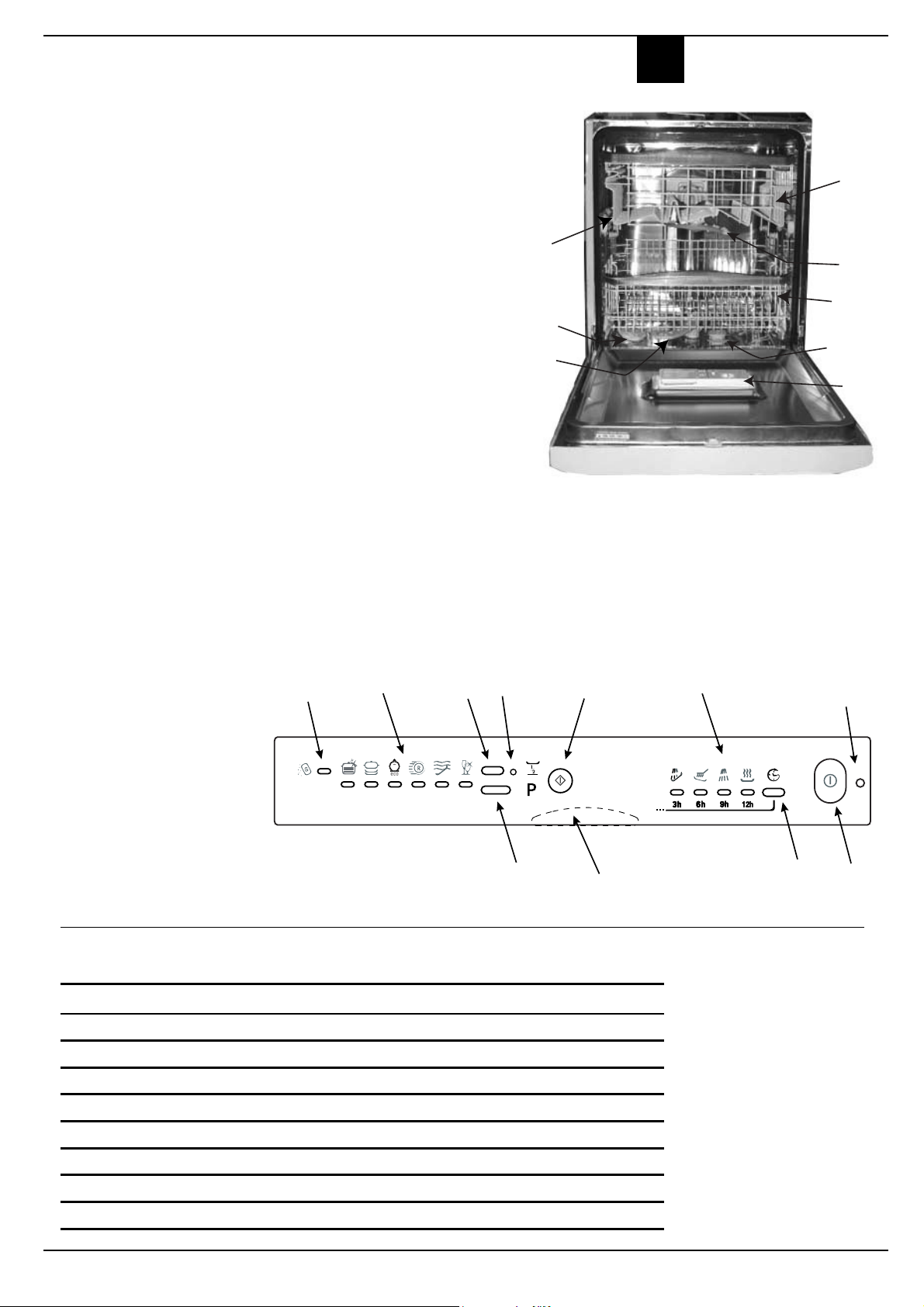

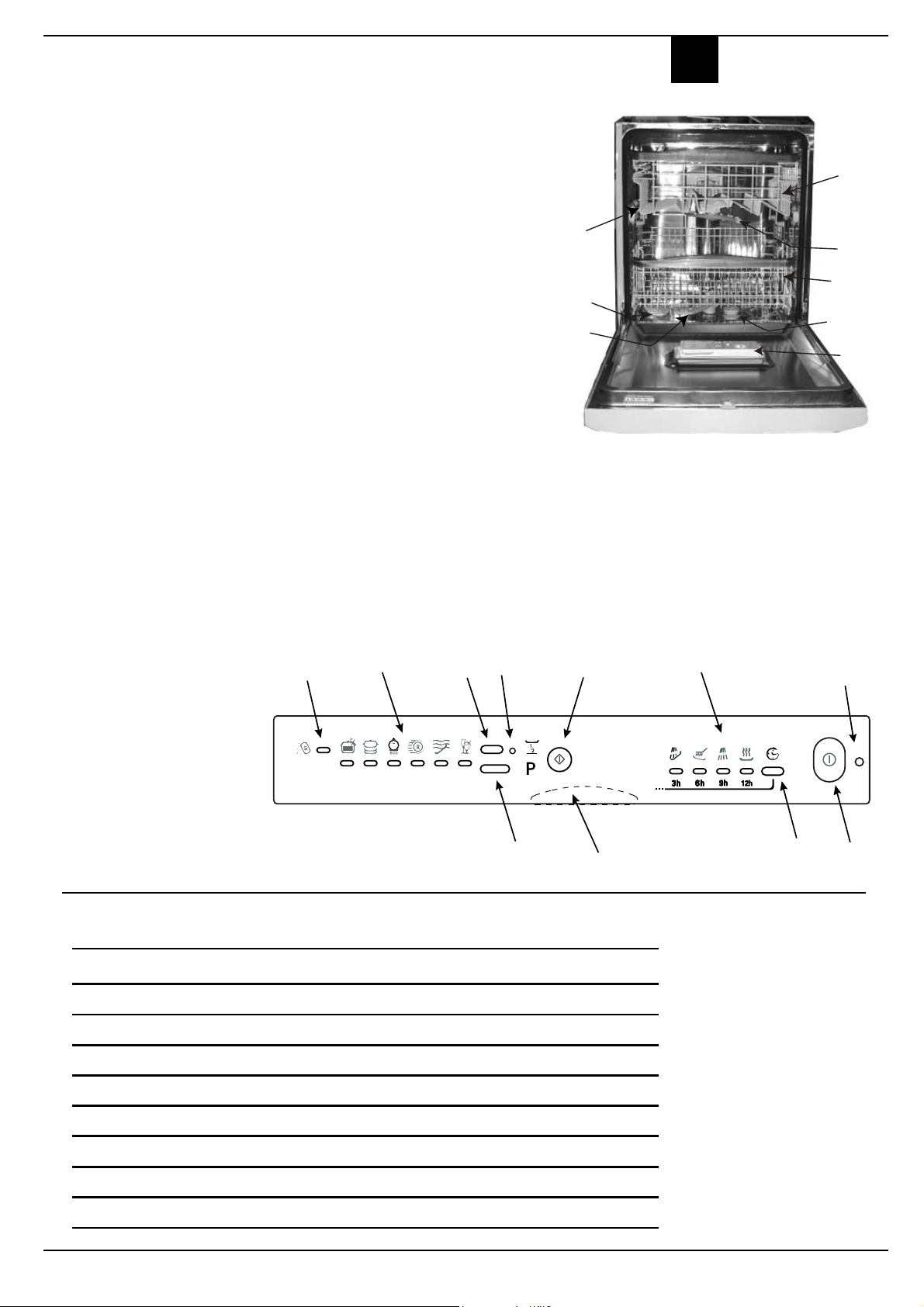

Learn to get to know the parts which make up your dishwasher, you will use it better for it.

E. Upper rack

F. Top sprayer arm

G. Rack height adjuster

H. Lower rack

I. Bottom sprayer arm

J. Salt container cap

K. Washing filter

L. Detergent and rinse aid

dispenser

Control panel at your orders

A. On-Off button

Press this button to switch the appliance on.

B. ON-OFF Indicator light

This light informs you that the dishwasher is on.

C. Door opening handle

Use this handle to open the dishwasher door.

D. Delayed start select

button

This button delays the start of the wash cycle you selected by 12, 9, 6 or 3 hours.

E.Cycle indicator light

This light informs you which cycle you have selected or the one in progress.

F. Half load selection

button

To allow you to wash a half-load on the upper rack

G. Cycle phase and

delayed start indicator lights

These indicator lights inform you which cycle phase is under way (pre-wash, wash, rinses, drying) and, if you have set a delayed start; they also indicate the amount of time left until the wash cycle starts.

H. Half load Indicator

Light

This light informs you that the half load you have selected.

P. Cycle select button

Each time this button is pressed, one of the cycle indicator lights E will come on in sequence.

R. Start/Reset Button

With Start, the wash cycle begins, whereas all the settings are cleared with Reset.

S. Low salt indicator light

To tell you that its time to add more salt.

Technical Characteristics

Wid t h c m. 60 Depth cm. 60 Height cm. 85

Capacity 12 standard place settings

Mains water p ressure 30 KPa÷ 1MPa (0,3 ÷10 bar)

Power voltage See data plate Total absorber power See data plate Fuse See data plate

ARISTON DISHWASHER - Instructions for installation and use

7H FKQLFDO FKDUDFWHULVWLFV

This dishwasher conforms to the following European Community Directives:

 73/23/EC

(

Low Voltage Directive) and subsequent amendments;

 89/336/EEC

(Electromagnetic compatibility) and subsequent amendments.

 97/17/CE

(Labelling)

ISHWASHER

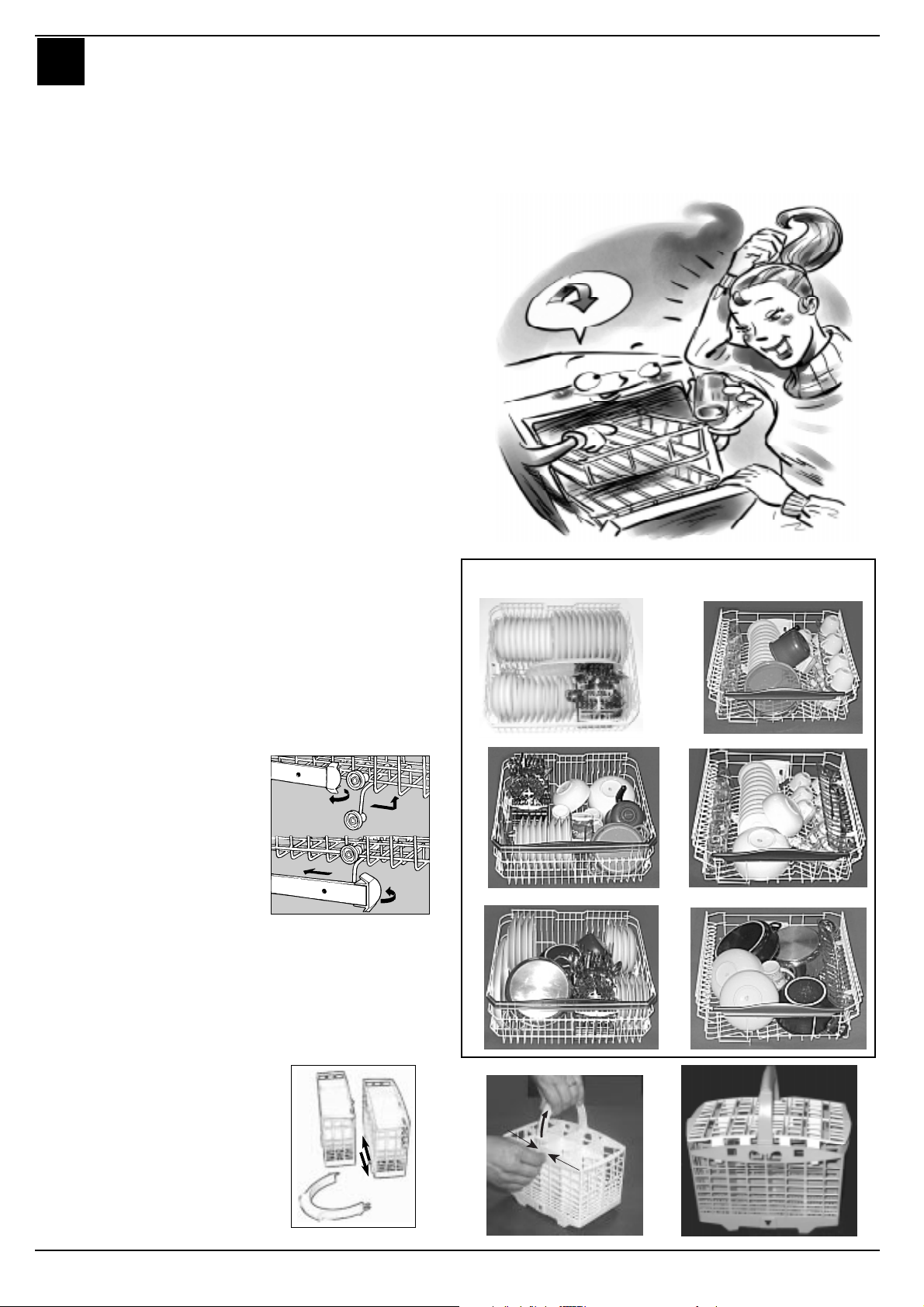

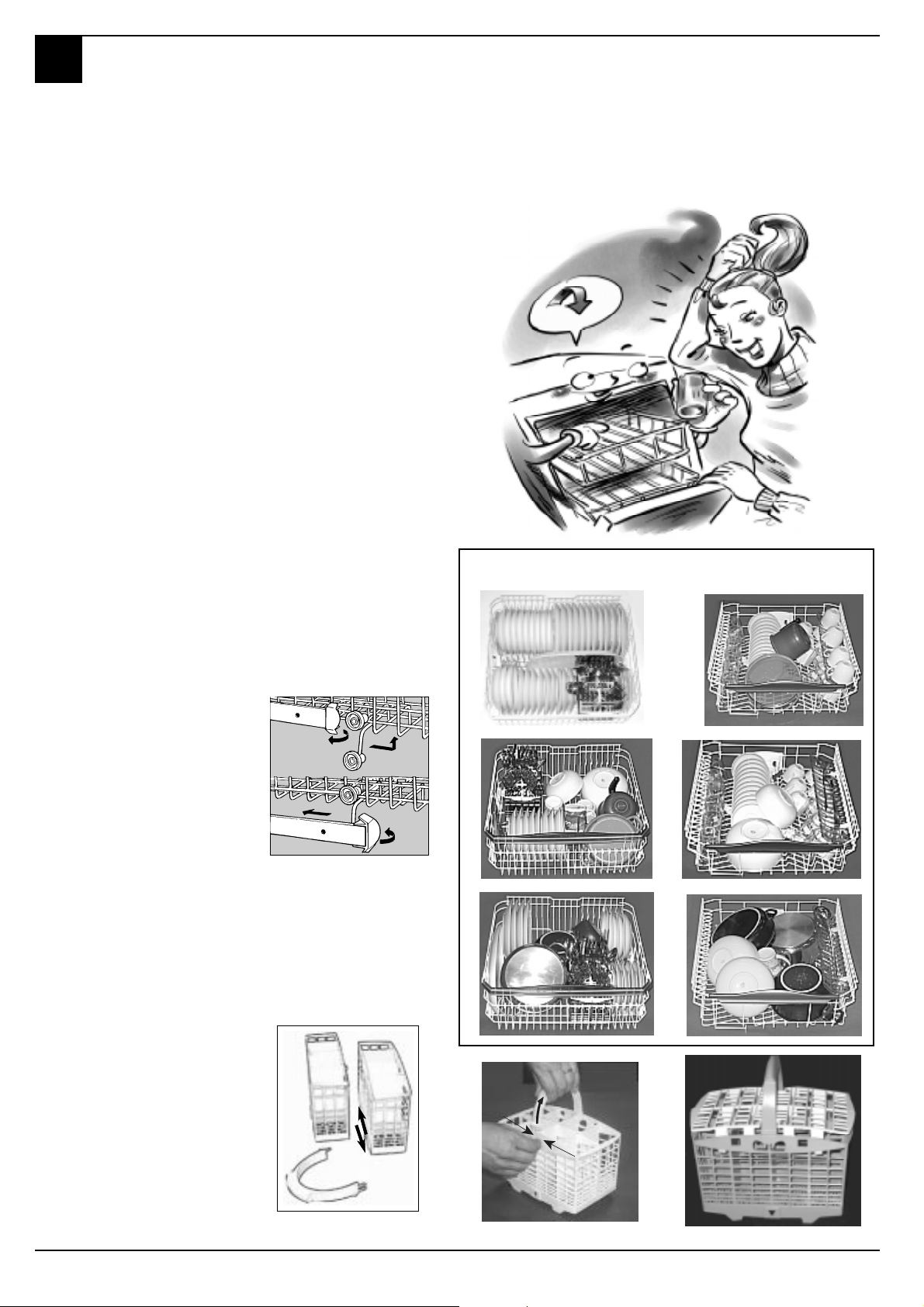

How to load your dishes

Before washing, a few small steps can help you get a better wash and keep your dishwasher for longer. Remove the largest scraps of food left over on your plates, soak saucepans and frying pans with tough incrustations. After loading your dishes, make sure the blades on the sprayer arm turn well

First of all.

Before placing the dishes in the racks, remove the largest scraps of food left over on your plates, you will thus avoid blocking the filter, which would reduce the efficacy of the wash. If the saucepans and frying pans are very dirty, allow them to soak before being washed. To make it easier to load your dishes, pull the racks out.

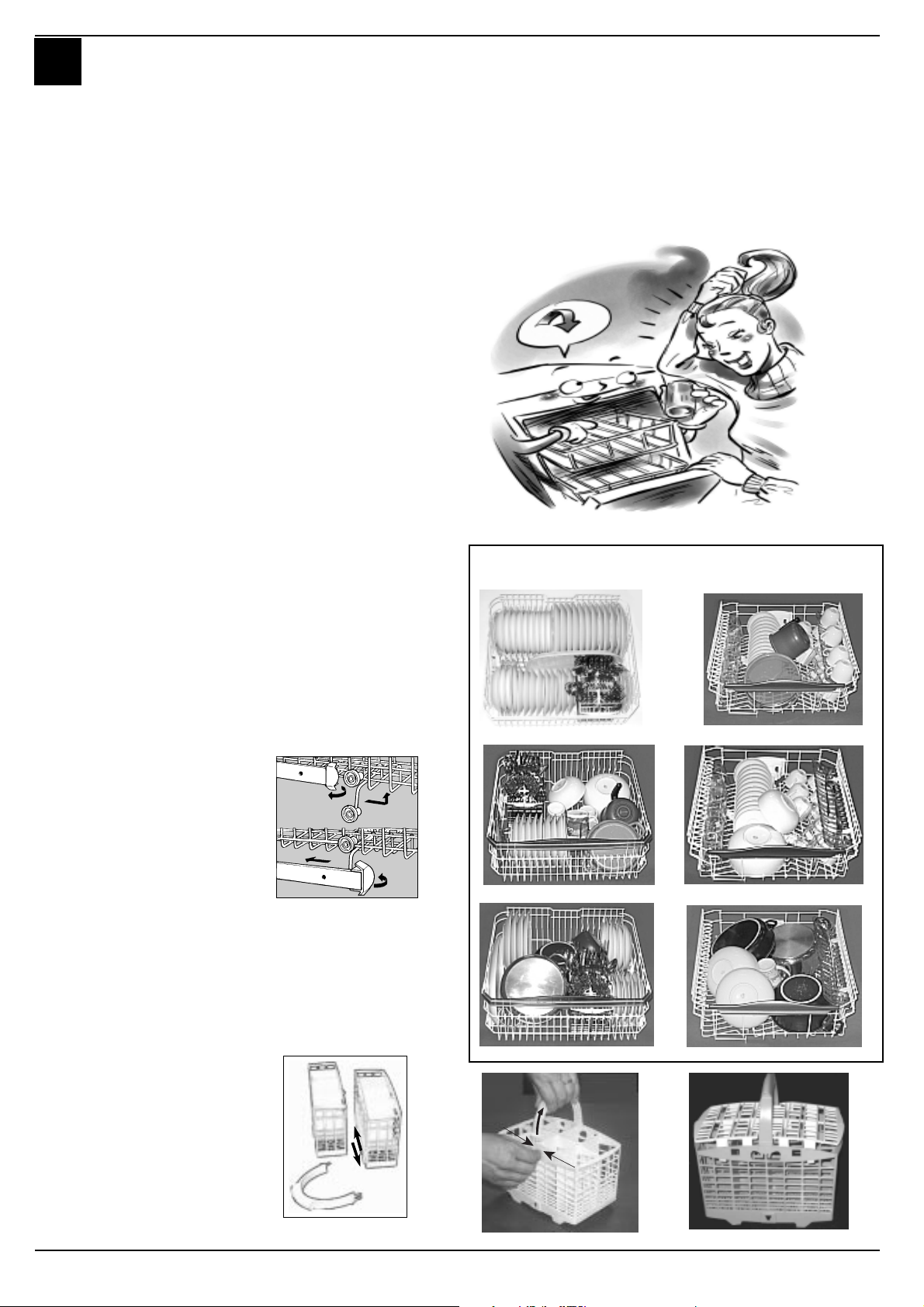

Multisystem racks

This dishwasher model is fitted with newer and more modern upper and lower racks and a cutlery basket. They are made to provide greater flexibility in loading dishes, making them more suitable to meet your specific needs.

What goes into the lower rack?

We recommend you place the most difficult dishes to wash into the lower rack: saucepans, lids, soup dishes and plates, but also: mugs, cups and glasses (see photos for load examples).

What goes into the upper rack?

Place delicate and lightweight dishes in the upper rack: glasses, tea cups and coffee cups, saucers

- but plates too - shallow salad bowls, slightly dirty frying pans and shallow pans. Position light weight dishes in such a way as to avoid their being moved by the spray of water. The appliance can also be equipped with one or two tip-up compartments onto which you can place mugs and cups, as well as long sharp knives and serving cutlery. After loading the dishes, remember to check that the blades on the sprayer arms can turn freely without hitting against any dishes.

How to adjust the top rack.

The upper rack can be set in high or low position to enable you to organise your dishes effortlessly.

lower rack

Load examples

upper rack

 Serving dishes and large

lids: place them on the sides

of the rack.

 Saucepans, salad bowls:

must always be placed upside down

 Very deep dishes: place

them obliquely, thus allowing water to run down them and cleaning them better

 Glasses and cups: position

them as indicated in the figure.

The cutlery basket can be split up by pulling out the handle and removing the clips that keeps the two parts joined together. When you only have little cutlery to wash, you can use just half the basket; save space for other crockery or place the other half of the basket in the upper rack instead (see figures A and B). This basket is equipped with two removable grids: insert the cutlery one by one into the slots, with the handles at the bottom. Position them so that they don't touch.

Fig.F

Open the rail stop flaps and pull the rack out completely. Now place it in high or low position, then slide it along the guide rails until the front wheels also go in. Now close the rail stop flaps. Follow the sequence of actions illustrated in figure "F".

ARISTON DISHWASHER - Instructions for installation and use

ISHWASHER

Starting the dishwasher

Ready, steady, go!

You have loaded your dishes and you now have to set the wash cycle. It takes just one minute to learn how

First of all.

Turn on the water tap completely and press ON-OFF button "A". you will hear a short beep and indicator light "B" lights up. Now the appliance is on and awaiting instructions.

Selecting the wash cycle.

Select the wash cycle by pressing button "P". Each time you press the button, a beep will sound and indicator lights "E" will light up in sequence: choose the cycle you deem most suited to the type of dishes to be washed (take a look at page 6, where you will find the wash cycle table). If the appliance door is shut, press the Start button "R" and you will hear a beep; the cycle will start up within a few seconds.

The dishwasher informs you.

Your dishwasher is fitted with indicator lights (G) which light up to indicate the cycle phase under way. Here are the symbols corresponding to each cycle phase: pre-wash, wash, rinses, drying.

At all times, your dishwasher tells you which cycle phase is under way.

Modifying a wash cycle in progress.

But if you have chosen the wrong cycle, not to worry! You can modify the wash cycle in progress, if it has only just started. Keep the RESET button "R" pressed for about 5 seconds: a prolonged beep will sound, followed by three short beeps. Indicator light "G" will turn off and at this stage, all the settings will have been cancelled. You are now free to re-set the correct wash cycle.

You've left out a dish?

Well, it happens to everyone. Interrupt the wash cycle by pressing the ON-OFF button, insert the dish you had forgotten and press the ONOFF button again. The cycle will start up from where you interrupted it.

Finished?

The end of the wash cycle is indicated by two short beeps and the flashing of the drying phase indicator light.

 Turn the appliance off by press-

ing button "A", thus cutting off the electricity supply.

 Turn off the water tap.  Wait a few minutes before unload-

ing the dishes: they are very hot! If you wait a little while, they dry better thanks to the steam.

 Empty the lower rack first.

Make sure the

wash cycle has

ended before

removing the

dishes!

There's been a power failure? Have you opened the dishwasher door?

The wash cycle stops and then restarts when the electricity comes back on or when you shut the door. Everything is under control!

You decide when it starts.

When you have loaded the dishes, you can choose when to start your dishwasher before setting the wash cycle desired. Press button "D" to delay the start of the wash cycle by 12, 9, 6 or 3 hours. Each time you press it, you will hear a short beep and the indicator light "G" corresponding to the selected delay will light up. Now you can select the desired wash cycle. Press the start button "R" and after you hear the beep, the countdown to the delayed start will begin. Once this time is up, the indicator light will stop flashing and the wash

cycle will begin. If you have set a 12 hour delay, for example, once you have selected the wash cycle, the 12 hour indicator light will flash followed by the others in sequence until the set time delay is up. A quick look at the indicator lights will keep you informed of the countdown progress at all times.

Have you changed your mind?

If you change your mind, you can set a shorter time delay: press button "D" to select it. You need not reset the wash cycle.

If on the other hand you want to cancel the delay set and you want the cycle to start immediately, press button "D" repeatedly until the cycle starts and indicator light "G" corresponding to the cycle start phase comes on.

Dual function of indicator lights "G"

1) flashing to indicate a delayed start: to remind you

that you have set a delayed start;

2) on and not flashing

beneath the cycle phase symbol:

meaning the cycle has started and is in the phase indicated by the symbol.

You want to wash on one rack only? Remember to use half the amount of detergent.

If you only have a few dishes to wash, you can decide to run a halfload, to save on water, electricity and detergent. Before setting any wash cycle whatsoever, press button "F", indicator light "H" will light up and your dishwasher will wash on the upper rack only.

Would you like to see which settings you have made?

At any time, when the cycle is under way, if you press button "P", the cycle in progress indicator light will light up for a few seconds, followed by the half load indicator light, wherever set.

If opening the

door soon after

the end of the

programme,or

during it, stand

away from the Dishwasher, to

avoid possible

injury from hot

steam.

ARISTON DISHWASHER - Instructions for installation and use

Detergent and rinse aid

ISHWASHER

Only use specific dishwasher detergents. Pour the detergent into the dispenser on the inside of the door. Before the wash cycle starts!

The detergent

Loading the detergent

To open lid A, press button B. The detergent should be poured into the two containers C and D up to the rim. Now you can close the lid: press it down until you hear it click. If you prefer to use the detergent in tablet form, then place one inside the container D and close the lid.

It won't close!

Check whether there is any detergent residue on the edges of the dispenser. It is due to this residue that the lid won't close. Get rid of it and you'll see that it closes.

25 gr

5 gr.

Useful tips

 Use the right

amount of detergent: if you use too much, you will not get cleaner dishes, but just more environmental pollution.

 Keep your

dishwasher detergent and rinse aid in a cool, dry place and away from children.

The rinse aid.

This product makes dishes sparkle more as it improves their drying. The rinse aid container is situated on the inside of the appliance door; you should refill it when you see the container is empty by means of indicator light D. (If your dishwasher is fitted with a low rinse aid indicator light, fill the container up when the indicator light flashes or lights up).

Loading the rinse aid.

To open the dispenser, turn cap C anticlockwise. Take care when you pour in the rinse aid to avoid it overflowing. You can adapt the amount of rinse aid used by the dishwasher: regulate the adjuster F which you will find under lid C. You can choose from six different positions.

You can choose from six different positions. It is normally set to 4.

Proper dosage of

improves drying. If drops of water

remain on the

dishes or spotting

occurs, turn the

dosage adjuster to

a higher setting.

If, on the other

hand, the dishes

streaks, then turn

adjuster down to

a lower setting.

the rinse aid

have white

the dosage

Warning

Three-in-one dishwasher tablets are now available on the market, and combine the detergent, salt and rinse aid all in one. If the water in your area is hard or very hard, we still recommend you pour extra salt into the relevant dispenser to prevent the formation of white streaks on your dishes or on the appliance interior. Add rinse aid to the corresponding container only if you are dissatisfied with the results on your dishes. In any case, please read the manufacturer's instructions provided on the packet. If you use only these products, it is normal for the salt and rinse aid indicator lights to flash permanently after a certain number of cycles.

ARISTON DISHWASHER - Instructions for installation and use

ISHWASHER

Select the right wash cycle

A wash cycle for every degree of soil

Dishwasher washing guarantees your dishes will be cleaned in a hygienic setting for safer, cleaner results.

Salt, rinse aid, the right amount of detergent and the correct wash cycle: this is the formula to get the best results and to keep your dishwasher in shape

'HWHUJHQW

IRUSUHZDVK

ZDVK

 J

&\FOH

6XSHU:DVK

&\FOHVHOHFWLRQ

LQVWUXFWLRQV

Very dirty dishes and pans (not to be used for d e licat e it ems )

&\FOHGHVFULSWLRQ

Pre-wash with hot wate r at 4 0°C Extended wash at 65 °C 2 cold rinses Hot rinse at 65 °C Drying

wash cycle for your

Selecting the most

suitable wash cycle

for the load ensures

clean dishes and a

more convenient

use of water and

5LQVH$LG

Select the right

dishes.

electricity.

:DVK F\FOH

GXUDWLRQ

WROHUDQFH







'DLO\:DVK

5DSLG

6RDNLQJ

&U\VWD O

Cycle fo r normally dirty pans and dishes. Standard daily cycle.

Environme ntally-fr ie ndly cycle, with low energy co ns umpt ion le ve ls, s uit ab le for nor mally dir t y pans and dishes.

Economic and fast cycle to b e us ed fo r s ligh t ly dir t y dishes. Run cycle immediately after use. Without drying

P re liminar y w a sh cycle for dishes while awaiting completion of the load with the dishes from the next meal.

Special cycle to be us ed fo r more delicate items which a r e s e nsitive to high temperatures. Run cycle immediately after use.

Pre-wash with c o ld water Wa s h a t 5 0 ° Cold Rinse Hot rinse at 70 °C Drying

2 Cold pre-washes Extended wash at 50 °C Hot rinse at 65 °C Drying

Short was h at 50°C Warm rinse at 50°C

Short co ld wash to prevent food from drying onto the dishes

Wa s h a t 5 0 ° C Rinse at 4 5 ° C Hot rinse at 65 °C Drying

 J

J 

J











ARISTON DISHWASHER - Instructions for installation and use

Never without salt

ISHWASHER

Water in your home

Water hardness varies according to where you live. If the water in your home is hard, without water softening, incrustations would form on your dishes. Your dishwasher is fitted with a water softener which uses special salt to get rid of

To prevent rust

from forming, load

the salt just before

beginning a wash

limescale in the water.

Loading the salt.

Always use salt which is intended for dishwasher use. The salt container is situated underneath the lower rack, fill it up as follows:

1.Pull out the lower rack completely, unscrew and remove the container cap

2. Is it the first time you load the salt? First fill the container up with water (you won't have to do this again next time)

3. Put the dishwasher funnel on the hole and pour in approximately two kilos of salt. It is normal that some water comes out of the container.

4. Screw the cap back in place carefully.

When should I load the salt?

The salt container should be filled up when the low salt indicator light "S" flashes. Once you have loaded the salt for the first time, it is normal that the low salt indicator light stays on or flashes for about 5 consecutive cycles.

Salt adjustment

Your dishwasher can adjust its salt consumption according to the hardness of the water in your home. This way, you can optimise and customise your dishwasher's salt consumption (not too much, nor too little).

To adjust salt consumption, do as follows:

1. Unscrew the salt container cap

2. There is an arrow on the neck of the container (see figure): if necessary, turn the arrow anticlockwise from the "-" setting to the "+" setting.

Select the arrow position depending on the water hardness, referring to the table provided.

Water Hardness

Clarke

degrees

0 - 14 0 - 17 0 -1,7 / 0 /

14 - 36 18 - 44 1,8 - 4,4 "-" 20 60

36 - 71 45 - 89 4,5 - 8,9 MED 40 40

>71 > 89 > 8,9 "+" 60 25

°fH mmol/l

Selector position

You don't know

water in your

home is? Ask the

company that

supplies water in

cycle.

Salt consumption

(grams/cycle)

how hard the

your area.

Autonomy

(cycles\2kg)

Suggestions and advice for you.

Savings are easy

How to look after and protect the dishes you hold dear

■ Almost all silverware can be

cleaned in a dishwasher. There are two exceptions: old silverware and silverware decorated with an oxidising agent. Hot water can loosen the handles on old silverware ad wear off the decorations on the other. Never let silverware come into contact with other metals: you will thus avoid stains and blackening

Apart from

making you save

time and energy, your dishwasher

disinfects your

dishes, washing

them at a high

temperature.

■ Silver plates and serving dishes

should be washed immediately after use, especially if they have contained salt, eggs, olives, mustard, vinegar, fruit juices and cooked vegetables.

■ For particularly delicate dishes,

we recommend you use the specific wash cycle offered by your dishwasher.

Using your electric household appliances wisely helps you make savings and is good for the environment.

Maximum load.

To optimise consumption levels, try to use the dishwasher with a full load only. If it takes quite some time to fill up your dishwasher, use the soak cycle to avoid the formation of bad odours and caked-on food.

The right wash cycle.

Select the most suitable wash cycle for the type of load you have placed in the dishwasher. The choice of wash cycle depends on the type of dishes to wash and on how dirty they are. To select the right wash cycle, please consult the wash cycle table on page 6.

ARISTON DISHWASHER - Instructions for installation and use

ISHWASHER

Installation and moving

Your dishwasher has arrived

After having bought or moved your dishwasher to another home, a correct installation ensures that your dishwasher will operate smoothly and efficiently.

Choose where you want to install your dishwasher, you can even place it so that its sides or back panel are side by side with furniture or up against the wall. The dishwasher is provided with water supply and drain hoses, which can be directed towards the left or right to facilitate appropriate installation.

This dishwasher model can be built under a single worktop (please read the relevant instruction sheet).

Levelling.

Once the appliance is positioned, adjust the feet by screwing them in or out depending on how high you want it and to level it so that it is horizontal. Make sure that it is not inclined more than 2 degrees. If the appliance is level, it will help ensure its correct operation.

Adjusting the back Feet

Insert the appliance into the cutout and then adjust the height using the screws located on the front bottom part of the machine. Use a screwdriver to turn the screws in the clockwise or anti-clockwise direction to increase or decrease the height respectively.

Cold water connection.

This electric household appliance should be connected to the water mains using the cold water supply hose provided with the appliance only. Do not use a different hose. In the event of replacements, use original spare parts only.

If the power socket to which the appliance is

connected is not

compatible with

the plug, replace it with a suitable plug rather than

using adapters or

multiple plugs as these could cause

overheating or

burns.

Connect the cold water supply hose to a 3/4 gas threaded connection, placing the small filter provided between the hose and connection, taking care to screw it tightly onto the tap. If the water hoses are new or have been out of use for an extended period of time, let the water run to make sure it is clear and free of impurities before making the connection. If this precaution is not taken, the water inlet could get blocked, causing damage to your dishwasher.

Hot water connection.

Your dishwasher can be supplied with hot water from the mains supply (if you have a central heating system with radiators) at a temperature of no more than 60°C. In this case, the wash cycle time will be about 15 minutes shorter and the wash will be slightly less effective. The connection must be made to hot water supply following the same procedures as those indicated for the cold water connection.

Anti-flooding protection

Your dishwasher is provided with a special system which blocks the water supply in the event of leaks inside the appliance. It is further equipped with a water inlet hose comprising an outer clear hose and an inner red hose, which can both withstand extremely high pressures. Should the inner hose break, the outer hose will consequently turn red. Safety in the event of flooding is ensured by the second clear hose that contains the former. It is vital that you check the outer hose regularly: if you see it has turned bright red, then you know you have to replace it as soon as possible. Call for an authorised technical engineer to come and replace it.

Drain hose connection.

Fit the drain pipe into a drain line with a minimum diameter of 4 cm or place it over the sink. Avoid restricting or bending it. Use the special plastic elbow provided (see figure) to position it in the best possible way. The part of the pipe marked with the letter A should be between 40 and 100 cm above the ground. The pipe should not be immersed in water.

Electrical connection.

First of all, check that the mains voltage and frequency values correspond to those stated on the rating plate located on the stainless steel inner door of the appliance and that the electrical system to which the dishwasher is connected is sized for the maximum current indicated on said rating plate.

Earth: indispensable safety.

Only now can you plug the appliance into a socket provided with an efficient earth connection (the system's earthing is a guarantee of safety provided for by law, make sure your system has it).

Power supply wire.

Check the power supply wire on a regular basis; if it is damaged, we recommend you have it replaced by an authorised technical Assistance service centre.

The plug

The dishwasher plug must be accessible even when the appliance is installed as a built-in unit so that maintenance can be done safely.

The special

plastic elbow

should be

fastened firmly

onto the wall to

prevent the drain

hose from

moving and

allowing water to

spill outside the

drain.

ARISTON DISHWASHER - Instructions for installation and use

ISHWASHER

Troubleshooting

If you have a problem, read this

Your dishwasher may not work or not function properly. In many cases, these are problems which can be solved without having to call for a technician. Before calling the service centre, always check the points below.

The dishwasher won't start

■ Is the water supply tap turned

on?

■ Is the water supply tap

connected to the hose properly?

■ Has the water in your home

been cut off?

■ Is the pressure of the water

supply sufficient?

■ Is the hose bent?

■ Is the filter on the water supply

hose blocked?

■ Is the dishwasher door open?

The dishes are not clean.

■ Have you put the right amount

of detergent into the dispenser?

■ Is the wash cycle suitable for

the dishes you have placed inside the appliance?

■ Are the filter and microfilter

clean?

■ Can the sprayer arms turn

freely?

The dishwasher won't drain.

■ Is the drain hose bent?

Limescale deposits or a white film form on the dishes.

■ Is the lid on the salt container

closed properly?

■ Is the rinse aid dosage correct?

Error messages.

Your dishwasher is equipped with a safety system which is able to detect any operating anomalies. These anomalies are reported by one or two wash cycle indicator lights "E" flashing rapidly. Take a note of which lights are flashing, turn the appliance off and call for technical assistance.

Tap off alarm

If you have forgotten to turn the water tap on, your appliance will remind you of this by sounding a few short beeps for a few minutes. Turn the tap on and your appliance will start up again after a few minutes. Were you to be absent when these beeps are sounded, the

Safety within your home

appliance will be blocked automatically and wash cycle 4 and 5 indicator lights (rapid wash and soak) will flash rapidly. Turn the appliance off at the ON-OFF button, turn on the water tap and wait approximately 21 seconds before turning the appliance back on, then repeat the programming operations and start the appliance by pressing the Start button.

Clogged filter alarm

If the appliance is blocked and wash cycle 3 and 5 indicator lights (eco and soak) flash rapidly, this means the filter is clogged by large particles of food residue. Turn the appliance off, clean the filter thoroughly and reposition it in its seat as illustrated on page 20. Then turn the appliance back on. Repeat the programming operations and start the dishwasher by pressing the Start button.

You have checked everything, but the dishwasher still doesn't work and the problem persists?

Call an authorised service centre near you and remember to mention:

 the type of malfunction  the model mark (Mod.) and the

serial number (S/N.) indicated on the rating plate located on the inner door, to one side.

Never call upon the

services of

unauthorised

technicians and always

refuse spare parts that

are not originals.

Your dishwasher was built in accordance with the strictest international safety regulations. They protect you and your family. Read the instructions and information contained in this manual: they will provide you with useful hints as to installation, use and maintenance safety. To avoid nasty surprises.

1. Dispose of the packaging material carefully (follow the instructions on how to divide your rubbish up provided by your local Council)

2. After removing the packaging, check to make sure your appliance is intact. If in doubt, contact a qualified professional.

3. Your dishwasher must only be used by adults and for washing household dishes, according to the instructions included in this manual. Do not touch the appliance with wet hands or feet or barefoot.

4. We discourage the use of extension leads and multiple plugs. If the electricity supply wire is not long enough, then have it replaced with one of the correct length and remember that it should be free of bends or dangerous kinks.

5. If the appliance is not operating properly or if maintenance operations are necessary, disconnect the dishwasher from the mains power supply (unplug it!).

6. Keep children away from the dishwasher when it is open and keep detergents out of their reach.

7. Your dishwasher is not to be installed outdoors, not even if the area is covered by a roof: it is extremely dangerous to leave it exposed to rain and thunderstorms.

8. Do not touch the heating element during or straight after a wash cycle.

9. Do not lean or sit on the door when it is open, as this could overturn the dishwasher.

10. If the appliance malfunctions, turn off the water inlet tap and disconnect the plug from the wall socket. Then try

consulting the section entitled "I you have a problem, read this". If you cannot resolve the problem, then call the service centre.

I only want an authorised

specialised technician with original

Ariston guaranteed spare parts

11. Once taken out of use, appliances must be made inoperable: cut the power supply wire and damage the door lock.

ARISTON DISHWASHER - Instructions for installation and use

ISHWASHER

Care and maintenance

Cleaning and special maintenance

The filter assembly

If you want consistent good results from your dishwasher, you need to clean the filter assembly. The food particles are removed from the wash water, allowing it to be recirculated during the cycle, filtered perfectly. For this reason, it is a good idea to remove the larger food particles trapped inside the cup C and the semi-circular filter A after each wash; pull the cup handle upwards to remove them. Just rinse them under running water. The entire filter assembly should be cleaned thoroughly once a month: cup C + semi-circular filter A + cylindrical filter B. Rotate filter B anticlockwise to remove it. For cleaning, use a non metallic brush.

Reassemble the filter parts (as shown in the figure) and reinsert the whole assembly into the dishwasher. Position it into its housing and press downwards. The dishwasher is not to be used without filters. Improper replacement of the filters may reduce the efficiency of the wash and even damage your dishwasher.

Once in a while, once a month, spend a little time on the filter assembly and the sprayer arms.

Cleaning the sprayer arms.

Food residue may become encrusted onto the sprayer arms and block the holes where water comes out. Check the sprayer arms regularly and clean them once in a while (letters F and I Close-up view).

Keep your dishwasher in shape

Respecting these few rules ensures you will always have a reliable work companion by your side.

After every wash.

When the wash cycle has ended, always remember to turn off the water supply tap and to leave the appliance door ajar. This way, moisture and bad odours will not be trapped inside.

Unplug the appliance.

Before carrying out any cleaning or maintenance on the dishwasher, always remove the plug from the electricity socket. Do not run risks.

No solvents! No abrasives!

To clean the exterior and rubber parts of your appliance, do not use solvents or abrasive cleaning products. Use a cloth dampened with lukewarm soapy water only. If there are any stains on the surface of the appliance interior, use a cloth dampened with water and a little white vinegar, or a cleaning product specifically made for dishwashers.

Going on holiday?

When you go away for an extended period of time, we recommend you do the following:  run a cycle with the dishwasher

empty

 turn off the water inlet tap.  leave the appliance door ajar

This will help the seals last longer and prevent unpleasant odours from forming inside the appliance.

Moving the appliance.

Should the appliance have to be moved, try to keep it in a vertical position. If absolutely necessary, it can be positioned on its back.

The seals.

One of the factors that cause unpleasant odours to form inside the dishwasher is food that remains trapped in the seals. Periodic cleaning using a damp sponge will prevent this from occurring.

Your dishwasher is not a waste

disintegrator!

Do not worry about removing every

single bit of food residue from your

dishes, but do get rid of bones, peel and

rind and any other left-overs before

placing them in the racks. Empty out

all glasses and cups.

ARISTON DISHWASHER - Instructions for installation and use

Stay in touch

THANK YOU for choosing an Ariston appliance. We are confident you have made a good choice and that your new appliance will give

many years of excellent service. And we're there when you need us.

This will confirm your entitlement to free spare parts for five years, and you could also be lucky enough to recover the cost of your purchase in our quarterly prize draw. Simply complete and return the Registration Form supplied with the appliance documents, using the FREEPOST envelope supplied. Or call the Registration Hotline on 0870 010 4305.

ISHWASHER

Enjoy complete peace of mind. By registering now, you automatically qualify for a full year's guarantee on parts and labour PLUS free functional parts cover for a further 4 years, provided they are genuine Ariston spare parts fitted by an Ariston Service Engineer.

We're as close to you as your telephone

For direct access to Genuine Ariston Spare Parts and Accessories, call 0870 558 5850 and speak to our skilled staff who can help you to identify and purchase the item you require.

For a Rapid Response to a problem with your appliance, call 0870 607 0805. We're open from Monday to Saturday (8am - 5.30pm weekdays, 9am - 5pm Saturday). We have our own department of highly trained Ariston service staff. For most calls, our Service Engineer can fix the problem on the first visit.

Please have the following details to hand when you ring us: The nature of the problem, the Model Number and the Serial Number. These numbers can be found on the appliance and on the portion of the Registration Card which you retain.

ARISTON DISHWASHER - Instructions for installation and use

PPVASKMASKIN

Hurtig veiledning for din oppvaskmaskin

Denne veiledningen forklarer alt hva ditt nye husholdningsapparat kan by på. I tillegg vil du oppdage mange nyttige hint og praktiske tips for å hjelpe deg til å få bedre vaskeresultat fra din oppvaskmaskin og hjelpe den til å vare lenger.

1. Installasjon og flytting (s. 19)

Installasjonen etter leveringen eller etter flytting er den viktigste prosedyren for at oppvaskmaskinen skal fungere korrekt. Kontroller alltid:

1. At det elektriske systemet er i overensstemmelse med normene.

2. At vanninntaks- og utløpsslanger er tilkoplet korrekt.

3. At oppvaskmaskinen står jevnt på gulvet. Det svarer seg fordi oppvaskmaskinen lever lenger og fungerer korrekt på denne måten.

2. Kontrollpanel (s. 13)

Dersom du kjenner til hvordan oppvaskmaskinen er bygget opp er den enklere å bruke. Her finner du beskrivelsen av kontrollene og de innvendige delene.

3. Hvordan du skal plassere kjørlene (s. 14)

Denne siden inneholder nyttige tips om hvordan du skal plassere kjørlene på rett måte og utnytte så godt som mulig den tilgjengelige plassen.

8. Sikkerhet for deg og din familie (s. 20)

4. Hvordan du skal starte oppvaskmaskinen (s. 15)

Etter at du har plassert kjørlene må du velge den rette vaskesyklusen og dosere oppvaskmiddelet og skyllemiddelet. Disse sidene vil hjelpe deg til å forstå alle vaskefasene.

5. Salt: En viktig alliert (s. 18)

Bruken av rett salt og rett mengde hjelper deg til å bevare oppvaskmaskinen i beste tilstand, til å vaske bedre og til å hindre skader på grunn av kalk.

Les dette ordenskapitelet nøye fordi det vil skaffe deg nyttig informasjon angående sikkerhet ved installasjon, bruk og vedlikehold. Dette for at du skal unngå ubehagelige overraskelser.

9. Spesiell forsiktighet og vedlikehold (s. 21)

En gang i måneden bør du bruke litt tid på filtergruppen og sprøytearmene. Her kan du lære hvordan du må gjøre.

10. Beholde din oppvaskmaskin i god stand (s. 21)

Respekter de få reglene som du finner her og resultatet vil bli en oppvaskmaskin som vil holde seg i god stand.

6. Råd og forslag for hvordan du kan spare (s. 18)

Denne siden inneholder små tips om hvordan du kan vaske kjørlene bedre og hvordan du kan spare ved å velge vaskesyklusen som egner seg best.

11. Tekniske karakteristikker (s. 13)

Alle de tekniske data til din maskin i henhold til normer og forskrifter.

7. Feilsøking (s. 20)

Se her før du ringer til en tekniker. Mange problemer kan ha en øyeblikkelig løsning. Hvis du ikke kan løse det selv så ring til Ariston hjelpelinje og problemet vil bli løst så snart som mulig.

ARISTON OPPVASKMASKIN - Installasjons- og bruksanvisning

La oss åpne opp din

oppvaskmaskin sammen

Hvordan er den laget?

Dersom du lærer å kjenne hvilke deler oppvaskmaskinen er bygget opp av vil du bruke den bedre.

PPVASKMASKIN

E. Øverste kurv

F. Toppsprøytearm

G. Kurvhøydejusterer

H . Nederste kurv

I. Bunnsprøytearm

J . Saltbeholderens lokk

K. Vaskefilter

L. Beholder til

oppvaskmiddel og skyllemiddel

Kontrollpanel til din disposisjon

A. Knapp ON/OFF

Trykk på denne knappen for å slå på maskinen.

B. Varsellampe ON/OFF

Signalerer at maskinen er slått på.

C. Dørhåndtak

Brukes for å åpne oppvaskmaskinens dør.

D. Knapp for forsinket

start

Brukes for å forsinke starten av det valgte programmet med 12, 9, 6 og 3 timer.

E. Programmets

varsellamper

Gir deg beskjed om hvilket program du har valgt.

F. Knapp for valg av halv

last

På denne måten kan maskinen fylles halvveis med bruk av overkurven.

G. Varsellamper for

fremgang av vaskeprogram og forsinket start

(forvask, vask, skylling, tørking), og hvis du har stilt inn forsinket start, vises resttiden før programstart.

H. Varsellampe for halv

last

Minner om at du har stilt inn halv last.

R. Start/Reset knapp

Med Start starter vaskeprogrammet, og med Reset annulleres alle innstillingene.

P. Programknapp

Hver gang det trykkes på knappen tennes varsellampene E i rekkefølge.

S. Varsellampe for mangel

på salt

Melder fra om at det er på tide å fylle på salt.

Tekniske karakteristikker

Denne

7H NQLVN H NDUDNWHULVWLN NHU

Bredde cm. 60 Dyb de cm. 60

Høy de cm. 85 Kapasitet 12 standard kuverter Vanntrykk 30 KPa ÷ 1 MPa (0,3 ÷ 10 bar) Matespenning Se merkeplaten Total absorber t effekt Se merkeplaten

Sikring Se merkeplaten

ARISTON OPPVASKMASKIN - Installasjons- og bruksanvisning

oppvaskmaskinen er i overensstemmelse med følgende europeiske direktiver:

 73/23/EEC

(Lavspenning) og etterfølgende endringer.

 89/336/EEC

(Elektromagnetisk kompatibilitet) og etterfølgende endringer.

 97/17/EC

(Merking).

+ 39 hidden pages
