HFI55-80
This manual contains sections of Safety
Instructions,Operating Instructions,
Installation Instructions and Troubleshooting
Tips etc. Carefully reading it before using the
dishwasher will help you to use and maintain
the dishwasher properly.
To review the section on TroubleshootingTips
will help you to solve some common problems
by yourself and not need to ask for the help of
professional technicians.
..................1
ControlPanel........................2
DishwasherFeatures................. 2
WashCycleTable.................... 3
WaterSoftener...................... 4
Detergent...........................5
RinseAid......................... 5,6
Loading the Dishwasher Rack . . . . . . . . 6,7
TurningOntheAppliance..............7
FilteringSystem..................... 8
CaringfortheDishwasher.......... 9...
The manufacturer, following a policy of constant
development and up-dating of the product, may
make modifications without giving prior notice.
AboutElectricityconnection . . . . . . . . . . 9
AbouttheUnicouple.................10
WaterConnection...................10
Beforecallingforservice.......... 12
Under certain conditions, Hydrogen gas may be produced in a hot-water systemthat has not been
used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE.
If thehot-water system has not been used for such a period, before using the dishwasher turn on all
hot-water faucets and let the water flow from each for several minutes. Thiswillrelease any
accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this
time.
This appliance complies with international
safety standards, and is fitted with aplug with
earthconnectiontoensurecompleteearthing
of the product.
Before connecting the appliance to the mains
supply it is important to ensure:
That the supply socket is properly earthed.
That your electricity supply is capable of
meeting theconsumption requirements
listed on the rating plate of your appliance.
Ensure that your product is properly earthed. In the
absence of adequate earthing you willnotice that when
touchingthe metalparts of yourappliancean
electrical dispersion can be felt, due to the presenceof
a radio interference suppressor.
This appliance complies with Directives
89/336/EEC, 73/23/EEC and following changes.
Do not abuse, sit on, or stand on the door or dish
rack of the dishwasher.
Do not touch the heating element during or
immediately after use.
Do not wash plastic items unless they are marked
dishwasher safe or the equivale nt. For plastic
items not so marked, check the manufactures
recommendations.
Use only detergent and rinse additives designed
for an automatic dishwasher. Never use soap ,
laundry detergent, or hand washing detergent
in your dishwasher. Keep these products out of
children.
Keep child away from detergent and rinse aid, keep
child away from the open door of the dishwasher,
there could still be some detergent left inside.
The door should not be left in the open position
since this could present a tripping hazards.
During installation, the power supply must not
be excessively or dangerously bent or flattened.
Do not tamper with controls.
The applianceis not intended for use by young
children or infirm persons without supervision.
Dishwasher detergents are strongly alkaline,they
can be extremely dangerous if swallowed.Avoid
contactwithskinandeyesandkeepchildrenaway
from the dishwasher when the door is open.
Important: when the appliance location is on carpet
floors,attention mustbe paidso as to ensure that
there is no obstruction to the bottom vents.
Do not operate your dishwasher unless all
enclosure panels are properly inplace. Open the
door very carefully if the dishwasher is operating,
there is a risk of water squirting out.
Do not place any heavy objects of stand on the door
when it is open. The appliance could tip forward.
When loading itemsto be washed:
1) Locate sharp items so thatthey are not likely to
damage the door seal;
2) Load sharp kniv es with the han dles up t o reduce
the riskof cut-type injuries.
When using your dishwasher, you should prevent
plasticitem from contacting with heating element.
If the supply cord is damaged, it must be replaced
by the manufacturer or its service agent or a
similarly qualified person in order to avoid a
hazard.
Please dispose of packing materials properly.
Use the dishwasher only for its intended function.
Remove the door to the washing compartment when
removing an old dishwasher from service or discarding it.
Young children should be supervised to ensure that
they do not play with the appliance.
Check that the detergent receptable is empty after
completion of the wash cycle.
Cutlery is washed best if it is placed in the basket with
handles downwards.
Warning:
knives and other utensils withsharp points must be
loaded in the basket withtheir points down or placed in a
horizontal position.
1
To get the best performance from your dishwasher,read all operating instructions before using it for the
first time Keep this booklet safe for future reference.
1 2
Program indicator light:when you select washing
1
program,the correspond light will display.
Program Key-press:To selecte washing program
2
when press the Prongram Key-press.
Salt and Rinse Aid Warning Light: To come on when
3
the softener or dispenser needs to be refilled
(Certain model only).
3
1
4
Delay start time:To display booking time or the
4
washing temperature.
5
Delay key-press:The key to set the delay start
time.
Poweronlight:TocomeonwhenPowerON/OFF
6
Bouton is pressed down.
ON/OFF Button:To turn on/off the power supply.
7
6
5
7
7
2
3
4
5
6
1
2
3
Upper Basket
Spray Arms
Lower Basket
8
9
10
4
Water Softener
5
Detergent Dispenser
6
CupShelf
7
Silverware BasketMain Filter
8
Coarse Filter
9
2
11
10
Rinse Aid Dispenser
Drain pipe connector
11
Inletpipe connector
12
12
Normal
(IEC-EN 50242)
For normall y soiled loads,
such as , plates,glasses
and lightly soiled pans.
standard daily cycle.
pots
Pre-wash
Wash (50℃)
Rinse (65℃)
Drying
4/20 gr.
Strong
Economy
1Hour
Delicate
Rapid
For the heaviest soiled loads,
such as pots,pans,casserole
dishes and dishes that have
been sitting with dried food
on them for a while.
For lightly soiledloads,such
as plates,glasses,bowls and
lightly soiled pans.
Daily wash in only 1 hour.
Suitable for normal soiled dishes
that are to be washed straight
after a meal (max 6 plate settings).
For lightlysoiledloads,
such as glasses, crystal and
fine china.
A shorter wash for lightly
soiledloads(max4platesettings).
Pre-wash
Pre-wash (45℃)
Wash (70℃)
Rinse (75℃)
Drying
Pre-wash
Wash (45℃)
Rinse (65℃)
Drying
Pre-wash (30℃)
Wash (70℃)
Rinse (65℃)
Drying
Wash (45℃)
Rinse (65℃)
Drying
Wash (50℃)
Rinse (55℃)
Drying
8/24 gr.
4/20 gr.
20 gr.
20 gr.
15 gr.
Soak
Your dishwasher has an overfill protection device which could automatica lly shuts offthe inlet valve and starts the drain pump
if the water overflow. If this occurs, turn off the main water supply before calling a servicing. Ifthere is waterin the basepan
because of an overfill or small leak, the water should be removed before restarting the dishwasher.
To rinse dishes that you
plan to wash later that day.
Pre-wa sh
3
If your model have not water softener, you may skip this section.
There are two ways to reduce the hardness: one way is using water softener, the other is using
water
detergent.
The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes
and utensils.
The appliances is equipped with a specialsoftener that uses a salt specifically designed to eliminate lime and minerals from the
water.
Always use salt intended for use with dishwashers.
The salt container is located beneath the lower rack and should be filled as follows:
Remove the lower basket and then unscrew and remove the cap from the salt
1
container.
If you are filling the container for the first time ,fill 2/3 of its volume with water.
2
3
Place the end of the funnel(supplied) into the hole and introduce about 2kg of
salt .It is normal for a small amount of water to come out of the salt container
4
Carefully screw the cap back on.
1.
The salt container must be refilled when the salt warninglight comes on. Though the salt container is filled
enough, the indicator light may not black out before the salt fully dissolve.
2.
If there are spills of the salt, a soak program could be run to wipe them out.
The dishwasher is designed to allow for adjusting the amount of salt consumed based on the hardness of the water used.
This is intended to optimize andcustomize the levelof salt consumption so thatthe salt consumption could be set proceedas
follows:
Unscrew the cap from the salt container.
1
There is a ring on the container with an arrow on it (see Figure to the side), if
2
necessary, rotate the ring in the anticlockwise direction from the "-" Setting
toward the "+" sign, based on the hardness of the waterbeing used.It is
recommended that adjustments should be made in accordance with the following
schema:
WATER HARDNESS
°fH
0~10 0-5 0-1.0
10~25
25~50 14-28 2.5-5.0 MED 40 40
>50 >28 >5.0
dH
5-14 1.0-2.5
mmol/l
Selector
Position
-
/
+
Salt consumption
(gram/cycle)
0
20 60
60 25
Auto nomy
(cycles/2kgs)
/
Contact your local water board for information on the hardness of your water supply.
4
YOU MAY NOT ADD TOO MUCH DETERGENT TO PREVENT THE FORMATION OF DEPOSITS BECAUSE YOURDISHWASHERS
HAVE SPECIALLY-DESIGNED WATER SOFTENERS.
The dispenser must be refilled before the start of each wash cycle following the instructions provided in the" Wash Cycle
Table".Your dishwashers than conventional dishwashers. Generally, only one tablespoon of
detergent is needed for a normal wash load. Also, more heavily soiled items need more detergent. Always add the detergent just
before starting dishwasher,otherwise it could get damp and will not dissolve properly.
IF THE WATER ISN'T TOO HARD, YOU MAY ALSO PREVENT THE FORMATION OF DEPOSITS BY ADDING DETERGENT.
The amount of detergent needed can vary due to differencesin waterhardness. To determine the water hardness in your area,
contact your local water utility or area water softening company. The harder the water, the more detergent you may need.
Remember, you should adjust the amount of detergent you use by small amounts until you find the correct amount.
use less detergent and rinse aid
To remove har d water spots, try the following:
Run dishes through a normal wash program.
Remove all metal dishware, such as cutlery, pans, etc.,
from the dishwasher.
Do not add detergent.
Pour twocups of vinegar into a bowl and set the bowl face
up on the lower rack of the dishwasher.
Runthe dishes through a normal wash program.
If this doesn't work, try the same proc ess with 1 / 4 cup of
citric acid crystals instead of vinegar.
Dishwasher detergent is corrosive! Take care to keep it out
of reach of children.
To open the dispenser, turn the cap to the "open" (left)
arrow and lift it out.
Pour the rinse aidinto the dispenser, being careful not to
overfill.
Replace the cap by inserting it aligned with "open" arrow
and turning it to the closed (right) arrow.
Use only detergent specifically made for use in dishwashers.
Keep your detergent fresh and dry. Don't put powder detergent
into the dispenser until You're ready to wash dishes.
The rinse aid is released during the final rinse to prevent water
from forming droplets on your dishes thatcan leave spots and
streaks. It also improves drying by allowing water to "sheet" off
the dishes.
Your dishwashe rs are designed to use liquid rinse aids. The
rinse aid dispenser is located inside the door next to the
detergentdispenser. To fill the dispenser, open the cap and
pour the rinse aid into the dispenser until the level indicator
turns completely black. The dispenser holds about 100 ml of
liquid rinse aid.
Be careful notto overfillthe dispenser, because thiscould
cause oversudsing. W ipe away any spills with a damp cloth.
Don't forget to replace the cap before you close the dishwasher
door.
If you have soft water, you may not need rinse aid for it may
cause awhite filmto develop on your dishes.
A measured amount of rinse aid is released during the final rinse. As with detergent, the amount
of rinse aid needed for your dishes depends on the hardness of the water in your area. Too much
rinse aid can result in lather offoaming and cause cloudiness or steaks on your dishes. If the
water in your area is very soft,you may not need rinse aid. If you do,you can dilute the rinse aid
with an equal amount of water.
The rinse aid dispenser has six settings. Always start with the dispenser set on " 1 ". If spots and
poor drying are problems, increase the amount of rinse aid dispensed byremoving the dispenser
lid and rotating the dial to "2". If the dishes still are not drying properly or are spotted, adjust the
dial to the next higher number until your dishes are spot-free. We suggest you to set on "4" .
If only four settings we suggest you set on "2".
5
If there is no rinse aid warning light in the control panel, you can judge the amountof rinse aid by the following means.The
black dot on the rinse aid dispenser indicates the amount of rinse aid inthe dispenser.As the rinse aid diminishes, the size of
the black dot decreases. You should never let the rinse aidget below 1 / 4 full.
Astherinseaiddiminishes,the size of the blackdot on the rinse
aid level indicator changes, asillustrated below.
Full
3/4full
1/2full
1 /4 full - Should refill toeliminate spotting
Empty
The upper rack is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cupand saucers, as well
as plates, small bowls and shallow pans(as long as they are not too dirty).
Position thedishes and cookware so that they do not get moved by the spray of water.
The upper rack can be adjusted for height by puttingwheels of different height into the rails.
Cups
2
1
1
2
Small serving bowl
Large servingbowl
6
3
5
3
4
5
6
Glasses
Saucers
Dish
4
We recommendthat you placelarge items whichare most difficult to clean into the lower rack: pots, pans, lids,
serving dishes and bowls, as shownin the figureto the right.
It is preferable to place serving dishes and lids on the side of the racks in order toavoid blocking the rotation of the
top spray arm.
Pots, serving bowls, etc, must always be placed top down.
Deep pots should be slanted to allow water to flow out.
The bottom rack feature fold down tine rows so that larger or more pots and pans can be loaded.
2
2
5
1
3
4
1
Oval platter
Dessert dishes
2
Soup plates
3
Dinner pla tes
4
Silverware basket
5
6
Silverware should be placed in the silverware bask et with handles at the bottom: If the rack has side baskets, the spoon should
be loaded individually into the appropriate slots, Especially long utensils should be placed in the horizontal position at the
front of the upper rack.
5
3
1
4
5
1
4
5
4
3
4
4
6
8
4
4
4
3
1
5
1
3
5
1
1
1
5
3
5
1
3
5
2
2
3
3
2
2
2
2
2
2
7
7
Teaspoons
1
Dessert spoons
2
Soup spoons
3
Forks
4
Knife
5
Serving fork
6
Serving spoon
7
8
Gravy ladle
Do not let any item extend throughbottom.
Program indicator light
Make sure that theplug 0f the appliance is inserted into the wall socket.
1
Make sure that the water supply is turned on to full press ure.
2
3
Load the dishwasher(see the section entitled, " Loading the Dishwasher " ).
4
Pour in the detergent(se e the section entitled, " Salt, Detergent and RinseAid").
Open thedoor,press the ON/OFF button,and the ON/OFF light will turn on.
5
Press the "prog key-press" to select the "Washcycle".(see the section entitled."Wash Cycle Table".)
6
7
Close the door,the washing will start after ten second.
Press the key to set the start time.This dishwasher can be delayed to start for 1 to 24 hours,and the
8
display window beside the delay key can indicate the remaining time.If you want to cancel thedelay start,
just press the key to make the remaining time become 0.
Premise
have already been released, and the appliancemay have already drained the wash water. If this is the case, the detergent dispenser
must be refilled (seethe paragraph entitled " Loading theDetergent " ).
Open the door,Press the "Prog key-press" more than threesecond,then you can change the program to the desired cycle setting
(see the sectionentitled, " Startinga wash cycle. . . " ).Then, close the door.
When the washing cycle has finished,the buzzer of dishwasher will mooing eight second,then stop.Turn off the appliance usingthe
ON/OFF button,open the door of the dishwa sher. Wait a few minutes before unloading the dishwasher to avoid handling the dishes
and utensils while theyare still hot and more susceptible tobreakage. Theywillalsodrybetter.
: A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may
dely
Program key-press
Delay key-press
A forgotten dish can be added any time before the detergent cup opens.
Open the door a little to stop the washing.
1
After the spray arms stop working,you can open the door
2
completely.
It is dangerous to open the door when washing,because the hot water may be scaldedtoyou.
3
Add forgotten dishes.
4
Close the door, the dishwasher will work after ten second.
7
The filter prevent larger remnants of food or other objects from getting inside the pump. This residue can
occasionally clog up the filters.
The filter system consists of a filter cylinder(Coarse filter),
A flat (Main filter) and a microfilter(fine filter).
1
2
3
2
1
3
Reconnect the water inlet to the
4
water valve.
Main filter
Food and soil particles trapped by this filter are pulverized by a
special jet on the lower spray arm and washed down the
drain.
Coarse filter
Larger items, such as pieces of bone or glass, that could clog
the drain are trapped in the coarse filter. To remove an item
caught in this filter, gently squeeze the taps on the top of this
filter and lift it out.
Fine filter
This filter holds soil and food residue in the sump area and
prevents it from being redeposit on the dishes during a cycle.
If your dishwasher is left in an unheated place during the winter, ask a service technician to:
1
Cut off electrical power to the dishwasher. Remove
fuses or trip circuit breaker.
pipe
2
Turn off the water supply and disconnect the water
inlet pipe from the water valve.
Drain water from the inlet and water valve.pipe
Uncrew
It is necessary to clean the spray arms regularly for hard water chemicalswill clog the spray arm jets and bearings. To remove the
spray arm, screwoff the nut to take out the washeron top of the spray arm and remove the arm. Wash the arms in soapy and warm
water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.
3
(Use a pan to catch the water.)
Filter assembly
For best performance and results, the filter assembly must be cleaned.
The filter efficientlyremoves foodparticlesfrom thewash water, allowing it tobe
recirculated during the cycle. For this reason, it is a good idea to remove the larger
food particles trapped inthe filter after each wash cycle by rinsing the semicircular
filter and cup under running water. To remove the filter assembly, pull on the cup
handle in the upward direction. The entire filter assembly should be cleanedat least
once a month.
To clean the coarse filter and the fine filter, use a cleaning brush. Then, reassemble
the filter parts as shown in the figures left and reinsert the entire assembly in the
dishwasher, positioning in its seat and pressing downward.
The dishwasher must never be used without the filters. Improper replacement of the
filter may reduce the performance level of the appliance and damage dishes and utensils.
Remove the plastic sump cover in the
5
tub the bottom and use a sponge to
soak up water in rubber boot.
Never run the dishwasher without the filters in place.
8
To clean the edge around the door, you should use onlya soft warm, damp rag. Toprevent
To clean the edge around the door, you should use onlya soft warm, damp rag. Toprevent
penetration of water into the door lock and electrical components, do not use a spray cleaner
penetration of water into the door lock and electrical components, do not use a spray cleaner
of any kind.
of any kind.
Also, never use abrasive cleaners or scouring pads on the outer surfaces because they will
Also, never use abrasive cleaners or scouring pads on the outer surfaces because they will
scratch the finish. Some papers towels can also scratchor leave marks on thesurface.
WQP8-9325
WQP8-9325
P
P
Never use a spray cleaner to clean the door panel for it could damage the door lock and electrical components. It is not allowed
Never use a spray cleaner to clean the door panel for it could damage the door lock and electrical components. It is not allowed
to use the abrasive agent or some paper towel becauseof the risk of scratching or leaving spots on the stainless steel surface.
to use the abrasive agent or some paper towel becauseof the risk of scratching or leaving spots on the stainless steel surface.
88
88
scratch the finish. Some papers towels can also scratchor leave marks on thesurface.
Something will occasionally move into the filters and the drain pump. If this occurs, the drain
Something will occasionally move into the filters and the drain pump. If this occurs, the drain
pumpsemployed inyour dishwashersare designed to automatically reverse, ejecting the
pumpsemployed inyour dishwashersare designed to automatically reverse, ejecting the
item back into the sump area or down the drain. If you have toremove an obstacle from the
item back into the sump area or down the drain. If you have toremove an obstacle from the
drain pump,before you remove the filters, you should turn off thepower; Thenremove the
drain pump,before you remove the filters, you should turn off thepower; Thenremove the
small black insert from the sumparea. (You might want to remove any standingwaterfirst).
small black insert from the sumparea. (You might want to remove any standingwaterfirst).
Scoop out the item that is probably in the sump area and causes the obstruction. Remember
Scoop out the item that is probably in the sump area and causes the obstruction. Remember
to replace the black insert before you put the filters back in.
to replace the black insert before you put the filters back in.
After every wash, turn off the water supply to the
After every wash, turn off the water supply to the
applianceand leave the doorslightly ajar so that
applianceand leave the doorslightly ajar so that
moistureand odors are not trapped inside.
moistureand odors are not trapped inside.
Before cleaning or performing maintenance, always
Before cleaning or performing maintenance, always
remove the plug from the socket. Do not runrisks.
remove the plug from the socket. Do not runrisks.
To clean the exterior and rubber parts of the dishwasher,
To clean the exterior and rubber parts of the dishwasher,
do not use solvents or abrasive cleaning products.
do not use solvents or abrasive cleaning products.
Rather, use only a cloth and warm soapy water.
Rather, use only a cloth and warm soapy water.
Toremovespotsorstainsfromthesurfaceofthe
Toremovespotsorstainsfromthesurfaceofthe
interior, use acloth dampened with waterand a little
interior, use acloth dampened with waterand a little
white vinegar, or a cleaning product made specifically
white vinegar, or a cleaning product made specifically
for dishwashers.
for dishwashers.
Fused electrical supply is required-copper wire only.Time delay fuse or circuit breaker recommended and provide separate
Fused electrical supply is required-copper wire only.Time delay fuse or circuit breaker recommended and provide separate
circuit servingonly thisappliance.Outlet should be placed in adjacent cabinet.
circuit servingonly thisappliance.Outlet should be placed in adjacent cabinet.
Make sure that the plug on the appliance remains accessible after installation.
Make sure that the plug on the appliance remains accessible after installation.
When you go on holiday, it is recommened that you run a
When you go on holiday, it is recommened that you run a
wash cycle with the dishwasher empty and then remove
wash cycle with the dishwasher empty and then remove
the plug from the socket, turn off the water supply and
the plug from the socket, turn off the water supply and
leave the door of the appliance slightly ajar. This will help
leave the door of the appliance slightly ajar. This will help
the sealslast longerand preventodors from forming
the sealslast longerand preventodors from forming
within the appliance.
within the appliance.
If the appliance mustbemoved, try to keep it in the vertical
If the appliance mustbemoved, try to keep it in the vertical
position.If absolutely necessary, it can be positioned on
position.If absolutely necessary, it can be positioned on
its back.
its back.
Oneof the factors that causeodors to form in the
Oneof the factors that causeodors to form in the
dishwasherisfood that remainstrapped in the seals.
dishwasherisfood that remainstrapped in the seals.
Periodic cleaning with a damp spongewill prevent this
Periodic cleaning with a damp spongewill prevent this
from occurring.
from occurring.
After making sure that the voltage and the frequency values for the current in the home correspond to those
After making sure that the voltage and the frequency values for the current in the home correspond to those
on therating plate and that the electrical system is sized tor the maximum voltage on the rating plate, insert
on therating plate and that the electrical system is sized tor the maximum voltage on the rating plate, insert
the pluginto an electrical socket which is earthed properly. If theelectrical socket to which the appliance
the pluginto an electrical socket which is earthed properly. If theelectrical socket to which the appliance
must be connected is not appropriate tor the plug, replace the socket, installed byqualified electrician,rather
must be connected is not appropriate tor the plug, replace the socket, installed byqualified electrician,rather
then usingan adaptors.
then usingan adaptors.
9
9
If faucet has not threads: attach the faucet adapterto faucet, thentighten every screw
of the adapter. To prevent leaking your should tighten the adapter.
Pull Unicouple and its hoses completely out from storage compartment located at rear of dishwasher
1
andattachittothefaucetadapter.
Attach the Unicouple connector to the faucet adapter by depressing the collar at the top of the connector.
2
When Unicouple is all the way up onto the adapter, release the collar. It will then snap Into position to
lock the Unicouple in place. The Unicouple s small hose carries water from the faucet to the dishwasher.
Its large hose carries drain water to the sink. Be sure Unicouple is pointing toward the sink bowl drain
opening and the sink drain is open for water that will drain from your dishwasher. If your dishwasher
drains into a disposer, operate the disposer until it is completely empty before starting the dishwasher.
Connector of ModelⅠ
A hose that attaches to a sink spray can burst if it is installed on the same waterline as the dishwasher. If your sink has one, itis
recommended thet the hose bedisconnected and the hole plugged.
Turn off the water.
1
Release the water pressure by depressing the pressure release button. This relieves water pressure and protects you, and the
2
room, from severe splashing.
Release Unicouple from faucet by depressing the collar at the top of the Unicouple connector.
3
3
Turn water fully on before starting the dishwasher.
'
Remove the power cord plug from the wall receptacle.
1
Disconnect Unicouple from faucet adapter.
2
Connect the cold water supplyhose to athreaded 3/4(inch) connector and make sure that it is
fastened tightly in place.
If the water pipes are new or have not been used for an extended period of time, letthe water
runtomakesurethatthewaterisclearandfreeofimpurities.Ifthisprecaution is not taken,
there is a risk that the water inlet can getblocked and damage theappliance.
The watersupply to the appliance can also be connected to the house hot waterline
(centralized system, heating system),as long as it does not exceed a temperature of 60 C.
Connector of ModelⅡ
In this case, the wash cycle time will be shortened by about 15 minutes and thewash
efficiency slightly reduced.
The connection must be made to the hot water line following the same procedures as those
for the connection to the cold water line.
10
'
Fuse blown, or the
circuit breaker acted
Replace fuse or reset circuit breaker. Remove any other
appliances sharing the same circuit with the dishwasher
Power supply is not
turned on
Water pressure is low
Overflow
'
Some audible sounds are
normal
Utensils are not secure
in the baskets or something
small has dropped into
the basket
Motor hums Dishwasher has not been used regularly. If you do not use it
Improper detergent
Make sure the dishwasher is turned on and the door is
closed securely.
Make sure the power cord is properly plugged into the
wall socket.
Check that the water supply is connected properly and
the water is turned on.
The system is designed to detect an overflow. When it
does, it shuts off the circulation pump and turns on the
drain pump.
Sound from soft food shredding action and detergent cup
opening.
To ensure everything is secured in the dishwasher.
often, remember to set it to fill and pump out every week,
which will help keep the seal moist.
Use only the special dishwasher detergent to avoid suds.
If this occurs, open the dishwasher and let suds evaporate.
Add 4 litres of cold water to the tub. Close and latch the
dishwasher, then drain out the water by slowly turning the
Dial until a drain period is reached. Repeat if necessary.
Spilled rinse agent Always wipe up rinse agent
spills immediately.
Detergent with
colorant was used
Rinse agent dispenser
is empty
Improper program
Improper rack loading Make sure that the action of the detergent dispenser and
Extremely hard water
Low inlet
temperature
Overloading the
dishwasher
Improper loading
Old or damp powder
detergent
Empty rinse agent
dispenser
Incorrect dosage of
detergent
Make sure that the detergent is the one without colorant.
Make sure that the rinse agent dispense is filled.
Sel ect st ronger program
spray arms are not blocked by large dishware.
To remove spots from glassware:
Take out all metal utensils out of the dishwasher.
Do not add detergent.
Choose the longest cycle.
Start the dishwasher and allow it to run for about
18 to 22 minutes, then it will be in the main wash.
Open the door to pour 2 cups of white vinegar
into the bottom of the dishwasher.
Close the door and let the dishwasher complete
the cycle. If the vinegar does not work: Repeat
as above, except use 1/4 cup (60 ml)of citric acid
crystals instead of vinegar.
11
Combination of soft
water and too much
detergent
Tea or coffee stains using a solution of 1/2 cup of bleach and 3 cups warm water
Use less detergent if you have soft water and select a
shortest cycle to wash the glassware and to get them clean.
to remove the stains by hand.
You have to wait for 20 minutes after a cycle to let the heating
elements cool down before cleaning interior; otherwise, burns
will happen.
Iron deposits in water
can cause an overall film
Hard water minerals To clean the interior, use a damp sponge with dishwasher
Dial is not in the
'
position
Dishes block detergent
cups
Normal phenomenon
Aluminum utensils have
rubbed against dishes
This is normal A small amount of clean water around the outlet on
Overfill dispenser or rinse
aid spills
OFF
You have to call a water softener company for a special filter.
detergent and wear rubber gloves. Never use any other cleaner
than dishwasher detergent for the risk of foaming or suds.
Turn the Dial to
OFF position and slide the door latch to the
left.
Re-loading the dishes properly.
There is some steam coming through the vent by the door
latch during drying and water draining.
Use a mild abrasive cleaner to eliminate those marks.
the tub bottom at the back of the tub keeps the water
seal lubricated.
Be careful not to overfill the rinse aid dispenser.
Spilled rinse aid could cause oversudsing and lead
to overflowing. Wipe away any spills with a damp cloth.
Dishwasher isn t level
'
Make sure the dishwasher is level.
12
HFI55-80
●
Notes
Carefully read this manual before installation
Reading this manual will help to understand the connections of inlet, drain hoses and
power cord, and to find a optimal position for the dishwasher.
The installation of the pipes
and electrical equipments
should be done by professionals.
Electrical Shock Hazard
Disconnect electrical power before
installing dishwasher.
Failuretodosocanresultindeathor
electrical shock.
●
Installation preparation
The installation position of dishwasher should be near the existing inlet and drain hoses and
power cord.
One side of the cabinet sink should be chosen to facilitate the connection ofdrainhosesof
the dishwasher.
Note: please check the accompanying installation accessories(hook for aesthetic panel
,screw)
●
Installation instruction
Please carefully read the installation instruction.
●Illustrations of cabinet dimensions and installation position of the dishwasher
Preparations should be made before moving the dishwasher to the installation place.
1
Choose a place near the sink to facilitate the installation of inlet and drain hoses
(see figure 1).
2
If dishwasher is installed at the corner of the cabinet, there should be some space
(illustrated in figure 2) when the door is opened.
1

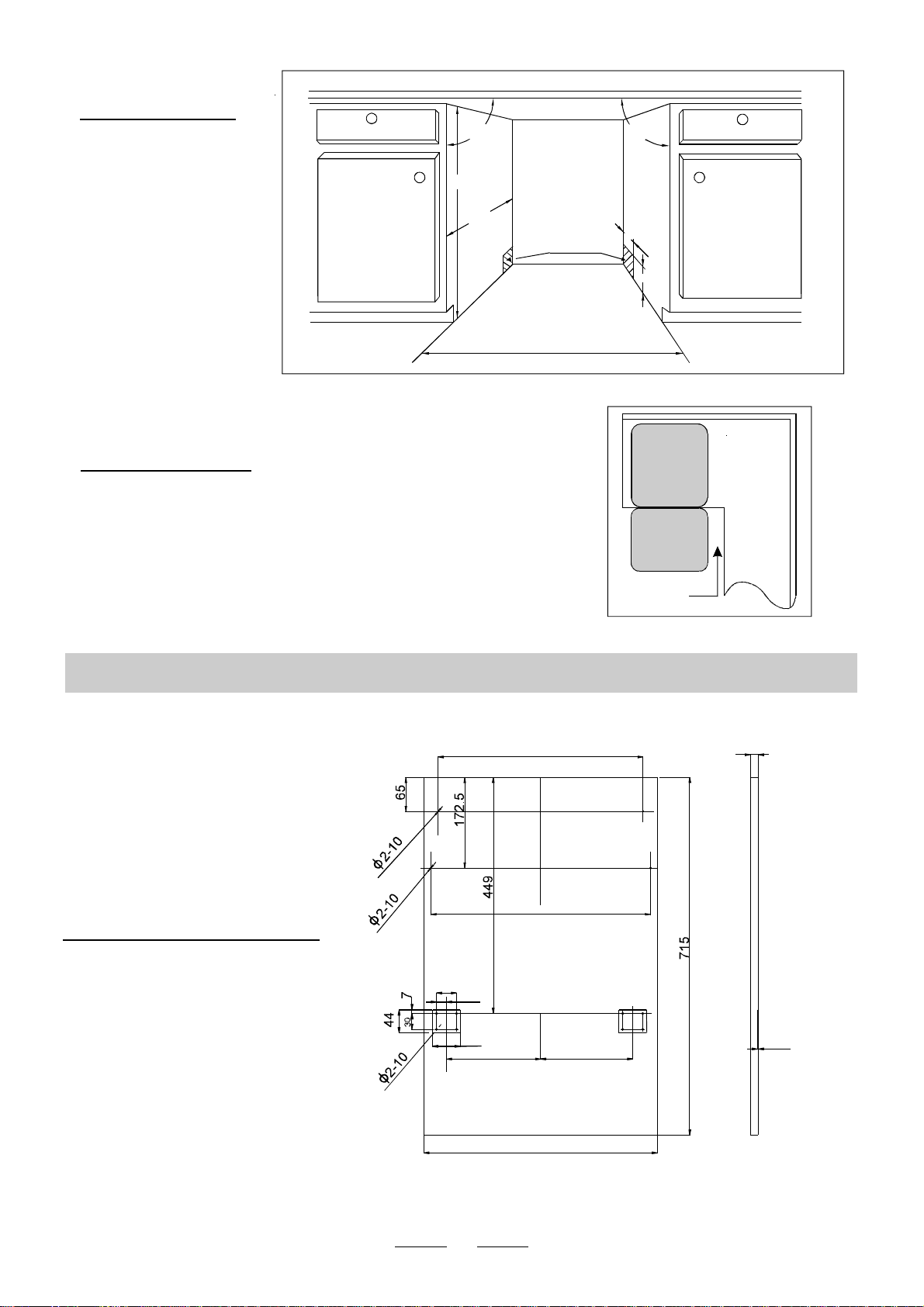

【Figure1】
Cabinet dimensions
Less than 5mm
between the top
of dishwasher and
cabinet and the
outerdooraligned
to cabinet.
820mm
580mm
90 °
Openin gen voor de
stroomtoevoer ende
aan- en afvoerleidingen
Ruimte tussen onderkant kast
en v l oer
450 mm
90 °
80
100
【Figure
2】
Minimum space when
thedoorisopened
Minimum space of 50mm
●
Aesthetic panel's dimensions and installation
The aesthetic wooden panel could be processed according to the figure 3
1
390
Dishwasher
Cabinet
Door of
dishwasher
15
【Figure3】
The aesthetic panel should
be processed in accordance
with the illustrated dimensions
(Unit: mm)
38
418
19
52
179
175
445
1.5
2
2
Install the hook on the aesthetic wooden panel and put the hook into the slot of the outer door of
dishwasher(see figure 4a). After positioning of the panel , fix the panel onto the outer door by
screws and bolts(See figure 4b) .
Top hook
【Figure
4a】
Installation of aesthetic panel
St4 countersunk
head screw
Lower hook
【Figure4b】
Installation of aesthetic
wooden panel
.takeawaythecover
1
2
.pinupthescrew
. get back the cover
3
4X18 screw
Spacer for aesthetic panel
Outer door of
dishwasher
Cover
Hook for aesthetic panel
Aesthet ic panel
3
●
Tension adjustment of the door spring
The door springs are set at the factory to the proper tension for the outer door. If aesthetic
wooden panel are installed, you will have to adjust the door spring tension. Rotate the adjusting
screw to drive the adjustor to strain or relax the steel cable(see figure 5).
Door spring tension is correct when
the door remains horizontal in the
fully opened position，yet rises
toaclosewiththeslightliftofa
finger.
relax
【Figure
Tension adjustment
of the door spring
●
Connection of drain hoses
Insert the drain hose into a drain pipe with a minimum diameter of 4cm, or let it
run into the sink, making sure to avoid bending or crimping it. Use the speical
plastic support that comes with the appliance (figure 6). The free and of thehose
must be at a height between 400 and 1000mm and must not be immersed in water
to avoid the back flow of it.ATTENTION: The special plastic hose support must be
solidly fastened to the wall toprevent the drain hose from moving and allowing water
to spill outside the drain.
【Figure6】
Drain pipe connection
5】
Drainhosehook
φ40mm
4
●
Dishwasher installation steps
1
Install the aesthetic pannel on the outer door of the dishwasher.
2
Adjust the tension of door spring.
3
Connect the inlet, and drain hoses, and power cord .
4
Putthe dishwasher on slide-rails.
5
Push the dishwasher into the cabnet.
Level the dishwahser and touch the cabinet by adjusting the four leveling legs individually.6
Please adjust the height of left and right feet gradually.Don't let the machine incline too much.
7
Fixi the dishwasher into the cabinet by two countersunk head screw.
According to the arrow illustrated figure 7, adjust the feet to rise or low down the dishwasher
and keep it level.
2
6
6
5
3
1
Aesthetic
panel
【Figure
7】
Installation steps
5
Dishwasher must be level for proper dish rack operation and wash performance.
1
Place level on door and rack track inside the tub as shown to check that the
dishwasher is level.
level the dishwasher by adjusting the four leveling legs individually.
2
3
When level the dishwasher, pls. pay attention not to let the dishwasher tip over.
【Figure 8】
Illustration of feet adjustment
Check
Level
Front
to Back
Check level
side to side
●
Start of dishwasher
The followings should be checked before starting the dishwasher.
Whether the dishwasher is level and fixed
1
Whether the inlet valve is opened
2
3
Whether there is leakage at the connections of the conducts
Whether the wires are tightly connected
4
5
Whether the power is switched on
Whether the inlet and drain hoses are knotted
6
7
All packing materials and printings should be taken out from the dishwasher
●
Attention
After installation, please put this installation manual into the bags of printings. The content
of this manual is very helpful to the users.
6
The manufacturer, following a policy of constant
development and up-dating of the product, may make
modifications without giving prior notice.
Loading...
